Multi-component synthesis and invitro biological assessment of novel pyrrole derivatives and pyrano[2,3-c]pyrazole derivatives using Co₃O₄ nanoparticles as recyclable nanocatalyst

Abstract

In this study, Co₃O₄ nanoparticles were used as nanocatalyst for two different series of nitrogen-containing heterocyclic compounds, including pyrrole (Pyo) derivatives and pyrano [2, 3-c]pyrazole (Pya[2, 3-c]Pyz) derivatives. In the synthesis of derivatives, using 15 mol% and 10 mol% of the catalyst for Pyo derivatives and Pya[2, 3-c]Pyz derivatives, respectively, an efficiency between 83% and 96%, were observed. In addition, novel derivatives of Pyo and Pya[2,3-c]Pyz were synthesized and their structures were confirmed. In general, the advantages of using cobalt nanoparticles compared to previous reports include the synthesis of new derivatives, lower temperature used in the synthesis of derivatives, shorter synthesis time and high efficiency. The biological properties of the synthesized products, such as antibacterial, antifungal, and antioxidant properties, were tested and investigated. In antibacterial and antifungal tests, IZD, MIC, MBC, and MFC were measured and reported. In antioxidant activity, IC₅₀ was calculated and reported. High reusability, green and environmentally friendly, synthesis of new derivatives and synthesis of products with higher efficiency and shorter time were the important benefits of using cobalt nanoparticles as a catalyst. In antioxidant tests, the IC₅₀ for synthesized Pyo derivatives and Pya[2, 3-c] Pyz derivatives were between 12.2 and 13.71 μg/mL, and 16.18–17.75 μg/mL, respectively. In antimicrobial testes, the MIC for synthesized Pyo derivatives and Pya[2, 3-c]Pyz derivatives were between 2 and 4,096 μg/mL, and 2–2048 μg/mL, respectively. The results showed that the antioxidant property of Pyo derivatives were more than Pya[2, 3-c] Pyz derivatives, but the antimicrobial effect of Pya[2,3-c] Pyz derivatives were more than Pyo derivatives. The antioxidant results proved that the activity of Pyo derivatives and Pya[2, 3-c] Pyz derivatives does not depend on the substitutions of the derivatives and is close to each other. Therefore, based on this, a proposed mechanism for stability of DPPH by Pyo derivatives and Pya[2, 3-c] Pyz derivatives were suggested. Finally, based on the more stable resonance structures of Pyo derivatives, compared to Pya[2, 3-c] Pyz derivatives, its high antioxidant property was justified. Pya[2, 3-c] Pyz derivatives has two heterocyclic rings connected together pyrano and pyrazole, but Pyo derivatives has only one heterocyclic ring (pyrrole). So high antimicrobial property of Pya[2, 3-c] Pyz derivatives compared to Pyo derivatives can be attributed to having two bioactive heterocyclic rings.

1 Introduction

Pyrrole (Pyo) is a five-member heterocyclic compound with one nitrogen in its structure. Biological activity such as anticancer, antitumor, anti-inflammatory, antiviral, antimicrobial, antituberculosis, and antioxidant have been reported from compounds containing Pyo derivatives (Petri et al., 2020; Zhou et al., 2020; Boichuk et al., 2021; Rawat et al., 2021; Reddy et al., 2021; Jeelan Basha et al., 2022). Pyo derivatives were found abundantly in nature. For example, Pyo derivatives were found in marine-derived fungi, such as Penicillium citrinum and Aspergillus sclerotiorum (Seipp et al., 2021). The use of Pyo derivatives as solvents for resin, polymerization processes, and erosion inhibitors is prevalent in industries (Bhardwaj et al., 2015).

Another five-member heterocyclic compound that has two nitrogen atoms in positions one and two in its structure is pyrazole. Pyrazole derivatives are present in the construction of commercial drugs such as Celecoxib and Fomepizole (Alam et al., 2015). Other biological properties reported for this heterocyclic compound include anticancer activity, antiviral, antimicrobial activity, anticonvulsant and antidepressant activity, anti-inflammatory activity, and antimicrobial activity (Faria et al., 2017; Faisal et al., 2019). Many multi-ring structures containing pyrazole derivatives with five-member heterocyclic compounds, such as pyrazolopyridine derivatives, pyrazolopyrimidine derivatives, pyranopyrazole derivatives, etc., have been reported with biological properties (Faisal et al., 2019; Rao and Chanda, 2020; Biswas and Das, 2022).

Pyrano [2,3-c]pyrazole (Pya[2,3-c]Pyz) derivatives, which are formed by connecting two heterocyclic compounds of pyran and pyrazole, is a heterocyclic compound with outstanding biological properties that retain the properties of both heterocyclic compounds of pyrazole and pyran. Several methods have been reported for synthesizing Pya[2,3-c]Pyz derivatives, including, the use of various metals and metal oxides (Muthuraja et al., 2017; Veeramani et al., 2018; Vairaperumal et al., 2019). The previous literature demonstrated that this heterocyclic compound has various biological properties, including anticancer, anti-malarial agents, anticonvulsant, analgesic, antimicrobial, and anti-inflammatory (Biswas and Das, 2022).

Pyrans, which play an essential role in the properties of Pya[2,3-c]Pyz derivatives, are 6-membered heterocyclic compounds containing one oxygen. The most important natural compound containing pyran is vitamin E, essential for humans (Garazd and Garazd, 2016).

Several methods have been reported for Pya[2,3-c]Pyz derivatives and Pyo derivatives, but multicomponent reactions are the most important method and scientists have focused on it. Multicomponent reactions that are one-pot reactions align with the rules of green chemistry (Baral et al., 2020; Sikandar and Zahoor, 2021). In addition to the green nature of multi-component reactions, it is possible to mention the convenience of the synthesis steps of the final product, high efficiency, and cost-effectiveness in terms of economy, etc (Javahershenas and Nikzat, 2023). In multicomponent reactions, the suitable catalyst plays a key role (Costanzo et al., 2018; Rahimi et al., 2022).

Using metal oxide nanoparticles is a suitable option as a catalyst in these reactions (Damera et al., 2023; Soltani et al., 2023). Cobalt oxide nanoparticles are a good choice due to their high catalytic properties. This oxidized metal catalyst has been used in the synthesis of heterocyclic compounds and organic reactions such as, arylidene barbituric and Meldrum’s acid derivatives, benzochromenes derivatives, and Ugi adduct from aryl alcohols (Chacko and Shivashankar, 2017; Shahbazi et al., 2019; Yahyazadehfar et al., 2019; Kafi-Ahmadi et al., 2021).

Considering the importance of using green chemistry for the synthesis of Pyo derivatives and Pya[2,3-c]Pyz derivatives, with biological properties, novel Pyo derivatives and Pya[2,3-c]Pyz derivatives were synthesized using cobalt oxide nanoparticles as a green, efficient, and recyclable catalyst during a multicomponent reaction. In studying biological activities, in vitro antioxidant and in vitro antimicrobial properties of synthesized derivatives were evaluated.

2 Experimental

2.1 Materials and structure verification equipment

The required solvents, materials, and antibiotics were prepared from Merck and Sigma. The microorganisms studied were prepared from ATCC (American Type Culture Collection).

Fourier transform infra-red spectra of Co₃O₄ nanoparticles and synthesized derivatives were recorded using Nicolet IS10. The Shimadzu XRD-7000 was used for X-ray diffraction of Co₃O₄ nanoparticles. The scanning electron microscope image of Co₃O₄ nanoparticles using Gemini SEM 500 was prepared. The carbon and hydrogen nuclear magnetic resonance of synthesized derivatives using Bruker FT-NMR ultra shield- 400 spectrometer were obtained. The melting points of a synthesized compound using Electrothermal IA9200 were obtained. Element analysis of synthesized derivatives using Thermo FlashSmart CHNS/O elemental analyzer was done. The Shimadzu UV-3600 Plus was used in biological evaluations.

2.2 Synthesis of Co₃O₄ nanoparticles

To synthesize Co₃O₄ nanoparticles, in a flask containing 100 mL of double distilled water, 1 g pluronic F-127 was added and stirred (1,000 rpm) at room temperature for 30 min. Then add 100 mL of cobalt nitrate solution (0.1 M) and stir) at room temperature for 30 min. Drop by drop, add 100 mL of NaOH solution 2 M and stir at 100°C for 72 h. In the next step, methanol (100 mL) was added to the mixture and stirred at room temperature for 4 h. The mixture was kept at room temperature for 12 h. The sediments were separated using Whatman filter paper and washed with double distilled water until they reached pH 7. Sediments obtained dried in an oven at 100°C for 60 min. Finally, it was placed in a muffle furnace at a temperature of 500°C for 4 h (Sadasivan et al., 2013; Uddin and Baig, 2019).

2.3 Synthesis of pyrrole (pyo) derivatives

1 mmol cyclohexanamine or phenylmethanamine, 1 mmol dimethyl but-2-ynedioate or diethyl but-2-ynedioate were added to the 2 mL water/ethanol (1:1) and were stirred at room temperature for 15 min. To the mixture, 10 mol percent of Co₃O₄ nanoparticles, 1 mmol of formaldehyde and 1 mmol of aromatic amine nanoparticles were added and stirred at room temperature. After the completion of the reaction, which was monitored by TLC, acetone (5 mL) was added to the mixture, and by using Whatman filter paper, Co₃O₄ nanoparticles were separated. The desired product, which was in solution, was isolated by removing the solvents under vacuum at room temperature. A recrystallization technique in water/ethanol (1:1) was used to purify the synthesized derivatives.

Separated Co₃O₄ nanoparticles were washed thrice with ethanol and water and placed in the oven at 100°C for 24 h for reuse.

2.3.1 Ethyl 4-(benzylamino)-5-oxo-1-(p-tolyl)-2,5-dihydro-1H-pyrrole-3-carboxylate (5d)

Yield: 89%; White powder; FT-IR (KBr, cm^-1): 3,275, 1,672, 1,628, 1,564, 1,351; ¹H NMR (DMSO-d6, 400 MHz), δ (ppm):1.34 (t, J = 8.4 Hz, 3H, CH₃), 2.41 (s, 3H, CH₃), 3.26–3.29 (m, 2H, OCH₂), 4.41 (s, 2H, NCH₂), 5.14 (s, 2H, NCH₂), 6.69 (s, 1H, NH), 7.10 (d, J = 7.6 Hz, 2H, Ar-H), 7.25–7.32 (m, 7H, Ar-H); ¹³C NMR (DMSO-d6, 100 MHz), δ (ppm):14.7, 20.6, 46.1, 48.3, 51.4, 97.6, 119.8, 127.7, 127.2, 128.6, 129.2, 134.9, 136.3, 139.8, 164.5, 165.1; Element analysis. Calcd for C₂₁H₂₂N₂O₃: C, 71.98; H, 6.33; N, 7.99; O, 13.70; Found: C, 71.96; H, 6.31; N, 7.98; O, 13.75.

2.3.2 Ethyl 4-(benzylamino)-1-(4-methoxyphenyl)-5-oxo-2,5-dihydro-1H-pyrrole-3-carboxylate (5f)

Yield: 87%; Light yellow powder; FT-IR (KBr, cm⁻¹): 3,301, 1,682, 1,637, 1,549, 1,377; ¹H NMR (DMSO-d6, 400 MHz), δ (ppm): 1.29 (t, J = 7.4 Hz, 3H, CH₃), 3.34–3.38 (m, 2H, CH₂), 3.79 (s, 3H, OCH₃), 4.46 (s, 2H, NCH₂), 5.19 (s, 2H, NCH₂), 6.63 (s, 1H, NH), 6.87 (d, J = 8.4 Hz, 2H, Ar-H), 7.31–7.34 (m, 5H, Ar-H), 7.59 (d, J = 8.4 Hz, 2H, Ar-H); ¹³C NMR (DMSO-d6, 100 MHz), δ (ppm):15.16, 46.4, 48.5, 51.7, 55.9, 95.1, 114.6, 120.6, 121.3, 127.4, 127.8, 128.5, 131.2, 135.1, 157.6, 164.4, 165.7; Element analysis. Calcd for C₂₁H₂₂N₂O₄: C, 68.84; H, 6.05; N, 7.65; O, 17.46; Found: C, 68.87; H, 6.04; N, 7.63; O, 17.46.

2.3.3 Methyl 4-(cyclohexylamino)-5-oxo-1-(p-tolyl)-2,5-dihydro-1H-pyrrole-3-carboxylate (5k)

Yield: 92%; White powder; FT-IR (KBr, cm⁻¹): 3,324, 1,677, 1,625, 1,531, 1,386; ¹H NMR (DMSO-d6, 400 MHz), δ (ppm): 1.07–1.22 (m, 8H, CH₂), 1.41–1.47 (m, 2H, CH₂), 2.36 (s, 3H, CH₃), 3.17–3.22 (m, 1H, CH), 3.71 (s, 3H, OCH₃), 4.35 (s, 2H, NCH₂), 6.54 (s, 1H, NH), 7.11–7.16 (m, 2H, Ar-H), 7.51–7.58 (m, 2H, Ar-H); ¹³C NMR (DMSO-d6, 100 MHz), δ (ppm): 20.5, 24.3, 25.6, 34.5, 48.5, 50.7, 59.3, 100.5, 119.7, 129.3, 134.2, 136.1, 164.3, 165.6; Element analysis. Calcd for C₁₉H₂₄N₂O₃: C, 69.49; H, 7.37; N, 8.53; O, 14.61; Found: C, 69.51; H, 7.35; N, 8.49; O, 14.65.

2.4 Synthesis of pyrano [2,3-c]pyrazole (Pya[2,3-c]Pyz) derivatives

10 mol percent of Co₃O₄ nanoparticles, 1 mmol ethyl acetoacetate, 1 mmol phenylhydrazine were added to the 2 mL water/ethanol (1:1) and were stirred at 50°C. After the completion of the reaction, which was monitored by TLC, 1 mmol of malononitrile and 1 mmol of aldehyde were added and stirred at 50°C. After the completion of the reaction, which was monitored by TLC and cooled to room temperature, acetone (5 mL) was added to the mixture, and by using Whatman filter paper, Co₃O₄ nanoparticles were separated. The desired product, which was in solution, was isolated by removing the solvents under vacuum at room temperature. A recrystallization technique in water/ethanol (1:1) was used to purify the synthesized derivatives.

Separated Co₃O₄ nanoparticles were washed thrice with ethanol and water and placed in the oven at 100°C for 24 h for reuse.

2.4.1 6-amino-3-methyl-1-phenyl-4-(3, 4, 5-trimethoxyphenyl)-1,4-dihydropyrano [2,3-c]pyrazole-5-carbonitrile (10e)

Yield: 90%; Light yellow powder; FT-IR (KBr, cm^-1): 3,431, 3,392, 3,112, 2,946, 2,911, 2,197, 1,663, 1,521, 1,452, 1,327, 1,232, 1,146; ¹H NMR (300 MHz, DMSO-d6) δ = 1.91 (s, 3H, CH₃), 3.75 (s, 3H, OCH₃), 3.79 (s, 3H, OCH₃), 3.82 (s, 3H, OCH₃), 4.96 (s, 1H, -CH), 6.92 (s, 2H, Ar-H), 7.38 (s, 2H, NH₂), 7.65–7.79 (m, 5H, Ar-H); ¹³C NMR (75 MHz, DMSO-d6) δ = 11.4, 33.9, 54.7, 55.3, 56.5, 59.6, 98.8, 111.7, 111.9, 119.7, 121.7, 122.3, 126.1 128.6, 129.4, 131.9, 137.7, 144.6, 145.5, 147.3, 148.7, 150.1, 163.2; Anal. Calcd for C₂₃H₂₂N₄O₄: C, 66.02; H, 5.30; N, 13.39; O, 15.29. Found: C, 66.05; H, 5.27; N, 13.42; O, 15.26.

2.4.2 6-amino-4-(3-hydroxy-4-methoxyphenyl)-3-methyl-1-phenyl-1,4-dihydropyrano [2,3-c]pyrazole-5-carbonitrile (10g)

Yield: 87%; yellow powder; FT-IR (KBr, cm^-1): 3,429, 3,301, 32,778, 3,106, 2,981, 2,937, 2,144, 1,652, 1,557, 1,474, 1,360, 1,237, 1,118; ¹H NMR (300 MHz, DMSO-d6) δ = 1.78 (s, 3H, CH₃), 3.65 (s, 3H, OCH₃), 4.85 (s, 1H, CH), 6.59 (d, 1H, J = 8.4 Hz, Ar-H), 6.62 (s, 1H, Ar-H), 6.71 (d, 1H, J = 8.4 Hz, Ar-H) 7.24 (s, 2H, NH₂), 7.35–7.76 (m, 5H, Ar-H), 8.67 (s, 1H, OH); ¹³C NMR (75 MHz, DMSO-d6) δ = 13.4, 36.5, 55.9, 99.6, 112.7, 115.8, 117.1, 120.4, 121.7, 126.2, 129.5, 130.1, 135.2, 138.5, 144.7, 145.6, 146.1, 152.1, 160.8; Anal. Calcd for C₂₁H₁₈N₄O₃: C, 67.37; H, 4.85; N, 14.96; O, 12.82. Found: C, 67.40; H, 4.83; N, 14.98; O, 12.79.

2.5 In vitro antioxidant evaluation of derivatives

By using the DPPH method, invitro antioxidant evaluation of derivatives was tested. For this purpose, previously reported methods were used, and the initial concentration of derivatives was 25, 50, 75, and 100 μg/mL in methanol (Bhaskara Reddy et al., 2015; Hosseinzadegan et al., 2020a). In the evaluations, Eq. 1 was used for the percent inhibition of the derivatives.

Calculation of percent inhibition (I %) of DPPH free radical by derivatives.

2.6 In vitro antimicrobial evaluation of derivatives

The CLSI (Clinical and Laboratory Standards Institute) standards and guidelines to evaluate the antimicrobial and antifungal activity of the derivatives were used. For this purpose, previous studies were used, and Inhibition Zone Diameter, Minimum Inhibitory Concentration, Minimum Bactericidal Concentration, and Minimum Fungicidal Concentration were reported after the tests. The microorganism strains used were Escherichia coli, Proteus mirabilis, and Yersinia enterocolitica as Gram-negative bacteria, Bacillus cereus, Staphylococcus aureus, and Rhodococcus equi as Gram-positive bacteria, and Candida albicans, Aspergillus fumigatus, and Fusarium oxysporum as fungal (Etemadi et al., 2016; Moghaddam-Manesh et al., 2020; Abdieva et al., 2022).

3 Results and discussion

3.1 Verification of the structure and characterization of Co₃O₄ nanoparticles

Co₃O₄ nanoparticles, which were synthesized by the previously reported method using cobalt nitrate and Pluronic F-127 (Sadasivan et al., 2013; Uddin and Baig, 2019)., were used as catalysts for the synthesis of pyrrole (Pyo) derivatives and pyrano [2,3-c]pyrazole (Pya[2,3-c]Pyz) derivatives after confirming the structure. FTIR spectrum, XRD pattern, BET analysis, XPS analysis, DLS analysis, SEM, and TEM images were used to verify the structure and characterization of Co₃O₄ nanoparticles.

In the FTIR spectrum of Co₃O₄ nanoparticles (Figure 1), Peaks related to Co(III)–O and Co(II)–O were observed in regions 534.25 cm⁻¹ and 686.47 cm⁻¹ (Salavati-Niasari et al., 2009).

FIGURE 1

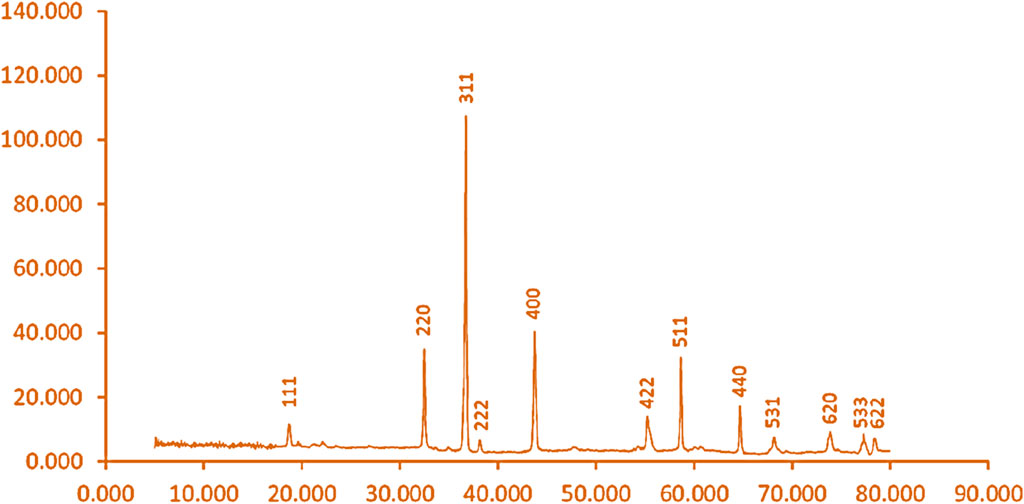

Using the XRD pattern of synthesized Co₃O₄ nanoparticles (Figure 2) and the Scherrer equation, the size of nanoparticles 31 nm was calculated. The peaks at 19.44°, 31.66°, 37.48°, 38.87°, 45.27°, 55.75°, 59.48°, 65.31°, 68.46°, 74.12°, 77.73°, and 78.35° due to plates to [111], [220], [311], [222], [400], [422], [511], [440], [531], [620], [533], and [622] in XRD pattern of synthesized Co₃O₄ were observed. The cubic Co₃O₄ spinel oxide and JCPDS card number 1467–42, for synthesized cobalt oxide nanoparticles, were observed in the XRD pattern (Sadasivan et al., 2013; Uddin and Baig, 2019).

FIGURE 2

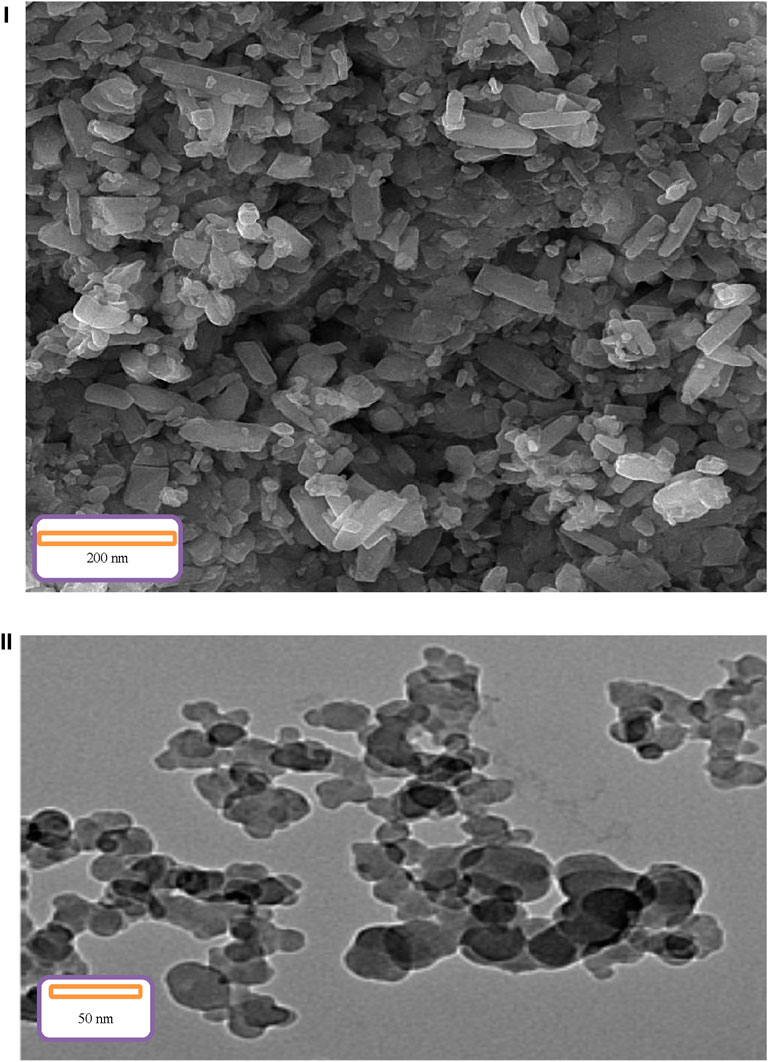

The same morphology of the synthesized Co₃O₄ nanoparticles was proved by using SEM and TEM images (Figure 3).

FIGURE 3

Based on the TEM image, the samples gradually move from the tube state to the plate state, which indicates the completion of the nucleation cycle. According to information in SEM and TEM images, there are no evidences of agglomeration in the structures. It can be related to optimal preparation rout of the final products as well as the proportions of initial materials used in the procedure (Mirhosseini et al., 2022).

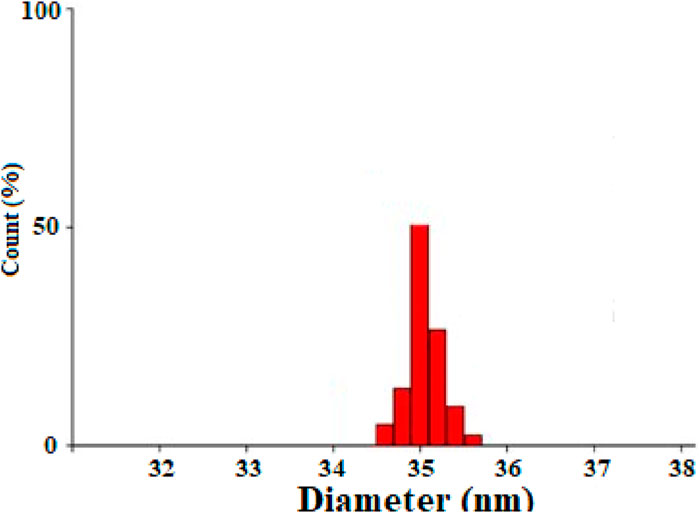

The particle size distribution of Co₃O₄ nanoparticles (Figure 4) was measured using dynamic light scattering (DLS) technique, and the average size of cobalt nanoparticles was 35 nm.

FIGURE 4

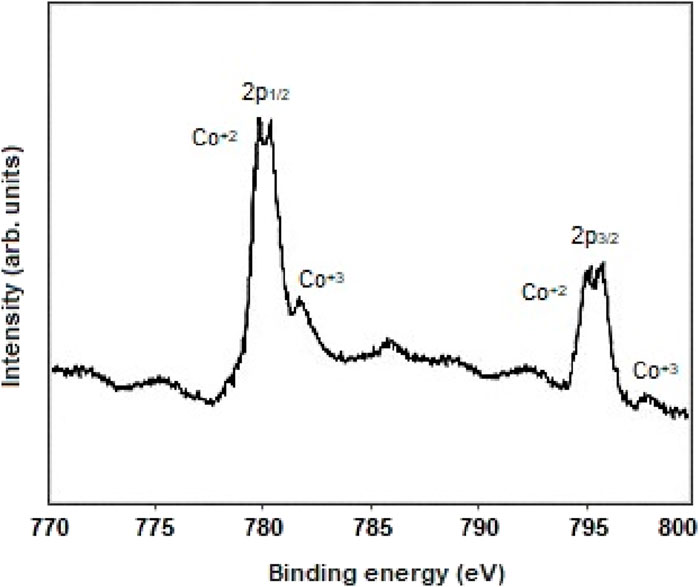

Figure 5 shows X-ray photoelectron spectroscopy analysis (XPS) of Co₃O₄ nanoparticles. The binding energy peaks related to the 2p_1/2 of Cobalt and the 2p_3/2 of Cobalt were observed in 780.1 eV and 795.4 eV, respectively (Fan et al., 2016; Yang et al., 2016; Aboelazm et al., 2018).

FIGURE 5

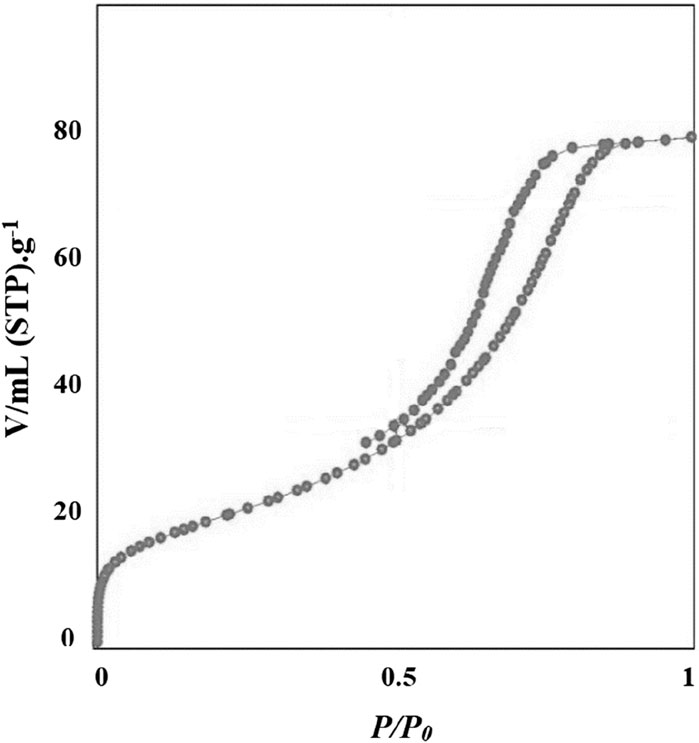

The nitrogen adsorption/desorption isotherms of Co₃O₄ nanoparticles are shown in Figure 6.

FIGURE 6

Based on the analysis, nitrogen adsorption/desorption isotherms were IV-type (Alfaifi et al., 2023) and its surface area was 18.21 m² g⁻¹. The pore diameter, and pore volume of Co₃O₄ nanoparticles were 36.12 nm and 0.12 cm³ g⁻¹, respectively. The surface area is an important factor in the properties and activity of nanoparticles and depends on their synthesis method (Khan et al., 2019). As the surface area increases, the contact surface of the nanoparticle increases, thereby increasing its reactivity (Tee et al., 2022). So, the high surface area of Co₃O₄ nanoparticles can increase its catalytic properties.

3.2 The results of the synthesis of pyrrole derivatives and pyrano [2,3-c]pyrazole derivatives

After confirming the structure of Co₃O₄ nanoparticles, their catalytic application was investigated in the synthesis of pyrrole (Pyo) derivatives and pyrano [2,3-c]pyrazole (Pya[2,3-c]Pyz) derivatives.

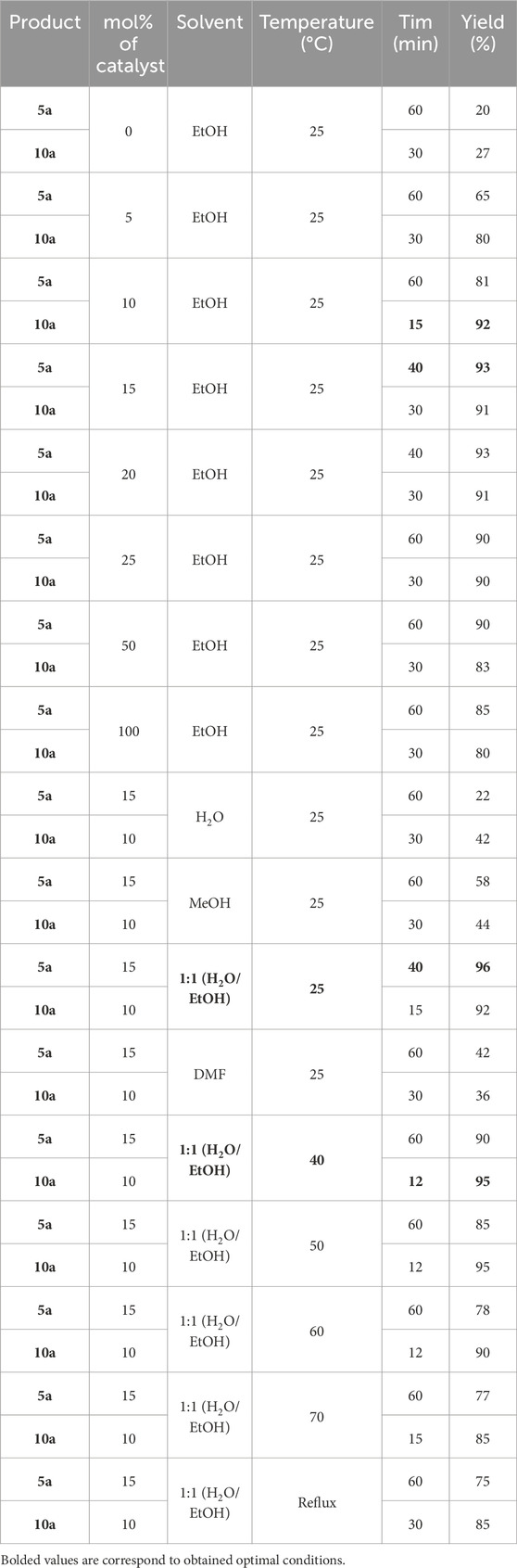

The optimization of reaction conditions, such as mol% of catalyst, solvent, and reaction temperature, was conducted to synthesize derivatives with the highest efficiency and conditions. For this purpose, the solvent and reaction temperature were maintained constant (ethanol solvent, room temperature), and the reactions were examined in conditions without catalyst, 5, 10, 15, 20, 25, 50, and 100 mol% of catalyst. The highest efficiency for synthesizing Pyo and Pya[2,3-c]Pyz was obtained when 15 mol% and 10 mol% of catalyst were used, respectively. Then, at a temperature of 25°C, the amount of 15 mol% of catalyst in the synthesis of Pyo and 10 mol% of Co₃O₄ nanoparticles in pyrano [2,3-c]pyrazole, using solvents of water, methanol, ethanol, 1:1 water/ethanol mixture, and dimethylformamide (DMF), reactions were carried out. The highest efficiency obtained in the reactions was when a 1:1 water/ethanol mixture was used. Finally, by keeping the amount of catalyst constant according to the previous step and using water/ethanol mixed solvent, the reactions were evaluated at 40°C, 50°C, 60°C, 70°C and reflux temperatures. The synthesis of Pyo at 25°C and Pya[2,3-c]Pyz at 40°C had the highest efficiency. The evaluation results are given in Table 1 for synthesizing Pyo and pyrano [2,3-c]pyrazole.

Therefore, the optimal conditions, including using a 15 mol% catalyst, a 1:1 mixture of water/ethanol, and a temperature of 25 °C, were used to synthesize other Pyo derivatives (Table 2).

TABLE 2

Product	R1	R2	Aryl	Structure	Time (min)	Yield (%)	Mp (°C)
							Found	Reported
5a	−CH2-C6H5	Me	-C6H5		40	96	141–142	140–141 (Khan et al., 2012)
5b	−CH2-C6H5	Et	-C6H5		45	95	129–131	131–133 (Mohamadpour, 2022)
5c	−CH2-C6H5	Me	4-Me-C6H4		55	95	144–146	145–147 (Khan et al., 2012)
5d	−CH2-C6H5	Et	4-Me-C6H4		90	89	152–154	Novel
5e	−CH2-C6H5	Me	4-OMe-C6H4		90	86	126–128	125–127 (Nickraftar et al., 2016)
5f	−CH2-C6H5	Et	4-OMe-C6H4		115	87	140–143	Novel
5g	−CH2-C6H5	Me	4-Cl-C6H4		120	88	145–147	147–148 (Khan et al., 2012)
5h	−CH2-C6H5	Et	4-Cl-C6H4		125	83	142–143	140–142 (Khan et al., 2016)
5i	−C6H11	Me	-C6H5		55	93	95–98	96–97 (Zhang et al., 2017)
5j	−C6H11	Et	C6H5		85	89	75–77	76–77 (Basirat et al., 2020)
5k	−C6H11	Me	4-Me-C6H4		90	92	118–120	Novel
5L	−C6H11	Et	4-Me-C6H4		80	90	105–108	105–107 (Sharghi et al., 2018)
5m	−C6H11	Me	4-OMe-C6H4		70	91	126–129	127–129 (Nickraftar et al., 2016)
5n	−C6H11	Et	4-OMe-C6H4		85	92	100–103	102–103 (Zhu et al., 2012)
5o	−C6H11	Me	4-Cl-C6H4		120	92	122–123	123–125 (Nickraftar et al., 2016)
5p	−C6H11	Et	4-Cl-C6H4		120	94	90–91	91–92 (Zhu et al., 2012)

Synthesized pyrrole (Pyo) derivatives using Co₃O₄ nanoparticles.

15 mol % catalyst; 1:1 water/ethanol; 25°C.

In synthesizing Pya[2,3-c]Pyz derivatives, optimal conditions, including 10 mol% of catalyst, 1:1 mixture of water/ethanol, and temperature of 40 °C were used (Table 3).

TABLE 3

Product	R3	Structure	Time (min)	Yield (%)	Mp (°C)
					Found	Reported
10a	-C6H5		12	95	165–168	167–169 (Eftekhari Far and Nasr-Esfahani, 2020)
10b	−4-Me-C6H4		20	91	175–177	174–176 (Heravi et al., 2022)
10c	−4-OMe-C6H4		12	93	168–170	169–171 (Eftekhari Far and Nasr-Esfahani, 2020)
10d	−3,4-OMe-C6H3		15	89	190–193	193–195 (Shi et al., 2004)
10e	−3,4,5-OMe-C6H2		25	90	201–203	Novel
10f	−3-OMe,4-OH-C6H3		25	89	182–185	182–184 (Eftekhari Far and Nasr-Esfahani, 2020)
10g	−3-OH,4-OMe-C6H3		30	87	176–179	Novel
10h	−4-OH-C6H4		20	90	207–210	208–210 (Eftekhari Far and Nasr-Esfahani, 2020)
10i	−4-F-C6H4		16	92	181–184	183–186 (Sameri et al., 2021)
10j	−4-Cl-C6H4		15	95	172–174	170–172 (Sameri et al., 2021)
10k	−4-BrC6H4		20	92	191–193	190–193 (Azarifar et al., 2018)

Synthesized pyrano [2,3-c]pyrazole (Pya[2,3-c]Pyz) derivatives using Co₃O₄ nanoparticles.

10 mol % catalyst; a 1:1 water/ethanol; 40°C.

In all reactions to obtain optimal conditions in the synthesis of Pyo (5a), raw materials including cyclohexanamine, dimethyl but-2-ynedioate, formaldehyde and aniline have been used in the amount of 1 mol.

In all reactions to obtain optimal conditions in the synthesis of Pya[2,3-c]Pyz (10a), raw materials including ethyl acetoacetate, phenylhydrazine, malononitrile, and benzaldhyde have been used in the amount of 1 mol.

The structure of the derivatives has been confirmed using ¹H NMR, ¹³C NMR, and element analysis.

Based on previous studies, Co₃O₄ nanoparticles act as Lewis acid catalysts in organic chemistry reactions (Rajabi et al., 2015; Gong et al., 2023). Here, too, Co₃O₄ nanoparticles enter the reaction as a Lewis acid, and Scheme 2 and 3 mechanisms are proposed for synthesizing Pyo derivatives and Pya[2,3-c]Pyz derivatives, respectively.

SCHEME 1

SCHEME 2

SCHEME 3

The but-2-ynedioate derivatives and aliphatic amine derivatives created intermediate (I). The formaldehyde and aromatic amine derivatives created intermediate (II). Intermediate (III) was synthesized from the reaction of intermediate (I) with intermediate (II). From the cyclization reaction of intermediate (III), and tautomerization (IV), the final product was synthesized.

First, using ethyl acetoacetate and phenylhydrazine, the pyrazole was synthesized that were equilibrium in two forms (I and II). Using condensation of malononitrile and aldehyde derivative, intermediate (III) was synthesized. The intermediate (IV) was formed from Michael addition reaction of intermediate (II) with intermediate (III). The final product was synthesized through the cyclization reaction of intermediate (IV) and tautomerization (V).

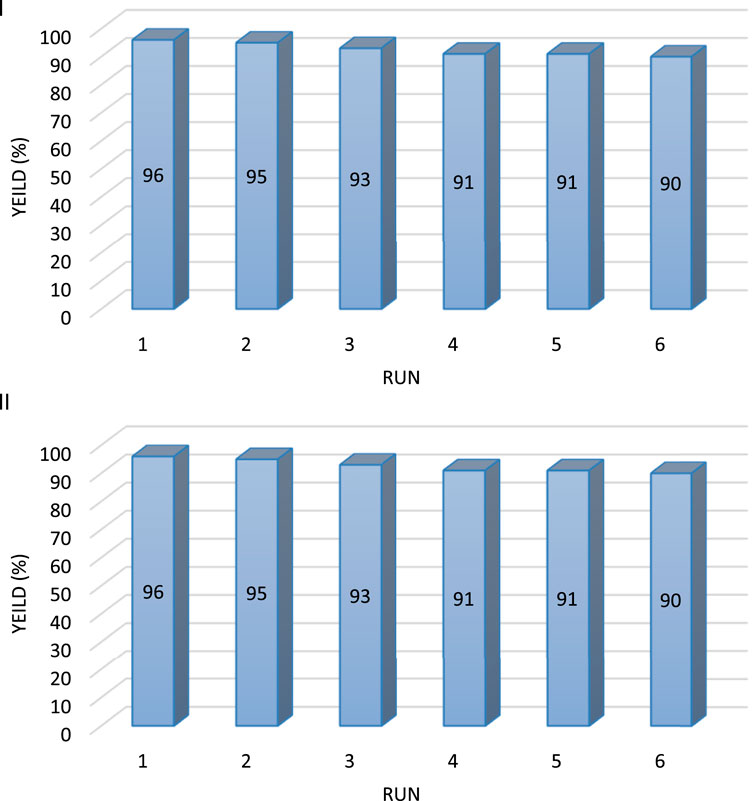

Risibility and reuse of the catalyst in synthesizing Pyo derivatives and Pya[2, 3-c]Pyz derivatives were investigated. The Co₃O₄ nanoparticles after separation, washing, and drying, were reuse in the synthesis of derivatives. The results of reuse and reusability of the catalyst up to six times are shown in Figure 7.

FIGURE 7

After recycling, the XRD and XPS of Co₃O₄ nanoparticles were prepared, and as can be seen in Figure 8, were similar to before being used as a catalyst.

FIGURE 8

According to the reported methods, a hot filtration test for Co₃O₄ nanoparticles was done, and results showed no enhancement in conversion was noticed in the filtrate (Babaei and Mirjalili, 2020).

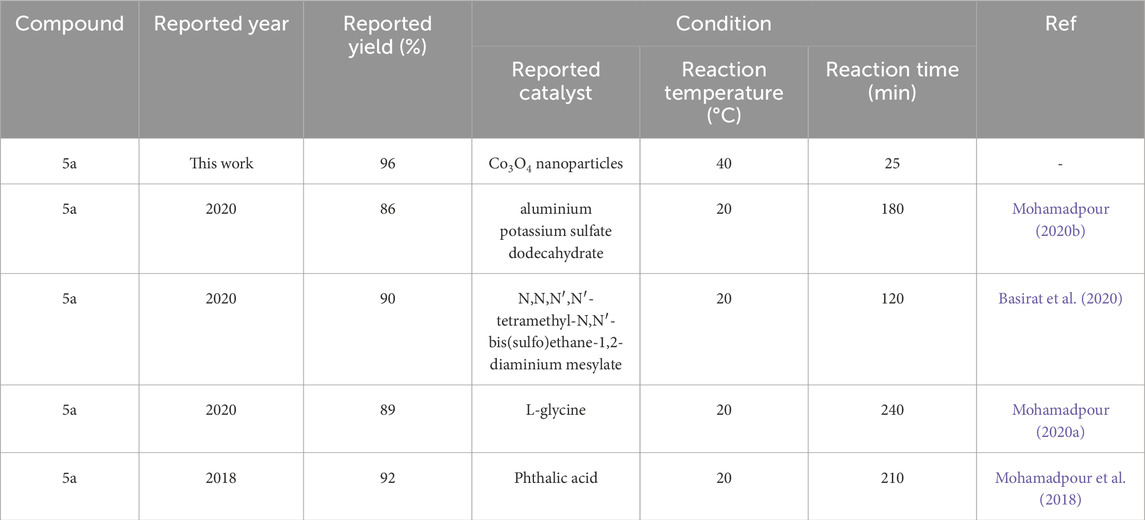

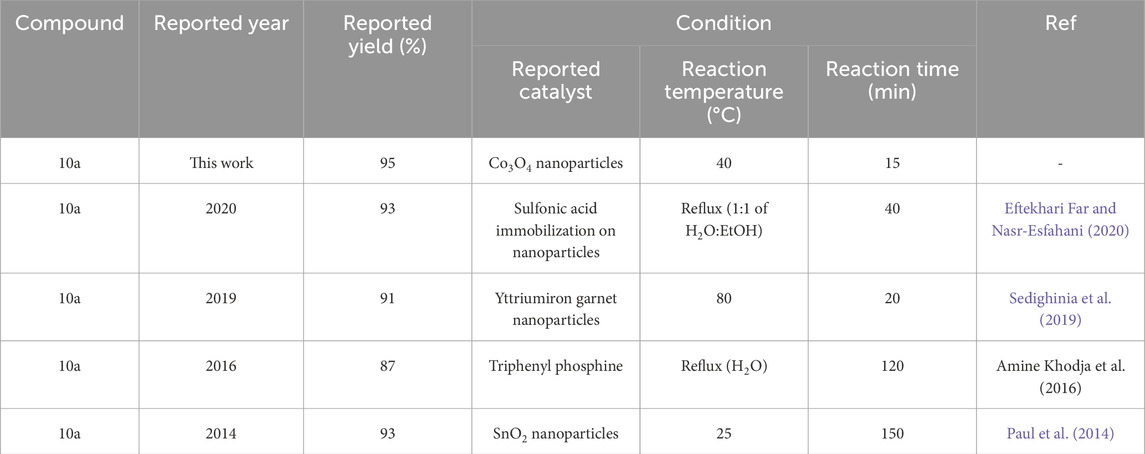

Comparison of synthesis methods of derivatives Pyo and Pya[2,3-c]Pyz reported in recent literature with Co₃O₄ nanoparticles used in this study are given in Tables 4,5.

To summarize, nanoparticles have a high capacity to synthesize Pyo derivatives and Pya[2,3-c]Pyz derivatives with high efficiency and more suitable conditions than other catalysts (Table 5; Table 6). Suitable conditions include less reaction time, lower temperature used in the synthesis of derivatives and higher efficiency. The synthesis of new derivatives is another advantage of this study. It is suggested that nanoparticles can synthesize other heterocyclic compounds under suitable conditions as a recyclable green catalyst. The reason for the high catalytic property of cobalt nanoparticles, as explained in Section 3.1, can be attributed to its high active surface (Khan et al., 2019; Tee et al., 2022).

3.3 The antioxidant activity results

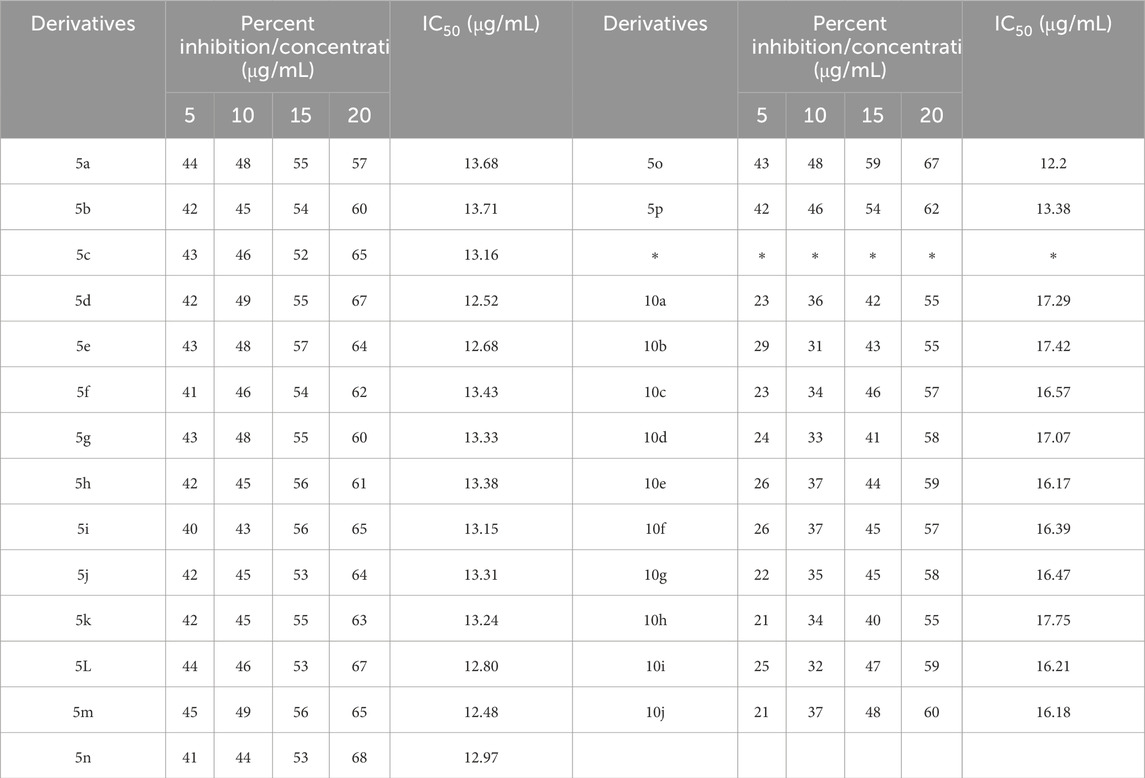

To check the antioxidant activity of derivatives, the DPPH method was used. 1 mL of derivatives with concentrations prepared as given in Section 2.5 was mixed with 4 mL of DPPH solution, and after half an hour of stirring in the dark, its absorbance was checked at 517 nm. The percent inhibition was calculated for each derivative concentration using the equation presented in Section 2.5, and the results are given in Table 6. In addition to percent inhibition, using concentration and percent inhibition, the value of IC₅₀ for each of the derivatives was calculated (Beyzaei et al., 2018) and listed in Table 6.

Comparing the results of Pyo derivatives shows that the value of IC₅₀ for them was very close, so it is not dependent on R₁, R₂, and Aryl groups. Therefore, mechanism Scheme 4 is suggested for DPPH free radical stability by Pyo derivatives. The IC₅₀ value for Pya[2,3-c]Pyz derivatives was very close to each, and were not dependent on R₃ groups. Therefore, mechanism Scheme 5 is suggested for DPPH free radical stability by Pya[2,3-c]Pyz derivatives.

SCHEME 4

SCHEME 5

Although based on the proposed mechanisms, the resonance structures for Pyo derivatives and Pya[2,3-c]Pyz derivatives are equal in DPPH free radical stability, but as can be seen from the results, the antioxidant property of Pyo derivatives is more than that of Pya[2,3-c]Pyz derivatives. The obtained results are consistent with the proposed mechanisms because the resonance structures of Pyo derivatives are more stable than the resonance structures of Pya[2,3-c]Pyz derivatives (Hosseinzadegan et al., 2020b; Gani and Al-Obaidi, 2023).

3.4 The antimicrobial activity results

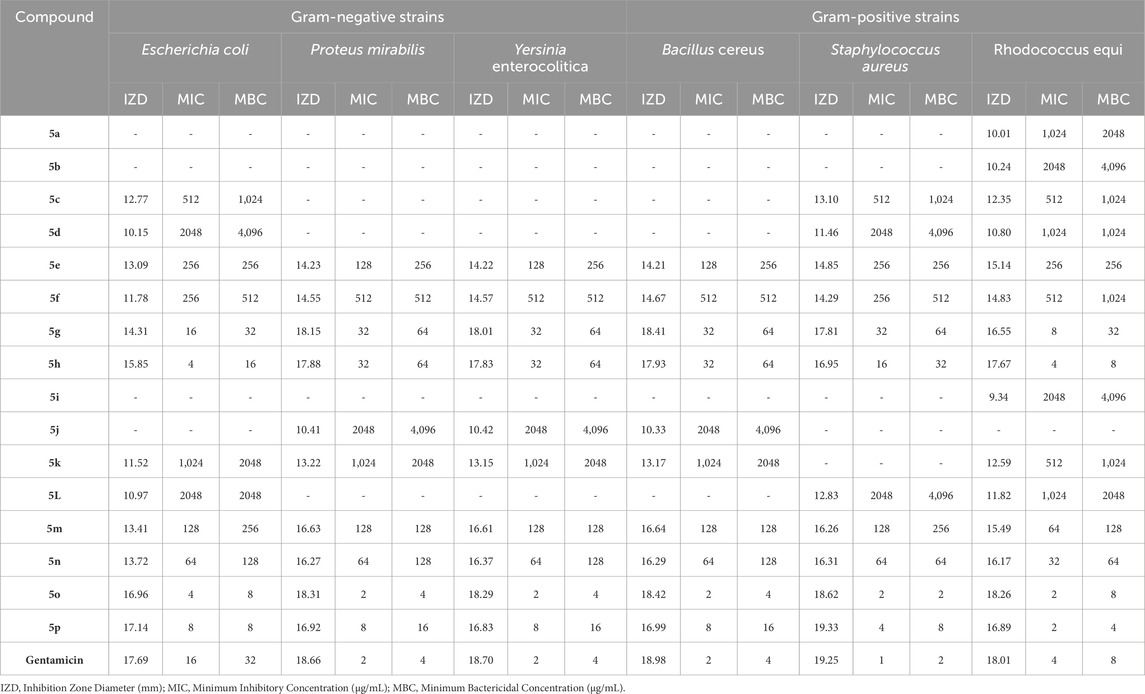

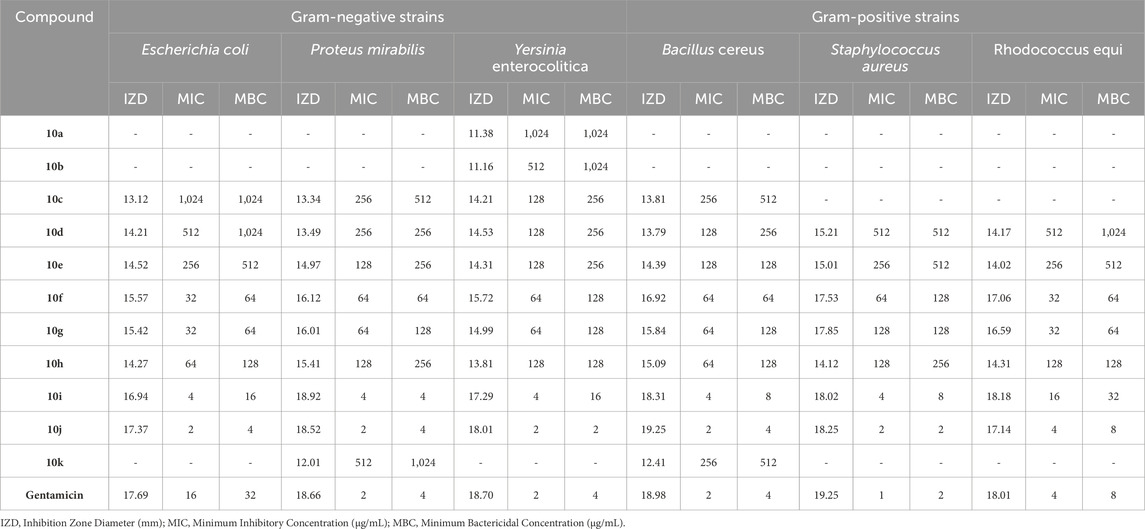

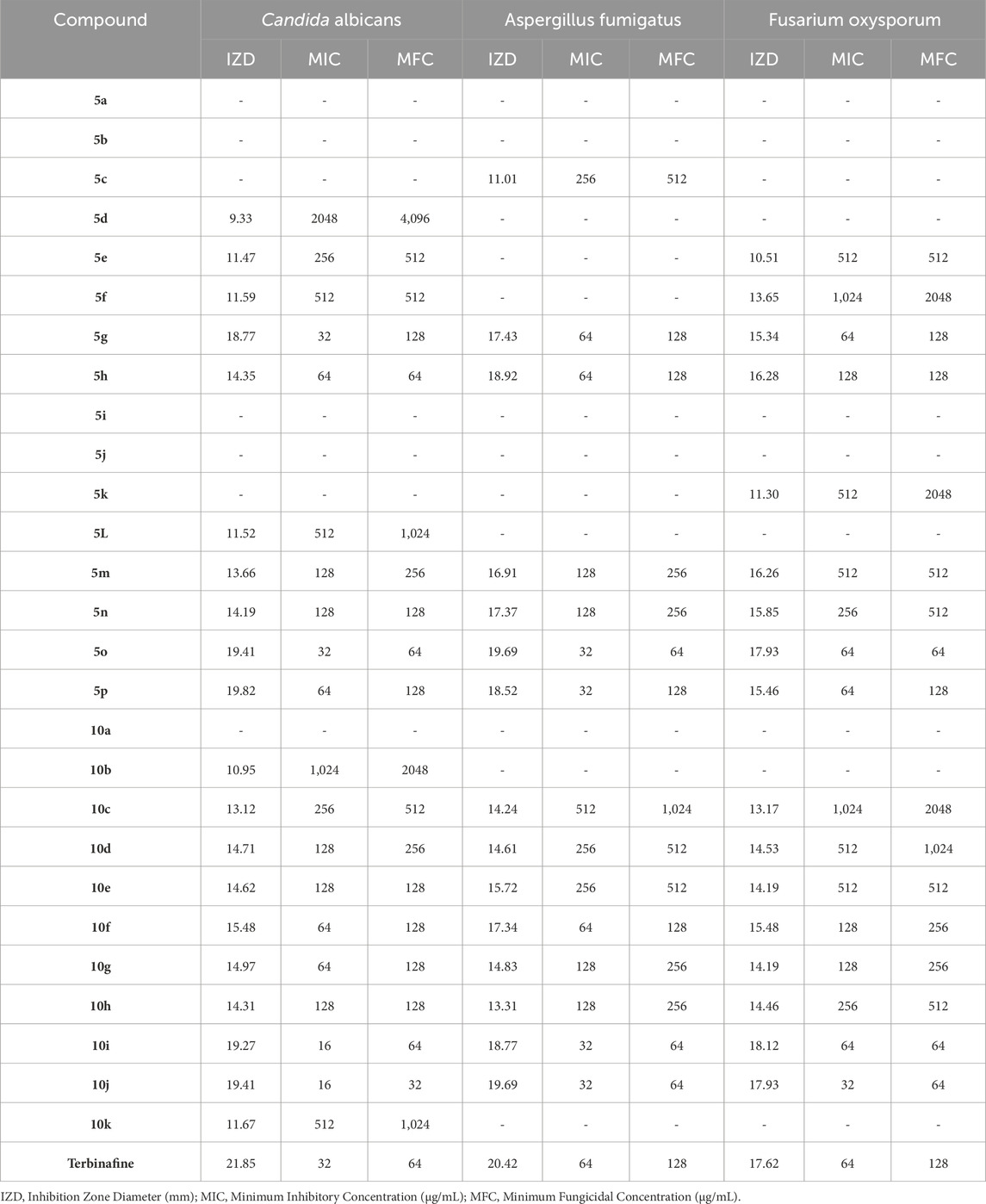

The bacterial and fungal strains mentioned in Section 2.6 were used in the evaluation and antimicrobial tests of synthesized Pyo derivatives and Pya[2,3-c]Pyz derivatives. The results of antibacterial activity (against Gram-positive strains and Gram-negative strains) of Pyo derivatives were given in Table 7, antibacterial activity (against Gram-positive strains and Gram-negative strains) of Pya[2,3-c]Pyz derivatives were presented in Table 8, and antifungal activity of derivatives Pyo derivatives and Pya[2,3-c]Pyz derivatives were shown in Table 9. In the investigation of the antibacterial activity of the derivatives IZD, MIC, and MBC, and the investigation of the antifungal activity of the derivatives, IZD, MIC, and MFC have been tested and reported. To comparison of antimicrobial studies, tests were performed on commercial drugs such as Gentamicin and Terbinafin.

The results proved that the antibacterial and antifungal properties of some synthesized Pyo derivatives and Pya[2,3-c]Pyz derivatives were more effective than commercial drugs. As shown in Tables 5–7, 5o and 10j were more effective than Gentamicin and Terbinafin.

Based on the results, in contrast to antioxidant activity, the high antimicrobial activity of Pya[2,3-c]Pyz derivatives compared to Pyo derivatives is significant and can be attributed to the heterocyclic rings present in their structure. Pyo derivatives contain one heterocyclic ring, but Pya[2,3-c]Pyz derivatives comprise two (Sharma et al., 2010; Al-Mulla, 2017).

The results of the antimicrobial activity of Pyo derivatives showed that they have more potent antibacterial properties than antifungal properties. The comparison of the antimicrobial effects of Pyo derivatives showed that the antimicrobial properties have a direct relationship with the substitutions of the aryl group and derivatives with chlorine, and methoxy had the highest effectiveness, respectively.

Comparing the antibacterial activity and antifungal activity of Pya[2,3-c]Pyz derivatives was similar to Pyo derivatives and antibacterial activity was more than antifungal activity. From the comparison of the antimicrobial activity of Pya[2,3-c]Pyz derivatives, it was also proved that the activity of derivatives has a direct relationship with R₃ groups. The derivatives with chlorine, fluorine, hydroxyl, methoxy, and bromine had the highest effectiveness, respectively.

4 Conclusion

In this study, Co₃O₄ nanoparticles were used as recyclable and green catalyst for the synthesis of pyrrole (Pyo) derivatives and pyrano [2,3-c]pyrazole (Pya[2,3-c]Pyz) derivatives and 5 novel derivatives were synthesized. Efficiency of 83%–96%, and 87%–95% in synthesizing Pyo derivatives and Pya[2,3-c]Pyz derivatives, respectively, were observed. Less synthesis time and higher efficiency compared to recent studies were the advantages of using Co₃O₄ nanoparticles. Recycling up to 6 times without noticeable change in efficiency was another advantage of using Co₃O₄ nanoparticles. Antioxidant tests of derivatives using DPPH free radical method and antimicrobial tests of derivatives on Gram-positive, Gram-negative bacterial strains, and fungal species were performed. In the antioxidant tests, percentage inhibition, and IC₅₀, and in antimicrobial tests, IZD, MIC, MBC, and MFC were investigated and reported. In antioxidant tests, it was proved that Pyo derivatives have a higher antioxidant activity than Pya[2,3-c]Pyz derivatives, which can be fully verified by the proposed mechanisms for the stability of DPPH free radicals according to their structure. The antimicrobial activity of Pyo derivatives and Pya[2,3-c]Pyz derivatives were the opposite of antioxidant activity. The Pya[2,3-c]Pyz derivatives were generally more effective on the studied species than Pyo derivatives. In antimicrobial activity, the derivatives with chlorine, fluorine, hydroxyl, and methoxy had the highest effectiveness. In antimicrobial activity, some derivatives, for example, 5o and 10j, have high effectiveness than Gentamicin and Terbinafin which are known as commercial drugs.

References

• 1

  AbdievaG. A.PatraI.Al-QargholiB.ShahryariT.ChauhanN. P. S.Moghaddam-ManeshM. (2022). RETRACTED: an efficient ultrasound-assisted synthesis of Cu/Zn hybrid MOF nanostructures with high microbial strain performance. Front. Bioeng. Biotechnol.10, 861580. 10.3389/fbioe.2022.861580

  • CrossRef
  • Google Scholar
  • View reference in article

• 2

  AboelazmE. A.AliG. A.ChongK. F. (2018). Cobalt oxide supercapacitor electrode recovered from spent lithium-ion battery. Chem. Adv. Mater3, 67–73.

  • Google Scholar
  • View reference in article

• 3

  AlamM. J.AlamO.AlamP.NaimM. J. (2015). A review on pyrazole chemical entity and biological activity. Int. J. Pharm. Sci. Res.6, 1433–1442.

  • Google Scholar
  • View reference in article

• 4

  AlfaifiS. Y.AdeosunW. A.AsiriA. M.RahmanM. M. (2023). Sensitive and rapid detection of aspartic acid with Co3O4-ZnO nanorods using differential pulse voltammetry. Biosensors13, 88. 10.3390/bios13010088

  • CrossRef
  • Google Scholar
  • View reference in article

• 5

  Al-MullaA. (2017). A review: biological importance of heterocyclic compounds. Der Pharma Chem.9, 141–147.

  • Google Scholar
  • View reference in article

• 6

  AzarifarD.BadalkhaniO.AbbasiY. (2018). Amino acid ionic liquid‐based titanomagnetite nanoparticles: an efficient and green nanocatalyst for the synthesis of 1, 4‐dihydropyrano [2, 3‐c] pyrazoles. Appl. Organomet. Chem.32, e3949. 10.1002/aoc.3949

  • CrossRef
  • Google Scholar
  • View reference in article

• 7

  BabaeiE.MirjaliliB. B. F. (2020). Fe3O4@ nano-dextrin/Ti (IV) as a bio-based magnetic nano-catalyst for facile synthesis of 2, 3-dihydroquinazolin-4 (1H)-ones. Iran. J. Catal.10, 219–226.

  • Google Scholar
  • View reference in article

• 8

  BaralN.MishraD. R.MishraN. P.MohapatraS.RaiguruB. P.PandaP.et al (2020). Microwave‐assisted rapid and efficient synthesis of chromene‐fused pyrrole derivatives through multicomponent reaction and evaluation of antibacterial activity with molecular docking investigation. J. Heterocycl. Chem.57, 575–589. 10.1002/jhet.3773

  • CrossRef
  • Google Scholar
  • View reference in article

• 9

  BasiratN.SajadikhahS. S.ZareA. (2020). Multi-component synthesis of piperidines and dihydropyrrol-2-one derivatives catalyzed by a dual-functional ionic liquid. J. Chem. Res.44, 20–24. 10.1177/1747519819883881

  • CrossRef
  • Google Scholar
  • View reference in article

• 10

  BeyzaeiH.DeljooM. K.AryanR.GhasemiB.ZahediM. M.Moghaddam-ManeshM. (2018). Green multicomponent synthesis, antimicrobial and antioxidant evaluation of novel 5-amino-isoxazole-4-carbonitriles. Chem. Central J.12, 1–8. 10.1186/s13065-018-0488-0

  • CrossRef
  • Google Scholar
  • View reference in article

• 11

  BhardwajV.GumberD.AbbotV.DhimanS.SharmaP. (2015). Pyrrole: a resourceful small molecule in key medicinal hetero-aromatics. Rsc Adv.5, 15233–15266. 10.1039/c4ra15710a

  • CrossRef
  • Google Scholar
  • View reference in article

• 12

  Bhaskara ReddyM. V.SrinivasuluD.PeddannaK.ApparaoC.RameshP. (2015). Synthesis and antioxidant activity of new thiazole analogues possessing urea, thiourea, and selenourea functionality. Synth. Commun.45, 2592–2600. 10.1080/00397911.2015.1095929

  • CrossRef
  • Google Scholar
  • View reference in article

• 13

  BiswasS. K.DasD. (2022). One-pot synthesis of pyrano [2, 3-c] pyrazole derivatives via multicomponent reactions (MCRs) and their applications in medicinal chemistry. Mini-Reviews Org. Chem.19, 552–568. 10.2174/1570193x19666211220141622

  • CrossRef
  • Google Scholar
  • View reference in article

• 14

  BoichukS.GalembikovaA.SyuzovK.DunaevP.BikinievaF.AukhadievaA.et al (2021). The design, synthesis, and biological activities of pyrrole-based carboxamides: the novel tubulin inhibitors targeting the colchicine-binding site. Molecules26, 5780. 10.3390/molecules26195780

  • CrossRef
  • Google Scholar
  • View reference in article

• 15

  ChackoP.ShivashankarK. (2017). Nano structured spinel Co3O4-catalyzed four component reaction: a novel synthesis of Ugi adducts from aryl alcohols as a key reagent. Chin. Chem. Lett.28, 1619–1624. 10.1016/j.cclet.2017.04.015

  • CrossRef
  • Google Scholar
  • View reference in article

• 16

  CostanzoP.CalandruccioC.Di GioiaM. L.NardiM.OliverioM.ProcopioA. (2018). First multicomponent reaction exploiting glycerol carbonate synthesis. J. Clean. Prod.202, 504–509. 10.1016/j.jclepro.2018.08.120

  • CrossRef
  • Google Scholar
  • View reference in article

• 17

  DameraT.PagadalaR.RanaS.JonnalagaddaS. B. (2023). A concise review of multicomponent reactions using novel heterogeneous catalysts under microwave irradiation. Catalysts13, 1034. 10.3390/catal13071034

  • CrossRef
  • Google Scholar
  • View reference in article

• 18

  Eftekhari FarB.Nasr‐EsfahaniM. (2020). Synthesis, characterization and application of Fe3O4@ SiO2@ CPTMO@ DEA‐SO3H nanoparticles supported on bentonite nanoclay as a magnetic catalyst for the synthesis of 1, 4‐dihydropyrano [2, 3‐c] pyrazoles. Appl. Organomet. Chem.34, e5406. 10.1002/aoc.5406

  • CrossRef
  • Google Scholar
  • View reference in article

• 19

  EtemadiY.ShiriA.EshghiH.AkbarzadehM.SaadatK.MozafariS.et al (2016). Synthesis, characterisation, and in vitro antibacterial evaluation of a new class of 2-substituted-4-methyl-7, 8-dihydro-5H-pyrimido [4, 5-d] thiazolo [3, 2-a] pyrimidines. J. Chem. Res.40, 600–603. 10.3184/174751916x14737838285904

  • CrossRef
  • Google Scholar
  • View reference in article

• 20

  FaisalM.SaeedA.HussainS.DarP.LarikF. A. (2019). Recent developments in synthetic chemistry and biological activities of pyrazole derivatives. J. Chem. Sci.131, 70–30. 10.1007/s12039-019-1646-1

  • CrossRef
  • Google Scholar
  • View reference in article

• 21

  FanH.QuanL.YuanM.ZhuS.WangK.ZhongY.et al (2016). Thin Co3O4 nanosheet array on 3D porous graphene/nickel foam as a binder-free electrode for high-performance supercapacitors. Electrochimica Acta188, 222–229. 10.1016/j.electacta.2015.12.011

  • CrossRef
  • Google Scholar
  • View reference in article

• 22

  FariaJ. V.VegiP. F.MiguitaA. G. C.Dos SantosM. S.BoechatN.BernardinoA. M. R. (2017). Recently reported biological activities of pyrazole compounds. Bioorg. Med. Chem.25, 5891–5903. 10.1016/j.bmc.2017.09.035

  • CrossRef
  • Google Scholar
  • View reference in article

• 23

  GaniI. H.Al-ObaidiZ. (2023). MgO NPs catalyzed the synthesis of novel pyridin-3-yl-pyrimidin-2-yl-aminophenyl-amide derivatives and evaluation of pharmacokinetic profiles and biological activity. Front. Mater.10, 1057677. 10.3389/fmats.2023.1057677

  • CrossRef
  • Google Scholar
  • View reference in article

• 24

  GarazdY. L.GarazdM. (2016). Natural dibenzo [b, d] pyran-6-ones: structural diversity and biological activity. Chem. Nat. Compd.52, 1–18. 10.1007/s10600-016-1536-4

  • CrossRef
  • Google Scholar
  • View reference in article

• 25

  GongY.WangN.GaoE.WanQ.BaiX.HeX.et al (2023). Nitrogen-doped carbon confined cobalt nanoparticles as the steric acid-base multifunctional catalysts for Knoevenagel condensation. Mol. Catal.550, 113521. 10.1016/j.mcat.2023.113521

  • CrossRef
  • Google Scholar
  • View reference in article

• 26

  HeraviM. M.MalakootiR.KafshdarzadehK.AmiriZ.ZadsirjanV.AtashinH. (2022). Supported palladium oxide nanoparticles in Al-SBA-15 as an efficient and reusable catalyst for the synthesis of pyranopyrazole and benzylpyrazolyl coumarin derivatives via multicomponent reactions. Res. Chem. Intermed.48, 203–234. 10.1007/s11164-021-04619-z

  • CrossRef
  • Google Scholar
  • View reference in article

• 27

  HosseinzadeganS.HazeriN.MaghsoodlouM. T. (2020a). Synthesis and evaluation of antimicrobial and antioxidant activity of novel 7‐Aryl‐6H, 7H‐benzo [f] chromeno [4, 3‐b] chromen‐6‐one by MgO nanoparticle as green catalyst. J. Heterocycl. Chem.57, 621–626. 10.1002/jhet.3796

  • CrossRef
  • Google Scholar
  • View reference in article

• 28

  HosseinzadeganS.HazeriN.MaghsoodlouM. T.Moghaddam-ManeshM.ShirzaeiM. (2020b). Synthesis and evaluation of biological activity of novel chromeno [4, 3-b] quinolin-6-one derivatives by SO 3 H-tryptamine supported on Fe 3 O 4@ SiO 2@ CPS as recyclable and bioactive magnetic nanocatalyst. J. Iran. Chem. Soc.17, 3271–3284. 10.1007/s13738-020-01990-3

  • CrossRef
  • Google Scholar
  • View reference in article

• 29

  JavahershenasR.NikzatS. (2023). Recent advances in the multicomponent synthesis of heterocycles using tetronic acid. RSC Adv.13, 16619–16629. 10.1039/d3ra02505e

  • CrossRef
  • Google Scholar
  • View reference in article

• 30

  Jeelan BashaN.BasavarajaiahS.ShyamsunderK. (2022). Therapeutic potential of pyrrole and pyrrolidine analogs: an update. Mol. Divers.26, 2915–2937. 10.1007/s11030-022-10387-8

  • CrossRef
  • Google Scholar
  • View reference in article

• 31

  Kafi‐AhmadiL.Poursattar MarjaniA.NozadE. (2021). Ultrasonic‐assisted preparation of Co3O4 and Eu‐doped Co3O4 nanocatalysts and their application for solvent‐free synthesis of 2‐amino‐4H‐benzochromenes under microwave irradiation. Appl. Organomet. Chem.35, e6271. 10.1002/aoc.6271

  • CrossRef
  • Google Scholar
  • View reference in article

• 32

  KhanA. T.GhoshA.KhanM. M. (2012). One-pot four-component domino reaction for the synthesis of substituted dihydro-2-oxypyrrole catalyzed by molecular iodine. Tetrahedron Lett.53, 2622–2626. 10.1016/j.tetlet.2012.03.046

  • CrossRef
  • Google Scholar
  • View reference in article

• 33

  KhanI.SaeedK.KhanI. (2019). Nanoparticles: properties, applications and toxicities. Arabian J. Chem.12, 908–931. 10.1016/j.arabjc.2017.05.011

  • CrossRef
  • Google Scholar
  • View reference in article

• 34

  KhanM. M.KhanS.IqbalS.YousufR. (2016). Synthesis of functionalized dihydro-2-oxypyrroles and tetrahydropyridines using 2, 6-pyridinedicarboxylic acid as an efficient and mild organocatalyst. New J. Chem.40, 7504–7512. 10.1039/c6nj01170e

  • CrossRef
  • Google Scholar
  • View reference in article

• 35

  MirhosseiniH.MostafaviA.ShamspurT.SargaziG. (2022). Fabrication of an efficient ternary TiO2/Bi2WO6 nanocomposite supported on g-C3N4 with enhanced visible-light-photocatalytic activity: modeling and systematic optimization procedure. Arabian J. Chem.15, 103729. 10.1016/j.arabjc.2022.103729

  • CrossRef
  • Google Scholar
  • View reference in article

• 36

  Moghaddam-ManeshM.GhazanfariD.SheikhhosseiniE.AkhgarM. (2020). Synthesis, characterization and antimicrobial evaluation of novel 6'-Amino-spiro [indeno [1, 2-b] quinoxaline [1, 3] dithiine]-5'-carbonitrile derivatives. Acta Chim. Slov.67, 276–282. 10.17344/acsi.2019.5437

  • CrossRef
  • Google Scholar
  • View reference in article

• 37

  MohamadpourF. (2020a). Imin-based synthesis of polyfunctionalized dihydro-2-oxypyrroles catalyzed by glycine amino acid via tandem Michael–Mannich cyclocondensation reaction under ambient temperature. Res. Chem. Intermed.46, 1931–1940. 10.1007/s11164-019-04072-z

  • CrossRef
  • Google Scholar
  • View reference in article

• 38

  MohamadpourF. (2020b). Potassium alum as a naturally mineral and economical catalyst for the one-pot, multi-component and clean synthesis of 2-oxo (thio)-1, 2, 3, 4-tetrahydropyrimidines and N-aryl-3-aminodihydropyrrol-2-one-4-carboxylates. Indian J. Chemistry-Section B (IJC-B)59, 1183–1190.

  • Google Scholar
  • View reference in article

• 39

  MohamadpourF. (2022). The development of imin-based tandem Michael–Mannich cyclocondensation through a single-electron transfer (SET)/energy transfer (EnT) pathway in the use of methylene blue (MB+) as a photo-redox catalyst. RSC Adv.12, 10701–10710. 10.1039/d2ra01190e

  • CrossRef
  • Google Scholar
  • View reference in article

• 40

  MohamadpourF.LashkariM.MaghsoodlouM. T.HeydariR. (2018). Phthalic acid: a green, biodegradable and environmentally benign nature di-functional brønsted acid catalyst for the one-pot synthesis of 3, 4-dihydropyrimidin-2- (1h)-one derivatives and substituted dihydro-2-oxypyrroles. J. Chil. Chem. Soc.63, 3811–3818. 10.4067/s0717-97072018000103811

  • CrossRef
  • Google Scholar
  • View reference in article

• 41

  MuthurajaP.PrakashS.SivaG.MuthusubramanianS.ManisankarP. (2017). Expedient ytterbium triflate catalyzed one‐pot mulicomponent synthesis of spiro [indoline‐3, 4′‐pyrano [2, 3‐c] pyrazole]. ChemistrySelect2, 10071–10075. 10.1002/slct.201701261

  • CrossRef
  • Google Scholar
  • View reference in article

• 42

  NickraftarM.HajivarN. N.AboonajmiJ.FereidooniE. (2016). Nano Fe 3 O 4 as a magnetically recyclable, powerful, and stable catalyst for the multi-component synthesis of highly functionalized dihydro-2-oxopyrroles. Res. Chem. Intermed.42, 2899–2908. 10.1007/s11164-015-2185-0

  • CrossRef
  • Google Scholar
  • View reference in article

• 43

  PaulS.PradhanK.GhoshS.DeS.DasA. R. (2014). Uncapped SnO2 quantum dot catalyzed cascade assembling of four components: a rapid and green approach to the pyrano [2, 3-c] pyrazole and spiro-2-oxindole derivatives. Tetrahedron70, 6088–6099. 10.1016/j.tet.2014.02.077

  • CrossRef
  • Google Scholar
  • View reference in article

• 44

  PetriG. L.SpanòV.SpatolaR.HollR.RaimondiM. V.BarrajaP.et al (2020). Bioactive pyrrole-based compounds with target selectivity. Eur. J. Med. Chem.208, 112783. 10.1016/j.ejmech.2020.112783

  • CrossRef
  • Google Scholar
  • View reference in article

• 45

  RahimiZ.BayatM.HosseiniH. (2022). New multicomponent reactions in water: a facile synthesis of 1, 3-dioxo-2-indanilidene-heterocyclic scaffolds and indenoquinoxalines through reaction of ninhydrin-malononitrile adduct with diverse N-binucleophiles. RSC Adv.12, 33772–33779. 10.1039/d2ra06469c

  • CrossRef
  • Google Scholar
  • View reference in article

• 46

  RajabiF.RaessiM.AranconR. A.SaidiM. R.LuqueR. (2015). Supported cobalt oxide nanoparticles as efficient catalyst in esterification and amidation reactions. Catal. Commun.59, 122–126. 10.1016/j.catcom.2014.09.044

  • CrossRef
  • Google Scholar
  • View reference in article

• 47

  RaoR. N.ChandaK. (2020). An assessment study of known pyrazolopyrimidines: chemical methodology and cellular activity. Bioorg. Chem.99, 103801. 10.1016/j.bioorg.2020.103801

  • CrossRef
  • Google Scholar
  • View reference in article

• 48

  RawatP.SinghR.RanjanA.GautamA.TrivediS.KumarM. (2021). Study of antimicrobial and antioxidant activities of pyrrole-chalcones. J. Mol. Struct.1228, 129483. 10.1016/j.molstruc.2020.129483

  • CrossRef
  • Google Scholar

• 49

  ReddyG. M.Camilo JrA.GarciaJ. R. (2021). Pyrrole-2, 5-dione analogs as a promising antioxidant agents: microwave-assisted synthesis, bio-evaluation, SAR analysis and DFT studies/interpretation. Bioorg. Chem.106, 104465. 10.1016/j.bioorg.2020.104465

  • CrossRef
  • Google Scholar

• 50

  SadasivanS.BellabarbaR. M.ToozeR. P. (2013). Size dependent reduction–oxidation–reduction behaviour of cobalt oxide nanocrystals. Nanoscale5, 11139–11146. 10.1039/c3nr02877a

  • CrossRef
  • Google Scholar

• 51

  Salavati-NiasariM.MirN.DavarF. (2009). Synthesis and characterization of Co3O4 nanorods by thermal decomposition of cobalt oxalate. J. Phys. Chem. Solids70, 847–852. 10.1016/j.jpcs.2009.04.006

  • CrossRef
  • Google Scholar

• 52

  SameriF.BodaghifardM. A.MobinikhalediA. (2021). Zn (II)‐Schiff base covalently anchored to CaO@ SiO2: a hybrid nanocatalyst for green synthesis of 4H‐pyrans. Appl. Organomet. Chem.35, e6394. 10.1002/aoc.6394

  • CrossRef
  • Google Scholar

• 53

  SedighiniaE.BadriR.KiasatA. (2019). Application of yttrium iron garnet as a powerful and recyclable nanocatalyst for one-pot synthesis of pyrano [2, 3-c] pyrazole derivatives under solvent-free conditions. Russ. J. Org. Chem.55, 1755–1763. 10.1134/s1070428019110186

  • CrossRef
  • Google Scholar

• 54

  SeippK.GeskeL.OpatzT. (2021). Marine pyrrole alkaloids. Mar. Drugs19, 514. 10.3390/md19090514

  • CrossRef
  • Google Scholar

• 55

  ShahbaziS.GhasemzadehM. A.ShakibP.ZolfaghariM. R.BahmaniM. (2019). Synthesis and antimicrobial study of 1, 4-dihydropyrano [2, 3-c] pyrazole derivatives in the presence of amino-functionalized silica-coated cobalt oxide nanostructures as catalyst. Polyhedron170, 172–179. 10.1016/j.poly.2019.04.063

  • CrossRef
  • Google Scholar

• 56

  SharghiH.AboonajmiJ.MozaffariM.DoroodmandM. M.AberiM. (2018). Application and developing of iron‐doped multi‐walled carbon nanotubes (Fe/MWCNTs) as an efficient and reusable heterogeneous nanocatalyst in the synthesis of heterocyclic compounds. Appl. Organomet. Chem.32, e4124. 10.1002/aoc.4124

  • CrossRef
  • Google Scholar

• 57

  SharmaV.KumarP.PathakD. (2010). Biological importance of the indole nucleus in recent years: a comprehensive review. J. Heterocycl. Chem.47, 491–502. 10.1002/jhet.349

  • CrossRef
  • Google Scholar

• 58

  ShiD.MouJ.ZhuangQ.NiuL.WuN.WangX. (2004). Three‐component one‐pot synthesis of 1, 4‐dihydropyrano [2, 3‐c] pyrazole derivatives in aqueous media. Synth. Commun.34, 4557–4563. 10.1081/scc-200043224

  • CrossRef
  • Google Scholar

• 59

  SikandarS.ZahoorA. F. (2021). Synthesis of pyrano [2, 3‐c] pyrazoles: a review. J. Heterocycl. Chem.58, 685–705. 10.1002/jhet.4191

  • CrossRef
  • Google Scholar

• 60

  SoltaniN.RahmanJ. U.CarvalhoP. A.FinstadT. G. (2023). A highly active and reusable multicomponent high entropy metal oxide catalyst for nitroarenes hydrogenation. Top. Catal.67, 572–581. 10.1007/s11244-023-01846-z

  • CrossRef
  • Google Scholar

• 61

  TeeG. T.GokX. Y.YongW. F. (2022). Adsorption of pollutants in wastewater via biosorbents, nanoparticles and magnetic biosorbents: a review. Environ. Res.212, 113248. 10.1016/j.envres.2022.113248

  • CrossRef
  • Google Scholar

• 62

  UddinM. K.BaigU. (2019). Synthesis of Co3O4 nanoparticles and their performance towards methyl orange dye removal: characterisation, adsorption and response surface methodology. J. Clean. Prod.211, 1141–1153. 10.1016/j.jclepro.2018.11.232

  • CrossRef
  • Google Scholar

• 63

  VairaperumalV.PerumalM.SengoduP.ShanumuganthanS.ParamasivamM. (2019). V2O5‐Catalyzed one‐pot multicomponent of pyrazol naphthoquinone as scaffolds for potential bioactive compounds: synthesis, structural study and cytotoxic activity. ChemistrySelect4, 3006–3010. 10.1002/slct.201803942

  • CrossRef
  • Google Scholar

• 64

  VeeramaniV.MuthurajaP.PrakashS.Senthil KumarM.SusaimanickamA.ManisankarP. (2018). NbCl5‐Catalyzed one‐pot four component synthesis of spiro pyrazole and benzo [7, 8] chromene derivatives. ChemistrySelect3, 10027–10031. 10.1002/slct.201802036

  • CrossRef
  • Google Scholar

• 65

  YahyazadehfarM.SheikhhosseiniE.AhmadiS. A.GhazanfariD. (2019). Microwave‐associate synthesis of Co3O4 nanoparticles as an effcient nanocatalyst for the synthesis of arylidene barbituric and Meldrum's acid derivatives in green media. Appl. Organomet. Chem.33, e5100. 10.1002/aoc.5100

  • CrossRef
  • Google Scholar

• 66

  YangJ.WeiF.SuiY.QiJ.HeY.MengQ.et al (2016). Co 3 O 4 nanocrystals derived from a zeolitic imidazolate framework on Ni foam as high-performance supercapacitor electrode material. RSC Adv.6, 61803–61808. 10.1039/c6ra11272b

  • CrossRef
  • Google Scholar

• 67

  ZhangJ.-N.YangX.-H.GuoW.-J.WangB.ZhangZ.-H. (2017). Magnetic metal–organic framework CoFe2O4@ SiO2@ IRMOF-3 as an efficient catalyst for one-pot synthesis of functionalized dihydro-2-oxopyrroles. Synlett28, 734–740. 10.1055/s-0036-1588924

  • CrossRef
  • Google Scholar

• 68

  ZhouQ.JiaL.DuF.DongX.SunW.WangL.et al (2020). Design, synthesis and biological activities of pyrrole-3-carboxamide derivatives as EZH2 (enhancer of zeste homologue 2) inhibitors and anticancer agents. New J. Chem.44, 2247–2255. 10.1039/c9nj04713a

  • CrossRef
  • Google Scholar

• 69

  ZhuQ.GaoL.ChenZ.ZhengS.ShuH.LiJ.et al (2012). A novel class of small-molecule caspase-3 inhibitors prepared by multicomponent reactions. Eur. J. Med. Chem.54, 232–238. 10.1016/j.ejmech.2012.05.001

  • CrossRef
  • Google Scholar
