Prevention of severe pitting corrosion of 13Cr pipeline steel by a sulfate reducing bacterium using a green biocide cocktail

Abstract

To combat abiotic CO₂ corrosion of pipelines, chromium steels (CrSs) are used to replace carbon steels, but CrSs can suffer very severe pitting corrosion caused by microbiologically influenced corrosion (MIC) because their passive films are not as good as those on high-grade stainless steels, and their MIC often involves (semi-)conductive corrosion product films. In this study, severe pitting corrosion (2.0 cm/a pitting corrosion rate) with a 7-day weight loss of 3.8 ± 0.5 mg/cm² (0.26 mm/a uniform corrosion rate) was observed on 13Cr coupons incubated anaerobically with a highly corrosive pure-strain sulfate reducing bacterium (SRB) Desulfovibrio ferrophilus IS5 in 125 mL anaerobic vials filled with 50 mL enriched artificial seawater at 28°C. A popular green biocide, namely tetrakis hydroxymethyl phosphonium sulfate (THPS), was enhanced by biofilm dispersing Peptide A (a 14-mer) to mitigate SRB MIC against 13Cr. The 7-day weight losses for coupons with 50 ppm (w/w) THPS, 50 ppm THPS + 100 nM (180 ppb) Peptide A and 100 ppm THPS were reduced to 2.2 ± 0.2 mg/cm², 1.5 ± 0.5 mg/cm², and 0.3 ± 0.2 mg/cm², respectively. The pitting rates also decreased from 20 mm/a to 12 mm/a, 8.6 mm/a, and 1.5 mm/a, respectively based on the maximum pit depth data for the 7-day incubation. Electrochemical tests using a miniature electrochemical glass cell design supported the weight loss trend with additional transient corrosion rate information. THPS was found to be effective in mitigating severe pitting corrosion on 13Cr, and the enhancement effect of Peptide A for THPS was manifested. This work has significant implications in field applications when CrSs are considered as metal choices to replace carbon steels to combat abiotic CO₂ corrosion in pipelines. When SRB MIC is a possible threat, a mitigation plan needs to be implemented to prevent potentially very severe pitting that can lead to pinhole leaks.

1 Introduction

It is known that microbiologically influenced corrosion (MIC) is a serious menace to various assets in the oil and gas industry (D. Xu et al., 2023; Yazdi et al., 2021). It has been reported to be responsible for nearly 20% of the total corrosion costs (Kermani and Harrop, 1996; Skovhus et al., 2017). Different types of microorganisms including bacteria, archaea, fungi, and microalgae have been documented to cause deterioration of various metals directly and indirectly (Chugh et al., 2020; El-Shamy, 2020; You et al., 2021). Sulfate reducing bacteria (SRB) have been extensively studied in MIC research since they are ubiquitous in the environment, especially anaerobic environment, and very aggressive to metals (Videla and Characklis, 1992; Sand and Gehrke, 2003; Abdullah et al., 2014; Enning and Garrelfs, 2014; Yang et al., 2020). They typically utilize sulfate as the terminal electron acceptors through the respiration process to obtain energy from organic compounds or H₂ (Černoušek et al., 2020). The corrosion mechanisms of SRB are mainly categorized into extracellular electron transfer-MIC (EET-MIC) and metabolite-MIC (M-MIC) (Wang et al., 2020; Pu et al., 2023).

EET-MIC occurs when a metal such as Fe⁰ is energetic enough to serve as the electron donor for sulfate reduction. During this process, electrons released from iron oxidation Eq. 1 are transported across cell walls and finally used for enzyme-catalyzed sulfate reduction Eq. 2 to in the SRB cytoplasm (Gu et al., 2019).

The apostrophe in E°’ indicates pH 7 physiological condition in bioenergetics (Thauer et al., 2007). Another major type of MIC happens to metals (e.g., Cu) that are not energetic enough to donate electrons to facilitate sulfate reduction. In this case, M-MIC is the mechanism for SRB MIC of Cu.

Due to the extremely low solubility of Cu₂S, the reaction in Eq. 3 has a rather negative Gibbs free energy change. This corrosion reaction is thermodynamically favorable and H⁺ becomes a feasible electron acceptor in M-MIC (Blais et al., 2008; Gu et al., 2019).

Active metals such as Al and Zn can be easily corroded by water hydrolysis when their oxide passive films are damaged. These mineral films can be damaged by biofilms which lead to FD-MIC (film-damage MIC) (Unsal et al., 2021).

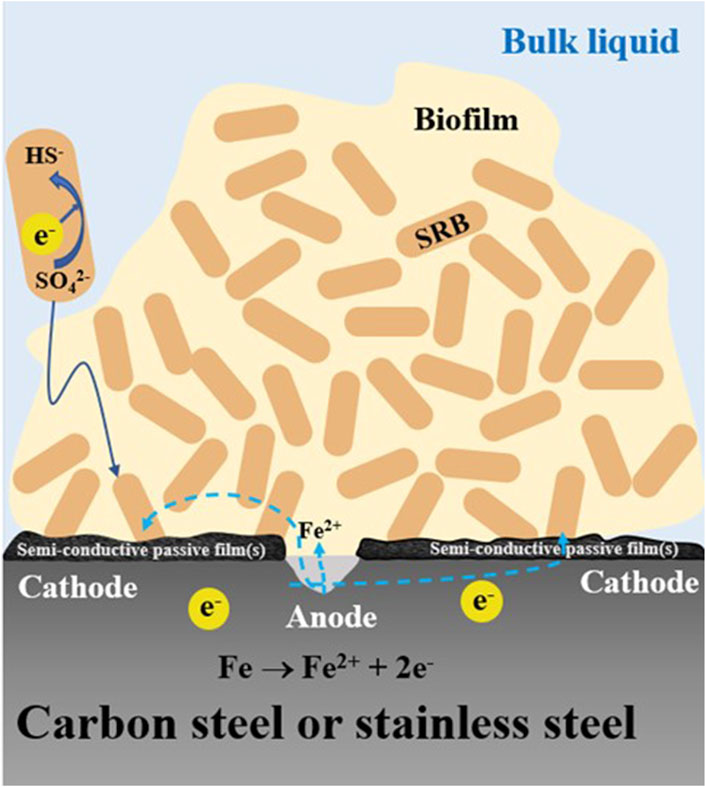

SRB MIC of metals containing Fe⁰ is known to be EET-MIC because it can be accelerated by an electron mediator such as riboflavin and conductive magnetite nanoparticles (MNPs) (Wang et al., 2022b). Furthermore, starved sessile cells were found to be far more corrosive (Xu and Gu, 2014). In EET-MIC, more sessile cells harvest more electrons to harvest energy in their respiration (Jia et al., 2018). Thus, mitigation of EET-MIC needs to reduce the sessile cell count.

Different materials such as carbon steels (CSs), chromium steels (CrSs) and stainless steels (SSs) are used in the oil and gas industry (Hinds et al., 2005; Mesquita et al., 2014; Obot et al., 2020; Costa et al., 2023). Their corrosion behaviors under different conditions have been widely studied (Dorcheh et al., 2016; Alcántara et al., 2017; Dwivedi et al., 2017; Fahim et al., 2019; Dong et al., 2020; Ettefagh et al., 2021). Compared with CSs, SSs provide higher corrosion resistance to CO₂ due to the Cr-rich passive film on the surface (Wu et al., 2013; Lin et al., 2015; Wang et al., 2016). CrSs are the economical alternative to expensive SSs in combating abiotic CO₂ corrosion, which usually appears as uniform corrosion. However, in SRB MIC, CrSs or low grade SSs were found to suffer severe pitting corrosion despite their high uniform corrosion resistance (Xu et al., 2023b). Unlike the non-conductive siderite film in CO₂ corrosion, the semi-conductive FeS film in SRB MIC allows electrons to be harvested across it. The occasionally damaged spots on the Cr-rich layer will serve as anodic sites where iron oxidation will occur. The much larger undamaged surface becomes a large cathode, and the small anode-large cathode area ratio situation amplifies pitting. In a previous study, 13Cr [also known as API 5CT L80-13Cr, 13Cr or 420 SS (Scheuer et al., 2019)] incubated with Desulfovibrio ferrophilus (IS5 strain) for 7 days had a much lower weight loss of 4.4 mg/cm² (0.30 mm/a uniform corrosion rate) compared with N80 carbon steel (15.2 mg/cm² and 1.01 mm/a uniform corrosion rate). However, 13Cr suffered very severe pitting corrosion (15 mm/a) compared with N80 (0.38 mm/a), with 7-day pits visible even to the naked eyes (L. Xu et al., 2023b).

The relative pitting severity (RPS) was defined by Eq. 4 to quantify the pitting corrosion severity vs. uniform corrosion severity (Dou et al., 2018),

When RPS is around unity, both pitting corrosion and uniform corrosion are important. When RPS is much greater than unity, pitting corrosion is deemed much more aggressive than uniform corrosion. The RPS of 13Cr in D. ferrophilus IS5 MIC was found to be 50 in SRB MIC which is far greater than unity, indicating very high pitting corrosion relatively to uniform corrosion (L. Xu et al., 2023b). Pitting corrosion is more dangerous than uniform corrosion since deep pits can easily lead to pipeline failures due to pinhole leaks (Chouchaoui and Pick, 1996; Abdalla Filho et al., 2014). Even a single deep pit can penetrate the material and cause equipment failure and even catastrophic accidents (Bhandari et al., 2015). Therefore, a mitigation plan should be in place to minimize pitting risks of 13Cr.

Biocide mitigation is a common strategy to treat biofilms which are responsible for MIC (Grande Burgos et al., 2013; Astuti et al., 2018; Abbas et al., 2021). Tetrakis hydroxymethyl phosphonium sulfate (THPS) is a popular green biocide in oilfields which has been found to be effective in mitigating SRB MIC in different systems (Gana et al., 2011; Conlette, 2014; Silva et al., 2021). Biocide enhancers at a small dosage can considerably improve biocide efficacy when used together with biocides (Mukherjee and Ahn, 2022; Xu et al., 2023a; Shi et al., 2023). Peptide A, a chemically synthesized 14-mer circular peptide (cys-ser-val-pro-tyr-asp-tyr-asn-trp-tyr-ser-asn-trp-cys) was reported to be an effective biocide enhancer at a sub-ppm (w/w) dosage for THPS in mitigating MIC. It is a nature-mimicking peptide that shows a biofilm dispersing effect in the presence of biocides. Its core 12-mer sequence was inspired by nature with its origin from a protein in a sea anemone that has a biofilm-free exterior (Jia et al., 2019). A biocide such as THPS at a low concentration may achieve the same inhibition result as a high concentration with the help of Peptide A at a sub-ppm dosage.

Because of the potential severe pitting on 13Cr caused by SRB MIC, for field applications it is necessary to have mitigation strategies such as biocide treatment in place. Thus, it is desired to study if deep pits would disappear with biocide treatment. In this work, 13Cr coupons were incubated with D. ferrophilus IS5, a highly corrosive SRB strain. Different biocide dosages were tested to investigate the mitigation effect of THPS and enhancement performance of Peptide A. The coupon tests were complimented by electrochemical tests.

2 Experimental

2.1 Bacterium, metal, and culture medium

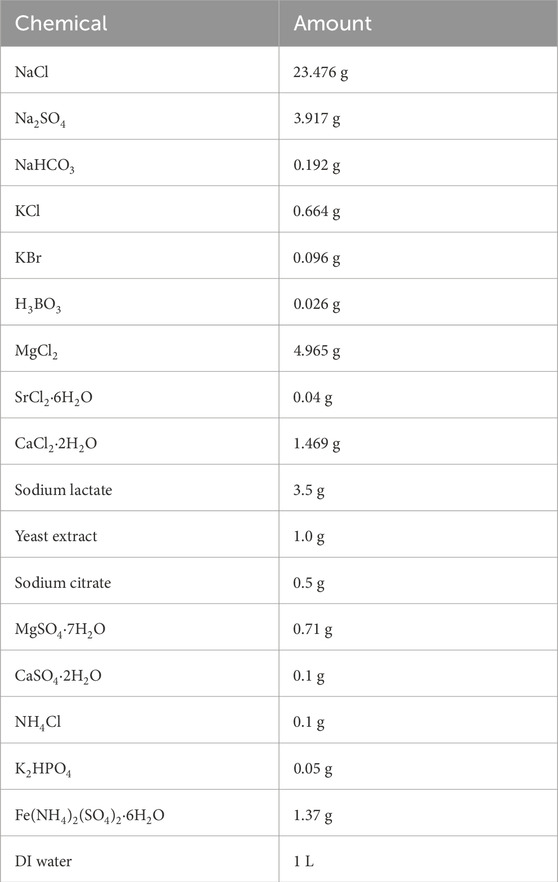

Table 1 shows a test matrix for this investigation. D. ferrophilus (strain IS5) was cultured anaerobically in enriched artificial seawater (EASW) culture medium at 28°C (optimal temperature for growth) (Enning et al., 2012). The composition of EASW is listed in Table 2. The test coupon was 13Cr, and its elemental composition is summarized in Table 3.

The EASW culture medium was adjusted to an initial pH of 7.0 using 5% (w/w) NaOH. Before inoculation, the medium was autoclave-sterilized and deoxygenated by purging filter-sterilized N₂ gas for 1 h. The addition of 100 ppm (w/w) L-cysteine into EASW was conducted in an anaerobic chamber filled with N₂ to further remove dissolved oxygen, following its use in the ATCC 1249 culture medium. THPS (Sigma-Aldrich, St. Louis, MO, USA) was dissolved into a 5,000 ppm (w/w) stock solution for biocide treatment.

The pre-cut 13Cr coupons all had an exposed top surface area of 1 cm² (1 cm × 1 cm). The top test surfaces were polished progressively to a 600 grit final finish. All other coupon surfaces were painted with inert Epoxy coating (3M Product 323). The coupons were sanitized using absolute isopropanol before testing.

2.2 Enumeration of sessile cells

Three replicate 13Cr coupons were put into each anaerobic vial for different treatment conditions. The initial D. ferrophilus planktonic cell concentration in each vial upon inoculation was 10⁶ cells/mL. After incubation for 7 days, all coupons were taken out from the anaerobic vials. Deoxygenated phosphate buffered saline (PBS) solution (pH 7.4) was then used to rinse the coupons. Sessile cells on each coupon surface were transferred into a 10 mL (or 1 mL if cell count too low for counting in a 10 mL cell suspension) PBS solution (total) using a sterile brush applicator. The brush, the coupon, and the PBS solution were vortexed for 30 s in a 50 mL centrifuge tube. The evenly distributed cell suspension in the tube was used for cell counting. A hemocytometer was employed in which (viable motile) cells can be counted under an optical microscope at ×400 magnification.

2.3 Biofilm visualization

Biofilms on coupon surfaces after 7-day incubation were observed under CLSM (confocal laser scanning microscopy) (Model LSM 510, Carl Zeiss, Jena, Germany). Coupons were first rinsed in pH 7.4 PBS solution to wash away planktonic cells and culture medium. Then the coupon surfaces were stained with Live/Dead^® BacLight™ Bacterial Viability Kit L7012 (Life Technologies, Grand Island, NY, United States) before observation. Under CLSM, live cells were seen as green dots at 488 nm wavelength laser and dead cells as red dots at a wavelength of 559 nm.

2.4 Weight loss and pit depth

Three replicate 13Cr coupons were used for each treatment condition in the weight loss test. After the 7-day incubation in 125 mL anaerobic vials, the biofilm and corrosion products on each coupon were removed with a freshly prepared Clarke’s solution for 30 s before weight measurement following ASTM G1–03. Coupon surfaces were scanned using an infinite focus microscope (IFM) profilometer (Model ALC13, Alicona Imaging GmbH, Graz, Austria) to obtain pit depth and surface profiles.

2.5 Electrochemical measurements

Electrochemical tests were executed in 10 mL electrochemical glass cells, each filled with 5 mL EASW inoculated with 0.05 mL seed culture. Each glass cell consisted of a 13Cr WE (working electrode) (1 cm × 1 cm) and a graphite rod (0.64 cm diameter and 1 cm height) counter electrode, which also served as reference electrode. Electrochemical scans were performed using a PCI4/750 potentiostat (Gamry Instruments, Inc., Warminster, PA, United States). Linear polarization resistance (LPR) and Tafel were scanned daily during the 7-day incubation period. LPR measurement was performed within the range of −10 to 10 mV vs. OCP (open circuit potential) with a rate of 0.167 mV/s. Tafel curves were scanned at a scan rate of 0.167 mV/s from OCP to −200 mV vs. OCP, and then after a 20 min gap, from OCP to +200 mV vs. OCP on the same working electrode (Wang et al., 2021a; Xu et al., 2023b). It was shown that this dual half-scan scheme with the voltage range did not alter the working electrode in repeated scans on the same working electrode (Wang et al., 2022a).

3 Results and discussion

3.1 Sessile cell count

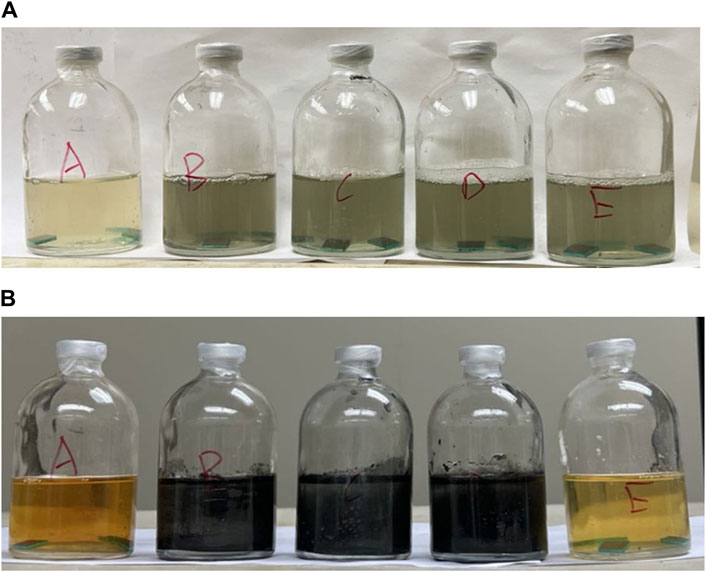

Figure 1 shows images of 125 mL anaerobic vials before and after the 7-day incubation. D. ferrophilus growth was seen in vials with no treatment, 50 ppm THPS and 50 ppm THPS + 100 nM Peptide A. With 100 ppm THPS, no apparent planktonic growth was observed (not turbid), suggesting strong inhibition effect. Table 4 summarizes sessile cell counts on coupons with different treatment.

FIGURE 1

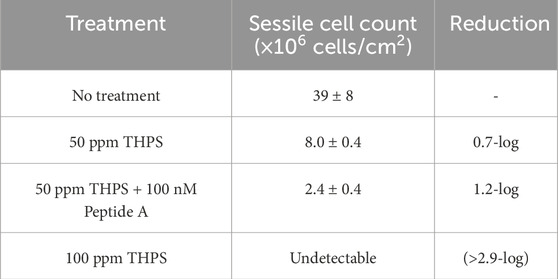

Without biocide treatment, sessile cells on 13Cr coupons were found to be (3.9 ± 0.8) × 10⁷ cells/cm². With treatment of 50 ppm THPS and 50 ppm THPS + 100 nM Peptide A, sessile cell counts reduced to (8.0 ± 0.4) × 10⁶ cells/cm² and (2.4 ± 0.4) × 10⁶ cells/cm². A 0.7-log reduction was seen in sessile cells with 50 ppm THPS alone, and the addition of 100 nM Peptide A achieved an extra 0.5-log reduction, showing its obvious enhancement effect. Sessile cells were not detected (detection threshold of 5 × 10⁴ planktonic cells/mL translating into 5 × 10⁴ sessile cells/cm²) on coupons treated with 100 ppm THPS.

3.2 Biofilm CLSM images

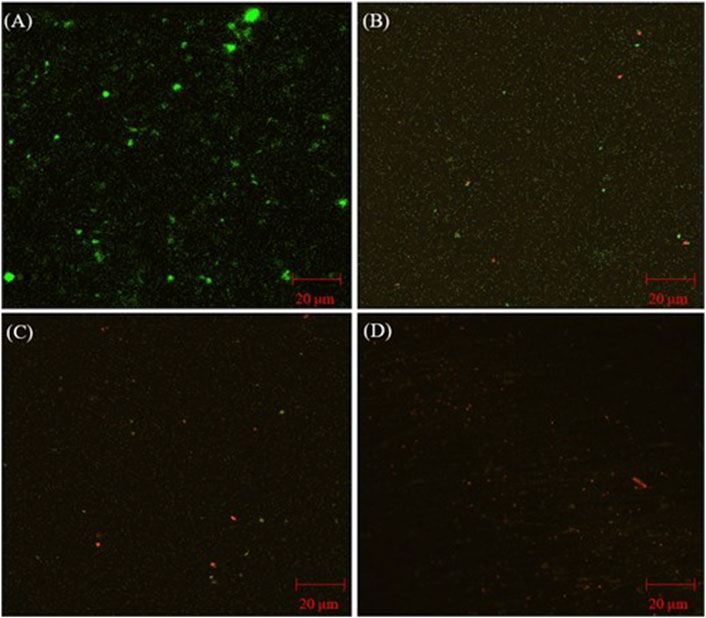

CLSM images of D. ferrophilus biofilms on 13Cr coupon surfaces with different treatments are presented in Figure 2. Healthy biofilms were seen on the coupon surface without treatment (Figure 2A) with densely populated green dots (live cells). With 50 ppm THPS and 50 ppm THPS + 100 nM Peptide A (Figures 2B, C), live cells became fewer and more dead cells (red dots) appeared. It is hard to see any live cells in Figure 2D on the 13Cr coupon surface treated with 100 ppm THPS. Here, these CLSM biofilm observations are consistent with the sessile cell count results.

FIGURE 2

3.3 Weight loss

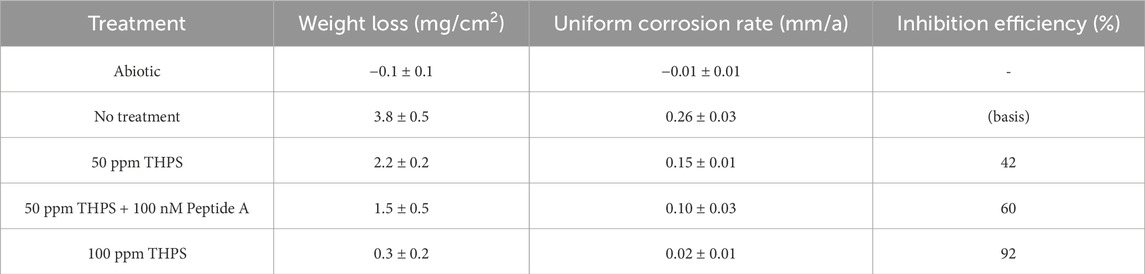

The weight loss results of 13Cr coupons with different treatment are listed in Table 5. For the abiotic control, no weight loss was detected. The weight losses for coupons with no treatment, 50 ppm THPS, 50 ppm THPS + 100 nM Peptide A and 100 ppm THPS were 3.8 ± 0.5 mg/cm² (equivalent to uniform corrosion rate 0.26 ± 0.03 mm/a), 2.2 ± 0.2 mg/cm² (0.15 ± 0.01 mm/a), 1.5 ± 0.5 mg/cm² (0.10 ± 0.03 mm/a) and 0.3 ± 0.2 mg/cm² (0.02 ± 0.01 mm/a), respectively. THPS at 50 ppm reduced weight loss by 42%, while 50 ppm THPS + 100 nM Peptide A achieved an extra 18% weight loss reduction, suggesting considerable enhancement effect. With 100 ppm THPS, the uniform corrosion inhibition efficiency reached 92% which was very effective. In EET-MIC by SRB, sessile cells in biofilms are directly involved in iron oxidation. The weight loss sequence matches the sessile cell count sequence. Thus, the greatly reduced weight loss here can be attributed to the effectiveness of THPS in inhibiting the growth of D. ferrophilus biofilms and the biofilm dispersing effect of Peptide A.

The outstanding performance of THPS in mitigating SRB MIC was because the degradation of THPS forms trihydroxymethyl phosphine which can destroy microbial cell walls by reducing disulfide bonds within cell wall disulfide amino acids (Parker and Kharasch, 1959; Rüegg and Rudinger, 1977). THPS also inhibits SRB growth through its selective action which affects the hNRB (heterotrophic nitrate-reducing bacteria) and so-NRB (sulfide-oxidizing-NRB) activities (Okoro, 2015). Besides, as an H₂S scavenger, THPS can mitigate corrosion caused by souring (Talbot et al., 2000). The biofilm dispersing effect of Peptide A enhanced the THPS treatment effect as some sessile cells were detached without biocide kill. The exact mechanism for Peptide A’s superior biofilm dispersing ability remains unknown, but it likely functions as a signal molecule. Thus, its effective dosage is extremely small, much lower than the 10s of ppm dosage required for a typical corrosion inhibitor that needs to have a monolayer coverage on a metal surface.

3.4 Pitting analysis

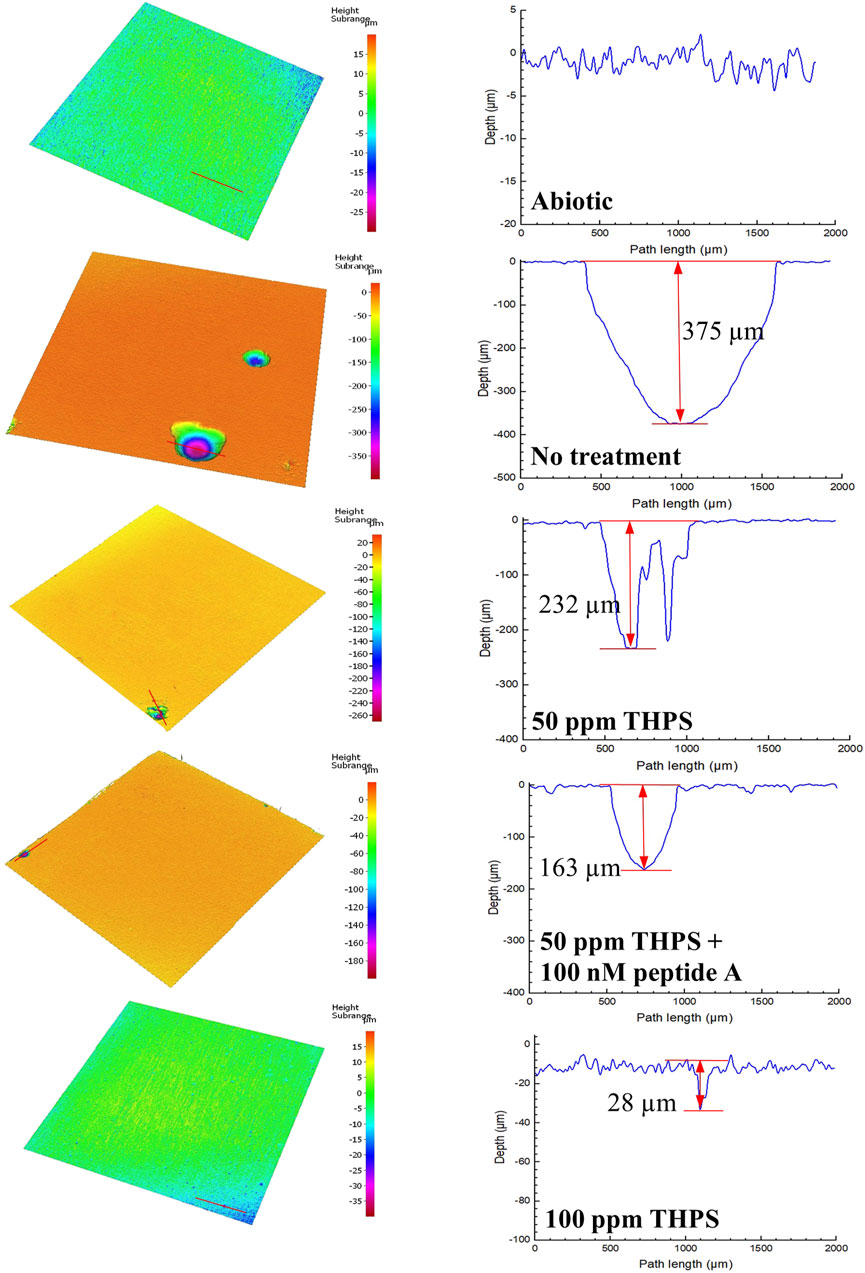

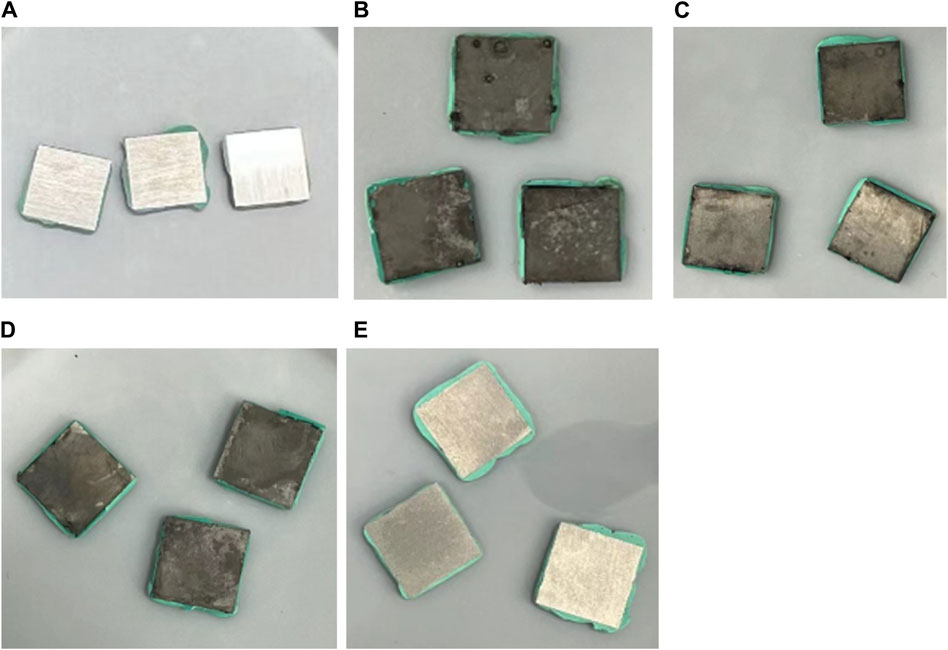

Coupons with biofilms and corrosion products removed are shown in Figures 3A–E. Some corrosion pits on the coupons are visible to the naked eyes, especially for coupons without treatment in Figure 3B. Figure 4 presents pits with maximum depth and pit profiles scanned using IFM. No well-defined pits were found on the abiotic coupon surface. The maximum pit depth for coupons with no treatment, 50 ppm THPS, 50 ppm THPS + 100 nM Peptide A and 100 ppm THPS were 375 μm (equivalent to 20 mm/a pitting rate), 232 μm (12 mm/a), 163 μm (8.6 mm/a) and 28 μm (1.5 mm/a), respectively. The single deepest pit on the coupon without treatment alone results in a weigh loss of 1.95 mg, accounting for 42% of the entire coupon weight loss. The addition of 50 ppm THPS, 50 ppm THPS + 100 nM Peptide A and 100 ppm THPS reduced pitting rates by 38%, 57%, and 93%, respectively. Thus, 100 ppm THPS mitigated pitting corrosion greatly.

FIGURE 3

FIGURE 4

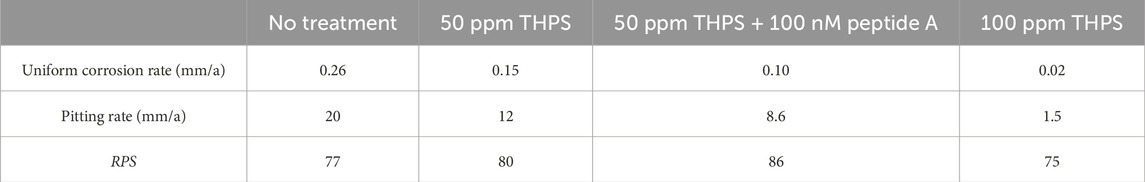

Based on the uniform corrosion rates from weight loss data and pitting corrosion rates, RPS were calculated and summarized in Table 6. The RPS for 13Cr in all conditions were all considerably high but similar with an average value of 80. In comparison, RPS of C1018 carbon steel MIC by D. ferrophilus in EASW was only 1.36 (Wang et al., 2021a). This phenomenon supported the fact that pitting corrosion is the major issue for low grade stainless steels just like 13Cr. Even with biocide treatment, the RPS values showed no apparent changes, which were still almost two orders of magnitude of that for C1018 carbon steel. With 100 ppm THPS, the uniform corrosion rate declined to a very small number of 0.02 mm/a. However, its pitting rate was still as high as 1.5 mm/a, which is greater than pitting rates of some carbon steels in the same system without any biocide treatment (Wang et al., 2021a; Xu et al., 2023b). Thus, a higher THPS dosage may be needed for better biocide mitigation to prevent pinhole leaks due to SRB MIC pitting.

The high PRS values in Table 6 for 13Cr shows that it is particularly prone to pitting corrosion. 13Cr is a low-grade stainless steel (420 SS) with a PREN (pitting resistance equivalent number) value of 13. It has a passive film that is relatively easy to be damaged in some spots compared to higher grade stainless steels such as 304 SS with a PREN value of 20 (L. Xu et al., 2023b). CrSs have Cr oxide/hydroxide passive films that are (semi-)conductive (Sun et al., 2016). In SRB MIC, the iron sulfide corrosion product film is also (semi-)conductive (Gu et al., 2019). Thus, 13Cr MIC by SRB satisfies the two essential requirements for classical pitting, i.e., a passive film that can be damaged and the passive film is (semi-)conductive (L. Xu et al., 2023b). This leads to a large cathode to small anode area ratio situation, which amplifies the pitting effect as illustrated in Figure 5. In carbon steel MIC by SRB, the corrosion products (iron sulfides) form a conductive film that can reach 10–30 μm in thickness (Jia et al., 2018). In stainless steel MIC by SRB, the iron sulfides film will be on top of the metal’s own passive film (chromium oxides/chromium hydroxide) that is only several nm in thickness (Mohammadi et al., 2011). Sessile cells in the biofilm can harvest electrons across both (semi-)conductive films.

FIGURE 5

3.5 Electrochemical measurements

Electrochemical tests can provide extra evidence, especially transient information, to support one-shoot weight loss data. Figure 6 demonstrates R_p (polarization resistance) variations of 13Cr with different treatment from LPR measurements. The abiotic control exhibited a stable curve over the 7-day incubation. Without treatment, R_p declined considerably from 1 day to 3 days and remained stable for the remaining time. This suggests that mature biofilm formed at 3 days and corrosion rate generally increased during the first 3 days and stabilized from 3 days to 7 days. With 50 ppm THPS, the R_p curve was consistently higher than that of no treatment. Compared with 50 ppm THPS alone, R_p values of 50 ppm THPS + 100 nM Peptide A were generally higher, especially from 5 days to 7 days. Thus, the enhancement effect of Peptide A for THPS was clearly manifested. The R_p values of 100 ppm THPS did not drop considerably compared to the abiotic control and remained high during the 7-d incubation period, indicating effective corrosion inhibition through biofilm inhibition. The 1/R_p sequence of different treatments matches the corrosion rate sequence based on weight loss results. Based on the 1/R_p data at 7 days, 100 ppm THPS achieved a corrosion inhibition efficiency of 97%.

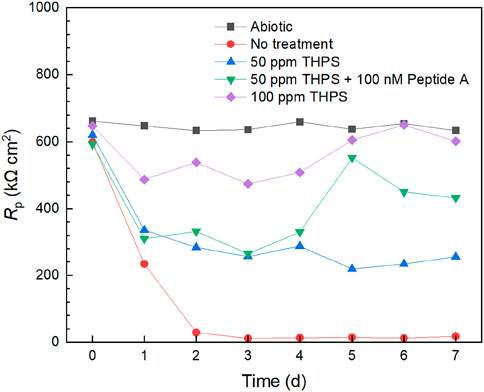

FIGURE 6

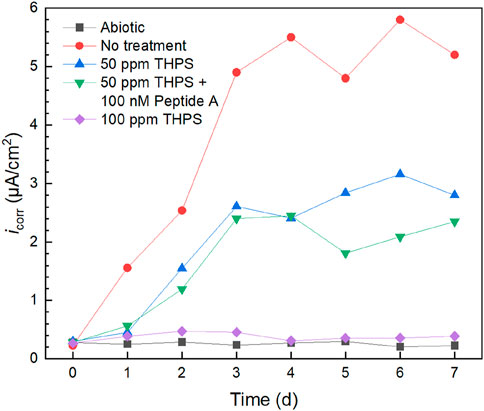

Corrosion current density (i_corr) results fitted from 7-day Tafel scans are displayed in Figure 7. Without treatment, i_corr gradually increased and remained higher than the treated conditions. With 100 nM Peptide A, i_corr values of 100 ppm THPS were generally lower than those without over the entire 7-day incubation period. The 100 ppm THPS i_corr kept at a low level which was close to the abiotic control, proving that 100 ppm THPS was effective in biofilm inhibition. The i_corr sequence of different treatments again matches the weight loss sequence. Based on the i_corr data at 7 days, 100 ppm THPS achieved a corrosion inhibition efficiency of 93%. It should be noted that daily Tafel scans of the same WE were permitted using the dual-scan method with cathodic scan and cathodic scan commencing at OCP according to our previous Tafel scan scheme study (Wang et al., 2022a). Both LPR and Tafel findings confirmed the effective mitigation of D. ferrophilus MIC on 13Cr and the obvious enhancement effect of Peptide A for THPS. They provide extra evidence to support weight loss or uniform corrosion results. The overall corrosion rates were substantially reduced with biocide addition which also resulted in much lower pitting rates as reflected by the pitting analysis.

FIGURE 7

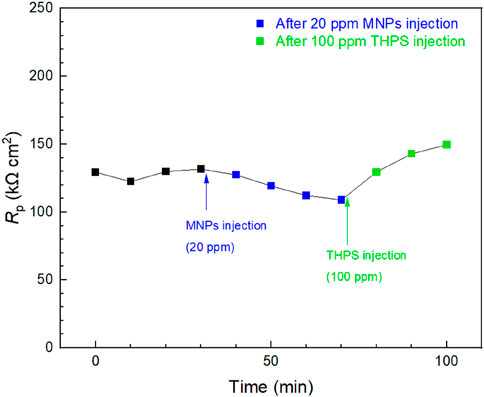

Injection tests were conducted in a 10 mL electrochemical cell at 3 days when mature D. ferrophilus biofilms formed on the 13Cr WE surface. In Figure 8, stable R_p readings were obtained for 40 min before injections. After 20 ppm (final concentration in the broth) MNPs injection, a generally decreasing R_p trend was observed and R_p was reduced by 16% in 40 min after the injection, which means the corrosion rate became higher. This shows that MNPs successfully enhanced MIC of D. ferrophilus against 13Cr. THPS was subsequently injected to reach 100 ppm in broth and led to an increase in R_p. The final R_p value was increased by 37% due to the THPS injection, indicating mitigation effect of THPS.

FIGURE 8

The 16% R_p decreased after the injection of MNPs was because MIC of 13Cr by D. ferrophilus belongs to EET-MIC where the electron transfer between sessile cell walls and Fe surface is an important rate-limiting process, and the MNPs can serve as electron conduits to accelerate this process (Wang et al., 2022b). Thus, the SRB MIC of 13Cr is proven to be EET-MIC here. The followed THPS injection proved its biocidal effect in treating SRB biofilms and showed that electrochemical injection tests were sensitive enough to provide both accelerated and decelerated MIC information. It should be noted that treating a pre-established biofilm is far more difficult than preventing the biofilm from establishing. Thus, 37% was much smaller than the 93% based on the i_corr data at 7 days in Figure 7.

4 Conclusion

Severe pitting corrosion was found on 13Cr after the 7-day incubation. THPS was effective in mitigating D. ferrophilus MIC against 13Cr. The enhancement effect of Peptide A for THPS was manifested. The macroscopic pits on 13Cr coupon surfaces visible to the naked eyes disappeared with effective biocide treatment. However, to reduce pitting corrosion completely, a THPS dosage higher than 100 ppm will be needed.

The electrochemical results in this work indicate that electrochemical measurements qualitatively described biocide treatment efficacy consistent with sessile cell count and weight loss data trends.

This lab investigation demonstrated an alarming SRB pitting risk for 13Cr. If 13Cr is used to combat CO₂ (uniform) corrosion in the presence of SRB, a biocide mitigation plan should be in place to prevent pinhole leaks caused by potentially very fast SRB pitting.

References

• 1

  AbbasM. A.ZakariaK.El-ShamyA. M.AbedinS. Z. E. (2021). Utilization of 1-butylpyrrolidinium chloride ionic liquid as an eco-friendly corrosion inhibitor and biocide for oilfield equipment: combined weight loss, electrochemical and SEM studies. Z. Für Phys. Chem.235, 377–406. 10.1515/zpch-2019-1517

  • CrossRef
  • Google Scholar

• 2

  Abdalla FilhoJ.MachadoR.BertinR.ValentiniM. (2014). On the failure pressure of pipelines containing wall reduction and isolated pit corrosion defects. Comput. Struct.132, 22–33. 10.1016/j.compstruc.2013.10.017

  • CrossRef
  • Google Scholar

• 3

  AbdullahA.YahayaN.Md NoorN.Mohd RasolR. (2014). Microbial corrosion of API 5L X-70 carbon steel by ATCC 7757 and consortium of sulfate-reducing bacteria. J. Chem.2014, 1–7. 10.1155/2014/130345

  • CrossRef
  • Google Scholar

• 4

  AlcántaraJ.de la FuenteD.ChicoB.SimancasJ.DíazI.MorcilloM. (2017). Marine atmospheric corrosion of carbon steel: a review. Materials10, 406. 10.3390/ma10040406

  • CrossRef
  • Google Scholar

• 5

  AstutiD.PurwasenaI. A.PutriF. Z. (2018). Potential of biosurfactant as an alternative biocide to control biofilm associated biocorrosion. J. Environ. Sci. Technol.11, 104–111. 10.3923/jest.2018.104.111

  • CrossRef
  • Google Scholar

• 6

  BhandariJ.KhanF.AbbassiR.GaraniyaV.OjedaR. (2015). Modelling of pitting corrosion in marine and offshore steel structures–A technical review. J. Loss Prev. Process Ind.37, 39–62. 10.1016/j.jlp.2015.06.008

  • CrossRef
  • Google Scholar

• 7

  BlaisJ.-F.DjedidiZ.CheikhR. B.TyagiR. D.MercierG. (2008). Metals precipitation from effluents: review. Toxic. Radioact. Waste Manag.12, 135–149. 10.1061/(asce)1090-025x(2008)12:3(135)

  • CrossRef
  • Google Scholar

• 8

  ČernoušekT.ShresthaR.KovářováH.ŠpánekR.ŠevcůA.SihelskáK.et al (2020). Microbially influenced corrosion of carbon steel in the presence of anaerobic sulphate-reducing bacteria. Corros. Eng. Sci. Technol.55, 127–137. 10.1080/1478422X.2019.1700642

  • CrossRef
  • Google Scholar

• 9

  ChouchaouiB.PickR. (1996). Behaviour of longitudinally aligned corrosion pits. Int. J. Press. Vessels Pip.67, 17–35. 10.1016/0308-0161(94)00057-3

  • CrossRef
  • Google Scholar

• 10

  ChughB.ThakurS.SinghA. K. (2020). Microbiologically influenced corrosion inhibition in oil and gas industry. Corros. Inhib. Oil Gas. Ind., 321–338. 10.1002/9783527822140.ch13

  • CrossRef
  • Google Scholar

• 11

  ConletteO. (2014). Impacts of tetrakis-hydroxymethyl phosphonium sulfate (THPS) based biocides on the functional group activities of some oil field microorganisms associated with corrosion and souring. Br. Microbiol. Res. J.4, 1463–1475. 10.9734/BMRJ/2014/11943

  • CrossRef
  • Google Scholar

• 12

  CostaE. M.DedavidB. A.SantosC. A.LopesN. F.FraccaroC.PagartanidisT.et al (2023). Crevice corrosion on stainless steels in oil and gas industry: a review of techniques for evaluation, critical environmental factors and dissolved oxygen. Eng. Fail. Anal.144, 106955. 10.1016/j.engfailanal.2022.106955

  • CrossRef
  • Google Scholar

• 13

  DongY.LekbachY.LiZ.XuD.El AbedS.Ibnsouda KoraichiS.et al (2020). Microbiologically influenced corrosion of 304L stainless steel caused by an alga associated bacterium Halomonas titanicae. J. Mater. Sci. Technol.37, 200–206. 10.1016/j.jmst.2019.06.023

  • CrossRef
  • Google Scholar

• 14

  DorchehA. S.DurhamR. N.GaletzM. C. (2016). Corrosion behavior of stainless and low-chromium steels and IN625 in molten nitrate salts at 600 °C. Sol. Energy Mater. Sol. Cells144, 109–116. 10.1016/j.solmat.2015.08.011

  • CrossRef
  • Google Scholar

• 15

  DouW.JiaR.JinP.LiuJ.ChenS.GuT. (2018). Investigation of the mechanism and characteristics of copper corrosion by sulfate reducing bacteria. Corros. Sci.144, 237–248. 10.1016/j.corsci.2018.08.055

  • CrossRef
  • Google Scholar

• 16

  DwivediD.LepkováK.BeckerT. (2017). Carbon steel corrosion: a review of key surface properties and characterization methods. RSC Adv.7, 4580–4610. 10.1039/c6ra25094g

  • CrossRef
  • Google Scholar

• 17

  El-ShamyA. M. (2020). A review on: biocidal activity of some chemical structures and their role in mitigation of microbial corrosion. Egypt. J. Chem.63, 5251–5267. 10.21608/ejchem.2020.32160.2683

  • CrossRef
  • Google Scholar

• 18

  EnningD.GarrelfsJ. (2014). Corrosion of iron by sulfate-reducing bacteria: new views of an old problem. Appl. Environ. Microbiol.80, 1226–1236. 10.1128/aem.02848-13

  • CrossRef
  • Google Scholar

• 19

  EnningD.VenzlaffH.GarrelfsJ.DinhH. T.MeyerV.MayrhoferK.et al (2012). Marine sulfate‐reducing bacteria cause serious corrosion of iron under electroconductive biogenic mineral crust. Environ. Microbiol.14, 1772–1787. 10.1111/j.1462-2920.2012.02778.x

  • CrossRef
  • Google Scholar

• 20

  EttefaghA. H.GuoS.RaushJ. (2021). Corrosion performance of additively manufactured stainless steel parts: a review. Addit. Manuf.37, 101689. 10.1016/j.addma.2020.101689

  • CrossRef
  • Google Scholar

• 21

  FahimA.DeanA. E.ThomasM. D.MoffattE. G. (2019). Corrosion resistance of chromium‐steel and stainless steel reinforcement in concrete. Mater. Corros.70, 328–344. 10.1002/maco.201709942

  • CrossRef
  • Google Scholar

• 22

  GanaM. L.Kebbouche-GanaS.TouziA.ZorganiM. A.PaussA.LouniciH.et al (2011). Antagonistic activity of Bacillus sp. obtained from an Algerian oilfield and chemical biocide THPS against sulfate-reducing bacteria consortium inducing corrosion in the oil industry. J. Ind. Microbiol. Biotechnol.38, 391–404. 10.1007/s10295-010-0887-2

  • CrossRef
  • Google Scholar

• 23

  Grande BurgosM. J.Lucas LópezR.López AguayoM. del C.Pérez PulidoR.GálvezA. (2013). Inhibition of planktonic and sessile Salmonella enterica cells by combinations of enterocin AS-48, polymyxin B and biocides. Food control.30, 214–221. 10.1016/j.foodcont.2012.07.011

  • CrossRef
  • Google Scholar

• 24

  GuT.JiaR.UnsalT.XuD. (2019). Toward a better understanding of microbiologically influenced corrosion caused by sulfate reducing bacteria. J. Mater. Sci. Technol.35, 631–636. 10.1016/j.jmst.2018.10.026

  • CrossRef
  • Google Scholar

• 25

  HindsG.ZhaoJ.TurnbullA. (2005). Hydrogen diffusion in super 13% chromium martensitic stainless steel. Corrosion61, 348–354. 10.5006/1.3279887

  • CrossRef
  • Google Scholar

• 26

  JiaR.TanJ. L.JinP.BlackwoodD. J.XuD.GuT. (2018). Effects of biogenic H2S on the microbiologically influenced corrosion of C1018 carbon steel by sulfate reducing Desulfovibrio vulgaris biofilm. Corros. Sci.130, 1–11. 10.1016/j.corsci.2017.10.023

  • CrossRef
  • Google Scholar

• 27

  JiaR.YangD.DouW.LiuJ.ZlotkinA.KumseraneeS.et al (2019). A sea anemone-inspired small synthetic peptide at sub-ppm concentrations enhanced biofilm mitigation. Int. Biodeterior. Biodegr.139, 78–85. 10.1016/j.ibiod.2018.11.009

  • CrossRef
  • Google Scholar

• 28

  KermaniM. B.HarropD. (1996). The impact of corrosion on the oil and gas industry. SPE Prod. Facil.11, 186–190. 10.2118/29784-PA

  • CrossRef
  • Google Scholar

• 29

  LinX.LiuW.WuF.XuC.DouJ.LuM. (2015). Effect of O2 on corrosion of 3Cr steel in high temperature and high pressure CO2–O2 environment. Appl. Surf. Sci.329, 104–115. 10.1016/j.apsusc.2014.12.109

  • CrossRef
  • Google Scholar

• 30

  MesquitaT. J.ChauveauE.MantelM.BouvierN.KoschelD. (2014). Corrosion and metallurgical investigation of two supermartensitic stainless steels for oil and gas environments. Corros. Sci.81, 152–161. 10.1016/j.corsci.2013.12.015

  • CrossRef
  • Google Scholar

• 31

  MohammadiF.NickchiT.AttarM.AlfantaziA. (2011). EIS study of potentiostatically formed passive film on 304 stainless steel. Electrochimica Acta56, 8727–8733. 10.1016/j.electacta.2011.07.072

  • CrossRef
  • Google Scholar

• 32

  MukherjeeA.AhnY.-H. (2022). Terpinolene as an enhancer for ultrasonic disinfection of multi-drug-resistant bacteria in hospital wastewater. Environ. Sci. Pollut. Res.29, 34500–34514. 10.1007/s11356-022-18611-6

  • CrossRef
  • Google Scholar

• 33

  ObotI.OnyeachuI. B.UmorenS. A.QuraishiM. A.SorourA. A.ChenT.et al (2020). High temperature sweet corrosion and inhibition in the oil and gas industry: progress, challenges and future perspectives. J. Pet. Sci. Eng.185, 106469. 10.1016/j.petrol.2019.106469

  • CrossRef
  • Google Scholar

• 34

  OkoroC. (2015). The biocidal efficacy of tetrakis-hydroxymethyl phosphonium sulfate (THPS) based biocides on oil pipeline pigruns liquid biofilms. Pet. Sci. Technol.33, 1366–1372. 10.1080/10916466.2015.1062781

  • CrossRef
  • Google Scholar

• 35

  ParkerA. J.KharaschN. (1959). The scission of the sulfur-sulfur bond. Chem. Rev.59, 583–628. 10.1021/cr50028a003

  • CrossRef
  • Google Scholar

• 36

  PuY.TianY.HouS.DouW.ChenS. (2023). Enhancement of exogenous riboflavin on microbiologically influenced corrosion of nickel by electroactive Desulfovibrio vulgaris biofilm. npj Mater. Degrad.7, 7. 10.1038/s41529-023-00325-w

  • CrossRef
  • Google Scholar

• 37

  RüeggU. T.RudingerJ. (1977). “Reductive cleavage of cystine disulfides with tributylphosphine,” in Methods in enzymology, 111–116.

  • Google Scholar

• 38

  SandW.GehrkeT. (2003). Microbially influenced corrosion of steel in aqueous environments. Rev. Environ. Sci. Biotechnol.2, 169–176. 10.1023/B:RESB.0000040468.88570.4e

  • CrossRef
  • Google Scholar

• 39

  ScheuerC.PossoliF.BorgesP.CardosoR.BrunattoS. (2019). AISI 420 martensitic stainless steel corrosion resistance enhancement by low-temperature plasma carburizing. Electrochimica Acta317, 70–82. 10.1016/j.electacta.2019.05.101

  • CrossRef
  • Google Scholar

• 40

  ShengX.TingY.-P.PehkonenS. O. (2007). The influence of sulphate-reducing bacteria biofilm on the corrosion of stainless steel AISI 316. Corros. Sci.49, 2159–2176. 10.1016/j.corsci.2006.10.040

  • CrossRef
  • Google Scholar

• 41

  ShiX.ZhangR.SandW.MathivananK.ZhangY.WangN.et al (2023). Comprehensive review on the use of biocides in microbiologically influenced corrosion. Microorganisms11, 2194. 10.3390/microorganisms11092194

  • CrossRef
  • Google Scholar

• 42

  SilvaP.OliveiraS. H.VinhasG. M.CarvalhoL. J.BaraunaO. S.Urtiga FilhoS. L.et al (2021). Tetrakis hydroxymethyl phosphonium sulfate (THPS) with biopolymer as strategy for the control of microbiologically influenced corrosion in a dynamic system. Chem. Eng. Process.-Process Intensif.160, 108272. 10.1016/j.cep.2020.108272

  • CrossRef
  • Google Scholar

• 43

  SkovhusT. L.EckertR. B.RodriguesE. (2017). Management and control of microbiologically influenced corrosion (MIC) in the oil and gas industry—overview and a North Sea case study. J. Biotechnol.256, 31–45. 10.1016/j.jbiotec.2017.07.003

  • CrossRef
  • Google Scholar

• 44

  SunJ.SunC.WangY. (2016). Effect of Cr content on the electrochemical behavior of low-chromium X65 steel in CO₂ environment. Int. J. Electrochem Sci.11, 8599–8611. 10.20964/2016.10.58

  • CrossRef
  • Google Scholar

• 45

  TalbotR. E.LarsenJ.SandersP. F. (2000). Experience with the use of tetrakishydroxymethylphosphonium sulfate (THPS) for the control of downhole hydrogen sulfide. Paper Number: NACE-00123, presented at CORROSION 2000 Conference, Orlando, Florida, March, 2000.

  • Google Scholar

• 46

  ThauerR. K.StackebrandtE.HamiltonW. A. (2007). Energy metabolism and phylogenetic diversity of sulphate-reducing bacteria. In: Sulphate-Reducing Bact. Editors BartonL. L.HamiltonW. A., 1–38. 10.1017/cbo9780511541490.002

  • CrossRef
  • Google Scholar

• 47

  UnsalT.WangD.KumseraneeS.PunprukS.MohamedM.E.-S.SalehM. A.et al (2021). Assessment of 2,2-dibromo-3-nitrilopropionamide biocide enhanced by D-tyrosine against zinc corrosion by a sulfate reducing bacterium. Ind. Eng. Chem. Res.60, 4009–4018. 10.1021/acs.iecr.0c06317

  • CrossRef
  • Google Scholar

• 48

  VidelaH. A.CharacklisW. G. (1992). Biofouling and microbially influenced corrosion. Int. Biodeterior. Biodegr. Spec. Issue Microbially Influ. Corros.29, 195–212. 10.1016/0964-8305(92)90044-O

  • CrossRef
  • Google Scholar

• 49

  WangB.XuL.ZhuJ.XiaoH.LuM. (2016). Observation and analysis of pseudopassive film on 6.5%Cr steel in CO₂ corrosion environment. Corros. Sci.111, 711–719. 10.1016/j.corsci.2016.06.006

  • CrossRef
  • Google Scholar

• 50

  WangD.KijklaP.MohamedM. E.SalehM. A.KumseraneeS.PunprukS.et al (2021a). Aggressive corrosion of carbon steel by Desulfovibrio ferrophilus IS5 biofilm was further accelerated by riboflavin. Bioelectrochemistry142, 107920. 10.1016/j.bioelechem.2021.107920

  • CrossRef
  • Google Scholar

• 51

  WangD.KijklaP.SalehM. A.KumseraneeS.PunprukS.GuT. (2022a). Tafel scan schemes for microbiologically influenced corrosion of carbon steel and stainless steel. J. Mater. Sci. Technol.130, 193–197. 10.1016/j.jmst.2022.05.018

  • CrossRef
  • Google Scholar

• 52

  WangD.LiuJ.JiaR.DouW.KumseraneeS.PunprukS.et al (2020). Distinguishing two different microbiologically influenced corrosion (MIC) mechanisms using an electron mediator and hydrogen evolution detection. Corros. Sci.177, 108993. 10.1016/j.corsci.2020.108993

  • CrossRef
  • Google Scholar

• 53

  WangD.YangC.SalehM. A.AlotaibiM. D.MohamedM. E.XuD.et al (2022b). Conductive magnetite nanoparticles considerably accelerated carbon steel corrosion by electroactive Desulfovibrio vulgaris biofilm. Corros. Sci.205, 110440. 10.1016/j.corsci.2022.110440

  • CrossRef
  • Google Scholar

• 54

  WuQ.ZhangZ.DongX.YangJ. (2013). Corrosion behavior of low-alloy steel containing 1% chromium in CO₂ environments. Corros. Sci.75, 400–408. 10.1016/j.corsci.2013.06.024

  • CrossRef
  • Google Scholar

• 55

  XuD.GuT. (2014). Carbon source starvation triggered more aggressive corrosion against carbon steel by the Desulfovibrio vulgaris biofilm. Int. Biodeterior. Biodegr.91, 74–81. 10.1016/j.ibiod.2014.03.014

  • CrossRef
  • Google Scholar

• 56

  XuD.GuT.LovleyD. R. (2023). Microbially mediated metal corrosion. Nat. Rev. Microbiol.21, 705–718. 10.1038/s41579-023-00920-3

  • CrossRef
  • Google Scholar

• 57

  XuL.IvanovaS. A.GuT. (2023a). Mitigation of galvanized steel biocorrosion by Pseudomonas aeruginosa biofilm using a biocide enhanced by trehalase. Bioelectrochemistry154, 108508. 10.1016/j.bioelechem.2023.108508

  • CrossRef
  • Google Scholar

• 58

  XuL.KijklaP.KumseraneeS.PunprukS.GuT. (2023b). “Corrosion-resistant” chromium steels for oil and gas pipelines can suffer from very severe pitting corrosion by a sulfate-reducing bacterium. J. Mater. Sci. Technol. S1005030223001287174, 23–29. 10.1016/j.jmst.2023.01.008

  • CrossRef
  • Google Scholar

• 59

  YangX.ShaoJ.LiuZ.ZhangD.CuiL.DuC.et al (2020). Stress-assisted microbiologically influenced corrosion mechanism of 2205 duplex stainless steel caused by sulfate-reducing bacteria. Corros. Sci.173, 108746. 10.1016/j.corsci.2020.108746

  • CrossRef
  • Google Scholar

• 60

  YazdiM.KhanF.AbbassiR. (2021). Microbiologically influenced corrosion (MIC) management using Bayesian inference. Ocean. Eng.226, 108852. 10.1016/j.oceaneng.2021.108852

  • CrossRef
  • Google Scholar

• 61

  YouX.XuN.YangX.SunW. (2021). Pollutants affect algae-bacteria interactions: a critical review. Environ. Pollut.276, 116723. 10.1016/j.envpol.2021.116723

  • CrossRef
  • Google Scholar
