Abstract
In this article, we study the fully non-linear third-order partial differential equation, namely the Gilson-Pickering equation. The (1/G′)-expansion method, and the generalized exponential rational function method are used to construct various exact solitary wave solutions for a given equation. These methods are based on a homogeneous balance technique that provides an order for the estimation of a polynomial-type solution. In order to convert the governing equation into a nonlinear ordinary differential equation, a traveling wave transformation has been implemented. As a result, we have constructed a variety of solitary wave solutions, such as singular solutions, compound singular solutions, complex solutions, and topological and non-topological solutions. Besides, the 2D, 3D, and contour surfaces are plotted for all obtained solutions by choosing appropriate parameter values.
1. Introduction
Nonlinear partial differential equations (NLPDEs) are used to represent a variety of nonlinear physical phenomena in different areas of applied sciences like fluid dynamics, plasma physics, optical fibers, and biology. Among the most profitable strategies for examining such nonlinear physical phenomena is to seek for the exact solutions of NLPDEs [1–5]. In recent years, a variety of effective methods have been implemented to investigate the exact solutions of nonlinear partial differential equations, such as Hirota's bilinear method [6], the Adomian decomposition method [7], the exp(−Φ(ξ))-expansion method [8], the sine-Gordon expansion method [9], the Bernoulli sub-equation method [10, 11], the shooting method with the fourth-order Runge-Kutta scheme [12, 13], the generalized exponential rational function method [14–18], the modified exponential function method [19], the modified auxiliary expansion method [20], the homotopy perturbation Sumudu transform method [21], the homotopy perturbation transform method [22, 23], and the fractional homotopy analysis transform method [24].
The third-order nonlinear partial differential equation (NLPDE) was introduced in [25] by Gilson and Pickering as
where ε, α, κ, and β are non-zero real numbers. Recently, the Gilson-Pickering equation has been investigated using a variety of methods, such as the (G′/G)-expansion method [26], the anstaz method [27], the (G′/G)-expansion method to tanh, the coth, cot, and the logical forms under certain conditions [28], the Bernoulli sub-equation model [29], a not a knot meshless method [30], and the symmetry method [31].
The core of this paper is to investigate the Gilson-Pickering equation using the (1/G′)-expansion method and the generalized exponential rational function method (GERF).
2. Applications of the Gilson Pickering Equation
This section presents specific instances of the Gilson Pickering equation and their applications. When ε = 1, α = −3, and β = 2, Equation (1) gives the Fuchssteiner-Fokas-Camassa-Holm equation, which is a completely integrable nonlinear partial differential equation that arises at different levels of approximation in shallow water theory [32, 33]. When ε = 0, α = 1, κ = 0, and β = 3, Equation (1) reduces to the Rosenau-Hyman equation (RH), which arises in the study of the influence of nonlinear dispersion on the structure of patterns in liquid drops [34]. When ε = 1, α = −1, κ = 0.5, and β = 3, Equation (1) gives the Fronberg-Whitham (FW), which was developed to analyze the qualitative characteristics of wave breakage and admits a wave of the highest height [35–37].
3. The Basic Concepts of the (1/G′)-Expansion Method
In this section, the fundamental steps of the (1/G′)-expansion method are presented [38, 39]:
Step 1. Let us consider the general form of a two-variable nonlinear partial differential equation (NPDE) as follows:
where p = p(x, t), and Q is a partial differential equation.
Step 2. To convert Equation (2) to a nonlinear ordinary differential equation (NODE), we employ the following wave transformation
where h is a scalar. After some procedures, Equation (2) reduces to the following NODE:
where W is an ordinary differential equation.
Step 3. Assume that Equation (4) has a solution of the form
where a0, a1, a2, …, am are scalars to be determined, m is a balance term, and G = G(η) satisfies the following second-order linear ODE:
where λ and μ are scalars.
The solution of Equation (6) is given by
If we convert the algebraic expression given by Equation (7) to a trigonometric function, we can write it as the following:
Inserting Equation (6) and its necessary derivatives along with Equation (5) into Equation (4) returns the polynomial of . Summing the coefficients with the same power and then setting every summation to zero, we get a system of algebraic equations for ai, i ≥ 0. Eventually, solving this system simply gives the value of the variables. Putting these values of variables with the value of the balance term m into Equation (4), we can get solutions for Equation (2).
4. The Basic Concepts of the GERF
In this section, the basic steps of the GERF are presented.
Step 1. Let us consider that the general form of a nonlinear partial differential equation is given by:
where Q is a partial differential equation.
Suppose that the wave transformation takes the form:
where h is a scalar.
Using Equation (10) in Equation (9), we get the nonlinear ordinary differential equation
where W is an ordinary differential equation.
Step 2. Suppose that the solitary wave solutions of Equation (11) are given by:
where
where rm, sm (1 ≤ n ≤ 4) are real/complex constants, A0, AK, BK are constants to be determined, and m will be determined by the balance principle.
Step 3. Substituting Equation (12) into Equation (11), we get the polynomials that are dependent on Equation (12). By equating the same order terms, we obtain an algebraic system of equations. With the help of computational programs such as Mathematica, Matlab, and Maple, we solve this system and determine the values of A0, AK, BK. Finally one can easily obtain the nontrivial exact solutions of Equation (11).
5. Mathematical Calculation
In this section, the mathematical calculation of the Gilson-Pickering equation is presented.
Consider the Gilson-Pickering equation (Equation 1) stated in section 1. Inserting the wave transformation
into Equation (1), the following NODE can be obtained
where ϵ, β, α, h, and k are non-zero real numbers.
Integrating Equation (15) once with respect to η and assuming that the integration constant is zero, we have.
6. Implementation of the (1/G′)-Expansion Method
In this section, the application of the (1/G′)-expansion method to the Gilson-Pickering equation is presented.
Applying the balance principle, by taking the nonlinear term P2 and the highest derivative P″ in Equation (16) gives m = 2. With m = 2, Equation (5) takes the form
Inserting Equation (17) and its necessary derivatives into Equation (16), returns the polynomial of . Summing the coefficients with the likely power and then setting every summation to zero, we get a system of algebraic equations. Solving this system simply gives the following families of solutions:
Family 1. When
we get
where
Family 2. When
we get
where .
Family 3. When
gives
Family 4. When
we get
Family 5. When
we get
Family 6. When
we have
7. Implementation of the GERF Method
In this section, the application of the GERF method to the Gilson-Pickering equation is presented.
Applying the balance principle, by taking the nonlinear term P2 and the highest derivative P″ in Equation (16) gives m = 2. With m = 2, Equation (12) takes the form
where φ(η) is given by Equation (13). Following the methodology described above in section 4, we obtain the following nontrivial solutions of Equation (1):
Family 1. When ri = {−2, −1, 1, 1}, si = {0, 1, 0, 1}, we get
Case 1.
we get
Case 2. When
we get
Family 2. When ri = {−2−i, 2−i, −1, 1}, si = {i, −i, i, −i} we get
Case 1. When
we get
where
Case 2.
we get
Family 3. When ri = {2, 0, 1, 1}, si = {−1, 0, 1, −1}
Case 1. When
we have
where
Case 2.
we get
8. Result and Discussion
The powerful methods, namely the (1/G′) expansion method and the generalized exponential rational function method, are used to construct various analytical solutions for the Gilson-Pickering equation. Some results of the Gilson-Pickering equation have already been reported in the literature. Fan et al. [28] used (G′/G) and the ansatz method and found the solitary wave solutions to Equation (1). Baskonus [29] investigated the Gilson-Pickering equation by using the first integral method. Zabihi and Saffarian [30] implemented the simplified (G′/G) expansion method to reveal the hyperbolic, trigonometric function, and rational function solutions. Singla and Gupta [31] reported some new complex soliton solutions to Equation (1) with the aid of the Bernoulli sub-equation function method. Camsssa et al. [32] used a not a knot meshless method to obtain numerical solutions to Equation (1). Fuchssteiner and Fokas [33] performed Lie symmetry analysis and found conservation laws for the space-time fractional Gilson-Pickering equation. In this article, we obtained the singular, compound singular, complex, topological, and non-topological wave solutions to the studied equation. It is known that non-topological solutions detect waves with an intensity lower than the background, topological solutions with such a maximum intensity higher than the background, and singular solutions that are waves with discontinuous derivatives.
9. Conclusion
In this study, we have successfully applied the (1/G′) expansion method and the generalized exponential rational function method to find new exact solutions for the Gilson-Pickering equation. In order to convert the governing equation into a NODE, a traveling wave transformation has been implemented. Various analytical solutions of the proposed model have been constructed such as singular solutions, as shown in Figures 1, 2, 3, compound singular solution, as seen in Figure 4, complex solution, as seen in Figure 5, as well as a singular solution, can be shown in Figure 6. The non-topological solution, as shown in Figure 7, topological solutions, as shown in Figure 8, and compound singular solutions, as seen in Figures 9, 10. Also, topological solution and non-topological solution as seen in Figures 11, 12, respectively. Compared with the results reported in Fan et al. [28], Baskonus [29], Zabihi and Saffarian [30], Singla and Gupta [31], Camsssa et al. [32], and Fuchssteiner and Fokas [33], the solutions obtained are novel. Both methods are efficient for solving complex nonlinear partial differential equations, but, by using the generalized exponential rational function method, we can get more solutions than with the (1/G′) expansion method. Furthermore, the 2D, 3D, and contour surfaces are plotted for all obtained solutions by selecting suitable values for the parameters.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7

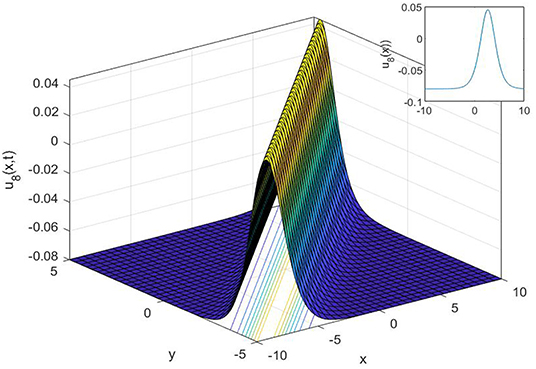

Figure 8

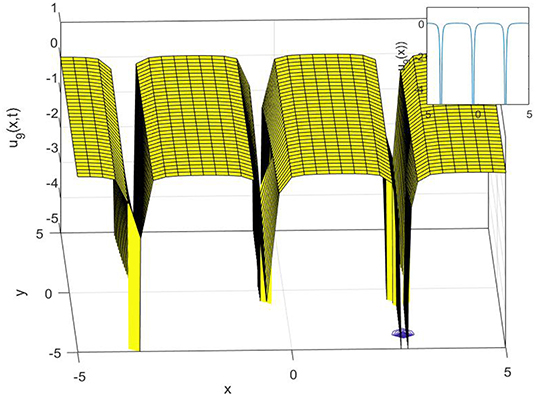

Figure 9

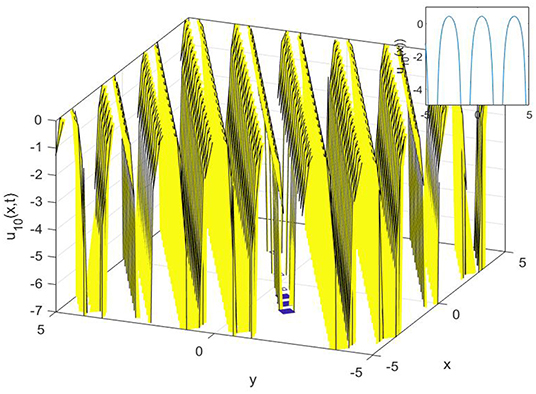

Figure 10
Figure 11

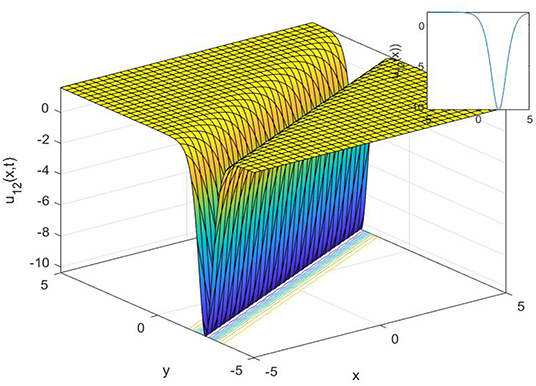

Figure 12
