Abstract
The variable-coefficient Heisenberg ferromagnetic spin chain (vcHFSC) equation is investigated using the Lie group method. The infinitesimal generators and Lie point symmetries are reported. Four types of similarity reductions are acquired by virtue of the optimal system of one-dimensional subalgebras. Several invariant solutions are derived, including trigonometric and hyperbolic function solutions. Furthermore, conservation laws for the vcHFSC equation are obtained with the help of Lagrangian and non-linear self-adjointness.
Introduction
The investigation of physical phenomenon modeled by non-linear partial differential equations (NLPDEs) and searching for their underlying dynamics remain the hot issue of research for applied and theoretical sciences. A lot of attention has been concentrated on looking for the explicit solutions of NLPDEs, for they can provide accurate information with which to understand some interesting physical phenomena. A great many powerful methods have been proposed to construct the explicit solutions of NLPDEs, such as the inverse scattering method [1], the Lie group method [2–5], the Hirota bilinear method [6, 7], the extended tanh method [8–10], the homoclinc test method [11–13], the F-expansion technique [14], and so on [15–18]. Among these methods, the Lie group method is a powerful and prolific method for the study of NLPDEs. On the one hand, based on the Lie group method, we can obtain new exact solutions directly or from the known ones or via similarity reductions; on the other hand, the conservation laws can be constructed via the corresponding Lie point symmetries. Recently, invariant solutions of a class of constant and variable coefficient NLPDEs have been obtained by virtue of this method, such as Keller-Segel models [19], generalized fifth-order non-linear integrable equation [20], KdV equation [21], and Davey-Stewartson equation [22].
So far, many effective methods have been extended to construct exact solutions of different types of differential equations. For example, the generalized Bernoulli sub-ODE and the generalized tanh methods have been applied to establish optical soliton solutions of the Chen-Lee-Liu equation [23]. The Lie group method has been used to find the exact solutions of the time fractional Abrahams–Tsuneto reaction diffusion system [24] and the non-linear transmission line equation [25].
In this work, we will focus on the (2+1)-dimensional variable-coefficient Heisenberg ferromagnetic spin chain (vcHFSC) equation
where δ1(t), δ2(t), δ3(t), and δ4(t) are arbitrary functions with respect to t. The interaction properties and stability of the bright and dark solitons are presented in [26]. Non-autonomous complex wave and analytic solutions are obtained in [27]. When δi(t) (i = 1, ⋯ , 4) are arbitrary constants, Equation (1) can be reduced to the following (2+1)-dimensional Heisenberg ferromagnetic spin chain (HFSC) equation:
Latha and Vasanthi [28] obtained multisoliton solutions by employing Darboux transformation and analyzed the interaction properties of Equation (2). Anitha et al. [29] derived the dynamical equations of motion by employing long wavelength approximation and discussed the complete non-linear excitation with the aid of sine-cosine function method. Periodic solutions were obtained by Triki and Wazwaz [30], and they also discussed conditions for the existence and uniqueness of wave solutions. Tang et al. [31] reported the explicit power series solutions and bright and dark soliton solutions of Equation (2), and they also obtained some other exact solutions via the sub-ODE method.
However, the Lie symmetries, invariant solutions, and conservation laws of the (2+1)-dimensional vcHFSC equation (1) have not been studied. In the current work, we study the vcHFSC equation (1) via the Lie group method and obtain new invariant solutions, including the trigonometric and hyperbolic function solutions. Moreover, based on non-linear self-adjointness, conservation laws for vcHFSC equation (1) are constructed.
The main structure of this paper is as follows. In section Lie Symmetry Analysis and Optimal System, based on the Lie symmetry analysis, we construct the Lie point symmetries and the optimal system of one-dimensional subalgebras for Equation (1). In section Symmetry Reductions and Invariant Solutions, four types of similarity reductions and some invariant solutions are studied by virtue of the optimal system. In section Non-linear Self-Adjointness and Conservation Laws, conservation laws for Equation (1) are obtained with the help of Lagrangian and non-linear self-adjointness. Section Results and Discussion provides the results and discussion. Finally, the conclusion is given in section Conclusion.
Lie Symmetry Analysis and Optimal System
In this section, our aim is to obtain the Lie point symmetries and the optimal system of the vcHFSC equation (1) by employing the Lie group method.
The vcHFSC equation (1) can be changed to the following system
by using the transformation
where u(x, y, t) and v(x, y, t) are real and smooth functions.
Suppose that the associated vector field of system (3) is as follows:
where ξ1(x, y, t, u, v), ξ2(x, y, t, u, v), ξ3(x, y, t, u, v), η1(x, y, t, u, v) and η2(x, y, t, u, v) are unknown functions that need to be determined.
If vector field (5) generates a symmetry of system (3), then V must satisfy symmetry condition
where
The infinitesimals ξ1, ξ2, ξ3, η1, and η2must satisfy the following invariant conditions
where
Solving Equation (7), one can obtain
where c1, c2, c3, and c4 are arbitrary constants, and the coefficient functions δ1(t), δ2(t), δ3(t), and δ4(t) are determined by
The Lie algebra of infinitesimal symmetries of system (3) is generated by the four vector fields:
The one-parameter groups gi generated by the 𝔍i are given as follows:
If {u = U(x, y, t), v = V(x, y, t)} is a solution of system (3), by employing symmetry groups gi (i = 1, 2, 3, 4), we can obtain the following new solutions
In order to construct the optimal system for system (3), we apply the formula
where [𝔍i, 𝔍j] = 𝔍i𝔍j − 𝔍j𝔍i and ε is a parameter. The commutator table and the adjoint table of system (3) have been constructed and are presented in Tables 1, 2, respectively.

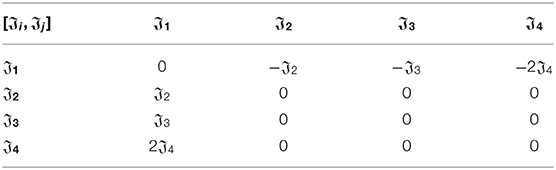

Table 1
| [𝔍i, 𝔍j] | 𝔍1 | 𝔍2 | 𝔍3 | 𝔍4 |
|---|---|---|---|---|
| 𝔍1 | 0 | −𝔍2 | −𝔍3 | −2𝔍4 |
| 𝔍2 | 𝔍2 | 0 | 0 | 0 |
| 𝔍3 | 𝔍3 | 0 | 0 | 0 |
| 𝔍4 | 2𝔍4 | 0 | 0 | 0 |
Commutator table of the vector fields of system (3).

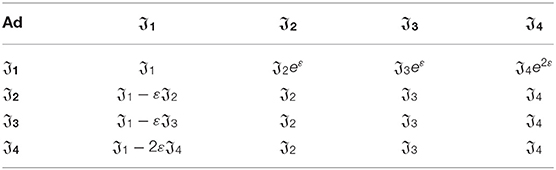

Table 2
| Ad | 𝔍1 | 𝔍2 | 𝔍3 | 𝔍4 |
|---|---|---|---|---|
| 𝔍1 | 𝔍1 | |||
| 𝔍2 | 𝔍1 − ε𝔍2 | 𝔍2 | 𝔍3 | 𝔍4 |
| 𝔍3 | 𝔍1 − ε𝔍3 | 𝔍2 | 𝔍3 | 𝔍4 |
| 𝔍4 | 𝔍1 − 2ε𝔍4 | 𝔍2 | 𝔍3 | 𝔍4 |
Adjoint table of the vector fields of system (3).
Based on Tables 1, 2, system (3) has the following optimal system [3, 32]
where α, β, and χ are arbitrary constants.
Symmetry Reductions and Invariant Solutions
Based on the optimal system (14), our major goal is to deal with the similarity reductions and invariant solutions for system (3).
Subalgebra 𝔍1
The characteristic equations of subalgebra 𝔍1 can be written as
Solving these equations yields the four similarity variables
and solving the constrained conditions (9), we get
where k1, k2, and k3 are arbitrary constants. These variables reduce system (3) to the following (1+1)-dimensional PDEs
Subalgebra 𝔍1 does not give any group-invariant solutions.
Subalgebra 𝔍2 + α𝔍3 + β𝔍4
The similarity variables of this generator are
and solving the constrained conditions (9), we get
where ki(i = 1, 2, 3, 4) are arbitrary constants. Substituting Equations (19) and (20) into (3), we have
For solving Equation (21), we use the transformation ζ = r − κs, F = f(ζ), H = h(ζ), where κ is an arbitrary constant, and then (21) can be reduced to the following ODEs
Solving Equation (22) yields
and
where and A1, B1 are free parameters.
Based on Equations (19), (23), and (24), we obtain the following trigonometric function solutions for system (3)
and
where and A1, B1 are free parameters.
Subalgebra 𝔍3 + χ𝔍4
The similarity variables of this generator are
and solving the constrained conditions (9), we get
where ki(i = 1, 2, 3, 4) are arbitrary constants. System (3) can then be transformed to
For solving Equation (29), we use the transformation ζ = r − κs, F = f(ζ), H = h(ζ), where κ is an arbitrary constant; Equation (29) can then be written as
To obtain the solutions of Equation (30), we shall apply the method, as described in [33].
Let us consider the solutions of (30), as
By balancing the highest order derivative term and non-linear term in (30), we obtain m = n = 1, and G = G(ζ) satisfies second-order ODE
Solving Equation (30), we obtain
where λ, χ, d1, B0, B1, k2, and k3 are arbitrary constants.
Substituting (32) into (30), we obtain two types of solutions of (30), as follows:
When λ2 − 4μ > 0,
where
When λ2 − 4μ < 0,
where
Taking into account Equations (27), (33), and (34), we obtain the hyperbolic function solutions for system (3):
where λ2 − 4μ > 0,
where λ2 − 4μ < 0,
Subalgebra
The similarity variables of this generator are
and solving the constrained conditions (9), we get
where ki(i = 1, 2, 3) are arbitrary constants. Thus, system (3) can be transformed to
For solving Equation (39), we use the transformation ζ = r − κs, F = f(ζ), H = h(ζ), where λ is an arbitrary constant, and then (39) can be reduced to the following ODEs
Solving Equation (40) yields
where C1, C2, k1, k2, and k3 are arbitrary constants.
On combining Equations (37) and (41), we obtain the periodic function solutions for system (3):
where C1, C2, k1, k2, and k3 are arbitrary constants.
Non-linear Self-Adjointness and Conservation Laws
Conservation laws have been extensively researched due to their important physical significance. Many effective approaches have been proposed to construct conservation laws for NPDEs, such as Noether's theorem [34], the multiplier approach [35], and so on [36, 37]. Ibragimov [38, 39] proposed a new conservation theorem that does not require the existence of a Lagrangian and is based on the concept of an adjoint equation for NLPDEs. In this section, we will construct non-linear self-adjointness and conservation laws for vcHFSC equation (1).
Non-linear Self-Adjointness
Based on the method of constructing Lagrangians [38], we have the following formal Lagrangian in the symmetric form
where ū and are two new dependent variables.
The adjoint system of system (3) is
where
with Dx, Dy, and Dt the total differentiations with respect to x, y, and t.
For illustration, Dx can be expressed as
Substituting (43), (45), and (46) into (44), the adjoint system for system (3) is
The system (3) is non-linear self-adjoint when adjoint system (47) satisfy the following conditions
where ϕ(x, y, t, u, v)≠0 or ψ(x, y, t, u, v)≠0, and λij (i, j = 1, 2) are undetermined coefficients.
Substituting the expressions of Fi (i = 1, 2) and (i = 1, 2) into (48), we obtain the following equations
Solving the above systems, we have
Theorem 4.1. System (3) is non-linearly self-adjoint.
The formal Lagrangian corresponding to (43) reads as,
Conservation Laws
In this section, we will construct the conservation laws for system (3) by Ibragimov's theorem. Next, we briefly review the notations used in the following sections. Let x = (x1, x2, …, xn) be n independent variables, u = (u1, u2, …, um) be m dependent variables,
be a symmetry of m equations
and the corresponding adjoint equation
Theorem 4.2. Any Lie point, Lie-Bäcklund and non-local symmetry X, as given in (53), of Equation (54) provides a conservation law for the system (54) and its adjoint system (55). The conserved vector is defined by
where is the Lie characteristic function and is the formal Lagrangian.
Based on the formula in Theorem 4.2, we next construct conserved vectors for system (3) by employing the formal Lagrangian (43) and the symmetry operator (10). For system (3), Equation (56) becomes the following form
with
Case 1
The Lie characteristic functions for this operator are
The corresponding conservation laws are
Case 2
The Lie characteristic functions for this operator are
The corresponding conservation laws are
Case 3
The Lie characteristic functions for this operator are
The corresponding conservation laws are
Case 4
The Lie characteristic functions for this operator are
The corresponding conservation laws are,
Results and Discussion
The Lie group method has been successfully used to establish the invariant solutions for the vcHFSC equation. Some results for the vcHFSC equation have been published in the literature. Huang et al. [26] used the Hirota bilinear method and found the bright and dark solitons to Equation (1). Peng [27] reported some new non-autonomous complex wave and analytic solutions to Equation (1) with the aid of the (G′/G)method. In this article, we constructed the trigonometric and hyperbolic function solutions to the studied equation. Compared with the solutions obtained in references [26, 27], our results are new. To better understand the characteristics of the obtained solutions, the 3D graphical illustrations are plotted in Figures 1–3.

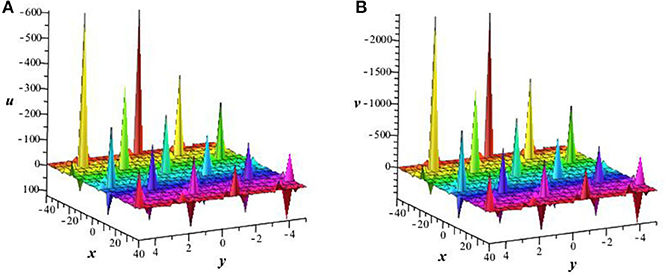

Figure 1

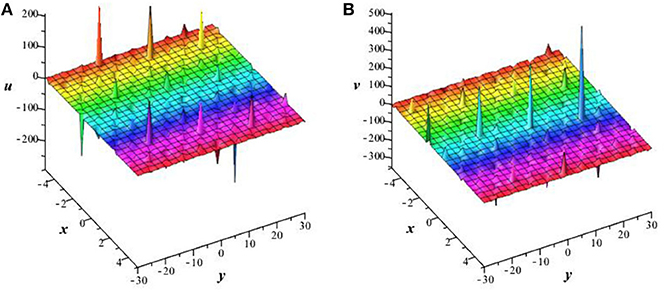

Figure 2

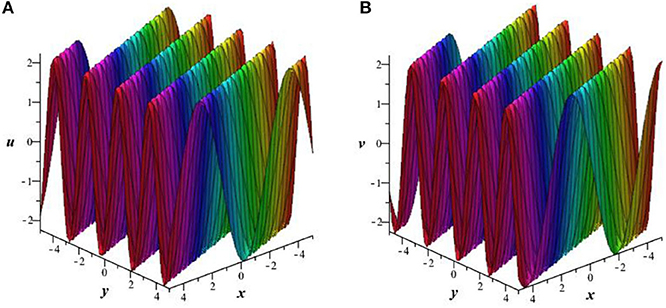

Figure 3
With the Lagrangian, we find that the vcHFSC equation is non-linearly self-adjoint. Furthermore, a new conservation theorem has been used to construct conservation laws for the vcHFSC equation. Based on the four infinitesimal generators, we obtained four conserved vectors. It worth noting that the conservation laws obtained in this article have been verified by Maple software.
Conclusion
In this research, the infinitesimal generators and Lie point symmetries of the vcHFSC equation have been investigated using the Lie group method. Based on the optimal system of one-dimensional subalgebras, four types of similarity reductions are presented. Taking similarity reductions into account, the invariant solutions are provided, including trigonometric and hyperbolic function solutions. Furthermore, conservation laws for the vcHFSC equation are derived by non-linear self-adjointness and a new conservation theorem.
