Linking Microdosimetric Measurements to Biological Effectiveness in Ion Beam Therapy: A Review of Theoretical Aspects of MKM and Other Models

Abstract

Different qualities of radiation are known to cause different biological effects at the same absorbed dose. Enhancements of the biological effectiveness are a direct consequence of the energy deposition clustering at the scales of DNA molecule and cell nucleus whilst absorbed dose is a macroscopic averaged quantity which does not take into account heterogeneities at the nanometer and micrometer scales. Microdosimetry aims to measure radiation quality at cellular or sub-cellular levels trying to increase the understanding of radiation damage mechanisms and effects. Existing microdosimeters rely on the well-established gas-based detectors or the more recent solid-state devices. They provide specific energy z spectra and other derived quantities as lineal energy (y) spectra assessed at the micrometer level. The interpretation of the radio-biological experimental data in the framework of different models has raised interest and various investigations have been performed to link in vitro and in vivo radiobiological outcomes with the observed microdosimetric data. A review of the major models based on experimental microdosimetry, with a particular focus on ion beam therapy applications and an emphasis on the microdosimetric kinetic model (MKM), will be presented in this work, enlightening the advantages of each one in terms of accuracy, initial assumptions, and agreement with experimental data. The MKM has been used to predict different kinds of radiobiological quantities such as the relative biological effects for cell inactivation or the oxygen enhancement ratio. Recent developments of the MKM will be also presented, including new non-Poissonian correction approaches for high linear energy transfer radiation, the inclusion of partial repair effects for fractionation studies, and the extension of the model to account for non-targeted effects. We will also explore developments for improving the models by including track structure and the spatial damage correlation information, by using the full fluence spectrum and by better accounting for the energy-deposition fluctuations at the intra- and inter-cellular level.

1 Introduction

All the different models present different advantages and limitations. While RBE is not measurable with physical methods, the fourth category allows a strong link with physics measurements through different types of microdosimeters. The present paper is focused on reviewing the modeling of biological effect of protons and other ions used in ion beam therapy based on the microdosimetry concepts with particular emphasis to the MKM, a widely used model to predict the cell survival and the RBE by using microdosimetric data. This topical review is organized as follows: the fundamental microdosimetric quantities [34, 35], required for addressing the problem, are defined in Section 2 together with a focus on relevant experimental quantities. Then, the original formulation of MKM is presented in Section 3 with its theoretical bases (Section 3.1) and followed by the main extensions such as non-Poisson and saturation corrections [19, 20] (Section 3.5), the incorporation of a track model [21], a variable β parameter deriving from the effects of the lesion yield fluctuations in the cell nucleus and domains, [22, 23] in Section 3.8, and the generalization of the model in case of a time structured irradiation introduced in Section 3.7. The available experimental in vitro and in vivo validations are also reported for each extensions. Figure 1 represents a conceptual scheme of the main MKM formulations and extensions presented in this paper. Further, an example of treatment planning systems (TPS) implementation of the MKM [36] will be given in Section 3.6. Other applications of the MKM, such as the oxygen enhancement ratio (OER) modeling [37, 38] and the incorporation of non-targeted effects [39] will be described in Section 3.9. Finally, other models based on microdosimetry as well, i.e., the distribution function by Loncol et al. [40] and the RMF model [24, 25], will be presented in Section 4.

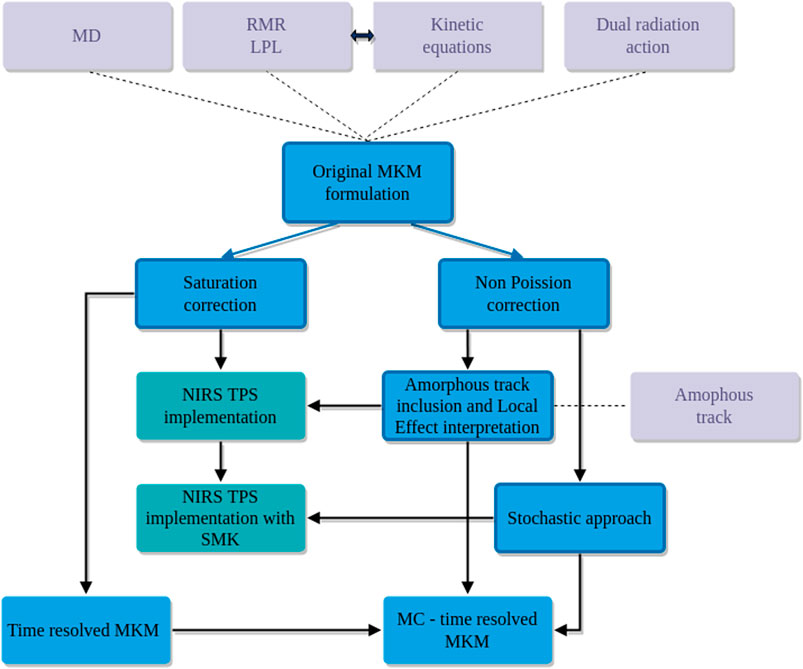

FIGURE 1

2 Microdosimetric Distributions and Their Moments

The main microdosimetric quantities of interest are the specific energy z and lineal energy y [34, 41–43]. The specific energy z is the ratio between energy imparted by ionizing radiation ε and the mass m of the matter that has received the radiation, that is,

The energy imparted ε may be due to one or more energy deposition events, i.e., due to one or more statistically independent particle tracks. The lineal energy y is the ratio between energy imparted to the matter in a volume of interest by a single energy-deposition event, , and the mean chord length in that volume, , that is,

The stochastic nature of ε and implies that also z and y are stochastic quantities. In the following, given a probability density distribution , we will assume that the probability that a specific energy z is produced in the interval is given by

When dealing with specific energy spectra, it is important to distinguish between the single-event distribution and the multi-event distribution. It is worth stressing that, although experimental microdosimetry determines single event quantities such as the or the lineal energy y, the starting point for models are multi-event quantities such as the specific energy z and its distribution.

The single-event distribution, denoted by , is the probability distribution of z conditioned to the fact that precisely a single-event happened. The single-event distribution is the building block to define the more-general n-event distribution and the multi-event distribution.

The n-event distribution , that is, the probability distribution conditioned to the fact that precisely n events occurred, can be computed as the n-fold convolution of the single-event distribution , as follows:see [42] for details.

Using the n-event distributions defined above, we can define the general multi-event distribution aswith an integer valued probability distribution with average , meaning that

The multi–event distribution plays a crucial role in the development of microdosimetric-based radiobiological models. It is worth noticing that depends on the number of events n only through , which is independent of specific energy z. Also, given , the single-event distribution completely determines the multi-event distribution .

Typically, since events are statistically independent, is assumed to be a Poisson distribution with mean value , so that Eq. (5) becomes

Denoting by the first moment of the distribution , formallyit follows that the following relation holds true,being the frequency-average of the single-event specific energy defined assee [42], Chapter II. In microdosimetry, is often identified with the absorbed dose D; we shall use this identification in the following of the paper.

Above argument, with particular reference to Eq. (8), yields the form for the average value of the multi–event distribution to besee [34, 42]. Again, in the following, if not differently specified, we will consider to be defined as in Eq. (10).

Further computations, see [34, 42], shows that regarding the second moment it holdswith the dose-average of the single-event specific energy

Notation and computations performed in the current section will be extensively used through the work to formally derive analytical solution for some relevant biological endpoints, typically the cell–survival probability, starting from a mathematical model for DNA damage.

In the following, we assume that a cell nucleus is divided into domains, so that the above microdosimetric distributions will be used both on single-domain and on the whole cell nucleus. In particular, the superscript will denote that the corresponding quantity, such as a microdosimetric distribution or a corresponding average value, is considered on the domain d of the cell c. Further, the subscript n denotes that microdosimetric distributions are on the cell-nucleus, whereas if no subindex is specified, it is assumed that the corresponding distribution is on the domain.

In order to make computations less heavy as possible, whenever we will say that we average a function over all domains of a cell nucleus, denoted for short by , it formally meanswhere denotes the probability density of z in a domain for cell with nucleus specific energy . Similarly, by averaging over all cell population function defined over a nucleus, denoted by , we meanwhere is the total number of the considered cells and denotes the probability density of z in a nucleus for a population of cells irradiated with macroscopic dose D. Notice that in practical computations of an irradiated population of cells, such as those described in the immediate next sections, the probability densities are reasonably considered equals among different cells and domains. In this case, we will drop the indexes c and d and the sums in Eqs (13) and (14) can be carried out implicitly:

2.1 Experimental Quantities

In order to account for the different densities and sizes of the sites of radiobiological interests. (e.g., the cell nucleus and the domain), the specific energy z used in the models as described in the following sections can be obtained experimentally through the lineal energy y defined in Eq. (2).

The lineal energy can be measured through a microdosimeter detector, where the most frequently used are the tissue-equivalent proportional counters (TEPC) [44–47]; analogous information can be achieved also by solid-state detectors [48, 49] and gas electron multiplier (GEM) detectors [50, 51], recently investigated for their use in microdosimetric measurements [52, 53]. The relationship between of the tissue-equivalent volume of the microdosimeter, from which the lineal energy is calculated, and the physical mean chord of the detector, , is given approximately bywhere ρ and are the densities of the tissue and the detector material, respectively. For more general conversion methods of microdosimetric spectra between different materials and shapes see, for example, [54, 55], for an MC-based method.

The theoretical single-event imparted energy, , can be estimated from the lineal energy y aswhere are the mean chord length and the mass of the biological site of interest, respectively. The subscript t is used in this context to indicate the tissue in terms of material, mass, and geometry of the biological site. The single-event dose-averaged specific energy can be obtained from the mean-dose lineal energy aswhere is the frequency-average lineal energy.

In the case of a spherical volume with density ρ_t = 1 g/cm³, the specific energy is linked to the lineal energy y [56] aswhere the constant factor is due to the Gy-keV conversion (1 Gy= 1.6 × 10⁻¹⁶ keV) and to the consideration that the mean chord length in the case of a sphere is .

3 Microdosimetric Kinetic Model

The microdosimetric kinetic (KM) model has been developed by Roland B. Hawkins [18] by taking inspiration from the theory of dual radiation action (TDRA) [57, 58], the repair-misrepair model [59, 60], and the lethal-potentially lethal (LPL) model [61, 62]. In the following sections, after a brief description of the historical bases of the model and the details of its original formulation, we compare and contrast the more recent developments of the model.

3.1 Historical Bases

This section presents a brief explanation of the theoretical formulations on which the considered models are based on. In the theory of dual radiation action (TDRA), the concept of dual radiation action is introduced as a process in which cellular lesions are produced as a result of the interaction of pairs of sublesions that are molecular alterations produced by ionizing radiation that in turn results in an observable cellular effect such as a chromosome aberration or cell reproductive death. The TDRA in its original formulation developed for neutron irradiation and then further generalized [57] assumes that, after the cell irradiation, the number of lethal lesions in a small volume of the cell nucleus, defined site, is proportional to the square of the specific energy z in that site.

By evaluating the expectation value of (Eq. 11), it is possible to derive a linear-quadratic relation between and the dose:

The interpretation of Eq. (22) is that the number of sublesions is proportional to D and the mean energy concentration around the individual sublesions is proportional to . Within the bracket, represents the energy concentration produced by the same particle track (intratrack action), and D represents the contribution from other particle tracks (intertrack action). A problem in Eq. (22) arise when one has to account the possibility of a non-vanishing linear term in the dose (observable for low doses) even for sparsely ionizing radiation, such as photons, since the term is expected to be negligible for such radiation. This is obtained by generalizing Eq. (21) by including an additional linear term:from which one obtains the dose dependence:

An important additional assumption that drives the dual action process is that sublesions can be produced throughout the nucleus of the cell but can combine with appreciable probability only over distances smaller than the dimension of the nucleus. This effect of sublesion proximity on the formation of lethal lesions was incorporated in the TDRA by the concept of the sites within which such sublesions can combine. In a generalization of the TDRA [58], the interaction probability of sublesions has been also further refined using an explicit function of their separation.

MKM inherits the concept of damage time evolution for the repair or conversion into a lethal irreparable lesion (chromosome aberration) [18, 63, 64] of the primary potentially lethal radiation induced lesions in DNA from the repair–misrepair (RMR) model, developed by Tobias et al. to interpret radiobiological experiments with heavy ions [59, 60]. The RMR model considers that the amount of DSBs in the DNA, , is linearly proportional to the radiation dose-rate ; a number of DSBs evolve in lethal lesions, , while most breaks are successfully repaired with a first-order process. The model includes also the possibility of a misrepair as a second-order process since it involves two broken DNA strands to form a chromosomal aberration. The idea of misrepair was initially applied by Lea and Catcheside [65] to describe the formation of chromosome aberrations in Tradescantia.

These assumptions yield the following kinetic equations:where δ is the number of DSBs induced per Gy of radiation, λ is the rate at which DSBs are repaired, κ is the rate constant for second-order DSB interaction, and ϕ is the fraction of simple repairs that are successful. The fraction of misrepairs that result in a lethal lesion is σ.

Like the RMR model, the lethal-potentially lethal (LPL) model [61, 62] accounts that the damages caused by ionizing radiation at the molecular level and contributing to cell death can be separated into two broad classes (i) that which has the potential of being lethal, (by fixing or binary misrepair) but also can be repaired correctly and (ii) that which is lethal ab initio and cannot be repaired correctly, . Both lesions are linearly proportional to the radiation dose-rate [66], and after a prescribed time, the remaining potentially lethal lesions become lethal as described in the following equations:where η is the amount of radiation induced DSBs that are reparable, while all the other parameters correspond in meaning to the ones in Eq. (25).

The solutions of the RMR and the LPL models are similar. However, in contrast to the RMR, the LPL predicts that the probability of the interaction between potentially lethal lesions is strongly dependent to the dose-rate and becomes negligible for low dose-rates, where only the channel of the direct creation of lethal events through δ dominate.

3.2 Original Formulation and General Considerations

It has to be noted that, while the MKM assumptions reported in this section are general, in many studies [69, 70], the lethal lesions are intended to represent a specific complex DNA damage (e.g., lethal chromosome aberrations) that cannot be repaired, whereas the creation of sub-lethal lesions are explicitly associated to the induction of double-strand breaks (DSB) that can be repaired.

Following the MKM notation, we denote by and the time-dependent average number of type I and type II lesions for a cell-domain caused by an acute dose at deposited in the cell c and domain d. Starting from the concept, introduced in the TDRA, that a cell experiences a randomly varying dose in a microscopic volume [34, 41], the microscopic specific energy is considered as a random variable with , the macroscopic dose experienced by the cell population.

Type II lesions are assumed that can be repaired with a constant repairing rate r or can be converted to irreparable lesions through a first order process with constant rate a, or at the second order, representing pairwise combinations, with constant rate b. The average number of type I and II lesions at time 0 is proportional to the amount of specific energy with factors λ and κ. These assumptions formally define the following set of coupled ODE similar in concept to Eq. (25):subject to the initial average number of lesions

In the case of ion radiation, typically the rate of pairwise combination between type II lesions is negligible with respect to the first order evaluation of for low dose [67], that is,so that the time-evolution of the average number of type II lesion can be rewritten as

The solution to Eq. (30) can be seen to be

Substituting Eq. (31) into the kinetic Eq. (27) and integrating with respect to time, it follows that

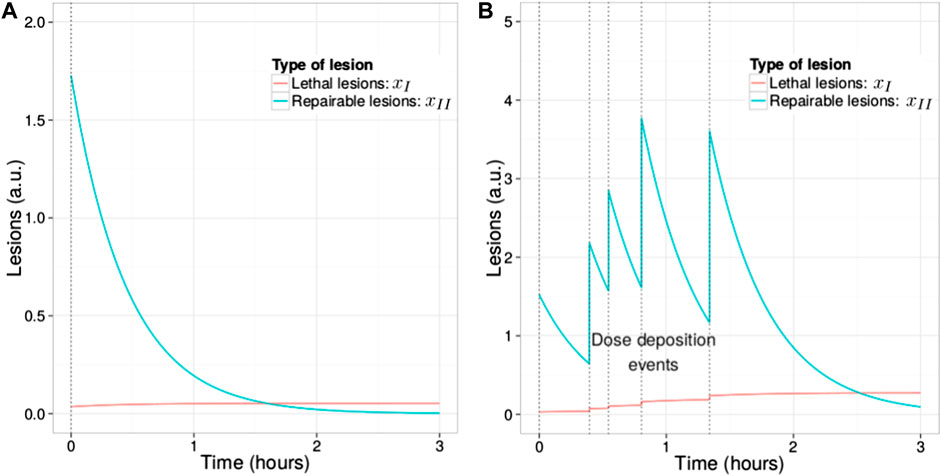

An example of the temporal evolution of lesions in a cell is depicted in Figure 2.

FIGURE 2

It is important to remark that the exponential decay in Eq. (32) derives from the assumption of first order repair kinetics and that it could likely represents an approximation of more complex repair kinetics present in the real cell [72–75]. Postulating that the total number of lesions describes specifically the number of double strand breaks (DSBs) in the DNA, the repair kinetics represented in Eq. (32) can be verified through H2AX phosphorylation mapping experiments (γ-H2AX) [76, 77]. In the case of high-LET particle irradiation, such as carbon ions, the presence of a plateau (offset) in the observed [75, 78, 79] suggests the presence of irreparable complex clustered damage that can be related directly to the parameter λ of the kinetic equations and hence to the linear parameter of the macroscopic cell survival LQ formulation that will be introduced in the following (see Eqs 35 and 39).

Under the Poisson distribution assumptions stated above, the probability that the domain d does not contain a lethal lesion at time when exposed to the specific energy , denoted by , can be computed as the probability that the random outcome of a Poisson random variable is null. Therefore, is given by

Using Eq. (32), it can be seen that the average number of lethal lesion given as can be computed asso that the log-survival for the domain d is given bywith A and B defined as

We remark that these constants are independent of the domain d and specific energy in the domain d.

Indicating with the probability of the reproductive survival of the cell c that has received exactly a specific energy in the nucleus, the log-survival of this quantity, , represents the expected number of lethal lesions in the whole cell nucleus and can be therefore evaluated by summing of the single-domain log-survival over all the domains of the cell or, equivalently, by formally using the average of this quantity over the domains. Assuming that the probability density function of specific energy is the same over all domains and cell, we can drop the index c and d and use Eq. (15) to writewhere denotes the probability density of z in a domain for a cell with a mean specific energy in the nucleus . In particular, as shown in Section 2, the following holds:

Using Eqs (11) and (12) derived in Section 2, the log survival in Eq. (37) can be written aswith and . Also, is the dose-averaged z per event in a domain, obtained from Eq. (12) applied to the domain (compare for reference Eq. 24 of the TDRA).

Notice that in Eq. (37), we have used the notation to denote the multi-event distribution, rather than , as done in Section 2. This is due to the fact that, since the following relation holds true,we have preferred to specify the dependence upon the multi-event distribution average.

In order to obtain the cell survival for a population of cells irradiated with macroscopic dose D, the quantity defined in Eq. (37) should be averaged accounting for the distribution of the specific energy over the cell population. In terms of the logarithm of the cell population survival, , under again the assumption that all the cells have the same probability distribution of specific energy , this can be written aswhere similar to above, we have denoted by the probability density of for a macroscopic absorbed dose D over the cell population, i.e.,

We remark that Eq. (41) is fundamentally different from Eq. (37) since it considers the average of the argument of the logarithm, whereas in Eq. (37), the average of the logarithm has been taken. This basically indicates that, due to the stochastic nature of , the distribution of lethal lesions over the cell population is in general non-Poisson and hence that the log of the survival cannot be directly related to the average number of lethal lesions per cell, . However, provided that the variance of is small, a Poisson approximation is assumed and the same procedure used to obtain Eq. (37) can be used. In this approximation, Eq. (41) can be written as follows:with the dose-averaged in the nucleus per event. All the quantities , , and are assumed to be the same for each cell or domain. All other notations are used as previously introduced. Since the size of the domain is usually much smaller than the size of the nucleus, it holds that (see [67]) so that we eventually obtainwithwhere the subscript P indicates that the relationships hold when the assumption of Poisson distribution of lethal lesions among the irradiated cell population is reasonable, i.e., for low-LET irradiation, as it is discussed in the following section.

The mathematical formulation of the main kinetic equations remain the same as in Eqs (27)–(32) in the time interval . As soon as passes, all type II lesions that have not been either repaired or converted into type I lesion, will immediately be converted into type I lesions, meaning

The solution for the average number of type I lesions can be now explicitly found for , adding all type II lesions that persisted after passes, that is,so that we obtain

Proceeding as above, taking therefore the average over all cell domains and cell population, we obtain the generalization of Eq. (44) to bewith

3.3 Link to the Radiobiological Observables

From Eqs (44) and (45), it is possible to obtain the direct link of the model to the phenomenological LQ formulation of the cell survival. The α coefficient is therefore explicitly dependent on the radiation quality through a single term, the dose-averaged specific energy per event , that can be related to microdosimetric measurements (Eq. 19). It has to be noted that, in this formulation of the MKM, there is no explicit dependence to the radiation quality in the quadratic coefficient that is considered constant analogously to the result of the TDRA [57]. The latter is an approximation of the model that is in contrast with experimental observations [80–82] although in many cases, considering in particular the experimental uncertainties associated to the determination (see for example Figure 3), and it is assumed to be reasonable. In an evolution of the model which accounts for the stochastic aspects of the irradiation, as described in Section 3.8, this approximation will be relaxed and the β coefficient will be considered dependent on the quality of the radiation.

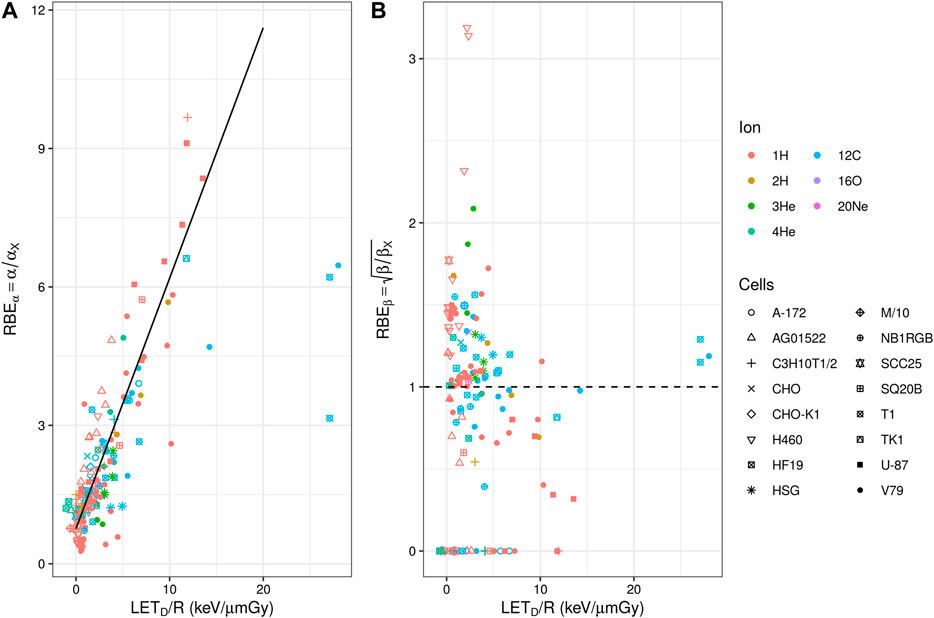

FIGURE 3

From the knowledge of the LQ parameters, it is possible to derive the dose (D) and radiation quality () dependent RBE [83, 84]:where , , and , and and are the phenomenological LQ coefficient for the photon reference radiation.

Since the parameters and are assumed to be independent on the radiation quality and , it is possible to identify and ().

In the case of LET low enough that lethal lesions are Poisson distributed, it is possible to writewhere the ratio R can be derived from a nonlinear regression analysis of measured cell survival data for a low-LET reference radiation. Equation (52) can be generalized aswhere and are phenomenological parameters. Since is proportional to the dose-averaged lineal energy (Eq. 19), Eq. (53) is analogous to the linear RBE models based on the dose-averaged LET (LET_D) used for protons [7–10]. Following the MKM model premises, Eq. (53) could also be generally used for other ions to describe the linear growth of the RBE as a function of the (or LET_D) in the low-LET region (see Figure 3). However, the linear dependence on the LET fails to be adequate in the region of mid- and high-LET as found in experimental studies [82]. In these regions, further corrections to the MKM are used to reproduce the experimental observations. Different corrective approaches for high-LET irradiation are described in the following sections.

3.4 Non-Poisson Correction

In the approximation introduced in Eq. (43), it is assumed that the variance of the specific energy among cells is sufficiently small. In this assumption, the number of lethal events follows the same Poisson distribution in each cells, with average .

However, in general, the specific energy observed in the cell is a stochastic quantity that varies from cell to cell, bringing also a deviation from the Poisson distribution when considering the whole population of irradiated cells. We remark that this deviation is present even if the radiation is perfectly mono-energetic. In this case, the variance of the specific energy arises from the fluctuation of the number of particles that are hitting the cells. The fluctuations are particularly relevant when the LET of the particle is relatively high since, given a macroscopic dose D, the average number of high-LET particles interacting with the cell is lower than the number of low-LET particles. To account for the non-Poisson distribution of the lethal events, a correction to the MKM has been introduced by Hawkins in 2003 [19], bringing a deviation from the linear behavior of the RBE vs. LET, described in Eq. (52), in the high-LET region.

The effect of the non-Poisson distribution of lethal lesions is considered by explicitly evaluating the fraction of hit and non-hit cell nuclei. Considering a high-LET irradiation in the limit of very low dose, , the probability for a cell to interact with more than one particle is negligible. In this case, the population of cells can be subdivided in a fraction of cells that suffer a single particle interaction and a fraction of cells with zero interactions.

A further approximation is assumed in order to match the request of still having a Poisson distribution in the population of hit cells: only a single well defined value of is observed when the particle hits the cell. Generally, this is not the case and the specific energy can also vary due to energy straggling and the random impact parameter of the particle with respect to cell nucleus. This assumption can be reasonable when low energy particles with high LET (see also Section 3.6) are considered.

We denote with the average number of type I lethal lesions in the fraction of cells whose sensitive nucleus has been hit by a single particle imparting exactly a specific energy in the nucleus. Then, recalling Eq. (39), we obtain

It is possible to explicitly write the global surviving fraction of cells (including both hit and non-hit nuclei) as

This corresponds to consider a probability density function in Eq. (41). Since the number of lethal lesions per cell averaged over the whole cell population (including both hit and non-hit nuclei) exposed to the macroscopic dose D can be directly evaluated asEquation (55) can be rewritten as

Notice that, in the last passage, we exploited Eq. (43) in order to evaluate the average as an explicit function of the dose. Taking the log of S, expanding around and dropping terms in or higher powers, the linear term of can be written as

The explicit non-Poisson α coefficient is then derived from Eq. (58) and can be formulated as a correction to (defined in Eq. 45) aswhere following also the original formulation of Hawkins [19], in the last passage, the quadratic terms were also neglected. According to Hawkins, one can also approximate where is the unrestricted linear energy transfer in keVμm⁻¹ of the incident particle and A is the area of the cell nucleus in μm², assuming ρ = 1 g cm⁻³ for the density of water. By assuming , Eq. (59) becomes

No correction is considered for the β coefficient and it is still assumed to be independent on the energy and particle type.

The non-Poisson correction to the RBE in the limit of zero dose () is given bywith given by Eq. (52). No corrections are applied to the , that is still assumed constant () and independent on the quality of the radiation.

The correction causes the to be less than indicated by the extrapolation of the linear relationship (Eq. 53) to higher LET and to pass through a maximum in the range of LET of 50–150 keV/μm. This behavior is compatible with several experimental studies from the literature [82] and it shows also a sensitivity of the maximum of the RBE to the response of the cell at low-LET, related to the parameter [85]. An exemplification of the RBE behavior and the prediction of the model is reported in Figure 4.

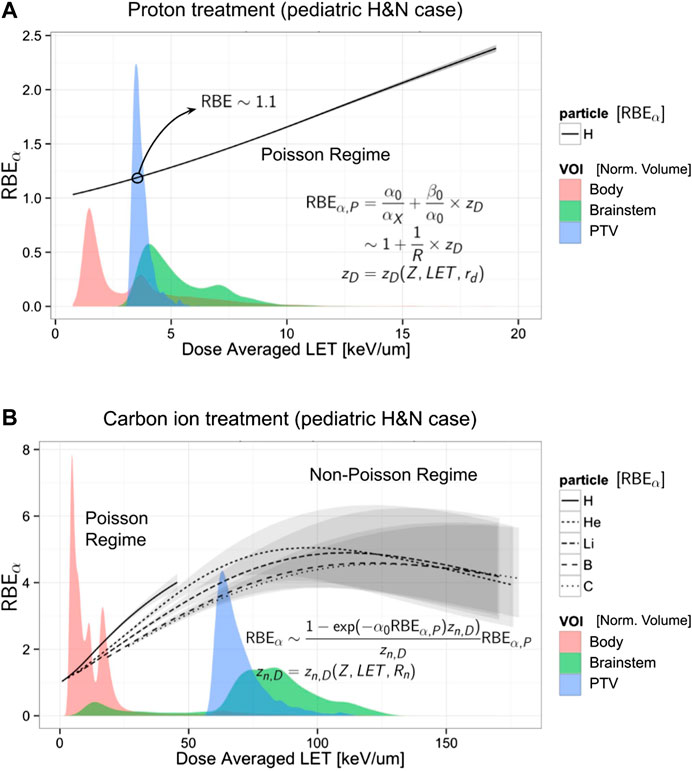

FIGURE 4

We remark that, while the non-Poisson correction factor associated to the linear parameter α is derived in the limit (and, by definition, it is independent on the dose), the non-Poisson concept of Hawkins’s correction is in general inapplicability to a high dose irradiation, since all nuclei and domains will be hit in such irradiation. The quantity RBE_α defined in Eq. (61) is hence expected to represent the relevant behavior for low doses, where the linear term is dominant and the RBE is maxed out [83, 84], whereas the correct stochastic evaluation of β could be critical in the study of clinical applications with high doses per fraction (see Section 3.8). In Figure 5, some qualitative implications of the non-Poisson regime in high-LET and low dose per fraction ion beam therapy are depicted.

FIGURE 5

3.5 The Saturation Correction

Kase et al. [20] introduced a correction factor in the MKM to account for the decrease in RBE due to the overkill effect observed in high-LET radiations (see, for example, Figure 6). The correction factor was applied to the dose-averaged specific energy per event, , for mixed radiation field with wide-ranging spectra.

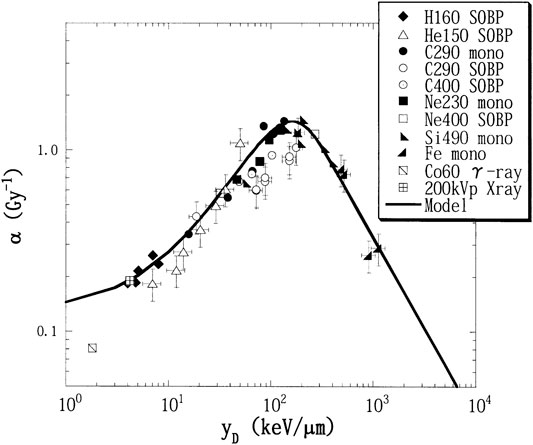

FIGURE 6

In terms of lineal energy, the corrected value of (and hence ) was obtained by applying a correction for each lineal energy component of the lineal energy spectrum. The correction of the components was obtained by using an empirical saturation parameter based on the saturation correction method introduced by [89] and then used in the TDRA [58]

The saturation parameter indicates the lineal energy above which the correction due to the overkill effects became important.

The correction to cell survival is then obtained by evaluating the saturation-corrected dose-averaged specific energy per event in the domain, which can be obtained from the saturation-corrected dose-averaged lineal energy (62) using the relationships reported in Eqs (12) and (19):where ρ, , , and are the density, radius, mean cord length, and mass of the domain, respectively. The equation for the cell survival (Eq. 44) is then modified as follows:

Considering the linear term in the macroscopic dose D, the corrected coefficient is hence

No correction is considered for the β coefficient and it is still assumed to be independent on the energy spectrum.

An example of the prediction by MKM modified with the saturation correction compared with experimental data is reported in Figure 6, where the α vs. for HSG cells irradiated with carbon ions is shown. It is interesting to note, by comparing Eqs (59) and (65), that the saturation correction can be considered an alternative way to describe the non-Poisson correction defined in Section 3.4, since both factors modulate the behavior of in similar ways (see also Figure 4). In particular, it was shown in [20] that in the case of mono-energetic spectra, Eqs (58) and (65) are functionally equivalent for keV/μm. Thus, by matching these equations in the limit of low LET (), and defining , with the radius of the nucleus, analogously to Eq. (63) for the domain, it is possible to link the saturation correction parameter with the other parameters of the model

A typical used value of the saturation parameter was keV/μm [20, 36].

Other quantities that one needs to determine for the RBE evaluations are the lineal energy spectra, obtainable with a microdosimeter detector such as TEPC [43] and the values of , , and from which the correction to the is calculated. The and coefficients can be extrapolated experimentally from the initial slope of the survival curves (Eq. 65) for low-LET irradiation (in the limit of and )where , is the LQ parameter of the X-Ray, and is the dose-averaged lineal energy for X-ray irradiation.

The saturation-corrected formulation of the MKM is one of the most widely used approaches to estimate the RBE from microdosimetric measurements. Many studies have been published where the computed RBE is compared with the RBE measured along single Bragg peaks or more complex mixed field irradiations [49, 90–92]. In Figure 7, the RBE vs. depth for a proton spread-out Bragg peak is reported as an example of these assessments [92].

FIGURE 7

3.6 Track Structure Model Incorporation

In 2008, Kase et al. [21] introduced the usage of amorphous track structure models as an alternative numerical approach to evaluate theoretically the dose-averaged per event in the nucleus and in the domain for the MKM calculations. This approach has the advantage of bypassing the necessity to acquire experimental lineal energy spectra to evaluate the RBE; this approach is particularly useful when experimental spectra are not available, such as in TPS calculations. Another interesting aspect is the possibility to evince the dependence of LET-RBE curves on the ion type.

The amorphous track model adopted for the MKM calculation is based on a combination of the Kiefer model for the penumbra region [93] and the Chatterjee model for the core radius [94], introduced for explaining the responses of the diamond detector to heavy-ion beams [95]. Here, the core radius (μm), the penumbra radius (μm), and the dose as function of track radius r (μm) are evaluated as follows:where is the specific kinetic energy in MeV/u, is the effective charge given by the Barkas expression, is the velocity relative to the speed of light, is the unrestricted LET, and ρ is the density of water ; is a parameter that depends only on the effective charge given with the Barkas expression and the β ion is the velocity relative to the light velocity [21]. In order to evaluate the dose-averaged specific energy, the domain and nucleus are assumed to have a cylindrical symmetry with the direction of the incident ion parallel to the cylinder axis. Using this geometry, it is possible to write explicitly the single-track dose-averaged specific energy (Eq. 12) for both domain and nucleus aswhere and are the maximum impact parameters to have a non-negligible energy deposition in the domain and in the nucleus, respectively. These parameters, or equivalently the radius of the domain and of the nucleus , represent two parameters of the model. Examples of these evaluations are shown in Figure 8. In principle, can be related to direct observations while does not represent a measurable quantity, since it cannot be uniquely identified with any structure in the cell or cell nucleus. can be used as a free parameter to be fixed by fitting the model to the experimental survival and RBE data.

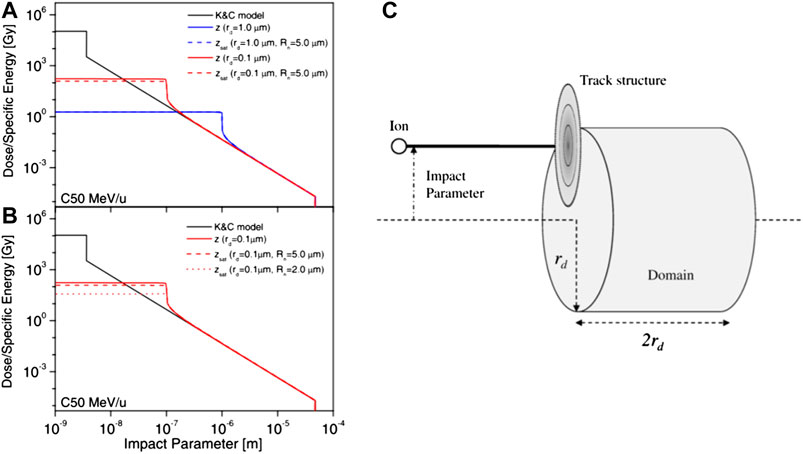

FIGURE 8

As seen in Section 3.4, in the case of high LET irradiation, the value is comparably very large with respect to the evaluated for photon; consequently, from Eq. (36). and can be approximated with the experimental and . An example of the model evaluations compared to the experimental data is reported in Figure 9.

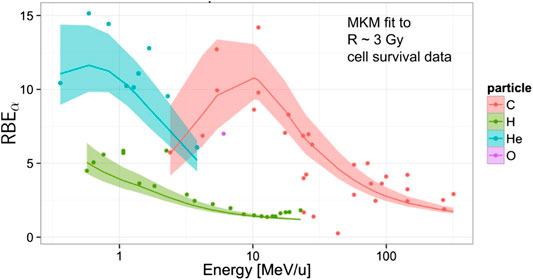

FIGURE 9

Interestingly, the explicit usage of a track model shows how some aspects of the MKM are conceptually similar to that of the LEM [11–17]. In both MKM and LEM, the principal target is the cell nucleus for any radiation quality, the nucleus is divided into small independent sub-volumes (infinitesimal volumes in the case of LEM and domains in the case of MKM), and a cell survival curve for X-rays is adopted as the local dose-effect curve of each sub-volume. Finally, the summation of the local effect in all sub-volumes over the whole nucleus determines the cell survival probability.

The inclusion of the amorphous track model allows to evaluate directly and without the necessity to obtain these values by extrapolating them from microdosimetric measurements via scaling relationships such as Eq. (19). This aspect can be particularly advantageous for some applications where these spectra are generally not easily or partially available such as in the simulation and optimization of treatments in TPS applications, where the biological effect should be evaluated in the whole irradiated 3-D patient volume.

At present, the MKM is implemented in the proton and carbon ion TPS used clinically at the National Institute of Radiological Sciences (NIRS) in Japan to evaluate the RBE and the RBE-weighted dose optimized for the individual patients. The computation method, developed by Inaniwa et al. [36, 96], takes advantage of the incorporation of the amorphous track model in combination with the saturation-corrected dose-averaged approach developed by Kase et al. [20] described in Section 3.5, for evaluations in case of mixed field irradiation. In the TPS implementation, a set of pre-calculated look-up tables of the saturation corrected specific energies for mono-energetic beams are created using a generalization of Eqs (72), (73) where the saturation effect is explicitly included for the dose-averaged specific energy for the domainand equivalently for the nucleus, where is the saturation-corrected specific energywith saturation coefficient (see Eq. 66) evaluated in the cylindrical geometry (see also panel (c) of Figure 8). The effect of the mixed-field of the treatment at a position is hence evaluated through a dose-weighted linear combinationwhere is the number of beams of the treatments, is the dose released at position i by the beam j, andis the saturation-corrected dose-averaged specific energy of the domain of cells at position i delivered by the j-th beam, obtained through the sum of mono-energetic evaluations, , described in Eq. (74), where k is an index of the deposition events and the sum is performed from 1 to N_ij, the observed number of the deposition events in cell i delivered by the j-th beam.

To obtain the energy imparted and the number N_ij, Monte Carlo (MC) simulations are used, taking advantage of available codes such as, for example, those derived from the Geant4 libraries [97–99] and Fluka [100].

3.7 The Dependence of the Biological Effect on the Dose-Rate Time Structure

One of the interesting features of the MKM, in contrast to other radiobiological models used in ion beam radiotherapy such as the LEM, is the possibility to account inherently for arbitrary time dependent dose-rates, such as protracted irradiations and fractionations. This feature derives from the explicit description of the time depending response of the cell to the irradiation through the kinetic equations (Eq. 32).

Different approaches to investigate and to model the dose-rate time effects have been carried out using the MKM as a theoretical base. Some examples of these approaches can be found in [23, 39, 67, 101–104]. In these studies, the kinetic Eq. (27) is slightly generalized to account for an arbitrary time dependent specific energy deposition rate in the domains:where in the second equation, as described in Section 3.2, the second order process describing the pairwise combination between type II lesions has been removed since it is considered negligible if compared to the first-order process.

In [101, 104], the effects of dose-delivery time structure on the RBE in a mixed radiation field of therapeutic carbon ion beams are investigated using the modified microdosimetric kinetic model introduced by Kase et al. [20, 21, 36]. These studies evaluate the biological effect of the irradiation in two different dose-rate conditions: a split-dose irradiation and a protracted continuous irradiation.

In the case of a split-dose irradiation, a population of cells is considered exposed to a macroscopic dose at time and a dose at time , where a domain absorbs and from the two separate irradiations, respectively. Evaluating in the limit by integrating Eq. (27) and using the saturation-corrected dose-averaged specific energy as given in Eq. (64), we obtain for the cell survivalwhere and are the saturation-corrected dose-averaged specific energy of the first and second irradiation and the total dose . The time parameters indicate the time after which all sub-lethal lesions that are still unrepaired are fixed in lethal lesions, according to assumption (9) introduced in Section 3.2. If the quality of the radiation does not change between the two irradiations, then and Eq. (79) can be simplified as

The values of and can be determined by using the following approximations (see Eqs 35, 40 in [101]):

In the case of a continuous protracted irradiation, a population of cells receive a constant macroscopic dose-rate of starting at time and ending at . In order to carry out the evaluation, the irradiation is assumed microscopically equivalent to a number N of instantaneous irradiations with random doses to a domain delivering every infinitesimal interval. The time interval between these irradiations is , with , and each domain absorbs . The number of lethal lesions per domain is therefore obtained by integrating and summing the solution of Eq. (27) for each time segment. The final cell survival probability is then obtained by introducing the corresponding saturation-corrected dose-averaged specific energy in a way analogous to the split dose evaluation. In the case in which the quality of the radiation does not change with time, the final log survival is given aswhere

The notation used in Eqs (83) and (84) highlights the importance of the quadratic term β, which modulates the impact of the dose-rate time structure, according to the LQ interpretation of the biological effects [105–108].

It is worth remarking that these MKM-based temporal formulations of the cell survival derived from the kinetic Eq. (78) do not account for re-population and cell cycle redistribution. Figure 10 reports the evaluation via Eq. (80) of the survival fraction of HSG cell line for various time intervals compared to experimental data. An initial rise in cell survival due to repair is visible until time interval h followed by a decrease in survival due to cell cycle redistribution and a rise due to re-population ( h ) and by the saturation region for h. The predicted cell survival reasonably agrees with data in the first and last regions, while it does not account for re-population and redistribution. The temporal formulations described in this section have been also incorporated in the TPS used at NIRS [36] (see also Section 3.6) and successfully used to estimate the impact of the beam interruption in single-fractionated treatments with carbon ions for patients with prostate tumor [104].

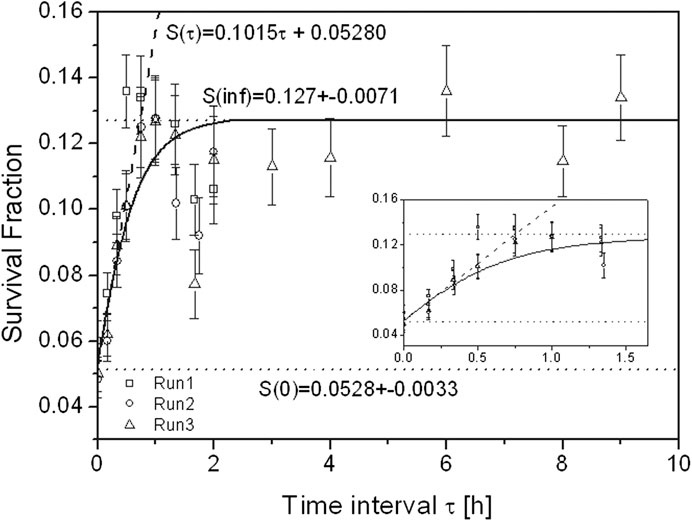

FIGURE 10

3.8 Stochastic Approaches and Variable β

As discussed in the previous sections, the MKM accounts for the stochastic aspects of the induction of damage in the cell by exploiting probability theory to develop simple formulas for the LQ coefficients of the cell survival (Eqs 44, 45, 58, 64, and 83). These formulations of the model are obtained introducing approximations [19] or ad-hoc corrections [20] that shows some discrepancies with experiments for high-LET irradiation, in particular in the determination of the β coefficient, since the measured β tends to decrease at very high LET [82, 109–111], while the β derived from the MKM is considered constant.

The disagreements in the β coefficient are ultimately acknowledged to be induced by the partial accounting of the stochastic nature of the specific energies in the MKM calculations that play an important role for high-LET irradiation [22]. Following these considerations, attempts to improve the model, introducing more refined approaches to account a variable β, have been made [22, 23, 70, 112]. In the rest of this section, some of these developments, based on improved stochastic modelings of the specific energy depositions, are described in detail.

3.8.1 Monte Carlo-Based Evaluations

A method to account in a natural and straightforward way the inherent stochastic nature of the irradiation is to implement a Monte Carlo algorithm in the MKM, as recently shown by Manganaro et al. [23, 113] in their formulation of the model named MCt-MKM (Monte Carlo temporal microdosimetric kinetic model). The implemented model accounts also for the stochastic temporal correlations characteristic of the irradiation process and the cellular repair kinetics by solving explicitly in the MC evaluations the kinetic Eq. (78) where the time dependent specific energy rate appears explicitly [101, 114].

In the MC approach, the irradiation of a complete population of cells is simulated, where is supposed to be large enough in order to achieve statistical convergence. The irradiation is modeled as an ordered temporal sequence of particles (primaries and secondaries) that interact with the cell nucleus at random spatial coordinates and random times , compatible with the chosen irradiation setting and the definition of the time-dependent macroscopic dose-rate . The irradiation is hence modeled as a sequence of spikes in , each one of them corresponding to the passage of a particle through or nearby the nucleus, delivering a sequence of random specific energies in the domainsdepending on the particle spectra and track impact positions with respect to the cell. A depiction of the temporal evolution of the lesions ( and ) due to the effects of the irradiation as described in Eq. (85) is reported in panel (b) of Figure 2. For a macroscopic dose D and a component e, indicating a specific particle and bin of the kinetic energy histogram sampled from the particles interacting with the cell nucleus, the total number of particles interacting with the nucleus follow a Poisson distribution with meanwhere is the frequency-average LET of the radiation computed on the total energy spectrum, considering all the contributing particles, σ is the cross section of the nucleus, ρ is the density of the tissue, and is the normalized weight of the e-th bin of the energy and particle histogram.

In principle, the tracks can be directly sampled from the full measured microdosimetric spectra (i.e., not only the first and second moment) from which the experimental can be obtained. From a practical point of view, the specific energies deposited randomly in each domain of each nucleus are evaluated by coupling general purpose MC tools (such as Geant4 [97, 115] or Fluka [116]) in combination with an amorphous track structure model as described in [21, 36]. The MC code is used to identify the ions that can interact with a cell located in a certain point of the irradiated macroscopic volume at a certain time. The domains are arranged according to a close packing hexagonal structure inside the nucleus.

Once the time sequence of specific energies in the domains (85) are obtained, the kinetic Eq. (78) can be formally solved for to obtain the average number of lethal lesions for each cell-domain :where is a Poisson random variable indicating the number of particles that interacted with the cell c, is the time constant that defines the first order repair kinetics, and G is the generalized Lea-Catcheside time factor [57, 65] defined at the nanodosimetric level of the domain:

The survival fraction S is obtained by averaging over the entire cell population the survival probability evaluated for each single cell (see for comparison Eqs 37, 41)

Notice that the Monte Carlo approach does not compute directly the LQ coefficients α and β, in contrast to the analytical approaches described in the previous sections. However, it is possible to derive the LQ coefficients by simulating a complete survival curve, i.e., by evaluating (89) using different macroscopic doses , and then fitting the curve with the LQ formula. An example of a complete simulated survival curve is reported in Figure 11. We remark also that, as done in Section 3.7, the cell population generated by the solutions of the kinetic Eq. (78) neglects re-population and cell cycle re-distributions.

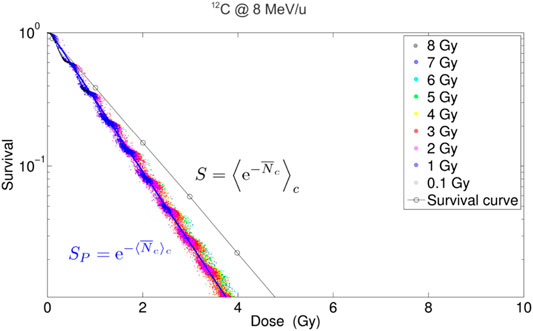

FIGURE 11

One of the benefits of the MCt-MKM approach is that both α and β coefficients, obtained through the survival fitting, show the expected saturation behavior for high-LET irradiation without adding any corrective factors, like the non-Poisson (Section 3.4) or (Section 3.5) saturation. The disadvantage of the approach, other than the inherent approximations specific to the used MC transport code and the adoption of an amorphous track model, is that it can be particularly computing intensive, although this is mitigated by exploiting the multi-core parallelism of modern CPUs [113].

The MCt-MKM has been validated on in-vitro experiments considering acute and split-dose irradiation on HSG, T1, and V79 cell lines in aerobic conditions of H, He, C, and Ne ion beams [23]. An example of the behavior of the LQ α and β coefficients is reported in Figure 12, where also a comparison with the prediction of other models, a non-stochastic MKM evaluation, the LEM, and the repair–misrepair–fixation (RMF) model (see Section 4.2), is shown. The main difference with respect to the original MKM is that the MCt-MKM predicts a non-constant and vanishing β with high LET values. This behavior is ultimately due to the non-Poisson statistics inherently implemented in the model. However, we remark that, although, as previously noted, there is a general consensus for a vanishing β for high LET irradiation, there are still contradictory experimental results and significant uncertainties for β vs. LET behavior (see, for example, also [118]). In particular, in Figure 12, the data show a beta significantly larger than zero for a large number of experimental points for He and C ions also for relatively high LET.

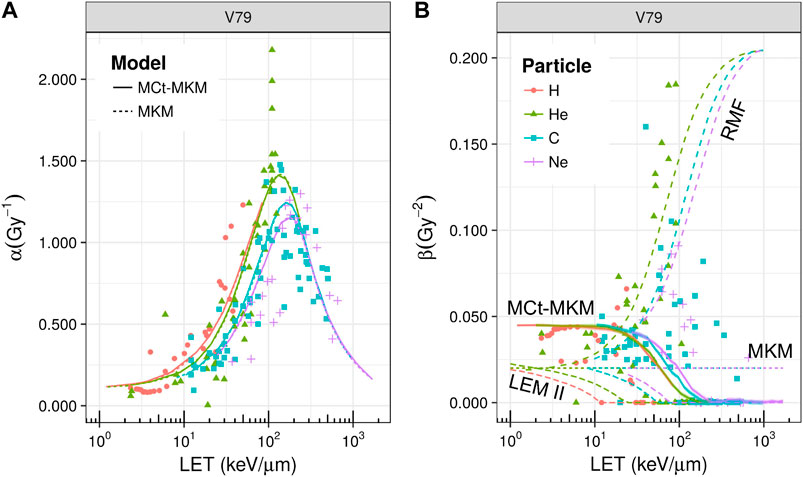

FIGURE 12

The model was also implemented in a TPS [88] to evaluate the effect of the temporal protraction of treatments with different ion beams. The effect of the protraction, described microscopically by Eq. (88), was shown to be compatible with a macroscopic first order effect with temporal constant τ [23]. We remark that, in the framework of the LQ formalism, in the studies of high dose irradiation and the dose-rate effect, such as those reported in [23, 101–104], the specific way β is modeled which plays a fundamental role [119, 120]. In particular, the behavior of a vanishing β for high LET is compatible with the experimental observation of a reduction of the sensitivity to the dose-rate (including the fractionation) in healthy tissues for treatments with high-LET ions and, hence, the potential advantage of hypofractionated treatments with these particles.

3.8.2 The Stochastic Microdosimetic Kinetic Model

The analytical computation method proposed by Sato and Furusawa [22] introduces a correction to the original formulation of MKM, taking into account the stochastic nature of specific energy in both the domain z and the cell nucleus , to improve the adherence of the model to the measured survival fractions for high-LET and high-dose irradiation. The new model is named double-stochastic microdosimetric kinetic (DSMK) model. In the same study [22], a second model, termed stochastic microdosimetric kinetic (SMK) model, is derived to represent the stochastic nature of domain specific energy z by its approximated mean value and variance in order to reduce the computational time.

Based on radiobiological evidences that state that DNA damage saturates at high-LET regions [121, 122], the original assumption of the MKM, that the initial numbers of lethal and sub-lethal lesions produced in a domain to be proportional to the specific energy in the site, is changed in the DSMKM, assuming that the initial numbers of lethal and sub-lethal lesions produced in a domain are proportional to the saturation-corrected specific energy, in the domain, calculated aswhere can be obtained from with the saturation correction parameter defined in Eq. (66).

By applying this new parameter, the natural logarithm of survival for a domain and the nucleus, Eqs (35) and (37), can be rewritten, respectively, aswith the natural log of the survival fraction of cell irradiated with dose D, , given by substituting Eq. (91) in Eq. (41).

The evaluation of the multi-event probability density is obtained numerically by applying a general n-fold convolution method such as the one presented in Section 2 (Eqs 4 and 6) to the single event probability density  . The evaluation of  is performed exploiting a microdosimetric function implemented in the PHITS Monte Carlo code [123, 124]. The sum in Eq. (6) can be truncated for practical purposes, with 100 events being enough to evaluate the density probability function of cells with Gy.

The same approach is used to calculate the multi-event probability density of the cell nucleus specific energy, for an absorbed macroscopic dose D, , from the single event function . However, since the nucleus radius is over the available range of the microdosimetric function implemented in PHITS, is determined from the frequency distribution of the LET L, :where represents the probability density of from a particle with . Following the formalism carried out in [125], the expression for is written as a Fermi function:where C is a normalization constant and η is a units conversion coefficient. The parameter γ tunes the slope of the Fermi function or, equivalently, the magnitude of the fluctuation of due to the energy straggling.

Once  is determined, the multi-event function for the nucleus is obtained with the same n-fold convolution procedure used in the case of . In this case, however, due to the higher average number of events that can happen in the nucleus compared to the domain, , the computation is significantly more demanding and cannot be practically used for applications inherently complex such as TPS evaluations for ion beam treatments. To overcome this problem, in the case of high-dose irradiations, a pre-evaluated database of probability densities derived from mono-energetic irradiations is used and combined in a central limit approximation.

To overcome the long computational time of the DSMK model in a TPS workflow, a further optimization is performed for the computation of the survival in (91) that bypasses the necessity to compute the n-fold convolution integral (Eq. 6). In this formulation of the model (SMK), it is assumed that a saturation effect triggered by multiple hits of radiations to a domain is negligibly small so that the magnitude of the effect for the n-event energy deposition can be derived from the estimate with the single event density probabilities (see also Eqs 9 and 12):and

Following these approximations, the natural log of the survival fraction of a cell can be calculated by substituting Eqs (94) and (95) in Eq. (91), 0btaining

In order to reduce further the computational effort for TPS applications, assuming that in standard condition of ion beam radiotherapy the events inducing the saturation of complex DNA damages are rare, and hence , the following approximation of Eq. (41) was derived [112]:with

Both DSMK and SMK models can reproduce the measured survival fractions, even for high-LET and high-dose irradiations, whereas the simple saturation-based MKM [20] predicts lower values for these irradiations due to the intrinsic ignorance of the stochastic nature of the cell nucleus specific energies (see Figure 13). In particular, the DSMK model can account for the decrease in the β parameter observed in high-dose irradiations over 10 Gy due to the saturation effect triggered by multiple hits of radiations to a domain.

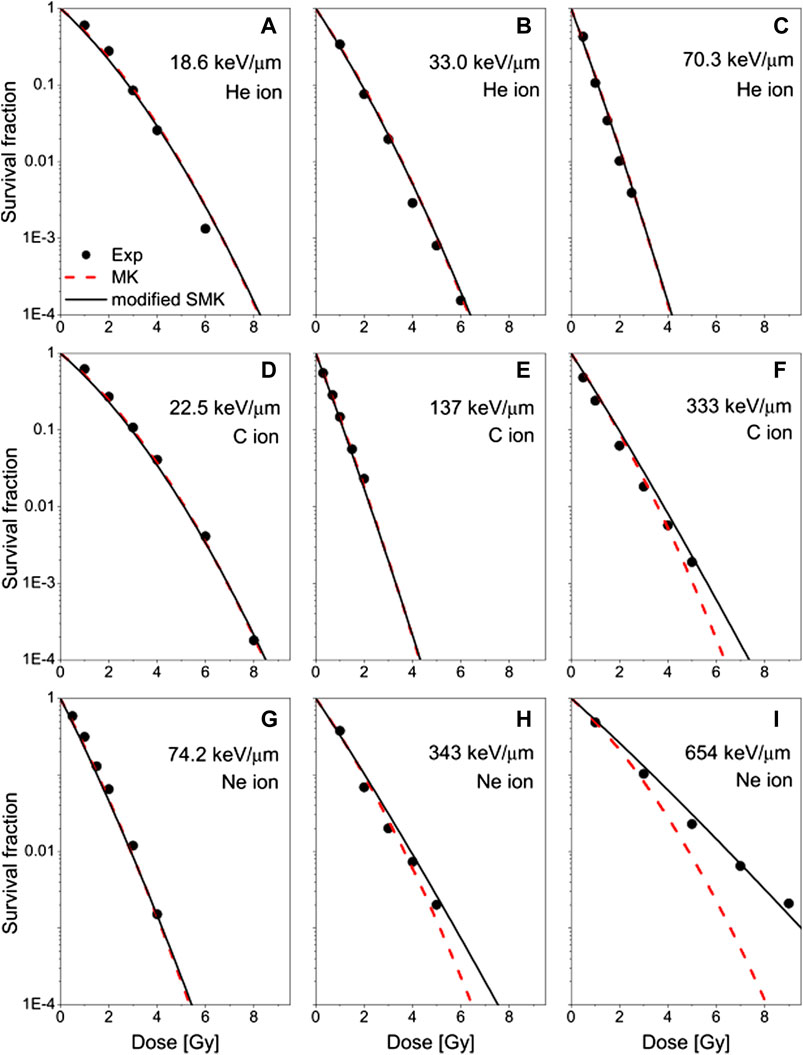

FIGURE 13

3.9 Extensions and Further Improvements

In recent years, a number of studies have been published reporting further refinements and extensions of the MKM. Among these are further improvement accounting of the non-Poissonian statistics [112, 126], the inclusion of an explicit DNA modeling [69, 70], the effect of a heterogeneous cell population including the cell-cycle variance [39, 114, 127], and the inclusion of non-target effects [128]. Extension of the model has been also proposed to compute quantities beyond the RBE, such as the oxygen enhancement ratio (OER) [37, 38]. In the following of this section, some details about a selection of these developments are described.

3.9.1 Oxygen Enhancement Ratio (OER) Modeling

Several experiments show that cellular oxygenation condition strongly affects their response to ionizing radiation. In particular, a significantly lower cell death rate is observed after exposure to ionizing radiation in the presence of a reduced concentration of oxygen in the cells, i.e., in hypoxic conditions. As clinically observed, solid tumors can contain oxygen-deficient regions, thus increasing their radioresistance and potentially leading to treatment failure [129, 130]. An understanding of why high-LET radiations are so effective at overcoming tumor hypoxia [131, 132] is also particularly relevant for the individualization and optimization of ion beam radiotherapy. For this purpose, attempts to extend the MKM to describe the dependence of the radiation effects on the oxygen concentration in cells and to model the oxygen enhancement ratio (OER) have been made [37, 38].

It is interesting to note that these MKM-based approaches, although different, do not focus on OER modeling, a relative value, but directly on the prediction of hypoxic cell survival data, being the OER a derived quantity.

In [37], the reduction of lethal () and potentially lethal () damage due to the absence of oxygen is linked in the low-LET region to the phenomenological photon OER. This linking is realized through the application of an Alper and Flanders functional formalism [133] to add an explicit dependence to the oxygen concentration to the parameters λ and κ (Eq. 28) and the sizes of the domain and nucleus. In particular, the parameters λ and κ and the domain size are assumed to vary with the inverse of the photon OER while the nucleus size is assumed to be proportional to the photon OER as a function of oxygen concentration.

In [38], the general approach proposed by Wenzl and Wilkens [134] has been adapted to the amorphous track approach to the MKM [21] (the latter described in Section 3.6). The inclusion of track model ultimately brings to the OER an explicit dependence on ion type while the Wenzl and Wilkens formalism brings an explicit dose and oxygen concentration dependence in the α and β parameters. These characteristics have been exploited, by integrating the model in a TPS, to evaluate the tumor control probability (TCP), to facilitate the identification of the optimal treatment conditions in terms of ion choice and dose fractionation in the presence of hypoxia.

The MKM-based OER models were verified against in vitro data from HSG, V79, and CHO cells in aerobic and hypoxic conditions, irradiated with different ion beams [109]. Examples of the model prediction vs. the experimental data are reported in Figure 14.

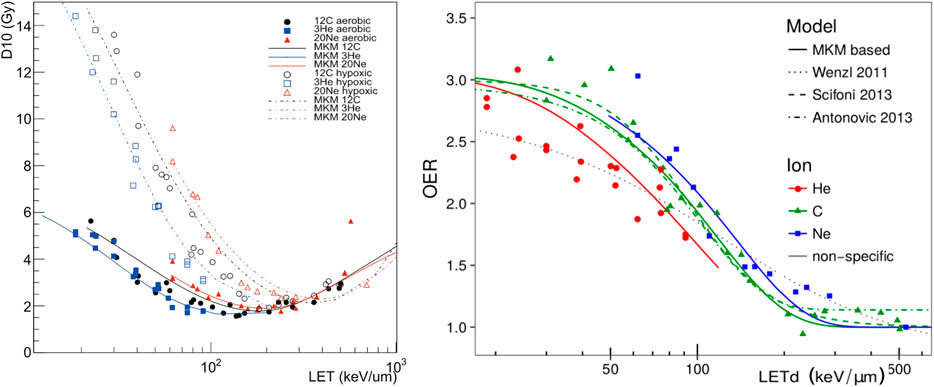

FIGURE 14

3.9.2. Non-Targeted Effects

In the majority of cell survival modeling approaches, it is assumed that biological effects of radiation are exclusively due to direct DNA damage resulting from the ionization caused by the incident radiation. In recent years, this assumption has been extensively challenged by considering a variety of indirect processes, also referred to as bystander or non-targeted effects (NTE) that significantly impact on the cellular response to the radiation [137]. NTEs have been interpreted as a result of intercellular communication with cell-killing signals between hit and non-hit cells [138, 139], resulting in induced DNA damage in non-hit cells [140].

Attempts to derive kinetic equations to model the intercellular signaling which incorporates signal production and response kinetics have been made [141–143]. In recent studies, such as by Matsuya et al. [128], an integration of these signaling kinetic equations in the MKM has been proposed.

In this formulation, denoted integrated microdosimetric kinetic (IMK) model, the number of signaling activation events, , in the domain is assumed to be a linear-quadratic function of the specific energy z. Thus, following the same procedure and the assumption of a Poisson statistics used to derive Eqs (44), (45), the dose dependent fraction of receiving cells that are activated is written aswhere and are the LQ coefficients of the signal activation process. The propagation of the cell-killing signal is modeled as a diffusion process with diffusion constant θ and a simple exponential decay with a rate constant λ. The signal concentration , where is a spatial position and t is time, can hence be obtained by solving the continuity equation:

In non-hit cells, the NTE sub-lethal lesions are assumed to be induced in proportion to the signal concentration and then converted to lethal lesions with the same constant rate a of Eq. (27) so that the number of sub-lethal lesions is written aswhere is the constant rate for cell-killing signals reacting with the nucleus of non-hit cells, is the number of sub-lethal lesions per domain caused by the signals, and is a constant rate for repair in non-hit cells (in general, , i.e., the repair rates in target and non-target cells are different). In [128], the following functional form for the cell survival fraction by the NTE () has been proposed as an approximate solution of the previous equationswhere δ is a function of the other parameters introduced in the former equations that characterize the intercellular signaling process.

In order to compute the cell survival probability S with the inclusion of both NTEs and targeted effects, an approximation is made in which it is assumed that the probability of interactions between sub-lethal lesions and in the domain is negligible. This assumption factorizes the two systems of Eqs (27) and (102) and hence considers the total cell survival as the product of , where the survival for targeted cells, , is given by Eq. (43). Figure 15 shows an example of the fitting of the IMK model with experimental clonogenic data. It is interesting to note the possibility of the IMK model to account for deviations from the LQ formalism, reproducing the low-dose hypersensitivity behavior of cell response and evincing its relation with DNA repair mechanisms.

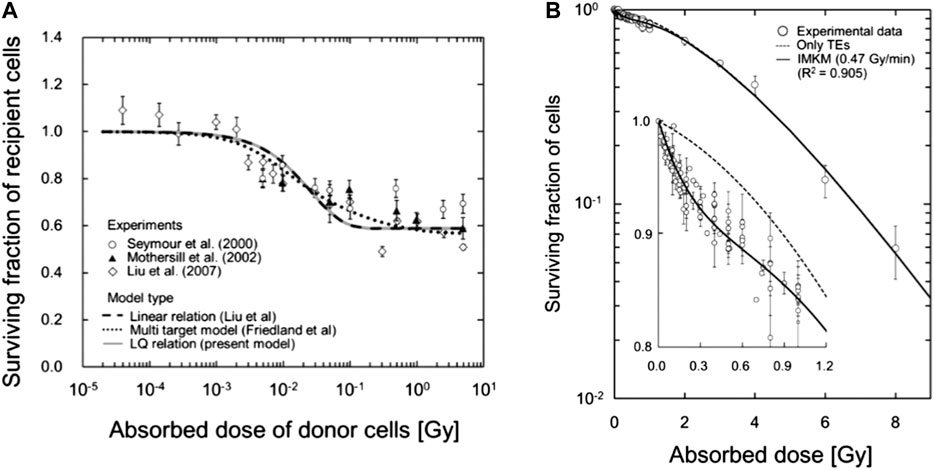

FIGURE 15

4 Other Models

4.1 RBE Weighting Functions

The microdosimetric RBE weighting function approach has been proposed initially by Menzel, Pihet, and Wambersie et al. [27, 33] to compare the beam quality of different neutron [27] and proton [144, 145] therapeutic installations using measured microdosimetric distributions of lineal energy. Based on previous studies on proton beams [146, 147], this approach uses measured microdosimetric distributions of lineal energy, y, combined with an experimentally derived biological weighting function, for specific cell line and endpoints, , to evaluate the RBE.

Let be the cellular response function for a population suffering the fraction of dose corresponding to the lineal energy y. is the dose probability density of y and can be evaluated as [34]. The linear α parameter, interpreted as the biological effect E per unit dose, is expressed aswhere r(y) is defined as the response function. Therefore, the model is rigorously valid under the assumption of a low dose approximation where the cellular response function is linear.

P(y) or directly r(y) is experimentally derived. A formulation for r(y) is given in the following [148, 149]:where the , , , and are parameters specific to the radiobiological end points and are independent on the quality of the radiation. These parameters are determined experimentally by fitting a set of different measurements of or using different irradiation modalities with different radiation qualities .

The set of relations that have to be fitted is hence

The solution of the system of Eq. (106) can be obtained with different methods, such as non-parametric multi-objective optimization methods [150] or iterative procedures [40] through which an initial guess function is iteratively updated to best fit Eq. (106).

4.2 The Repair–Misrepair–Fixation (RMF) Model

The repair–misrepair–fixation (RMF) model combines the RMR and LPL models, adding the consideration of intra- and inter-track² binary misrepair to predict the biological effect of LET [24–26]. The RMF model considers the entire cell nucleus as the volume for pairwise DSB interactions. In the RMF model, a coupled system of nonlinear ordinary differential equations is used to model the time-dependent kinetics of DSB induction, rejoining, and pairwise DSB interaction to form lethal (and nonlethal) chromosome damage. The model treats initial DSB formation as a compound Poisson process and postulates a first-order repair term that gives rise to exponential rejoining kinetics for most DSB () and a second-order (quadratic) term to account for the small subset of the initial DSB () that undergo pairwise DSB interactions to form an exchange.

An LQ approximation of the solution of the RMF system of differential equations can be expressed as follows [24, 25]:where is the initial number of DBS per gray per giga base pair (Gy⁻¹ Gbp⁻¹) and is the frequency-average specific energy evaluated in the nucleus (see Eq. 9), for the particle radiation. The suffix X indicates the same quantities for the reference photon radiation. , , and R are defined in Eq. (51), while the ratio can be interpreted as the RBE for DSB induction.

From Eq. (107), it follows that the radiation response of a cell exposed to a low- or high-LET radiation is uniquely determined by one microdosimetric parameter () and two biological parameters () and R. can be derived from microdosimetric measurements or computed via Monte Carlo simulations. Implicit in the determination of is the knowledge of the size of the nucleus. For a spherical water target of diameter d, the frequency-average specific energy can be approximated by Eq. (20). A complication arises from the fact that, in general, also strongly depends on particle type and kinetic energy (and thus LET or lineal energy) although it is considered to be the same among all eukaryotes. Consequently, R is basically left as the main parameter of the RMF is needed to discriminate the radiation response among different cell lines (compare also the MKM formulation, Eq. 53).

From a practical point of view, is obtained and stored in a look-up table as a function of particle type and kinetic energy by means of Monte Carlo computations. The MCDS Monte Carlo code [151, 152], which is able to simulate also the dependence on the oxygen concentration, is typically used in these computations, so that the RMF has been also used to predict the OER [153] along with the clonogenic data [25] and DSB induction estimates [24] for ion irradiations.

In panel (b) of Figure 12, the RMF prediction of the compared with experimental data and the evaluations of other models is reported. It is worth noting that the RMF model predicts an increasing β for increasing LET (see Eq. 107). This is in contrast with other models, such as the LEM, which predict a decreasing β, or the MKM, which, depending on the specific formulation, predicts both a constant and a decreasing β.

The RMF has been also implemented in a TPS to evaluate the 3D RBE distribution in irradiated patients [154]. It is interesting to note that one of the appealing aspects of the RMF for TPS studies is that the specific response of the tissue, both healthy and tumoral, is explicitly determined by a single parameter, R. This is a simplification, but allows to study the effect of the specificity of the tissue response in a direct way, also allowing for a distribution of R values and hence easily accounting for the variability and the uncertainty associated to this clinical parameter.

5 Summary

In clinical treatment planning, the RBE has to be calculated by radiobiological mathematical models, which, in spite of all validation efforts, still involve significant sources of uncertainty.

The aim of this review was to present the theoretical aspects of a selection of radiobiological models that emphasize the link of in vitro and in vivo radiobiological outcomes, such as the RBE, to microdosimetric experimental data. We approached these models through a conceptual sketch of their assumptions, highlighting the continuity and leaps of their mathematical formulations. For each model, we addressed the limit of applicability and eventual improvements and the link of their input parameters to experimental observables.

A particular emphasis to the microdosimetric kinetic (MKM)-based models has been given. Starting from its first seminal formulation by Hawkins [18], the MKM has represented an effective approach to link the microdosimetric quantities, which describe the quality of the radiation, to the radiobiological effects and, at present, it is one of the most widely used models to evaluate the RBE in both research and clinical applications. The MKM approach for RBE evaluations has gained a particular interest in recent years, with the appearance of different studies aimed to improve the accuracy of the model and to extend its range of applicability in different biological contexts, such as the OER prediction and non-target effects.

Although sharing similar theoretical bases, the MKM-based models make different assumptions and approximations in their implementation. Based on these differences, the models considered in this review (including also the RMF model) make, in particular, different predictions in the dependence of β on particle LET and the RBE for cell survival in the overkill regime, for particles with a keV/μm.

Two main aspects of the considered models, where recent efforts have brought interesting insight, and where further future studies could bring potential improvements, could be identified. One aspect is the ascertainment of a more accurate link of the theoretical descriptions to specific cellular mechanisms of DNA damage induction and its evolution, exploiting also information from nanodosimetric data. Another aspect is to improve the theoretical statistical description of the involved processes, be them either the stochastic nature of the energy deposition or the stochastic nature of the cell response to the irradiation.

Future comparisons of model predictions with experimental data are hence needed to fully discriminate among competing mechanisms to be incorporated for the improvement of these models to evaluate the RBE.

References

• 1.

  DuranteMOrecchiaRLoefflerJS. Charged-particle therapy in cancer: clinical uses and future perspectives. Nat Rev Clin Oncol (2017) 14:483. 10.1038/nrclinonc.2017.30

  • CrossRef
  • Google Scholar

• 2.

  DuranteMLoefflerJS. Charged particles in radiation oncology. Nat Rev Clin Oncol (2010) 7:37. 10.1038/nrclinonc.2009.183

  • CrossRef
  • Google Scholar

• 3.

  KanaiTFurusawaYFukutsuKItsukaichiHEguchi-KasaiKOharaH. Irradiation of mixed beam and design of spread-out Bragg peak for heavy-ion radiotherapy. Radiat Res (1997) 147:78–85.

  • Google Scholar

• 4.

  KanaiTEndoMMinoharaSMiyaharaNKoyama-ItoHTomuraHet alBiophysical characteristics of HIMAC clinical irradiation system for heavy-ion radiation therapy. Int J Radiat Oncol Biol Phys (1999) 44: 201–10.

  • Google Scholar

• 5.

  KawachiMatsufujiHMizoeJKamadaTBabaMKatoSKatoHet alOverview of clinical experiences on carbon ion radiotherapy at NIRS. Radiother Oncol (2004) 73(Suppl 2) S41–9. 10.1016/s0167-8140(04)80012-4

  • CrossRef
  • Google Scholar

• 6.

  MiyamotoTsujiJWambersieAOctave-PrignotMDe CosterBGrégoireV. Radiobiological characterisation of clinical beams: importance for the quality assurance (QA) programme in ion beam therapy. Int J Radiat Oncol Biol Phys (2006) 9:173–178. 10.1080/713844023

  • CrossRef
  • Google Scholar

• 7.

  CarabeAMoteabbedMDepauwNSchuemannJPaganettiH. Range uncertainty in proton therapy due to variable biological effectiveness. Phys Med Biol (2012) 57:1159–72. 10.1088/0031-9155/57/5/1159

  • CrossRef
  • Google Scholar

• 8.

  WedenbergMToma-DasuI. Disregarding RBE variation in treatment plan comparison may lead to bias in favor of proton plans. Med Phys (2014) 41:091706. 10.1118/1.4892930

  • CrossRef
  • Google Scholar

• 9.

  JonesB. Towards achieving the full clinical potential of proton therapy by inclusion of LET and RBE models. Cancers (2015) 7:460–80. 10.3390/cancers7010460

  • CrossRef
  • Google Scholar

• 10.

  McNamaraALSchuemannJPaganettiH. A phenomenological relative biological effectiveness (RBE) model for proton therapy based on all published in vitro cell survival data. Phys Med Biol (2015) 60:8399–416. 10.1088/0031-9155/60/21/8399

  • CrossRef
  • Google Scholar

• 11.

  ScholzMKraftG. A parameter-free track structure model for heavy ion action cross sectionsBiophysical modelling of radiation effects. Radiat Res (1997) 147:78–85 (1992).

  • Google Scholar

• 12.

  ScholzMKraftG. Track structure and the calculation of biological effects of heavy charged particles. Adv Space Res (1996) 18:5–14. 10.1016/0273-1177(95)00784-c

  • CrossRef
  • Google Scholar

• 13.

  ScholzMKellererAMKraft-WeyratherWKraftG. Computation of cell survival in heavy ion beams for therapy. The model and its approximation. Radiat Environ Biophys (1997) 36:59–66. 10.1007/s004110050055

  • CrossRef
  • Google Scholar

• 14.

  ElsässerTScholzM. Cluster effects within the local effect model. Radiat Res (2007) 167:319–29. 10.1667/RR0467.1

  • CrossRef
  • Google Scholar

• 15.

  ElsässerTKrämerMScholzM. Accuracy of the local effect model for the prediction of biologic effects of carbon ion beams in vitro and in vivo. Int J Radiat Oncol Biol Phys (2008) 71:866–72. 10.1016/j.ijrobp.2008.02.037

  • CrossRef
  • Google Scholar

• 16.

  ElsässerTWeyratherWKFriedrichTDuranteMIancuGKrämerMet alQuantification of the relative biological effectiveness for ion beam radiotherapy: direct experimental comparison of proton and carbon ion beams and a novel approach for treatment planning. Int J Radiat Oncol Biol Phys (2010) 78:1177–83. 10.1016/j.ijrobp.2010.05.014

  • CrossRef
  • Google Scholar

• 17.

  ScholzKraglTScholzUElsässerTDuranteMScholzM. Calculation of the biological effects of ion beams based on the microscopic spatial damage distribution pattern. Int J Radiat Biol (2012) 88:103–7. 10.3109/09553002.2011.611213

  • CrossRef
  • Google Scholar

• 18.

  HawkinsRB. A statistical theory of cell killing by radiation of varying linear energy transfer. Radiat Res (1994) 140:366–74.

  • Google Scholar

• 19.

  HawkinsRB. A microdosimetric-kinetic model for the effect of non-Poisson distribution of lethal lesions on the variation of RBE with LET. Radiat Res (2003) 160:61–9. 10.1667/rr3010

  • CrossRef
  • Google Scholar

• 20.

  KaseYKanaiTMatsumotoYFurusawaYOkamotoHAsabaTet alMicrodosimetric measurements and estimation of human cell survival for heavy-ion beams. Radiat Res166 (2006) 629–38. 10.1667/RR0536.1

  • CrossRef
  • Google Scholar

• 21.

  ShinodaSakamaYKanaiTMatsufujiNFurusawaYElsässerTScholzM. Biophysical calculation of cell survival probabilities using amorphous track structure models for heavy-ion irradiation. Phys Med Biol (2007) 53:37. 10.1088/0031-9155/53/1/003

  • CrossRef
  • Google Scholar

• 22.

  SatoTFurusawaY. Cell survival fraction estimation based on the probability densities of domain and cell nucleus specific energies using improved microdosimetric kinetic models. Radiat Res (2012) 178:341–56. 10.1667/rr2842.1

  • CrossRef
  • Google Scholar

• 23.

  ManganaroLRussoGCirioRDalmassoFGiordanengoSMonacoVet alA Monte Carlo approach to the microdosimetric kinetic model to account for dose rate time structure effects in ion beam therapy with application in treatment planning simulations. Med Phys (2017) 44:1577–89. 10.1002/mp.12133

  • CrossRef
  • Google Scholar

• 24.

  AttiliMuraroDJStewartRDSemenenkoVASandisonGA. Combined use of Monte Carlo DNA damage simulations and deterministic repair models to examine putative mechanisms of cell killing. Radiat Res (2008) 169:447–59. 10.1667/RR1046.1

  • CrossRef
  • Google Scholar

• 25.

  FreseMCYuVKStewartRDCarlsonDJ. A mechanism-based approach to predict the relative biological effectiveness of protons and carbon ions in radiation therapy. Int J Radiat Oncol Biol Phys (2012) 83:442–50. 10.1016/j.ijrobp.2011.06.1983

  • CrossRef
  • Google Scholar

• 26.

  StewartRDCarlsonDJButkusMPHawkinsRFriedrichTScholzM. A comparison of mechanism-inspired models for particle relative biological effectiveness (RBE). Med Phys (2018) 45:e925–2. 10.1002/mp.13207

  • CrossRef
  • Google Scholar

• 27.

  PihetPMenzelHSchmidtRBeauduinMWambersieA. Biological weighting function for RBE specification of neutron therapy beams. Intercomparison of 9 European centres. Radiat Protect Dosim (1990) 31:437–42.

  • Google Scholar

• 28.

  MenzelHGPihetPWambersieA. Microdosimetric specification of radiation quality in neutron radiation therapy. Int J Radiat Biol (1990) 57:865–83. 10.1080/09553009014550991

  • CrossRef
  • Google Scholar

• 29.

  WambersieAPihetPMenzelH. The role of microdosimetry in radiotherapy. Radiat Protect Dosim (1990) 31:421–32.

  • Google Scholar

• 30.

  WambersieA. Contribution of microdosimetry to the specification of neutron beam quality for the choice of the clinical RBE’in fast neutron therapy. Radiat Protect Dosim (1994) 52:453–60.

  • Google Scholar

• 31.

  GerlachRRoosHKellererAM. Heavy ion RBE and microdosimetric spectra. Radiat Protect Dosim (2002) 99:413–8. 10.1093/oxfordjournals.rpd.a006821A

  • CrossRef
  • Google Scholar

• 32.

  WambersieAHendryJHAndreoPDeLucaPMGahbauerRMenzelHet alThe RBE issues in ion-beam therapy: conclusions of a joint IAEA/ICRU working group regarding quantities and units. Radiat Protect Dosim122 (2006) 463–70. 10.1093/rpd/ncl447

  • CrossRef
  • Google Scholar

• 33.

  WhitmoreASatoTMatsuyaYKaseYMagrinGVeronaCet alDevelopment of a new microdosimetric biological weighting function for the RBE10 assessment in case of the V79 cell line exposed to ions from 1H to 238U. Phys Med Biol (2020) 27:87–123. 10.1088/1361-6560/abbf96

  • CrossRef
  • Google Scholar

• 34.

  BoozJBrabyLCoyneJKliaugaPLindborgLMenzelHet alJournal of the International Commission on radiation Units and measurements. NP–NP (1983). Report 36.

  • Google Scholar

• 35.

  KellererAMet alFundamentals of microdosimetry. Dosim Ion Radiat (1985) 1:77–162.

  • Google Scholar

• 36.

  InaniwaTFurukawaTKaseYMatsufujiNToshitoTMatsumotoYet alTreatment planning for a scanned carbon beam with a modified microdosimetric kinetic model. Phys Med Biol (2010) 55:6721. 10.1088/0031-9155/55/22/008

  • CrossRef
  • Google Scholar

• 37.

  NodaFurusawaCHirayamaRInaniwaTKitagawaAMatsufujiNNodaK. Adaptation of the microdosimetric kinetic model to hypoxia. Phys Med Biol (2016) 61:7586. 10.1088/0031-9155/61/21/7586

  • CrossRef
  • Google Scholar

• 38.

  StrigariLTorrianiFManganaroLInaniwaTDalmassoFCirioRet alTumour control in ion beam radiotherapy with different ions in the presence of hypoxia: an oxygen enhancement ratio model based on the microdosimetric kinetic model. Phys Med Biol (2018) 63:065012. 10.1575/1912/bco-dmo.712761.1

  • CrossRef
  • Google Scholar

• 39.

  MatsuyaYMcMahonSJTsutsumiKSasakiKOkuyamaGYoshiiYet al Investigation of dose-rate effects and cell-cycle distribution under protracted exposure to ionizing radiation for various dose-rates. Sci Rep (2018a) 8:8287–14. 10.1038/s41598-018-26556-5

  • CrossRef
  • Google Scholar

• 40.

  DateMoriTCosgroveVDenisJGueuletteJMazalAMenzelHet alRadiobiological effectiveness of radiation beams with broad LET spectra: microdosimetric analysis using biological weighting functions. Radiat Protect Dosim (1994) 52:347–52.

  • Google Scholar

• 41.

  RossiHHZaiderM. Elements of microdosimetry. Med Phys (1991) 18:1085–92. 10.1118/1.596616

  • CrossRef
  • Google Scholar

• 42.

  ZaiderMRossiBHHZaiderM. Microdosimetry and its applications. Berlin: Springer (1996).

  • Google Scholar

• 43.

  LindborgLWakerA. Microdosimetry: experimental methods and applications. Boca Raton: CRC Press (2017).

  • Google Scholar

• 44.

  WilsonKSFieldSB. Measurement of LET spectra using a spherical tissue-equivalent proportional counter. Phys Med Biol (1970) 15:657.

  • Google Scholar

• 45.

  LindborgLKyllönenJEBeckPBottollier-DepoisJFGerdungSGrillmaierREet alThe use of TEPC for reference dosimetry. Radiat Protect Dosim (1999) 86285–8. 10.1093/oxfordjournals.rpd.a032959

  • CrossRef
  • Google Scholar

• 46.

  SchreweHKhvostunovIKCucinottaFA. The response of tissue-equivalent proportional counters to heavy ions. Radiat Res (2002) 157:435–45. 10.1667/0033-7587(2002)157[0435:trotep]2.0.co;2

  • CrossRef
  • Google Scholar

• 47.

  ConteVMoroDGrosswendtBColauttiP. Lineal energy calibration of mini tissue-equivalent gas-proportional counters (TEPC). AIP Conf Proc Am Inst Phys (2013) 1530:171–8. 10.3403/30106322u

  • CrossRef
  • Google Scholar

• 48.

  BradleyPDRosenfeldABZaiderM. Solid state microdosimetry. Nucl Instrum Methods Phys Res B (2001) 184:135–57. 10.3403/30106322

  • CrossRef
  • Google Scholar

• 49.

  RosenfeldAB. Novel detectors for silicon based microdosimetry, their concepts and applications. Nucl Instrum Methods Phys Res Sect A Accel Spectrom Detect Assoc Equip (2016) 809:156–70. 10.1016/j.nima.2015.08.059

  • CrossRef
  • Google Scholar

• 50.

  ByunSHSpirouGMHanuAPrestwichWVWakerAJ. Simulation and first test of a microdosimetric detector based on a thick gas electron multiplier. IEEE Trans Nucl Sci (2009) 56:1108–13. 10.1109/tns.2008.2009214

  • CrossRef
  • Google Scholar

• 51.

  OrchardGChinKPrestwichWWakerAByunS. Development of a thick gas electron multiplier for microdosimetry. Nucl Instrum Methods Phys Res Sect A Accel Spectrom Detect Assoc Equip (2011) 638:122–6. 10.1016/j.nima.2011.01.179

  • CrossRef
  • Google Scholar

• 52.

  SchuhmacherHDangendorfV. Experimental tools for track structure investigations: new approaches for dosimetry and microdosimetry. Radiat Protect Dosim (2002) 99:317–23. 10.1093/oxfordjournals.rpd.a006793

  • CrossRef
  • Google Scholar

• 53.

  BrabyL. Experimental microdosimetry: history, applications and recent technical advances. Radiat Protect Dosim (2015) 166:3–9. 10.1093/rpd/ncv137

  • CrossRef
  • Google Scholar

• 54.

  MagrinG. A method to convert spectra from slab microdosimeters in therapeutic ion-beams to the spectra referring to microdosimeters of different shapes and material. Phys Med Biol (2018) 63:215021. 10.1088/1361-6560/aae655

  • CrossRef
  • Google Scholar

• 55.

  BolstDGuatelliSTranLTChartierLLerchMLMatsufujiNet alCorrection factors to convert microdosimetry measurements in silicon to tissue in 12C ion therapy. Phys Med Biol (2017) 62:2055. 10.1088/1361-6560/aa5de5

  • CrossRef
  • Google Scholar

• 56.

  KaseK. The dosimetry of ionizing radiation. Elsevier (2012).

  • Google Scholar

• 57.

  KellererAMRossiHH. The theory of dual radiation action. Curr Top Radiat Res (1972) 8:85–158. 10.1667/RRAV17.1

  • CrossRef
  • Google Scholar

• 58.

  KellererAMRossiHH. A generalized formulation of dual radiation action. Radiat Res (1978) 75:471–88.

  • Google Scholar

• 59.

  TobiasCA. The repair–misrepair model of cell survival. Berlin: Springer. (1980).

  • Google Scholar

• 60.

  TobiasCA. The repair-misrepair model in radiobiology: comparison to other models. Radiat Res Suppl (1985) 8:S77–95.

  • Google Scholar

• 61.

  CurtisSB. Lethal and potentially lethal lesions induced by radiation--a unified repair model. Radiat Res (1986) 106:252–70.

  • Google Scholar

• 62.

  CurtisSB. Quantitative mathematical models in radiation biology. The lethal and potentially lethal model—a review and recent development. Berlin: Springer. (1988). p. 137–46.

  • Google Scholar

• 63.

  SchürmannRVogelSEbelKBaldI. The physico-chemical basis of DNA radiosensitization: implications for cancer radiation therapy. Chem A Eur J (2018) 24:10271–9. 10.1002/chem.201884161

  • CrossRef
  • Google Scholar

• 64.

  Van HoutenBSanta-GonzalezGACamargoM. DNA repair after oxidative stress: current challenges. Curr Opin Toxicol (2018) 7:9–16. 10.1016/j.cotox.2017.10.009

  • CrossRef
  • Google Scholar

• 65.

  LeaDECatchesideDG. The mechanism of the induction by radiation of chromosome aberrations in Tradescantia. J Genet (1942) 12:60–9. 10.1007/BF02982830

  • CrossRef
  • Google Scholar

• 66.

  KuangYNagyJDEikenberrySE. Introduction to mathematical oncology. Boca Raton: CRC Press (2016).

  • Google Scholar

• 67.

  HawkinsR. A microdosimetric-kinetic model of cell death from exposure to ionizing radiation of any LET, with experimental and clinical applications. Int J Radiat Biol (1996) 69:739–55. 10.1080/095530096145481

  • CrossRef
  • Google Scholar

• 68.

  HawkinsRB. A microdosimetric-kinetic theory of the dependence of the RBE for cell death on LET. Med Phys (1998) 25:1157–70. 10.1118/1.598307

  • CrossRef
  • Google Scholar

• 69.

  MatsuyaYOhtsuboYTsutsumiKSasakiKYamazakiRDateH. Quantitative estimation of DNA damage by photon irradiation based on the microdosimetric-kinetic model. J Radiat Res (2014) 55:484–93. 10.1093/jrr/rrt222

  • CrossRef
  • Google Scholar

• 70.

  ChenYLiJLiCQiuRWuZ. A modified microdosimetric kinetic model for relative biological effectiveness calculation. Phys Med Biol (2017) 63:015008. 10.1118/1.4958000

  • CrossRef
  • Google Scholar

• 71.

  ManganaroL. Dose delivery time structure effects in particle therapy: development of a time-resolved microdosimetric-kinetic model and implementation of spatiotemporal treatment plan optimization. [Ph.D. thesis]. Italy: University of Turin (2018).

  • Google Scholar

• 72.

  DikomeyEFranzkeJ. DNA repair kinetics after exposure to X-irradiation and to internal beta-rays in CHO cells. Radiat Environ Biophys (1986) 25:189–94. 10.1007/BF01221225

  • CrossRef
  • Google Scholar

• 73.

  FowlerJF. Is repair of DNA strand break damage from ionizing radiation second-order rather than first-order? A simpler explanation of apparently multiexponential repair. Radiat Res (1999) 152:124–36.

  • Google Scholar

• 74.

  DaleRGFowlerJFJonesB. A new incomplete-repair model based on a ‘reciprocal-time' pattern of sublethal damage repair. Acta Oncol (1999) 38:919–29. 10.1080/028418699432608

  • CrossRef
  • Google Scholar

• 75.

  Carabe-FernandezADaleRGPaganettiH. Repair kinetic considerations in particle beam radiotherapy. Br J Radiol (2011) 84:546–55. 10.1259/bjr/19934996

  • CrossRef
  • Google Scholar

• 76.

  SchettinoGGhitaMRichardDJPriseKM. Spatiotemporal investigations of DNA damage repair using microbeams. Radiat Protect Dosim (2011) 143:340–3. 10.1093/rpd/ncq485

  • CrossRef
  • Google Scholar

• 77.

  MariottiLGPirovanoGSavageKIGhitaMOttolenghiAPriseKMet alUse of the γ-H2AX assay to investigate DNA repair dynamics following multiple radiation exposures. PloS One8 (2013) e79541–12. 10.1371/journal.pone.0079541

  • CrossRef
  • Google Scholar

• 78.

  SchettinoAUematsuNChatterjeeAStoryMDBurmaSChenDJ. Repair of HZE-particle-induced DNA double-strand breaks in normal human fibroblasts. Radiat Res (2008) 169:437–46. 10.1667/rr1165.1

  • CrossRef
  • Google Scholar

• 79.

  AsaithambyAHuBChenDJ. Unrepaired clustered DNA lesions induce chromosome breakage in human cells. Proc Natl Acad Sci USA (2011) 108:8293–8. 10.1073/pnas.1016045108

  • CrossRef
  • Google Scholar

• 80.

  PriseKM. A review of DSB induction data for varying quality radiations. Int J Radiat Biol (1998) 74:173–84. 10.1080/095530098141564

  • CrossRef
  • Google Scholar

• 81.

  StenerlöwAhnströmJAHarperJVCucinottaFAO'NeillP. Participation of DNA-PKcs in DSB repair after exposure to high- and low-LET radiation. Radiat Res (2010) 174:195–205. 10.1667/RR2071.1

  • CrossRef
  • Google Scholar

• 82.

  FriedrichTScholzUElsässerTDuranteMScholzM. Systematic analysis of RBE and related quantities using a database of cell survival experiments with ion beam irradiation. J Radiat Res (2013) 54:494–514. 10.1093/jrr/rrs114

  • CrossRef
  • Google Scholar

• 83.

  DaleRGJonesB. The assessment of RBE effects using the concept of biologically effective dose. Int J Radiat Oncol Biol Phys (1999) 43:639–45.

  • Google Scholar

• 84.

  Carabe-FernandezADaleRGJonesB. The incorporation of the concept of minimum RBE (RbEmin) into the linear-quadratic model and the potential for improved radiobiological analysis of high-LET treatments. Int J Radiat Biol (2007) 83:27–39. 10.1080/09553000601087176

  • CrossRef
  • Google Scholar

• 85.

  WeyratherWKDebusJ. Particle beams for cancer therapy. Clin Oncol (2003) 15:S23. 10.1053/clon.2002.0185

  • CrossRef
  • Google Scholar

• 86.

  BirdRP. Cysteamine as a protective agent with high-LET radiations. Radiat Res (1980) 82:290. 10.2307/3575380

  • CrossRef
  • Google Scholar

• 87.

  BirdRPZaiderMRossiHHHallEJMarinoSARohrigN. The sequential irradiation of mammalian cells with X rays and charged particles of high LET. Radiat Res (1983) 93:444. 10.2307/3576024

  • CrossRef
  • Google Scholar

• 88.

  RussoGAttiliABattistoniGBertrandDBourhalebFCappucciFet alA novel algorithm for the calculation of physical and biological irradiation quantities in scanned ion beam therapy: the beamlet superposition approach. Phys Med Biol (2015) 61:183. 10.1088/0031-9155/61/1/183

  • CrossRef
  • Google Scholar

• 89.

  MarchettoCioccaELLymanJTTobiasCA. Some effects of accelerated charged particles on bacterial spores. Int J Radiat Biol Relat Stud Phys Chem Med (1968) 14:313–30. 10.1080/09553006814551171

  • CrossRef
  • Google Scholar

• 90.

  KaseYKanaiTSakamaMTameshigeYHimukaiTNoseHet alMicrodosimetric approach to NIRS-defined biological dose measurement for carbon-ion treatment beam. J Radiat Res (2011) 52:59–68. 10.1269/jrr.10062

  • CrossRef
  • Google Scholar

• 91.

  MatsufujiCFletaCRodríguezJLozanoMGómezF. Preliminary microdosimetric measurements with ultra-thin 3D silicon detectors of a 62 MeV proton beam. J Instrum (2015) 10:P01008. 10.1088/1748-0221/10/01/p01008

  • CrossRef
  • Google Scholar

• 92.

  BianchiASelvaAColauttiPBortotDMazzucconiDPolaAet alMicrodosimetry with a sealed mini-TEPC and a silicon telescope at a clinical proton SOBP of CATANA. Radiat Phys Chem (2020) 171:108730. 10.1088/1742-6596/444/1/012058

  • CrossRef
  • Google Scholar

• 93.

  KieferJStraatenH. A model of ion track structure based on classical collision dynamics. Phys Med Biol (1986) 31:1201.

  • Google Scholar

• 94.

  ChatterjeeASchaeferHJ. Microdosimetric structure of heavy ion tracks in tissue. Radiat Environ Biophys (1976) 13:215–27. 10.1007/BF01330766

  • CrossRef
  • Google Scholar

• 95.

  SakamaMKanaiTKaseYKomoriMFukumuraAKohnoT. Responses of a diamond detector to high-LET charged particles. Phys Med Biol (2005) 50:2275. 10.1088/0031-9155/50/10/007

  • CrossRef
  • Google Scholar

• 96.

  InaniwaTKanematsuNMatsufujiNKanaiTShiraiTNodaKet al Reformulation of a clinical-dose system for carbon-ion radiotherapy treatment planning at the National Institute of Radiological Sciences, Japan. Phys Med Biol60 (2015a) 3271–86. 10.1088/0031-9155/60/8/3271

  • CrossRef
  • Google Scholar

• 97.

  TsujiiTsujiSAllisonJAmakoKApostolakisJAraujoHArcePet alGEANT4 - a simulation toolkit. Nucl Instrum Methods Phys Res Sect A Accel Spectrom Detect Assoc Equip (2003) 444:63. 10.1016/S0168-9002(03)01368-8

  • CrossRef
  • Google Scholar

• 98.

  AsoTKimuraAKameokaSMurakamiKSasakiTYamashitaT. GEANT4 based simulation framework for particle therapy system. IEEE Nucl Sci Symp Conf Rec (2007) 33:278–9. 10.1109/NSSMIC.2007.4436673

  • CrossRef
  • Google Scholar

• 99.

  ZhuHChenYSungWMcNamaraALTranLTBurigoLNet alThe microdosimetric extension in TOPAS : development and comparison with published data. Phys Med Biol (2019) 64:145004. 10.1088/1361-6560/ab23a3

  • CrossRef
  • Google Scholar

• 100.

  MagroGDahleTJMolinelliSCioccaMFossatiPFerrariAet alThe FLUKA Monte Carlo code coupled with the NIRS approach for clinical dose calculations in carbon ion therapy. Phys Med Biol (2017) 62:3814. 10.1088/1361-6560/aa642b

  • CrossRef
  • Google Scholar

• 101.

  MairaniInaniwaTSuzukiMFurukawaTKaseYKanematsuNShiraiTet alEffects of dose-delivery time structure on biological effectiveness for therapeutic carbon-ion beams evaluated with microdosimetric kinetic model. Radiat Res180 (2013) 44–59. 10.1667/RR3178.1

  • CrossRef
  • Google Scholar

• 102.

  HawkinsRBInaniwaT. A microdosimetric-kinetic model for cell killing by protracted continuous irradiation including dependence on LET i: repair in cultured mammalian cells. Radiat Res (2013) 180:584–94. 10.1667/RR13257.1

  • CrossRef
  • Google Scholar

• 103.

  HawkinsRBInaniwaT. A microdosimetric-kinetic model for cell killing by protracted continuous irradiation II: brachytherapy and biologic effective dose. Radiat Res (2014) 182:72–82. 10.1667/rr13558.1

  • CrossRef
  • Google Scholar

• 104.

  InaniwaTKanematsuNSuzukiMHawkinsRB. Effects of beam interruption time on tumor control probability in single-fractionated carbon-ion radiotherapy for non-small cell lung cancer. Phys Med Biol (2015b) 60:4105. 10.1088/0031-9155/60/10/4105

  • CrossRef
  • Google Scholar

• 105.

  DeehanCO'DonoghueJA. Biological equivalence between fractionated radiotherapy treatments using the linear-quadratic model. Br J Radiol (1988) 61:1187–8. 10.1259/0007-1285-61-732-1187

  • CrossRef
  • Google Scholar

• 106.

  FowlerJF. The linear-quadratic formula and progress in fractionated radiotherapy. Br J Radiol (1989) 62:679–94. 10.1259/0007-1285-62-740-679

  • CrossRef
  • Google Scholar

• 107.

  YaesRJPatelPMaruyamaY. On using the linear-quadratic model in daily clinical practice. Int J Radiat Oncol Biol Phys (1991) 20:1353–62. 10.1016/0360-3016(91)90249-4

  • CrossRef
  • Google Scholar

• 108.

  McMahonSJ. The linear quadratic model: usage, interpretation and challenges. Phys Med Biol (2018) 64:01TR01. 10.1088/1361-6560/aaf26a

  • CrossRef
  • Google Scholar

• 109.

  FurusawaYFukutsuKAokiMItsukaichiHEguchi-KasaiKOharaHet alInactivation of aerobic and hypoxic cells from three different cell lines by accelerated (3)He-, (12)C- and (20)Ne-ion beams. Radiat Res (2000) 154485–96. 10.1667/0033-7587(2000)154[0485:ioaahc]2.0.co;2

  • CrossRef
  • Google Scholar

• 110.

  AndoYatagaiCSuzukiMKanaiTFujitakaK. LET and ion species dependence for cell killing in normal human skin fibroblasts. Radiat Res (2005) 163:494. 10.1667/rr3360

  • CrossRef
  • Google Scholar

• 111.

  CzubJBanaśDBłaszczykABraziewiczJBuraczewskaIChoinskiJet alBiological effectiveness of (12)C and (20)Ne ions with very high LET. Int J Radiat Biol, 84, 821 (2008). 10.1080/09553000802389652

  • CrossRef
  • Google Scholar

• 112.

  WojcikGorakTKanematsuN. Adaptation of stochastic microdosimetric kinetic model for charged-particle therapy treatment planning. Phys Med Biol (2018) 63:095011. 10.1088/1361-6560/aabede

  • CrossRef
  • Google Scholar

• 113.

  ManganaroLRussoGBourhalebFFaustiFGiordanengoSMonacoVet al“Survival”: a simulation toolkit introducing a modular approach for radiobiological evaluations in ion beam therapy. Phys Med Biol (2018) 63:08NT01. 10.1088/1361-6560/ab6eba

  • CrossRef
  • Google Scholar

• 114.

  HawkinsRB. Effect of heterogeneous radio sensitivity on the survival, alpha beta ratio and biologic effective dose calculation of irradiated mammalian cell populations. Clin Transl Radiat Oncol (2017) 4:32–8. 10.1016/j.ctro.2017.03.001

  • CrossRef
  • Google Scholar

• 115.

  IncertiSKyriakouIBernalMBordageMFrancisZGuatelliSet alGeant4-DNA example applications for track structure simulations in liquid water: a report from the Geant4-DNA Project. Med Phys (2018) 45:e722–e739. 10.1007/s10898-020-00902-2

  • CrossRef
  • Google Scholar

• 116.

  FerrariASFassoPRRanftA. FLUKA: a multi-particle transport code (Program version 2005). Berlin: Springer. (2005). 10.5170/cern-2005-010

  • CrossRef
  • Google Scholar

• 117.

  RussoG. Development of a radiobiological database for carbon ion Treatment Planning Systems. [Ph.D. thesis]. Italy: University of Turin (2011).

  • Google Scholar

• 118.

  GuanFBronkLTittULinSHMirkovicDKerrMDet alSpatial mapping of the biologic effectiveness of scanned particle beams: towards biologically optimized particle therapy. Sci Rep (2015) 5:9850. 10.1038/srep09850

  • CrossRef
  • Google Scholar

• 119.

  GrosshansZhuJFWelshJSHowardSP. Loss of biological effect in prolonged fraction delivery. Int J Radiat Oncol Biol Phys (2004) 59:242–9. 10.1016/j.ijrobp.2004.01.004

  • CrossRef
  • Google Scholar

• 120.

  Carabe-FernandezADaleRGHopewellJWJonesBPaganettiH. Fractionation effects in particle radiotherapy: implications for hypo-fractionation regimes. Phys Med Biol (2010) 55:5685. 10.1088/0031-9155/55/19/005

  • CrossRef
  • Google Scholar

• 121.

  FriedlandWJacobPParetzkeHGOttolenghiABallariniFLiottaM. Simulation of light ion induced DNA damage patterns. Radiat Protect Dosim (2006) 122:116–20. 10.1093/rpd/ncl451

  • CrossRef
  • Google Scholar

• 122.

  HadaMGeorgakilasAG. Formation of clustered DNA damage after high-LET irradiation: a review. J Radiat Res (2008) 49:203. 10.1016/j.dnarep.2015.01.007

  • CrossRef
  • Google Scholar

• 123.

  IwamotoYSatoTHashimotoSOgawaTFurutaTAbeSet alBenchmark study of the recent version of the PHITS code. J Nucl Sci Technol (2017) 54:617–35. 10.1269/jrr.40.s60

  • CrossRef
  • Google Scholar

• 124.

  SatoTIwamotoYHashimotoSOgawaTFurutaTAbeSet alFeatures of particle and heavy ion transport code system (PHITS) version 3.02. J Nucl Sci Technol (2018) 55:684–90. 10.1007/s00411-006-0070-3

  • CrossRef
  • Google Scholar

• 125.

  OlkoPBoozJ. Energy deposition by protons and alpha particles in spherical sites of nanometer to micrometer diameter. Radiat Environ Biophys (1990) 29:1. 10.1007/BF01211231

  • CrossRef
  • Google Scholar

• 126.

  AbolfathRPeelerCRNewpowerMBronkLGrosshansDMohanR. A model for relative biological effectiveness of therapeutic proton beams based on a global fit of cell survival data. Sci Rep (2017) 7:8340–12. 10.1038/s41598-017-08622-6

  • CrossRef
  • Google Scholar

• 127.

  HawkinsRB. Survival of a mixture of cells of variable linear-quadratic sensitivity to radiation. Radiat Res (2000) 153:840–3. 10.1667/0033-7587(2000)153[084010.1667/0033-7587(2000)153[0840:soamoc]2.0.co;2

  • CrossRef
  • Google Scholar

• 128.

  MatsuyaYSasakiKYoshiiYOkuyamaGDateH. Integrated modelling of cell responses after irradiation for DNA-targeted effects and non-targeted effects. Sci Rep (2018b) 8:1–14. 10.1038/s41598-018-23202-y

  • CrossRef
  • Google Scholar

• 129.

  HöckelMKnoopCSchlengerKVorndranBBaussmannEMitzeMet alIntratumoral pO2 predicts survival in advanced cancer of the uterine cervix. Radiother Oncol26 (1993) 45–50. 10.1016/0167-8140(93)90025-4

  • CrossRef
  • Google Scholar

• 130.

  VaupelKnapsteinRHGrayLH. The histological structure of some human lung cancers and the possible implications for radiotherapy. Br J Canc (1955) 9:539–49. 10.1038/bjc.1955.55

  • CrossRef
  • Google Scholar

• 131.

  ItoANakanoHKusanoYHirayamaRFurusawaYMurayamaCet alContribution of indirect action to radiation-induced mammalian cell inactivation: dependence on photon energy and heavy-ion LET. Radiat Res (2006) 165, 703. 10.1667/rr3557.1

  • CrossRef
  • Google Scholar

• 132.

  ShinoharaMoriTSuzukiYOhnoTKatoSSuzukiMMoritaSet alCarbon beam therapy overcomes the radiation resistance of uterine cervical cancer originating from hypoxia. Clin Canc Res (2006) 12:2185–90. 10.1158/1078-0432.CCR-05-1907

  • CrossRef
  • Google Scholar

• 133.

  TsujiiSatoTHoward-FlandersP. Role of oxygen in modifying the radiosensitivity of E. coli B. Nature (1956) 178:978–9. 10.1038/178978a0

  • CrossRef
  • Google Scholar

• 134.

  WenzlTWilkensJJ. Modelling of the oxygen enhancement ratio for ion beam radiation therapy. Phys Med Biol (2011) 56:3251–68. 10.1088/0031-9155/56/11/006

  • CrossRef
  • Google Scholar

• 135

  ScifoniETinganelliWWeyratherWKDuranteMMaieraKrämerM. Including oxygen enhancement ratio in ion beam treatment planning: model implementation and experimental verification. Phys Med Biol (2013) 58:3871–95. 10.1088/0031-9155/58/11/3871

  • CrossRef
  • Google Scholar

• 136.

  AntonovicLBrahmeAFurusawaYToma-DasuI. Radiobiological description of the LET dependence of the cell survival of oxic and anoxic cells irradiated by carbon ions. J Radiat Res (2013) 54:18–26. 10.1093/jrr/rrs070

  • CrossRef
  • Google Scholar

• 137.

  MothersillCSeymourC. Radiation-induced bystander effects: past history and future directions. Radiat Res (2001) 155:759. 10.1667/0033-7587(2001)155

  • CrossRef
  • Google Scholar

• 138.

  HamadaNMatsumotoHHaraTKobayashiY. Intercellular and intracellular signaling pathways mediating ionizing radiation-induced bystander effects. J Radiat Res (2007) 48:87. 10.1269/jrr.06084

  • CrossRef
  • Google Scholar

• 139.

  HamadaNMaedaMOtsukaKTomitaM. Signaling pathways underpinning the manifestations of ionizing radiation-induced bystander effects. Curr Mol Pharmacol (2012) 27:66. 10.2174/1874467211104020079

  • CrossRef
  • Google Scholar

• 140.

  HuBWuLHanWZhangLChenSXuAet alThe time and spatial effects of bystander response in mammalian cells induced by low dose radiation. Carcinogenesis (2006) 27:245. 10.1093/carcin/bgi224

  • CrossRef
  • Google Scholar

• 141.

  YuHeiSJButterworthKTTrainorCMcGarryCKO'SullivanJMSchettinoGet alA kinetic-based model of radiation-induced intercellular signalling. PloS One (2013) 8:e54526. 10.1371/journal.pone.0054526

  • CrossRef
  • Google Scholar

• 142.

  PriseHounsellPFriedlandW. Mechanistic modelling of radiation-induced bystander effects. Radiat Protect Dosim (2015) 166:148–51. 10.1093/rpd/ncv170

  • CrossRef
  • Google Scholar

• 143.

  McmahonSJSchuemannJPaganettiHPriseKM. Mechanistic modelling of DNA repair and cellular survival following radiation-induced DNA damage. Sci Rep (2016) 6:33290. 10.1038/srep33290

  • CrossRef
  • Google Scholar

• 144.

  RobertsonJBEaddyJMArchambeauJOCoutrakonGBMillerDWMoyersMFet alRelative biological effectiveness and microdosimetry of a mixed energy field of protons up to 200 MeV. Adv Space Res14 (1994) 271–5. 10.1016/0273-1177(94)90477-4

  • CrossRef
  • Google Scholar

• 145.

  DicelloSiebersGCorteseJGhebremedhinAHubbardJJohanningJKossPet alMicrodosimetry spectra of the Loma Linda proton beam and relative biological effectiveness comparisons. Med Phys (1997) 24:1499–506. 10.1118/1.598038

  • CrossRef
  • Google Scholar

• 146.

  ZuccarelliMaudsleyPJColvettRDLamYMRossiHH. The relative biological effectiveness of 160 MeV protons. I. Microdosimetry. Int J Radiat Oncol Biol Phys (1978) 4:1001–8.

  • Google Scholar

• 147.

  HallEJKellererAMRossiHHLamYM. The relative biological effectiveness of 160 MeV protons--II. Biological data and their interpretation in terms of microdosimetry. Int J Radiat Oncol Biol Phys (1978) 4:1009–13.

  • Google Scholar

• 148.

  MorstinKBondVPBaumJW. Probabilistic approach to obtain hit-size effectiveness functions which relate microdosimetry and radiobiology. Radiat Res (1989) 120:383–402.

  • Google Scholar

• 149.

  PaganettiHOlkoPKobusHBeckerRSchmitzTWaligorskiMPet al Calculation of relative biological effectiveness for proton beams using biological weighting functions. Int J Radiat Oncol Biol Phys (1997) 37:719–29.

  • Google Scholar

• 150.

  Müller-GärtnerFilgesP. Fluctuations of energy deposited in biological targets by ionising radiation. [Ph.D. thesis]. Jülich: Institute of Medicine KFA (1989).

  • Google Scholar

• 151.

  SemenenkoVAStewartRD. A fast Monte Carlo algorithm to simulate the spectrum of DNA damages formed by ionizing radiation. Radiat Res (2004) 161:451–7. 10.1667/rr3140

  • CrossRef
  • Google Scholar

• 152.

  WangCCHsiaoYLeeCCChaoTCWangCCTungCJ. Monte Carlo simulations of therapeutic proton beams for relative biological effectiveness of double-strand break. Int J Radiat Biol (2012) 88:158–63. 10.3109/09553002.2011.611214

  • CrossRef
  • Google Scholar

• 153.

  StewartRDYuVKGeorgakilasAGKoumenisCParkJHCarlsonDJ. Effects of radiation quality and oxygen on clustered DNA lesions and cell death. Radiat Res (2011) 176:587–602. 10.1667/rr2663.1

  • CrossRef
  • Google Scholar

• 154.

  KampFCabalGMairaniAParodiKWilkensJJCarlsonDJ. Fast biological modeling for voxel-based heavy ion treatment planning using the mechanistic repair–misrepair–fixation model and nuclear fragment spectra. Int J Radiat Oncol Biol Phys (2015) 93:557–68. 10.1016/j.ijrobp.2015.07.2264

  • CrossRef
  • Google Scholar
