Abstract
One of the fundamental processes in nuclear physics is nuclear excitation by electron capture (NEEC). Having been proposed theoretically for almost 50 years, the experimental confirmation of NEEC is still missing, making it imperative to validate this process. In this paper, we propose a new experimental method based on the anti-coincidence principle to search for the long-anticipated NEEC phenomenon, which involve heavy-ion storage rings. Our calculations indicate that the proposed experimental setup, storage ring, have the potential to surmount background noise, particularly Radiative Recombination (RR) and Coulomb Excitation (CE), and offer a high likelihood of discovering the long-awaited NEEC process.
1 Introduction
The Nuclear Excitation by Electron Capture (NEEC) mechanism involves the capture of an electron to an atomic shell or orbital, which result in the excitation of the atomic nucleus to an excited state [1, 2]. The NEEC process is the reverse process of Internal Conversion (IC), and is regarded as one of the most promising mechanisms for producing isomers for nuclear clocks [3–7], as well as other fields such as medical treatment [8, 9], and nuclear batteries [10–12]. Especially, clocks based on transitions in nuclear energy levels hold the potential for greater accuracy than any existing clock, raising hopes for advancements in timekeeping technology [3, 13–15]. One of promising isotope candidates for nuclear clocks is 229mTh, which has an excited state of around 8.35574 (3) eV [7]. However, a key challenge impeding the realization of a nuclear clock is efficiently exciting a nucleus to its excited state. It is anticipated that NEEC could provide a highly efficient approach to addressing this challenge. By employing a monoenergetic electron beam, the production rate of some isomers can be significantly enhanced, potentially by several orders of magnitude compared to photon beams.

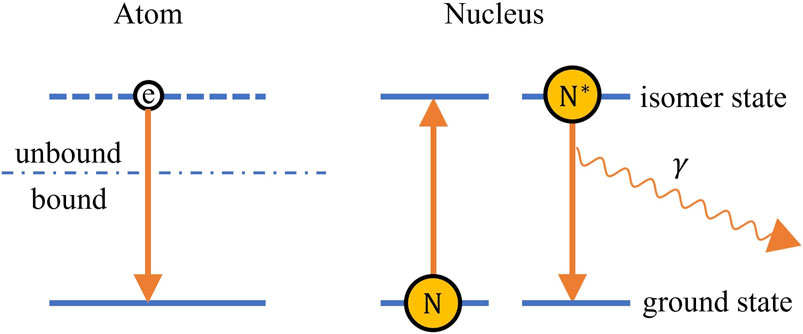

The NEEC process is illustrated in Figure 1. An atom captures a free electron and subsequently transfers the energy, which is the sum of the electron’s kinetic energy and the binding energy of the electron to the atomic orbit, to the nucleus. As a result, the nucleus becomes excited from its ground state to an isomeric state.
FIGURE 1
The first experimental evidence of NEEC about 93mMo was reported in 2018 [16]. However, subsequent studies by Guo et al. [17, 18] expressed reservations. Especially, the theoretical results in Ref. [19] show nine orders of magnitude discrepancy with the experimental excitation probability of 0.010 (3) in Ref. [16]. These works highlighted concerns regarding a potential significant overestimation of the NEEC cross-section in their experimental data analyses. A follow-up experiment conducted by Guo et al. [20] in the subsequent year aimed to replicate the studies on 93mMo, but with significantly reduced background noise. This subsequent experiment yielded a negative outcome regarding the excitation of 93mMo via the NEEC mechanism. Later, J. Rzadkiewicz propose a novel theoretical approach describing the depletion of the 93mMo isomer, asserting that the Compton profile must be considered in the analysis of the NEEC-RT (NEEC in Resonant Transfer) process [21, 22]. As of now, the exploration of the NEEC process remains ongoing.
In this study, we propose a detection scheme for observing the NEEC process, employing anti-coincidence techniques to suppress background noise, particularly arising from radiative recombination (RR) and Coulomb Excitation (CE) processes. We calculate the NEEC rates for various candidate nuclei. Our results reveal a significant improvement in the signal-to-noise ratio (SNR), thereby underscoring the promise of our proposed scheme.
This paper is structured as follows: Section 1 offers a succinct overview of the historical context of NEEC research. Section 2 presents the theoretical formulas employed for calculating NEEC cross-sections. In Section 3, an alternative approach for validating NEEC using a cooling storage ring will be outlined. A concluding summary will be provided at the end.
2 Theoretical formulas of the cross sections for NEEC
As depicted in Figure 1, the NEEC process involves three states: initial, intermediate, and final states. The initial state can be described as comprising a free electron and a nucleus in its ground state, but no photons present, i.e., . The intermediate state is denoted by , which refers to a state with an electron captured in the orbital of nlj, a nucleus in its excited state, and no photon involved as well. The final state can be written as , which stands for a state with an electron captured in the orbital of nlj, an unexcited nucleus, and an emitted photon. nkσ is the number of photons with polarization of σ = ±1 and wavenumber and direction of k.
According to Fermi’s golden rule, the NEEC cross section for a nucleus to capture a free electron with a kinetic energy Ee may be written as [23],where denotes the momentum term of a free electron. Since the NEEC is a resonant process, the Lorentz resonance factor is essential [23],with Eb representing the bound orbital energy of the electron, ΔE for the energy difference between the excitation level and nonexcitation level of a nucleus, and Γd for the excitation level width of the nucleus. As the Lorentz profile is normalized to unity, the resonance strength is introduced as,
As previously indicated, the NEEC process detection consists of two steps, with and representing the reaction rates for excitation and de-excitation, respectively. The formulas of and can also be found in Refs. [23, 24]. Given that the NEEC is inverse to the IC, the excited level width Γd in Eqs 1, 2 is determined by,where Ii, Id and If are the spins of the states , and , B is the reduced transition probability, and ρi the density of the initial electronic states, respectively. Other parameters, including jd, j, and κ, can be studied and extracted from the electron orbital nlj. The NEEC transition rate Yn has two different types with for electric transitions and for magnetic transitions. The radial integrals involved here can be written as [24],where fϵκ(r) and gϵκ(r) in the integrals are parts of the partial-wave expansion of the continuum electronic wave function.
The calculation of NEEC cross sections requires knowledge of the reduced nuclear transition probabilities B (λL, Ii → Id) as depicted in Eq. 5. Additionally, the electron’s wave function, denoted as and , is essential for these calculations. In this study, the AMBiT code [25] was employed to compute the electron’s wave function; and experimental data for the reduced nuclear transition probabilities B (λL, Ii → Id) were utilized.
3 Proposed method for NEEC experiment at storage ring
NEEC shares many characteristics with the resonant process known as dielectronic recombination (DR), in which a free electron is captured and a bound electron is simultaneously excited forming a doubly excited state [26–38]. Instead of a bound electron, the nucleus is excited to a higher level in NEEC. Regarding the detection of NEEC, some researchers have discussed the feasibility on EBIT. In Ref. [39], Jon Ringuette discussed a method of triggering NEEC in 129mSb at TITAN-EBIT. In Ref. [40], a modified EBIT configuration is described, featuring two electron guns with different energy settings. A. Palffy et al. proposed an experimental method for spatially separating photon emissions based on the differing time scales of RR and NEEC process, and provided theoretical evidence that the resonance strength of NEEC could be increased by introduce the fast electronic x-ray decay [41]. In the following, this paper will focus on the discussion of the method applied at storage ring, based on the anti-coincidence principle. And it is expected to benefit the NEEC detection greatly by improving the SNR, as introduced in detail later.
An electron-ion interaction experiment is expected to make the NEEC process observable. And a heavy ion storage ring provides an ideal experimental environment, in which relatively long-lived isomers interact with electron beams, similar to the DR experiment [26, 27, 42].
The proposed setup is shown in Figure 2. The electron beam interacts with the ion beam in the interaction zone, which is surrounded by a photon detector array. A particle detector is located downstream away from the main beam path.
FIGURE 2
Suppose the ions in the storage ring have charge states of q + and energy of Ei, and the energy of a cooling electron beam is Ee. If the NEEC processes take place, the implicated ion’s charge state then changes from q + to (q − 1) +, causing the ion to deflect from its normal orbit and hit the particle detector. For NEEC, the nucleus is excited, A*(q−1)+, while for RR, the nucleus stays on its ground state, A(q−1)+, which normally emit photons immediately at interaction zone, as shown in Figure 3. The main source of noise is that the nucleus A(q−1)+ gets excited when it hits the particle detector due to some mechanisms, such as CE. The main idea of the method based on anti-coincidence lies in voting the events in which a photon with energy ΔE is detected in the interaction zone. Because the photon is supposed to come from the RR processes. And in this way, the SNR is expected to be improved.
FIGURE 3
In the experiment, the NEEC rate is dependent on the relative energy between the electron beam and the ion beam. According to the relativistic velocity formula, the collision energy (E) in the center of mass coordinate (cm) can be written as,where and β = vcm/c, is the velocity of system, pe is the momentum of electron, pi is the momentum of ion, Ee is the energy of the electron in the laboratory coordinate system, and Ei is the energy of the ion beam in the laboratory coordinate system. For a given energy distribution function P(E), the reaction rate of NEEC can be expressed as,with the Ii(r) and ne(r) representing the ion flux density and the electron density in the interaction zone, respectively.

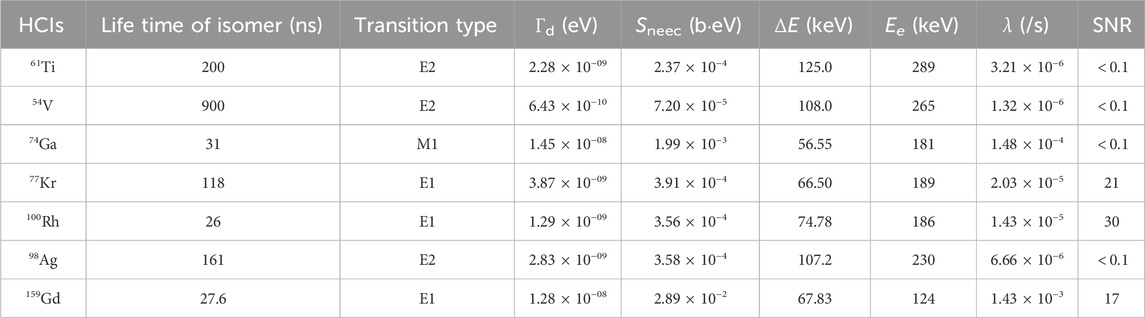

As examples, some candidates for searching the NEEC process are listed in Table 1. Seven different nuclei are chosen, including 61Ti, 54V, 74Ga, 77Kr, 100Rh, 98Ag, and 159Gd. The parameters used here are listed in Table 2, which are typical experimental conditions for a storage ring. And the NEEC rates for these nuclei are given with Eq. 10, in which the NEEC cross sections are calculated following Eqs 1–9.
TABLE 1
| HCIs | Life time of isomer (ns) | Transition type | Γd (eV) | Sneec (b⋅eV) | ΔE (keV) | Ee (keV) | λ (/s) | SNR |
|---|---|---|---|---|---|---|---|---|
| 61Ti | 200 | E2 | 2.28 × 10−09 | 2.37 × 10−4 | 125.0 | 289 | 3.21 × 10−6 | |
| 54V | 900 | E2 | 6.43 × 10−10 | 7.20 × 10−5 | 108.0 | 265 | 1.32 × 10−6 | |
| 74Ga | 31 | M1 | 1.45 × 10−08 | 1.99 × 10−3 | 56.55 | 181 | 1.48 × 10−4 | |
| 77Kr | 118 | E1 | 3.87 × 10−09 | 3.91 × 10−4 | 66.50 | 189 | 2.03 × 10−5 | 21 |
| 100Rh | 26 | E1 | 1.29 × 10−09 | 3.56 × 10−4 | 74.78 | 186 | 1.43 × 10−5 | 30 |
| 98Ag | 161 | E2 | 2.83 × 10−09 | 3.58 × 10−4 | 107.2 | 230 | 6.66 × 10−6 | |
| 159Gd | 27.6 | E1 | 1.28 × 10−08 | 2.89 × 10−2 | 67.83 | 124 | 1.43 × 10−3 | 17 |
Reaction rates of NEEC for some candidate isotopes. All isotopes are assumed to be bare nuclei, with electrons captured into their K-shell. The initial state of the nuclei in all cases presented in this table is on their ground states.
TABLE 2
| Parameters | Design metrics |
|---|---|
| Electron current | 1 mA |
| Electron energy | (depending on Ei and ΔE) |
| ΔEe/Ee | 10–4 |
| Ion energy | 50 MeV/u |
| ΔEi/Ei | 10–4 |
| Electron beam radius | ∼ 0.5 mm |
| Ion beam radius | ∼ 0.5 mm |
| Number of Ions in CSRe | 107 |
| Circumference of CSRe | 128 m |
| Length of cooling section | 4 m |
The input parameters utilized for estimating the NEEC rates in the storage-ring scheme.
The primary source of background noise in NEEC arises from the RR events in the interaction zone, as depicted in Figure 3. To address this challenge, we propose employing an anti-coincidence method to effectively discriminate between NEEC and RR events. Following the bending magnet, ions A*(q−1)+ originating from NEEC and A(q−1)+ from RR are collected. The occurrence of NEEC is confirmed if photons γNEEC with energy Eγ = ΔE are detected at the particle detector. Additionally, as illustrated in Figure 2, a photon detector is strategically positioned around the interaction zone to detect RR photons. Taking the anti-coincidence of RR photon signals with the signals from the particle detectors, one will distinguish NEEC events from the RR events, and then have much enhanced SNR,
Figure 3 gives a description of the source of noise, even though we have voted the majority of the RR events. An NEEC event should only be recorded when a photon with energy ΔE is detected at particle detector, but no photon at interaction zone, as shown in Figure 3A. However, an RR-leak event (b) behaves the same because of the limited size and detection efficiency of the veto detector. Obviously, the source of noise happens in the case when RR photon leaks out and the nucleus gets excited at particle detector.
After exiting the storage ring, the isomers were decelerated by the detector materials where they were brought to a complete stop. This stopping process typically takes less than a few nanoseconds. Radiation associated with this period, such as X-rays stemming from atomic processes, bremsstrahlung photons, and most nuclear reaction products, dissipates at the time when the isomers are totally stopped. Consequently, subsequent detection of isomer decays occurs in an environment free from these backgrounds. Additionally, the gamma-rays emitted from the A* decay are mono-energetic, facilitating the identification of anticipated events.
Define the SNR to be,where PNEEC(PRR) is the possibility of the NEEC (RR) process in the interaction zone, PCE is for CE process in the particle detector and η > 99% is the detecting efficiency of photons. Taking 159Gd as an example, PNEEC = 2.5 × 10−6 and PRR = 1 − PNEEC ∼ 1, and PCE < 1.4 × 10−5. Taking these values, an SNR of higher than 17 is expected. Noting that the RR cross section utilized in the calculation is supported by the FAC (Flexible Atomic Code) program [43], and the CE cross section is computed using the method outlined in Ref. [44], as described in Equations II B. (37) − (38).
Several heavy ion storage rings can be used for this proposed experiment. For example, there are storage rings at the IMP in Lanzhou, China [45–47]. The facility has a main cooler storage ring (CSRm) as a synchrotron, an experimental cooler storage ring (CSRe), a radioactive beam line as fragment separator (RIBLL2), and several experimental terminals. The heavy ions with energy of several MeV u−1 delivered from the cyclotron are first injected into the CSRm, cooled, and accelerated to several hundred MeV u−1 in the CSRm. Then the ions are extracted and delivered to the CSRe. Isotopes with a relatively short life time, which may benefit NEEC studies, can be generated and stored in the ring. As an illustration, 74Ga can be produced with reaction 76 and then sent to CSRe with an intensity of . A simulation, with the experimental assumption listed in Table 2, demonstrates that the proposed setup allows for the observation of NEEC events with rate of tens of events per day by taking the isomer decay in the flight before being stopped in the particle detector.
It should be noted that a significant δE can potentially disrupt the stability of ions within a CSR, consequently limiting the number of orbits an ion can maintain within the CSR. The contradiction created by the dual uses of electron beam energy to sustain the ion beam and induce NEEC may have two potential solutions: either select a reaction system whose resonance energy is within the range to maintain the ion beam, or optimize the experimental setup. HIAF [48] may offer a workable solution: build two electron beams, one for cooling electrons to preserve beam stability and the other for resonance electrons, which can be applied to DR as well as NEEC experiments.
4 Summary
In this manuscript, we propose an anti-coincidence approach for NEEC studies employing storage rings. Simulations of NEEC rates for different candidate nuclei are conducted. With the adoption of parameters deemed practically acceptable, our simulations demonstrate that a high signal-to-noise ratio of approximately five can be achieved for certain nuclei such as 77Kr, 100Rh and 159Gd, as detailed in Table 1. The execution of these suggested experiments holds the potential to validate the presence of NEEC. Such advancements would have far-reaching implications across various domains, including nuclear astrophysics, nuclear clocks, nuclear medicine, and beyond.
