PERSPECTIVE article

Front. Psychol., 24 July 2015

Sec. Educational Psychology

Volume 6 - 2015 | https://doi.org/10.3389/fpsyg.2015.01056

Educational games for brain health: revealing their unexplored potential through a neurocognitive approach

  • 1. Institute of Psychology and Education, Clinical and Biological Psychology, Ulm University, Ulm, Germany

  • 2. Institute of Psychology and Education, Serious Games, Ulm University, Ulm, Germany

Abstract

Educational games link the motivational nature of games with learning of knowledge and skills. Here, we go beyond effects on these learning outcomes. We review two lines of evidence which indicate the currently unexplored potential of educational games to promote brain health: First, gaming with specific neurocognitive demands (e.g., executive control), and second, educational learning experiences (e.g., studying foreign languages) improve brain health markers. These markers include cognitive ability, brain function, and brain structure. As educational games allow the combination of specific neurocognitive demands with educational learning experiences, they seem to be optimally suited for promoting brain health. We propose a neurocognitive approach to reveal this unexplored potential of educational games in future research.

The Power of Educational Games

Playing games is one of the most popular leisure activities. For example, 59% of Americans play video games (). In contrast to watching a video or reading a book, video games afford interactive exploration and challenge due to user control, competition, levels of difficulty, and reward (Malone, 1981; ). These design characteristics are essential for player’s motivation in games (Sweetser and Wyeth, 2005).

Educational games aim to use this motivational quality of games for educationally relevant learning purposes (knowledge and skill acquisition). They are a branch of serious games which are defined as “games that do not have entertainment, enjoyment or fun as their primary purpose” (Michael and Chen, 2006, p. 21). Domains of learning include history, engineering, biology, math, and language (Young et al., 2012; Wouters et al., 2013). For example, Re-mission aims to improve cancer-related knowledge () and Twelve a Dozen1 teaches mathematical operations. The number of these games increased exponentially since the 1990s in industry and in research (). A recent meta-analysis by Wouters et al. (2013) investigated the effectiveness of educational games in terms of learning. It included 77 studies with more than 5,500 participants and found that the games induced even more knowledge and skill acquisition than conventional instruction methods.

In this perspective article, however, we go beyond educational games’ effects on learning of knowledge and skills (i.e., plasticity of representations, cf. ; ). We review research which suggests the currently unexplored potential of educational games for brain health (i.e., plasticity of processes, cf. ; ) and propose a neurocognitive approach to reveal this potential.

First, we briefly review evidence for the beneficial effect of games with specific neurocognitive demands on brain health. Second, we depict the positive impact of educationally relevant learning experiences on brain health. Educational games enable both specific neurocognitive demands and educational learning experience. However, to our knowledge, there are currently no studies exploring their potential for brain health. Hence, in the last section, we propose a two-step neurocognitive approach to identify appropriate educational games that should be rigorously tested in randomized controlled clinical trials (see Figure 1).

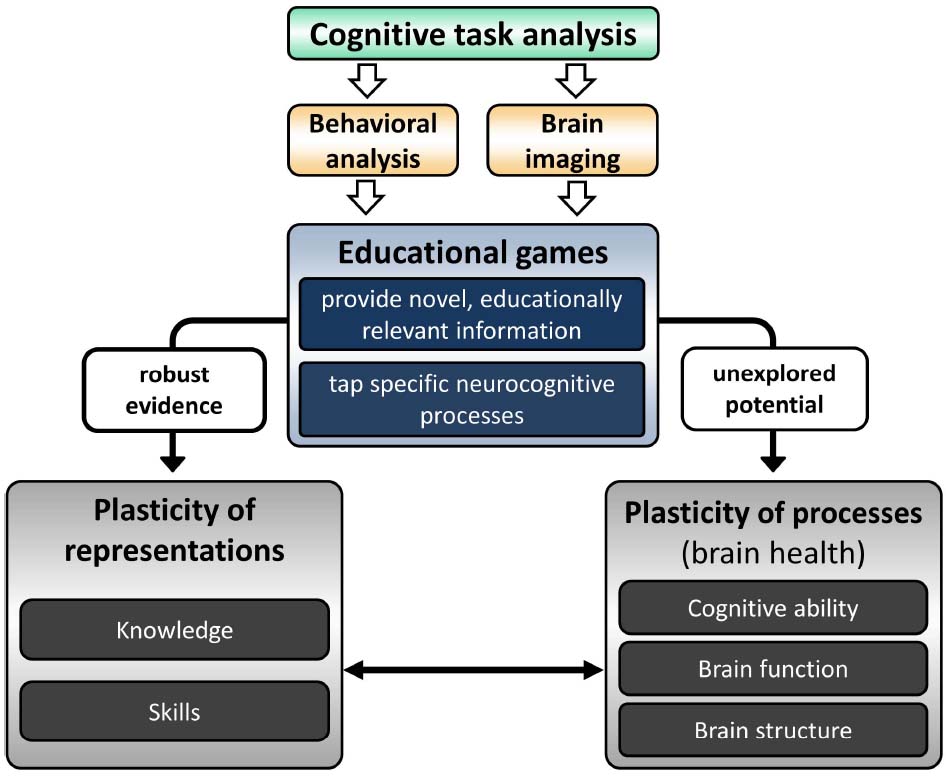

FIGURE 1

Gaming with Specific Neurocognitive Demands Promotes Brain Health

The supply-demand mismatch model of cognitive plasticity assumes that neurocognitive demands which are greater than the brain’s functional supply induce beneficial neuroplastic changes (). It is assumed that this supply-demand mismatch needs to be prolonged (at least more than several hours for small effect sizes) to overcome the inertia and sluggishness of plasticity (). Games can pose prolonged neurocognitive demands on working memory, perceptual speed, and episodic memory (). Thus, games might induce respective neurocognitive benefits. For example, games that heavily tap executive control processes such as working memory are thought to induce positive plastic changes in these cognitive processes and their underlying prefrontal network. Such changes may range from more efficient brain function (; ) to benefits in brain structure such as increases in gray matter volume (), cortical thickness (), and neurotransmitter receptors (McNab et al., 2009).

Current advances in gaming research support the supply-demand mismatch model (see Powers et al., 2013; for a meta-analysis and a review). Cognitively demanding digital games as well as non-digital board and card games improved cognitive abilities (; ; Powers et al., 2013). These gaming-induced benefits comprised lower-order abilities such as visual perception () and higher-order abilities such as selective visual attention (), switching ability (; ; Strobach et al., 2012), sustained attention (), short-term and working memory (; ; ), executive control (), reasoning, and spatial abilities (; Shute et al., 2015).

For example, a study by Shute et al. (2015) showed that a commercial off-the-shelf game called Portal 2 with process-specific demands on spatial reasoning improved cognitive abilities even more than an intentionally-designed cognitive training program (i.e., repeated practice of standardized cognitive task paradigms for specific cognitive abilities with adapting difficulty levels, ). In contrast to participants following the cognitive training program, Portal 2 players improved more in performance on non-trained problem solving and spatial ability tests. Furthermore, playing the video game was more enjoyable than the cognitive training program (Shute et al., 2015).

Recent studies provide first insights into the neuronal underpinning of game-induced cognitive benefits. They range from plastic changes in brain structure to brain function. found that playing Super Mario 64 increased gray matter of the right hippocampal formation and dorsolateral prefrontal cortex as well as of the cerebellum bilaterally. These brain areas are known to play an essential role in spatial memory, executive function, and fine-tuned motor skills. Using electrophysiological methods, demonstrated functional brain benefits in the prefrontal cognitive control system through a dual-task driving game called NeuroRacer. Importantly, non-trained neuropsychological test performance improved through training and these gains were positively associated with the neurofunctional changes.

These experimental findings are backed by observational studies on the association of gaming with brain health markers. Frequent players of board games, in contrast to rare players, showed a reduced cognitive decline and incidence of dementia (Verghese et al., 2003; ). investigated associations of brain function with gaming experience. Frequent gamers, in contrast to non-gamers, showed reduced neuronal recruitment of the fronto-parietal network in attentionally challenging tasks which indicates more efficient attentional processing. Finally, associations of gaming with brain structure were recently revealed. The duration of video gaming (hours per week) was positively associated with left prefrontal cortical thickness (). The number of years spent video gaming was positively related to entorhinal cortex, hippocampal, and occipital gray matter volume ().

In sum, these recent advances in gaming research emphasize the potential of cognitively challenging games to improve different markers of brain health ranging from cognitive ability, brain function, and brain structure to incidence of dementia. In the following, we will outline the impact of educationally relevant learning of knowledge and skills on brain health markers.

Educational Learning Experiences Promote Brain Health

Extensive learning experiences are thought to require prolonged activation of basic neurocognitive abilities such as executive control processes and long-term memory (Park et al., 2014). These prolonged neurocognitive demands may induce positive plastic changes in accordance with the supply-demand mismatch model (). Successful learning experiences may enhance brain health by additional mechanisms as evidenced in animal models. Learning novel information increased survival of newborn cells in the hippocampus, an area that plays an essential role for episodic memory (see Shors, 2014, for a review). In addition, intrinsic plasticity—a metaplasticity mechanism which changes the threshold for intrinsic neuronal excitability—is increased in the hippocampus through successful learning experiences (see Sehgal et al., 2013, for a review). Furthermore, an enriched environment, which provides a range of learning opportunities, reduced pathological processes that are associated with Alzheimer’s disease (; ) and reduced the detrimental effect of Alzheimer’s disease-related Aβ oligomers on long-term potentiation ().

A positive effect of educationally relevant learning experiences on markers of brain health has also been found in experimental studies with humans. Diverse interventions targeting at knowledge and skill acquisition improved cognitive abilities. Extensive learning experiences within a senior computer course improved working memory and episodic memory (). A digital-photography and quilting course improved episodic memory (Park et al., 2014). A tablet course improved speed and episodic memory () and extensive training of a foreign language enhanced associative memory (Mårtensson and Lövdén, 2011). For example, Park et al. (2014) investigated the cognitive benefits of acquiring digital-photography skills by the use of a single-lens reflex camera and photo-editing software 15 h a week for 3 months. Compared to a group which completed activities that relied on activation of prior knowledge (e.g., listening to music, watching DVDs, or completing word-meaning puzzles), their episodic memory performance improved more (Park et al., 2014).

In addition, extensive educational learning interventions induced plasticity in brain function (i.e., increased activity in the anterior cingulum, ) and brain structure (; Woollett and Maguire, 2011). The hippocampus increased in volume after extensive learning for medical exams () and after successful training for a London taxi driver license (Woollett and Maguire, 2011).

This interventional evidence is backed by robust observational evidence regarding the relationship of education with brain health markers. Strong positive associations between years spent in education and risk for cognitive decline (Valenzuela and Sachdev, 2006) as well as dementia () have been demonstrated. Low education represents the single most preventable risk factor for Alzheimer’s dementia. Worldwide, 19% of affected individuals are potentially attributable to low education (). In addition, acquisition of skills such as speaking a second language and playing a musical instrument predicted a reduced future risk of cognitive decline () and dementia (see e.g., , for a population-based twin study). Furthermore, more years spent in education was associated with greater brain weight () and, in one pilot-study, also with lower markers of Alzheimer’s disease pathology (Yasuno et al., 2014).

In the last two sections, we reviewed evidence for beneficial effects on brain health a) through gaming-induced neurocognitive demands and b) through educationally relevant learning of knowledge and skills. As educational games allow the combination of both, they seem to be optimally suited to promote brain health. However, to our knowledge, no study investigated the impact of educational gaming on brain health markers, yet. Hence, we propose a two-step neurocognitive approach in the following section that aims to reveal their unexplored potential.

A Neurocognitive Approach to Reveal the Potential of Educational Games for Brain Health

We have outlined above that games which induce learning of novel information and pose specific neurocognitive demands seem to be optimally-suited for brain health purposes. Clearly, not all educational games pose specific neurocognitive demands and appropriate games need to be identified from the large and growing market (cf. Wartella, 2015). We propose a two-step approach to elucidate the neurocognitive demands of educational games (see Figure 1).

In the first step, a cognitive task analysis should be conducted for a wide range of educational games in order to determine the most appropriate cognitively challenging games for the more cost-intensive second step. Cognitive task analysis is a set of methods aiming to determine the cognitive demands to perform a task proficiently (Militello and Hutton, 1998). We briefly depict one approach of a cognitive task analysis suited for educational games (cf. ) and exemplify this method with DragonBox2, an educational game which aims to teach algebra in a fun way2.

First, a game diagram is created to determine the cognitively demanding tasks of the respective educational game. Here, an expert for the game (1) breaks the game down into its major tasks (usually between one and five tasks) and (2) determines which tasks pose substantial demands on cognitive abilities such as attention, speed or memory (cf. task diagram method; Militello and Hutton, 1998). In DragonBox2, there is one major task (i.e., isolating a dragon captured in a box on one side of the screen, or in other words, solving an algebraic equation for the x) and this task poses substantial cognitive demands.

Subsequently, neuropsychologists should rate the major tasks of appropriate educational games on their specific neurocognitive demands. The rating should be based on a validated taxonomy of neurocognitive abilities. For example, executive functions can be subdivided in three components including updating, inhibition, and shifting (Miyake et al., 2000; Miyake and Friedman, 2012). Memory can be subdivided in the two components declarative memory and procedural memory (Squire, 1992; Robertson, 2009). DragonBox2 poses high demands on executive function (frontal brain systems) and memory (mediotemporal and basal ganglia systems). For example, monitoring multiple items which are added and deleted from working memory through the mental application of algebra rules poses demands on updating; flexibly switching between multiple algebra rules which are cued by a given stimulus set requires shifting; selecting the application of non-dominant rules instead of more prepotent rules poses demands on inhibition; knowledge acquisition for the game’s 24 algebra rules taps declarative memory; skill acquisition regarding arithmetics, factorization, or the creation of parameters poses demands on procedural memory.

In the more cost-intensive second step, two objective methods—a behavioral and/or a brain imaging approach—can be used to substantiate the assumed neurocognitive demands revealed by the cognitive task analysis. In the behavioral approach, associations between game performance and performance in neuropsychological tests are assessed (cf ; ; Rode et al., 2014). The pattern of the game-test associations enables the validation of the games’ neurocognitive demands.

The brain imaging approach aims to reveal the neuronal networks recruited by the games. Different brain imaging methods such as electroencephalography (), near-infrared spectroscopy (), or functional magnetic resonance imaging (; Voss et al., 2012) can be used. Finally, after successful identification of appropriate educational games through behavioral analysis and/or brain imaging, long-term randomized controlled clinical trials should examine their effects on brain health markers (see Moher et al., 2010, for methodological issues).

Conclusion

In this perspective article, we reviewed two lines of research that indicate an unexplored potential of educational games to improve brain health. First, games with specific neurocognitive demands and second, educationally relevant learning experiences positively impact brain health markers including cognitive abilities, brain function, and brain structure. Future research should use a neurocognitive approach to identify cognitively challenging educational games. These should be rigorously examined in randomized controlled long-term clinical trials regarding their effects on brain health.
