Abstract
Graphene micro-/nanostructures and their arrays have attracted considerable attention in infrared (IR) and terahertz (THz) applications due to their strong plasmon responses. However, as too many parameters, including geometry, carrier concentration, frequency, and adjacent substrate, can affect the plasmonic behaviors of the micro-/nanostructures, the optimization of the THz-IR responses, such as absorption and reflection, of these structures and their arrays require tremendous computations on parameter scanning. Here, we propose a theoretical approach to design graphene cut-wires with maximized THz wave absorption. Analytical expression describing the THz absorption/reflection of graphene cut-wires is derived. Accordingly, a maximum THz wave absorption of the array, regardless of its operating frequencies and geometrical parameters, can be achieved by simply tuning the cut-wires duty ratio. The analytical results are further validated by numerical simulations. This intuitive design manner is of significance for the design of graphene arrays with high-efficiency THz responses as well as promoting their practical applications in THz functional devices.
Introduction
Surface plasmons (SPs) refer to the collective electron oscillations at the conductor-dielectric interface (). Their outstanding capabilities of manipulating and localizing electromagnetic fields at the subwavelength scale has triggered various applications in nanophotonics in the visible spectral region (; ), including photovoltaic device (), biosensing (; ), integrated photonic devices, (; ; ), thermal radiation control, () etc., However, when it comes to IR and especially THz bands, SPs in noble metals experience a severe reduction in optical confinement, which hampers its practical applications (). In contrast, graphene has attracted considerable attention recently as an excellent SPs materials in THz spectral regions owing to the capability of supporting highly confined THz plasmonic modes. As a two-dimensional material, graphene can in addition be electrically tuned by injecting charge carriers so that their plasmonic responses can be controlled dynamically, (), leading to a variety of potential applications in active optoelectronic devices (; ; ; ).
Despite its importance, the atomic thickness and low free-carrier concentration of graphene still lead to its weak interactions with electromagnetic fields in comparison with its metal counterparts. Inspired by the design concept of metamaterials and metasurfaces, enormous efforts have been devoted to pattern and shape graphene sheets into arrays for enhancing their interaction cross-sections with THz waves (; ; ; ; ; ; ; ). Accordingly, several analytical models including sheet retrieval method (), plasmon wave functions (PWFs), (; ; ), and coupled-mode theory (CMT) () have been proposed to optimize THz wave absorption of graphene. In particular, graphene cut-wire array (GCWA) has been recognized as the simplest THz plasmonic metasurface and its absorption is reported to reach the maximum value of 50% (). However, as too many parameters including geometry, carrier concentration, wavelength, and substrate effect are involved in these models, the optimization of a specific GCWA is still case-dependent, and a numerical data bank with lengthy numerical calculations is still needed. For the efficient design of GCWA with optimized THz absorption, an intuitive understanding of their THz absorption mechanism with all parameters incorporated is strongly desired.
In this study, we propose a universal theoretical approach to design GCWAs with maximized THz wave absorption. Specifically, we combine temporal CMT with quasistatic PWFs to derive a formula for calculating THz absorption of the GCWAs. This approach, which we denote as quasistatic coupled-mode theory (QCMT), enables an efficient optimization of the GCWAs absorption by matching its absorption (Īabs) and radiative (Īrad) decay rates. When reaching the optimal condition, the maximum absorption is only determined by the substrate given by (1ār0)/2, with r0 the substrate reflection coefficient without the GCWA structure. In particular, we identify that this optimal condition can be fulfilled simply by tuning the duty ratio of the array, regardless of operating frequency or geometrical parameters, such as the rectangle length, width, or array period. The theoretical results are further verified numerically using finite element method (FEM) simulations. It is noted that our results can be applied throughout the entire IR and THz spectral regions, which therefore can guide the design of graphene nano-micro structure arrays for applications in high-performance optoelectronic devices.
Results and Discussion
The GCWA is schematically shown in Figure 1 (left), which is placed onto a dielectric substrate with permittivity of ε2. Considering that our study is focused on the THz spectral region, we assume that the array period (Px and Py as shown in Figure 1) is much smaller than the wavelength of interest. Accordingly, only specular transmission and reflection are allowed. The excitation THz waves, which are denoted as , illuminate perpendicularly towards the GCWA surface. Similarly, the outgoing THz waves are defined by . Symbols s1+ (s1ā) and s2+ (s2-) are complex incident (outgoing) wave amplitudes at the air and the dielectric side. The time-variant mode amplitude, a, of the GCWA can be expressed according to CMT as (; ):where Ītot represents the total decay rate, which is the sum of radiative decay rate Īrad and absorption rate Īabs. is the coupling vector with . Parameter C is the background scattering matrix without the GCWA, which is stated as,where and are the port reflection and transmission coefficients, respectively () ε1 and ε2 are permittivities of the substrate and surrounding environment (set as air in our current study), respectively. Note that from the time-reversal symmetry and conservation of energy, we have CC+ = I and . Thereafter, d1 and d2 can be calculated as,
FIGURE 1
By solving the differential. Eqs. 1ā3, one can obtain,
When the THz wave is illuminated from the air side, i.e., , the reflection and transmission coefficients for the GCWA can be written as,
Consequently, the total absorption of the GCWA is given by,
The absorption rate of the graphene array is determined by electron scattering rates, impurity and defect densities, which can be approximated as a constant.(). Therefore, the maximum absorption of the GCWA can be achieved at the condition of , yielding the well-known critical coupling condition Īrad = Īabs. As a result, the theoretical maximum absorption for graphene array becomes (at oscillation frequency Ļ = Ļ0) , which only depends on the reflection of the substrate. For GCWA in vacuum, the reflection coefficient r0 is 0 and the maximum absorption rate is Amax,vac = 0.5. This result is consistent with literature where the graphene array is suspended in the air (). When graphene array is placed onto silicon oxide substrate ( and ), the maximum absorption is reduced to . Specifically, if the graphene array is supported onto a perfect metal, the QCMT reduces to single port condition (r0 = ā1), and the perfect absorption Amax = 1 can be achieved ().
In the QCMT model, Ļ0, Īrad, and Īabs are phenomenological parameters that are associated with a specific structure. For the GCWA, we can deduce their explicit expressions based on quasistatic PWFs. (; ; ). Specifically, in the long-wave limit (q << kF, kF is Fermi wave vector) and high doping condition (EF >> , EF is the Fermi energy), the surface conductivity of graphene can be approximated by Drude model, (; ),where e is the charge of an electron, is the reduced Planck constant, and Ļ is the electron relaxation time. When the size of the graphene cut-wire is much smaller than the incidence wavelength, it is convenient to describe its response in the electrostatic limit (; ; ; ; ) According to the quasistatic PWFs, the transmission of the GCWA can be expressed as, (; )where (g is the dimensionless parameter and for square lattice, g = 4.52), (; ) is the radiation coupling term, Ļ is the incidence frequency, c is the speed of light in vacuum, S is the lattice area with S = PxPy, is the average refractive index of the surrounding medium, is the polarizability of individual graphene cut-wire, is the mode dipole moment, is the mode eigenvalue, , and n is the order of the plasmon mode. Parameter is the average dielectric constant of the surrounding medium and is the characteristic size of the graphene cut-wire (; ; ). For the lowest-order dipolar plasmon mode with electron oscillations along x-axis, n = 1, and only and are considered in Eq. 8 () Eq. 8 can be further written as,where
For coupled-mode with narrow linewidth (high quality factor Q) and when Ļ ā Ļ0, Eq. 9 is reduced to the same form as Eq. 5 except a universal phase factor. Therefore, Eqs. 10ā12 are explicit expressions of the phenomenological parameters used in QCMT model, which can be applied to calculate the THz wave absorption of the GCWAs.
Several observations can be made from Eqs. 10ā12. First, according to Eq. 10, the first term inside the square root represents the oscillation frequency of the individual graphene cut-wire, while the second term is accounted for interactions between different cut-wires in the array. Therefore, when the period of the lattice decreases, plasmon frequency undergoes a small redshift due to such interactions. Second, the absorption rate of GCWA keeps constant as Īabs = Ļā1, which is independent of the specific geometry and frequency. This is a direct consequence of electrostatic approximation. Third, the radiative decay rate Īrad is proportional to EF, the duty ratio of the array and the square of the mode dipole moment . Importantly, is solely determined by the shape of the cut-wire (; ; ). As will be shown in the following discussion, can be approximated as a constant for the longitudinal plasmonic dipole mode. Finally, by applying Equations (11) and (12) to the critical coupling condition (Īrad = Īabs), one can obtain,
Eq. 13 is the central result of this work. That is, with substrate refractive index , Fermi energy EF, and electron relaxation time Ļ at hand, the optimum absorption condition only depends on the duty ratio of the array, regardless of other geometrical parameters including period of the array, length and width, as well as oscillation frequency of the GCWA. Additionally, such a conclusion can be scaled throughout the entire infrared and terahertz band once the electrostatic approximation is valid.
We then carried out FEM simulations (COMSOL MULTIPHYSIC)1 to validate the theoretical predictions. To that end, we first verify the critical coupling condition by modeling the optical response of GCWA with different duty ratios (ξ) suspended in the air (nair = 1) and supported onto SiO2 substrate (). EF and the graphene damping rate are set to 0.3Ā eV and Ļā1 = 0.249Ā THz as phenomenological parameters (). The L and W of a graphene cut-wire are 10 and 5 μm, respectively. The periods of the GCWA are , . The other geometrical parameters used in the simulations are listed in Table 1.

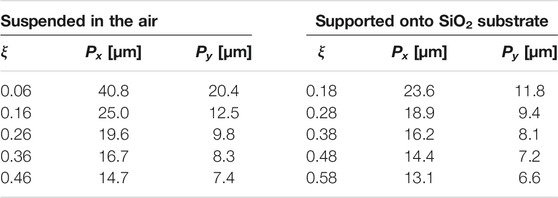

TABLE 1
| Suspended in the air | Supported onto SiO2 substrate | ||||
|---|---|---|---|---|---|
| ξ | Px [μm] | Py [μm] | ξ | Px [μm] | Py [μm] |
| 0.06 | 40.8 | 20.4 | 0.18 | 23.6 | 11.8 |
| 0.16 | 25.0 | 12.5 | 0.28 | 18.9 | 9.4 |
| 0.26 | 19.6 | 9.8 | 0.38 | 16.2 | 8.1 |
| 0.36 | 16.7 | 8.3 | 0.48 | 14.4 | 7.2 |
| 0.46 | 14.7 | 7.4 | 0.58 | 13.1 | 6.6 |
Geometrical parameters for GCWA associated with Figure 1.

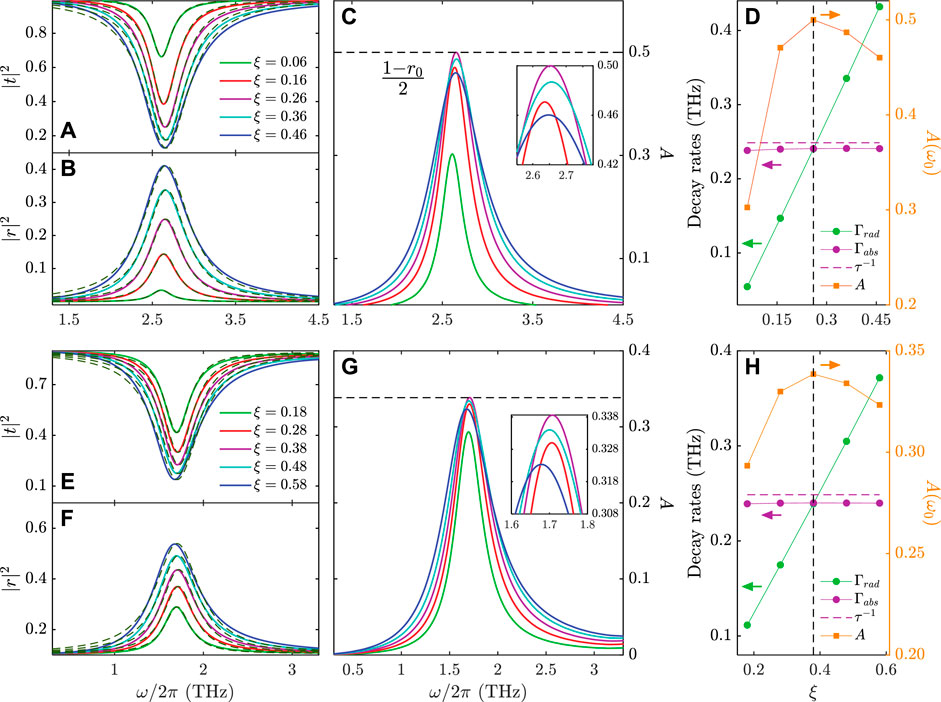

The simulated reflection |r|2, transmission |t|2 and absorption A spectra of the two GCWAs are plotted in Figure 2AāC and Figures 2EāG. It can be seen clearly that |r|2, |t|2, and A are strongly dependent on the ξ of the GCWAs. In particular, there exists optimized ξ for the THz absorption of the GCWAs. This can be seen more clearly by plotting the evolution of A at the oscillation frequency of the GCWA as a function of the corresponding ξ (Figures 2D,H, orange squares and lines). Specifically, maximum A can be obtained at ξ = 0.26 and 0.38 for GCWA suspended in the air and supported onto SiO2 substrate, respectively. The two ξ values for optimum absorption condition are exactly the same as those calculated using Eq. 13, where is one and are employed for air and SiO2 substrate, respectively. Furthermore, in such a circumstance, Īrad is equal to Īabs.
FIGURE 2
To further compare the simulation and QCMT model results quantitatively, Eq. 5 obtained from the QCMT model were then employed to fit the simulated spectra. As shown by the dashed lines corresponding to each , the QCMT model corroborates with the FEM simulation very well. Figures 2D,H depict the fitted absorption rate (Īabs, purple) and radiative decay rate (Īrad, green), where the graphene damping rate Ļā1 is plotted as a dashed line for comparison. As expected from the QCMT model, Īrad is proportional to ξ, while Īabs remains as a constant that is close to the intrinsic damping rate of graphene (Eq. 12). At the maximum absorption, the Īrad coincides with Īabs exactly (Figures 2D,H, black dashed lines). These results indicate that as described by QCMT model, when critical coupling condition is fulfilled the GCWA will exhibit maximum absorption in response to THz wave illumination.

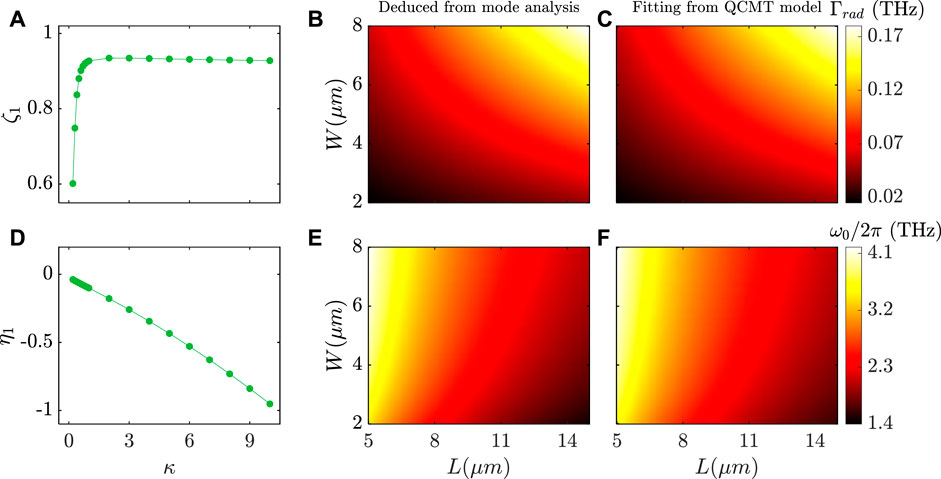

We proceed to validate the analytical expressions of Ļ0 and Īrad (Equation (10) and (11)). These two parameters can be calculated based on the mode eigenvalue Ī·1 and dipole moment ζ1. For graphene cut-wires, they are only determined by the aspect ratio defined as Īŗ = L/W. We first calculated Ī·1 and ζ1 associated with different Īŗ through mode analysis on an isolated graphene cut-wire (more details on the calculations of Ī·1 and ζ1 can be found in Supporting Information, Note 1). As shown in Figure 3A and 3D, Ī·1 decreases against Īŗ, while ζ1 first increases as Īŗ increases and then keeps approximately constant when Īŗ is larger than 1. Because the plasmonic mode is associated with electron oscillations along the x-axis, it becomes a longitudinal mode when Īŗ > 1. Therefore, the dependence of ζ1 on Īŗ indicates that the effective dipole moment of the longitudinal dipole mode of the cut-wire stays unchanged. With the knowledge of Ī·1 and ζ1, we then calculated Īrad and Ļ0 using Eqations (10) and (11). Different GCWAs with L and W ranging from 5 to 15 μm and 2ā8 μm, respectively, are considered. The lattice period is fixed as Px = Py = 24.5 μm. As shown in Figure 3B, Īrad increases as either L or W becomes larger. This is reasonable because the area of the cut-wire D2 is equal to LĆW. A larger D2 means that more electrons will be driven by the external field, and consequently more energy will be radiated back to the vacuum due to the stronger electron oscillations. The dependence of working frequency Ļ0 on the geometrical parameters is shown in Figure 3E. Clearly, when fixing L (W) while increasing W (L), the Ļ0 increases (decreases) monotonically.
FIGURE 3
We further simulated the reflection and transmission spectra of the GCWAs with different L and W using the FEM. QCMT model (Equation (5) and (6)) was then employed to fit the simulated spectra and extract the corresponding Īrad and Ļ0 (Detailed simulations and fitting results can be found in Supporting Information, Note two and Supplementary Figure S1). As shown in Figures 3C,F, the Īrad and Ļ0 obtained from the QCMT model agree well with those deduced from Eqations (10) and (11), which unambiguously confirms the accuracy of the QCMT model we developed.
It should be emphasized that for graphene cut-wires of mico-meter scale characteristic sizes, our QCMT model and the duty ratio-oriented design can in principle cover a vast geometric space and spectral region ranging from the mid-infrared to THz frequencies, as long as the electrostatic limit is still valid. Specifically, given a dielectric substrate of refractive index ndie and a targeting Ļ0, the geometrical parameters of GCWA with maximum absorption can be obtained by using Eqs 10ā13 and the numerical results shown in Figures 3A,D. To simplify the discussion, we set ζ1 = 0.925 according to Figure 3A, and consequently Eq. 13 can be simplified as,where α = 80.13 is a dimensionless coefficient. To validate Eq. 14, we consider GCWA with EF = 0.5 eV, meV (Ļā1 = 0.249Ā THz), and substrate refractive index n = 1. The optimal of GCWA is calculated to be . We have numerically simulated three types of GCWAs with different combinations of L, W, Px, and Py: a) fixed lattice period (Px = 4.93 μm and Py = 2.46 μm) and characteristic size (D = 1.414 μm), but varying graphene cut-wire aspect ratio Īŗ; b) fixed graphene cut-wire (L = 2 μm and W = 1 μm) and lattice area (S = 12.13 μm2), but varying lattice period ratio Px:Py; c) varying all L, W, Px and Py parameters. All the GCWAs share fixed duty ratio () with detailed geometrical parameters are listed in Table 2ā4. Their corresponding absorption spectra are depicted in Figure 4. As shown in Figure 4A, the oscillation frequency of GCWAs decreases with the increasing Īŗ. This can be explained by the decrease in Ī·1 of individual graphene cut-wire (the first term in Eq. 10). In contrast, for graphene cut-wire with fixed size, the oscillation frequency of GCWA experiences a small redshift when increasing the lattice period ratio. This can be attributed to the mutual interactions between different cut-wires (the increase of g in the second term in Eq. 10 (; )). Figure 4C shows the absorption spectra for cut-wires arrays with the different combinations of Px:Py and Īŗ. Their oscillation frequencies are deliberately chosen to cover 3ā28Ā THz. Nevertheless, all the spectra exhibit maximum absorptions in spite of the geometry diversity, confirming the applicability of the QCMT.

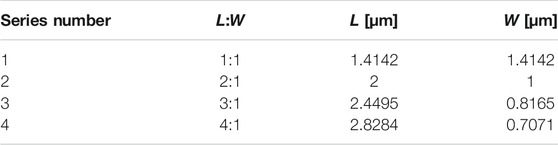

TABLE 2
| Series number | L:W | L [μm] | W [μm] |
|---|---|---|---|
| 1 | 1:1 | 1.4142 | 1.4142 |
| 2 | 2:1 | 2 | 1 |
| 3 | 3:1 | 2.4495 | 0.8165 |
| 4 | 4:1 | 2.8284 | 0.7071 |
Geometrical parameters for GCWA associated with Figure 4A.
TABLE 3
| Series number | Px:Py | Px [μm] | Py [μm] |
|---|---|---|---|
| 1 | 1:2 | 2.4626 | 4.9252 |
| 2 | 1:1 | 3.4827 | 3.4827 |
| 3 | 2:1 | 4.9252 | 2.4626 |
| 4 | 3:1 | 6.0322 | 2.0107 |
Geometrical parameters for GCWA associated with Figure 4B.

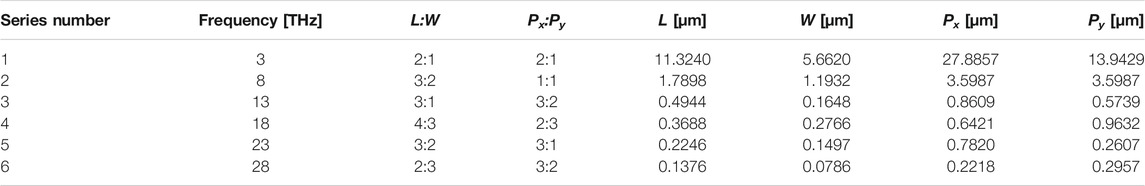

TABLE 4
| Series number | Frequency [THz] | L:W | Px:Py | L [μm] | W [μm] | Px[μm] | Py[μm] |
|---|---|---|---|---|---|---|---|
| 1 | 3 | 2:1 | 2:1 | 11.3240 | 5.6620 | 27.8857 | 13.9429 |
| 2 | 8 | 3:2 | 1:1 | 1.7898 | 1.1932 | 3.5987 | 3.5987 |
| 3 | 13 | 3:1 | 3:2 | 0.4944 | 0.1648 | 0.8609 | 0.5739 |
| 4 | 18 | 4:3 | 2:3 | 0.3688 | 0.2766 | 0.6421 | 0.9632 |
| 5 | 23 | 3:2 | 3:1 | 0.2246 | 0.1497 | 0.7820 | 0.2607 |
| 6 | 28 | 2:3 | 3:2 | 0.1376 | 0.0786 | 0.2218 | 0.2957 |
Geometrical parameters for GCWA associated with Figure 4C.

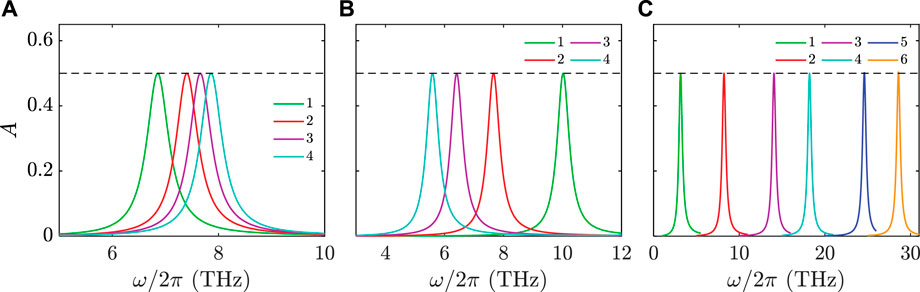

FIGURE 4
The analyses in Figures 2ā4 have validated the accuracy of our developed QCMT model. This model can be employed as an effective tool to design GCWAs with optimized electromagnetic wave absorption. To demonstrate the capability of the QCMT model, we employed it to design three types of GCWAs with optimum electromagnetic wave absorptions. We consider three types of GCWAs: I) EF = 0.4 eV, Ļ0 = 30Ā THz, ndie = 1; II) EF = 0.7 eV, Ļ0 = 6Ā THz, ndie = 1.955; III) EF = 1Ā eV, Ļ0 = 2Ā THz, ndie = 3.42. The GCWAs I to III are supported in the air, onto SiO2, and silicon substrates, respectively. In addition, we set the aspect ratios Īŗ of all the three GCWAs to 2. Based on Equations (10) and (11), it is able to deduce the feature size of an individual graphene cut-wire to be LĆW = 0.088 μm Ć 0.044 μm (Type I), 1.63 μm Ć 0.81 μm (Type II), and 7.92 μm Ć 3.96 μm (Type III), respectively. According to Eq. 14 the duty ratio of each GCWA can be determined as ξ = 0.2, 0.17, and 0.18, respectively. Afterwards the periods of the GCWAs can be obtained.

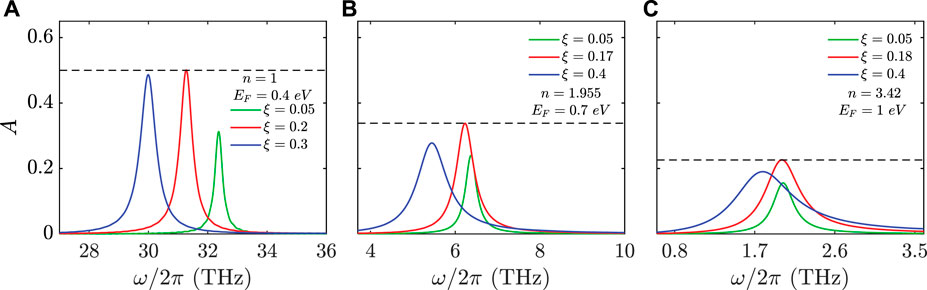

To validate the above designs, we numerically simulated the absorption spectra of the three types of GCWAs with different duty ratios. The GCWAs are respectively suspended in the air or supported onto SiO2 and silicon substrates. The lengths and widths of the three types of GCWAs are employed according to the QCMT designs. As shown in Figure 5A, for the GCWA suspended in the air (Type I), a working frequency at 31.3Ā THz (mid-infrared regime) can be found with a duty ratio of 0.2. Additionally, such a duty ratio leads to a maximum peak absorption of 0.5, which is consistent with the QCMT calculation and previous study (). For the GCWAs supported onto SiO2 (Type II) and silicon (Type III) substrates, the maximum absorption occurs for duty ratios of 0.17 and 0.18, respectively (Figures 5B,C). The corresponding working frequencies are 6.23Ā THz and 2.02 THz, respectively. These results are all corroborated with the QCMT predictions, except for small deviations on the oscillation frequencies (the discrepancies are 4.3% for Type I, 3.8% for Type II and 1% for Type III). We attribute such discrepancies to the deviation of GCWA from quasistatic limitation as well as the high-Q approximation when reducing Equation (9) to Equation (5). Nevertheless, our results unambiguously demonstrate the effectiveness of the QCMT model in designing of GCWAs with optimum electromagnetic absorption in mid-infrared to THz spectral regime.
FIGURE 5
Conclusion
In summary, we have developed an analytical model, i.e., the QCMT model, for designing GCWA with optimum electromagnetic wave absorption in the mid-infrared to THz spectral regime. In the QCMT model, all of the phenomenological parameters employed to calculate the electromagnetic wave reflection and transmission of a specific GCWA can be calculated analytically, which on one hand provides an intuitive physical insight on these parameters, and on the other hand can help optimize the electromagnetic wave absorption of the GCWA. As a result, by utilizing the QCMT model it is able to facilely obtain the geometrical parameters associated with maximum electromagnetic absorption of the GCWA, which otherwise requires arduous parameter securitizing by numerical simulations. We show that a maximum THz wave absorption can be achieved by choosing proper duty ratio of the GCWA, regardless of its working frequencies and other geometrical parameters. The model developed in our study can in principle generalized to other types of polaritonic 2D crystals, which therefore provide a guideline for the design of 2D micro-/nanostructure arrays operating in the long-wave regime with optimized electromagnetic wave absorption.
Statements
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.
Author contributions
SD, ZC, and HC, conceived and supervised the study. HZ and ZC developed the analytical model and conducted the numerical simulations. The manuscript was written through contributions of all authors. All authors have given approval to the final version of the manuscript.
Funding
This work was financially supported by the National Key Basic Research Program of China (Grant Nos. 2019YFA0210203), the National Natural Science Foundation of China (Grant Nos. 91963205, 11904420, 61905290), and the Guangdong Basic and Applied Basic Research Foundation (Grant Nos. 2020A1515011329, 2019A1515011355, 202102020579). HC acknowledges the support from Changjiang Young Scholar Program. SD, ZC, and HC conceived and supervised the study. HZ, and ZC developed the analytical model and conducted the numerical simulations. The manuscript was written through contributions of all authors. All authors have given approval to the final version of the manuscript.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisherās note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fmats.2021.737347/full#supplementary-material
Footnotes
1.^https://www.comsol.com/, accessed.
