Review ARTICLE

Front. Plant Sci., 15 February 2013 | https://doi.org/10.3389/fpls.2013.00021

Plant-bacterium interactions analyzed by proteomics

Amber Afroz1*, Muzna Zahur1, Nadia Zeeshan1 and Setsuko Komatsu2*
  • 1Department of Biochemistry and Molecular Biology, Nawaz Sharif Medical College, University of Gujrat, Hafiz Hayat Campus Gujrat, Gujrat, Pakistan
  • 2National Institute of Crop Science, National Agriculture and Food Research Organization, Tsukuba, Japan

The evolution of the plant immune response has resulted in a highly effective defense system that is able to resist potential attack by microbial pathogens. The primary immune response is referred to as pathogen associated molecular pattern (PAMP) triggered immunity and has evolved to recognize common features of microbial pathogens. In response to the delivery of pathogen effector proteins, plants acquired R proteins to fight against pathogen attack. R-dependent defense response is important in understanding the biochemical and cellular mechanisms and underlying these interactions will enable molecular and transgenic approaches for crops with increased biotic resistance. Proteomic analyses are particularly useful for understanding the mechanisms of host plant against the pathogen attack. Recent advances in the field of proteome analyses have initiated a new research area, i.e., the analysis of more complex microbial communities and their interaction with plant. Such areas hold great potential to elucidate, not only the interactions between bacteria and their host plants, but also of bacteria-bacteria interactions between different bacterial taxa, symbiotic, pathogenic bacteria, and commensal bacteria. During biotic stress, plant hormonal signaling pathways prioritizes defense over other cellular functions. Some plant pathogens take advantage of hormone dependent regulatory system by mimicking hormones that interfere with host immune responses to promote virulence (vir). In this review, it is discussed the cross talk that plays important role in response to pathogens attack with different infection strategies using proteomic approaches.

Introduction

Unlike plant and animal cells, most bacteria are exposed to a constantly changing physical and chemical environment. Phylogenetic diversity of plant-associated bacteria (PAB) can categorize them in to commensals (acquire nutrients from the plant without damaging), mutualists (positively influence plant health), and pathogens (damage plant) (Newton et al., 2010). Notably pathogenic, commensals, or mutualists bacteria have developed strategies to interact with plants overlap, exceptionally modified physiology that accounts for individual need (Martin et al., 2003; Boller and Felix, 2009). Bacteria react to changes in their environment through changes in patterns of structural proteins, transport proteins, toxins, and enzymes, which adapt them to a particular habitat (Boller and Felix, 2009). Enzymes are either constitutive in nature (always produced by cells independently of the composition of the medium) or inducible (produced in cells in response to the end product of a pathway). Regulation of enzyme activity which is mainly operates to regulate biosynthetic pathways and catabolites repression is considered a form of positive control because it affects an increase in rates of transcription of proteins (Deutscher, 2008).

Plant immunity that recognize pathogens by membrane proteins is termed as pattern recognition receptors (PRRs), which recognize pathogen associated molecular pattern (PAMP) and is basis of plant innate immunity (Gomez-Gomez and Boller, 2000). PAMP recognition also results in plant systemic acquired resistance and production of resistance (R) proteins leading to effector triggered immunity (ETI), which is often accompanied by the hypersensitive response (HR), and programmed cell death (Jones and Dangl, 2006). Over the past 10 years, many R genes have been isolated that confer resistance to various pathogens including virus, bacteria, fungi, or nematodes (Martin et al., 2003). Based on predicted protein sequences, these R gene products are divided into intracellular protein kinases (Pto), proteins with an extracellular leucine-rich repeat (LRR) domain and a cytoplasmic protein kinase region (e.g., Xa21), intracellular proteins containing a region of a LRRs and a nucleotide binding site (RPS2, RPM1), intracellular proteins containing a region of homology to the Toll/IL-1R proteins in addition to LRRs and a nucleotide binding site (e.g., N, L6, RPP5), and proteins with LRRs that appear to encode membrane-bound extracellular proteins (e.g., Cf-4, Cf-9) (Chisholm et al., 2006; Zhang et al., 2012).

Proteomic analyses have made possible the analysis of complex microbial communities, which had great potential to elucidate not only the interactions between bacteria and their host plants, but also of bacteria-bacteria interactions. Proteomic reference data sets were established for various PAB, via two-dimensional polyacrylamide gel electrophoresis (2-DE) gels, resulting in a few hundred identified proteins (Rosen et al., 2004; Chung et al., 2007), or multidimensional liquid chromatography-tandom mass spectrometry (LC-MS/MS) techniques resulting in the detection of more than 1000 proteins (Anderson et al., 2006; Bosch et al., 2008). Era is followed by gel free proteomics but quantitation procedures have to be optimized before the gel-based proteomics can be replaced by gel free procedures (Washburn et al., 2001).

Complete genome sequence of a Xylella fastidiosa is available which can be very helpful in genomics and proteomic studies of plant-bacterium interactions (Simpson et al., 2000; Bagnarol et al., 2007). More genomic data is needed for pathogenic and symbiotic bacteria to understand the molecular signaling pathways involved in plant-bacterium interactions. P. syringae and Xanthomonas campestris are important PAB on the grounds of agricultural importance and intensity of scientific research. Both are pathogenic on the model plant Arabidopsis (Jones et al., 2006a; Andrade et al., 2008). Pathogenic and mutualist PAB had been extensively studied (Rosen et al., 2004; Jacobs et al., 2012). The process of mutualism involved the significant change in the metabolism of both the mutualists and host, which involves a change in plant cell metabolism to support ATP synthesis and nitrogen fixation by the mutualist for nodule development (Delmotte et al., 2010). Transcriptomics data shows that pathogenic bacteria involve the hypersensitive reaction and pathogenicity (hrp) gene and different secretion systems (SS) for colonization and damaging host cells (Buttner and Bonas, 2010). In these review proteins of PAB bacteria have been compared. They typically exchange signals with their hosts and possess a range of specific adaptations for plant colonization. The importance of proteomics is explored to understand the molecular mechanism, by which bacteria adapt to live in association with plants for evolution of symbiosis and pathogenesis. This will opens up new research areas concerning protein-based plant-microbe communication and provides important information regarding the manipulation of gene expression of specific proteins with the purpose of modifying plant behavior related to compatible or incompatible interactions.

PAMP Recognition by Pattern Recognition Receptors

PAMPs constitute the first layer of plant innate immunity, and lacking of its recognition can lead to enhanced disease susceptibility. PAMPs are ideal elicitors for “non-self” surveillance systems such as chitin, ergosterol, and transglutaminase from fungi, and/or lipopolysaccharides and flagellin from bacteria, stimulate plant encoded PAMP receptors (Chisholm et al., 2006). Intracellular responses associated with PAMP-triggered immunity (PTI) including rapid ion fluxes across the plasma membrane, mitogen-activated protein (MAP) kinase activation, production of reactive oxygen species (ROS), and rapid changes in gene expression and cell wall reinforcement. Suppression of PTI may be achieved by secretion of virulence (vir) effectors by the pathogens or by suppression of plant signaling. ETI is accompanied by production of R protein or HR, illustrating the dynamic co evolution between plants and pathogens (Jones and Dangl, 2006).

Flagellin, elongation factor (EF) Tu, peptidoglycan, lipopolysaccharide, and bacterial cold shock proteins are important PAMPS and plant responses induced by them are referred to as “basal” defenses (Newton et al., 2010). Upon recognition of highly conserved amino terminus of flagellin (flg22), flagellin sensing 2 (FLS2) induces a suite of defense responses, including MAP kinase signaling, transcriptional activation, and deposition of callose, a putative physical barrier at the site of infection (Gomez-Gomez et al., 1999). EF Tu potent bacterial PAMP in Arabidopsis and other members of the Brassicaceae family, serves as an adhesion factor at the bacterial surface, in addition to its primary role in translation (Boller and Felix, 2009). Asparate oxidase is required for PAMP-triggered RBOHD-dependent (responsible for stomatal closure) ROS burst and stomatal immunity against the P. syringae (Macho et al., 2012). The LRR receptor kinases, EF-Tu receptor and FLS2 are PRRs, contributing to disease resistance against the hemibiotrophic bacterium P. syringae (Roux et al., 2011).

The plant hormones, salicylic acid (SA), jasmonic acid (JA) and ethylene, have emerged as key players in the signaling networks involved in plant immunity. Rhamnolipids are glycolipids produced by bacteria and are involved in surface motility and biofilm development and are considered as PAMPS. Ethylene is found to be involved in rhamnolipid-induced resistance to H. arabidopsidis and to P. syringae whereas JA is essential for the resistance to B. cinerea. SA participates in restriction of all bacterial and fungal pathogens, so involving in broadly rhamnolipid mediated immunity (Sanchez et al., 2012). PAMPS are sometimes succeeded and sometimes fails to induce PTI depending upon the type of compatible and non-compatible interactions. Flagellin is capable of suppressing HR via PTI induction during an incompatible interaction (Wei et al., 2012).

Type III secretion system (T3SSs) were essential components of two complex bacterial machineries: the flagellum, which drives cell motility and the non-flagellar T3SS (NF-T3SS), which delivers effectors into eukaryotic cells (Mudgett, 2005). P. syringae use T3SS to deliver up to 40 effector proteins into host cells, inhibiting basal host defense responses, such as HR (McCann and Guttman, 2008).

PAMP induced PTI serves as a primary plant defense response against microbial pathogens, with MAP kinase cascade downstream of PAMP receptors. LRR-RLKs including PSKR1 act as PTI against pathogenic bacteria, and plants expressing this gene show enhanced PAMP responses and less lesion formation after infection with the bacterial pathogen P. syringae via jasmonate signaling pathway (Mosher et al., 2013). Peptidoglycan, an important PAMP from Staphylococcus aureus results in PTI, such as medium alkalinization, elevation of cytoplasmic calcium concentrations, nitric oxide, and camalexin production, and the post-translational induction of MAP kinase activities (Gust et al., 2007).

PAMP recognition also results in plant systemic acquired resistance and production of R proteins such as SUMM2 that becomes active when the MAP kinase cascade is disrupted by pathogens, leading to ETI (Zhang et al., 2012). In rice, the LRR-RK Xa21 confers resistance to Xanthomonas oryzae pv. oryzae strains carrying the Avr gene AvrXa21 (Song et al., 1995). AvrXa21 as a type I secreted sulfated peptide, is conserved among all Xanthomonas strains sequenced (P. Ronald, pers. communication), suggesting that AvrXa21/Xa21 constitutes a PAMP/PRR perception system (Lee et al., 2008). Although many PAMPs recognized by plants have been described, number of known PRR and PTI is still in its infancy, constituting a highly active and competitive field of research.

Proteome Analyses of Plant Associated Bacteria

PAB either they are pathogenic or symbiotic bacteria adhere to plant surfaces, invade the intercellular space of the host tissue, counteract plant defense systems and acquire nutrients. However either there is establishment of a pathogenic interaction or mutualist relationship develops. Cell surface proteins such as adhesions, polysaccharides, lipopolysaccharides, and degradative enzymes enable the degradation of the plant cell wall and also result in basal plant defenses (Newton et al., 2010). Proteins of PAB are studied either in planta, by means of bacterial responses to selected biomolecule or plant extracts, synthetic media, or secretome analysis to study the vir factor of the bacterial pathogens (Guerreiro et al., 1997; Corbett et al., 2005; Gourion et al., 2006; Chung et al., 2007). All studies had helped to study plant-microbe interactions.

X. fastidiosa, whose genome was fully sequenced leads to a clearer understanding of the biology of phytopathogenic organism at both the genomic and proteome levels (Simpson et al., 2000). The cellular and secreted protein profiling of pathogenic bacteria X. fastidiosa, led to the identification of proteins involved in cellular adhesion systems, proteases, antioxidant, and toxins (Smolka et al., 2003). These proteins can be the candidates for understanding of molecular mechanism of disease cycle of citrus variegated chlorosis and Pierce's disease in grapevine caused by X. fastidiosa. In non-virulent strain of E. chrysanthemi (opg mutant), differential expression of protein is not restricted to the envelope, but affects general metabolism such as membrane lipid composition, protein folding, carbohydrate catabolism, and protein degradation (Bouchart et al., 2007). The secretome of X. campestris pv. campestris using 2-DE and matrix-assisted laser desorption/ionization time of flight (MALDI-TOF) MS resulted in the identification of 87 proteins known to be involved in degradative activities and important for the infection of susceptible plant hosts (Watt et al., 2005).

Diverse pathogenic responses are reported due to differences in induction of vir between closely related strains. Chung et al. (2007) reported that degradative enzymes and virulent secreted proteins were only seen in the pathogenic X. campestris. Moreover, HtrA was identified in the virulent X. campestris pv. campestris strain (Chung et al., 2007). Unique proteins involved in T3SSs activities and iron uptake were only consistently expressed in the virulent strain of P. stewartii (Bouchart et al., 2007; Wu et al., 2007). Proteins accumulated in T3SS cascade were related to iron uptake, motility, adhesion, metabolism, and transcriptional regulation (Wu et al., 2007). The siderophore-based iron uptake system is a common mechanism employed by gram-negative pathogenic bacteria.

Bacteria are known to react to a number of signaling molecules released by plants by specific gene expression. In Rhizobium leguminosarum, the proteins of cells were analyzed in the presence and absence of 7, 40-dihydroxyflavone. Proteins related to amino acid metabolism and transport, flagellin, energy, translation and structure were induced (Guerreiro et al., 1997; Table 1). In Agrobacterium tumefaciens acetosyringone is sensed by the virA/G two component systems and induces expression of the vir genes encoded on the Ti plasmid (McCullen and Binns, 2006). Vir proteins were reported to have T4SSs for the delivery of bacterial T-DNA into the host cell and to have molecular chaperone functions as an assembly factor (McCann and Guttman, 2008; Lai et al., 2006). Incubation of A. tumefaciens in the presence of cut root material led to the induction of ribosomal protein, stress related chaperones, ABC transporters and sugar binding proteins indicating the significance of protein modifications in the interactions of Agrobacteria with plants (Rosen et al., 2003). Addition of suberin to Streptomyces scabies induced 17 proteins linked to primary, secondary metabolism and stress related pathway (Lauzier et al., 2008). Expression of superoxide dismutase (SOD) was enhanced in Frankia strains and Streptomyces coelicolor with plant extracts (Langlois et al., 2003; Bagnarol et al., 2007). Addition of carbohydrates such as rhamnose and ferulic acid to medium induce plant phenolic compound (rhamno galacturonate lyase and esterase) in D. dadantii (Kazemi-Pour et al., 2004). Other identified proteins of E. chrysanthemi were cellulase, flagellin, pectinases, endopectate lyases, pectin acetylesterases, pectin methylesterase, and polygalacturonase (Kazemi-Pour et al., 2004). Proteins involved in signal transduction, translation, ribosomal proteins and biogenesis, inorganic ion, lipid, amino acid, energy, transport, and metabolism were induced by plant extracts (Langlois et al., 2003). These results suggest that root exudates provide additional carbon sources to the bacteria and that physiological adaptation are required for efficient bacterial growth in the presence of plants. Differential proteins involved in carbohydrates, lipids, purines, metabolism, transcription, coenzymes, chaperones and iron transport regulation, essential for nitrogen fixation, seem to be strain dependent (Dixon and Kahn, 2004).

TABLE 1
www.frontiersin.org

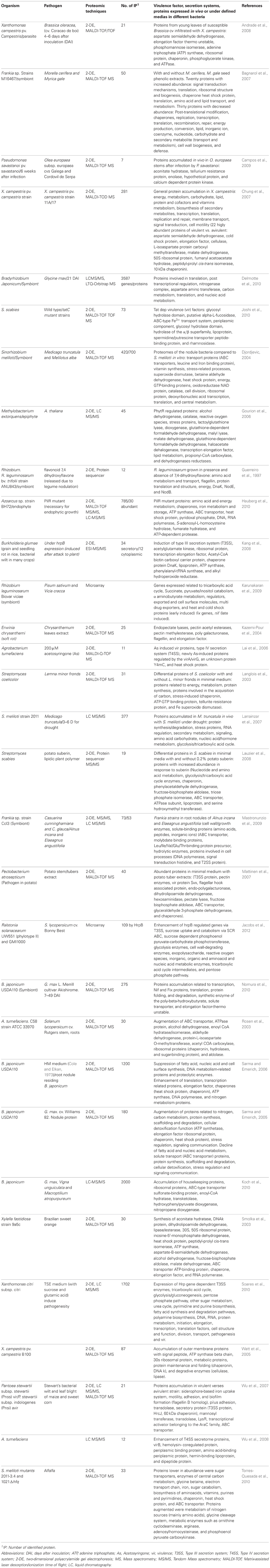

Table 1. Expression profiling of bacterial strains in differential medias/plant associated bacteria as pathogens, symbiotic or epiphytes.

Proteome analysis is very tricky when dealing with separation of bacteria from infected plants and additional steps are needed to avoid the changes in proteome map. Protocols had been proposed for the bacterial separation by density gradient centrifugation using percoll or sucrose gradients (Gourion et al., 2006; Nomura et al., 2010). Jacobs et al. (2012) discussed the transcriptomics profile of R. solanacearum in vitro and he discussed the importance of T3SS in vir cascade of Ralsotonia (45% regulated by HR and Hrp gene). Proteome analysis of pathogenic bacteria X. campestris pv. campestris in association with B. oleracea and Pseudomonas savastanoi pv. savastanoi resulted in comprehensive expression analysis including stress and metabolic proteins (Andrade et al., 2008; Campos et al., 2009). Increased levels of proteins involved in xanthan biosynthesis, stress response, and the metabolism were induced in X. campestris in planta conditions compared with in vitro grown cells (Andrade et al., 2008). Chaperonin is reported to be involved in stress responses and EF, which acts as an important PTI in the plants, is the key component of the translational machinery of bacteria. Xanthan is an extracellular polysaccharide probably responsible for disease symptom in planta growth via mucoid appearance of the bacterial colonies and wilting of host plants by blocking the water flow in xylem vessels (Buttner and Bonas, 2010).

The differential proteome analysis of in planta and in vitro grown cells of Methylobacterium extorquens resulted in the identification of 45 metabolic proteins and proteins involved in stress response such as the extracellular protease, SOD, catalases, and the DNA protection protein (Gourion et al., 2006). The protein analysis of cyanobacteria living in symbiosis revealed several adaptations to a symbiotic lifestyle, including an increase in proteins involved in energy production and nitrogen fixation. On the other hand, proteins involved in photosynthesis were decreased, pointing toward a heterotrophic lifestyle under symbiotic conditions (Dixon and Kahn, 2004). The general proteome analysis of bacteroids is compared with in vitro grown cells in order to identify nodule specific adaptations, over time or when plants were exposed to drought stress (Delmotte et al., 2010; Nomura et al., 2010). ABC-type transporters was present in nodule bacteria for transport of amino acids and inorganic ions along with proteins involved in vitamin synthesis, fatty acid, nucleic acid, cell surface synthesis, and stress-related processes (Sarma and Emerich, 2006). Integrated proteomics and transcriptomics data for B. japonicum bacteroids resulted in 2315 proteins involved in carbon and nitrogen metabolism, including a complete set of tricarboxylic acid cycle enzymes, gluconeogenesis and pentose phosphate pathway enzymes, along with other proteins important in symbiosis. Amino acids (Asn, Gln, Pro), organic acids (threonic acid), sugars (Rib, maltose), and polyols (mannitol) were reported to be more abundant in symbiotic roots (Delmotte et al., 2010). In planta studies is very effective to study the interactions between plant and bacteria.

Gene Regulation in Symbiotic Bacteria

An effective nitrogen-fixing symbiosis establishes as a result of a complex molecular interplay between both partners that involves bacteria-plant signal exchanges and intricate signaling processes (Dixon and Kahn, 2004). Rhizobia start as epiphyte attaches to the root hair, penetrate through the epidermis, divide within the plant-derived infection thread and then invade the cortical cells. On the other hand, in response to the bacterial infection, the plant cortical cells form a new organ, the nodule, where the bacteria differentiate into bacteroids and commence nitrogen fixation. An increased abundance of proteins involved in protein synthesis and degradation was observed during the early stage of nodule development, which may be explained by a restructuring of the proteome to attain a symbiotic lifestyle. Transformation of a free-living bacterium to a nitrogen-fixing endosymbiont results in significant physiological and developmental changes in the rhizobia, including the expression of nif and fix genes, which encode the proteins involved in the nitrogen fixation process in later stages of infection (Karunakaran et al., 2009; Nomura et al., 2010). To withstand changing environmental conditions, the bacteria must possess the ability to undergo specialized physiological adaptations. These response mechanisms are complex and remain largely unexplored. Comparative proteomic display of methylobacterium grown in vitro and in planta leads to identification of metabolic proteins and proteins involved in stress response such as the extracellular protease HtrA, SOD, catalases, and the DNA protection protein. In this study, also a key regulator, PhyR, was identified and shown to be essential for phyllosphere colonization (Gourion et al., 2006). These proteins seem to be important for the symbiotic relationship of microbe with plant.

Proteomic and transcriptomics approach was used to identify genes whose expression is regulated by the NifA-RpoN system in Rhizobium etli in symbiosis with Phaseolus vulgaris (Salazar et al., 2010; Figure 1). Twenty four proteins associated with NifA and RpoN motifs were identified via differentially proteomic analysis of mutant and wild type R. etli strain CFN42. Transcriptomics analysis helps to identify proteins with isoelectric points or molecular weights outside the electrophoretic resolution range of the 2-DE. NifA is a regulator for nitrogen fixation genes in symbiotic diazotrophic bacteria, and controlled by the oxygen-responsive two-component FixL-FixJ/Redox-sensing system RegS-RegR (Dixon and Kahn, 2004). Two further studies support regulatory role of Hfq in symbiosis process in S. meliloti (Barra-Bily et al., 2010; Torres-Quesada et al., 2010). Hfq is suspected to contribute to control central metabolic pathways in free-living bacteria and affects survival and nitrogen fixation capacity of the symbionts in the nodules, probably via the regulation of nifA and fixK1/K2 (Torres-Quesada et al., 2010). Barra-Bily et al. (2010) found that oxidative stress proteins and proteins involved in RpoE regulation were down regulated in hfq mutant. High expression of TonB-dependent receptors involved in transport processes of various carbohydrates was reported in Sphingomonas (Delmotte et al., 2009).

FIGURE 1
www.frontiersin.org

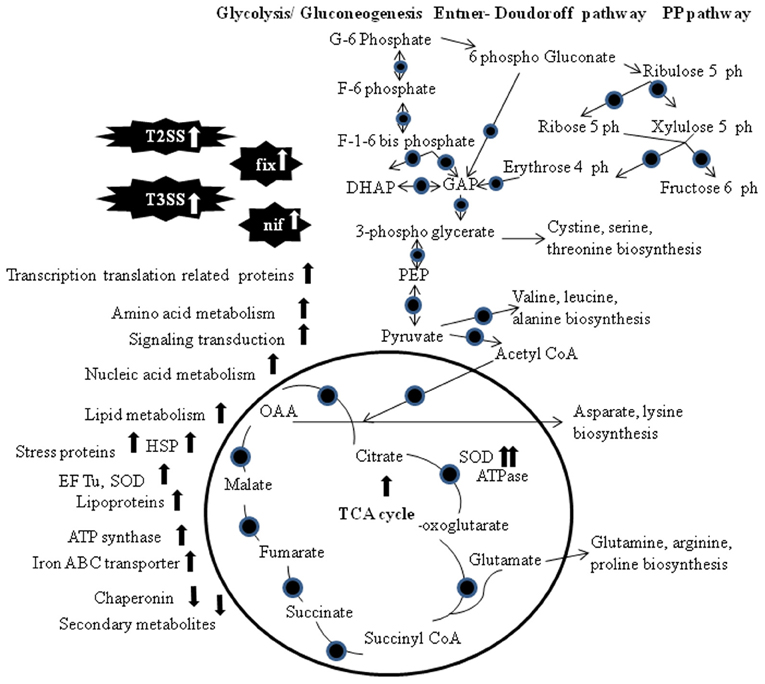

Figure 1. Visualization of metabolic and proteomics pathways that may supply symbionts with energy under symbiotic conditions. The TCA cycle, gluconeogenesis/glycolysis, Entner–Doudoroff pathway and the Pentose Phosphate pathway are shown. Circles indicate proteins that have been detected at the transcriptomics and/or proteomics level. Abbreviations: PP, Pentose Phosphate; DHAP, dihydroxyacetone phosphate; GAP, glyceraldehyde-3-phosphate; PEP, phosphoenolpyruvate; OAA, oxaloacetate; G, glucose; F, fructose; EF-Tu, elongation factor thermo unstable; SOD, superoxide dismutase; HSP, heat shock protein; T2SS, type II secretion system; T3SS, type III secretion system.

Hauberg et al. (2010) reported the PilR regulated cascade differentially present in symbiont Azoarcus sp. strain BH72 as compared to its mutant. It may be explained by a restructuring of the proteome to attain a symbiotic lifestyle. Koch et al. (2010) discussed host adaptation of B. japonicum in nodules of soybean, cowpea or siratro. Transcriptomics and proteomics analyses resulted in the identification of seven unique gene products that were the house keeping gens, along with ABC transporter, substrate-binding protein and a monooxygenase. In planta studies impart PhyR regulation along with the role of T3SS in infection process. The infection process resulted in augmentation of enzymes involved in gluconeogenesis, glycolysis, pentose pathway, amino acid, nucleic acid, lipid metabolism along with stress related proteins.

Protein secretion of a symbiont (Sinorhizobium meliloti) and a pathogen (P. syringae DC3000) in the presence of root exudates from A. thaliana and Medicago sativa was studied. SOD is known to be necessary for symbiotic properties in S. meliloti and had higher expression in interaction with M. sativa (De-la-Pena et al., 2008). Extracellular proteins of the nitrogen-fixing symbiont Frankia were analyzed by dissecting nodules of infected cortical cells (Mastronunzio et al., 2009). The secreted proteins within the pool of identified proteins were recognized based on their export signal peptides by in silico prediction. Proteins detected in the secretome of three different Frankia strains were mainly solute-binding proteins, underlining the importance to acquire nutrients during symbiosis.

Virulence Factors and Secretions Systems (SS) Involved in Plant Infection

The genes encoding vir and symbiosis determinants are carefully regulated in order to prevent dissipative or premature expression. The expression of these genes is regulated by transcriptional regulators, which are part of regulatory systems such as the quorum sensing system and respond to different extracellular stimuli for instance, nutrients, oxygen levels, presence of plant-derived molecules or population density (Buttner and Bonas, 2010). The concerted action of different regulatory systems can vary substantially, even between closely related strains (Seo et al., 2008). A major task in understanding the regulation of gene expression is the identification of genes that are under the control of distinct regulators. Usually, transcriptomics studies are performed to address this question; however, proteomic analyses are also used, in particular when the aim is the evaluation of the impact on secreted proteins.

The establishment of a symbiotic or pathogenic association is largely dependent on the interaction between the microorganism and the host plant via secreted proteins. Effector proteins secreted by the pathogenic bacteria, either into the extracellular milieu or directly into the host cell cytosol target the host. The proposed biological roles and the mode of action of various effectors in plant pathogenicity have been reviewed (Mudgett, 2005). Combination of SS is involved in process of pathogenesis. In Xanthomonas spp six types of protein SS (I–VI) are involved in pathogenesis process (Bonemann et al., 2010). Effector proteins interfere with the signaling cascades of susceptible hosts to counteract, for the plant innate immune responses, which are triggered by PAMPs (Mudgett, 2005). Proteomic studies were frequently applied to analyze the spectrum of proteins secreted by a particular system or to identify the system by which a certain protein is transferred.

The co-regulation of the synthesis of enzymes secreted via the T2SS and T3SS has been reported frequently (Figures 1, 2). One reasonable explanation for this co-regulation is based on the observation that substrates that are secreted via the T2SS are not only associated with bacterial vir but can also induce plant defense responses. The concurrent induction of the T2SS and the T3SS probably allows the pathogen to counteract basal plant defense responses that are elicited by proteins released via the T2SS with the effector proteins transported by the T3SS (Jha et al., 2007). T3SS are used to inject different effector proteins, formerly known as avirulence proteins, directly into the host cell via an extracellular pilus that acts as channel (McCann and Guttman, 2008). T3SS is required for pathogenicity in host plants and for eliciting a rapid hypersensitive resistance response in non-host plants, and the genes encoding T3SS were named HR and pathogenicity (hrp) genes (Jacobs et al., 2012). hrp genes were identified in most Gram-negative plant pathogenic bacteria with the exception of A. tumefaciens and Xylella fastidiosa (Buttner and Bonas, 2010). Homologues of the hrp genes were also found in different rhizobia (Jones and Dangl, 2006). To identify the SS that is responsible for the transport of distinct vir factors, the secretome of a SS mutant strain and the wild-type strain is compared (Kazemi-Pour et al., 2004; Watt et al., 2009). Joshi et al. (2010) discussed twin arginine transport (Tat) dependent translocation of vir factor in S. scabies under T3SSs. Tat-secreted vir proteins includes lipoproteins, ABC transporters, phospholipases/phosphoesterases, β-lactamase, and proteins involved in Fe homeostasis and Tat dep vir factors (Table 1). T3SS-secreted proteins responsible for vir process usually silenced in plant-pathogenic bacteria and were only induced during the plant infection process (Buttner and Bonas, 2002). Another vir factor Svx (secreted vir factor from Xanthomonas), in a secrotomic study of P. atrosepticum, was analyzed (Corbett et al., 2005).

FIGURE 2
www.frontiersin.org

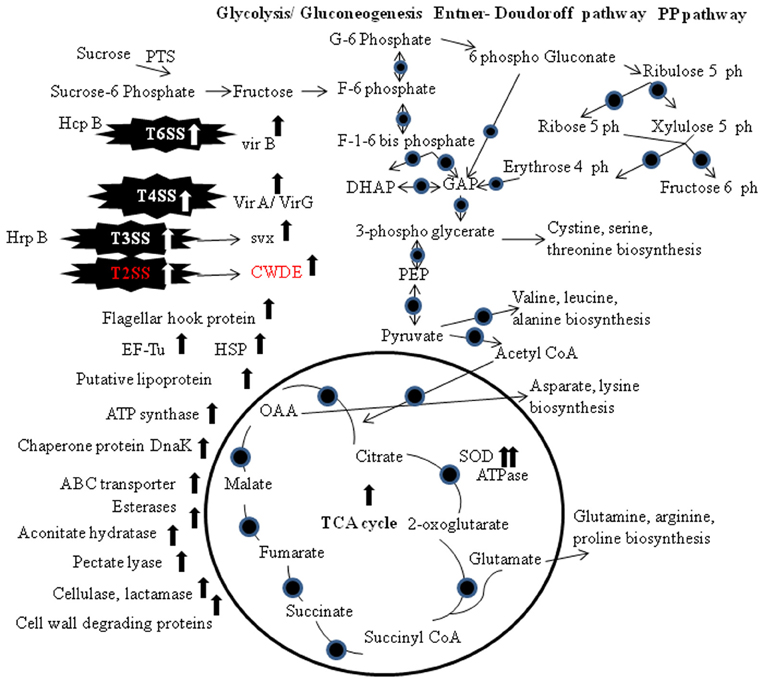

Figure 2. Biochemical pathways of the pathogen secretion system and proteins expression. The TCA cycle, gluconeogenesis/glycolysis, Entner–Doudoroff pathway and the Pentose Phosphate pathway are shown. Circles indicate proteins that have been detected at the transcriptomics and/or proteomics level. Abbreviations: PP, Pentose Phosphate; PTS, phosphoenol pyruvate-carbohydrate phosphotransferase system; G, glucose; F, fructose; PEP, phosphoenol pyruvate; TCA, tricarboxylic acid; OAA, oxaloacetate; T6SS, type VI secretion system; T4SS, type IV secretion system; T3SS, type III secretion system; T2SS, type II secretion system; EF-Tu, elongation factor thermo unstable; SOD, superoxide dismutase; HSP, heat shock protein; CWDE, cell wall degrading enzymes.

Addition of galacturonate, pectin or plant extract to the medium resulted in the induction of vir factors in Enterobacteriaceae (Kazemi-Pour et al., 2004; Mattinen et al., 2007). In Xanthomonas secretome studies a defined medium with fructose, sucrose and casamino acids was found to induce T3SS gene (Wengelnik et al., 1996; Yamazaki et al., 2008). To study the secretome of A. tumefaciens, acetosyringone was added to induce VirB1 (Wu et al., 2008). P. atrosepticum in the presence of potato tuber extract, induce vir factors such as pectic enzymes, proteinase, and the avirulence protein homolog Svx (Mattinen et al., 2007). Likewise, culturing X. campestris pv. campestris in the presence of B. oleracea led to the induction of a nuclease, a ribonuclease, peptidases, proteases and cell-wall-degrading enzymes (Watt et al., 2009). T3SS was induced by addition of flavonoid (genistein) to the medium, resulted in secretion of the nodule outer proteins (Nops), which is involved in the host-range determination (Jones and Dangl, 2006).

Protein secretion into the extracellular space or other space was mediated by outer membrane vesicles (OMVs) in some bacterial strains. OMVs are an ideal structure to transport hydrophobic compounds like membrane proteins into host cells or quorum signals to neighboring cells (Wai et al., 2003; Mashburn and Whiteley, 2005). OMVs of gram-negative bacteria contain outer membrane proteins, periplasmic proteins, lipopolysaccharides, phospholipids, DNA, toxins, and other factors associated with vir (Kadurugamuwa and Beveridge, 1997; Mashburn and Whiteley, 2005). They are known to be constantly liberated from the outer membrane and are thus a likely source of outer membrane proteins in the culture supernatant (Kadurugamuwa and Beveridge, 1997). In the presence of vir factor inducing medium, two major protein groups were detected: outer membrane proteins and vir -associated proteins. The latter group included proteins of the T3SS, effector proteins, two cell wall-degrading enzymes, a cellulase, and a xylosidase.

Several periplasmic proteins were detected in the OMVs, which may be entrapped in the vesicle lumen during their release from the outer membrane. One of the identified vir proteins is HrpF, the putative translocon of the T3SS that is proposed to be inserted into the host membrane and serves as attachment site for the T3SS conduit. It is currently assumed that this protein is transported via the T3SS and then pushed into the host membrane (Buttner and Bonas, 2002). However, since OMVs of mammalian pathogens have been reported to deliver vir -factors into host membranes by fusion (Wai et al., 2003), it can be suspected that HrpF is inserted into the plant membrane by fusion of OMVs carrying HrpF.

Proteomic studies confirmed the transcriptional activation of vir factor (Hrp) via T2SS in Burkholderia glumae and X. axonopodis pv. citri (Kang et al., 2008; Yamazaki et al., 2008). Vir factor Svx was secreted via the T2SS in P. atrosepticum (Corbett et al., 2005). Protein secretion in the Gram-positive S. scabies via the twin arginine transport (Tat) pathway was analyzed. In Gram-negative bacteria the Tat system is part of the T2SS (Johnson et al., 2006). T2SS are present in many gram-negative proteobacteria, and toxins and extracellular enzymes such as proteases, lipases, and cell-wall-degrading enzymes were secreted via the T2SS (Jacobs et al., 2012). Components of the T2SS were identified as vir factors in the plant pathogenic bacteria D. dadantii, Pectobacterium carotovorum, Xanthomonas spp., and Ralstonia solanacearum (Buttner and Bonas, 2010). Comparison of the extracellular proteome of a tatC mutant and the wild type in combination with an in silico search for proteins harboring a secretion signal identified 73 predicted secretory proteins whose expression was reduced in the mutant. The tatC mutant strain was almost completely avirulent, indicating that the activity of this transport system is mandatory for vir. Hemolysin- coregulated proteins (Hcp) vir factor is structural component of a type T6SSs, components of the T4 bacteriophage tail tube and is required to puncture the host membrane in the context of phage infection (Bonemann et al., 2010). Hcp is transported via the T6SS in A. tumefaciens (Wu et al., 2008). Comparative proteome analysis with and without acetosyringone confirmed the induction of Vir proteins comprising the type IV secretion system for the delivery of bacterial T-DNA into the plant host cell. More induced proteins were identified, one of these is a molecular chaperone and functions as an assembly factor for the type IV secretion system (Lai et al., 2006; McCann and Guttman, 2008). The proteins that enable successful infection of plants are termed vir factors. These include cell surface proteins such as adhesins, polysaccharides, lipopolysaccharides, and degradative enzymes such as cellulases, pectate lyases, and proteases that enable the degradation of the plant cell wall under the action of T2SS (Jacobs et al., 2012; Figure 2).

Proteomics Analysis of the Plants Affected by Bacteria

Inspite of lot of work on plant-microbe interactions, there are still lot of gaps in different proteomic studies of plants in response to bacterial infection. Here there is brief preview of some of research articles regarding plant responses to bacterial attack, which can be helpful to understand the plant microbe interactions (Table 2). Miao et al. (2008) reported that caffeoyl CoA 3-O-methyltransferase gene was down regulated in susceptible cultivars of tomato in response to inoculation with bacteria. Defense-related antioxidants such as pathogenesis-related (PR) -9 and metabolic enzymes were reported in A. thaliana in response to P. syringae (Jones et al., 2004, 2006a). Both of these groups of antioxidant enzymes were considered to have probable significant roles in the regulation of redox conditions within infected tissue. Many new techniques such as hexapeptide ligand libraries (CPLL such as proteominer) had been used to decrease the high abundant proteins for enrichment of low abundant protein. Frohlich et al. (2012) applied the CPLL in A. thaliana leaf proteins after infection with virulent P. syringae. 2-DE showed a decrease in high-abundance proteins and an enrichment of less abundant proteins in leaf samples. Mass spectrometric analyses of leaf extracts led to the identification of 312 bacterial proteins in infected Arabidopsis leaves.

TABLE 2
www.frontiersin.org

Table 2. Proteomics analysis of plants in response to pathogenic/symbiotic bacteria.

Accumulation of free linolenic and benzoic acid or reduction in lauric acid was found to be important indicator of an active plant defense response in G. max. γ-aminobutyric acid, proline, and glutamine reduction resulted in G. max susceptibility after Bradyrhizobium japonicum inoculation (Brechenmacher et al., 2010). Transcriptomic and proteomic approaches identified numerous genes and proteins involved in carbon and nitrogen metabolism, plant defense responses, nutrient exchange, and signal transduction that are significantly regulated in G. max colonized by B. japonicum (Brechenmacher et al., 2010). Li et al. (2012) discussed importance of PR-1 and PR-10 in rice defense against Xanthomonas campestris. Components of PSII, mitochondrial permeability transition and cytoplasmic antioxidant enzymes were modified during R-gene-mediated HR. PR-9 and PR-5 were induced in response to X. oryzae pv. Oryzae in rice (Mahmood et al., 2006). Analyses clearly revealed that four defense-related proteins (PR-5, Probenazole-inducible protein, SOD and peroxiredoxin) were induced for both compatible and incompatible X. oryzae pv. Oryzae races, where PR-5 and probenazole-inducible protein were more rapid and showed higher induction in incompatible interactions and in the presence of JA. Furthermore, the sense PR-5 transgenic rice plants were more resistant than the susceptible vector control against X. oryzae pv. Oryzae (Mahmood et al., 2009).

Chen et al. (2007) analyzed proteins from rice plasma membrane to study the early defense responses involved in Xa21 mediated resistance. Xa21 is a rice receptor kinase, which is predicted to perceive the X. oryzae pv. oryzae signal at the cell surface, leading to the “gene-for-gene” resistance response (Song et al., 1995). Twenty proteins that were differentially expressed had potential functions in rice defense. Proteins expressed in partially resistant lines and a susceptible tomato species that are regulated in response to C. michiganensis ssp. michiganensis were identified 72 and 144 h post inoculation. Using 2-DE and MS, 26 differentially regulated tomato proteins were identified; 12 of which were directly related to defense such as PR-3, PR-9, and stress responses (Coaker et al., 2004). PR proteins seem to be good candidates to develop the incompatible interactions with bacteria along with SAR in plants. Proteomic analysis was also used to detect the responses of the model legume M. truncatula to the pathogenic bacterium P. aeruginosa (Mathesius et al., 2003). There is accumulation of 154 proteins, among which 21 are related to defense and stress responses. Molecular chaperones, protein related to defense, destination and storage were differentially expressed in resistant tomato cvs (Afroz et al., 2009). Apical membrane antigen was found to be the novel protein expressed in susceptible cultivar in SA cascade (Afroz et al., 2010). Kandasamy et al. (2009) reported differential proteins in response to P. fluorescens in rice leaf sheath (Table 2). Along with protein degradation and antioxidation, photosynthetic proteins thioredoxin was upregulated. Defense proteins can be the other target protein for the disease resistance against bacterial pathogens. Tomato seed treatment with rhizobacteria P. fluorescens exhibited growth promotion along with protection from infection by Fusarium oxysporum (Ramamoorthy et al., 2002). PR-2, PR-3, and PR-5 were found to be induced in P. fluorescens treated plants challenged with F. oxysporum. Similarly, the expression of glutathione S-transferase (GST) is known to be involved in tagging toxic endogenous substrates with glutathione conjugation to transport toxic substrates into the vacuole through a glutathione pump (Ishikawa, 1992). GST is reported to be induced in response to P. syringae in Arabidopsis, and has an important role in plant defense from oxidative damages caused by various biotic or abiotic stresses such as heavy metal, wounding, ethylene, ozone, and pathogen attack (Marrs, 1996; Jones et al., 2004, 2006a,b).

Chloroplasts may be key players in plant defense, as the loss of integrity of PSII may lead to the HR-associated oxidative burst, thereby restricting pathogen growth. Proteins related to photosynthesis, defense, protein destination and storage had been down regulated in response to P. syringae infection in soybean (Zou et al., 2005). Proteins differentially expressed in response to P. savastanoi pv. savastanoi on O. europaea stems were related with photosynthesis and metabolism (Campos et al., 2009). Non-pathogenic bacteria (P. putida) had been reported to promote systemic resistance in different host plants as well. Stimulation of antifungal material (phytoalexin) and proteins in lipoxygenase pathway in tomato were found after infection with P. putida (Akram et al., 2008).

Holzmeister et al. (2011) used 2-D fluorescence difference gel electrophoresis technology to demonstrate the role of niric oxide in plant defense signaling. After infection of wild type and Arabidopsis mutant strain, it was found that in the infection by avirulent P. syringae there is accumulation of defense, redox as well as stress proteins, while in virulent infection only defense proteins were expressed. This imparts importance of stress proteins in plant defense signaling. Induction of defense enzymes involved in phenyl propanoid pathway and accumulation of phenolics and PR-proteins might have contributed to restriction of invasion of F. oxysporum f. sp. lycopersici in tomato roots. Induction of defense proteins and chemicals in tomato by P. fluorescens isolate against F. oxysporum was studied. Defense-related proteins such as PR-9, PR-2, PR-5, and 46 kDa chitinase increased in bacterized tomato root tissues (Ramamoorthy et al., 2002). Proteins related to photosynthesis, defense, destination, and storage are decreased as a result of bacterial infection followed by the induction of PR proteins in JA or SA pathway. Defense-related proteins, PR proteins and PSII destruction and repair system can be the candidates for improved resistance against bacterial infection in plants.

Conclusions

This review summarizes the use of proteomic approaches to understand the molecular and cellular processes that govern host responses such as PTI, PRR, and ETI. Detailed global comparison of response pathways using proteomics has allowed the identification of novel proteins whose biological role warrants in-depth biochemical and cellular elucidation. Finally understanding of biotic stress responses may identify promising novel targets for the development of cultivars with improved disease resistance. Various types of bacteria can trigger rapid responses in plant cell cultures and defense responses in intact plant tissues (Jones and Dangl, 2006). Flagellin and lipopolysaccharides have been identified as common bacterial determinants or PAMPs that act as elicitors of defense responses in plant cells (Felix et al., 1999). R genes that confer resistance to various phytopathogens are proposed to be part of a positive feedback loop to amplify the response triggered by PAMP perception. ETI is often accompanied by local cell death known as the HR illustrating the dynamic evolution between plants and pathogens (Martin et al., 2003; Jones and Dangl, 2006).

To fully elucidate microbial metabolism and its responses to environmental factors, it will be necessary to go beyond the information obtained from proteomic studies alone. There is need of integration of data resulting from the functional characterization and quantification of molecules representing from genes, transcripts and proteins to metabolites (Delmotte et al., 2010). First steps in this direction were made by setting up extensive proteomic reference databases and by compiling proteomic and transcriptomics data sets (Bosch et al., 2008; Koch et al., 2010). To profit from such analyses as best as possible, databases should be set up that combine and integrate the results obtained in different studies. With complete genome sequences of several host and pathogen partners now available, there are literally hundreds of candidate genes and proteins with potential applications in crop protection. Knowledge generated from research such as described in this special issue will open new avenues for the engineering of durable resistance to bacterial pathogens in plants. Identified proteins involved in plant tolerance to stresses could be used for development of disease resistant cultivars as well as these proteins can be used as markers for the identification of type of infection.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Abbreviations

PAMP, pathogen associated molecular pattern; PRRs, pattern recognition receptors; PAB, plant-associated bacteria; ETI, effector triggered immunity; R, resistance proteins; HR, hypersensitive response; EF, Elongation factor; T2SSs, T3SSs, T4SSs, T6SSs, type 2,3,4,6 secretion systems; LRR, leucine-rich repeat; EFR, elongation factor receptor; FLS2, flagellin sensing 2; vir, virulence; SA, salicylic acid; JA, jasmonic acid; MAP, mitogen-activated protein; 2-DE, two-dimensional polyacrylamide gel electrophoresis; MS, mass spectrometry; MALDI-TOF, matrix-assisted laser desorption/ionization time of flight; LC, liquid chromatography; MS/MS, tandom mass spectrometry; SOD, superoxide dismutase; ROS, reactive oxygen species; hrp, hypersensitive reaction and pathogenicity gene; RuBisCO, ribulose-1, 5-bisphosphate carboxylase/oxygenase; PR, pathogenesis-related; GST, glutathione S-transferase; Hcp, hemolysin- coregulated proteins; OMVs, outer membrane vesicles; CPLL, hexapeptide ligand libraries.
