Review ARTICLE

Front. Plant Sci., 26 July 2013 | https://doi.org/10.3389/fpls.2013.00277

Redox-dependent functional switching of plant proteins accompanying with their structural changes

  • Division of Applied Life Sciences, Gyeongsang National University, Jinju, Korea

Reactive oxygen species (ROS) can be generated during the course of normal aerobic metabolism or when an organism is exposed to a variety of stress conditions. It can cause a widespread damage to intracellular macromolecules and play a causal role in many degenerative diseases. Like other aerobic organisms plants are also equipped with a wide range of antioxidant redox proteins, such as superoxide dismutase, catalase, glutaredoxin, thioredoxin (Trx), Trx reductase, protein disulfide reductase, and other kinds of peroxidases that are usually significant in preventing harmful effects of ROS. To defend plant cells in response to stimuli, a part of redox proteins have shown to play multiple functions through the post-translational modification with a redox-dependent manner. For the alternative switching of their cellular functions, the redox proteins change their protein structures from low molecular weight to high molecular weight (HMW) protein complexes depending on the external stress. The HMW proteins are reported to act as molecular chaperone, which enable the plants to enhance their stress tolerance. In addition, some transcription factors and co-activators have function responding to environmental stresses by redox-dependent structural changes. This review describes the molecular mechanism and physiological significance of the redox proteins, transcription factors and co-activators to protect the plants from environmental stresses through the redox-dependent structural and functional switching of the plant redox proteins.

Introduction

Plant cells produce various kinds of reactive oxygen species (ROS) from internal and external sources, such as hydrogen peroxide (H2O2), superoxide anions, and hydroxyl radicals. They can damage cellular components or act as important signal transduction molecules to trigger the cellular defense signaling cascades (Baier and Dietz, 2005; D’Autreaux and Toledano, 2007; Schwarzlander and Finkemeier, 2013). Thus, it is crucial for cells to detect the levels of ROS and activate defense signaling pathways (Moller and Sweetlove, 2010). To initiate cellular signaling cascades responding to a myriad of environmental signals, plants generate redox gradient across the plasma membrane, change metabolic activities, and trigger the inactivation of the oxidative burst-generating enzymes (Pignocchi and Foyer, 2003; Suzuki et al., 2012).

The alteration in steady-state level of ROS and subsequent changes of intracellular redox potential are important systems to regulate cellular signaling factors linking external stimuli with intracellular signal transduction pathway in response to stresses (Finkel, 2011). Plants are autotrophic organisms that are capable of undergoing photosynthesis by which they absorbed light energy that generate high electron and transport to chloroplasts, mitochondria, and peroxisomes along a cascade of redox components. During the reactions, ATP, NADPH, and other soluble reducing equivalents of ferredoxin (Fd), and thioredoxin (Trx) are generated (Schurmann and Buchanan, 2008). In addition, the thiol/disulfide state strongly regulates the light-dependent modulation of chloroplast enzyme activities (Scheibe, 1991). On the other hand, both the chloroplast and mitochondria originated as bacterial endosymbionts which retain a specialized genome and electron transport chains (ETCs; Murphy, 2009). The ETCs of plant mitochondria and chloroplast are major generator of ROS that contain flavin, metal centers, and quinones as their electron transport centers. Whereas, in the regulation of nuclear gene expression, plant peroxisomes controls intracellular ROS levels, plant photomorphogenesis, plant development, peroxisomal biogenesis, light signaling, and stress responses (Hu et al., 2002). In the moderate to high rates of photosynthesis, the peroxisome becomes the site of massive light-dependent generation of H2O2. They are multi-purpose organelles involved in fatty acid α-oxidation, β-oxidation of very long chain fatty acids, catabolism of purines, and biosynthesis of glycerolipids and bile acids. During the reactions, redox signals play important roles, since peroxisomes produce H2O2 at high rates through the reactions of β-oxidation of long chain fatty acid and glycolate oxidation (Jimenez et al., 1997).

To integrate ROS production from major sources of plant cells, they produce large quantities of redox-materials to buffer the intracellular redox changes by expressing many kinds of soluble hydrophilic antioxidants, ascorbate, glutathione, and redox-regulating proteins including Trx, glutaredoxin (Grx), protein disulfide reductase (PDI), etc. (Figure 1). These compounds are important factors to determine the lifetime of H2O2 and redox potential of plant cells (Noctor and Foyer, 1998; Foyer and Noctor, 2013). Changes in the redox state of these components regulate the expression of both plastome- and nuclear-encoded proteins. Furthermore, the redox information co-ordinates the gene expression located in the compartments of chloroplasts, mitochondria, and nucleus (Allen and Pfannschmidt, 2000). Redox signals also leave the chloroplast and mitochondria to provide a decisive input into transcriptional control of the plant nucleus. Thus, redox signaling plays a key role in the coordination between the cytoplasmic genomes in the chloroplast and mitochondria and the nucleus functioning within the global network of whole plants and it may also provide evidence of many cellular proteins and enzyme activities that should be precisely regulated in response to plant growth, development, and differentiation.

FIGURE 1
www.frontiersin.org

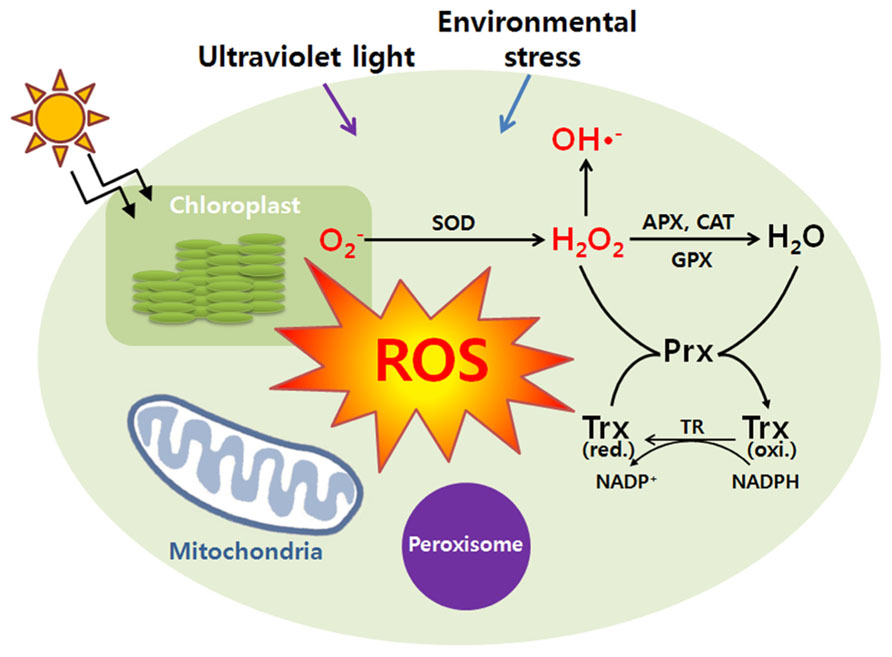

FIGURE 1. Cellular responses against reactive oxygen species. During a variety of stress conditions (UV, environmental stress, etc), reactive oxygen species (ROS) can be generated. At the start of the reaction, a primary ROS which is superoxide anion (O2-) can be formed by the one electron reduction of molecular oxygen. The superoxide anion (O2-) is dismutated by superoxide dismutase (SOD) to hydrogen peroxide (H2O2) which is detoxified by catalase (CAT), ascorbate peroxidase (APX), glutathione peroxidase (GPX), and peroxiredoxin (Prx). Once the superoxide anion (O2-) is formed in the presence of H2O2, it becomes inevitable. Further reactions may lead to the formation of hydroxyl radicals (HO·). Antioxidant proteins protected the damages of ROS leaking from peroxisomes. H2O2 can easily permeate the peroxisomal membrane and play an important role in protection of cells from ROS damages. And various ROS transmitted to the mitochondrion play a role in the adaptive response of mitochondrial redox state, especially for the reduction state of respiratory pathways. The redox signals will be transmitted to the nucleus to regulate plant growth and developments. Trx represents thioredoxin.

Structural and Functional Regulation of Redox-Dependent Transcriptional Factor and Co-Activators

Reactive oxygen species can cause widespread damage to biological macromolecules (Halliwell and Gutteridge, 1990; Alvarez et al., 1998). In order to protect themselves from oxidative stress and ROS-mediated protein unfolding and aggregation, plant cells are equipped with a wide range of antioxidant proteins, including superoxide dismutase, catalase, peroxidases, and diverse forms of molecular chaperones, small heat shock proteins (Hendrick and Hartl, 1993; Dietz, 2003). Furthermore, several moon-light proteins have multiple functions responding to foreign stresses, such as ROS, heat shock, and pathogen attacks, accompanying with their structural changes (Lee et al., 2009; Park et al., 2009; Chae et al., 2013). In this review, we will introduce several representative examples of the proteins which switch their protein structures and functions with a redox-dependent manner in response to external stresses. Redox-regulation is a fine-tuning mechanism for the transcription of plant genomes in nucleus, chloroplast, and mitochondria to co-ordinate with plant development and differentiation along with environmental parameters (Baier and Dietz, 2005; Piippo et al., 2006; Schwarzlander and Finkemeier, 2013). There are several redox sensitive transcriptional factors whose activities are relied on redox- and structure-dependent manner (Tron et al., 2002; Heine et al., 2004; Serpa et al., 2007; Shaikhali et al., 2008, 2012). Among them, the redox-dependent transcriptional factor, Rap2.4a, was isolated and studied as an efficient redox-sensor and transducer of redox status of cells to nucleus to control transcriptional activity of chloroplast antioxidant proteins (Shaikhali et al., 2008). The protein was cloned from a yeast-one-hybrid screening with a cis-regulatory element of 2-Cys peroxiredoxin (Prx)-A gene (2CPA) is grouped into activator protein 2 (AP2)-type transcription factor (Srivastava et al., 2009). Rap2.4a transcriptional activity is regulated by dithiol/disulfide transition of regulatory cysteinyl residues (Shaikhali et al., 2008). During the processes, the protein changes its quaternary structures according to redox status. Under oxidizing conditions, Rap2.4a switches its structure from monomer and dimer to polymers, respectively. And the dimeric form of Rap2.4a plays a critical role as a transcription factor to stimulate nuclear gene expression of the photosynthetic chloroplast enzymes (Shaikhali et al., 2008). Thus, the homodimeric structure of Rap2.4a formed by intermolecular disulfide bond is the active form necessary for DNA binding and transcriptional activity. Also the oxidation of the dimer by H2O2 or reduction by dithiothreitol (DTT) significantly changes its protein structures to make homopolymer and monomer and reduces its DNA binding and transcriptional activity (Figure 2; Shaikhali et al., 2008, 2012).

FIGURE 2
www.frontiersin.org

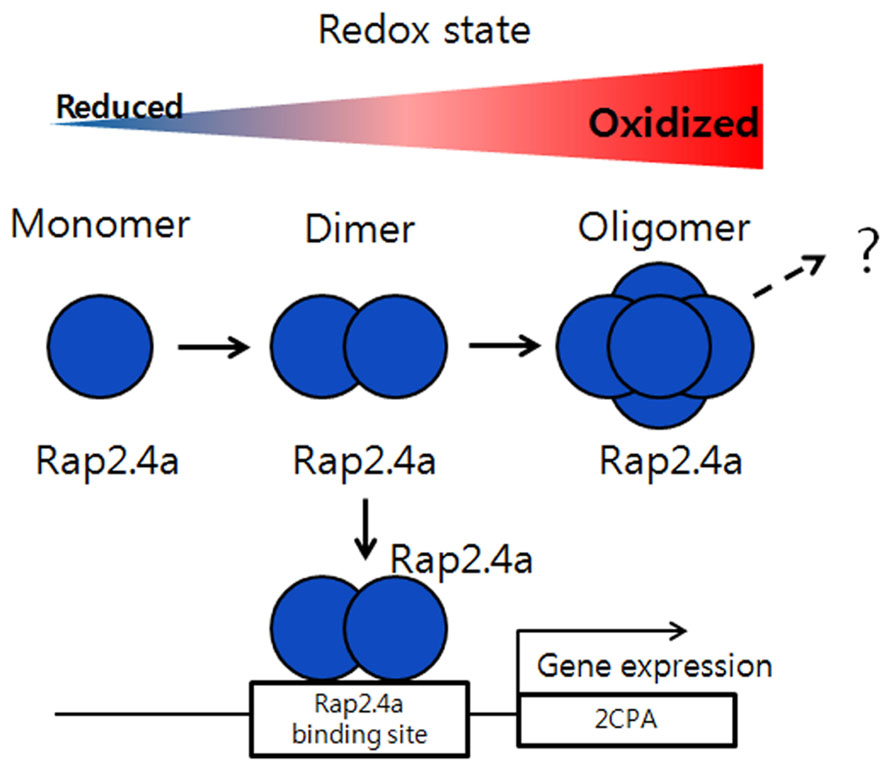

FIGURE 2. Regulation of gene expression by Rap2.4a through redox changes. Under oxidizing conditions, Rap2.4a changes its structure from monomer, dimer to oligomer. The homodimeric structure of Rap2.4a can bind to the DNA promoter of antioxidant like 2-Cys peroxiredoxin and plays as transcription factor to regulate its gene expression. If the redox balance changes to more oxidized condition, the expression level of Rap2.4a is increased. But, during severe oxidative conditions, Rap2.4a expression is decreased and lost its transcriptional activity due to oligomerization. This model is modified from the reference of Shaikhali et al. (2008).

Another example of transcription factor regulating its activity by structural changes is given in basic leucine zipper (bZIP) transcription factor in Arabidopsis, AtbZIP16 (Shaikhali et al., 2012). This protein belongs to the G-group of Arabidopsis bZIP type transcription factors whose promoters are responsive to a variety of environmental stimuli (Kleine et al., 2007). bZip16 has a conserved Cys residues that plays a critical role in redox regulation of the target gene expression, which is proven by the transgenic Arabidopsis overexpressing the Cys mutated variant of bZIP16 (Shaikhali et al., 2012). Multiple protein bands are detected corresponding to monomer, dimer, and oligomer forms of AtbZIP16 in the non-reducing conditions (Shaikhali et al., 2012). And the oligomeric and dimeric forms are reduced by increasing DTT concentrations, which results in a complete conversion to a monomer. In contrast, increasing the concentration of H2O2 produces a gradual loss of the small molecular forms, which suggests that H2O2 induces the formation of very high molecular mass complexes in a reversible way. The high molecular mass oligomers can be reversibly dissociated by the treatment of reducing agents, such as DTT. Only DTT-mediated dissociated AtbZIP16 can bind to DNA promoter and functions as a transcription factor (Shaikhali et al., 2012). The mutated Cys variant form of bZIP16 has an important physiological significance of its conserved Cys residue in redox regulation of gene expression. Based on these data, the redox-dependent structural changes is highly important to modulate the activity of these transcription factors in response to environmental signals.

A typical redox protein regulating its protein structure and functions against external biotic stress can also be found from the transcriptional co-activator, NPR1 (NON-EXPRESSOR OF PR1; Mou et al., 2003; Tada et al., 2008). The gene was originally cloned from Arabidopsis mutant screening to identify the loss of ability to respond to inducers of systemic acquired resistance (SAR) such as salicylic acid (SA), and designated npr-1, nim-1, and sai1, simultaneously. The NPR1 having no DNA-binding domain acts as a co-activator by specifically associated with the specific DNA-binding transcription factor, TGACG sequence-specific binding proteins (TGAs), and plays a critical role in plant pathogen resistance (Grant and Lamb, 2006; Spoel et al., 2009; Maier et al., 2011). NPR1 containing several conserved Cys residues controls the expression of over 2,200 defense response genes in Arabidopsis and has stable structure that forms a high molecular weight (HMW) oligomer, which makes the protein confine at the plant cytoplasm (Mou et al., 2003; Wang et al., 2006). The npr1 mutants neither accumulate pathogen-related (PR) proteins in response to SA nor exhibit resistance against pathogen infection, such as downy mildew. The NPR1 gene contains a BTB (BR-C, ttk and bab)/POZ (Pox virus and Zinc finger) domain at its N-terminus which facilitates dimerization of NPR1 and ankyrin repeats in the central region that is involved in the interaction with TGA sub-family of bZIP transcription factors (Stogios et al., 2005; Boyle et al., 2009). Under the normal conditions, NPR1 exists as an inactive form of oligomers that are associated by intermolecular disulfide bonds in the cytosol (Figure 3). However, the redox changes triggered by SA, a phytohormone produced in response to pathogen attack, induce the release of NPR1 from the oligomers to an active form of monomer by reduction of the intermolecular disulfide bridges (Dong, 2004; Moore et al., 2011; Astier et al., 2012). Then, the NPR1 monomer translocates from the cytosol to nucleus and stimulates the transcriptional activation of defense-related genes through the binding with transcription factors belonging to TGA sub-family (Dong, 2004; Moore et al., 2011; Astier et al., 2012). Particularly, the S-nitrosylation of Cys156 has been shown to trigger conformational changes of NPR1 facilitating disulfide linkage between NPR1 monomers to form inactive homopolymers. During the redox-mediated switching of its function and structures from the inactive oligomers located in cytosol to the active monomeric NPR1 that will be translocated to the nucleus, Trx-h5 plays an important role in the NPR1 dissociate ion and activation. NPR1 may be the most important gene for the preparation of broad spectrum disease-resistant transgenic crops (Cao et al., 1994; Delaney et al., 1995; Shah et al., 1997).

FIGURE 3
www.frontiersin.org

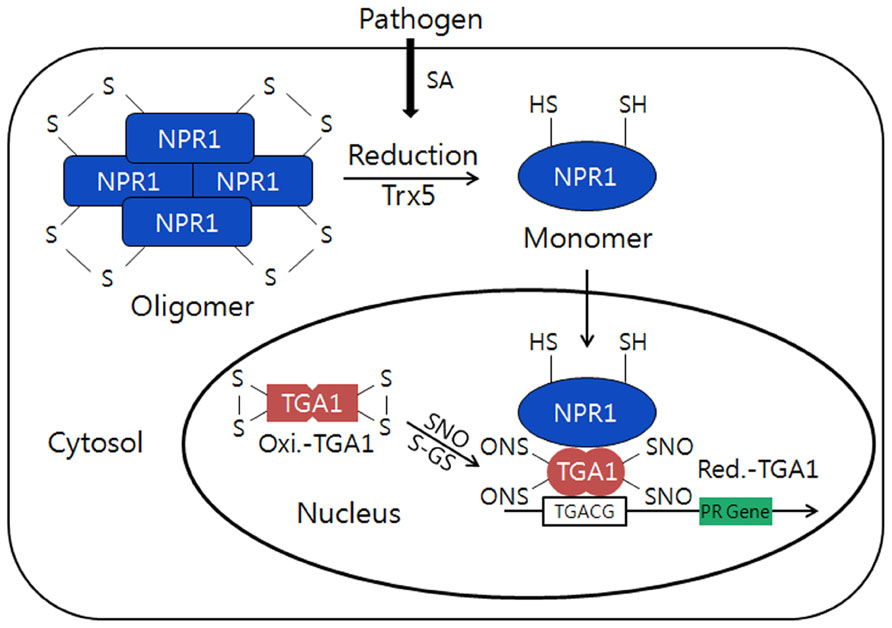

FIGURE 3. Conformational switching from the oligomers to a monomer of NPR1 by redox changes in plants. Under normal conditions, NPR1forms an inactive oligomer structure and is oxidized by intermolecular disulfide bonds in the cytosol. However, during pathogen attack, the NPR1 changes its structure from inactive to active form of monomer through the reduction of the intermolecular bridges by h5-type thioredoxin (AtTrx-h5). Then, NPR1 will be translocated to the nucleus and interacts withTGA1transcription factor that can induce PR gene expression. TGA1 in normal condition is inactive and oxidized form with intramolecular disulfide bonds in the nucleus. However, in stress conditionTGA1 will be reduced and interact with NPR1 and can enhance its DNA binding activity through S-nitrosylation (SNO) and S-glutathionylation (S-GS) by GSNO and glutathione (GSH/GSSG). This model is modified from the reference of Moore et al. (2011).

Functional Switching of Redox Proteins Accompanying with their Redox-Dependent Structural Changes

Thioredoxin is a general disulfide oxidoreductase and a ubiquitous redox protein with a single disulfide bridge in all organisms. The function of Trx is involved in numerous redox-dependent cellular processes, such as activation of ribonucleotide reductase, photosynthetic activity of plant cells, modulation of transcription factors, and promotion of a variety of diseases (Aslund and Beckwith, 1999; Balmer et al., 2003; Ravi et al., 2005). Trxs also control several redox-independent cellular reactions including an assembly of T7 DNA polymerase complex and formation of filamentous phage (Feng et al., 1997; Hamdan et al., 2005). The proteins belonging to Trx group share high amino acid sequence similarity and contain a common structural motif, the Trx-fold. The Trx-fold comprises approximately 80 amino acid residues with a central core of five β-strands that are enclosed by four α-helices and two hydrophobic zones (Katti et al., 1990). The interesting point we want to focus in this review is that some of redox proteins harboring the Trx-fold have been shown to behave as molecular chaperones with their endogenous reductase function. The proteins include Trx-like domain containing protein (TDX), protein disulfide isomerase, and 2-Cys-Prxs (Quan et al., 1995; Jang et al., 2004), etc. To be a molecular chaperone, it should interact with target substrates and switch its protein structures in response to external stresses with a reversible fashion (Jang et al., 2004; Lee et al., 2009; Park et al., 2009). The Trx-fold containing proteins interact with substrate proteins through their hydrophobic surfaces around their active sites and reversibly change the protein structures as the following examples.

Among the various kinds of Trx isoforms, a specific type of Arabidopsis Trx in cytosol, AtTrx-h3, forms various protein structures ranging from low molecular weight (LMW) protein species to HMW homo-complexes, which are verified by size exclusion chromatography, native-PAGE gel, and electro-microscopic analyses (Park et al., 2009). The AtTrx-h3 performs dual functions, acting as a disulfide reductase and as a molecular chaperone, which are closely associated with its differently sized multiple protein structures. The disulfide reductase function is observed predominantly in the LMW forms, whereas the chaperone function predominates in the HMW complexes. The multimeric structures of AtTrx-h3 are regulated by redox status. The reduction of AtTrx-h3 by DTT changes the HMW structures of AtTrx-h3 into LMW protein species, and subsequent treatment of hydrogen peroxide (H2O2) after removal of DTT almost restores the HMW structures of AtTrx-h3. Particularly, the AtTrx-h3 polymeric structures are associated not only by the forces of hydrophobic interaction but also by the redox-dependent disulfide bonds. Two active cysteine residues in AtTrx-h3 are required for disulfide reductase activity, but not for chaperone function. Thus, the active site mutant protein, C39/42S-AtTrx-h3, is not able to reduce disulfide bonds of substrate at all, but has nearly the same chaperone activity as that of native AtTrx-h3 protein. The transgenic lines overexpressing native AtTrx-h3 or C39/42S (DM) mutant AtTrx-h3 having only the chaperone function exhibit enhanced heat shock tolerance compared to wild-type plants. From the results, it can be concluded that the AtTrx-h3 plays a pivotal role in the protection of plant cells from external stresses through its chaperone function (Park et al., 2009).

In addition to the At-Trx-h3, the plant-specific Trx-like protein containing 3 tetratricopeptide repeat (TPR) domains and a Trx motif which is designated AtTDX has a highly heat-stable property. The TPR units in AtTDX are particularly important for protein–protein interaction and formation of multi-protein complexes (Blatch and Lassle, 1999), which are characteristic properties of molecular chaperones. AtTDX has diverse protein structures consisting of monomer, dimer, oligomer, and HMW complexes. The protein also displays multiple functions, acting as a disulfide reductase, foldase chaperone, and holdase chaperone. In particular, the functions of AtTDX are closely associated with its oligomerization status. Like the AtTrx-h3, multimerization of AtTDX enhances its holdase chaperone activity, whereas dissociation promotes its disulfide reductase and foldase chaperone functions. However, when the TPR domains of AtTDX is removed, the truncated protein shows a significant enhancement of its disulfide reductase activity but results in a complete loss of the holdase chaperone function of AtTrx-h3 (Lee et al., 2009). The result suggests the TPR domains of AtTDX completely block the active site of Trx motif and play a critical role in promoting the holdase chaperone function. Moreover, the Cys mutant proteins (C304S, C307S, and C304/307S) of AtTDX do not exhibit disulfide reductase activity but display a similar activity of holdase chaperone function as native AtTDX. The results suggest that the active site Cys residues critically contribute to the reductase function but not the chaperone function. For the regulation of its multiple functions, protein structure of AtTDX is varied against external conditions. The oligomerization status of AtTDX is reversibly controlled by heat shock and ROS concentrations, which cause a transition from LMW to HMW complexes with a concomitant functional switching from a disulfide reductase and foldase chaperone to a holdase chaperone. It is generally known that the chaperone function contributes resistance to cells against external stresses. Thus, when the heat-stressed Arabidopsis of the WT, AtTDX overexpression lines, AtTDX suppression lines, and Cys-mutant (C304/307S) AtTDX overexpression lines having only the holdase chaperone function are returned to their optimal temperature, the transgenic lines overexpressing the native form and C304/307S mutant form of AtTDX recover during the post-stress recovery period. In contrast, AtTDX suppression lines of Arabidopsis show a highly sensitive phenotype against heat shock. The results can conclude that the holdase chaperone function of AtTDX plays a major role in the protection of Arabidopsis from heat stress during the heat shock and/or recovery period (Lee et al., 2009).

Another redox protein sharing a similar regulation mode with AtTrx-h3 and AtTDX proteins can be found from the C-type of NADPH-dependent Trx reductase (NTRC), which is a new member of the plant-specific NADPH-dependent Trx reductase (NTR) family. During the early evolution of chloroplasts, the NTRC appears to be originated from cyanobacteria by the transfer of this gene into the plant genome. The protein contains an N-terminal Trx reductase (TR) domain and a Trx domain at the C-terminus. The functional role of this fusion of domains in NTRC has been verified as an efficient electron donor to 2Cys-Prx (Moon et al., 2006; Perez-Ruiz et al., 2006). Particularly, Arabidopsis NTRC shows enzymatic activity characteristic for each of its separate domains and in a combination of the TR and Trx domains (Moon et al., 2006). The disulfide reductase function of NTRC is coupled with the reducing power, NADPH, which is produced by photosynthetic electron transport systems in the light conditions. The knockout mutant of Arabidopsis NTRC exhibits growth inhibition under stress conditions and shows reduced auxin levels (Serrato et al., 2004; Lepisto et al., 2009). In the letter case, the mutant phenotypes are restored by supplementing growth medium with tryptophan and phenylalanine. Interestingly, it has been reported that the protein structures of NTRC have various oligomeric conformations in other species like rice, barrel medic, and barley (Alkhalfioui et al., 2007; Perez-Ruiz and Cejudo, 2009; Wulff et al., 2011). That is, NTRC assembles into homopolymeric structures of varying complexity with functions as a disulfide reductase, a foldase chaperone, and as a holdase chaperone. The multiple functions of NTRC are also associated with its protein structures. Complexes of HMW show stronger activity as a holdase chaperone, whereas the LMW species exhibit weaker holdase chaperone activity with stronger disulfide reductase and foldase chaperone activities (Table 1). Heat shock converts LMW proteins into HMW complexes and gradually increases the holdase chaperone function of NTRC. Upon the heat shock treatment, NTRC results in a decrease in its disulfide reductase and foldase chaperone activities. In conclusion, heat shock-mediated oligomeric changes of NTRC are closely associated with a change in its functional switching from a disulfide reductase to a molecular chaperone.

TABLE 1
www.frontiersin.org

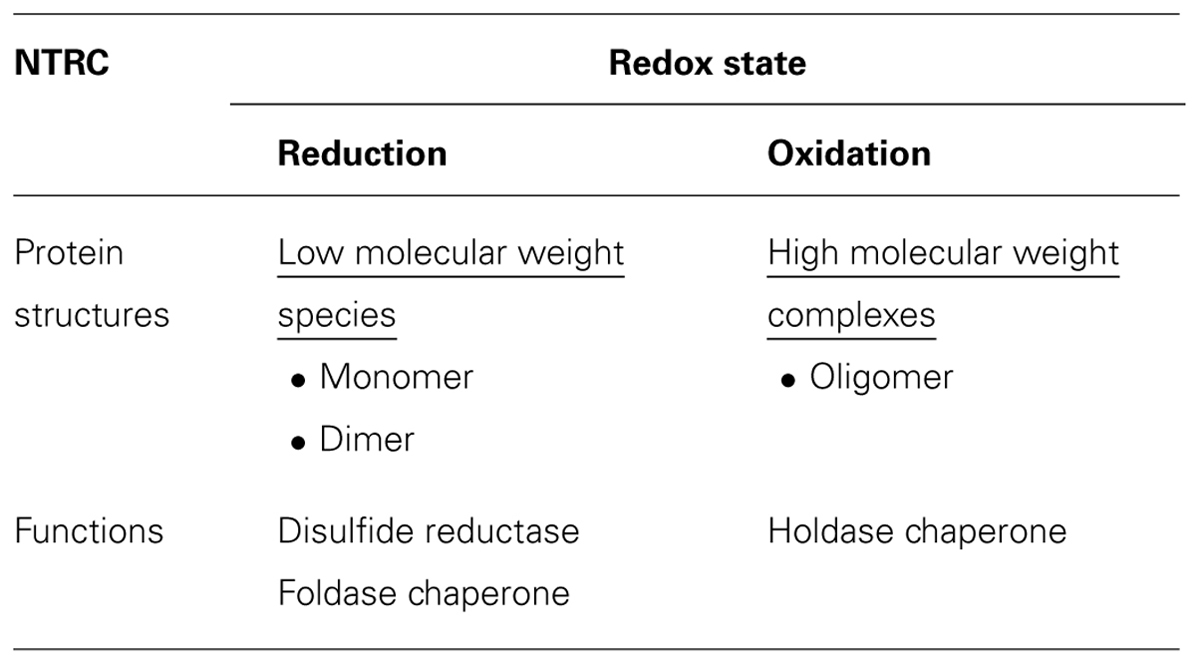

TABLE 1. Structural and functional switching of NTRC in Arabidopsis thaliana in response to redox state.

Conclusion and Perspective

To cope with external stresses, plants regulate their protein functions by employing a number of efficient regulation strategies, such as phosphorylation/dephosphorylation, covalent modification, proteolytic degradation or activation, interacting with partner proteins, and so on. However, at recent, the post-translational modification is identified as one of the most important, rapid and precise methods to respond eukaryotic cells against environmental stresses. The redox-dependent functional switching is a typical scheme for the plant defense systems. Particularly, the functional shift of the redox proteins is accompanied with their structural changes in response to redox changes. In this review, we introduce several examples of the redox proteins to respond environmental circumstances. However, besides the redox proteins in eukaryotes, many redox-independent proteins showing similar regulation pattern with the proteins have also been identified from various sources, such as plant phosphodiesterase, sodium/proton antiporter (NHX), salt overly sensitive 1 (SOS1), mammalian nuclear factor kappa beta (mammalian NF-kB) and AP1, yeast Yap1, bacterial OxyR/S, and so on (Zheng et al., 1998; Toone et al., 2001; Kim et al., 2002, 2012; Hess et al., 2004; D’Autreaux and Toledano, 2007; Salminen et al., 2008; Rodriguez-Rosales et al., 2009; Ji et al., 2013). Thus, these elaborate functional regulation mode allows higher eukaryotic organisms to precisely respond to external stresses and to survive from the harsh and changeable environmental conditions. This review provides valuable insights into how plants can respond to the rapid changes of redox potential induced by biotic/abiotic stresses at the molecular level.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

This work was supported by RDA for the Next-Generation BioGreen Program (SSAC, grant #. PJ008109), by the Cooperative Research Program for Agriculture Science & Technology Development (Project No. PJ007850), and by Basic Science Research Program through the NRF of Korea funded by the MOEST(2012R1A1A2044114).
