Front. Plant Sci., 09 July 2015
Sec. Plant Breeding

Bimodal effect of hydrogen peroxide and oxidative events in nitrite-induced rapid root abscission by the water fern Azolla pinnata

  • 1Department of Biology, Sonoma State University, Rohnert Park, CA, USA
  • 2Biological Systems Unit, Okinawa Institute of Science and Technology, Okinawa, Japan
  • 3Faculty of Science, University of the Ryukyus, Nishihara, Japan
  • 4Center for Environmental Biotechnology, Earth Sciences Division Lawrence Berkeley National Laboratory, Berkeley, CA, USA

In the genus Azolla rapid abscission of roots from floating fronds occurs within minutes in response to a variety of stresses, including exposure to nitrite. We found that hydrogen peroxide, though itself not an inducer of root abscission, modulates nitrite-induced root abscission by Azolla pinnata in a dose-dependent manner, with 2 mM H2O2 significantly diminishing the responsiveness to 2 mM NaNO2, and 10 mM H2O2 slightly enhancing it. Hypoxia, which has been found in other plants to result in autogenic production of H2O2, dramatically stimulated root abscission of A. pinnata in response to nitrite, especially for plants previously cultivated in medium containing 5 mM KNO3 compared to plants cultivated under N2-fixing conditions without combined nitrogen. Plants, including Azolla, produce the small signaling molecule nitric oxide (NO) from nitrite using nitrate reductase. We found Azolla plants to display dose-dependent root abscission in response to the NO donor spermine NONOate. Treatment of plants with the thiol-modifying agents S-methyl methanethiosulfonate or glutathione inhibited the nitrite-induced root abscission response. Synchrotron radiation-based Fourier transform infrared spectromicroscopy revealed higher levels of carbonylation in the abscission zone of dropped roots, indicative of reaction products of polysaccharides with potent free radical oxidants. We hypothesize that metabolic products of nitrite and NO react with H2O2 in the apoplast leading to free-radical-mediated cleavage of structural polysaccharides and consequent rapid root abscission.


Small floating water ferns of the genus Azolla are model systems for studies of abscission (Cohen et al., 2014), dropping roots within minutes in response to heat (Uheda et al., 1999) and to various chemical exposures, including nitrite (Uheda and Kitoh, 1994; Gurung et al., 2012).

To assess the abscission response intact plants can be placed onto a test solution and observed for root dropping. Alternatively, roots may be pulled from the frond, immersed into test solution and then observed for expansion and separation of abscission zone cells. Studies on pulled roots of Azolla filiculoides found that exposure to the protease papain nearly abolished the abscission response, demonstrating an essential function for extracellular proteins (Uheda et al., 1994), and that neither actinomycin D nor cyclohexamide inhibit the abscission response, indicating that such proteins are preformed (Uheda and Kitoh, 1994). An increase in apoplastic pH, which is typically in the range of pH 5–6 in plants (Palmgren, 2001), is likely to be a proximate stimulus for abscission since immersion of pulled roots in buffered solutions having pH ≥ 6.7 results in near immediate cell separation at the abscission zone (Uheda et al., 1994). Consistent with this, immersion in acidic buffers abolishes responsiveness to abscission-inducing compounds (Uheda and Kitoh, 1994) while treatment with various protonophores rapidly induces cell separation (Uheda and Kitoh, 1994).

The finding that the dissolution of middle lamella of abscission zone cells cannot be reproduced by exogenously provided cell wall-degrading enzymes (Uheda et al., 1994; Fukuda et al., 2013), as well as the rapid speed of the process, led to the hypothesis that free radical-mediated breakage of cell wall polysaccharides occurs during rapid abscission (Fukuda et al., 2013). Such oxidative non-hydrolytic cleavage of cell wall polysaccharides has been observed in other processes that involve cell wall loosening, including seed germination, cell elongation (Schopfer, 2001; Müller et al., 2009), and fruit ripening (Fry et al., 2001). Supporting this hypothesis, histochemical evidence of oxidative reactions was found in the abscission zone of abscised roots of A. filiculoides and, furthermore, abscission could be induced by treatment of plants with agents that generate hydroxyl radicals (⋅OH) via a Fenton-type reaction (Yamada et al., 2015).

Plant cell wall associated peroxidases are capable of generating ⋅OH that can cleave (Liszkay et al., 2003) and carbonylate cell wall polysaccharides (Fry, 1998; Fry et al., 2001; Marnett et al., 2003). Recent advancements in synchrotron radiation-based Fourier transform infrared (SR-FTIR) spectromicroscopy have allowed for detection of functional groups including carbonyls in situ rather than by the traditional analysis of extracts (Holman et al., 2010; Lacayo et al., 2010). One limitation in applying this technique is that samples must be thin enough to allow for transmission of the light beam. In this regard the thinness of Azolla roots presents an advantage since there is no need to carry out thin-sectioning of samples prior to spectroscopic analysis.

Here we report pharmacological studies that indicate a role for thiol-targeted oxidative events in regulating the abscission process as well as SR-FTIR spectromicroscopic evidence of free radical attack in the abscission zone of dropped roots.

Materials and Methods

Plant Material and Surface Sterilization

Laboratory cultures of Azolla pinnata were established from plants collected in December 2012 and May 2014 from a taro field in Ginowan, Okinawa, Japan. The plants were thoroughly washed to remove attached mud and debris. The plants were then treated with a solution of 0.12% sodium hypochlorite and 0.01% Triton X-100 for 30 min followed by repeated washings in a large volume of distilled water and finally transferred into nutrient medium (Peters and Mayne, 1974).

Nutrient medium and culture conditions

A. pinnata was cultured in a two-fifth strength cobalt-supplemented nitrogen-source-free Hoagland’s E-medium (Gurung et al., 2012). Medium pH was adjusted to 5.8 with potassium hydroxide. Plants were grown in a plant growth chamber (Type FLI-2000H, Eyla, Japan) maintained at 27 ± 1°C, 80% humidity, 16:8 h light:dark photoperiod and 50 μmol m-2 s-1 (at plant level) provided by fluorescent lamps (Type FL 40 SBR-A, NEC, Japan). For experiments 15 to 20 fronds were randomly selected from the culture stock and de-rooted manually using forceps. Rootless fronds were cultured in nutrient medium after rinsing in distilled water. The plants were transferred to a fresh medium every 4 days.

Synchrotron Radiation-Based Fourier Transform Infrared Spectromicroscopy

Plant samples were prepared for SR-FTIR spectromicroscopy by freeze drying. Roots from A. pinnata were selected under a visible microscope and enclosed between two CaF2 infrared crystals in order to assure the planarity of the sample. For each treatment at least two regions were selected for measurement, one close to the abscission zone and one few millimeters apart, as an internal control. IR maps were collected at infrared beamlines of the Advanced Light Source (, mid-infrared photons (∼2.5–15.5 μm wavelength λ, or ∼4000–650 cm-1 wavenumber) emitted from the synchrotron bending magnet are focused down to a 0.76 diffraction-limit spot size with a Nicolet Continuum infrared microscope, coupled to a Nicolet 6700 FTIR Spectrometer (Thermo Fisher Scientific Inc.), using a 32X objective with 0.65 numerical aperture. Each map was acquired with a spatial resolution of 5 μm. Spectra were corrected for water vapor and CO2 and converted in ENVI format. An average spectrum was calculated for abscission and control zones from all maps and treatments, and then a cluster analysis was performed calculating the Euclidian distances of the second derivative of vector normalized spectra in the range from 1800 to 1200 cm-1 using the Ward’s method for the agglomerative hierarchical clustering procedure. Wavenumber FTIR peak identities were assigned based on Socrates (2004). Moreover seasonal differences were identified by analyzing the spectral difference of the controls. The same approach was used to highlight chemical differences in the samples due to the specific treatment, considering the difference between treated and control from the same batch, and chemical differences of the abscission zone from the control zone in the same root. The difference spectra were calculated after applying vector normalization on the whole 1800–1200 cm-1 interval.

Chemical Treatment of A. pinnata

Abscission assays were carried out using roots of equal age (i.e., from fronds that had been de-rooted at the same time, 9–12 days prior to preforming the assay). 2 to 3 fronds (20–30 roots) were suspended in a beaker containing 20 ml 10 mM potassium phosphate buffer at pH 7. The chemicals to be tested, sodium nitrite (hereafter referred to as nitrite), H2O2, 2-(4-carboxyphenyl)-4,4,5,5-tetramethyl-imidazole-1-oxyl-3-oxide (carboxy-PTIO), and spermine NONOate (SNN; Cayman Chemicals Company, Ann Arbor, MI, USA) were subsequently supplied as concentrated stock solutions. The total number of dropped roots following addition of the chemicals was recorded every 10 min for up to 2.5 h. The abscission response was quantified as the ratio of the detached to the initial number of roots.

For some trials the plants were co-incubated or pre-incubated with other chemicals in 10 mM potassium phosphate buffer. 20 mM glutathione (GSH) was added to 2 mM nitrite-treated plants at three time intervals: at the same time (t = 0) and 30 and 60 min after initiation of nitrite treatment. Nitrite-treated plants without any GSH addition served as controls. For trials testing the effect of S-methyl methanethiosulfonate (MMTS), which covalently sulfenylates the sulfur of cysteine residues, plants were pre-incubated with 1 mM MMTS for 60 min followed by addition of 4 or 6 mM nitrite. We used higher levels of nitrite for this set of experiments because this batch plants showed less than typical responsiveness to 2 mM nitrite.


The means of abscission responses to treatments, quantified as percent of roots dropped, were compared by ANOVA and subjected to a Tukey-Kramer test of significance using SAS/STAT(R) 9.22 (SAS Institute Inc., Cary, NC, USA).


Combinatorial Effect of Nitrite and Hydrogen Peroxide on A. pinnata Root Abscission

In other plant systems Sakamoto et al. (2008) have described a H2O2 burst coinciding with leaf abscission that would presumably provide substrate for ⋅OH generation (Liszkay et al., 2003). This H2O2 burst is apparently distinct from the lower level of H2O2 production that functions in the abscission signaling process. We have previously reported that treatment of A. pinnata plants with up to 10 mM H2O2 alone does not induce root abscission (Gurung et al., 2012). However, in combination with the known abscission-inducing agent nitrite, treatment of plants with H2O2 exhibited a pronounced effect that depended on the concentration and timing of the H2O2 treatment relative to exposure to nitrite (Figures 1A,B). The inhibitory effect of 2 mM H2O2 on root abscission induced by 2 mM nitrite could be overridden by the further addition of nitrite (>4 mM nitrite; Figure 1C).

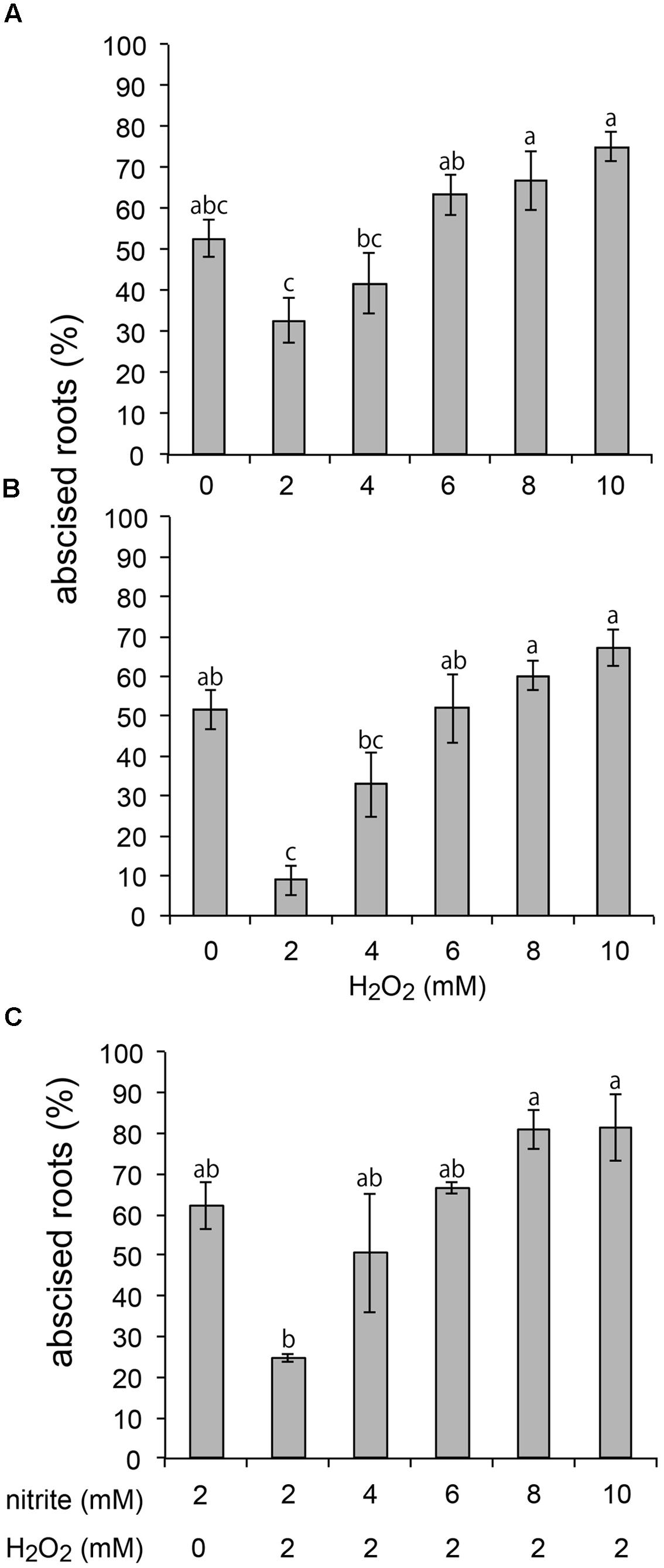

FIGURE 1. Combined effect of nitrite and H2O2 on root abscission of Azolla pinnata plants. Abscission was measured 90 min after 2 mM nitrite was added. 2, 4, 6, 8, or 10 mM H2O2 were added (A) simultaneous with or (B) 60 min before addition of nitrite. (C) 2 mM H2O2 was added simultaneously with 2, 4, 6, 8, or 10 mM nitrite (A, n = 7; B, n = 8, C, n = 2, mean ± SE; means with the same letter are not significantly different).

Fluorescence, indicative of phenolics accumulation (Yamasaki et al., 1995), in the root tip region formerly inserted in the frond was not discernibly different in roots dropped from plants treated with 2 mM nitrite and 10 mM H2O2 compared to the same region of untreated pulled roots (Figure 2). Release of bubbles following addition of H2O2 (presumably due to catalase activity) was qualitatively stronger at the root tip than other portions of the root and was noticeably diminished in roots that had been abscised by following exposure to 5 mM nitrite (Supplementary Figure S1).


FIGURE 2. Effect of combined treatment with nitrite and hydrogen peroxide on proximal root ends. Representative proximal ends of A. pinnata roots from plants were (A,B) untreated and removed from the frond by pulling or (C,D) dropped following simultaneous treatment with 2 mM nitrite and 10 mM H2O2 for 120 min. (A,C) Light, (B,D) fluorescence (excitation 380 nm) microscopic images; scale bar, 200 μm.

Exposure of plants to hypoxia induces generation of H2O2 (Blokhina et al., 2001). We observed that hypoxia in combination with 2 mM nitrite induced abscission to a greater extent than did treatment with 2 mM nitrite alone (Figure 3); hypoxia without nitrite supplementation did not induce abscission (results not shown). Plants that had been cultivated in medium containing 5 mM potassium nitrate prior to the assay showed significantly less responsiveness to hypoxia (Figure 3).

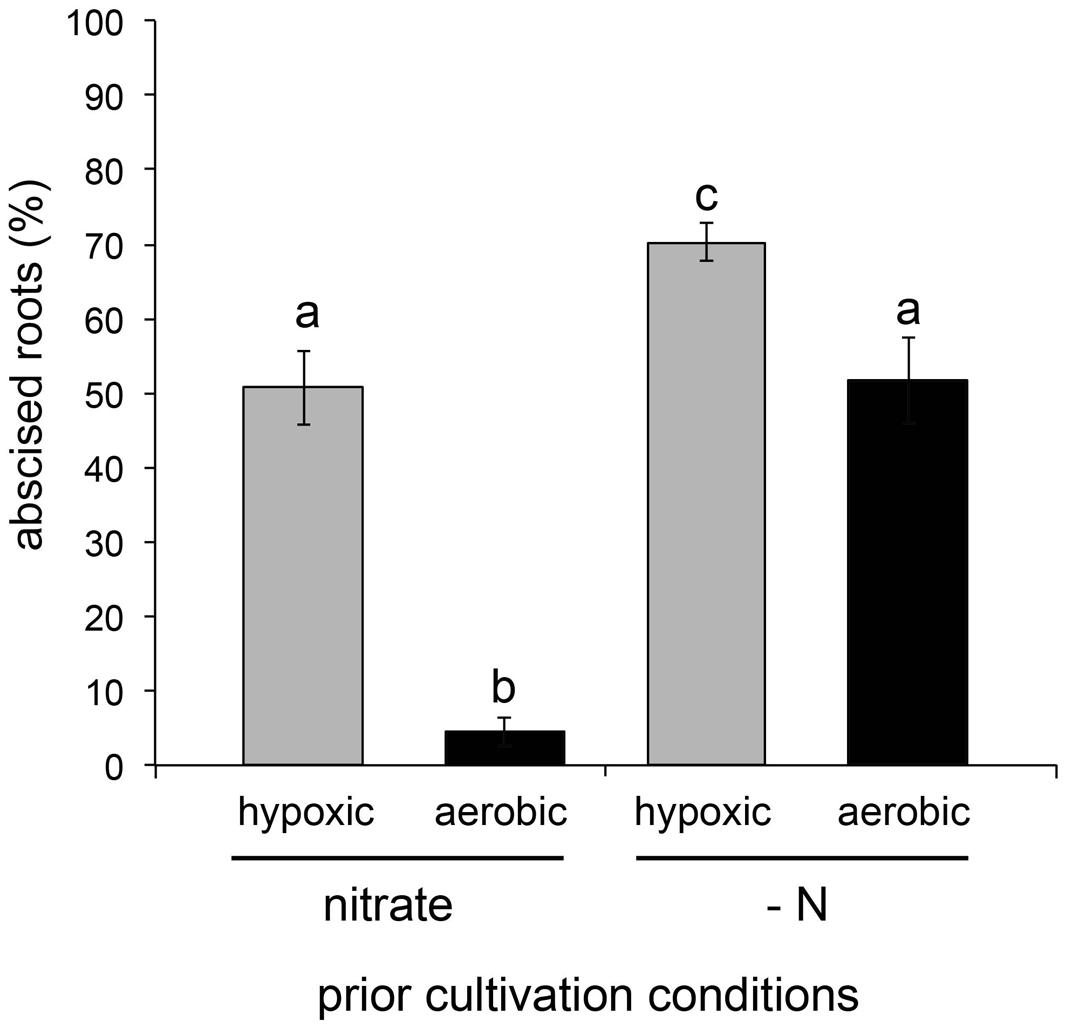

FIGURE 3. Effect of hypoxia on abscission induced by 2 mM nitrite treatment of plants with or without prior cultivation in medium containing 5 mM nitrate. Abscission under hypoxic or aerobic conditions was measured 150 min after addition of nitrite (means ± SE; hypoxia, n = 4; aerobic, n = 6).

Plants, including A. pinnata, can convert nitrite to nitric oxide (NO; Yamasaki, 2005; Gurung et al., 2012), from which a variety of reactive nitrogen species (RNS) can be generated (Fukuto et al., 2012). A role for NO in nitrite-induced root abscission was implied by the reduction in abscission observed of nitrite-treated plants in the presence carboxy-PTIO, which oxidizes NO; the inhibitory effect of carboxy-PTIO was substantially diminished by increasing the concentration of nitrite (Supplementary Figure S2). Consistent with this finding, treatment of plants with the NO donor SNN elicited a strong dose-dependent abscission induction response (Figure 4).

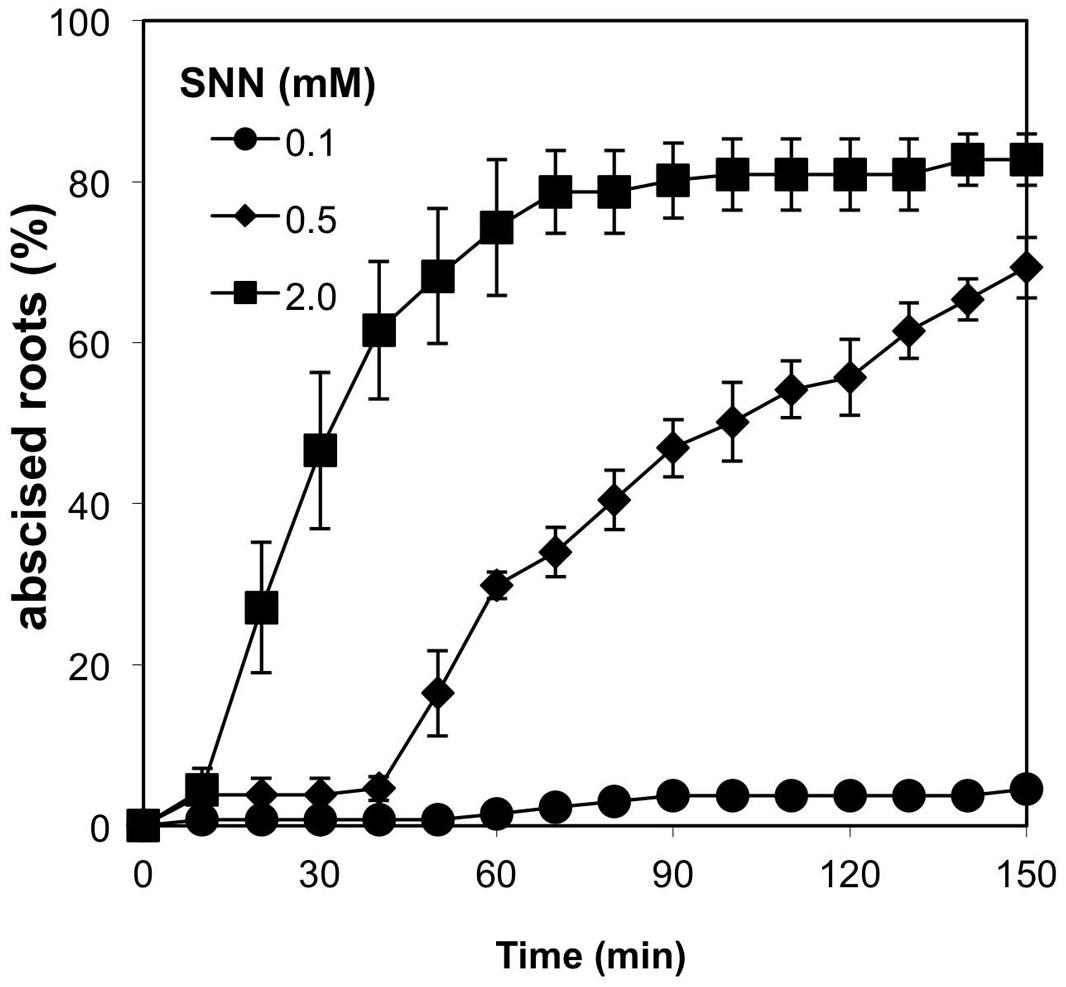

FIGURE 4. Dose-dependent induction of A. pinnata root abscission by spermine NONOate (SNN). 0.1 mM (n = 3), 0.5 mM (n = 4), 2.0 mM (n = 4; means ± SE).

Thiol-Active Treatments Suppressing Induction of Abscission

Nitrite-induced abscission was suppressed by treatment of plants with MMTS (Figure 5) or GSH (Figure 6). 20 mM GSH nearly prevented the abscission response to 2 mM nitrite and when added at 30 or 60 min following nitrite prevented further abscission (Figure 6).

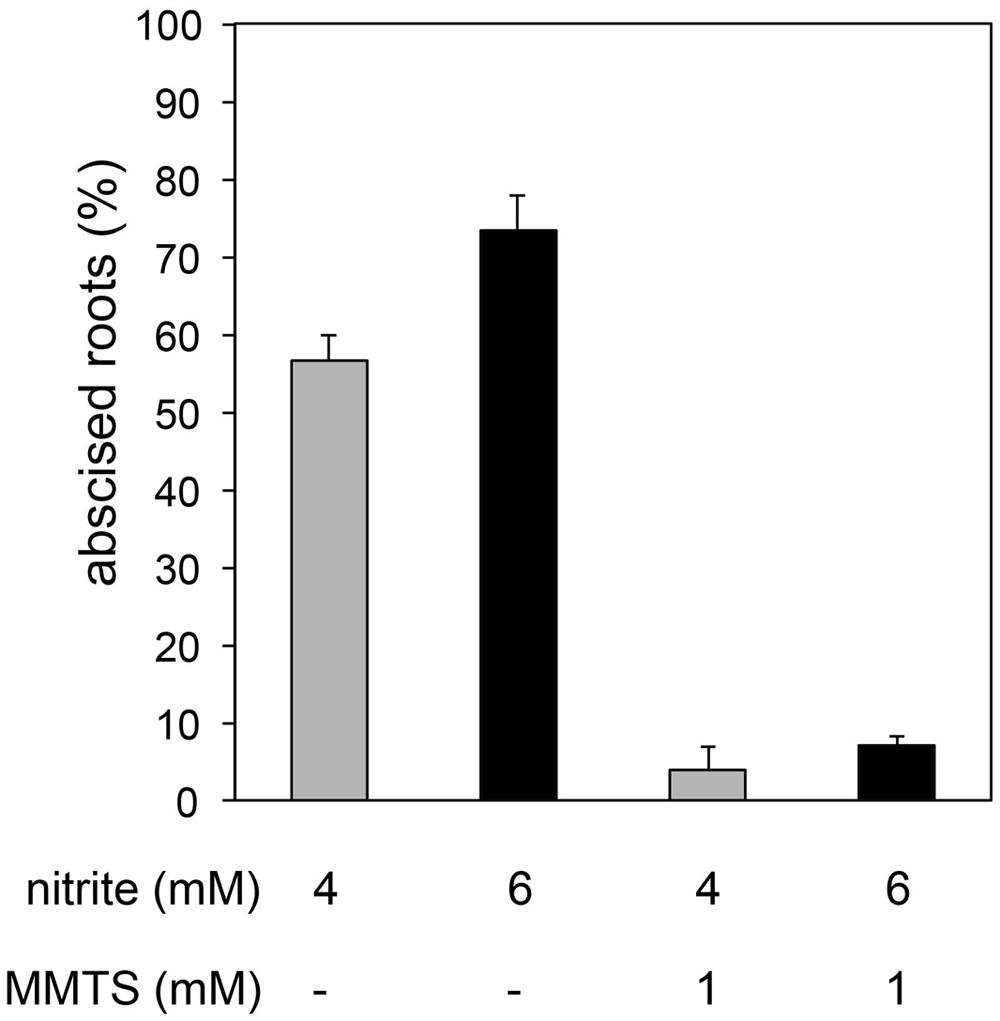

FIGURE 5. Effect of the thiol-sulfenylating agent methyl methanethiosulfonate (MMTS) on nitrite-induced root abscission. Plants were pre-treated with 1 mM MMTS for 60 min and abscission measured 90 min after addition of nitrite (means ± SE; 4 mM nitrite n = 5, 6 mM nitrite, n = 3).

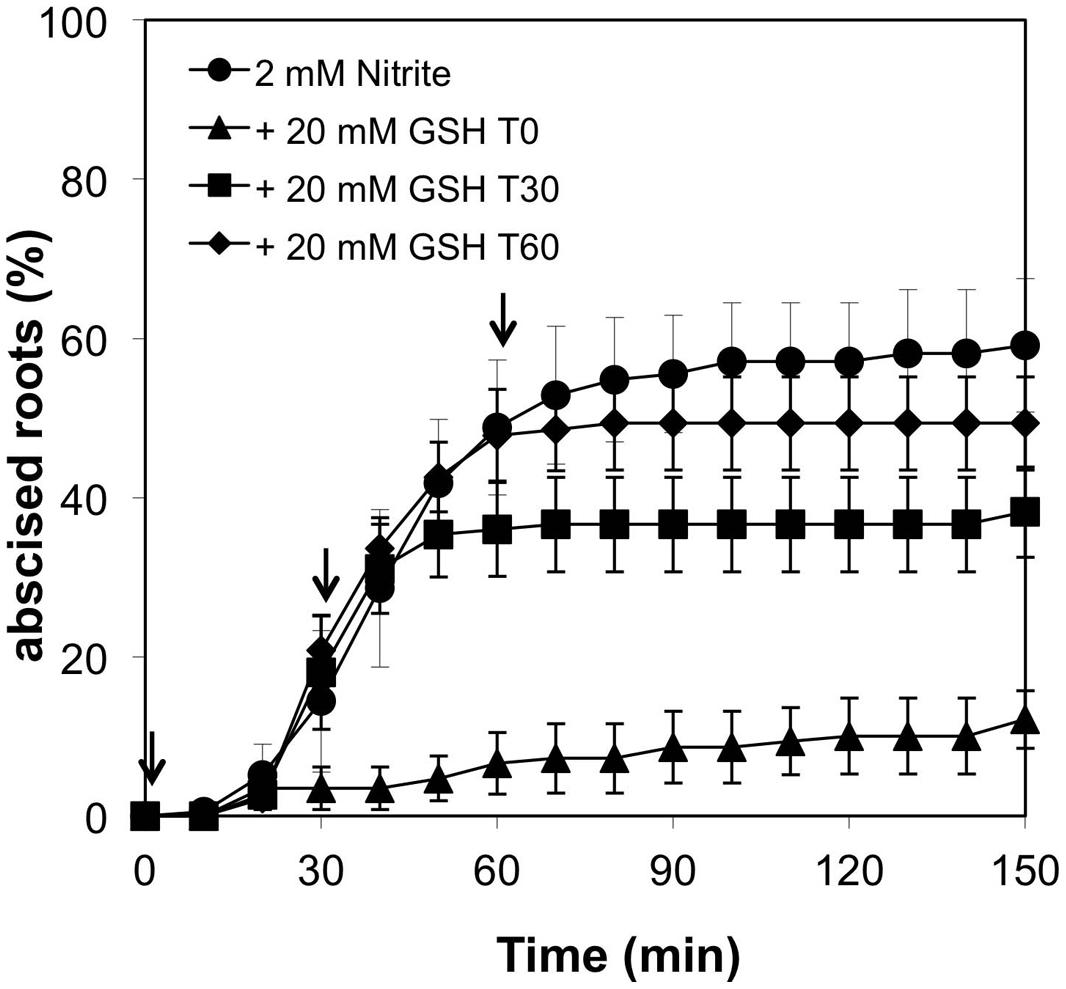

FIGURE 6. Effect of glutathione (GSH) on nitrite-induced root abscission. 20 mM GSH was added at various time points (arrows) following addition of 2 mM nitrite (means ± SE, n = 4).

SR-FTIR Demonstration of Abscission Zone Carbonyl Formation

The chemical maps presented in Figure 7A show the SR-FTIR intensity of the ratio of the C=O (non-peptide) signal (1780–1705 cm-1) to the C–O–R signal (1705–1550 cm-1); the ratio was chosen in order to not be affected by difference of thickness between the measured areas. The tips encompassing the abscission zone of dropped roots are richer in C=O than other root parts. By using agglomerative cluster analysis on the average spectra of A. pinnata exposed to different conditions, we can observe that there always is a segregation of tips (red in Figure 7B) and internal parts (blue in Figure 7B) of the roots. This phenomenon means that the spectral features, hence chemical composition, of the tips are more similar between themselves than the other internal parts of the same roots and the tips of the untreated control roots (green in Figure 7B). Looking at the difference spectra presented in Figures 7C,D it can be seen that the abscised tips show increases in signal at ∼1740 cm-1 in the SR-FTIR spectrum, indicative of carbonyl groups that are formed upon ⋅OH attack of cell wall polysaccharides (Fry, 1998; Fry et al., 2001; Marnett et al., 2003). This increase occurs on top of a pre-existing peak in this range arising from C=O containing molecules in the plant tissue, including carboxylic acid groups from methylated pectin (Szymanska-Chargot and Zdunek, 2013). Importantly, in the frond attachment point of untreated roots this characteristic peak is from 4 to 6 times less intense. Appearance of carbonyl groups would not be expected if only enzymatic hydrolysis of polymers were occurring in the cell wall. Thus, these results support the model for ⋅OH-mediated cell wall dissolution. Furthermore, evidence of increased oxidation in the treatment can be seen in peaks within the range 1430–1335 cm-1 due to the symmetric stretching of CO2- in carboxylates and 1320–1210 cm-1 from the stretching of C-O groups, which can result from ⋅OH attack of biological molecules (Nappi and Vass, 1998). Lastly, we can assign the signal at 1460–1430 cm-1 to peroxy acids, whose O–H bending shifts toward 1430 cm-1 for long-chain linear acids that may originate from the oxidation of cell wall carbohydrates. Other important signals that are clearly detectable in the difference spectra of the nitrite treatments in Figures 7C,D are those arising from NO3- and NO2-, respectively, at 1380 and 1254 cm-1 (Mallard, 2015).

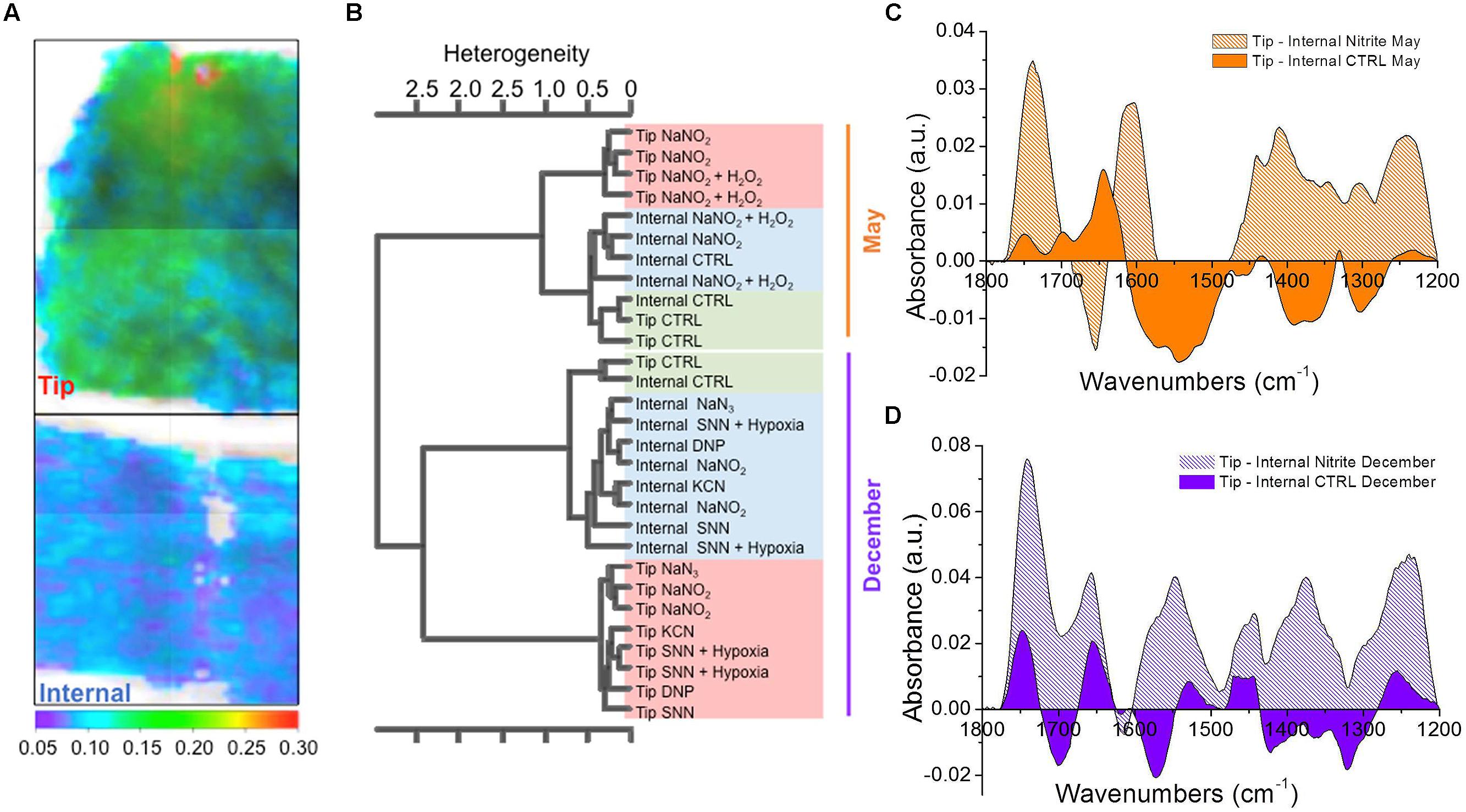

FIGURE 7. Synchrotron radiation-based Fourier transform infrared (SR-FTIR) spectromicroscopy of A. pinnata roots. (A) Micrograph showing representative SR-FTIR-scanned regions of a root tip and internal part of an abscised root overlain with the respective chemical maps of ratio C=O (non-peptide) signal (1780–1705 cm-1) to the C–O–R signal (1705–1550 cm-1). (B) Cluster analysis of SR-FTIR spectra taken of regions at abscised root tips, internal regions >1 mm away from abscised root tips, and at the abscission zone and internal regions of untreated pulled roots. Chemical treatments were 2 mM NaNO2, 10 mM H2O2, 1 mM SNN and known inducers of root abscission 0.5 mM NaN3, 1 mM dinitrophenol (DNP), and 5 mM KCN (Uheda and Kitoh, 1994). (C,D) Representative SR-FTIR difference spectra of tip and internal root regions of NaNO2-treated and untreated plants sampled in May (C) and December (D).

Seasonal differences are apparent in Figure 7B, which shows primary clustering by sampling date (December and May), and in comparing the distinct difference spectra of tips of untreated roots in Figures 7C,D. Large-scale seasonal changes in tissue concentrations deoxyanthocyanins, carotenoids, and chlorophyll known to occur in Azolla species (Cohen et al., 2002; Kösesakal, 2014) may account for these seasonal spectral differences.


Previous reports have pointed to the functioning of preformed extracellular proteins in the rapid root abscission process of Azolla (Uheda and Kitoh, 1994) with evidence of free radical, rather than hydrolytic enzyme, mediated cleavage of apoplastic polysaccharides (Fukuda et al., 2013; Yamada et al., 2015). Our results show the abscission process to be influenced by agents that react with or generate compounds that react with thiols, including GSH, MMTS, and H2O2 in combination with nitrite (Heinecke and Ford, 2010). The effect of H2O2 on nitrite-induced abscission, from inhibitory at <4 mM to stimulatory at >8 mM, is consistent with the bimodal action of H2O2 on leaf abscission in other systems, behaving as a regulator at low concentrations and as an agent of cell wall dissolution at higher concentrations (Nappi and Vass, 1998). The greater inhibition of nitrite-induced abscission following 60 min pretreatment with H2O2 (Figure 1B) compared to concomitant addition (Figure 1A) could imply H2O2 acting as a signal to activate the antioxidant capacity, including upregulating biosynthesis of thiol compounds like GSH, as has been shown in other plant systems (Foyer and Noctor, 2011). Higher concentrations of H2O2 may favor conditions that generate ⋅OH-like potent oxidants with consequent cell wall loosening events (Supplementary Figure S3; Cohen et al., 2014 and references therein).

The positive effect of hypoxia on nitrite-induced abscission may be due to hypoxia-stimulated production of H2O2; transition into hypoxia is known to result in H2O2 production in plants (Blokhina et al., 2001) but was not measured in our experiments. The lower responsiveness of nitrate-grown plants to nitrite may be due to competition of nitrate with nitrite for the active site of nitrate reductase, thereby lowering the production of NO by this enzyme (Rockel et al., 2002). Consistent with this observation, tungsten, a non-specific inhibitor of nitrate reductase, also significantly lowered abscission responsiveness to nitrite (Gurung, 2014).

The putative thiol in the target protein may be positioned such that it can only be modified via reactions that occur at the nearby iron rather than through external nitrating agents like NO2 gas. The finding that, of the many RNS molecules and donors tested, only the polyamine NO donor SNN induced abscission may indicate a necessity for generating near the site of action; the affinity of polyamines for plant cell walls is well documented (Zepeda-Jazo et al., 2011). Spermine can itself serve as an inducer of root abscission but the response does not initiate until after 50 min of exposure and does not require the activity of the H2O2-producing polyamine oxidase (Gurung et al., 2012). NO may also be involved in the abscission-inducing mechanism of the most potent inducer of Azolla root abscission, sodium azide (Uheda and Kitoh, 1994), which is converted to NO (presumably via HNO) by catalase (Gurung et al., 2014).

The presumptive apoplastic protein target of chemical abscission inducers is most likely already positioned in the apoplast before the abscission-inducing event, based on the rapidity of the response and its insensitivity to cycloheximide (Uheda and Kitoh, 1994). In citrus, Gaspar et al. (1978) demonstrated that activity of preformed peroxidases are upregulated in abscission zones in response to ethylene treatment. Cell wall peroxidases are capable of catalyzing the production of ⋅OH from H2O2 (Liszkay et al., 2003) and could conceivably be a regulatory target in Azolla abscission zones (Cohen et al., 2014). Several lines of evidence implicate free radical attack in the dissolution of pectin seen during abscission in Azolla and other plants (Fry et al., 2002; Fukuda et al., 2013; Yamada et al., 2015) and are consistent with the SR-FTIR spectromicroscopic results reported here.

An increase in the FTIR signal at ∼1740 cm-1 as we have observed in the Azolla root abscission zone has been observed of other oxidative plant cell wall degradation processes that are known to result in formation of C=O groups, including UV-irradiation (Müller et al., 2003) and microbial degradation of wood (Gilardi et al., 1995) and periodate oxidation of cellulose (Spedding, 1960).

Our findings provide more evidence for ⋅OH formation in cell wall cleavage events during the abscission process of A. pinnata and lay a foundation for use of SR-FTIR spectromicroscopy for abscission studies. The demonstration of this application for SR-FTIR microscopy is important because tools for investigating the role of hydroxyl radicals in the abscission process are currently limited to 3H fingerprinting (Müller et al., 2009). In spite of the rapidity of their abscission response and ease of experimental manipulation Azolla species have been considered to be “not suitable for biochemical studies on abscission because the abscission zone is very small” (Uheda and Nakamura, 2000). With the advent of SR-FTIR microscopy the small size of Azolla roots can now be seen as an advantage for study since their thinness allows for the penetration of the light beam, allowing us to examine biochemical changes more readily in Azolla than in the thicker abscission zones of other species.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.


We thank Jon Fukuto, My Vu Ngyuen, Tamas Torok, and Naoko Watanabe for technical assistance. Support for this work was provided in part by the Berkeley Synchrotron Infrared Structural Biology (BSISB) Program which is funded by the U.S. Department of Energy Office of Biological and Environmental Research (DOE/BER). The Advanced Light Source is supported by the Director, Office of Science of the U.S. Department of Energy under contract No. DE-AC02-05CH11231.

Supplementary Material

The Supplementary Material for this article can be found online at:


Blokhina, O. B., Chirkova, T. V., and Fagerstedt, K. V. (2001). Anoxic stress leads to hydrogen peroxide formation in plant cells. J. Exp. Bot. 52, 1179–1190. doi: 10.1093/jexbot/52.359.1179

PubMed Abstract | CrossRef Full Text | Google Scholar

Cohen, M. F., Gurung, S., Fukuto, J. M., and Yamasaki, H. (2014). Controlled free radical attack in the apoplast: a hypothesis for roles of O, N and S species in regulatory and polysaccharide cleavage events during rapid abscission by Azolla. Plant Sci. 217, 120–126. doi: 10.1016/j.plantsci.2013.12.008

PubMed Abstract | CrossRef Full Text | Google Scholar

Cohen, M. F., Sakihama, Y., Takagi, Y. C., Ichiba, T., and Yamasaki, H. (2002). Synergistic effect of deoxyanthocyanins from symbiotic fern Azolla spp. on hrmA gene induction in the cyanobacterium Nostoc punctiforme. Mol. Plant Microbe Interact. 15, 875–882. doi: 10.1094/MPMI.2002.15.9.875

PubMed Abstract | CrossRef Full Text | Google Scholar

Foyer, C. H., and Noctor, G. (2011). Ascorbate and glutathione: the heart of the redox hub. Plant Physiol. 155, 2–18. doi: 10.1104/pp.110.167569

PubMed Abstract | CrossRef Full Text | Google Scholar

Fry, S. (1998). Oxidative scission of plant cell wall polysaccharides by ascorbate-induced hydroxyl radicals. Biochem. J. 332, 507–515.

PubMed Abstract | Google Scholar

Fry, S. C., Dumville, J. C., and Miller, J. G. (2001). Fingerprinting of polysaccharides attacked by hydroxyl radicals in vitro and in the cell walls of ripening pear fruit. Biochem. J. 357, 729. doi: 10.1042/0264-6021:3570729

PubMed Abstract | CrossRef Full Text | Google Scholar

Fry, S. C., Miller, J. G., and Dumville, J. C. (2002). A proposed role for copper ions in cell wall loosening. Plant Soil 247, 57–67. doi: 10.1023/A:1021140022082

PubMed Abstract | CrossRef Full Text | Google Scholar

Fukuda, K., Yamada, Y., Miyamoto, K., Ueda, J., and Uheda, E. (2013). Separation of abscission zone cells in detached Azolla roots depends on apoplastic pH. J. Plant Physiol. 170, 18–24. doi: 10.1016/j.jplph.2012.08.008

PubMed Abstract | CrossRef Full Text | Google Scholar

Fukuto, J. M., Carrington, S. J., Tantillo, D. J., Harrison, J. G., Ignarro, L. J., Freeman, B. A., et al. (2012). Small molecule signaling agents: the integrated chemistry and biochemistry of nitrogen oxides, oxides of carbon, dioxygen, hydrogen sulfide, and their derived species. Chem. Res. Toxicol. 25, 769–793. doi: 10.1021/tx2005234

PubMed Abstract | CrossRef Full Text | Google Scholar

Gaspar, T., Goren, R., Huberman, M., and Dubucq, M. (1978). Citrus leaf abscission. Regulatory role of exogenous auxin and ethylene on peroxidases and endogenous growth substances. Plant Cell Environ. 1, 225–230. doi: 10.1111/j.1365-3040.1978.tb00765.x

CrossRef Full Text | Google Scholar

Gilardi, G., Abis, L., and Cass, A. E. G. (1995). Carbon-13 CP/MAS solid-state NMR and FT-IR spectroscopy of wood cell wall biodegradation. Enzyme Microb. Technol. 17, 268–275. doi: 10.1016/0141-0229(94)00019-N

CrossRef Full Text | Google Scholar

Gurung, S. (2014). Rapid Root Abscission Phenomenon in the Water Fern Azolla pinnata. Ph.D. Thesis, University of the Ryukyus, Nishihara, 97.

Google Scholar

Gurung, S., Cohen, M. F., Fukuto, J., and Yamasaki, H. (2012). Polyamine-induced rapid root abscission in Azolla pinnata. J. Amino Acids 2012:9. doi: 10.1155/2012/493209

PubMed Abstract | CrossRef Full Text | Google Scholar

Gurung, S., Cohen, M. F., and Yamasaki, H. (2014). Azide-dependent NO emission from the water fern Azolla pinnata. Russ. J. Plant Physiol. 61, 543–547. doi: 10.1134/S1021443714040086

CrossRef Full Text | Google Scholar

Heinecke, J., and Ford, P. C. (2010). Formation of cysteine sulfenic acid by oxygen atom transfer from nitrite. J. Amer. Chem. Soc. 132, 9240–9243. doi: 10.1021/ja102221e

PubMed Abstract | CrossRef Full Text | Google Scholar

Holman, H.-Y. N., Bechtel, H. A., Hao, Z., and Martin, M. C. (2010). Synchrotron IR spectromicroscopy: chemistry of living cells. Anal. Chem. 82, 8757–8765. doi: 10.1021/ac100991d

PubMed Abstract | CrossRef Full Text | Google Scholar

Kösesakal, T. (2014). Effects of seasonal changes on pigment composition of Azolla filiculoides Lam. Am. Fern J. 104, 58–66. doi: 10.1640/0002-8444-104.2.58

CrossRef Full Text | Google Scholar

Lacayo, C. I., Malkin, A. J., Holman, H.-Y. N., Chen, L., Ding, S.-Y., Hwang, M. S., et al. (2010). Imaging cell wall architecture in single Zinnia elegans tracheary elements. Plant Physiol. 154, 121–133. doi: 10.1104/pp.110.155242

PubMed Abstract | CrossRef Full Text | Google Scholar

Liszkay, A., Kenk, B., and Schopfer, P. (2003). Evidence for the involvement of cell wall peroxidase in the generation of hydroxyl radicals mediating extension growth. Planta 217, 658–667. doi: 10.1007/s00425-003-1028-1

PubMed Abstract | CrossRef Full Text | Google Scholar

Mallard, P. J. L. W. G. (2015). NIST Chemistry WebBook. Gaithersburg, MD: National Institute of Standards and Technology.

Google Scholar

Marnett, L. J., Riggins, J. N., and West, J. D. (2003). Endogenous generation of reactive oxidants and electrophiles and their reactions with DNA and protein. J. Clin. Inves. 111, 583–593. doi: 10.1172/JCI200318022

PubMed Abstract | CrossRef Full Text | Google Scholar

Müller, K., Linkies, A., Vreeburg, R. A., Fry, S. C., Krieger-Liszkay, A., and Leubner-Metzger, G. (2009). In vivo cell wall loosening by hydroxyl radicals during cress seed germination and elongation growth. Plant Physiol. 150, 1855–1865. doi: 10.1104/pp.109.139204

PubMed Abstract | CrossRef Full Text | Google Scholar

Müller, U., Rätzsch, M., Schwanninger, M., Steiner, M., and Zöbl, H. (2003). Yellowing and IR-changes of spruce wood as result of UV-irradiation. J. Photochem. Photobiol. B 69, 97–105. doi: 10.1016/S1011-1344(02)00412-8

PubMed Abstract | CrossRef Full Text | Google Scholar

Nappi, A. J., and Vass, E. (1998). Hydroxyl radical formation resulting from the interaction of nitric oxide and hydrogen peroxide. Biochim. Biophys. Acta 1380, 55–63. doi: 10.1016/S0304-4165(97)00125-6

CrossRef Full Text | Google Scholar

Palmgren, M. G. (2001). Plant plasma membrane H+-ATPases: powerhouses for nutrient uptake. Annu. Rev. Plant Biol. 52, 817–845. doi: 10.1146/annurev.arplant.52.1.817

PubMed Abstract | CrossRef Full Text | Google Scholar

Peters, G. A., and Mayne, B. C. (1974). The Azolla, Anabaena azollae relationship I. Initial characterization of the association. Plant Physiol. 53, 813–819. doi: 10.1104/pp.53.6.813

PubMed Abstract | CrossRef Full Text | Google Scholar

Rockel, P., Strube, F., Rockel, A., Wildt, J., and Kaiser, W. M. (2002). Regulation of nitric oxide (NO) production by plant nitrate reductase in vivo and in vitro. J. Exp. Bot. 53, 103–110. doi: 10.1093/jexbot/53.366.103

CrossRef Full Text | Google Scholar

Sakamoto, M., Munemura, I., Tomita, R., and Kobayashi, K. (2008). Reactive oxygen species in leaf abscission signaling. Plant Signal. Behav. 3, 1014–1015. doi: 10.4161/psb.6737

CrossRef Full Text

Schopfer, P. (2001). Hydroxyl radical-induced cell-wall loosening in vitro and in vivo: implications for the control of elongation growth. Plant J. 28, 679–688. doi: 10.1046/j.1365-313x.2001.01187.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Socrates, G. (2004). Infrared and Raman Characteristic group Frequencies: Tables and Charts. Hoboken, NJ: John Wiley & Sons.

Google Scholar

Spedding, H. (1960). 628. Infrared spectra of periodate-oxidised cellulose. J. Chem. Soc. (Resumed), 3147–3152. doi: 10.1039/JR9600003147

CrossRef Full Text | Google Scholar

Szymanska-Chargot, M., and Zdunek, A. (2013). Use of FT-IR spectra and PCA to the bulk characterization of cell wall residues of fruits and vegetables along a fraction process. Food Biophys. 8, 29–42. doi: 10.1007/s11483-012-9279-7

PubMed Abstract | CrossRef Full Text | Google Scholar

Uheda, E., and Kitoh, S. (1994). Rapid shedding of roots from Azolla filiculoides plants in response to inhibitors of respiration. Plant Cell Physiol. 35, 37–43.

Google Scholar

Uheda, E., Kitoh, S., and Shiomi, N. (1999). Response of six Azolla species to transient high-temperature stress. Aquat. Bot. 64, 87–92. doi: 10.1016/S0304-3770(99)00002-9

CrossRef Full Text | Google Scholar

Uheda, E., and Nakamura, S. (2000). Abscission of Azolla branches induced by ethylene and sodium azide. Plant Cell Physiol. 41, 1365–1372. doi: 10.1093/pcp/pcd071

PubMed Abstract | CrossRef Full Text | Google Scholar

Uheda, E., Nakamura, S., and Kitoh, S. (1994). Events associated with the rapid separation of cells from detached roots of Azolla filiculoides depend on pH. J. Exp. Bot. 45, 1451–1457. doi: 10.1093/jxb/45.10.1451

CrossRef Full Text | Google Scholar

Yamada, Y., Koibuchi, M., Miyamoto, K., Ueda, J., and Uheda, E. (2015). Breakdown of middle lamella pectin by ⋅OH during rapid abscission in Azolla. Plant Cell Environ. doi: 10.1111/pce.12505 [Epub ahead of print].

PubMed Abstract | CrossRef Full Text | Google Scholar

Yamasaki, H. (2005). The NO world for plants: achieving balance in an open system. Plant Cell Environ. 28, 78–84. doi: 10.1111/j.1365-3040.2005.01297.x

CrossRef Full Text | Google Scholar

Yamasaki, H., Heshiki, R., and Ikehara, N. (1995). Leaf-goldenning induced by high light in Ficus microcarpa L. f., a tropical fig. J. Plant Res. 108, 171–180. doi: 10.1007/BF02344341

CrossRef Full Text | Google Scholar

Zepeda-Jazo, I., Velarde-Buendía, A. M., Enríquez-Figueroa, R., Bose, J., Shabala, S., Muñiz-Murguía, J., et al. (2011). Polyamines interact with hydroxyl radicals in activating Ca2+ and K+ transport across the root epidermal plasma membranes. Plant Physiol. 157, 2167–2180. doi: 10.1104/pp.111.179671

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: root abscission, apoplast, free radical cleavage, FTIR spectromicroscopy, hydrogen peroxide, nitric oxide, nitrite, plant cell wall loosening

Citation: Cohen MF, Gurung S, Birarda G, Holman H-YN and Yamasaki H (2015) Bimodal effect of hydrogen peroxide and oxidative events in nitrite-induced rapid root abscission by the water fern Azolla pinnata. Front. Plant Sci. 6:518. doi: 10.3389/fpls.2015.00518
