Original Research ARTICLE

Front. Plant Sci., 16 October 2015 | https://doi.org/10.3389/fpls.2015.00859

Beyond plant defense: insights on the potential of salicylic and methylsalicylic acid to contain growth of the phytopathogen Botrytis cinerea

  • 1Laboratoire Mixte UMR 5240, Plateforme de Protéomique, Centre National de la Recherche Scientifique, Lyon, France
  • 2Plateforme Protéome, Centre de Génomique Fonctionnelle, Université de Bordeaux, Bordeaux, France

Using Botrytis cinerea we confirmed in the present work several previous studies showing that salicylic acid, a main plant hormone, inhibits fungal growth in vitro. Such an inhibitory effect was also observed for the two salicylic acid derivatives, methylsalicylic and acetylsalicylic acid. In marked contrast, 5-sulfosalicylic acid was totally inactive. Comparative proteomics from treated vs. control mycelia showed that both the intracellular and extracellular proteomes were affected in the presence of salicylic acid or methylsalicylic acid. These data suggest several mechanisms that could potentially account for the observed fungal growth inhibition, notably pH regulation, metal homeostasis, mitochondrial respiration, ROS accumulation and cell wall remodeling. The present observations support a role played by the phytohormone SA and derivatives in directly containing the pathogen. Data are available via ProteomeXchange with identifier PXD002873.

Introduction

Filamentous fungi are the major plant pathogens that cause multi-millions of US dollars in pre- and post-harvest crop losses worldwide (Bolton et al., 2006). In particular Botrytis cinerea (Botrytis), a necrotrophic and polyphagous fungus, is able to infect over 200 plants corresponding mostly to flowering plants of temperate and subtropical regions (Mansfield, 1980; Elad, 1997; Williamson et al., 2007). The availability of molecular tools has considerably advanced our understanding of the infection strategies of this fungus (Hahn et al., 2014). Furthermore, its genome has been sequenced revealing over 16,000 protein-coding genes (Amselem et al., 2011; Staats and van Kan, 2012; Hahn et al., 2014). Hence, Botrytis is now a widely used fungal model, being among the top 10 fungal pathogens in molecular plant pathology (Dean et al., 2012), thus allowing to unravel genes accounting for pathogenicity (Amselem et al., 2011; Aguileta et al., 2012; Dean et al., 2012; Heard et al., 2015) and for the development of fungicides with novel modes of action (Tietjen et al., 2005).

Infection by a phytopathogenic fungus can only occur if the pathogen possesses all the necessary molecules to override plant defenses (van Baarlen et al., 2007; Hahn et al., 2014). Indeed, during the infection process the plant has the potential to mount a very effective defense for killing/confining its aggressor. In this process, the plant hormone salicylic acid (SA) is a key signal in the induction of the plant immune response to pathogens, and is therefore of great interest in plant pathology and crop protection. This hormone is responsible for controlling critical aspects of both basal and resistance gene based immunity, and for promotion of the long lasting, broadly effective immunity termed systemic acquired resistance (SAR) (Gaffney et al., 1993; Vlot et al., 2009; An and Mou, 2011). Such SAR enables plants to prepare for another attack and defend themselves more effectively against the pathogen (Dangl and Jones, 2001; Durrant and Dong, 2004). A late response is then implemented through the production of defense proteins and phytoalexins and the strengthening of the plant cell wall (Williamson et al., 2007; Mengiste, 2012; Hahn et al., 2014). Besides this function during biotic stress, it has also been found that SA plays a role in the plant response to abiotic stresses such as drought, chilling, heavy metal toxicity, heat, and osmotic stress as well as during plant growth and development (reviewed by Rivas-San Vicente and Plasencia, 2011).

For more than 200 years, SA (2-hydroxy benzoic acid) and derivatives have been studied for their medicinal use in humans (Vane and Botting, 2003; Jones, 2011). However, the extensive signaling role of SA in plants, particularly in defense against pathogens, has only become evident during the past 20 years (Ferrari et al., 2003; Rajjou et al., 2006; van Loon et al., 2006; Vlot et al., 2009; Zipfel, 2009; Hayat et al., 2010; El Oirdi et al., 2011; Caarls et al., 2015). SA derivatives are also widely distributed in plants. Methylsalicylate (MeSA; methyl 2-hydroxybenzoate) deserves special attention, as it is a volatile long distance signaling molecule that moves from infected to the non-infected tissues through phloem (Shulaev et al., 1997; Chen et al., 2003; Hayat et al., 2010). In plants, two enzymes control the balance between SA and MeSA: the SA binding protein 2 (SABP2) that converts biologically inactive MeSA into active SA (Forouhar et al., 2005), and the SA methyltransferase 1 (SAMT1) that catalyzes the formation of MeSA from SA (Ross et al., 1999; Park et al., 2007).

Several studies provided evidence for the ability of Botrytis to suppress host defense by different mechanisms. These include the manipulation of plant hormone pathways, in particular those that are involved in defense responses (reviewed by Mengiste, 2012). Besides Botrytis, a number of plant fungi, including pathogens (e.g., Magnaporthe oryzae, Ustilago maydis), endophytes (e.g., Piriformospora indica), and mutualists (e.g., Laccaria bicolor) also have the ability to suppress host defense (reviewed by Rovenich et al., 2014). For example, the degradation of SA by Aspergillus niger was reported (Krupka et al., 1967). More recently, the biotrophic fungus Ustilago maydis was shown to contain a cytosolic SA hydroxylase (also called acetylsalicylate deacetylase, EC 3.1.1.55), which is able to convert SA into catechol during the infection (Rabe et al., 2013). Similarly, the fungal plant pathogen Sclerotinia sclerotiorum proved able to degrade SA into catechol, most presumably through the action of an endogenous SA hydroxylase (Penn and Daniel, 2013). SA hydroxylase is also predicted as being a secreted protein in the plant pathogenic fungus Fusarium graminearum (Brown et al., 2012). Furthermore, unconventionally secreted isochorismatase effectors of two filamentous pathogens, Phytophthora sojae and Verticillium dahlia, were shown to disrupt the plant salicylate metabolism pathway by suppressing the production of its precursor (Liu et al., 2014). Thus, an increased degradation of this molecule or an inhibition of its biosynthesis could be effective strategies for biotrophic pathogens to suppress SA-mediated defense responses.

In addition the fact that SA (Prithiviraj et al., 1997; Amborabé et al., 2002; Cory and Cory, 2005; Meyer et al., 2006; Wu et al., 2008; Qi et al., 2012; Zhou et al., 2012; Panahirad et al., 2014), acetylsalicylic acid (ASA; 2-acetoxybenzoic acid) (Alem and Douglas, 2004; Stepanović et al., 2004; Leeuw et al., 2007, 2009; Moret et al., 2007; Sebolai et al., 2008; Trofa et al., 2009; Swart et al., 2011; Zhou et al., 2012) or MeSA (Schadler and George, 2006) can directly impede fungal growth has been repeatedly reported but the mechanisms of this direct attack process are unknown.

Therefore, the function of SA and/or derivatives in the infection process appears to be complex, encompassing at least three strategies: plant defense (e.g., signalization), degradation of SA by the fungal pathogen (e.g., via a fungal SA hydroxylase or biosynthesis inhibitors) and direct fungistatic effects (e.g., growth inhibition of the pathogen). In particular, several reports pointed out an intercellular antimicrobial role for SA during Pseudomonas infections in Arabidopsis (Cameron and Zaton, 2004; Carviel et al., 2009, 2014).

It is the aim of the present work to further document the possibility that SA can repress the growth of Botrytis. Toward this goal, we have used a physiological approach to confirm that SA and its derivatives MeSA and acetylsalicylic acid (ASA) could inhibit Botrytis growth. Then a proteomics approach was used to reveal potential proteins involved in Botrytis growth inhibition. Proteomics is a useful complement to transcriptomics since the latter does not capture the full complexity of cellular functions (Aebersold and Mann, 2003). Indeed, a focused study on proteins can determine their level and mode of expression, post-translational modifications and the interactions they establish (Schwanhäusser et al., 2011). This approach already proved successful to characterize the proteome of mycelium tissue and the extracellular secretome from Botrytis (Fernández-Acero et al., 2006, 2010; Shah et al., 2009; Espino et al., 2010; Li et al., 2012; Delaunois et al., 2014; González et al., 2014; González-Fernández et al., 2014; Heard et al., 2015; for reviews on proteomics of phytopathogenic fungi, see González-Fernández and Jorrín-Novo, 2012; Bianco and Perrotta, 2015). In the present work, proteomic profiling by two-dimensional electrophoresis (2DE) in combination with mass spectrometry (MS) allowed detection and identification of statistically significant changes in the Botrytis proteome in the presence of different concentrations of SA or MeSA. After statistical analysis of the 2DE gels, several spots showed varying accumulation patterns in the presence of each compound, from which a number of proteins were identified by liquid chromatography coupled to tandem mass spectrometry (LC-MS/MS). As a large number of the differentially accumulated proteins in the intracellular mycelium proteome potentially corresponded to secreted proteins, we also carried out comparative analyses of the Botrytis extracellular secretome in the absence or presence of SA or MeSA. The present results are discussed under the possibility that the signal molecules SA and MeSA may turn antifungal and vice versa in plant systems.

Materials and Methods

Biological Material and Culture Conditions

Botrytis strain B05.10 was maintained on solid sporulation medium, as described by Rolland et al. (2009) and Cherrad et al. (2012). To study the mycelial radial growth, a plug of Botrytis mycelium was deposited at the center of a Petri dish (9 cm in diameter) containing a malt/agar medium composed of malt extract (20 g/L; Becton, Dickinson and Company), 2.0% glucose (w/v; Sigma), NH4Cl (0.1 M), and agar (15 g/L; Becton, Dickinson and Company) buffered at pH 5.0 or pH 7.0 (Tris-maleate 0.1 M), in the absence or presence of varying concentrations of SA, 5-sulfosalicylic acid (SSA; 2-hydroxy-5-sulfobenzoic acid), ASA (0.1 mM, 0.5 mM, 1 mM, 2.5 mM, or 5 mM) or MeSA (0.38 mM, 0.77 mM, 1.15 mM, 2.3 mM, or 5 mM), all compounds being obtained from Sigma. Mycelial radial growth was measured every day (four replicates including biological repeats). Cultures were carried out in a growth chamber thermostated at 21 ± 1°C in the dark.

For proteomic analyses, the fungus was inoculated on cellophane sheets (Biorad) by streaking 1 × 104 spores gently over the surface of the membranes overlaid on the malt/agar medium described above (Shah et al., 2009; Mei et al., 2014) and transferred after 3 d on Gamborg medium (Gamborg et al., 1968) buffered at pH 5.0 (Tris-maleate 0.1M) and containing 0.1% glucose (w/v), supplemented or not with MeSA (0.38 mM) or SA (2.5 mM) during 24 h at 21°C as described by Rolland et al. (2009) and Cherrad et al. (2012). Four biological replicates were carried out per assay. To collect intracellular proteins, the mycelium on the cellophane was lyophilized during 24 h and ground twice 30 s with the disrupter/homogenizer TissueLyser II (Qiagen). Proteins were solubilized in an aqueous solution containing 4% (w/v) CHAPS (Sigma) and 1% (v/v) Protease Inhibitor Cocktail for yeast (Sigma), for 1 h at 4°C and then centrifuged at 5000 g for 10 min at 4°C. To collect the secreted proteins, the liquid medium below the cellophane sheets was recovered and submitted to a clarifying centrifugation at 4°C for 15 min at 5000 g. The corresponding supernatants were used for proteome and secretome analyses, respectively.

Protein Extractions, 2D-PAGE and Densitometric Gel Analyses

Proteins were precipitated using trichloroacetic acid (TCA). TCA (10% w/v; Sigma) was added to the soluble proteins (intracellular mycelium proteome) or the centrifuged fungal media (extracellular secretome) and kept at 4°C overnight. Proteins were pelleted by centrifugation at 14,000 g for 15 min at 4°C and washed three times with glacial acetone (VWR Chemicals). Isoelectric focusing (IEF) was performed using the Protean IEF System (Biorad, France) according to the manufacturer's instructions. The rehydration buffer contained 8 M urea (Sigma-Aldrich), and 4% (w/v) CHAPS (Sigma). IEF was performed with 11 cm linear strips, pH 3–10 or pH 3–6 (Biorad), using the Voltage Ramp protocol recommended by the manufacturer (100 V/30 min/rapid, 250 V/30 min/linear, 1000 V/30 min/linear, 7000 V/3 h/linear, and finally 32,000 V/h (pH 3–10 IPG) or 16,000 V/h (pH 3–6 IPG) (Cherrad et al., 2012). The second dimension was carried out using the Criterion Dodeca system (Biorad). A minimum of four gels loaded with biological replicates was used for each condition. Criterion any kD TGX gels (Biorad) were run at 10°C in Laemmli buffer system (Laemmli, 1970) at 100 V for 2 h (Cherrad et al., 2012). 2D-gels were stained with silver nitrate as described (Catusse et al., 2008) then scanned and analyzed with the software SameSpots v.5 (Non-linear Dynamics Progenesis). A t-test of the spot volumes was calculated to compare the different treatments. Variations in spot volumes with p < 0.02 and fold-change >4 were considered significant.

In-gel Digestion of Proteins and Sample Preparation for MS Analysis: Data Acquisition and Database Searching

Spots were destained in 25 mM ammonium bicarbonate (NH4HCO3), 50% (v/v) acetonitrile (ACN; VWR Chemicals) and shrunk in ACN for 10 min. After ACN removal, gel pieces were dried at room temperature. Proteins were digested by incubating each gel spot with 10 ng/μL of trypsin (T6567, Sigma-Aldrich) in 40 mM NH4HCO3, 10% (v/v) ACN, rehydrated at 4°C for 10 min, and finally incubated overnight at 37°C. The resulting peptides were extracted from the gel in three steps: a first incubation in 40 mM NH4HCO3, 10% (v/v) ACN for 15 min at room temperature and two incubations in 47.5% (v/v) ACN, 5% (v/v) formic acid (Sigma) for 15 min at room temperature. The three collected extractions were pooled with the initial digestion supernatant, dried in a vacuum centrifuge (SpeedVac; Eppendorf), and resuspended with 25 μL of 0.1% (v/v) formic acid before performing the nanoLC-MS/MS analysis (Cherrad et al., 2012).

Peptide mixtures were analyzed by on-line capillary nano HPLC (LC Packings, Amsterdam, The Netherlands) coupled to a nanospray LCQ Deca XP ion trap mass spectrometer (ThermoFinnigan, San Jose, CA, USA). Ten microliters of each peptide extract were loaded on a 300 μm ID × 5 mm PepMap C18 precolumn (LC Packings, Dionex, USA) at a flow rate of 20 μL/min. After 5 min desalting, peptides were online separated on a 75 μm internal diameter × 15 cm C18 PepMapTM column (LC Packings, Amsterdam, The Netherlands) with a linear gradient of solvent B (5–40%) and solvent A (95%–60%) in 48 min (solvent A was 0.1% (v/v) formic acid in 5% (v/v) ACN, and solvent B was 0.1% (v/v) formic acid in 80% (v/v) ACN). The separation flow rate was set at 200 nL/min. The mass spectrometer operated in positive ion mode at a 1.9-kV needle voltage and a 4-V capillary voltage. Data acquisition was performed in a data-dependent mode alternating in a single run, a MS scan survey over the range m/z 300–1700 and three MS/MS scans with Collision Induced Dissociation (CID) as activation mode. MS/MS spectra were acquired using a 2-m/z unit ion isolation window, a 35% relative collision energy, and a 0.5 min dynamic exclusion duration.

Mascot and Sequest algorithms through Proteome Discoverer 1.4 Software (Thermo Fisher Scientific Inc., USA) were used for protein identification against the Broad Institute Botrytis cinerea database (http://www.broadinstitute.org/annotation/genome/botrytis_cinerea/MultiHome.html; 16,448 entries; Amselem et al., 2011). Two missed enzyme cleavages were allowed. Mass tolerances in MS and MS/MS were set to 2 Da and 1 Da, respectively. Oxidation of methionine and carbamidomethylation on cysteine were searched as dynamic and static modifications, respectively. Peptide validation was performed using Target Decoy PSM Validator and only “high confidence” peptides were retained corresponding to a 1% false positive rate at peptide level. The mass spectrometry proteomics data have been deposited to the ProteomeXchange Consortium (Vizcaíno et al., 2014) via the PRIDE partner repository (http://www.ebi.ac.uk/pride/help/archive/about) with the dataset identifier PXD002873.

Bioinformatics

The Fungal Secretome Database 3.0 (Choi et al., 2010) was used to collect annotations and signal peptide prediction programs (Bendtsen et al., 2004b; Emanuelsson et al., 2007; Caccia et al., 2013). SecretomeP 2.0 (http://www.cbs.dtu.dk/services/SecretomeP/) was also used to provide information related to non-classical secretory proteins (Bendtsen et al., 2004a). Secreted proteins were classified into functional categories as described (Espino et al., 2010; Cherrad et al., 2012).

Results

Growth Curves

The impact of salicylic acid (SA) and derivatives on mycelium growth of Botrytis is presented in Table 1 and Supplemental Figure S1. It appears that methylsalicylic acid (MeSA) was the most active compound in impeding fungal growth, followed by acetylsalicylic acid (ASA), and SA. In contrast 5-sulfosalicylic acid (SSA) did not entail any growth reduction (Table 1; Supplemental Figure S1). At all times of mycelial cultures and used concentrations of SA and derivatives we checked that the pH of the culture media was not affected upon MeSA, SA, ASA, or SSA addition compared to control conditions (data not shown). Based on these results, to provide clues as to the molecular mechanisms underlying the Botrytis response to two of the investigated compounds, MeSA and SA, we used a proteomics approach toward the characterization of the intracellular proteome and the extracellular secretome of the treated fungal cells. For these comparative proteomics experiments, we used the minimum concentration of MeSA (0.38 mM) or SA (2.5 mM) at which the smallest effect was observed on mycelial growth (Supplemental Figure S1). This protocol allows observation of the early events of the inhibition process and to minimize cell death and possible cell lysis that would complicate the analysis of the extracellular secretome.

TABLE 1
www.frontiersin.org

Table 1. Growth rates observed at 6 day of mycelium culture in the presence of MeSA, SA, ASA, or SSA.

Intracellular Proteome

Effect of MeSA

A typical 2D gel obtained for the MeSA-treated mycelium is shown in Figure 1B. By visual inspection, there was a major impact of MeSA on the mycelium proteome. Thus, a number of basic spots disappeared from the control accompanied by an increase in the number of acidic spots in the MeSA-treated proteome (compare Figures 1A,B). This was confirmed by global densitometric analyses of the 2D gels (Supplemental Figure S2).

FIGURE 1
www.frontiersin.org

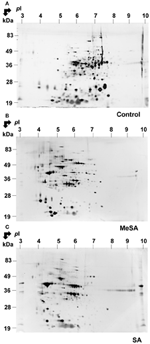

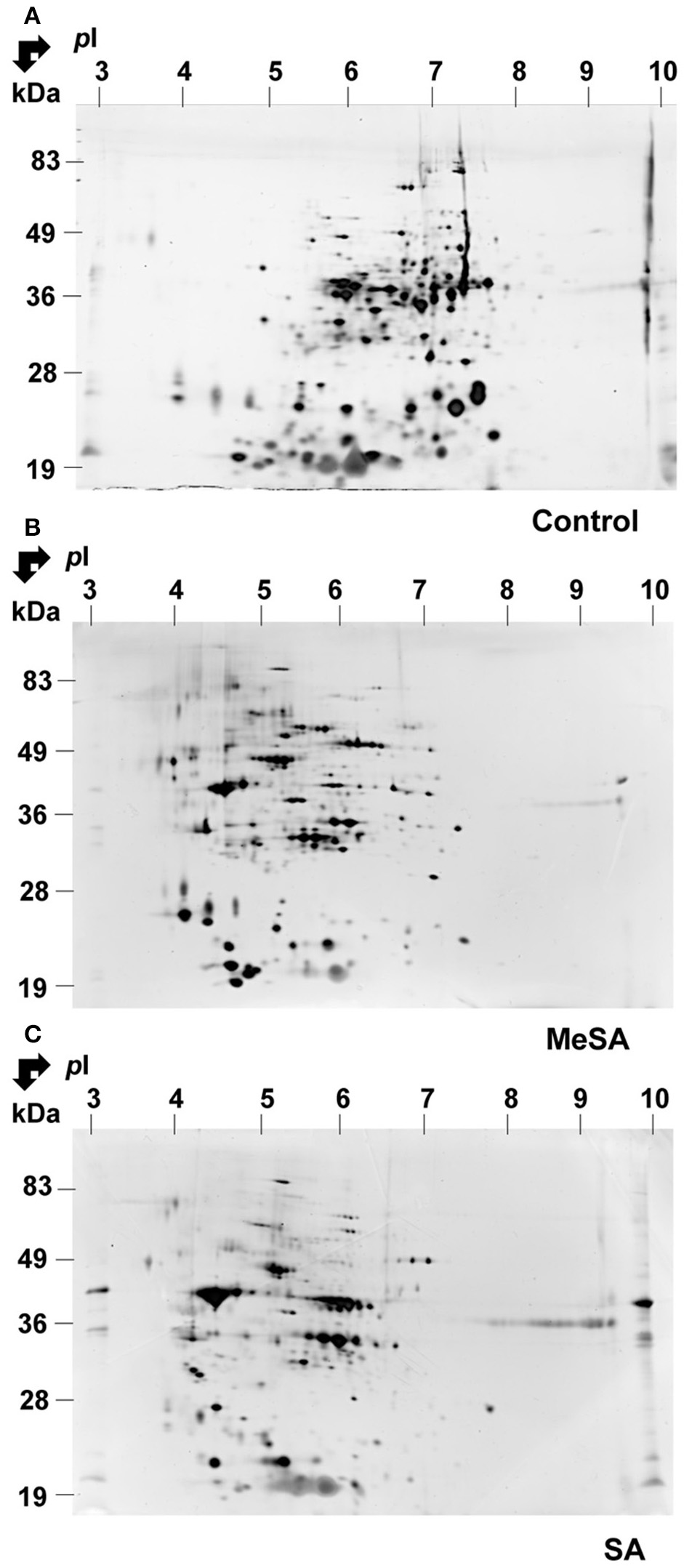

Figure 1. Effect of MeSA or SA on the intracellular Botrytis proteome. Protein extracts corresponding to the intracellular mycelium proteome were prepared as described in Materials and Methods, and subjected to 2DE in untreated control conditions (A) or in the presence of MeSA at 0.38 mM (B) or SA at 2.5 mM (C) (four replicates in each condition). Following densitometric analyses of the 2D gels as described in Materials and Methods, differentially accumulated spots (p < 0.02; 4-fold change) were submitted to MS analysis and the proteins characterized were listed in Supplemental Table S1.

Densitometric analyses of the 2D-gels from MeSA-treated vs. control mycelium (Figures 1A,B; four replicates) revealed that the volumes of 48 spots varied (p < 0.02; 4-fold change) (Supplemental Table S1; Supplemental Figure S3), of which 37 contained a single protein, 10 contained two proteins, and one contained three proteins for a total of 60 proteins (Supplemental Table S1). The largest functional category comprised 19 proteins (31.7%) and was associated with disease/defense, immunity/defense, and stress response mechanisms (collectively referred to as disease/defense/stress in Figure 2). The second and third largest functional categories were each composed of 18 proteins (30%). They were associated with the protein metabolism and modification category and with enzymes involved in various metabolic processes collectively referred to as metabolism in Figure 2 of which 14 corresponded to various proteases (Supplemental Table S1; Figure 2; Table 2).

FIGURE 2
www.frontiersin.org

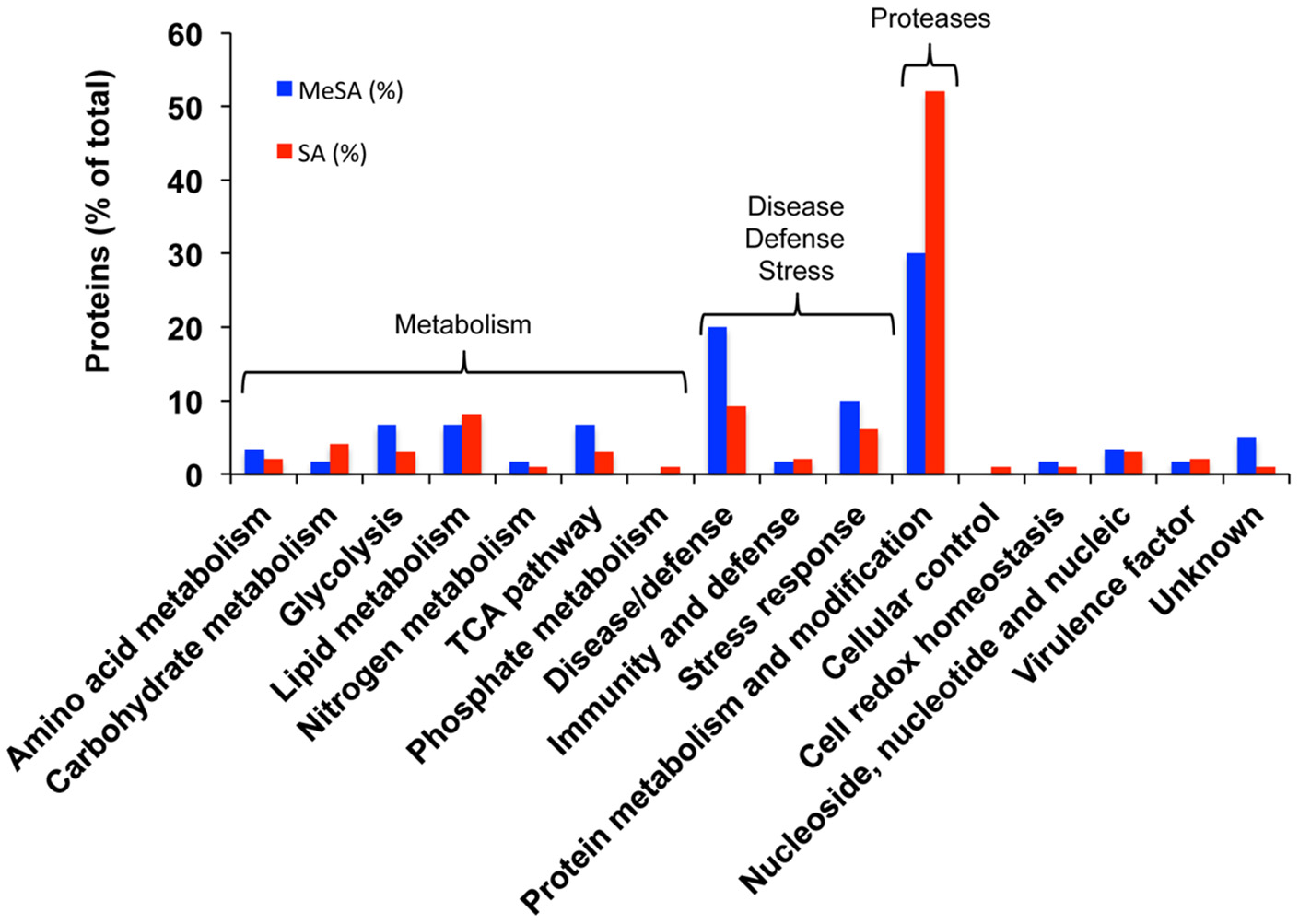

Figure 2. Functional categorization of the proteins found in differentially accumulated spots of the Botrytis mycelial proteomes obtained in the presence of MeSA (0.38 mM, blue) or SA (2.5 mM, red) compared to control untreated mycelium. Blue bars, MeSA-treated mycelium; red bars, SA-treated mycelium. The results are expressed in % values of total differentially accumulated proteins, (p < 0.02; 4-fold change), namely 60 proteins for MeSA and 98 proteins for SA (Supplemental Table S1).

TABLE 2
www.frontiersin.org

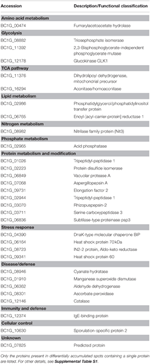

Table 2. Differentially accumulated intracellular proteins in the presence of MeSA or SA in the Botrytis culture medium compared to untreated control fungal cells.

Out of the 60 proteins found in the 48 differentially accumulated spots, 18 (30%) exhibited a transit peptide. Yet SecretomeP predicted that 24 transit-peptide-devoid proteins could be secreted through non-canonical secretion pathways (Nickel, 2003). Thereby in total a large proportion (70%) of the proteins found in the differentially accumulated spots in the presence of MeSA corresponded to putatively secreted proteins (Supplemental Table S1; Figure 3).

FIGURE 3
www.frontiersin.org

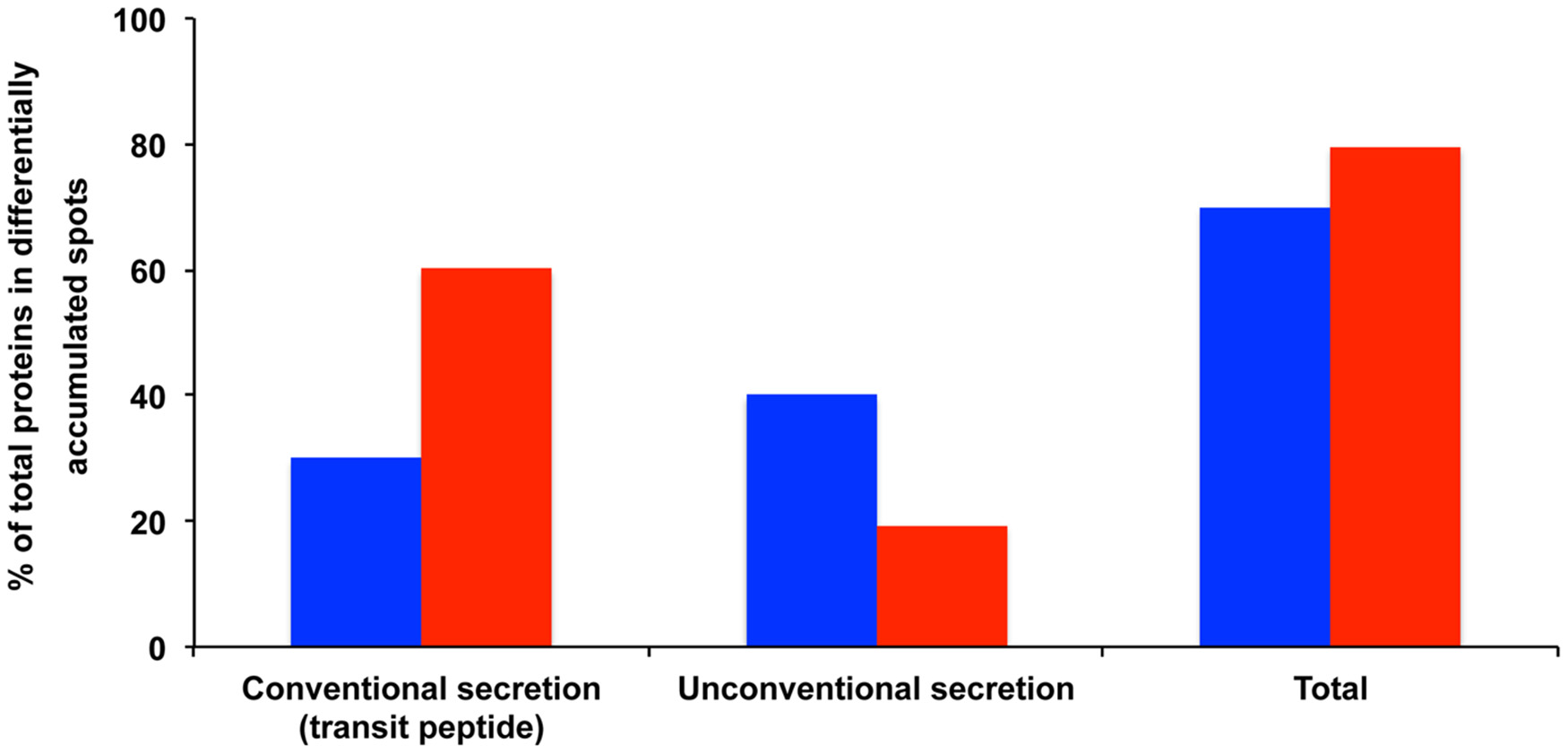

Figure 3. Potentially secreted proteins found in protein spots exhibiting varying volumes in MeSA- or SA-treated intracellular mycelial proteomes. The data show the proportion of proteins predicted to be secreted by conventional secretion (i.e., those proteins that contain a transit peptide as predicted by TargetP and SignalP) or through unconventional secretion (i.e., those proteins that do not contain a transit peptide but are predicted to be secreted by SecretomeP) (Supplemental Table S1). The results are expressed as percentages of total differentially accumulated proteins, namely 60 proteins (blue bars) and 98 proteins (red bars) for the MeSA- and SA-treated intracellular mycelial proteomes, respectively (see Supplemental Table S1).

The same trends were observed for the 37 proteins obtained from differentially accumulated spots containing a single protein (Supplemental Table S1). The largest functional categories corresponded to protein metabolism and modification (16 proteins; 43.2%); proteins involved in various metabolic processes (11 proteins; 29.7%); and disease/defense, immunity/defense, and stress response mechanisms (nine proteins; 24.3%; Table 2; Supplemental Table S1). Sixteen proteins present in differentially accumulated spots containing a single protein were predicted to contain a transit peptide (TargetP, SignalP). Furthermore, SecretomeP predicted that 13 transit-peptide-devoid proteins could be secreted through non-canonical secretion pathways. Again, a large proportion (78.4%) of the MeSA-responsive proteins present in unique spots corresponded to putatively secreted proteins (Supplemental Table S1).

Effect of SA

As for MeSA, the volume of a large the number of acidic spots increased in the SA-treated intracellular proteome, which was accompanied by a decreased number of basic spots from the control (compare Figures 1A,C; Supplemental Figure S2). Densitometric analyses of the 2D gels (Figures 1A,C; four replicates) revealed that the volumes of 60 spots varied (p < 0.02; 4-fold change; Table 2; Supplemental Figure S3; Supplemental Table S1), of which 33 contained a single protein, 19 contained two proteins, six contained three proteins, one contained four proteins, and one contained five proteins, for a total of 98 proteins.

As for MeSA, the three largest functional categories corresponded to protein metabolism and modification (51 proteins; 52%) of which 45 corresponded to various proteases; various proteins involved in metabolism (25 proteins; 25.5%); and disease/defense, immunity/defense, and stress response mechanisms (17 proteins; 17.3%) (Supplemental Table S1; Figure 2).

Out of the proteins found in the differentially accumulated spots, 59 (60.2%) exhibited a transit peptide. Furthermore, SecretomeP predicted that 19 proteins not predicted to contain a transit peptide could be secreted through non-canonical secretion pathways. Thereby, as in the case of MeSA a large proportion (80.6%) of the proteins found in differentially accumulated spots in the presence of SA corresponded to putatively secreted proteins (Supplemental Figure S1; Figure 3).

The same analysis was conducted for the 33 proteins present in spots containing a single protein. The three largest functional categories corresponded to protein metabolism and modification (12 proteins; 36.4%); metabolism (11 proteins; 33.3%); and disease/defense, and stress response mechanisms (nine proteins; 27.3%) (Table 2; Supplemental Table S1). Out of these 33 proteins, 14 were predicted to contain a transit peptide. Moreover, SecretomeP predicted that 10 proteins not predicted to contain a transit peptide could be secreted through non-canonical secretion pathways (Supplemental Table S1). Again, a large proportion (72.7%) of the SA-responsive proteins present in unique spots corresponded to putatively secreted proteins (Table 2; Supplemental Table S1).

Extracellular Secretome

The above findings suggested that a large proportion of proteins found in differentially accumulated spots of the intracellular proteomes corresponded to potentially secreted proteins (Supplemental Table S1; Figure 3). To assess whether such modifications in intracellular protein abundance could be reflected at the level of the corresponding fungal extracellular secretomes, we prepared protein extracts from the extracellular growth media as described in Materials and Methods. Here the extracellular secretome corresponds to the proteins found in the liquid medium below the cellophane membrane on which fungal cells are grown. This prevents the contamination of the extracellular secretome (as presently defined) by intact fungal cells. Furthermore, growing fungal cells on a solid surface rather than a liquid media better reflects the conditions under which Botrytis infections of plants naturally occur (Shah et al., 2009). Typical gels of the extracellular secretomes obtained in such conditions are shown in Figure 4. These gels appeared to have a somewhat lower resolution than those obtained for the intracellular proteomes (Figure 4). In fact, when the extracellular secretomes of plant fungal pathogens or free-living fungi were analyzed in previous studies such behavior was repeatedly observed (Medina et al., 2005; Oda et al., 2006; Cobos et al., 2010; Espino et al., 2010; Fernández-Acero et al., 2010; Lu et al., 2010; Jung et al., 2012; Yang et al., 2012; González et al., 2013, 2014; Fernandes et al., 2014; Gómez-Mendoza et al., 2014). One reason could be the high amount of polysaccharides and the presence of low-molecular-weight metabolites in fungal secretomes (Chevallet et al., 2007; Erjavec et al., 2012; Fernandes et al., 2014). These molecules are known to interfere with protein extraction and separation methods (Lemos et al., 2010). Despite this difficulty, differentially accumulated spots could be revealed by image analysis of 2D gels upon MeSA or SA treatments of the Botrytis mycelia (Figure 4; Supplemental Table S2).

FIGURE 4
www.frontiersin.org

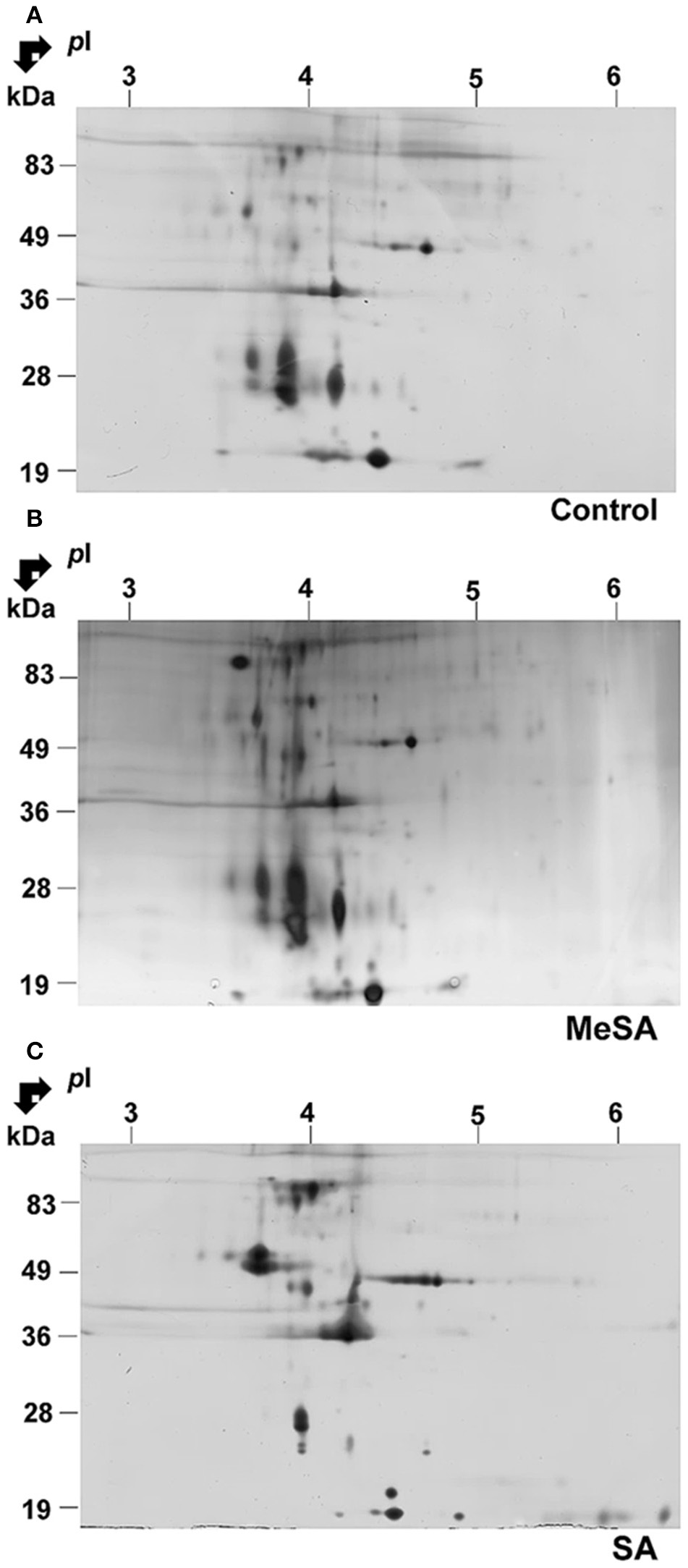

Figure 4. Effect of MeSA or SA on the extracellular Botrytis secretome. Protein extracts corresponding to the extracellular mycelium secretome were prepared as described in Materials and Methods, and subjected to 2DE in control untreated conditions (A) or in the presence of MeSA at 0.38 mM (B) or SA at 2.5 mM (C) (four replicates in each condition). Following densitometric analyses of the 2D gels as described in Materials and Methods, differentially accumulated spots (p < 0.02; 4-fold change) were submitted to MS analysis and the proteins characterized were listed in Supplemental Table S2.

In the presence of MeSA six spots were differentially accumulated (Supplemental Table S2; Supplemental Figure S4). Two contained a single protein, one contained two proteins and two contained three proteins, for a total of 10 proteins. They all possessed a transit peptide (Supplemental Table S2). The observed functional categories were cellular control, carbohydrate metabolism, amino acid metabolism, and immunity and defense (Supplemental Table S2).

In the presence of SA, 22 spots exhibited significant volume variations with respect to control (Supplemental Figure S4). Among them, 16 contained a single protein (Table 3), four contained two proteins, and two contained three proteins, for a total of 30 proteins (Supplemental Table S2), of which 25 (83.3%) possessed a transit peptide (Supplemental Table S2). Furthermore, SecretomeP predicted that two of proteins that did not exhibit a transit peptide could be secreted through non-canonical secretion pathways (Supplemental Table S2). Thus, in total as much of 90% of the proteins found in differentially accumulated spots in the presence of SA were predicted as being secreted. These were distributed in functional categories corresponding to carbohydrate metabolism, cell redox homeostasis, cellular control, disease/defense, protein metabolism, and modifications (Supplemental Table S2).

TABLE 3
www.frontiersin.org

Table 3. Differentially accumulated extracellular proteins in the presence of MeSA or SA in the Botrytis culture medium compared to untreated control fungal cells.

Discussion

In good agreement with previous studies showing that SA (Prithiviraj et al., 1997; Amborabé et al., 2002; Cory and Cory, 2005; Meyer et al., 2006; Wu et al., 2008; Qi et al., 2012; Zhou et al., 2012; Panahirad et al., 2014), ASA (Alem and Douglas, 2004; Stepanović et al., 2004; Leeuw et al., 2007, 2009; Moret et al., 2007; Sebolai et al., 2008; Trofa et al., 2009; Swart et al., 2011; Zhou et al., 2012) or MeSA (Schadler and George, 2006) can directly impede growth in several fungal species, the present study documents that of the four compounds analyzed (ASA, MeSA, SA, SSA) three of them (SA, ASA, and MeSA) showed fungistatic activity toward Botrytis. That SSA was not active in blocking Botrytis growth also agrees with the absence of reports reporting a fungistatic activity for this molecule. Very interestingly, several studies also reported that in addition to its role as a signaling molecule SA can also alter in vivo the growth of various microorganisms in interaction with plants. Thus, previous work in Arabidopsis indicated that accumulation of SA in the intercellular space is an important component of basal/PAMP-triggered immunity as well as effector-triggered immunity to pathogens that colonize the intercellular space (Cameron and Zaton, 2004; Carviel et al., 2009, 2014). The present data are also in good agreement with previous studies on the effect of SA on symbiotic root microbiomes both in bacteria and fungi (Medina et al., 2003; Stacey et al., 2006) and with recent results showing that plant SA, as well as exogenously applied SA, can help sculpt root microbiome by modulating colonization of the root by specific bacterial families (Lebeis et al., 2015).

Phenolic compounds, sodium salicylate, and related compounds have been reported to inhibit tumor cell growth in mouse leukemia L1210 cells (Cory and Cory, 2005). Interestingly, this study revealed that the IC50 values (half maximal inhibitory concentrations) determined for these compounds correlated extremely well with the apparent ability of the drugs to enter the cells as estimated by the ratio of octanol-aqueous distribution (Leo et al., 1971; Unger et al., 1978); in particular this octanol-aqueous distribution accounted for the very low activity observed with SSA compared to that measured for SA (Cory and Cory, 2005). In addition, it is known that SA methylation increases its membrane permeability, as well as its volatility, thus allowing more effective long distance transport of this defense signal (Dempsey et al., 2011). Hence a likely explanation for the observed differences in the ability of these compounds to inhibit Botrytis growth could be related to their relative efficiencies to penetrate into the fungal cells.

Knowing the existence of enzymes catalyzing the conversion of ASA or MeSA into SA, one may wonder whether these SA derivatives could directly inhibit Botrytis growth or if their action resulted from their conversion to SA or to MeSA. ASA esterase (EC 3.1.1.55), which catalyzes the hydrolysis of ASA to yield SA and acetate, has been widely described in animals and human (Spenney and Nowell, 1979; Ali and Kaur, 1983; White and Hope, 1984; Kim et al., 1990), but there are no reports on the existence of this enzyme in plants or fungi. In agreement BLAST searches against the Botrytis genome did not confirm the existence of such an enzyme in this fungus (data not shown). In the case of MeSA, the tobacco methylsalicylate esterase SABP2 (EC 3.1.1.-), a 29-kDa protein, catalyzes the conversion of MeSA into SA to induce SAR (Kumar and Klessig, 2003; Forouhar et al., 2005; Tripathi et al., 2010). While BLAST searches confirmed the existence of SABP2 in various plant species they did not support the existence of such an enzyme in fungal species, notably in Botrytis (data not shown). Also, BLAST searches did not support the existence in Botrytis of a SA methyltransferase (SAMT 1) analogous to that found in tobacco (Ross et al., 1999; Park et al., 2007) (data not shown). The results therefore suggest that ASA, MeSA and SA are active per se in Botrytis growth inhibition.

We further show that MeSA and SA treatments substantially modify the Botrytis intracellular and extracellular mycelial proteome. In the following we discuss some specific aspects of the observed modifications.

pI SHIFT

For both SA- and MeSA-treated intracellular mycelium proteomes we observed a large pI shift in the localization of the revealed spots on 2D gels. Thus, the addition of either of these two molecules in the Botrytis culture medium was accompanied with an accumulation of spots located in the acidic pI range of the 2D gels, while there was a decreased number of protein spots located in a more basic region of the 2D gels (Figure 2). As a somewhat similar behavior was noted when changing the pH of the culture medium from 5.0 to 7.0 (Supplemental Figure S2), it is possible that at least part of the effects of SA and MeSA reflects a change in pH regulation in Botrytis. Many fungi grow over a wide pH range and their gene expression is tailored to the environmental pH. In Aspergillus nidulans, the transcription factor PacC, an activator of genes expressed in alkaline conditions and a repressor of those expressed in acidic conditions, undergoes two consecutive proteolytic events, the first being pH-signal dependent and the second proteasomal (Peñalva et al., 2008). In previous work we suggested a possible link between pH regulation and metal response in Botrytis (Cherrad et al., 2012). Consistent with this, it has been documented that Rim101 (the ortholog of PacC in yeasts) and PacC are involved in metal (iron or zinc) homeostasis in yeasts (Conde e Silva et al., 2009; Ariño, 2010; Linde et al., 2010) and filamentous fungi such as Aspergillus fumigatus (Amich et al., 2009; Cherrad et al., 2012). Furthermore, in Aspergillus nidulans, biosynthesis and uptake of siderophores are regulated not only by iron availability but also by ambient pH through the transcription factor PacC (Eisendle et al., 2004). In this context, it is therefore of interest to note that SA and its derivatives can form chelate compounds with metal ions (Perrin, 1958). Hence an alteration in metal homeostasis could provide an explanation for the observed changes in the intracellular proteomes in the presence of MeSA or SA.

Although in our experiments the extracellular pH was not affected upon addition of ASA, MeSA, or SSA to the culture medium, we cannot rule out the possibility that accumulation of these molecules within Botrytis cells entailed a modification of the intracellular pH that would have been perceived by the PacC regulatory system. Further, work is needed to address this question.

Metabolism

Nulton-Persson et al. (2004) reported that treatment of isolated cardiac mitochondria with SA or ASA resulted in alterations of mitochondrial respiration, most presumably through inhibition of the Krebs cycle complex alpha-ketoglutarate dehydrogenase (KGDH; EC 1.2.4.2). It is therefore interesting to note that mitochondrial dihydrolipoyl dehydrogenase (EC 1.8.1.4), the E3 component of the KGDH complex, was strongly up accumulated in the SA- and ASA-treated intracellular mycelial proteomes (Supplemental Table S1). It is noted also that the accumulation of aconitase (one another enzyme in the Krebs cycle; EC 4.2.1.3) was modified in the SA- and ASA-treated intracellular mycelial proteomes (Supplemental Table S1). Since a number of fungicides behave as very potent inhibitors of mitochondrial respiration (Gisi et al., 2002; Avenot and Michailides, 2010; Belenky et al., 2013; Sierotzki and Scalliet, 2013), one possibility to account for the inhibition of Botrytis growth in the presence of MeSA, ASA or SA could rely on perturbation of mitochondrial respiration.

Proteases

For the MeSA-treated mycelium 14 proteins corresponded to various proteases (Supplemental Table S1; Figure 2) corresponding to five different enzymes, BC1G_02949 (tripeptidyl-peptidase 1), BC1G_03070 (rhizopuspepsin-2), BC1G_03711 (serine carboxypeptidase 3), BC1G_06836 (subtilase-type proteinase psp3), and BC1G_06849 (vacuolar protease A). For the SA-treated intracellular mycelial proteome, the main functional category of the proteins found to be present in the highly accumulating spots corresponded to proteases (Supplemental Table S1). Most of them (88.8%) were predicted as being secreted and corresponded to six types of proteases, namely BC1G_01026 and BC1G_02944 (tripeptidyl-peptidase 1, a serine protease), BC1G_03070 (rhizopuspepsin-2, an aspartic protease), BC1G_03711 (serine carboxypeptidase 3, a serine protease), BC1G_06320 (dipeptidase 1, a zinc metallopeptidase), BC1G_06836 (subtilase-type proteinase psp3, a serine protease), and BC1G_06849 (vacuolar protease A, an aspartic protease) (Supplemental Table S1; Figure 2; http://merops.sanger.ac.uk/cgi-bin/speccards?sp=sp001886;type=peptidase). Five of the presently characterized proteases (BC1G_01026, BC1G_02944, BC1G_03070, BC1G_06836, and BC1G_06849) have previously been found in the extracellular Botrytis secretome (Espino et al., 2010; Fernández-Acero et al., 2010; Li et al., 2012; González-Fernández et al., 2014). Of these, only BC1G_03070 was presently found in differentially accumulated spots of the extracellular secretome in the presence of SA (Supplemental Table S2). One possibility to explain this behavior could rely on the different growing conditions used in the present work and in previous studies aiming at characterizing the Botrytis secretome. As stressed by Espino et al. (2010) the Botrytis secretome is highly adaptive, in the sense that very different sets of proteins are detected in the secretome when the growth conditions, or the age of the mycelium, differ. In particular these authors observed that only three proteins from a total number of 238 experimentally characterized extracellular proteins are present in 10 different experimental conditions, implying that Botrytis can greatly alter the composition of the secreted protein pool to meet the requirement of the different growing needs (Espino et al., 2010).

Besides the well-established role of extracellular proteolytic activity in fungal pathogenicity (Naglik et al., 2003; ten Have et al., 2010; Jashni et al., 2015), intracellular proteinases were also shown to play important functional roles in fungi (Li and Kane, 2009). In particular, vacuolar proteases have been reported to be essential in morphogenesis and adaptation to ambient nutritional conditions (Yike, 2011). We note that BC1G_06849 presently found in the intracellular proteome of Botrytis cells treated with either SA or MeSA (Supplemental Table S1) is predicted to encode a vacuolar protease (ten Have et al., 2010).

ROS Detoxification

Three enzymes involved in ROS detoxification, namely catalase (BC1G_12146; EC 1.11.1.6), ascorbate peroxidase (BC1G_08301; EC 1.11.1.11), manganese superoxide dismutase (BC1G_01910; EC 1.15.1.1) and peroxiredoxin (BC1G_09932; EC 1.11.1.15) were strongly depressed in the intracellular mycelium proteome upon MeSA or SA addition (Supplemental Table S1). Therefore, it is possible that the reduction of fungal growth observed in the presence of these compounds arose from an increased ROS accumulation resulting in an oxidative stress. It is worth noting that in plants SA specifically inhibits the H2O2-degrading activity of catalase (Chen et al., 1993) and of ascorbate peroxidase (Durner and Klessig, 1995), while SA treatment induces an increase in H202 concentrations in vivo, suggesting that SA may facilitate H2O2 accumulation during the oxidative burst induced by infection with avirulent pathogens (reviewed by Vlot et al., 2009). It is therefore very interesting to note that SA could target the same enzymes in plants and phytopathogenic fungi.

Cell Wall Remodeling and Integrity

An analysis of the intracellular mycelium proteome revealed that spots containing the cerato-platanin related protein (CPP) had reduced volumes upon SA addition to the culture medium (Supplemental Figure S1). The CPPs, originally discovered in Ceratocystis fimbriata f. sp. platani (Pazzagli et al., 1999), are elicitors or effector proteins that belong to a larger class of fungal proteins defined as SSCPs or SSPs: small, secreted (cysteine rich) proteins (Lamdan et al., 2015). Thus, Frías et al. (2011, 2013, 2014) showed that BcSpl1, a member of the CPP family, is required for full virulence in Botrytis and elicits the hyper sensitive response in the plant host. Also, ectopic expression of the Magnaporthe oryzae CPP gene, MgSM1, upregulates the expression of plant defense genes such as PR-1, PR-5, and PDF1.2 and induces local hypersensitivity reactions (Yang et al., 2009). It is therefore very interesting to note that the same SA molecule can both elicit HR in plants and alter the accumulation of CPPs in phytopathogenic fungi. Presumably this would allow to fine tune the regulation of HR during plant infection by phytopathogenic fungi. CPPs are structurally related to expansins, which are proteins associated with carbohydrate binding and loosening of the cellulose scaffolds in plant cell walls (de Oliveira et al., 2011). Therefore in addition to such a role in virulence, fungal CPPs might also be involved in growth and development, which should justify their presence in the fungal cell wall where they could act by disrupting non-covalent interactions between fungal cell wall components: for example, between β-glucan or chitin chains (Gaderer et al., 2014; Baccelli, 2015). In this way CPPs could act in all those processes requiring remodeling and enlargement of the fungal cell wall (Baccelli, 2015). Our present observation might support such a role, thus accounting for Botrytis growth reduction in the presence of MeSA and SA. It is also interesting to note that the accumulation of the Botrytis Bcspl1 CPP (BC1G_02163) dramatically increased in the extracellular secretome in the presence of plant extracts (Shah et al., 2009), suggesting that the accumulation of this protein in the extracellular secretome is modulated by the interaction between plant and fungal cells.

Another protein revealed in this work concerned the sporulation-specific protein 2 (BC1G_10630) that corresponds to the GPI-anchored cell wall organization protein ECM33 protein of Erysiphe necator (Pardo et al., 2004). This protein was detected in spots showing increased volumes in the intracellular and extracellular proteomes of SA-treated Botrytis cells (Supplemental Table S1). This cell wall protein ECM33 was shown to be important for cell wall integrity in term of correct assembly of the mannoprotein layer (Pardo et al., 2004; Chabane et al., 2006; Martinez-Lopez et al., 2006). The present results suggest that the observed alterations in the accumulation of this protein in response to SA or MeSA treatment may represent a compensatory response to reduced cell wall integrity in Botrytis.

Conclusion

In the present work, we studied the impact of SA and SA derivatives on Botrytis growth. By using proteomics we revealed several potential mechanisms that could account for the observed fungal growth inhibition, notably pH regulation, metal homeostasis, mitochondrial respiration, ROS accumulation, and cell wall remodeling. During infection there is ample circumstantial evidence that the plant host synthesizes SA as a signaling molecule to induce the HR response. Apoplastic SA concentrations in tobacco can be quite high at the HR lesions (Huang et al., 2006). Provided that the actual SA (or MeSA) concentrations at the infection points are high enough the present observations support a role played by the phytohormone SA and derivatives in directly containing the pathogens. As stressed by Vlot et al. (2009) SA is indeed a multifaceted hormone to combat disease.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We thank Marie-Pascale Latorse (Bayer CropScience, Lyon), Nathalie Poussereau (UMR5240, Lyon), Cécile Ribot (UMR5240, Lyon) and Catherine Sirven (Bayer CropScience, Lyon) for helpful discussions. We are grateful to the Reviewers for their helpful comments that have led to important improvements of the original manuscript.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/article/10.3389/fpls.2015.00859

Supplemental Figure S1. Relative growth of Botrytis in the absence (control) or presence of the indicated compounds (ASA, SA, MeSA, and SSA). Measurements of mycelium growth (four replicates) were effected at 3 d of the cultures as detailed in Materials and Methods.

Supplemental Figure S2. Distribution of the total absorbance in acidic (1) and basic (2) regions of 2D gels for intracellular mycelium proteome. (A) Acidic and basic regions of 2D gels. Gels shown corresponded to untreated mycelium grown at pH 5.0 (Control pH 5.0) or at pH 7.0 (Control pH 7.0) or to MeSA-treated mycelium grown at pH 5.0 (MeSA pH 5.0) or to SA-treated mycelium grown at pH 5.0 (SA pH 5.0). The acidic region (1) corresponded to the 3.0–6.0 pI range and the basic region corresponded to the 6.0–10.0 pI range of the 2D gels (separated by the blue lines). (B) Measurements of total absorbance in regions 1 and 2 of the 2D gels shown in (A). The total absorbance in each of the two regions was measured using the software Mesurim (http://acces.ens-lyon.fr/acces/logiciels/mesurim/guide-dutilisation/mesures-sur-limage#lumsurf) and three replicates for each condition. The ratios of total absorbance in region 2/total absorbance in region 1 are listed.

Supplemental Figure S3. Spot numbering for spots showing variations in spot volumes in the Botrytis intracellular mycelium proteome treated with MeSA or SA. The differentially accumulated spots are depicted on a typical 2D-gel corresponding to the intracellular proteome of untreated Botrytis control: Red arrows, differentially accumulated spots from MeSA-treated mycelium; green arrows, differentially accumulated spots from SA-treated mycelium; blue arrows, differentially accumulated spots from both MeSA- and SA-treated mycelium. The proteins contained in the various differentially accumulated spots are listed in Supplemental Table S1.

Supplemental Figure S4. Spot numbering for spots showing variations in spot volumes in the Botrytis extracellular mycelium secretome upon mycelium treatment with MeSA (0.38 mM) or SA (2.5 mM). The differentially accumulated spots are displayed on a typical 2D-gel corresponding to the extracellular secretome of control untreated Botrytis: Red arrows, differentially accumulated spots from MeSA-treated mycelium; green arrows, differentially accumulated spots from SA-treated mycelium; blue arrows, differentially accumulated spots from both MeSA- and SA-treated mycelium. The proteins contained in the various differentially accumulated spots are listed in Supplemental Table S2.

Supplemental Table S1. List of intracellular proteins present in differentially accumulated spots upon comparing control untreated and MeSA- or SA-treated Botrytis mycelium. MeSA or SA concentrations were at 0.38 mM or 2.5 mM, respectively.

Supplemental Table S2. List of proteins present in differentially accumulated spots of extracellular secretomes upon comparing control untreated and MeSA- or SA-treated Botrytis mycelium. MeSA or SA concentrations were at 0.38 mM or 2.5 mM, respectively.

Abbreviations

2D, two dimensional; ACN, acetonitrile; ASA, acetylsalicylic acid; CHAPS, 3-[(3-cholamidopropyl)dimethylammonio]-1-propanesulfonate; CID, collision induced dissociation; CPP, cerato-platinin-related protein; GPI, glycosylphosphatidylinositol; HPLC, high-performance liquid chromatography; HR, hypersensitive response; ID, internal diameter; IPG, immobilized pH gradient; LC-MS/MS, liquid chromatography coupled to tandem mass spectrometry; MeSA, methylsalicylic acid; PCD, programmed cell death; ROS, reactive oxygen species; SA, salicylic acid; SABP, SA binding protein; SAR, systemic acquired resistance; SDS-PAGE, sodium dodecylsulfate polyacrylamide gel electrophoresis; SSA, 5-sulfosalicylic acid; TCA, trichloroacetic acid.
