Diego Rubiales
Maria M. Rojas-Molina2
Josefina C. Sillero- 1CSIC, Institute for Sustainable Agriculture, Córdoba, Spain
- 2IFAPA, Centro Alameda del Obispo, Córdoba, Spain
Faba bean (Vicia faba) production in Mediterranean and Near East agriculture is severely constrained by broomrape infection. The most widely distributed broomrape species affecting faba bean is Orobanche crenata, although O. foetida and Phelipanche aegyptiaca are of local importance. Only moderately resistant cultivars are available to farmers. Rizotrons studies allowed the dissection of resistance components in faba bean accessions against the very infective species O. crenata, O. foetida var. broteri and P. aegyptiaca, and to the inappropriate P. ramosa and O. foetida var. foetida. Results confirm that some levels of incomplete resistance are available, resulting in a reduced number of broomrape tubercles successfully formed per faba bean plant. Interestingly, the intermediate levels of resistance of cv. Baraca were operative against all broomrape populations and species studied, confirming previous reports on the stability of resistance of Baraca in field trials in different countries. Low induction of seed germination played a major role in the resistance against the inappropriate O. foetida var. foetida but not against the also inappropriate P. ramosa, neither to the infective species O. crenata, O. foetida var. broteri, or P. aegyptiaca. Negative tropism of germinated seeds with radicles growing away from faba bean roots was marked for both inappropriate species but was not observed in any of the infective species. Also, a proportion of radicles that had successfully contacted faba bean roots became necrotic, failing in starting tubercle development, particularly frequent for the two inappropriate species. Such necrosis was significant also on radicles contacting resistant faba bean accessions, being particularly relevant for Spanish O. crenata population, and lower although still significant in some accessions against Syrian O. crenata and P. aegyptiaca, suggesting that this might also be an operative mechanism to be selected and further exploited in faba bean resistance breeding. Even formed broomrape tubercles might later become necrotic, particularly in the case of some of the resistant faba bean accessions to the Spanish O. crenata and to P. aegyptiaca but not to the very infective Syrian O. crenata or O. foetida var. broteri.
Introduction
Faba bean (Vicia faba L.) is a temperate grain legume of high importance as human food and animal feed (Rubiales, 2010). However, faba bean cultivation has declined in last 50 years due to low yields (Rubiales and Mikic, 2015), being broomrapes a major concern in the Mediterranean Basin and west Asia (Pérez-de-Luque et al., 2010; Maalouf et al., 2011).
Crenate broomrape (Orobanche crenata Forsk.) is the most damaging and widespread species infecting faba bean (Parker, 2009; Rubiales and Fernández-Aparicio, 2012; Fernández-Aparicio et al., 2016). Other species such as fetid broomrape (O. foetida Poir. var. broteri) or Egyptian broomrape [Phelypanche aegyptiaca (Pers.) Pomel (syn. O. aegyptiaca Pers.)] can be of local importance. O. foetida var. broteri is a major concern on faba bean in Beja region of Tunisia (Kharrat et al., 1992). On the contrary, O. foetida var. foetida and var. lusitanica are widely distributed in natural habitats in the Western Mediterranean area parasitizing wild herbaceous leguminous plants belonging to the genera Anthyllis, Astragalus, Ebenus, Lotus, Medicago, and Trifolium but not legume crops (Pujadas-Salvá, 2002; Vaz Patto et al., 2008). P. aegyptiaca is a very damaging species on vegetable crops prevalent in the Eastern Mediterranean and Near East that can also affect faba bean (Parker, 2009). P. ramosa (L.) Pomel (syn. O. ramosa L.) is very similar to P. aegyptiaca and can only very occasionally slightly infect faba bean, although at low levels, not having raised major concerns on faba bean growers.
Broomrapes are root parasitic weeds, most of their infection process taking place underground what complicates diagnosis and control (Rubiales et al., 2009; Fernández-Aparicio et al., 2011a). The most desirable control strategy is the use of resistant cultivars (Sillero et al., 2010). However, the levels of resistance available in faba bean cultivars are low and of narrow genetic basis in spite of the many efforts made by national and international programs (Pérez-de-Luque et al., 2010; Maalouf et al., 2011; Rubiales et al., 2014). Resistance against broomrape is a particularly difficult character to asses as it is highly influenced by environmental factors (Ter Borg et al., 1994; Pérez-de-Luque et al., 2004; Rubiales et al., 2006). This, together with the polygenic nature of the trait has made selection more difficult and has slowed down the breeding process (Román et al., 2002; Rubiales et al., 2009; Gutiérrez et al., 2013).
Resistance to parasitic weeds is a multicomponent trait, resulting from a battery of escape and resistance mechanisms alone or in combination (Rubiales, 2003; Pérez-de-Luque et al., 2005a,b). There is a need to find new sources of resistance, and to understand the underlying resistance mechanisms in order to facilitate faba bean resistance breeding. Dissecting the possible specific mechanisms that might be acting at different stages of the infection process might allow their combination by breeding in a single genotype resulting in a resistance more likely to be durable. The main objective of the present study was to dissect the components of the resistance of six faba bean accessions selected for their different level of resistance against different broomrape species and populations.
Materials and Methods
Plant Material
Six faba bean accessions (cv. Baraca, cv. Prothabon, ILB4347, ILB4350, ILB4351, and VFM26) were screened for resistance against various broomrape species under controlled conditions. Baraca is a cultivar with intermediate resistance to O. crenata derived from ICARDA accession Giza 402 that is so far the most widely deployed source of broomrape resistance in any faba bean breeding program (Pérez-de-Luque et al., 2010; Sillero et al., 2010). Accessions ILB4347, ILB4350, ILB4351 were developed at ICARDA and were identified as resistant against O. crenata under field conditions (Sillero et al., 1996; Maalouf et al., 2011). Accession VFM26 and cv. Prothabon were included as susceptible checks.
Six broomrape populations were used in this study. These were two different O. crenata populations collected from infected faba beans, one at Córdoba, Spain and another at Aleppo, Syria; two O. foetida populations, one of O. foetida var. broteri, collected from infected faba beans at Beja, Tunisia, and another of O. foetida var. foetida collected from infected Astragalus lusitanicus Lam. at Córdoba, Spain; a P. aegyptiaca population collected from infected chickpeas at Israel; and a P. ramosa population collected from infected tobacco at Granada, Spain.
Glass Rhizotron Assays
Faba bean seeds were pre-germinated on wet fiber paper placed in Petri dishes and maintained in darkness at 4°C for 2 days and then at 20°C for 3 days. Seedlings were then placed in the rhizotron. Broomrape seeds were previously spread on glass fiber paper (GF/A Whatman), after being disinfected with bleach (2%) and Tween 20 (0,02%) for 5 min, and conditioned in darkness at 20°C for 8 days.
Due to the failures experienced before in using the standard rhizotron systems (Cubero et al., 1994; Pérez-de-Luque et al., 2005b) in the study of Orobanche/faba bean, a larger rhizotron system involving growing of host and parasite in sand between two glasses of 50 cm × 30 cm (Rubiales et al., 2006; Pérez-de-Luque et al., 2007) was used. This method allows following the root spatial distribution and the development of the broomrape at different depths. Two cork strips of 0.5 cm thickness were placed between both glasses on left and right side, and the lower side was sealed with porous material to allow the penetration of the water solution. The faba bean seeds were placed on the sand in the upper side of the plates, with the radicle on the sterilized ‘Whatmann’ glass fiber paper sheets containing the broomrape seeds on it. The glasses were suspended vertically in boxes in a controlled environment condition chamber, at 20°C and 14 h light–10 h darkness photoperiod, with a light intensity of 148 μmol/m2/s at leaf canopy.
After 30 days of incubation, broomrape seeds in close vicinity (<3 mm) to the faba bean roots were examined using a stereoscope microscope (30× magnification). Broomrape seeds germination percentage was determined by observing 200 seeds per plant and counting the number of them with a germ tube. Attachment percentage was determined by counting the broomrape seedlings in contact with the host root. Establishment percentage was determined by counting the number of germinated broomrape seeds that contacted the faba bean root and formed tubercles. Percentages of both necrotic broomrape radicles and nodules were also recorded. For P. ramosa and O. foetida radicles it was noticed that a number of broomrape radicles changed direction of growth when approaching the faba bean roots turning around to the opposite direction. This was recorded and referred to percentage of radicles with ‘negative tropism.’ After 45 days of incubation, the total number of broomrape tubercles per faba bean plant was recorded.
Statistical analysis (ANOVA) was performed with SPSS 10.0 for Windows. Percentages were angular transformed according to the formula
Results
Results presented in Table 1 shows that faba bean accessions can be very susceptible to O. crenata, O. foetida var. broteri, and P. aegyptiaca, but confirm also that some levels of incomplete resistance are available, resulting in a reduced number of broomrape tubercles successfully formed per faba bean plant. Interestingly, the checks VFM26 and Baraca, selected for their susceptibility and resistance, respectively, to O. crenata in field trials at Cordoba were the most susceptible and resistant accessions not only to both populations of O. crenata but also to the other broomrape species studied. Clear differences in resistance were observed among the studied accessions. Interestingly, the intermediate levels of resistance of cv. Baracca were operative against all broomrape populations and species studied, confirming previous reports on the stability of resistance of Baraca in field trials in different countries (Rubiales et al., 2014). Accessions ILB4350, ILB4347, and ILB4351, previously selected as resistant in Spanish trials proved resistant to the Spanish O. crenata population in the rhizotron test, but although they were more resistant than the susceptible check to Syrian one, this resistance was significantly weaker to this isolate. Cultivar Prothabon was susceptible to Spanish population of O. crenata but resistant to the Syrian one. Interestingly some of these accessions (ILB4347, ILB4351, and Prothabon) displayed also some resistance against O. foetida var. broteri, and all of them (ILB4347, ILB4350, ILB4351, and Prothabon) displayed levels of resistance similar to Baraca against P. aegyptiaca. Conversely, Prothabon that was included in the study as check due to its known susceptibility to O. crenata in Spanish fields was significantly less susceptible to the Syrian isolate and to O. foetida var. broteri than VFM26, and interestingly very resistant to P. aegyptiaca.
TABLE 1. Total number of broomrapes per plant formed on roots of faba bean accessions.
Results presented in Table 1 also show that faba bean is highly resistant to O. foetida var. foetida confirming the lack of infection ever observed in the faba bean in the field (Pujadas-Salvá, 2002; Rubiales et al., 2005; Vaz Patto et al., 2008). Some P. ramosa infection could occur, but at low levels.
Large differences were observed among broomrape species in the various steps of development, from seed germination to establishment on faba bean roots. The different broomrape species differed in the average germination on faba bean roots (Table 2), being the highest for P. aegyptiaca (range 58–81%) and P. ramosa (63–73%) followed by O. crenata (36–64%) and O. foetida var. broteri (45–56%), and very low for O. foetida var. foetida (4–19%), being in all cases in the levels previously described for these species (Fernández-Aparicio et al., 2009). Little genotypic differences were observed among the studied faba bean accessions on the level of induction of germination, although remarkable levels of reduced induction of germination have been reported in other faba bean germplasm (Fernández-Aparicio et al., 2012).
TABLE 2. Percentage of broomrape seeds germination on the vicinity of faba bean accessions.
Once germinated, broomrape radicles contacted faba bean roots in their vicinity with a level of success that varied with the species (Table 3), being lower in the case of P. ramosa (range 4–11%) but similar for P. aegyptiaca (21–46%), O. foetida var. broteri (30–45%), O. foetida var. foetida (15–34%). Interestingly, there were significant differences between the Syrian and the Spanish O. crenata population in success of seed germination (Table 2) and of germinated seed contact (Table 3), being germination in general lower for Syrian population (37–44% vs. 36–64%) but the success contacting faba bean of the germinated seeds higher (38–56% vs. 23–38%).

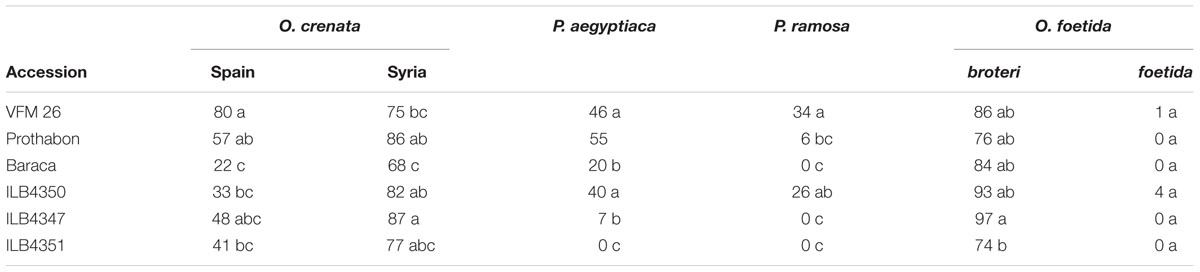

TABLE 3. Percentage of germinated broomrape seeds contacting roots of faba bean accessions.
It was remarkable to observe that one of the possible mechanisms for not contacting with faba bean roots could be negative tropism, with broomrape radicles changing growing direction when closer to the faba bean roots (Table 4). This negative tropism could be high in the case of O. foetida var. foetida (32–70%) or P. ramosa (range 21–30%) but was not observed in radicles on any of the other species.
TABLE 4. Percentage of broomrape radicles showing negative tropism when approaching roots of faba bean accessions.
Broomrape radicles successfully contacting faba bean roots might later become necrotic (Table 5) or succeed further in establishment and develop broomrape tubercles on the roots (Table 6), a few of which might develop and grow further or fail and become necrotic (Table 7). Table 5 shows how a proportion of the broomrape radicles became necrotic, with clear differences among species being highest for the inappropriate species that hardly infect faba bean such as P. ramosa (range 54–67%) and O. foetida var. foetida (31–93%). On the contrary necrosis of radicles in vicinity of faba bean roots was low for the remaining species but could be higher for some species in the vicinity of roots of the resistant accessions. This was particularly evident for the Spanish O. crenata population with 20–28% of necrotic radicles on resistant accessions vs. 1% on the susceptible checks.
TABLE 5. Percentage of broomrape radicles contacting faba bean roots that became necrotic.
TABLE 6. Percentage of germinated broomrape seeds that successfully established a tubercle on faba bean roots.
TABLE 7. Percentage of established broomrape tubercles that became necrotic.
Success in tubercle development is species dependent (Table 6), being particularly high for the Syrian O. crenata population (range 68–87%) and for O. foetida var. broteri (76–97%) but negligible for O. foetida var. foetida. Clear genotypic effects were observed by some faba bean accessions for the Spanish O. crenata population (range 22–80%) or even for the inappropriate P. ramosa (0–34%).
A proportion of these formed broomrape tubercles might later become necrotic, particularly in the case of some of the resistant faba bean accessions to the Spanish O. crenata (accessions Baraca, ILB4350 and ILB4347) and to P. aegyptiaca (Baraca) but not to the Syrian O. crenata, P. ramosa, or O. foetida var. broteri.
Discussion
The resistance to broomrape in faba bean is scarce and of complex nature what complicates resistance breeding (Rubiales et al., 2006; Sillero et al., 2010). Most resistant cultivars have been bred using the Egyptian line G402 as the major donor of resistance that derives mainly from resistant breeding lines developed at ICARDA, Syria, selected across different Mediterranean countries, therefore, it is not surprising that the resistance is operative against different O. crenata populations. We show here that this resistance is broadly operative not only against diverse O. crenata populations but also against other species such as O. foetida and P. aegyptiaca. Still, relying on a single source of resistance is risky and broadening the genetic basic of resistances deployed is a major need in order to increase durability of resistance.
Little conclusive information has been reported on the nature of the resistance available in faba bean. Existing reports points toward resistance hampering establishment and development of broomrape tubercles (Khalaf and El-Bastawesy, 1989; Pérez-de-Luque et al., 2007, 2010) what confirms some of our findings (Tables 6 and 7). We found in this study little variation for the induction of broomrape seed germination among the studied accessions (Table 2), what is in agreement with most previous reports that considered this non-existent in faba bean against both O. crenata and O. foetida (Ter Borg et al., 1994; Pérez-de-Luque et al., 2010). However, resistance based in no-induction of broomrape seed germination has been recently described and characterized in other germplam (Fernández-Aparicio et al., 2012) and will be most useful in faba bean resistance breeding.
Clear differences in germination were observed between the two O. foetida populations. This reduced germination might be related to a low secretion of specific germination stimulants in the faba bean roots. A host specialization process, which is still in progress, has been suggested for O. foetida (Román et al., 2007; Vaz Patto et al., 2008). Its specificity has been related to their sensitivity to non-strigolactone compounds such as peagol and a polyphenol (Evidente et al., 2009, 2010). Contrary to the other species, neither O. foetida var. broteri nor var. foetida respond to the synthetic strigolactone GR24 (Fernández-Aparicio et al., 2009), widely used as standard germination stimulant, but it does respond to other strigolactones such as fabacyl acetate known to be produced in faba bean (Fernández-Aparicio et al., 2011b). Host specialization might be mediated by the combination in the root exudate of a number of signaling chemicals affecting germination. Separately these chemicals might have a stimulatory (various strigolactones but also other metabolites) or inhibitory effect (Whitney, 1978; Evidente et al., 2007; Fernández-Aparicio et al., 2008), but combined they might have synergistic or antagonistic effects.
Low induction of seed germination seemed to play a major role in the non-host resistance against the inappropriate (little infective) species O. foetida var. foetida (<20% germination) but not against the also inappropriate P. ramosa (>63%, similar to that of infective species). Although not identified in any of the faba bean accessions included in this study, low induction of germination can also play a significant role in host resistance and has been reported in other accessions (Fernández-Aparicio et al., 2012, 2014), in chickpea against O. crenata (Rubiales et al., 2003), and in sorghum against Striga (Ejeta, 2007).
A second mechanism was observed only in radicles of the inappropriate species, showing ‘negative tropism’ with radicles turning growing direction away of faba bean roots, being as high as 32–70% for O. foetida var. foetida and for 21–30% for P. ramosa. This was not observed in any of the infective species. This might be ascribed to exudation of metabolites by faba bean roots having a negative effect on growth of radicle of these species, but we cannot exclude overproduction of stimulants as directional growth of broomrape radicles is a response to germination stimulants gradient (Whitney and Carsten, 1981). We did not measure radicle length, but noticed a reduced success rate of radicles of P. ramosa to contact faba bean roots, what in addition to the above described negative tropism might be ascribed to limited growth, what points toward inhibition. This deserves further investigations.
Also, a proportion of radicles that had successfully contacted faba bean roots became necrotic, failing in starting tubercle development, what also suggest a response to chemicals exuded by faba bean roots. This necrosis of radicles was particularly frequent for the inappropriate P. ramosa and O. foetida var. foetida suggesting a major role of inhibitory/toxic chemicals on this non-host resistance. Such necrosis was significant also on radicles contacting resistant faba bean accessions, being particularly relevant for Spanish O. crenata population, and lower although still significant in some accessions against Syrian O. crenata and P. aegyptiaca, suggesting that this might also be an operative mechanism to be selected and further exploited in faba bean resistance breeding.
Even formed broomrape tubercles might become necrotic, particularly in the case of some of the resistant faba bean accessions to the Spanish O. crenata (accessions Baraca, ILB4350 and ILB4347) and to P. aegyptiaca (Baraca) but not to the very infective Syrian O. crenata or O. foetida var. broteri. Zaitoun et al. (1991) and Zaitoun and Ter Borg (1994) already suggested a barrier in the roots of Baraca leading to the death of O. crenata in its early developmental stages. This response has frequently been reported also in other plants against various parasitic weeds, histology revealing that initial vascular connections are established but are then blocked by accumulation of mucilage, secretions and degraded products not allowing nutrient flux between host and parasite, causing death of tubercles at an earlier stage (Labrousse et al., 2001; Zehhar et al., 2003; Pérez-de-Luque et al., 2005b, 2006).
The existence of races of O. crenata has remained a controversial issue, with little conclusive reports supporting this. Although variation among O. crenata populations in the ability to parasitize different faba bean accessions have been suggested (Radwan et al., 1988), no physiological races have been reported. It is concluded from our study that the Syrian O. crenata population is more aggressive than the Spanish one, causing more infection than the Spanish population on all resistant accessions, but in all cases, infection was significantly lower than on the check VFM26. However, the differential response of cv. Prothabon, being susceptible to the Spanish population but resistant to the Syrian one, might point toward some variation for virulence among populations. However, these results are too preliminary as to claim for existence of races in O. crenata, what should be further studied. However, it might well be possible that more virulent biotypes could be selected when challenged by the widespread use of newly deployed highly resistant cultivars. This deserves constant monitoring.
The fact that the resistance of Baraca to the Spanish O. crenata population is also effective against the Syrian one is not surprising, as Baraca derives from resistant breeding lines developed at ICARDA, Syria, having line G402 as the major donor of resistance in its pedigree. This breeding material has been the foundation of most faba bean breeding programs for broomrape resistance and it seems that is in the pedigree of most, if not all, registered faba bean resistant cultivars. This resistance, having been selected in various countries, seems to be broadly effective. Only long term cultivation of these cultivars in large areas will say if it is indeed durable or will be easily overruled by the appearance of a most virulent O. crenata population. Time is needed to verify this, as these cultivars are relatively recent and are not very widely deployed. For instance, cultivation of cv. Baraca is still negligible in Spain. All we can speculate is that, the remarkable fact that this resistance is not only operative against different populations of O. crenata, but also against different species such as O. foetida (confirming field studies of Rubiales et al., 2014) and P. aegyptiaca, suggesting that Baraca carries broad sense resistance, likely to be durable.
Conclusion
Results presented here show the broad base of the resistance of cv. Baraca, being effective not only against contrasting O. crenata populations but also against other species such as O. foetida and P. aegyptiaca. Dissecting specific resistance mechanisms acting at different stages of the infection process will facilitate their combination in a single genotype by breeding and selection providing a resistance more likely to be durable.
Author Contributions
MR-M performed the experiments supervised by JS and DR who wrote the manuscript.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgment
Authors are greatly indebted to European Union projects FP7-ARIMNet-Medileg and FP7-LEGATO (grant agreement 613551) for financial support.
References
Cubero, J. I., Pieterse, A. H., Khalil, S. A., and Sauerborn, J. (1994). Screening techniques and sources of resitance to parasitic angiosperms. Euphytica 74, 51–58. doi: 10.1007/BF00027181
Ejeta, G. (2007). Breeding for Striga resistance in sorghum: exploitation of an intricate host-parasite biology. Crop Sci. 47, 216–227. doi: 10.2135/cropsci2007.04.0011IPBS
Evidente, A., Cimmino, A., Fernández-Aparicio, M., Andolfi, A., Rubiales, D., and Motta, A. (2010). Polyphenols, including the new Peapolyphenols A-C, from pea root exudates stimulate Orobanche foetida seed germination. J. Agric. Food Chem. 58, 2902–2907. doi: 10.1021/jf904247k
Evidente, A., Fernández-Aparicio, M., Andolfi, A., Rubiales, D., and Motta, A. (2007). Trigoxazonane, a monosubstituted trioxazonane by Trigonella foenum-graecum root exudate, inhibiting agent of Orobanche crenata seed germination. Phytochemistry 68, 2487–2492. doi: 10.1016/j.phytochem.2007.05.016
Evidente, A., Fernández-Aparicio, M., Cimmino, A., Rubiales, D., Andolfi, A., and Motta, A. (2009). Peagol and peagoldione, two new strigolactone-like metabolites isolated from pea root exudates. Tetrahedron Lett. 50, 6955–6958. doi: 10.1016/j.tetlet.2009.09.142
Fernández-Aparicio, M., Andolfi, A., Evidente, A., Pérez-de-Luque, A., and Rubiales, D. (2008). Fenugreek root exudates show species-specific stimulation of Orobanche seed germination. Weed Res. 48, 163–168. doi: 10.1111/j.1365-3180.2007.00609.x
Fernández-Aparicio, M., Flores, F., and Rubiales, D. (2009). Recognition of root exudates by seeds of broomrape (Orobanche and Phelipanche) species. Ann. Bot. 103, 423–431. doi: 10.1093/aob/mcn236
Fernández-Aparicio, M., Flores, F., and Rubiales, D. (2016). The effect of Orobanche crenata infection severity in faba bean, field pea, and grass pea productivity. Front. Plant Sci. 7:1409. doi: 10.3389/fpls.2016.01409
Fernández-Aparicio, M., Kisugi, T., Xie, X., Rubiales, D., and Yoneyama, K. (2014). Low strigolactone root exudation: a novel mechanism of broomrape (Orobanche and Phelipanche spp.) resistance available for faba bean breeding. J. Agric. Food Chem. 62, 7063–7071. doi: 10.1021/jf5027235
Fernández-Aparicio, M., Moral, A., Kharrat, M., and Rubiales, D. (2012). Resistance against broomrapes (Orobanche and Phelipanche spp.) in faba bean (Vicia faba) based in low induction of seed germination. Euphytica 186, 897–905. doi: 10.1021/jf5027235
Fernández-Aparicio, M., Westwood, J. H., and Rubiales, D. (2011a). Agronomic, breeding, and biotechnological approaches to parasitic plant management through manipulation of germination stimulant levels in agricultural soils. Botany 89, 813–826. doi: 10.1139/b11-075
Fernández-Aparicio, M., Yoneyama, K., and Rubiales, D. (2011b). The role of strigolactones in host specificity of Orobanche and Phelipanche seed germination. Seed Sci. Res. 21, 55–61. doi: 10.1017/S0960258510000371
Gutiérrez, N., Palomino, C., Satovic, Z., Ruiz-Rodríguez, M. D., Vitale, S., Gutiérrez, M. V., et al. (2013). QTLs for Orobanche spp. resistance in faba bean: identification and validation across different environments. Mol. Breeding 32, 909–922. doi: 10.1007/s11032-013-9920-2
Khalaf, K. A., and El-Bastawesy, F. I. (1989). Some studies on the basis of resistance of Vicia faba cultivar ‘Giza 402’ to Orobanche crenata parasitism. FABIS Newsletter 25, 5–9.
Kharrat, M., Halila, M. M., Linke, K. H., and Haddar, T. (1992). First report of Orobanche foetida Poiret on faba bean in Tunisia. FABIS Newsletter 30, 46–47.
Labrousse, P., Arnaud, M. C., Serieys, H., Bervillé, A., and Thalouarn, P. (2001). Several mechanisms are involved in resistance of Helianthus to Orobanche cumana Wallr. Ann. Bot. 88, 859–868. doi: 10.1006/anbo.2001.1520
Maalouf, F., Khalil, S., Ahmed, S., Akintunde, A. N., Kharrat, M., El Shama’a, K., et al. (2011). Yield stability of faba bean lines under diverse broomrape prone production environments. Field Crops Res. 124, 288–294. doi: 10.1016/j.fcr.2011.06.005
Parker, C. (2009). Observations on the current status of Orobanche and Striga problems worldwide. Pest Manag. Sci. 65, 453–459. doi: 10.1002/ps.1713
Pérez-de-Luque, A., Eizenberg, H., Grenz, J. H., Sillero, J. C., Ávila, C. M., Sauerborn, J., et al. (2010). Broomrape management in faba bean. Field Crops Res. 115, 319–328. doi: 10.1016/j.fcr.2009.02.013
Pérez-de-Luque, A., Jorrín, J., Cubero, J. I., and Rubiales, D. (2005a). Orobanche crenata resistance and avoidance in pea (Pisum spp.) operate at different developmental stages of the parasite. Weed Res. 45, 379–387. doi: 10.1111/j.1365-3180.2005.00464.x
Pérez-de-Luque, A., Lozano, M. D., Cubero, J. I., González-Melendi, P., Risueño, M. C., and Rubiales, D. (2006). Mucilage production during the incompatible interaction between Orobanche crenata and Vicia sativa. J. Exp. Bot. 57, 931–942. doi: 10.1093/jxb/erj078
Pérez-de-Luque, A., Lozano, M. D., Moreno, M. T., Testillano, P. S., and Rubiales, D. (2007). Resistance to broomrape (Orobanche crenata) in faba bean (Vicia faba): cell wall changes associated with pre-haustorial defensive mechanisms. Ann. Appl. Biol. 151, 89–98. doi: 10.1111/j.1744-7348.2007.00164.x
Pérez-de-Luque, A., Rubiales, D., Cubero, J. I., Press, M. C., Scholes, J., Yoneyama, K., et al. (2005b). Interaction between Orobanche crenata and its host legumes: unsuccessful haustorial penetration and necrosis of the developing parasite. Ann. Bot. 95, 935–942. doi: 10.1093/aob/mci105
Pérez-de-Luque, A., Sillero, J. C., Cubero, J. I., and Rubiales, D. (2004). Effect of sowing date and host resistance on the establishment and development of Orobanche crenata on faba bean and common vetch. Weed Res. 44, 282–288. doi: 10.1111/j.1365-3180.2004.00401.x
Pujadas-Salvá, A. J. (2002). “Orobanche L,” in Plantas Parásitas en la Península ibérica e Islas Baleares, eds J. A. López-Sáez, P. Catalán, and L. I. Sáez (Madrid: Mundi Prensa), 348–440.
Radwan, M. S., Abdalla, M. M. F., Fischbeck, G., Metwally, A. A., and Darwish, D. S. (1988). Variation in reaction of faba bean lines to different accessions of Orobanche crenata Forsk. Plant Breed. 101, 208–216. doi: 10.1111/j.1439-0523.1988.tb00289.x
Román, B., Satovic, Z., Alfaro, C., Moreno, M. T., Kharrat, M., Pérez-de-Luque, A., et al. (2007). Host differentiation in Orobanche foetida Poir. Flora 202, 201–208. doi: 10.1016/j.flora.2006.07.003
Román, M. B., Torres, A. M., Rubiales, D., Cubero, J. I., and Satovic, Z. (2002). Mapping of quantitative trait loci controlling broomrape (Orobanche crenata) resistance in faba bean. Genome 45, 1057–1063. doi: 10.1139/g02-082
Rubiales, D. (2003). Parasitic plants, wild relatives and the nature of resistance. New Phytol. 160, 459–461. doi: 10.1046/j.1469-8137.2003.00929.x
Rubiales, D. (2010). Faba beans in sustainable agriculture. Field Crops Res. 115, 201–202. doi: 10.1016/j.fcr.2009.11.002
Rubiales, D., Alcántara, C., Joel, D. M., Pérez-de-Luque, A., and Sillero, J. C. (2003). Characterization of the resistance to Orobanche crenata in chickpea. Weed Sci. 51, 702–707. doi: 10.1614/P2002-151
Rubiales, D., and Fernández-Aparicio, M. (2012). Innovations in parasitic weeds management in legume crops. A review. Agron. Sustain. Dev. 32, 433–449. doi: 10.1007/s13593-011-0045-x
Rubiales, D., Fernández-Aparicio, M., Wegmann, K., and Joel, D. (2009). Revisiting strategies for reducing the seedbank of Orobanche and Phelipanche spp. Weed Res. 49, 23–33. doi: 10.1111/j.1365-3180.2009.00742.x
Rubiales, D., Flores, F., Emeran, A. S., Kharrat, M., Amri, M., Rojas-Molina, M. M., et al. (2014). Identification and multi-environment validation of resistance against broomrapes (Orobanche crenata and O. foetida) in faba bean (Vicia faba). Field Crops Res. 166, 58–65. doi: 10.1016/j.fcr.2014.06.010
Rubiales, D., and Mikic, A. (2015). Legumes in sustainable agriculture. Crit. Rev. Plant Sci. 34, 1–3. doi: 10.1080/07352689.2014.897895
Rubiales, D., Pérez-de-Luque, A., Fernández-Aparicio, M., Sillero, J. C., Román, B., Kharrat, M., et al. (2006). Screening techniques and sources of resistance against parasitic weeds in grain legumes. Euphytica 147, 187–199. doi: 10.1007/s10681-006-7399-1
Rubiales, D., Sadiki, M., and Román, B. (2005). First report of Orobanche foetida on common vetch (Vicia sativa) in Morocco. Plant Dis. 89, 528. doi: 10.1094/PD-89-0528A
Sillero, J. C., Rubiales, D., and Cubero, J. I. (1996). “Risks of Orobanche screenings based only on final number of emerged shoots per plant,” in Advances in Parasitic Plant Research, eds M. T. Moreno, J. I. Cubero, D. Berner, D. Joel, L. J. Musselman, and C. Parker (Sevilla: Junta de Andalucía), 652–657.
Sillero, J. C., Villegas-Fernández, A. M., Thomas, J., Rojas-Molina, M. M., Emeran, A. A., Fernández-Aparicio, M., et al. (2010). Faba bean breeding for disease resistance. Field Crops Res. 115, 297–307. doi: 10.1016/j.fcr.2009.09.012
Ter Borg, S. J., Willemsen, A., Khalil, S. A., Saber, H. A., Verkleij, J. A. C., and Pieterse, A. H. (1994). Field study of the interaction between Orobanche crenata Forks. and some lines of Vicia faba L. in Egypt. Crop Prot. 13, 611–616. doi: 10.1016/0261-2194(94)90007-8
Vaz Patto, M. C., Díaz-Ruiz, R., Satovic, Z., Román, B., Pujadas-Salvà, A. J., and Rubiales, D. (2008). Genetic diversity of Moroccan populations of Orobanche foetida: evolving from parasitising wild hosts to crop plants. Weed Res. 28, 179–186. doi: 10.1111/j.1365-3180.2008.00621.x
Whitney, P. J. (1978). Broomrape (Orobanche) seed germination inhibitors from plant roots. Ann. Appl. Biol. 89, 457–478. doi: 10.1111/j.1744-7348.1978.tb05976.x
Whitney, P. J., and Carsten, C. (1981). Chemotropic response of broomrape radicals to host root exudates. Ann. Bot. 48, 919–921.
Zaitoun, F. M. F., Al-Menoufi, O. A., and Weber, H. C. (1991). “Mechanisms of tolerance and susceptibility of three Vicia faba varieties to the infection with Orobanche crenata,” in Proceedings of the 5th International Symposium on Parasitic Weeds, eds J. K. Ransom, L. J. Musselman, A. D. Worsham, and C. Parker (Nairobi: CIMMYT), 195–207.
Zaitoun, F. M. F., and Ter Borg, S. J. (1994). “Resistance against Orobanche crenata in Egyptian and Spanish faba beans,” in Proceeding of the 3rd International Workshop on Orobanche and Related Striga Research: Biological and Management of Orobanche eds A. H. Pieterse, A. C. Verkleij, and S. J. Ter Borg (Amsterdam: Royal Tropical Institute), 264–275.
