Original Research ARTICLE

Front. Plant Sci., 10 January 2017 |

Both Male and Female Malfunction Contributes to Yield Reduction under Water Stress during Meiosis in Bread Wheat

Ifeyinwa Onyemaobi1,2, Hui Liu1,2, Kadambot H. M. Siddique2 and Guijun Yan1,2*
  • 1School of Plant Biology, Faculty of Science, The University of Western Australia, Crawley, WA, Australia
  • 2The UWA Institute of Agriculture, The University of Western Australia, Crawley, WA, Australia

Water stress during meiosis in wheat is a major constraint to yield especially for the rainfed farming regions. Pollen sterility has been proposed as the most sensitive process leading to low seed set (low % of fertile spikelets), but here we show this is not universal, and that the development of female reproductive parts is equally if not more sensitive than male parts in many wheat cultivars. The first experiment examined water stress during meiosis in 46 wheat genotypes. The reduction in seed set varied widely, ranging from 6 to 48%. The second experiment differentiated the effect of water stress on the male or the female reproductive part in 13 wheat genotypes. Water stress was imposed during meiosis, with plants cross-pollinated 5 days later with pollen from stressed or unstressed plants used to pollinate emasculated stressed or unstressed female parts. Seed set and kernel weight were measured at maturity. Contrary to the well-held view that the male reproductive part is the major contributor to seed set reduction when water stress is experienced during meiosis, the stressed-female part was also a predominant contributor in four wheat genotypes among the 13 genotypes examined. This strongly indicates that both male and female parts are responsible for yield reduction when water-stressed during meiosis and suggests that it may be possible to breed tolerant wheat cultivars combining tolerance from both male and female reproductive parts.


Water stress is a common abiotic stress limiting crop growth and productivity, and its duration and intensity are highly variable due to climate change. Improving yield is a major aim of most grain crop breeding projects. The extent of yield limitation due to water stress lays heavily on the particular growth stage at which plants experience the stress (Salter and Goode, 1967; Saini, 1997). Water stress during vegetative or reproductive phases can reduce yield (Saini and Westgate, 1999; Craufurd and Wheeler, 2009; Farooq et al., 2014), but the reproductive phase is the most critical stage (Parish et al., 2012). Water stress during or before the onset of reproductive process in plants is a major factor limiting crop yield in most regions where dryland rainfed farming occurs. Such regions experience water shortage and high temperatures as grain crops enter their reproductive stage (Siddique et al., 2000; Turner, 2003, 2004; Turner et al., 2007; Fang et al., 2010; Farooq et al., 2014).

The reproductive phase in bread wheat (Triticum aestivum) consists of a series of sequential events that span the Zadoks′ scale from Z37 (before booting) to Z69 (end of flowering) (Zadoks et al., 1974). This phase is sensitive to abiotic stresses and can result in yield losses in cereals (Oliver et al., 2005). A frequently adopted breeding approach for maximizing yield under water stress is to target a specific developmental stage prone to the stress and develop cultivars adapted to it (Fleury et al., 2010; Passioura, 2012). Grain number and grain weight are two major yield determinants in cereals (Evans, 1978; Mohammady, 2015). The timing of the water stress determines whether grain number (seed set) or grain weight will be affected. Water stress has the largest influence on seed set if it occurs during the earlier stages of the reproductive process (between meiosis and gametogenesis) (Saini and Westgate, 1999; Powell et al., 2012). Water stress during meiosis obstructs both male and female gametogenesis which may result in the production of sterile pollen and/or egg cells, loss of gamete viability, or other developmental anomalies of reproductive structures which reduce seed set (Saini, 1997; Saini and Westgate, 1999; Farooq et al., 2011, 2014).

Male gametophyte development in wheat is reportedly more sensitive to water, heat and cold stress than female gametophyte development (Saini et al., 1984; Dolferus et al., 2011). Water stress during the young microspore stage of pollen development in wheat can induce male sterility (Lalonde et al., 1997; Ji et al., 2010). The high sensitivity of male gametes to water stress has been attributed to the degradation of tapetum layers which contain the nutrients required for pollen development (Saini and Aspinall, 1981; Saini, 1997; Saini and Westgate, 1999; Dolferus et al., 2013). In contrast, female gametogenesis is reportedly physically protected, less vulnerable to abiotic stresses and resilient to water stress (Saini, 1997; Ji et al., 2010; Thakur et al., 2010; Dolferus et al., 2013).

This study was undertaken to examine how water stress during meiosis affects the male and female reproductive parts of wheat for their contributions to seed set and yield. The identification of wheat genotypes with high seed set under water stress during meiosis could be the key to further improving drought tolerance in wheat. The specific objectives of the research were to: (i) identify wheat genotypes with high seed set under water stress during meiosis, (ii) determine any genotypic differences in floral fertility under meiotic-stage water stress, and (iii) investigate the contribution of male and female reproductive parts on seed set and yield in response to water stress during micro- and mega-sporogenesis.

Materials and Methods

Experiment 1: Effect of Water Stress during Meiosis on Seed Set

Plant Materials and Growing Conditions

Forty-six wheat (Triticum aestivum L.) genotypes were grown in a controlled-temperature glasshouse, set at 22/15°C day/night temperature at The University of Western Australia (31° 57′ S, 115° 47′ E) from June to November 2014 (Table 1). The seeds were obtained from the Australian winter cereals collection.


TABLE 1. Names and origins of the 46 wheat genotypes used in this study.

Plants were grown in polyvinyl chloride pots, 9 cm in diameter and 37 cm high. Each pot was filled with 2.1 kg of sterilized potting mix and had a 9-mm hole at the bottom to allow free drainage of water. Five seeds were grown per pot for each genotype and thinned to three uniform plants per pot after 7 days. There were 276 pots in total; two treatments × 46 genotypes × 3 replicates. To maintain soil moisture and avoid quick soil drying, 100 g of plastic poly pellets was added on the soil surface of each pot. A water-soluble NPK fertilizer (poly feed greenhouse grade) was applied weekly from 21 days after sowing (DAS).

Water-Stress Treatments

For each genotype, three pots were grown as replicates in each treatment: non-stress (control) or stress. The pots were watered every 2 days to maintain soil moisture at 80% field capacity. The pots were randomly arranged and rearranged every fortnight to reduce border effects and minimize any variation in light and temperature, as described in Fang et al. (2010).

Water stress was imposed in the stress group by the cessation of watering for 7 days when the auricle distance (AD, the distance between the auricles of the flag leaf and the second last leaf, as described by Ji et al., 2010) was 0 cm. At this time (day 7 after stress imposition), the AD was ∼12–14 cm (Figures 1a,b) when meiosis occurred (Figures 1c–f) for most genotypes. Watering was then resumed as per the control pots and continued until the plants reached full maturity.


FIGURE 1. Correlation of auricle distance (AD) to meiosis stage in wheat. (a) AD = ∼3 cm when meiosis started for most genotypes; (b) AD = ∼12 cm when meiosis ended for most genotypes; (c) Microscopic examination of anthers at AD < 3 cm showing pollen mother cells (the lightly stained large cells in the middle) before meiosis; (d,e) Microscopic examinations of anthers at AD between 3 and 12 cm, showing cells (d) at different meiotic stages and (e) having just finished meiosis; (f) Microscopic examination of anthers at AD ≥ 12 cm, showing pollens that had already formed. Bars = 50 μm.

Experiment 2: Effect of Water Stress on the Reproductive Parts of Selected Genotypes

To determine the effect of water stress on the reproductive parts of wheat, 13 genotypes (Table 1) were selected from Experiment 1 based on the following criteria: high seed set in the non-stressed treatment (control), and extremely high or low reductions in seed set in the stressed treatment relative to the control. A similar water-stress treatment to Experiment 1 was used, but this time the non-stressed and water-stressed plants were reciprocally crossed by hand for each of the selected genotypes. Spikelets at the top and base of the ear, and florets from the central part of the spike were removed. A total of 20 spikelets from the middle of the spike and 10 lateral spikelets on each side of the spike were retained. Emasculation was done on all the 20 spikelets on the main stem only. Three treatment groups were set up: pistils/stigmas of non-stressed plants were pollinated with pollen from non-stressed plants, as a control group; stigmas of water-stressed plants were pollinated with non-stressed pollen, as a stressed-female (pistil) group; and stigmas from non-stressed plants were pollinated with pollen from water-stressed plants, as a stressed-male (pollen) group (Figure 2). For each genotype, three replicates were used for each of the treatment groups.

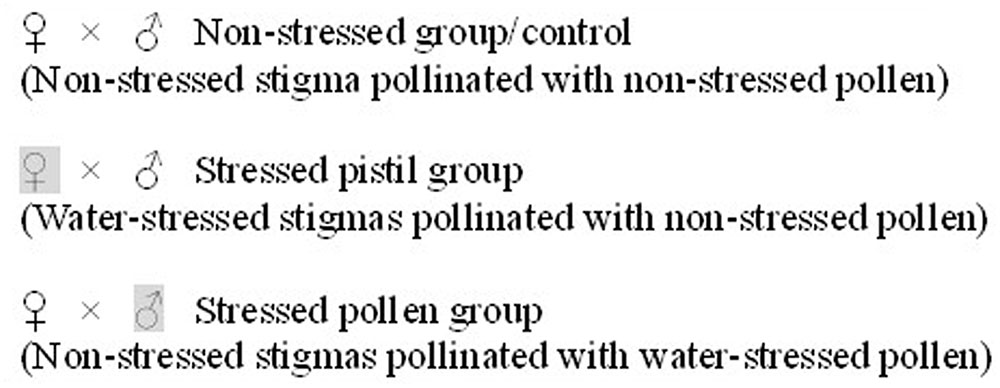

FIGURE 2. List of treatment groups and crosses performed. Water-stressed female and male parts are shaded in gray.

Measurements and Statistical Analysis

Each main stem was tagged at the beginning of the water-stress treatment, and the effect of the stress was assessed for the tagged stem only. Soil water content (SWC) was measured to determine plant water-stress status during the stress treatment. SWC was determined by oven-drying a soil sample to constant weight at 105°C and the moisture content of the soil was expressed as a percentage of the sample weight before and after drying. For both treatments, harvest occurred at the end of physiological maturity, when the spikes were dry and with a golden color. For each genotype and treatment, the following parameters were measured in three plants and three replicates:

Seed set=Number of fertile florets that developed into grainsNumber of potentially fertile florets
Seed set reduction index=(seed set of control plantsseed set of stressed plants)seed set of control plants

The number of potential fertile florets was determined by counting the flowers per spike after anthesis and at the end of physiological maturity.

Thousand kernel weight, plant height, ear dry weight, flag leaf length, flag leaf width, the number of nodes per plant and peduncle length were also measured. Statistical analyses were performed using SPSS 22.0. Analysis of the interaction effect on the measured traits because of the water-stress treatment, analysis of variance and t-test were conducted. Differences between mean values of treatments were evaluated using least significant difference (LSD) at the 0.05 significance level. Pearson’s correlation coefficient was used to identify relationships between the measured characters.


Water Stress Significantly Reduced Seed Set

Cessation of watering rapidly decreased SWC from 80% field capacity to 61% in 3 days and 45% in 7 days (Figure 3). Water stress during meiosis significantly reduced (p < 0.01) seed set compared to non-stressed plants. For the 46 tested wheat genotypes, the mean seed set under non-stressed conditions was 68%, because not all fertile florets had the potential of setting into grains, similar result has been previously reported in Ferrante et al. (2013) where increase in nitrogen availability affected the number of fertile florets and the number of grains the florets produce at maturity - the relationship of wheat spike fertility and seed set was also reported by Martino et al. (2015). Under stressed conditions the mean seed set was reduced to 52%.

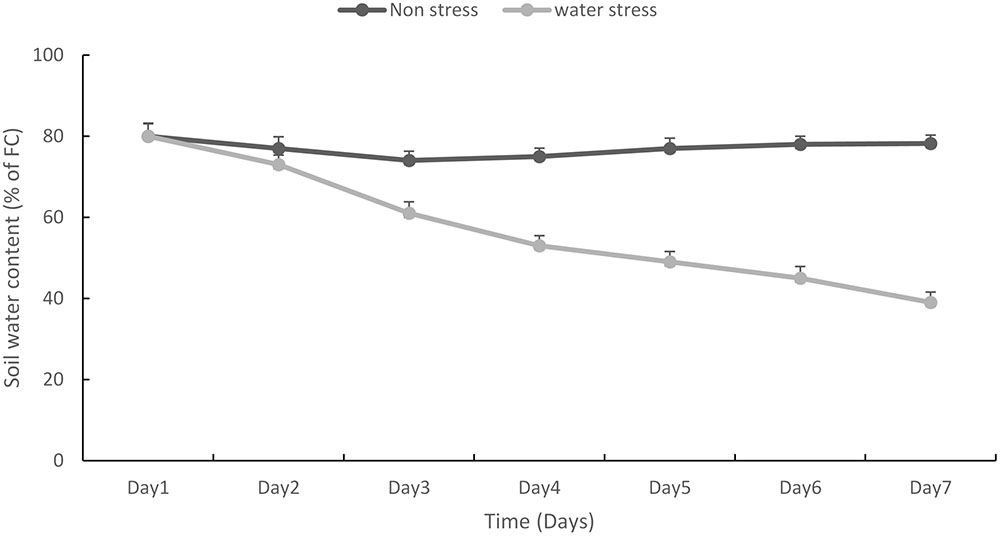

FIGURE 3. Change in the soil water content (SWC) [% of field capacity (FC)] with time (days) for non-stressed (upper line) and water stressed (lower line) treatment after watering was withheld for 7 days. Values are means; error bars are standard errors of the means.

Lower seed set values (ranging from 33 to 77%) were recorded under water-stressed conditions for the 46 wheat genotypes (Figure 4). Florida 301, Halberd and Westonia had the highest seed set with >70% under water stress. These values did not significantly differ from those under control conditions. India 344, Morocco 426 and W96 had the lowest seed set which ranged from 33 to 40% under water stress.

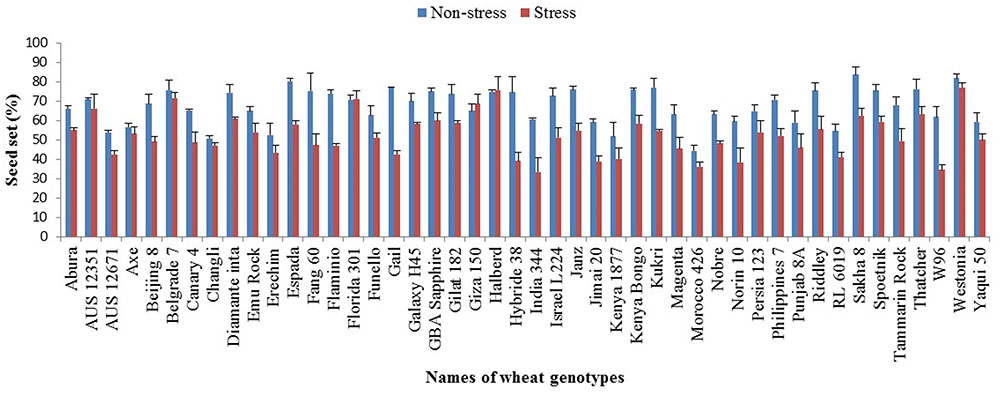

FIGURE 4. Seed set in 46 wheat genotypes under water-stressed and non-stressed (control) conditions. Values are means; error bars are standard errors of the means.

Under non-stressed conditions, 25 of the 46 wheat genotypes had a mean seed set >70%. Westonia, Sakha 8 and Espada had seed sets of >80% while Morocco 426 had the lowest seed set of <50%.

For some genotypes, no significant difference in seed set was observed between the water stressed and control treatment (Figure 4), suggesting water-stress tolerance mechanism might exist in these genotypes which can be used for further studies. The mean seed set per spike under water stress during meiosis was reduced by 24% compared with the well-watered control.

Water Stress during Meiosis and Seed Weight

The mean 1000 kernel weight (TKW) of the 46 genotypes did not significantly differ (p < 0.01) between the stressed and control treatments. Under water stress, the mean TKW was 23.69 ± 3.61 g while the control treatment was 24.27 ± 3.70 g. Emu Rock and Spoetnik had the highest TKWs under control conditions (48.6 and 41.3 g, respectively). Apart from a few genotypes, such as Thatcher and RL 6019 which had the lowest TKWs (3.24 and 1.90 g, respectively) when stressed, the TKW of most of the tested genotypes did not significantly differ between the two treatments.

Water Stress and the Development of Both Male and Female Parts

In Experiment 2, seed set differed significantly (p < 0.01) when the male and female parts were independently stressed compared with that of the control group (Figure 5). The stressed-female group recorded a mean seed set of 33% while the stressed-male group recorded 26%; which reflected a respective 48 and 32% reduction in seed set compared with the control group.

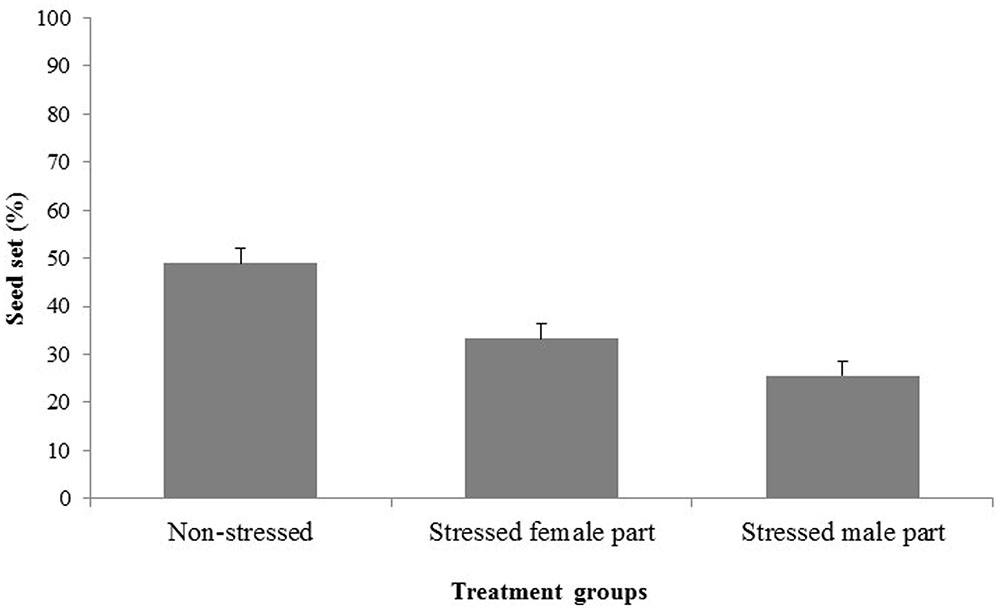

FIGURE 5. Seed set (%) in 13 wheat genotypes screened under treatments of non-stressed (control), water-stressed female parts (pistil) and water-stressed male parts (pollen). Values shown are means; error bars are standard errors of the means. ANOVA indicated significant differences at the p < 0.01 level for all treatment groups.

Four of the 13 selected wheat genotypes—Emu Rock, Punjab 8A, RL 6019 and Spoetnik—had lower seed sets under the stressed pistil (female) treatment compared with their stressed pollen (male) counterparts (Figure 6). Even when these genotypes were pollinated with non-stressed pollen in the stressed pistil treatment, water stress had a significant effect (p < 0.01) on seed set as it reduced the number of seeds per spike. For the other nine genotypes, the stressed pollen treatment recorded significantly (p < 0.01) lower seed set than the stressed pistil treatment (Figure 6).

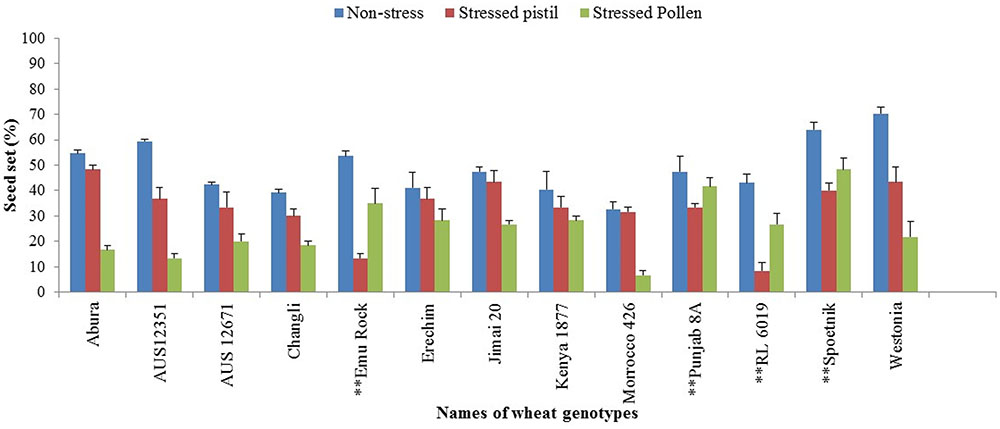

FIGURE 6. Seed set performance in selected wheat genotypes under different treatment conditions. Values shown are means, and error bars are standard errors of the means. ∗∗Genotypes whose water-stressed female reproductive part predominantly contributed to low seed set while those without asterisk are genotypes whose water-stressed male reproductive part was the major contributor to low seed set.

Compared with the seed set recorded under control conditions, some genotypes had a high reduction in seed set under one treatment condition but not in the reciprocal treatment. For example, in the stressed-female treatment, RL 6019 had a seed set reduction of 81%, but only 38% was recorded in the stressed-male treatment. Similarly, but in reverse, Morocco 426 recorded an 80% reduction in seed set in the stressed-male treatment and a non-significant 3% reduction in the stressed-female treatment.

Other Traits Affected by Water Stress during Meiosis

Physiological traits that could affect seed set were measured to identify their relationship with seed set under the imposed stress condition, including plant height, number of nodes per plant, and flag leaf dimensions (length and width) which could influence AD measurement as it was based on the growth of the flag leaf. Water stress during meiosis significantly (p < 0.01) affected the mean values between the stressed and non-stressed treatments for ear dry weight, flag leaf width, flag leaf length, peduncle length, and plant height in the 46 genotypes screened.

In Experiment 2, the correlation analysis of the measured traits showed that ear dry weight was positively correlated with seed set for both stressed-male and stressed-female treatments. Significant correlations were observed under the stressed pollen (male) treatment (p < 0.05, r = 0.31) and stressed pistil (female) treatment (p < 0.01, r = 0.58) (Table 2). Peduncle length had a significant negative association (r = -0.39) with seed set in the non-stressed treatment, but a significant positive correlation (r = 0.44) in the stressed-female treatment and no association in the stressed-male treatment. The number of nodes had no significant correlation with seed set for all treatments as predicted, as it was determined prior to reproductive stage. Plant height had a significant negative correlation (p < 0.01, r = –0.34) with seed set in the non-stressed treatment, but no significant relationship was observed under stressed conditions.

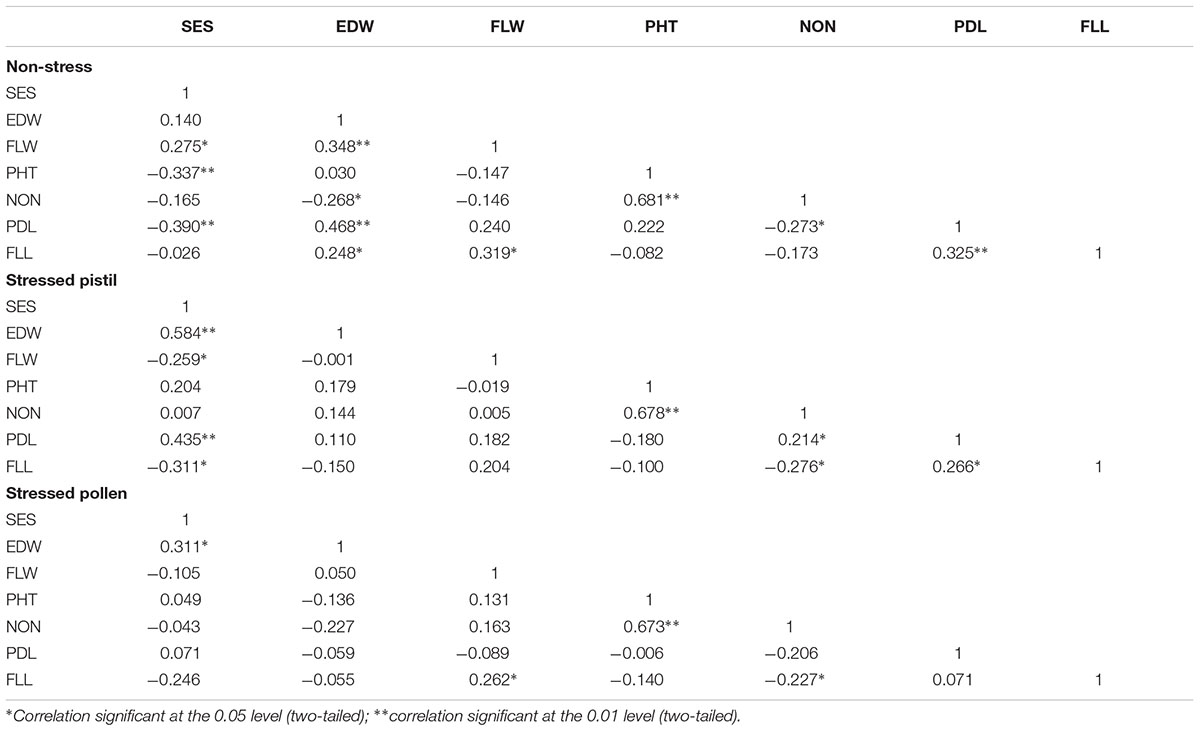

TABLE 2. Correlation of seed set (SES), ear dry weight (EDW), flag leaf width (FLW), plant height (PHT), number of nodes per plant (NON), peduncle length (PDL) and flag leaf length (FLL) under non-stressed, water-stressed female (pistil) and water-stressed male (pollen) treatments.


The observed differences in seed set in the non-stressed and stressed treatments in this study highlighted the high sensitivity of the meiotic process to water stress. Even though normal watering resumed after 7 days of water withholding, the stress during meiosis had a significant and irreversible effect on seed set. This result was consistent with previous reports on water stress during meiosis from Ji et al. (2010), Thakur et al. (2010), and Dolferus et al. (2013).

Male gametophyte development in wheat is reportedly more sensitive to water stress than the female reproductive part which is considered to be resilient to water stress during meiosis because the ovule is inverted, the micropyle bent down to the funiculus to which the body of the ovule is joined (termed as “anatropous” type of ovule) (Ji et al., 2010; Thakur et al., 2010; Dolferus et al., 2013). Pollen sterility is regarded as the major contributor to poor grain set in water-stressed wheat crops (Saini et al., 1984; Lalonde et al., 1997; Ji et al., 2010; Dolferus et al., 2011). Our series of newly designed reciprocal crosses using stressed genotypes to cross with their non-stressed “selves,” allowed the comparison of stressed-male only or stressed-female only treatments with the non-stressed treatment. Seed set reduction index was used to identify genotypes with high/low seed set rates under water stress. We found that both male and female parts can contribute to seed set reduction under water stress during meiosis. Although, most of the tested genotypes (9 of 13) demonstrated more sensitivity in male parts than female parts, four genotypes—Emu Rock, Punjab 8A, RL 6019 and Spoetnik—showed more sensitivity in female parts than male parts (Figure 6). When pollinated with non-stressed viable pollen, these highly sensitive female parts resulted in a low seed set. This is a clear indicator of the different sensitivities of male and female parts to water stress during meiosis in those wheat genotypes.

A plant’s response to water stress can be at the cellular, physiological, or molecular levels (Barnabas et al., 2008). Examples of such responses during meiosis include the reduced competitiveness of different floral organs to attract and store nutrients, inhibition of photosynthetic processes which reduces nutrient supply to reproductive organs, and accumulation of high abscisic acid (ABA) concentration (Ji et al., 2010; Alqudah et al., 2011). Depending on the duration and intensity of the stress, plants change the way their genes express and produce certain enzymes or proteins that are specific to the tissues and the prevailing stress condition, which could affect the performance of either or both the male and female reproductive parts. The determination of resilience/vulnerability of the reproductive parts in previous reports—based either on physical structures or outcrossing abilities—may not reflect the actual cellular status under the stress during meiosis. Also, due to the difficulty in assessing the viability of female reproductive parts, the reports based on outcrossing ability could lead to a biased conclusion. We suggest that there might be physical variations of the reproductive organs among genotypes. In some genotypes, at least, female part is more vulnerable than male part to the stress that causes unrecoverable meiosis damage. As the female part can only produce a limited number of eggs, in contrast to the large number of pollen that the male part can produce, it can become a decisive factor for plant performance under stress.

It was reported that male and female meiosis occurs at about the same time under normal conditions, but there is asynchrony under stress conditions (Bennett et al., 1973). The differential sensitivity of the male and female organs observed could also be caused by a shift in organ development and timing of meiosis resulting in altered water stress sensitivity, which suggests that there are factors other than physical structures affecting the developmental processes of reproductive parts. Our results indicate that both male and female parts could be sensitive to water stress during meiosis, and either male, female, or both parts could be the major contributor to yield reduction in different wheat genotypes. This suggests that different cellular responses to the stress signal rather than different physical structures between male and female reproductive parts are the main reason for the different performances of the two parts under water stress. We propose a simple model for signal initiation and transduction in response to meiosis-stage water stress in wheat (Figure 7). We hypothesize that when water stress coincides with meiosis in wheat plants, stress signals are sent from the roots when the available water content falls below a critical threshold level, which initiates a cascade of specific signal transduction pathways which in turn change the cellular signals. To ensure survival and/or tolerance, the different signaling molecules upregulated by water stress cause the plant to respond by aborting either the male, female or both reproductive organs to ensure that some seeds can grow for the next generation but results in low seed set and ultimately low grain yield. Although, the duration of the water stress was only for 7 days, the level of the stress was sufficient to make pollen and ovary incompetent; if the stress coincides with meiosis (the total meiotic duration in common wheat is approximately 24 h) when male and female parts are at the most sensitive development stage. Based on this model, the regulated signal transduction of the reproductive parts under stress may be responsible for the observed variation in seed set performance of different genotypes. As different wheat genotypes have different sets of genes which follow different signaling pathways, the male and female reproductive parts in each genotype may perform differently in how they perceive and transmit water stress signals during meiosis to influence the final seed set.

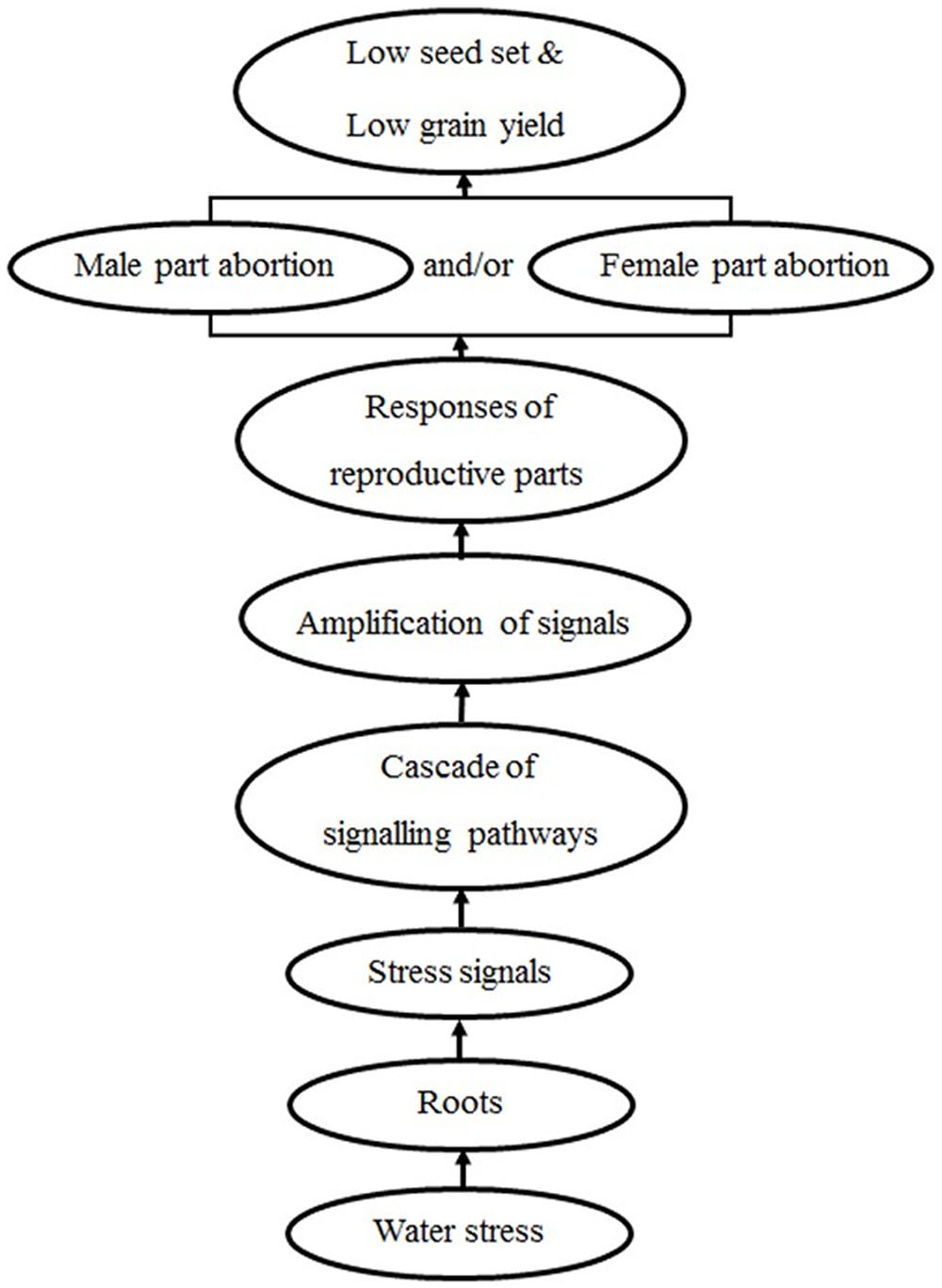

FIGURE 7. Proposed model for signal induction and transduction in response to meiotic-stage water stress in wheat. Water stress is sensed by roots and signals are sent to the above ground resulting in the abortion of male and/or female parts and low seed set/yield.

Based on the results of this study, we can also conclude that selective screening of seed set for wheat lines that are tolerant to water stress during meiosis is a promising way to breed drought-tolerant lines. Water stress during meiosis reportedly affects seed set rather than seed size (Alqudah et al., 2011; Guo and Schnurbusch, 2015). Not surprisingly, this study found no significant differences in seed size between the stressed and non-stressed treatments for most of the tested genotypes. Seed set (grain number) is a determining component of grain yield in wheat in rainfed areas. Australian dryland wheat yields about 2–2.5 t ha-1 while irrigated wheat can reach 10 t ha-1, but there is little difference in quality (seed size) (ABARES, 2014), suggesting that the lower yield in dryland wheat is mainly due to reduced seed numbers, not seed size.

In summary, this study showed that high genotypic variation exists in different wheat genotypes for seed set performance under water stress during meiosis. We identified, for the first time, that the stressed-female reproductive part was one of the major contributors to low seed set in wheat genotypes water-stressed during meiosis. To further extend this research, wheat genotypes with extremely sensitive/resilient female or male parts to water stress during meiosis could serve as useful germplasm for analyzing the underlying genetic mechanisms. The genotypes with the most contrasting seed set data from this study are being crossed to obtain segregating populations for drought tolerance breeding and future genetic studies.

Author Contributions

GY and KS conceived and designed the experiments. IO conducted the major experiments and HL conducted part of the cytogenetic study. IO and HL analyzed the data and wrote the manuscript. GY and KS critically reviewed the manuscript. All authors approved the final version of the manuscript.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The reviewer JR and handling Editor declared their shared affiliation, and the handling Editor states that the process nevertheless met the standards of a fair and objective review.

The reviewer RM declared a shared affiliation, though no other collaboration, with the authors to the handling Editor, who ensured that the process nevertheless met the standards of a fair and objective review.


The authors sincerely thank Prof. Rana Munns from CSIRO and The University of Western Australia for her helpful comments on the manuscript. Sincere gratitude also goes to Drs R Nazim Khan and Marty Firth from the UWA Centre for Applied Statistics, School of Mathematics and Statistics, The University of Western Australia for helpful suggestions on project design and data analysis, and School of Plant Biology, The University of Western Australia for postgraduate research funding.


ABARES (2014). Australian Bureau of Agricultural and Resource Economics and Sciences. Canberra, ACT: Agricultural Commodity Statistics.

Google Scholar

Alqudah, A., Samarah, N., and Mullen, R. (2011). “Drought stress effect on crop pollination, seed set, yield and quality,” in Alternative Farming Systems, Biotechnology, Drought Stress and Ecological Fertilisation, Vol. 6, ed. E. Lichtfouse (Berlin: Springer), 193–213. doi: 10.1111/j.1744-7909.2010.01000.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Barnabas, B., Jager, K., and Feher, A. (2008). The effect of drought and heat stress on reproductive processes in cereals. Plant Cell Environ. 31, 11–38.

PubMed Abstract | Google Scholar

Bennett, M. D., Finch, R. A., Smith, J. B., and Rao, M. K. (1973). The time and duration of female meiosis in wheat, rye and barley. Proc. R. Soc. London Ser. B 183, 301–319. doi: 10.1098/rspb.1973.0019

CrossRef Full Text | Google Scholar

Craufurd, P. Q., and Wheeler, T. R. (2009). Climate change and the flowering time of annual crops. J. Exp. Bot. 60, 2529–2539. doi: 10.1093/jxb/erp196

PubMed Abstract | CrossRef Full Text | Google Scholar

Dolferus, R., Ji, X., and Richards, R. A. (2011). Abiotic stress and control of grain number in cereals. Plant Sci. 181, 331–341. doi: 10.1016/j.plantsci.2011.05.015

PubMed Abstract | CrossRef Full Text | Google Scholar

Dolferus, R., Powell, N., Ji, X., Ravash, R., Edlington, J., Oliver, S., et al. (2013). “The physiology of reproductive-stage abiotic stress tolerance in cereals,” in Molecular Stress Physiology of Plants, eds G. R. Rout and A. B. Das (India: Springer), 193–216. doi: 10.1007/978-81-322-0807-5_8

CrossRef Full Text | Google Scholar

Evans, L. T. (1978). The influence of irradiance before and after anthesis on grain yield and its components in microcrops of wheat grown in a constant daylength and temperature regime. Field Crops Res. 1, 5–19. doi: 10.1016/0378-4290(78)90003-5

CrossRef Full Text | Google Scholar

Fang, X., Turner, N. C., Yan, G., Li, F., and Siddique, K. H. M. (2010). Flower numbers, pod production, pollen viability, and pistil function are reduced and flower and pod abortion increased in chickpea (Cicer arietinum L.) under terminal drought. J. Exp. Bot. 61, 335–345. doi: 10.1093/jxb/erp307

PubMed Abstract | CrossRef Full Text | Google Scholar

Farooq, M., Bramley, H., Palta, J. A., and Siddique, K. H. M. (2011). Heat stress in wheat during reproductive and grain-filling phases. Crit. Rev. Plant Sci. 30, 491–507. doi: 10.1080/07352689.2011.615687

CrossRef Full Text | Google Scholar

Farooq, M., Hussain, M., and Siddique, K. H. M. (2014). Drought stress in wheat during flowering and grain-filling periods. Crit. Rev. Plant Sci. 33, 331–349. doi: 10.1080/07352689.2014.875291

CrossRef Full Text | Google Scholar

Ferrante, A., Savin, R., and Slafer, G. A. (2013). Floret development and grain setting differences between modern durum wheats under contrasting nitrogen availability. J. Exp. Bot. 64, 169–184. doi: 10.1093/jxb/ers320

PubMed Abstract | CrossRef Full Text | Google Scholar

Fleury, D., Jefferies, S., Kuchel, H., and Langridge, P. (2010). Genetic and genomic tools to improve drought tolerance in wheat. J. Exp. Bot. 61, 3211–3222. doi: 10.1093/jxb/erq152

PubMed Abstract | CrossRef Full Text | Google Scholar

Guo, Z., and Schnurbusch, T. (2015). Variation of floret fertility in hexaploid wheat revealed by tiller removal. J. Exp. Bot. 66, 5945–5958. doi: 10.1093/jxb/erv303

PubMed Abstract | CrossRef Full Text | Google Scholar

Ji, X., Ji, B., Shiran, J., Wan, D., Jenkins, A. G., Jenkins, A., et al. (2010). Importance of pre-anthesis anther sink strength for maintenance of grain number during reproductive stage water stress in wheat. Plant Cell Environ. 33, 926–942. doi: 10.1111/j.1365-3040.2010.02130.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Lalonde, S., Beebe, D. U., and Saini, H. S. (1997). Early signs of disruption of wheat anther development associated with the induction of male sterility by meiotic-stage water deficit. Sex. Plant Reprod. 10, 40–48. doi: 10.1007/s004970050066

CrossRef Full Text | Google Scholar

Martino, D. L., Abbate, P. E., Cendoya, M. G., Gutheim, F., Mirabella, N. E., and Pontaroli, A. C. (2015). Wheat spike fertility: inheritance and relationship with spike yield componenets in early generations. Plant Breed. 134, 264–270. doi: 10.1111/pbr.12262

CrossRef Full Text | Google Scholar

Mohammady, S. (2015). Variation for apical sterility among diploid, tetraploid and hexaploid Iranian wheats under meiotic stage water-stressed and well-watered conditions. Crop Pasture Sci. 66, 42–48. doi: 10.1071/CP14064

CrossRef Full Text | Google Scholar

Oliver, S. N., Van Dongen, J. T., Alfred, S. C., Mamun, E. A., Zhao, X., Saini, H. S., et al. (2005). Cold-induced repression of the rice anther-specific cell wall invertase gene OSINV4 is correlated with sucrose accumulation and pollen sterility. Plant Cell Environ. 28, 1534–1551. doi: 10.1111/j.1365-3040.2005.01390.x

CrossRef Full Text | Google Scholar

Parish, R. W., Phan, H. A., Iacuone, S., and Li, S. F. (2012). Tapetal development and abiotic stress: a centre of vulnerability. Funct. Plant Biol. 39, 553–559. doi: 10.1071/FP12090

CrossRef Full Text | Google Scholar

Passioura, J. B. (2012). Phenotyping for drought tolerance in grain crops: when is it useful to breeders? Funct. Plant Biol. 39, 851–859. doi: 10.1071/FP12079

PubMed Abstract | CrossRef Full Text | Google Scholar

Powell, N., Ji, X., Ravash, R., Edlington, J., and Dolferus, R. (2012). Yield stability for cereals in a changing climate. Funct. Plant Biol. 39, 539–552. doi: 10.1071/FP12078

CrossRef Full Text | Google Scholar

Saini, H., Sedgley, M., and Aspinall, D. (1984). Development anatomy in wheat of male sterility induced by heat stress, water deficit or abscisic acid. Funct. Plant Biol. 11, 243–253.

Google Scholar

Saini, H. S. (1997). Effects of water stress on male gametophyte development in plants. Sex. Plant Reprod. 10, 67–73. doi: 10.1007/s004970050069

CrossRef Full Text | Google Scholar

Saini, H. S., and Aspinall, D. (1981). Effect of water deficit on sporogenesis in wheat (Triticum aestivum L.). Ann. Bot. 48, 623–633.

Google Scholar

Saini, H. S., and Westgate, M. E. (1999). “Reproductive development in grain crops during drought,” in Advances in Agronomy, Vol. 68, ed. L. S. Donald (Cambridge, MA: Academic Press), 59–96. doi: 10.1016/S0065-2113(08)60843-3

CrossRef Full Text | Google Scholar

Salter, P. J., and Goode, J. E. (1967). Crop Responses to Water at Different Stages of Growth / by P.J. Salter and J.E. Goode. Farnham Royal: Commonwealth Agricultural Bureaux.

Google Scholar

Siddique, K. H. M., Brinsmead, R. B., Knight, R., Knights, E. J., Paull, J. G., and Rose, I. A. (2000). “Adaptation of chickpea (Cicer arietinum L.) and faba bean (Vicia faba L.) to Australia,” in Linking Research and Marketing Opportunities for Pulses in the 21st Century, Vol. 34, ed. R. Knight (Berlin: Springer), 289–303. doi: 10.1007/978-94-011-4385-1_26,

CrossRef Full Text | Google Scholar

Thakur, P., Kumar, S., Malik, J. A., Berger, J. D., and Nayyar, H. (2010). Cold stress effects on reproductive development in grain crops: an overview. Environ. Exp. Bot. 67, 429–443. doi: 10.1016/j.envexpbot.2009.09.004

CrossRef Full Text | Google Scholar

Turner, N. (2003). Adaptation to drought: lessons from studies with chickpea. Ind. J. Plant Physiol. Special 9, 11–17.

Google Scholar

Turner, N. C. (2004). Agronomic options for improving rainfall-use efficiency of crops in dryland farming systems. J. Exp. Bot. 55, 2413–2425. doi: 10.1093/jxb/erh154

PubMed Abstract | CrossRef Full Text | Google Scholar

Turner, N. C., Abbo, S., Berger, J. D., Chaturvedi, S., French, R. J., Ludwig, C., et al. (2007). Osmotic adjustment in chickpea (Cicer arietinum L.) results in no yield benefit under terminal drought. J. Exp. Bot. 58, 187–194. doi: 10.1093/jxb/erl192

PubMed Abstract | CrossRef Full Text | Google Scholar

Zadoks, J. C., Chang, T. T., and Konzak, C. F. (1974). A decimal code for the growth stages of cereals. Weed Res. 14, 415–421. doi: 10.1111/j.1365-3180.1974.tb01084.x

CrossRef Full Text | Google Scholar

Keywords: meiosis, seed set, Triticum aestivum, wheat, water stress, reproductive parts

Citation: Onyemaobi I, Liu H, Siddique KHM and Yan G (2017) Both Male and Female Malfunction Contributes to Yield Reduction under Water Stress during Meiosis in Bread Wheat. Front. Plant Sci. 7:2071. doi: 10.3389/fpls.2016.02071

Received: 18 August 2016; Accepted: 27 December 2016;
Published: 10 January 2017.

Edited by:

Sanjeev Gupta, Indian Council of Agricultural Research, India

Reviewed by:

Maria Balota, Virginia Tech, USA
Jagadish Rane, Indian Council of Agricultural Research, India
Rana Munns, University of Western Australia, Australia

Copyright © 2017 Onyemaobi, Liu, Siddique and Yan. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Guijun Yan,
