Original Research ARTICLE

Front. Plant Sci., 14 February 2018 |

Mapping of a Major QTL for Ceratocystis Wilt Disease in an F1 Population of Theobroma cacao

Luciel dos Santos Fernandes1, Stefan Royaert2, Fábio M. Corrêa2, Guiliana M. Mustiga3, Jean-Philippe Marelli3, Ronan X. Corrêa2 and Juan C. Motamayor3*
  • 1Plant Sciences, Mars Center for Cocoa Science, Itajuípe, Brazil
  • 2Statistics, Universidade Estadual de Santa Cruz, Ilhéus, Brazil
  • 3Mars, Incorporated, Miami, FL, United States

Cacao is an important crop, its beans are key raw materials for the chocolate and cosmetic industries. Ceratocystis wilt of cacao (CWC) caused by Ceratocystis cacaofunesta is a lethal disease for the crop. Therefore, the selection of resistant cacao varieties is one of the viable ways to minimize losses in cacao production. In this paper, we described the identification of a major QTL associated with CWC in an F1 mapping population from a cross between a resistant, “TSH 1188,” and a susceptible genotype, “CCN 51.” A set of 266 trees were genotyped using 3,526 single nucleotide polymorphic markers and then multiple QTL mapping analyses were performed. Two QTLs were identified on chromosomes IV and VI. The major QTL was located at 20 cM from the top position of chromosome VI, accounting for more than 60% of the phenotypic variation. The favorable allele T1, with haplotype GTT, came from the “TSH 1188” parent. It was evident that the haplotype combination T1C2 on chromosome VI was the most significant for resistance, since 93% of resistant trees had this haplotype. The major QTL converged to a genomic region of 739.4 kb that harbored nine candidate genes, including two major classes of resistance genes, which would make them the primary candidates involved in the resistance to CWC. The haplotypes detected are now used to improve the efficiency and precision of the selection of resistant trees in cacao breeding.


Cacao (Theobroma cacao L.), an allogamous member of the Malvaceae, is indigenous to the Amazon rainforest in South America (Motamayor et al., 2002). Cultivated worldwide, cacao is one of the most significant cash crops in many regions, its beans are key raw material for the chocolate and cosmetic industries. Global cacao production reached 3.9 million tons (t) of dry beans in the 2015/2016 (ICCO, 2017). Of this, the Americas supplied 657 thousand t (16.6 %), and Ecuador and Brazil are the largest producers with 232 thousand t (5.85%) and 140 thousand t (3.53%), respectively (ICCO, 2017). Brazilian cacao production has changed slightly over the last 15 years, not only because the area harvested has increased marginally (FAOSTAT, 2017), but also because of abiotic and biotic stresses.

Concerning these biotic stresses, the incidence of several diseases has contributed to decreased production and has led to even further imbalance in the supply and demand of cacao beans. Cacao trees are constantly confronted with important pathogens that target vegetative shoots, pods and flower cushions (Moniliophthora perniciosa) (Aime and Phillips-Mora, 2005), pods and leaves (Phytophthora spp.) (Barreto et al., 2015; Surujdeo-Maharaj et al., 2016), and the vascular system (Ceratocystis cacaofunesta) (Engelbrecht and Harrington, 2005). Of these diseases, Ceratocystis wilt of cacao (CWC) is one the most important, mainly because it causes plant death. There is no information about the global impact of CWC, but cacao-producing areas in Bahia, Brazil, with susceptible varieties were highly affected (Lopes et al., 2011). The most affected planting areas were those with progenies derived from the cross between the clonal varieties “SCA 6” × “ICS 1” (Ram et al., 2004; Lopes et al., 2011). The progenies from this cross were named as “Theobahia,” which was widely propagated due to their tolerance to witchs's broom disease and high productivity (Brasil, 2009). However, most progenies from this cross were susceptible to CWC disease, which led to a drastic reduction in cacao production in Bahia, Brazil (Lopes et al., 2011).

The impact of CWC in the cacao production may be diminished by applying effective breeding approaches, such as the mapping of quantitative traits loci (QTL) and marker assisted selection (MAS), to improve the selection of resistant varieties. By means of QTL mapping, it is possible to identify marker–trait associations and investigate the genomic location of candidate genes influencing the trait of interest, along with the quantification of the variation explained by the QTL region (Xu et al., 2017). Furthermore, reliable molecular markers will be available to cacao breeding via MAS, in order to improve the efficiency and precision of conventional breeding. For that, the construction of a dense linkage map for Ceratocystis wilt resistance is an essential step for efficient breeding and selection of resistant cacao varieties to CWC.

An F1 mapping population (MP01) created from crosses between two different parents that segregate for CWC has been used to identify QTLs associated with several traits, for instance pod color regulation (Motamayor et al., 2013), witches' broom (Silva et al., 2014; Royaert et al., 2016) and black pod resistance (Bahia et al., 2015; Barreto et al., 2015). Despite CWC being a lethal disease, few studies have focused on discovering molecular markers associated with resistance genes. Recently, simple sequence repeat (SSR) markers were developed in the cacao “Jaca” variety from expressed sequence tags (EST) of tissues infected with C. cacaofunesta (Santos et al., 2012a). Moreover, two QTL regions with a small effect, were mapped in a F2 mapping population between “SCA 6” and “ICS 1” (Santos et al., 2012b). However, constructing a linkage map and QTL mapping based on SNP markers for the MP01 population have never been carried out. In this study, we present the results of QTL mapping for CWC in MP01 population. We discuss two genomic regions associated with CWC resistance, and report favorable alleles/haplotypes associated with disease resistance, as well as some potential candidate genes harbored in the QTL regions.

Materials and Methods

Plant Material

“TSH 1188” and “CCN 51,” two cacao varieties highly contrasting for several important traits (Royaert et al., 2016) including for resistance to CWC, were used as parental genotypes to create the MP01 population. “TSH 1188” has been described as resistant to CWC, while “CCN 51” as susceptible (Sanches et al., 2008). Four hundred fifty-nine F1 trees were produced and planted in 2000 in a 3 × 3 m grid (Royaert et al., 2016), under field conditions at Mars Center for Cocoa Science (MCCS), Barro Preto, Bahia, Brazil. Of these trees, 266 trees were selected based on a preliminary study that investigated witches' broom disease resistance (Santos et al., 2007), to be evaluated for CWC resistance. For this study, a CWC resistant rootstock “VB 1151” (Sanches et al., 2008) was produced via seedlings and planted in polyethylene plastic bags of 1.8 dm3 filled with a substrate containing soil, perlite and cattle manure at a ratio of 1:1:1. Six months after planting, six replicates per tree were grafted (on the VB1151 seedlings) using plagiotropic shoots from MP01 trees. To prevent any attack by beetles (Xyleborus sp.), the site of the experimentation in the greenhouse was treated with 90% commercial calcium oxide. The parents and 266 trees were randomly organized in the greenhouse, with six replicates per tree in the same row.

Fungal Inoculation

C. cacaofunesta isolate CF-20 has been described as one of the most aggressive in a previous study (Silva et al., 2007). The CF-20 isolate was grown on Petri dishes containing potato-dextrose-agar (PDA medium) with a pH of 3.0, and then incubated at 24°C for 8 days. Spore suspension was prepared by adding sterile distilled water to the fungal culture, and then scraped with a sterile spatula. Fragments of PDA medium were filtered through sterile gauze, and then the spore concentration was counted with a hemocytometer (Boecoinc, Germany). The final spore concentration was 1.0 × 105 colony-forming unit per milliliter (CFU/mL). The grafted plants were 4 months old when inoculated with 30 μL of spore suspension, in a longitudinal cut of approximately 6 mm in width, 7 mm in length and 1 mm in depth. The inoculation point was 100 mm above the grafting point. The cut was covered with moistened cotton and then wrapped with biodegradable grafting tape (Aglis, Japan).

Phenotype Evaluation

Calculation of disease incidence was based on counting the number of dead plants (NDP), and the disease severity on xylem lesion length (XLL). During the experiment, 12 observations were made according to the following sequence: the first five observations were performed every 4 days after inoculation (DAI); the subsequent seven observations were made every 7 days until 52 DAI. The XLL was assessed when the plant died and at the end of the experiment by cutting the branch laterally, and then measured the highest lesion length along the xylem.

Experimental Design and Statistical Analyses

The experimental design was completely randomized with the number of replications ranging from four to six per MP01 progeny studied. NDP and XLL data were ranked by calculating the best linear unbiased prediction (BLUP), using a generalized linear mixed model fitted by maximum likelihood with a split-plot in time.

QTL Mapping

The linkage map used for the QTL mapping was the one recently published by Royaert et al. (2016). For the initial detection of QTL with main effects, BLUP data for incidence and severity were analyzed by interval mapping (IM) with MapQTL software, version 6.0 (Van Ooijen and Kyazma, 2009). A significant threshold for logarithm of odds (LOD) was determined by analyzing 1000 permutations with p-values of 0.05 (Churchill and Doerg, 1994). The calculated threshold of the LOD score was 3.1 for both traits analyzed. The QTL positions were obtained at the chromosome region of interest, where the LOD score reached its maximum value. LOD score support intervals were also calculated using the interval functions inner 1-LOD and outer 2-LOD, with MapChart software, version 2.3 (Voorrips 2002).Then, a Multiple QTL Mapping (MQM) analysis was performed using the SNP markers closest to QTL peaks as cofactors. The SNP markers selected as cofactors were Tcm004s02747866 and Tcm006s13371871, on chromosomes IV and VI, respectively. Graphical representations of chromosomes containing the QTLs with significant effects and LOD score peaks were drawn using MapChart software, version 2.3 (Voorrips, 2002).

Identification of Haplotypes Combination

Phased haplotype data were obtained using JoinMap software, version 4.1 (Van Ooijen, 2006) and iXora (Utro et al., 2013). Haplotypes of SNP markers flanking the QTL regions with significant effects were identified using the SNP data of the trees and MP01 parents. Parental haplotypes were labeled T1 and T2 for “TSH 1188,” and C1 and C2 for “CCN 51.” Then, the chi-square test was carried out (p-value of 0.05) to confirm the significant haplotype-phenotype association. The frequency for each haplotype combination was also computed.

Phylogenetic Analysis

The phasing of 131 individuals comprised of 20 individuals from each of five mapping populations (for a total of 100). Three of the mapping populations (MP01, CATIE Type1 and CATIE Type 2) used in the phasing of the haplotypes in the Ceratocystis QTL regions are described in Motamayor et al. (2013). One mapping population from Papua New Guinea, consisting of two Trinitario parents (“KA 82” × “K 101”) and the fifth cross includes two diversity panel members, “IMC 67” × “ICS 95.” In addition, a set of 31 diversity panel members from distinct Theobroma cacao structural groups was run with fastPhase (Scheet and Stephens, 2006). Two sets of markers were phased; the first set, contained the three markers in the Ceratocystis wilt QTL region on chromosome VI. The second set of markers included the three markers plus two extra markers further away on the chromosome. The phased haplotypes using only the three markers and five markers showed consistency in the QTL region. For each individual, relatedness was indicated by the use of a subpopulation index. For example, members of a mapping population were assigned the same index, while unrelated individuals were assigned a distinct index. The use of the mapping populations was solely to be better able to infer haplotypes for the diversity panel members. The expectation-maximization (EM) algorithm for computing the maximum likelihoods were controlled by the following options: 20 random starts, 25 iterations, and 200 haplotypes sampled from the posterior distribution from a particular random start. The default allelic two-parameter error model for inferring true genotypes was also used to scan for genotype errors. Selected representative individuals from each haplotype group, including the parents from the MP01 population, were used to make the neighbor-joining (NJ) tree for the three most significant markers associated with Ceratocystis wilt. The distance matrix for phylogeny estimation was created with the Maximum Composite Likelihood algorithm in MEGA v.7.0 with 1000 bootstraps (Kumar et al., 2016).

Identification of Candidate Genes

Potential candidate genes for CWC resistance, located between the SNP markers Tcm006s13222057 and Tcm006s13961448 on chromosome VI and between Tcm004s02243097 and Tcm004s02747866 on chromosome IV, were identified from the Matina 1-6 v 1.1 cacao genome database (Motamayor et al., 2013). Then, the protein sequences were compared against BlastP database using ( protein-conserved domains were classified in the InterproScan 5 database (Jones et al., 2014), and gene ontology (GO) categories were identified by searching the Interpro database (Mitchell et al., 2015).

Inoculation of the Recombinants

Based on Fast Phase and JoinMap software, phasing of the haplotype data analysis identified seven recombinants trees that displayed recombination events between the maternal and paternal haplotypes in the main QTL region on chromosome VI. We added ten other trees containing the favorable haplotype combination described in Table 3 (T1C1), and the same quantity for the other three haplotypes combinations (T1C2, T2C1, T2C2). Those plants were used as controls. Besides those, we also included 11 trees that possessed the favorable T1 haplotype, but were phenotypically susceptible (BLUP > 0), and 15 trees with the T2 haplotype, which were evaluated as phenotypically resistant (BLUP < 0). In summary, 76 trees, and the MP01 parents, were selected, grafted onto VB 1151 rootstock (with five replicates each), and inoculated to be study through a second evaluation. The BLUP values from the inoculation of these trees are shown in Figure 7 in the column name as “Second inoculation.” Moreover, we added the BLUP values obtained from the initial phenotypic evaluation performed for mapping the main QTL on chromosome VI, which are shown in the column “First inoculation” in Figure 7.


Phenotypic Distribution

“TSH 1188” showed no symptoms after inoculation, while for “CCN 51” at 18 DAI the NDP was 50%. The number of symptomatic plants increased until 28 DAI (Figure 1A), when NDP was 100%. In contrast, “TSH 1188,” remained symptom-free throughout the whole evaluation period. For “CCN 51,” the XLL mean was higher than “TSH 1188,” 131.67 ± 0.63 mm and 43.33 ± 1.20 mm, respectively (Figure 1B). The individual XLL means in the population ranged from 120.5 to 10.2 mm. The phenotypic values for NDP and XLL indicated that there exists a broad range of resistance or susceptibility (Figures 2A,B). BLUP values less than zero indicated greater resistance. The BLUP values for NDP in the mapping population ranged from −1.51 to 3.98, whereas the BLUP values for “TSH 1188” and “CCN 51” were −1.51 and 3.95, respectively. Two clearly distinguishable groups were identified; one corresponds to the group of 140 completely resistant trees (52.6%), and one group of 126 susceptible trees (47.4%). The susceptible group included 24% of trees with 100% of NDP and 23% that showed NDP ranging from one to three. For XLL, BLUP values showed continuous phenotypic distribution, with values ranging from −2.92 to 5.43 (−0.66 for “TSH 1188” and 5.92 for “CCN 51”). It is noteworthy that for XLL, 159 trees (59.77%) had BLUP values less than zero, of which 124 trees (46.24%) showed BLUP values less than “TSH 1188.” The remaining 107 trees (40.22%) had BLUP values equal to or greater than zero and were classified as susceptible. The X2 test indicated that the phenotypic segregation ratio fitted a 1:1 ratio for the both traits, suggesting that one or a few genes might control resistance to CWC.


Figure 1. Ceratocystis wilt reaction for “TSH 1188” and “CCN 51.” The incidence and severity were assessed over time in the parents for 52 days. The incidence of Ceratocystis wilt is presented as the number of dead plants showing disease symptoms for the parents (A) The severity in shown as the xylem lesion length (B).


Figure 2. Histogram of frequencies for the numbers of dead plants and xylem lesion length in the F1 population (“TSH 1188” × “CCN 51”). The incidence of Ceratocystis wilt is presented as the number of dead plants showing disease symptoms (A). The severity is shown as the xylem lesion length (B). Values of the parents are indicated.

QTL Analysis

A set of 3,526 SNP markers (Motamayor et al., 2013; Livingstone et al., 2015; Royaert et al., 2016) and 266 trees were used in the linkage mapping construction (Figure 3) and in the QTL mapping analysis. Thirty-seven trees were excluded from the analysis, since genotyping data were not available, resulting in 229 trees used in this step. A major QTL located on chromosome VI was identified by IM and MQM analysis for both traits, and a minor QTL on chromosome IV was identified by MQM analysis for XLL only (Table 1 and Figure 4). The QTL for NDP, closely linked to the SNP markers Tcm006s13371871 and Tcm006s13372133, had a maximum LOD score of 48.02 and explained 62.6% of the phenotypic variation. In the same region, another SNP marker, Tcm006s13222057, was linked to XLL with a LOD score of 35.20, and the phenotypic explanation was 50.2%. MQM analysis for XLL was conducted after the selection of Tcm006s13371811 and Tcm004s02747866 as cofactors, and identified an additional, minor QTL on chromosome IV flanked by Tcm004s02747866 and Tcm004s02243097, which had a maximum LOD score of 4.0 and explained 4.2 and 3.8% of phenotypic variation, respectively.

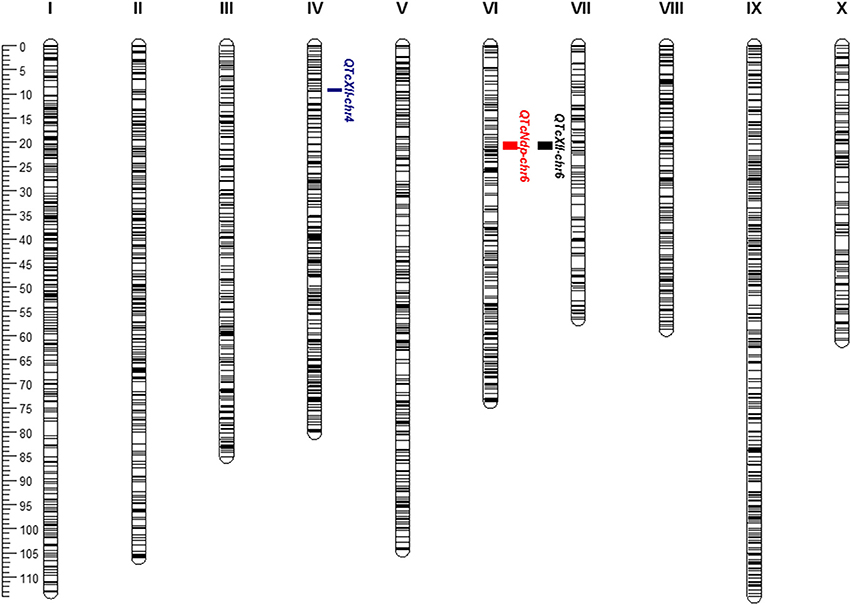

Figure 3. SNP-based linkage map and position of QTLs conferring resistance to CWC in the F1 population (“TSH 1188” vs. “CCN 51”). On the top of the chromosomes are the chromosome number, and the ruler is shown, with the positions of SNP markers in centimorgans (cM). Vertical bars on the right of the chromosome demarcate the location of the QTLs on chromosomes IV and VI.

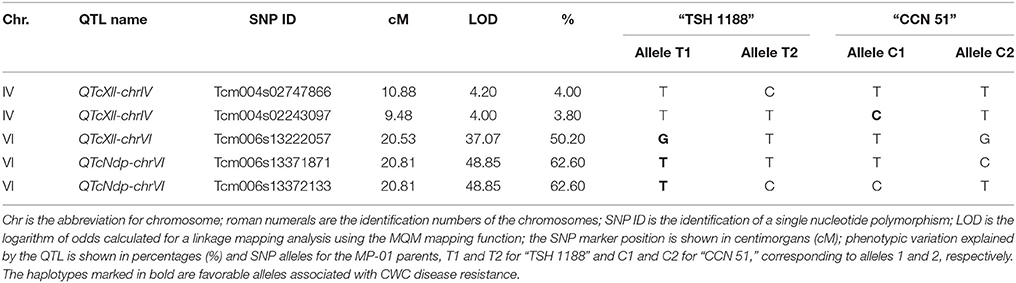

Table 1. Overview of QTLs detected for Ceratocystis wilt disease resistance in the F1 mapping population using multiple QTL mapping.

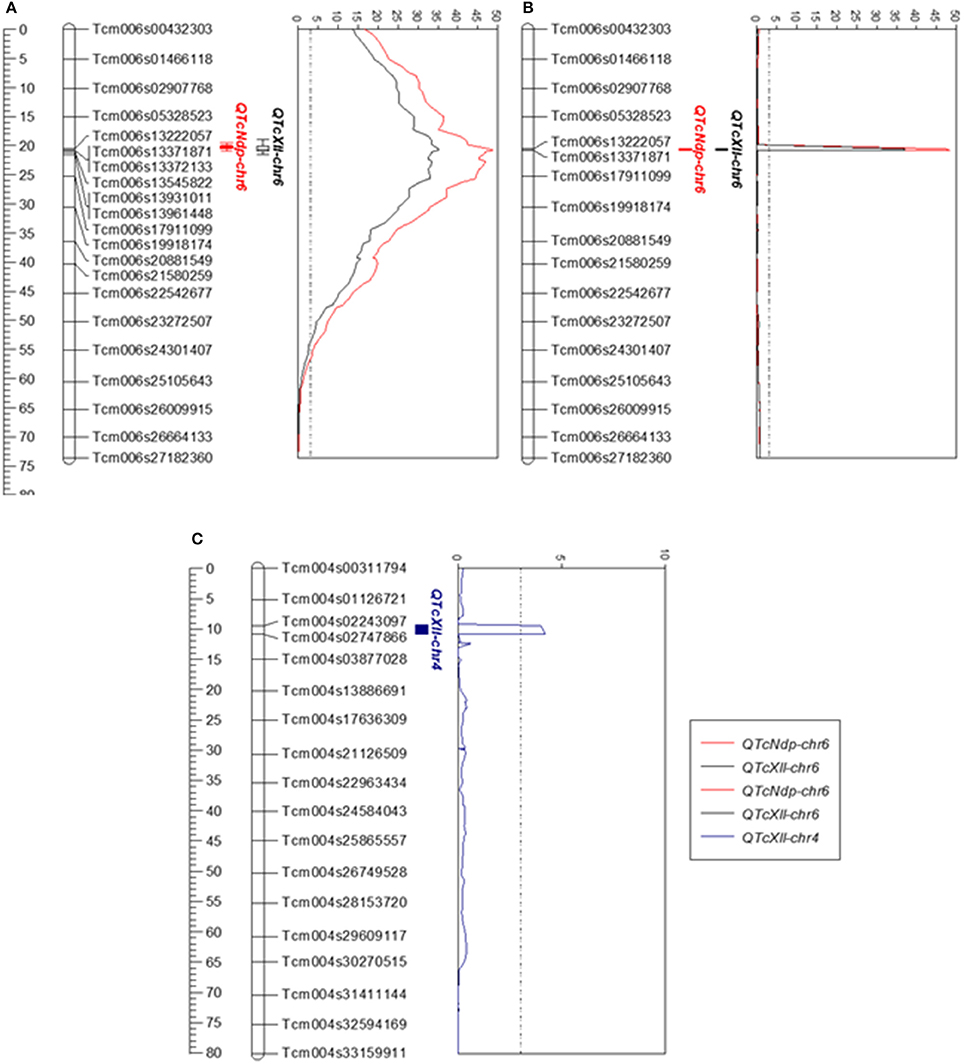

Figure 4. Logarithm of odds (LOD) score peaks for linkage groups VI (A,B), and IV (C), which were significantly associated with resistance to CWC in the F1 population (“TSH 1188” vs. “CCN 51”). The ruler on the left side of the graph shows the position of SNP markers every 5 cM. The graph in (A) shows the LOD score plots obtained by interval mapping of NDP and XLL on chromosome VI. The graphs in (B,C) show the LOD score plots obtained by multiple QTL mapping of NDP and XLL on chromosomes VI and IV, respectively. The dotted line indicates the LOD significance threshold level of 3.0, calculated by permutation testing (P < 0.05). The positions of QTcNdp-chr6, QTcXll-chr6 and QTcXll-chr4 are shown with inner and outer vertical bars for the 1-LOD and 2-LOD support intervals, respectively.

The mapped QTLs were named using a system described for wheat and Arabidopsis (Rant et al., 2013), with modifications. The QTL names consist of the prefix Q followed by the abbreviation of the scientific name, the letter descriptor of the quantitative traits, and the number of the chromosome. Therefore, the QTL on chromosome VI for the NDP was named QTcNdp-chr6, while for XLL was QTcXll-chr6. The minor QTL was named QTcXll-chr4. QTcNdp-chr6 and QTcXll-chr6 corresponded to the same genomic region on chromosome VI.

SNP Haplotype Identification and Origin of CWC Resistance Alleles

We performed the SNP segregation analysis for the main markers in both QTL regions. The parents' haplotypes were used as reference and the haplotype frequencies of the 266 trees were examined (Table 1). The chi-square test was performed, and the frequency of each allele and haplotype combination was calculated, as shown in Table 2. For QTcNdp-chr6 and QTcXll-chr6, the haplotype T1 (GTT) from the SNP markers Tcm006s13222057, Tcm006s13371871 and Tcm006s13372133 was favorable to resistance against CWC (P < 0.05) (Table 1 and Figure 5A). For the combinations T1C1 and T1C2, the frequencies of resistant trees were 82 and 91%, respectively (Figure 5B). However, 16 trees with the GTT resistant haplotype were susceptible, and 13 trees with the TCC susceptible haplotype were evaluated as phenotypically resistant (BLUP < 0) (Table 2).

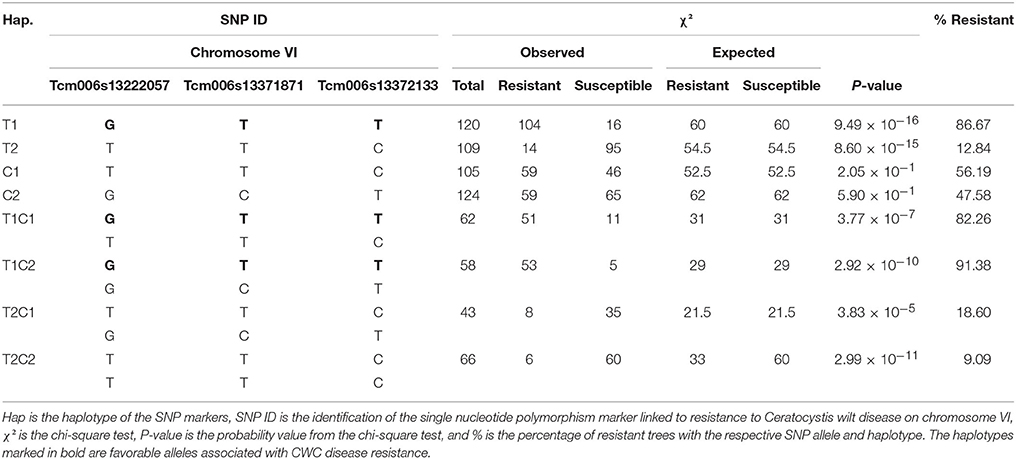

Table 2. Haplotype combinations for the three SNP markers on chromosome VI linked to CWC reactions in the F1 mapping population.

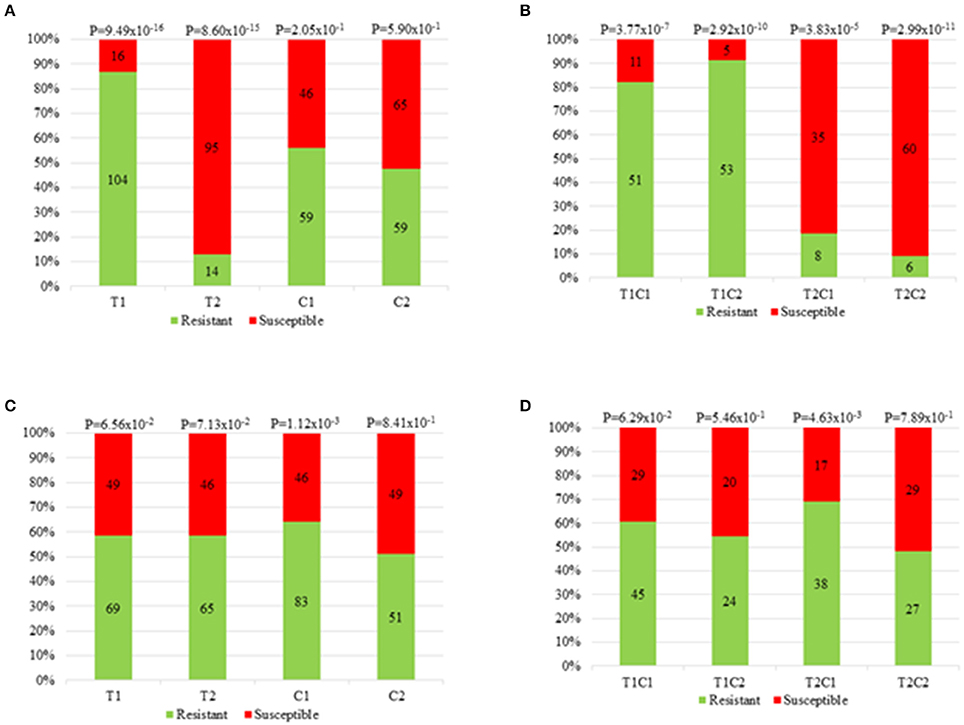

Figure 5. Frequency of resistant and susceptible trees. The frequency of resistant and susceptible trees are given for (A,C) each parental haplotype and (B,D) are given for each parental haplotype combination for the major QTL on chromosome VI (QTcNdp-chr6 and QTcXll-chr6) and minor QTL on chromosome IV (QTcXll-chr4), respectively. The different haplotypes and haplotype combinations are shown on the x-axis, while on the y-axis are shown the percentages of resistant (light green bar) and susceptible trees (light red bar). The p-values from the chi-square test for each different haplotype and haplotype combination are shown on the top of stacked bars.

The minor QTL, QTcXll-chr4, seemed to have a synergistic effect with the haplotypes T1C1 and T1C2 of the major QTL on chromosome VI (Table 3). The favorable haplotype with an increased number of resistant trees was C1 for the marker Tcm004s02747866, as visualized in Table 3 and Figure 5C. The frequencies of resistant trees were higher when the C1 allele combined with the alleles T1 and T2, forming the haplotype combinations T1C1 and T2C1. The haplotypes T1C1 and T2C1 on QTcXll-chr4 showed frequencies of 60.81% and 69.09% (Figure 5D).

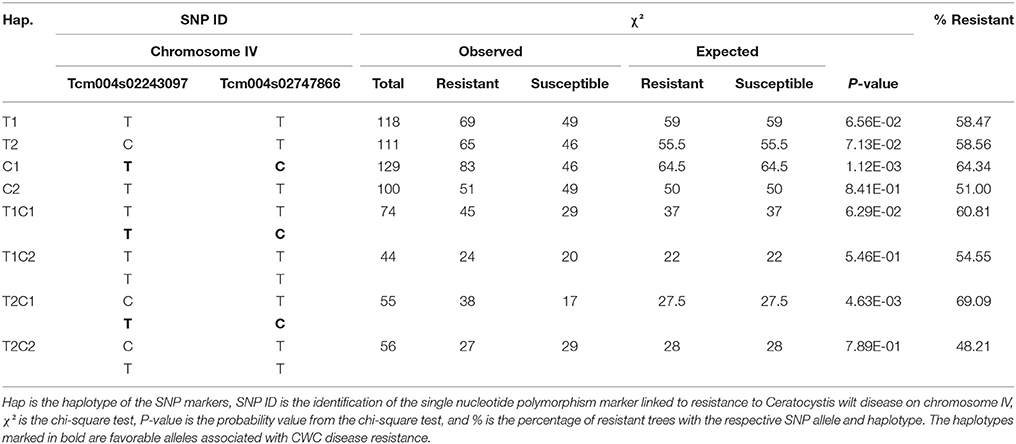

Table 3. Haplotype combinations for the two SNP markers on chromosome IV linked to CWC reactions in the F1 mapping population.

In our study, we identified transgressive trees in the MP01 population for XLL, indicating that there were combinations of favorable alleles from both parents. To support such a statement, we selected 21 trees with BLUP values < 2 for NDP and XLL that did not have the resistant haplotype T1 on chromosome VI. Then, we examined the haplotype combinations on QTcXll-chr4, and performed the chi-square test with 5% of significance. Of these 21 trees, 16 trees had the alleles C/T from “CCN 51” (p < 0.016). Therefore, “CCN 51” has a minor but significant effect on resistance to CWC when crossed with “TSH 1188.”

The resistant haplotype (T1) of “TSH 1188” for the major QTL, which corresponds to the alleles GTT were grouped with the haplotype 1 of the cacao varieties “SCA 6,” “IMC 67,” “UF 273 Type 2” and with both haplotypes of “Las Brisas 5 5” (Figure 6). The second haplotype (T2) grouped with both haplotypes of “Matina 1-6,” “NA 30,” “KA2 101,” “Pound 5/C (A),” and “FSC 8,” “MvT85” and with haplotype C1 of “CCN 51.” The other haplotype of “CCN 51” (C2) grouped with haplotype 2 of “IMC 67” and “ICS 95.”

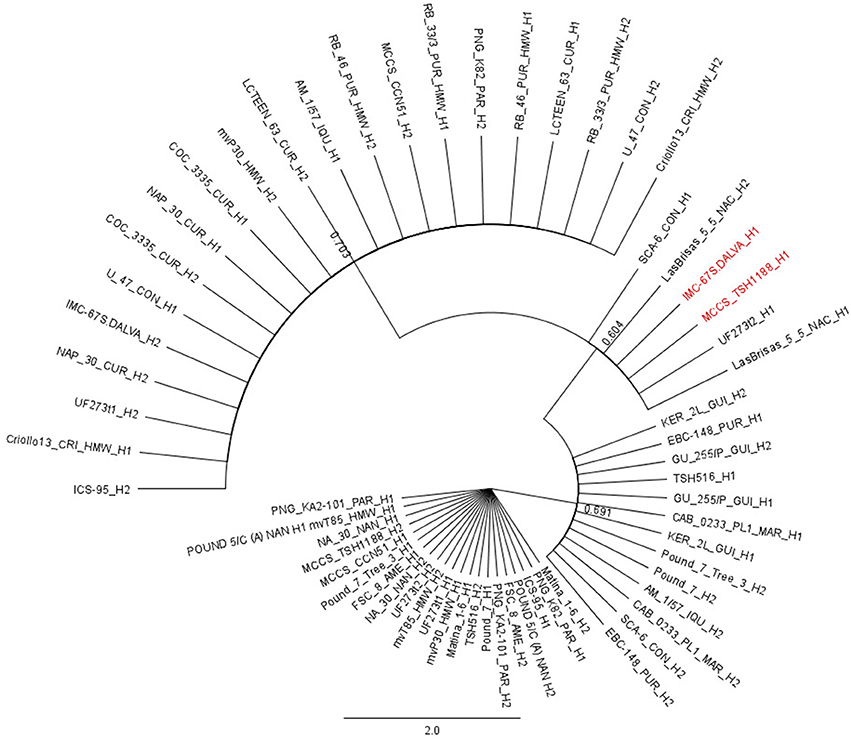

Figure 6. Neighbor Joining tree identifies the origin of the major QTL on chromosome VI (QTcNdp-chr6 and QTcXll-chr6). The red highlighted names are to show that the clones IMC-67.DALVA and TSH 1188 have the same haplotype H1, which was associated with CWC resistance in the MP01.

Identification of Candidate Genes

We selected a region on the chromosome VI QTL of 739.4 kbp and a region of 675 kbp on the chromosome IV QTL to study the potential genes regulating CWC resistance. Altogether, we found 338 genes in the two QTL regions, being 159 genes on chromosome IV and 179 genes on chromosome VI. On chromosomes IV and VI, the candidate genes assigned to 12 and 11 GO categories, respectively (data not shown). Biological processes involved in metabolic, cellular and single-organism processes were the most representative for both QTL regions. However, we focused on the stress response category because it involves several important plant resistance reactions, such as defense response, pathogen protein recognition and hypersensitivity responses. In total, we identified 17 genes classified as potentially involved in the category “response to stress” (Table 4). Of these, nine genes were within a 739.4-kbp region in the major QTL QTcNdp-chr6/QTcXll-chr6 and eight within a at 675-kb genomic region in QTcXll-chr4.

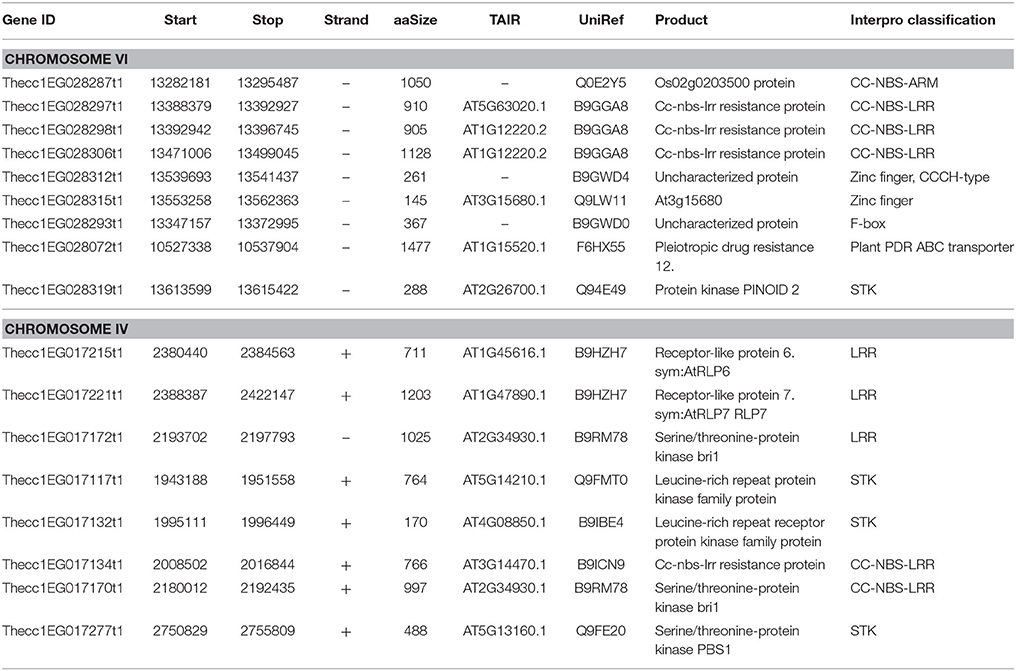

Table 4. List of candidate genes for Ceratocystis wilt resistance identified in the two QTLs on chromosomes VI and IV.

Inoculation of the Recombinants

We focused the analysis on seven trees displaying recombination event for the haplotypes in the major QTL region of chromosome VI associated with CWC resistance. In addition, we added flanking four SNP markers, besides the three main markers, to cover an area of 3.762 Mbp and to try to refine the localization of potential candidates genes involved in the CWC resistance by analyzing recombination. The haplotypes of the MP01 parents are shown in Figure 7, highlighting T1 (the haplotype associated with CWC resistance) and T2 for “TSH 1188,” and C1 and C2 for “CCN 51.” In the next block, the seven recombinants are represented. Furthermore, four blocks with representatives of all the different possible haplotype combinations, five per haplotype combination, are shown. In the block with the T1C1 haplotype, all the trees shown were resistant. In the block with the T1C2 haplotype, all the trees shown were resistant as well. In the remaining two blocks with the haplotypes T2C1 and T2C2, all the trees shown were susceptible. These results, as mentioned before, indicate that the haplotype T1 is responsible for the CWC resistance in the MP01.

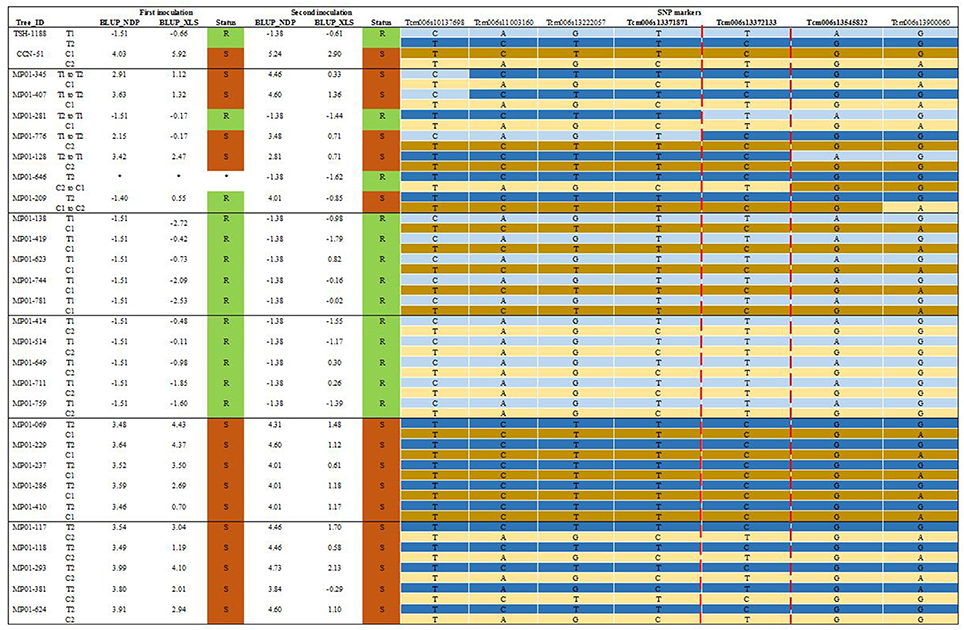

Figure 7. Haplotype combination analysis in the MP01 parents, recombinant trees plus the resistant (R) and susceptible (S) trees. Maternal and paternal haplotypes are shown at the top of the figure. The asterisk (*) means that the tree was not evaluated. Hap is the abbreviation of haplotype. The red dash line shows the smallest chromosomic region from T1 associated with resistance. The three main SNP marker are highlighted in bold.

Of the seven recombinant trees, five trees (MP01-128, 281, 345, 407, 776) possessed a recombination event between the maternal haplotypes in an interval from 10,137,698 to 13,545,822 base pairs (bp). Moreover, within the interval from 13,372,133 to 13,900,060 bp the trees MP01-646 and 209 had a recombination event between the paternal haplotypes, which does not seem to affect the tree resistance.

Three of the five trees with recombination events between the maternal haplotypes helped to narrow down the region even further. The susceptible tree MP01-776 has a recombination event between SNP markers Tcm006s13371871 and Tcm006s13372133, where the haplotype switched from T1 to T2. This indicates that the region upstream of Tcm006s13371871 harbors the genes responsible for the CWC resistance. Another susceptible tree, MP01-128, has a recombination event between SNP markers Tcm006s13372133 and Tcm006s13545822, where the haplotype switched from T2 to T1. This indicates that the region conferring resistance is downstream of marker Tcm006s13545822. Finally, there is the resistant tree MP01-281 that has a recombination event between SNP markers Tcm006s13371871 and Tcm006s13372133, where the haplotype switched from T2 to resistant T1. Together with the trees MP01-776 and MP01-128, this tree MP01-281 confirms that the region conferring resistance is between SNP markers Tcm006s13371871 and Tcm006s13545822.


Phenotypic Distribution for CWC

The phenotypic segregation ratio of 1:1 for NDP (Figure 2A) suggests that only a few genes might control resistance to CWC in the MP01 population. However, the continuous phenotypic distribution of XLL suggests a high level of variability for this disease. BLUP values observed in 150 F1 trees that were lower than in the resistant “TSH 1188” parent (Figure 2B) indicate that genes, likely inherited from both parents, are synergistically acting to increase the resistance level to CWC. A similar observation was reported in a cacao F2 population (“SCA 6” × “ICS 1”) evaluated for CWC (Santos et al., 2012b). The authors observed transgressive segregation for the F2 trees evaluated. Transgressive segregation corresponds to the presence of additive alleles between the parents (deVicente and Tanksley, 1993; Rieseberg et al., 1999). A similar phenotypic pattern in an F1 cacao population was identified for resistance against Phytophthora palmivora (Iwaro et al., 1997; Crouzillat et al., 2000), as well as for other crops (Aghnoum and Niks, 2010; Joshi et al., 2013; Tzin et al., 2015).

QTL and Haplotype Associated with CWC Resistance

MQM analyses identified a major QTL on chromosome VI, QTcNdp-chr6 and QTcXll-chr6, associated with CWC resistance, and a minor QTL, QTcXll-chr4 on IV for XLL. Together, they explained 66% of the phenotypic variation. A previous study identified two QTLs associated with CWC resistance in an F2 cacao mapping population from a cross between “SCA 6” and “ICS 1” (Santos et al., 2012b). These specific QTLs were mapped on chromosomes III and IX, and explained from 6.9 to 8.6% of the phenotypic variation, respectively (Santos et al., 2012b). These values are much lower than what we found for the main QTL on chromosome VI, which accounted for 50.20% for XLL, and 62.60% for NDP (Table 1). On the other hand, the small QTL on chromosome IV explained only 3.80% of the phenotype variation.

The major source of resistance for the QTL mapped by Santos et al. (2012b) might come from “SCA 6,” which is also a well-known source of resistance to witches' broom disease (Bekele, 2004; Maharaj et al., 2011; Royaert et al., 2016). “SCA 6” and “IMC 67” are the great grandparents of “TSH 1188” (Bekele, 2004; Maharaj et al., 2011; Turnbull and Hadley, 2017). “IMC 67” (from the Iquitos genetic group, Motamayor et al., 2008) is a recognized source of resistance to CWC (Turnbull and Hadley, 2017). In our study, the favorable resistant haplotype (T1 = GTT) for CWC was mapped in “TSH 1188” on the major QTL on chromosome VI. This haplotype grouped together with the haplotype 1 of “IMC 67” and some other cacao genotypes (Figure 6). The haplotype combination between T1 (GTT) with C2 (GCT) from “CCN 51” was the most significant to tree resistance against CWC disease in the MP01. This suggests that the alleles inherited from “CCN 51” had synergism with the alleles from “TSH 1188.” Apparently, “CCN 51” has significant additive and dominance effects in inheritance of tolerance to cacao diseases, mainly for witches' broom, in trees having “CCN 51” as a parent (Royaert et al., 2016). These findings might be due to the specific and general combining ability of “CCN 51” (Boza et al., 2012), that contributes for transmitting favorable resistant genes to the trees having “CCN 51” as parental. “CCN 51' is also derived from crosses involving “IMC 67” (Boza et al., 2012), which indicates that “CCN 51” may also have resistance alleles to CWC from IMC67 as TSH1188.

The major effect of the main QTL on chromosome VI was associated with the maternal haplotypes from “TSH 1188.” The results suggested that the trees with the maternal haplotype T1 (GTT) for the SNP markers Tcm006s13222057, Tcm006s13371871 and Tcm006s13372133, are usually resistant to CWC. These data corroborate with the fact that 82 and 91% of the trees possessing the haplotype combinations T1C1 and T1C2 were resistant (Figure 5B and Table 2). However, for some of the trees carrying the T1 haplotype, at least one of the replications died (BLUP > 0). Actually, eleven trees (18%) with the haplotype T1C1, and five trees (9%) with the haplotype T1C2 showed BLUP values higher than zero. Likewise, the situation occurred in which a tree carrying the susceptible haplotype (T2C1 and T2C2) (Table 2) did not show any symptom of susceptibility. In total, 14 trees with haplotype T2C1 and six with T2C2, showed no symptoms of susceptibility. The BLUP values for those trees were less than zero, what classified them as resistant. This reaction can be an escape response from the infection with C. cacaofunesta. Even if the inoculum was applied in a uniform and in an optimal concentration (1 x 105 spores/mL), individual trees may have escaped from CWC infection. Moreover, this disease escape reaction could also be associated to scion-rootstock interaction, as mentioned, MP01 progenies were grafted onto seedlings (sexually propagated and genetically different) from a resistant variety used as rootstock.

Potential Candidate Genes Associated to CWC Resistance

We started the identification of candidate genes associated to CWC resistance by covering the whole genomic region of 739.4 kbp, from the markers Tcm006s13222057 to Tcm006s13961448 on chromosome VI. In this region, we identified nine putative candidate genes, encoding proteins with different conserved domains (Table 4). We also covered a genomic region of 675-kbp between the markers Tcm004s02243097 and Tcm004s02747866 on chromosome IV, in which we identified eight candidate genes. Eight genes, three on chromosome VI, see below, and seven on chromosome IV, had homologies with disease-resistance genes encoding for leucine-rich repeat (LRR) proteins involved with specific recognition of pathogen effectors (Zhang et al., 2014; Fenyk et al., 2015), and hypersensitive responses (van Ooijen et al., 2008a,b; Keller et al., 2015). The second major group of genes encoded a serine/threonine protein kinase (STK), which might participate of the signaling cascade (Afzal et al., 2008; Qi et al., 2014), and trigger the disease resistance mechanism in response to pathogen infection (Cao et al., 2011). We also identified a cacao candidate gene, Thecc1EG028287t1, which is a homolog of Oryza sativa Os02g0203500, with a CC-NSB-ARM domain involved in programmed cell death (PCD) (Jiao et al., 2012). Other resistant candidate genes include the zinc finger (Gupta et al., 2012) and plant PDR ABC transporter (Nuruzzaman et al., 2014; Sekhwal et al., 2015), as shown in Table 4. The protein containing the F-box domain, Thecc1EG028293t1, might be associated with accumulation of phytohormones in response to pathogen infection (Liu and Xue, 2011; Piisil et al., 2015; Gonzalez et al., 2017; Hedtmann et al., 2017).

Indeed, the phenotype and haplotype analysis of the recombinant trees MP01-776, 182 and 128 in the interval between markers Tcm006s13371871 to Tcm006s13545822 clearly demonstrated that inheritance of the maternal haplotype T1 was highly associated to CWC resistance in the MP01. This recombinant analysis also allowed to narrow down the region associated to the resistance. The two susceptible trees with recombination within the interval between the two markers, MP01-776 and MP01-128, displayed the susceptible haplotype T2. The resistant tree with recombination within the same interval, MP01-281, displayed the resistant haplotype T1 (Figure 7). The haplotype analysis of these three trees reduced the original region on chromosome VI from 739.4 to 174.0 kbp. Within this narrower region, there are five disease resistant candidate genes (among the ones mentioned above), of which three genes (Thecc1EG028297t1, Thecc1EG028298t1, Thecc1EG028306t1) encoded a CC-NBS-LRR resistance protein, one encoded an uncharacterized protein with a Zinc finger-CCCH-type domain (Thecc1EG028312t1), and another one (Thecc1EG028293t1), encoding an uncharacterized protein containing an F-box domain (Table 4). These results also indicated that there might be a copy number variation (CNV) of the candidate genes containing the CC-NBS-LRR domains on chromosome VI. CNV regions are widespread in plant genomes and might have significant associations with phenotypic variations of important traits (Lu et al., 2015), such as disease resistance. This type of genetic polymorphism might play important roles in the expression of disease resistance genes in many crops (McHale et al., 2012; Muñoz-Amatriaín et al., 2013; Lu et al., 2015). The results found in our study may motivate future research aiming to investigate the candidate genes related to CWC resistance.

In summary, the search for QTL regions and molecular markers associated with CWC resistance is one of the major goals of our cacao-breeding program. Accurate QTL mapping relies on an effective and reliable phenotyping data collection, combined with a large set of mapped SNP markers from a cacao segregating mapping population. We have recently published research suggesting that genomic selection may be more powerful than MAS built from QTL mapping approaches for polygenic cacao disease resistance with lower heritability (Navarro et al., 2017). However, in this study we have clearly shown that QTL mapping using SNP markers can be of great benefit when studying cacao disease resistance regulated by fewer genes and with a high heritability. From the SNP data set in the main QTL peak, we were able to identify the favorable alleles/haplotype combinations associated with Certaocystis wilt resistance in the MP01 population. Due to an effective phenotyping data collection, and robust SNP data set, we accurately screened a large number of resistant trees carrying a favorable haplotype (GTT). This information, combined with gene annotation data, allowed the identification of potential candidate genes in both QTL peaks. The results from our research are supporting conventional cacao breeding via MAS, in order to select and create new resistant cacao varieties to CWC.

Author Contributions

LF carried out the experimental work, which included experimental design, phenotyping data collection, SNP data analysis and candidate genes identification, produced QTL graphs and wrote the manuscript. SR performed the QTL mapping analysis, assisted with SNP data analysis, and helped editing the manuscript. FC carried out BLUP analysis and produced the graphs. GM carried out the phylogenetic analysis for the SNP markers and created the NJ tree. J-PM and RC was involved in all steps of this research as the advisor of master's student LF. JM provided the SNP markers data, assisted with the SNP data analysis and edited the manuscript.


This work was supported by MARS, Incorporated.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.


The authors would like to thank Dilze Maria Argôlo Magalhães from Comissão Executiva do Plano da Lavroura Cacaueira – CEPLAC, BA, Brazil, for the donation of the C. cacaofunesta isolate, CF-20. Thanks to Marcelo de Jesus Santos and Valdevino Santana do Carmo from the Mars Center for Cocoa Science, for helping with the propagation of the trees and in administering the inoculations. Thanks are due to Donald Livingstone from Mars Inc., Miami, Florida, for helping with SNP marker analysis. The authors would also like to thank Mars/MCCS for supporting this study by funding and providing the laboratories and technical support. Thanks to Universidade Estadual de Santa Cruz – UESC - for providing the laboratories and technical support. This research was conducted in Brazil under the Conselho de Gestão do Patrimônio Genético - CGEN permit for access to genetic resources number 02000.000070/2015-05.


Afzal, A. J., Wood, A. J., and Lightfoot, D. A. (2008). Plant Receptor-Like Serine Threonine Kinases: Roles in Signaling and Plant Defense. Mol. Plant Microbe Interact. 21, 507–517. doi: 10.1094/MPMI-21-5-0507

PubMed Abstract | CrossRef Full Text | Google Scholar

Aghnoum, R., and Niks, R. E. (2010). Transgressive segregation for extremely low and high level of quantitative resistance to powdery mildew in barley. J Plant Physiol. 168, 45–50. doi: 10.1016/j.jplph.2010.09.005

CrossRef Full Text

Aime, M. C., and Phillips-Mora, W. (2005). The causal agents of witches' broom and frosty pod rot of cacao (chocolate, Theobroma cacao) form a new lineage of Marasmiaceae. Mycologia 97, 1012–1022. doi: 10.1080/15572536.2006.11832751

PubMed Abstract | CrossRef Full Text | Google Scholar

Bahia, R. C., Aguilar-Vildoso, C. I., Luz, E. D. M. N., Lopes, U. V., Machado, R. C. R., and Corrêa, R. X. (2015). Resistance to black pod disease in a segregating cacao tree population. Trop. Plant Pathol. 40, 13–18. doi: 10.1007/s40858-014-0003-7

CrossRef Full Text | Google Scholar

Barreto, M. A., Santos, J. C. S., Corrêa, R. X., Luz, E. D. M. N., Marelli, J., and Souza, A. P. (2015). Detection of genetic resistance to cocoa black pod disease caused by three Phytophthora species. Euphytica. 206, 677-687. doi: 10.1007/s10681-015-1490-4

CrossRef Full Text | Google Scholar

Bekele (2004). History of Cocoa Production in Trinidad. Available online at: (Accessed October 20, 2015).

Boza, E. J., Irish, B. M., Meerow, A. W., Tondo, C. L., Rodríguez, O. A., Ventura-López, M., et al. (2012). Genetic diversity, conservation, and utilization of Theobroma cacao L.: genetic resources in the dominican republic. Genet. Resour. Crop Evol. 60, 605–619. doi: 10.1007/s10722-012-9860-4

CrossRef Full Text | Google Scholar

Brasil (2009). Serviço Público Federal Ministério da Agricultura, Pecuária e Abastecimento. Comissão Executiva do Plano da Lavoura Cacaueira-CEPLAC. Nota Técnica: Programa de Recuperação da Lavoura Cacaueira – 3a e 4a Etapas. A Crise da Lavoura Cacaueira, Condicionantes, Ação Governamental, Análise e Recomendações.

Cao, A., Xing, L., Wang, X., Yang, X., Wang, W., Sun, Y., et al. (2011). Serine/threonine kinase gene Stpk-V, a key member of powdery mildew resistance gene Pm21, confers powdery mildew resistance in wheat. Proc. Natl. Acad. Sci. U.S.A. 108, 7727–7732. doi: 10.1073/pnas.1016981108

PubMed Abstract | CrossRef Full Text | Google Scholar

Churchill, G. A, and Doerg, R. W. (1994). Empirical threshold values for quantitative trait mapping. Genetics 138, 963–971. Available online at: (Accessed February 2, 2018).

Google Scholar

Crouzillat, D., Phillips, W., Fritz, P. J., and Pétiard, V. (2000). Quantitative trait loci analysis in Theobroma cacao using molecular markers. Inheritance of polygenic resistance to Phytophthora palmivora in two related cacao populations. Euphytica 114, 25–36. doi: 10.1023/A:1003994212394

CrossRef Full Text | Google Scholar

deVicente, M. C., and Tanksley, S. D. (1993). Qtl analysis of transgressive segregation in an interspecific tomato cross. Genetics 134, 585.

Google Scholar

Engelbrecht, C. J. B., and Harrington, T. C. (2005). Intersterility, morphology and taxonomy of Ceratocystis fimbriata on sweet potato, cacao and sycamore. Mycologia 97, 57–69. doi: 10.1080/15572536.2006.11832839

PubMed Abstract | CrossRef Full Text | Google Scholar

FAOSTAT (2017). Available at: (Accessed September 28, 2017).

Fenyk, S., Townsend, P. D., Dixon, C. H., Spies, G. B., de San Eustaquio Campillo, A., Slootweg, E. J., et al. (2015). The potato Nucleotide-binding Leucine-rich Repeat (NLR) Immune Receptor Rx1 Is a Pathogen-dependent DNA-deforming protein. J. Biol. Chem. 290, 24945–24960. doi: 10.1074/jbc.M115.672121

PubMed Abstract | CrossRef Full Text | Google Scholar

Gonzalez, L. E., Keller, K., Chan, K. X., Gessel, M. M., and Thines, B. C. (2017). Transcriptome analysis uncovers Arabidopsis F-BOX STRESS INDUCED 1 as a regulator of jasmonic acid and abscisic acid stress gene expression. BMC Genomics 18:533. doi: 10.1186/s12864-017-3864-6

PubMed Abstract | CrossRef Full Text | Google Scholar

Gupta, S. K., Rai, A. K., Kanwar, S. S., and Sharma, T. R. (2012). Comparative analysis of zinc finger proteins involved in plant disease resistance. PLoS ONE 7:e42578. doi: 10.1371/journal.pone.0042578

PubMed Abstract | CrossRef Full Text | Google Scholar

Hedtmann, C., Guo, W., Reifschneider, E., Heiber, I., Hiltscher, H., van Buer, J., et al. (2017). The plant immunity regulating f-box protein CPR1 supports plastid function in absence of pathogens. Front. Plant Sci. 8:1650. doi: 10.3389/fpls.2017.01650

PubMed Abstract | CrossRef Full Text | Google Scholar

ICCO (2017). May 2017 Quarterly Bulletin of Cocoa Statistics. International Cocoa Organization. Available online at: (Accessed September 28, 2017).

Iwaro, A. D., Umaharan, P., and Sreenivasan, T. N. (1997). Inheritance of foliar resistance to Phytophthora palmivora (butler) Butler in cacao (Theobroma cacao L.). Euphytica 96, 377–383. doi: 10.1023/A:1003046604105

CrossRef Full Text | Google Scholar

Jiao, B.-B., Wang, J.-J., Zhu, X.-D., Zeng, L.-J., Li, Q., and He, Z.-H. (2012). A novel protein RLS1 with NB–ARM domains is involved in chloroplast degradation during leaf senescence in rice. Mol. Plant 5, 205–217. doi: 10.1093/mp/ssr081

PubMed Abstract | CrossRef Full Text | Google Scholar

Jones, P., Binns, D., Chang, H.-Y., Fraser, M., Li, W., McAnulla, C., et al. (2014). InterProScan 5: genome-scale protein function classification. Bioinformatics 30, 1236–1240. doi: 10.1093/bioinformatics/btu031

PubMed Abstract | CrossRef Full Text | Google Scholar

Joshi, B. K., Panthee, D. R., Louws, F. J., Yencho, G. C., Sosinski, B., and Arellano, C. (2013). RAPD markers linked to late blight resistance in tomato. Nepal J. Sci. Tech. 14, 1–14. doi: 10.3126/njst.v14i1.8871

CrossRef Full Text | Google Scholar

Keller, B., Manzanares, C., Jara, C., Lobaton, J. D., Studer, B., and Raatz, B. (2015). Fine-mapping of a major QTL controlling angular leaf spot resistance in common bean (Phaseolus vulgaris L.). TAG. Theor. Appl. Genet. 128, 813–826. doi: 10.1007/s00122-015-2472-6

PubMed Abstract | CrossRef Full Text | Google Scholar

Kumar, S., Stecher, G., and Tamura, K. (2016). MEGA7: molecular evolutionary genetics analysis version 7.0 for bigger datasets. Mol. Biol. Evol. 33, 1870–1874. doi: 10.1093/molbev/msw054

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, T.-B., and Xue, C. (2011). The ubiquitin-proteasome system and F-box proteins in pathogenic fungi. Mycobiology 39, 243–248. doi: 10.5941/MYCO.2011.39.4.243

PubMed Abstract | CrossRef Full Text | Google Scholar

Livingstone, D., Royaert, S., Stack, C., Mockaitis, K., May, G., Farmer, A., et al. (2015). Making a chocolate chip: development and evaluation of a 6K SNP array for Theobroma cacao. DNA Res. 22, 279–291. doi: 10.1093/dnares/dsv009

PubMed Abstract | CrossRef Full Text | Google Scholar

Lopes, U. V., Monteiro, W. R., Pires, J. L., Clement, D., Yamada, M. M., and Gramacho, K. P. (2011). Cacao breeding in Bahia, Brazil: strategies and results. Crop Breed. Appl. Biotechnol. 11, 73–81. doi: 10.1590/S1984-70332011000500011

CrossRef Full Text | Google Scholar

Lu, F., Romay, M. C., Glaubitz, J. C., Bradbury, P. J., Elshire, R. J., Wang, T., et al. (2015). High-resolution genetic mapping of maize pan-genome sequence anchors. Nat. Commun. 6:6914. doi: 10.1038/ncomms7914

PubMed Abstract | CrossRef Full Text | Google Scholar

Maharaj, K., Maharaj, P., Bekele, F. L., Ramnath, D., Bidaisee, G. G., Bekele, I., et al. (2011). Trinidad selected hybrids: an investigation of the phenotypic and agro-economic traits of 20 selected cacao cultivars. Trop. Agric. 88, 175–185.

Google Scholar

McHale, L. K., Haun, W. J., Xu, W. W., Bhaskar, P. B., Anderson, J. E., Hyten, D. L., et al. (2012). Structural variants in the soybean genome localize to clusters of biotic stress-response genes1 [W][OA]. Plant Physiol. 159, 1295–1308. doi: 10.1104/pp.112.194605

CrossRef Full Text | Google Scholar

Mitchell, A., Chang, H.-Y., Daugherty, L., Fraser, M., Hunter, S., Lopez, R., et al. (2015). The InterPro protein families database: the classification resource after 15 years. Nucleic Acids Res. 43, D213–D221. doi: 10.1093/nar/gku1243

PubMed Abstract | CrossRef Full Text | Google Scholar

Motamayor, J. C., Lachenaud, P., da Silva E Mota, J. W., Loor, R., Kuhn, D. N., Brown, J. S., et al. (2008). Geographic and genetic population differentiation of the Amazonian chocolate tree (Theobroma cacao L). PLoS ONE 3:e3311. doi: 10.1371/journal.pone.0003311

PubMed Abstract | CrossRef Full Text | Google Scholar

Motamayor, J. C., Mockaitis, K., Schmutz, J., Haiminen, N., Donald, L. Iii, Cornejo, O., et al. (2013). The genome sequence of the most widely cultivated cacao type and its use to identify candidate genes regulating pod color. Genome Biol. 14, :r53. doi: 10.1186/gb-2013-14-6-r53

PubMed Abstract | CrossRef Full Text | Google Scholar

Motamayor, J. C., Risterucci, A. M., Lopez, P. A., Ortiz, C. F., Moreno, A., and Lanaud, C. (2002). Cacao domestication I: the origin of the cacao cultivated by the Mayas. Heredity 89, 380–386. doi: 10.1038/sj.hdy.6800156

CrossRef Full Text | Google Scholar

Muñoz-Amatriaín, M., Eichten, S. R., Wicker, T., Richmond, T. A., Mascher, M., Steuernagel, B., et al. (2013). Distribution, functional impact, and origin mechanisms of copy number variation in the barley genome. Genome Biol. 14:R58. doi: 10.1186/gb-2013-14-6-r58

PubMed Abstract | CrossRef Full Text | Google Scholar

Navarro, R., Alberto, J., Wilbert Phillips-Mora, W., Arciniegas-Leal, A., Mata-Quirós, A., Haiminen, N., et al. (2017). Application of genome wide association and genomic prediction for improvement of cacao productivity and resistance to black and frosty pod diseases. Front. Plant Sci. 8:1905. doi: 10.3389/fpls.2017.01905

CrossRef Full Text | Google Scholar

Nuruzzaman, M., Zhang, R., Cao, H.-Z., and Luo, Z.-Y. (2014). Plant pleiotropic drug resistance transporters: transport mechanism, gene expression, and function. J. Integr. Plant Biol. 56, 729–740. doi: 10.1111/jipb.12196

PubMed Abstract | CrossRef Full Text | Google Scholar

Piisilä, M., Keceli, M. A., Brader, G., Jakobson, L., Jõesaar, I., Sipari, N., et al. (2015). The F-box protein MAX2 contributes to resistance to bacterial phytopathogens in Arabidopsis thaliana. BMC Plant Biol. 15:53. doi: 10.1186/s12870-015-0434-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Qi, D., Dubiella, U., Kim, S. H., Sloss, D. I., Dowen, R. H., Dixon, J. E., et al. (2014). Recognition of the Protein Kinase AVRPPHB SUSCEPTIBLE1 by the Disease Resistance Protein RESISTANCE TO PSEUDOMONAS SYRINGAE5 Is Dependent on S-Acylation and an Exposed Loop in AVRPPHB SUSCEPTIBLE1. Plant Physiol. 164, 340–351. doi: 10.1104/pp.113.227686

PubMed Abstract | CrossRef Full Text | Google Scholar

Ram, A., Valle, R. R. M., and Freitas, D. B. (2004). Controle de cancro ou murcha de Ceratocystis do cacaueiro na Bahia, Brasil. Agrotropica 16, 111–114. Available online at: (Accessed February 2, 2018).

Google Scholar

Rant, J. C., Arraiano, L. S., Chabannes, M., and Brown, J. K. M. (2013). Quantitative trait loci for partial resistance to Pseudomonas syringae pv. maculicola in Arabidopsis thaliana. Mol. Plant Pathol. 14, 828–837. doi: 10.1111/mpp.12043

PubMed Abstract | CrossRef Full Text | Google Scholar

Rieseberg, L. H., Archer, M. A., and Wayne, R. K. (1999). Transgressive segregation, adaptation and speciation. Heredity 83, 363–372. doi: 10.1038/sj.hdy.6886170

CrossRef Full Text | Google Scholar

Royaert, S., Jansen, J., da Silva, D. V., de Jesus Branco, S. M., Livingstone, D. S., Mustiga, G., et al. (2016). Identification of candidate genes involved in Witches' broom disease resistance in a segregating mapping population of Theobroma cacao L. in Brazil. BMC Genomics 17:107. doi: 10.1186/s12864-016-2415-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Sanches, C. L. G., Pinto, L. R. M., Pomella, A. W. V., Silva, S. D. V. M., and Loguercio, L. L. (2008). Assessment of resistance to Ceratocystis cacaofunesta in cacao genotypes. Eur. J. Plant Pathol. 122, 517–528. doi: 10.1007/s10658-008-9319-9

CrossRef Full Text | Google Scholar

Santos, R. M. F., Clement, D., Lemos, L. S. L., Legravre, T., Lanaud, C., Schnell, R. J., et al. (2012a). Identification, characterization and mapping of EST-derived SSRs from the cacao–Ceratocystis cacaofunesta interaction. Tree Genet. Genomes 9, 117–127. doi: 10.1007/s11295-012-0539-y

CrossRef Full Text | Google Scholar

Santos, R. M. F., Lopes, U. V., de Cássia Bahia, R., Machado, R. C. R., Ahnert, D., and Corrêa, R. X. (2007). Microsatellite markers related to resistance of cocoa tree against witches'-broom. Pesquisa Agropecuária Brasileira 42, 1137–1142. doi: 10.1590/S0100-204X2007000800010

CrossRef Full Text | Google Scholar

Santos, R. M. F., Lopes, U. V., Silva, S. D. V. M., Micheli, F., Clement, D., and Gramacho, K. P. (2012b). Identification of quantitative trait loci linked to Ceratocystis wilt resistance in cacao. Mol Breed. 30, 1563–1571. doi: 10.1007/s11032-012-9739-2

CrossRef Full Text | Google Scholar

Scheet, P., and Stephens, M. (2006). A fast and flexible statistical model for large-scale population genotype data: applications to inferring missing genotypes and haplotypic phase. Am. J. Hum. Genet. 78, 629–644. doi: 10.1086/502802

PubMed Abstract | CrossRef Full Text | Google Scholar

Sekhwal, M., Li, P., Lam, I., Wang, X., Cloutier, S., and You, F. (2015). Disease resistance gene analogs (RGAs) in plants. Int. J. Mol. Sci. 16, 19248–19290. doi: 10.3390/ijms160819248

PubMed Abstract | CrossRef Full Text | Google Scholar

Silva, D. V., Araújo, I. S., Branco, S. M. J., Aguilar-Vildoso, C. I., Lopes, U. V., Marelli, J. P., et al. (2014). Analysis of resistance to witches' broom disease (Moniliophthora perniciosa) in flower cushions of Theobroma cacao in a segregating population. Plant Pathol. 63, 1264–1271. doi: 10.1111/ppa.12204

CrossRef Full Text | Google Scholar

Silva, S., Mandarino, E. P., Damaceno, V. O., and Santos Filho, L. P. (2007). Reação de genótipos de cacaueiros a isolados de Ceratocystis cacaofunesta. Fitopatol. Bras. 32, 504–506. doi: 10.1590/S0100-41582007000600009

CrossRef Full Text | Google Scholar

Surujdeo-Maharaj, S., Sreenivasan, T. N., Motilal, L. A., and Umaharan, P. (2016). “Black Pod and Other Phytophthora Induced Diseases of Cacao: History, Biology, and Control,” in Cacao Diseases, eds B. Bailey and L. Meinhardt (Cham: Springer), 213–266.

Google Scholar

Turnbull, C. J., and Hadley, P. (2017). International Cocoa Germplasm Database (ICGD). CRA Ltd./ICE Futures Europe/University of Reading. Available online at: (Accessed July 20, 2017).

Tzin, V., Lindsay, P. L., Christensen, S. A., Meihls, L. N., Blue, L. B., and Jander, G. (2015). Genetic mapping shows intraspecific variation and transgressive segregation for caterpillar-induced aphid resistance in maize. Mol. Ecol. 24, 5739–5750. doi: 10.1111/mec.13418

PubMed Abstract | CrossRef Full Text | Google Scholar

Utro, F., Haiminen, N., Livingstone, D., Cornejo, O. E., Royaert, S., Schnell, R. J., et al. (2013). iXora: exact haplotype inferencing and trait association. BMC Genet. 14:48. doi: 10.1186/1471-2156-14-48

PubMed Abstract | CrossRef Full Text | Google Scholar

van Ooijen, G., Mayr, G., Albrecht, M., Cornelissen, B. J. C., and Takken, F. L. W. (2008a). Trans-complementation, but not physical association of the CC-NB-ARC and LRR Domains of Tomato R Protein Mi-1.2 is altered by mutations in the ARC2 subdomain. Mol. Plant 1, 401–410. doi: 10.1093/mp/ssn009

CrossRef Full Text | Google Scholar

van Ooijen, G., Mayr, G., Kasiem, M. M. A., Albrecht, M., Cornelissen, B. J. C., and Takken, F. L. W. (2008b). Structure-function analysis of the NB-ARC domain of plant disease resistance proteins. J. Exp. Bot. 59, 1383–1397. doi: 10.1093/jxb/ern045

PubMed Abstract | CrossRef Full Text | Google Scholar

Van Ooijen, J., and Kyazma, B. (2009). MapQTL® 6, Software for the Mapping of Quantitative trait in Experiment Populations of Diploid Species. Wageningen: Kyazma B. V.

Van Ooijen, J. W. (2006). JoinMap 4.1, Software for the Calculation of Genetic Linkage Maps in Experimental Populations of Diploid Species. Wageningen: Kyazma B. V.

Voorrips, R. E. (2002). MapChart: software for the graphical presentation of linkage maps and QTLs. J. Hered. 93, 77–78. doi: 10.1093/jhered/93.1.77

CrossRef Full Text | Google Scholar

Xu, Y., Li, P., Yang, Z., and Xu, C. (2017). Genetic mapping of quantitative trait loci in crops. Crop J. 5, 175–184. doi: 10.1016/j.cj.2016.06.003

CrossRef Full Text | Google Scholar

Zhang, S., Chen, W., Xin, L., Gao, Z., Hou, Y., Yu, X., et al. (2014). Genomic variants of genes associated with three horticultural traits in apple revealed by genome re-sequencing. Hortic. Res. 1:14045. doi: 10.1038/hortres.2014.45

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: SNP markers, cacao breeding, disease resistance, candidate genes, marker-assisted selection

Citation: Fernandes LdS, Royaert S, Corrêa FM, Mustiga GM, Marelli J-P, Corrêa RX and Motamayor JC (2018) Mapping of a Major QTL for Ceratocystis Wilt Disease in an F1 Population of Theobroma cacao. Front. Plant Sci. 9:155. doi: 10.3389/fpls.2018.00155

Received: 14 November 2017; Accepted: 29 January 2018;
Published: 14 February 2018.

Edited by:

Thomas Miedaner, University of Hohenheim, Germany

Reviewed by:

Rogerio Merces Ferreira Santos, State University of Feira de Santana, Brazil
Peter John McMahon, University of Sydney, Australia

Copyright © 2018 Fernandes, Royaert, Corrêa, Mustiga, Marelli, Corrêa and Motamayor. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Juan C. Motamayor,
