METHODS article

Front. Plant Sci., 27 June 2023
Sec. Plant Membrane Traffic and Transport
Volume 14 - 2023 |

Preparation of physiologically active inside-out vesicles from plant inner mitochondrial membranes

  • 1Institute of Biology-Plant Physiology, Martin Luther University Halle-Wittenberg, Halle/Saale, Germany
  • 2Biocenter, Martin Luther University Halle-Wittenberg, Halle/Saale, Germany

For many metabolites, the major barrier between cytosol and mitochondrial matrix is the inner membrane of mitochondria, the site of the respiratory electron transport chain. In consequence, it houses numerous transporters which facilitate the controlled exchange of metabolites, ions, and even proteins between these cellular compartments. While their import into the organelle can be studied with isolated mitochondria or mitoplasts, the analysis of their export from the matrix into the intermembrane space or even the cytosol demands for more sophisticated approaches. Among those, inside-out inner membrane vesicles are particularly useful, since they allow the direct presentation of the potential export substrates to the membrane without prior import into the organelle. Here we present a protocol for the isolation of such inside-out vesicles of the inner membrane of plant mitochondria based on repeated freeze/thaw-cycles of freshly prepared mitoplasts. Electron microscopy and Western analysis could show that the majority of the vesicles have single envelope membranes in an inside-out topology. The vesicles are furthermore physiologically active, as demonstrated by assays measuring the enzymatic activities of Complex I (NADH dehydrogenase), Complex V (ATP synthase) and the mitochondrial processing peptidase (MPP) associated with Complex III. Hence, the method presented here provides a good basis for further studies of the inner mitochondrial membrane and mitochondrial export processes.


Plant mitochondria provide a multitude of metabolic reactions and functions which are essential for the cell (e.g., citric acid cycle, respiratory electron transport chain, calcium homeostasis, Fe/S and heme biogenesis, stress adaptation, etc.). The analysis of such processes was strongly supported by the establishment of methods enabling the isolation of intact plant mitochondria and mitochondrial fractions (Moreau and Lance, 1972; Douce et al., 1973; Gardeström et al., 1978; Day et al., 1979; Day et al., 1985). The inner mitochondrial membrane (IMM) is particularly interesting because membrane-bound proteins and complexes are indispensable in many of these reactions and processes, whether as channels, transporters, or enzymes. By osmolysis of intact mitochondria it is possible to disrupt the outer mitochondrial membrane, giving rise to the so-called mitoplasts (Douce et al., 1973), which have the IMM exposed to the surrounding buffer. These mitoplasts thus allow studying many IMM-based processes and properties, though solely from the “outside” of the organelle. In order to gain access to the IMM and its components also from the matrix side, it is necessary to have the membrane inverted. To achieve this, the mitoplasts need to be opened at several sites giving rise to membrane fragments that tend to form sealed vesicles due to their amphiphilic properties. The orientation of these vesicles (inside-out or right-side-out) can be influenced by the method used and the salt concentration of the surrounding medium. For example, French press and low salt medium predominantly lead to right-side-out vesicles, while inside-out vesicles are mostly generated by sonication in high salt buffers (Kay et al., 1985; Møller et al., 1987). Interestingly, the different regions of the IMM, i.e., cristae and inner boundary membrane, each tend to form specific types of vesicles. From cristae regions, relatively large inside-out vesicles are usually obtained, whereas much smaller, right-side-out vesicles are formed from the inner boundary membrane (Kay et al., 1985; Møller et al., 1987).

The first plant IMM vesicles described were generated by sonication of mitochondria isolated from mung bean (Phaseolus aureus) (Beyer et al., 1968). Since then, numerous further plant species and tissues have successfully been used (e.g., Rasmusson and Møller, 1991; Braidot et al., 2004). With such vesicles, IMM-based functions like respiratory electron transport, protein topology, enzyme activities, and inhibitors have been studied (Korth et al., 1991; Liu et al., 2002; Onda et al., 2007). However, we have experienced a massive decrease in all examined enzyme activities when using sonication to isolate IMM vesicles, making them unsuitable for our purposes. To better preserve the enzyme functions, the preparation method chosen must thus be as gentle as possible to the proteins and complexes. Therefore, we have adapted a method based on repeated freeze/thaw-cycles using liquid nitrogen that was originally described for the preparation of inside-out vesicles of the plasma membrane (Palmgren et al., 1990). With this method, it was possible to obtain intact and physiologically active inside-out IMM vesicles from pea leave tissue (Pisum sativum). We have characterized and validated the vesicles obtained with respect to their morphology, membrane topology and integrity, as well as by determining the enzymatic activities of IMM protein complexes of the respiratory electron transport chain. Due to the inevitable loss of soluble components like cytochrome c during vesicle preparation, these would have to be added externally if the activity of the entire electron transport chain is to be determined. We think that these inside-out vesicles might be helpful for numerous potential applications, including the analysis of mitochondrial calcium homeostasis or the export of proteins from the matrix to the intermembrane space (IMS).

Isolation of plant mitochondria and preparation of submitochondrial fractions

Isolation of mitochondria from pea seedlings


The isolation of intact mitochondria from plant tissue is based on a combination of differential centrifugation and density gradient centrifugation. For more information about the principles of isolating plant mitochondria, see Møller et al. (2021).


SIM (sucrose isolation medium)

Store at 4°C

25 mM HEPES/KOH, pH 8.0

350 mM Sucrose

2 mM Ethylenediaminetetraacetic acid (EDTA)

Supplementation on the day of isolation:

0.6% (w/v) Polyvinylpyrrolidone K-25 (PVP)

0.2% (w/v) Bovine serum albumin (BSA)

10 mM Dithiothreitol (DTT)

0.2 mM Phenylmethylsulfonyl fluoride (PMSF)

5 x SRM (5x sorbitol resuspension medium)

Autoclave and store at 4°C

0.25 M HEPES/KOH, pH 8.0

1.65 M Sorbitol


Prepare fresh on the day of use

20% (v/v) 5xSRM (see above)

0.2 mM PMSF

Percoll gradient solutions (store at 4°C)

50% Percoll 34% Percoll 18% Percoll

5xSRM 20% (v/v) 20% (v/v) 20% (v/v)

Percoll 50% (v/v) 34% (v/v) 18% (v/v)

Preparatory work

• Cut the nylon mesh (100 μm pore size) and Miracloth (22-25 μm) to size.

• Precool all solutions and equipment to 4°C or on ice.

• Sow pea (e.g., Pisum sativum var. Feltham First) and let the seedlings grow for 7–10 d under constant temperature (18–22°C) and light regime (16/8 h light/dark cycle).

On the day of isolation

• Finalize the isolation media (SIM, SRM) by adding the supplements.

• Prepare four Percoll step gradients (5 ml 50% Percoll, 8 ml 34% Percoll, 5 ml 18% Percoll) in 30 ml Corex tubes and keep them on ice.

NOTE. To prevent unwanted turbulence, place a flat piece of cork in the Corex tubes onto which the Percoll solutions, and later also the organelle suspension, are pipetted in sequence.

• Soak soft brush with 1 x SRM+PMSF

• Harvest 80-120 g pea seedlings without roots and keep them on ice until use.

Protocol (timing: 3-4 h)

The following protocol was modified based on the isolation procedure described by Rödiger et al. (2010). All steps must be performed with precooled solutions and in the cold room or on ice.

1. Homogenize the harvested plant material with approximately 400 ml SIM for 5 x 2 sec in a Waring blender.

2. Filter the homogenate through one layer of nylon mesh and two layers of Miracloth into two 250 ml centrifuge beakers placed on ice.

NOTE. For higher yield, it is advisable to carefully squeeze the filters with the plant debris.

3. Centrifuge for 5 min at 2,000 g (4°C).

4. Carefully pour the supernatant (containing mitochondria) into two new precooled 250 ml centrifuge beakers.

NOTE. The sediment will easily detach from the walls.

5. Centrifuge for 10 min at 6,000 g (4°C).

6. Pour the supernatant (containing mitochondria) into two new precooled 250 ml centrifuge beakers.

NOTE. In order to prevent spillover of the chloroplast-containing sediment, pour the supernatant off in one go but stop as soon as detached sediment fractions approach the rim of the beaker.

7. Centrifuge for 10 min at 16,000 g (4°C).

8. Discard the supernatant while retaining the sediment (containing mitochondria).

9. Use the soft brush to carefully resuspend each sediment in 2 ml 1 x SRM+PMSF.

NOTE. To avoid the formation of lumps during resuspension, the sediment should initially be resuspended in a smaller volume.

10. Distribute the organelle suspension equally onto the four Percoll gradients.

11. Centrifuge for 45 min at 12,000 g (4°C) with low acceleration and deceleration.

NOTE. Intact mitochondria will accumulate in the interphase between 50% and 34% Percoll.

12. Remove the upper phases with a Pasteur pipette taking care not to take any mitochondria.

13. Carefully collect the interphase containing the mitochondria and transfer it to new precooled 30 ml Corex tubes.

14. Fill the Corex tubes to approximately 25 ml with 1 x SRM+PMSF, mix carefully and centrifuge for 10 min at 12,000 g (4°C).

15. Remove and discard approximately 50% of the supernatant.

16. Repeat steps 14 and 15 until a solid sediment has formed and the supernatant remains clear.

17. Discard the supernatant entirely and resuspend the sediment in a few milliliters of 1 x SRM+PMSF.

18. Combine the mitochondrial suspensions in a single Corex tube.

19. Centrifuge for 5 min at 12,000 g (4°C).

20. Discard the supernatant, resuspend the sediment in 1 ml 1 x SRM+PMSF and transfer the suspension to a 1.5 ml Eppendorf tube.

21. Centrifuge for 5 min at 16,000 g (4°C).

22. Resuspend the sediment in 100 μl 1 x SRM+PMSF.

23. Determine the protein concentration of the mitochondria suspension by Bradford assay.

ALTERNATIVE. Alternatively, a simpler Percoll gradient consisting of 13 ml 34% Percoll and 5 ml 18% Percoll can be used. In this case, the mitochondria are found together with starch granules and other high-density particles at the bottom of the Corex tube after centrifugation. This procedure is faster and usually leads to higher yields at the expense of some impurities with high-density particles.

Preparation of mitoplasts and inside-out IMM vesicles


Mitoplasts are prepared from isolated mitochondria by osmolysis in a hypotonic buffer. IMM vesicles are subsequently obtained by repeated freeze/thaw-cycles of mitoplasts resuspended in a buffer containing 20 mM MgCl2, which masks membrane charges, allows the cristae regions to stack and thus supports the formation of inside-out vesicles (Kay et al., 1985; Møller et al., 1987) (Figure 1).

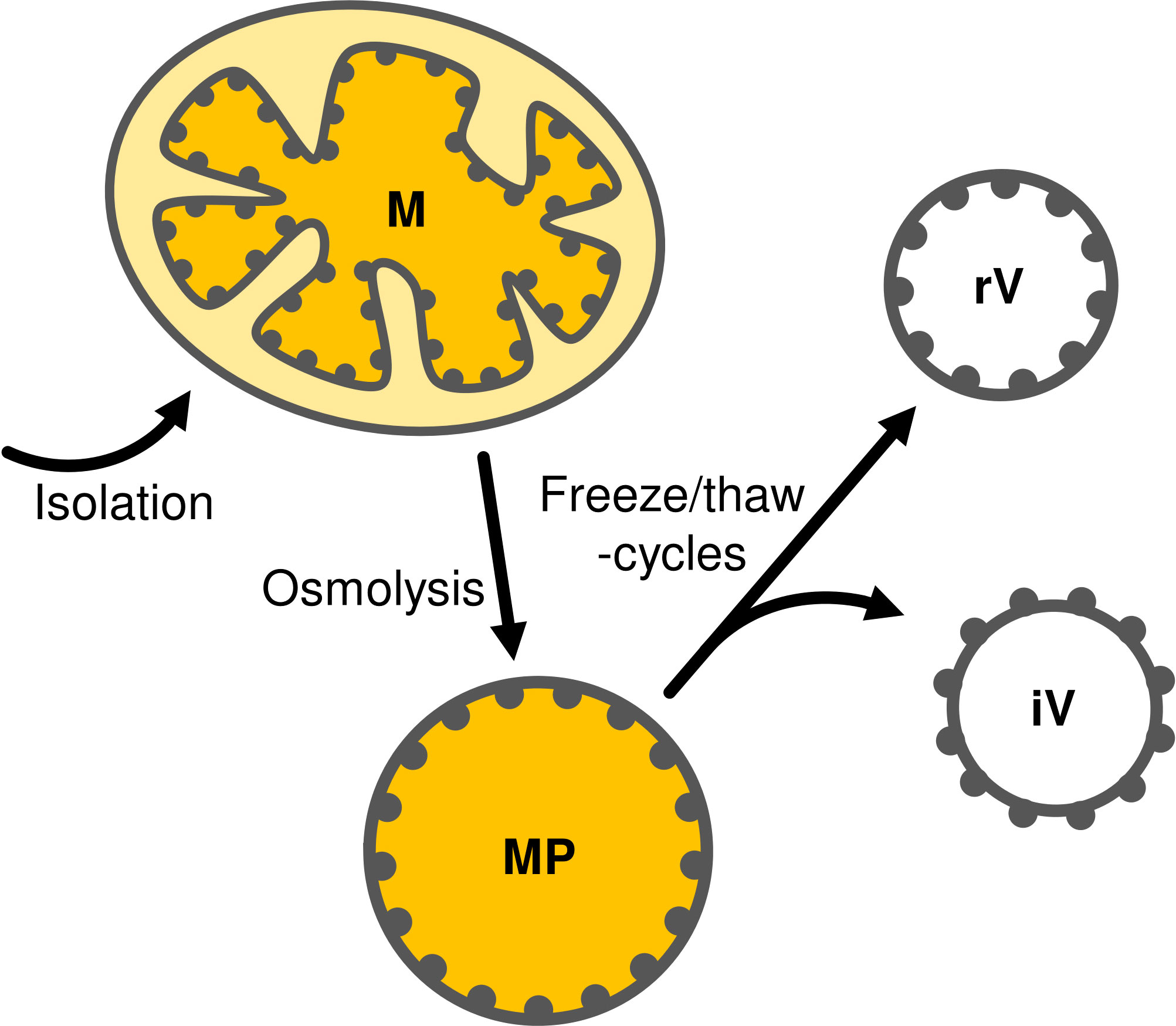

Figure 1 Schematic representation of mitoplast (MP) preparation by osmolysis of mitochondria (M) followed by fractionation into inside-out (iV) and right-side-out (rV) IMM vesicles by repeated freeze/thaw-cycles. Gray dots representing protein complexes attached from the matrix-side to the inner membrane are shown to illustrate the respective membrane orientation.


1 x SRM (see above)

FB1 (fractionation buffer 1)

Store in aliquots at -20°C

10 mM HEPES/KOH, pH 8.0

60 mM Sucrose

FB2 (fractionation buffer 2)

Store in aliquots at -20°C

20 mM HEPES/KOH, pH 8.0

600 mM Sucrose

On the day of isolation

• Supplement FB1 and FB2 with 1mM PMSF each.

Protocol (timing: ~45 min)

1. Centrifuge the suspension of isolated mitochondria corresponding to 0.5–1 mg protein for 5 min at 16,000 g (4°C).

2. Resuspend the sediment in FB1 (final concentration 10 μg protein/μl).

3. Incubate the suspension for 15 min on ice.

NOTE. During osmolysis, the outer membrane of the mitochondria is disrupted, ultimately leading to mitoplast formation.

4. Add FB2 in a 1:1 ratio and incubate for 10 min on ice.

5. Centrifuge for 15 min at 16,000 g (4°C).

6. Resuspend the sedimented mitoplasts in 1 x SRM (final concentration 10 μg protein/μl).

7. For further fractionation, supplement the assays with MgCl2 to 20 mM.

8. Shock-freeze the suspension in liquid nitrogen for 20 sec and let it thaw while holding the tubes in your hands.

9. Repeat step 8 twice.

NOTE. The repeated freezing and thawing of mitoplasts cause the inner membrane to rupture and to reassemble spontaneously. This results in the formation of vesicles, while the presence of MgCl2 supports an inverted membrane orientation (Kay et al., 1985; Møller et al., 1987).

Characterization of the IMM vesicles

Morphology (electron microscopy)


Transmission electron microscopy (TEM) is a suitable method to determine the morphology, quality, and purity of the isolated vesicles. For this purpose, it is necessary to fix the samples with glutaraldehyde (preservation of ultrastructure) and osmium tetroxide (preservation of ultrastructure and staining of membranes). Then the vesicles are immobilized with agar, dehydrated with ethanol and infiltrated with an epoxy resin. After polymerization of the resin, the samples are ultra-thin sectioned, transferred to TEM grids, post-stained with heavy metals, and analyzed by electron microscopy.


0.1 M SCB (Sodium cacodylate buffer), pH 7.2


Prepare fresh on the day of use

0.2 M SCB, pH 7.2

6% (w/v) Glutaraldehyde (TOXIC)!

0.33 M Sorbitol

SER (Spurr epoxy resin) (Spurr, 1969)

Prepare epoxy resin (Spurr Low Viscosity Embedding Kit, Sigma-Aldrich, St. Louis, USA) (TOXIC)! according to the manufacturer’s manual and store it at -20°C after testing.


1. Supplement vesicles corresponding to 100 μg protein with one volume of freshly prepared fixative (TOXIC)!, incubate at room temperature for 30–60 min with gentle shaking and store overnight at 4°C for fixation.

2. Centrifuge for 15 min at 22,000 g (4°C).

3. Discard the supernatant and resuspend the sediment in 4% agar (dissolved freshly in 0.1 M SCB) to immobilize the vesicles.

4. Cut the solidified agar into small pieces and transfer them into a 5 ml sample tube containing 0.1 M SCB.

5. Wash 6 times for 8 min each with 0.1 M SCB.

6. Discard the supernatant and add 1% OsO4 (dissolved in 0.1 M SCB).

7. Incubate for 60 min at room temperature.

8. Wash twice for 10 min each with H2O.

9. Discard the supernatant and dehydrate the samples stepwise with (a) 10% EtOH, (b) 30% EtOH, and (c) 50% EtOH for 30 min each.

10. Discard the supernatant and add 1% uranyl acetate (dissolved in 70% EtOH).

11. Incubate for 30 min at room temperature.

NOTE. If necessary, the samples can be stored for several days in 70% EtOH at 4°C.

12. Discard the supernatant and dehydrate the samples further, once with 90% EtOH and twice with 100% EtOH (for 30 min each).

13. Remove the supernatant and incubate the samples stepwise at room temperature as follows:

(a) 25% SER (diluted with 100% EtOH) for 3 h

(b) 50% SER (diluted with 100% EtOH) for 4 h

(c) 75% SER (diluted with 100% EtOH) overnight

14. Discard the supernatant and incubate the samples in 1 ml SER for 6 h at room temperature.

15. Discard the supernatant and incubate the samples in 1 ml SER for 18 h at 70°C to achieve polymerization.

16. Prepare sections from the samples using an ultramicrotome and transfer them to copper grids covered with a Cedukol film (Merck, Darmstadt, Germany).

17. Stain the sections at 25°C for 60 min with 1% uranyl acetate and 10 min with 3% lead citrate using an automatic section stainer.

18. Analyze the sections by TEM.

NOTE. Considering numerous extended incubation steps, the actual TEM analysis usually takes place 8–10 days after starting the procedure.


The electron micrographs of the vesicle fraction reveal the presence of a variety of structures (Figure 2). While most vesicles have single envelope membranes and diameters ranging from 50 nm to 500 nm, also a few vesicles with double envelope membranes as well as membranous fragments are visible. Sporadically, even seemingly intact mitochondria can be found, which are characterized by a double envelope membrane, a darker appearance indicating an electron-dense matrix, and circular membrane structures within the matrix indicative of cross-sections of cristae.


Figure 2 Electron micrographs of the vesicle fractions. Ultrathin sections (70 nm) made with an Ultracut R ultramicrotome (Leica, Wetzlar, Germany) were post-stained with uranyl acetate and lead citrate in an EM-Stain apparatus (Leica) and subsequently analyzed by TEM (Zeiss EM 900, Oberkochen, Germany) operating at 80 kV. Micrographs were taken with an SSCCD SM-1k-120 camera (TRS, Moorenweis, Germany). Single-membrane vesicles (large arrows), double-membrane vesicles (large arrowheads), undefined membrane fragments (small arrows), and a few intact mitochondria (small arrowheads) are indicated.

Membrane orientation (Western analysis)


One approach to determine the orientation of the membrane vesicles rests on treatment of such vesicles with highly concentrated solutions of mild chaotropic salts (e.g., 2 M NaBr) to release membrane-attached proteins and protein complexes (Figure 3A). The supernatant and membrane fractions obtained are subsequently analyzed with Western assays employing antibodies against IMM components with known membrane topology.

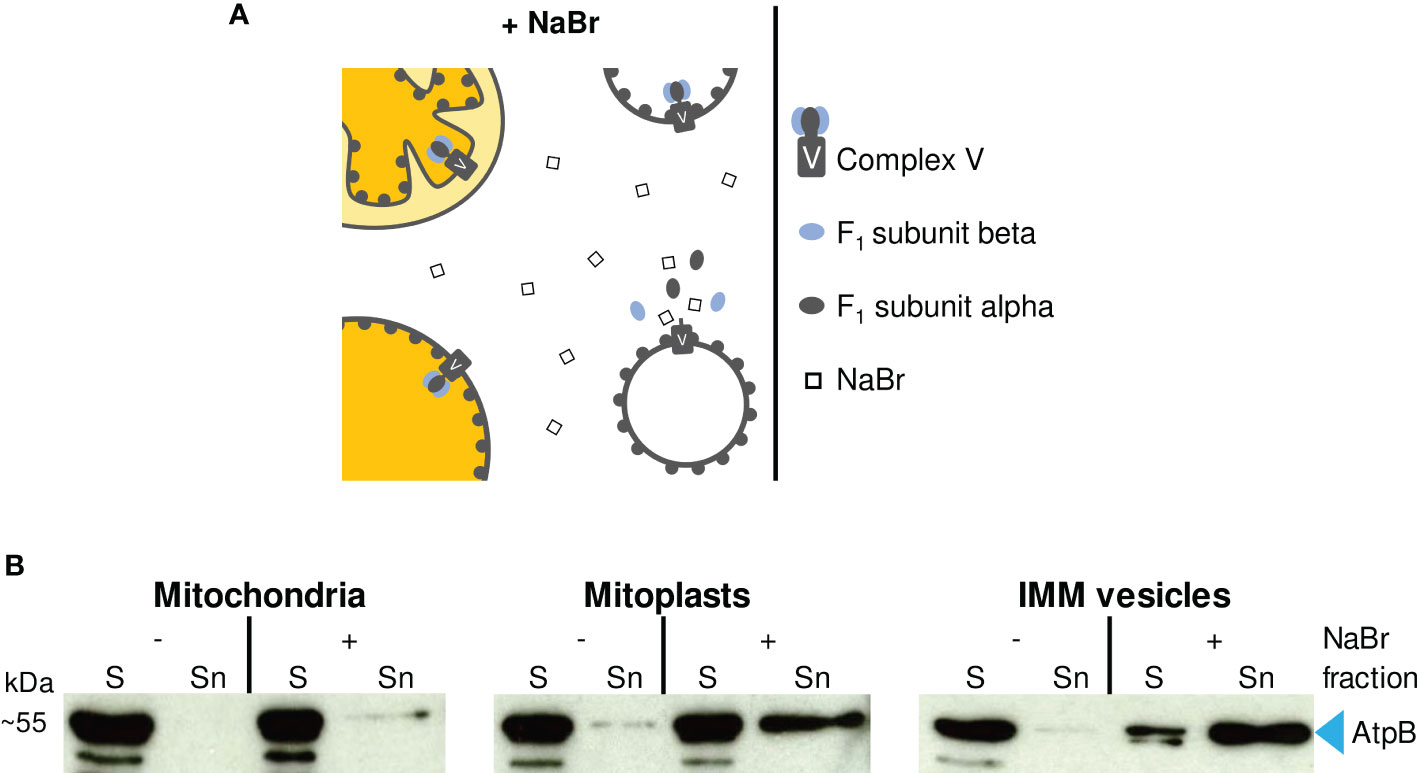

Figure 3 (A) Schematic representation of the effect of 2 M NaBr treatment on (sub)mitochondrial fractions. If accessible to the chaotropic salt, ATP synthase F1 subcomplexes are released from the membrane-embedded Fo subcomplex resulting in the accumulation of F1 subunits alpha and beta in the supernatant. (B) Immunodetection of F1 subunit beta (AtpB) in (sub)mitochondrial fractions. Sediment (S) and supernatant (Sn) fractions obtained after NaBr (+) or mock treatment (–) of mitochondria, mitoplasts and vesicles were examined by Western analysis using antibodies raised against AtpB.


1 x SRM (see above)

4 x LSB (4 x Laemmli sample buffer)

Store in aliquots at -20°C

250 mM TRIS/HCl, pH 6.8

8% (w/v) SDS

40% (w/v) Glycerol

20% (w/v) 2-Mercaptoethanol

0.016% (w/v) Coomassie G-250

Protocol (timing: ~1 h for steps 1–6)

1. Collect two aliquots each of mitochondria, mitoplasts and IMM vesicles (each corresponding to 100 μg protein) in Eppendorf tubes and centrifuge at 4°C for either 15 min at 22,000 g (vesicles) or 5 min at 16,000 g (mitochondria and mitoplasts).

2. Discard the supernatants and carefully resuspend the sediments in either 50 μl 1 x SRM or 50 μl 1 x SRM supplemented with 2 M NaBr (one aliquot per sample each).

3. Incubate on ice for 5 min.

4. Centrifuge at 4°C for either 15 min at 22,000 g (vesicles) or 5 min at 16,000 g (mitochondria and mitoplasts).

5. Transfer the supernatants to fresh Eppendorf tubes containing 50 μl 4 x LSB each (= Sn fractions, Figure 3B).

6. Resuspend the sediments in 100 μl 2 x LSB each (= S fractions, Figure 3B).

NOTE. Samples can be stored at -20°C until electrophoresis is performed.

7. Heat the samples for 2 min at 95°C and analyze 5 μl each (corresponding to 5 μg protein starting material) by SDS-PAGE.

8. After electrophoresis, blot the proteins onto a PVDF membrane and perform a standard Western analysis using suitable antibodies.


In the experiment shown in Figure 3B, we have used antisera against the F1 subunit beta of mitochondrial ATP synthase (AtpB), which is exposed to the matrix side of the IMM, to determine the topology of the IMM vesicles prepared. In an inside-out orientation of the vesicles, treatment with 2 M NaBr leads to the dissociation of the F1 subcomplex from the membrane-spanning Fo subcomplex of ATP synthase (Complex V) and thus to the accumulation of AtpB in the supernatant (Figure 3A) (Hatefi and Hanstein, 1970).

Treatment of isolated intact mitochondria with 2 M NaBr releases only minor amounts of AtpB into the supernatant (Figure 3B), demonstrating that most organelles remain intact during the isolation procedure. In the mitoplast fraction, the proportion of AtpB released is higher, indicating some disruption also of the IMM during osmolysis. Still, the majority of AtpB remains membrane-bound, in line with the assumed robustness of the mitoplasts against osmolysis. In contrast, treatment of the vesicle fraction with 2 M NaBr releases most of the AtpB (>> 50%) into the supernatant, suggesting that the majority of the IMM vesicles have adopted an inside-out orientation during preparation.

Enzymatic activity of membrane complexes

An alternative approach to evaluate the integrity and orientation of the IMM vesicles rests on determining the enzymatic activity of protein complexes of the respiratory electron transport chain. Here, we have determined the activities of Complex I, Complex V, and the mitochondrial processing peptidase (MPP), which in plant mitochondria is associated with Complex III (Braun et al., 1992; Braun et al., 1995).

Complex I activity


Complex I activity can be determined by measuring the oxidation of NADH to NAD+, which is traced photometrically by the decrease of absorption at its maximum, 340 nm. However, while Complex I provides the predominant NADH oxidizing activity, plant mitochondria have at least three further membrane-bound NADH dehydrogenases. One is found in the outer membrane (Douce et al., 1973) and two in the inner membrane, from which one faces the matrix (Douce et al., 1973; Møller and Palmer, 1982; Rasmusson et al., 2004), whereas the other exposes its active site to the intermembrane space. Thus, all Complex I activity measurements based on NADH oxidation have to take into account the presence of these competing activities.

In the presence of mitoplasts and right-side-out IMM vesicles, solely the IMS-facing NADH dehydrogenase of the inner membrane has access to externally supplied NADH because NADH is neither actively imported into the matrix nor can it diffuse across biomembranes (Jagow and Klingenberg, 1970) (Figure 4A). In the presence of inside-out IMM vesicles, oxidation of NADH is catalyzed by both Complex I and the second NADH dehydrogenase facing the matrix (Møller and Palmer, 1982). Due to the predominant NADH dehydrogenase activity of Complex I, the oxidation rate of externally added NADH should be considerably higher for inside-out IMM vesicles than for any other submitochondrial fraction.

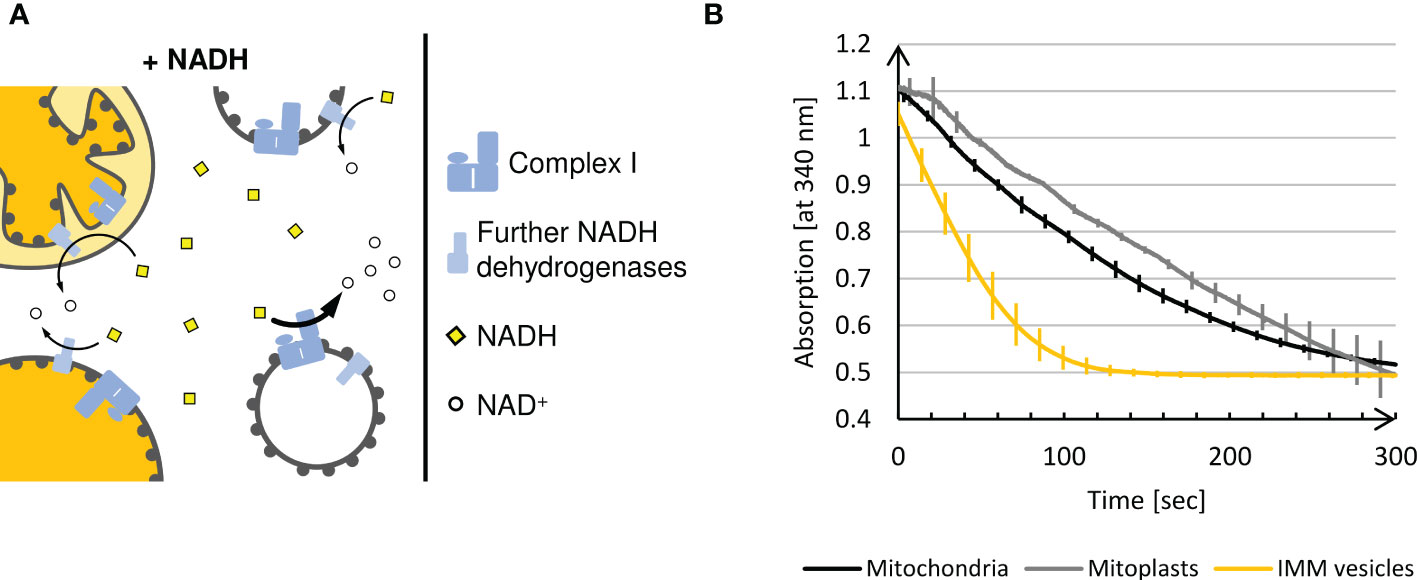

Figure 4 (A) Schematic representation of the NADH dehydrogenase activity assay. Intact plant mitochondria, mitoplasts, and right-side-out vesicles can oxidize externally added NADH only via the NADH dehydrogenases facing the intermembrane space, since NADH is not imported into the matrix. In contrast, the inverted membrane orientation of inside-out IMM vesicles allows accessibility of Complex I to the added NADH leading to a massive increase in NADH oxidation. (B) Photometric determination of NADH oxidation at 340 nm in different (sub)mitochondrial fractions using a UV-1900 UV-VIS Spectrophotometer (Shimadzu, Kyōto, Japan) and the software UVProbe (v2.70, Shimadzu). Mean values and standard deviations of 3 independent measurements of 5 min each performed with mitochondria, mitoplasts and IMM-vesicles are shown.

In order to exclude any influence of the respiratory electron transport chain on the NADH dehydrogenase activity of Complex I, the assays are supplemented with antimycin A and potassium cyanide (KCN) to inhibit Complex III and Complex IV, respectively. As an electron acceptor, ferricyanide is instead present in excess amounts to prevent any backreaction.


1 x SRM (see above)

100 mM NADH

100 mM potassium ferricyanide

C1 buffer

Store in aliquots at -20°C

20% (v/v) 5 x SRM (see above)

240 μM Potassium cyanide (TOXIC)!

4 μM Antimycin A (TOXIC)!

Protocol (timing: ~7 min per measurement)

The following protocol was modified based on enzyme activity measurements described by Barrientos et al. (2009) and Gnandt et al. (2017).

1. Add 800 μl 1 x SRM, 200 μl C1 buffer (TOXIC)!, and mitochondria, mitoplasts or IMM vesicle suspension corresponding to 150 μg protein into a 1 ml cuvette and measure the blank value at 340 nm.

2. Start the reaction by adding 1.6 μl 100 mM NADH and 10 μl 100 mM ferricyanide.

3. Record the absorption at 340 nm for at least 5 min.


When mitochondria or mitoplasts are analyzed, a constant and almost linear decrease in absorption at 340 nm is observed until, after approximately 5 min, the blank value is reached (Figure 4B). In contrast, in the presence of IMM vesicles, such complete oxidation of the NADH added is achieved within approximately 2 min, demonstrating significantly higher NADH dehydrogenase activity due to the exposure of Complex I on the surface of inside-out IMM vesicles.

Complex V activity


The proton gradient across the inner mitochondrial membrane generated by the respiratory electron transport chain is utilized by mitochondrial Complex V to catalyze the synthesis of ATP. However, the reaction can also proceed backwards at high ATP concentrations, leading to transmembrane proton pumping at the expense of ATP cleavage. In consequence, inside-out IMM vesicles containing active Complex V show internal acidification in the presence of ATP, which can be measured with the help of the basic dye Acridine Orange (AO) (Figure 5A). At neutral pH, AO monomers remain deprotonated and thus membrane permeable, whereas in their protonated form, i.e., at acidic pH, they dimerize and become membrane impermeable. Hence, in the absence of ATP, AO remains largely unaffected, even in the presence of inside-out IMM vesicles. After the addition of ATP, which leads to acidification of the vesicle lumen, AO is protonated, dimerized and thus trapped in the interior of the vesicles.


Figure 5 (A) Schematic representation of Complex V activity assays (see text for details). (B) Photometric determination of the decline of deprotonated Acridine Orange monomer (AO) in the presence of different (sub)mitochondrial fractions. Mean values and standard deviations of 3 independent experiments each are shown. Mitochondria, mitoplasts, or IMM-vesicles resuspended in buffer containing AO were placed in a 1 ml cuvette into a UV-1900 UV-VIS Spectrophotometer (Shimadzu, Kyōto, Japan). After 60 sec, the reaction was started by the addition of ATP. After a total of 300 sec, the assays were additionally supplemented with the protonophore Gramicidin. After 500 sec recording was terminated. (C) In the control reaction (Control), assays containing IMM-vesicles were supplemented after 60 sec with Gramicidin and after a total of 300 sec with ATP. The graphs were generated by the software UVProbe (v2.70, Shimadzu).

The two isoforms of AO can be distinguished photometrically because only monomeric AO shows strong absorption at 492 nm (Falcone et al., 2002). Hence, the decrease of absorption at 492 nm is a measure of the AO dimerization caused by the Complex V-driven acidification of the vesicle lumen. Subsequent supplementation of the assays with Gramicidin, a protonophore disrupting transmembrane proton gradients (Wakiuchi et al., 1988), leads to the deprotonation of AO and the dissociation of the AO dimers, which in consequence results in the recovery of absorption at 492 nm.

This method is suitable not only for determining the orientation of IMM vesicles but provides also information about the integrity of the examined vesicles.


C5 buffer

Prepare fresh on the day of use

25 mM HEPES/KOH, pH 7.5

300 mM Sorbitol

25 mM KCl

5 mM MgCl2

1 mM DTT

6 μM Acridine Orange

20 mM ATP in C5 buffer

0.5 mM Gramicidin (in DMSO)

Protocol (timing: ~15 min per measurement)

1. Add mitochondria, mitoplasts or vesicles corresponding to 100 μg protein to 1 ml C5 buffer that is preheated to 25°C.

2. Transfer the suspension to a 1 ml cuvette placed in a photometer and incubate for 5 min.

3. Set to zero at 492 nm and record the data for 1 min.

4. Add 50 μl 20 mM ATP, mix thoroughly and continue recording the extinction at 492 nm for 4 min.

5. Add 2 μl 0.5 mM Gramicidin, mix thoroughly and continue recording the extinction at 492 nm for at least 3 min.


As shown in Figure 5B, adding ATP to inside-out IMM vesicles leads to an immediate decrease in AO absorption at 492 nm. After approximately 2 min, no further decline in absorption can be observed, which indicates that the equilibrium of the reaction is reached, i.e. the AO molecules have been protonated and trapped within the vesicles as a consequence of acidification by Complex V activity. Subsequent supplementation of the assays with the protonophore Gramicidin leads to almost complete recovery of AO absorption, demonstrating that protonation of AO was indeed the result of Complex V activity yielding a proton gradient. This was further confirmed in a control reaction in which the vesicles were first supplemented with Gramicidin to avoid the formation of any proton gradient. In this case, the subsequent addition of ATP no longer leads to any change in AO absorption since the vesicle lumen cannot be acidified (Figure 5C).

Also in the presence of mitoplasts, a decrease in AO absorption at 492 nm after addition of ATP and its recovery in the presence of Gramicidin is found, though both to a significantly lower extent (Figure 5B). This is in line with the Western data, which shows that during osmolysis of mitochondria some IMMs get disrupted (Figure 3B), resulting in the formation of a few inside-out IMM vesicles. The mitochondria, on the other hand, show a completely different behavior. Adding ATP leads to an immediate drop in AO absorption at 492 nm, which remains almost constant with time, while Gramicidin causes an even further decrease in absorption. Although we cannot provide a final explanation for this phenomenon, it might have to do with the binding properties of AO to DNA molecules, which also results in a change in absorption (Sayed et al., 2016).

MPP activity


Mitochondrial processing peptidase (MPP) removes presequences from nuclearly encoded mitochondrial precursor proteins after their import into the mitochondrial matrix. In plant mitochondria, MPP is associated with Complex III of the respiratory electron transport chain and exposes its active site to the matrix (Braun et al., 1995). Thus, with inside-out IMM vesicles, MPP activity should be accessible from the surface of the vesicles facilitating the processing of mitochondrial precursor proteins that are present in the surrounding medium (Figure 6A). Both the precursor and the processing products remain accessible though to externally added protease, in contrast to the situation after import into mitochondria.

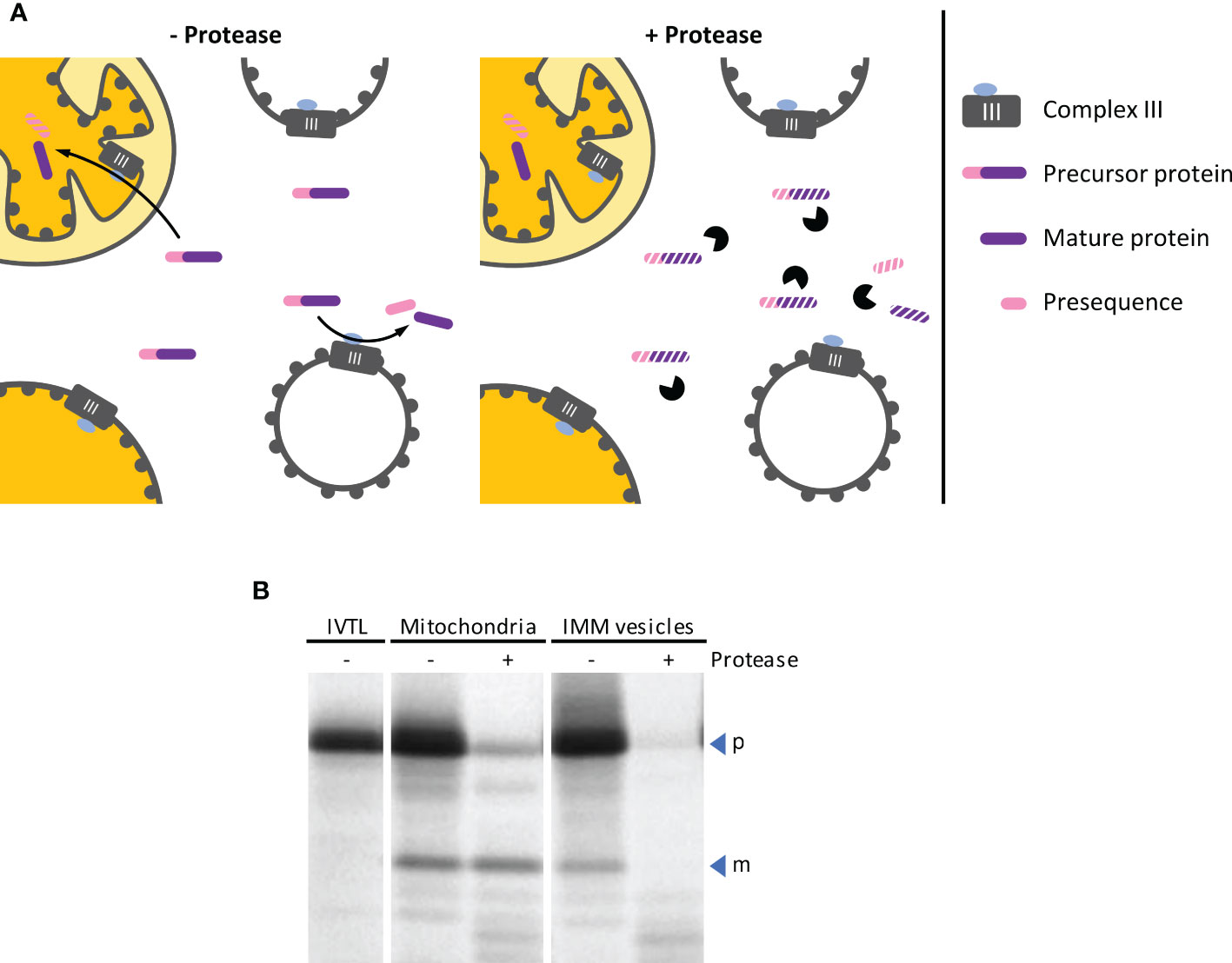

Figure 6 (A) Schematic representation of the processes leading to cleavage of mitochondrial precursor proteins by MPP, either after import into mitochondria or by MPP activity exposed on the outer surface of inside-out IMM vesicles (left panel). The two processes can be distinguished from each other by the subsequent addition of protease (right panel), which does not have access to proteins that were imported into the organelle. (B) Autoradiogram of an MPP activity assay. The radiolabeled mitochondrial precursor protein obtained by in vitro translation in the presence of 35S methionine (lane IVTL) was incubated for 20 min at 25°C with either intact mitochondria or IMM vesicles. The samples were re-isolated by sedimentation and treated with either protease (+ Pr) or mock-treated (– Pr). Stoichiometric amounts of each sample were separated by SDS-PAGE and visualized by phosphorimaging using an FLA-3000 Fluorescence Laser Imaging Scanner (Fujifilm) and the software packages BASReader (v3.14, raytest, Straubenhardt, Germany) and Aida Image Analyzer (v5.0, raytest). The position of precursor (p) and mature (m) protein are indicated by blue arrowheads.


LSB (see above)

0.5 M EDTA

Protease solution

Prepare fresh on the day of use

2 mg/ml Thermolysin

25 mM CaCl2

2 x IB (2 x import buffer)

Store in aliquots at -20°C

30 mM HEPES/KOH, pH 7.4

600 mM Sucrose

10 mM KH2PO4

0.1% (w/v) BSA

SIB (supplemented import buffer)

Prepare fresh on the day of use

50% (v/v) 2 x IB (see above)

4 mM MgCl2

4 mM Methionine

4 mM ATP

1 mM GTP

0.2 mM ADP

5 mM DL-Malic acid

5 mM DTT

10 mM Potassium acetate


10 mM NaHCO3

Fixing solution

50% (v/v) Methanol

10% (v/v) Acetic acid

Preparatory work

• Prepare radiolabeled mitochondrial precursor proteins by in vitro transcription followed by in vitro translation in the presence of 35S methionine. For details, see Rödiger et al. (2010).

Protocol (timing: ~1 h 30 min for steps 1–12)

The following protocol was modified based on the protein transport assays described by Rödiger et al. (2010).

1. Add mitochondria or vesicle suspension corresponding to 100 μg protein and 10 μl in vitro translation assay to 90 μl SIB.

2. Incubate for 20 min at 25°C.

3. Centrifuge at 4°C for 5 min at 16,000 g (mitochondria) or 15 min at 22,000 g (vesicles).

4. Carefully remove supernatant and resuspend each sediment in 200 μl 1 x IB.

5. Divide the samples into two 90 μl aliquots each and discard the rest.

6. While one aliquot of each sample remains untreated, the second aliquot is supplemented with 10 μl protease solution.

7. Incubate for 30 min on ice.

8. Stop protease activity by adding 3 μl 0.5 M EDTA.

9. Centrifuge at 4°C for 5 min at 16,000 g (mitochondria) or 15 min at 22,000 g (vesicles).

10. Discard supernatant and resuspend each sediment with 100 μl 1 x SRM.

11. Centrifuge at 4°C for 5 min at 16,000 g (mitochondria) or 15 min at 22,000 g (vesicles).

12. Discard supernatant and resuspend each sediment in 30 μl 2 x LSB.

13. Heat samples for 2 min at 95°C, centrifuge briefly and analyze by SDS-PAGE.

14. After electrophoresis, incubate the gel for 30 min in fixing solution.

15. Dehydrate the gel in vacuum at 80°C maximum (with gradual temperature increase) using a gel dryer (e.g., Bio-Rad Model 583, Hercules, USA).

NOTE. To visualize the position of unlabelled molecular weight marker in the autoradiogram, a small amount of in vitro translation assay in LSB can be dotted with a pipette tip onto the marker bands.

16. Expose for 0.5–3 days to a phosphor imager screen (e.g., Fujifilm, Minato, Japan).

NOTE. For exposure times exceeding 3 days, the screens should be placed in a radiation-shielding lead chamber to reduce background caused by ambient radiation.

NOTE. Instead of phosphor imager screens, conventional X-ray films can alternatively be used for exposure. However, due to the lower sensitivity of such films, exposure times will probably be considerably longer.


In the experiment shown in Figure 6B, the radiolabeled mitochondrial precursor protein is processed to its mature form in the presence of both, intact isolated mitochondria and inside-out IMM vesicles. After import into the mitochondrial matrix, the mature protein is protected by the organellar envelope membranes against externally added protease. In contrast, it remains accessible to the protease if the reaction is instead performed with inside-out IMM vesicles.

Data availability statement

The original contributions presented in the study are included in the article/supplementary material. Further inquiries can be directed to the corresponding author.

Author contributions

LE carried out most of the experimental work except electron microscopy which was performed by GH. BB and RK designed the experiments and supervised the project. LE, BB, and RK wrote the manuscript. All authors contributed to the article and approved the submitted version.


This work was supported by a grant from the Deutsche Forschungsgemeinschaft (GRK2498 - 400681449).


We thank Etienne Meyer for helpful discussions.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.


Barrientos, A., Fontanesi, F., Díaz, F. (2009). Evaluation of the mitochondrial respiratory chain and oxidative phosphorylation system using polarography and spectrophotometric enzyme assays. Curr. Protoc. Hum. Genet 63, 19.3.1–19.3.14. doi: 10.1002/0471142905.hg1903s63

CrossRef Full Text | Google Scholar

Beyer, R. E., Peters, G. A., Ikuma, H. (1968). Oxido-reduction states and natural homologue of ubiquinone (Coenzyme q) in submitochondrial particles from etiolated mung bean (Phaseolus aureus) seedlings. Plant Physiol. 43, 1395–1400. doi: 10.1104/pp.43.9.1395

PubMed Abstract | CrossRef Full Text | Google Scholar

Braidot, E., Petrussa, E., Micolini, S., Tubaro, F., Vianello, A., Macri, F. (2004). Biochemical and immunochemical evidences for the presence of lipoxygenase in plant mitochondria. J. Exp. Bot. 55, 1655–1662. doi: 10.1093/jxb/erh197

PubMed Abstract | CrossRef Full Text | Google Scholar

Braun, H. P., Emmermann, M., Kruft, V., Bödicker, M., Schmitz, U. K. (1995). The general mitochondrial processing peptidase from wheat is integrated into the cytochrome bc1 complex of the respiratory chain. Planta 195, 396–402. doi: 10.1007/BF00202597

PubMed Abstract | CrossRef Full Text | Google Scholar

Braun, H. P., Emmermann, M., Kruft, V., Schmitz, U. K. (1992). The general mitochondrial processing peptidase from potato is an integral part of cytochrome c reductase of the respiratory chain. EMBO J. 11, 3219–3227. doi: 10.1002/j.1460-2075.1992.tb05399.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Day, D. A., Arron, G. P., Laties, G. G. (1979). Enzyme distribution in potato mitochondria. J. Exp. Bot. 30, 539–549. doi: 10.1093/jxb/30.3.539

CrossRef Full Text | Google Scholar

Day, D. A., Neuburger, M., Douce, R. (1985). Biochemical characterization of chlorophyll free mitochondria from pea leaves. Aust. J. Plant Physiol. 12, 219–228. doi: 10.1071/PP9850219

CrossRef Full Text | Google Scholar

Douce, R., Mannella, C. A., Bonner, W. D. (1973). The external NADH dehydrogenases of intact plant mitochondria. Biochim. Biophys. Acta: Bioenergetics 292, 105–116. doi: 10.1016/0005-2728(73)90255-7

CrossRef Full Text | Google Scholar

Falcone, R. D., Correa, N. M., Biasutti, M. A., Silber, J. J. (2002). Acid–base and aggregation processes of acridine orange base in n-heptane/AOT/water reverse micelles. Langmuir 18, 2039–2047. doi: 10.1021/la011411b

CrossRef Full Text | Google Scholar

Gardeström, P., Ericson, I., Larsson, C. (1978). Preparation of mitochondria from green leaves of spinach by differential centrifugation and phase partition. Plant Sci. Lett. 13, 231–239. doi: 10.1016/0304-4211(78)90101-3

CrossRef Full Text | Google Scholar

Gnandt, E., Schimpf, J., Harter, C., Hoeser, J., Friedrich, T. (2017). Reduction of the off-pathway iron-sulphur cluster N1a of Escherichia coli respiratory complex I restrains NAD(+) dissociation. Sci. Rep. 7, 1–10. doi: 10.1038/s41598-017-09345-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Hatefi, Y., Hanstein, W. G. (1970). Lipid oxidation in biological membranes: i. lipid oxidation in submitochondrial particles and microsomes induced by chaotropic agents. Arch. Biochem. Biophysics 138, 73–86. doi: 10.1016/0003-9861(70)90286-9

CrossRef Full Text | Google Scholar

Jagow, G., Klingenberg, M. (1970). Pathways of hydrogen in mitochondria of Saccharomyces carlsbergensis. Eur. J. Biochem. 12, 583–592. doi: 10.1111/j.1432-1033.1970.tb00890.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Kay, C. J., Ericson, I., Gardeström, P., Palmer, J. M., Møller, I. M. (1985). Generation and purification of submitochondrial particles of different polarities from plant mitochondria. FEBS Lett. 193, 169–174. doi: 10.1016/0014-5793(85)80144-7

CrossRef Full Text | Google Scholar

Korth, K. L., Kaspi, C. I., Siedow, J. N., Levings, C. S. (1991). URF13, a maize mitochondrial pore-forming protein, is oligomeric and has a mixed orientation in Escherichia coli plasma membranes. Proc. Natl. Acad. Sci. 88, 10865–10869. doi: 10.1073/pnas.88.23.10865

CrossRef Full Text | Google Scholar

Liu, Y., Fiskum, G., Schubert, D. (2002). Generation of reactive oxygen species by the mitochondrial electron transport chain. J. Neurochemistry 80, 780–787. doi: 10.1046/j.0022-3042.2002.00744.x

CrossRef Full Text | Google Scholar

Møller, I. M., Lidén, A. C., Ericson, I., Gardeström, P. (1987). Isolation of submitochondrial particles with different polarities. Methods Enzymology 148, 442–453. doi: 10.1016/0076-6879(87)48043-9

CrossRef Full Text | Google Scholar

Møller, i. M., Palmer, J. M. (1982). Direct evidence for the presence of a rotenone-resistant NADH dehydrogenase on the inner surface of the inner membrane of plant-mitochondria. Physiologia Plantarum 54, 267–274. doi: 10.1111/j.1399-3054.1982.tb00258.x

CrossRef Full Text | Google Scholar

Møller, I. M., Rasmusson, A. G., Van Aken, O. (2021). Plant mitochondria – past, present and future. Plant J. 108, 912–959. doi: 10.1111/tpj.15495

PubMed Abstract | CrossRef Full Text | Google Scholar

Moreau, F., Lance, C. (1972). Isolation and properties of external and internal membranes from plant mitochondria. Biochimie 54, 1335–1348. doi: 10.1016/S0300-9084(72)80074-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Onda, Y., Kato, Y., Abe, Y., Ito, T., Ito-Inaba, Y., Morohashi, M., et al. (2007). Pyruvate-sensitive AOX exists as a non-covalently associated dimer in the homeothermic spadix of the skunk cabbage, Symplocarpus renifolius. FEBS Lett. 581, 5852–5858. doi: 10.1016/j.febslet.2007.11.061

PubMed Abstract | CrossRef Full Text | Google Scholar

Palmgren, M. G., Askerlund, P., Fredrikson, K., Widell, S., Sommarin, M., Larsson, C. (1990). Sealed inside-out and right-side-out plasma membrane vesicles: optimal conditions for formation and separation. Plant Physiol. 92, 871–880. doi: 10.1104/pp.92.4.871

PubMed Abstract | CrossRef Full Text | Google Scholar

Rasmusson, a. G., Møller, I. M. (1991). NAD(P)H dehydrogenases on the inner surface of the inner mitochondrial membrane studied using inside-out submitochondrial particles. Physiologia Plantarum 83, 357–365. doi: 10.1111/j.1399-3054.1991.tb00106.x

CrossRef Full Text | Google Scholar

Rasmusson, A. G., Soole, K. L., Elthon, T. E. (2004). Alternative NAD(P)H dehydrogenases of plant mitochondria. Annu. Rev. Plant Biol. 55, 23–39. doi: 10.1146/annurev.arplant.55.031903.141720

PubMed Abstract | CrossRef Full Text | Google Scholar

Rödiger, A., Baudisch, B., Klösgen, R. B. (2010). Simultaneous isolation of intact mitochondria and chloroplasts from a single pulping of plant tissue. J. Plant Physiol. 167, 620–624. doi: 10.1016/j.jplph.2009.11.013

PubMed Abstract | CrossRef Full Text | Google Scholar

Sayed, M., Krishnamurthy, B., Pal, H. (2016). Unraveling multiple binding modes of acridine orange to DNA using a multispectroscopic approach. Phys. Chem. Chem. Phys. 18, 24642–24653. doi: 10.1039/C6CP03716J

PubMed Abstract | CrossRef Full Text | Google Scholar

Spurr, A. R. (1969). A low-viscosity epoxy resin embedding medium for electron microscopy. J. Ultrastructure Res. 26, 31–43. doi: 10.1016/S0022-5320(69)90033-1

CrossRef Full Text | Google Scholar

Wakiuchi, N., Tanimoto, H., Harada, H., Oji, Y., Shiga, H. (1988). Characterization of proton pumping and ATPase activities in microsomal fractions from barley roots. Soil Sci. Plant Nutr. 34, 507–518. doi: 10.1080/00380768.1988.10416467

CrossRef Full Text | Google Scholar

Keywords: Pisum sativum, plant mitochondria, inside-out IMM vesicles, enzymatic activity, electron microscopy

Citation: Ehmke L, Hause G, Klösgen RB and Bennewitz B (2023) Preparation of physiologically active inside-out vesicles from plant inner mitochondrial membranes. Front. Plant Sci. 14:1216227. doi: 10.3389/fpls.2023.1216227

Received: 03 May 2023; Accepted: 09 June 2023;
Published: 27 June 2023.

Edited by:

Igor Pottosin, University of Colima, Mexico

Reviewed by:

Maria M. Borisova-Mubarakshina, Institute of Basic Biological Problems (RAS), Russia
Juan Pablo Pardo, National Autonomous University of Mexico, Mexico

Copyright © 2023 Ehmke, Hause, Klösgen and Bennewitz. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Bationa Bennewitz,
