Abstract
Plant reproductive development is more sensitive than vegetative growth to many environmental stresses. High temperature (HT) injury is becoming an increasingly serious problem due to recent global warming. In wheat, barley, and other crops, the early phase of anther development is most susceptible to HT. I and my colleagues recently demonstrated that HT causes cell proliferation arrest and represses auxin signaling in a tissue-specific manner in the anther cells of barley and Arabidopsis. HT also caused comprehensive alterations in transcription. The application of auxin at the same time blocked the transcriptional alterations, led to the production of normal pollen grains, and restored the normal seed setting rate under increasing temperatures. Although synthetic auxins have been used widely as potent and selective herbicides, these recent results indicate that auxin is useful for the promotion of fertility and maintenance of crop yields under the threat of global warming.
GLOBAL WARMING THREATENS PLANT REPRODUCTION
Plants are highly adaptable and display phenotypic plasticity in response to environmental changes. These characteristics are typically observed during vegetative growth. By contrast, early reproductive growth is more vulnerable to environmental stress (; ). Therefore, the climate change associated with recent global warming threatens plant reproduction (). reported that, for wheat, maize, and barley, there was clearly a negative correlation between worldwide crop yields and recent warming. Moderately elevated temperature (up to 5–10°C higher than normal temperature) principally influences the early phase of anther development by causing a reduction in pollen. This leads to a failure in fertilization and a reduction of seed set, which have been observed in many plant species including wheat, barley, tomato, cowpea, and Arabidopsis (; ; ; ; ; ). In this mini review, I introduce the current knowledge of the molecular and physiological mechanism(s) underlying moderately high temperature (HT) injury.
EFFECT OF INCREASING TEMPERATURES ON ANTHER EARLY DEVELOPMENT
In wheat, it has been reported that two types of abnormal microsporogenesis occur in response to HT stress at the onset of meiosis (). The first type is the occurrence of premature tapetal degeneration during meiosis and the abortion of pollen grain mitosis 1 (PGM1). The resultant plants exhibit a complete loss of spikelet fertility (). The second type is the completion of PGM1 in all microspores but the failure of many microspores to complete PGM2. The anthers of the resultant plants contain a mix of fertile and sterile grains (). The double-rowed barley plant (Hordeum vulgare L. cv. “Haruna-nijyo”) is an effective model plant for studies of floral development, and reveals both the first and second types of abortions observed in wheat under HT conditions (; ; ). The panicle of the main stem grows to a length of approximately 1 mm at the four-leaf stage (when the tip of the fourth leaf has emerged). At the five-leaf stage, the panicle becomes approximately 2–3 mm in length, and each spikelet develops three stamen primordia and one pistil primordium. During the subsequent 5 days beginning at the five-leaf stage, the panicles grow to approximately 10 mm in length, and pollen mother cells (PMCs) and tapetum cells are formed in the anthers (; ). During this period beginning at the five-leaf stage, the most severe injury is inflicted by increasing temperatures. Exposure to moderately elevated temperatures (30/25°C day/night) for 5 days disrupts pollen development so that the anthers completely lack pollen grains (; ). HT causes abnormal cell proliferation arrest and premature degradation in the developing anther cells (; ; ). When the 5 day HT treatment starts at the four-leaf or six-leaf stage, the two types of abortions observed in wheat (described above) appear in barley (; ).
PROLIFERATION ARREST OF ANTHER EARLY DEVELOPING CELLS BY INCREASING TEMPERATURES
In barley, increasing temperatures suppress cell proliferation of anther parietal cells, sporogenous cells, and PMCs in a tissue-specific manner (; ). DNA replication in mitochondria and chloroplasts stops within 24 h after elevated temperatures, and subsequent nuclear DNA proliferation also is inhibited (). Transcription of DNA replication-related genes such as DNA replication licensing factor, DNA polymerases, and histone genes are repressed rapidly under HT conditions (; , ; ). In developing ovules, seedlings, and culture cells, cell proliferation rates and expression levels of DNA replication-related genes are not altered by moderately elevated temperatures. By contrast, abiotic stress-related genes (heat shock protein genes, pathogen-related genes, superoxide dismutase genes, glutathione S-transferase genes) are equally or more strongly upregulated in these organs and tissues compared with the expression levels in developing anthers (; ). HT generally induces oxidative damage, misfolding of newly synthesized proteins, and denaturation of existing proteins. Therefore, HT accelerates the transcription and translation of heat shock proteins, the production of antioxidants, changes in the organization of cellular structures including organelles, and changes in membrane function (; ; ; ; ; ). These results indicate that the developing anther cells undergo both general and specific transcriptional alterations in response to moderately elevated temperatures, including the silencing of cell proliferation and DNA replication genes.
PREMATURE PROGRESSION OF ANTHER DEVELOPMENTAL PROGRAM AND FATE UNDER HT CONDITIONS
The development and differentiation of anther cells, including the specification of cell lineage and cell fate, are well-regulated programs. Sporogenous cells differentiate into PMCs and enter meiosis. The four differentiated layers of anther wall cells (epidermal, endothecium, middle layer, and tapetum cells) are sequentially degraded during pollen maturation. This degradation process appears to be controlled by programmed cell death (PCD) and results in dehiscence of anther walls (). Specific abnormalities occur during this degradation process, such as abnormal mitochondrial morphology, vacuolization, and chromosomal DNA fragmentation (). A similar type of PCD prematurely occurs during abnormal abortion of anther cells by cytoplasmic male sterility in rice and sunflower plants (; ). Exposure to moderately elevated temperatures for 5 days at the five-leaf stage of barley leads to increased vacuolization, swelling of mitochondria, irregularities in the rough endoplasmic reticulum, and the premature degradation of anther wall cells (, ). HT induces increased DNA fragmentation (approximately 180 bp ladders) of chromosomal DNA (). In addition, nuclear membranes are disrupted and the nuclear density is significantly reduced in PMCs. These results suggest that HT specifically causes premature PCD in anther cells. The timing of expression of several transcripts, including anther-specific lipid transfer protein (LTP) genes, shifts to an earlier stage in response to exposure to HT (). reported the pro-apoptotic effect of maize LTP in an in vitro mammalian mitochondrial system. These anther-specific developmental programs and fate might increase the sensitivity of male reproductive development to many environmental stresses.
INCREASING TEMPERATURES SPECIFICALLY REDUCE ENDOGENOUS AUXINS IN DEVELOPING ANTHERS
The phytohormone auxin orchestrates many physiological and developmental processes including growth control, organ patterning, and root and shoot architecture (). In Arabidopsis seedlings, moderately HT stimulates the elongation of hypocotyls by activation of auxin biosynthetic pathways with the tryptophan aminotransferase-encoding gene TAA1/TIR2 (; ). This transcription is positively upregulated by increased temperature in hypocotyls, cotyledons, and root (). By contrast, endogenous auxin levels specifically decrease in the developing anthers of barley and Arabidopsis during the early response to HT conditions (). Immunohistochemical analysis using anti-IAA antibodies reveals that endogenous auxin levels are specifically reduced by increasing temperatures in barley early developing anther cells (). In an Arabidopsis DR5-GUS recombinant line that places the GUS gene under the control of a synthetic auxin response element (), the strongest GUS activity appears in PMCs and tapetum cells at stage 10 of floral development when the microspores are visible in the anthers (; ). In recombinants exposed to moderate HT (31 or 33°C) for 1 day, the GUS signals significantly decreased in an anther-specific manner (,). The expression of the YUCCA auxin biosynthesis genes is repressed by HT in both barley and Arabidopsis (). YUCCA flavin monooxygenases are implicated in the biosynthesis of indole-3-acetaldoxime (IAOx), which is an intermediate for one of several tryptophan-dependent auxin biosynthetic pathways (). Expression of YUCCA genesis temporally and spatially controlled (; ; ). In Arabidopsis, double or triple mutants that include yuc2 and yuc6 have a total loss of male fertility and form short stamens that lack pollen grains (). Given that these mutant phenotypes are quite similar to the phenotypes of HT injury, biosynthesis of endogenous auxin with YUCCA in developing anthers is a major factor responsible for the HT-induced abortion of pollen and reduction of auxin. These phenotypes are highly conserved in monocots and dicots. Tissue- and organ-specific auxin biosyntheses independently and differentially control in response to fluctuation of temperatures (,).
APPLICATION OF AUXIN REVERSES HT INJURY
Comprehensive transcriptome analyses using more than 600 microarray datasets of barley show high and positive pairwise correlations between the expression profiles of auxin-induced genes, DNA replication-related genes, and mitochondrial-related genes (). These genes are negatively correlated with the expression profiles of auxin-repressed protein genes and photosynthesis- or chloroplast-related genes. In developing anthers, HT stress inhibits expression of the former genes and upregulates the expression of the latter genes (, ). Therefore, application of exogenous auxin recovers the expression of DNA replication-related genes under HT conditions (; ). Anther cell proliferation and development, and subsequent fertilization and seed setting, are restored under HT conditions by application of exogenous auxin (Figure 1). Therefore, HT-tolerant plants might be obtained by controlling anther-specific auxin biosynthesis genes using recombinant DNA technology. The current data indicate that the appropriate application of auxin is useful for the promotion of plant fertility and maintenance of crop yields under the threats of global warming.

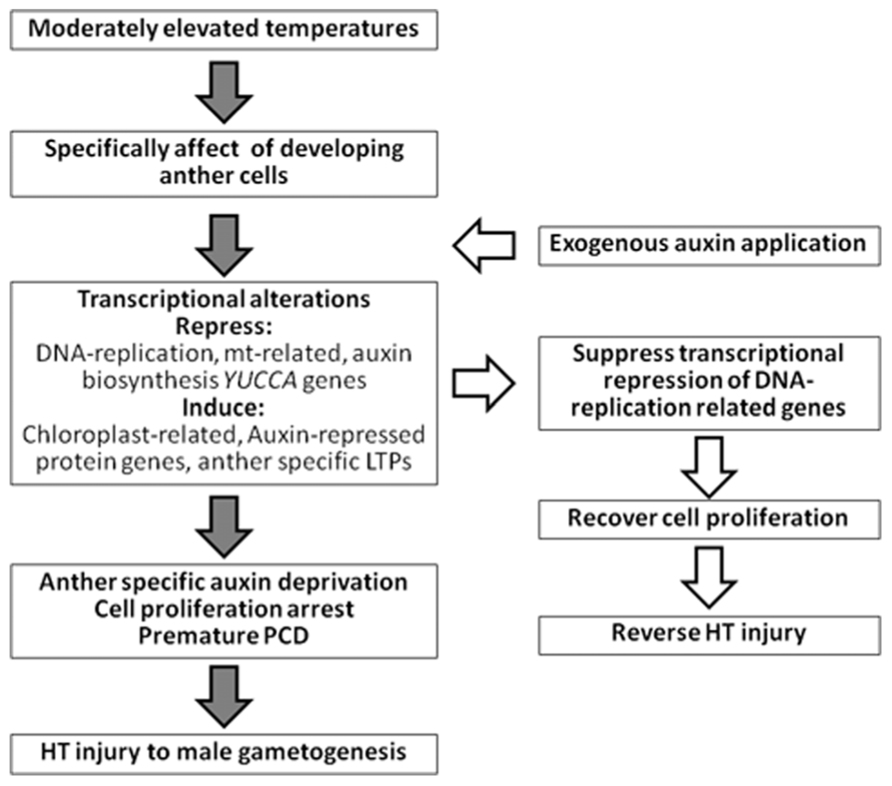

FIGURE 1
Statements
Conflict of interest
The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
REFERENCES
1
AbikoM.AkibayashiK.SakataT.KimuraM.KiharaM.ItohK.et al (2005). High-temperature induction of male sterility during barley (Hordeum vulgare L.) anther development is mediated by transcriptional inhibition.Sex. Plant Reprod.1891–100.
2
AhmedF. E.HallA. E.DeMasonD. A. (1992). Heat injury during floral development in cowpea (Vigna unguiculata, Fabaceae).Am. J. Bot.79784–791.
3
BalkJ.LeaverC. J. (2001). The PET1-CMS mitochondrial mutation in sunflower is associated with premature programmed cell death and cytochrome c release.Plant Cell13, 1803–1818.
4
BrayE. A.Bailey-SerresJ.WeretilnykE. (2000). “Responses to abiotic stresses,” inBiochemistry and Molecular Biology of PlantsedsBuchananB.GruissemandW.JonesR. (Rockville: ASPB) 1158–1203.
5
CecchettiV.AltamuraM. M.FalascaG.CostantinoP.CardarelliM. (2008). Auxin regulates Arabidopsis anther dehiscence, pollen maturation, and filament elongation.Plant Cell201760–1774.
6
ChengY.DaiX.ZhaoY. (2006). Auxin biosynthesis by the YUCCA flavin monooxygenases controls the formation of floral organs and vascular tissues in Arabidopsis.Genes Dev.201790–1799.
7
CrimiM.AstegnoA.ZoccatelliG.EspostiM. D. (2006). Pro-apoptotic effect of maize lipid transfer protein on mammalian mitochondria.Arch. Biochem. Biophys.44565–71.
8
EllisR. J. (1990). The molecular chaperone concept.Semin. Cell Biol.11–9.
9
FitterA. HHayR. K. M. (1987). Environmental Physiology in Plants.London: Academic Press.
10
GongM.LiY. J.SongY. Q.LiZ. G. (1997). Effect of calcium and calmodulin on intrinsic heat tolerance in relation to antioxidant systems in maize seedlings.Aust. J. Plant Physiol.24371–379.
11
GrayW. M.OstinA.SandbergG.RomanoC. P.EstelleM. (1998). High temperature promotes auxin-mediated hypocotyls elongation in Arabidopsis.Proc. Natl. Acad. Sci. U. S. A.957197–7202.
12
HiranoK.AyaK.HoboT.SakakibaraH.KojimaM.ShimR. A.et al (2008). Comprehensive transcriptome analysis of phytohormone biosynthesis and signaling genes in microspore/pollen and tapetum of rice.Plant Cell Physiol.491429–1450.
13
IPCC. (2007). Intergovernmental Panel on Climate Change Fourth Assessment Report.Cambridge: Cambridge University Press.
14
KimS. Y.HongC. B.LeeI. (2001). Heat shock stress causes stage specific male sterility in Arabidopsis thaliana.J. Plant Res.114301–307.
15
KuS.YoonH.SuhH. S.ChungY. Y. (2003). Male-sterility of thermosensitive genic male-sterile rice is associated with premature programmed cell death of the tapetum.Planta217559–565.
16
LäuchliA.GrattanS. R. (2007). “Plant growth and development under salinity stress,” inAdvances in Molecular-Breeding towards Salinity and Drought ToleranceedsJenksM. A.HasegawaP. A.JainS. M. (Berlin: Springer-Verlag) 1–31.
17
LobellD. B.FieldC. B. (2007). Global scale climate–crop yield relationships and the impacts of recent warming.Environ. Res. Lett.2014002.
18
MaestriE.KluevaN.PerrottaC.GulliM.NguyenT.MarmiroliN. (2002). Molecular genetics of heat tolerance and heat shock proteins in cereals.J. Plant Mol. Biol.48667–681.
19
OshinoT.AbikoM.SaitoR.IchiishiE.EndoM.Kawagishi-KobayashiM.et al (2007). Premature progression of anther early developmental programs accompanied by comprehensive alterations in transcription during high-temperature injury in barley plants.Mol. Genet. Genomics27831–42.
20
OshinoT.MiuraS.KikuchiS.HamadaK.YanoK.WatanabeM.et al (2011). Auxin depletion in barley plants under high-temperature conditions represses DNA proliferation in organelles and nuclei via transcriptional alterations.Plant Cell Environ.34284–290.
21
PeetM. M.SatoS.GardnerR. G. (1998). Comparing heat stress effects on male-fertile and male-sterile tomatoes.Plant Cell Environ.21225–231.
22
SainiH. S.SedgleyM.AspinallD. (1984). Developmental anatomy in wheat male sterility induced by heat stress, water deficit or abscisic acid.Aust. J. Plant Physiol.11243–253.
23
SakataT.HigashitaniA. (2008). Male sterility accompanied with abnormal anther development in plants – genes and environmental stresses with special reference to high temperature injury.Int. J. Plant Dev. Biol.242–51.
24
SakataT.OshinoT.MiuraS.TomabechiM.YutaT.HigashitaniN.et al (2010a). Auxins reverse plant male sterility caused by high temperatures.Proc. Natl. Acad. Sci. U.S.A.1078569–8574.
25
SakataT.YagihashiN.HigashitaniA. (2010b). Tissue-specific auxin signaling in response to temperature fluctuation.Plant Signal. Behav.51510–1512.
26
SakataT.TakahashiH.NishiyamaI.HigashitaniA. (2000). Effects of high temperature on the development of pollen mother cells and microspores in barley Hordeum vulgare L.J. Plant Res.113395–402.
27
TealeW. D.PaponovI. A.PalmeK. (2006). Auxin in action: signalling, transport and the control of plant growth and development.Nat. Rev. Mol. Cell Biol.7847–859.
28
UlmasovT.MurfettJ.HagenG.GuilfoyleT. J. (1997). Aux/IAA proteins repress expression of reporter genes containing natural and highly active synthetic auxin response elements.Plant Cell91963–1971.
29
VarnierA. L.Mazeyrat-GourbeyreF.SangwanR. S.ClementC. (2005). Programmed cell death progressively models the development of anther sporophytic tissues from the tapetum and is triggered in pollen grains during maturation.J. Struct. Biol.152118–128.
30
WeisE.BerryJ. A. (1988). “Plants and high temperature stress,” inPlants and TemperatureedsLongS. P.WoodwardF. I. (Cambridge: Company of Biologists Ltd) 329–346.
31
WollenweberB.PorterJ. R.SchellbergJ. (2003). Lack of interaction between extreme high-temperature events at vegetative and reproductive growth stages in wheat.J. Agron. Crop Sci.189142–150.
32
YamadaM.GreenhamK.PriggeM. J.JensenP. J.EstelleM. (2009). The TRANSPORT INHIBITOR RESPONSE 2 gene is required for auxin synthesis and diverse aspects of plant development.Plant Physiol.151168–179.
33
ZhaoY.ChristensenS. K.FankhauserC.CashmanJ. R.CohenJ. D.WeigelD.et al (2001). A role for flavinmonooxygenase-like enzymes in auxin biosynthesis.Science291306–309.
Summary
Keywords
anther development, Arabidopsis, auxin, barley, high temperature injury, male sterility, tapetal degeneration, YUCCA
Citation
Higashitani A (2013) High temperature injury and auxin biosynthesis in microsporogenesis. Front. Plant Sci. 4:47. doi: 10.3389/fpls.2013.00047
