Most major crops used for human consumption are C3 plants, which yields are limited by photosynthetic inefficiency. To circumvent this, it has been proposed to implement the cyanobacterial CO2-concentrating mechanism (CCM), principally consisting of bicarbonate transporters and carboxysomes, into plant chloroplasts. As it is currently not possible to recover homoplasmic transplastomic monocots, foreign genes must be introduced in these plants via nuclear transformation. Consequently, it is paramount to ensure that resulting proteins reach the appropriate sub-cellular compartment, which for cyanobacterial transporters BicA and SbtA, is the chloroplast inner-envelope membrane (IEM). At present, targeting signals to redirect large transmembrane proteins from non-chloroplastic organisms to plant chloroplast envelopes are unknown. The goal of this study was to identify such signals, using agrobacteria-mediated transient expression and confocal microscopy to determine the sub-cellular localization of ∼37 GFP-tagged chimeras. Initially, fragments of chloroplast proteins known to target soluble cargos to the stroma were tested for their ability to redirect BicA, but they proved ineffective. Next, different N-terminal regions from Arabidopsis IEM transporters were tested. We demonstrated that the N-terminus of AtHP59, AtPLGG1 or AtNTT1 (92–115 amino acids), containing a cleavable chloroplast transit peptide (cTP) and a membrane protein leader (MPL), was sufficient to redirect BicA or SbtA to the chloroplast envelope. This constitutes the first evidence that nuclear-encoded transmembrane proteins from non-chloroplastic organisms can be targeted to the envelope of plant chloroplasts; a finding which represents an important advance in chloroplast engineering by opening up the door to further manipulation of the chloroplastic envelope.
Introduction
In the last decade, improving plant traits through genetic engineering has become an area of increased focus (Mittler and Blumwald, 2010; Ort et al., 2015). In the context of global food security, improving crop yield has emerged as a critical issue, and maintaining current population growth is predicted to require a doubling of the total food production by 2050 (Zhu et al., 2010; Price et al., 2013; Long et al., 2015). To tackle this problem, several avenues have been proposed; one of them being the implementation of components of the CO2-concentrating mechanism (CCM) from cyanobacteria into crop plants such as rice and wheat to improve their photosynthetic capacity (Price et al., 2011a, 2013; McGrath and Long, 2014).
In cyanobacteria, the CCM largely enables the organism to circumvent the catalytic limitations of the CO2-fixing enzyme Ribulose-1,5-Bisphosphate Carboxylase/Oxygenase (RuBisCO), which can also inadvertently fix O2 into wasteful products if CO2 is not in excess (Whitney et al., 2011). This is particularly the case in C3 plants that lack any form of CCM, where O2 fixation can account for around 25% of the total flux through RuBisCO (Ludwig and Canvin, 1971). The cyanobacterial CCM achieves a large increase in the CO2 concentration around RuBisCO via the use of active uptake of CO2 and bicarbonate, and release of elevated CO2 in the RuBisCO-containing carboxysome structures (Price et al., 2008; Price, 2011; Rae et al., 2013a,b). Recently, it was suggested that the first step toward implementing the cyanobacterial CCM in the chloroplast of key C3 crop plants be the addition of bicarbonate transporters into the inner-envelope membrane (IEM) (Price et al., 2013; McGrath and Long, 2014). In cyanobacteria, there are three known bicarbonate transporters: the multi-protein complex BCT1 and the two Na+-dependent transporters BicA and SbtA (Omata et al., 1999; Shibata et al., 2002; Price et al., 2004, 2008). Because BicA and SbtA are coded by single genes, they are the more ideal candidates for transfer into higher plants.
Stable expression of cyanobacterial transporters in the chloroplast envelope of higher plants can theoretically be achieved by two alternative methods; transforming the plastid or the nuclear genomes. The main advantage of transforming the plastid genome resides in that it does not require the fusion of chloroplast targeting signals to the proteins of interest. In fact, this method has previously been used to introduce BicA in Tobacco (Nicotiana tabacum) chloroplasts (Pengelly et al., 2014). However, when expressed from the plastid genome, BicA had no measurable effect on photosynthesis, possibly because the transporter was not correctly activated (Pengelly et al., 2014). While BicA was also not correctly activated when expressed in Escherichia coli, SbtA was functional in this system suggesting that it could also be active in plant chloroplasts (Du et al., 2014).
When aiming at improving crop yield via manipulation of chloroplast physiology, the main limitation of plastid transformation is the current inability to generate homoplasmic transplastomic monocot plants (Hanson et al., 2013). Nuclear transformation therefore appears as the method of choice to introduce BicA and SbtA in higher plant chloroplasts. The main limitation of using this route is that nuclear-encoded heterologous proteins need to be efficiently targeted to the chloroplast envelope in order to increase the Ci concentration in the stroma. However, to date, there is a lack of knowledge of how to consistently target foreign membrane proteins to the chloroplast envelope.
Most nuclear-encoded proteins targeted to the chloroplast stroma, IEM or thylakoids, are imported via two translocation multi-protein complexes, TIC and TOC, present on both the outer-envelope membrane (OEM) and the IEM, respectively (see Li and Chiu, 2010). TIC/TOC-mediated import relies on the presence of an N-terminal transit peptide (TP). Upon entry in the chloroplast, part of, or all this signal is cleaved-off by the stromal processing peptidase (SPP) (Richter et al., 2005). The term cTP, for chloroplast transit peptide, has been used previously to represent: (1) the N-terminal protein fragment which is cleaved off in the stroma, and (2) the N-terminal protein domain which is sufficient for efficient chloroplast targeting. To avoid confusion, here we use the term cTP to represent the cleavable peptide, while TP refers to the domain sufficient to target a protein cargo to the chloroplast. This implies that the TP can be equal to the cTP, or longer than the cTP if it also contains part of the mature protein.
In cyanobacteria, BicA and SbtA are located in the plasma membrane and topology studies have revealed that the sequence N-terminal to the first transmembrane domain (TMD) of PCC7002 BicA and PCC7942 SbtA is short, being composed of only 15 and 11 amino acids (aa), respectively (Shelden et al., 2010; Price et al., 2011b). Unsurprisingly, the prediction algorithm ChloroP predicts that BicA and SbtA do not possess a cTP, and as such are not expected to localize in chloroplasts, when nuclear-encoded (Emanuelsson et al., 1999). It is often assumed that the addition of a well characterized cTP such as that of RuBisCO small subunit (RBCS) could target foreign proteins to the chloroplast (Dobberstein et al., 1977; Chua and Schmidt, 1978; Highfield and Ellis, 1978). However, past studies have shown that efficient targeting of foreign proteins requires part of the mature RBCS, in addition to its cTP (Comai et al., 1988; Bionda et al., 2010). Additionally, sequence requirements for chloroplast import of non-plant proteins have only been investigated for soluble proteins targeted to the stroma (Comai et al., 1988; Bionda et al., 2010). Our current understanding of IEM-targeting has been largely shaped by the study of single-pass (i.e., with a single TMD) transmembrane plant proteins such as TIC40, APG1 or ARC6 (Li and Schnell, 2006; Tripp et al., 2007; Viana et al., 2010; Froehlich and Keegstra, 2011). Notably, sequences sufficient to achieve chloroplast envelope targeting of nuclear-encoded multi-pass (i.e., with several TMDs) transmembrane proteins from non-plant organisms have not yet been identified.
In the present study, we set-out to identify appropriate chloroplast-targeting sequences for redirecting BicA and SbtA, using a two-step approach. First, sequences known to efficiently target foreign soluble proteins to the chloroplast stroma were tested for their ability to locate BicA and SbtA to the chloroplast envelope. However, this was shown to be ineffective. BicA (59.6 kD) and SbtA (39.5 kD) are large proteins with 14 and 10 TMDs, respectively (Price and Howitt, 2014). So in a second approach, we turned to analyzing the targeting signals of plant IEM multi-pass proteins. Our analysis shows that these proteins have a long N-terminal domain predicted to be in the stroma, and of about 90–120 aa in length, which is considerably longer than their predicted cTP. The part of these fragments located between the cTP and the first TMD was named membrane protein leader (MPL) and it was speculated that both the cTP and MPL are important for envelope targeting. As a result, the ability of several “cTP+MPL” sequences to target BicA and SbtA to the chloroplast envelope was investigated. Using transient expression of fluorescently tagged constructs, we showed that these cTP+MPL regions were effective, to various degrees, in targeting BicA and SbtA to the chloroplast envelope.
Materials and Methods
Prediction of Subcellular Localization, cTP Length, Transmembrane Domains, and Protein Alignments
The subcellular localization of proteins was predicted with TargetP v1.1 (1Emanuelsson et al., 2007) and putative cTPs were predicted with Chloro_P v1.1 (2Emanuelsson et al., 1999). The TMDs of AtPLGG1, AtHP59 and AtNTT1 were determined using SCAMPI-msa (Bernsel et al., 2008) available on the TOPCONS website (3Tsirigos et al., 2015). The list of IEM proteins with at least 10 TMDs was generated using the AT_CHLORO database (4Ferro et al., 2010). Protein alignments were generated using ClustalW in Geneious R7®.
Cloning Procedures
The full or partial coding sequence of A. thaliana TIC20-II (AT2G47840), A. thaliana HP59 (AT5G59250), A. thaliana PLGG1 (AT1G32080), A. thaliana NTT1 (AT1G80300), A. thaliana SULTR3;1 (AT3G51895), Nicotiana benthamiana SULTR3;1 (Nbv5tr6207009), Pisum sativum RBCS-3C (X00806), Glycine max RBCS (AF303939), Synechococcus elongatus PCC7942 SbtA (SYNPCC7942_1475), Synechococcus sp. PCC7002 BicA (SYNPCC7002_A2371) and P19 from the Tomato bushy stunt virus (NP_062901), were used in this study. The coding sequence of P19 (gift from Spencer Whitney) was amplified by PCR and inserted in pENTR® (Invitrogen) before being recombined in pMDC32 (Curtis and Grossniklaus, 2003). All other constructs were generated, using or combining sequences synthesized with or without a fluorescent tag, in pUC57, by GENEWIZ, Inc. For detailed information about cloning steps for each construct, see Supplementary Figure S1 (schematic of AtHP5993–BicA-mGFP6::6xHIS::MYC in pUC57) and Supplementary Tables S1–S3 (Cloning steps for each construct, primer sequence, list of all leaders fused to BicA, SbtA or mGFP6 in this study). Briefly, all constructs were tagged with mGFP6-6xHIS-MYC (Haseloff, 1999) or mTURQUOISE2-6xHIS-MYC (Goedhart et al., 2012) and recombined in pMDC32 by any of the three following methods: (1) coding sequences were synthesized with a fluorescent tag, and were surrounded by attB sites such that the whole sequence could directly be recombined in pMDC32, (2) coding sequences were synthesized with a fluorescent tag, and had attB sites added through a PCR step, PCR products were recombined in a pDNOR® vector (Invitrogen), which was in turn recombined in pMDC32, (3) coding sequences were synthesized without a tag, and inserted in an attB- and fluorescent tag-containing plasmid generated by methods (1) and (3), prior to being recombined in pMDC32.
Subcellular Compartment Markers
The plasmids CD3-967 and CD3-959 were used to highlight the Golgi and the ER, respectively (Nelson et al., 2007). These constructs were obtained from the Arabidopsis Biological Resource Center (ABRC5).
Plant Materials and Plant Growth
Nicotiana benthamiana plants were grown for 3–4 weeks in a CONVIRON growth chamber under a 16 h/8 h day/night cycle with temperatures of 25°C/20°C, a humidity level of 60% and a light intensity of 350–400 μmol photons m–2 s–1.
Agrobacterium Growth Conditions
Agrobacterium tumefaciens GV3101(pMP90) (Koncz and Schell, 1986) were transformed with plasmids of interest and grown in LB media (5 g yeast extract, 10 g tryptone, 10 g NaCl, in 1 l) containing rifampicin (50 μg/ml) and kanamycin (30 μg/ml). Cultures were grown for about 24 h in a 28–30°C incubator and used for transformation of N. benthamiana leaves.
Agro-Infiltration of Nicotiana benthamiana Leaves
Bacteria containing P19 (OD600 = 0.3) were mixed with bacteria containing the plasmid of interest and/or the plasmid encoding a subcellular marker (OD600 = 0.5 in each case). Cells were centrifuged for 8 min at 4500 rpm and resuspended in resuspension solution (10 mM 2-[N-morpholino]ethanesulfonic acid [MES] pH 5.6, 10 mM MgCl2, and 150 μM acetosyringone). The cells were incubated for 2 h at room temperature and infiltrated into 3–4 weeks old N. benthamiana leaves. This protocol is adapted from (Breuers et al., 2012).
Protoplast Preparation
Two days post infiltration (2 dpi), a 4 cm × 4 cm area of infiltrated leaf was cut with a scalpel and transferred in a 5 ml syringe in which 2 ml of digestion solution (1.5% [w/v] cellulase R-10, 0.4% [w/v] macerozyme R-10, 0.4 M mannitol, 20 mM KCl, 20 mM MES pH 5.6, 10 mM CaCl2, 0.1% [w/v] BSA) was added and a gentle vacuum was manually applied to facilitated entry of the solution into the intercellular space. The solution and the leaf pieces were transferred to a 2 ml Eppendorf tube and the mixture was incubated 1 h at room temperature. The protoplasts were gently extracted by manually inverting the tube. Leaf debris were removed using a forceps and protoplasts were allowed to sediment before the solution was replaced with imaging solution (0.4 M mannitol, 20 mM KCl, 20 mM MES pH 5.6, 10 mM CaCl2, 0.1% [w/v] BSA). This protocol is adapted from (Breuers et al., 2012).
Confocal Laser-Scanning Microscopy and Mitochondria Staining
In 2–6 independent experiments, about 100 protoplasts (per independent experiment) expressing GFP-tagged constructs were observed, and several were imaged, using an upright Zeiss LSM780 confocal laser-scanning microscope (Carl Zeiss), a 40x water immersion objective (NA = 1.1) and the Zen 2011 software package (Carl Zeiss). GFP and chlorophyll were excited at 488 nm and emission was recorded at 499–535 nm and at 630–735 nm, respectively. When mCherry was used, it was excited at 561 nm and emission was recorded at 579–633 nm in a separate track. When mTurquoise2 was used, it was excited at 405 nm and emission was recorded at 455–472 nm in a separate track. Mitochondria were stained for 10–20 min using a 100 nM solution of MitoTracker® Red CMXRos (ThermoFisher Scientific). MitoTracker® Red CMXRos was excited at 561 nm and emission was recorded at 570–624 nm.
Protein Extraction and Western-Blot Analysis
Membrane-enriched protein extracts were prepared from two N. benthamiana 2 days post infiltration (dpi) leaf disks of 1.327 cm2 each, essentially as follows (Britta Förtser, personal communication). Proteins were extracted from leaf disks by manual grinding in ice–cold extraction buffer (125 mM Tris-HCl pH 8, 1 mM MgCl2, 1 mM ethylene-diaminetetraacetic acid [EDTA], 1% [w/v] Polyvinylpolypyrrolidone [PVPP] and 2% [v/v] protease inhibitor cocktail [Sigma]). Debris was removed from the extract after a quick centrifugation step (13000 rpm in a table-top centrifuge, 25°C, 10 s) and membranes were then pelleted with a long centrifugation step (13000 rpm in a table-top centrifuge, 4°C, 20 min). Proteins were extracted from these pellets with resuspension buffer (125 mM Tris-HCl pH 8, 4% (w/v) SDS, 1 mM EDTA) and left overnight at 4°C to allow for full resuspension of the pellets. Proteins samples were separated by SDS-PAGE and transferred to polyvinylidene difluoride (PVDF) membranes. Separate membranes were probed with two different primary antibodies raised in rabbits: anti-GFP (AB6556, Sapphire Bioscience, 1/2000) and anti-TIC40 (AS10709, Agrisera, 1/2500). Blotted membranes were probed with an alkaline phosphatase-conjugated anti-rabbit secondary antibody (BioRad), and the immunoreactive bands were detected using Attophos (Promega) and a VersaDoc imager (Biorad).
Results
Nuclear-Encoded Cyanobacterial BicA and SbtA are Not Targeted to Chloroplasts in Nicotiana benthamiana
To determine the subcellular localization of nuclear-encoded PCC7002 BicA and PCC7942 SbtA (hereafter referred to as BicA and SbtA, respectively), constructs containing their coding sequence fused to GFP were transiently expressed in the leaves of N. benthamiana via agro-infiltration, and isolated protoplasts were observed using confocal microscopy (Figure 1). To enable comparison of chloroplast-targeting efficiency of the different constructs tested in this study, we systematically analyzed protein distribution on protoplasts prepared 2 days post infiltration (dpi); a time-point late enough to allow protein expression and early enough to limit effects of protein over-expression on subcellular localization. As predicted, at 2 dpi, neither BicA nor SbtA were found in chloroplasts. Instead, BicA co-localized with an endoplasmic reticulum (ER) marker (Figures 1F–I), while SbtA was only weakly expressed in the ER and accumulated in bright foci throughout the cell (Figures 1J–M). The identity of these foci was tested by staining SbtA-expressing protoplasts with a mitochondrial stain or a marker of the Golgi apparatus. This experiment revealed that SbtA was not located in mitochondria (Supplementary Figure S2), but instead localized in the Golgi apparatus (Figures 1R–U). These results highlighted the inability of nuclear-encoded BicA and SbtA to reach plastids and prompted us to identify efficient foreign targeting signals to redirect them to chloroplasts.

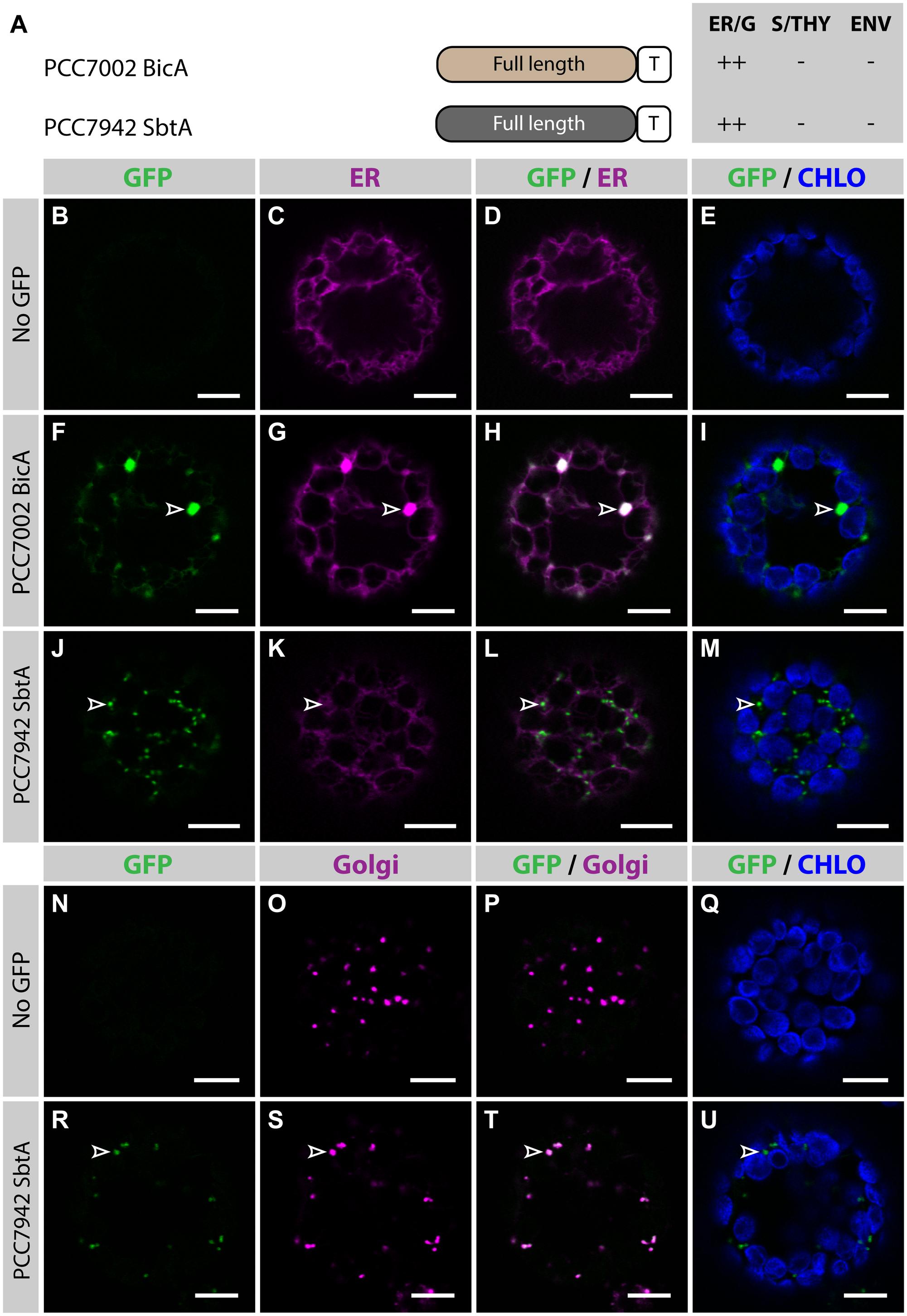

FIGURE 1. Nuclear-encoded BicA and SbtA do not localize in chloroplasts in Nicotiana benthamiana. (A) Schematic of PCC7002 BicA and PCC7942 SbtA, and summary of their subcellular distribution averaged from a total of at least 50 protoplasts. For each chimera, the compartment where most of a protein was found (primary targeting) was indicated as ++, while secondary targeting, traces, and no detectable signal were indicated as +, +/−, and −, respectively. ER/G, endoplasmic reticulum or Golgi apparatus; S/THY, stroma or thylakoids; ENV, chloroplast envelope; T, GFP-containing tag. (B–U), Single-plane confocal microscopy images of N. benthamiana protoplasts expressing a GFP-tagged chimera (F,J,R) or none for controls (B,N) together with an ER (C,G,K) or Golgi (O,S) marker, 2 days post infiltration (dpi). Merges of GFP with ER (D,H,L), Golgi (P,T) or chlorophyll signal (E,I,M,Q,U) are also shown. These images show that PCC7002 BicA co-localized with the ER marker (empty arrowheads in F–I) and that PCC7942 SbtA did not (empty arrowheads in J–M). Instead, PCC7942 SbtA co-localizes with the Golgi marker (empty arrowheads in R–U). Scales bars: 10 μm.
The cTP Plus a Part of the Mature RBCS is Necessary and Sufficient to Efficiently Target GFP, but Not BicA, to Chloroplasts
In a previous study, Comai et al. (1988) analyzed the ability of different parts of RBCS to target a foreign soluble cargo, namely the 5-enolpyruvyl-3-phosphoshikimate synthase (EPSP) from Salmonella typhimurium, to chloroplasts, both in vitro and in vivo. They found that the cTP of Soybean (Glycine max, Gm) RBCS alone was not enough for import in chloroplasts. However, the addition of the first 25 aa of the mature part of RBCS from Pea (Pisum sativum, Ps) was sufficient to target EPSP to chloroplasts both in vitro and in vivo (Comai et al., 1988).
In the present study, similar RBCS fragments were fused to GFP or BicA-GFP, to analyze their ability to direct a soluble and a transmembrane cargo to chloroplasts, respectively (Figure 2; Supplementary Figure S3). The cTP of GmRBCS fused to GFP (GmRBCScTP) was mostly distributed in the cytosol, and was only poorly translocated to the chloroplast, with traces only detected in the stroma (Figures 2B–E). Similarly, the cTP of PsRBCS (PsRBCScTP) only achieved partial chloroplast targeting, with most of the GFP localized in the cytosol (Supplementary Figures S3B–E). These results are consistent with another study in which confocal microscopy was used to study the TP length required to target a foreign soluble cargo, the 27th Ig domain of the muscle protein TITIN (referred to below as TITIN), to chloroplasts (Bionda et al., 2010). In this study, Bionda et al. (2010) showed that the cTP plus 5 aa of the mature Nicotiana tabacum RBCS was only able to achieve efficient targeting of TITIN in 52% of the protoplasts observed; 46.5% of the protoplasts had GFP in both the chloroplast and the cytosol and 1.5% had GFP in the cytosol only. Given that here GmRBCScTP and PsRBCScTP were unable to efficiently target GFP to chloroplasts, it was not surprising to observe that GmRBCScTP-BicA was not imported in chloroplasts and instead localized in the ER (Figures 2F–I).
FIGURE 2. GmPsRBCS79 can target GFP, but not BicA, to chloroplasts. (A) Schematic of the RBCS/BicA chimeras used in this figure together with a summary of their subcellular distribution as explained in Figure 1. CY/ER, cytosol or endoplasmic reticulum; S/THY, stroma or thylakoids; ENV, chloroplast envelope; T, GFP-containing tag. Numbers in brackets indicate the number of aa making-up protein domains. The subcellular localization of GmRBCS and PsRBCS were inferred from the literature. (B–Q) Single-plane confocal microscopy images of N. benthamiana protoplasts expressing a GFP-tagged chimera (B,F,J,N) together with an ER marker (C,G,K,O), 2 dpi. Merges of GFP with ER (D,H,L,P) or chlorophyll signal (E,I,M,Q) are also shown. These images show that GmRBCScTP localized mainly in the cytosol (empty arrowheads in B–E) and only weakly to chloroplasts (arrowheads in B–E), GmRBCScTP-BicA was found in the ER (empty arrowheads in F–I), GmPsRBCS79 was entirely targeted to chloroplasts (arrowheads in J–M) and GmPsRBCS79-BicA accumulated outside of chloroplasts (empty arrowheads in N–Q). Scales bars: 10 μm.
When 25 aa of the mature PsRBCS were added to GmRBCScTP (resulting in GmPsRBCS79), GFP was efficiently targeted to chloroplasts (Figures 2J–M), consistent with previous observations (Comai et al., 1988). In contrast to this result, both GmPsRBCS79-BicA and GmRBCS79-BicA, a construct in which the first 79 aa of GmRBCS were fused to BicA, were unable to redirect BicA to chloroplasts (Figures 2N–Q; Supplementary Figures S3F–I). Taken together, these results highlighted that sequences required for chloroplast-targeting of a soluble or a large transmembrane protein are different.
Fragments of AtNTT1 Which can Efficiently Target GFP to Chloroplasts Fail to Redirect BicA to Chloroplasts
The Nucleotide Transporter 1 from Arabidopsis thaliana (AtNTT1) is a nuclear-encoded transmembrane protein, which localizes in the IEM of chloroplasts (Neuhaus et al., 1997). Bionda et al. (2010) analyzed the subcellular distribution of different AtNTT1-TITIN chimeric fusions and found that the cTP of NTT1 alone (AtNTT1cTP, 21 aa), or combined with the first 9, 19, or 29 aa of mature AtNTT1 (AtNTT130, AtNTT140 and AtNTT150, respectively), were unable to target TITIN to chloroplasts. However, when the AtNTT1 N-terminal fragment used was extended by another 10 or 20 aa (AtNTT160 and AtNTT170, respectively), the chimeras were almost completely targeted to chloroplasts (Bionda et al., 2010). These results showed that the first 60 aa of AtNTT1 are sufficient for near complete chloroplast targeting of a soluble cargo.
To test whether the same length was sufficient to direct a transmembrane cargo to plastids, we fused AtNTT1cTP, AtNTT150, AtNTT160, and AtNTT170 to BicA-GFP and analyzed the subcellular localization of the resulting chimeras (Figure 3). As expected, GFP-tagged AtNTT1 localized mainly in the chloroplast envelope (Figures 3B–E), with little signal detected in the ER, while AtNTT1cTP-BicA and AtNTT150-BicA localized to the ER only (Figures 3F–M). Notably, AtNTT160-BicA was found in the ER (Figures 3N–Q), while AtNTT170-BicA accumulated mainly in the ER with only traces of signal in the chloroplast (Figures 3R–U). These results were different from what Bionda et al. (2010) observed with the soluble TITIN cargo and confirmed our own observation based on the use of RBCS fragments that large transmembrane cargos were harder to redirect than soluble cargos. These results highlighted the importance of identifying transmembrane-specific chloroplast-targeting signals.
FIGURE 3. The first 70 aa of AtNTT1 fail to efficiently deliver BicA to chloroplasts. (A) Schematic of the AtNTT1/BicA chimeras used in this figure together with a summary of their subcellular distribution as explained in Figure 1. ER, endoplasmic reticulum; S/THY, stroma or thylakoids; ENV, chloroplast envelope; T, GFP-containing tag. Numbers in brackets indicate the number of aa making-up protein domains. (B–U) Single-plane confocal microscopy images of N. benthamiana protoplasts expressing a GFP-tagged chimera (B,F,J,N,R) together with an ER marker (C,G,K,O,S), 2 dpi. Merges of GFP with ER (D,H,L,P,T) or chlorophyll signal (E,I,M,Q,U) are also shown. These images show that AtNTT1 (B–E) mainly localized in the chloroplast envelope (arrowheads) with only weak signal in the ER (empty arrowheads), that AtNTT1cTP-BicA (F–I), AtNTT150-BicA (J–M) and AtNTT160-BicA (N–Q) were entirely localized in the ER (empty arrowheads), and that AtNTT170-BicA (R–U) was mainly localized in the ER (empty arrowheads) with only traces detected in chloroplasts (arrowheads). Scales bars: 10 μm.
Selection of Plant Protein Candidates with Potential Transmembrane-Specific Chloroplast-Targeting Signals
A potential source of transmembrane-specific targeting sequences could be chloroplast-targeted plant homologues of SbtA or BicA. While SbtA is widespread in cyanobacteria and found in a few bacteria, it does not have homologues in eukaryotes (Price and Howitt, 2014). BicA, however, is part of the SulP/SLC26 family of eukaryotic and prokaryotic transporters (Price et al., 2004; Price and Howitt, 2011). In A. thaliana, the members of this family are known as Sulphate Transporters (SULTR) (Price and Howitt, 2011). Interestingly, AtSULTR3;1 was recently reported to localize in chloroplasts (Cao et al., 2013). One of the main differences between AtSULTR3;1 and BicA is the length of their stromal/cytoplasmic N-terminus, which is significantly longer in AtSULTR3;1 (85 aa) than in BicA (15 aa). Albeit long, the N-terminus of AtSULTR3;1 is not expected to contain a cTP, according to ChloroP predictions. The subcellular localization of AtSULTR3;1-GFP and NbSULTR3;1-GFP was therefore tested, but surprisingly both proteins localized in the ER (Supplementary Figure S4), ruling out the possibility of using parts of SULTR3;1 to direct BicA and SbtA to chloroplasts.
Because homologs of BicA and SbtA could not be used, it became important to identify substitute candidate proteins. It was reasoned that ideal putative candidates should have several TMDs and localize in the IEM. A list of A. thaliana IEM-localized proteins was built using the chloroplast proteomics database AT_CHLORO (Ferro et al., 2010). This list was curated to only include IEM proteins which had 10 or more TMDs, and a predicted cTP. The following eight proteins possessed both these attributes: AtPLGG1, AtHP59, AtNTT1, AtPHT2;1, AtGLT1, AtNTT2, AtDIT2;2 and AtCLT2. The Glycolate-Glycerate transporter AtPLGG1 and the putative D-Xylose transporter AtHP59 were selected for further in-depth analyses (Runquist et al., 2010; Pick et al., 2013).
Both the cTP and the MPL are Required for Chloroplast-Targeting of AtHP59 and AtPLGG1
Prior to determining whether AtHP59 and AtPLGG1 leader sequences may be used to redirect BicA and SbtA, the domains important for their own IEM localization were investigated (Figure 4; Supplementary Figure S5). When fused to GFP, both AtHP59 and AtPLGG1 localized in the chloroplast envelope, where their expression triggered the formation of stroma-filled envelope protrusions called stromules, consistent in shape with IEM localization (Figures 4B–I) (Breuers et al., 2012). N-terminal to their first TMD, AtHP59 and AtPLGG1 had a long putative stromal domain of 93 and 92 aa, respectively, which could be subdivided into a cTP and a membrane protein leader (MPL), i.e., the sequence between the cTP and the first TMD. More specifically, the N-terminus of AtHP59 contained a cTP of 31 aa and a MPL of 62 aa, and that of AtPLGG1 was made of a cTP of 13 aa and a MPL of 79 aa (Figure 4A). To test the requirement of either domain for chloroplast localization, the cTP and the MPL of both proteins were individually deleted. Deleting the cTPs in AtPLGG1ΔcTP or AtHP59ΔcTP resulted in failure to reach the chloroplast and accumulation of the proteins in the ER (Figures 4J–Q). When deleting the MPLs, in AtPLGG1ΔMPL and AtHP59ΔMPL, the 5 C-terminal aa of each MPL were retained to avoid possible protein instability due to the perturbation of their first TMD (for aa sequence, see Supplementary Figure S5). Just like AtPLGG1ΔcTP and AtHP59ΔcTP, AtPLGG1ΔMPL and AtHP59ΔMPL localized in the ER (Figures 4R–Y). These results indicated that both the cTP and the MPL are essential for chloroplast targeting of AtPLGG1 or AtHP59.
FIGURE 4. AtHP59 and AtPLGG1 require both their cTP and their MPL for chloroplast targeting. (A) Schematic of the AtHP59 and AtPLGG1 chimeras in which the cTP or the MPL was deleted, together with a summary of their subcellular distribution as explained in Figure 1. ER: endoplasmic reticulum; S/THY, stroma or thylakoids; ENV, chloroplast envelope; T, GFP-containing tag. Numbers in brackets indicate the number of aa making-up protein domains. (B–Y) Single-plane confocal microscopy images of N. benthamiana protoplasts expressing a GFP-tagged chimera (B,F,J,N,R,V) together with an ER marker (C,G,K,O,S,W), 2 dpi. Merges of GFP with ER (D,H,L,P,T,X) or chlorophyll signal (E,I,M,Q,U,Y) are also shown. These images show that AtHP59 (B–E) and AtPLGG1 (F–I) were targeted to the chloroplast envelope (arrowheads) where they formed stromules (starred arrowheads). In contrast, AtHP59ΔcTP (J-M), AtPLGG1ΔcTP (N–Q), AtHP59ΔMPL (R–U) and AtPLGG1ΔMPL (V–Y) all localized in the ER (empty arrowheads). Scales bars: 10 μm.
Strikingly, in the cTP+MPL of AtHP59 aa charges are distributed asymmetrically, while this is not the case in the cTP+MPL of AtPLGG1 (Supplementary Figure S5). To test whether the information contained in the N-terminus of both proteins was orientation-sensitive or could be used in a different context, their MPLs were successively inverted or swapped (Figure 5; Supplementary Figure S5). In the process of inversion, the aa sequence of each MPL was reversed, e.g., Asp-Lys-Pro becoming Pro-Lys-Asp, resulting in AtHP59invMPL and AtPLGG1invMPL. Just as in constructs in which the MPLs were deleted, in AtHP59invMPL and AtPLGG1invMPL the 5 C-terminal aa of each MPL were kept in their original orientation to limit sequence perturbation around the first TMD (Figure 5A; Supplementary Figure S5). Notably, AtHP59invMPL did not reach the chloroplast and accumulated in large cytoplasmic vesicles (Figures 5B–E). Contrastingly, AtPLGG1invMPL localized mainly in the chloroplast envelope, where it formed stromules, and only weak signal was detected in the ER (Figures 5F–I). The fact that AtHP59invMPL, unlike AtHP59, AtPLGG1, and AtPLGG1invMPL, was not able to translocate to chloroplasts might be due to altered charge distribution in its N-terminus (see Supplementary Figure S5 and discussion).
FIGURE 5. MPL signals can be orientation-sensitive and need to be combined with the right cTP for efficient chloroplast targeting of AtHP59 and AtPLGG1. (A) Schematic of the AtHP59 and AtPLGG1 chimeras in which the MPL sequence was inverted or swapped, together with a summary of their subcellular distribution as explained in Figure 1. ER, endoplasmic reticulum; S/THY, stroma or thylakoids; ENV, chloroplast envelope; T, GFP-containing tag. Numbers in brackets indicate the number of aa making-up protein domains. (B–Q) Single-plane confocal microscopy images of N. benthamiana protoplasts expressing a GFP-tagged chimera (B,F,J,N) together with an ER marker (C,G,K,O), 2 dpi. Merges of GFP with ER (D,H,L,P) or chlorophyll signal (E,I,M,Q) are also shown. These images show that AtHP59invMPL (B–E) localized in vesicles (empty arrowheads) outside of the chloroplasts, while AtPLGG1invMPL (F–I), AtHP59PLGG1(MPL) (J–M) and AtPLGG1HP59(MPL) (N–Q) localized mainly in the chloroplast envelope (arrowheads), where they formed stromules (starred arrowheads). Scales bars: 10 μm.
MPL interchangeability was then tested by replacing the MPL of AtHP59, with that of AtPLGG1 (resulting in AtHP59PLGG1(MPL)), and vice versa (resulting in AtPLGG1HP59(MPL)) (Figures 5J–Q; Supplementary Figure S5). Again, in these constructs the 5 C-terminal aa of each endogenous MPL were not modified to limit protein instability. Both MPL-swapped chimeras were targeted to the chloroplast, where they formed stromules suggesting IEM localization. Most of AtPLGG1HP59(MPL) was found in the chloroplast envelope, with little signal observed in the ER (Figures 5N–Q). AtHP59PLGG1(MPL) was more efficiently targeted to the chloroplast, with no detectable signal in the ER and only traces of protein detected inside chloroplasts (Figures 5J–M). These results highlighted that these MPLs could be exchanged and yet maintain chloroplast targeting, although native cTP+MPL combinations resulted in more efficient chloroplast translocation. A possible explanation for why AtPLGG1HP59(MPL) was partially found in the ER but AtHP59PLGG1(MPL) was not, might be that the cTP+MPL combination in AtPLGG1HP59(MPL) was considerably shorter, and possibly weaker, than that of AtHP59PLGG1(MPL), with 75 aa and 110 aa, respectively (Supplementary Figure S5). These experiments do, however, indicate that the ∼90–115 aa length of the cTP+MPL is a common feature of successful envelope targeting.
Chloroplast Targeting of BicA and SbtA Using a Combination of cTP+MPL from AtHP59, AtPLGG1 or AtNTT1
Given the results presented above, it was hypothesized that the cTP of AtHP59 or AtPLGG1 would be insufficient to direct BicA or SbtA to chloroplasts, but that the use of a cTP+MPL sequence might be adequate (Figure 6). Indeed, AtHP59cTP-BicA and AtPLGG1cTP-BicA localized in the ER (Figures 6B–I) and AtHP59cTP-SbtA and AtPLGG1cTP-SbtA localized in small foci suspected to be the Golgi apparatus, with traces of signal visible in the ER (Figures 6J–Q). We then tested the ability of the cTP+MPL of either AtHP59 (AtHP5993) or AtPLGG1 (AtPLGG192) to redirect BicA or SbtA to chloroplasts (Figure 7). Traces of AtHP5993-BicA were detected in chloroplasts, while most of the protein accumulated in the ER (Figures 7B–E). In contrast to this, AtPLGG192-BicA, AtHP5993-SbtA and AtPLGG192-SbtA were mainly targeted to chloroplasts (Figures 7F–U). These three chimeras were found both in the envelope, were they formed stromules (examples in Figures 7F–I) or foci (examples in Figures 7J–U), and inside plastids. Envelope-localized GFP foci were observed in a subset of protoplasts expressing either of the chloroplast-targeted BicA or SbtA chimeras (Supplementary Figure S6). The significance of these foci in the envelope is unclear and might be related to protein expression level.
FIGURE 6. The cTPs of AtHP59 and AtPLGG1 are not sufficient to target BicA and SbtA to chloroplasts. (A) Schematic of the chimeras used in this figure, together with a summary of their subcellular distribution as explained in Figure 1. ER, endoplasmic reticulum; S/THY, stroma or thylakoids; ENV, chloroplast envelope; T, GFP-containing tag. Numbers in brackets indicate the number of aa making-up protein domains. (B–Q) Single-plane confocal microscopy images of N. benthamiana protoplasts expressing a GFP-tagged chimera (B,F,J,N) together with an ER marker (C,G,K,O), 2 dpi. Merges of GFP with ER (D,H,L,P) or chlorophyll signal (E,I,M,Q) are also shown. These images show that AtHP59cTP-BicA (B–E) and AtPLGG1cTP-BicA (F–I) localized in the ER (empty arrowheads), while AtHP59cTP-SbtA (J–M) and AtPLGG1cTP-SbtA (N–Q) were mainly found in the Golgi (arrowheads), with traces of signal in the ER. Scales bars: 10 μm.
FIGURE 7. A cTP + MPL can be sufficient to target BicA and SbtA to chloroplasts. (A) Schematic of the chimeras used in this figure, together with a summary of their subcellular distribution as explained in Figure 1. ER/G, endoplasmic reticulum or Golgi apparatus; S/THY, stroma or thylakoids; ENV, chloroplast envelope; T, GFP-containing tag. Numbers in brackets indicate the number of aa making-up protein domains. (B–U) Single-plane confocal microscopy images of N. benthamiana protoplasts expressing a GFP-tagged chimera (B,F,J,N,R) together with an ER marker (C,G,K,O,S), 2 dpi. Merges of GFP with ER (D,H,L,P,T) or chlorophyll signal (E,I,M,Q,U) are also shown. These images show that AtHP5993-BicA (B–E) was mainly found in the ER (empty arrowheads) with traces only detected in chloroplasts (arrowheads), while AtPLGG192-BicA (F–M), AtHP5993-SbtA (N–Q) and AtPLGG192-SbtA (R–U) localized in chloroplasts (arrowheads). AtPLGG192-BicA, AtHP5993-SbtA and AtPLGG192-SbtA were found in the chloroplast envelope as well as inside said organelles. The GFP signal in the envelope was diffused and formed stromules (starred arrowheads in F–I), or concentrated in foci (J–U). The occurrence of both distribution patterns has been quantified in Supplementary Figure S6. Scales bars: 10 μm.
SbtA is an unusual transmembrane protein in that its N- and C-termini are both outside the cell in cyanobacteria (Price et al., 2011b). Here, it is unknown whether envelope-localized AtHP5993-SbtA and AtPLGG192-SbtA had both N- and C-termini in the intermembrane space. To test whether the number of TMDs had an impact on the targeting of SbtA to the chloroplast, the localization of AtHP59145-SbtA and AtPLGG1121-SbtA, which also included the first TMD and the first intermembrane loop of each plant transporter, was assessed (Supplementary Figure S7). Both AtHP59145-SbtA and AtPLGG1121-SbtA were found to localize in a similar fashion to AtHP5993-SbtA and AtPLGG192-SbtA, respectively, suggesting that adding an extra TMD had no effect on chloroplast targeting of SbtA chimeras.
The detection of signal inside chloroplasts may be due to the chimeras diffusing or being translocated into thylakoid membranes, or alternatively to the presence of GFP-tagged protein degradation products in the stroma. Protein degradation was tested by western blot analysis of membrane-enriched fractions prepared from leaves transiently expressing GFP-tagged AtPLGG1, BicA, AtPLGG192-BicA, SbtA, and AtPLGG192-SbtA (Figure 8). This experiment confirmed that these proteins were present in membranes and no significant degradation products were detected, suggesting that the GFP signal of AtPLGG1, AtPLGG192-BicA, and AtPLGG192-SbtA originates from a single full-length (or near full-length) chimera (Figure 8). Finally, to confirm envelope localization, these three chimera were co-expressed with the IEM protein AtTIC20-II fused to the blue fluorescent protein mTURQUOISE-II (Figure 9). As expected, AtPLGG1 co-localized perfectly with AtTIC20-II (Figures 9E–H). The presence of AtPLGG192-BicA and AtPLGG192-SbtA in the envelope as well as inside the chloroplast meant that these chimeras overlapped substantially, but not entirely, with AtTIC20-II, and co-localization was visible in stromules, for example (Figures 9I–P).
FIGURE 8. GFP-tagged AtPLGG192–BicA and AtPLGG192–SbtA chimeras can be isolated from membranes of infiltrated N. benthamiana leaves. Western-blot of membrane-enriched fractions prepared from leaves transiently expressing no GFP-tagged protein, AtPLGG1-GFP, BicA-GFP, AtPLGG192-BicA-GFP, SbtA-GFP or AtPLGG192-SbtA-GFP, 2 dpi. The two PVDF membranes were individually blotted with an antibody against GFP to detect the chimeras and with an antibody against AtTIC40 to confirm the presence of chloroplast envelope in the samples. Samples were loaded on a volume base, and the loading ratios are indicated under the blots. A single band was detected for each sample, confirming membrane-integration of each of the chimeras and indicating the absence of significant degradation products. Predicted size of chimeras: AtPLGG1-GFP (∼84 kDa), BicA-GFP (∼89.6 kDa), AtPLGG192-BicA-GFP (∼99.8 kDa), SbtA-GFP (∼69.5 kDa), and AtPLGG192-SbtA-GFP (∼79.9 kDa).
FIGURE 9. AtPLGG192–BicA and AtPLGG192–SbtA partially co-localize with the IEM protein AtTIC20-II and form stromules in protoplasts. (A–P) Single-plane confocal microscopy images of N. benthamiana protoplasts expressing a GFP-tagged chimera (E,I,M) or none (A), together with the IEM marker AtTIC20-II (B,F,J,N), 2 dpi. Merges of GFP with AtTIC20-II (C,G,K,O) or chlorophyll signal (D,H,L,P) are also shown. These images show that the IEM protein AtPLGG1 (E–H) co-localized entirely with AtTIC20-II including in stromules (starred arrowheads), while the envelope signal of AtPLGG192-BicA (I–L) and AtPLGG192-SbtA (M–P) co-localized with AtTIC20-II, especially in stromules (starred arrowheads). Scales bars: 10 μm.
Finally, to test whether other plant transporters could be used to target large foreign multi-pass proteins to chloroplasts, the ability of the cTP + MPL of AtNTT1 to redirect BicA was tested (Supplementary Figure S8). AtNTT1115-BicA was efficiently targeted to chloroplasts, with only traces of GFP detected in the ER (Supplementary Figures S8B–E). Similarly to AtPLGG192-BicA, AtNTT1115-BicA was found inside chloroplasts and in the envelope, where it formed stromules, indicating that the cTP + MPL of either protein can be used to target BicA to the chloroplast envelope. It is therefore possible that the cTP + MPL from other large multi-pass IEM plant proteins be used to target large membrane proteins from non-chloroplastic organisms to the chloroplast envelope.
Discussion
First Evidence of Chloroplast Envelope Targeting of Multi-Pass Proteins from Non-Chloroplastic Organisms
To carry out a similar function in higher plants, the cyanobacterial bicarbonate transporters BicA and SbtA need to be localized in the chloroplast IEM. Prior to our study, how to target foreign nuclear-encoded membrane proteins to the chloroplast envelope was unknown. First, TPs previously known to target soluble cargos to the stroma were tested for their ability to send large membrane proteins such as BicA and SbtA to the envelope. We found that TPs from either RBCS or AtNTT1 failed to direct BicA or SbtA to the chloroplast (Figures 2 and 3; Supplementary Figure S3). We then turned to plant IEM multi-pass proteins in the hope of identifying common features that would enable correct targeting of cyanobacterial transporters. Interestingly, large transporters located in the IEM possess a long N-terminal peptide (∼90–115 aa) in front of their first TMD, which we suspected may contain information sufficient to direct foreign membrane proteins to chloroplasts (see Discussion below).
We focused on two of these proteins (AtHP59 and AtPLGG1) and found that both their cTP and MPL were essential for their chloroplast targeting (Figure 4). In the N-terminus of AtHP59, the charges are distributed asymmetrically, while this is not the case in the N-terminus of AtPLGG1 (see Supplementary Figure S5 and discussion below). When the MPL sequence of AtHP59 was inverted, it led to both a change in charge distribution, as well as a disruption of chloroplast-targeting (Figures 5B–E; Supplementary Figure S5). In the case of AtPLGG1, inverting the MPL orientation largely maintained both charge distribution and chloroplast envelope targeting (Figures 5F–I; Supplementary Figure S5). Interestingly, swapping the MPL of AtHP59 and AtPLGG1, although affecting both N-terminus length and targeting efficiency, did not prevent chloroplast targeting, indicating that MPLs might be used in a different sequence context (see Figures 5J–Q; Supplementary Figure S5 and discussion below). N-terminal fragments from several large membrane IEM proteins were tested for their ability to target BicA (14 TMDs) and SbtA (10 TMDs) to chloroplasts. As expected, a cTP alone was not sufficient (Figures 3F–I and 6). In contrast, the cTP + MPL of either AtPLGG1 or AtNTT1 was able to direct the large BicA protein to chloroplast envelopes, while the N-terminus of either AtPLGG1 or AtHP59 was capable of sending SbtA to chloroplast envelopes (Figure 7; Supplementary Figure S8). These results constitute the first instance of chloroplast envelope targeting of large non-chloroplast transmembrane proteins and provide a significant advance in chloroplast engineering via nuclear transformation.
Reviewing recent progress in expressing algal chloroplast proteins in plants, in light of our results, allows to discuss and finally revise the properties of the N-terminus of large plant IEM membrane proteins as well as the possible role of TMDs in chloroplast sub-compartment targeting.
Expression of Chlamydomonas reinhardtii CCM Proteins in Plant Chloroplasts
In a recent study, several proteins involved in the CCM of Chlamydomonas reinhardtii were introduced into higher plants (Atkinson et al., 2015). Unlike cyanobacteria, C. reinhardtii cells harbor a chloroplast and all of its known CCM genes are encoded in the nucleus. Consequently, algal CCM proteins located inside the chloroplast or in its envelope contain chloroplast targeting signals which may enable such proteins to localize to equivalent sub-compartments in plants. In fact, Atkinson et al. (2015) showed that algal proteins located in the chloroplast envelope or around the pyrenoid in C. reinhardtii are targeted to chloroplasts in Tobacco. Among those is the bicarbonate transporter CrNar1.2 (CrLCIA). However, two of the algal multi-pass transporters (CrLCI1 and CrHLA3) are located in the plasma membrane both in C. reinhardtii and Tobacco (Atkinson et al., 2015).
In an attempt to redirect these proteins to the chloroplast in plants, the first 60 aa of the chloroplast protein AtABCI13, which does not contain TMDs, were fused to CrLCI1 or CrHLA3. This N-terminal fragment of AtABCI13 contains the predicted cTP (46 aa) plus the beginning of the mature protein (14 aa). While this fragment was able to direct the small protein CrLCI1 inside the chloroplast, it failed to do so with the very large protein CrHLA3 (1325 aa), this chimera remaining in the plasma membrane in Tobacco (Atkinson et al., 2015). This discrepancy suggests that the TP of AtABCI13 is rather weak and that CrHLA3 is harder to redirect than CrLCI1, possibly because of its size.
In our study, we found that AtPLGG1 could target both BicA and SbtA to the chloroplast envelope, while AtHP59 was only able to send the smaller SbtA protein to the envelope (Figure 7). Notably, and unlike SbtA, BicA has a large sulfate transporter anti-sigma antagonist (STAS) domain at its C-terminus, which could render its correct targeting in planta harder than that of SbtA (Price and Howitt, 2011). Strikingly, in the study by Atkinson et al. (2015), although CrLCI1 could be redirected to chloroplasts, it was located inside said organelles, rather than in their envelope. The authors suggested that the chimera localized in the stroma, in which case it is likely to be misfolded and non-functional given that it is a transmembrane protein. Another possibility is that the protein resides in the thylakoid membranes. In any case, this observation suggests one of the two following: the chimera either lacks IEM-retention signals or contains other motifs directing it to another chloroplast sub-compartment (see discussion below).
Properties of the N-terminus of large IEM Transmembrane Proteins
The three cTP + MPL tested in this study, namely that of AtHP59, AtPLGG1 and AtNTT1, all have a similar length (93, 92, and 115 aa, respectively). The presence of a long N-terminal fragment is a feature shared with the other 5 IEM-located membrane proteins mentioned in the results section as possessing 10 or more TMDs and a cTP. To this list was added the Na+/H+ antiporter AtNHD1. Although there is a lack of proteomics data to confirm its presence in the IEM, it harbors a cTP, has more than 10 TMDs and a recent study used microscopy to demonstrate that it resides in the chloroplast envelope (Müller et al., 2014). Finally, CrNar1.2, the chloroplast Chlamydomonas bicarbonate transporter which localizes in the chloroplast envelope when expressed in higher plants, was also added to the present list as it harbors an N-terminal fragment of similar length.
In order to investigate the eventual presence of a conserved motif in the N-terminus of these nine proteins, their cTP + MPL fragments were aligned (Figure 10, AtPHT2;1 was left out of this alignment as its N-terminus is unusually rich in histidines). Although they share a similar length, the cTP + MPL sequence of these nine proteins was poorly conserved (Figure 10A). This is in line with previous knowledge that cTPs vary in length and that their aa sequence is poorly conserved (Li and Chiu, 2010). Detailed studies of the TP from RBCS and chlorophyll a/b- binding protein (CAB) also revealed that different fragments of the TP are involved in various steps of chloroplast import; consequently, successful import of soluble proteins relies on the length and general aa context of the TP sequence, rather than on the presence of a single motif (Lee et al., 2002, 2006, 2015). Albeit poorly conserved, the cTP+MPL of the 8 plant proteins appeared asymmetrically charged; their N-terminus being dominated by positive charges, while their C-terminus harbored more negative charges (Figure 10B). Although the functionality of this charge asymmetry is unclear, we have observed that its disruption in AtHP59 resulted in a loss of chloroplast targeting (Figure 5; Supplementary Figure S5). This raises the interesting possibility that charge distribution might be involved in the targeting process of large IEM transmembrane proteins in plants. Notably, the cTP + MPL of CrNAR1.2 was not charged, suggesting that in Chlamydomonas the mechanism regulating import of equivalent proteins might operate differently, but still enables correct targeting in higher plants (Figure 10B). Future work will be necessary to determine the relative importance of charge distribution in the chloroplast import process of IEM proteins.
FIGURE 10. Alignment of the cTP + MPL regions of known A. thaliana IEM transporters and CrNAR1.2. (A) Alignment showing poor conservation of the cTP (pale blue) and MPL regions. (B) same alignment showing the distribution of positive (red) and negative (blue) charges. All A. thaliana proteins display an asymmetric charge distribution which is not present in CrNAR1.2. The end of each MPL was determined by the position of the first TMD, according to the prediction program SCAMPI-msa (see material and methods). Protein references are as follows: AtPLGG1 (AT1G32080), AtHP59 (AT5G59250), AtNTT1 (AT1G80300), AtGLT1 (AT5G16150), AtNTT2 (AT1G15500), AtDIT2;2 (AT5G64280), AtCLT2 (AT4G24460), AtNHD1 (AT3G19490) and CrNAR1.2 (AAT39454).
Envelope or Thylakoid Targeting: Putative Role of TMDs in BicA and SbtA
In our study, when redirected to the chloroplast, BicA and SbtA localized in the chloroplast envelope as well as inside chloroplasts, which we speculate to result from the presence of part of the protein pool in thylakoid membranes. This might be due to information contained within BicA and SbtA and an interesting possibility is that TMDs are involved in this sub-compartment targeting. In an elegant study, Froehlich and Keegstra swapped the TMD of the single-pass IEM protein “accumulation and replication of chloroplasts 6” (ARC6) with that of the single-pass thylakoid membrane proteins “state transition protein kinase 8” (STN8) or “plastidic type I signal peptidase 1” (PLSP1) (Froehlich and Keegstra, 2011). Interestingly, this was sufficient to send the IEM protein to the thylakoid membrane and vice versa, indicating that once the proteins are in the chloroplast, the TMDs are sufficient to determine in which membrane the proteins localize (Froehlich and Keegstra, 2011). The situation is more complicated in the case of chloroplast-targeted BicA and SbtA for mainly two reasons: (1) they have 14 and 10 TMDs, respectively, and (2) their sequence evolved to be localized in the plasma membrane in cyanobacteria. In plant chloroplasts, the IEM is connected to thylakoid membranes in many points such that these two membrane compartments are in fact a continuum (Rosado-alberio et al., 1968). It is therefore tempting to speculate that the N-terminal 92 aa of a plant transporter such as AtPLGG1 are sufficient for BicA and SbtA to reach the envelope, and that once in the inner chloroplast membrane continuum, the sequence of the cyanobacterial transporter determines whether it localizes in the IEM or the thylakoid membrane.
The cTP is a Fixed Sequence While the TP Depends on its Cargo
The length of the cTP is determined by the SPP cleavage site (Richter et al., 2005). In this sense, it is considered a fixed sequence. Contrastingly, we observed that (1) membrane proteins require different targeting signals than soluble proteins and that (2) the cTP + MPL sequence of AtPLGG1 worked for both BicA and SbtA while that of AtHP59 only worked for SbtA. Our results suggest that the sequence sufficient to target a protein to the chloroplast (TP) depends on its cargo. In light of our results, TPs should be regarded as variable sequences, where length and structure need to be adapted to their cargos, and the chloroplast targeting efficiency of foreign nuclear-encoded proteins needs to be individually evaluated.
Author Contributions
VR, MB, and GP designed the research; VR performed the research; VR, MB, and GP analyzed the data; VR drafted the manuscript, VR, MB, and GP contributed to the final manuscript.
Funding
This work was funded via the University of Illinois as part of the Bill and Melinda Gates Foundation-funded Realizing Increased Photosynthetic Efficiency (RIPE) consortium.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
We thank Spencer Whitney for providing us with the P19 sequence, Andrea Braeutigam, Tihana Bionda, Bodo Tillmann, and Britta Förster for useful technical discussions, Michael Groszmann and Benedict Long for useful comments on the manuscript, and the Center of Advanced Microscopy (CAM) of the Australian National University for access to their confocal laser-scanning microscope.
Supplementary Material
The Supplementary Material for this article can be found online at: http://journal.frontiersin.org/article/10.3389/fpls.2016.00185
Abbreviations
CCM, CO2-concentrating mechanism; IEM, inner envelope membrane; MPL, membrane protein leader; OEM, outer envelope membrane; TIC, translocon at the inner envelope membrane of chloroplasts; TMD, transmembrane domain; TOC, translocon at the outer envelope membrane of chloroplasts; TP, transit peptide.
