Abstract
Expressing double-stranded RNA (dsRNA) in transgenic plants to silence essential genes within herbivorous pests is referred to as trans-kingdom RNA interference (TK-RNAi) and has emerged as a promising strategy for crop protection. However, the dicing of dsRNA into siRNAs by the plant’s intrinsic RNAi machinery may reduce this pesticidal activity. Therefore, genetic constructs, encoding ∼200 nt duplex-stemmed-hairpin (hp) RNAs, targeting the acetylcholinesterase gene of the cotton bollworm, Helicoverpa armigera, were integrated into either the nuclear or the chloroplast genome of Nicotiana benthamiana. Undiced, full-length hpRNAs accumulated in transplastomic lines of N. benthamiana and conferred strong protection against H. armigera herbivory while the hpRNAs of nuclear-transformed plants were processed into siRNAs and gave more modest anti-feeding activity. This suggests that there is little or no RNAi machinery or activity in the chloroplast, that hpRNAs produced within this organelle do not enter the cytoplasm, and that oral delivery of chloroplast-packaged intact hpRNA is a more effective means of delivering TK-RNAi than using nuclear encoded hpRNAs. This contrasts with a recently reported correlation between siRNA expression and effectiveness of TK-RNAi targeting the chitinase gene of H. armigera, but is consistent with reports of efficient TK-RNAi by dsRNA generated in chloroplasts by converging promoters flanking a pest gene sequence and from very small (21 nt-stem) hpRNAs resembling artificial miRNAs. Here we demonstrate that hpRNAs, constructed along the conventional design principles of plant RNAi constructs but integrated into the chloroplast genome, are stable and effective over multiple generations, and hold the promise of providing durable pest resistance in crops.
Introduction
The RNA interference (RNAi) pathway occurs in plants and animals and has been exploited to specifically down-regulate gene expression in a wide range of research and applications (; ; ; ). It also facilitates trans-kingdom RNAi (TK-RNAi), commonly referred to as environmental or host-delivered RNAi (eRNAi; HD-RNAi), whereby hpRNA, dsRNA, or small RNA synthesized in one organism silences the target gene in another. TK-RNAi was first observed when feeding Caenorhabditis elegans on Escherichia coli, expressing unc21-sequence dsRNA, induced a twitching phenotype (). The principle of TK-RNAi has been replicated many times since in the search for sustainable pest resistance in plants ().
Most TK-RNAi for agricultural pests has relied on nuclear expression of long hairpin (hp) RNA, with its transport into the plant’s cytoplasm, and endogenous RNAi machinery processing it into ∼21 nt siRNA, before ingestion by the target pest. This approach has given strong growth inhibition and lethal phenotypes in the Coleoptera, e.g., western corn rootworm, Diabrotica virgifera (; ), and Colorado potato beetle (CPB), Leptinotarsa decemlineata (). However, TK-RNAi against Lepidoptera such as Helicoverpa armigera has given mixed results (; ; ; ). One suggestion has been that this variation in efficacy is due to different levels of unprocessed dsRNA or hpRNA being available for ingestion by the pest and that this depends on the transcription rate of the hpRNA in relation to the processing rate of the cell’s RNAi machinery (). Indeed, producing unprocessed hpRNAs in dicer-mutant plants has given stronger trans-kingdom RNAi than in wild type plants (). The use of RNAi-deficiency in plants may increase the effectiveness trans-kingdom RNAi pest protection, but it is an unlikely scenario for field applications because such plants would be hyper-susceptible to viral pathogens and developmentally defective due to compromised micro- and tasi-RNA activity. Therefore, we sought to test whether expressing hpRNAs in the plant’s chloroplasts would provide insect protection; this cellular compartment may have little or no RNAi-like activity and therefore not have the collateral damage of the defective RNAi approach.
Two similar methodologies have recently been reported, but one used dsRNA expressed from two convergent promoters () and the other study used very short (∼21 nt-stem) hpRNAs which appear to undergo processing (). Our original hpRNAi construct designs (; ), have become the standard for plant gene silencing, use hpRNAs with “arms” of 120–1000 nt flanking an intron “loop.” Therefore, we sought to test whether transforming the chloroplasts of Nicotiana benthamiana plants with similarly designed (∼200 nt stem) hpRNA constructs, targeting the acetylcholinesterase (ACE) gene of H. armigera, would be stable and confer insect protection. We compared the processing and efficacy of these hpRNAs produced in the nucleus or the chloroplasts and, in order to make this comparison, we also examined whether the developmental age of the transgenic plants could mask or enhance the effects of TK-RNAi.
Materials and Methods
Insect Feeding Bioassay
Helicoverpa armigera larvae were raised from a culture maintained by ABA Biologicals, Glenvale, QLD, Australia. The eggs were placed on artificial diet and allowed to hatch in a growth cabinet set at 26°C and 60% humidity. Assays were performed with newly hatched larvae (<10 h old). Each larva was transferred using a moistened soft paintbrush to the appropriate petri dishes containing a seedling (1 and 2 weeks old plants) or a single leaf (3, 5, and 7 weeks old plants) cut from plants grown at 23°C under a 16-h photo-period and an 8-h dark period in an environmentally controlled glasshouse. For each assay, 5 or 10 larvae were placed in the petri dishes and the experiment was monitored by assessing leaf damage and larva growth weight after 4 days.
The plants used in this study were corn Zea mays, cotton Gossypium hirsutum, and six isolates of N. benthamiana: the laboratory isolate a wax-less, trichome less variety and five wild-type isolates with thicker leaf shape and dense trichomes organization ()
Generation and Molecular Characterization of Transplastomic Plants
The 189 nt stem sequences of the ACE gene of H. armigera (Ace; NCBI accession AF369793) was amplified by PCR using H. armigera cDNA, and the primers pACE189f/pACE189r. The primers used in this study are listed in Supplementary Table S2.
The hpRNA expression sequences were made with the amplified ACE sequences, self-complementary 189 nt. sense (SE)/antisense (AS) stem configuration with the stems separated by an intron-based spacer of ∼1599 nt., using the ‘Golden Gate’ (GG) assembly method (). The resulting product was inserted behind the CaMV 35 s promoter in a binary vector () to create the nuclear dsRNA expression control vector, hpACE-n and behind the Prrn in the chloroplast transformation vector pPRV312L (NCBI accession DQ489715.1) (). Plastid transformation and plant selection were carried out essentially as described by . Briefly, sterile N. benthamiana plants were grown in solid MS media supplemented with 30 g/L sucrose. The transformation was carried out by bombarding 4–5-week-old leaves (length, 4–6 cm) with gold particles coated with the appropriate vector, using a particle influx generator gun. Following incubation at 24°C in MS medium supplemented with hormones, 6-benzylaminopurine (2 mg/L) and 1-naphthalene acetic acid (0.05 mg/L) for 2 days, bombarded leaves were cut into small pieces (∼1 cm2) and subjected to selection on media containing 500 mg/L of spectinomycin. Resistant shoots obtained after about 6 weeks were transferred to rooting media and subsequently transplanted into soil in the glasshouse.
DNA Purification and RNA Purification
Larvae and plant tissues were ground to a fine powder under liquid nitrogen. Total DNA was extracted from the young leaves of soil-grown plants using the CTAB method (). Total RNA was extracted from 0.2 mg of sample using TRIzol® reagent (Thermo Fisher Scientific Inc., Waltham, MA, USA), and purified using the RNeasy Plant Mini Kit (QIAGEN) following the protocols supplied by the manufacturers. Total DNA and total RNA quality was assessed with a Nanodrop 2000 UV-VIS Spectrophotometer (Thermo Fisher Scientific, Inc., Waltham, MA, USA).
RT-PCR/qPCR
Acetylcholinesterase transcript levels in the different samples were analyzed by quantitative real-time real-time reverse-transcription PCR (RT-PCR) with a PTC-200 Thermal Cycler (MJ Research/Bio-Rad). In brief, synthesis of cDNA for RT-PCR was performed using SuperScript® III Reverse Transcriptase (Life Technologies) following the manufacturer’s instructions. RT-PCR was performed using Brilliant III SYBR® MM according to the Agilent Technologies protocol.
Southern Blot Analyses
Five micrograms of total DNA was digested with SmaI, separated on a 8% agarose gel and transferred to a Hybond N+ (Amersham) membrane and cross-linked to it by UV treatment. The probe used for Southern blot analyses was amplified using the primer pair 5′- ATGGACGGTAGTTGGAGTCG -3′ and 5′- TCCTTGGGGTGATCTCGTAG -3′ and the resulting PCR fragment purified and radiolabeled with 32P by random priming using the MEGAPRIME Kit (Qiagen). The membrane was hybridized overnight at 65°C with the labeled riboprobe and exposed to FujiFilm X-100 for 1 h.
Northern Hybridization
Small RNAs Detection
A 17 % PAGE gel was loaded with approximately 20 ug of total RNA per lane and run at 200V for 4 h. After staining with ethidium bromide to confirm the relative loadings and appropriate size separation, the RNA was electro-transferred at 45 V for 1 h onto Hybond N+ (Amersham) membrane and cross-linked to it by UV treatment. The membrane was incubated at 42°C with a 32P-labeled probe transcribed from the hp arm sequence and exposed to FujiFilm X-100 for 16 h.
High MW RNAs Detection
Approximately 20 ug of total RNA was separated on a 1.4 % agarose formaldehyde gel. After staining with ethidium bromide to confirm the relative loadings and appropriate size separation, the RNA was transferred onto Hybond N+ membrane (Amersham) by capillary transfer blotting with 1X MOPS and cross-linked to it by UV treatment. The membrane was hybridized overnight at 68°C with a 32P -labeled riboprobe transcribed from the hp arm sequence and exposed to FujiFilm X-100 for 1 h.
Acetylcholinesterase Enzymatic Assay
After 4 days of feeding experiment, H. armigera larvae were homogenized in 100 μl of ice-cold extraction buffer (100 mM Tris–HCl pH 8.0, 200 mM NaCl, and one tablet per 10 mL or protease inhibitor – Roche) then 15 min centrifugation at 13,000 rpm at 4°C. The supernatant was recovered, measured by Bradford assay (), and adjusted to 0.5 mg protein/ml by the addition of extraction buffer. The protease activity in the extracts was then determined using an ACE Assay kit (Abcam – ab138871).
Results
Helicoverpa armigera Feeding Bioassay
The age, tissue, and plant species used in trans-kingdom RNAi bioassays has varied greatly. Moreover, preliminary experiments on our favored model plant, N. benthamiana, suggested that leaves from 6-week-old plants were unpalatable or toxic to H. armigera. To define better bioassay conditions, we evaluated H. armigera survival and weight-gain on leaves from plants of different ages. Six different accessions of N. benthamiana (one LAB strain and five wild strains; ), as well as cotton and maize, were tested. Samples of leaf tissue from plants 3, 5, and 7 weeks post germination, and whole 1 and 2 week-old seedlings were placed into Petri dishes with 30 H. armigera neonates. After 4 days on the tissues from 1, 2, 3, or 5 week-old (wo) N. benthamiana plants, about 90% of the larvae still survived (Figure 1A). However, the consumption of leaves from 7 wo plants was minimal, the larval growth-rate was impaired, and their survival rate dropped to about 50% (Figures 1A–C). Larvae feeding on two wo N. benthamiana LAB seedlings had the most obvious weight-gain, and this trend was also observed for almost all of the N. benthamiana ecotypes and the other species. Therefore, transgenic and transplastomic plants were made using the LAB strain, almost all bioassays were done with 2 wo seedlings, and none utilized leaves from plants over 5 wo.
FIGURE 1
Design of hpRNA against Acetylcholinesterase in Chloroplasts
Acetylcholinesterase is an essential enzyme for the central nervous system of Helicoverpa armigera and the target of many organophosphorus and carbamate insecticides (). Therefore, we selected the ACE gene family for trans-kingdom RNAi. Some domains of the ACE enzyme are conserved from insects to mammals, at the amino acid level, but regions of their mRNA sequences are highly variable (Figure 2; Supplementary Figure S1). The nucleotide sequences of ACE genes for H. armigera, H. zea, and H. sapiens were aligned and a sequence (189 nt) of H. armigera ACE2 (AF369793) with high similarity to ACE1 (AY142325) of H. armigera and H. zea, and high divergence from the human sequence (Figure 2B; Supplementary Figure S1) was selected for further analysis. Bioinformatic examination of this sequence using the RNAi target tester1 breaking the sequence down into every possible 21 nt oligomer and comparing them with the nucleotide sequences of ACE from species ranging from H. armigera, to humans, revealed that none of these potential siRNAs would have less than six mismatches with human genes, but more than 95% of them would recognize the Helicoverpa ACE1 and ACE2 genes with 0 or 1 mismatches (Figures 2A,B; Supplementary Figure S1). A similar analysis of synthesized dsRNA fed to the corn rootworm (), targeting the snf7 gene, indicated that sequences with more than three mismatches per 21mer are unlikely to be effective (Supplementary Figure S2). From this benchmark, the selected 189 ACE dsRNA should have little or no silencing effect on either non-lepidopterans or lepidopterans other than Helicoverpa spp. (Figure 2C). Therefore, the 189 nt ACE2 sequence was used in the construction of hpRNA vectors for chloroplast and nuclear transformation of N. benthamiana (Figures 3A,B). The chloroplast hpRNA expression vector (hpACE-c) was based on pPRV312L (DQ489715.1) () with the arm sequences of the hpRNAs placed either side of a pdk intron and flanked by the prrn promoter- 5′-untranslated region and the rbcL 3′-UTR sequence. The nuclear hpRNA expression vector (hpACE-n) was based on pORE () and contained a 35S promoter and NOS terminator (Figure 3C).

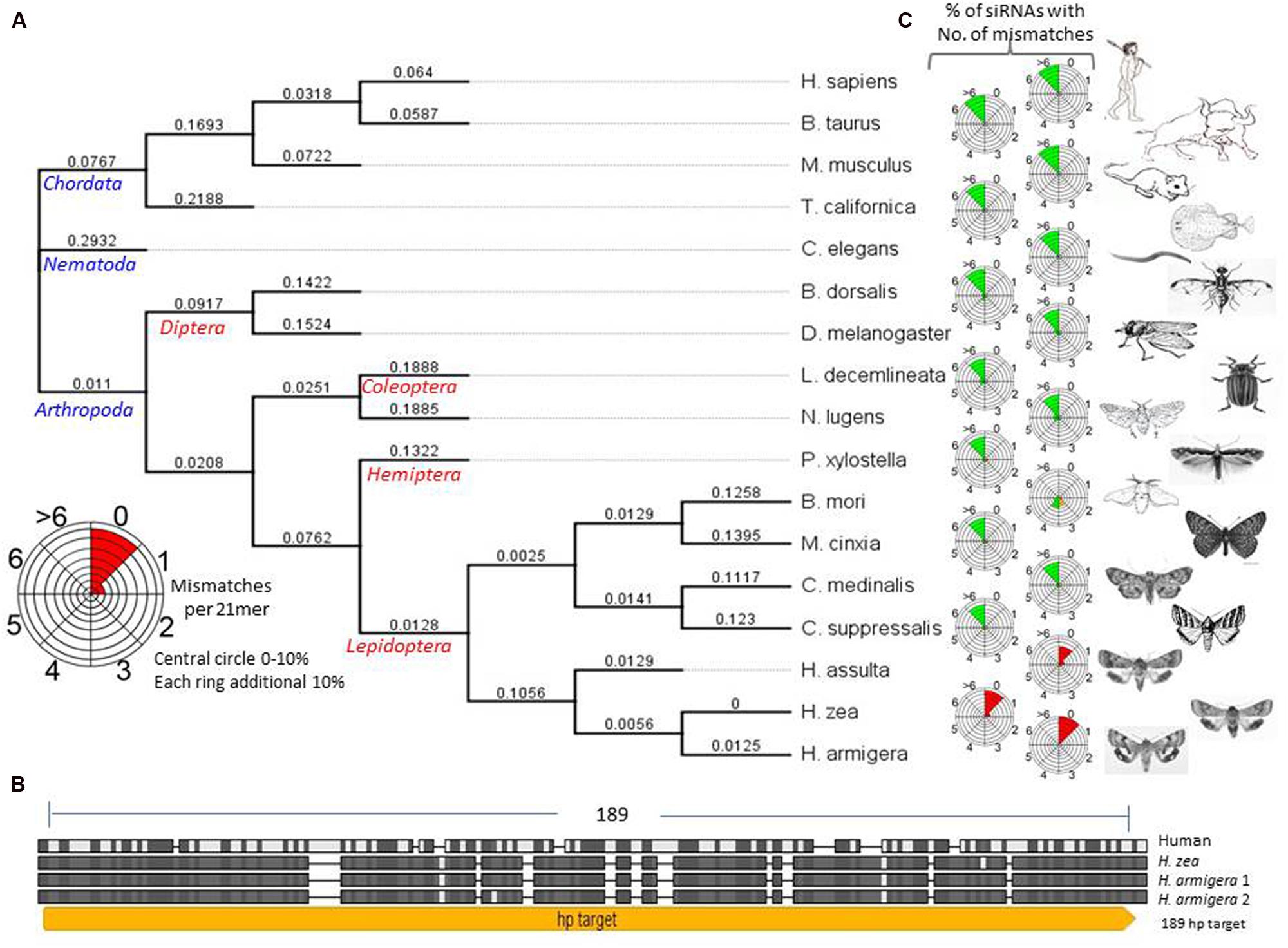

FIGURE 2
FIGURE 3
Generation and Characterization of Chloroplast and Nuclear Transformants
Many plantlets (T0) were regenerated from leaves bombarded with p-hpACE-c and from leaf pieces inoculated with Agrobacterium harboring the hpACE-n. They were analyzed by polymerase chain reaction (PCR), for integration of the hpRNA cassette (Figure 3D). Further PCR analysis (Figure 3E) with a three primer cocktail revealed that many of the lines harbored both transformed (619 nt band from 1f+1r) and untransformed chloroplasts (226 nt band from primers 1f+3r) but with continued selection, and passage through two seed generations, homoplastic transformed plants were obtained as confirmed by Southern analysis (Figure 3F; Supplementary Figure S3). The faint background bands are non-specific, as is often seen in chloroplast blots (; ). Two independent T2 transgenic lines were selected for each construct. T2 nuclear transformants were identified as producing siRNAs by Northern blot (Figure 3H).
To test whether the pdk intron of the hpRNA is excised in the chloroplast, RNA was extracted from hpACEc, hpACEn and untransformed plants. The samples were analyzed by reverse-transcription PCR using primers 3f+2r. The hpACE-c lines gave amplicons encompassing part of the intron and the rear stem sequence (Figure 3G), suggesting that they are producing hpRNA transcripts that are neither diced nor spliced. This was further substantiated by Northern blot (Figure 3H). The full length of intron-containing hpRNAc transcript with its rbcL 3′-UTR should be 2013 nt and membranes bearing samples from hpACEc plants probed with radio-labeled sequences, spanning the 189 nt hpRNA-arm sequence, produced such a band (Figure 3H). A larger molecular weight band was also detected and this may be the result of transcriptional read-through, which is commonly seen in chloroplasts. In conjunction with the lack of detectable siRNAs in extracts from these plants (Figure 3H), the abundant presence of the full-length hpRNA indicates that chloroplast-expressed hpRNA is not processed by RNAi machinery.
Altogether, this suggests that the hpRNA produced in transplastomic chloroplasts is not subjected to RNAi-like activity in the chloroplast nor is it being transported to extra-chloroplastic places where RNAi-mediated processing could occur.
Bioassay for Anti-Feeding Activity of hpACE and the Effect on ACE Activity in Larvae
Neonate H. armigera larvae were allowed to feed on WT, hpACE-n or hpACE-c two wo seedlings for 4 days and then individually weighed (Figure 4). Larvae exposed to the hpACEc lines had very significantly (p < 0.05) reduced weight-gain over to those fed on hpACEn seedlings which, in turn, had significantly (p < 0.5) reduced weight-gain over those fed on wild type plants (Figures 4A,B; Supplementary Table S1). To test whether the anti-feeding effect of hpACE-c plants could be directly attributable to the ingested hpRNA directing down-regulation of the target ACE genes in H. armigera, the messenger RNA levels of the gene and the overall activity of the enzyme were measured (Figures 4C,D). In larvae fed on hpACEn seedlings, the levels of ACE mRNA and ACE activity were lower, but not significantly (p > 0.5), than those of larvae fed on WT seedlings. In contrast, the ACE mRNA levels in larvae fed on hpACE-c seedlings were reduced by ∼fivefold and the ACE enzyme activity by 30–40% (Figure 4C). When the bioassay was repeated with leaves of 3 wo plants, the anti-feeding activity was clearly apparent (Figure 4E).

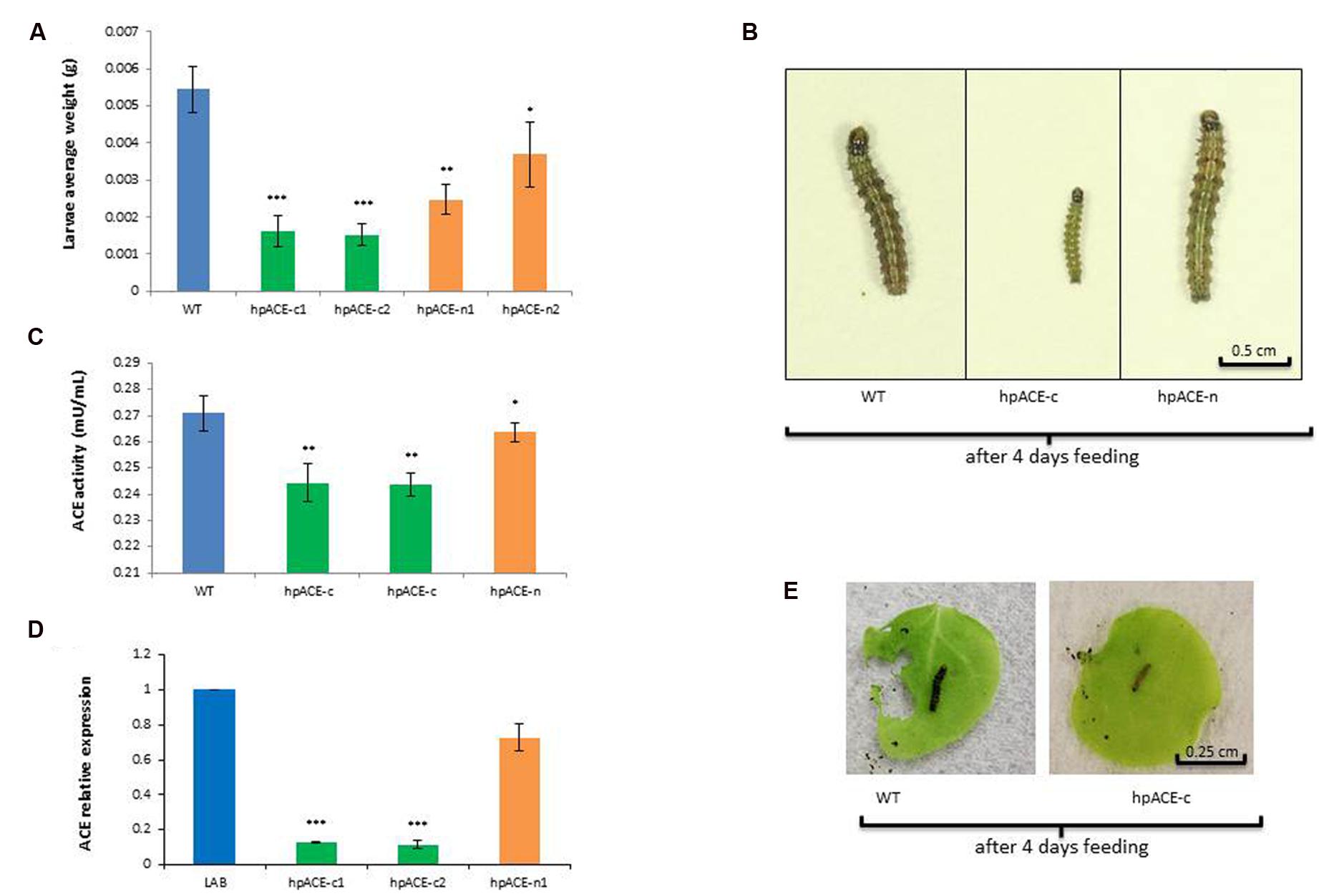

FIGURE 4
Discussion
Several biotechnological and chemical approaches are used to control crop infestations by the H. armigera larva but further effective strategies are needed to keep pace with ever-developing resistance (). TK-RNAi is emerging as a promising way to defend crops against herbivorous pests but, the results have been variable (; ; ). One source of this variation includes the assay conditions and, while the effect of larval age and developmental stage has been well studied and optimized (; ), less has been done to establish the best age and tissue of the plant for feeding bioassays. Therefore, before comparing plastid and nuclear delivered TK-RNAi, we examined the effect of the age and species of the plant material on H. armigera feeding. This showed that the larva’s feeding, development and weight-gain was optimal when fed on 2 week-old seedlings and greatly impaired by feeding on leaves from 7 wo plants of most isolates of N. benthamiana or maize. The LAB isolate of N. benthamiana is a widely used model plant for biotechnology applications such as metabolic engineering, vaccine production, plant–microbe interaction analyses and gene silencing (). It has a short life cycle and both its chloroplast and nuclear genomes are easily transformable and well annotated2,3 therefore we used 1–5 wo N. benthamiana LAB seedling/leaf tissues when comparing TK-RNAi approaches.
Although there have been reports of a general correlation between higher levels of plant-produced siRNA and more effective TK-RNAi, it has been proposed that the higher levels of unprocessed long dsRNA give this effectiveness (). Chloroplasts are ideal hosts for high-level expression of transgenes (; ). Furthermore, none of the known components of RNAi machinery are encoded by the chloroplast genome or transported to this compartment. Consequently, dsRNAs purposely expressed there might accumulate to high levels and remain unprocessed. Indeed, when we transformed a hpRNA construct into the nuclear genome of N. benthamiana, the hpRNA was processed into siRNAs (as expected) whereas similar constructs in transplastomic plants gave high levels of unprocessed transcript and no detectable siRNAs.
Both the nuclear and chloroplast constructs were based on our widely adopted original hpRNA designs for silencing plant genes (; ; ). They both included the pdk intron as a spacer between the hpRNA “arms,” even though it is unlikely to be spliced in the chloroplast, and targeted a ∼200 nt sequence in the H. armigera ACE gene. Two similar approaches for chloroplast-expressed TK-RNAi against insect larvae have recently been described, but they employed more unusual hp/dsRNA designs. , examined using convergent promoters to produce dsRNA and obtained good protection of transplastomic potato plants from the CPB using this strategy (). They also made some hpRNA constructs but did not test them for insecticidal activity. Jin et al (2015) used a design that produces 21 nt stem – 9 bp loop hairpins reminiscent of the shRNA constructs used in animal RNAi (); they targeted the P450, Vac ATPase A and chitin synthase B genes of H. armigera and in transplastomic cotton significantly affected the larvae’s development and pupation. Our hpRNA constructs appear to be stable in chloroplasts for at least three seed generations, and give strong protection against the targeted herbivorous pest. However, the maximum size of hpRNA cassette tolerated by a chloroplast genome remains to be determined. The protection was visible from the reduced size and viability of the feeding H. armigera larvae and the reduced damage they caused to the leaves. It is acting through inhibition of the target gene’s function, as both the mRNA level and enzyme activity of the ACE were greatly reduced in the larvae feeding on hpACE-c material compared to those fed on wt leaves or seedlings. It may also have an additional effect of increasing the larvae’s susceptibility to organophosphorous and carbamate insecticides, but this remains to be tested.
One of our nuclear-transformed hpACEn lines gave a statistically significant reduction in the growth rate of H. armigera. This is consistent with the findings of who observed an anti-Heliothis effect with a similar design against its chitinase gene, but it was much less effective than its transplastomic counterpart. Whether this increased potency is due to compartmental prevention of plant dicers and argonautes processing the hpRNAs and sequestering siRNAs or whether the membranes of the chloroplast act as a protective barrier against the nucleases in the pest’s gut, allowing more intact hpRNA to reach the insect’s cells, will be interesting to investigate. It is also unclear which, if any, of the three approaches (very small hpRNAs, dsRNA produced by convergent promoters, or conventional hpRNAs) is more efficacious. What does appear to be clear is that the delivery of hpRNA or dsRNA to herbivorous pests via the chloroplast enhances the potency of lepidopteran TK-RNAi and promises to be a very useful method for plant protection.
Statements
Author contributions
JB, GM, KN, and PW conceived and designed the study. JB, GM, RD, KL, and AP performed the experiments. JB, GM, IL, KN, HJ, FN, RD, and PW contributed to the data analysis. JB and PW wrote the manuscript.
Acknowledgments
Sincere thanks to Ry Wagner, Mylavarapu Venkatramesh, Tom Meade, Helen Jones, Denise Hodge, Elane Fishilevich, Lyudmila Sidorenko for their encouragement and advice. A patent application (WO 2015/135039 A9; priority date March 2014) on this work has been lodged.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary material
The Supplementary Material for this article can be found online at: http://journal.frontiersin.org/article/10.3389/fpls.2016.01453
References
1
BachmanP. M.BolognesiR.MoarW. J.MuellerG. M.ParadiseM. S.RamaseshadriP.et al (2013). Characterization of the spectrum of insecticidal activity of a double-stranded RNA with targeted activity against Western Corn Rootworm (Diabrotica virgifera virgifera LeConte).Transgenic Res.221207–1222. 10.1007/s11248-013-9744-1
2
BallyJ.NadaiM.VitelM.RollandA.DumainR.DubaldM. (2009). Plant physiological adaptations to the massive foreign protein synthesis occurring in recombinant chloroplasts.Plant Physiol.1501474–1481. 10.1104/pp.109.139816
3
BallyJ.NakasugiK.JiaF. Z.JungH. T.HoS. Y. W.WongM.et al (2015). The extremophile Nicotiana benthamiana has traded viral defence for early vigour.Nat. Plants11–6. 10.1038/nplants.2015.165
4
BaumJ. A.BogaertT.ClintonW.HeckG. R.FeldmannP.IlaganO.et al (2007). Control of coleopteran insect pests through RNA interference.Nat. Biotechnol.251322–1326. 10.1038/nbt1359
5
BolognesiR.RamaseshadriP.AndersonJ.BachmanP.ClintonW.FlannaganR.et al (2012). Characterizing the mechanism of action of double-stranded RNA activity against western corn rootworm (Diabrotica virgifera virgifera LeConte).PLoS ONE7:e47534. 10.1371/journal.pone.0047534
6
BradfordM. M. (1976). Rapid and sensitive method for quantitation of microgram quantities of protein utilizing principle of protein-dye binding.Anal. Biochem.72248–254. 10.1016/0003-2697(76)90527-3
7
BurandJ. P.HunterW. B. (2013). RNAi: future in insect management.J. Invertebr. Pathol.112S68–S74. 10.1016/j.jip.2012.07.012
8
ChakrabartiS. K.LutzK. A.LertwiriyawongB.SvabZ.MaligaP. (2006). Expression of the cry9Aa2 B.t. gene in tobacco chloroplasts confers resistance to potato tuber moth.Transgenic Res.15481–488. 10.1007/s11248-006-0018-z
9
ClarkeJ. D. (2009). Cetyltrimethyl ammonium bromide (CTAB) DNA miniprep for plant DNA isolation.Cold Spring Harb. Protoc2009:pdb.prot5177. 10.1101/pdb.prot5177
10
CoutuC.BrandleJ.BrownD.BrownK.MikiB.SimmondsJ.et al (2007). pORE: a modular binary vector series suited for both monocot and dicot plant transformation.Transgenic Res.16771–781. 10.1007/s11248-007-9066-2
11
DufourmantelN.DubaldM.MatringeM.CanardH.GarconF.JobC.et al (2007). Generation and characterization of soybean and marker-free tobacco plastid transformants over-expressing a bacterial 4-hydroxyphenylpyruvate dioxygenase which provides strong herbicide tolerance.Plant Biotechnol. J.5118–133. 10.1111/j.1467-7652.2006.00226.x
12
EamensA.WangM. B.SmithN. A.WaterhouseP. M. (2008). RNA silencing in plants: yesterday, today, and tomorrow.Plant Physiol.147456–468. 10.1104/pp.108.117275
13
FireA.XuS. Q.MontgomeryM. K.KostasS. A.DriverS. E.MelloC. C. (1998). Potent and specific genetic interference by double-stranded RNA in Caenorhabditis elegans.Nature391806–811. 10.1038/35888
14
GordonK. H. J.WaterhouseP. M. (2007). RNAi for insect-proof plants.Nat. Biotechnol.251231–1232. 10.1038/nbt1107-1231
15
JinS.SinghN. D.LiL.ZhangX.DaniellH. (2015). Engineered chloroplast dsRNA silences cytochrome p450 monooxygenase, V-ATPase and chitin synthase genes in the insect gut and disrupts Helicoverpa armigera larval development and pupation.Plant Biotechnol. J.13435–446. 10.1111/pbi.12355
16
KimE. H.SuhS. C.ParkB. S.ShinK. S.KweonS. J.HanE. J.et al (2009). Chloroplast-targeted expression of synthetic cry1Ac in transgenic rice as an alternative strategy for increased pest protection.Planta230397–405. 10.1007/s00425-009-0955-x
17
KumarM.GuptaG. P.RajamM. V. (2009). Silencing of acetylcholinesterase gene of Helicoverpa armigera by siRNA affects larval growth and its life cycle.J. Insect Physiol.55273–278. 10.1016/j.jinsphys.2008.12.005
18
LimZ. X.RobinsonK. E.JainR. G.ChandraS. G.AsokanR.AsgariS.et al (2016). Diet-delivered RNAi in Helicoverpa armigera – progresses and challenges.J. Insect Physiol.8586–93. 10.1016/j.jinsphys.2015.11.005
19
MamtaReddyK. R.RajamM. V. (2016). Targeting chitinase gene of Helicoverpa armigera by host-induced RNA interference confers insect resistance in tobacco and tomato.Plant Mol. Biol.90281–292. 10.1007/s11103-015-0414-y
20
MaoY. B.CaiW. J.WangJ. W.HongG. J.TaoX. Y.WangL. J.et al (2007). Silencing a cotton bollworm P450 monooxygenase gene by plant-mediated RNAi impairs larval tolerance of gossypol.Nat. Biotechnol.251307–1313. 10.1038/nbt1352
21
MeyerV. (2008). Genetic engineering of filamentous fungi – progress, obstacles and future trends.Biotechnol. Adv.26177–185. 10.1016/j.biotechadv.2007.12.001
22
MillerS. C.MiyataK.BrownS. J.TomoyasuY. (2012). Dissecting systemic RNA interference in the red flour beetle tribolium castaneum: parameters affecting the efficiency of RNAi.PLoS ONE7:e47431. 10.1371/journal.pone.0047431
23
PaddisonP. J.CaudyA. A.BernsteinE.HannonG. J.ConklinD. S. (2002). Short hairpin RNAs (shRNAs) induce sequence-specific silencing in mammalian cells.Genes Dev.16948–958. 10.1101/gad.981002
24
PriceD. R. G.GatehouseJ. A. (2008). RNAi-mediated crop protection against insects.Trends Biotechol.26393–400. 10.1016/j.tibtech.2008.04.004
25
RaubenheimerD.BrowneL. B. (2000). Developmental changes in the patterns of feeding in fourth- and fifth-instar Helicoverpa armigera caterpillars.Physiol. Entomol.25390–399. 10.1046/j.1365-3032.2000.00212.x
26
ShelomiM.PerkinsL. E.CribbB. W.ZaluckiM. P. (2010). Effects of leaf surfaces on first-instar Helicoverpa armigera (Hubner) (Lepidoptera: Noctuidae) behaviour.Aust. J. Entomol.49289–295. 10.1111/j.1440-6055.2010.00766.x
27
SmithN. A.SinghS. P.WangM. B.StoutjesdijkP. A.GreenA. G.WaterhouseP. M. (2000). Total silencing by intron-spliced hairpin RNAs.Nature407319–320. 10.1038/35036500
28
SvabZ.MaligaP. (1993). High-frequency plastid transformation in tobacco by selection for a chimeric aada gene.Proc. Natl. Acad. Sci. U.S.A.90913–917. 10.1073/pnas.90.3.913
29
TereniusO.PapanicolaouA.GarbuttJ. S.EleftherianosI.HuvenneH.KanginakudruS.et al (2011). RNA interference in Lepidoptera: an overview of successful and unsuccessful studies and implications for experimental design.J. Insect Physiol.57231–245. 10.1016/j.jinsphys.2010.11.006
30
WaterhouseP. M.GrahamM. W.WangM. B. (1998). Virus resistance and gene silencing in plants can be induced by simultaneous expression of sense and antisense RNA.Proc. Natl. Acad. Sci. U.S.A.913959–13964. 10.1073/pnas.95.23.13959
31
WesleyS. V.HelliwellC. A.SmithN. A.WangM. B.RouseD. T.LiuQ.et al (2001). Construct design for efficient, effective and high-throughput gene silencing in plants.Plant J.27581–590. 10.1046/j.1365-313X.2001.01105.x
32
YanP.ShenW. T.GaoX. Z.LiX. Y.ZhouP.DuanJ. (2012). High-throughput construction of intron-containing hairpin RNA vectors for RNAi in plants.PLoS ONE7:e38186. 10.1371/journal.pone.0038186
33
ZhangJ.KhanS. A.HasseC.RufS.HeckelD. G.BockR. (2015). Full crop protection from an insect pest by expression of long double-stranded RNAs in plastids.Science347991–994. 10.1126/science.1261680
34
ZhuF.CuiY.WalshD.LavineL. (2014). “Application of RNAi toward insecticide resistance management,” inShort Views on Insect Biochemistry and Molecular Biology, Chap. 27Vol. 2edsChandrasekarR.TyagiB. K.GuiZ.ReeckG. R. (Manhattan, NY: Academic Publisher) 595–619.
35
ZhuF.XuJ.PalliR.FergusonJ.PalliS. R. (2011). Ingested RNA interference for managing the populations of the Colorado potato beetle, Leptinotarsa decemlineata.Pest Manag. Sci.67175–182. 10.1002/ps.2048
