Abstract
Phylogenomic approaches, employing next-generation sequencing (NGS) techniques, have revolutionized systematic and evolutionary biology. Target enrichment is an efficient and cost-effective method in phylogenomics and is becoming increasingly popular. Depending on availability and quality of reference data as well as on biological features of the study system, (semi-)automated identification of suitable markers will require specific bioinformatic pipelines. Here, we established a highly flexible bioinformatic pipeline, BaitsFinder, to identify putative orthologous single copy genes (SCGs) and to construct bait sequences in a single workflow. Additionally, this pipeline has been constructed to be able to cope with challenging data sets, such as the nutritionally heterogeneous plant family Orobanchaceae. To this end, we used transcriptome data of differing quality available for four Orobanchaceae species and, as reference, SCG data from monkeyflower (Erythranthe guttata, syn. Mimulus g.; 1,915 genes) and tomato (Solanum lycopersicum; 391 genes). Depending on whether gaps were permitted in initial blast searches of the four Orobanchaceae species against the reference, our pipeline identified 1,307 and 981 SCGs with average length of 994 bp and 775 bp, respectively. Automated bait sequence construction (using 2× tiling) resulted in 38,170 and 21,856 bait sequences, respectively. In comparison to the recently published MarkerMiner 1.0 pipeline BaitsFinder identified about 1.6 times as many SCGs (of at least 900 bp length). Skipping steps specific to analyses of Orobanchaceae, BaitsFinder was successfully used in a group of non-parasitic plants (three Asteraceae species and, as reference, SCG data from Arabidopsis thaliana based on previously compiled SCGs). Thus, BaitsFinder is expected to be broadly applicable in groups, where only transcriptomes or partial genome data of differing quality are available.
Introduction
Combining target enrichment with next-generation sequencing (NGS) strategies can yield a large number of low copy nuclear (LCN) loci and is becoming increasingly popular for systematic and evolutionary biology (). Target enrichment or sequence capture is a DNA-based method that uses hybridization of sheared DNA from the species of interest to conserved oligonucleotides (). As it can also be applied to samples with already fragmented DNA as obtained from herbarium specimens, utilizing the wealth of material available in natural history collections becomes feasible (; ). Target enrichment relies on the availability of reference data, which may come from draft genomes, transcriptome data (RNASeq or EST data), genome skimming, or a combination thereof (; ; ). For example, and used whole genome data to identify 768 genes (≥960 bp) in milkweeds (Asclepias) and 50 genes (≥2,000 bp) in burclover (Medicago), respectively. combined genome skimming data from one sorrel species (Oxalis obtusa) with transcriptome data from another species (Oxalis corniculata) for targeting LCN loci. To this end, the authors implemented an automated and interactive bash script workflow for discovery of LCN loci for phylogenetic analysis. and developed MarkerMiner 1.0 and BaitFisher, respectively. Both tools provide an automated, user-friendly and web-supported workflow for discovery of LCN loci from transcriptome data. developed BaitsTools, which automates bait design from various sources (e.g., alignments, unaligned sequences, and RADseq loci) and quality checking of thus obtained baits. Disadvantages of these approaches include reliance on whole or draft genome sequences (; ) or settings that bias against less conserved loci, i.e., strictly reciprocal blast searches in MarkerMiner () and the highly reduced bait-to-target distances in BaitFisher (). Additionally, none of these methods assessed the effect of using different blast strategies (with and without gaps) on number and length of recovered LCN loci.
The plant family Orobanchaceae encompasses a wide range of nutritional modes from non-parasitic autotrophy via photosynthetic parasitism to non-photosynthetic parasitism and contains some major pest species on economically important crop plants (). Orobanchaceae have become a model system for studying the evolution of parasitic plants, including molecular evolution under altered functional constraints (; ; ; ; , ; ). Following these research avenues requires a solid phylogenetic framework, but although considerable progress has been made in reconstructing phylogenetic relationships within Orobanchaceae (; ; ; ; ; ; ), numerous areas of unknown or uncertain relationships remain (). Phylogenomic approaches, although no panacea for every phylogenetic problem ( and references therein), are needed to resolve phylogenetic relationships, but the identification of suitable genomic markers requires specific bioinformatic pipelines. Here, we establish a highly flexible bioinformatic pipeline, BaitsFinder, to discover putative orthologous single copy genes (SCGs) from Orobanchaceae and to construct bait sequences. To this end, we used transcriptome data of differing quality available from four Orobanchaceae species and SCG data of monkeyflower (Erythranthe guttata [syn: Mimulus g.], Phrymaceae) and tomato (Solanum lycopersicum, Solanaceae) as reference dataset. The Orobanchaceae data set can be considered challenging due to both biological characteristics (e.g., contamination by the parasites’ host species) and technical issues (transcriptome data of differing quality), and therefore should readily work in less complicated data sets. To test the general suitability of our pipeline, we assessed its performance using a data set from a non-parasitic group, the Asteraceae, which have been used in an early target-enrichment study in plants ().
Materials and Methods
The workflow of BaitsFinder, which uses publicly available software and tools as well as several python scripts, is shown in Figure 1. All scripts were written in Python 2.7.9 and are available on GitHub1; the packages NumPy and SciPy2 need to be installed to run the python scripts. BaitsFinder has been tested on Linux (Ubuntu 16.04) and on Windows 7. A detailed description of all steps can be found in the step-by-step guide available on GitHub1. All blast searches used BLAST 2.2.6, as the output of BLAST+ is not compatible with tcl_blast_parser_123_V047.tcl used for some steps. Note that any of the used parameters (e.g., blast parameters, minimum overlap for identifying putative paralogues, or filtering parameters) may have to be adjusted for other study groups to ensure sufficient data quality and desired number of SCGs and bait sequences.
FIGURE 1
The first step is to identify SCGs in species that are closely related to our group of interest (here Orobanchaceae) and for which well-annotated genomes are available. We chose to use E. guttata (available as Mimulus guttatus)3 from Phrymaceae, a family phylogenetically close to Orobanchaceae and from the same order Lamiales, as primary reference () and the more distantly related, but better annotated S. lycopersicum4 from Solanaceae in the order Solanales, as secondary reference species (). The putative status as SCG was assessed by comparison against SCG data from Arabidopsis thaliana (compiled by Alexander Kozik and Richard Michelmore5) using blastx (). Briefly, E. guttata genes that had sufficiently high similarity to, but only a single match with Arabidopsis SCGs were identified and blasted against each other to retrieve genes that are single copy in Erythranthe. Using the same strategy, we obtained SCGs from S. lycopersicum. Finally, we merged the Erythranthe and Solanum SCG data sets, retaining only those SCGs from Solanum that had no significant blast hit with Erythranthe to avoid gene redundancy. The thus obtained reference data sets contained 2,306 SCG loci: 1,915 SCG sequences from E. guttata, our primary reference, and 391 SCG loci from S. lycopersicum, our secondary reference.
Data for the four Orobanchaceae species (our focal species) were downloaded from the Parasitic Plant Genome Project (PPGP) database6 (): Lindenbergia philippensis (LiPhGnB1.fasta), Triphysaria versicolor (TrVeBC2.fasta), Striga hermonthica (StHeBC2.fasta), Phelipanche (Orobanche) aegyptiaca (OrAeBC4.fasta). These were blasted (with an e-value of 1e-10) against the reference database of non-redundant SCGs from E. guttata and S. lycopersicum SCGs. As across broader phylogenetic depths homologous genes might differ in length, we used both ungapped blastx (as done by ) as well as gapped blastx searches. Subsequently, we parsed the blast output using tcl_blast_parser_123_V047.tcl7 and retained as putative single-copy conserved orthologous sequence (COS) the best query hit with identity of at least 40, expectation better than 1e-20, and an alignment length of at least 100 positions (on the amino acid level). The minimum length of 100 amino acid positions (i.e., 300 bp) is shorter than the length cut-off of 960 bp used by , who used draft genome and transcriptome data from a congeneric reference species, but longer than that of 150 bp applied by . The combined builds from the parasitic species available from PPGP (all but Lindenbergia) may include sequences from their host species, which have to be removed prior to further processing. To this end, we blasted the Orobanchaceae COS sequences against sequences from their putative hosts using blastn and removed those sequences with identity of at least 95% to the host. Host sequences might be from species the parasite has actually been grown on (e.g., P. aegyptiaca has been grown on tobacco and Arabidopsis) or from close relatives. While this step is specific for parasitic species, it may be applied to non-parasitic species if contamination might be an issue. If not needed, this step can be skipped altogether.
In contrast to the approach used by MarkerMiner (), where putative paralogs are retained, we aimed at removing those as completely as possible. Different unigenes from the same focal taxon that have been blasted against the same reference SCG and that exceed a user-defined overlap cut-off are considered putative paralogues and are removed. The stringency of this approach will be determined both by data quality (e.g., many small unigenes versus fewer longer unigenes) and by the desired number of loci to create baits from.
Sequences from the focal species that have been blasted to the same gene from the reference species were extracted and put together in one folder, named after the reference protein ID. As the quality of the transcriptome data from the four Orobanchaceae species differs considerably, we retained only those loci that contained at least one sequence of L. philippensis, which based on the N50 value has the best assembled data among our focal species. Sorting by a best-quality focal taxon is optional and should be skipped if not needed, as filtering based on a single taxon can introduce a selection bias that may be propagated in case the selected genes are further subsampled based on the amount of variation across taxa. Alignment of each SCG was done using MAFFT 7.245 () using the E-INS-i method, which is suitable for data sets containing multiple conserved domains and long gaps.
Each aligned SCG was split into smaller alignments each corresponding to an exon, whose boundaries in the genes from the reference species (Erythranthe and Solanum) have been extracted from the gff3 files (; ) available from Phytozome 10.38. We have no information on exon-intron boundaries in the four Orobanchaceae species, but assume that gene structure is sufficiently similar to that of Erythranthe and Solanum. If exon–intron boundaries are known for the group of interest, then separating exons should be done before the alignment. Thus obtained exon sequences were degapped, and exons < 120 bp (i.e., the length of the bait sequence) were removed. Probes (bait sequences) were designed automatically using a length of 120 bp and 2× tiling (i.e., baits overlap by 50%), allowing a maximum overlap of baits of 80 bp (i.e., from a fragment of 160 bp still two baits, overlapping by 80 bp, can be extracted). This threshold was chosen to make better use of the 3′-end of an exon while avoiding unduly high redundancy between baits. Loci that yielded fewer than four baits in Lindenbergia (i.e., the best assembled focal species) were removed, retaining loci that had at least 280 bp. To reduce redundancy among baits, probes that shared at least 90% identities among the four species were removed using cd-hit-est9 (). Finally, in order to reduce the chance of targeting plastid genomes, loci containing at least one bait that in a blastn search had at least 90% identity with any of the 12 published plastid genomes from Orobanchaceae () were removed as well. Recovery of, full or partial, plastid genomes may, however, still be possible by (reference-based) assembly of off-target reads (). The same procedure may be used to remove baits potentially targeting mitochondrial genomes, if desired (no mitochondrial genome of Orobanchaceae published to data).
In order to test the general suitability of our pipeline, we additionally evaluated its performance in a group of non-parasitic plants. To this end, we used a data set of three species from the Asteraceae used previously for target-enrichment (): safflower (Carthamus tinctorius), sunflower (Helianthus annuus), and lettuce (Lactuca sativa;10 available from the Compositae Genome Project11). As reference data, we use Arabidopsis SCG data (following the annotation from Phytozome 1012) based on the 3,714 SCGs compiled previously (by Alexander Kozik and Richard Michelmore13). Several steps applied for Orobanchaceae were not necessary for Asteraceae and were, therefore, skipped: creating the reference data set, removal of putative host sequences and sorting based on a focal species with sufficient data quality. For removal of baits likely targeting plastid regions, plastid genomes for the three Asteraceae species were downloaded from GenBank: Carthamus tinctorius (KX822074); Helianthus annuus (DQ383815); and Lactuca sativa (AP007232).
Results and Discussion
Gapped versus Ungapped Blast
For identifying SCGs from the Orobanchaceae focal species, blastx allowing gaps (gapped blast) or not allowing gaps (ungapped blast) has been used. Except for some minor differences during the sequence alignment step, their results are processed equally. Filtering out baits likely targeting plastid genomes caused the removal of two loci with together 19 baits in case of gapped blast and of one locus with 7 baits in case of ungapped blast. As expected, using gapped blast resulted in more recovered loci: 2,050 SCGs in gapped blast versus 1,845 SCGs in ungapped blast and, after filtering for presence in Lindenbergia, 1,690 in gapped blast versus 1,555 in ungapped blast (a decrease of 17.6% and 15.7%, respectively; Table 1). Although gapped blast recovered more loci, the number of loci shared by all four focal species actually decreased while the number of loci shared by maximally three focal species increased as expected (Figure 2). The strategy using gapped blast recovered on average longer loci than the one using ungapped blast (Table 1). Therefore, the strategy using gapped blast yielded 38,170 baits (from 1,307 SCGs), which were 1.7 times more than the 21,856 baits (from 981 SCGs) obtained using the strategy with ungapped blast (Table 1).

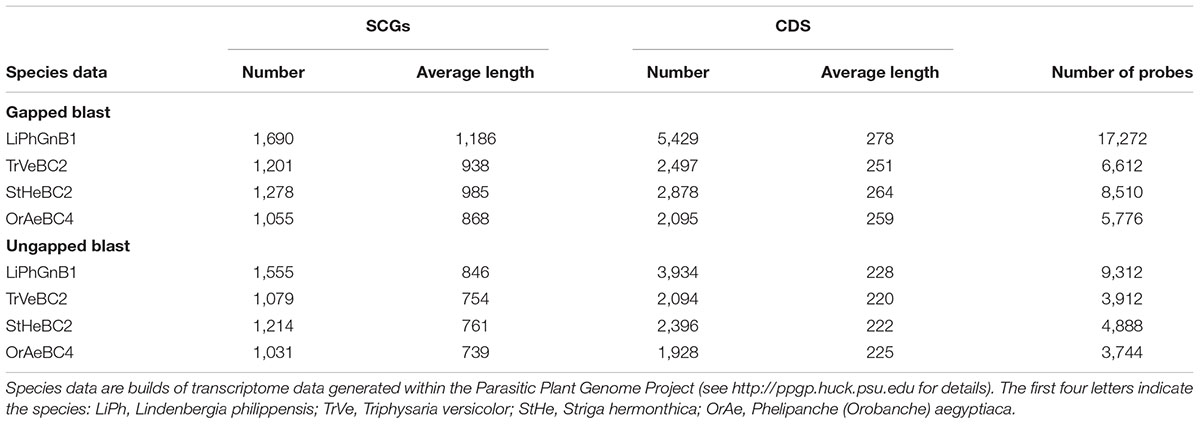

Table 1
| SCGs | CDS | ||||
|---|---|---|---|---|---|
| Species data | Number | Average length | Number | Average length | Number of probes |
| Gapped blast | |||||
| LiPhGnB1 | 1,690 | 1,186 | 5,429 | 278 | 17,272 |
| TrVeBC2 | 1,201 | 938 | 2,497 | 251 | 6,612 |
| StHeBC2 | 1,278 | 985 | 2,878 | 264 | 8,510 |
| OrAeBC4 | 1,055 | 868 | 2,095 | 259 | 5,776 |
| Ungapped blast | |||||
| LiPhGnB1 | 1,555 | 846 | 3,934 | 228 | 9,312 |
| TrVeBC2 | 1,079 | 754 | 2,094 | 220 | 3,912 |
| StHeBC2 | 1,214 | 761 | 2,396 | 222 | 4,888 |
| OrAeBC4 | 1,031 | 739 | 1,928 | 225 | 3,744 |
Number and characteristics of loci identified from the four Orobanchaceae species.
Species data are builds of transcriptome data generated within the Parasitic Plant Genome Project (see http://ppgp.huck.psu.edu for details). The first four letters indicate the species: LiPh, Lindenbergia philippensis; TrVe, Triphysaria versicolor; StHe, Striga hermonthica; OrAe, Phelipanche (Orobanche) aegyptiaca.
FIGURE 2
Similar trends were observed in Asteraceae (no plastid-targeting baits detected), where gapped blast yielded approximately 1.2× as many SCGs as ungapped blast (1,839 versus 1,528 SCGs, respectively). Likewise, the strategy using gapped blast recovered on average longer loci than the one using ungapped blast (Table 2), resulting in about 1.9 times more baits (16,310 baits from 1,744 SCGs versus 8,750 baits from 1,343 SCGs, respectively; Table 2). , who used the same Asteraceae data with ungapped blast only, obtained 9,678 baits from 1,061 SCGs, i.e., more than we did. This likely is due to our used length cut-offs (i.e., loci have to be at least 300 bp long and exons have to be at least 120 bp long).

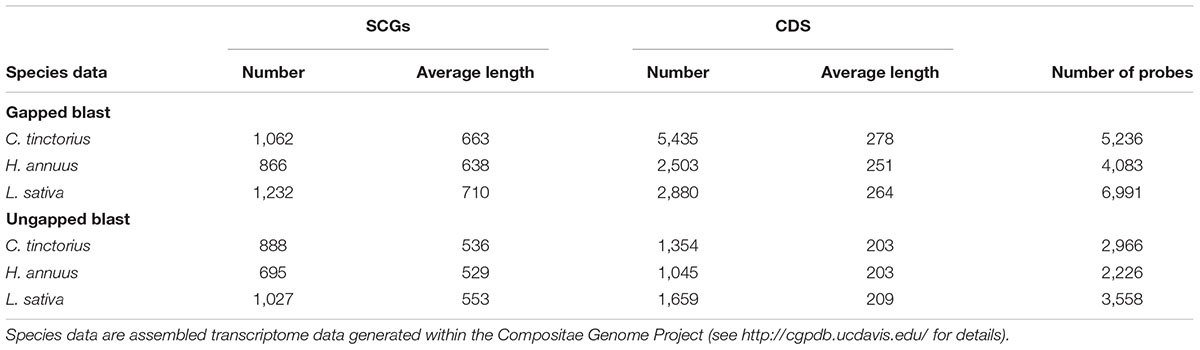

Table 2
| SCGs | CDS | ||||
|---|---|---|---|---|---|
| Species data | Number | Average length | Number | Average length | Number of probes |
| Gapped blast | |||||
| C. tinctorius | 1,062 | 663 | 5,435 | 278 | 5,236 |
| H. annuus | 866 | 638 | 2,503 | 251 | 4,083 |
| L. sativa | 1,232 | 710 | 2,880 | 264 | 6,991 |
| Ungapped blast | |||||
| C. tinctorius | 888 | 536 | 1,354 | 203 | 2,966 |
| H. annuus | 695 | 529 | 1,045 | 203 | 2,226 |
| L. sativa | 1,027 | 553 | 1,659 | 209 | 3,558 |
Number and characteristics of loci identified from the three Asteraceae species.
Species data are assembled transcriptome data generated within the Compositae Genome Project (see http://cgpdb.ucdavis.edu/ for details).
The choice of blast strategy will depend on the divergence of the studied taxa as well as the desired number of bait sequences. For distantly related taxa (genus-level or above), where indels in alignments of coding sequences are more likely, gapped blast may be necessary to achieve the required number of loci and bait sequences. Ungapped blast, which gives more conservative results both with respect to number and length of recovered loci, may be the preferred choice for closely related taxa (i.e., from the intrageneric to intraspecific level) that may have a history of hybridization or introgression.
Test of MarkerMiner 1.0 with the Orobanchaceae Dataset
We also employed the MarkerMiner 1.0 pipeline () to compare its efficacy for developing SCGs with our pipeline using the Orobanchaceae data set. As data quality differs among our focal species, we only considered a single focal species, L. philippensis, which has the best quality data (i.e., the longest unigenes). As neither Erythranthe nor Solanum are included in the reference options available in MarkerMiner 1.0, we created a new reference, congruent with the one used as subject database in our pipeline (E. guttata and S. lycopersicum SCGs). We ran MarkerMiner 1.0 under the default settings, except for changing the reference. Consistent with MarkerMiner 1.0, which uses gapped blast for reciprocal blast searching, for comparison from our pipeline only the results from the gapped blast strategy were considered.
MarkerMiner 1.0 resulted in 539 loci (≥900 bp) compared to 865 loci (≥900 bp) recovered by our pipeline, of which 428 loci (≥900 bp) were shared by both; the number of shared loci increased to 466, if all 1,690 loci identified by our pipeline (i.e., also including those <900 bp) were considered (Figure 3). MarkerMiner identified 73 loci (by design ≥900 bp) not recovered by our pipeline. The reduced number of identified loci from MarkerMiner 1.0 likely is due to the default stringency criteria. MarkerMiner employs reciprocal blast, with both tblastn and blastx, while our pipeline uses only blastx. Secondly, in MarkerMiner the default length cut-off is 900 bp (compared to 280 bp in our study) and at least 70% of the query has to be aligned with 70% identity to the subject (compared to no overlap length requirements and 40% identity in our pipeline). Indeed, if the criteria in MarkerMiner 1.0 are relaxed (at least 40% of the query has to be aligned with 40% identity to the subject) in the reciprocal blast, the number of recovered loci increases to 1,466 loci. The reason for loci exclusively identified by MarkerMiner might be that this program retains loci with multiple hits from the same focal species, while in our pipeline such a locus would be removed from the focal species (not necessarily from the entire data set). One advantage of our method over MarkerMiner may be that it is very flexible in dealing with data, because it is a semi-automated pipeline consisting of several independent custom python scripts that can be easily modified to meet the demands of different studies. Another advantage of our method may be that it is stricter in removing likely paralogues, which will be helpful in targeting orthologous SCGs.
FIGURE 3
General Comparison with Available Pipelines
There are also other pipelines available (Table 3). A major limitation is that both draft genomes (; ) and genome skimming data () are still infrequent, and none of them is available for Orobanchaceae. Another limitation lies in the stringent criteria used by those pipelines (, ; ; ), which may result in losing a considerable amount of putatively informative sites by non-recovery of a large number of loci and by reduced length of loci (by not allowing gaps). This might negatively affect species tree estimation, whose accuracy has been found to be positively correlated with the number of putative SCGs, even in the presence of both high incomplete lineage sorting and gene rate heterogeneity (). Additionally, these approaches enrich conserved loci, which may negatively affect the power to resolve phylogenetic relationships especially at the species level.

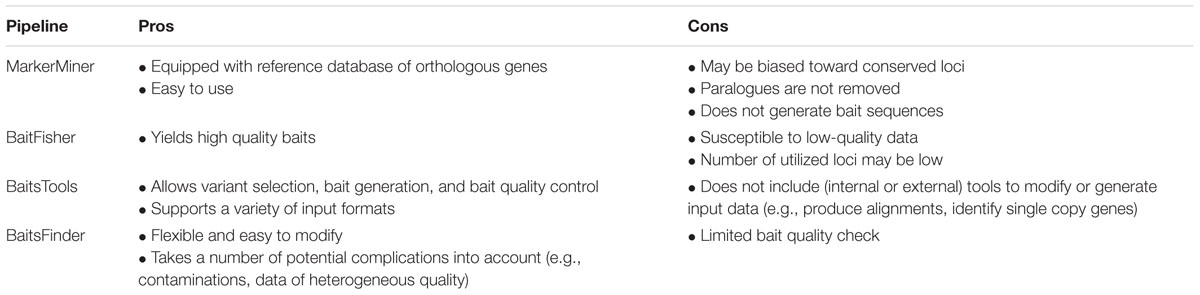

Table 3
| Pipeline | Pros | Cons |
|---|---|---|
| MarkerMiner | • Equipped with reference database of orthologous genes | • May be biased toward conserved loci |
| • Easy to use | • Paralogues are not removed | |
| • Does not generate bait sequences | ||
| BaitFisher | • Yields high quality baits | • Susceptible to low-quality data |
| • Number of utilized loci may be low | ||
| BaitsTools | • Allows variant selection, bait generation, and bait quality control | • Does not include (internal or external) tools to modify or generate input data (e.g., produce alignments, identify single copy genes) |
| • Supports a variety of input formats | ||
| BaitsFinder | • Flexible and easy to modify | • Limited bait quality check |
| • Takes a number of potential complications into account (e.g., contaminations, data of heterogeneous quality) |
Comparison of major pipelines.
In contrast to our pipeline, MarkerMiner () outputs SCG sequences, but not bait sequences. MarkerMiner may, however, be combined with other tools such as BaitFisher () or BaitsTools (). BaitFisher has been developed to obtain an optimal set of baits by minimizing the number of baits (by reducing redundancy of baits without gaps or ambiguous nucleotides) while maximizing the number of targeted nucleotide sequences. The disadvantage of BaitFisher is that it does not tolerate any gaps nor ambiguity codes in the start position of a putative bait, rendering it susceptible to low-quality samples. BaitsTools () can use various forms of input data (e.g., alignments, sequence lists, RADseq loci) and allows quality checks on obtained bait sequences to be performed, but it does not include any tools to modify or generate input data (e.g., removal of putative contaminants, extracting exons from transcriptome data).
Conclusion
We established a highly efficient bioinformatic pipeline, BaitsFinder, that employs blast searches, alignment, length-filtering, and sorting to discover putative orthologous SCGs from transcriptome data. Although no (draft) whole genome sequence is available for our focal group, the Orobanchaceae, we were able to develop up to 38,170 baits (representing 1,307 loci) from combined transcriptomes of four Orobanchaceae species. A comparison of BaitsFinder with MarkerMiner 1.0 suggests that our pipeline recovers 1.6 times as many loci as MarkerMiner (used with its default settings), which ultimately may help in improving the accuracy of species tree estimation. As BaitsFinder is very flexible and takes into account a number of complications (contamination by, for instance, host sequences, low quality reference data), it should be readily applicable to other non-model plants as shown here for Asteraceae.
Availability of Data and Materials
Python scripts and example data are available from GitHub: https://github.com/plantbiogeography/BaitsFinder. Reference data for Orobanchaceae (SCGs of Erythranthe and Solanum) are available at Dryad under doi: 10.5061/dryad.7b86c.
Statements
Author contributions
GS and XL designed the pipeline. BH wrote the python scripts. DP and XL tested the pipeline. XL and BH analyzed the data. GS and XL prepared the manuscript. All authors read and approved the final manuscript.
Funding
The research was funded by China Scholarship Council grant No. 201206100007 (to XL). Open access funding provided by University of Vienna.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Footnotes
1.^https://github.com/plantbiogeography/BaitsFinder
3.^https://phytozome.jgi.doe.gov/pz/portal.html
4.^ftp://ftp.solgenomics.net/genomes/Solanum_lycopersicum/annotation/ITAG2.4_release/
5.^http://cgpdb.ucdavis.edu/COS_Arabidopsis/data/arabidopsis_single_copy_genes.fasta
6.^http://ppgp.huck.psu.edu/download.php
7.^http://code.google.com/p/atgc-tools/downloads/detail?name=tcl_blast_parser_123_V047.tcl
8.^https://phytozome.jgi.doe.gov/pz/portal.html
9.^http://weizhong-lab.ucsd.edu/cdhit_suite/cgi-bin/index.cgi
10.^http://cgpdb.ucdavis.edu/asteraceae_assembly/
12.^https://phytozome.jgi.doe.gov/pz/portal.html
13.^http://cgpdb.ucdavis.edu/COS_Arabidopsis/data/arabidopsis_single_copy_genes.fasta
References
1
AltschulS. F.GishW.MillerW.MyersE. W.LipmanD. J. (1990). Basic local alignment search tool.J. Mol. Biol.215403–410. 10.1016/S0022-2836(05)80360-2
2
BennettJ. R.MathewsS. (2006). Phylogeny of the parasitic plant family Orobanchaceae inferred from phytochrome A.Am. J. Bot.931039–1051. 10.3732/ajb.93.7.1039
3
CampanaM. G. (2017). BaitsTools: software for hybridization capture bait design.Mol. Ecol. Res.10.1111/1755-0998.12721[Epub ahead of print].
4
ChamalaS.GarcíaN.GoddenG. T.KrishnakumarV.Jordon-ThadenI. E.de SmetR.et al (2015). MarkerMiner 1.0: a new application for phylogenetic marker development using angiosperm transcriptomes.Appl. Plant Sci.3:1400115. 10.3732/apps.1400115
5
de SousaF.BertrandY. J. K.NylinderS.OxelmanB.ErikssonJ. S.PfeilB. E. (2014). Phylogenetic properties of 50 nuclear loci in Medicago (Leguminosae) generated using multiplexed sequence capture and next-generation sequencing.PLOS ONE9:e109704. 10.1371/journal.pone.0109704
6
dePamphilisC. W.PalmerJ. D. (1990). Loss of photosynthetic and chlororespiratory genes from the plastid genome of a parasitic flowering plant.Nature348337–339. 10.1038/348337a0
7
FanW.ZhuA.KozaczekM.ShahN.Pabón-MoraN.GonzálezF.et al (2016). Limited mitogenomic degradation in response to a parasitic lifestyle in Orobanchaceae.Sci. Rep.6:36285. 10.1038/srep36285
8
Fernandez-PozoN.MendaN.EdwardsJ. D.SahaS.TecleI. Y.StricklerS. R.et al (2015). The Sol Genomics Network (SGN)—from genotype to phenotype to breeding.Nucleic Acids Res.43D1036–D1041. 10.1093/nar/gku1195
9
Heide-JørgensenH. S. (2008). Parasitic Flowering Plants.Leiden: Brill.
10
HellstenU.WrightK. M.JenkinsJ.ShuS.YuanY.WesslerS. R.et al (2013). Fine-scale variation in meiotic recombination in Mimulus inferred from population shotgun sequencing.Proc. Natl. Acad. Sci. U.S.A.11019478–19482. 10.1073/pnas.1319032110
11
KatohK.MisawaK.KumaK.MiyataT. (2002). MAFFT: a novel method for rapid multiple sequence alignment based on fast Fourier transform.Nucleic Acids Res.303059–3066. 10.1093/nar/gkf436
12
LemmonE. M.LemmonA. R. (2013). High-throughput genomic data in systematics and phylogenetics.Annu. Rev. Ecol. Evol. Syst.4499–121. 10.1146/annurev-ecolsys-110512-135822
13
LiW.GodzikA. (2006). Cd-hit: a fast program for clustering and comparing large sets of protein or nucleotide sequences.Bioinformatics101658–1659. 10.1093/bioinformatics/btl158
14
LiX.JangT. S.TemschE. M.KatoH.TakayamaK.SchneeweissG. M. (2017). Molecular and karyological data confirm that the enigmatic genus Platypholis from Bonin-Islands (SE Japan) is phylogenetically nested within Orobanche (Orobanchaceae).J. Plant Res.130273–280. 10.1007/s10265-016-0888-y
15
MandelJ. R.DikowR. B.FunkV. A. (2015). Using phylogenomics to resolve mega-families: an example from Compositae.J. Syst. Evol.53391–402. 10.1111/jse.12167
16
MandelJ. R.DikowR. B.FunkV. A.MasaliaR. R.StatonS. E.KozikA.et al (2014). A target enrichment method for gathering phylogenetic information from hundreds of loci: an example from the Compositae.Appl. Plant Sci.2:1300085. 10.3732/apps.1300085
17
MayerC.SannM.DonathA.MeixnerM.PodsiadlowskiL.PetersR. S.et al (2016). BaitFisher: a software package for multispecies target DNA enrichment probe design.Mol. Biol. Evol.331875–1886. 10.1093/molbev/msw056
18
McNealJ.BennettJ. R.WolfeA. D.MathewsS. (2013). Phylogeny and origins of holoparasitism in Orobanchaceae.Am. J. Bot.100971–983. 10.3732/ajb.1200448
19
PaijmansJ. L. A.FickelJ.CourtiolA.HofreiterM.FörsterD. W. (2016). Impact of enrichment conditions on cross-species capture of fresh and degraded DNA.Mol. Ecol. Resour.1642–55. 10.1111/1755-0998.12420
20
ParkJ. M.ManenJ. F.ColwellA. E.SchneeweissG. M. (2008). A plastid gene phylogeny of the non-photosynthetic parasitic Orobanche (Orobanchaceae) and related genera.J. Plant Res.121365–376. 10.1007/s10265-008-0169-5
21
PosadaD. (2016). Phylogenomics for systematic biology.Syst. Biol.65353–356. 10.1093/sysbio/syw027
22
SchmicklR.ListonA.ZeisekV.OberlanderK.WeitemierK.StraubS. C. K.et al (2015). Phylogenetic marker development for target enrichment from transcriptome and genome skim data: the pipeline and its application in southern African Oxalis (Oxalidaceae).Mol. Ecol. Resour.161124–1135. 10.1111/1755-0998.12487
23
SchneeweissG. M. (2013). “Phylogenetic relationships and evolutionary trends in Orobanchaceae,” in Parasitic Orobanchaceae, edsJoelD. M.GresselJ.MusselmanL. J. (Berlin: Springer), 243–265. 10.1007/978-3-642-38146-1_14
24
SuchanT.PitteloudC.GerasimovaN. S.KostikovaA.SchmidS.ArrigoN.et al (2016). Hybridization capture using RAD probes (hyRAD), a new tool for performing genomic analyses on collection specimens.PLOS ONE11:e0151651. 10.1371/journal.pone.0151651
25
Tomato Genome Consortium (2012). The tomato genome sequence provides insights into fleshy fruit evolution.Nature485635–641. 10.1038/nature11119
26
WeitemierK.StraubS. C. K.CronnR. C.FishbeinM.SchmicklR.McDonnellA.et al (2014). Hyb-Seq: combining target enrichment and genome skimming for plant phylogenomics.Appl. Plant Sci.2:1400042. 10.3732/apps.1400042
27
WestwoodJ. H.YoderJ. I.TimkoM. P.dePamphilisC. W. (2010). The evolution of parasitism in plants.Trends Plant Sci.15227–235. 10.1016/j.tplants.2010.01.004
28
WickeS.MüllerK. F.dePamphilisC. W.QuandtD.BellotS.SchneeweissG. M. (2016). Mechanistic model of evolutionary rate variation en route to a nonphotosynthetic lifestyle in plants.Proc. Natl. Acad. Sci. U.S.A.1139045–9050. 10.1073/pnas.1607576113
29
WickeS.MüllerK. F.dePamphilisC. W.QuandtD.WickettN. J.ZhangY.et al (2013). Mechanisms of functional and physical genome reduction in photosynthetic and nonphotosynthetic parasitic plants of the broomrape family.Plant Cell253711–3725. 10.1105/tpc.113.113373
30
WolfeA. D.dePamphilisC. W. (1998). The effect of relaxed functional constraints on the photosynthetic gene rbcL in photosynthetic and nonphotosynthetic parasitic plants.Mol. Biol. Evol.151243–1258. 10.1093/oxfordjournals.molbev.a025853
31
XiZ.LiuL.DavisC. C. (2016). The impact of missing data on species tree estimation.Mol. Biol. Evol.33838–860. 10.1093/molbev/msv266
32
YangZ.WafulaE. K.HonaasL. A.ZhangH.DasM.Fernandez-AparicioM.et al (2015). Comparative transcriptome analyses reveal core parasitism genes and suggest gene duplication and repurposing as sources of structural novelty.Mol. Biol. Evol.32767–790. 10.1093/molbev/msu343
33
YoungN. D.dePamphilisC. W. (2005). Rate variation in parasitic plants: correlated and uncorrelated patterns among plastid genes of different functions.BMC Evol. Biol.5:16. 10.1186/1471-2148-5-16
34
YoungN. D.SteinerK. E.dePamphilisC. W. (1999). The evolution of parasitism in Scrophulariaceae/Orobanchaceae: plastid gene sequences refute an evolutionary transition series.Ann. Mo. Bot. Gard.86876–893.
35
ZimmerE. A.WenJ. (2015). Using nuclear gene data for plant phylogenetics: progress and prospects II. Next-gen approaches.J. Syst. Evol.53371–379. 10.1111/jse.12174
Summary
Keywords
bioinformatic pipeline, marker development, Orobanchaceae, phylogenomics, single copy nuclear genes, target enrichment
