Abstract
The plant cell wall is known to be the first barrier against plant pathogens. Detailed information about sugarcane cell wall-associated defense responses to infection by the causal agent of smut, Sporisorium scitamineum, is scarce. Herein, (immuno)histochemical analysis of two smut resistant and two susceptible sugarcane cultivars was conducted to understand host cell wall structural and compositional modifications in response to fungal infection. Results showed that the fungus grew on the surface and infected the outermost bud scale of both susceptible and resistant cultivars. The present findings also supported the existence of early (24 h after inoculation) and later (72–96 h after inoculation) inducible histopathological responses related to the cell wall modification in resistant cultivars. Lignin and phenolic compounds accumulated during early stages of infection. Later infection response was characterized by the formation of a protective barrier layer with lignin, cellulose and arabinoxylan in the cell walls. Overall, the results suggest possible induction of cell wall-modified responses in smut resistant cultivars to prevent initial entry of the fungus into the meristematic tissues.
Introduction
Sugarcane (Saccharum spp. hybrids) is a multifunctional crop plant. In addition to sucrose, its by-products generate impact in different sectors of the economy being used as food, fiber, fodder, plastic, and environmentally friendly fuel (Solomon, 2011). Sugarcane smut is a fungal disease that reduces productivity worldwide. The causal agent, Sporisorium scitamineum Syd. (Ustilaginomycetes), is a biotrophic fungus that can grow inter- or intracellularly causing damage to the host tissues (Marques et al., 2017). Many smuts affect floral tissues, but the one in sugarcane is a culm smut (Comstock, 2000). The fungus infects through germinating buds. The most recognizable symptom is the development of a whip-like sorus incited by the fungus at the shoot apex resulting from its association with the shoot apical meristem, which is influenced by the environment and host genotype. Anatomically, the sorus is an elongated internode, and the growth is mediated by high mitotic activity of the intercalary meristem at the base. The sorus produces billions of dark teliospores via thallic process, mostly restricted to the base of the sorus (Marques et al., 2017). Short and long-range dispersal is then accomplished by the aerial dissemination of teliospores. Breeding resistant cultivars is the most economical and environmentally sustainable method to control smut (Comstock, 2000; Magarey et al., 2012). Resistance to smut is a moderately heritable trait in sugarcane (Chao et al., 1990).
Sugarcane resistance to S. scitamineum infection is structural, biochemical and physiological, and involves both constitutive and inducible responses (Appezzato-da-Glória et al., 1995; De Armas et al., 2007; Santiago et al., 2010a). Appezzato-da-Glória et al. (1995) presented the first evidence that resistant cultivars exhibited structural features against smut fungal infection. Resistant cultivar SP70-1143 possessed a higher number of bud scales with lignified cells, phenolic compounds accumulated in the epidermis, and a higher number of trichomes were present as compared to susceptible cultivar NA56-79. Biochemically, glycosidic compounds within the tissues can inhibit teliospore germination (Millanes et al., 2005). Also, sugarcane tissues infected with S. scitamineum showed an increase in pH and thiol (SH) polyamines and of phenolic compounds, such as caffeic, syringic, p-coumaric, ferulic and p-hydroxybenzoic acids (De Armas et al., 2007). The increased level of different polyamines and their possible combination with phenols in mature plant tissues being attacked by the fungus indicates another potential mechanism of resistance (Piñon et al., 1999). Enzymes related to reactive oxygen species (ROS)-scavenging, such as peroxidase, ascorbate peroxidase, catalase and superoxide dismutase, were observed in higher concentration in resistant sugarcane cultivars suggesting their possible utility as markers in resistance screening (Su et al., 2016). Pathogenesis related (PR)-proteins, chitinase and β-1,3 glucanase, also showed increased expression in some resistant cultivars (Su et al., 2015, 2016).
The plant cell wall plays a vital role as a physical and chemical barrier, potentially conferring immunity, against different plant pathogens (Albersheim et al., 2011; Malinovsky et al., 2014). The composition and function of the cell wall varies in different plant tissues or organs. Cellulose (β-1,4-linked glucan chains), the major component of the cell wall, is arranged in microfibrils that are immersed in an amorphous polysaccharide matrix composed mainly of pectins and hemicelluloses. The hemicellulose composition among the flowering plants is different where eudicots have Type I cell walls with xyloglucan abundance while Poaceae have Type II cell walls constituted by arabinoxylan (Carpita and Gibeaut, 1993; Albersheim et al., 2011). In sugarcane, arabinoxylan was suggested to be strongly bound to cellulose (Souza et al., 2013). Recently, the first evidence of arabinoxylan distribution in sugarcane stems was demonstrated by immuno-histochemistry using LM11 antibody (Costa et al., 2016). The ground parenchyma and the lignified cells surrounding the vascular bundles can present arabinoxylan in their walls. The last fraction of the sugarcane cell wall is composed of pectins at about 10% (Souza et al., 2013).
Both pre- and post-infection mechanisms of smut defense were suggested (Lloyd and Pillay, 1980). The authors suggested that the post-infection defense response involves a cell-wall mechanism. Callose is by far the most studied carbohydrate polymer related to cell wall defense. Callose depositions in the cell wall are an important feature of immunity, and deposition is commonly triggered by microbe- or pathogen-associated molecular patterns (MAMPs or PAMPs) (Jones and Dangl, 2006; Li et al., 2016). Sugarcane cells of the sorus are able to deposit callose at S. scitamineum sites of penetration or surrounding its intracellular hyphae, indicating a possible role of callose in the structural defense response (Marques et al., 2017). Callose was also observed in the sieve plate pores throughout the phloem of the sorus. In addition to callose, other classes of compounds, such as lignin, phenolic-polyamines, peroxidases, arabinogalactan hydroxyproline-rich glycoproteins, pectin, xyloglucan, arabinoxylan, and cellulose have been implicated in plant cell wall defense (Underwood, 2012; Chowdhury et al., 2014). However, no information is available to illustrate the cell-wall responses in the beginning of the compatible and incompatible sugarcane-smut interactions.
Secondary cell walls exhibit a deposition of lignin that is composed of a heterogeneous hydrophobic polymer of phenylpropanoid units (Campbell and Sederoff, 1996). Lignin composition varies in radial and axial directions throughout the sugarcane culm (Bottcher et al., 2013). Lignin also contributes to cell wall recalcitrance and acts as an important structural barrier to pathogen infection (Malinovsky et al., 2014) that can be associated with papillae in some incompatible pathosystems (Underwood, 2012). During abiotic and biotic stress, plant cells enhance lignin biosynthesis through the phenylpropanoid pathway, which is also responsible for the production of several other phenolic compounds related to plant defense (Malinovsky et al., 2014). Sugarcane cell wall-associated responses were observed in leaves inoculated with S. scitamineum elicitors extracted from teliospores (Santiago et al., 2010a). The thickness of the lignified cell walls of sclereids and xylem vessels in leaves was increased. Inoculation with the fungus also leads to increased levels of hydroxycinnamic acids and their derivatives, which enhances the synthesis of lignin, strengthening the cell walls of resistant cultivars (Santiago et al., 2010a). Recently, it was also observed that shikimate hydroxycinnamoyl transferase, cinnamoyl-CoA reductase, and peroxidase were up-regulated in the sorus indicating possible elicitation of lignin biosynthesis pathway by S. scitamineum (Schaker et al., 2016). Infected resistant meristems also presented an increase of phenylalanine ammonia lyase activity (De Armas et al., 2007; Barnabas et al., 2016). Lignin polymerization strengthening the challenged cell walls also requires H2O2 (Hatfield and Vermerris, 2001; Huckelhoven, 2007). ROS are well-documented biotic stress signaling molecules and have a relationship with papillae formation (Luna et al., 2011; Faulkner, 2015).
Based on the importance of the cell wall in plant defense responses, it is essential to study its composition in compatible and non-compatible sugarcane-smut interactions at the beginning of the infection process. The present study was undertaken to compare cell wall modification in two resistant and two smut susceptible sugarcane cultivars with an objective to determine their effects on S. scitamineum initial infection and colonization.
Materials and Methods
Plant Material
Single-node cuttings (150 for each cultivar) were collected from the intermediate nodes of 5-month-old plants of two smut resistant sugarcane cultivars LCP 85-384 and HoCP 96-540 and two susceptible cultivars L 99-226 and L 01-299. The buds were initially subjected to a hot water treatment (52°C, 30 min) followed by surface sterilization in a 0.01% sodium hypochlorite solution (10 min) and subsequently washed three times in sterile distilled water. The cuttings were then placed with buds facing up in sterilized 32 cell-styrofoam trays containing autoclaved vermiculite.
Inoculation Procedure
Prior to inoculation, a viability test was carried out by incubating a 100-μL teliospore suspension (1 × 104 teliospores mL-1) on 0.1% agar-water medium (28°C, 8 h). The percentage of germination was estimated by counting germination in multiples of 100 teliospores on the agar surface, and inoculum with a germination rate higher than 90% was used. Inoculation was performed by placing 20 μl of the fungal suspension (105 spore mL-1 of water in 0.01% Tween® 20) on the top of sugarcane buds (outermost scale). Seventy-five buds of each cultivar were inoculated with the fungus. As a control, 75 buds of each cultivar were inoculated with aqueous solution containing 0.01% Tween® 20. After the inoculation, the buds were kept inside a growth chamber at 27°C in the dark.
Microscopic Analysis
To better understand defense responses associated with the composition of the cell wall, histochemical tests were conducted with buds 24, 48, 72, and 96 h after inoculation (h.a.i.). They were fixed in FAA solution (formaldehyde, glacial acetic acid and ethanol 70%; 5:5:90), subjected to vacuum (two times 15 min each) for 24 h, hydrated in decreasing ethanol gradient (50, 30, 10%), and transferred to a PBS solution (0.2 M Na2HPO4 and 0.2 M NaH2PO4; pH 7.2) for overnight at 4°C.
The frozen tissue sectioning was performed following Nakazono et al. (2003). Firstly, the sugarcane buds were transferred to a 15 ml tube with 10% sucrose for 1 day under vacuum followed by centrifugation 2 × 3.500 rpm for 15 min each and then 15% sucrose for 3–4 days under vacuum (six times – 15 min each) and centrifuging 8 × 3.500 rpm for 20 min each. Buds were then stored at 4°C. Buds were then infiltrated in Tissue-Tek optimal cutting temperature (OCT) compound (Sakura Finitek, Torrance, CA, United States) in Tissue-Tek cryomolds 10 mm × 10 mm × 5 mm. After adjusting the orientation, the samples were immediately frozen by floating the cryomolds in liquid nitrogen. The blocks were stored at -80°C for 1 h and then transferred to -20°C overnight to equilibrate the temperature. The OCT blocks were longitudinally sectioned (10–12 μm of thickness) using a Leica 3050 Cryostat (Leica Biosystems, Buffalo Grove, IL, United States) at -25°C and the sections were collected on CryoJane transfer adhesive tape (Leica Biosystems). The sections were then transferred to 1× coated slides (Leica Biosystems) and fixed by exposing to a flash of UV light. Fungal cell wall structure was visualized by staining the slides with WGA-AF 488 (Life Technologies, Carlsbad, CA, United States) and analyzing under TC/GFP Filter (ex: 470/40; em: 525/50), according to the manufacturer’s instructions. Aniline blue 0.05% in PBS (pH 8.4) was used to stain the callose (Ruzin, 1999) that was analyzed under epifluoresce microscopy with A4 filter (ex: 340-380 nm; em: 450-490 nm). Cellulose visualization was done by 1% Calcofluor White under fluorescence using a DAPI filter. Arabinoxylan was probed with LM11 rat primary antibody (PlantProbes, Leeds, United Kingdom) for 3 h and then detected using a goat secondary antibody anti-rat IgG attached to Texas Red for 3 h and observed under TXRED filter (Ex 490/20; Em: BP 645/75). Lignin was stained with 0.1% phloroglucinol (Ruzin, 1999), and phenolic compounds were visualized after treating the sections with 5% ferric chloride (Ruzin, 1999). Both were then analyzed under light microcopy. Double staining methods were used to localize the main cell wall components together with S. scitamineum hyphae. Thus, the immunolabeled slides with LM11, Calcofluor White and ferric chloride were counterstained with WGA-AF488. All staining steps were carried out at room temperature.
Images from the slides were captured digitally through an epifluorescence microscope Leica DM6000B. The images were captured using a QE-enhanced ORCA-Flash4.0 V2 with 82% peak QE (Hamamatsu Photonics, Bridgewater, NJ, United States) and processed with LAS-X Software (Leica Biosystems). Deconvolution was applied when necessary with a calculated point-spread function. Cellulose and arabinoxylan accumulations were quantified from 20 cells using Image J1 with the formula: corrected total cell fluorescence = integrated density – (area of selected cell × mean fluorescence of background readings).
Scanning Electron Microscopy (SEM)
Scanning electron microscopy (SEM) was carried out to observe the developmental steps of S. scitamineum on inoculated sugarcane buds. Sugarcane buds were harvested at 12, 24, and 48 h.a.i. and immediately fixed in FAA solution. Shaking was avoided during the fixation process to avoid disturbance to the fungal structures on the bud scale surface. The samples were dehydrated in an ethanol series and by critical point drying (Horridge and Tamm, 1969). The dried samples were glued on aluminum stubs, coated with platinum and examined with a JSM -6610 LV SEM (Jeol USA, Peabody, MA, United States) at 10 kV.
Results
Anatomical Features of Outermost Bud Scales
Anatomical features of the healthy outermost bud scales of resistant (LCP 85-384 and HoCP 96-540) and susceptible (L 01-299 and L 99-226) cultivars were observed 24 h.a.i. with Tween® 20 0.01% in distilled water (mock inoculation control). All cultivars presented two types of non-glandular trichomes: a two-celled non-lignified trichome (Supplementary Figure 1) and a one-celled thickened lignified trichome (Figures 1A,B,E,F,I,J,M,N). The lignified ones were mainly present at the base of the bud scale, but they also were observed at the margin while the non-lignified occurred close to the bud scale margins (Supplementary Figure 1). Buds of resistant cultivars had more trichomes than susceptible ones (Figures 1A,E,I,M), especially in ‘LCP 85-384’ that has numerous longer trichomes at the base of the scale (Figure 1I). Lignin was observed in different cell types along the surface of the outermost bud scale. Both susceptible cultivars showed lignified cell walls in trichomes (Figures 1B–D,F–H) and in tracheary elements in the base of the bud scale (Figure 1F). In contrast, resistant cultivars showed lignified cell walls in the epidermal cells as well as in the cells of the bundle sheath extensions facing the adaxial side at the middle (Figures 1K,O) and apex (Figures 1L,P) of the outermost bud scale but not at its base (Figures 1J,N). Comparing the resistant cultivars (Figures 1K,L,O,P), lignin deposition in LCP 85-384 was observed in the parenchyma cells between vascular bundles in addition to the epidermal cells. All cultivars exhibited lignin deposition in the cell walls of epidermis and tracheary elements in the outermost bud scale after 48 h of mock inoculation with Tween® 20 0.01% in distilled water.

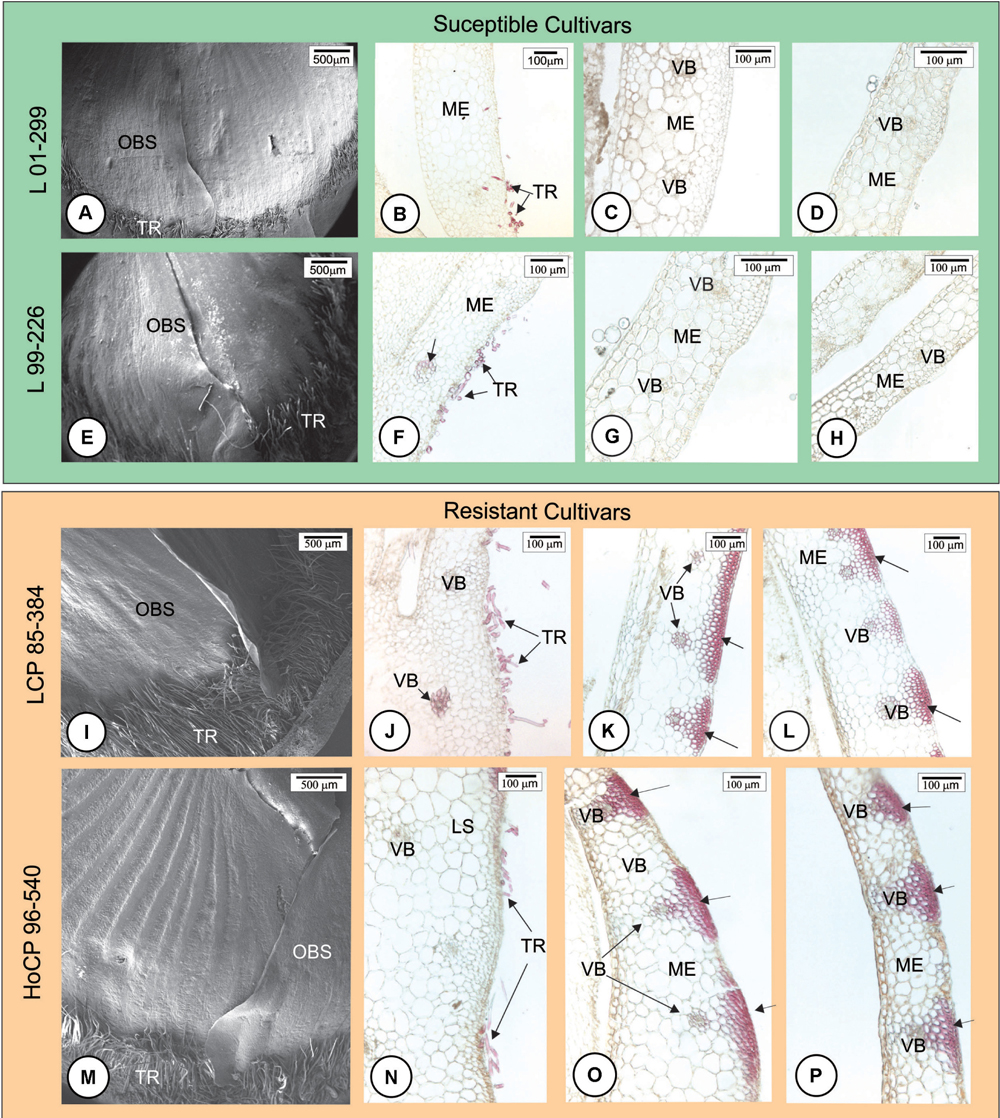

FIGURE 1
Fungal Infection of Sugarcane Buds
Scanning electron microscopy analysis indicated that the fungal teliospores germinated and the pro-mycelia grew on the surface of the outermost bud scale, but because the sugarcane bud is not a flat structure, the drop of fungal spore suspension, when placed on the top of the bud, ran down to the base where numerous trichomes occur. Teliospore germination and pro-mycelial growth occurred in this region within 12 h.a.i. in all cultivars (Figures 2A,D,G,J). Between 12 and 24 h, hyphal fusion occurred in the fungal pro-mycelia, and the hyphae grew vigorously on the surface of resistant and susceptible cultivars (Figures 2B,H). The preponderant characteristic observed at this time interval was the anastomosis of the pro-mycelia when the fungal structures touched each other (Figures 2E,K). Subsequently, apressorium-like structures developed preferentially on the anticlinal cell walls of the outermost bud scale epidermis (Figures 2C,F,I,L). Apressorium over the periclinal cell walls was not observed. Staining of the cross section of the outermost bud scale with WGA-AF488 and Calcofluor White revealed that S. scitamineum had already penetrated and colonized mesophyll cells of both resistant and susceptible cultivars at 24 h.a.i. (Figures 3A–C). Infection occurred mainly at the base of the outermost scale where the mesophyll and epidermal cells are not lignified in both resistant and susceptible cultivars (Figure 3D). In both cases, S. scitamineum penetrated through an intercellular pathway along the anticlinal cell walls of the epidermis (Figure 3B). After its entrance, the fungus grew in the mesophyll both inter- and intracellularly.

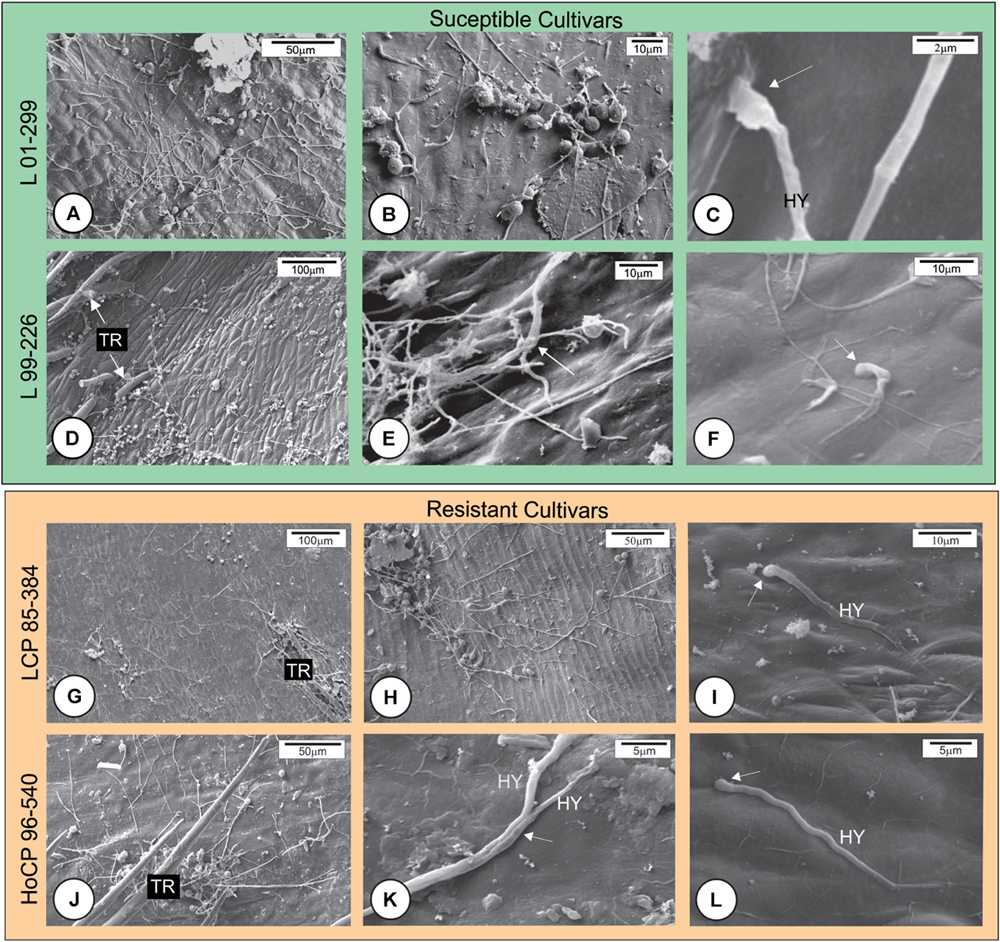

FIGURE 2

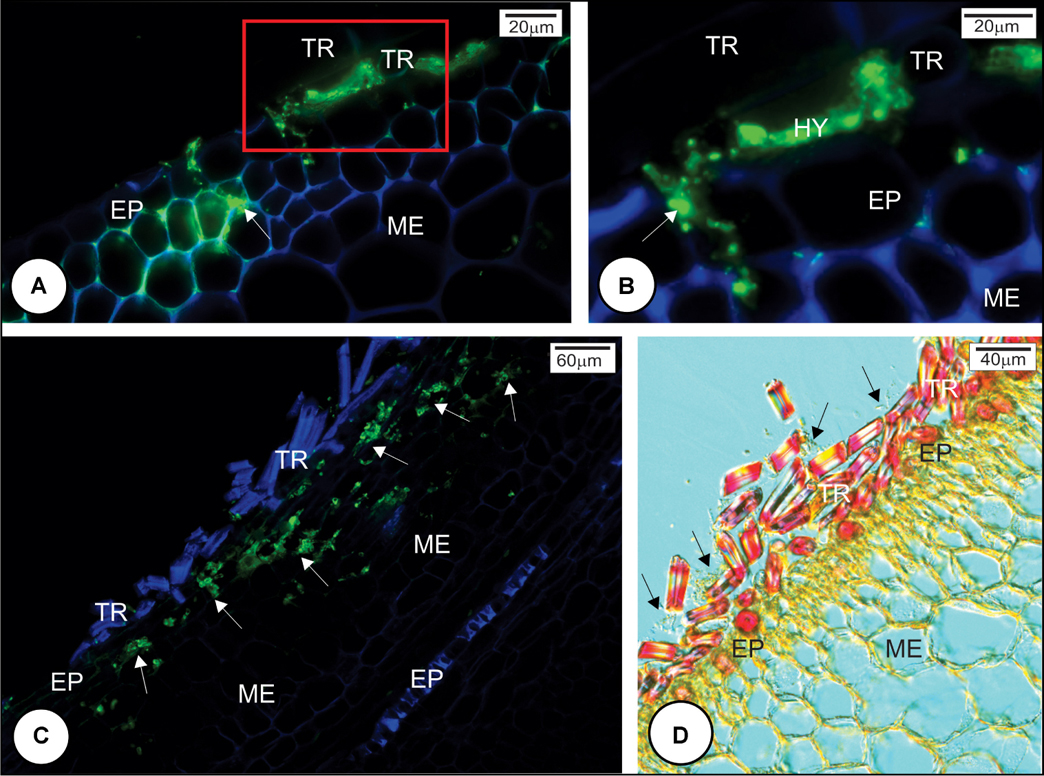

FIGURE 3
Histopathological Sugarcane Responses Against S. scitamineum
The study focused on elucidating both early and later responses of sugarcane bud scale tissues to S. scitamineum infection. Infection events were distinguished at 24 and 48 h.a.i. (initial prevention of infection) and between 72 and 96 h.a.i. (prevention of colonization in the meristematic tissues).
At 24 and 48 h.a.i., susceptible cultivars did not exhibit lignin deposition in the challenged plant cells underlying the fungal hyphae infection sites (Figures 4A–D, 8B). In contrast, in both resistant cultivars, lignin was observed in epidermal and parenchyma cell walls of the outermost bud scale in close proximity to S. scitamineum hyphae (Figures 4E–J, 8A,C). Furthermore, epidermal cells in contact with the fungus accumulated phenolic compounds (Figures 4I, 8A,C) in both resistant cultivars. It is important to note that fungus infection was not observed where the cells had lignin and phenolic compounds in their walls. In susceptible cultivar tissues, no lignin or phenolic compound accumulation was observed while comparing inoculated with non-inoculated bud scales.

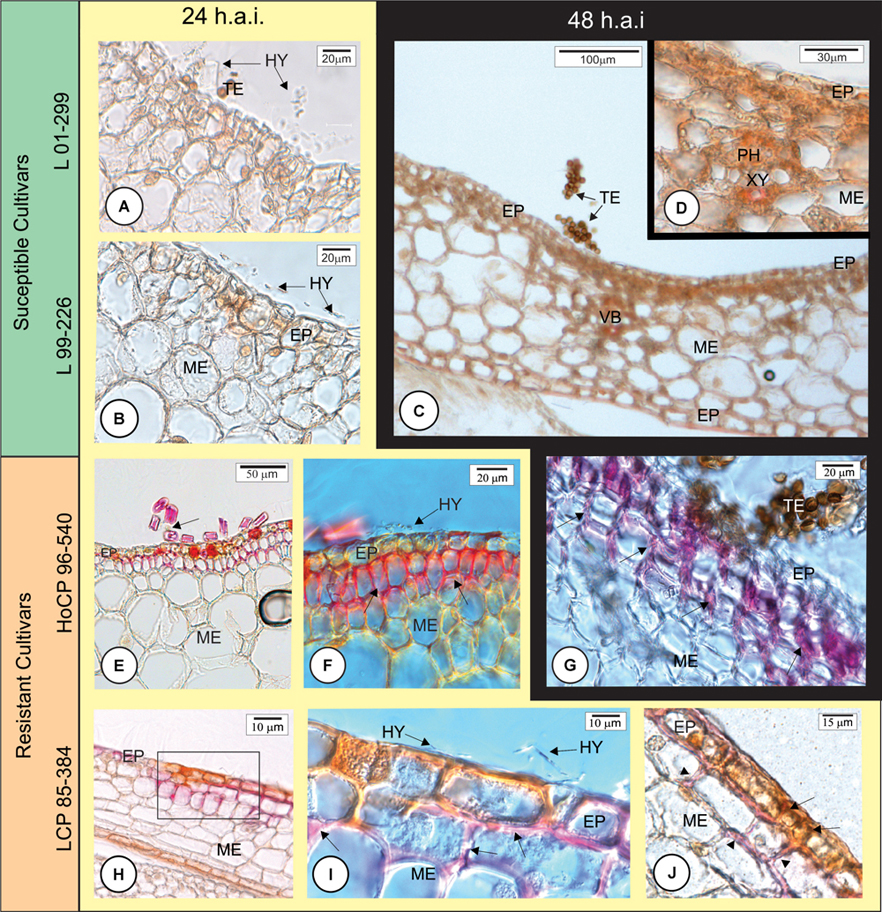

FIGURE 4
The fungus successfully infected all cultivars but mainly at the base of the outermost bud scale where the mesophyll cells were not lignified and did not accumulate phenolic compounds in their walls (Figure 3D). Once infected and colonized, the fungus grew toward the point of outermost scale insertion in the stem axis where a barrier layer with different cell wall composition was observed at 72 h.a.i. in resistant cultivar HoCP 96-540 and at 72–96 h.a.i. in resistant cultivar LCP 85-384 (Figures 5, 6). In both resistant cultivars, S. scitamineum hyphae did not pass through the protective barrier layer (Figures 5C,D, 6B).
FIGURE 5

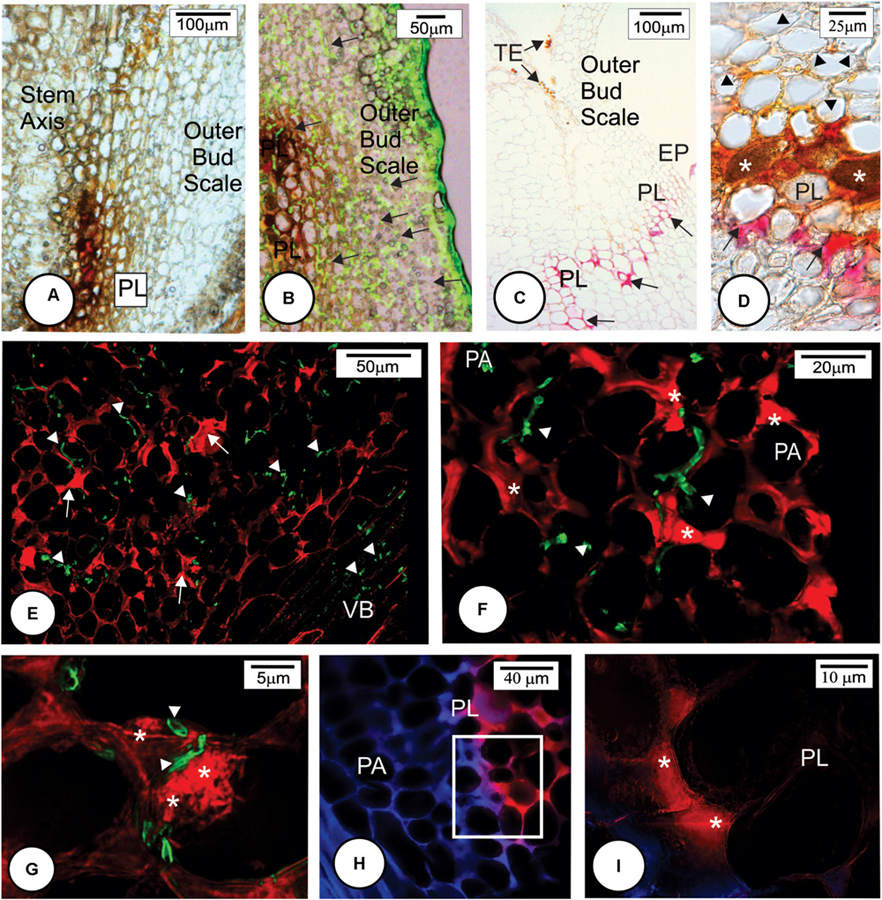

FIGURE 6
Multiple histochemical tests detected different wall components of the protective barrier layer cells. Lignin was a major component (Figures 5E,F, 6C,D) that was deposited in periclinal and anticlinal cell walls across the mesophyll cells (Figures 5F, 6C). In some regions, there was a high deposition of lignin in the intercellular spaces (Figure 6C). Phenolic compounds were also associated with the protective layer (Figures 6A,B). Phenolic compounds were observed to be accumulated inside non-lignified cells (Figure 6D). When non-stained tissues from HoCP 96-540 at 72 h.a.i. were observed under bright field, reddish cell walls were observed in the protective layer (Figures 5G–I), and immunohistochemistry assay with LM11 antibody indicated accumulation of arabinoxylan in the cell walls (Figures 5H,I and Supplementary Figure 3). Arabinoxylan accumulation was detected in cell walls of LCP 85-384 infected cells at 96 h.a.i. (Figures 6C–G). Phenolic compounds were also accumulated inside the cells with arabinoxylan-rich walls (Figures 6D, 8D,F). In some regions at the base of the outermost bud scale, arabinoxylan accumulation was observed (Figures 6E,F), and these accumulations appeared to be associated with fungal infection sites (Figure 6G).
Callose (Supplementary Figure 2) and cellulose were also associated with the protective layer (Figures 5B,D, 6H). Cellulose occurs naturally in all cell walls but seemed to accumulate more in the thickened cell walls of the protective layer that prevented the fungus from reaching the meristematic tissues (Figures 5I, 8D,F and Supplementary Figure 3). One interesting aspect of the protective layer was that it was difficult to detect cellulose in cell walls with a high concentration of arabinoxylan and vice versa. This suggested there was a gradient of cell wall composition between cellulosic cell walls to arabinoxylan-rich walls (Figures 6H,I). A protective layer was not observed in infected susceptible cultivars (Figures 7A–C, 8E), and S. scitamineum was able to colonize the vascular bundles of the stem axis at 96 h.a.i. (Figures 7A,B) but without reaching the shoot apical meristem at this time (Figures 7C, 8E).

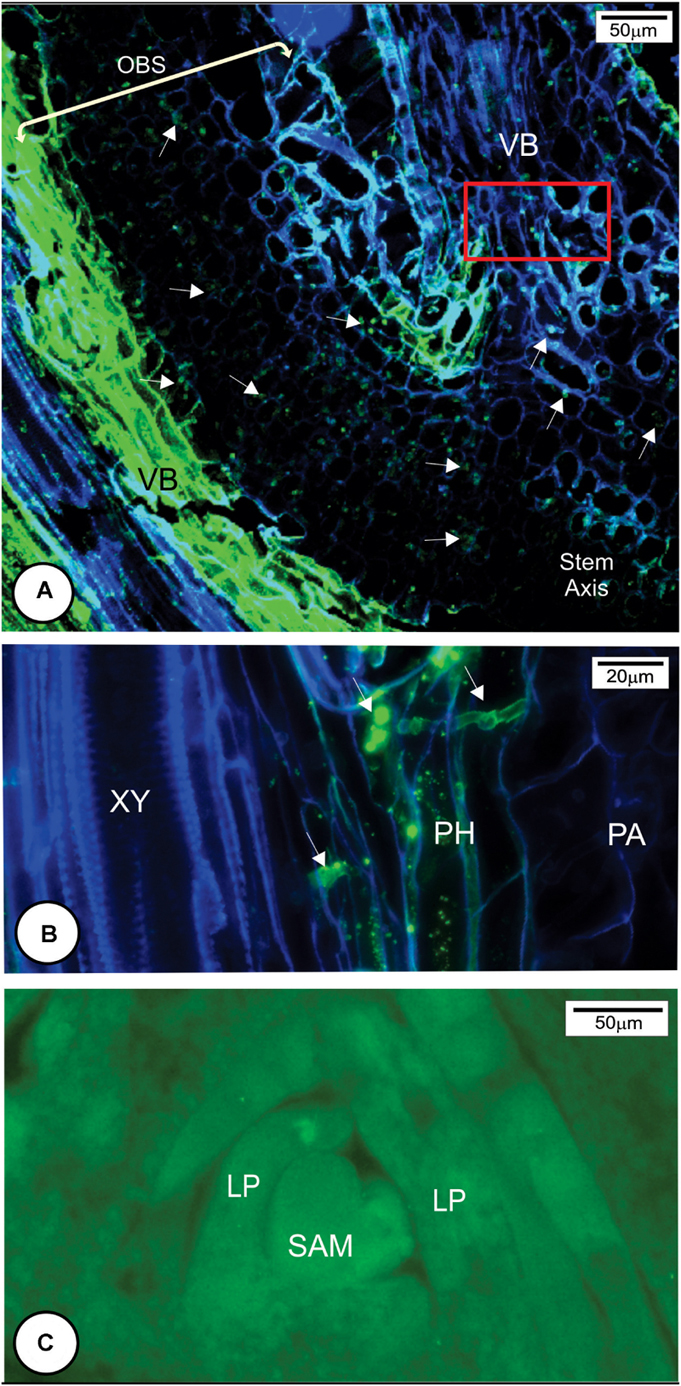

FIGURE 7

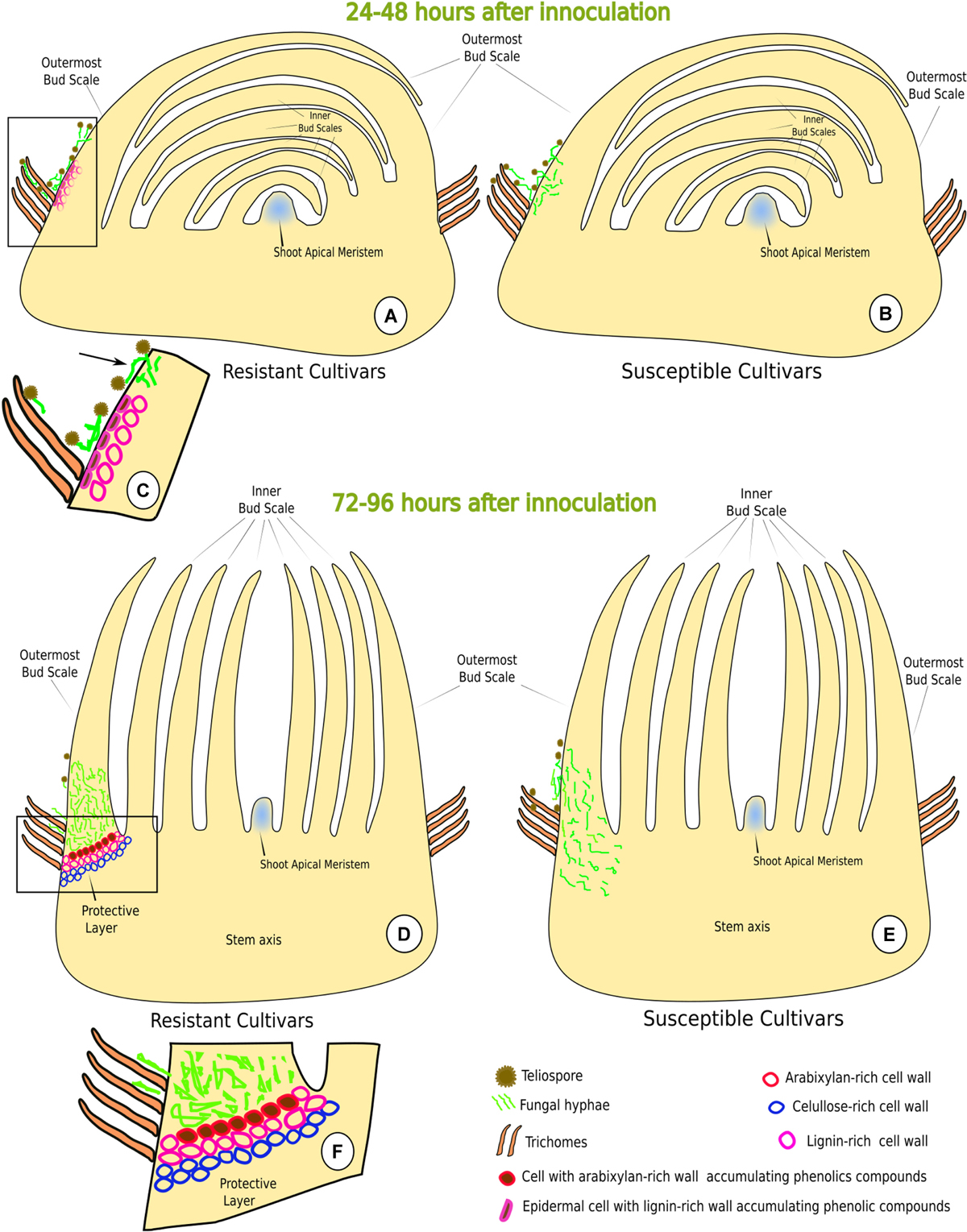

FIGURE 8
Discussion
Sugarcane genotypes differed in their resistance reaction against S. scitamineum based on the morphological characteristics of the buds and in response to different inoculation methods (Waller, 1970). A resistant cultivar was shown to exhibit a higher number of bud scales with epidermal cells with lignified walls and phenolic compounds accumulated in the epidermis, and trichome density was higher in the resistant cultivar compared to the susceptible one (Appezzato-da-Glória et al., 1995). In the present work, two resistant cultivars HoCP 96-540 and LCP 85-384 presented similar constitutive barriers that were absent in two susceptible ones. Susceptible cultivars presented fewer trichomes, and no lignin was observed in the walls of epidermis and bundle sheath extensions cells. It is important to note that LCP 85-384 is one of the parents of HoCP 96-540 and L 01-299, but shares 54% and 48% genetic similarity with them, respectively (Parco et al., 2011). On the other hand, both susceptible cultivars are 42% similar genetically.
It is noteworthy to mention that the fungus successfully infected all cultivars but mainly at the base of the outermost bud scale where the cells in the resistant cultivars were not lignified. These results indicated that lignin could act as a local barrier as has been reported by other authors (Appezzato-da-Glória et al., 1995; Legaz et al., 2011).
In this study, trichomes were found more abundant on bud scales of resistant cultivars as observed in a resistant cultivar by Appezzato-da-Glória et al. (1995), but abundant teliospore germination and hyphal growth were observed at the base of the outermost bud scale even in the resistant cultivars. This contradicts the previous observation by Appezzato-da-Glória et al. (1995) that these trichomes could play a role in the prevention of infection by spore adhesion at the trichomes exterior.
Fungal Penetration and Colonization
The first report of sugarcane smut histopathology by Alexander and Ramakrishnan (1980) showed that S. scitamineum did not infect the bud scales but grew on the surface of the scales and at the base of innermost scale. In this study, the fungus effectively infected and colonized the outermost scales of both resistant and susceptible cultivars. The authors described fungal entry into the meristem between 6 and 36 h after teliospores were deposited on the bud. However, they did not show any evidence of the infection or colonization process. Our results showed that S. scitamineum teliospores were germinating and promycelia forming at 12 h.a.i. Between 12 and 24 h.a.i., S. scitamineum promycelia were observed in contact with one another resulting in plasmogamy and consequent reciprocal nuclear exchange to establish dikaryotic infection hyphae. In addition, the formation of an inflated apressorium-like structure was observed on the anticlinal cell wall of epidermis in all cultivars. The apressorium-like structure could be responsible for penetration of the cuticle and epidermal cell wall in order to infect the outermost bud scale. This structure was preferentially associated with the epidermal anticlinal cell wall suggesting that the fungus possibly uses the topographical information for thigmotropic growth to follow the interstices between cells in order to facilitate infection. The penetration between epidermal cells was also detected in several other pathosystems, including Peronospora parasitica × Brassica oleracea and Erysiphe polygoni × Trifolium pratense (Preece et al., 1967), Ustilago maydis × Zea mays (Snetselaar and Mims, 1994) and Colletotrichum acutatum × Citrus sinensis (Marques et al., 2013).
Previous literature suggested that S. scitamineum did not infect sugarcane bud scales (Singh and Budhraja, 1964; Alexander and Ramakrishnan, 1980), but stained sections of the outermost bud scale in our study showed that the fungus entered the base of the scale. The fungus penetrated through epidermis anticlinal cell walls and afterward the colonization was both intra- and intercellular. Marques et al. (2017) demonstrated that S. scitamineum is able to degrade the middle lamellae and change the crystalline cellulose arrangement to promote intercellular growth and then penetrates the protoplasm without breaking the plasma membrane. In this study, after colonization of the outermost scale of the susceptible cultivars, the fungus entered the stem axis colonizing the ground and vascular tissues. The colonization of vascular tissues also was reported by others (Lloyd and Pillay, 1980; Marques et al., 2017), and this would provide a path to reach the meristematic tissues. After penetration and consequent colonization of the outermost bud scale, the fungus entered the internal tissues only in susceptible cultivars, but infection was not observed to reach the shoot apical meristem until 96 h.a.i. (Figure 8E). However, Alexander and Ramakrishnan (1980) reported that the fungus infected the meristematic tissues between 6 and 36 h.a.i. after smearing the sugarcane with ustilospores. Differences in the time required for S. scitamineum to reach the shoot meristem could be attributed to differences in the inoculation method employed (Ferreira et al., 1980) and differences in cultivar susceptibility.
Sugarcane Early Responses to S. scitamineum Infection
Lignin and phenolic compounds were observed in cell walls at the infection site in two resistant cultivars at 24 h.a.i. but were absent in susceptible ones (Figures 8A,C). The induced lignification of the epidermis and parenchyma cell walls together with accumulation of phenolic compounds could provide a local barrier against S. scitamineum infection since fungus penetration was not observed where the tissues were lignified. However, the lignification at the infection site did not protect from S. scitamineum penetrating the outermost bud scales. S. scitamineum reportedly elicits a major accumulation of p-coummaric and syringic phenolic acids at 15 h.a.i. (De Armas et al., 2007). These acids are directly associated with cell wall reinforcement and could be associated with lignin deposition at the early stages of host–pathogen interaction. An increase in lignification in sclereids and tracheary elements walls of sugarcane leaves was also reported (Santiago et al., 2010b); although, leaves are not the site of infection.
Phenolic compounds located at infection sites in both resistant cultivars could be used for lignin biosynthesis together with H2O2 and oxidative enzymes (Vanholme et al., 2008; Cesarino et al., 2012). Santiago et al. (2010b) studying the effect of caffeic acid in vitro concluded that phenolic compounds were responsible for reduced teliospore germination. However, we observed that teliospore germination and promycelia formation were not affected by phenolics accumulation in the outermost bud scale epidermis. However, phenolic composition was not determined in the cultivars studied, suggesting a need for future biochemical analysis.
Sugarcane Late Responses to S. scitamineum Infection
After infection, the fungus colonized all the tissues of the outermost bud scale in all cultivars and subsequently proceeded to the point of insertion of the scale on the stalk to get access to the developing shoot apex. Between 72 and 96 h.a.i., resistant cultivars developed a protective layer of cells with accumulation of phenolic and parietal components that appeared to be a structural and biochemical barrier against S. scitamineum. Callose, deposited in some cell walls of the protective layer, has been associated with plant defense response in other pathosystems (Voigt, 2014). Some protective layer cell walls exhibited a positive reaction to arabinoxylan LM11 antibody. Arabinoxylan is a hemicellulosic polysaccharide that has a cellulose-like backbone consisting of β-1,4-xylosyl residues that can bind strongly to the cellulose microfibrils by non-covalent bonds forming an intricate cross-link (Albersheim et al., 2011; Chowdhury et al., 2014). In sugarcane, it is known that arabinoxylan is strongly bound to cellulose (Souza et al., 2013). Costa et al. (2016) demonstrated that arabinoxylan is distributed in sugarcane stems in the ground parenchyma and the lignified cells from the vascular bundles. LM11 binds to unsubstituted xylan and arabinoxylans with a low degree of arabinose substitution (McCartney et al., 2005). Moreover, p-coumaric acid and ferulic acid was found in smut-inoculated sugarcane plantlets (De Armas et al., 2007). Both acids can be esterified to arabinoxylan (de O Buanafina, 2009). The detection of additional involvement of arabinoxylan further suggests that intricate and complex mechanisms function together to modify the cell wall composition that most likely play an important role in the prevention of further fungal colonization.
Conclusion
In the present study, smut resistant and susceptible sugarcane genotypes were evaluated to elucidate the cell wall composition-related defense against infection by Sporisorium scitamineum. A plausible positive relationship between lignin deposition and initial resistance response against fungal penetration was observed. The study suggested the existence of a protective layer of cells with modified wall composition at the base of the outermost bud scale in resistant cultivars. The natural route of fungal infection in susceptible cultivars through tissues at the bud scale base was also demonstrated. Comprehensive investigations including time-course, subcellular transcriptome analysis in resistant vis-à-vis susceptible sugarcane varieties will provide detail insights into cell wall modifications toward establishment of their roles in defense mechanism of sugarcane to smut fungus.
Statements
Author contributions
The study was conceived and designed by JM and NB. JM conducted the microscopy analysis. JM, JH, AV, and NB were involved in field sampling and inoculation. JM, BA-d-G, JH, MV, and NB participated in writing the manuscript.
Funding
The authors acknowledge the São Paulo Research Foundation (FAPESP) for the fellowship given to JM (2016/00118-1 and 2012/25315-1), and funding from the USDA-NIFA and the American Sugar Cane League to NB and JH.
Acknowledgments
Biologist Aricelis Biscáro Mela Marques is acknowledged for helping in bud inoculation and sample preparation. This manuscript has been approved for publication by the Louisiana Agricultural Experiment Station as MS# 2018-306-32075.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
