Abstract
Microalgae represent a sustainable source of biomass that can be exploited for pharmaceutical, nutraceutical, cosmetic applications, as well as for food, feed, chemicals, and energy. To make microalgae applications economically competitive and maximize their positive environmental impact, it is however necessary to optimize productivity when cultivated at a large scale. Independently from the final product, this objective requires the optimization of biomass productivity and thus of microalgae ability to exploit light for CO2 fixation. Light is a highly variable environmental parameter, continuously changing depending on seasons, time of the day, and weather conditions. In microalgae large scale cultures, cell self-shading causes inhomogeneity in light distribution and, because of mixing, cells move between different parts of the culture, experiencing abrupt changes in light exposure. Microalgae evolved multiple regulatory mechanisms to deal with dynamic light conditions that, however, are not adapted to respond to the complex mixture of natural and artificial fluctuations found in large-scale cultures, which can thus drive to oversaturation of the photosynthetic machinery, leading to consequent oxidative stress. In this work, the present knowledge on the regulation of photosynthesis and its implications for the maximization of microalgae biomass productivity are discussed. Fast mechanisms of regulations, such as Non-Photochemical-Quenching and cyclic electron flow, are seminal to respond to sudden fluctuations of light intensity. However, they are less effective especially in the 1–100 s time range, where light fluctuations were shown to have the strongest negative impact on biomass productivity. On the longer term, microalgae modulate the composition and activity of the photosynthetic apparatus to environmental conditions, an acclimation response activated also in cultures outdoors. While regulation of photosynthesis has been investigated mainly in controlled lab-scale conditions so far, these mechanisms are highly impactful also in cultures outdoors, suggesting that the integration of detailed knowledge from microalgae large-scale cultivation is essential to drive more effective efforts to optimize biomass productivity.

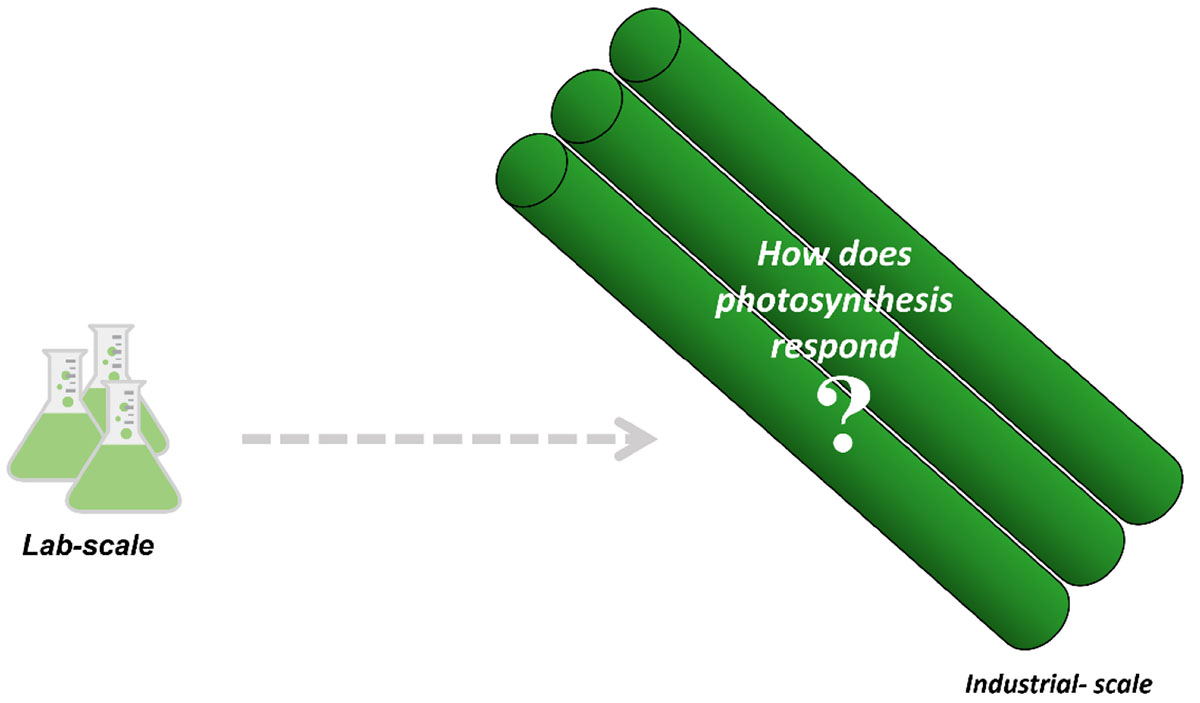

How does microalgae photosynthesis respond to outdoor cultivation at industrial-scale?
Introduction
Global demand for products derived from biomass such as food, feed, or fuels is continuously expanding and will continue to grow with the increase of population in the next decades. At the same time, agricultural practices generate several negative impacts on the environment, such as CO2 emissions and reduction of biodiversity (). A major challenge for the future well-being of our society is developing new strategies to improve the current biomass production, while also increasing sustainability and mitigating the emission of greenhouse gases in the atmosphere (; ). One promising possibility is to complement plants cultivation with new biomass sources such as microalgae, diverse, unicellular, eukaryotic photosynthetic organisms that use sunlight to produce biomass and oxygen from carbon dioxide (CO2), water, and nutrients. Microalgae can be cultivated in marginal or saline water on unproductive land and thus do not compete with agriculture for arable soil and freshwater, making them a promising resource for highly sustainable production of biomass and various biomaterials (; ).
While many promising microalgae applications have been proposed, the potential of these organisms remains largely underexploited. Significant improvement in strains performances and cultivation technologies is still seminal to reduce biomass production costs and increase competitivity (). Photon-to-biomass conversion efficiency is one of the major parameters impacting microalgae productivity and thus its optimization is strategic for the expansion of microalgae-biomass-based technologies.
Microalgae cultivation is performed in industrial platforms (e.g., photobioreactors, PBRs) with high energy and monetary costs for both building and maintenance. Maintaining a high photon-to-biomass conversion efficiency at an industrial scale is thus essential to guarantee high areal productivity, improving the ratio between production and building/operational costs ().
Microalgae at an industrial scale are normally cultivated at high cell densities to maximize biomass productivity, leading to an inhomogeneous light distribution because of cells’ self-shading. As shown in the example in Figure 1, which reports estimations for a culture with a 5 cm depth and 1 g L–1 biomass concentration, the first cm of the culture absorbs approx. 60% of incident radiation, whilst most of the remaining 40% of incident radiation is harvested by the second cm of culture, leaving the rest almost in the dark (). The first layer of cells, besides absorbing most of the available radiation, often experiences saturation of photosynthesis and thus exploits harvested light with lower efficiency. An intermediate layer of cells receives optimal light to support growth, leaving however most of the culture volume in light limitation, where energy necessary for cell maintenance can be even larger than the light absorbed, curbing photon-to-biomass conversion efficiency. This phenomenon is particularly impactful in microalgae large scale cultivation, where in most cases optical paths are larger than the example in Figure 1, reaching even 20 cm and more in the case of raceway open ponds ().

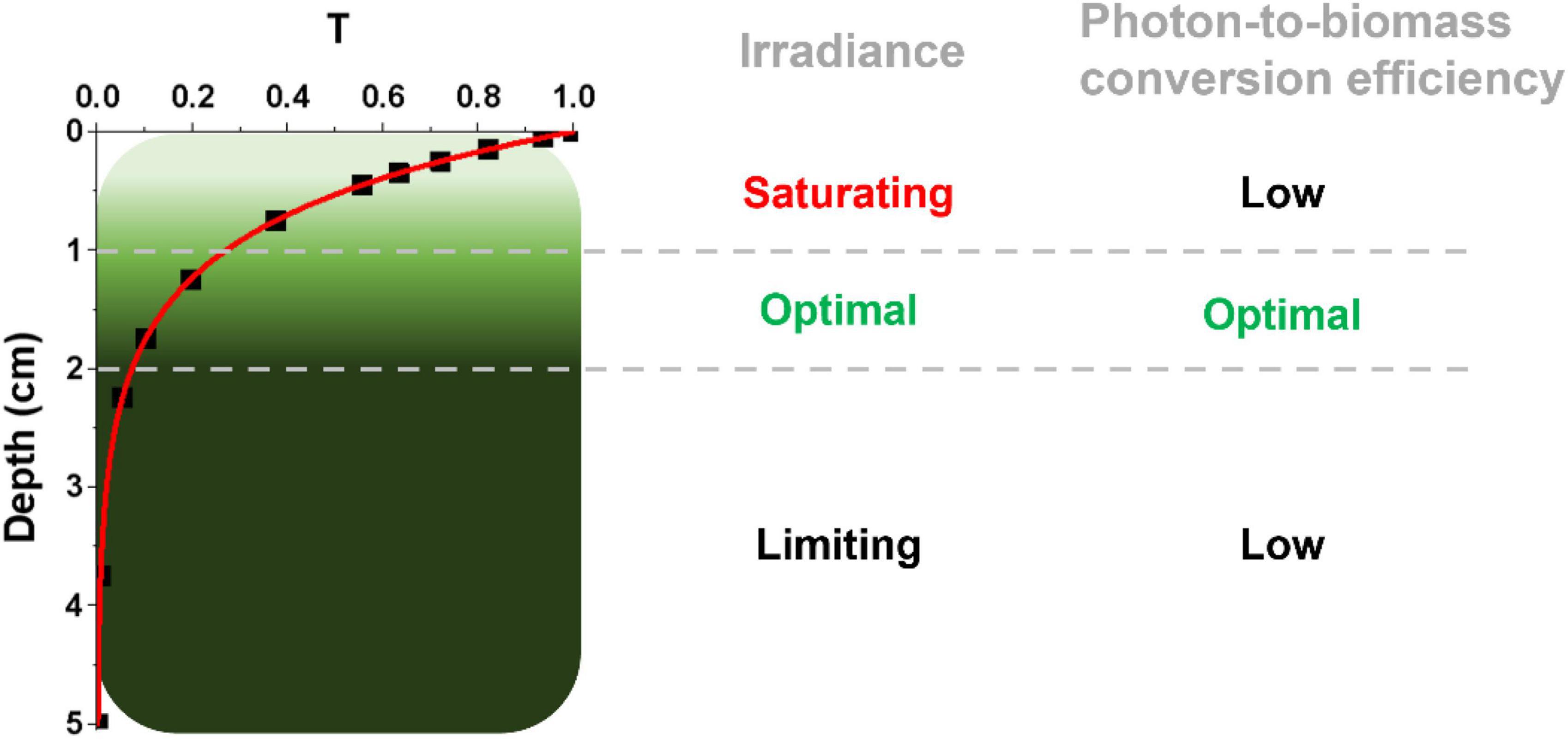

FIGURE 1
Microalgal cultures are actively mixed to improve cells exposition to incident light and to ensure the supply of nutrients and CO2 that can be limited by the low diffusion rate in liquid medium. Because of the combination of mixing and shading, cells move between different layers of the mass culture and thus from regions where light is saturating to others where it is limiting and vice-versa. Because of these movements, cells are thus exposed to abrupt changes in irradiance, with a millisecond to minutes timescale, depending on the design of the platform of cultivation, e.g., photobioreactors or ponds, respectively ().
The impacts of cells shading can be reduced by decreasing the optical path of the cultures, modifying the design of the cultivation platform, using, e.g., thin-layer photobioreactos (), and bringing to a reduction in the culture volume per area of cultivation platform. This alone indeed can provide an increase in volumetric yield (), but it also leads to higher building and operational costs that needs to be compensated for by higher productivity (). In thin-layer systems, however, the smaller optical path corresponds to a higher biomass concentration, thus still generating a significant shading.
Independently from the specific cultivation systems, in order to improve biomass productivity of microalgae industrial cultivation and make it economically and energetically sustainable, it is thus essential to optimize the light-energy-to-biomass-conversion efficiency in an optically dense culture. One possibility to reach this objective is tuning their photosynthetic properties to cultivation in intensive conditions, where the wild-type (WT) strains isolated in nature may not be optimal to reach maximal productivity (). Strains improvement or domestication by the selection of specific genetic features is expected to be seminal for the industrial exploitation of microalgae biomass (; ; ). Genetic modifications of microalgae photosynthetic properties were indeed shown to be beneficial for productivity at the lab scale (; ; ; ), while attempts to validate the improved productivity at larger-scale cultivation were successful in some cases but not others (; ). The variability of outcomes largely depends on the environmental conditions experienced in large-scale cultivation, which are significantly different from the lab scale and have a major impact on performances of genetically improved strains (,). When microalgae are cultivated in PBRs/ponds outdoors, in fact, they are exposed to a complex environment, where the specific features described in Figure 1 are combined with the impact of natural fluctuations of light and temperature, impairing the possibility of extrapolating the impact of genetic modifications at the industrial-scale from simple lab-scale evaluations. A deeper understanding of the complexity of the growth environment in outdoor industrial-scale systems and its impact on microalgae productivity is thus essential to close the current gap between lab- and PBRs-scale growth performances and to translate more effectively the potential of genetic improvement to a more relevant scale of cultivation for microalgae industrial applications.
The Impact of Short-Term Mechanisms for the Regulation of Photosynthesis on Microalgae Productivity
Photosynthetic organisms are exposed to a highly dynamic environment in nature and evolved multiple regulatory mechanisms of photosynthesis with different activation timescales, enabling responses to short- and long-term light dynamics (). The short-term mechanisms enable a quick response to changes in irradiance and they depend on either macromolecule already present in the cell or pools of molecules rapidly synthesized/degraded upon changes in irradiance. One of the fast responses to excess light is Non-Photochemical Quenching (NPQ), which drives the dissipation of a fraction of the absorbed energy as heat (), a mechanism that in microalgae mostly depends on the activity of antenna proteins belonging to the LHCSR/LHCX family (; ). Another important mechanism triggered by excess light is the synthesis of the xanthophyll zeaxanthin from violaxanthin by Violaxanthin De-Epoxidase (VDE). Zeaxanthin enhances NPQ while also playing a direct role in scavenging reactive oxygen species (ROS) (), generated from the interaction of excited chlorophyll states with molecular oxygen. When irradiance decreases, zeaxanthin is converted back to violaxanthin by zeaxanthin epoxidase (ZE), increasing light-harvesting ability. Whilst this cycle has been described in diverse microalgae species, from the green lineage (e.g., Chlamydomonas reinhardtii) to Eustigmatophytes (e.g., Nannochloropsis spp.), the analogous diadinoxanthin-diatoxanthin cycle is instead active in diatoms ().
The mechanisms described above are mainly active in protecting PSII, yet also PSI can experience radiation damage, when light fluctuations drive to over-reduction (). Two main mechanisms have been identified to be involved in protecting PSI. The first is called photosynthetic control and it is activated by the proton gradient across the thylakoids membrane generated in excess light. This regulation consists in the inhibition of the activity of the Cytochrome b6f that consequently reduces the flux of electrons reaching PSI and thus the risk of over-reduction (). A second group of mechanisms, cyclic (CEF) and pseudo-cyclic (PCEF) electron flows, avoid PSI over-reduction by activating alternative pathways that recycle electrons back to the plastoquinone pool or Oxygen (). Among the proteins that have been so far identified involved in CEF there are PGR5/PGRL1 (; ) and the chloroplast NADH-dehydrogenase-like (NDH-1) complex (), whilst for PCEF two alternative pathways have been described so far, namely the Mehler reaction and Flavodiiron proteins (FDP or FLVs) (; ).
The impact of short-term mechanisms for the regulation of photosynthesis on biomass productivity in the outdoors environment has been demonstrated in plants, where NPQ, xanthophyll cycle and CEF (; ) were shown to impact fitness (). Also genetic optimization of the NPQ response was shown to enable significant improvement in biomass yield in tobacco plants cultivated in the field (). It can thus be expected that photosynthesis regulation is impacting productivity of microalgae cultivated in PBRs/ponds outdoors as well.
In the example reported in Figure 2, Nannochloropsis gaditana cultures were exposed to dynamic light changes with a highly different frequency of fluctuations, with the saturating light treatment lasting between 0.01 s and hours, while the limiting light being correspondingly six times longer to ensure that the total amount of photons received remained the same (; ). The integrated photon flux corresponded to optimal light intensity for the species [i.e., 150 μmoles of photons m–2 s–1 ()] and nutrients and CO2 were supplied in excess. These conditions thus enabled to assess the impact of illumination dynamics resembling those experienced in outdoor PBRs/ponds on microalgae photosynthetic productivity while maintaining all other parameters constant. Results showed that the frequency of light fluctuations alone has a major impact indeed, resulting in over a four-fold decrease in the growth rate and a reduction in the biomass produced by ≈ 85% (Figure 2). This is a clear exemplification that the impact of light dynamics must be strongly considered in all optimization efforts of outdoor productivity.

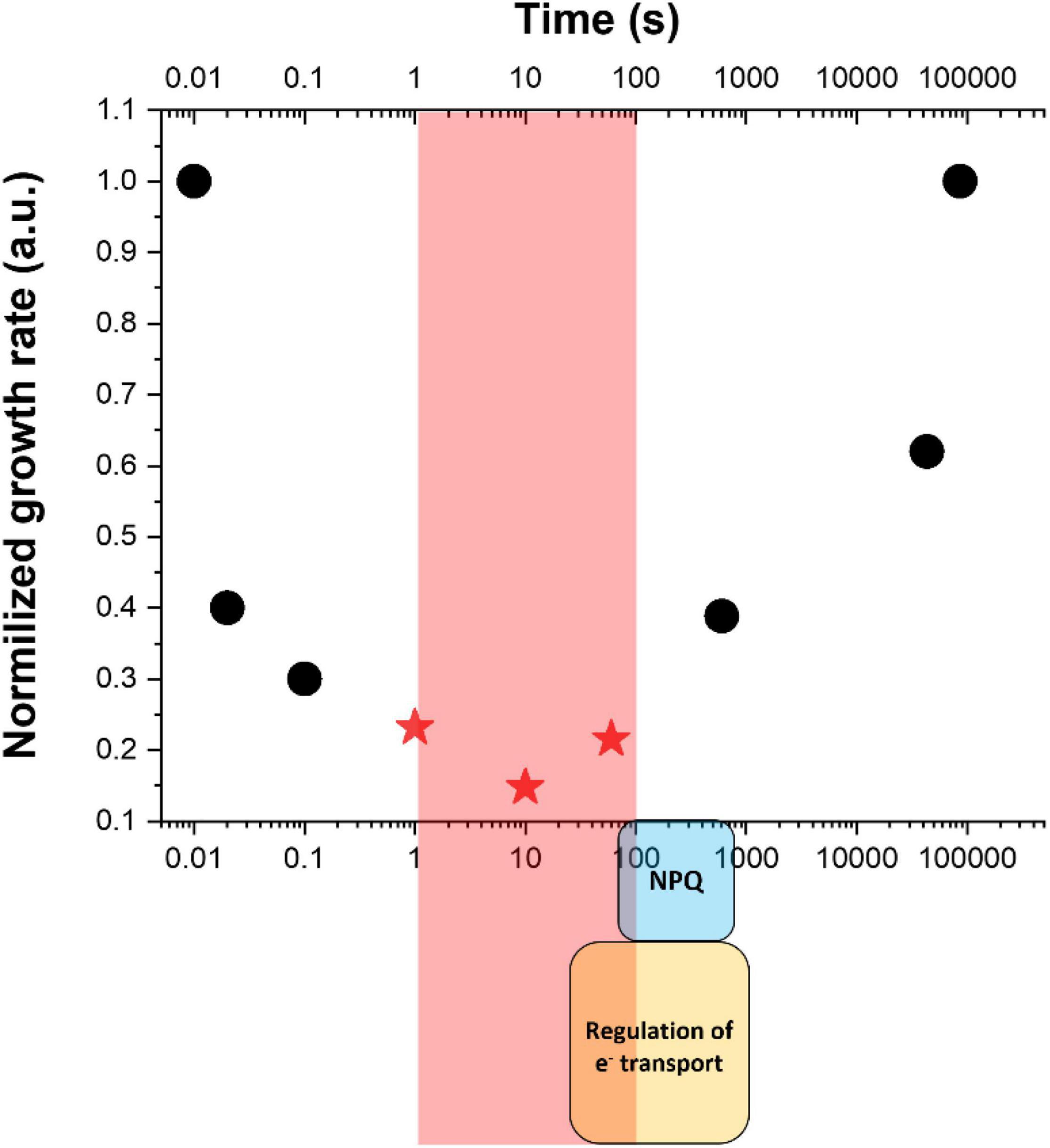

FIGURE 2
Results reported in Figure 2 are consistent with similar experiments reported for other species (e.g., Chlamydomonas reinhardtii, Spirulina platensis, Chlorella spp.) where a broad range of light fluctuations was shown to have a strong impact on growth (; ; ; ), clearly suggesting that this effect is largely similar in different photosynthetic microorganisms, from cyanobacteria to eukaryotic microalgae species. This observation also suggests that the phenomenon is intrinsic to the photosynthetic machinery and largely dependent on conserved functional mechanisms. Overall, literature data consistently show that very short light flashes do not cause significant damage and that the photons provided can be exploited with good efficiency even if illumination is very intense. This can be explained because intense light flashes are efficiently absorbed by pigments and can initiate photochemical reactions, but light is then switched off before electron flux becomes limited by diffusion-dependent transporters such as that mediated by the plastoquinone pool (; ).
A second common observation is that cells can withstand even a very strong illumination, lasting for several minutes or hours and maintain a good growth rate. When exposed to intense light, regulatory mechanisms are activated, enabling the modulation of the photosynthetic efficiency and the protection from damage by dissipating light excesses as heat.
The most challenging conditions are thus those in which strong light exposure lasts long enough to cause damage but not long enough for the full activation of protection mechanisms. The fastest mechanism known is probably PCET, dependent on FDP whose activation is particularly fast and can provide significant protection in a few seconds after light is switched on (). This mechanism, however, is not found in all eukaryotic microalgae, including all secondary endosymbionts like Nannochloropsis and diatoms (). NPQ, on the other hand, requires at least 60 s of intense light to be induced (). Xanthophyll cycle is instead slower and requires 1–3 min to be activated. Similar kinetics are also needed for the activation of the regulation of CET (). Considering that microalgae are highly diverse and that this variability is also true for regulatory mechanisms of photosynthesis, different species may have slightly different kinetics. Anyhow, present knowledge is quite clear in suggesting that regulatory mechanisms of photosynthesis are not fully activated in the 1–60 s range, where still strong light lasts enough to saturate the electron transport chain and drive damage (Figure 2).
Long-Term Mechanisms for the Regulation of Photosynthesis in Microalgae
While the mechanisms discussed above are active in the seconds/minutes timescale, the prolonged exposition of cells to a specific irradiance induces the activation of long-term mechanisms for the regulation of the photosynthetic apparatus, such as acclimation, to maintain photosynthesis homeostasis. This phenomenon modulates the composition of the photosynthetic apparatus in response to irradiance intensity and includes the regulation of the content of proteins and other macromolecules (e.g., pigments) (; ; ; ). In most photosynthetic organisms, this long-term acclimation mechanism includes a reduction in the chlorophyll (Chl) content and an increase in photoprotective carotenoids (Car) and xanthophylls when exposed to saturating irradiance (). Another common feature of acclimation is the modulation of the photosynthetic capacity with, for example, cells acclimated to high light showing an increased photosynthetic electron transport, as observed in the diatom Phaeodactylum tricornutum and in the green microalga Chlamydomonas reinhardtii (; ). This also correlates with an increase of sinks for photosynthetic electrons, such as the Calvin-Benson cycle enzymes, with the enzyme RuBisCO being the main target of the regulation (; ).
The extent of this acclimation response is exemplified by merging data from Nannochloropsis gaditana cultivated at the lab scale in highly different conditions (Supplementary Table 1). These cultures differed for supports of cultivation (flasks, lab-scale photobioreactors with different designs), illumination intensities (10, 100, 400, 1000, 1200 μmol photons m–2 s–1), media (seawater media F/2, F/2 with additional/depletion of Nitrogen, Phosphorous), presence/absence of external CO2 supply, cultivation strategies (batch or semi-continuous), as described in Supplementary Table 1. The comparative analysis of these data, obtained for the same microalgal strain and using a consistent set of analytical methods, highlights the response of microalgae to different growth conditions while minimizing effects due to other parameters, like species/strain and specific cultivation protocols. All data compared are obtained from cells under active growth and do not include cells under prolonged stresses.
The analysis of the pigment content highlights the activation of the acclimation response with a modulation of the Chl content of the cells (Figure 3). Under lower illumination, Chl content increases to maximize light-harvesting efficiency while, when light is intense, Chl content decreases to reduce absorption and avoid eventual photodamage. While this is a common behavior among different photosynthetic organisms (; ; ), it is interesting to observe that this correlation emerges despite the differences in other cultivation parameters. Chl content in cells exposed to extremes illumination (10 or 1000 μmol photons m–2 s–1) is also more similar irrespective of other factors. This probably suggests the existence of a lower and higher limit for Chl accumulation per cell (Figure 3A), whose value is likely species-specific.

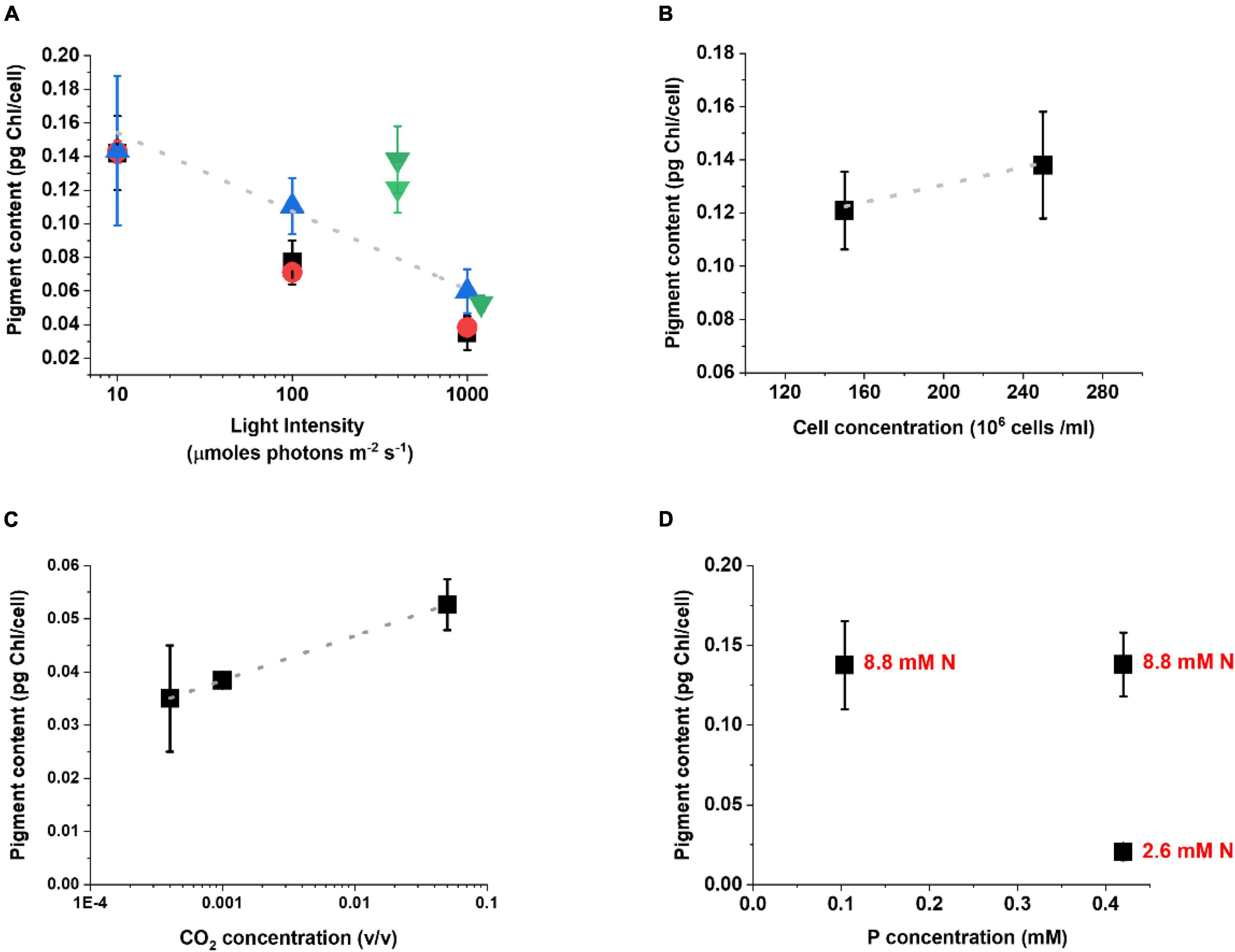

FIGURE 3
While the Chl content is largely influenced by the light intensity (Figure 3A), also other parameters like culture concentration, CO2 and nutrient availability show an impact on acclimation, when their influence is specifically analyzed (Figure 3). Cells concentration plays a major effect indeed, since self-shading reduces the average light available to the culture, even if the incident light is equivalent (Figure 3B). A higher CO2 availability, on the other hand, stimulates Chl accumulation (Figure 3C), likely because when the Calvin-Benson cycle is more active it re-generates acceptors for photosynthetic electron transport faster, thus enabling the use of photosynthetic excitation energy more efficiently. When the impact of nutrients is considered, Chl biosynthesis is highly dependent on Nitrogen availability and indeed cells with higher supply accumulate more pigments, while they accumulate far less in limiting conditions (Figure 3D). Phosphorous availability, on the other hand, has a smaller influence. In Nannocholopsis cultures Phoshoporus deficiency has no major impact on Chl content (), while significant effects were instead observed in cyanobacteria and other microalgae species (, ; ).
Overall, we observed that different parameters have a large impact on the acclimation of the photosynthetic apparatus (; ; ; ), highlighting the complexity of this phenomenon.
Carotenoids (Car) are the other major pigments in photosynthetic organisms, active in light-harvesting but also in protection from light excess and their content is also modulated during the acclimation response. Taking together the data of all experimental conditions reported in Supplementary Table 1, there is a clear linear correlation between Chl and Car content for Nannochloropsis cells, which is maintained independently from all the differences in growth parameters (Figure 4). This can be explained by the fact that pigment binding proteins in the photosynthetic apparatus bind Chl and Car with specific ratios and when their content changes both pigments are equally affected. It is interesting to observe that the tendency line trends to 0.01 pg Car/cell for a 0 Chl content, suggesting the presence of a carotenoid pool not bound to proteins of the photosynthetic apparatus. This pool might be free in membranes and active in scavenging ROS (; ). Microalgae, including Nannochloropsis, can accumulate carotenoids in oil bodies, but this occurs especially under prolonged stress, and this is likely not influential here since all cultures considered were under active growth conditions.

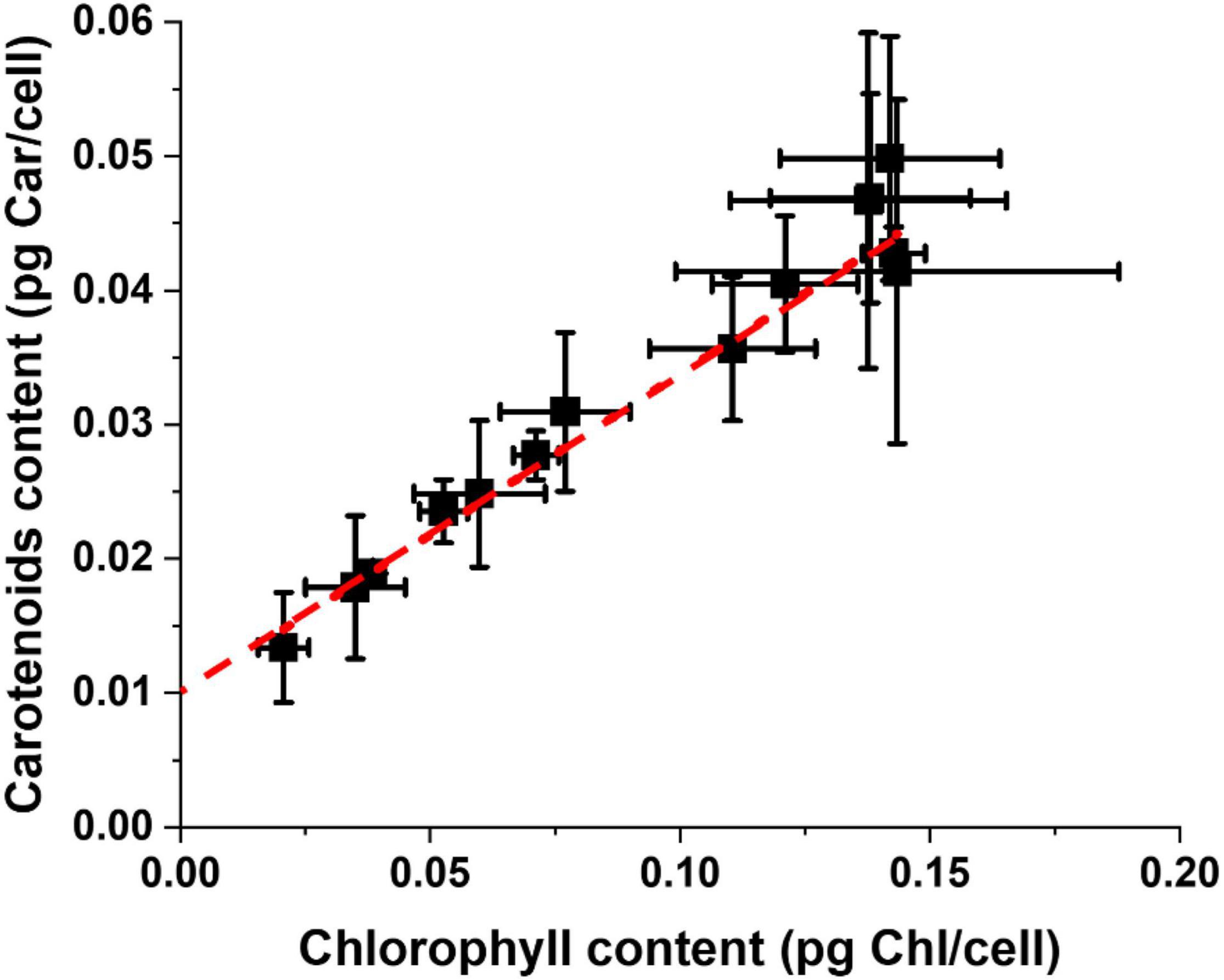

FIGURE 4
The acclimation response impacts not only pigment composition but also photosynthetic functionality. This can be evidenced by analyzing the fluorescence parameter qL, which enables to estimate the photochemical activity. qL is 1 when all reaction centers are open and available for photochemical reactions and it decreases when cells are exposed to increasing illumination, trending to 0 when the photosynthetic capacity is saturated (). In cultures acclimated to more intense illumination, qL values are generally higher, suggesting that these cells have a higher photochemical capacity and thus a stronger illumination is needed to reach saturation (Figure 5A). This common trend is observed under different culture conditions, but while the difference is strong in flask cultures, the acclimation of photosynthetic capacity is smaller in cultures cultivated at higher density in glass tubes with air bubbling (i.e., Multicultivator from Photon System Instruments, PSI, Supplementary Table 1), suggesting they are perceiving on average less light than the incident irradiation (Figure 5B).

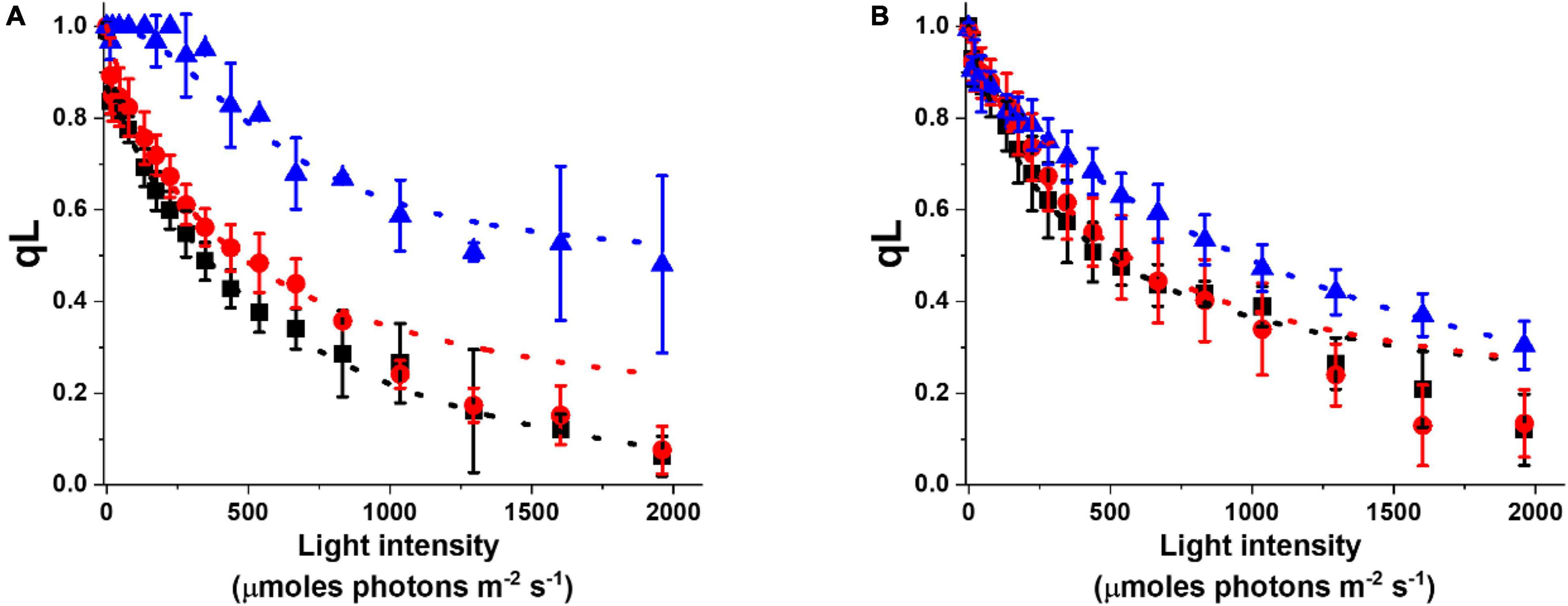

FIGURE 5
Acclimation of Photosynthesis in Microalgae Cultivated Outdoors
Many of the parameters described above are affected when microalgae are cultivated outdoors, starting from the illumination intensity that changes continually during days, weeks, and seasons, but their impact on microalgae acclimation and photosynthetic functionality is still insufficiently investigated even if in situ probes for a continuous monitoring of photosynthetic efficiency were developed (, , ).
It is instead highly interesting and stratetic comparing the response of microalgae cultivated outdoors to lab-scale cultures and assessing whether the response to outdoor cultivation corresponds to the phenomena observed indoors, on the path to drive improvements of photosynthetic productivity in the intended environment of cultivation at industrial scale. Figure 6 shows data from Nannochloropsis gaditana cultivated outdoors in a pilot PBR (Figure 6A) in semicontinuous mode to maintain high cellular concentration and biomass productivity (Figure 6B) while providing nutrients and CO2 in excess [ as a reference on media composition]. These experiments were carried out in a greenhouse in February–April 2021 and while the temperature was controlled at 22°C, irradiance was natural.

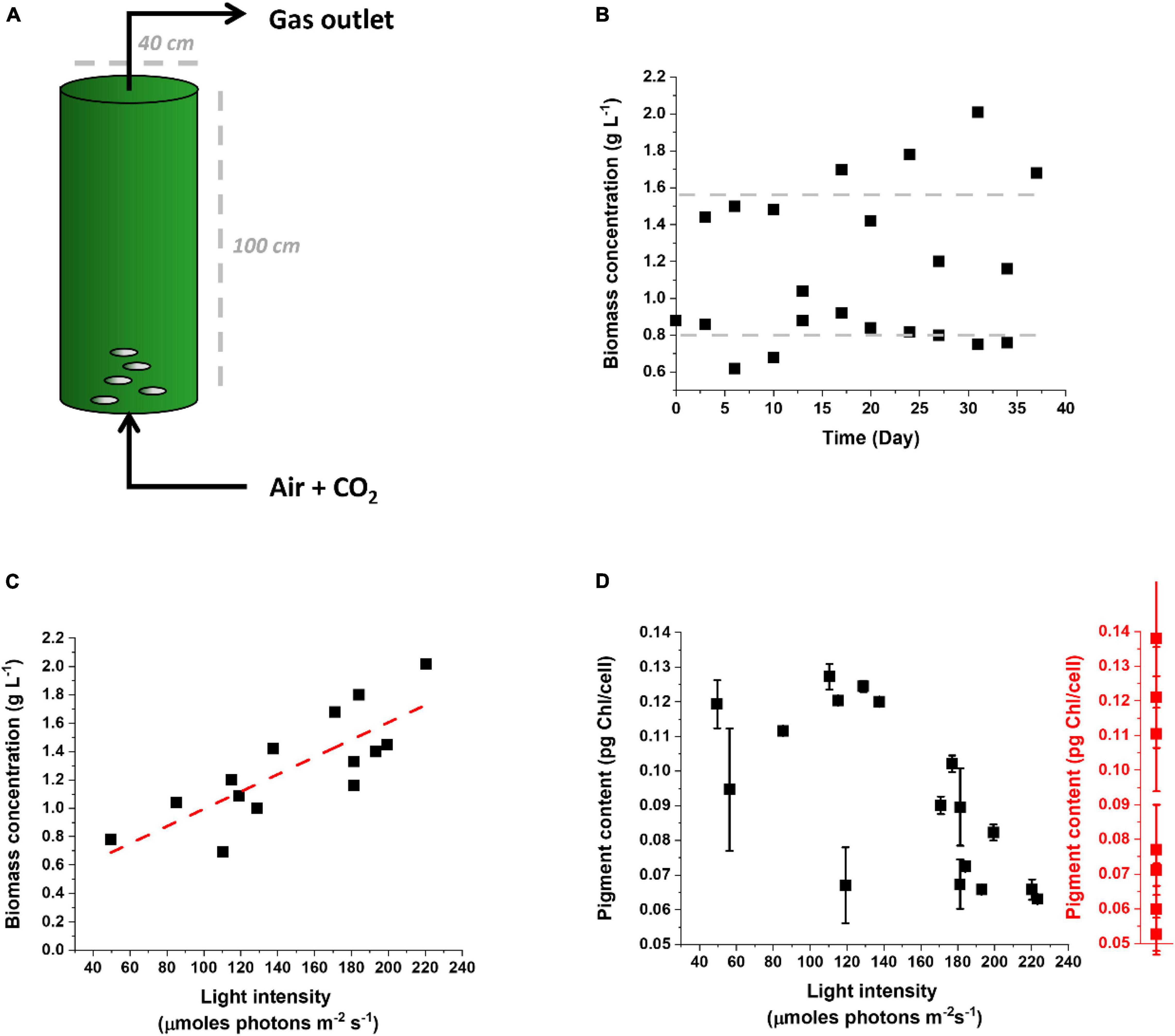

FIGURE 6
Culture productivity was variable during different days, as expected, but it emerged a clear correlation with light intensity (Figure 6C). This suggests that, at least in the tested growth conditions, the culture was light-limited, and more available irradiation corresponded to higher productivity. Since productivity is limited from light availability, clearly any optimization of photon-to-biomass conversion efficiency would have a positive effect on yield.
The Chl content of cells in outdoor conditions showed large variability, going from 0.06 to 0.12 pg Chl/cell (Figure 6D). It is interesting to observe that this range of variability corresponds to the differences observed at the lab scale for cells exposed to different irradiances (Figures 3A, 6D). This suggests that microalgae cultivated outdoors activate an acclimation response as extensive as observed indoors and thus that this response is indeed largely activated when they are cultivated for an extended time at an industrial scale.
The pigment content measured outdoors also shows a correlation with the light intensity experienced by the culture, with higher average light intensities stimulating a decrease in Chl content. This is not true for external illumination below 100 μmoles of photons m–2 s–1, suggesting that below this value the maximal Chl content per cell was already reached. This is consistent with a similar conclusion obtained from lab-scale experiments, considering that, because of the culture density, the average illumination perceived by the cells is well below 10 μmoles of photons m–2 s–1 (Figure 3A).
Overall, these data highlight that acclimation is a phenomenon activated by microalgae also upon cultivation in PBR outdoors. In fact, while data at the lab scale are still significant to investigate the biological response in detail, parameters in outdoor conditions have other kinetics (e.g., light variability), whose impact should be investigated more thoughtfully. A better understanding of these responses in outdoors environments is strategic to drive microalgae genetic modifications effective in industrial conditions.
Conclusion
Photon-to-biomass conversion efficiency is seminal for microalgae biomass productivity, given large-scale cultures are often light-limited, as also demonstrated here with data from an outdoor pilot PBR. Mechanisms for the regulation of photosynthesis, by modulating the ability of microalgae to convert light energy into biomass or dissipate the irradiance in excess as heat, have a fundamental impact on cell fitness and consequently productivity.
The impact of both short- and long-term regulatory mechanisms of photosynthesis during industrial cultivation is still under-considered and the biological response of microalgae at industrial-scale is still largely obscure. Further efforts are thus needed to clarify also the impact of an inhomogeneous distribution of carbon and nutrients on photosynthesis acclimation at the industrial scale and also to fully understand the impact of regulatory mechanisms investigated at the lab scale.
As domesticated crops must show improved performances on the field, also optimized microalgae strains must have improved biomass productivity in the intended cultivation environment of PBRs/ponds. Despite biotechnology to domesticate microalgae photosynthesis has been largely deployed for over one decade, tested modifications are still at the stage of a proof-of-concept at the lab scale. One of the reasons is the high costs for building and operating pilot-scale microalgae cultivation facilities, preventing the collection of data at a more relevant scale of cultivation. The sooner this further layer of complexity will be considered, the faster biotechnology will be able to deploy more effective strategies of metabolic engineering of photosynthesis to ultimately close the gap with the theoretical potential of microalgae-biomass-based technologies.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Statements
Data availability statement
Publicly available datasets were analyzed in this study. Data are found in original publications cited.
Author contributions
GP and TM wrote the manuscript. All authors analyzed the data presented and approved the submitted version.
Funding
TM acknowledges the support from European Union H2020 Project 862087-GAIN4CROPS.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2022.846496/full#supplementary-material
References
1
AlboresiA.PerinG.VituloN.DirettoG.BlockM.JouhetJ.et al (2016). Light remodels lipid biosynthesis in nannochloropsis gaditana by modulating carbon partitioning between organelles.Plant Physiol.1712468–2482. 10.1104/pp.16.00599
2
AlboresiA.StortiM.MorosinottoT. (2019). Balancing protection and efficiency in the regulation of photosynthetic electron transport across plant evolution.New Phytol.221105–109. 10.1111/nph.15372
3
BakerN. R. (2008). Chlorophyll fluorescence: a probe of photosynthesis in vivo.Annu. Rev. Plant Biol.5989–113. 10.1146/annurev.arplant.59.032607.092759
4
BarbatoR.TadiniL.CannataR.PeracchioC.JeranN.AlboresiA.et al (2020). Higher order photoprotection mutants reveal the importance of ΔpH-dependent photosynthesis-control in preventing light induced damage to both photosystem II and photosystem I.Sci. Rep.10:6770. 10.1038/s41598-020-62717-1
5
BellanA.BucciF.PerinG.AlboresiA.MorosinottoT. (2020). Photosynthesis regulation in response to fluctuating light in the secondary endosymbiont alga nannochloropsis gaditana.Plant Cell Physiol.6141–52. 10.1093/pcp/pcz174
6
BlommaertL.ChafaiL.BailleulB. (2021). The fine-tuning of NPQ in diatoms relies on the regulation of both xanthophyll cycle enzymes.Sci. Rep.11:12750. 10.1038/S41598-021-91483-X
7
BonenteG.PippaS.CastellanoS.BassiR.BallottariM. (2012). Acclimation of Chlamydomonas reinhardtii to different growth irradiances.J. Biol. Chem.2875833–5847. 10.1074/jbc.M111.304279
8
CarvalhoA. P.SilvaS. O.BaptistaJ. M.MalcataF. X. (2011). Light requirements in microalgal photobioreactors: an overview of biophotonic aspects.Appl. Microbiol. Biotechnol.891275–1288. 10.1007/s00253-010-3047-8
9
CazzanigaS.Dall’OstoL.SzaubJ.ScibiliaL.BallottariM.PurtonS.et al (2014). Domestication of the green alga Chlorella sorokiniana: reduction of antenna size improves light-use efficiency in a photobioreactor.Biotechnol. Biofuels7:157. 10.1186/s13068-014-0157-z
10
Chuka-ogwudeD.OgbonnaJ. C.MoheimaniN. R. (2021). Depth optimization of inclined thin layer photobioreactor for efficient microalgae cultivation in high turbidity digestate.Algal Res.60:102509. 10.1016/J.ALGAL.2021.102509
11
DalCorsoG.PesaresiP.MasieroS.AseevaE.SchünemannD.FinazziG.et al (2008). A complex containing PGRL1 and PGR5 is involved in the switch between linear and cyclic electron flow in Arabidopsis.Cell132273–285. 10.1016/j.cell.2007.12.028
12
Dall’OstoL.CazzanigaS.HavauxM.BassiR. (2010). Enhanced photoprotection by protein-bound vs free xanthophyll pools: a comparative analysis of chlorophyll b and xanthophyll biosynthesis mutants.Mol. Plant3576–593. 10.1093/mp/ssp117
13
Dall’OstoL.HoltN. E.KaligotlaS.FucimanM.CazzanigaS.CarboneraD.et al (2012). Zeaxanthin protects plant photosynthesis by modulating chlorophyll triplet yield in specific light-harvesting antenna subunits.J. Biol. Chem.28741820–41834. 10.1074/JBC.M112.405498
14
de JaegerL.VerbeekR. E.DraaismaR. B.MartensD. E.SpringerJ.EgginkG.et al (2014). Superior triacylglycerol (TAG) accumulation in starchless mutants of Scenedesmus obliquus: (I) mutant generation and characterization.Biotechnol. Biofuels7:69. 10.1186/1754-6834-7-69
15
De MooijT.JanssenM.Cerezo-ChinarroO.MussgnugJ. H.KruseO.BallottariM.et al (2014). Antenna size reduction as a strategy to increase biomass productivity: a great potential not yet realized.J. Appl. Phycol.271063–1077. 10.1007/s10811-014-0427-y
16
Dell AglioE. (2021). Carotenoid composition affects thylakoid morphology and membrane fluidity.Plant Physiol.18521–22. 10.1093/PLPHYS/KIAA020
17
FabrisM.AbbrianoR. M.PerniceM.SutherlandD. L.CommaultA. S.HallC. C.et al (2020). Emerging technologies in algal biotechnology: toward the establishment of a sustainable, algae-based bioeconomy.Front. Plant Sci.11:279. 10.3389/FPLS.2020.00279/BIBTEX
18
FalkowskiP. G.LaRocheJ. (1991). Acclimation to spectral irradiance in algae.J. Phycol.278–14. 10.1111/j.0022-3646.1991.00008.x
19
FalkowskiP. G.OwensT. G. (1980). Light-Shade Adaptation: two strategies in marine phytoplankton.Plant Physiol.66592–595. 10.1104/pp.66.4.592
20
FattoreN.BellanA.PedrolettiL.VituloN.MorosinottoT. (2021). Acclimation of photosynthesis and lipids biosynthesis to prolonged nitrogen and phosphorus limitation in Nannochloropsis gaditana.Algal Res.58:102368. 10.1016/J.ALGAL.2021.102368
21
FisherT.Shurtz-swirskiR.GepsteinS.DubinskyZ. (1989). Changes in the levels of ribulose-l,5-bisphosphate carboxylase/oxygenase (rubisco) in tetraedron minimum (chlorophyta) during light and shade adaptation.Plant Cell Physiol.30221–228.
22
FormighieriC.FranckF.BassiR. (2012). Regulation of the pigment optical density of an algal cell: filling the gap between photosynthetic productivity in the laboratory and in mass culture.J. Biotechnol.162115–123. 10.1016/j.jbiotec.2012.02.021
23
FriedlandN.NegiS.Vinogradova-ShahT.WuG.MaL.FlynnS.et al (2019). Fine-tuning the photosynthetic light harvesting apparatus for improved photosynthetic efficiency and biomass yield.Sci. Rep.91–12. 10.1038/s41598-019-49545-8
24
GerottoC.AlboresiA.MeneghessoA.JokelM.SuorsaM.AroE.-M. E. M.et al (2016). Flavodiiron proteins act as safety valve for electrons in Physcomitrella patens.Proc. Natl. Acad. Sci. U. S. A.11312322–12327. 10.1073/pnas.1606685113
25
HertleA. P.BlunderT.WunderT.PesaresiP.PribilM.ArmbrusterU.et al (2013). PGRL1 is the elusive ferredoxin-plastoquinone reductase in photosynthetic cyclic electron flow.Mol. Cell49511–523. 10.1016/j.molcel.2012.11.030
26
HuangK.PengX.KongL.WuW.ChenY.MaraveliasC. T. (2021). Greenhouse gas emission mitigation potential of chemicals produced from biomass.ACS Sustain. Chem. Eng.914480–14487. 10.1021/ACSSUSCHEMENG.1C04836/SUPPL_FILE/SC1C04836_SI_001.PDF
27
KimB.-H.ChoiJ.-E.ChoK.KangZ.RamananR.MoonD.-G.et al (2018). Influence of water depth on microalgal production, biomass harvest, and energy consumption in high rate algal pond using municipal wastewater.J. Microbiol. Biotechnol.28630–637. 10.4014/jmb.1801.01014
28
KirchhoffH. (2014). Diffusion of molecules and macromolecules in thylakoid membranes.Biochim. Biophys. Acta1837495–502. 10.1016/j.bbabio.2013.11.003
29
KirstH.Garcia-CerdanJ. G.ZurbriggenA.RuehleT.MelisA. (2012). Truncated photosystem chlorophyll antenna size in the green microalga Chlamydomonas reinhardtii upon deletion of the TLA3-CpSRP43 gene.Plant Physiol.1602251–2260. 10.1104/pp.112.206672
30
KokabiK.GorelovaO.IsmagulovaT.ItkinM.MalitskyS.BoussibaS.et al (2019). Metabolomic foundation for differential responses of lipid metabolism to nitrogen and phosphorus deprivation in an arachidonic acid-producing green microalga.Plant Sci.28395–115. 10.1016/J.PLANTSCI.2019.02.008
31
KokabiK.GorelovaO.ZorinB.Didi-CohenS.ItkinM.MalitskyS.et al (2020). Lipidome remodeling and autophagic respose in the arachidonic-acid-rich microalga Lobosphaera incisa under nitrogen and phosphorous deprivation.Front. Plant Sci.11:614846. 10.3389/FPLS.2020.614846/FULL
32
KromdijkJ.GłowackaK.LeonelliL.GabillyS. T.IwaiM.NiyogiK. K.et al (2016). Improving photosynthesis and crop productivity by accelerating recovery from photoprotection.Science354857–861. 10.1126/science.aai8878
33
KulheimC.AgrenJ.JanssonS.KülheimC.AgrenJ.JanssonS. (2002). Rapid regulation of light harvesting and plant fitness in the field.Science29791–93. 10.1126/science.1072359
34
LacourT.BabinM.LavaudJ. (2020). Diversity in xanthophyll cycle pigments content and related nonphotochemical quenching (NPQ) among microalgae: implications for growth strategy and ecology.J. Phycol.56245–263. 10.1111/JPY.12944
35
LepetitB.GossR.JakobT.WilhelmC. (2012). Molecular dynamics of the diatom thylakoid membrane under different light conditions.Photosynth. Res.111245–257. 10.1007/s11120-011-9633-5
36
LiZ.WakaoS.FischerB. B.NiyogiK. K. (2009). Sensing and responding to excess light.Annu. Rev. Plant Biol.60239–260. 10.1146/annurev.arplant.58.032806.103844
37
LynchJ.CainM.FrameD.PierrehumbertR. (2021). Agriculture’s contribution to climate change and role in mitigation is distinct from predominantly fossil CO2-emitting sectors.Front. Sustain. Food Syst.4:518039. 10.3389/FSUFS.2020.518039/BIBTEX
38
MasojídekJ.KopeckýJ.KoblížekM.TorzilloG. (2004). The xanthophyll cycle in green algae (chlorophyta): its role in the photosynthetic apparatus.Plant Biol.6342–349. 10.1055/S-2004-820884
39
MasojídekJ.TorzilloG.KoblížekM.KopeckýJ.BernardiniP.SacchiA.et al (1999). Photoadaptation of two members of the Chlorophyta (Scenedesmus and Chlorella) in laboratory and outdoor cultures: changes in chlorophyll fluorescence quenching and the xanthophyll cycle.Planta209126–135. 10.1007/S004250050614
40
MasojídekJ.VonshakA.TorzilloG. (2010). “Chlorophyll Fluorescence Applications in Microalgal Mass Cultures,” in Chlorophyll a Fluorescence in Aquatic Sciences: Methods and Applications,edsSuggettD. J.BorowitzkaO.PrášilM. A. (Dordrecht: Springer), 277–292. 10.1007/978-90-481-9268-7_13
41
MeneghessoA.SimionatoD.GerottoC.La RoccaN.FinazziG.MorosinottoT. (2016). Photoacclimation of photosynthesis in the Eustigmatophycean Nannochloropsis gaditana.Photosynth. Res.129291–305. 10.1007/s11120-016-0297-z
42
MunekageY.HojoM.MeurerJ.EndoT.TasakaM.ShikanaiT. (2002). PGR5 is involved in cyclic electron flow around photosystem I and is essential for photoprotection in Arabidopsis.Cell110361–371. 10.1016/s0092-8674(02)00867-x
43
NawrockiW. J.BailleulB.PicotD.CardolP.RappaportF.WollmanF.-A.et al (2019). The mechanism of cyclic electron flow.Biochim. Biophys. Acta1860433–438. 10.1016/J.BBABIO.2018.12.005
44
NedbalL.TichýV.XiongF.GrobbelaarJ. U. (1996). Microscopic green algae and cyanobacteria in high-frequency intermittent light.J. Appl. Phycol.8325–333. 10.1007/BF02178575
45
NegiS.PerrineZ.FriedlandN.KumarA.TokutsuR.MinagawaJ.et al (2020). Light regulation of light-harvesting antenna size substantially enhances photosynthetic efficiency and biomass yield in green algae†.Plant J.103584–603. 10.1111/TPJ.14751
46
NymarkM.ValleK. C.BrembuT.HanckeK.WingeP.AndresenK.et al (2009). An integrated analysis of molecular acclimation to high light in the marine diatom Phaeodactylum tricornutum.PLoS One4:e7743. 10.1371/journal.pone.0007743
47
PerinG.BellanA.BernardiA.BezzoF.MorosinottoT. (2019). The potential of quantitative models to improve microalgae photosynthetic efficiency.Physiol. Plant.166380–391. 10.1111/ppl.12915
48
PerinG.BellanA.SegallaA.MeneghessoA.AlboresiA.MorosinottoT. (2015). Generation of random mutants to improve light-use efficiency of Nannochloropsis gaditana cultures for biofuel production.Biotechnol. Biofuels8:161. 10.1186/s13068-015-0337-5
49
PerinG.BernardiA.BellanA.BezzoF.MorosinottoT. (2017a). A mathematical model to guide genetic engineering of photosynthetic metabolism.Metab. Eng.44337–347. 10.1016/j.ymben.2017.11.002
50
PerinG.SimionatoD.BellanA.CaroneM.OcchipintiA.MaffeiM. E.et al (2017b). Cultivation in industrially relevant conditions has a strong influence on biological properties and performances of Nannochloropsis gaditana genetically modified strains.Algal Res.2888–99. 10.1016/j.algal.2017.10.013
51
PerinG.JonesP. R. (2019). Economic feasibility and long-term sustainability criteria on the path to enable a transition from fossil fuels to biofuels.Curr. Opin. Biotechnol.57175–182. 10.1016/j.copbio.2019.04.004
52
PerinG.MorosinottoT. (2019a). “Optimization of microalgae photosynthetic metabolism to close the gap with potential productivity,” in Grand Challenges in Biology and Biotechnology, ed.HeroldS. (Berlin: Springer Science and Business Media B.V), 223–248. 10.1007/978-3-030-25233-5_6
53
PerinG.MorosinottoT. (2019b). “Potential of Microalgae Biomass for the Sustainable Production of Bio-commodities,” in Progress in Botany, Vol. 81edsCánovasF.LüttgeU.LeuschnerC.RisueñoM. C. (Cham: Springer), 243–276. 10.1007/124_2019_30
54
PhillipsJ. N.Jr.MyersJ. (1954). Growth rate of chlorella in flashing light.Plant Physiol.29152–161. 10.1104/PP.29.2.152
55
PruvostJ.le BorgneF.ArtuA.LegrandJ. (2017). Development of a thin-film solar photobioreactor with high biomass volumetric productivity (AlgoFilm©) based on process intensification principles.Algal Res.21120–137. 10.1016/J.ALGAL.2016.10.012
56
RoachT.Krieger-LiszkayA. (2019). Photosynthetic regulatory mechanisms for efficiency and prevention of photo-oxidative stress.Annu. Plant Rev. Online2273–306. 10.1002/9781119312994.APR0666
57
RoachT.NaC. S.StögglW.Krieger-LiszkayA. (2020). The non-photochemical quenching protein LHCSR3 prevents oxygen-dependent photoinhibition in Chlamydomonas reinhardtii.J. Exp. Bot.712650–2660. 10.1093/JXB/ERAA022
58
RodríguezF.ChautonM.JohnsenG.AndresenK.OlsenL. M.ZapataM.et al (2005). Photoacclimation in phytoplankton: implications for biomass estimates, pigment functionality and chemotaxonomy.Mar. Biol.148963–971. 10.1007/s00227-005-0138-7
59
RubanA. V. (2016). Nonphotochemical chlorophyll fluorescence quenching: mechanism and effectiveness in protecting plants from photodamage.Plant Physiol.1701903–1916. 10.1104/PP.15.01935
60
SforzaE.SimionatoD.GiacomettiG. M.BertuccoA.MorosinottoT. (2012). Adjusted light and dark cycles can optimize photosynthetic efficiency in algae growing in photobioreactors.PLoS One7:e38975. 10.1371/journal.pone.0038975
61
ShikanaiT. (2014). Central role of cyclic electron transport around photosystem I in the regulation of photosynthesis.Curr. Opin. Biotechnol.2625–30. 10.1016/j.copbio.2013.08.012
62
ShikanaiT.EndoT.HashimotoT.YamadaY.AsadaK.YokotaA. (1998). Directed disruption of the tobacco ndhB gene impairs cyclic electron flow around photosystem I.Proc. Natl. Acad. Sci. U. S. A.959705–9709. 10.1073/pnas.95.16.9705
63
ShikanaiT.YamamotoH. (2017). Contribution of cyclic and pseudo-cyclic electron transport to the formation of proton motive force in chloroplasts.Mol. Plant1020–29. 10.1016/j.molp.2016.08.004
64
SimionatoD.BassoS.GiacomettiG. M. G. M.MorosinottoT. (2013). Optimization of light use efficiency for biofuel production in algae.Biophys. Chem.18271–78. 10.1016/j.bpc.2013.06.017
65
SimionatoD.SforzaE.Corteggiani CarpinelliE.BertuccoA.GiacomettiG. M. G. M.MorosinottoT. (2011). Acclimation of Nannochloropsis gaditana to different illumination regimes: effects on lipids accumulation.Bioresour. Technol.1026026–6032. 10.1016/j.biortech.2011.02.100
66
SolovchenkoA.GorelovaO.KarpovaO.SelyakhI.SemenovaL.ChivkunovaO.et al (2020). Phosphorus feast and famine in cyanobacteria: is luxury uptake of the nutrient just a consequence of acclimation to its shortage?Cells9:1933. 10.3390/CELLS9091933
67
SrivastavaA.StrasserR. J.Govindjee. (1995). Polyphasic rise of chlorophyll a fluorescence in herbicide-resistant D1 mutants of Chlamydomonas reinardtii.Photosynth. Res.43131–141. 10.1007/BF00042970
68
StrandD. D.LivingstonA. K.Satoh-CruzM.FroehlichJ. E.MaurinoV. G.KramerD. M. (2015). Activation of cyclic electron flow by hydrogen peroxide in vivo.Proc. Natl. Acad. Sci. U. S. A.1125539–5544. 10.1073/PNAS.1418223112/-/DCSUPPLEMENTAL
69
VejrazkaC.JanssenM.StreeflandM.WijffelsR. H. (2011). Photosynthetic efficiency of Chlamydomonas reinhardtii in flashing light.Biotechnol. Bioeng.1082905–2913. 10.1002/bit.23270
70
WalshB. J.RydzakF.PalazzoA.KraxnerF.HerreroM.SchenkP. M.et al (2015). New feed sources key to ambitious climate targets.Carbon Balance Manag.10:26. 10.1186/s13021-015-0040-7
71
WaltersR. G. (2005). Towards an understanding of photosynthetic acclimation.J. Exp. Bot.56435–447. 10.1093/jxb/eri060
72
XueS.SuZ.CongW. (2011). Growth of Spirulina platensis enhanced under intermittent illumination.J. Biotechnol.151271–277. 10.1016/J.JBIOTEC.2010.12.012
73
ZouN.RichmondA. (2000). Light-path length and population density in photoacclimation of Nannochloropsis sp. (Eustigmatophyceae).J. Appl. Phycol.12349–354.
