Abstract
Recent advances in biotechnology have helped increase tissue transformation efficiency and the frequency and specificity of gene editing to an extent that introducing allelic variants directly in elite varieties has become possible. In comparison to the conventional approach of crossing an elite recipient line with an exotic donor parent to introduce the trait of interest followed by repeated backcrossing, direct introduction of major-effect allelic variants into elite varieties saves time and resources, and eliminates yield drag resulting from the residual donor genes at the end of backcrossing.
Introduction
Forward breeding, which entails selection of recombinants with improved performance in appropriate environments, has been the driving force behind increasing crop yields over time. Discovery of heterosis, a term used to describe the improved performance of a hybrid as compared to its inbred parents, qualitatively increased the rate of yield improvement in the early phase of hybrid breeding (). Biotic and abiotic stresses drag yield down and contribute to the gap between the potential and the harvested grain yield ().
Indispensable as forward breeding is to crop improvement, particularly for complex traits and in stressful environments, it is a resource-intensive and time-consuming process. Even for simple traits inherited by single genes, several backcrosses (BC) are required to reconstitute the genome of the recipient parent. Another drawback of introgressing a trait through the conventional approach is the yield drag, a term used to refer to the reduction in grain yield from the unwanted genes from the donor parent that persist even after repeated backcrossing. Since these genes have not previously been subjected to selection for agronomic performance, they tend to reduce harvestable yield of the converted variety.
The number of genes from the donor parent that would still persist after m backcrosses, assuming no selection and no suppression of recombination, is n*d*(1/2)m where d is the fraction of loci that differ between the donor and the elite line and n is the total number of genes in the crop species. As an example, bread wheat has ∼110 K genes (). If a wild, donor accession differs from the recurrent parent at 30% of the loci, after four backcrosses more than a thousand genes from the donor parent would continue to be present in the converted variety.
In crosses between widely divergent lines, limited recombination could limit the proportion of the genomic segments of the donor parent that are introduced into the recurrent parent’s genome but could also pose a challenge in reducing the size of the introgressed donor segment, increasing the chances of linkage drag ().
Markers could assist in reducing, but not eliminating, the donor parent genomic segments at BC1 stage. Breeding programs operating with limited resources would find it challenging to employ markers at this step. The choice, nevertheless, between introducing a gene variant into an elite variety without any accompanying donor genes using modern technology vs. forward breeding is obvious.
Speed breeding offers an alternative to reduce time in advancing generations in a controlled environment (). It is not easily suited, however, for crops with large plants, like maize, pearl millet, and sorghum.
In the subsequent sections, I present the advantages gene editing has over conventional or speed breeding for at least the simply inherited traits.
Gene Editing Can Reduce the Time to Product Development and Eliminate Yield Drag
Genetic engineering to introduce traits for which sufficient natural variation was not available proved to be effective in combating insect pests and weeds (). However, the benefits of the GM crops have mostly been realized by the farmers of the developed countries (). The cost of the seed and consumer resistance against the GM crops have kept them out of the developing countries, particularly Africa ().
Modern technologies have made it possible to accelerate improvement of genetically simple traits, which are controlled or influenced by single or a few genes, without the concerns associated with the GM crops.
The field of gene editing has progressed through several phases starting with oligo-mediated editing in the 1980s (). The main hurdle in its adoption was the low frequency of the edited events (Zhu et al., 1999, 2000). A relatively new technique, clustered regularly interspersed short palindromic repeats (CRISPR) and CRISPR-associated protein 9 (Cas9), referred to as CRISPR-Cas9, has revolutionized the field of gene editing because of its ease of use, specificity, and a high success rate ().
CRISPR-Cas9-mediated gene editing has been used to mutate genes either through the spontaneous non-homologous end-joining (NHEJ) after the double-strand break at the precise site targeted by the guide-RNA or through gene deletion by using two guide-RNA molecules simultaneously. This has been referred to as site-directed nuclease scenario-1 (SDN1) (; ). The other two scenarios, SDN2 and SDN3, entail template-mediated nucleotide changes and insertion of a gene or a DNA fragment into the genome, respectively.
Myriad examples of gene editing using the CRISPR-Cas system in crop plants are listed in recent reviews (; ). Most of what I discuss in the subsequent sections is related to accelerating varietal improvement by directly introducing high-value traits into elite lines ().
To demonstrate the effect of a gene variant via gene editing, experimental lines, which are older accessions, have been used in a great majority of published reports in crop plants, obviously because it is difficult to transform elite varieties directly (; ). To transfer the newly created trait from an experimental line into elite varieties requires crossing and backcrossing, which negates the advantage of gene editing with regard to shortening the time to product development as well as in eliminating yield drag.

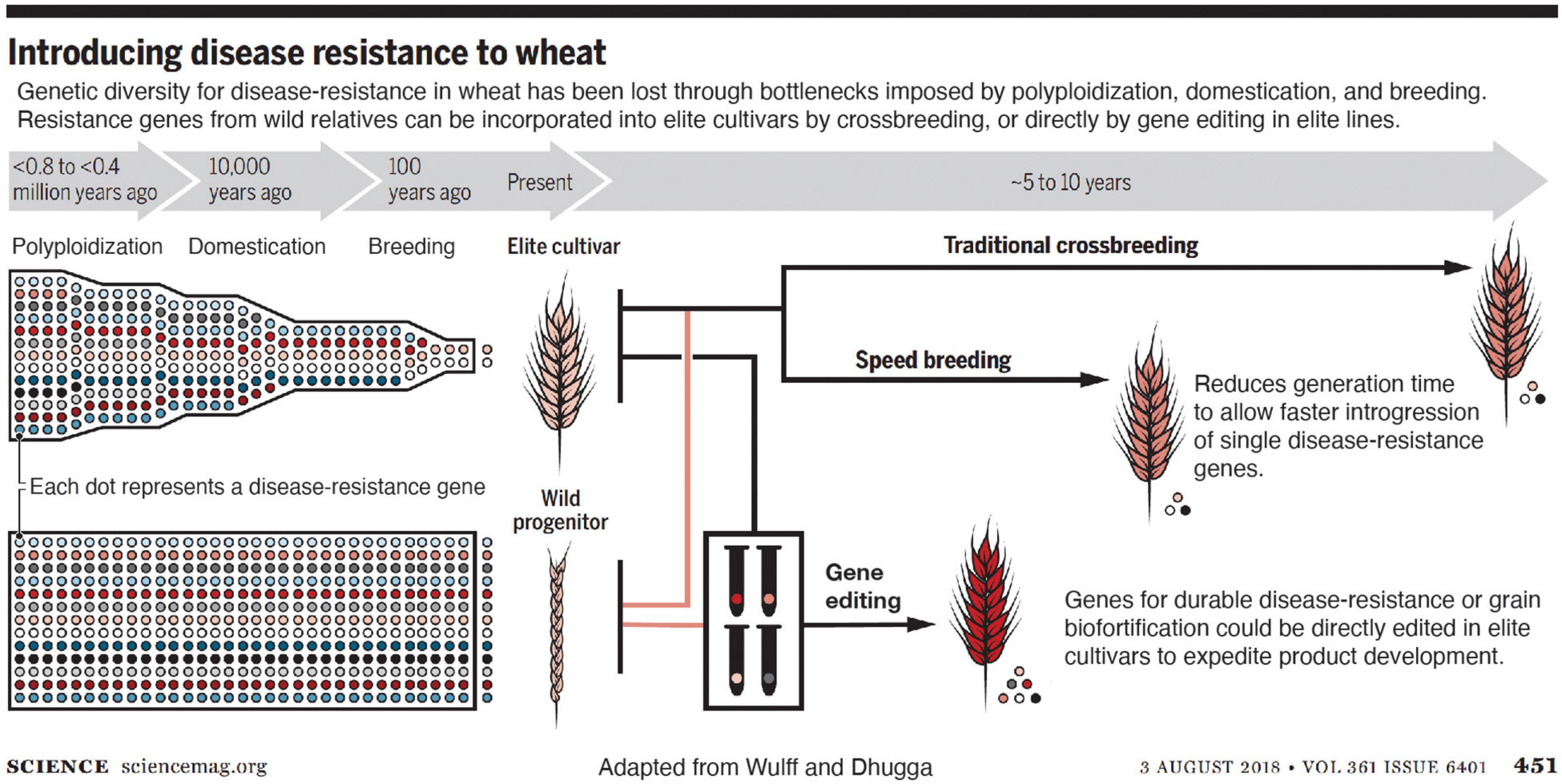

Editing a gene directly in elite varieties eliminates the need for backcrossing (Figure 1). After self-pollinating or outcrossing the edited plants to the non-edited plants of the same genetic makeup accompanied by simultaneous screening for any unintended changes in the genome with highly sensitive molecular tools ensures no elements of the vector backbone remain in the edited plants (Zastrow-Hayes et al., 2015). According to my colleagues in industry, commercialization of the same trait advanced through conventional breeding as generated by gene editing reduced the time to market the improved variety by approximately two-thirds in the latter case (Figure 1). Savings in field resources, which constitute one of the most expensive components of varietal development, is proportional to the time saved; only 2–3 instead of 5–6 generations are needed for the gene edited plants to commercialize as compared to forward breeding.
FIGURE 1
Bottlenecks in Gene Editing in Elite Varieties Are Being Overcome
The hurdle of transforming elite varieties directly has recently been overcome by including cell morphogenesis genes in the transformation vector (
Under a partnership with Corteva Agriscience, we at CIMMYT have successfully transformed elite lines of tropical maize with nearly perfect efficiency. This has opened the door to use gene editing approaches directly in the commercial lines.
No Dearth of Traits in Crop Plants That Can Be Improved by Gene Editing
Disease resistance and grain biofortification are two of the areas where gene editing can help expedite crop improvement. Some other traits specific to different crops are also amenable to improvement by gene editing.
Rancidity in pearl millet flour, which is caused by oxidation of unsaturated fatty acids released by lipases, limits its shelf life (
Striga is an obligate root parasitic weed that affects maize and sorghum production in semiarid tropics in Asia and Africa, particularly in nitrogen-poor soils. Its seeds germinate only when they sense a signal secreted by the host roots (
Rusts affect wheat crop more than any other disease. Approximately one-fifth of the wheat crop is lost to diseases every year (
Host resistance, which is attributed to resistant (R) genes, results from a hypersensitive response of the host, which kills the cells around the infected cell and thus limits the spread of the pathogen (
Three APR loci, Lr34, Lr46, and Lr67 are known in wheat and genes for two (Lr34 and Lr67) have been isolated. Whereas Lr34 encodes an ATP-binding cassette (ABC) transporter, Lr67 encodes a hexose transporter (
These non-functional transporters, although might normally be involved in the transport of plant metabolites, likely confer resistance against the fungal pathogens by blocking the transport of toxins or effectors that kill the plant cells. The mutations are partially dominant, which can be explained by the dimerization of the encoded proteins. Assuming the mutant and the wildtype alleles express at the same level in a heterozygote, three-fourths of the dimers would be expected to be defective. Many transporters are known to function as dimers (
At least for Lr67, as the mutant protein that confers resistance is non-functional, an exact replication of the mutation in the elite lines is not necessary. Simple inactivation via an SDN1 knockout should phenocopy the spontaneous mutant (
Although homeoalleles for each of the isolated APR genes are present, genetic alteration of a single homeolog confers resistance (
Another target for SDN1 editing in wheat is resistance against powdery mildew, which is controlled by Mildew Locus O (MLO), a dominant suppressor of resistance. All three homeoalleles must be knocked out to confer resistance (
Resistance against Fusarium head blight in wheat could be directly introduced into elite varieties by knocking out a histidine-rich calcium-binding protein (
Maize lethal necrosis (MLN), a viral disease that swept through Kenya starting a decade ago and spread to the neighboring countries, devastated crop production (

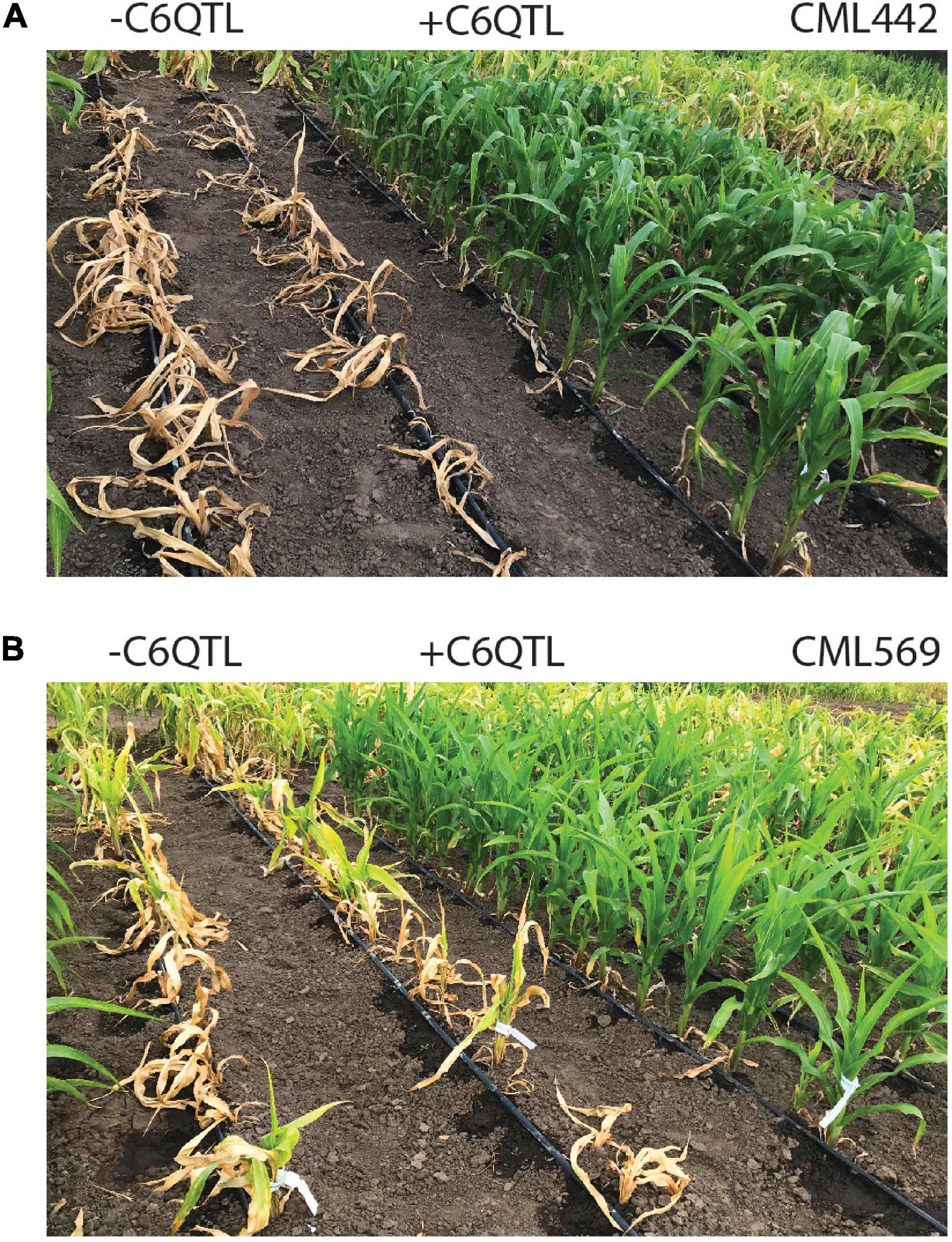

FIGURE 2

A large-effect QTL provides strong protection against maize lethal necrosis (MLN). Inbred line CML442 (A) and CML569 (B) after inoculation with the MLN viruses without (left) or with (right) the C6QTL from the inbred donor line KS23-6 after four backcrosses to the recurrent parent. The lines were screened for MLN in Naivasha, Kenya. Picture credit: Michael Olsen.
Editing herbicide tolerance into varieties directly could help reduce drudgery for women in Africa where they have to manually remove weeds from the crops (
Grain biofortification is critical for proper development of the children in developing countries where a lack of micronutrients and vitamins can cause developmental defects (
Dough from wheat flour turns dark because of polyphenol oxidase (PPO) activity. Similarly, peeled potatoes turn brown if left exposed to air. Gene editing has been used to knock out a PPO gene in potato, which reduced browning (
Prospects of Gene Editing in Crop Improvement: SDN1, SDN2, or SDN3
Homology directed repair (SDN2), promoter swapping, and allele replacement or insertion (SDN3) have been successfully demonstrated in crop plants (
Editing of genes with major effect directly in elite varieties, mostly with SDN1, is already underway and will help expedite crop improvement going forward. There is no dearth of high-value traits controlled by single genes the desired variants of which can be reproduced using SDN1, thus eliminating the pleiotropic effects associated with the residual donor genes that cannot be completely removed by conventional plant breeding.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Statements
Data availability statement
The original contributions presented in the study are included in the article further inquiries can be directed to the corresponding author.
Author contributions
The author confirms being the sole contributor of this work and has approved it for publication.
Funding
Research in KSD laboratory on maize lethal necrosis is supported by a grant from the Bill and Melinda Gates Foundation (BMGF) (OPP1193833).
Conflict of interest
The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
References
1
Acevedo-GarciaJ.SpencerD.ThieronH.ReinstädlerA.Hammond-KosackK.PhillipsA. L.et al (2017). mlo-based powdery mildew resistance in hexaploid bread wheat generated by a non-transgenic TILLING approach.Plant Biotechnol. J.15367–378. 10.1111/pbi.12631
2
BoddupalliP.SureshL.MwatuniF.BeyeneY.MakumbiD.GowdaM.et al (2020). Maize Lethal Necrosis (MLN): efforts toward containing the spread and impact of a devastating transboundary disease in sub-Saharan Africa.Virus Res.282:197943. 10.1016/j.virusres.2020.197943
3
CarrollD. (2017). Genome editing: past, present, and future.Yale J. Biol. Med.90653–659.
4
ConsortiumI. W. G. S.AppelsR.EversoleK.SteinN.FeuilletC.KellerB.et al (2018). Shifting the limits in wheat research and breeding using a fully annotated reference genome.Science361:eaar7191. 10.1126/science.aar7191
5
DamudeH. G.KinneyA. J. (2008). Enhancing plant seed oils for human nutrition.Plant Physiol.147962–968. 10.1104/pp.108.121681
6
DebernardiJ. M.TricoliD. M.ErcoliM. F.HaytaS.RonaldP.PalatnikJ. F.et al (2020). A GRF–GIF chimeric protein improves the regeneration efficiency of transgenic plants.Nat. Biotechnol.381274–1279. 10.1038/s41587-020-0703-0
7
DuvickD. N. (2005). The contribution of breeding to yield advances in maize (Zea mays L.).Adv. Agronomy86:83.
8
FengL.FrommerW. B. (2015). Structure and function of SemiSWEET and SWEET sugar transporters.Trends Biochem. Sci.40480–486. 10.1016/j.tibs.2015.05.005
9
GaoH.GadlageM. J.LafitteH. R.LendertsB.YangM.SchroderM.et al (2020). Superior field performance of waxy corn engineered using CRISPR–Cas9.Nat. Biotechnol.38579–581. 10.1038/s41587-020-0444-0
10
GillU. S.LeeS.MysoreK. S. (2015). Host versus nonhost resistance: distinct wars with similar arsenals.Phytopathology105580–587. 10.1094/PHYTO-11-14-0298-RVW
11
GobenaD.ShimelsM.RichP. J.Ruyter-SpiraC.BouwmeesterH.KanugantiS.et al (2017). Mutation in sorghum LOW GERMINATION STIMULANT 1 alters strigolactones and causes Striga resistance.Proc. Natl. Acad. Sci.1144471–4476. 10.1073/pnas.1618965114
12
GonzálezM. N.MassaG. A.AnderssonM.TuressonH.OlssonN.FältA.-S.et al (2020). Reduced enzymatic browning in potato tubers by specific editing of a polyphenol oxidase gene via ribonucleoprotein complexes delivery of the CRISPR/Cas9 system.Front. Plant Sci.10:1649. 10.3389/fpls.2019.01649
13
GoyalP.ChughL. (2017). Shelf life determinants and enzyme activities of pearl millet: a comparison of changes in stored flour of hybrids, CMS lines, inbreds and composites.J. Food Sci. Technol.543161–3169. 10.1007/s13197-017-2752-z
14
HaoM.ZhangL.NingS.HuangL.YuanZ.WuB.et al (2020). The resurgence of introgression breeding, as exemplified in wheat improvement.Front. Plant Sci.11:252. 10.3389/fpls.2020.00252
15
IshidaY.TsunashimaM.HieiY.KomariT. (2015). “Transformation using immature embryos,” in Agrobacterium Protocols, ed.WangK. (New York, NY: Springer Science+Business Media), 189–198.
16
KlümperW.QaimM. (2014). A meta-analysis of the impacts of genetically modified crops.PloS One9:e111629. 10.1371/journal.pone.0111629
17
KrattingerS. G.LagudahE. S.SpielmeyerW.SinghR. P.Huerta-EspinoJ.McFaddenH.et al (2009). A putative ABC transporter confers durable resistance to multiple fungal pathogens in wheat.Science3231360–1363. 10.1126/science.1166453
18
LiS.LinD.ZhangY.DengM.ChenY.LvB.et al (2022). Genome-edited powdery mildew resistance in wheat without growth penalties.Nature20221–6. 10.1038/s41586-022-04395-9
19
LoweK.HoersterG.AnandA.WangN.McBrideK.Gordon-KammB. (2018a). Genotype independent transformation in maize via direct somatic embryogenesis.In Vitro Cell. Dev. Biol. Anim.54S16–S16. 10.1007/s11627-018-9905-2
20
LoweK.La RotaM.HoersterG.HastingsC.WangN.ChamberlinM.et al (2018b). Rapid genotype “independent” Zea mays L. (maize) transformation via direct somatic embryogenesis.In Vitro Cell. Dev. Biol. Plant54240–252.
21
LoweK.WuE.WangN.HoersterG.HastingsC.ChoM. J.et al (2016). Morphogenic regulators baby boom and wuschel improve monocot transformation.Plant Cell281998–2015. 10.1105/tpc.16.00124
22
MooreJ. W.Herrera-FoesselS.LanC.SchnippenkoetterW.AyliffeM.Huerta-EspinoJ.et al (2015). A recently evolved hexose transporter variant confers resistance to multiple pathogens in wheat.Nat. Genet.471494–1498. 10.1038/ng.3439
23
MurithiA.OlsenM. S.KwemoiD. B.VeronicaO.ErtiroB. T.BeyeneY.et al (2021). Discovery and Validation of a Recessively Inherited Major-Effect QTL Conferring Resistance to Maize Lethal Necrosis (MLN) Disease.Front. Genet.12:767883. 10.3389/fgene.2021.767883
24
OerkeE. C. (2006). Crop losses to pests.J. Agric. Sci.14431–43.
25
PodevinN.DaviesH. V.HartungF.NogueF.CasacubertaJ. M. (2013). Site-directed nucleases: a paradigm shift in predictable, knowledge-based plant breeding.Trends Biotechnol.31375–383. 10.1016/j.tibtech.2013.03.004
26
RafalskiJ. A. (2017). Biotechnology and bioeconomy of complex traits in crop plants.Biotechnologia9867–71. 10.1111/gcbb.12610
27
SavitashevS.YoungJ.SchwartzC.GaoH.FalcoS. C.CiganA. M. (2015). Targeted mutagenesis, precise gene editing and site-specific gene insertion in maize using Cal9 and guide RNA.Plant Physiol.169931–945. 10.1104/pp.15.00793
28
SchenkeD.CaiD. (2020). Applications of CRISPR/Cas to improve crop disease resistance: beyond inactivation of susceptibility factors.Iscience23:101478. 10.1016/j.isci.2020.101478
29
SestiliF.Garcia-MolinaM. D.GambacortaG.BeleggiaR.BotticellaE.De VitaP.et al (2019). Provitamin a biofortification of durum wheat through a TILLING approach.Int. J. Mol. Sci.20:5703. 10.3390/ijms20225703
30
ShiJ. R.GaoH. R.WangH. Y.LafitteH. R.ArchibaldR. L.YangM. Z.et al (2017). ARGOS8 variants generated by CRISPR-Cas9 improve maize grain yield under field drought stress conditions.Plant Biotechnol. J.15207–216. 10.1111/pbi.12603
31
ShuklaV. K.DoyonY.MillerJ. C.DeKelverR. C.MoehleE. A.WordenS. E.et al (2009). Precise genome modification in the crop species Zea mays using zinc-finger nucleases.Nature459437–U156. 10.1038/nature07992
32
SivasankarS.CollinsonS.GuptaR.DhuggaK. S. (2012). “Maize,” in Hadnbook of Bioenergy Crop Plants, edsKoleC.JoshiC. P.ShonnardD. R. (Boca Raton, FL: CRC Press), 405–432.
33
SuZ.BernardoA.TianB.ChenH.WangS.MaH.et al (2019). A deletion mutation in TaHRC confers Fhb1 resistance to Fusarium head blight in wheat.Nat. Genet.511099–1105. 10.1038/s41588-019-0425-8
34
SunY.ZhangX.WuC.HeY.MaY.HouH.et al (2016). Engineering herbicide-resistant rice plants through CRISPR/Cas9-mediated homologous recombination of acetolactate synthase.Mol. Plant9628–631. 10.1016/j.molp.2016.01.001
35
SvitashevS.YoungJ. K.SchwartzC.GaoH.FalcoS. C.CiganA. M. (2015). Targeted mutagenesis, precise gene editing, and site-specific gene insertion in maize using Cas9 and guide RNA.Plant Physiol.169931–945.
36
TiwariM.Kumar TrivediP.PandeyA. (2021). Emerging tools and paradigm shift of gene editing in cereals, fruits, and horticultural crops for enhancing nutritional value and food security.Food Energy Secur.10:e258.
37
WatsonA.GhoshS.WilliamsM. J.CuddyW. S.SimmondsJ.ReyM.-D.et al (2018). Speed breeding is a powerful tool to accelerate crop research and breeding.Nat. Plants423–29. 10.1038/s41477-017-0083-8
38
WenZ.JulianaP.DhuggaH.VelazquezM.LopezU.PerezA.et al (2022). Genome-wide association study of phytic acid in wheat grain unravels markers for improving biofortification.Front. Plant Sci.13:830147. 10.3389/fpls.2022.830147
39
WulffB. B. H.DhuggaK. S. (2018). Wheat—the cereal abandoned by GM: genetic modification of wheat for disease resistance could help stabilize food production. Science361, 451–452. 10.1126/science.aat5119
40
Zastrow-HayesG. M.LinH. N.SigmundA. L.HoffmanJ. L.AlarconC. M.HayesK. R.et al (2015). Southern-by-sequencing: a robust screening approach for molecular characterization of genetically modified crops.Plant Genome8:37. 10.3835/plantgenome2014.3808.0037
41
ZhuT.MettenburgK.PetersonD. J.TaglianiL.BaszczynskiC. L. (2000). Engineering herbicide-resistant maize using chimeric RNA/DNA oligonucleotides.Nat. Biotechnol.18555–558. 10.1038/75435
42
ZhuT.PetersonD. J.TaglianiL.ClairG. S.BaszczynskiC. L.BowenB. (1999). Targeted manipulation of maize genes in vivo using chimeric RNA/DNA oligonucleotides.Proc. Natl. Acad. Sci.968768–8773. 10.1073/pnas.96.15.8768
Summary
Keywords
accelerated breeding, backcrossing, disease resistance, gene editing, grain biofortification, maize lethal necrosis, rust resistance, SDN-1 -2 and -3
Citation
Dhugga KS (2022) Gene Editing to Accelerate Crop Breeding. Front. Plant Sci. 13:889995. doi: 10.3389/fpls.2022.889995
Received
04 March 2022
Accepted
09 May 2022
Published
27 May 2022
Volume
13 - 2022
Edited by
James Lloyd, Stellenbosch University, South Africa
Reviewed by
Jitesh Kumar, University of Minnesota Twin Cities, United States
Updates

Check for updates
Copyright
© 2022 Dhugga.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Kanwarpal S. Dhugga, k.dhugga@cgiar.org
This article was submitted to Plant Biotechnology, a section of the journal Frontiers in Plant Science
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
