Front. Plant Sci., 25 May 2023
Sec. Crop and Product Physiology
This article is part of the Research Topic Woody Oil Crops: Key Trait Formation and Regulation View all 14 articles

Genome-wide identification of the WRKY gene family in Camellia oleifera and expression analysis under phosphorus deficiency

Wenjuan SuWenjuan Su1Zengliang ZhouZengliang Zhou2Jin ZengJin Zeng1Ruilan CaoRuilan Cao1Yunyu ZhangYunyu Zhang1Dongnan HuDongnan Hu1Juan Liu*Juan Liu1*
  • 1Jiangxi Provincial Key Laboratory of Silviculture, College of Forestry, Jiangxi Agricultural University, Nanchang, China
  • 2Jiangxi Provincial Key Laboratory of Camellia Germplasm Conservation and Utilization, Jiangxi Academy of Forestry, Nanchang, China

Camellia oleifera Abel. is an economically important woody edible-oil species that is mainly cultivated in hilly areas of South China. The phosphorus (P) deficiency in the acidic soils poses severe challenges for the growth and productivity of C. oleifera. WRKY transcription factors (TFs) have been proven to play important roles in biological processes and plant responses to various biotic/abiotic stresses, including P deficiency tolerance. In this study, 89 WRKY proteins with conserved domain were identified from the C. oleifera diploid genome and divided into three groups, with group II further classified into five subgroups based on the phylogenetic relationships. WRKY variants and mutations were detected in the gene structure and conserved motifs of CoWRKYs. Segmental duplication events were considered as the primary driver in the expanding process of WRKY gene family in C. oleifera. Based on transcriptomic analysis of two C. oleifera varieties characterized with different P deficiency tolerances, 32 CoWRKY genes exhibited divergent expression patterns in response to P deficiency stress. qRT-PCR analysis demonstrated that CoWRKY11, -14, -20, -29 and -56 had higher positive impact on P-efficient CL40 variety compared with P-inefficient CL3 variety. Similar expression trends of these CoWRKY genes were further observed under P deficiency with longer treatment period of 120d. The result indicated the expression sensitivity of CoWRKYs on the P-efficient variety and the C. oleifera cultivar specificity on the P deficiency tolerance. Tissue expression difference showed CoWRKYs may play a crucial role in the transportation and recycling P in leaves by affecting diverse metabolic pathways. The available evidences in the study conclusively shed light on the evolution of the CoWRKY genes in C. oleifera genome and provided a valuable resource for further investigation of functional characterization of WRKY genes involved to enhance the P deficiency tolerance in C. oleifera.


Phosphorus (P), as a fundamental constituent of macromolecules substances, is essential for plant growth and development. Soil total P is relatively plentiful, but most P in soil is mainly fixed in the form of calcium P (alkaline soil), iron P (acidic soils), aluminum P (acidic soils), or organic P (Schachtman et al., 1998). Soluble P, which can be absorbed by plant roots, has low availability and poor mobility in most soils (Shen et al., 2011; Wu, 2013). Thus, P limitation have triggered a variety of plant adaptive strategies to reduce P utilization and/or enhance P acquisition and recycling (Fang et al., 2009). Among the molecular responses to cope with P deficiency, transcription factors have been demonstrated to play essential roles in launching and regulating adaptive mechanisms (Yang and Finnegan, 2010).

The WRKY transcription factors are among the largest families of transcriptional regulators in plants, and participate in a variety of plant biological processes through a set of signaling networks, including plant growth, development, metabolism, and stress responses (Eulgem et al., 2000). WRKY proteins comprise of at least one DNA binding domain of about 60 amino acids residues, a highly conserved WRKYGQK heptapeptide at the N-terminus, and a C2H2 or C2HC zinc finger motif at the C-terminus (Eulgem et al., 2000). WRKY transcriptional factors often modulate gene expression by preferentially recognizing and binding to the W-box in the promoter region of target genes, and participate in the response of plants to various environmental stresses and the regulation of plant growth and development.

Over the past decade, a large number of studies on functional analysis of WRKY genes in many plants have focused on the regulatory function of WRKY transcription factors in plant stress defense networks. Furthermore, with the increasing development of high throughput sequencing technology and bioinformatics, an increasing number of instances has been accumulated to demonstrate that WRKY plays crucial roles in plant responses to P deficiency. For example, in Arabidopsis, AtWRKY75 was induced by P deficiency and its expression in roots, leaves and flowers was up-regulated by P deficiency, indicating that this member of the WRKY gene family played an important role in promoting phosphorus transport and plant growth and development (Devaiah et al., 2007). In addition, AtWRKY18 and AtWRKY40 were also strongly induced in roots at the early stage of P deficiency treatment (Lin et al., 2011). In rice, overexpression of OsWRKY74 can improve the growth of roots and aboveground under P deficiency treatment (Dai et al., 2016). The overexpression of TaWRKY72b-1 in wheat (Triticum aestivum) can improve the dry weight, P accumulation per plant and P utilization efficiency under P deficiency conditions (Miao et al., 2009).

Camellia oleifera Abel., ranked as the world’s four major woody oil species, has been widely used as an edible oil, lubricant, and in cosmetics. Because of high content of unsaturated fatty acid (more than 80%), the seed C. oleifera is well known as the “Oriental Olive Oil” (Li et al., 2016). In China, C. oleifera is the dominant woody oilseed crop with long cultivation history (over 2300 years) and often planted in the low mountains and hilly areas of the Yangtze River Basin and South China. The soil in the extensive planting areas is mainly acid soils with P deficiency (Figure 1A) (Li et al., 2019). The shortage of P has posed a challenge to the growth and high yield of C. oleifera cultivation (Wu et al., 2019). Therefore, it is of great significance to explore the molecular underlying mechanism of P absorption and utilization in C. oleifera and to speed up the selection P-efficient varieties in C. oleifera.


Figure 1 The C oleifera tree and its seedlings under different P treatments. (A) three-year-old C oleifera tree in P deficient acidic soils; (B) the C oleifera seedlings of P-efficient (in the upper) and P-inefficient varieties (in the bottom) at P deficient (P0) and sufficient (P1) supplies.

Because of polyploidization (2n=6x=90) and high self-incompatibility of C. oleifera, genomic sequencing and assembly had been challenged for a long time. The high-quality reference genome of wild diploid C. oleifera provides an opportunity to identify gene families in the whole genome level (Lin et al., 2022). In this present study, we performed a comprehensive bioinformative analyses of CoWRKY genes using genome-wide data and explored expression traits of CoWRKYs in response to P deficiency. The results will provide candidate genes and valuable information for further functional investigations of the CoWRKYs on the efficient utilization of P fertilizer in C. oleifera.

Materials and methods

Plant materials and P deficiency treatments

To investigate the responses of CoWRKY genes to extreme P deficiency, two C. oleifera varieties with different P efficiency were selected based on the differences in root to shoot weight ratio (R/S), root areas (RA) and total P utilization efficiency (PUE) under the P deficient availability (Figure 1B). C. oleifera variety of CL40 with higher R/S, RA and PUE, was classified as P efficiency variety, while the variety of CL3 with poor performance on these features was defined as P inefficiency variety (Zeng et al., 2021). All two-year-old potted seedlings from nursery garden were planted in plastic containers (diameter and depth of 20.5 and 17.0 cm, respectively) filled with river sand. The experiments were conducted in a greenhouse at the Science and Technology Park of Jiangxi Agricultural University, Nanchang, China (28°450 N, 115°490 E). In this study, extremely low P (0 mM) was used as P deficiency and the sufficient P availability (1 mM) was set as the control treatment (Zeng et al., 2022). Hoagland nutrient solution was as follows: 2.0 mM KNO3, 2.0 mM Ca(NO3)2, 2.0 mM MgSO4, 50 μM H3BO3, 50 μM MnSO4, 15 μM ZnSO4, 2.0 μM CuSO4, 14 μM Na2MoO4, and 50 μM Fe-Na2EDTA. KH2PO4 was employed as P source. KCl was added to ensure identical potassium concentrations under the P-deficiency treatment. In order to investigate the performance of CoWRKY genes on P deficiency, two experiments with different treatment durations were carried out in the current study. (i) The first experiment was performed in April 2020, when sufficient nutrients are needed for rapid growth of C. oleifera. All similarly developed plants were treated with two levels of P availability. The young leaves were collected at 0, 12, 24, 48, 72 and 96 h after treatment. The time point of 0 h was set as a control. (ii) In the second experiment, all uniformly developed plants were treated with a period of 120 d since March 2019. The corresponding Hoagland nutrient solution was irrigated at a rate of 200 mL for each plant every 12 days. The young leaves were collected at 30 d, 60 d and 120 d. Each treatment had three replicates. In addition, roots, stems, leaves, flowers, young fruits, and ripe kernels from C. oleifera trees were collected for gene expression analysis. All samples were rapidly frozen in liquid nitrogen, and then stored at the −80˚C refrigerator.

Genome-wide identification of the WRKY genes in C. oleifera

The diploid C. oleifera var.”Nanyongensis” genome was obtained from GitHub ( ). Hidden Markov Model (HMM) profile of the WRKY family domain PF03106 was downloaded from the Pfam database ( WRKY transcription factor was identified using HMMER 3.0 software. The default parameters were set and the expectation (E) value was less than 0.01. Moreover, WRKY protein sequence of A. thaliana was downloaded from the Information Resource Website of A. thaliana ( All sequences were subjected to BLASTp search, with the criteria of an e value of e-10 and minimum amino acid identify of 40%. SMARAT (, pfam (, and CCD ( were used to validate all identified candidate genes with WRKY domain. All 89 possible CoWRKYs are listed in Table S1.

The physicochemical parameters and chromosomal location analysis of the candidate CoWRKYs genes were further investigated. The primary structure, molecular weight (MW), and theoretical isoelectric points (pIs) of CoWRKYs proteins were predicted using ProtParam ( The subcellular localization was predicted using CELLO v.2.5 (

Classification and phylogenetic analysis of CoWRKY proteins

All WRKY protein sequences in A. thaliana and C. oleifera were subjected to further phylogentic analysis. Multiple alignments of WRKY proteins were carried out using Clustal X2.1 program with default parameters (Larkin et al., 2007) and results were colored using GeneDoc (Version 2.7.0). The phylogenetic tree using conserved region of WRKY proteins was constructed by neighbor-joining (NJ) method of MEGA 7.0 with 1000 bootstrap replications (Kumar et al., 2016). Based on the NJ tree, CoWRKYs were classified based on a homology analysis using the AtWRKYs. The phylogenetic tree was annotated by the online software iTOL v6 (

The cis-acting elements in CoWRKYs promoter regions

To identify cis-regulatory elements in CoWRKY genes, the upstream sequence (2000 bp) of the promoter regions was obtained by comparing coding sequence with the genome of C. oleifera. Cis-acting elements were searched and analyzed using the online PlantCARE database ( and visualized with TBtools (Lescot, 2002; Chen et al., 2020).

Chromosomal distribution and duplication of CoWRKY genes

The chromosomal distribution of WRKY genes in C. oleifera were determined from the annotation file (GFF3) and visualized by mapchart (Version 7.0). Multiple Collinear Scanning toolkits (MCScanX) were employed for gene duplication and synteny analysis, with the default parameters, and visualized by Circos.

Expression patterns of CoWRKYs based on transcriptomes

Expression pattern of CoWRKY genes under P deficiency treatment was generated based on P deficiency stress transcriptome (PRJNA831290). P deficiency treatments (0 mM) and control treatments (1 mM) were set up. The leaves of P-efficient variety of CL40 and P-inefficient variety of CL3 were collected on the 30th day and 90th day after P deficiency treatment (Zeng et al., 2021). Transcripts per kilobase million (TPM) values of all candidate CoWRKYs for each transcriptome data were evaluated to investigate the abundance of C. oleifera WRKY transcripts. A heat map was generated by TBtools software based on the value of log2 (TPM + 0.01).

RNA extraction and qRT-PCR

Total RNA was extracted using the RNA Isolation Kit (DP441, Tiangen Biotech, China) following the manufacture’s instruction. The purity and concentration of the isolated RNA samples were examined on 1.0% (w/v) agarose gels and in a biophotometer (D30, Eppendorf, Germany). Primers for quantitative real-time reverse transcription PCR (qRT-PCR) were designed using Primer 3.0 ( All primer sequences were provided in Table S2. The first-strand cDNA was synthesized using the iScriptTM cDNA Synthesis Kit (BIO-RAD, China). SYBR Green reagents were used to detect the target sequence. Each PCR mixture (20 µL) contained 1 µL of cDNA, 10 µL of iTaqTM Universal SYBR Green Supermix (Model: 1725121), 1 µL of each primer (10 µM), and 7 µL of ddH2O. The qRT-PCR were performed using the following program: 95°C for 2 min and 40 cycles of 95°C for 10 s, 60°C for 30 s, and 72°C for 30 s. Housekeeping gene EF1a1 was adopted (Song et al., 2014). Each reaction was analyzed in triplicate and the 2-ΔΔCT method was used to analyze the expression patterns of CoWRKYs. All experiments were performed with three independent technical replicates.


Identification of the WRKY genes in C. oleifera

In this study, we extracted the WRKY genes from the C. oleifera genome using the BLASTP-HMMER methods, and identified 89 CoWRKY genes from C. oleifera after removing the redundant sequences. All CoWRKY gene members were further confirmed based on Pfam, SMART, and CCD databases (Table S1). Protein lengths of CoWRKY ranged from 151 amino acid (aa) in CoWRKY77 to 758 aa in CoWRKY62. The predicted molecular weight varied from 16.70 kDa to 81.99 kDa. The theoretical isoelectric points (PIs) of the proteins ranged from 5.01 to 10.33, among which 46 CoWRKYs were acidic proteins with pI value <7.0, and the remaining 43 proteins were basic proteins. The prediction of subcellular localization analysis showed that 89 CoWRKY proteins were located in the nucleus.

Classification and phylogenetic analysis of CoWRKY proteins

7Based on the multiple-aligned conserved region of WRKY domain sequences for Arabidopsis and C. oleifera, an unrooted Neighbor-Joining phylogenetic tree was established with 1000 bootstrap replications (Figure 2). According to the classification of AtWRKYs based on Eulgem et al. (2000) and primary amino acid structure feature of WRKY, the phylogenetic analysis showed that all CoWRKY proteins were clustered into three major groups, corresponding to Group I, II, and III. Group II accounted for the largest part with 56 CoWRKY members, followed by Group I with 20 members. However, the number of CoWRKY proteins in Group III was the lowest, including 13 members. In Group II, CoWRKY proteins could be further divided into five subgroups. Subgroup II-a, II-b, II-c, II-d, and II-e contained 6, 10, 20, 9, and 11 members, respectively. The WRKYs proteins is typically characterized by the 60-amino acid WRKY domain, which contains the highly conserved heptapeptide WRKYGQK at the N-terminus followed by a C2H2- or C2HC-type zinc finger motif. Therefore, on one hand, CoWRKY proteins from Group I and III were found to contain two conserved WRKY domains at the N and C termini, while those proteins from Group II usually contained one WRKY domain (Figure S1). On the other hand, C2H2-type zinc finger motif was found in the WRKY proteins from Group I and II, while C2HC-type were found in group III. In addition, some exceptions with variants WRKYGQK were found in CoWRKY proteins. For instance, CoWRKY87 from Group I lost the conserved heptapeptide. CoWRKY2 and -3 (from Group II-c) had WRKYGQK variations (WRKYGKK), while CoWRKY67 (from Group II-d), -75 (from Group II-a) and -77 (from Group II-d) lost their zinc finger structure in the C-terminus conserved domain.


Figure 2 Phylogenetic tree using conserved domain of WRKY genes among C. oleifera and A. thaliana. The groups (I, II, and III) and subgroups (II-a, b, c, d and e) were distinguished in different colors. Bootstrap values were labelled in the branch of phylogenetic tree.

The cis-acting elements in CoWRKYs promoter regions

The cis-acting regulatory elements are essential for the gene promoter transcriptional activity to control the gene expression. In this study, the 2000 bp 5’-upstream promoter regions were employed to predict the cis-acting elements using PlantCARE. As a result, a series of hormone-, development- and stress-related cis-acting elements were found (Figure 3). The hormone-related cis-acting elements, including abscisic acid responsiveness (ABRE), auxin responsiveness (AuxRR-core and TGAelement), gibberellin-responsive elements (GARE-motif, P-box, and TATC-box), salicylic acid-responsive (TCA-element), and MeJA-responsive (CGTCA-motif and TGACGmotif), were widely present in the promoter region. Among them, 196 ABRE cis-elements were distributed on the promoter region of 65 CoWRKY genes, and 32 promoters had at least three ABRE cis-elements (Table S3). Six development-related cis-acting elements, including light-related responsiveness (AE-box, Box 4, G-box, GATA-motif and GT1-motif) and WRKY TF binding element (W-box), were found in the promoter region of CoWRKYs. Five stress-related cis-elements, including anaerobic element (ARE), drought stress-responsive element (MBS), defense and stress-responsive element (TC-rich), wound-responsive element (WUN-motif), low-temperature stress responsive element (LTR), were detected. ARE was the most common element in 70 CoWRKY promoters, which was a cis-acting regulatory element essential for anaerobic induction.

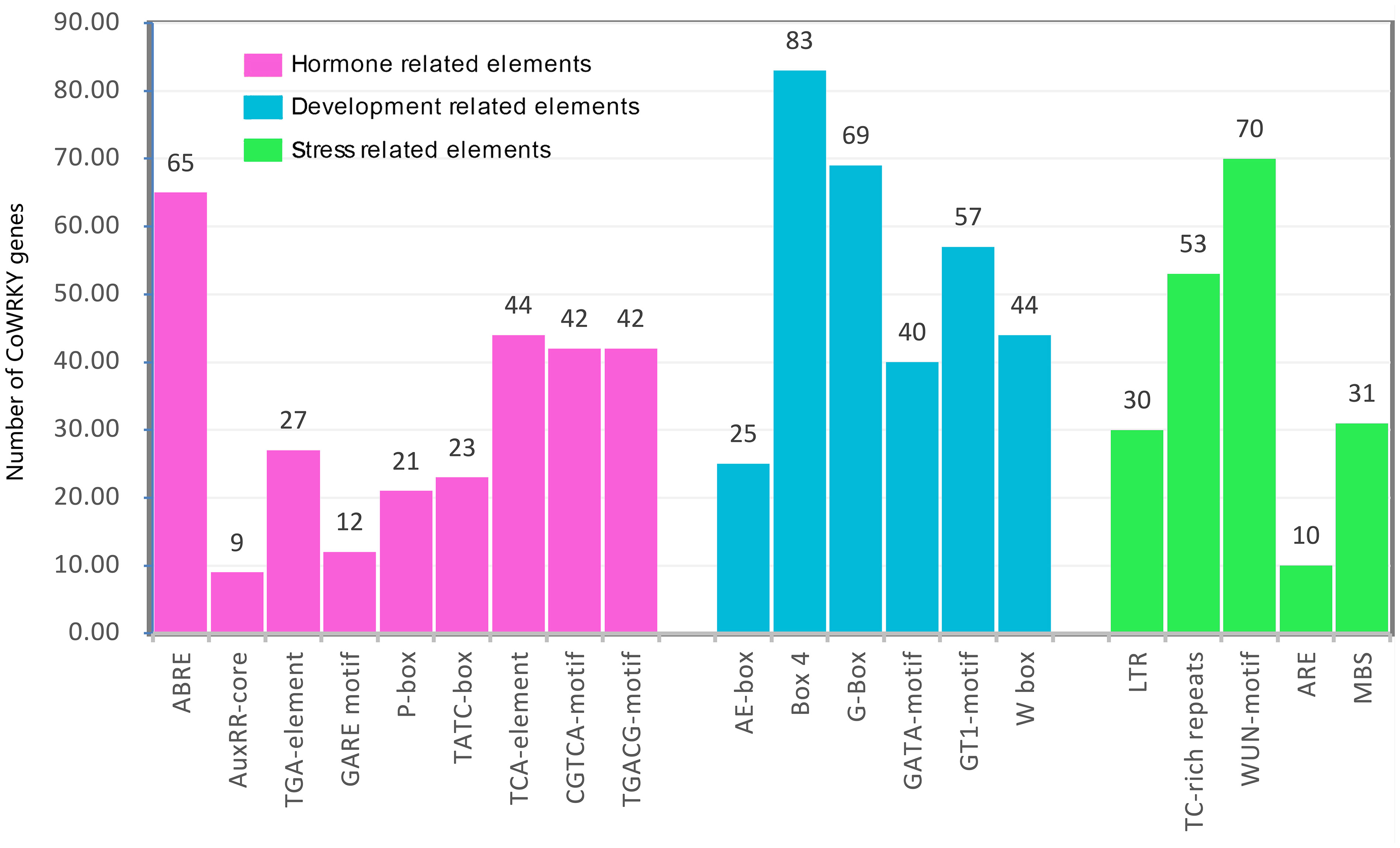

Figure 3 The number of CoWRKY genes containing diverse cis-acting elements. X-axis and Y-axis represented the type of cis-acting elements and the number of WRKY gene family members, respectively.

Chromosomal distribution and gene duplication of CoWRKY family

Chromosomal distribution analysis revealed that a total of 87 CoWRKY genes were unevenly distributed in 15 chromosomes (Figure 4). Every chromosome was found to contain at least one CoWRKY gene, but their distribution was heterogeneous. The chromosome 10 had the maximum numbers of CoWRKYs (12), while chromosome 12, and 5 contained only one CoWRKY gene. In addition, five chromosomes (Chr1, 2, 4, 8, 14 and 15) all had 5 CoWRKY genes. Chromosome 3, 6, 7, 9, 11, and 13 harbored 7, 2, 7, 3, 8, and 8 CoWRKYs, respectively. However, CoWRKY32 and -87 mapped onto scaffold_505_fragment_2 and scaffold_290_fragment_25 separate scaffolds and were not assembled into any chromosomes.


Figure 4 Physical mapping of CoWRKY genes on chromosome. The chromosome numbers were indicated at the top of each chromosome. The scale was in megabases (Mb).

In the evolutionary history of the species, gene tandem duplication and segmental duplication play crucial roles in the generation of the gene family. In general, two or more genes located in the same chromosomal within 200 kb was considered originated from a gene cluster. The gene duplication analysis of CoWRKYs indicated that 6 tandem duplication genes were detected to generate three gene clusters (CoWRKY49/07, 11/73 and 65/05), which were distributed in the chromosome 10, 11, and 15, respectively (Figure 5). In addition, the segmental duplication events were essential for the evolution of CoWRKY gene family. Forty CoWRKYs, which were distributed on other 14 chromosomes, could be involved in 28 segmental duplication events.


Figure 5 The segmental duplications of CoWRKY members. The different color blocks indicated the part of C. oleifera chromosomes. The gray lines indicated all segmental duplications in the C. oleifera genome, and the red lines indicated segmentally duplicated WRKY gene pairs.

Expression patterns of CoWRKYs under P deficient stress based on RNA-seq

To investigate the differentially expression of CoWRKYs to the P deficiency stress, the identified 89 CoWRKYs were carried based on transcriptome sequence data under the P deficiency treatment. The relative expression levels were determined under control and treatments using two different P-efficiency varieties after 30 and 90 days. The results indicated that 32 differentially expressed CoWRKY genes were induced by P deficiency stress (Figure 6). Some WRKY genes exhibited significant cultivar specificity during P deficiency stress. For instance, CoWRKY56 and -55 was highly expressed in the P-efficient variety of CL40, but weakly expressed in the P-inefficient variety of CL3 under the P deficiency treatment. CoWRKY14, -11, -20, -39, -38, -19, -33, and -74 showed relatively higher expression levels under the P deficiency treatments in CL40 after 90 days. CoWRKY70 differed completely between the two cultivars under both treatments after 30 days. Nonetheless, the expression level of CoWRKY70 was significantly higher under the P deficiency treatments after 90 days than that of under the control for both cultivars. CoWRKY29 was highly expressed in CL40 under the P deficiency stress after 90 days, but rarely expressed in CL3. The expression levels of CoWRKY57 and -34 were significantly high under the P deficiency treatment after 90 days, but relatively low under the control, especially rarely detected for CL40. According to the classification and the expression levels of CoWRKYs under the P deficiency stress, five CoWRKY genes, including CoWRKY11 (Group III), -14 (Group II-c), -20 (Group I), -29 (Group II-d) and -56 (Group II-b), were selected for subsequent qRT-PCR analysis.


Figure 6 Transcriptomic analysis of the CoWRKY genes in response to P deficient stress. Samples were collected from the control and P deficient stress treatment after 30 and 90 days. FP0 and SP0 indicated P deficiency treatment after 30 and 90 days. FP2 and SP2 stood for control treatment after 30 and 90 days. Color scale represented the fold change of P0 to control of CoWRKYs with normalized log2-transformed count value.

Expression patterns of CoWRKY genes in different tissues

The tissue specific expression patterns of 5 selected CoWRKY genes were assessed in six tissues, including roots, stems, leaves, flowers, young fruits and ripe kernels of C. oleifera trees (Figure 7). The expression of different CoWRKY genes were involved in different tissues. CoWRKY14 and -56 exhibited the highest expression level in leaves followed by in ripe kernels. CoWRKY29 were highly expressed in ripe kernels, of which expression level in ripe kernels was 5 times higher compared to that of in leaves. The expression of CoWRKY20 performed most in ripe kernels, followed by in flowers. Collectively, the results showed that all five CoWRKY genes were highly expressed in leaves but limitedly expressed in roots, stems, and young fruits.


Figure 7 The expression patterns of CoWRKY genes in six different tissues. Columns labeled with different letters were significantly different (p < 0.05) among different tissues.

Expression patterns of CoWRKY genes under P deficiency stress based on qRT-PCR

The expression patterns of five selected CoWRKY genes were investigated in P-inefficiency variety of CL3 and P-efficiency variety of CL40 under P deficiency condition (Figure 8). The results indicated that all five CoWRKYs were upregulated in both cultivars under the control treatment. Furthermore, these five genes exhibited obvious cultivar-specific expression patterns under the P deficiency treatment. They were upregulated in CL40 cultivars, while downregulated in CL3 cultivars. Moreover, five CoWRKYs showed similar expression trends in CL40 after P deficiency stress. Their expression levels generally increased initially, reached the peak at 24 h and then decreased. Among them, CoWRKY11 and -14 were induced by P deficiency with 70-and 44-fold induction in CL40 cultivars at 24 h, respectively.


Figure 8 Relative expression of 5 CoWRKY genes under P deficient stress. The data were calculated by the 2−ΔΔCt method. The error line represented the standard deviation (n = 3). P0 indicated P deficiency treatment, and P1 for control treatment. Columns labeled with different letters were significantly different (p < 0.05) among the treatment times for each variety.

The expression patterns of CoWRKYs were further investigated under P deficiency with a longer treatment duration (Figure 9). The result showed similar cultivar-specific expression patterns of five CoWRKY genes under the P deficiency treatment, especially treated after 90 d. For example, in CL40, the expression levels of CoWRKY11, -14, -20, and -56 were upregulated initially and then downregulated after P deficiency treatment, reaching the highest expression level after 90 d. However, the expression of CoWRKY29 was downregulated firstly and then up-regulated under P deficiency treatment. In CL3, CoWRKY genes showed the relative low expression during the entire experiment except CoWRKY56.


Figure 9 Expression patterns of CoWRKY genes under P deficiency during a longer treatment duration. The data were calculated by the 2−ΔΔCt method. The error line represented the standard deviation (n = 3). P0 indicated P deficiency treatment, and P1 for control treatment. Columns labelled with different letters were significantly different (p < 0.05) among the treatment times for each variety.


C. oleifera is an hexaploid (2n=6x=90) and mainly planted in acid soil conditions characterized with P deficiency. The shortage of P seriously impacts the production of oil-tea plants and the quality of tea-oil (Wu et al., 2019). The emergence of the genome sequences of the diploid C. oleifera var.”Nanyongensis” offers an important resource for C. oleifera researches. It can also provide the crucial reference to explore genetic basis of functional diversity for C. oleifera. WRKY family, as a plant-specific transcription factor, has been demonstrated to participate in plant growth, development and stress responses. With the aim of genetic improvements of agronomically important traits for C. oleifera, this systematic analysis identified potential CoWRKYs in the diploid C. oleifera genome, and examined their expression patterns between different cultivars under P deficiency. This study provided the foundation for further research into the functions of WRKY genes in plants.

In this study, a total of 89 CoWRKY genes were identified in diploid and wild progenitor of C. oleifera, greater than in some woody species such as C. sinensis (56) (Wang et al., 2019), Pinus massoniana (31) (Yao et al., 2020), Cunninghamia lanceolate (44)(Zeng et al., 2019), and Ginkgo biloba (40)(Cheng et al., 2019), but fewer than in Arachis hypogaea (158, allo-tetraploid) (Zhao et al., 2020), strawberry (222, allo-octoploid) (Zhou et al., 2022), and soybean(174, paleopolyploidy) (Yang et al., 2017). By inference, cultivars of C. oleifera, as a hexaploid, were predicted to harbor much larger numbers of WRKY proteins in the genome. In addition, the chromosome distribution and gene duplication analysis indicated that 40 CoWRKYs were segmentally duplication genes and involved in 28 segmentally duplication events, suggesting that the majority of WRKYs in Camelia oil tree arose from duplication of chromosome regions or the whole chromosomes. The WRKY genes after duplication in C. oleifera had similar biological functions and were induced by the stresses at the same time, generating a complex regulatory network and participating in the regulation of gene expression.

Phylogenic tree analysis indicated that the identified 89 CoWRKYs shared common motifs and divided into three main clades, with Group II further clustering into five subgroups. These results indicated that the CoWRKY proteins were highly conserved and strongly consistent with the group classification of the WRKY family in other higher plants (Rinerson et al., 2015). However, some variants were detected, which was likely related to neofunctionation, subfunctionation and pseudogenization of the CoWRKY family (van Verk et al., 2008; Muthamilarasan et al., 2015). For instance, the loss of conserved heptapeptide was observed in Group I (CoWRKY87) and subgroup II-c (e.g. the motif of WRKYGKK in CoWRKY2 and -3). It was reported that mutation occurring in members from subgroups II-c was likely involved in changing the DNA biding affinity and resulting in the diversity of binding specificity. In addition, some CoWRKY genes were detected to contain flawed C2H zinc finger structure in their conserved domain. Previous research has indicated that the conserved residues of the WRKY domain was required for the proper folding of the DNA-binding zinc finger (Maeo et al., 2001). Mutations in sequences at N-terminal side of zinc finger-liker motif was likely to reduce or abolish the DNA binding activity.

The cis-acting elements in gene promoters influence greatly on the gene expression patterns through the binding sites of transcription factors (Wei et al., 2022). The cis-acting elements analysis of CoWRKY genes searched a series of hormone-, development- and stress-related cis-acting elements in the promoter regions of CoWRKYs. In general, the WRKY proteins can be regulated by hormones and meanwhile contribute to the regulation of hormone signaling during many biological processes (Rushton et al., 2012). Among nine hormone related cis-acting elements in CoWRKYs, the ABRE cis-acting element had the largest number (65) and controlled the synthesis of ABA, which is crucial signal pathway in the mediation of plant resistance. Among 5 stress related cis-acting elements, the WUN-motif cis-acting element contained the largest number (70), which are recognized as wound-responsive elements. Furthermore, LTR, TC-rich repeats and ARE elements involved in abiotic resistance were detected in the CoWRKYs. It is speculated that CoWRKYs played a crucial role in mediating regulation of stress responses in C. oleifera.

P deficiency has a negative effect on plant growth and development of C. oleifera, and decreases Camellia oil yield. In this research, 32 CoWRKY genes were detected to perform different expression levels in P sufficient and deficient supplies. The expression patterns of some CoWRKY genes showed significant cultivar specificity along with the increase of stress duration. For example, CoWRKY11, -14, -20, -29 and -56 had higher positive impact on P-efficient CL40 cultivars compared with that on P-inefficient CL3 cultivars (Figure 8). Furthermore, the expression of CoWRKY11 and -14 were 70-and 44 times higher under P deficiency with induced in CL40 cultivars compared with that in CL3 at 24h, respectively (Figure 8). WRKY genes in the mediating P deficiency stress responses have been detected in many other species, suggesting the similarities in gene function among homologus genes. For instance, overexpression of AtWRKY45 (the orthologous gene of CoWRKY14) positively regulated the expression of PHT1;1 by binding to the promoter region, improving the inorganic P content of roots under P deficiency and promoting the absorption of inorganic P (Wang et al., 2014). OsWRKY74, the orthologous gene of CoWRKY11, was significantly induced in the early stage of low-P treatment in roots (Dai et al., 2016).

Many literatures have long demonstrated that large genotypic differences in P efficiency could be mainly attributed to the increased P acquisition efficiency (PAE) characterized with changes in root growth-related phenotypes, including improving root hairs or branching angle of basal roots, when P availability was limited (Wang et al., 2010). This adaptation process has been involved in related gene expression of P uptake and the regulation of transcriptional factors in roots. For example, a recent research on post-transcriptional regulation of microRNA expression in roots under low-P stress in C. oleifera indicated that WRKY53 was one of the three hub transcriptional factors, which were the targets of differentially expressed mRNAs (Chen et al., 2022). However, some researches suggested efficient re-translocation and re-use of the stored P were more important in the breeding or biotechnology of P-efficient varieties, such as the translocation from absorbed P metabolically inactive shoots to active leaves or fruits, or the carbon cost balance between the root development and plant biomass (Wang et al., 2010; Zhang et al., 2017). However, the underlying mechanism was poorly understood. In C. oleifera, P efficient variety with greater root-to-shoot ratio had no significant differences in fine roots (less than 1mm in diameter) compared to the P-inefficient varieties under P deficiency (Zeng et al., 2022), but showed relative higher contents of chlorophyll, soluble protein and peroxidase in leaves (Zeng et al., unpublished), indicating that the expression of many genes related to signaling pathways, carbon metabolism and chlorophyllide biosynthesis were affected by P deficiency (Park et al., 2011). WRKY family genes have been reported to play equally important roles in shoots and leaves for P-deficiency tolerance (Kumar et al., 2021). In this study, 32 WRKY genes in C. oleifera leaves were induced when treated with P deficiency, indicating that CoWRKYs played a crucial role in the transportation and recycling P in leaves by affecting diverse metabolic pathways. Furthermore, the underlying mechanism of WRKY to participate in the regulation responding to the P deficiency in C. oleifera are diverse and complex, especially in P-efficient C. oleifera varieties.


In this study, comprehensive analysis of CoWRKY genes and the expression patterns under P deficiency in C. oleifera were carried out. According to the diploid genome C. oleifera, a total of 89 CoWRKY genes was identified and divided into three groups, with group II further classified into five subgroups based on the phylogenetic relationships. Some variants and mutations were detected in the gene structure and conserved domain of CoWRKYs, suggesting that neofunctionation, subfunctionation and pseudogenization may occur in the CoWRKY family. Segmental duplication events were considered as the primary driver in the expanding process of WRKY gene family in C. oleifera. CoWRKY gene expression indicated that 32 CoWRKY participated in the regulation on responses to P deficient stress and shed light on the function of CoWRKY genes in C. oleifera. The sensitivity of some CoWRKYs on the P-efficient variety CL40 clarified the cultivar specificity of C. oleifera on P deficiency tolerance. These results will provide a valuable resource for further investigation of functional characterization of CoWRKY genes involved in P deficiency stress resistance in C. oleifera.

Data availability statement

The data presented in the study are deposited in NCBI, accession number PRJNA831290.

Author contributions

WS designed the experiment, processed the data and draft the manuscript; ZZ and JZ prepared the materials and performed the experiment; RC and YZ processed and interpreted the data; DH provided the technical guidance for the experiment; JL conceived the study and revised the manuscript. All authors contributed to the article and approved the submitted version.


This study was supported by the National Key Research and Development Program of China (2018YFD10001603); Second Batch for Innovation Special Project of Jiangxi Forestry Department (2019) No.23.


We thank Xizheng Wang, Qinhua Cheng, Nahong Zhao, and Xia Chen for their assistance in managing and sampling the plant materials in the experiment. We also thank the editor and the reviewers for their constructive comments on this manuscript.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at:

Supplementary Figure 1 | Multiple sequence alignments of WRKY domains in each group of CoWRKY proteins.
