MINI REVIEW article

Front. Plant Sci., 18 September 2023
Sec. Plant Pathogen Interactions
This article is part of the Research Topic Wheat Disease Resistance: Diagnosis, Germplasm Mining, and Molecular Breeding View all 12 articles

Wheat powdery mildew resistance: from gene identification to immunity deployment

Shenghao ZouShenghao ZouYang XuYang XuQianqian LiQianqian LiYali WeiYali WeiYoulian ZhangYoulian ZhangDingzhong Tang*Dingzhong Tang*
  • State Key Laboratory of Ecological Control of Fujian-Taiwan Crop Pests, Key Laboratory of Ministry of Education for Genetics, Breeding and Multiple Utilization of Crops, Plant Immunity Center, Fujian Agriculture and Forestry University, Fuzhou, China

Powdery mildew is one of the most devastating diseases on wheat and is caused by the obligate biotrophic phytopathogen Blumeria graminis f. sp. tritici (Bgt). Due to the complexity of the large genome of wheat and its close relatives, the identification of powdery mildew resistance genes had been hampered for a long time until recent progress in large-scale sequencing, genomics, and rapid gene isolation techniques. Here, we describe and summarize the current advances in wheat powdery mildew resistance, emphasizing the most recent discoveries about the identification of genes conferring powdery mildew resistance and the similarity, diversity and molecular function of those genes. Multilayered resistance to powdery mildew in wheat could be used for counteracting Bgt, including durable, broad spectrum but partial resistance, as well as race-specific and mostly complete resistance mediated by nucleotide-binding and leucine rich repeat domain (NLR) proteins. In addition to the above mentioned layers, manipulation of susceptibility (S) and negative regulator genes may represent another layer that can be used for durable and broad-spectrum resistance in wheat. We propose that it is promising to develop effective and durable strategies to combat powdery mildew in wheat by simultaneous deployment of multilayered immunity.

Introduction

Bread wheat (Triticum aestivum L.) is the most widely cultivated crop worldwide, providing approximately 20% of the total daily calories consumed by humans (Reynolds et al., 2012; Appels et al., 2018). Wheat powdery mildew, caused by Blumeria graminis f. sp. tritici (Bgt), is highly destructive, resulting in nearly 5% of the annual wheat yield loss globally (Singh et al., 2016; Savary et al., 2019). To combat this disease, researchers have cataloged over 100 powdery mildew (Pm) resistance alleles at nearly 65 loci in bread wheat and its relatives (Table S1) (Mapuranga et al., 2022). Due to recent progress in large-scale genomic sequencing alongside innovative gene cloning strategies, more powdery mildew resistance genes have been cloned, broadening the disease resistance diversity in wheat.

To date, most of the identified wheat powdery mildew resistance genes encode CNL proteins with nucleotide-binding sites (NBS) and leucine-rich repeat (LRR) domains (NLR) associated with coiled-coils at the N-termini, such as Pm1a, Pm2, Pm3/Pm8/Pm17, Pm5e, Pm21/Pm12, Pm41, Pm60 and Pm69, which perceive the effectors secreted by Bgt, conferring effector triggered immunity (ETI) and showing race-specific resistance (Gupta et al., 2022). Race-specific resistance can mostly provide complete resistance to specific Bgt isolates when CNL immune receptors and their cognate effectors, encoded by pathogen avirulence (Avr) genes, are present. However, the gene-specific arms race, causing diversification of both immune receptor and Avr genes, can overcome this type of resistance rapidly, especially in wheat with a single race-specific immune receptor gene (Brunner et al., 2011). Apart from the mentioned CNL receptors, recently, two types of non-NLR immune receptors have also been reported to trigger race-specific resistance. (Lu et al., 2020; Sánchez-Martín et al., 2021; Gaurav et al., 2022). These non-NLR immune receptors contain (pseudo)kinase domains that may be responsible for detecting invading effectors (Sánchez-Martín and Keller, 2021). However, the cognate Avr effectors of these non-NLR immune receptors have not yet been identified. This discovery suggests that not only the typical intracellularly localized NLR proteins but also some non-NLR receptors may play a significant role in activating race-specific resistance against Bgt (Figure 1, Type 1).

FIGURE 1
www.frontiersin.org

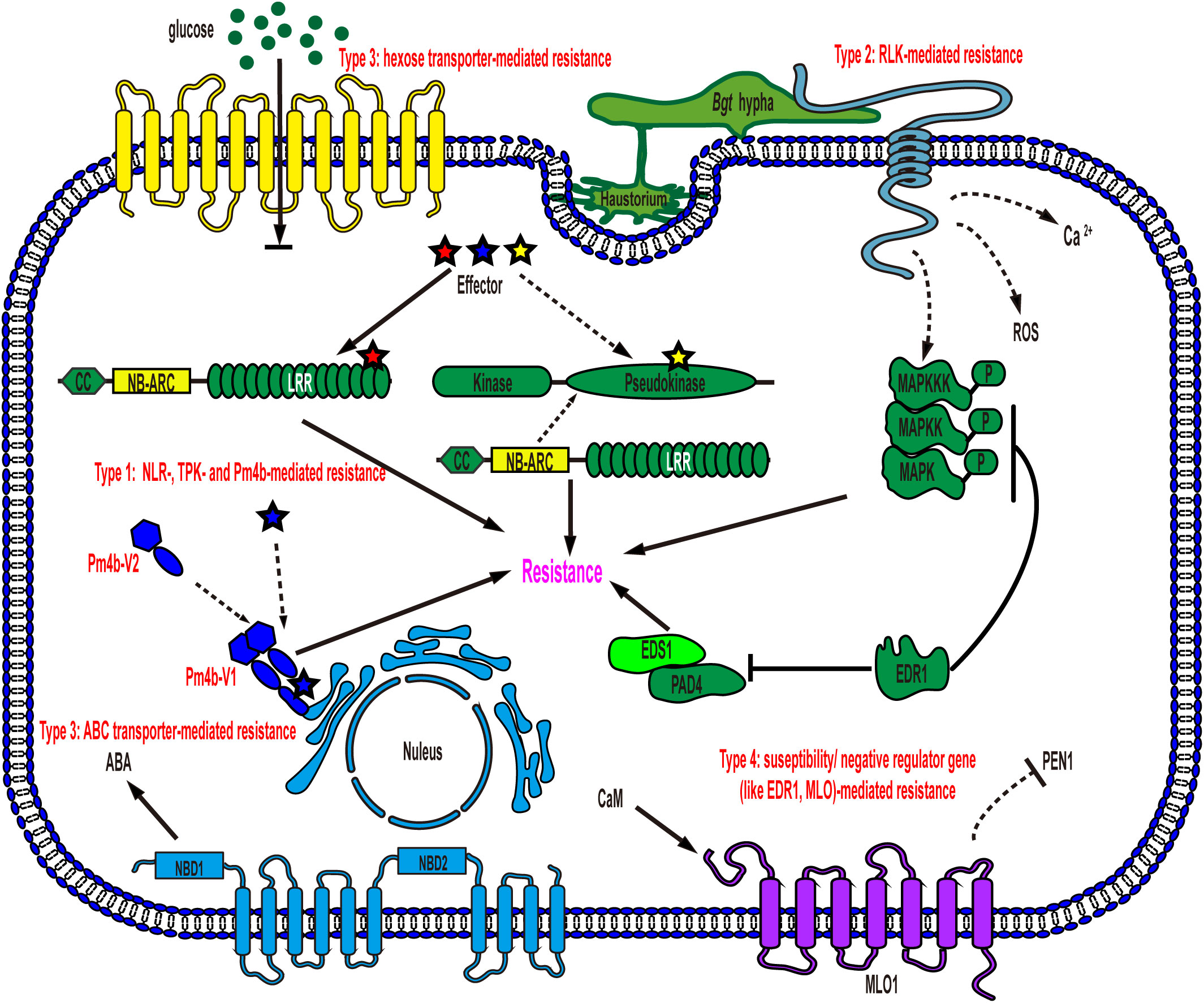

Figure 1 Schematic representation of models for wheat powdery mildew resistance gene function in an epidermal cell. Type 1: NLR-, TPK- and Pm4b-mediated resistance. NLRs and several non-NLRs, such as TPK and Pm4b, mediate race-specific resistance after recognizing cognate effectors secreted by Bgt, leading to the induction of cell death and resistance to powdery mildew. TKP: tandem kinase proteins; Type 2: RLK-mediated resistance. Plasma membrane-localized RLKs detect PAMPs of Bgt, triggering downstream signaling events such as mitogen-activated protein kinase (MAPK) cascades, calcium (Ca2+) flux, and reactive oxygen species (ROS) bursts, ultimately providing defense against powdery mildew; Type 3: hexose transporter- and ABC transporter-mediated resistance. Membrane-localized transporters create a hostile environment for pathogen growth, resulting in resistance without requiring specific recognition of Bgt. NBD: nucleotide binding domain; Type 4: susceptibility/negative regulator gene-mediated resistance. Loss-of-function mutations in these genes, such as EDR1 and MLO, enhance powdery mildew resistance in wheat. EDR1 negatively regulates key components of plant innate immunity, including MAPK, EDS1 and PAD4. MLO, on the other hand, modulates PEN1-associated vesicle fusion and exocytosis processes to support pathogenesis.

Pattern-triggered immunity (PTI), in contrast to ETI, is the other tiered innate immune system that is activated by the recognition of pathogen-/damage-derived molecules via cell surface-localized pattern-recognition receptors (PRRs) (Jones and Dangl, 2006). PRRs mainly include receptor-like kinases (RLKs) and receptor-like proteins (RLPs). RLKs, found in plants, are a diverse family of proteins with an ectodomain (ECD), a single-pass transmembrane domain, and a cytoplasmic kinase domain, while RLPs lack the intracellular kinase domain (Tang et al., 2017). The ECDs of RLKs and RLPs are highly variable, encompassing leucine-rich repeat (LRR) domains, lysine motifs (LysMs), lectin domains, malectin-like domains, epidermal growth factor (EGF)-like domains, and others, allowing them to recognize a wide range of ligands, including steroids, peptides, polysaccharides, and lipopolysaccharides (Tang et al., 2017). Recently, several types of RLKs (such as TaRLK, LecRK-V, TtdLRK10L-1, HvLEMK1, and RLK-V) that trigger resistance in wheat have been identified, but the corresponding pathogen-associated molecular patterns (PAMPs) or ligands are yet to be identified. However, their conferred powdery mildew resistance is believed to be mainly activated through the recognition of the Bgt-associated molecular pattern (Figure 1, Type 2).

Unlike resistance genes that activate ETI or PTI, certain wheat powdery mildew resistance genes, such as Pm38 and Pm46, do not require the perception of Bgt (Figure 1, Type 3). Intriguingly, both Pm38 and Pm46 encode membrane-localized transporter proteins (Krattinger et al., 2009; Moore et al., 2015). The powdery mildew resistance, conferred by either PTI or these two transporters, is mostly partial and quantitative, in contrast to the race-specific complete resistance. Notably, partial and quantitative resistance tends to be durable and broad-spectrum, providing protection against all races of the pathogen species (Moore et al., 2015; Sánchez-Martín and Keller, 2021).

In addition to the three types of resistance genes mentioned above, susceptibility genes such as Mlo and negative regulator genes such as EDR1 provide a distinct form of powdery mildew resistance through loss-of-function, which is recessively inherited, with varying levels of resistance depending on the specific susceptibility gene’s function (Figure 1, Type 4) (Wang et al., 2014; Zhang et al., 2017; Sánchez-Martín and Keller, 2021). MLO is a membrane-localized protein, while EDR1 is a cytoplasmic Raf-like mitogen-activated protein kinase (MAPK) kinase kinase (MAPKKK) (Büschges et al., 1997; Frye et al., 2001). Each of them plays a distinct role in wheat cell signaling pathways, and the extent of resistance conferred by knocking out them is determined by their intrinsic physiological and biochemical functions in plants. Overall, multilayered resistance to wheat powdery mildew has been identified in recent studies, and combining all the layers simultaneously and strategically would shed light on wheat resistance breeding, even though the molecular mechanism underlying some of the resistance remains to be fully understood.

The phytopathogen causing wheat powdery mildew

Blumeria graminis, a fungal plant pathogen, is responsible for powdery mildew (Savary et al., 2019). Based on their host specificity, multiple formae speciales are defined within the species, such as Blumeria graminis f. sp. tritici (Bgt), which specifically infects wheat and causes wheat powdery mildew. For typical images of the disease and pathogen, readers are referred to a previous review (Jankovics et al., 2015). To survive harsh conditions, Bgt can form chasmothecia and undergo a sexual life cycle (Jankovics et al., 2015). Bgt originated in the Fertile Crescent during wheat domestication, and historical human migration and trade facilitated its worldwide spread (Sotiropoulos et al., 2022). For the global races of Bgt and their spread, readers are referred to a recent review (Sotiropoulos et al., 2022). The sequencing and assembly of the 166 Mb Bgt genome, consisting of 11 chromosomes, revealed approximately 844 candidate effector genes (Müller et al., 2018). Hybridization of globally spread mildew isolates has further complicated the genome, accelerating adaptation to new wheat hosts (Müller et al., 2021).

NLR and several Non-NLR immune receptors activate race-specific resistance via effector recognition

An increasing number of race-specific resistance genes, providing efficient resistance to the rapidly evolving Bgt, have been identified in wheat and its wild relatives (Table 1). During molecular identification, most of the cloned race-specific resistance genes encode CNL immune receptors, with some identified as orthologous genes, such as Pm12/Pm21 and Pm8/Pm3 (Hurni et al., 2013; Zhu et al., 2023). Pm60, Pm60a and Pm60b are functional allelic variants found in different Triticum urartu accessions. Compared with Pm60, Pm60b contains a 240-nucleotide insertion, and its protein has two additional LRR motifs. In contrast, Pm60a has a 240-nucleotide deletion and two fewer LRR motifs in its protein, which narrows its Bgt resistance spectrum, whereas insertion of the two LRR motifs in Pm60b has comparatively little influence (Zou et al., 2022). Pm3b, Pm3a and Pm3d proteins are also allelic variants differing by a few amino acid (aa) point mutations, mainly in the NBS and LRR domains, which are responsible for recognizing different Bgt strains. The cognate Avr effectors of Pm3a, Pm3b and Pm3d were isolated, which belong to a large group of proteins with low sequence homology but predicted structural similarity (Bourras et al., 2019). In addition to AvrPm3b, c, and d, several other avirulence genes have been isolated (Table 1). However, the identification of Bgt avirulence effectors and the downstream pathways following perception still lags behind resistance gene cloning. Nonetheless, it is believed that there might be a direct interaction between CNLs and their corresponding effectors, resulting in the activation of the hypersensitive response and resistance, as seen with Pm1a and Pm3b (Bourras et al., 2015; Bourras et al., 2019).

TABLE 1
www.frontiersin.org

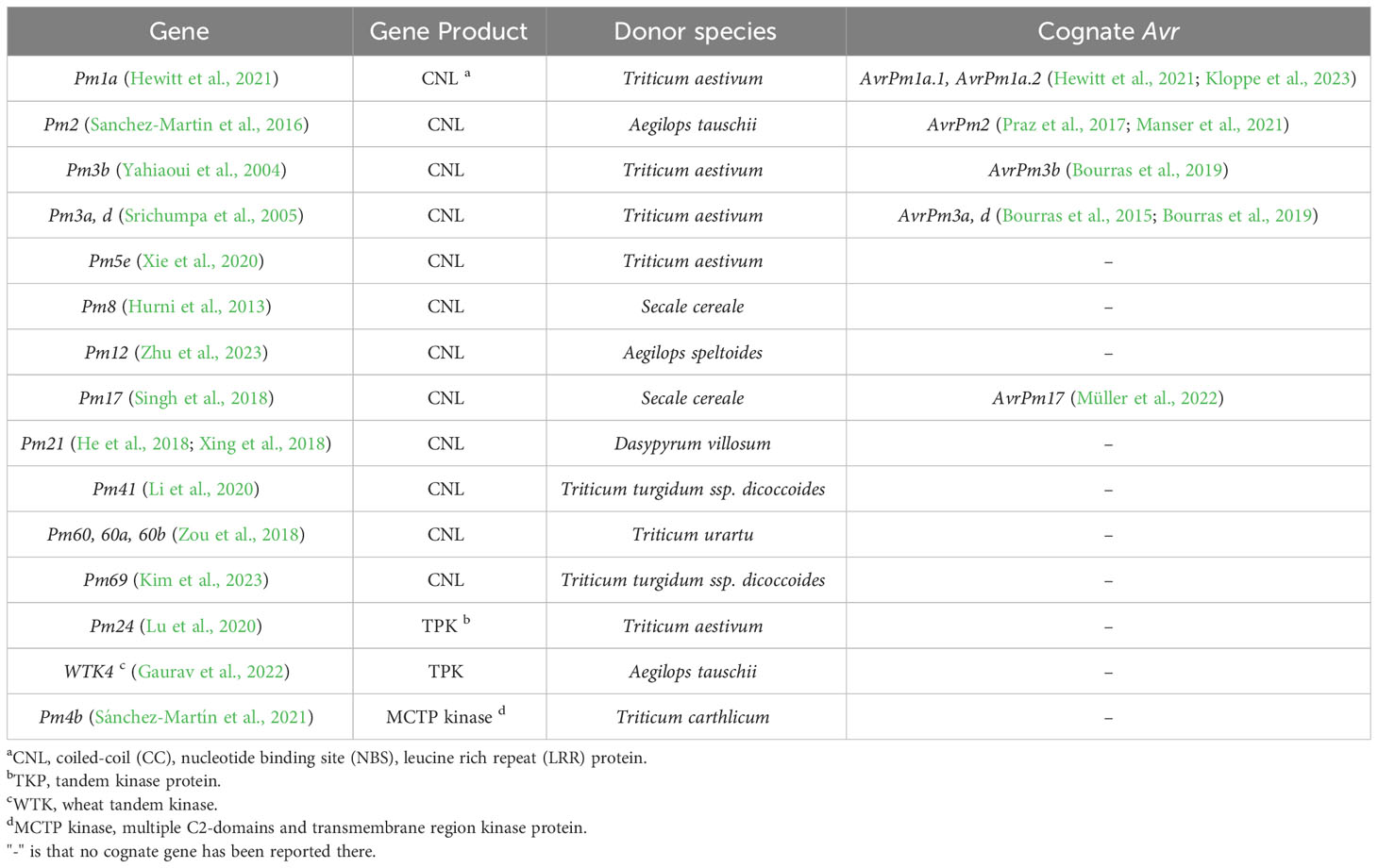

Table 1 List of cloned genes conferring race-specific resistance to Blumeria graminis f. sp. tritici in wheat and their corresponding avirulence (Avr) genes cloned in the pathogens.

Pm24 and WTK4 are tandem kinase proteins (TKP) composed of two tandem kinase domains, one of them is a pseudokinase domain, which are reported to confer resistance to Bgt (Table 1) (Lu et al., 2020; Gaurav et al., 2022). In addition to Pm24 and WTK4, the barley stem rust resistance gene Rpg1 and the wheat yellow rust resistance gene Yr15 encode TKPs as well, which have been considered cytosolic localized and race-specific (Brueggeman et al., 2002; Klymiuk et al., 2018). Thus, although Pm24 is resistant to all of the tested 93 Bgt isolates collected from China and no virulent isolates have been discovered, by now, it suggests that Pm24 and WTK4 might confer race-specific resistance, similar to other reported TKPs. Furthermore, it has been hypothesized that the pseudokinase domain in these TKPs is the target of Bgt effectors and that the interaction activates either TKPs to phosphorylate downstream components or NLRs that guard the TKPs, consequently resulting in resistance (Sánchez-Martín and Keller, 2021; Fahima and Coaker, 2023).

Pm4b is a novel race-specific wheat powdery mildew resistance gene (Figure 1, Type 1). Functional analysis has revealed that both protein variants resulting from alternative splicing are essential for the resistance function. These two protein isoforms share a kinase domain with serine/threonine specificity. However, in their C-terminus, one isoform has a single C2C domain, while the other contains a C2D domain coupled to a phosphoribosyl transferase C-terminal domain with two transmembrane domains. (Sánchez-Martín et al., 2021). Moreover, the two protein variants have the ability to form an ER-anchored heterocomplex. In this complex, the C2C/D or kinase domains may recognize the cognate effector, leading to the activation of kinase activity and subsequent disease resistance (Sánchez-Martín et al., 2021). Additionally, several functional allelic variants have been discovered in the Pm4 locus, suggesting a diverse range of resistance capabilities.

Given the complexity of the enormous genome of wheat and its close relatives, it is predicted that more race-specific resistance genes, whether encoding NLR or non-NLR proteins, will likely be isolated in the future.

Putative powdery mildew resistance proteins responsible for recognizing PAMPs

Several RLKs were identified as conferring wheat powdery mildew resistance, such as RLK-V and LEMK1 with an LRR-malectin domain, LecRK-V with an L-type lectin domain, and TtdLRK10L-1, TaRLK1, and TaRLK2 with an LRR domain (Chen et al., 2016; Rajaraman et al., 2016; Hu et al., 2018; Wang et al., 2018; Xia et al., 2021). These RLKs may be responsible for recognizing PAMPs, as known in PTI, although the corresponding ligands have not yet been isolated (Figure 1, Type 2). Additionally, RLK-V has been shown to be required for resistance mediated by Pm21, supporting the model that ETI and PTI mutually potentiate and interdepend on each other (Yuan et al., 2021).

The powdery mildew resistance proteins that function independently of perceiving Bgt

Pm38 and Pm46 are two powdery mildew resistance proteins that confer protection against the pathogen without directly perceiving effectors or PAMPs originating from Bgt (Figure 1, type 3). Pm38 shares structural similarities with adenosine triphosphate-binding cassette (ABC) transporters of the pleiotropic drug resistance subfamily, which includes the well-known nonhost resistance protein PEN3 in Arabidopsis. Recently, it was reported that abscisic acid (ABA) is the substrate of the ABC transporter Pm38 and that ABA redistribution, mediated via the transporter, might contribute to resistance against not only Bgt but also multiple fungal pathogens in wheat (Krattinger et al., 2019; Bräunlich et al., 2021). On the other hand, Pm46 functions as a plasma membrane-localized nonfunctional hexose transporter, leading to an increased hexose/sucrose ratio in the leaf apoplasm due to its blocking of apoplastic hexose retrieval in epidermal cells (Figure 1, Type 3)(Moore et al., 2015). Consequently, the altered sugar ratio triggers a sugar-mediated signaling response, creating a more hostile environment for pathogen growth (Proels and Hückelhoven, 2014). Notably, this type of resistance exhibits partial, durable, and broad-spectrum characteristics, similar to PTI, which stands in contrast to race-specific resistance. Remarkably, the perception of Bgt is not required for the activation of this type of resistance.

Modification of susceptibility/negative regulator genes for resistance to wheat powdery mildew

EDR1 is well conserved and is expected to function similarly in different plant species (Frye et al., 2001). In Arabidopsis, EDR1 negatively regulates PTI modulated by the RLP53-associated immune complex (Chen et al., 2022). Notably, EDR1 physically interacts with MKK4/MKK5 and negatively affects MPK3 and MPK6 protein levels and kinase activity (Zhao et al., 2014; Gao et al., 2021). Moreover, EDR1 directly associates with PAD4 and EDS1 and interferes with the heteromeric association of PAD4 and EDS1, which are key components of ETI (Neubauer et al., 2020) (Figure 1, Type 4). As a result, EDR1 acts as a negative regulator in innate immunity. Simultaneous modification of three homoeologs of EDR1 in common wheat via genome editing relieves the suppression of EDR1 to immunity and significantly enhances powdery mildew resistance, although the resistance remains partial (Zhang et al., 2017). MLO encodes a transmembrane protein. The C-terminal domain in MLO is responsible for Ca2+-dependent binding with calmodulin, which is associated with the negatively regulating ability of MLO to resistance (Kim et al., 2002). Furthermore, resistance mediated by knockout of MLO requires PEN1, suggesting that powdery mildew fungi may enlist MLO to regulate vesicle fusion and exocytosis processes for successful pathogenesis (Figure 1, Type 4)(Kusch and Panstruga, 2017; Jacott et al., 2021). Intriguingly, in mlo mutants, the development of powdery mildew is terminated at the stage of cell wall penetration, a phenomenon reminiscent of nonhost resistance mechanisms (Jacott et al., 2021). The mlo mutants also exhibit undesired pleiotropic phenotypes, including growth penalties and yield losses, which have hampered their widespread use (Consonni et al., 2006). However, a recently identified mutant, with a 304-kilobase pair targeted deletion in the MLO-B1 locus of wheat, retains crop growth and yields while conferring robust powdery mildew resistance, although the precise mechanism by which to revert the growth penalties is not fully understood (Li et al., 2022; Najafi and Palmgren, 2022). Thus, disruption of this type of gene emerges as an attractive resistance breeding strategy in wheat.

Prospect

In race-specific powdery mildew resistance, some interactions between NLRs and cognate effectors have been subject to investigation, but the downstream signaling pathways resulting from these interactions remain to be fully understood. In contrast to NLR, the molecular analysis of non-NLR-based race-specific resistance is in its early stages, and the corresponding avirulence genes have not yet been identified. In addition, the ligands recognized by the RLKs for activating PTI to Bgt are also unknown. On the other hand, the characterization of resistance conferred by membrane-localized transporters, which do not require the perception of effectors or PAMPs from Bgt, has been more extensively studied. Although the resistance provided by these transporters is partial, similar to PTI triggered by RLKs, it tends to be more durable and broad-spectrum compared to race-specific powdery mildew resistance. Notably, resistance facilitated by genome modification of the susceptibility gene MLO is complete, durable, and broad-spectrum. Moreover, the undesirable growth penalties observed in mlo mutants can potentially be overcome by implementing additional precision genome editing to stack genetic changes.

Resistance to powdery mildew in wheat can be classified into different layers based on their specific characteristics. However, it is important to note that these layers of resistance should not be used individually to combat rapidly evolving Bgt. Studies have shown that even on mlo plants, powdery mildew isolates with enhanced virulence can emerge (Schwarzbach, 1979). The combination of multilayered resistance is necessary to create a high barrier, preventing Blumeria graminis f. sp. tritici from adapting to and overcoming (Dracatos et al., 2023). Thus, constant efforts are required to identify and understand various resistance genes in wheat and its close relatives, as well as analyze their molecular mechanisms. This ongoing research is essential for laying the foundation to develop effective and durable strategies to combat wheat powdery mildew.

Author contributions

SZ: Writing – original draft. YX: Writing – review & editing. QL: Writing – review & editing. YW: Writing – review & editing. YZ: Writing – review & editing. DT: Writing – review & editing.

Funding

The authors declare financial support was received for the research, authorship, and/or publication of this article. This work was supported by grants from the National Natural Science Foundation of China (31830077) and Natural Science Foundation of Fujian Province (2023J01284).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The author(s) declared that they were an editorial board member of Frontiers, at the time of submission. This had no impact on the peer review process and the final decision.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2023.1269498/full#supplementary-material
