Abstract
Introduction:
Ethylene response factors (ERF) were important for plant growth, hormone signaling, fruit ripening and stress response. Despite the wide identification of ERF family members in various species, limited information is available regarding this family in Akebia trifoliata.
Methods:
The APETALA2/ethylene response factor genes in A. trifoliata were identified and analyzed using bioinformatic approaches and AtrERF001 was verified to be involved in fruit ripening by experiments.
Results:
Therefore, 131 APETALA2/ethylene response factor genes were identified from the A. trifoliata genome. Gene structures, motif compositions, tandem duplication events and promoter structure of ERF genes were characterized, providing insights into the molecular basis underlying the discrepant functions of ERF genes within each evolutionary branch. Expression patterns under ethylene and 1-MCP treatments of these ERF genes were further analyzed using real-time PCR (RT-qPCR), revealing that 9 key ERF genes are closely associated with fruit ripening. A co-expression regulatory network analysis indicated that AtrERF001 was one of the hub gene. AtrERF001 was found to localize in nucleus by subcellular localization analysis. Overexpression of AtrERF001 in Akebia trifoliata and tomato fruit resulted in early fruit ripening. The expression levels of AtrERF001, AtrACO and AtrPE in overexpression fruits were increased by about 30-fold, 5-fold and 1-fold, respectively, compared with the control, whereas silencing of AtrERF001 in A. trifoliata by virus induced gene silencing showed opposite trends. Moreover, RT-qPCR experiments showed that the expression of AtrERF001, AtrACO and :AtrPE in AtrERF001 overexpression tomato fruits at red-ripe stage were significantly increased compared with the control fruits, indicating that AtrERF001 may play an important role in regulating fruit ripening.
Discussion:
Our results provide new insights into the underlying regulatory mechanisms of the AP2/ERF family during fruit ripening.
Introduction
Transcription factors (TFs) are a class of specific proteins that typically contain one or more specific DNA-binding structural domains. The expression of a target gene is mediated by a specific cis-DNA sequence in the promoter of the target gene (). TFs are essential for gene regulation during plant development and maturation. Ethylene response factor (ERF), one of the largest plant-specific TF families, is a member of the APETALA2/ethylene response factor (AP2/ERF) superfamily and functions as an important downstream element of the ethylene signaling pathway (). The AP2/ERF family can be divided into four subfamilies, ERF, dehydration-responsive element binding (DREB), AP2, and Aintegumenta (ANT), based on the number of AP2 conserved structural domains (; ). These subfamilies display various structural traits, such as the 14th and 19th amino acids in the AP2 structural domain of the DREB subfamily members are valine (V) and glutamate (E), respectively, while in the ERF proteins are alanine (A) and aspartate (D). The ability of these proteins to selectively bind to the core motif of the DRE (A/GCCGAC) or GCC boxes (AGCCGCC) is important for the transcriptional control of downstream target genes (; ; ; ).
ERF genes have been implicated in various processes in recent years, including plant development and growth, hormone signaling, fruit ripening (; ; ; ), and stress response (; ; ). For example, the involvement of DkERFs in persimmon fruit ripening is accomplished by regulating ethylene biosynthesis-related genes 1-aminocyclopropane-1-carboxylate synthase, ACC oxidase (ACO), and cell wall-modifying genes-pectate lyase (PL), β-galactosidase (BGAL), xyloglucan endo-transglucosylase/hydrolase (XTH), and pectinesterase (PE) (). PpERF/ABR1 regulates fruit softening in peach (Prunus persica) fruit during storage by activating downstream PpPG expression. ERFs may play a role in modulating cellulose production and lignin buildup through the transcriptional control of cell wall-related genes. The related to abscisic acid-insensitive 3/viviparous1 (RAV) family proteins primarily regulate responses to diverse biotic and abiotic stressors (; ).
Ripening of fleshy fruits involves significant changes in morphological, physiological, and biochemical changes during fruit growth and ripening, such as pigment accumulation, texture, flavor, softening, production of volatile compounds, and nutritional value (). This process is important to maintain the quality of the fruit. However, overripening may lead to a reduction in disease resistance and quality. Therefore, understanding the regulatory systems and molecular mechanisms involved in fruit ripening is crucial for creating plans to enhance the nutritional value, sensory quality, and shelf life.
Akebia trifoliata (Thunb.) Koidz., which has a high yield, wide adaptability, high seed oil content, ease of management, and high economic, nutritional, and medicinal values, can be used as a medicinal food plant for biodiesel production, vine oil crops, and other applications (; ; ; ). With the increasing demand for A. trifoliata fruit quality, understanding the underlying regulatory mechanisms of fruit ripening has become important. It is hypothesized that ethylene-related genes also play key roles in the maturation of climacteric A. trifoliata fruit (; ). However, in-depth identification and analysis of the AP2/ERF family in A. trifoliata has not been conducted.
In this study, a genome-wide analysis was conducted to identify the ERF family according to the A. trifoliata genome, resulting in the identification of 131 AP2/ERF genes. These ERF genes were systematically characterized, including phylogenetic relationships, gene structures, conserved motifs, chromosome distribution, gene duplication events, promoter cis-acting elements, their KEGG and GO annotation, as well as their expression profiles and ERFs accumulation during fruit ripening of A. trifoliata. Furthermore, a novel ERF involved in fruit ripening was identified and characterized. Functional assays of AtrERF001 in vitro and vivo indicated that AtrERF001 was involved in fruit ripening by directly upregulating the genes of AtrPE and AtrACO. Our results will help to illustrate the general functions of the ERF family in A. trifoliata and provide helpful gene resources for breeding and postharvest preservation.
Materials and methods
Identification of AtrAP2/ERF family genes in A. trifoliata
To retrieve the AP2/ERF gene sequences, the A. trifoliata genome and protein sequences were retrieved under accession numbers PRJNA750300, SAMN20447974. The assembled chromosome-level genome of A. trifoliata was 726.85 Mb, consisting of a scaffold N50 of 42.49 Mb and a contig N50 of 2.29 Mb, with a repeat rate of 42% and 39,443 protein-coding genes annotated (). The candidate AP2/ERF proteins were searched from the A. trifoliata genomic database by using the Hidden Markov Model (HMM) mapping (PF00847). The AP2/ERF superfamily genes and their corresponding protein sequences of Arabidopsis and rice were retrieved from PlantTFDB (https://planttfdb.gao-lab.org/) and HMMER3.0. (https://www.ebi.ac.uk/Tools/hmmer/home), respectively. The ERF protein sequences of Arabidopsis and rice were 128 and 139, and a BLAST search of the genome of A. trifoliata was performed. The obtained sequences were used to confirm the presence of the AP2 structural domain using Pfam, the National Center for Biotechnology Information, and the Conserved Structure Database. Using the SwissProt database, sequences with high E-values were selected for comparison. Finally, as a quality check, the sequences were analyzed through the Simple Modular Architecture Research Tool (SMART) (https://smart.embl.de/smart/change_mode.cgi) to confirm the presence of the AP2 domain. The physical and chemical characteristics, sequence length, molecular weight (MWs), theoretical isoelectric point (pI), and subcellular localization of AtrAP2/ERF were predicted using the online analysis tools ProtParam and pLoc-mPlant, respectively.
Classification, phylogenetic relationships and motif analysis of AtrAP2/ERF proteins
MEGA-X software aligned the AP2 domains of AtrAP2/ERF proteins based on conserved domain sequences. The Jalview program was used to manually correct the predicted amino acid sequences of the AP2 motifs. A maximum likelihood phylogenetic tree was created using MEGA7.0 and the online tool iTOL. AtERF and OsERF classification systems were used to classify identified AtrAP2/ERF genes into several groups. The NCBI CDD and MEME program was used to obtain the AP2/ERF conserved domains and motifs, respectively. The biological data toolkit TBtools was used to visualize the exon-intron arrangements, protein structures, motifs, and chromosomal locations of the AtrAP2/ERF genes ().
Chromosome distribution, gene duplication, and collinearity analysis of AtrAP2/ERF
The chromosomal locations of the AP2/ERF gene family members were extracted from the gff3 file of the A. trifoliata genome annotation, and a map of the chromosomal gene distribution was constructed with Circos software (). Gene duplication and collinearity between A. trifoliata and other species (A. thaliana, Oryza sativa, and Aquilegia vulgaris) were examined by using MCscanX (). The synonymous (Ks) and non-synonymous (Ka) substitutions in each duplicated AtrAP2/ERFs were determined by the KaKs calculator (version 2.0) ().
Cis-element of AtrAP2/ERF gene family and functional enrichment analysis of AtrAP2/ERF target genes
The 2.0-kb sequence upstream of the promoter region was analyzed in the PlantCare database to obtain the cis-element of the AtrAP2/ERF gene. TBtools was used to examine the location and numbers of the cis-element classified into three main categories: stress-responsive, developmental-responsive, and phytohormone-responsive. The Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) databases was used to identify the potential AtrAP2/ERF target genes.
Expression profiles and interaction networks of AtrAP2/ERF genes
The A. trifoliata transcriptome data were used to examine the expression patterns of AtrAP2/ERF genes in different tissues and stages (Supplementary Table S1). For tissue-specific RNA-Seq analysis, nine tissues including different fruit cracking period (non-cracked fruits, PS; initially cracked fruits, PM; totally cracked fruits, PL) (), flesh stages (hard flesh: UR; pericarp begins to soften; however, the flesh is hard: HR; soft flesh: FR) (), and seed development (August 20: T; September 4: U; September 19: I) () were considered and the raw data were retrieved under the accession number PRJNA524995, PRJNA750300 and PRJNA79843. All the transcriptome sequencing data were obtained from the HiSeq 2500 sequencing system. The raw data were filtered to trim low-quality reads and discard transcripts less than 200 bp in length. The remaining clean reads were mapped to the reference A. trifoliata genome using HISAT2 or String Tie, to obtain unigenes. P-Unigene expression levels were calculated as fragments per kilobase of exon model per million mapped fragments (FPKM) using the Cufflinks software package, and Hochberg’s approach to adjust the p value. The differential expression of AtrAP2/ERF genes was visualized by creating heat maps using TBtools. Using the STRING 11.5 database (http://string-db.org), cluster analysis and functional network analysis were performed on the orthologous gene pairs between AtrERF and AtERF, and the interaction network was displayed (). Spearman’s correlation was used to predict the key genes for AtrAP2/ERF based on the degree of association between the genes.
Quantitative (real-time) PCR analysis of genes under ethylene and 1-methylcyclopropene treatment of A. trifoliata fruits
Plants with consistent growth size, tree age, and fruit development were used for the ethylene and 1-MCP treatments, and a minimum of 45 fruits per plant were chosen as the experimental unit. These plants were used 20 days before fruit harvesting. Ethylene (300 mg/L), 1-MCP (10 mg/L), abscisic acid (ABA) (0.5 mMol/L) and its inhibitor fluridone (0.5 mMol/L) were sprayed on September 12, 2021, with water as the control. On October 2, three replicates of the samples were collected for RT-qPCR analysis.
Total RNA was extracted and reverse transcribed into cDNA using Plant RNA Extraction Kit (Accurate Biotechnology Co., Ltd., Hunan, China) and Evo M-MLV RT, respectively, followed by RT-qPCR analysis using the SYBR®qRT-PCR Kit (Accurate Biotechnology Co., Ltd., Hunan, China) on a multicolor Real-Time PCR Detection System (Bio-Rad Laboratories, Berkeley, CA, USA). In this study, the EF-1α gene was used as the internal control gene, which was detected by the de novo transcriptome sequencing of A. trifoliata (). The gene primer sequences are listed in Supplementary Table S2. The 2-ΔΔCt formula was used to calculate the gene expression and the histograms were made using GraphPad Prism 8 software. The gene network correlation analysis of key AtrERF genes was displayed by Gephi 0.9.5 ().
Subcellular localization
The full-length open reading frame sequence (ORF) of AtrERF001 (missing stop codon) containing the BamHI locus was inserted into the PBI21-CaMV35S-GFP vector to generate the PBI21-AtrERF001-GFP recombinant plasmid. The expression vector PBI21-AtrERF001-GFP after transformation of Agrobacterium tumefaciens receptor cells GV3101 was suspended to OD600 = 0.8-1.0 after expanded culture with MES buffer (10 mM MgCl2, 10 mM MES, pH 5.6; 150 μM acetosyringone), and after infesting the leaves of Nicotiana benthamiana for 36–48 h, then cut the tobacco leaf near the injection hole with scissors and place it on a slide. The fluorescent protein in tobacco cells was observed by laser confocal electron microscopy to determine the subcellular localization of the AtrERF001 gene.
Yeast one-hybrid assays
The ORF sequence of AtrERF001 (missing stop codon) and the prey vector was constructed by ligating it to the pGADT7 vector using the EcoRI and BamHI restriction sites. The bait vector was constructed by cloning the promoter regions of AtrACO1 (500 bp) and AtrPE (708 bp) containing the AtrERF001 binding pattern (GCCGAC) into the pAbAi vector using SmaI and SalI restriction endonucleases. The recombinant bait-pAbAi plasmid was then digested using the BstBI endonuclease and transformed into the Y1H yeast strain. Y1HGold [bait/AbAi] positive strains were verified using colony PCR. The inhibitory concentrations of aureobasidin A (AbA) were evaluated by distributing gradient concentrations on SD/-Ura/AbA plates. The recombinant pGADT7-AtrERF001 plasmid was then transformed into the Y1HGold strain made from the bait recombinant vector and cultured on SD/-Leu/AbA plates. Protein-DNA interactions were determined based on the ability of transformed yeast cells to grow on SD/-Leu/AbA medium. The interaction of pGADT7–53 and p53-AbAi, pGADT7 and AbAi, were used as positive and negative controls, respectively. All transformations and screenings were performed at least three times. Primers used for this assay are listed in Supplementary Table S3.
Electrophoretic mobility shift assay (EMSA)
The full-length coding sequence of AtrERF001 was cloned and inserted into the pET-32A vector and transformed into Escherichia coli strain BL21 (DE3) (Novagen, Denmark). Protein expression was induced using 0.2 mM isopropyl b-D-1-thiogalactopyranoside (IPTG) at 16°C for 20 h. The recombinant protein was purified with a Capturem His-Tagged Purification Miniprep Kit (Clontech, CA). The triple tandem copies of the coupled element 1 (AtrACO1) motif (FP1:AATTTGAGTCGGCATTTTTT, RP1:AAAAAATGCCGACTCAAATT) and AtrPE motif (FP2:TTCCAAGCCGACATGGCCGA, RP2: TCGGCCATGTCGGCTTGGAA) were labeled with biotin at the 5′ terminus (BioRun, Wuhan, China) and used as a probe, and the unlabeled same sequences was used for the competition assay. The specificity of binding was examined by competition with the unlabeled probes (10×, 50×). Electrophoretic mobility shift assay (EMSA) was performed using a Light Shift Chemiluminescent EMSA kit (Thermo Scientific, MA) according to the manufacturer’s instructions.
Overexpression and VIGS vector construction and genetic transformation
After amplifying the AtrERF001 coding region with cloning primers (Supplementary Table S4), the PCR product was ligated into a cloning kit (TransGen Biotech, China). The ORF sequence of AtrERF001 was ligated into pBI121 and pTRV2 vectors that had been digested with BamHI and transformed into Agrobacterium tumefaciens receptor cell EHA105. The injection of AtrERF001 on A. trifoliata fruits was performed as previously described for cherry fruits (). Strains carrying overexpressed (PBI121-AtrERF001) and repressed expression vectors (pTRV2-AtrERF001) were cultured and expanded on LB medium to an OD600 of 1.0-1.5 at 28°C. Then bacterial solution was resuspended in 2-Morpholinoethanesulphonic acid (MES) infiltration buffer with a final OD600 of 0.8-1.0. Suspensions containing pTRV1+pTRV2, pTRV1+pTRV2-AtrERF001, PBI121 and PBI121-AtrERF001 were infiltrated into A. trifoliata fruits at 130 days (September 20, 2022) after flowering using a syringe, respectively. The injected fruits were bagged to increase the humidity of the surrounding air. Three replications, each replicate injected with 9 fruits were used for the experiment from 8-year-old fruit trees in the same area.
Extraction and determination of cell wall components of A. trifoliata pericarp
Determination of pectin content was described as previous studies (). One gram of powder sample was washed twice with 95% ethanol (v/v) in a boiling water bath for 30 min. After centrifugation, the precipitate was resuspended in 30 ml of distilled water and heated at 50°C for 30 min. The supernatant after centrifugation was used to determine the water-soluble pectin (WSP) content. The remaining precipitate was dissolved in 25 ml H2SO4 (0.5 M) and boiled for one hour in a boiling water bath. Acid-soluble pectin (ASP) content was measured in the supernatant after centrifugation. WSP and ASP were determined using the colorimetry of the carbazole–sulfuric acid technique. Hemicellulose and cellulose content were measured as described in a previous study (). After centrifugation, cellulose and hemicellulose were separated with dilute hydrochloric acid (HCl). Firstly, the samples were dissolved in 20 mL of 2N HCl, and hemicelluloses were measured in the supernatant. Seventy-two percent H2SO4 was used to dissolve the remaining residue and incubated for 1 h. After filtration, the cellulose content of the supernatant was measured. Finally, the cellulose and hemicellulose contents were determined using the anthranilic sulfuric acid method.
Tomato regeneration and transformation
Mid-sections of cotyledons (7–8 days after germination) of wild-type tomato plants (Lycopersicon esculentum Mill. cv. Micro-Tom) were used as material following previously described methods (). After a total of three days of incubation, transformed leaf healing tissues were transferred to regeneration medium by culturing on Murashig and Skoog (MS) medium (MS+100 mg/l kanamycin+1.0 mg/l ZT+1.0 mg/l IAA+300 mg/l Timentin). After rooting, the regenerated plantlets were transferred to soil (Supplementary Figure S1). RNA was isolated from the leaves of wild-type and transgenic plants for PCR validation, and six major transgenic lines were identified, and T-26 was confirmed to carry the inserted AtrERF001 transgene. The first-strand cDNA of different developmental stages of fruits was synthesized and used in RT-qPCR analysis.
Statistical analyses
Three biological replicates were collected for each sample and the data in the figures were plotted with mean ± standard deviation. Statistical analysis was carried out by ANOVA SPSS 21.0 software (Chicago, IL, USA), and significant differences at p < 0.05 were determined using Duncan’s multiple range tests. The asterisks represented extremely remarkable differences (**: p< 0.01; ***: p< 0.001) between the different samples.
Results
Identification and classification of AtrAP2/ERF genes
Based on HMM, CDD and Pfam data, 131 AP2/ERF genes were identified in A. trifoliata according to the number of AP2 domains. These genes were renamed AtrAP201 to AtrAP221, AtrERF001 to AtrERF108, and RAV1 to RAV2 according to their corresponding positions on the chromosome. The further characterization of the protein length, molecular weight and isoelectric point (PI) reported that the AtrAP2/ERF proteins included 121–709 amino acids, with an MW of 13.58–79.65 kDa and a projected PI of 4.5–10.7. The AtrAP2/ERF TFs are predicted to be localized in the nucleus (Supplementary Figure S2; Supplementary Table S5). Multiple sequence alignments showed that the conserved sites-Gly (G)-4, Arg (R)-6, Glu (E)-16, Trp (W)-28, Leu (L)-29, G-30, and Ala-38 are present in most of the 131 AP2/ERF family proteins (Supplementary Figure S3). The AP2/ERF family can be divided into two main groups, group A (I, II, III, IV) and B (V, VI, VII, VIII, IX, X, XI-L) based on the phylogenetic tree created according to A. thaliana and O. sativa and ERF groups (). Groups A and B contained 40 and 91 AtERFs, respectively, and each subfamily tended to have one or more homologs or orthologs in A. thaliana and O. sativa, respectively. The ERF groups for A. trifoliata were highly consistent with the phylogenetic tree, indicating its authenticity. However, no AtrERF genes belonging to the Vb-L subgroup were observed (Supplementary Figure S4).
Analysis of AtrAP2/ERF family gene structure and component composition
The gene structure of AtrERF family members was investigated by comparison with genomic DNA sequence to learn more about their exon-intron and evolutionary structures. A total of 102 genes contained coding region sequences (77.9%), 29 of which were interrupted by introns. While none of the genes in Group I or III had introns, all genes in Group VII have two introns. A total of 20 conserved motifs were identified in the AtrAP2/ERF family using the MEME online software. All 131 proteins, except ERF030 and ERF089, possessed motifs 1 and 2. Most AtrAP2/ERF proteins in the same subgroup share a common motif, such as motifs 1, 2, 3, 4, and 5 (groups VI–L), motif 20 (Group III), and motif 19 (Group IX) on the phylogenetic tree, indicating that these ERF proteins have a similar evolutionary relationship (Supplementary Figure S5).
AtrAP2/ERF gene family synteny analysis
Gene expansion and the creation of novel functionalities greatly benefit gene replication. A total of 58 pairs of gene repeats were identified in A. trifoliata, which were divided into tandem repeats and segmental duplication. There were only 3 pairs of tandem repeats (TD, 5.2%), while the remaining 55 pairs were classified as segmental duplicated pairs (SD, 94.8%) (Figure 1A; Supplementary Table S6), suggesting that SD made a valuable contribution in the gene family evolution. Synonymous substitution rates (Ka/Ks) of gene pairs are useful tools for understanding evolutionary dynamics after the occurrence of gene duplication. Except for AtrERF047/049 (Ka/Ks = 1.66, > 1 correlates with positive selection), the Ka/Ks ratio for tandem and segmental duplicated gene pairs in A. trifoliata was less than 1 (Ka/Ks < 1 indicates purifying/negative selection) (Supplementary Table S7), suggesting negative selection pressure. Comparative syntenic maps of the representative dicot and monocot plant species A. trifoliata, A. thaliana, Solanum lycopersicum, O. sativa and Zea mays indicated that all four species shared 41 collinear gene pairs (Supplementary Table S8; Figure 1B). A. trifoliata shared 91 orthologous gene pairs with monocotyledons (54/37) and 154 with dicotyledons (88/66). Furthermore, 95% (39/41) of the identified gene pairs between A. trifoliata and dicotyledons differed from those shared by A. trifoliata and monocotyledons, indicating that these ERF orthologous genes evolved after the divergence of dicots from monocots plants.
Figure 1
Analysis of the Cis-acting elements
The cis-regulatory elements in promoter sequences were analyzed using PlantCARE software, leading to an understanding of the evolutionary and functional diversification of the AtrAP2/ERF genes. A sum of 16 cis-acting elements were identified from the promoter region of AtrAP2/ERF genes, which was divided into three groups: phytohormone-responsive (including TGA-element, abscisic acid-responsive: ABRE, ethylene-responsive: ERE, TGACG-motif, GARE-motif, DRE core: GCC box, DRE1:dehydration responsive element/C-repeat, P-box, and AuxRR-core), stress-responsive (including MBS, WUN-motif, G-Box, and W-box), and related to plant development (including the CAT-box and O2-site). Moreover, the AP2 domain of ERF can bind to multiple cis-elements present in the promoter of ethylene-responsive genes, such as GCC box and DRE/CRT, and activate or inhibit the expression of these genes to regulate fruit development and ripening. Most of the AtrAP2/ERF genes contain light-responsive (G-box), ABRE, and ERE elements, which were the most prevalent cis-acting elements in phytohormone-responsive plants (Figure 2, Supplementary Table S9), indicating that the AtrAP2/ERF genes play a significant role in light, stress, hormones, and plant development, as evidenced by the composition of their cis-acting elements.

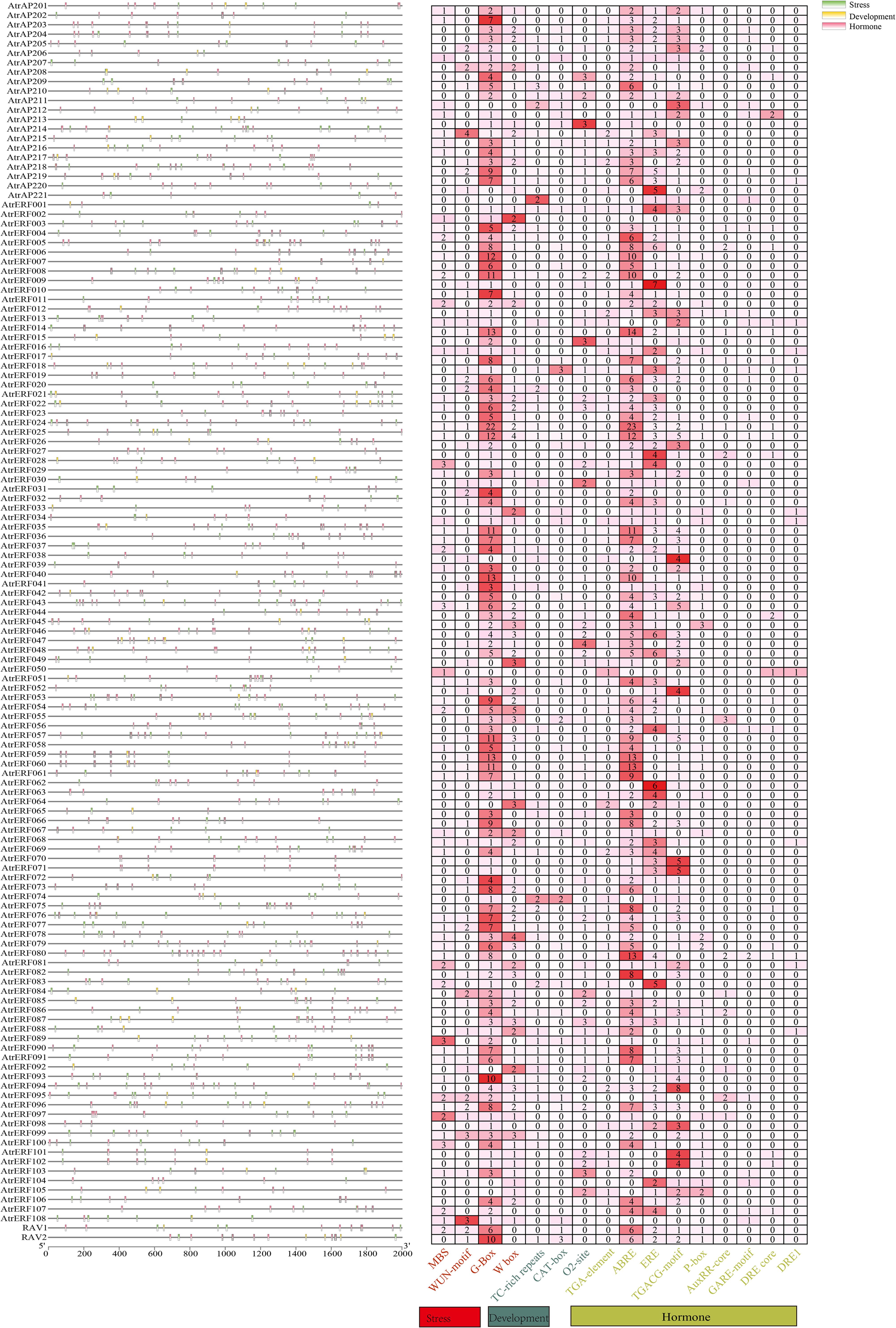

Figure 2
Prediction of potential target genes of AtrAP2/ERF and their functional enrichment analysis
The assembled A. trifoliata genome contained 28,411 genes with at least one ERE (ATTTTAAA) and one DRE (ACCGAGA/GCCGAC/TACCGACAT) in their putative promoters. Of these, 4499 genes had a CCGAC core motif, and 7836 genes had at least one DRE. Consequently, 4499 genes were selected for additional functional enrichment analyses (Supplementary Table S10). A few target genes were enriched in stress response and polysaccharide metabolic pathways in the GO terms (Supplementary Figure S6A). Numerous target genes were enriched in environmental adaptability and plant hormone signal transduction according to the KEGG pathway analysis (Supplementary Figure S6B). Protein-protein interactions provide intuitive and rapid understanding of the gene function of family genes, and are also important for the regulatory network relationship between family proteins. To predict the molecular interactions between AtrAP2/ERF and other proteins, the PPI network of AtrAP2/ERF and cell wall related genes was constructed based on Arabidopsis homologous proteins (Supplementary Figure S7). It was predicted that cell wall, and ethylene signaling pathway related genes interacted with AtrAP2/ERF genes in the networks. For example, AtrERF043 can interact with AtrNAC, AtrPL4, AtrPE3, AtrACO; AtrERF001 can interact with AtrPE4, AtrPL2, AtrCYP707A2 (Supplementary Figure S7B), which played roles in fruit ripening.
Analysis of the expression pattern of AtrAP2/ERF gene during fruit ripening
Transcriptome data from several developmental stages were used to study the expression patterns of the AtrAP2/ERF genes, with some genes preferentially expressed in the detected tissues. For example, five (23.8%), nine (42.9%), and seven (33.3%) of these were expressed (FPKM value >1) in the pericarp, pulp, and seed, respectively. Among the 131 AtrAP2/ERF genes, 11 were expressed in all nine samples evaluated (FPKM >0). Fourteen genes (AtrERF011/014/019/027/028/031/035/063/074/076/077/093/101/102; AtrAP203/04/13) identified in the seed samples revealed significant transcript abundance during fruit ripening. The highest transcript abundance (FPKM >2 in at least one of the other tissues) was seen in three genes (AtrERF005/020/048; AtrAP203/04/13) in the initial crack stage (PM), ten genes in the complete cracking stage (PL) (AtrERF001/009/015/018/034/043/054/068/082/090; AtrAP214), five genes in the HR pulp stage (AtrERF019/020/027/031/035), and three genes in the mature pulp stage (FR) (AtrERF005/079/080; AtrAP213) (Supplementary Figure S8, Supplementary Table S1). Our study found that 14 AtrAP2/ERF genes were significantly upregulated at different developmental stages, and the highest expression levels were observed during the mature period.
Ethylene and 1-MCP treatment altered AtrAP2/ERF gene expression profiles in fruit
Analysis of cis-acting elements showed that abscisic and ethylene response elements were the most prevalent cis-acting elements in AtrAP2/ERFs. To verify the effect of different hormone treatments on the ripening in A. trifoliata fruit, ethylene and its inhibitor 1-MCP, abscisic acid and its inhibitor fludioxonil were treated on A. trifoliata fruits 20 days before fruit ripening. Ethylene treatment (a) led to early fruit ripening, whereas 1-MCP treatment (c) delayed it. Abscisic acid (d) and its inhibitors (f) had little effect on fruit ripening (Figure 3A). The changes of fruit hardness and soluble solids content under different treatments were further analyzed. It was found that the hardness of ethylene-treated fruits was lower than that of the control group, while the soluble solids content increased significantly (Figures 3B, C). It indicated that ethylene-based treatment could accelerate fruit ripening and did not affect the edible taste of the fruit, while the results of 1-MCP treatment were just the opposite.
Figure 3
RT-qPCR analysis of the 14 AtrAP2/ERF TFs and 14 predicted target genes was conducted to investigate their expression patterns under ethylene and 1-MCP treatments. The results showed that the expression of AP2 genes (AP2/03/04/13/14) was upregulated under both ethylene and 1-MCP treatments compared to the control, indicating that the different treatments did not have much effect on the expression of AP2 genes. Most of the ERF genes (AtrERF001/005/009/020/043/054/068/082/090) showed higher expression under ethylene treatment while, they were significantly down-regulated under 1-MCP treatment compared with the control fruit (Figure 4A). Moreover, predicted target genes (cell wall modification-related genes), including AtrPGs, AtrPEs, AtrGALs, and AtrXTHs, were significantly increased under ethylene treatment, but decreased under 1-MCP treatment (Figure 4B).

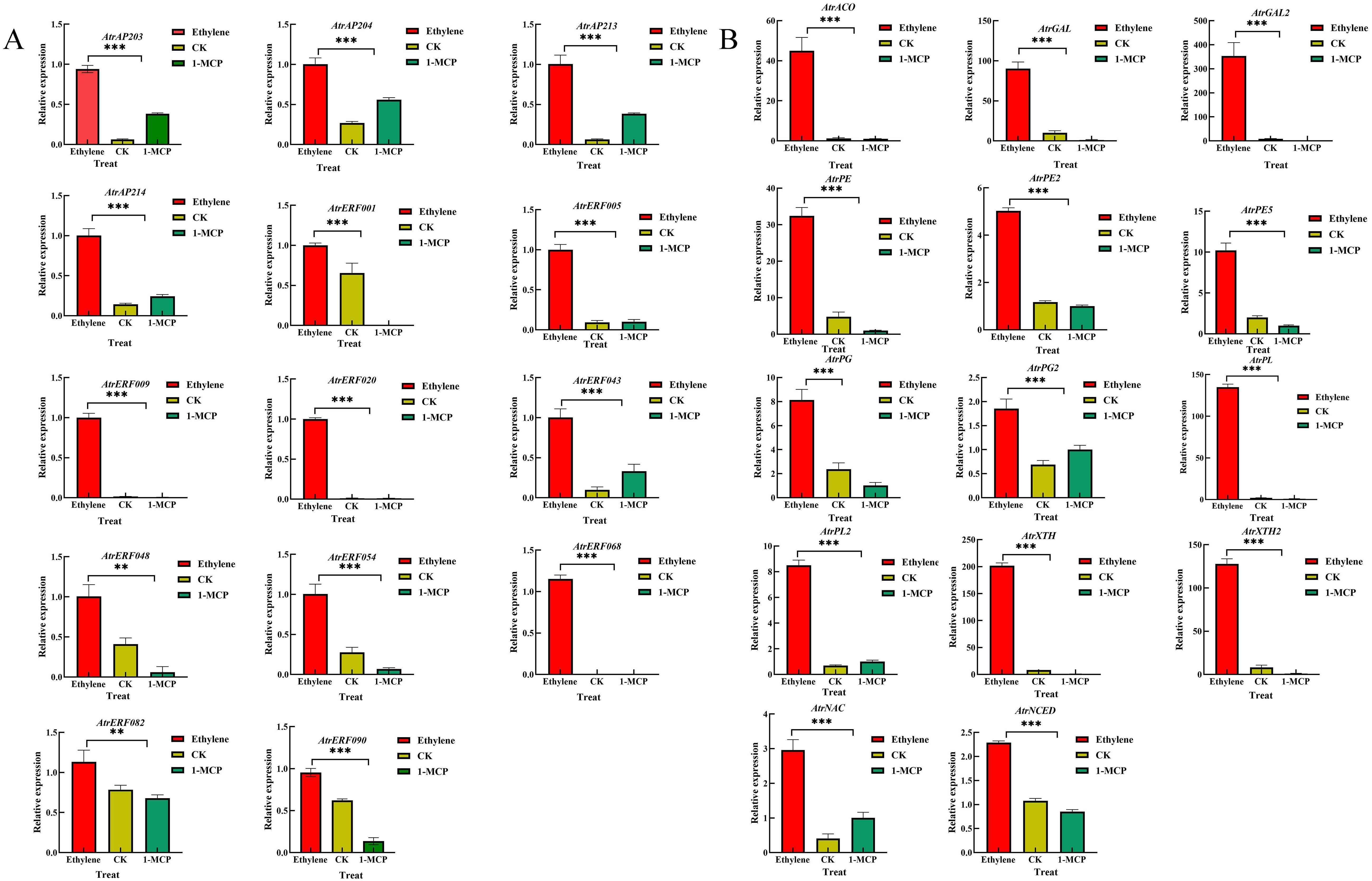

Figure 4
The co-expression regulatory network was constructed by gene expression profiles under ethylene and 1-MCP stress to further elucidate the interaction between AP2/ERF transcription factor members and cell wall-related genes. AtrERF068, AtrERF001, AtrPE2, AtrACO, and AtrNCED were the most associated genes, which were concentrated in fruits under ethylene treatment (Figure 5). Among these AtrERF genes, one ERF gene (AtrERF001) showed higher expression levels in full maturity and demonstrated a strong association with the cell wall-related genes. Our future work will involve cloning and isolating the homologous gene for AtrERF001 from A. trifoliata to confirm its role in fruit ripening.

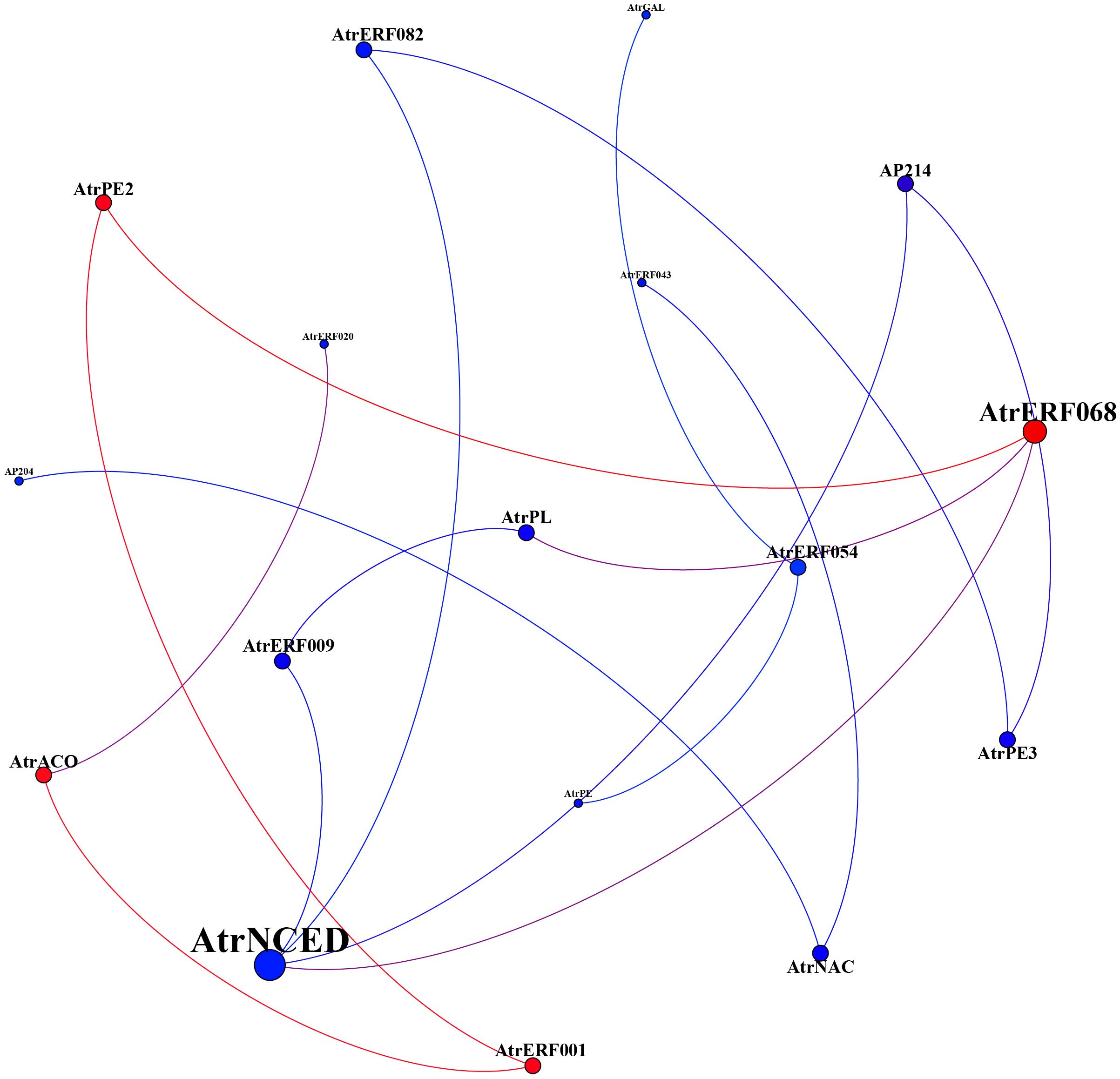

Figure 5
Transcription factor AtrERF001 may indirectly regulate the expression of AtrACO and AtrPE2 genes through yeast one-hybrid and EMSA experiments
In order to study the protein properties of ERF transcription factors in A. trifoliata, subcellular localization and yeast one-hybrid (Y1H) were conducted to elucidate the function of AtrERF001 in vivo and in vitro. The AtrERF001 ORF sequence was cloned into the PBI121 vector without termination codons. The fluorescence signals from the AtrERF001 fusion protein were found to be exclusively localized in the nucleus following the transient expression of these constructs in tobacco leaves, suggesting that AtrERF001 is a nuclear protein (Figure 6A).
Figure 6
To investigate the transcriptional activity of AtrERF001, the Y1H assay was used to verify the binding of AtrERF001 to the AtrACO and AtrPE promoters. Sequence analysis of the AtrACO and AtrPE promoters (2000 bp) revealed that there are AtrERF binding sites (GCCGAC). The CDS of AtrERF001 was cloned into the pGADT7 vector for effector construction, and the promoter sequences of AtrACO and AtrPE were cloned to create the reporter construct. The minimum inhibitory concentration of aureobasidin A (AbA) was determined by self-activation assay (Figure 6B). The pGADT7-AtrERF001 and pAbAi-AtrACO/AtrPE co-transformants grew well on SD/-Leu/AbA200 medium (Figure 6C), while the pGADT7+p53-AbAi negative control could not grow normally on the same medium, indicating that AtrERF001 specifically binds to the binding sites of the AtrACO and AtrPE promoters. To confirm the interaction of AtrERF001 with the AtrACO and AtrPE promoters, the AtrERF001 protein were purified and used for EMSA. However, the site mutation assay result showed that AtrERF001 could not bind to the GCC box (GCCGAC elements) in the promoters of AtrACO and AtrPE (Figure 6D). Therefore, AtrERF001 may indirectly regulate AtrACO and AtrPE by interacting with other TFs.
Transient overexpression and repressed expression of AtrERF001 in A. trifoliata fruits
To verify the regulation of AtrERF001 on AtrACO and AtrPE expression in A. trifoliata, overexpression vector (PBI21-AtrERF001-GFP: OE-AtrERF001) and transient silencing vector (pTRV2-AtrERF001) were constructed. Then they were transiently transformed into immature A. trifoliata fruits, respectively (Figure 7A). Compared with the control fruits (PBI21-GFP and TRV vectors), the ventral suture line was more clearly visible in over-expression fruits (OE-AtrERF001), and fruit cracking began to occur after 14 days of infection. RNA was extracted from injected fruits (AtrERF001 gene overexpression and transient silencing fruits), and the AtrERF001 protein coding sequences carried by PBI121 and TRV vectors were amplified respectively to detect the results of transient transformation (primer sequence, Supplementary Table S4). It can be seen from Figure 7B that AtrERF001 gene overexpression fruits (red No. 2-3) and silencing fruits (red No. 7-8) had obvious AtrERF001 gene band size. The control fruits (empty vector, red number 5: PBI21-GFP; red No.6: TRV) did not detect the AtrERF001 gene band, indicating that the target gene AtrERF001 was accumulated in transiently transformed fruit. Moreover, compared with the control, the overexpressing AtrERF001 (OE-AtrERF001) fruit showed higher WSP content, whereas the ASP, cellulose, and hemicellulose contents decreased. Silencing of AtrERF001 in A. trifoliata significantly increased the ASP, cellulose, and hemicellulose contents (Figure 8). This suggests that the degradation of cell wall materials, specifically the conversion of carbonate-soluble pectin to WSP, marks the initiation of fruit ripening ().
Figure 7

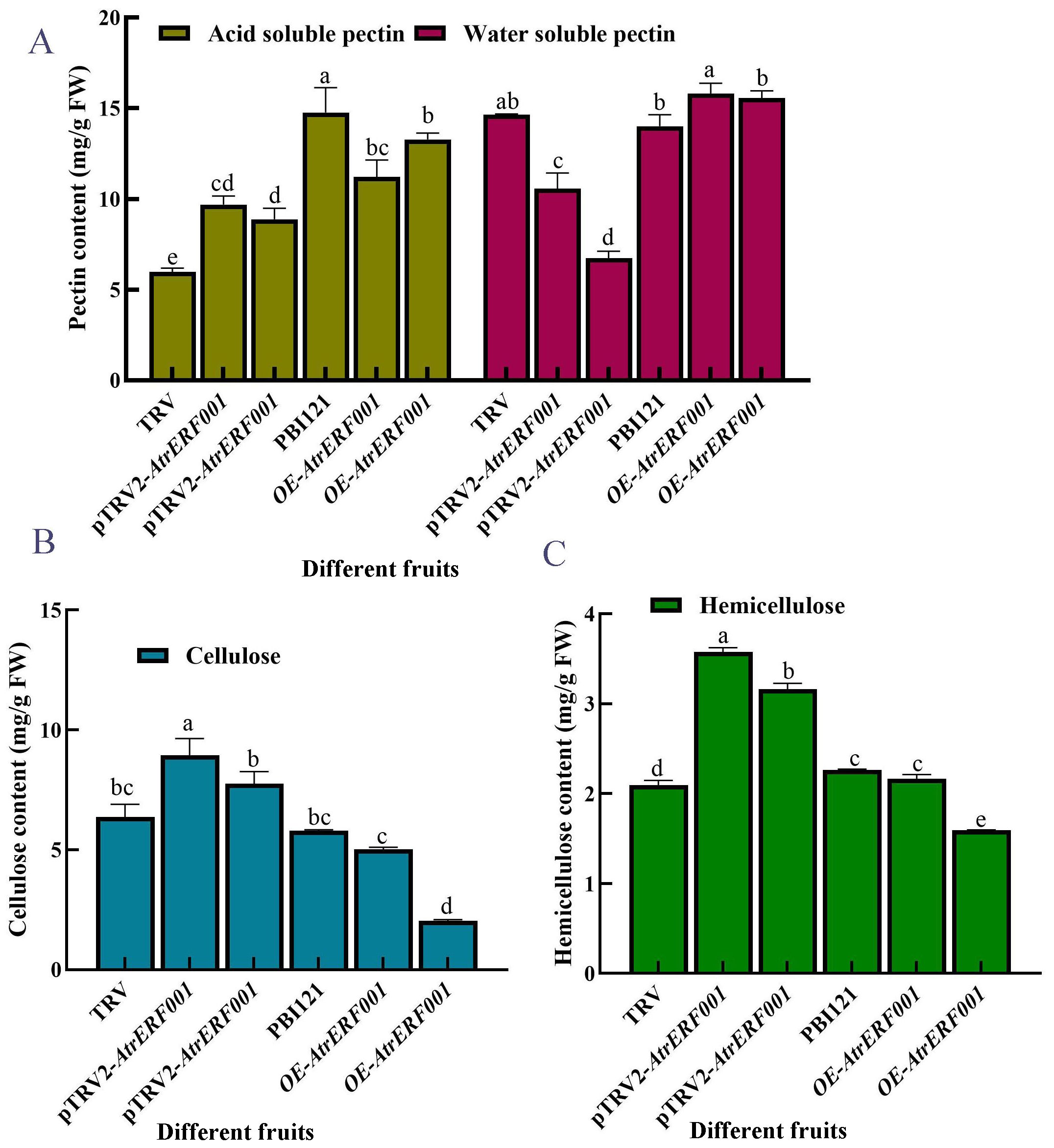

Figure 8
RT-qPCR was further used to analyze the changes in gene expression in A. trifoliata fruits after overexpression and gene silencing of AtrERF001. The abundances of AtrERF001 transcripts increased significantly after AtrERF001 infiltration, and the levels of AtrACO and AtrPE transcription were also increased. Remarkably, the expression of the three genes increased approximately 30-fold, 5-fold, and 1-fold, respectively, in OE fruits than the control. Meanwhile, the expression of these three genes was significantly reduced in silenced fruits (Figure 9). These results indicate that AtrERF001 may promote the maturation of A. trifoliata by indirectly affecting the expression of key genes AtrACO and AtrPE involved in ethylene metabolism and cell wall degradation.

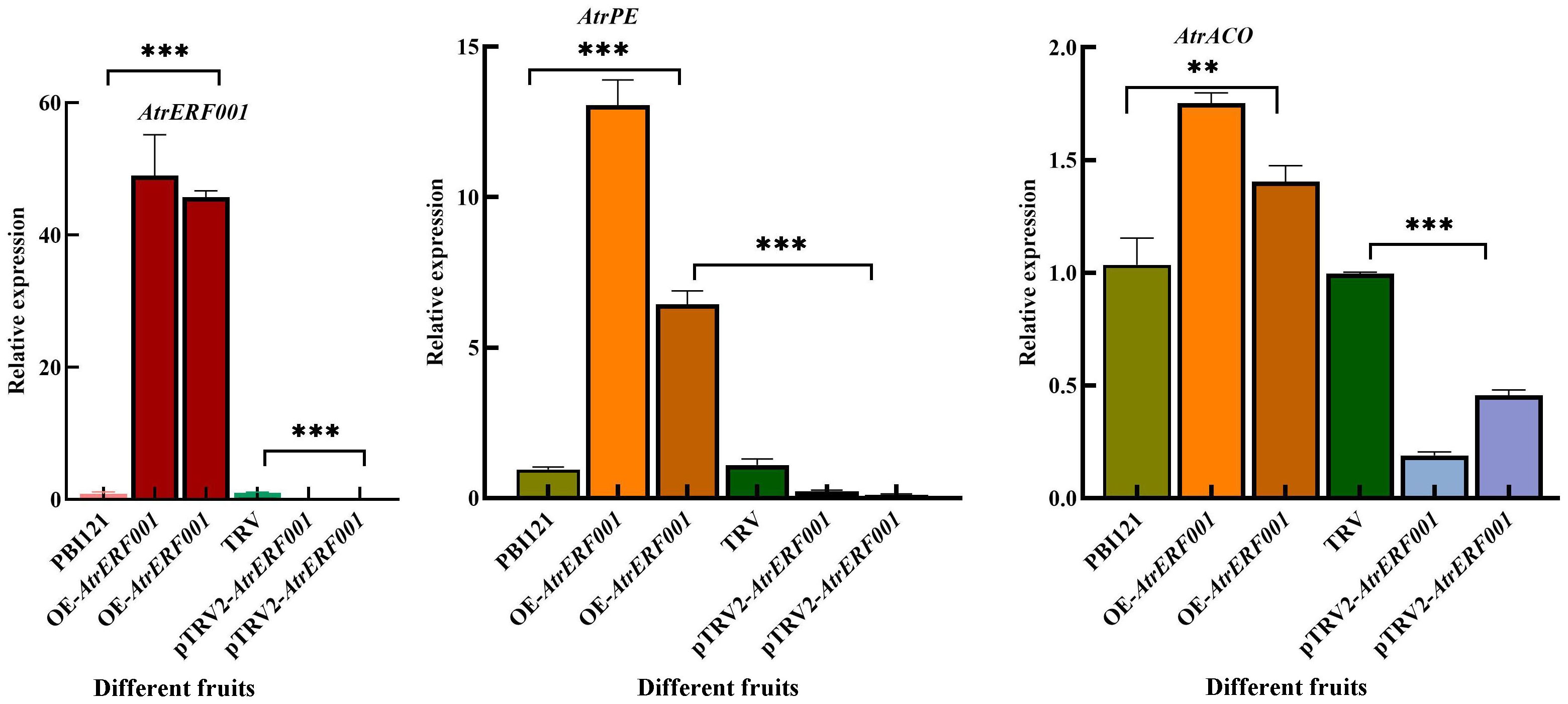

Figure 9
Identification and expression analysis of AtrERF001 overexpression transgenic tomato
Since the regeneration system and genetic transformation of A. trifoliata are more difficult, we chose tomato as the material for the next step of validation, which provides a good basis for the validation of AtrERF001 genes. To confirm the success of the transgene, PCR analysis of T0 tomato leaves was performed using specific primers of AtrERF001. By sequencing, the PCR product of the transgenic tomato leaves was consistent with the AtrERF001 gene at 753 bp, with 99% similarity and genetic distance (Supplementary Figure S9). Transgenic tomato fruits entered the breaking stage earlier than control fruits. RT-qPCR was then used to detect changes in the expression of AtrERF001 at different developmental stages. During fruit development, the expression levels of AtrERF001 increased dramatically, peaking at the red-ripe stage in both the control and transgenic fruits. The expression of AtrERF001 in the OE red-ripe stage fruit increased approximately 1.5-fold compared to that in the control fruits. Moreover, the level of AtrACO and AtrPE transcription was increased significantly after AtrERF001 infiltration at the red-ripe stage (Figure 10). These findings provide strong evidence for the crucial role played by AtrERF001 in modulating fruit ripening.

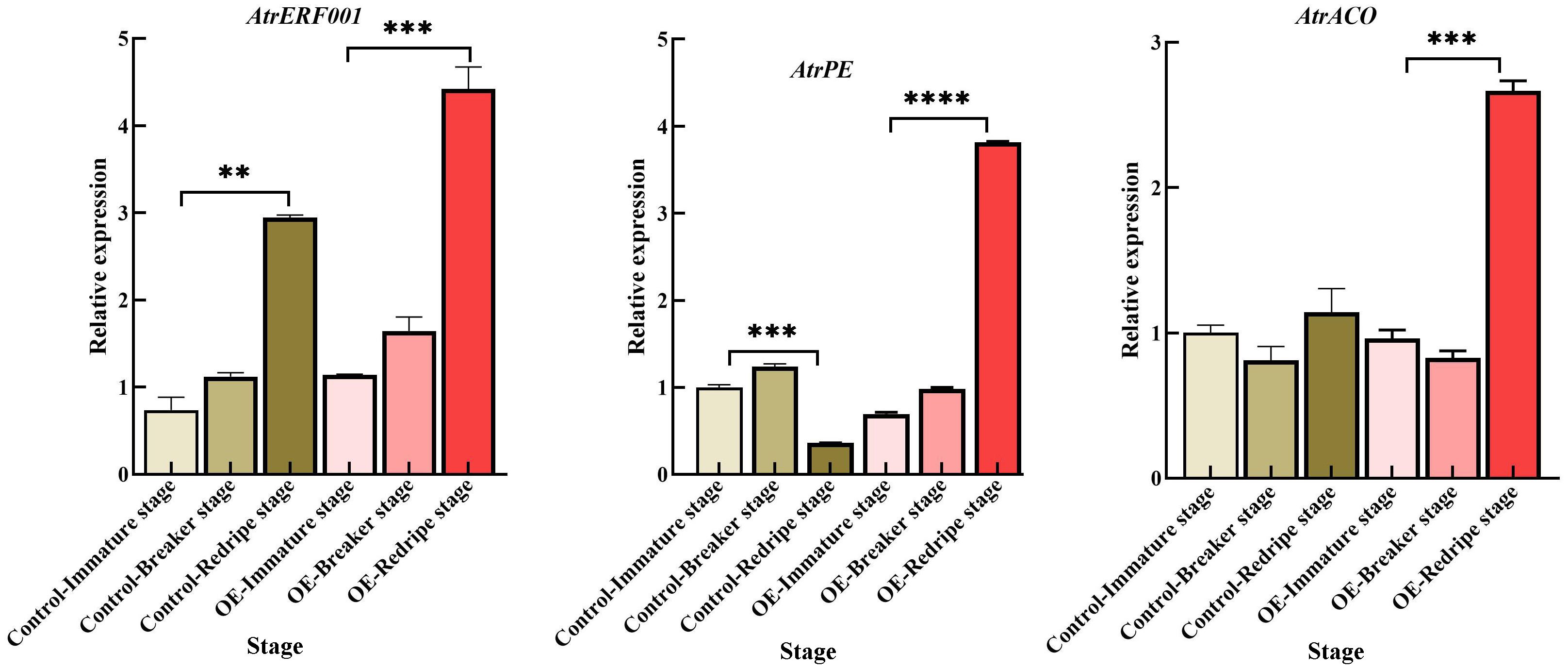

Figure 10
Discussion
AP2/ERF TFs bind to downstream target gene promoters through core elements of DRE (A/GCCGAC) or GCC cassette (AGCCGCC) to regulate the expression of downstream genes involved in plant growth, developmental stress response, fruit ripening, and softening (; ; ; ). Thus, studying the AP2/ERF TFs is useful for understanding their roles in A. trifoliata fruit ripening. A total of 131 AP2/ERF genes in A. trifoliata were identified, slightly more than in jujube (), longan (), citrus (), and pomegranate (). Notably, in A. trifoliata, no AP2/ERF genes belonging to the Vb-L subgroup were found. The difference in AP2/ERF genes may be due to the evolution and duplication of the genes, which is consistent with the classification of ERFs in grapevines ().
Whole-genome duplication, especially tandem and segmental duplication events, and the entire genome are important evolutionary and expansion drivers for gene families (). In the case of A. trifoliata, 55 and 3 paralogous gene pairs were identified to have undergone SD and TD, respectively, suggesting that SD promotes the expansion of gene families, such as the SlMTP and MAPK gene families (; ). Ka/Ks ratios smaller than 1 were observed in most duplicated AtrERF gene pairs, suggesting that purifying selection pressure predominated during the development of A. trifoliata ERF genes, most likely due to environmental changes ().
Analyses of gene expression profiles can be used to make preliminary predictions of gene functions. Gene expression analyses pointed out fourteen ripening-related ERF genes in A. trifoliata. In the current study, the expression of AtrERF001 was significantly increased by ethylene and inhibited by 1-MCP and their transcriptional patterns were similar to those of AtrPE and AtrACO. Based on these results, we speculate that AtrERF001 may bind to the promoter of AtrERF001 downstream gene and regulate its expression, thereby mediating cell wall degradation and promoting the maturation of Akebia trifoliata. Previous studies indicated that ERF TFs can be involved in fruit ripening by regulating downstream target genes. During fruit ripening, MdERF binds to the DRE motif in the promoter of apple MdACS1 (ACC synthase gene) and regulates ethylene production. PbERF24 participates in pear ripening by directly regulating PbACO54 expression (). The expression level of DkPL1 and DkPE1 are considerably increased by transient overexpression of DkERF8 and DkERF18 in persimmon fruit, indicating that DkERFs are crucial for the ripening process (). In this study, by constructing a co-expression regulatory network analysis, AtrERF001 was identified to be co-expressed with AtrPE and AtrACO, and sequence analysis showed that both genes contained ERF binding sites in their promoter regions. Furthermore, subcellular localization analysis showed that AtrERF001 is a nuclear protein, and Y1H assay demonstrated that AtrERF001 can specifically bind to the AtrPE and AtrACO promoters and activate AtrPE and AtrACO transcription. However, through EMSA experiments, it was found that there was no interaction between AtrERF001 and AtrPE and AtrACO, suggesting that AtrERF001 may work together with unknown transcription factors to activate AtrPE and AtrACO expression. It may be necessary to further verify the interaction between these gene regulatory networks through Ch IP-Seq and other techniques ().
Transient overexpression of DkERF8 and DkERF18 can encourage the conversion of ASP to WSP, which is associated with the softening of persimmon fruit (). As fruit ripeness increased, banana fruit hardness decreased rapidly, which was associated with an increase in WSP content and a decrease in ASP content (). Moreover, transient overexpression of AtrERF001 enhanced the conversion of ASP to WSP in trifoliata fruits, which is a characteristic of A. trifoliata fruit ripening (). Lower cellulose and hemicellulose contents were observed in OE fruits; however, they increased after silencing AtrERF001, suggesting that A. trifoliata fruit ripening is due to the degradation of pectin, cellulose, and hemicellulose (). The abundances of AtrERF001 transcripts increased significantly after AtrERF001 infiltration, and the levels of AtrACO and AtrPE transcription were also increased in both OE-A. trifoliata and tomato fruits, while decreased in the gene silenced fruits. The gene expression levels of AtrACO and AtrPE in overexpression A. trifoliata and tomato fruits of AtrERF001 were higher than those in the control during fruit ripening (Figures 9, 10), but the site mutation assay result showed that AtrERF001 could not bind to the GCC box in the promoters of AtrACO and AtrPE. The reason may be that yeast one-hybrid is the environment in vivo (within yeast cells), and there may be other cofactors or post-translational modifications, while EMSA is an in vitro experiment, which may lack these conditions, resulting in binding undetectable. Therefore, AtrERF001 may indirectly regulate AtrACO and AtrPE by interacting with other TFs. Follow-up studies will be undertaken to research the role of other transcription factor families or protein-protein interactions in A. trifoliata fruit ripening ().
In summary, the AP2/ERF gene family from A. trifoliata was firstly identified and analyzed, including taxonomy, evolution and synthesis, expression profile, and hormone treatment. Moreover, based on pre-transcriptomic studies, ethylene and 1-MCP treatments, Y1H and genetic transformation analysis, a candidate AP2/ERF gene-AtrERF001 was verified to be involved in fruit ripening by indirectly affecting expression of the AtrACO and AtrPE, which is consistent with pear fruit ripening (). This study improves our understanding of the ERF family in A. trifoliata comprehensively and provides a theoretical basis for the transcriptional regulation mechanism of A. trifoliata fruit ripening.
Statements
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.
Author contributions
JN: Writing – original draft, Formal Analysis. YLi: Writing – review & editing. ZS: Writing – review & editing, Data curation. YLin: Writing – review & editing, Data curation. CZ: Writing – review & editing, Formal Analysis. BY: Visualization, Writing – review & editing. ST: Project administration, Writing – review & editing. ML: Writing – original draft, Resources, Funding acquisition.
Funding
The author(s) declare financial support was received for the research and/or publication of this article. This research was financially supported by the Natural Science Foundation of Jiangxi Province (20232BAB205038), Hunan Forestry Science and Technology Research and Innovation Funds (XLK202444) and Central Public Interest Scientific Institution Basal Research Fund (Y2024ZK05).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Generative AI statement
The author(s) declare that no Generative AI was used in the creation of this manuscript.
Any alternative text (alt text) provided alongside figures in this article has been generated by Frontiers with the support of artificial intelligence and reasonable efforts have been made to ensure accuracy, including review by the authors wherever possible. If you identify any issues, please contact us.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2025.1607254/full#supplementary-material
Supplementary Figure 1Tomato leaf tissue culture and shoot growth.
Supplementary Figure 2Schematic representation of the chromosomal distribution of AtrAP2/ERF genes.
Supplementary Figure 3Multiple sequence alignments of the AP2 domains of AtrAP2/ERF.
Supplementary Figure 4Phylogenetic tree representing relationships among AP2 domains of A. trifoliata using MEGA-X software. (A) Phylogenetic tree representing relationships among AP2 domains of A. trifoliata, Arabidopsis thaliana, and Oryza sativa. (B) Phylogenetic tree representing relationships among AP2 domains of A. trifoliata.
Supplementary Figure 5Phylogenetic relationships, conserved motifs, and gene structure of AP2/ERF genes from A. trifoliata. (A) Neighbor-joining tree based on the full-length protein sequences of 131 A. trifoliata AP2/ERFs. (B) Motif composition of A. trifoliata AP2/ERF proteins. (C) Intron-exon structures of A. trifoliata AP2/ERFs genes.
Supplementary Figure 6Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analysis of AtrAP2/ERF potential target genes in A. trifoliata. (A) GO analysis of AP2/ERF target genes in A. trifoliata. Categories of cellular components, molecular functions, and biological processes were defined by GO classification. (B) KEGG enrichment analysis of AtrAP2/ERF potential target genes in A. trifoliata.
Supplementary Figure 7AtrAP2/ERF protein interaction network based on Arabidopsis homologs. (A) Interaction network of the AP2/ERF genes of A. trifoliata. (B) Interaction network between the AP2/ERF genes and cell wall-related genes in A. trifoliata.
Supplementary Figure 8Hierarchical clustering of A. trifoliata AP2/ERF gene expression profiles in nine samples, including different tissues and developmental stages, based on Log2(FPKM + 1) values.
Supplementary Figure 9Identification of transgenic tomato plants. (A) Phenotypic identification of transgenic plants (T-26) and control fruits. (B) Sequence comparison between the sequencing results of T-26 and the AtrERF001 gene. (C) Phylogenetic relationships of T-26, AtrERF001, and SlERFs.
Supplementary Table 1FPKM values in nine samples, including different tissues and developmental stages.
Supplementary Table 2Sequences of specific primers used for RT-qPCR experiments.
Supplementary Table 3Primer sequences used in the Y1H assays.
Supplementary Table 4cDNA and expression vector primer sequences of AtrERF001.
Supplementary Table 5List of gene IDs and characteristics of the 131 AtrAP2/ERF genes.
Supplementary Table 6Duplicated gene pairs of tandemly and segmental duplication events.
Supplementary Table 7Ka/Ks ratios of the tandemly and segmental duplicated gene pairs in A. trifoliata.
Supplementary Table 8AtrAP2/ERF genes showing a syntenic relationship with dicotyledonous and monocotyledonous.
Supplementary Table 9Number of cis-elements in the promoter region of AtrAP2/ERF genes.
Supplementary Table 10Gene ID of AtrAP2/ERF potential target genes in A. trifoliata.
