Identification and expression pattern analysis of the OsCBL gene family in rice

Calcium (Ca²⁺) signaling, which is mediated by calcineurin B-like proteins (CBLs), plays a pivotal role in the way that plants respond to abiotic stresses. However, the systematic bioinformatics and expression pattern analysis of OsCBLs remain largely unknown. In this study, we conducted a thorough genome-wide analysis of the OsCBL gene family in rice, identifying ten members spanning six chromosomes. Phylogenetic analysis classified these genes into three subfamilies, revealing evolutionary conservation with Zea mays and Hordeum vulgare, while also highlighting lineage-specific expansions. Structural characterization revealed that all OsCBL proteins contain three conserved EF-hand domains, though variations in protein stability, subcellular localization and motif composition were observed, particularly with regard to the chloroplast localization of OsCBL4/8/9/10. Promoter analysis revealed distinct cis-elements linked to responses to abscisic acid, drought and light, suggesting functional diversification among the different members. Expression profiling revealed that OsCBL5 and OsCBL9 were specifically induced by heat but repressed by cold. In contrast, OsCBL3 responded to various stresses, including salt and temperature. Predictions of protein-protein interactions linked several OsCBLs to ion transporters. Notably, the functions of OsCBL1 and OsCBL9 may be exerted through the formation of a heterodimer. These findings provide critical insights into the functional divergence of OsCBL genes and lay the groundwork for future studies on calcium-mediated stress responses in rice.

1 Introduction

Rice (Oryza sativa L.) is the primary food source for over half of the world’s population, making its productivity essential for global food security (Zheng and Qian, 2024). However, rice production faces significant challenges from various abiotic stresses, including drought, salinity and extreme temperatures. These stresses collectively account for over 50% of annual yield losses (Ray et al., 2019). In the context of climate change, these stresses are projected to become more frequent and intense, posing an even greater threat to rice cultivation (Lesk et al., 2016). Therefore, understanding the molecular mechanisms underlying rice stress responses is essential for developing stress-resilient varieties through molecular breeding or genetic engineering approaches.

At the cellular level, plants perceive environmental stress and transmit these signals through complex signaling networks. Calcium ions (Ca²⁺) are ubiquitous secondary messengers in these pathways (Kim et al., 2024). The calcineurin B-like (CBL) protein family, which consists of calcium sensors, plays a pivotal role in decoding Ca²⁺ signatures. These proteins specifically interact with CBL-interacting protein kinases (CIPKs) to regulate downstream responses by phosphorylation pathway (Tang et al., 2020). The CBL-CIPK network has emerged as a central regulatory system modulating various physiological processes, such as ion homeostasis, osmotic adjustment, and stress-responsive gene expression (Yu et al., 2014). In Arabidopsis thaliana, AtCBL1 and AtCBL9 regulate drought responses via the ABA signaling pathway (You et al., 2023), and AtCBL4 (SOS3) and AtCIPK24 (SOS2) form a module that mediates salt tolerance (Steinhorst et al., 2022; Gámez-Arjona et al., 2024). In rice, OsCBL1 has been shown to contribute to nitrogen tolerance by regulating OsNRT2.2 expression (Hu et al., 2023), and OsCBL8 has been found to play a role in the response to drought stress (Gao et al., 2022). It is worth mentioning that over-expression of OsCBL3/2 in Arabidopsis thaliana increases salt tolerance. Despite the findings of these studies, the precise mechanisms through which part of the CBL functions in response to abiotic stresses in rice remain largely unknown. Therefore, a comprehensive analysis and understanding of the potential functions of CBL in abiotic stress is of utmost importance.

Actually, although there is some literature analyzing OsCBL genes information (Gu et al., 2008; Kanwar et al., 2014), but these analyses are not comprehensive and in-depth enough. In this study, we performed a comprehensive genome-wide analysis of the OsCBL gene family in rice, yielding numerous new findings and insights. This analysis included an examination of phylogenetic relationships, gene structures, conserved motifs, and chromosomal distributions. Then, we systematically investigated the expression patterns of all OsCBL genes under various abiotic stresses, including heat, cold, drought and salt treatments, using RNA-seq data. Our results revealed that different OsCBL members exhibit distinct stress-responsive expression patterns. For example, OsCBL5 and OsCBL9 are specifically induced by heat stress but repressed by cold stress, suggesting their potential roles in temperature perception. In contrast, OsCBL3 displayed broad responsiveness to multiple stresses, suggesting its involvement in general stress response pathways. These findings offer a new perspective on the OsCBL gene and its potential functions in the abiotic stress response in rice, providing a more comprehensive and in-depth understanding.

2 Materials and methods

2.1 Chromosome localization and gene structure analysis

The OsCBL gene sequences in rice were retrieved from the NCBI database (Enter CBL and Oryza sativa into the NCBI website to find their corresponding gene names in the rice genome. Then, use these gene names to find the corresponding OsCBL family sequences in the rice genome). The structures of the identified genes were checked using IGV-GSAman (v0.9.51) (Chen et al., 2021). Each gene is designated with the prefix Os for Oryza sativa, followed by CBL to identify the gene family, and a numerical suffix (e.g., OsCBL1-OsCBL10). Chromosomal localization and gene structure analysis were performed using TBtools software (Chen et al., 2023). The physical positions of the OsCBL genes were determined for chromosomal mapping based on Rice Genome Annotation Project (RGAP) data, while the gene structures were analyzed by comparing the coding sequences with the corresponding genomic DNA sequences.

2.2 Protein sequence alignment, conserved domain and conserved motif analysis

A multiple sequence alignment was performed using Clustal Omega and visualized in Jalview. Conserved domain analysis was performed using the SMART (http://smart.embl-heidelberg.de/) and InterProScan (https://www.ebi.ac.uk/interpro/search/sequence/) websites. MEME-based motif discovery was performed with the following parameters: ten motifs with a width of 6-50 and an E-value of 1e-10 were identified via the MEME website (http://meme-suite.org/).

2.3 Phylogenetic relationships and gene duplication analysis

The amino acid (AA) sequences of CBL proteins, including those from Oryza sativa, Zea mays and Hordeum vulgare, were aligned to generate a phylogenetic tree. This was done using the neighbour-joining (NJ) method in MEGA12 software with 1000 replications for bootstrapping. Gene duplication analysis using MCScanX identified both whole-genome and tandem duplication events.

2.4 Subcellular localization, protein 3D structure prediction and PPI analysis

Subcellular localization was analysis by WoLF (https://wolfpsort.hgc.jp/) online website. Protein 3D structure prediction for OsCBL gene families using the AlphaFold 3 (https://alphafoldserver.com/). We employed the STRING database (https://cn.string-db.org/) to predict potential interaction partners of OsCBL proteins. Subsequently, we utilized Cytoscape to visualize and analyze the resulting network.

2.5 Promoter analysis

The 2.0 kb promoter sequences located in the upstream region of each OsCBL gene were retrieved from the Rice Genome database using the TBtools software. A systematic analysis of these promoter regions was conducted using the PlantCARE database (Lescot et al., 2002) to identify putative cis-regulatory elements.

2.6 Expression analysis

Expression data were obtained from the Rice Genome Annotation Project (https://rice.uga.edu/index.shtml). RNA-seq datasets comprising rice samples subjected to stress treatment (e.g. drought, salt, heat and cold) with three biological replicates per condition were retrieved from NCBI. Raw data concerning tissue expression can be obtained from the NCBI (https://www.ncbi.nlm.nih.gov/) at the following accession number: PRJNA482217. Raw data concerning heat stress can be obtained from NCBI (PRJNA604026). Raw data concerning cold stress can be obtained from the NCBI under the accession number PRJNA827493. Raw data concerning salt stress can be obtained from NCBI under the accession number PRJNA1037192. According to the NCBI, raw data concerning drought stress can be obtained from PRJNA306542. The RNA-seq data were processed according to (Hu et al., 2024). In brief, the raw reads were quality-trimmed using Trimmomatic and aligned to the NIP reference genome (ftp://ftp.ensemblgenomes.org/pub/plants/release-44/fasta/oryza_sativa/dna/) using STAR software. Differential expression analysis was performed using DESeq2, applying thresholds of |log2FC| > 1 and padj < 0.05.

2.7 Data analysis

Experimental data were collected to calculate the mean and standard error of the mean (SEM) for three biological replicates. Statistical significance between different samples was determined using a Student’s t-test at p < 0.05. All statistical analyses were performed using Prism 9 software.

3 Results

3.1 Chromosomal localization and physiochemical properties of OsCBL genes

A total of ten CBL genes (Supplementary Table 1) have been identified in rice, encoding proteins ranging from 210 to 290 amino acids in length and from 23916.07 to 32892.48 Daltons in molecular weight (Table 1). The shortest protein is OsCBL4, while the longest is OsCBL9. The isoelectric point and hydrophobicity of OsCBL ranged from 4.66 to 4.98 and -0.336 to -0.058, respectively (Table 1). The negative values of hydrophobicity imply that all OsCBL proteins are hydrophilic. The instability index, a quantitative metric for evaluating protein stability, employs a threshold of 40 for hydrophobicity to categorize proteins as stable or unstable, respectively. A total of six proteins were identified as stable, including OsCBL1, OsCBL2, OsCBL3, OsCBL5, OsCBL7 and OsCBL8. The remaining four proteins, namely OsCBL4, OsCBL6, OsCBL9 and OsCBL10 were deemed unstable (Table 1). Chromosomal localization analysis revealed the distribution of the 10 OsCBL genes across six chromosomes. Specifically, OsCBL5, OsCBL9, and OsCBL10 were localized to chromosome 1, OsCBL7 and OsCBL8 to chromosome 2, OsCBL2 and OsCBL6 to chromosome 12, and OsCBL3, OsCBL4, and OsCBL1 to chromosomes 3, 5 and 10, respectively (Figure 1; Supplementary Table 1).

Table 1

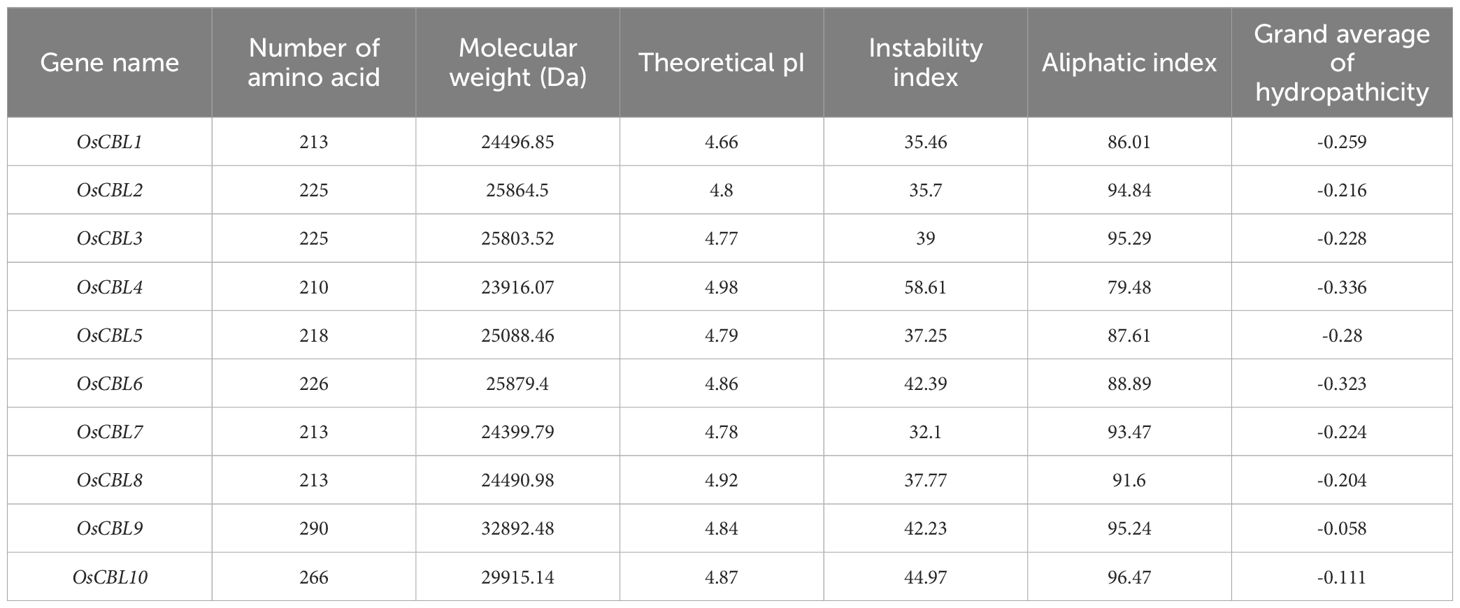

Table 1. Protein information of OsCBL family.

Figure 1

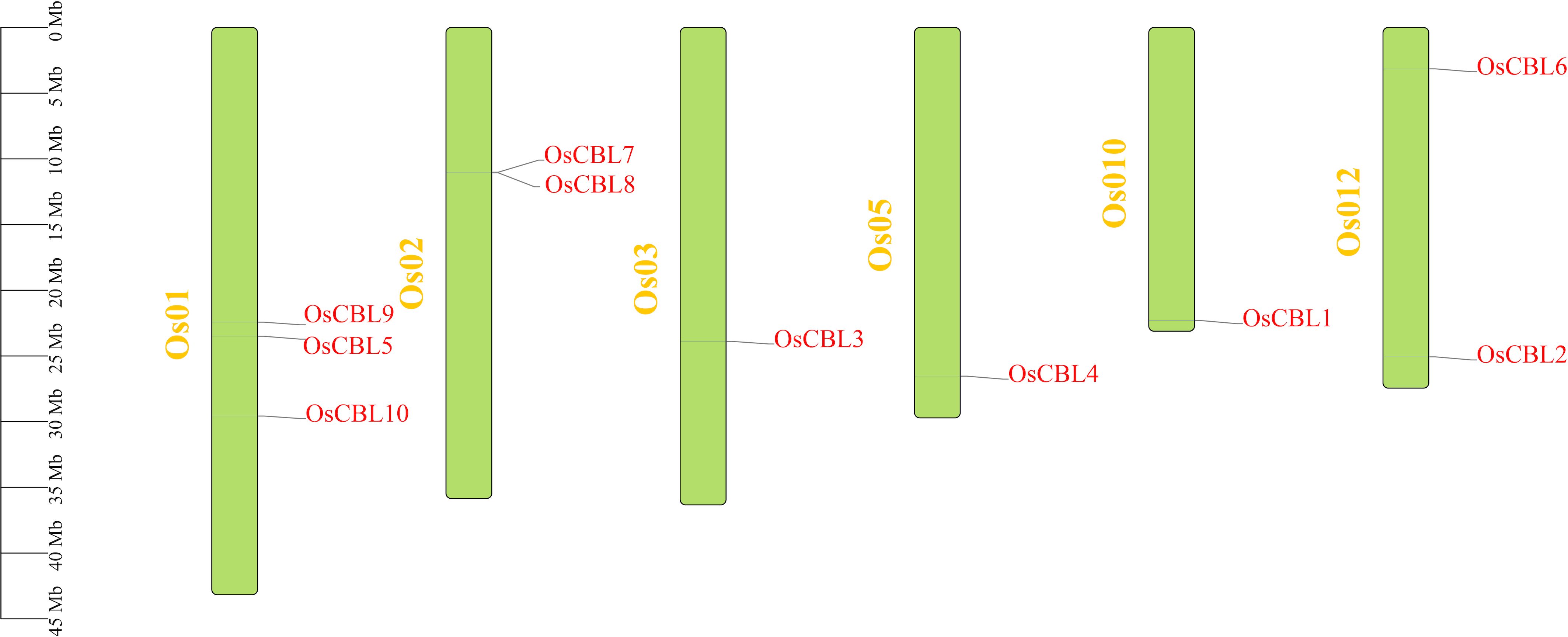

Figure 1. Distribution of OsCBL genes in rice chromosomes. Only show the chromosomes where located the OsCBL gene. The yellow font represents chromosome numbers and Green arc length indicate chromosome size.

3.2 Gene structure and protein structure analysis of OsCBL

The gene structures of OsCBL exhibit substantial conservation, characteristically comprising eight or nine exons (Figure 2). OsCBL9 and OsCBL10 were found to contain nine exons, while the remaining OsCBL genes exhibited an exon count of eight (Figure 2). Multiple sequence alignment and conserved domain analysis of OsCBL proteins revealed a high degree of amino acid sequence conservation among CBL family members (Figure 3A). In addition, all OsCBL proteins contained three Ca²⁺-binding domain (EFh domain) (Figure 3A), indicating evolutionary conservation of functional domains among OsCBL proteins. In order to provide further elucidation regarding the evolution of OsCBL members, MEME analysis identified ten conserved motifs (motif 1~motif 10) (Figure 3B). The analysis revealed that all OsCBL members contained motif 1~motif 5. In addition, all OsCBL proteins contain motif 6, with the exception of OsCBL5, OsCBL9 and OsCBL10. Furthermore, the analysis revealed that OsCBL2 and OsCBL3 contain motif 7, OsCBL9 and CBL5 contain motif 8, OsCBL9 and OsCBL10 contain motif 9, and OsCBL2, OsCBL3 and OsCBL6 contain motif 10 (Figure 3B).

Figure 2

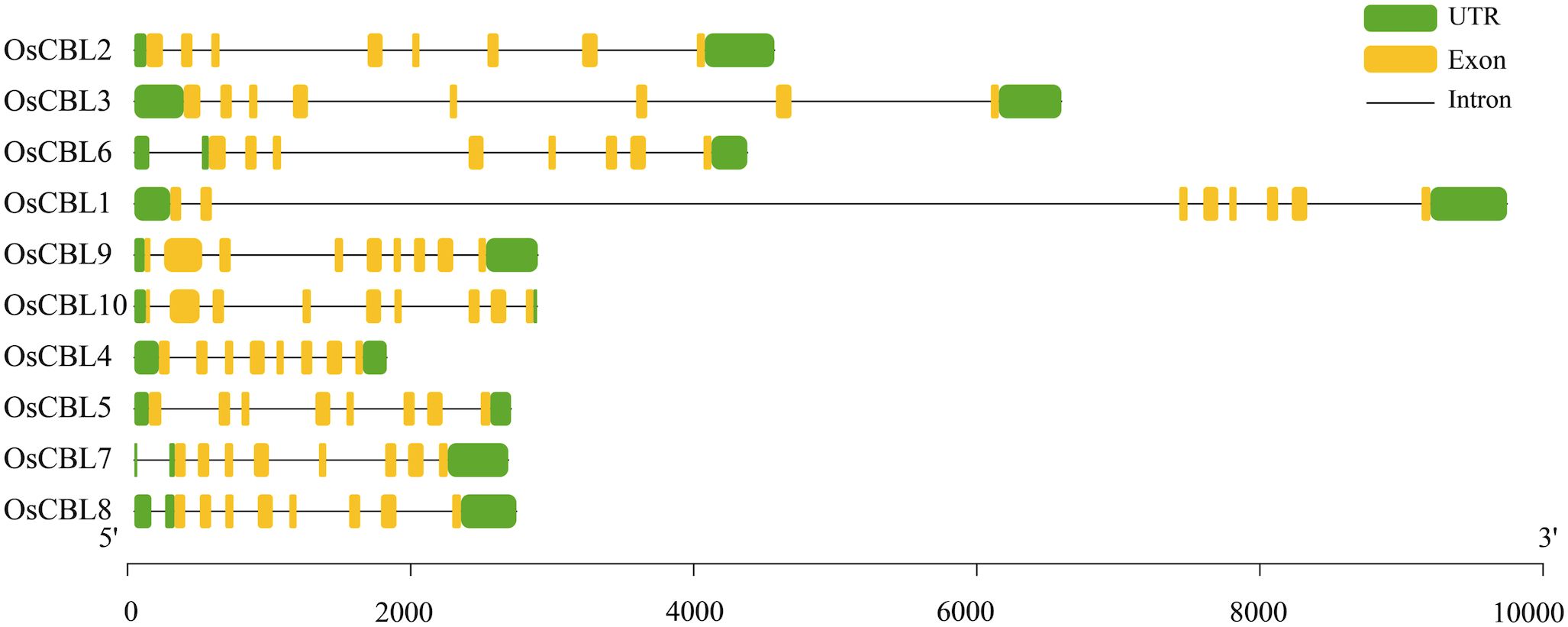

Figure 2. Gene structure analysis of the OsCBL. Green boxes indicate UTR, yellow boxes indicate exons and black lines indicate introns.

Figure 3

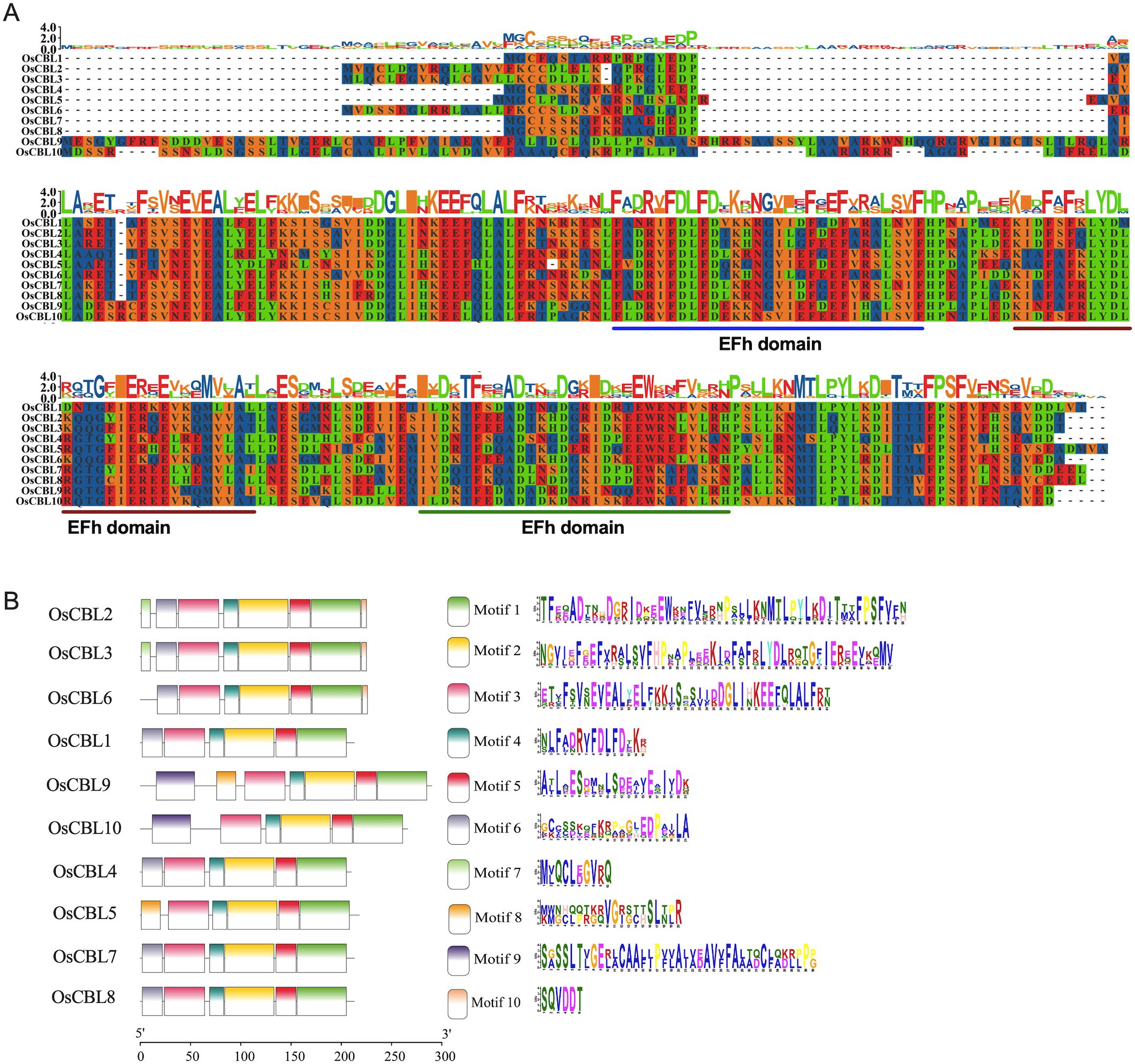

Figure 3. Protein sequence alignment, conserved domain and conserved motif analysis of the OsCBL. (A) Protein sequence alignment and conserved domain analysis of the OsCBL. (B) Conserved motif analysis of the OsCBL. Different colours indicate different motifs.

3.3 Phylogenetic relationships, gene duplication and synteny analysis of OsCBL

To elucidate the evolutionary characteristics of OsCBL proteins, we performed a comprehensive phylogenetic analysis using amino acid sequences from rice OsCBL members, along with key CBL homologs from Zea mays and Hordeum vulgare. The results demonstrated that the OsCBL proteins could be classified into three subfamilies according to their affinities (Figure 4A). The OsCBL2, OsCBL3, OsCBL6 and OsCBL1 proteins were classified into subfamily I, while the OsCBL4, OsCBL5, OsCBL7 and OsCBL8 proteins were classified into subfamily II, and the OsCBL9 and OsCBL10 proteins were classified into subfamily III. The OsCBL family members demonstrate a high degree of similarity to the CBL family members of Zea mays and Hordeum vulgare, suggesting the potential for conserved physiological and biochemical functions. Furthermore, synteny relationship analysis of OsCBL genes revealed collinearity among two out of the ten OsCBLs (Figure 4B). To further elucidate their evolutionary relationships, a syntenic maps were constructed between Oryza sativa and Zea mays, Hordeum vulgare. A total of eight homologous CBL gene pairs were identified in the comparison of Oryza sativa with both Zea mays, Hordeum vulgare (Figure 4C). These results suggest that Oryza sativa is closely related to Zea mays and Hordeum vulgare.

Figure 4

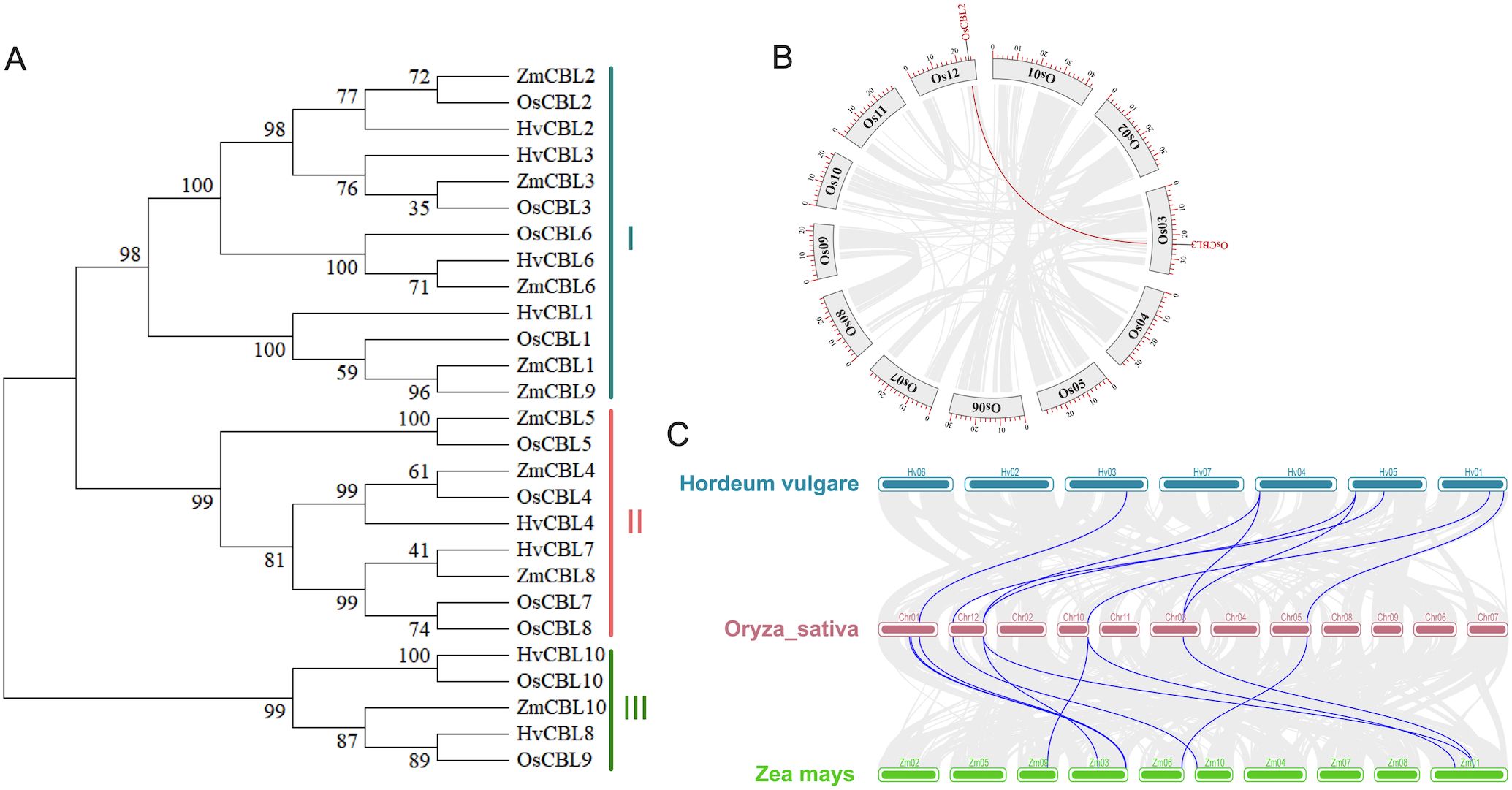

Figure 4. Phylogenetic relationships and gene duplication analysis of OsCBL. (A) Phylogenetic relationships analysis of CBL in Oryza sativa, Zea mays and Hordeum vulgare. (B) Gene segmental duplication analysis of OsCBL in rice. Gray lines indicate all synteny blocks in the rice genome, and the red lines indicate duplicated OsCBL gene pairs. The chromosome number is indicated at the gray arc. The scale at the periphery of the chromosome represents the physical location (Kb). (C) Synteny analysis of CBL genes in the genomes between Oryza sativa and Hordeum vulgare or Zea mays. The gray lines show collinear blocks. The blue lines indicate the syntenic gene pairs between Oryza sativa and Hordeum vulgare or Zea mays, respectively.

3.4 Subcellular localization and 3D structure prediction of OsCBL

The subcellular localization prediction analysis was conducted to determine the distribution of OsCBL proteins within cells (Figure 5). OsCBL1 and OsCBL2 were predominantly localized to the cytoplasm and nucleus, whereas OsCBL3 and OsCBL6 exhibited dual localization to the cytoplasm and cytoplasmic membrane. Interestingly, OsCBL5 was localized to the cytoplasm and mitochondria, whereas OsCBL7 was localized to the cytoplasm. In contrast, the remaining members (OsCBL4, OsCBL8, OsCBL9 and OsCBL10) were predicted to localize to chloroplasts, suggesting potential roles in plastid-related signaling or stress responses.

Figure 5

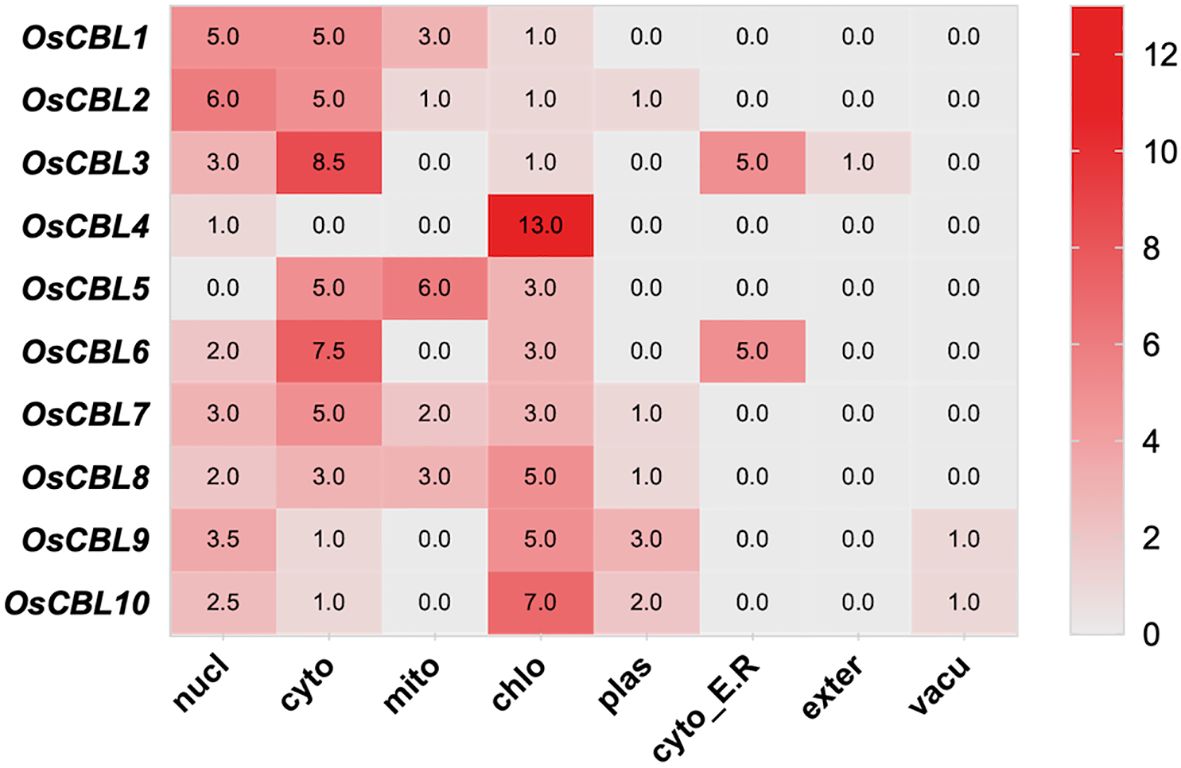

Figure 5. The subcellular localization prediction analysis of OsCBL proteins. The number indicates the prediction score.

The predicted 3D structures of all OsCBL proteins exhibit a conserved architectural framework, characterized by the canonical EF-hand domain (Figure 6). Each domain comprises two calcium-binding loops arranged in a helix-loop-helix motif, a hallmark feature of calcium sensor proteins. Structural alignments revealed high similarity across OsCBL members, suggesting evolutionary conservation of the calcium-binding machinery.

Figure 6

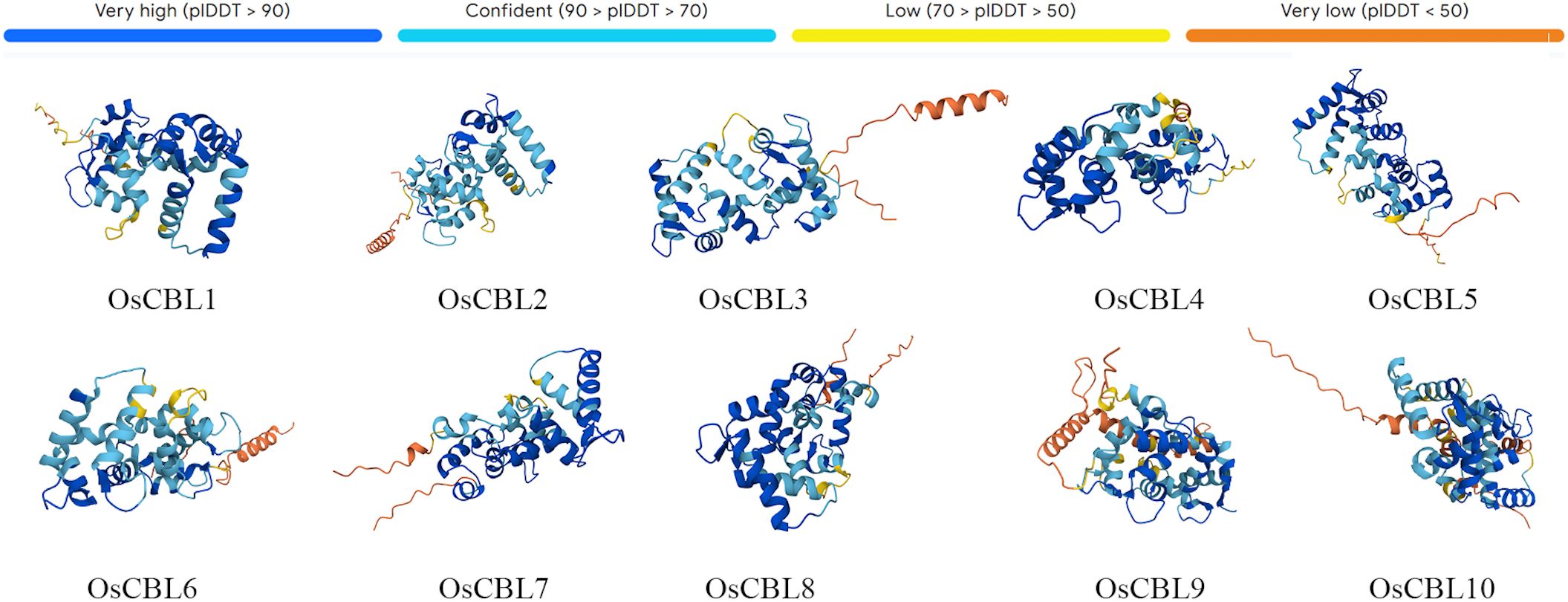

Figure 6. Protein 3D structure prediction model of OsCBL proteins. AlphaFold produces a per-residue confidence score (pLDDT) between 0 and 100.

3.5 Protein-protein interaction analysis

In order to systematically investigate the functional roles of CBL proteins in rice, the protein-protein interaction network of OsCBLs was predicted and analyzed using the STRING database (Figure 7; Supplementary Table 2). The results demonstrate that several OsCBLs interact with key ion transporters, thereby implicating their roles in abiotic stress adaptation. For instance, OsCBL10 and OsCBL4 showed interactions with OsSOS1 (scores 0.782 and 0.667, respectively), a critical component of the salt overly sensitive (SOS) pathway, while OsCBL1/2/3/9 bound to the potassium channel OsAKT1 (scores 0.459–0.788), indicating cross-talk between calcium and potassium homeostasis. Furthermore, interactions with OsNHX2 (e.g., OsCBL9-OsNHX2, score 0.646) suggested potential roles in ion compartmentalization. Intriguingly, based predictions revealed OsCBL proteins can interact with each other, such as OsCBL1-OsCBL9 (score 0.845) and OsCBL8-OsCBL9 (score 0.437), suggesting that they may form heterodimers to regulate signaling. However, some lower-confidence interactions (e.g., OsNHX2-OsSOS1, score 0.42) and associations with uncharacterized proteins (e.g., Q0E1L4, Q10P78) require further experimental validation.

Figure 7

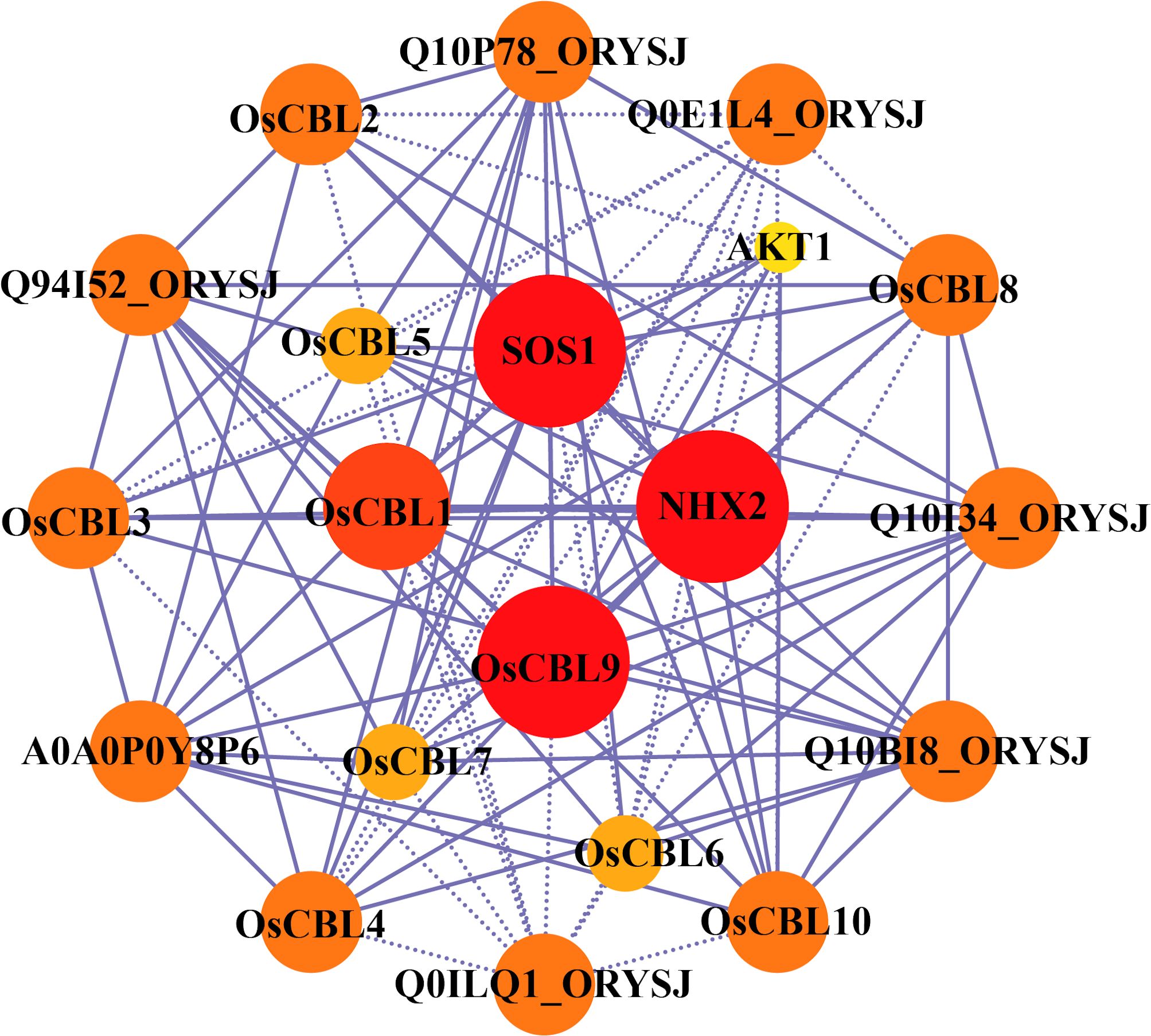

Figure 7. Protein-protein interaction network assembly of OsCBL proteins. The area and color of the circles represent the number of interacting proteins, the larger area and darker color of the circles indicate more interacting proteins. The dashed lines represent protein interaction score ≤ 0.5, and solid lines means protein interaction score > 0.5.

3.6 Prediction of cis-elements in OsCBL genes promoters

To explore the underlying function of the OsCBL genes, we performed a comprehensive analysis of cis-elements in the 2 kb promoter regions upstream of the OsCBL genes in rice (Figure 8). The OsCBL1, OsCBL4 and OsCBL5 promoters showed a particularly high number of cis-elements, indicating a strong responsiveness to abscisic acid signaling and drought stress. Several stress-related elements were identified, including anaerobic response elements (ARE) in OsCBL1, OsCBL7, OsCBL9 and OsCBL10. The analysis also revealed significant light regulation potential through abundant G-box elements in OsCBL1, OsCBL4 and OsCBL5 promoters and Box 4 elements in OsCBL3 promoter, as well as GT1 motif in OsCBL2 and OsCBL8 promoters and Sp1 in OsCBL1 and OsCBL2 promoters. In addition, a high number of MeJA-related elements (CGTCA motif and TGACG motif) are found in OsCBL1 and OsCBL8 promoters. These distinct cis-elements profiles suggest functional specialization among OsCBL family members, with OsCBL1, OsCBL4 and OsCBL5 possibly focused on ABA and light responses. The results provide a valuable basis for future experimental studies of OsCBL gene regulation and function in rice.

Figure 8

Figure 8. Predicted cis-elements in OsCBL promoter. (A) The number of cis-elements in each OsCBL gene promoter. (B) The distribution of these cis-elements across the OsCBL promoters. Promoter sequences (-2Kb) of 10 OsCBL were analyzed by PlantCARE. Different cis-elements are represented by different colors.

3.7 Expression patterns of OsCBL genes in different rice tissues

Based on the RNA-seq analysis, it demonstrated that OsCBL1, OsCBL2, OsCBL3, OsCBL4 and OsCBL5 were expressed predominantly in the root system (Figure 9), suggesting the possibility of a key role for these genes in root development and stress response. Aboveground tissues demonstrated that OsCBL2, OsCBL6, OsCBL7, OsCBL8, OsCBL9 and OsCBL10 was expressed at a higher level in infloresence (Figure 9), suggesting a potential role in reproductive development. Furthermore, the expression value of the OsCBL3, OsCBL6 and OsCBL10 was found to be greater than five in all tissues, whereas other OsCBL did not demonstrate this result, suggesting the possibility that OsCBL3, OsCBL6 and OsCBL10 may play a critical function in different tissues.

Figure 9

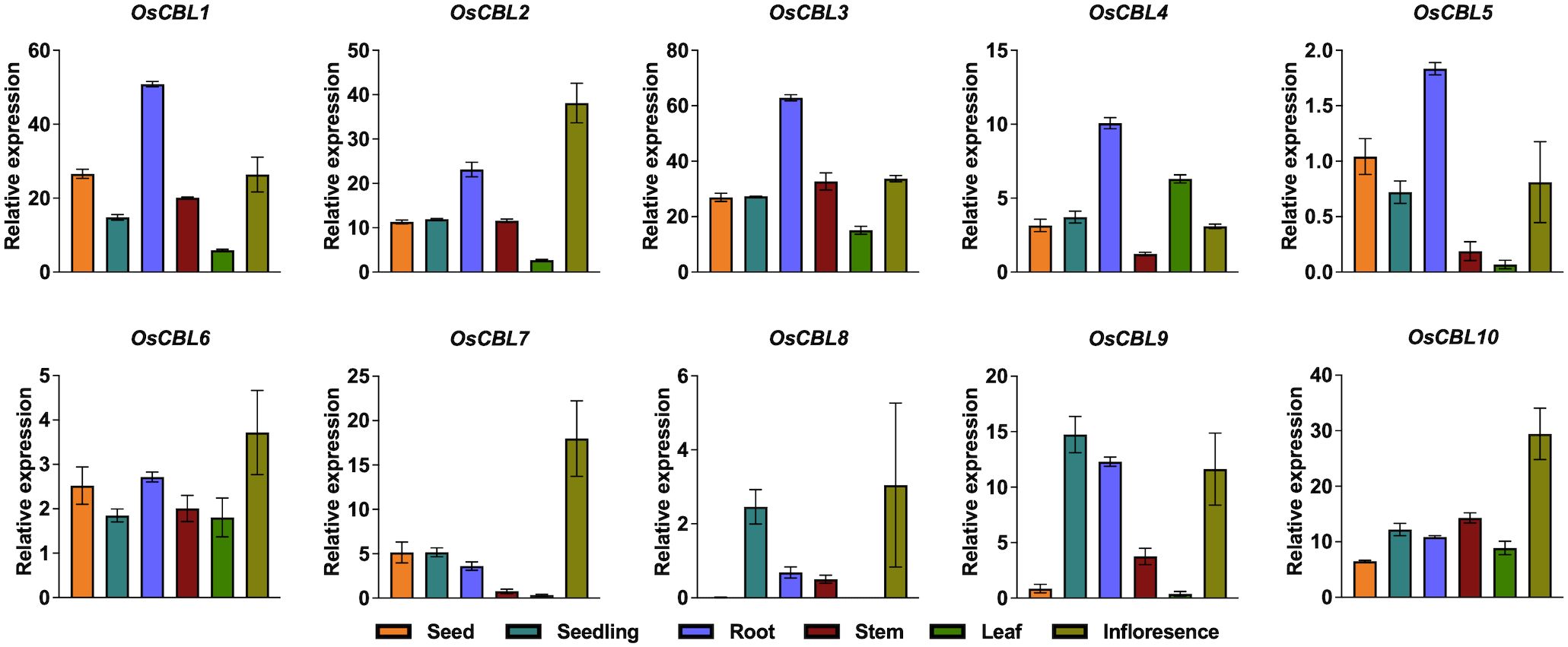

Figure 9. Expression analysis of the OsCBL in different tissues. The expression data were obtained from the Rice Genome Annotation Project (https://rice.uga.edu/index.shtml).

3.8 Gene expression profiling under various stress conditions

Given the abundance of abiotic stress-associated cis-elements in the promoter region of OsCBL genes, and to further investigate the potential role of OsCBL genes in abiotic stress response, we analyzed their expression patterns under drought, salinity, high and low temperature stress conditions using RNA-seq data. The results demonstrated that the stress response expression profiles of OsCBL family members exhibited variation (Figure 10). The induction of heat stress resulted in the expression of all OsCBLs with the exception of OsCBL6, OsCBL7 and OsCBL8 (Figure 10A). In the context of cold stress treatment, the expression of OsCBL2, OsCBL3 and OsCBL10 was found to be enhanced, while the expression of OsCBL5, OsCBL6 and OsCBL9 was repressed (Figure 10B). It is noteworthy that OsCBL5 and OsCBL9 exhibited contrasting regulatory patterns under diverse stress conditions, with heat inducing its activity while cold repressing it. Furthermore, salt stress induced the expression of OsCBL2, OsCBL3 and OsCBL10, while salt stress repressed the expression of OsCBL7 and OsCBL9 (Figure 10C). In addition, under drought stress, only OsCBL9 expression weas found to be considerably diminished (Figure 10D).

Figure 10

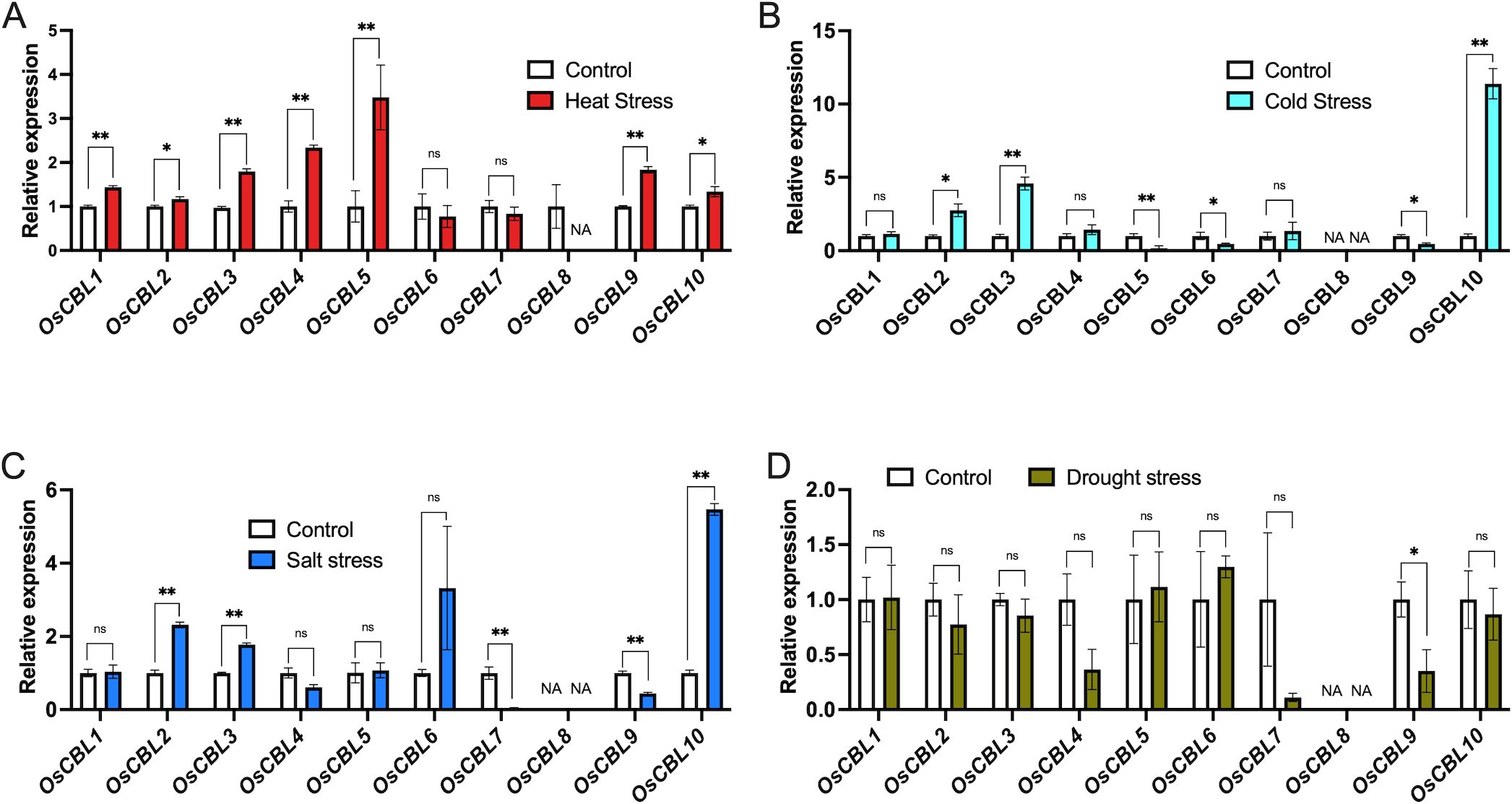

Figure 10. Expression analysis of the OsCBL under Heat (A), Cold (B), Salt (C), Drought (D) stress conditions. The control was defined as “1”. The expression data were obtained from the Rice Genome Annotation Project (https://rice.uga.edu/index.shtml). NA indicates “not available”. n =3 biologically independent samples. The error bars represent ± SEM. *p < 0.05, **p < 0.01 compared to control (Student’s t-test). “ns” indicates no significant difference.

4 Discussion

Our comprehensive analysis of the OsCBL gene family in rice reveals conserved features and lineage-specific adaptations in this essential calcium signaling component. Identifying ten OsCBL genes distributed across six chromosomes (Figure 1; Supplementary Table 1) and confirming the presence of conserved EF-hand domains (Figure 3A) establishes their evolutionary relationship with CBL families in other plants (Kudla et al., 1999). However, distinct subfamily classification (Figure 4A) and variable motif compositions (Figure 3B) suggest functional diversification, particularly for subfamily III members (OsCBL9/10), which exhibit unique structural features, such as extended amino acid sequences and chloroplast localization (Figure 3, Figure 5). However, the localization of CBL family proteins is not focused on a particular location in the cell. This spatial and functional specialization suggests that different CBL families evolved to interpret spatially restricted calcium signals in response to specific environmental stimuli (Kudla et al., 2018; Plasencia et al., 2020). In addition, our computational predictions, which are based on amino acid sequences, suggest that OsCBL proteins are relatively unlikely to be localized at the plasma membrane. This finding contrasts with the experimentally verified localization of some plasma membrane-localized CBLs in other species. This is may be because prediction tools cannot adequately account for dynamic post-translational modifications (e.g., acetylation), protein-protein interactions (e.g., with CIPKs), stress conditions or timing, all of which are known to mediate subcellular localization (Plasencia et al., 2020; Guo et al., 2023).

The predicted protein-protein interaction network (Figure 7) reveals both conserved and novel potential partnerships. Interactions between OsCBL4 and OsSOS1 components suggest the maintenance of salt tolerance mechanisms similar to those in Arabidopsis (Gámez-Arjona et al., 2024; Xie et al., 2024). In contrast, novel associations with OsAKT1 indicate an expanded role in potassium that is unique to rice (Li et al., 2014). Furthermore, identifying high-confidence CBL-CBL interactions, such as OsCBL1-OsCBL9 in rice (Figure 7), reveals a fascinating layer of complexity in calcium signaling networks.

Promoter analysis (Figure 8) revealed striking differences in the composition of cis-elements that correlate with the observed expression patterns (Figure 10). The enrichment of OsCBL1/4/5 in ABA-responsive elements aligns with their stress induction. Tissue-specific expression (Figure 9) further supports functional divergence, with root-predominant OsCBL1/2/3/4/5 potentially regulating ion uptake, and reproductive tissue-enriched OsCBL2/6/7/8/9/10 influencing developmental processes. The differential expression patterns observed under abiotic stress (Figure 10) reveal striking functional specialization among the OsCBL members. The present study provides evidence that members of the OsCBL gene family play crucial, yet distinct, roles in the way rice responds to abiotic stresses, particularly in response to temperature fluctuations. Our findings demonstrate that OsCBL5 and OsCBL9 are specifically induced by heat stress but repressed by cold stress (Figure 10), which suggests that they have a specialized function in temperature perception. The temperature-specific induction of OsCBL5 and OsCBL9 is particularly relevant in the context of climate change, given that rising global temperatures are predicted to double the frequency of heat stress in major rice-growing regions by 2050 (Intergovernmental Panel on Climate C 2023). From an applied perspective, the OsCBL5 and OsCBL9 genes could be used to select heat-tolerant varieties or as targets for precision genome editing. Furthermore, the salt-inducible OsCBL2/3/6/10 and the drought-responsive OsCBL9 genes can serve as specific molecular targets for crop improvement. These genes’ function may be enhanced through gene editing (e.g., CRISPR-Cas9) or overexpression, approaches that have been successfully applied in other stress-responsive genes. For instance, knockout OsSPL10 can improve rice’s drought tolerance (Li et al., 2023), whereas overexpressing OsHMGB707 can increase rice’s drought tolerance (Xu et al., 2021). Additionally, stress-responsive synthetic promoters can be developed using the identified cis-elements, a strategy that has been effectively employed to fine-tune gene expression (Mazumder and McMillen, 2014; Tan et al., 2023; Claeys et al., 2024). However, the cis-elements on the OsCBL promoter were identified only through bioinformatics analysis in this study, and their role in regulating OsCBL expression awaits experimental validation. Therefore, further experimental validation of the application of synthetic promoter strategies to the OsCBL gene family is required. In addition, our work is limited by the fact that information about the potential function of OsCBL in stress response is based only on systematic bioinformatics analysis. Currently, we are validating these applications through field trials of selected OsCBL transgenic materials under realistic stress conditions, thus bridging the gap between molecular discovery and agricultural implementation.

5 Conclusion

Our study provides a comprehensive characterization of the genomic and expression patterns of the OsCBL gene family in rice, revealing that they may play critical roles in stress adaptation. Ten OsCBL genes were identified, all of which exhibit conserved EF-hand calcium-binding domains, but have distinct physicochemical properties, gene structures and subcellular localization patterns. These findings emphasize the functional diversification of OsCBLs in stress adaptation and developmental regulation, and could be valuable for the genetic improvement of stress-tolerant rice varieties.

Data availability statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found at: BioProject ID: PRJNA48221, PRJNA604026, PRJNA827493, PRJNA1037192 and PRJNA306542.

Author contributions

ZH: Data curation, Formal Analysis, Funding acquisition, Investigation, Software, Visualization, Writing – original draft, Writing – review & editing. FX: Formal Analysis, Software, Validation, Visualization, Writing – review & editing. LC: Data curation, Formal Analysis, Investigation, Visualization, Writing – review & editing. RQ: Formal Analysis, Investigation, Validation, Visualization, Writing – original draft, Writing – review & editing.

Funding

The author(s) declare that financial support was received for the research and/or publication of this article. This research was supported by grants from the Postgraduate Innovation Special Foundation of Jiangxi Province (No. YC2022-B022).

Acknowledgments

We thank the reviewers and editor for their careful reading and helpful comments on this manuscript. We also thank the lab members for their assistance.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Generative AI statement

The author(s) declare that no Generative AI was used in the creation of this manuscript.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2025.1625014/full#supplementary-material
