Introduction: Stem rust (SR), caused by Puccinia graminis f. sp. tritici (Pgt), remains a major threat to global barley production, particularly in regions with conducive environments and evolving pathogen populations. Despite progress in understanding seedling resistance, adult plant resistance (APR) to SR remains underexplored in diverse barley germplasm. This study aimed to dissect the genetic architecture of APR to SR in a panel of diverse origins of two-row spring barley using a genome-wide association study (GWAS).
Methods: A total of 273 barley accessions were evaluated for APR to SR in two distinct environments in Kazakhstan. Phenotypic data were combined with high-density SNP genotyping to perform GWAS using five statistical models (GLM, MLM, MLMM, FarmCPU, and BLINK). Population structure and kinship were accounted for to identify robust marker-trait associations (MTAs), followed by haplotype-based QTL delineation. Transcriptomic data from 16 barley tissues were used to identify candidate genes within major QTL regions. Substantial phenotypic variation in SR severity was observed across environments.
Results: A total of 204 MTAs were identified, among which 96 were stable across models, resulting in 19 model-stable QTLs spanning all seven barley chromosomes. Six QTLs co-localized with known SR-resistance QTLs and genes, including Rpg1 and Rpg6. Q_rpg_7H.1 (coinciding with Rpg1) was one of the strongest and most consistent QTL, harboring 42 highly expressed candidate genes. A novel major-effect QTL on chromosome 5H, Q_rpg_5H.1 (3.5 – 9.9 Mb), not previously associated with known resistance loci, contained 10 highly expressed genes grouped into three co-expression clusters, including WRKY transcription factors and PR-5 proteins.
Conclusion: This study provides new insights into the complex, multilayered genetic control of SR resistance in barley. The discovery of both known and novel QTLs offers valuable targets for marker-assisted selection and lays the foundation for breeding durable SR-resistant barley adapted to diverse agroecological conditions.
1 Introduction
Barley (Hordeum vulgare L.) is one of the most important cereal crops in Kazakhstan, occupying a significant share of the arable land and contributing substantially to the national agricultural output. It is predominantly grown in rain-fed agricultural zones, where its exceptional adaptability to a wide range of abiotic stresses – including drought, soil salinity, and low temperatures – makes it a reliable crop under the region’s often harsh and variable climatic conditions (Newton et al., 2011). These attributes are particularly important for Kazakhstan, where environmental limitations frequently constrain agricultural productivity. As the second most widely cultivated cereal crop after wheat (Bureau of National statistics, 2025), barley plays a crucial role in ensuring national food security and rural livelihoods. It serves multiple purposes: as a staple component of livestock feed, a valuable raw material for the malting and brewing industries, and a food source for human consumption, particularly in regions with limited wheat availability (Verma et al., 2022).
Among the biotic stresses affecting barley, rust diseases, including stem, leaf, and stripe rusts caused by fungal pathogens, are among the most economically damaging (Paulitz and Steffenson, 2010). However, stem rust (SR) ranks among the most devastating (Dill-Macky et al., 1991). Barley is susceptible to two SR pathogens: Puccinia graminis f. sp. tritici Eriks. and E. Henn. (Pgt), also known as the wheat SR fungus, and P. graminis f. sp. secalis Eriks and E. Henn. (Pgs), or the rye SR fungus. Of these, Pgt is a significantly greater threat in most major barley production regions, and historically, it has posed a major threat to barley production worldwide (Harder and Legge, 2000).
The average yield losses of barley due to barley SR often reach 10–25% (Murray and Brennan, 2010; Al-Abdallat et al., 2017; Çelik Oğuz and Karakaya, 2021). Recurrent Pgt epidemics are reported in various regions and often result in substantial yield losses up to 60% in susceptible cultivars and lower grain quality (Steffenson et al., 2017). A comparative study showed that susceptible barley cultivars experienced yield reductions of up to 58% during Pgt epidemics in Australia (Dill-Macky et al., 1991). In the Great Plains of the USA and Canada, Pgt epidemics have caused significant yield losses, exceeding 50%, along with declines in grain quality (Steffenson, 1992). The emergence of Pgt race TTKSK (Ug99) in Uganda in 1999 triggered a wave of concern in East Africa (Babiker et al., 2015). Barley SR epidemics caused by the Ug99 race of Pgt in Kenya caused a significant threat to barley production (Mwando et al., 2012). SR re-emerged in Europe in 2013, affecting wheat in Germany (Olivera Firpo et al., 2017) and later appearing in southern Denmark, eastern Sweden, and the UK (Lewis et al., 2018), followed by a major outbreak in Sicily, Italy, in 2016 (Bhattacharya, 2017). Since then, SR has been observed annually on wheat, barley, and rye in specific areas of Sweden (Kjellström, 2021). Barley SR epidemics in Kazakhstan are currently poorly described, but recent studies on Pgt races on wheat in the region offer valuable insights into the broader epidemiological landscape, suggesting a potential for significant threat to barley. From 2015 to 2019, severe wheat SR epidemics impacted northern Kazakhstan and western Siberia (Olivera et al., 2022). Analysis of 51 Pgt samples from Kazakhstan between 2015 and 2017 revealed 112 diverse races with similarities to races in Siberia, suggesting a shared epidemiological region and indicating spore inflow from the west (Olivera et al., 2022). In total, over 1900 cultivated barley accessions from across the globe were extensively evaluated, revealing that more than 95% were susceptible to TTKSK (Ug99) (Steffenson et al., 2017). The widespread susceptibility of cultivated barley germplasm to a single Pgt pathotype represents an unusually severe and dangerous threat to global food security. Given the re-emergence of Pgt epidemics in Europe and East Africa, understanding and deploying SR resistance in barley has global implications for food security under changing climate scenarios.
Nine SR resistance genes have been identified in barley: Rpg1 (chromosome 7H, encodes a receptor kinase-like protein with two tandem protein kinase domains) (Brueggeman et al., 2006), Rpg2 (chromosome 2H) (Case et al., 2018) and Rpg3 (chromosome 5H) (Case et al., 2018), rpg4 (chromosome 5H) (Steffenson et al., 2009) and Rpg5 (chromosome 5H) (Sun et al., 1996), the RMRL (rpg4/Rpg5, chromosome 5H) complex (Brueggeman et al., 2006; Steffenson et al., 2009), Rpg6 (Hordeum bulbosum introgression, chromosome 6H) (Fetch et al., 2009), Rpg7 (chromosome 3H) (Henningsen et al., 2021), RpgU (unmapped) (Fox and Harder, 1995), and rpgBH (unmapped) (Steffenson et al., 1984). Although resistance conferred by the Rpg1 gene has provided durable protection since the 1940s (Steffenson, 1992), recent emergent races such as QCCJB and TTKSK (Ug99) have demonstrated virulence to this and other resistance genes (Roelfs et al., 1993; Jin et al., 1994; Pretorius et al., 2000). The rpg4-mediated resistance, although highly effective against TTKSK, is temperature sensitive and acts recessively, making it challenging to incorporate into elite cultivars (Jin et al., 1994; Sun et al., 1996). The most effective immediate strategy for breeding SR-resistant barley involves combining the Rpg1 gene with rpg4/Rpg5 (Sallam et al., 2017). This genetic pyramid would safeguard the crop against the dominant virulence types found in the Pgt population. Additionally, genes Rrr1 and Rrr2 have been identified as important factors for pyramiding Rpg1 and RMRL resistance genes in barley (Sharma Poudel et al., 2018). However, the identification of additional resistance loci remains a high priority, particularly those conferring durable, adult plant resistance (APR), which has been shown to offer broader and more sustainable protection compared to race-specific seedling resistance (Kolmer, 1996; Martinez et al., 2001).
Genome-wide association studies (GWAS) have emerged as a powerful approach to dissect the genetic basis of complex traits of barley (Alqudah et al., 2020), including disease resistance (Dubey and Mohanan, 2025), by leveraging the natural genetic variation present in diverse germplasm collections. However, the number of GWAS studies for SR resistance of barley is very limited. Unlike biparental mapping, GWAS uses existing diversity panels, enabling broader allele detection and finer mapping resolution due to historical recombination events. A key factor in the success of GWAS is the availability of high-density single-nucleotide polymorphism (SNP) markers, which provide genome-wide coverage and enable precise localization of trait-associated loci. GWAS of barley accessions grown in Kazakhstan have identified loci associated with critical agronomic traits, such as flowering time and plant architecture (Genievskaya et al., 2024), grain yield (Genievskaya et al., 2025), and grain quality (Genievskaya et al., 2022). As for the resistance to fungal diseases among cereal crops in Kazakhstan, previous GWAS efforts have successfully identified SNPs and QTLs associated with resistance to powdery mildew (Genievskaya et al., 2023) and SR (Turuspekov et al., 2016) in barley, showcasing the potential of this method for local breeding programs.
Despite the identification of several SR resistance genes and loci, the understanding of APR in diverse barley germplasm remains limited, particularly in the context of Kazakhstan and Central Asia. This study aimed to identify genetic loci associated with APR to SR in a diverse barley panel using multiple GWAS models, with a focus on uncovering candidate genes for durable resistance applicable to Kazakhstan and beyond.
2 Materials and methods
2.1 Germplasm material and SNP genotyping
A total of 273 spring two-row barley accessions, originating from the USA, Kazakhstan, Europe, Africa, and the Middle East (Supplementary Table 1), were cultivated under field conditions at the Research Institute of Biological Safety Problems (RIBSP; southern Kazakhstan, 43.576476° N, 75.213618° E) in 2024 and Kazakh Research Institute of Agriculture and Plant Growing (KRIAPG; southeastern Kazakhstan, 43.229402° N, 76.699168° E) in 2025. This barley panel was previously utilized for studies on adaptability and yield-related traits (Genievskaya et al., 2024, 2025). Genotyping was performed using the 50K Illumina Infinium iSelect SNP array (Bayer et al., 2017) (TraitGenetics GmbH, Gatersleben, Germany). Genotyping results were used in the analysis of population structure, linkage disequilibrium (LD), and further GWAS analyses. SNP physical positions were retrieved from the Morex v3 reference genome (The Triticeae Toolbox – Barley, 2025).
2.2 Evaluation of resistance to SR
To simulate SR epiphytotics in RIBSP, field plots were artificially inoculated with a virulent composite of Pgt races. These isolates were originally collected from Kazakhstan’s spring wheat cultivars (Rsaliyev et al., 2020) and are maintained in the microorganism collection of RIBSP. Prior to inoculation, urediniospores were reactivated by heat-shock treatment at 50°C for 30 minutes (following the protocol of Rsaliyev and Rsaliyev, 2019). A suspension of urediniospores (Supplementary Table 2) was prepared in 3M™ Novec™ 7100 (3M, USA) and uniformly applied to seedlings using an airbrush spray gun (Revell GmbH, Germany) (Patpour et al., 2022). Inoculations were conducted at the seedling stage during evening hours (Roelfs et al., 1992), and irrigation was applied immediately afterward to ensure adequate humidity for spore germination and disease establishment. In KRIAPG, assessment of SR resistance was conducted under natural infection conditions, with epiphytotic development resulting from an adjacent infected winter wheat field.
Field trials in both RIBSP and KRIAPG were established using a randomized complete block design (RCBD) with two replications. Each genotype was planted in two-row plots, 1.5m in length, with 30cm spacing between rows and 40cm between plots. In RIBSP, to promote uniform disease pressure, susceptible spreader rows (mixture of highly susceptible local cultivars) were planted after every 10 test entries and also used as border rows surrounding the experimental area. Resistant and susceptible checks were included in each replication to validate the reliability of disease assessments. Meteorological and environmental data from both fields are presented in Supplementary Table 3.
In both environments, SR severity was assessed at the milky-waxy seed development stage by estimating the percentage of infection using a modified Cobb scale (Peterson et al., 1948). Infection types were classified into five categories: immune (I), resistant (R), moderately resistant (MR), moderately susceptible (MS), and susceptible (S) (Roelfs et al., 1992). Traditional scoring was converted into McNeal’s 9-point scale (McNeal et al., 1971) for GWAS.
In RIBSP, prior to harvest, phenological traits (heading and maturity dates, vegetation period) and agronomic parameters (flag leaf area, plant height, upper internode, and spike length) were recorded following CIMMYT protocols (Pask et al., 2012). After natural grain drying, plot yield and thousand kernel weight were assessed using the same methodology.
2.3 Population structure and association analysis
Population structure was assessed using pairwise kinship coefficients and principal component analysis (PCA). The kinship matrix was calculated with GAPIT v3 (Wang and Zhang, 2021) and visualized using the heatmap3 package, while eigenvalues and PCA results were plotted with ggplot2 in R.
Using GAPIT, five GWAS models – GLM, MLM, MLMM, BLINK, and FarmCPU – were utilized to identify stable marker-trait associations (MTAs) for SR resistance. PCA.total=3 was used in all GWAS models for the correction of population structure effect. Consistency of significant signals across these methods determined stability. A P-value threshold of 1.00E-4 was set to capture all potential associations, acknowledging that the standard threshold may miss true associations in studies with low-frequency variants or smaller populations due to insufficient statistical power (Fadista et al., 2016). Studies have shown that relaxing the p-value threshold can improve the detection of associations with small effects, thereby capturing a broader spectrum of true genetic signals (Chen et al., 2021).
2.4 QTLs identification and candidate genes analysis
To consolidate closely linked MTAs into distinct quantitative trait loci (QTLs), the critical linkage disequilibrium (LD) distance at R² = 0.2 was previously calculated for each chromosome (Genievskaya et al., 2025) and used as the merging threshold. Within each QTL region, the SNP showing the lowest P-value was designated as the lead or peak SNP. Haplotype structure and allele combinations within QTLs were visualized using the SRplot online platform (SRplot, 2025).
Candidate gene identification was carried out by aligning the physical positions of known Rpg barley genes with the identified QTL intervals. A physical map displaying positions of identified QTLs and mapped Rpg genes was generated using MapChart v2.3 (Voorrips, 2002). To identify protein-coding genes potentially related to SR resistance within QTL regions, four databases were used. IDs of genes located within QTL intervals were retrieved from EnsemblPlants (Yates et al., 2022). Their expression profiles were examined using BarleyExpDB (Li et al., 2023) and RNA-Seq datasets from 16 tissues/organs of the Morex cultivar (Mascher et al., 2017). Genes exhibiting expression levels above 100 TPM (transcripts per million) were considered strong candidates. Functional annotation of encoded proteins was performed using UniProt (The UniProt Consortium, 2025) and QuickGO (QuickGO, 2025), and gene expression patterns were visualized via the “heatmap3” package for R. To investigate patterns of gene co-expression across tissues and organs and identify functionally coherent gene modules, a weighted gene co-expression network of highly expressed genes (TPM > 100) was constructed using expression data from 16 tissues/organs (Mascher et al., 2017). A Pearson correlation threshold of r ≥ 0.6 was applied to retain biologically meaningful associations. The resulting correlation matrix was converted to an undirected weighted network using the igraph package for R. Gene clusters were detected using the Walktrap community detection algorithm (Pons and Latapy, 2006).
3 Results
3.1 Field assessment of SR resistance
A total of 273 spring two-row barley accessions were evaluated for SR severity. On average, the severity at the milky-waxy seed development stage in RIBSP was 4.4 on a 9-point scale, corresponding to a score of 70–90MR using the classical IT scale, while in KRIAPG, the average score was 5.2, which corresponded to 10–30MS. Examples of susceptible cultivars from two environments are provided in Figure 1.
Figure 1. Barley cultivars susceptible to SR. Line QB_047 or 04WA-111-A from WA, USA, with 40S infection type in RIBSP (A), and line QB_275 or PLD 139 from Poland with 70S infection type in KRIAPG (B).
In the RIBSP field, the barley collection displayed the full range of reactions to SR, from 0 (immune) to 9 (highly susceptible), with a standard deviation of 1.83 and a moderate CV of 40.6% (Supplementary Table 4). The distribution of SR severity scores on a 9-point scale (Figure 2A) approximated a normal curve, centered around scores 4 and 5, with the highest frequency observed at score 4 (64 counts). In the KRIAPG field, the collection also exhibited the complete range of SR responses (0–9), but with a higher standard deviation of 2.26 and a slightly greater CV of 43.15% (Supplementary Table 4). However, the distribution pattern in KRIAPG was bimodal, with prominent peaks at severity scores 3 and 7 (Figure 2B). In both environments, frequencies declined toward the extremes of the scale (0 and 9), suggesting that strong resistance or high susceptibility were less prevalent in the evaluated population.

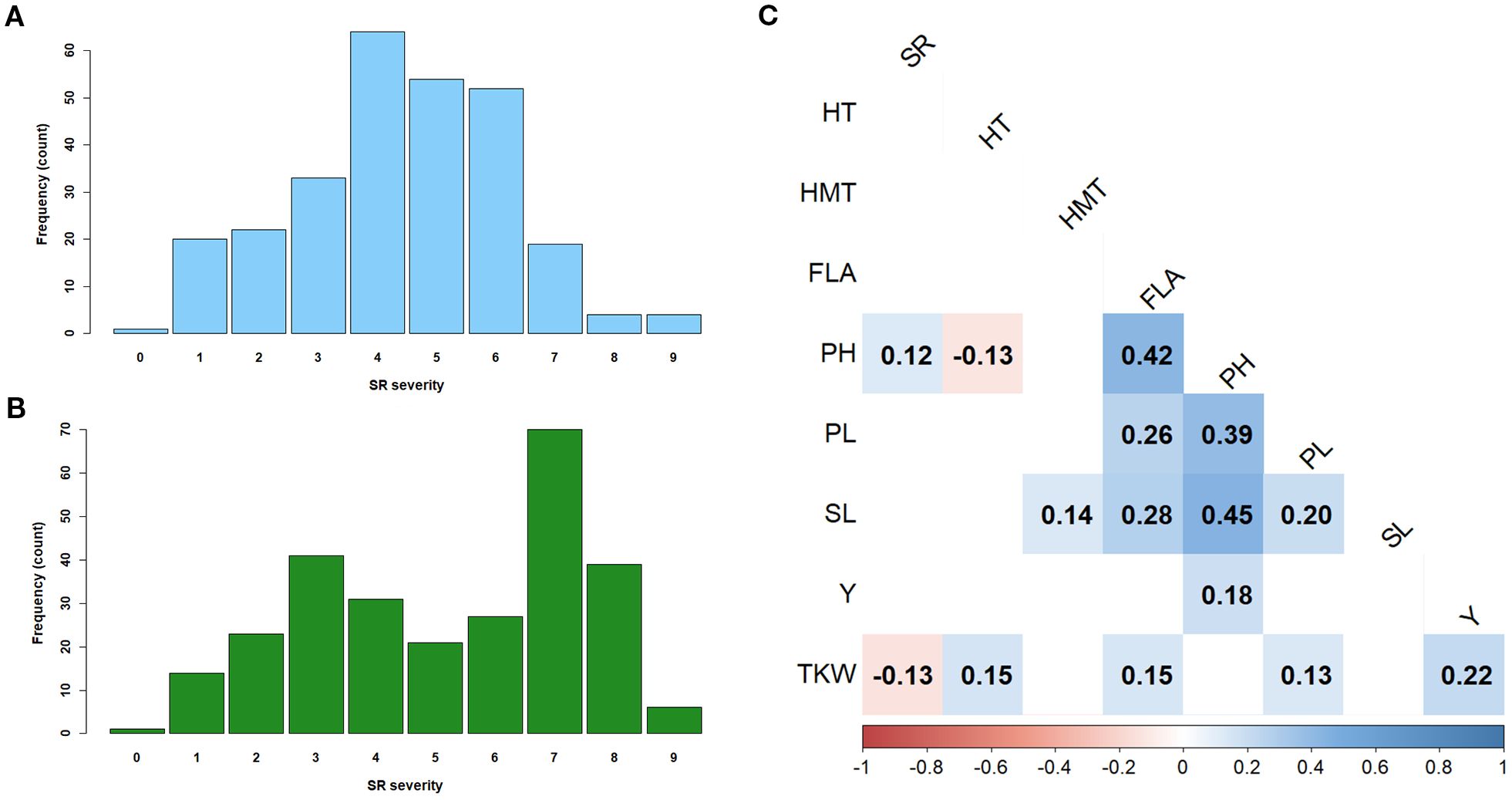

Figure 2. Frequency distribution of the barley accessions for stem rust resistance evaluated on a 9-point scale in RIBSP (A) and KRIAPG (B); the correlation analysis among resistance to stem rust and key agronomic traits of barley in RIBSP (C). SR, stem rust (Pgt) severity; HT, days from seedling emergence to heading; IT, infection type; HMT, days from heading to full grain maturity; FLA, flag leaf area; PH, plant height; PL, peduncle length; SL, spike length; Y, kernels yield per plot; TKW, 1000 kernels weight. Correlations with P-value < 0.05 are shown. Blue and red colors represent positive and negative correlations, respectively, with color intensity indicating the strength of the correlation; the scale bar at the bottom ranges r-values from −1 (strong negative correlation) to +1 (strong positive correlation).
Among the 273 barley accessions evaluated at RIBSP, accession QB_218 (breeding line ASHOS-168 from Kazakhstan) exhibited an immune (I, 0) reaction to the local Pgt pathogen. In addition, 20 accessions originating from Kazakhstan and the USA displayed a resistant (R, 1) type of reaction (Supplementary Table 4). The highest level of susceptibility (S, 9) was observed in two accessions from the USA: QB_054 (breeding line 04WA-123-G) and QB_065 (breeding line 04WA-109). At KRIAPG, accession QB_111 (breeding line 04AB093-A from the USA) also demonstrated an immune (I, 0) response to the local Pgt pathogen. Fourteen other accessions from the USA exhibited an R (1) type reaction, while four accessions originating from Kazakhstan, Europe, and the Middle East were found to be highly susceptible (S, 9). Considering the results across both environments, three accessions from the USA – QB_027 (04AB093-B), QB_111 (04AB093-A), and QB_112 (04AB016-A) – exhibited the highest average level of resistance, classified as R (0.5 – 1). Five accessions from the USA and three accessions from Kazakhstan demonstrated an average S (7.5) type of reaction.
The correlation analysis in RIBSP demonstrated a significant (P < 0.05) positive correlation between SR severity and PH, as well as a negative correlation between SR and TKW (Figure 2C). The remaining studied agronomical traits did not significantly correlate with SR severity.
3.2 Genotyping and population structure
SNP genotyping resulted in 44,040 markers, of which 31,834 polymorphic SNP markers were selected after filtering for a call rate > 0.9 and minor allele frequency (MAF) ≥ 0.05 (Supplementary Table 5). These SNPs were evenly distributed across the 7 barley chromosomes, with 1,445 lacking positional information. The total genome coverage was approximately 4.54 Gb, with chromosome 5H showing the highest SNP density (average spacing 137.2 Kb) and chromosome 4H the lowest (233.1 Kb) (Supplementary Figure 1). The filtered SNP set was used for population structure analysis and GWAS.
The dendrogram derived from the kinship heatmap (Figure 3A) provided insights into the genetic structure of the barley population, revealing distinct clusters based on genetic relatedness. PCA showed that PC1, PC2, and PC3 explained 10.32%, 6.04%, and 5.59% of the total genetic variation, respectively (Figure 3B). The PCA plot (Figure 3C) displayed three partially overlapping clusters corresponding to germplasm from the USA, African barley accessions, and the remaining genotypes. This clustering pattern suggested the presence of at least two major groups – accessions from the USA and the remaining barley accessions. Additionally, smaller subclusters composed of closely related individuals were observed within these primary groups in the kinship heatmap.

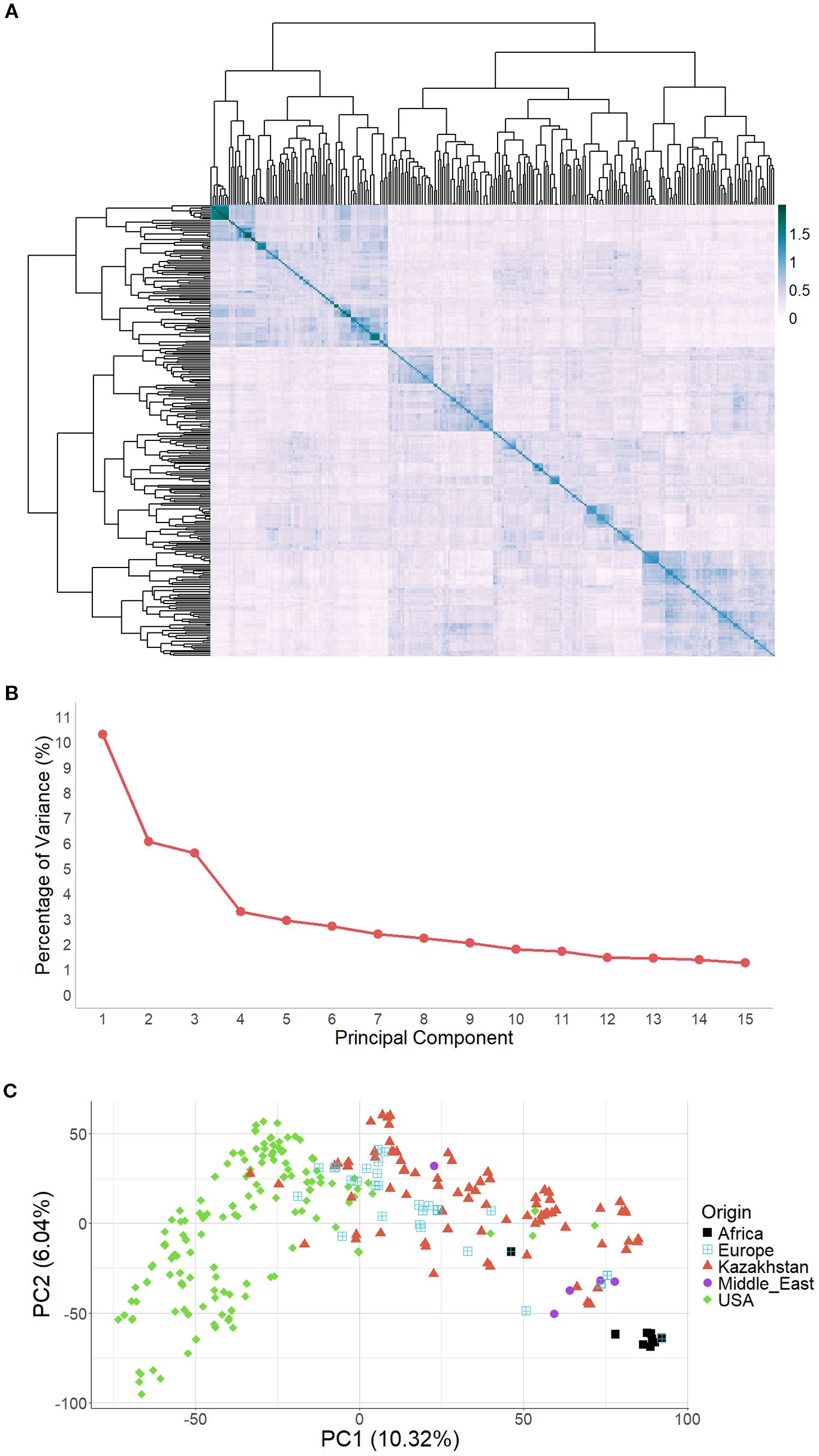

Figure 3. Population structure of barley germplasm based on 31,834 SNPs, including a heat map of the kinship matrix (A), a scree plot of principal components (B), and a PCA plot (C).
3.3 GWAS and haplotype analysis
In total, 204 significant (P < 1.00E-4) MTAs for SR resistance were identified across the five models in two environments, including 62 MTAs for RIBSP and 142 from KRIAPG. The largest number of MTAs were identified with the GLM model (n = 111), followed by MLM (n = 44), FarmCPU (n = 30), BLINK (n = 14), and MLMM (n = 5). Among these, 96 MTAs were considered robust and stable, as they were consistently detected by at least two of five GWAS models. To consolidate overlapping signals, haplotype analysis was performed. MTAs located in close proximity and exhibiting R2 > 0.2 were grouped into single QTL intervals. This approach led to the identification of 19 model-stable QTLs associated with SR resistance. Among these, 9 QTLs were represented by multiple SNPs (ranging from 2 to 60) (Figure 4), while the remaining 10 were detected by single SNPs.

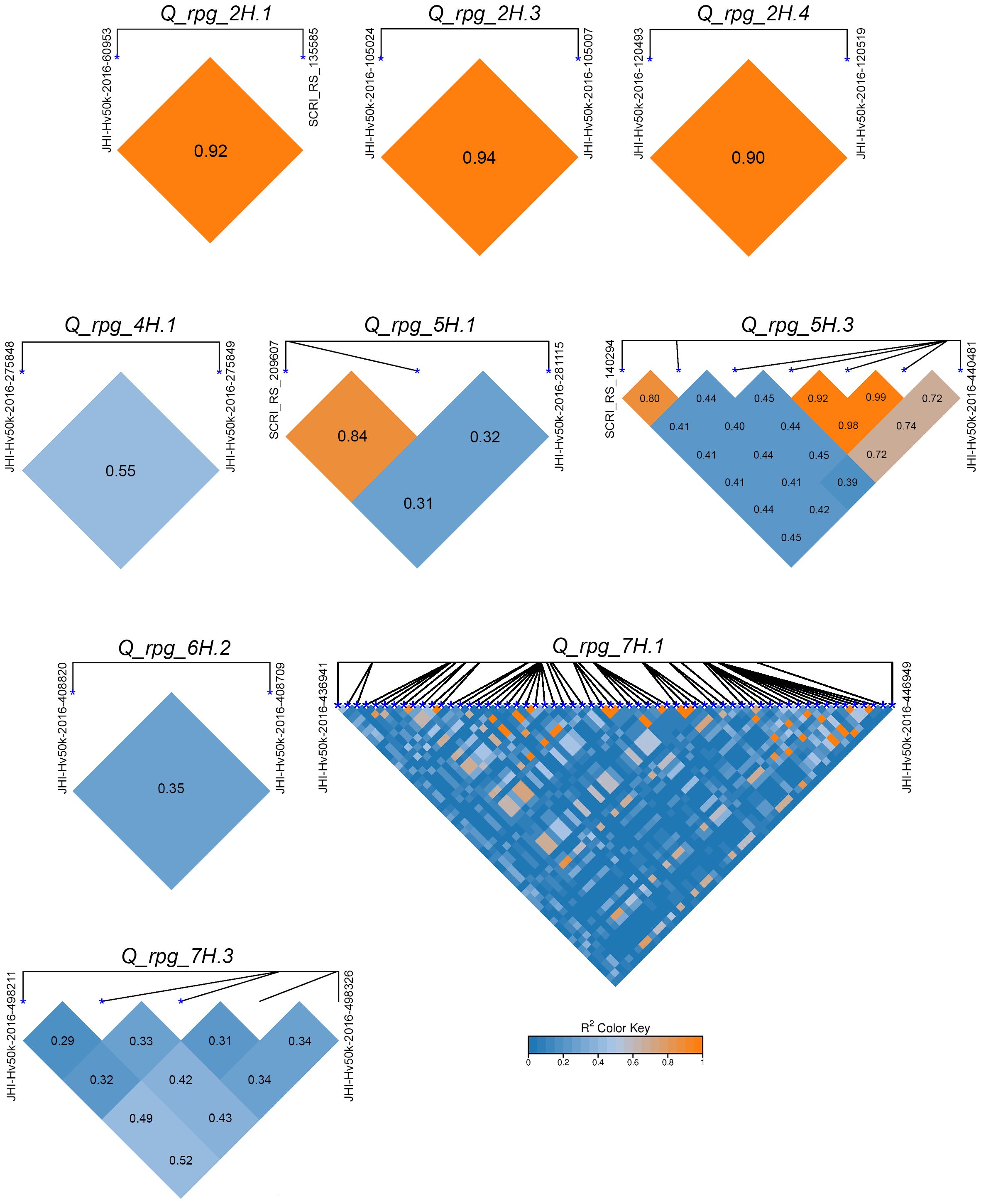

Figure 4. Linkage disequilibrium (LD) heatmaps for stem rust resistance QTLs. The color intensity, as indicated by the R2 color key, along with numerical values within the blocks, represents the strength of LD between marker pairs.
Detailed information regarding MTAs, their positions within QTLs, P-values, phenotypic values explained (PVE) values, and effects is provided in Supplementary Table 6. Table 1 summarizes 19 QTLs for SR resistance identified across seven chromosomes.

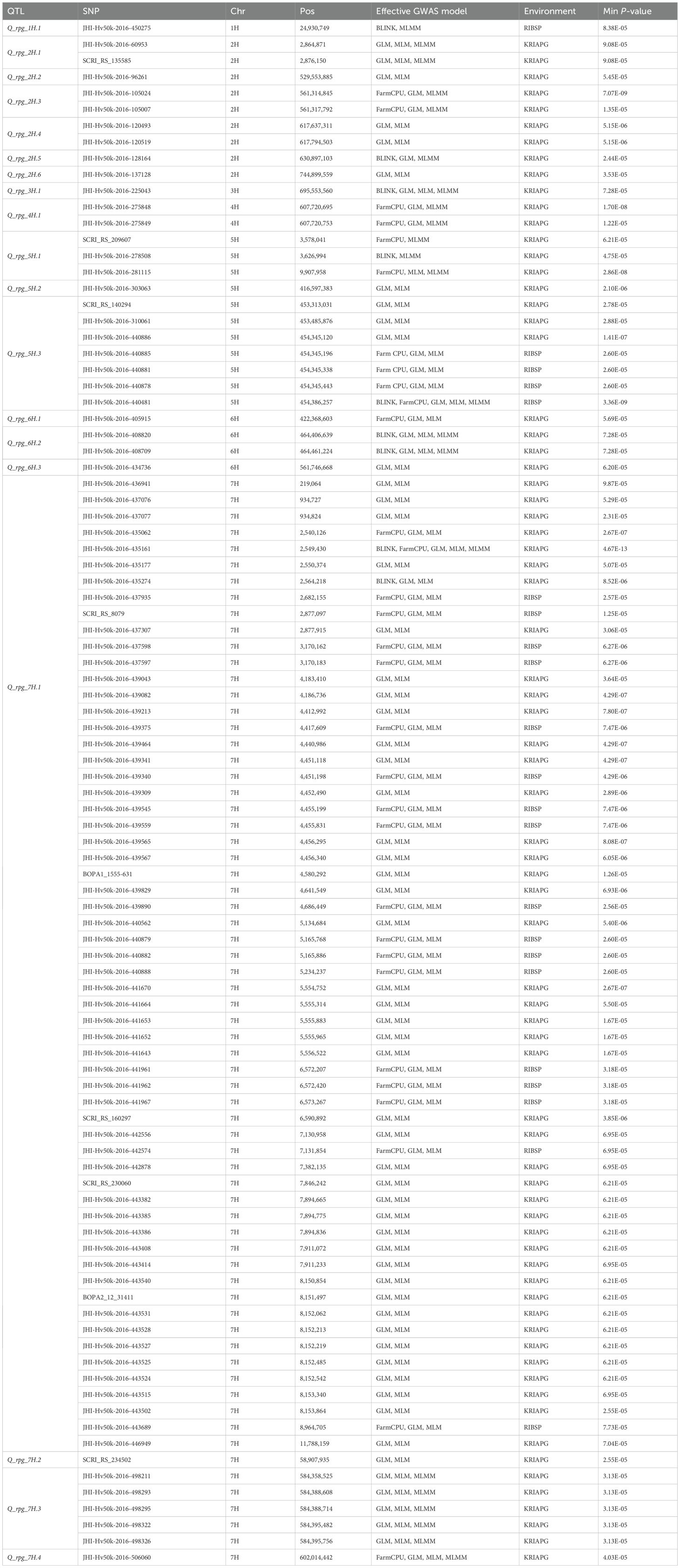

Table 1. The list of stable QTLs for SR resistance identified using five GWAS models.
Among the identified loci, Q_rpg_5H.3 and Q_rpg_7H.1 were consistently detected by all five GWAS models across both environments. The QTLs Q_rpg_3H.1, Q_rpg_6H.2, and Q_rpg_7H.4 were identified by four models, while nine QTLs were detected using three models, and two models supported the remaining 15 QTLs. The lowest P-values, below the Bonferroni-corrected threshold (P=1.57E-6), were observed for five QTLs: Q_rpg_2H.3, Q_rpg_4H.1, Q_rpg_5H.1, Q_rpg_5H.3, and Q_rpg_7H.1 (Table 1), indicating a strong association with SR resistance. The QTL Q_rpg_7H.1 encompassed the highest number of associated SNPs, totaling 60.
Based on PVE values, QTLs were classified into four categories: major-effect QTLs (PVE ≥ 0.10), moderate-effect QTLs (0.05 ≤ PVE < 0.10), minor-effect QTLs (0.01 ≤ PVE < 0.05), and very small-effect QTLs (PVE < 0.01). According to this classification, nine loci were categorized as minor-effect QTLs, three loci as moderate-effect QTLs, and seven loci as major-effect QTLs (Supplementary Table 6). The largest PVE was observed for Q_rpg_5H.3 (0.3065) followed by Q_rpg_7H.1 (0.3063). PVE values of the remaining major-effect QTLs varied from 0.1056 to 0.1215 (Supplementary Table 6).
The QQ plots for data from RIBSP and KRIAPG (Figures 5A, B) showed moderate inflation across all models, with clear deviations from the expected distribution in the upper tail, suggesting potential true associations with SR resistance. In the RIBSP dataset, the most significant peaks were located on chromosome 5H (Figure 5C), whereas in the KRIAPG dataset, the highest peaks were observed on chromosomes 2H, 4H, 5H, and 7H (Figure 5D), all surpassing the Bonferroni threshold. These findings support the presence of strong loci in the regions associated with SR resistance. Two major peaks on chromosomes 5H and 7H were consistently highly significant in both datasets.

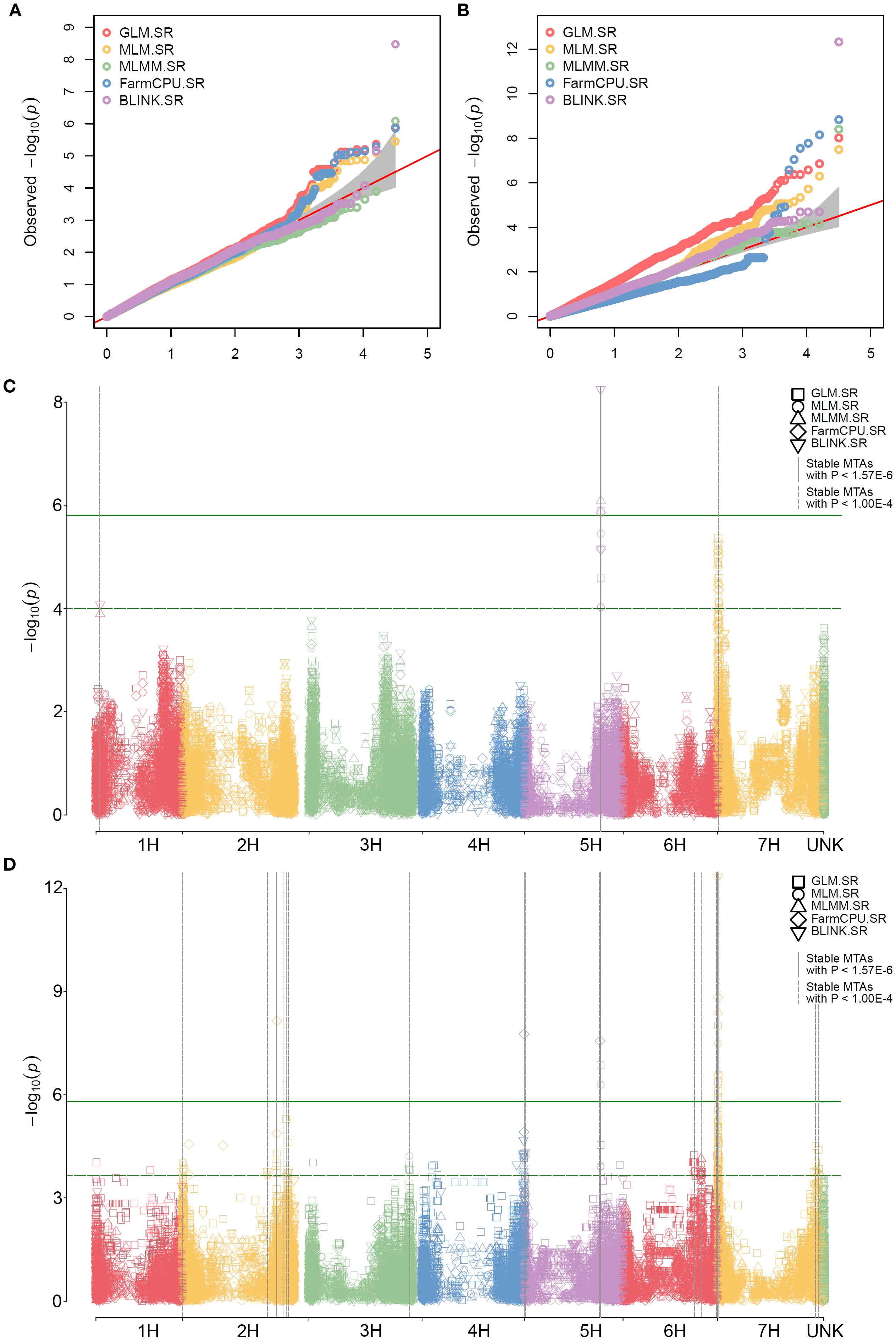

Figure 5. SNPs significantly associated with stem rust resistance in barley identified by GWAS with two or more models. Quantile-quantile plots with data from RIBSP (A) and KRIAPG (B). Chromosome-wise Manhattan plots with data from RIBSP (C) and KRIAPG (D). Associations stable across models are highlighted with vertical grey lines. The green solid horizontal line denotes a P-value of 1.57E-6 (Bonferroni); the green dashed horizontal line denotes a P-value of 1.00E-4.
The newly identified QTLs, along with known SR resistance genes (Rpg1, rpg4, and Rpg5), were mapped onto the barley genome across all seven chromosomes (Figure 6). The highest number of QTLs was detected on chromosome 2H (n = 6). The QTL Q_rpg_7H.1 overlapped with the known Rpg1 locus, indicating either a linked association or potential allelic variation. The remaining QTLs were located in genomic regions distinct from mapped Rpg loci, possibly representing novel resistance sources.

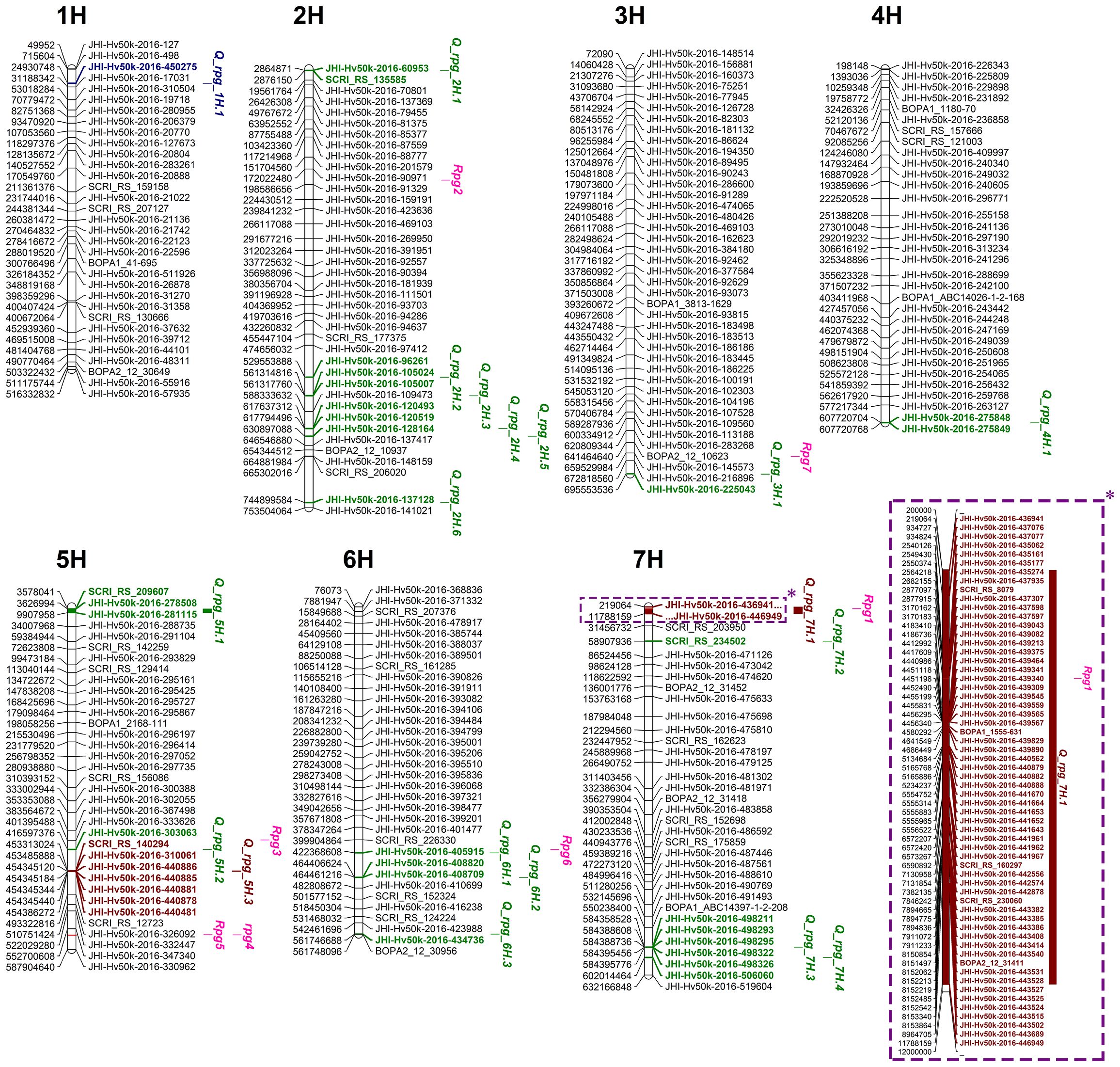

Figure 6. QTLs and their peak SNPs identified in the RIBSP dataset are shown in blue; QTLs from the KRIAPG dataset in green; and QTLs detected in both environments are indicated in brown. Known Rpg genes are highlighted in purple. An asterisk (*) denotes a close-up view of the corresponding segment on chromosome 7H.
3.4 Candidate genes for stem rust resistance QTLs
Genetic positions of 19 QTLs mapped across all seven barley chromosomes were compared with positions of known Rpg genes and SR-resistance QTLs from the literature (Table 2).

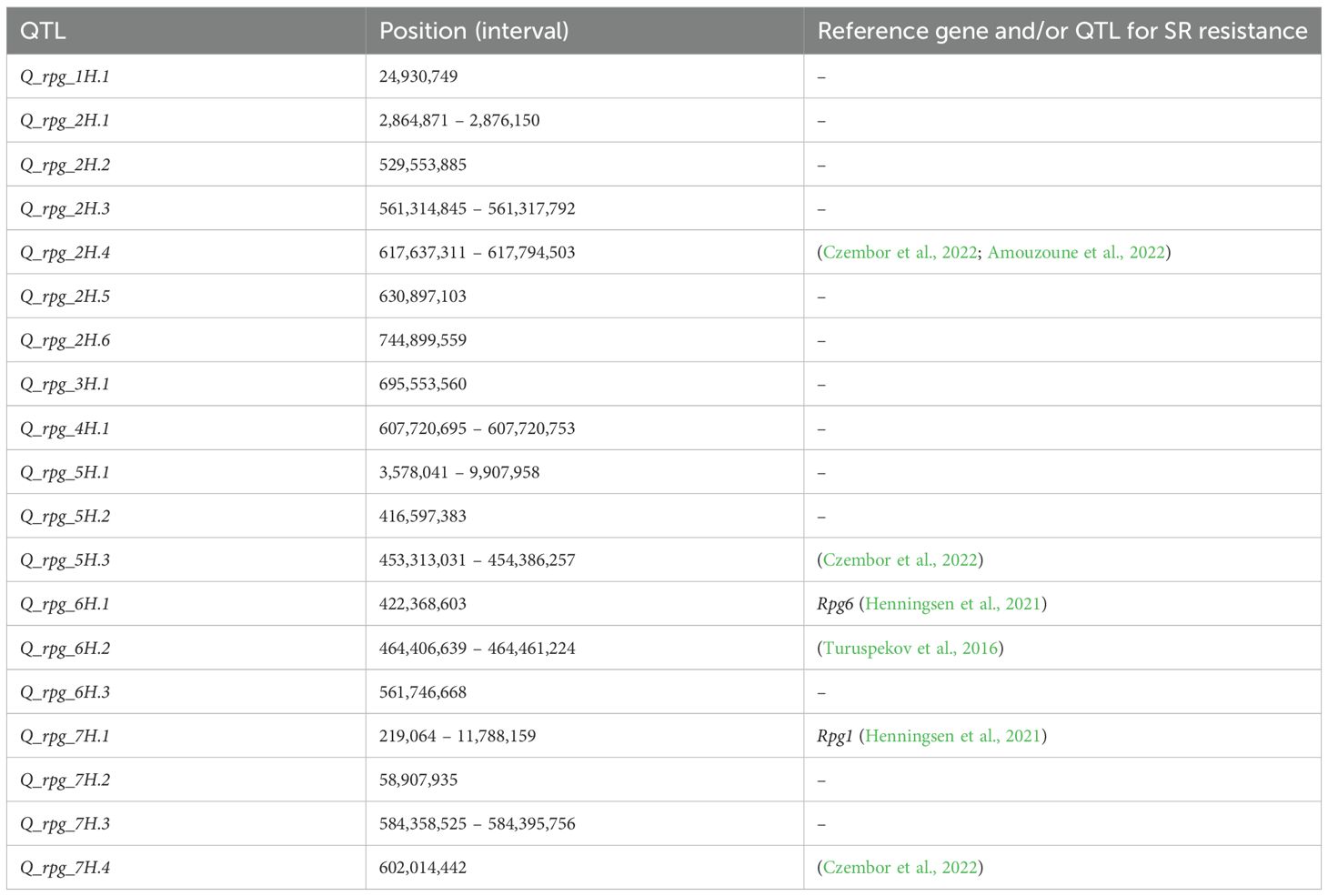

Table 2. The list of reference genes and QTLs for newly identified SR resistance loci.
Six QTLs co-localized with genomic regions previously reported in the literature, supporting their relevance in barley SR resistance. The major resistance gene Rpg1 was located within the Q_rpg_7H.1 region, consistent with its known chromosomal position. The remaining 13 QTLs likely represent novel genetic factors associated with barley SR resistance.
Genes in stable QTL regions expressed in 16 barley tissues and organs of different developmental stages and organs were selected. A total of 531 candidate protein-coding genes with available expression data were located in 13 QTL regions (Supplementary Table 7). The remaining 6 QTLs were positioned in genomic regions not overlapping with coding barley genes. By filtering the low-expressed genes (TPM < 100), 56 highly expressed candidate genes were identified for five QTLs: Q_rpg_2H.3 (n = 1), Q_rpg_5H.1 (n = 11), Q_rpg_5H.3 (n = 1), Q_rpg_6H.3 (n = 1), and Q_rpg_7H.1 (n = 42) (Figure 7).

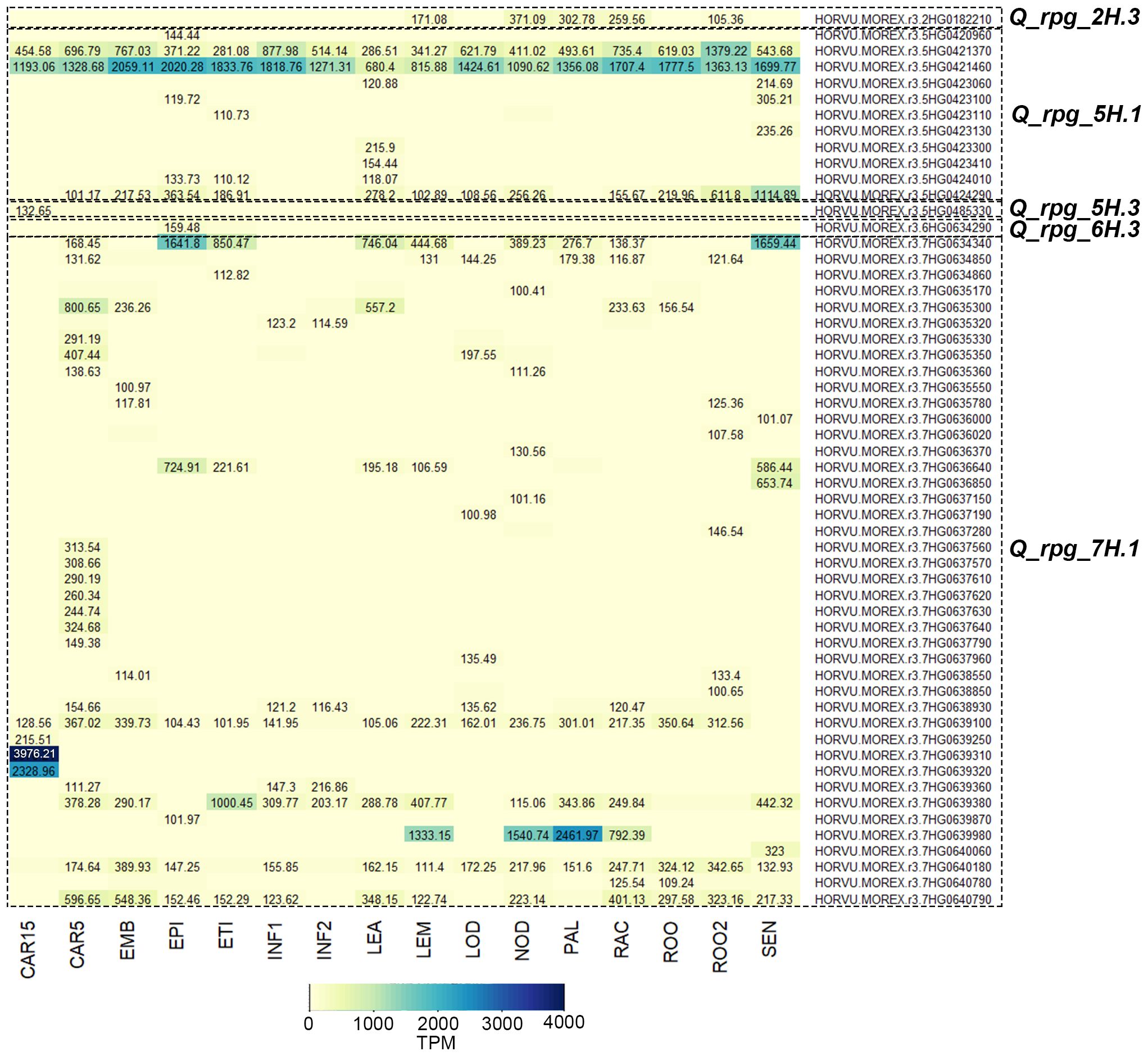

Figure 7. Expression heatmap (TPM > 100) of highly expressed candidate genes in QTLs associated with SR resistance at 16 plant developmental stages of barley. CAR15, Grain, bracts removed, 15 days post-anthesis; CAR5, Grain, bracts removed, 5 days post-anthesis; EMB, Embryos, 4 days dissected from germinating grains; EPI, 4-week-old epidermis; ETI, 10-day-old etiolated seedling; INF1, Young inflorescences, 5mm; INF2, Inflorescences, 1-1.5cm; LEA, 10cm shoot from the seedlings; LEM, Lemma, 6 weeks post-anthesis; LOD, Lodicule, 6 weeks post-anthesis; NOD, Six-leaf stage developing tillers; PAL, Palea, 6 weeks post-anthesis; RAC, Rachis, 5 weeks post-anthesis; ROO, 4-week-old root; ROO2, Roots from 10cm seedlings; SEN, 2-month-old senescing leaf.
The expression analysis revealed substantial variation in both transcript abundance and tissue specificity, allowing the prioritization of candidate genes potentially involved in SR resistance. Extremely high expression levels (TPM > 1000) were detected for eight genes located within two QTL regions.
In the Q_rpg_5H.1 region, HORVU.MOREX.r3.5HG0421460 exhibited peak expression in nearly all analyzed tissues and organs, except for the 10cm shoot from seedlings (LEA, TPM=680.4) and lemma at six weeks post-anthesis (LEM, TPM=815.88). HORVU.MOREX.r3.5HG0421370 showed maximum expression in the roots of 10cm seedlings (ROO2) and high expression (TPM > 100) across all other organs and tissues. HORVU.MOREX.r3.5HG0424290 was highly expressed in the senescing leaf of 2-month-old plants (SEN), with relatively high expression in all other organs and tissues, ranging from 40.17 to 611.8 TPM (Figure 7). At the organ level, 9 out of 11 genes within Q_rpg_5H.1 exhibited high expression (TPM > 100) in LEA, and 7 out of 11 in SEN.
In the Q_rpg_7H.1 region, HORVU.MOREX.r3.7HG0634340 showed peak expression in the 4-week-old epidermis (EPI) and SEN (Figure 7). HORVU.MOREX.r3.7HG0639310 and HORVU.MOREX.r3.7HG0639320 were highly expressed in 15-day post-anthesis grains (CAR15), while HORVU.MOREX.r3.7HG0639380 peaked in 10-day-old etiolated seedlings (ETI). HORVU.MOREX.r3.7HG0639980 was most strongly expressed in LEM, developing tillers at the six-leaf stage (NOD), and palea at six weeks post-anthesis (PAL). Additionally, four genes – HORVU.MOREX.r3.7HG0639100, HORVU.MOREX.r3.7HG0639380, HORVU.MOREX.r3.7HG0640180, and HORVU.MOREX.r3.7HG0640790 – displayed consistently moderate to high expression across all analyzed tissues and developmental stages, with transcript levels ranging from 65.05 to 1000.45 TPM. Notably, 19 out of 42 genes are within Q_rpg_7H.1 exhibited high expression (TPM > 100) in 5-day post-anthesis grains (CAR5).
In the Q_rpg_2H.3 region, HORVU.MOREX.r3.2HG0182210 demonstrated high expression (TPM > 100) in LEM, NOD, PAL, 5 weeks post-anthesis rachis (RAC), and ROO2 (Figure 7). From the Q_rpg_3H.1 region, HORVU.MOREX.r3.3HG0225930 was predominantly expressed in CAR15, while HORVU.MOREX.r3.6HG0634290 exhibited peak expression in EPI.
GO classification of candidate protein-coding genes (TPM > 100) within SR resistance QTLs revealed distinct patterns in biological processes, cellular localization, and molecular functions (Supplementary Table 8, Supplementary Figure 2).
The GO analysis revealed that the most enriched biological process categories were related to fatty acid and lipid metabolism, immune and defense responses, and cell wall and structural organization, each represented by 10 or more genes. These results suggested a multifaceted role of metabolic pathways, structural remodeling, and stress signaling in the response to SR resistance. In the molecular function category, the predominant terms were catalytic activity and nucleotide/ATP binding, followed by functions associated with electron transport, glycosylation, and enzyme regulation, reflecting diverse biochemical roles of the candidate genes. For the cellular component category, the majority of gene products were localized to the membrane, macromolecular complexes, and cytoplasmic compartments, with additional enrichment in the cell wall, mitochondrion, and Golgi apparatus.
Overall, the GO annotation suggested that the candidate genes associated with SR resistance QTLs were primarily involved in metabolic and enzymatic functions (especially lipid and carbohydrate metabolism) and were distributed across key cellular structures, including membranes, the cell wall, and the extracellular matrix.
A weighted gene co-expression network (Figure 8) was generated based on expression data from 16 tissues/organs to uncover co-expression patterns and identify functionally related gene clusters associated with two stable QTLs – Q_rpg_5H.1 and Q_rpg_7H.1.

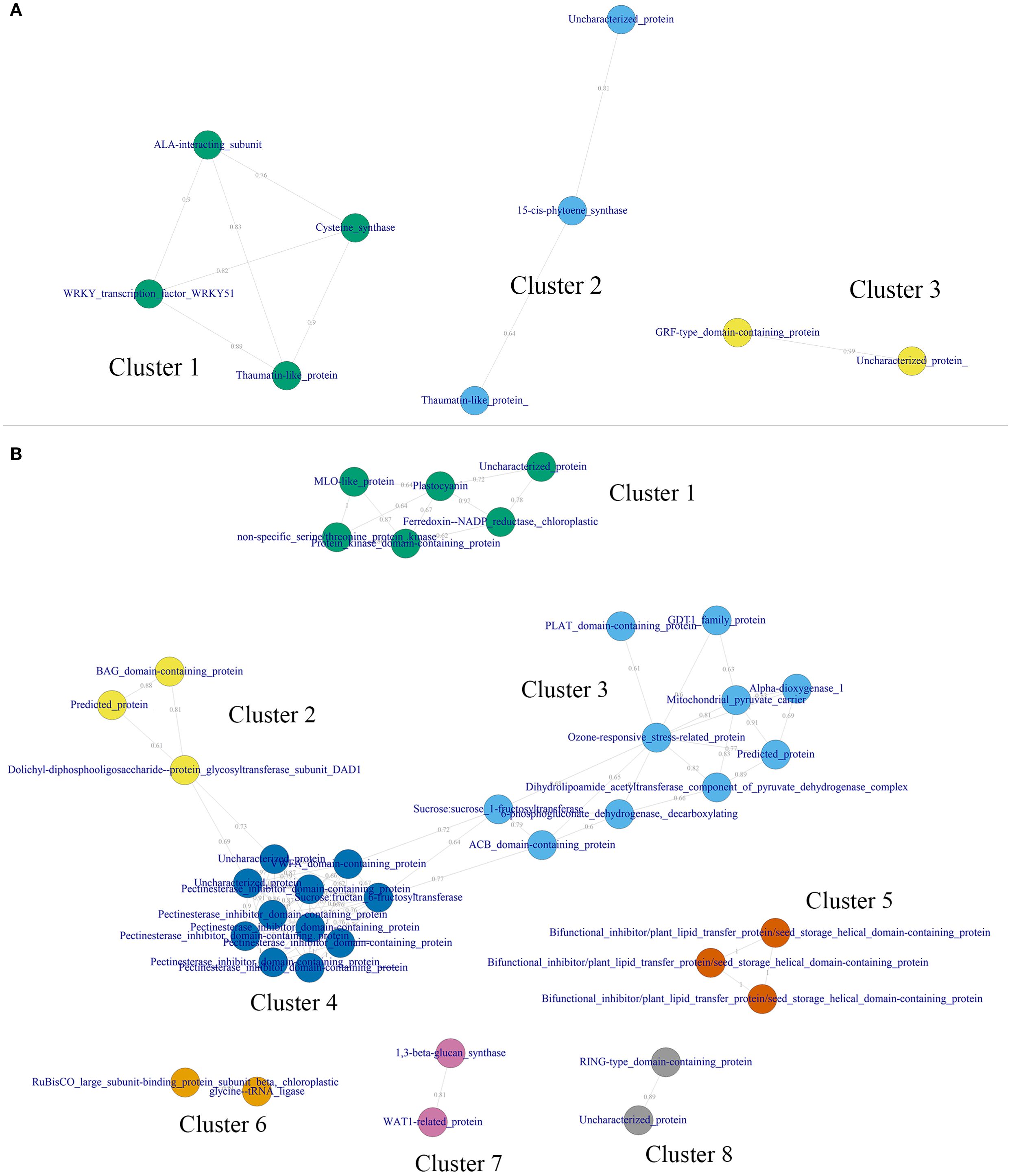

Figure 8. Gene co-expression network for highly-expressed genes (TPM > 100) in QTLs Q_rpg_5H.1 (A) and Q_rpg_7H.1 (B). Colored nodes denote genes. Numbers on the edges are Pearson’s r-values.
For Q_rpg_5H.1, three gene co-expression clusters were identified, comprising four (Cluster 1), three (Cluster 2), and two (Cluster 3) genes, respectively (Figure 8A). Cluster 1 included genes involved in transcriptional regulation (WRKY51), direct antifungal activity (thaumatin-like protein), membrane transport (ALA-interacting subunit), and supportive primary metabolism (cysteine synthase). Cluster 2 also contained a thaumatin-like protein, along with 15-cis-phytoene synthase and an uncharacterized gene. Cluster 3 comprised a GRF-type domain-containing protein and another uncharacterized gene.
For Q_rpg_7H.1, eight clusters were identified, with gene counts ranging from 2 (Clusters 6–8) to 11 (Cluster 4) (Figure 8B). Clusters 2, 3, and 4 exhibited strong inter-cluster connectivity, forming a meta-cluster. Cluster 4, the largest, contained genes related to cell wall integrity maintenance, including multiple pectinesterase inhibitor domain-containing proteins and a VWFA-domain-containing protein. Cluster 3, interconnected with Cluster 4, comprised genes associated with a metabolic defense module, encompassing energy production and respiration (mitochondrial pyruvate carrier, pyruvate dehydrogenase, oxidative pentose phosphate pathway), oxidative stress responses (α-dioxygenase 1, ozone-responsive protein, NADPH-generating enzymes), lipid-based signaling (PLAT and ACB domain-containing proteins), calcium signaling and transport (GDT1), and carbon storage and redistribution (fructosyltransferases). The smallest member of the meta-cluster, Cluster 2, included three genes involved in stress-induced signaling and regulation of programmed cell death. Additionally, Cluster 1 consisted of six genes implicated in photosynthetic energy supply, redox homeostasis, and pathogen-triggered signaling, including an MLO-like protein.
Together, the clusters identified within the stable QTLs Q_rpg_5H.1 and Q_rpg_7H.1 reveal a coordinated and multilayered defense architecture in barley, integrating transcriptional regulation, antifungal defense, reinforcement of cell wall structure, energy and redox metabolism, lipid-mediated and oxidative stress responses, and regulation of cell death –underscoring their potential roles in enhancing basal and inducible resistance to stem rust.
4 Discussion
4.1 Phenotypic variation and trait correlations in barley reaction to SR
The evaluation of 273 two-row spring barley accessions across two distinct environments – RIBSP and KRIAPG – revealed substantial phenotypic variation in response to SR, underscoring the genetic diversity of the studied panel. The overall disease severity was lower in RIBSP (mean score 4.4) than in KRIAPG (mean score 5.2), suggesting environmental modulation of Pgt development. Differences in inoculum pressure, microclimate, or pathogen race composition between the two sites may have contributed to these disparities (Abdelghany et al., 2024). This is further supported by the variation in phenotypic distributions (Figures 2A, B): while RIBSP displayed a near-normal distribution centered around moderate scores (peaking at score 4), the bimodal distribution observed in KRIAPG (peaks at 3 and 7) reflects the interaction between genotype and more contrasting environmental and pathogen-related conditions. In the study, 20 genotypes exhibited an R reaction under field conditions of RIBSP and 14 genotypes – R reaction at KRIAPG; however, such responses are typically conferred by major race-specific genes that, while effective, are often rapidly overcome by pathogen evolution (Michel et al., 2023). In contrast, 119 accessions showing MR and 128 accessions with MS reactions at RIBSP, along with 95 MR and 118 MS accessions at KRIAPG (Supplementary Table 4), are of greater breeding relevance. These phenotypes are indicative of partial or slow-rusting resistance mechanisms associated with APR genes. Such resistance reduces the rate of pathogen development without completely preventing infection, thereby providing a more durable and stable defense against stem rust (Michel et al., 2023).
The correlation analysis revealed a significant positive association between PH and SR severity in RIBSP, implying that taller plants were more susceptible (Figure 2C). This could be attributed to microclimatic factors within the canopy (Vidal et al., 2017) or differential exposure to inoculum (Araujo et al., 2023). In contrast, a significant negative correlation between TKW and SR severity (Figure 2C) suggests that disease burden may adversely affect grain filling and productivity. These findings are consistent with prior studies where rust infections were associated with reduced grain yield and kernel weight due to compromised photosynthate allocation and premature senescence (Junk et al., 2016; He et al., 2019; Zhou et al., 2022a). The low correlations between SR and other agronomic traits suggest that SR resistance is most likely genetically independent, supporting the rationale for performing a separate GWAS for this trait.
4.2 Identification of stable and novel QTLs for stem rust resistance
Genotype-based population structure analysis based on kinship and PCA revealed the presence of genetically distinct subgroups within the germplasm collection, likely reflecting differences in geographic origin and breeding history (Figure 3). Similar results were obtained previously with similar barley germplasm (Genievskaya et al., 2022, 2023).
The GWAS conducted using five statistical models across two environments led to the identification of 204 MTAs, among which 96 were considered robust and stable due to their detection by multiple models (Supplementary Table 5). The highest number of associations was detected using the GLM model, although the MLM and multi-locus models (MLMM, FarmCPU, BLINK) provided more stringent control for confounding factors, thereby enhancing the reliability of identified signals. Haplotype-based consolidation of associated SNPs allowed the definition of 19 model-stable QTLs distributed across all seven barley chromosomes. The QTLs Q_rpg_5H.3 and Q_rpg_7H.1 were consistently detected by all five GWAS models in both environments (Table 1), suggesting their strong and environmentally stable contribution to SR resistance. Although only a limited number of studies have focused on QTL mapping and GWAS for SR resistance in barley, the current study identified six candidate SR-resistance QTLs and/or Rpg genes, confirming their stability not only under Kazakhstan’s environmental conditions but also across other global regions (Table 2). Among them, Q_rpg_2H.4 (617.6–617.7 Mb) was located near previously reported SR-resistance QTLs at 612.5 Mb (Czembor et al., 2022) and 616.4 Mb (Amouzoune et al., 2022). Q_rpg_5H.3 (453.3–454.4 Mb) overlapped with a QTL reported at 453.6 Mb (Czembor et al., 2022), while Q_rpg_6H.2 (464.4 Mb) was proximal to an MTA for SR resistance at 471.3 Mb previously identified in Kazakhstan (Turuspekov et al., 2016). Similarly, Q_rpg_7H.4, positioned at 602.0 Mb, was close to a known QTL at 606.1 Mb (Czembor et al., 2022).
The major-effect Q_rpg_7H.1 region encompassed the largest number of linked MTAs (n = 60), which is due to the presence of the strongest gene Rpg1 in this QTL (Figure 6). Position of Q_rpg_6H.1 matched with the position of recessive Rpg6 from H. bulbosum, however, this QTL demonstrated a minor effect only. The remaining QTLs were mapped to genomic regions not previously associated with known Rpg genes and/or QTLs, suggesting the presence of novel loci contributing to barley SR resistance (Table 2).
Together, the identification of both known and potentially novel QTLs provides a valuable genomic resource for breeding SR-resistant barley in Kazakhstan and globally. These findings enhance our understanding of the genetic architecture underlying SR resistance in the diverse barley germplasm grown in the southern and southeastern regions of Kazakhstan, supporting targeted improvement efforts under local agroecological conditions.
4.3 Transcriptional and functional insights into Rpg1-associated QTL Q_rpg_7H.1
Plants manage their growth and defend against various environmental challenges through an intricate regulatory network (Li et al., 2020). Using expression data from 16 tissues across developmental stages, a total of 531 candidate genes within 13 of 19 SR resistance QTL regions were initially identified (Supplementary Table 7). After filtering for high transcript abundance (TPM > 100), 56 highly expressed genes were identified within five QTL regions (Figure 7). Q_rpg_7H.1 and Q_rpg_5H.1 were prioritized as QTLs with the largest number of highly expressed genes (n = 42 and 10, respectively) (Supplementary Table 8) and highest PVE values (0.3063 and 0.3065, respectively) (Supplementary Table 6).
Gene Ontology (GO) enrichment analysis of candidate genes within Q_rpg_7H.1 (which includes Rpg1) revealed significant associations with fatty acid and lipid metabolism, immune and defense responses, and cell wall organization (Figure 8). These findings align with recent studies in cereal rust resistance, where coordinated metabolic changes and cell wall modifications – such as lignin-based barriers in rice (Zhang et al., 2025) and the phenylpropanoid pathway in wheat (Liu et al., 2022) – contribute to durable defense mechanisms. The Q_rpg_7H.1 region formed a meta-cluster (Figure 8B) integrating modules related to cell wall integrity (e.g., pectinesterase inhibitors, VWFA-domain proteins), energy metabolism, oxidative stress response, lipid and calcium signaling, and regulation of programmed cell death. This modular defense architecture is consistent with previous findings in barley, where coordinated gene modules have been implicated in resistance dynamics (Yuan et al., 2018). The Rpg1 gene encodes a receptor-like protein with two tandem serine/threonine protein kinase domains (Brueggeman et al., 2006). Within Q_rpg_7H.1, two candidate genes – HORVU.MOREX.r3.7HG0636000 and HORVU.MOREX.r3.7HG0640060, encoding a protein kinase domain-containing protein and a non-specific serine/threonine kinase, respectively – were highly expressed during the SEN developmental stage (Supplementary Table 8), coinciding with the peak of stem rust infection. Notably, genes containing pectinesterase inhibitor (PEI) domains from Cluster 4 of the meta-cluster (Figure 8B) are implicated in cell wall-based defense and mirror findings at the Rrs2 locus, where PEI genes co-segregated with resistance to Rhynchosporium commune in barley (Marzin et al., 2016), suggesting conserved mechanisms in pathogen defense.
Collectively, the integration of cell wall-associated components (e.g., pectinesterase inhibitors), metabolic pathways (energy metabolism, lipid signaling), oxidative stress response, calcium signaling, and regulators of programmed cell death in the co-expressed clusters of Q_rpg_7H.1 highlights a robust, multilayered defense strategy. This architecture supports both basal and inducible immunity, consistent with the known mechanism of Rpg1-mediated stem rust resistance, which involves early kinase signaling and programmed cell death (Zhang et al., 2008; Shen et al., 2017; Solanki et al., 2019). At the same time, SNPs identified within Q_rpg_7H.1 in the current GWAS represent valuable markers for marker-assisted selection (MAS) of SR-resistant barley genotypes.
4.4 Identification and functional analysis of candidate genes within novel QTL Q_rpg_5H.1
The QTL Q_rpg_5H.1, identified based on resistance data from KRIAPG, was mapped to a 3.5 – 9.9 Mb interval on chromosome 5H, a region where no previously reported Rpg genes or SR resistance QTLs have been described. This QTL includes three linked MTAs detected by all five GWAS models, with P-values ranging from 9.73E-04 to 2.86E-08 (Supplementary Table 6). Expression profiling revealed 151 protein-coding genes within this interval with available transcriptomic data from 16 barley organs and developmental stages. Of these, 10 genes exhibited high expression levels (TPM > 100) and were designated as candidate genes for Q_rpg_5H.1.
Co-expression analysis of these highly expressed genes (Figure 8A) identified three distinct clusters, each potentially contributing to SR resistance. The largest, Cluster 1, comprised four genes: a WRKY51 transcription factor, a thaumatin-like protein, an ALA-interacting subunit, and cysteine synthase. WRKY transcription factors are well-established regulators of plant immune responses, orchestrating downstream signaling and secondary metabolism (Sari et al., 2019). Thaumatin-like proteins, classified as PR-5 proteins, possess direct antifungal properties and are typically upregulated upon pathogen attack, including during powdery mildew infection in wheat (Allario et al., 2023). Cysteine synthase is involved in sulfur amino acid metabolism and has been implicated in redox regulation and stress defense, as demonstrated for barley cystatins (Velasco-Arroyo et al., 2018). The ALA-interacting subunit may contribute to membrane transport or signaling processes associated with defense.
Cluster 2 contained a second thaumatin-like protein, 15-cis-phytoene synthase, and one uncharacterized gene. Phytoene synthase is a central enzyme in carotenoid biosynthesis, a pathway linked to reactive oxygen species (ROS) scavenging and signaling during defense responses (Zhou et al., 2022b), though its role in rust resistance in barley remains to be clarified. Cluster 3 consisted of a GRF-type domain-containing protein and another uncharacterized gene. GRF transcription factors, typically associated with plant growth and organ development, are increasingly recognized for their involvement in stress adaptation and environmental response modulation, including in wheat and rice (Cheng et al., 2023). Taken together, these clusters represent a coordinated defense network comprising classical immune regulators (e.g., WRKY, PR-5), metabolic enzymes (e.g., cysteine synthase), and regulatory proteins (e.g., GRF domains). The modular structure of this co-expression architecture – linking transcriptional regulation, antifungal activity, metabolism, and signaling – parallels systems biology models of cereal-pathogen interactions, where network hubs predict resistance phenotypes [for example, Fusarium head blight resistance in wheat (Sari et al., 2019)]. These findings suggest that Q_rpg_5H.1 represents a previously uncharacterized, multi-functional resistance locus with strong potential for MAS and functional validation in breeding for SR resistance in barley.
5 Conclusion
Among 273 barley accessions evaluated across two environments in Kazakhstan, a wide range of responses to Pgt was observed. A multi-model GWAS approach identified 204 MTAs, among which 96 were considered robust and stable across models, resulting in the delineation of 19 model-stable QTLs distributed across all barley chromosomes. Six of these QTLs overlapped with known Rpg genes or previously reported SR-resistance loci, confirming their stability and effectiveness under diverse environmental conditions. The strongest QTL, Q_rpg_7H.1, coincided with Rpg1, while Q_rpg_6H.1 co-localized with Rpg6. Based on gene expression profiles, major-effect Q_rpg_7H.1 (Rpg1) and the novel major-effect QTL Q_rpg_5H.1 were prioritized due to the presence of the highest number of highly expressed genes. Functional annotation revealed that Q_rpg_7H.1 harbors 42 such genes, forming a multilayered co-expression network associated with cell wall organization, lipid metabolism, oxidative stress response, and programmed cell death – processes central to Rpg1-mediated resistance. The novel QTL Q_rpg_5H.1 contained 10 highly expressed genes grouped into three co-expression clusters, including WRKY transcription factors, PR-5 proteins, and regulatory genes involved in defense signaling and metabolism. These findings support a modular, systems-level defense architecture underlying SR resistance in barley. The study enhances understanding of the genetic architecture of SR resistance in germplasm adapted to the southern and southeastern regions of Kazakhstan and identifies valuable targets for MAS in breeding programs. Further fine-mapping and functional validation of Q_rpg_5H.1 are needed to confirm its causal genes and effectiveness against diverse Pgt races, ultimately contributing to durable resistance under variable agroecological conditions.
