Grading for Grapevine Downy Mildew and Feature Extraction Methods for Predicting Abaxial Lesions from Adaxial Leaf Images

Bohao Liu^1,2Cuiling Li^1*Jianjun Hao²Jian Song³Haowei Liu¹Hongwei Yan¹Changyuan Zhai^2,4*

• ¹Intelligent Equipment Research Center, Beijing Academy of Agriculture and Forestry Sciences, Beijing, China
• ²College of Mechanical and Electrical Engineering, Hebei Agricultural University, Baoding, China
• ³Beijing PAIDE Science and Technology Development Co., Ltd, Beijing, China
• ⁴National Engineering Research Center of Intelligent Equipment for Agriculture (NERCIEA), Beijing, China

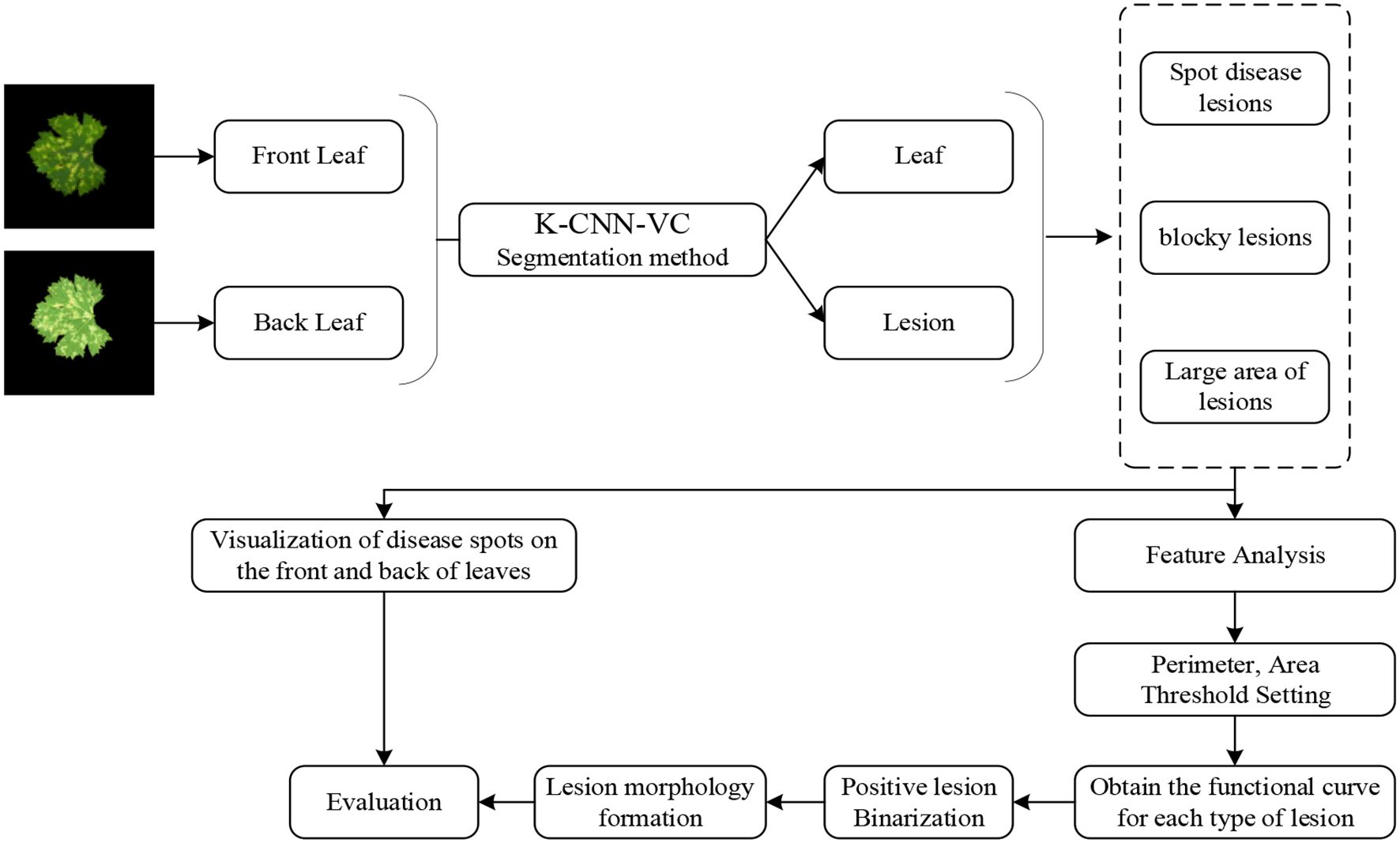

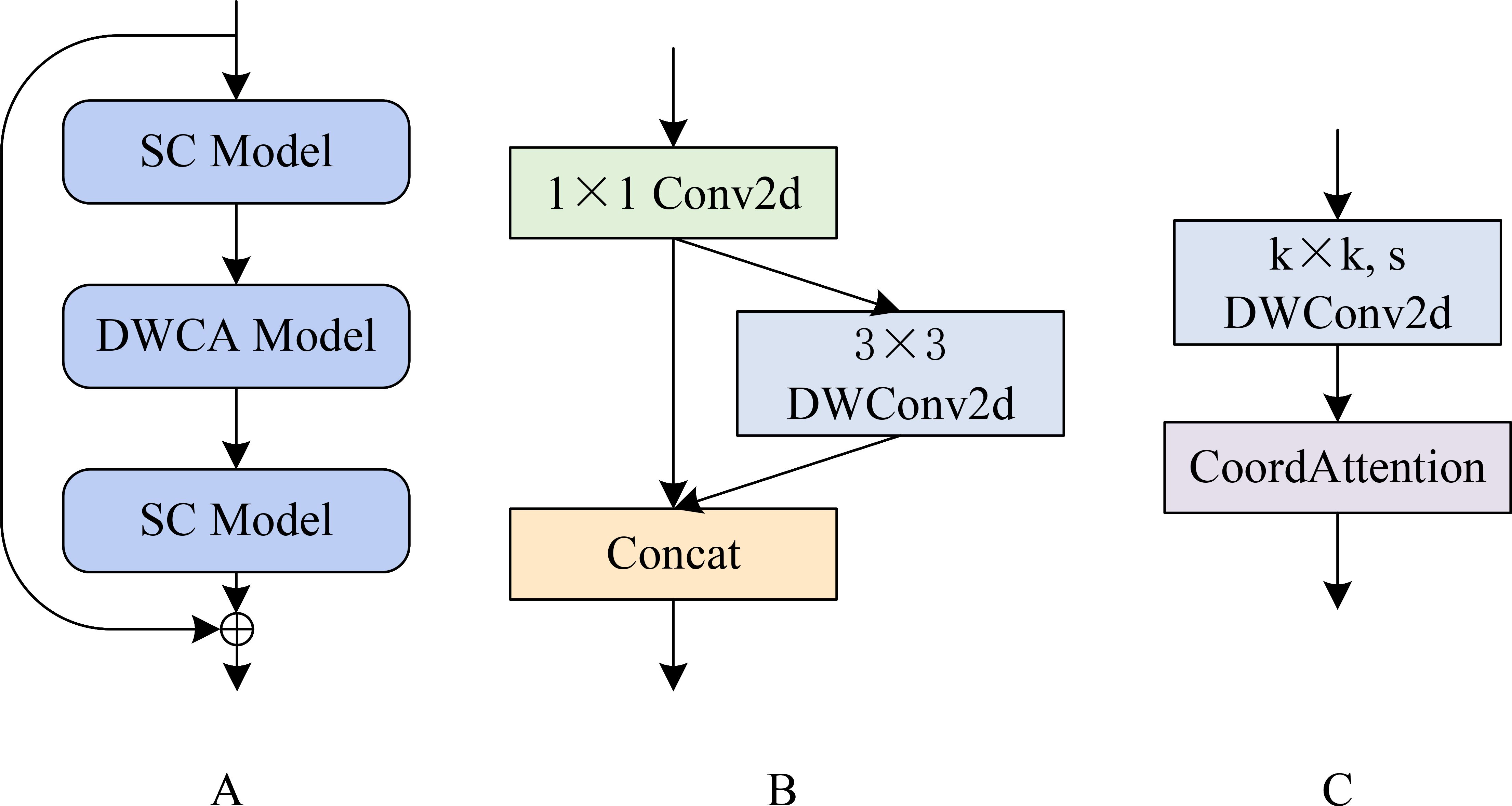

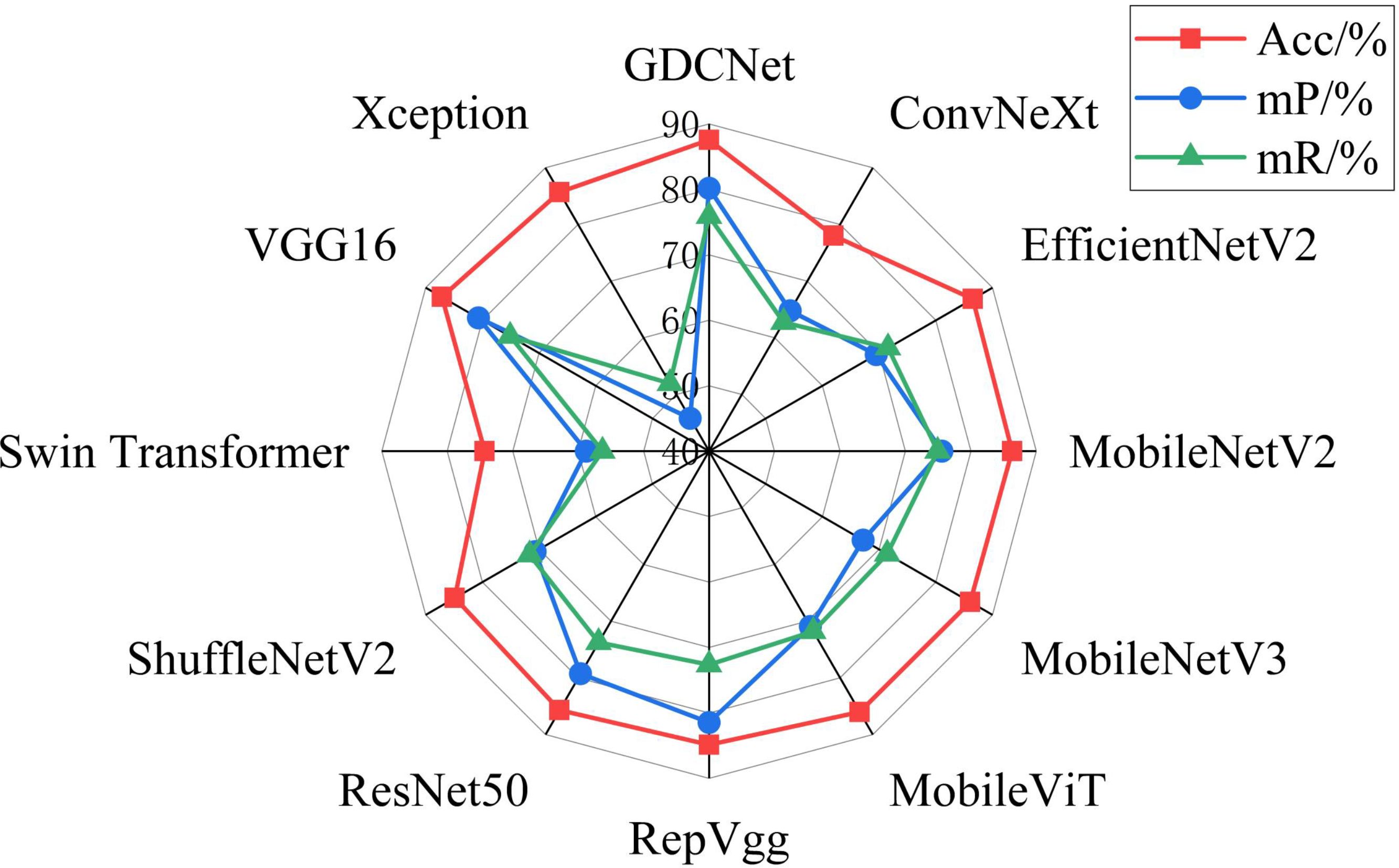

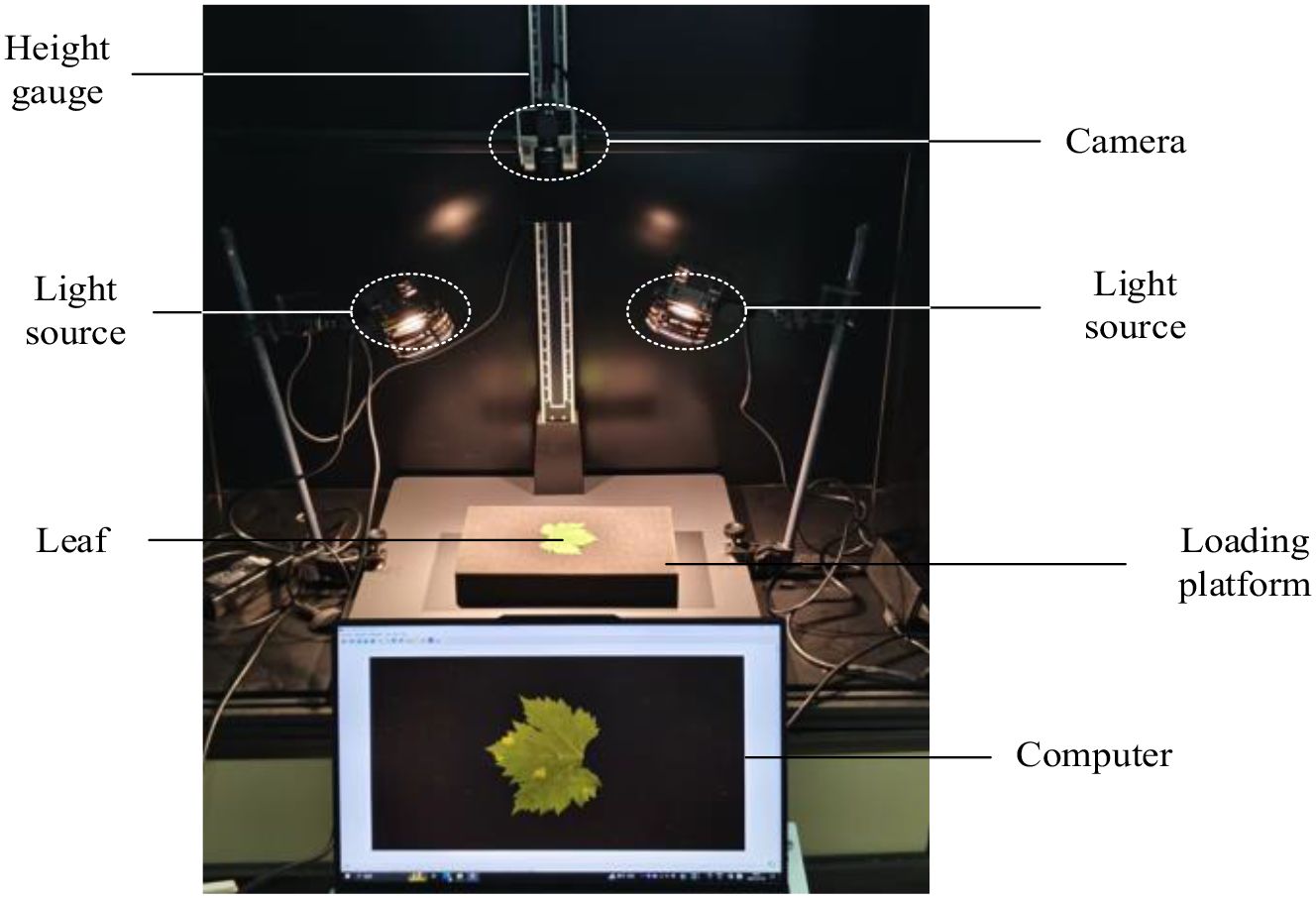

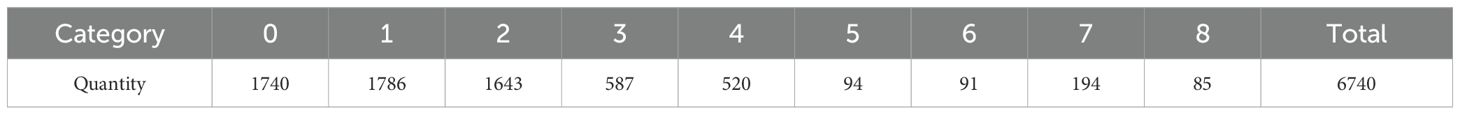

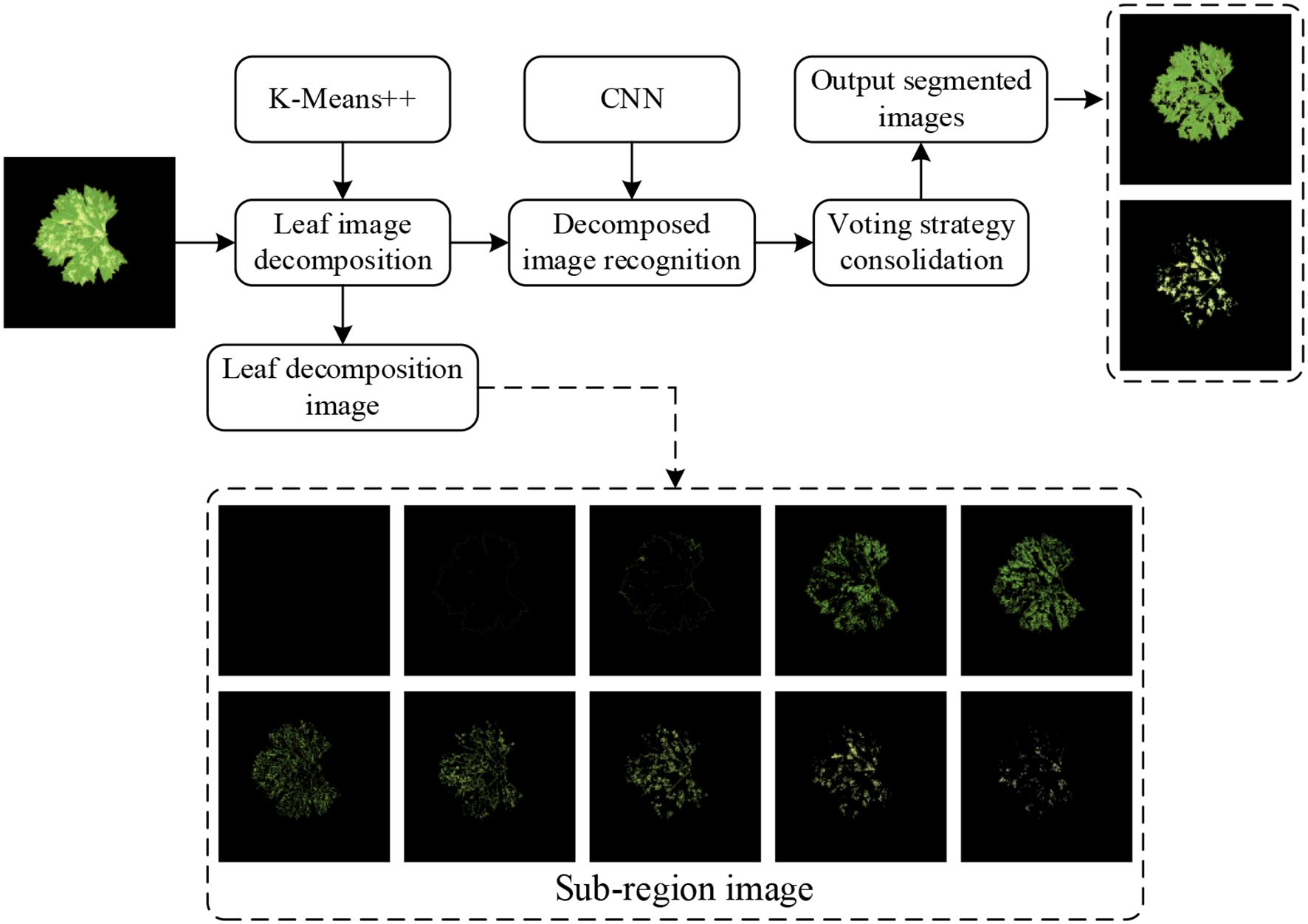

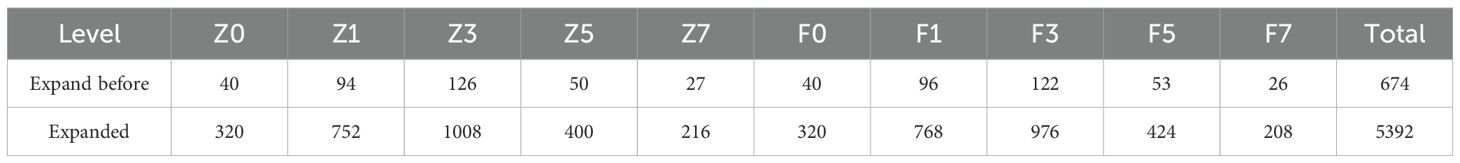

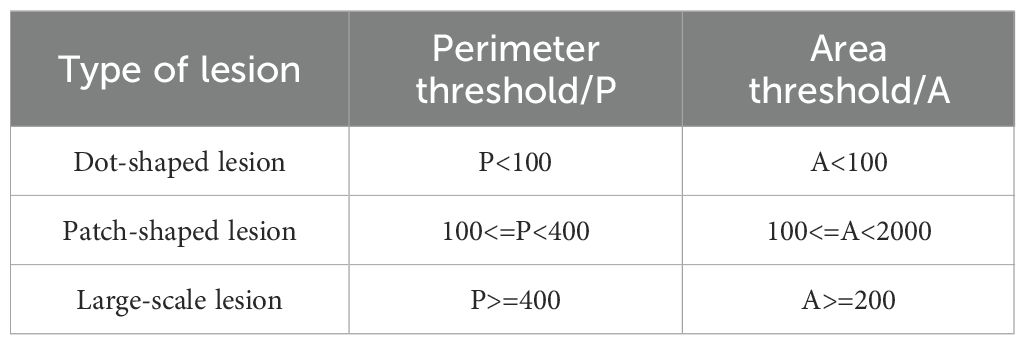

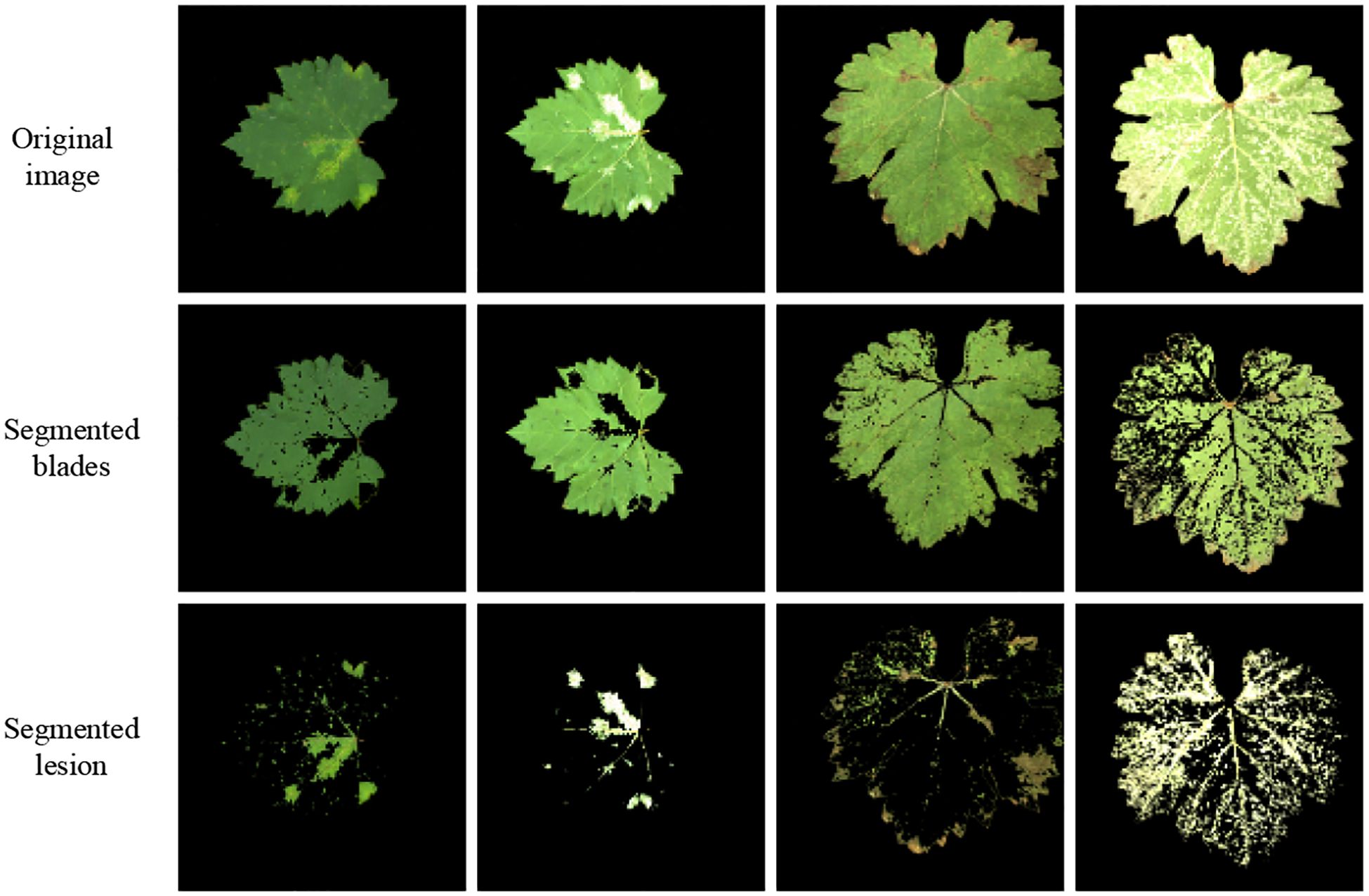

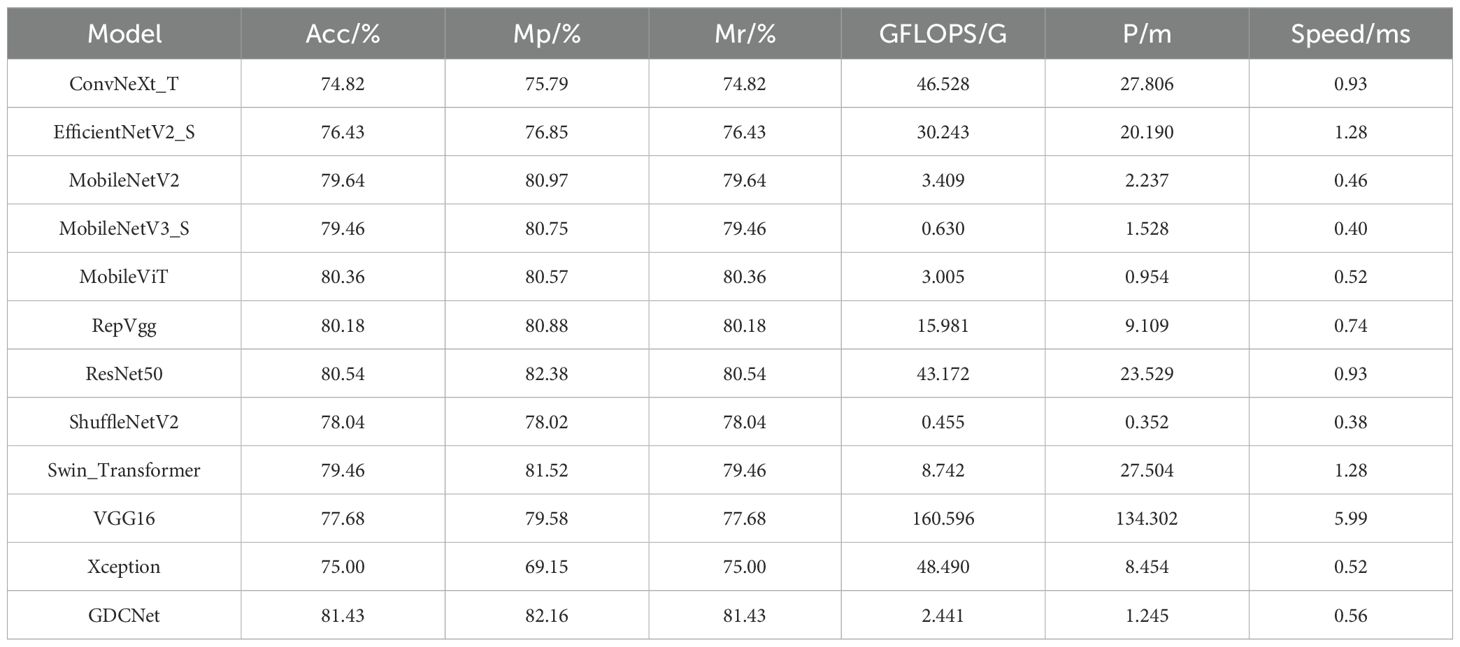

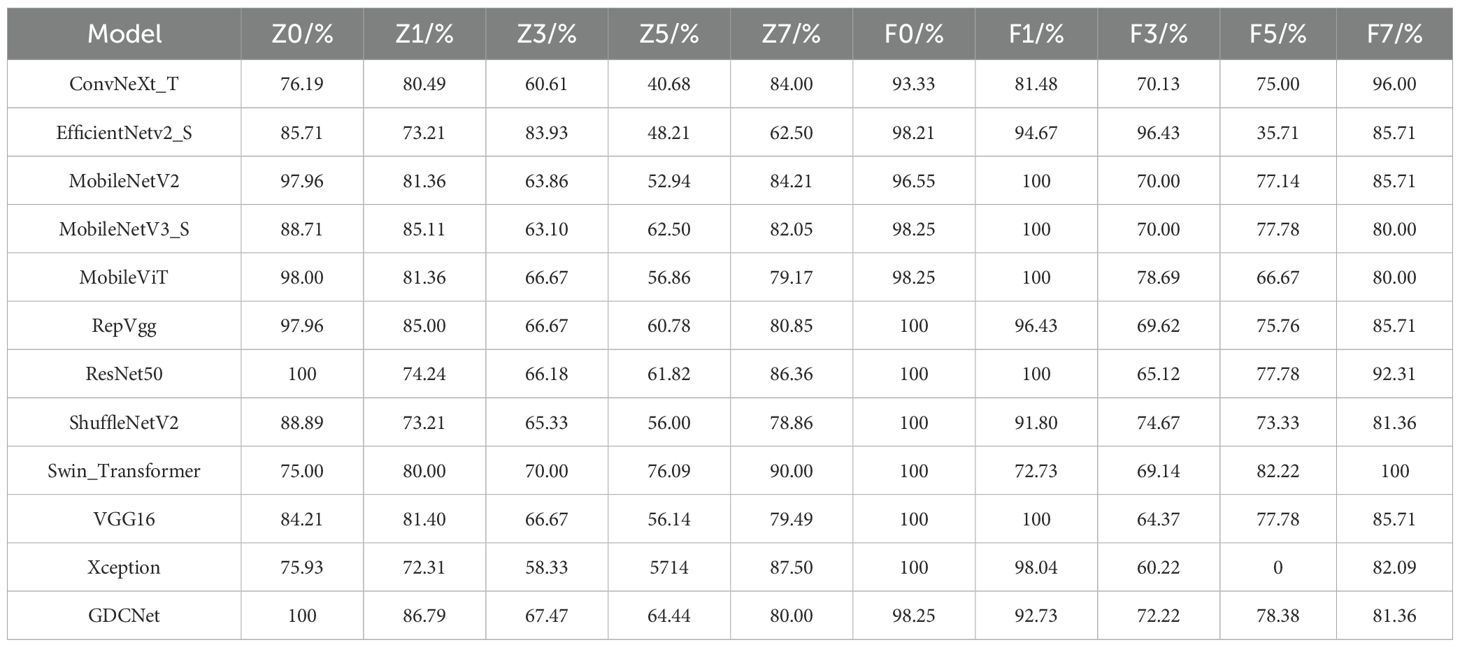

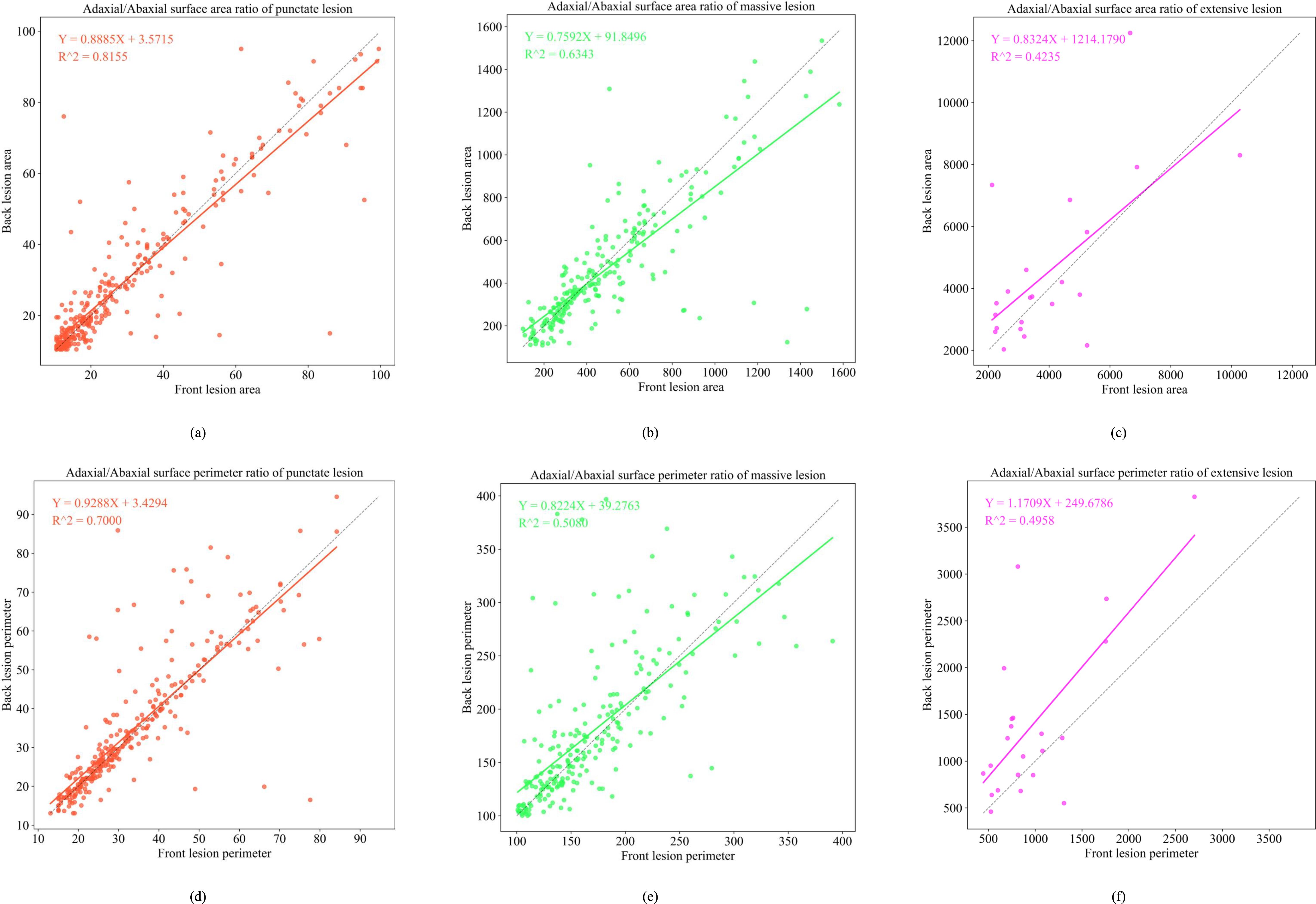

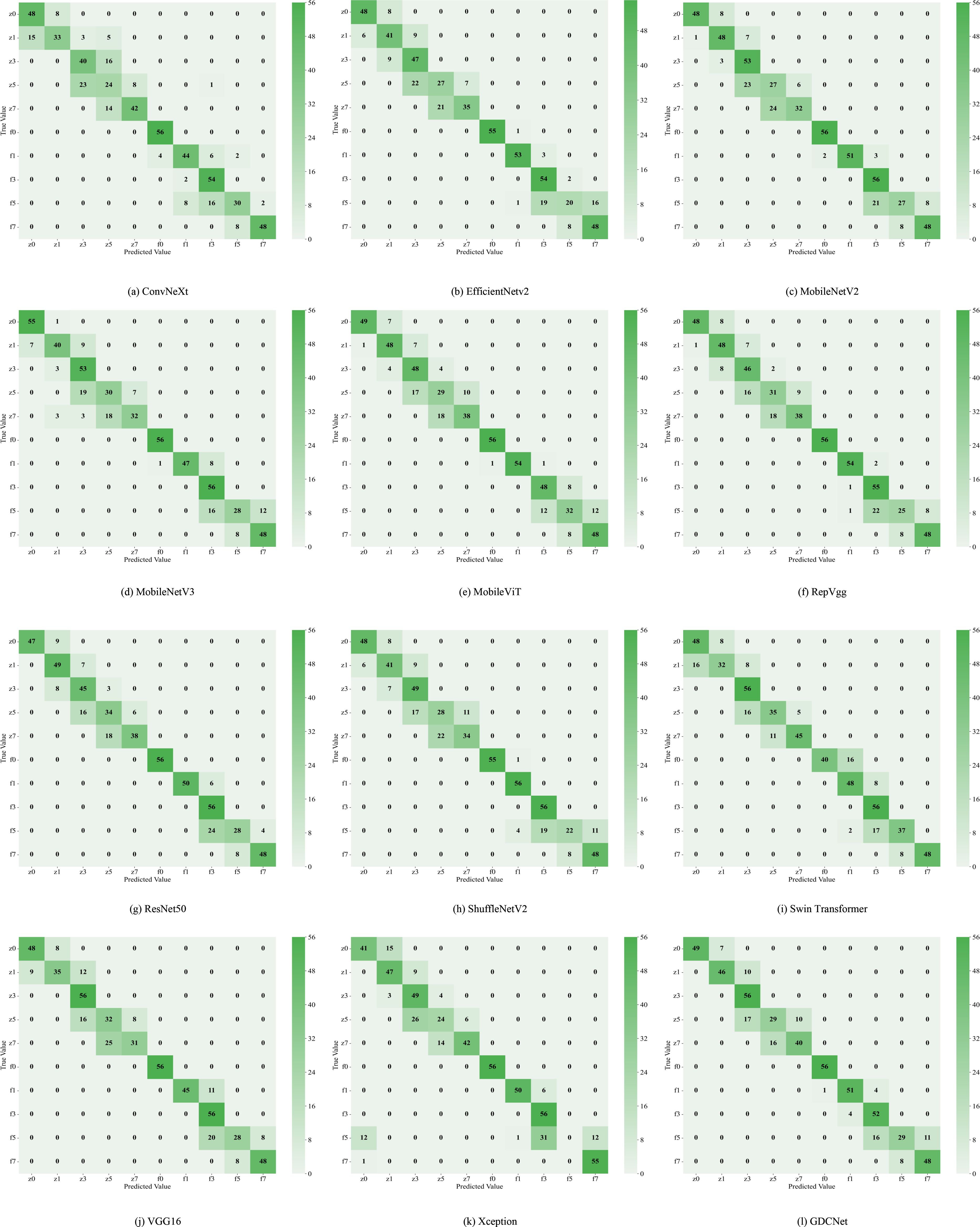

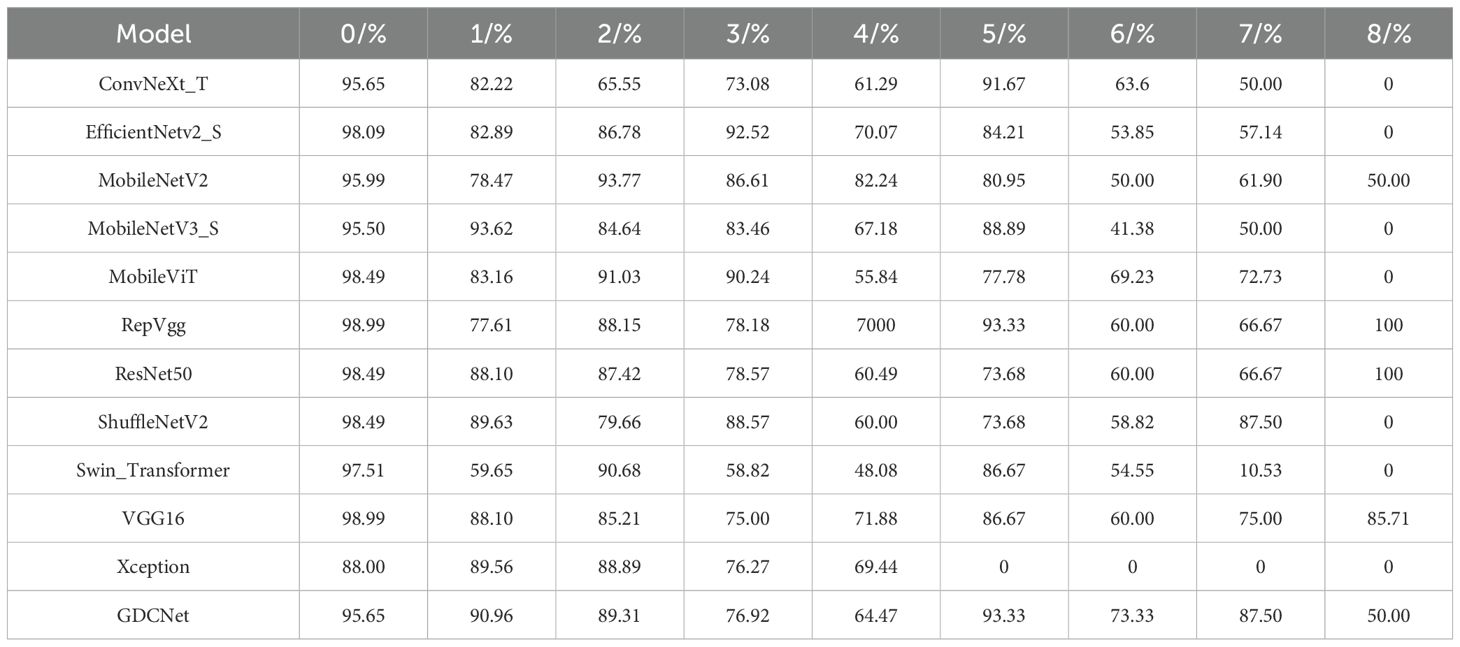

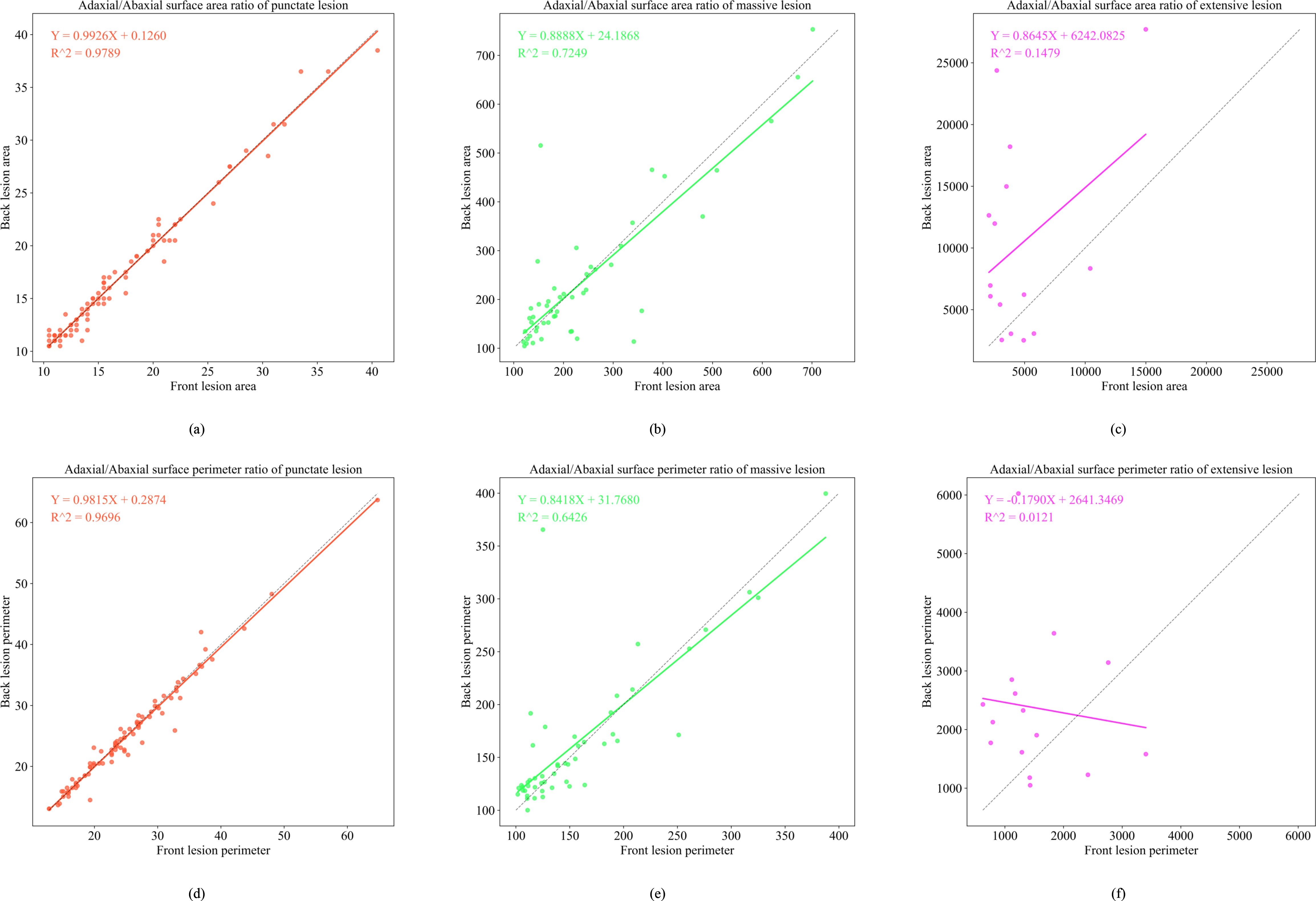

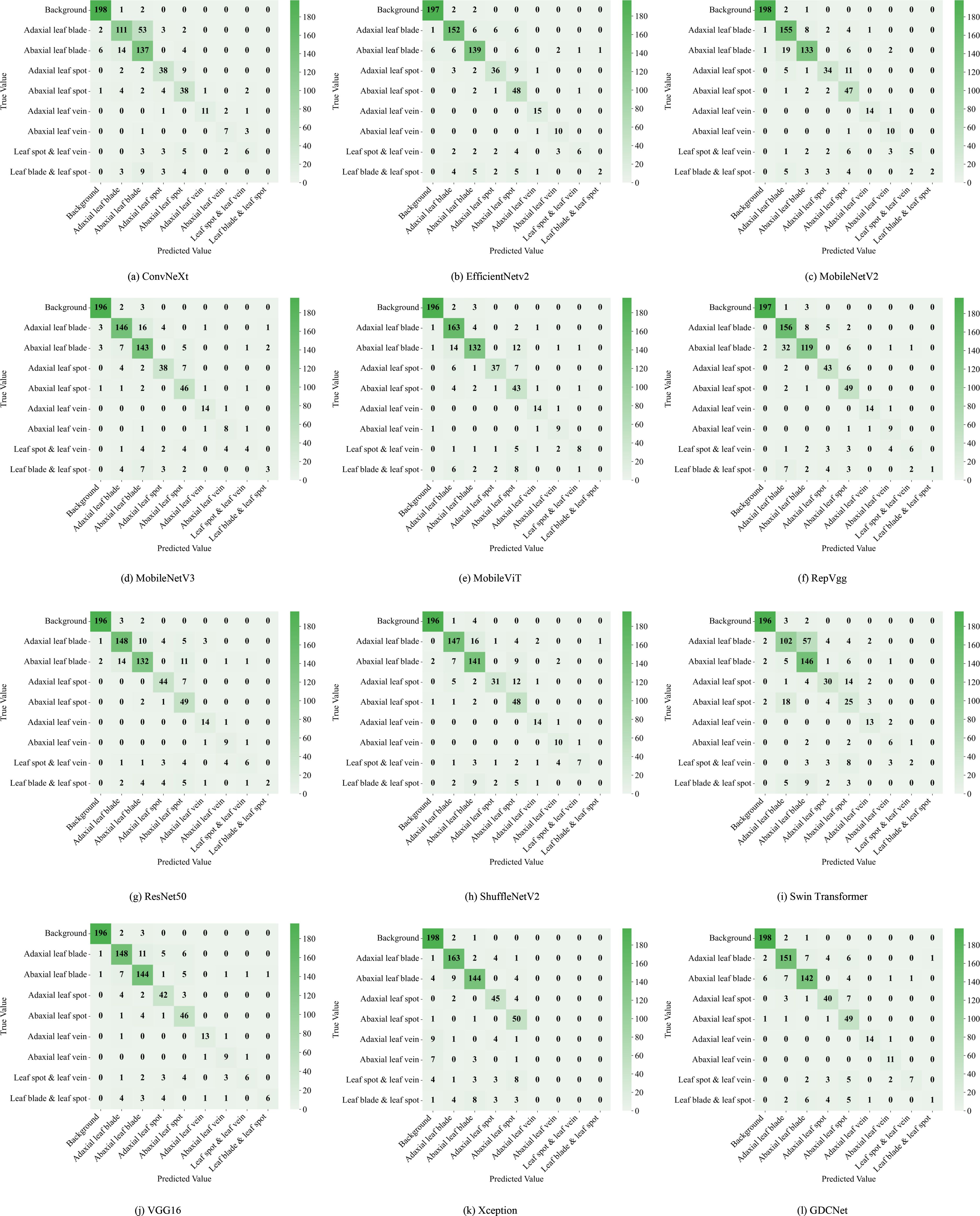

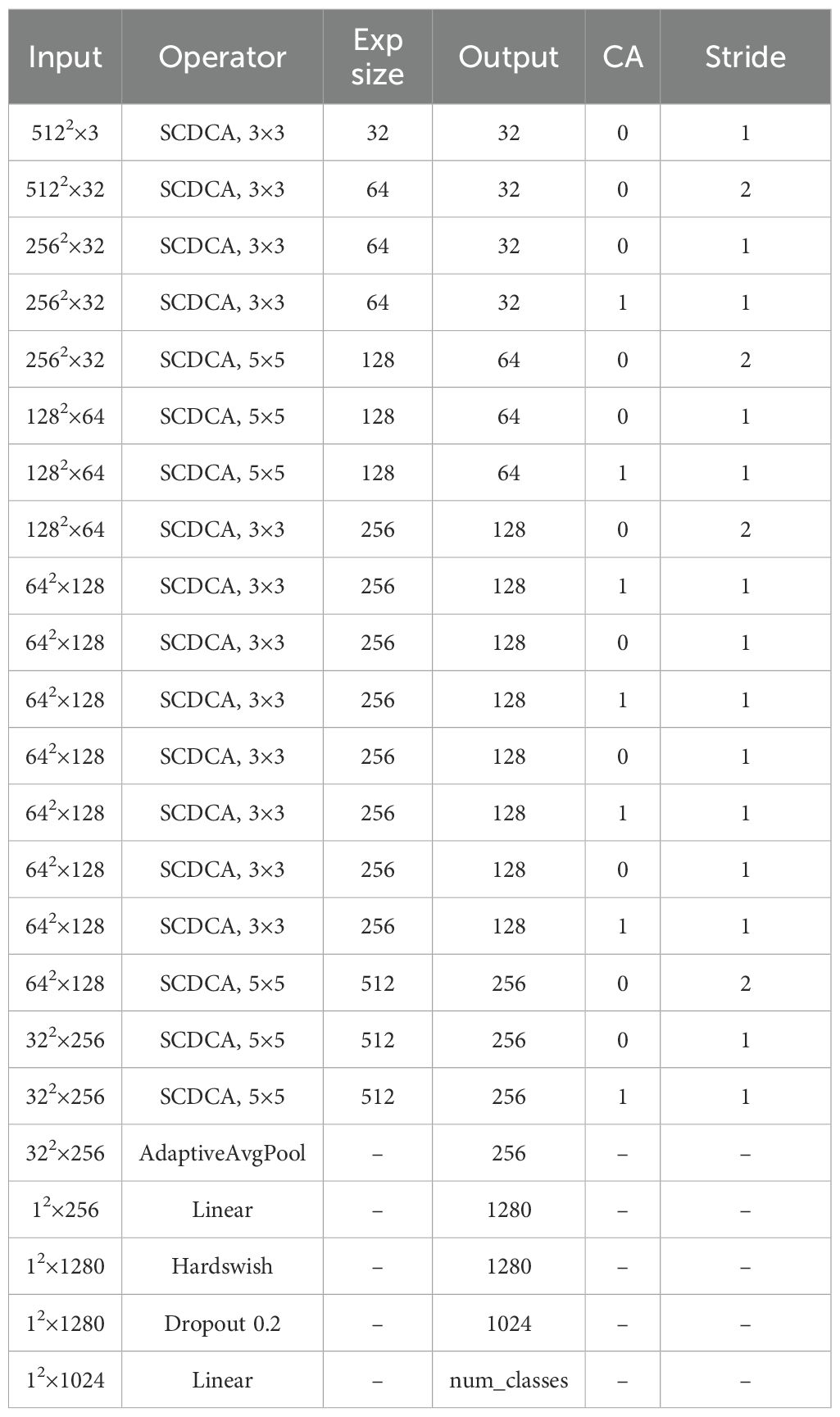

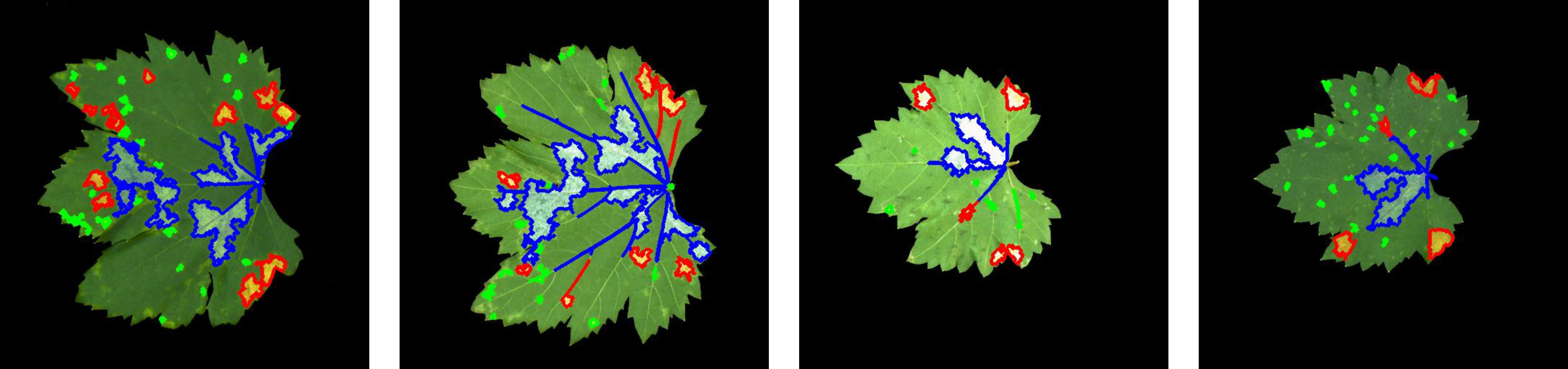

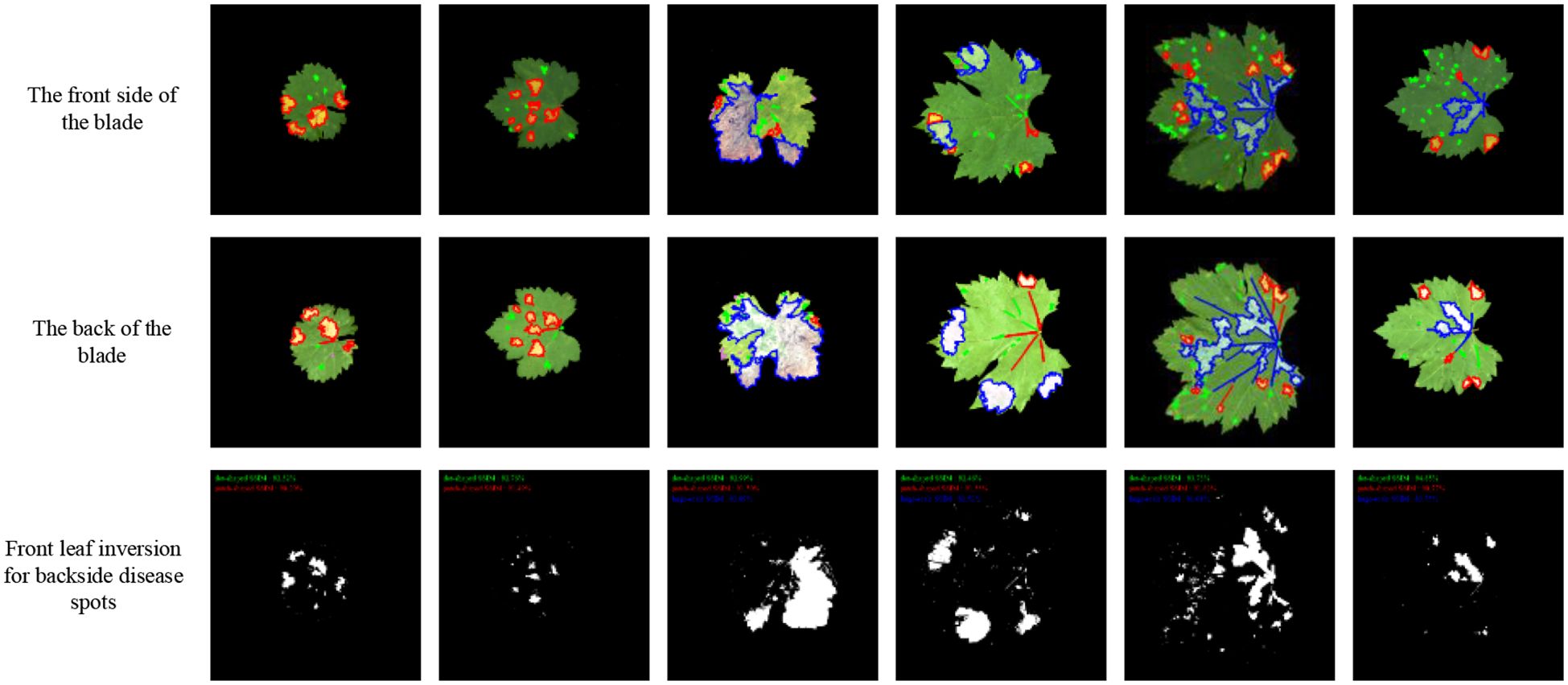

Grading grapevine downy mildew severity is essential for the precise application of pesticides. Since typical symptoms appear on the abaxial (underside) surface of grape leaves, and lesion area proportion determines severity, it is necessary to analyze lesion characteristics and develop adaxial-to-abaxial lesion inversion methods to build lightweight yet accurate grading models. This study proposes a comprehensive disease grading framework for grape downy mildew. First, a convolutional neural network (CNN)-based classification model is developed, incorporating a cross-receptive-field fusion module that combines standard convolution and depthwise separable convolution to enhance semantic richness. A coordinate attention mechanism is also integrated to improve lesion feature extraction. Second, a novel K-Means++-CNN-Vote Consolidation lesion extraction method is introduced. In this framework, K-Means++ segments leaf sub-images, CNNs classify lesion types, and a voting mechanism consolidates results—addressing challenges posed by irregular lesion shapes and blurred boundaries. Finally, an abaxial lesion inversion framework is established by constructing a morphological feature mapping between the adaxial and abaxial surfaces, utilizing mapping functions and lesion generation techniques to infer the abaxial lesion distribution from the adaxial images. Experimental results showed disease grading accuracies of 82.16% (combined adaxial and abaxial), 79.74% (adaxial only), and 84.59% (abaxial only), with a model size of 5.08 MB. Lesion segmentation accuracies reached 89.29% (adaxial and abaxial), 76.92% (adaxial), and 64.47% (abaxial), while the adaxial-to-abaxial lesion inversion achieved an 80% similarity. This study provides methodological support for the online grading of grapevine downy mildew and offers a scientific basis for precise disease control.
