Original Research ARTICLE

Front. Plant Sci., 02 March 2018 | https://doi.org/10.3389/fpls.2018.00269

Expression Patterns and Identified Protein-Protein Interactions Suggest That Cassava CBL-CIPK Signal Networks Function in Responses to Abiotic Stresses

Chunyan Mo, Shumin Wan, Youquan Xia, Ning Ren, Yang Zhou* and Xingyu Jiang*
  • Hainan Key Laboratory for Sustainable Utilization of Tropical Bioresources, Institute of Tropical Agriculture and Forestry, Hainan University, Haikou, China

Cassava is an energy crop that is tolerant of multiple abiotic stresses. It has been reported that the interaction between Calcineurin B-like (CBL) protein and CBL-interacting protein kinase (CIPK) is implicated in plant development and responses to various stresses. However, little is known about their functions in cassava. Herein, 8 CBL (MeCBL) and 26 CIPK (MeCIPK) genes were isolated from cassava by genome searching and cloning of cDNA sequences of Arabidopsis CBLs and CIPKs. Reverse-transcriptase polymerase chain reaction (RT-PCR) analysis showed that the expression levels of MeCBL and MeCIPK genes were different in different tissues throughout the life cycle. The expression patterns of 7 CBL and 26 CIPK genes in response to NaCl, PEG, heat and cold stresses were analyzed by quantitative real-time PCR (qRT-PCR), and it was found that the expression of each was induced by multiple stimuli. Furthermore, we found that many pairs of CBLs and CIPKs could interact with each other via investigating the interactions between 8 CBL and 25 CIPK proteins using a yeast two-hybrid system. Yeast cells co-transformed with cassava MeCIPK24, MeCBL10, and Na+/H+ antiporter MeSOS1 genes exhibited higher salt tolerance compared to those with one or two genes. These results suggest that the cassava CBL-CIPK signal network might play key roles in response to abiotic stresses.

Introduction

Calcium is used by most cells to convert external signals into cytosolic information, which can drive processes that are required for full responses to a particular stimulus (Zhai et al., 2013). Therefore, calcium ions play a crucial role as second messengers in mediating various adaptive responses in plants under environmental stresses. Elevation of the cytosolic calcium concentration is a primary event in the responses to many environmental stresses, such as high salinity, drought and cold (Ma et al., 2010). Transient Ca2+ change may be sensed by several Ca2+-binding proteins including calmodulin (CaM), Ca2+-dependent protein kinases (CDPKs) and calcineurin B-like proteins (CBL) (Luan et al., 2002). Such calcium-binding proteins likely function as sensors that recognize changes in calcium parameters and relay these signals into downstream responses, such as phosphorylation cascades and regulation of gene expression (Sanders et al., 2002; Luan et al., 2009).

CBL proteins are important components of three major classes of Ca2+ sensors that have been characterized in plants. These proteins are most similar to both the regulatory B subunit of calcineurin (CNB) and neuronal calcium sensors (NCS) in animals. CBL proteins contain an important structural component consisting of four EF-hand domains as calcium-binding sites to capture Ca2+ ions (Nagae et al., 2003; Sanchez-Barrena et al., 2005) but do not have enzymatic activity. However, upon Ca2+ binding, these proteins interact with their respective target proteins and modulate their activity. The target proteins interacting with CBLs are a family of protein kinases referred to as CBL-interaction protein kinases (CIPKs), which are most similar to the sucrose nonfermenting (SNF) protein kinase from yeast and AMP-dependent kinase (AMPK) from animals in the kinase domain (Batistic and Kudla, 2009; Luan, 2009). Plant SNF1 related kinase (SnRK) have been grouped into three subfamilies: SnRK1, SnRK2, and SnRK3 (Hrabak et al., 1996). SnRK1 plays a role in regulation of carbon and nitrogen metabolism, and SnRK2 and SnRK3 have roles in stress signaling (Shukla and Mattoo, 2008). The CIPK protein, also known as SnRK3, had a conserved NAF/FISL motif in the C-terminal regulatory domain which is required and sufficient for interacting with CBL-type calcium sensors (Albrecht et al., 2001; Guo et al., 2001). Bioinformatics analyses of Arabidopsis genome sequences showed a complex signaling network comprised 10 CBLs and 26 CIPKs (Drerup et al., 2013). The first CBL-CIPK pathway was identified during screening for the salt overly sensitive (SOS) phenotype in Arabidopsis. In this pathway, a protein kinase complex consisting of AtCBL4 (SOS3) and AtCIPK24 (SOS2) was activated by a salt-stress elicited calcium signal, and then the AtCBL4-AtCIPK24 complex regulated Na+/H+ exchange activity of SOS1 via phosphorylating a serine residue at its C-terminus in Arabidopsis plants under salinity stress (Zhu, 2003; Quintero et al., 2011). AtCBL1 regulated positively the response to salt and drought stresses (Albrecht et al., 2003). In contrast, AtCBL9-AtCIPK3 complex negatively regulated the ABA response during seed germination (Pandey et al., 2008). AtCBL2 interacts with AtCIPK11 and negatively regulates a plasmalemma H+-ATPase AHA2 (Fuglsang et al., 2007). AtCBL10 interacts with SOS2 and recruits SOS2 to the plasma membrane to activate a plasma membrane Na+/H+ antiporter (SOS1) in Arabidopsis shoots, which is similar to the function of SOS3 in roots (Quan et al., 2007). Ren et al. reported that AtCBL10 could regulate K+ homeostasis by directly interacting with AKT1 in Arabidopsis (Ren et al., 2013). AtCBL1/CIPK23 or AtCBL9/CIPK23 complexes could activate the K+ channel AKT1 in the plasma membrane and increased Arabidopsis ability to uptake K+ under low K+ conditions (Xu et al., 2006). AtCBL3 interacts with AtCIPK9 to regulate K+ homeostasis (Liu et al., 2013). AtCIPK24 regulates vacuolar Na+/H+ and Ca2+/H+ exchange activities in Arabidopsis thaliana to promote salt tolerance (Cheng et al., 2004; Qiu et al., 2004). AtCBL1-AtCIPK7 kinase complex had an important role in the plant cold tolerance (Huang et al., 2011). The over-expression of AtCBL5 conferred salt and osmotic tolerances to transgenic Arabidopsis plants (Cheong et al., 2010). A multivalent interacting network comprised of CBL2/3 and CIPK/26 complexes could protect plants from Mg2+ toxicity by sequestrating magnesium (Mg2+) into the vacuolar (Tang et al., 2015). AtCIPK8 might regulate nitrate transport activity of AtNRT1.1 at the low-affinity phase (Hu et al., 2009). Therefore, CBL-CIPK calcium signal pathways play vital roles in plant responses to abiotic stresses. Recently, CBL and CIPK families have been identified in other species, including a total of 10 CBLs and 30 CIPKs in rice (Kolukisaoglu et al., 2004), 7 CBLs and 23 CIPKs in canola (Zhang et al., 2014), and 7 CBLs and 29 CIPKs in wheat (Sun et al., 2015). However, except for Arabidopsis, the studies on the functions of CBL and CIPK proteins from other plants are still quite limited.

Cassava (Manihot esculenta) is one of the most important crop plants. As a food security crop, it provides nourishment for 800 million people around the tropical and sub-tropical world (Oliveira et al., 2014). Cassava is tolerant to environmental stresses such as drought and heat (Zeng et al., 2014). However, the reports about cassava response to abiotic stresses are rare. Therefore, to understand the mechanisms of cassava responses to abiotic stresses, we cloned the CBL (MeCBL) and CIPK (MeCIPK) family genes from cassava and analyzed their expression patterns under different abiotic stresses. Furthermore, we systematically studied the interactions between MeCBLs and MeCIPKs. Through this work, we are attempting to establish the CBL-CIPK network in cassava responses to abiotic stress.

Materials and Methods

Identification of CBL and CIPK Family Genes in Cassava

The protein sequences of 10 CBLs and 26 CIPKs from Arabidopsis (Kolukisaoglu et al., 2004; Drerup et al., 2013) were used as queries to search against the cassava genomic DNA database (http://www.phytozome.net/cassava) using BLASTP with E-value less than 1E-5. The putative cassava CBL and CIPK proteins were further compared with the CBLs and CIPKs from Arabidopsis and rice by constructing a phylogenetic tree using the Neighbor-Joining (NJ) method. MeCBLs and MeCIPKs were then named and classified via referring to their orthologous genes from Arabidopsis and rice using bootstrap replicates of the Maximum Likelihood phylogenetic tree with values higher than 70 as previously described (Yu et al., 2007).

Plant Growth and Gene Cloning

Cassava cultivar SC8 (Manihot esculent Crantz cv. SC8) plants were grown in the field under natural conditions. The roots, stems, young leaves, old leaves, flowers and storage roots from mature plants were collected and immediately stored at −80°C for the RNA extractions. Meanwhile, the explants were cut from the mother plants, and cultivated on the Murashige and Skoog (MS) medium to induce seedlings in a greenhouse with a 16 h/35°C day and 8 h/20°C night, and a relative humidity of 70%. Forty-day-old seedlings in MS medium were treated with 200 mM NaCl or 20% PEG (polyethylene glycol 6000) at normal temperature. For temperature treatment, the seedlings were cultured under 42° and 4°C conditions. The roots and leaves were harvested at different time intervals (0, 3 and 9 h) and stored at in −80°C immediately for the RNA extraction.

Total RNA was extracted from the M. esculent plants using an RNA extraction kit (Tiangen, China). Complementary DNA (cDNA) was synthesized with total RNA as template using the PrimeScript RT reagent kit (TaKaRa, Japan). The gene specific primers of MeCBL and MeCIPK genes were designed using Primer Premier 5 software. Primers used in this study are shown in Table S1. MeCBLs and MeCIPKs were amplified by polymerase chain reaction (PCR) from cDNA mixtures. The PCR amplification conditions were initiated at 94°C for 5 min, followed by 35 cycles of 94°C for 30 s, 50°–60°C (depends on the TM value of gene-specific primers) for 30 s, 72°C for 1 min per kilo-base pair (kb), then a final extension at 72°C for 10 min. The PCR products were then examined by electrophoresis and sequenced.

Bioinformation Analysis

The isoelectric point (pI) and molecular weight (MW) of each MeCBL and MeCIPK protein were predicted using the ExPASy tool (http://web.expasy.org/protparam/). The palmitoylation sites and myristoylation sites were predicted by CSS-Palm 3.0 (http://csspalm.biocuckoo.org/). Predictions of motifs were generated using MEME (Multiple Em for Motif Elicitation) program (http://meme-suite.org/tools/meme). Gene structures of MeCBLs and MeCIPKs were analyzed using the Gene Structure Display Server (GSDS 2.0, http://gsds.cbi.pku.edu.cn/). Sequence alignments were predicted by the DNAMAN software. The classification and naming of MeCBL and MeCIPK proteins were performed as described in the above section “Identification of CBL and CIPK Family Genes in Cassava.” The cis-acting elements in the 2,000 bp upstream sequences of coding region of cassava MeCBL and MeCIPK genes (http://www.phytozome.net/cassava) were analyzed using the PlantCARE software (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/) as previously reported (Xi et al., 2017).

Gene Expression Analysis

To analyze the tissue specificity of MeCBL and MeCIPK, the expression levels in different tissues were examined by semi-quantitative RT-PCR. The housekeeping gene Actin was used as an internal control. The primers are shown in Table S1. The PCR conditions were as follows: 95°C for 5 min; 95°C for 45 s, 56°C for 30 s, 72°C for 45 s for 28 cycles; and a final extension of 72°C for 5 min. The PCR products were examined on 2% agarose gel and photographed under UV light.

Forty-day-old seedlings were treated with different stresses as described above. Then, the roots and leaves were collected. Quantitative real-time PCR (qRT-PCR) was performed using an ABI 7900HT system (TaKaRa, Japan). The qRT-PCR amplification conditions were as follows: 95°C for 1 min, followed by 45 cycles at 95°C for 5 s and 60°C for 30 s. A dissociation curve from 60° to 95°C was generated to verify the primer specificity. The relative expression levels were calculated by the 2−ΔΔCT method. Three replicate biological experiments were conducted. Primers used in this study are shown in Table S1.

Yeast Two-Hybrid Assays

The MatchMaker yeast two-hybrid system (Clontech, USA) was used to examine protein interactions. Firstly, the MeCBL genes were inserted into the pGBKT7 vector and the MeCIPK genes were cloned into the pGADT7 vector. Primers used in this study are shown in Table S1. Then, the plasmids were transformed into the yeast strain Y2HGold according to the Yeast Protocols Handbook (Clontech). After screening on SD medium lacking leucine and tryptophan (SD-L-T, DDO), the positive clones were examined using PCR. Subsequently, the positive clones were incubated in DDO medium at 28°C for 1 day. Aliquots (10 μL) were spotted onto non-selective medium (DDO) and selective medium (lacking leucine, tryptophan, histidine and adenine, SD-L-T-H-A, QDO) supplemented with 40 μg/mL X-α-Gal and 125 ng/mL aureobasidin A and incubated for 5 days before being photographed.

Yeast Complementation Test

The coding sequence of cassava Na+/H+ antiporter gene MeSOS1 was obtained from the cassava genomic DNA database (http://www.phytozome.net/cassava) using AtSOS1 sequence as a query (Quan et al., 2007; Quintero et al., 2011), And then the MeSOS1 gene was inserted into the yeast expression vector pYPGE15. The full length coding regions of genes MeCIPK24 and MeCBL10 were cloned by PCR using the primers shown in Table S1 and then inserted into the yeast expression vector p414, respectively. The three plasmids (p414-MeCIPK24, p414-MeCBL10 and pYPGE15-MeSOS1) were co-transformed into the yeast strain AXT3K (ena1:: HIS3:: ena4, nha1::LEU2, and nhx1::KanMX4) lacking the endogenous NHX1 protein, the plasma membrane Na+ efflux transporters NHA1 and the sodium pumps ENA1-4 according to the previous report (Zhou et al., 2015). The positive clones were screened on YNB medium (0.17% yeast nitrogen base without amino acids, 0.5% ammonium sulfate, 2% glucose) and yeast complementation tests were analyzed on AP medium (0.174% arginine, 2% glucose, 8 mM H3PO4, 2 mM MgSO4, 0.2 mM CaCl2, 1 mM KCl, 1 × trace elements and 1 × vitamins) with different NaCl concentrations (Zhou et al., 2015). After incubation for 5 days at 28°C, the growth was imaged and analyzed.

Statistics Analysis

The real-time PCR data were determined with the SDS plate utility software version 2.4. Data were analyzed using Microsoft Excel and Statistical Package for the Social Sciences (Chicago, IL, USA). The means were separated using Student's t-test at the 5% level of significance.

Results

Identification of CBL and CIPK Family Genes in Cassava

In order to identify the CBL and CIPK genes from cassava, 10 CBL and 26 CIPK protein sequences from Arabidopsis were used as queries to run BLAST searches using the cassava genomic DNA database (http://www.phytozome.net/cassava). As a result, 8 CBLs (MeCBL1 to MeCBL10, except for MeCBL3 and MeCBL7) and 26 CIPKs were identified and named based on the similarities to Arabidopsis orthologs with Me standing for Manihot esculent (Table 1). The detailed information, including protein length, isoelectric point (pI), molecular weight (MW), palmitoylation sites and myristoylation sites, of the identified MeCBLs and MeCIPKs is listed in Table 1. The MW of the predicted MeCBL proteins ranged from 24.50 to 28.74 kD and of the MeCIPK proteins ranged from 40.94 to 56.05 kD.

TABLE 1
www.frontiersin.org

Table 1. Features of CBL and CIPK genes in cassava.

Furthermore, sequence alignments of the multiple amino acids between MeCBLs and AtCBLs are shown in Figure 1. The results indicate that the sequences of MeCBLs are highly conserved: all the MeCBLs containing four EF hand motifs, which are similar to the AtCBLs EF-hand motifs. The MeCBL proteins also have conserved linkers between each EF motif. There are 22 amino acids between EF1 and EF2 domains, 25 amino acids between EF2 and EF3 domains, and 32 amino acids between EF3 and EF4 domains (Figure 1). However, there are 32 amino acids between EF2 and EF3 domains in the MeCBL5 protein (Figure 1). In addition, seven CBLs have palmitoylation sites, but MeCBL6 does not; five CBLs have a myristoylation site in the N-terminal domain, but MeCBL4, MeCBL6 and MeCBL10 do not (Figure 1, Table 1).

FIGURE 1
www.frontiersin.org

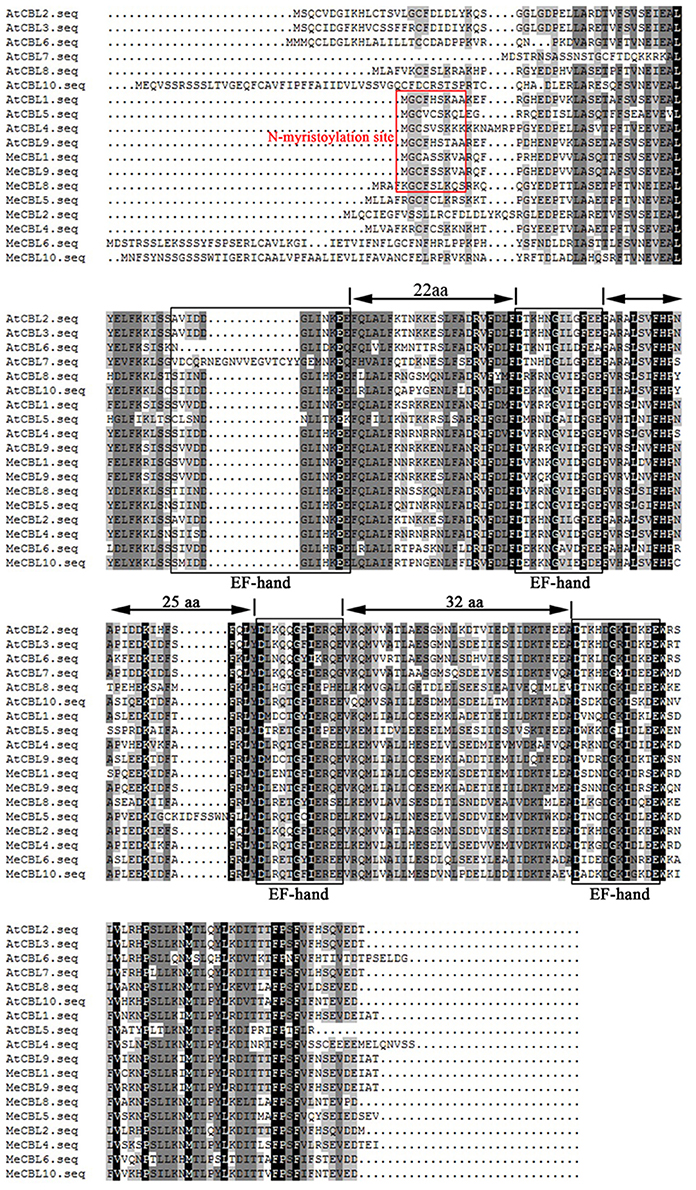

Figure 1. Multiple sequence alignment between cassava and Arabidopsis CBL proteins. Sequence alignment was performed using DNAMAN 5.0 software. Identical amino acids are shaded in black, and similar amino acids are shaded in gray. The four EF hand motifs are indicated by black boxes. The myristoylation sites are in the red box.

Similarly, the alignment results showed that all the MeCIPKs contain an N-terminal catalytic kinase domain and a C-terminal regulatory domain, which are jointed by a variable domain. The NAF/FISL motif is conserved in all the MeCIPKs (Figure 2). This motif has been reported to be necessary for mediating interactions between CIPK and CBL proteins (Albrecht et al., 2001; Guo et al., 2001). Sequence analysis also showed that a protein-phosphatase interaction (PPI) motif is conserved in the C-terminus of the kinases (Figure 2). In addition, eight CIPKs, including MeCIPK4, 6, 10, 11, 18, 21, 23, and 24, have palmitoylation sites. Nine CIPKs, including MeCIPK2, 13, 15, 16, 17, 18, 20, 21, and 23, have a myristoylation site in the N-terminal domain. MeCIPK1, 6 and 8 have two myristoylation sites in the N-terminal domain (Table 1).

FIGURE 2
www.frontiersin.org

Figure 2. Multiple sequence alignment between cassava and Arabidopsis CIPK proteins. Sequence alignment was performed using DNAMAN 5.0 software. Identical amino acids are shaded in black, and similar amino acids are shaded in gray. The NAF/FISL and PPI motifs are indicated by black boxes. The conserved amino acids in the motifs are indicated by asterisk.

Phylogenetic Analysis of Cassava CBL and CIPK Proteins

To investigate the evolutionary history between cassava CBL and CIPK proteins and other species, a Neighbor-Joining phylogenetic tree was constructed using CBL and CIPK protein sequences from cassava, Arabidopsis and rice. The CBL and CIPK family proteins were clustered into four (Figure S1) and five (Figure S2) groups, respectively. The results showed that MeCBL6 and MeCBL10 are clustered in group I and were identified as orthologous with AtCBL10 and OsCBL10. MeCBL2 is homologous to AtCBL2 in group II. In group III, MeCBL1 and MeCBL9 are close to AtCBL1 and AtCBL9. MeCBL4 and MeCBL5 are similar in sequence and homologous to AtCBL4, and MeCBL8 is close to AtCBL8. MeCBL4 and MeCBL5 formed in Group IV. A phylogenetic tree showed that the CIPK family contains five groups (Figure S2). Group A includes MeCIPK1, 3, 8, 9, 17, 21, 22, 23, 24, and 26. Group B contains MeCIPK4, 6, 7 and 18. Group C contains MeCIPK2, 5, 10, 13, 15, 16, 20, and 25. Group D contains MeCIPK11 and MeCIPK14. Group E contains MeCIPK12 and MeCIPK19.

In addition, closely-related orthologous pairs of CBLs and CIPKs were identified between cassava and Arabidopsis, with bootstrap values higher than 80, such as for MeCBL8 and AtCBL8 (Figure S1), MeCIPK8 and AtCIPK8, MeCIPK21 and AtCIPK21, MeCIPK24, and AtCIPK24 (Figure S2). These results suggest that an ancestral set of CBL and CIPK genes existed prior to the divergence of cassava and Arabidopsis.

Gene Structure and Conserved Motifs of Cassava MeCBLs and MeCIPKs

In order to investigate the structural features of cassava CBL and CIPK genes and proteins, intron/exon organization and conserved motifs were investigated by GSDS and MEME software, respectively. As shown in Figure 3A and Figure S3A, there are twelve motifs in MeCBL proteins. All MeCBL proteins contain motif 1 to motif 4, which were annotated as the four EF-hand domains (Figure 1, Figure S3A). Motif 10 is only found in group I, including MeCBL6 and MeCBL10, and the motif 11 is only present in MeCBL4 and MeCBL5 belonging to Group IV, which suggests that these motifs play specific roles in the corresponding groups. Furthermore, the intron/exon structural analyses revealed that all the MeCBL genes contain seven introns, except that genes in group I have eight introns (Figure 3B).

FIGURE 3
www.frontiersin.org

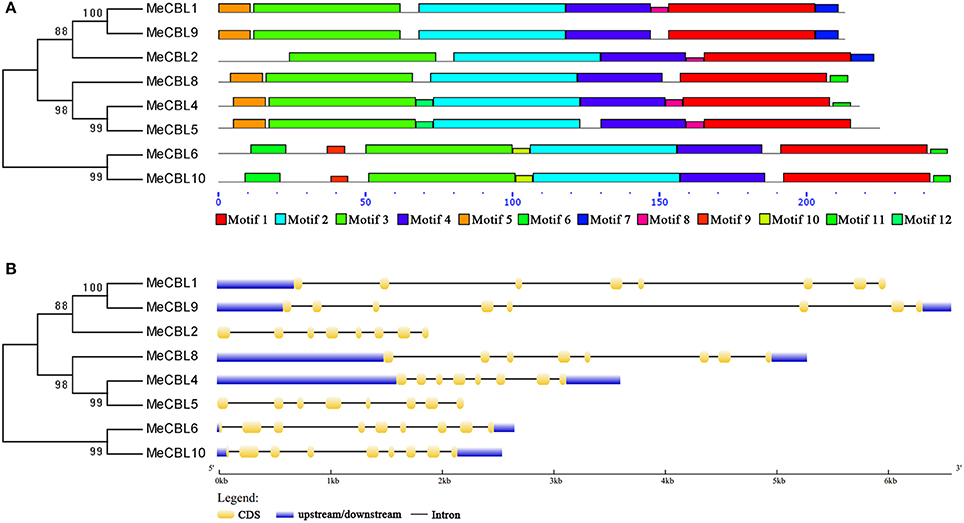

Figure 3. Conserved motifs (A) and gene structures (B) of cassava CBL proteins and genes, respectively. (A) The conserved motifs were identified using the MEME program and are arranged according to the phylogenetic tree. Different motifs are highlighted with different color boxes. The length of boxes corresponds to motif length. (B) The gene structures were drawn using the GSDS program and arranged according to the phylogenetic tree. The yellow boxes represent exons, the blue boxes represent upstream and downstream UTRs and the lines represent introns.

Eighteen motifs were identified in MeCIPK proteins (Figure 4A, Figure S3B). Of them, motif 9 is the NAF/FISL domain and it is widely distributed in all MeCIPKs. Motif 8, which is annotated as a PPI domain for phosphatase interaction, is also widely distributed in MeCIPK proteins except for MeCIPK3, MeCIPK4 and MeCIPK7 (Figure 4A). Furthermore, the GSDS software predicted that the intron-rich MeCIPK genes cluster in group A, but the number of introns varied from nine to thirteen. Genes in the other four groups (B, C, D and E) have no introns except that MeCIPK7 has one intron (Figure 4B).

FIGURE 4
www.frontiersin.org

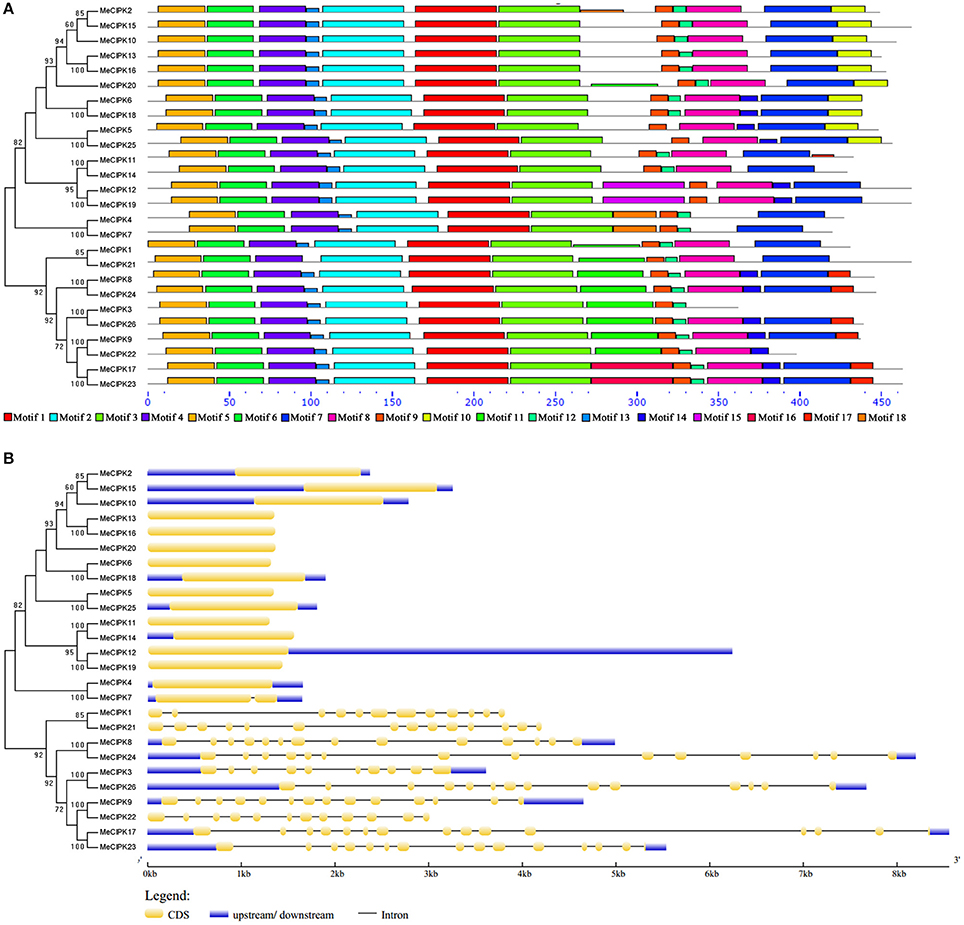

Figure 4. Conserved motifs (A) and gene structures (B) of cassava CIPK genes. (A) The conserved motifs were using the MEME program and arranged corresponding to the phylogenetic tree. Different motifs are highlighted with different color boxes. The length of boxes corresponded to motif length. (B) The gene structures were drawn using the GSDS program and arranged corresponding to the phylogenetic tree. The yellow boxes represent exons, the blue boxes represent upstream and downstream UTRs and the lines represent introns.

Promoter Analysis of MeCBL and MeCIPK Genes

To analyze the possible regulatory mechanisms of transcription of MeCBL and MeCIPK genes, the cis-acting elements in 2,000 bp of the immediate upstream sequences of the coding regions of MeCBL and MeCIPK genes were searched using the PlantCARE software. Besides the common CAAT-box and TATA-box elements, sixty-nine potential cis-acting elements were detected and divided into four types according to their biological functions (Table S2). The first type is light response-related elements such as the CT1-motif, the GT1-motif, the ATC-motif, the GATT-motif and the CG-motif. The Box 4 element was detected in all the 8 CBL genes with the most being detected in the MeCBL6 gene (6 of the Box 4 type), MeCBL10 gene (5 of the Box 4 type) and MeCBL9 gene (5 of the Box 4 type). Similarly, the Box 4 element was detected in most CIPK genes except for MeCIPK8 and MeCIPK26, which had the most numbers in MeCIPK12 gene (16 of the Box 4 type) and MeCIPK20 gene (11 of the Box 4 type). The second type is hormone-responsive elements such as the ABRE element involved in the abscisic acid response, the CGTCA-motif involved in the MeJA-response, the ethylene-responsive element ERE and the gibberellin-responsive element GARE-motif. The cis-acting element CE1 type involved in ABA responsiveness was only detected in MeCIPK6 and MeCIPK18. The third type is plant development-related elements such as the GCN4-motif involved in endosperm expression, the RY-element involved in seed-specific regulation, the CCGTCC-box related to meristem specific activation and HD-Zip 1, which is involved in differentiation of the palisade mesophyll cells. The Skn-1 motif, cis-acting regulatory element required for endosperm expression, was detected in all the 8 CBL genes with the most being detected in the MeCBL2 gene (4 of the Skn-1 motif) and MeCBL5 gene (4 of the Skn-1 motif). The MBSI element involved in flavonoid biosynthetic genes regulation was only detected in MeCBL9 gene. The last type is abiotic stress related elements. The HSE element involved in the heat stress response was detected in MeCBL6, 8, 9, and 10, and all MeCIPKs except MeCIPK1, 2, 3, 4, 11 and 24. The LTR element involved in low-temperature response was detected in MeCBL5, 8 and 9 and MeCIPK1, 3, 9, 10. The MBS element containing the MYB binding site involved in the drought response was detected in MeCBL1, 4, 5, and 8 and all MeCIPKs except MeCIPK5, 6, 7, 10, 12, 17, 20, 21, 24, and 25. The TC-rich repeats involved in defense and some stress responses was detected in all the MeCBLs and MeCIPKs except MeCIPK2, 8, 12, 13, and 17 (Table S2).

Expression Analyses of MeCBL and MeCIPK Family Genes

To investigate the spatial expression patterns of MeCBLs and MeCIPKs in cassava, transcript levels were studied using RT-PCR in different tissues of seedlings and mature plants, including root (seedling and mature stage), stem (seedling and mature stage), leaf (seedling stage, and mature stage: young leaves and old leaves), flower and storage root (Figure 5). The results show that the expression levels of most of MeCBLs and MeCIPKs are different in all tissues tested. However, some genes such as MeCBL2, MeCIPK5, 6, 9, and 10 were constitutively expressed in all tissues and at all developmental stages. Some genes were mainly expressed in specific organs. For example, MeCIPK16 and MeCIPK20 were mainly expressed in flower, indicating that these genes might have specific roles in this organ. Other genes, like MeCBL5, MeCIPK16, 19, and 20 had very low transcript levels in the tested organs. Moreover, the gene expression levels in seedlings are different from mature plants, for example, MeCBL1, MeCBL9, and MeCIPK23 have higher transcriptional levels in the mature stage than that in the seedling stage (stems and leaves).

FIGURE 5
www.frontiersin.org

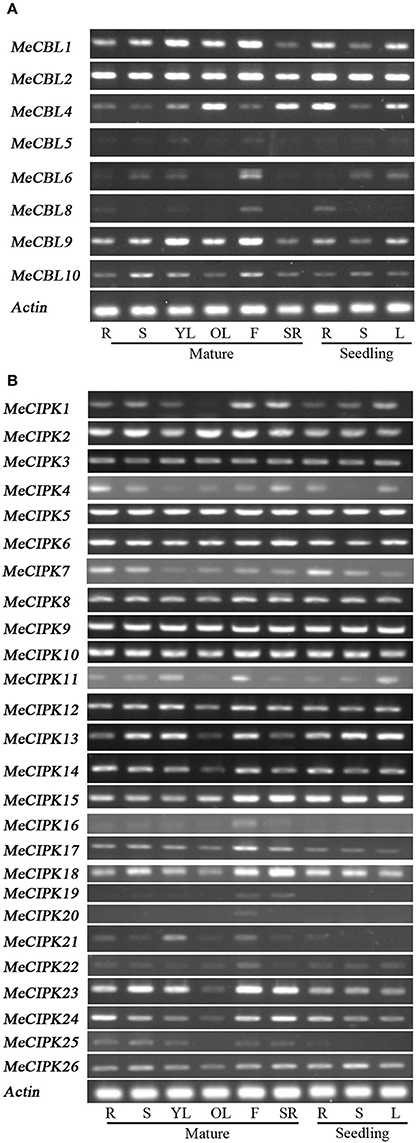

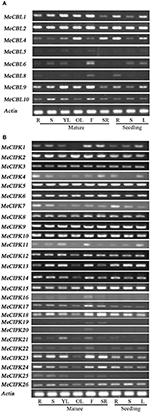

Figure 5. Expression profile analyses of MeCBL (A) and MeCIPK (B) genes in cassava tissues using the RT-PCR method. “R” represents roots from mature plants or seedlings, “S” represents stems from mature plants or seedlings, “YL” and “OL” represent young leaves and old leaves of mature plants, respectively, “F” represents flowers, “SR” represents storage roots, and “L” represents the seedlings leaves.

It has been reported that the CBL and CIPK genes play significant roles in response to abiotic stresses (Chen et al., 2011; Yu et al., 2014; Zhang et al., 2014; Sun et al., 2015; Xi et al., 2017). Therefore, forty-day-old cassava seedlings were subjected to stresses including salt (200 mM NaCl), drought (20% PEG6000), cold (4°C) and heat (42°C) treatment and the expression profiles of MeCBL and MeCIPK genes were investigated using qRT-PCR. The levels of all the MeCBLs and MeCIPKs were altered under stress treatments, and the transcript levels of 7 MeCBLs and 26 MeCIPKs in roots and leaves are shown in Figures 68. Under 200 mM NaCl treatment, MeCBL6 and MeCBL8 in roots were up-regulated at both 3 h and 9 h time-points. MeCBL4 and MeCBL5 transcript levels showed up-regulation at the 9 h time-point, but these genes were down-regulated at 3 h after salt treatment of roots (Figure 6A). MeCBL10 was the only up-regulated gene in leaves upon salt stress (Figure 6B). In PEG-treated cassava seedlings, MeCBL4 and MeCBL10 were up-regulated in leaves at 9 h after treatment, but the other genes did not significantly change at any time point tested in roots (Figure 6A) or leaves (Figure 6B). In addition, MeCBL2, 4, 5, 9, and 10 were all induced by high temperature or cold stress in roots (Figure 6A). MeCBL4 and MeCBL5 in leaves were up-regulated at both 3 and 9 h time-points when treated with high temperature stress (Figure 6B).

FIGURE 6
www.frontiersin.org

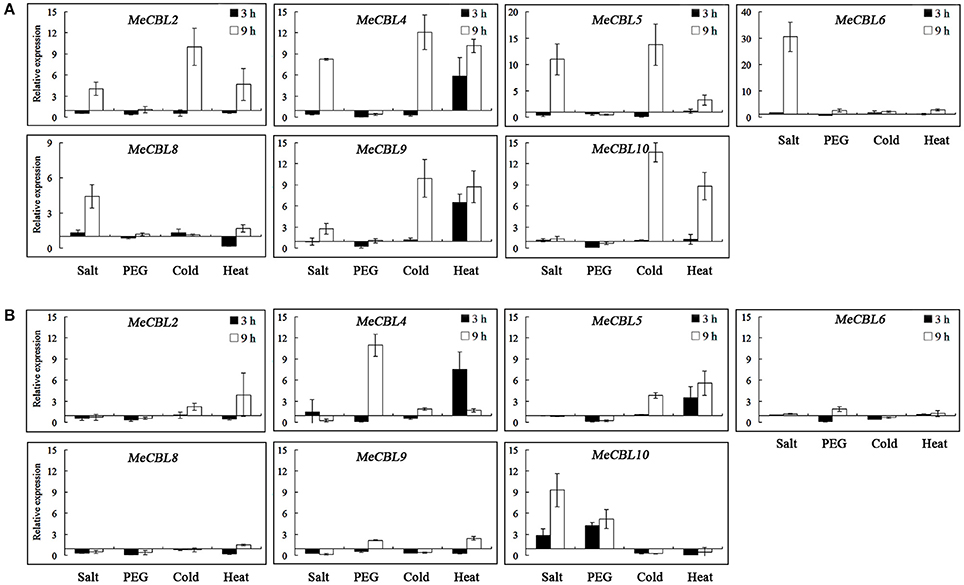

Figure 6. Expression analyses of MeCBL genes in roots (A) and leaves (B) responding to abiotic stresses, including salt (200 mM NaCl), drought (20% PEG6000), cold (4°C) and heat (42°C) treatments. Data are the means of three biological replicates ± SE at 3 h and 9 h time points standardized at 0 h.

As for the MeCIPK genes assayed, MeCIPK4, 5, 11, 16, 20, 22, and 24 in roots and MeCIPK14 and 20 in leaves were up-regulated at the 3 h time-point by salt stress (Figures 7, 8). In 9 h PEG-treated cassava roots, MeCIPK11, 17, 19, and 25 were up-regulated and expression of the MeCIPK7, 14, 21, 22, and 24 were down-regulated (Figure 7). However, only MeCIPK11 was induced in leaves after PEG treatment (Figure 8). MeCIPK7 was significantly induced in roots by cold treatment. MeCIPK10 and 13 in roots (Figure 7) and MeCIPK12 and 16 in leaves (Figure 8) were also affected after cold treatment. The expression of MeCIPK19 in roots (Figure 7) and MeCIPK2, 4, 17, and 25 in leaves (Figure 8) was induced by heat treatment at both time-points. Some genes like MeCIPK8, 9, 15, 18, and 26 were not affected significantly by NaCl, PEG, cold and heat stresses, but might be induced by other abiotic stresses. It is worth noting that MeCIPK24, the ortholog of AtCIPK24 (AtSOS2) which regulates salt tolerance via activating Na+/H+ exchange activity of AtSOS1 in Arabidopsis (Quintero et al., 2011), was only up-regulated in roots exposed to salt stress. So the gene was chosen for further salt tolerant assays.

FIGURE 7
www.frontiersin.org

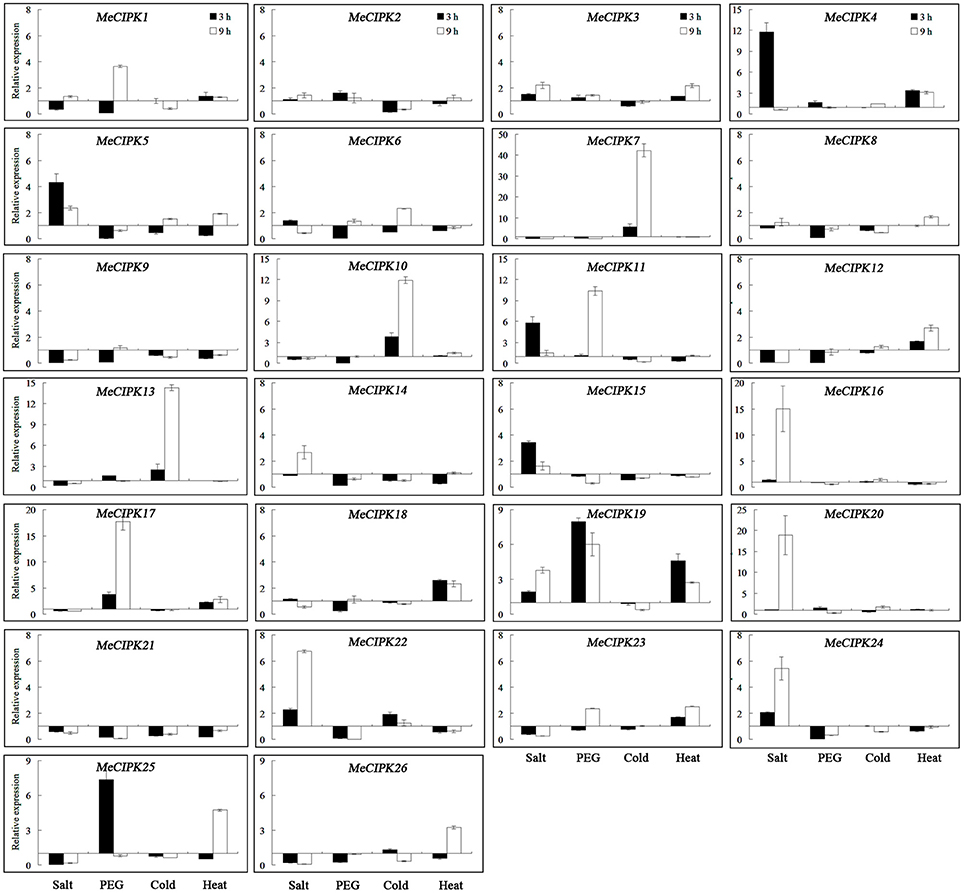

Figure 7. Expression analyses of MeCIPK genes in roots responding to abiotic stresses, including salt (200 mM NaCl), drought (20% PEG6000), cold (4°C) and heat (42°C) treatments. Data are the means of three biological replicates ± SE at 3 and 9 h time-point standardized at 0 h.

FIGURE 8
www.frontiersin.org

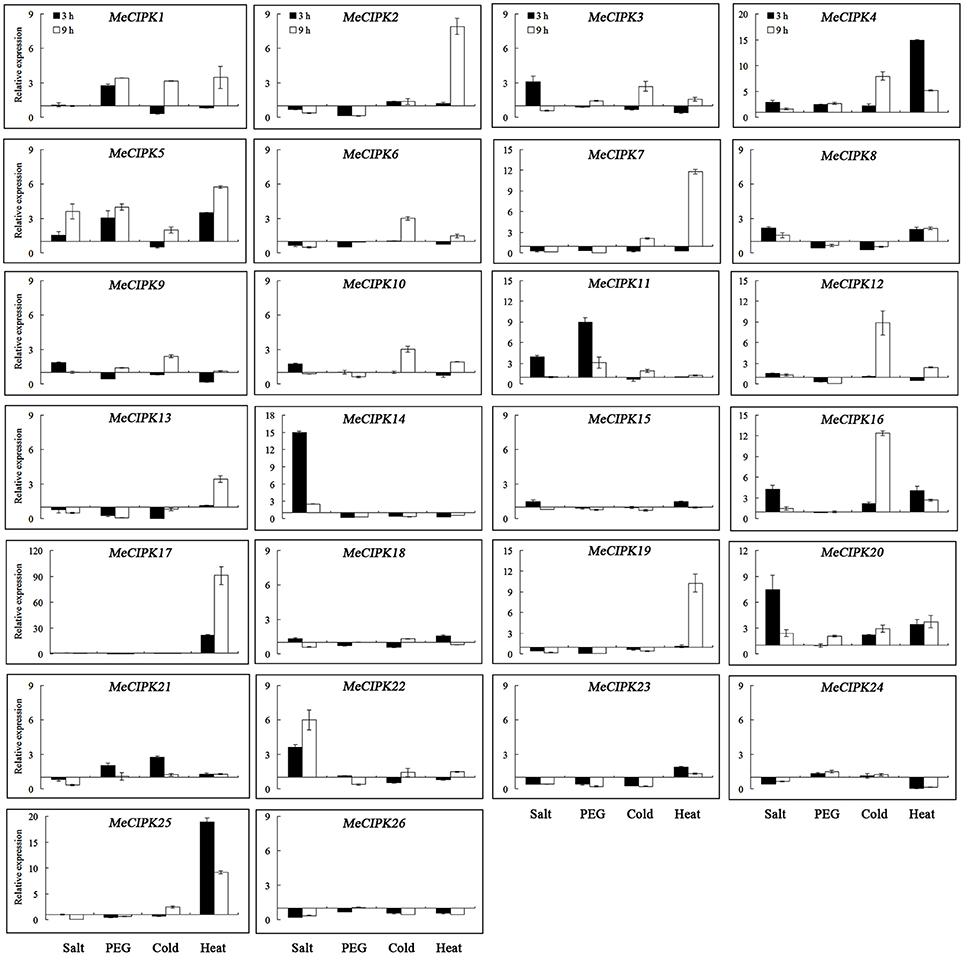

Figure 8. Expression analyses of MeCIPK genes in leaves responding to abiotic stresses, including salt (200 mM NaCl), drought (20% PEG6000), cold (4°C) and heat (42°C) treatments. Data are the means of three biological replicates ± SE at 3 h and 9 h time-point standardized at 0 h.

The expression profiles of MeCBLs and MeCIPKs in cassava exposed to various stress conditions suggests that different CBLs and CIPKs may participate in the same signaling process and play roles in abiotic stresses.

Interaction Analyses of MeCBL and MeCIPK Proteins

Many reports have demonstrated that some CIPK proteins interact with specific CBL proteins in response to environment stresses (Xu et al., 2006; Ho et al., 2009; Tang et al., 2015; Wang et al., 2016). To investigate the interaction preferences of MeCBL and MeCIPK proteins, the yeast two-hybrid system was used. Eight MeCBLs and 25 MeCIPKs were cloned and inserted into the pGBKT7 and pGADT7 vectors, respectively, and then transformed into the yeast strain Y2HGold. The interaction relationships between MeCBL and MeCIPK proteins were detected by yeast growth on non-selective medium (DDO) and selective medium (QDO+X+). As shown in Table 2 and Figure S4, MeCBL4 could interact with eight CIPKs (MeCIPK2, 7, 10, 14, 16, 18, 19, and 22), and MeCBL5 could interact with seven CIPKs (MeCIPK3, 4, 8, 10, 14, 17, and 19), the two CBL proteins have been identified as orthologs of AtCBL4 (Figure S1). MeCBL10, orthologous with AtCBL10 and OsCBL10 (Figure S1), showed strong interaction with eight CIPKs (MeCIPK1, 5, 8, 18, 19, 22, 23, and 24). In contrast, MeCIPK6 and MeCIPK11 could not interact with any of the eight MeCBL proteins in this study, suggesting that they might participate in other signaling pathways with other unidentified MeCBL proteins in cassava. MeCIPK12 only interacted with MeCBL2, MeCIPK20 only interacted with MeCBL6 and MeCIPK25 only interacted with MeCBL9, which suggests that some CIPK proteins interact only with a specific CBL protein. As for MeCIPK24, an ortholog of Arabidopsis AtCIPK24 (AtSOS2), it could strongly interact with MeCBL2, 6, and 10, which suggests that MeCIPK24-MeCBL2, MeCIPK24-MeCBL6, and MeCIPK24-MeCBL10 might take part in regulating salt tolerance in cassava.

TABLE 2
www.frontiersin.org

Table 2. Interaction of MeCBLs and MeCIPKs in yeast two-hybrid assay.

Co-Expression CBL10 and CIPK24 Improves Salt Tolerance in Transgenic Yeast

CBL10 is a calcium sensor and CIPK24/SOS2 is a protein kinase that, together with SOS1, are the three key components comprising the salt tolerance signaling pathway identified in Arabidopsis. The CBL10-CIPK24 complex activates the Na+/H+ exchange activity of SOS1 to extrude Na+ out of cells during salt stress (Quan et al., 2007). The SOS signaling pathway has been demonstrated to be conserved in Arabidopsis, rice and poplar plants, and SOS-like proteins from these three distantly related plants could form inter-species protein complexes and regulate salt tolerance of transgenic yeast cells (Martinez-Atienza et al., 2007; Tang et al., 2010). As seen from Figure 9, MeCBL10 and MeCIPK24 are orthologs of AtCBL10 and AtCIPK24 in Arabidopsis and were up-regulated by salt stress in cassava (Figures 6, 7). Also, the yeast two-hybrid assay showed that MeCBL10 could interact with MeCIPK24 (Table 2, Figure S4), so theoretically the MeCBL10-MeCIPK24 complex could be involved in cassava salt tolerance by regulating the Na+/H+ antiport activity of SOS1. To test the hypothesis, MeCBL10, MeCIPK24, and MeSOS1 were co-transformed into a yeast mutant strain AXT3K. Functional analyses indicated that the co-expression of three genes conferred stronger salt tolerance to transgenic yeast cells than MeCIPK24-MeSOS1 co-transgenic or single MeSOS1 transgenic cells. These results suggest that the SOS pathway, comprised of MeCBL10, MeCIPK24 and MeSOS1, is conserved, and that a MeCBL10-MeCIPK24 signal pathway regulates cassava salt tolerance together with the plasma membrane Na+/H+ antiporter SOS1.

FIGURE 9
www.frontiersin.org

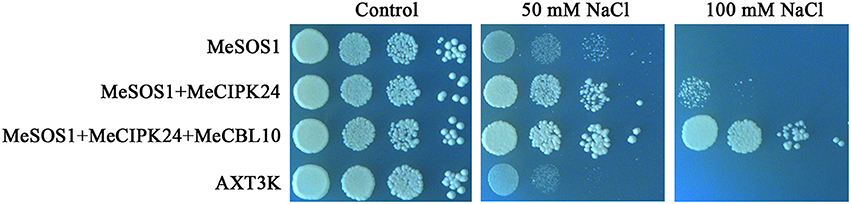

Figure 9. The effect of salinity stress on yeast growth. Transgenic and untransformed yeast cells were pre-cultured to saturation, and serial 10-fold dilutions of yeast cells were spotted on AP plates without or with NaCl as described. After 5 days, the growth of yeast cells on plates was recorded. MeSOS1, AXT3K strain transformed with the Na+/H+ antiporter gene MeSOS1; MeSOS1+MeCIPK24, AXT3K strain transformed with MeSOS1 and MeCIPK24 genes; MeSOS1+MeCIPK24+MeCBL10, AXT3K strain transformed with MeSOS1, MeCIPK24 and MeCBL10 genes; AXT3K, untransformed AXT3K strain.

Discussion

Calcium participates in the signal transduction response to various environmental stimuli. As a calcium sensor, CBL protein, often work with it target kinase, CIPK protein, to regulate plant response to abiotic stresses (Kudla et al., 2010). CBL-CIPK signaling networks have been studied in many plants, such as Arabidopsis, canola, grapevine, poplar, rice, wheat, and other plants (Kolukisaoglu et al., 2004; Xiang et al., 2007; Zhang et al., 2008, 2014; Sun et al., 2015; Xi et al., 2017). But there are few studies in cassava at present.

Multiple alignments showed that all the CBL proteins contained four EF hand motifs, which are necessary for CBL proteins to bind Ca2+ (Nagae et al., 2003; Sanchez-Barrena et al., 2005). The EF-hand domains are less conserved and may contribute functional diversity, while the linkers between each EF motif are absolutely conserved in CBL proteins (Zhang et al., 2008). In this study, 8 CBL and 26 CIPK genes were identified from the cassava genome. The EF-hand motifs are organized in fixed spaces that are often 22, 25, and 32 amino acids between EF1 and EF2, EF2 and EF3, EF and EF4 domains, respectively, except for MeCBL5, in which there were 32 amino acids between EF2 and EF3 domains (Figure 1). However, phylogenetic analysis of MeCBL5 did indicate that it has high homology with Arabidopsis AtCBL4 protein (Figure S1).Therefore, MeCBL5 might have a specific function, but this needs to be investigated further. Furthermore, five MeCBLs, including MeCBL1, 2, 5, 8, and 9, were determined to have a myristoylation site in the N-terminus, which is a Ca2+-binding domain (Du et al., 2011). The CIPK proteins have been demonstrated to contain two domains: the N-terminal kinase catalytic domain and the C-terminal regulatory domain harboring the NAF/FISL motif and PPI motif. The NAF/FISL motif is necessary for interaction between CIPK and CBL proteins (Guo et al., 2001). In the present study, all the MeCIPKs possess a NAF domain in the C-terminal region except for MeCIPK4, which seems to lack this domain. Because of homology to AtCIPK4 and OsCIPK4 (Figure S2), MeCIPK4 is still considered to be a valid MeCIPK. The PPI motif in AtCIPK24 (AtSOS2) is necessary for interaction with ABI2 (abscisic acid-insensitive 2), a protein phosphatase 2C (Ohta et al., 2003). In the PPI motif in AtCIPK24, the Arg-340 and Phe-341 are important for the kinases to interact with protein phosphatases. When the amino acids were substituted with alanine, the interaction was abolished (Ohta et al., 2003). Sequence alignments showed that arginine and phenylalanine are highly conserved in MeCIPK proteins (Figure 2).

Intron/exon organizations often reflect the evolution of some gene families (Wang et al., 2013; Liu et al., 2014). Most MeCBL genes have seven introns, while MeCBL6 and MeCBL10 have eight introns (Figure 3B). The phylogenetic tree analysis showed that MeCBL6 and MeCBL10 belong to group I (Figure S1). These suggest that the functions of CBL proteins might be different. As shown in Figure S2, MeCIPK genes were divided into five groups. Most interestingly, the members from groups B, C, D and E have fewer introns (and some have no introns) compared to genes from group A, which each contain at least nine introns (Figure 4B). This feature of CIPK gene structures was also found in Arabidopsis, rice, maize and soybean (Kolukisaoglu et al., 2004; Chen et al., 2011; Zhu et al., 2016), which suggests that intron gain or loss have played important roles in CIPK evolution.

Many researches have demonstrated that CBL and CIPK function in response to environment stress. Loss of AtCBL1 rendered plants drought sensitive and over-expression of AtCBL1 reduced transpirational water loss (Albrecht et al., 2003). Over-expression of AtCBL5 increased salt or osmotic tolerance of transgenic plants (Cheong et al., 2010). MeCBL5 was up-regulated by salt stress and cold stress in roots. Drought related element MYB and low-temperature response element LTR were also found in the promoter region of MeCBL5 (Figure 6, Table S2). Transgenic rice over-expressing barley HsCBL8 showed enhanced salt tolerance (Guo et al., 2016). The orthologous gene MeCBL8 was up-regulated by salt stress and stress response element TC-rich repeats was found in the MeCBL8 promoter region (Figure 6, Table S2). AtCIPK3 was responsive to ABA and cold stress conditions, and, therefore AtCIPK3 might participate in abscisic acid and cold signal transduction in Arabidopsis (Kim et al., 2003). The orthologous gene MeCIPK3 was induced by salt stress and cold in leaves and low-temperature responses element LTR was found in the MeCIPK3 promoter region (Figure 8, Table S2). AtCIPK8 participates in regulating the low-affinity phase of the primary nitrate response (Hu et al., 2009). However, MeCIPK8 was not significantly affected by the four treatments applied in this study (Figure 7, 8). Additionally, heat treatment induced the expression of MeCIPK19 in roots (Figure 7) and MeCIPK7, 17 and 25 in leaves (Figure 8), and the heat stress response element HSE was found in the promoter region of each of these genes (Table S2).

Furthermore, the CBL-CIPK complex also has been shown to regulate plant growth in response to abiotic stresses. The CBL1-CIPK6 component plays an important role in the plant response to high salinity, phosphorous deficiency and ABA signaling in Brassica napus (Chen et al., 2012). Both PtCBL10A and PtCBL10B could regulate poplar salt tolerance via interacting with PtSOS2 (Tang et al., 2013). AtCBL2 and AtCBL3 could recruit AtCIPK21 to the tonoplast and regulate Arabidopsis response to osmotic or salt stress (Pandey et al., 2015). The activity of AKT1 was also regulated by CIPK6 or CIPK16 in a CBL1-dependent manner (Lee et al., 2007). AtCIPK24 interaction with AtCBL4 or AtCBL10 regulates the activity of AtSOS1 to enhance Arabidopsis salt tolerance (Quan et al., 2007; Quintero et al., 2011). MeCBL4 and MeCBL10, homologous with AtCBL4 and AtCBL10, were induced by salt stress in roots and leaves, respectively (Figure 6), MeCIPK24, orthologous with AtCIPK24, was up-regulated in roots under salt treatment (Figure 7). The yeast two-hybrid test showed that MeCIPK24 could interact with MeCBL10 (Table 2, Figure S4). Yeast cells co-expressing MeCBL10, MeCIPK24, and MeSOS1 showed enhanced salt tolerance compared with cells that have just expression of MeSOS1 or co-expression of MeCIPK24 and MeSOS1 (Figure 9), which suggests that MeCIPK24 interaction with MeCBL10 could regulate the activity of MeSOS1 in yeast cells. MeCIPK24 interacted with MeCBL2 and MeCBL6 in addition to MeCBL10 (Table 2, Figure S4). MeCBL6 was mainly induced by salt stress in roots (Figure 6), and demonstrated similar expression patterns with MeCIPK24 (Figure 7), which suggests that the MeCIPK24-MeCBL6 complex might play a role in regulating salt tolerance in cassava. Upon cold stress, the expression level of MeCIPK7 showed the biggest change (Figure 7), and MeCIPK7 interacted with MeCBL2, MeCBL4 and MeCBL6 (Table 2, Figure S4). MeCBL2 was mainly induced by cold stress and showed a similar expression profile to MeCIPK7, which suggests that the MeCIPK7-MeCBL2 complex might be involved in cold signal transduction. Under the treatment of heat, the expression level of MeCIPK17 had the biggest change, the expression level reached a peak of 91-fold after 9 h of treatment (Figure 8), and MeCIPK17 interacted with MeCBL5 (Table 2, Figure S4), which suggests that the MeCIPK17-MeCBL5 complex might be involved in the plant response to heat stress. As shown in Figures 6, 7, MeCBL4, MeCBL10, and MeCIPK19 were induced by PEG, which suggests that MeCIPK19 might regulate drought tolerance through interaction with MeCBL4 or MeCBL10.

In summary, the expression of MeCBLs and MeCIPKs in response to salt stress, drought, high and low temperature stress and tissue development was very diverse, but induction was observed in each stress treatment. Different MeCBLs could interact with one or more MeCIPKs (Table 2, Figure S4), indicating that various MeCBLs and MeCIPKs may participate in the signal transduction response to these stresses (Figure 10).

FIGURE 10
www.frontiersin.org

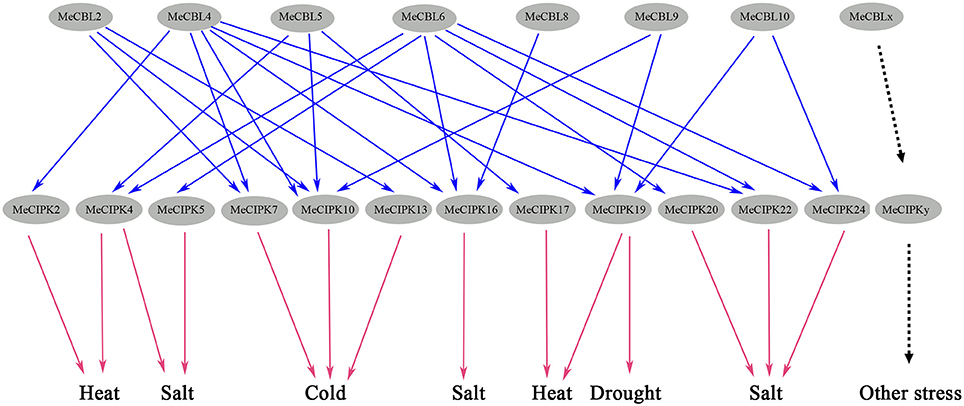

Figure 10. Potential CBL-CIPK signaling networks in cassava response to abiotic stresses. Blue arrows represent the interaction relationships between MeCBL and MeCIPK proteins, as indicated by protein-protein interaction data and red arrows represent observed gene expression responses to abiotic stresses.

Author Contributions

XJ and YZ conceived and designed the experiments; CM, SW, YX, and NR performed the experiments; YZ, CM, and SW analyzed the data; XJ contributed reagents, materials, analysis tools; YZ and XJ wrote the paper.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We thank the reviewer for English language editing. This work was supported by the Natural Science Foundation of China (31660253, 31260218), the Scientific and Technological Foundation of Hainan Province (HNGDhs201502) and the National Key Technology Support Program (2015BAD01B02).

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2018.00269/full#supplementary-material

Figure S1. Phylogenetic relationships of cassava CBL proteins were compared with Arabidopsis and rice CBL family proteins. The Neighbor-Joining phylogenetic tree was constructed using MEGA 5.0 software with bootstrap value 1000 based on the amino acid sequences of CBL proteins from representative species. The cassava CBL proteins (MeCBL) are marked by triangle. The Arabidopsis CBL proteins (AtCBL) are marked by dots. The rice CBL proteins (OsCBL) are marked by square.

Figure S2. Phylogenetic relationships of cassava CIPK proteins were compared with Arabidopsis and rice CIPK family proteins. The Neighbor-Joining phylogenetic tree was constructed using MEGA 5.0 software with bootstrap value 1,000 based on the amino acid sequences of CIPK proteins from representative species. The cassava CIPK proteins (MeCIPK) are marked by triangles. The Arabidopsis CIPK proteins (AtCIPK) are marked by dots. The rice CIPK proteins (OsCIPK) are marked by square.

Figure S3. The amino acid sequences of each motif identified in CBL (A) and CIPK (B) proteins. The conserved motifs were identified using the MEME program. Width represents the number of each motif.

Figure S4. The interaction analysis of cassava MeCBL and MeCIPK proteins were performed using the Y2H method. The MeCBL genes were inserted into the pGBKT7 vector and the MeCIPK genes were cloned into the the pGADT7 vector. Yeast cells co-transformed with MeCBL and MeCIPK were grown on non-selective (lacking Leu and Trp, DDO) or selective media containing 40 μg/mL X-α-gal and 125 ng/mL Aureobasidin A (lacking Leu, Trp, His and Ade, QDO/X/A).

Table S1. Primers used in this study.

Table S2. Promoter analysis of MeCBL and MeCIPK genes. Types of potential cis-acting elements along with their functions (left) were identified in the 2,000 bp up-stream regions of 8 CBL genes and 26 CIPK genes (top).
