Original Research ARTICLE
The Canonical E2Fs Are Required for Germline Development in Arabidopsis
- College of Life and Environmental Sciences, Shanghai Normal University, Shanghai, China
A number of cell fate determinations, including cell division, cell differentiation, and programmed cell death, intensely occur during plant germline development. How these cell fate determinations are regulated remains largely unclear. The transcription factor E2F is a core cell cycle regulator. Here we show that the Arabidopsis canonical E2Fs, including E2Fa, E2Fb, and E2Fc, play a redundant role in plant germline development. The e2fa e2fb e2fc (e2fabc) triple mutant is sterile, although its vegetative development appears normal. On the one hand, the e2fabc microspores undergo cell death during pollen mitosis. Microspores start to die at the bicellular stage. By the tricellular stage, the majority of the e2fabc microspores are degenerated. On the other hand, a wild type ovule often has one megaspore mother cell (MMC), whereas the majority of e2fabc ovules have two to three MMCs. The subsequent female gametogenesis of e2fabc mutant is aborted and the vacuole is severely impaired in the embryo sac. Analysis of transmission efficiency showed that the canonical E2Fs from both male and female gametophyte are essential for plant gametogenesis. Our study reveals that the canonical E2Fs are required for plant germline development, especially the pollen mitosis and the archesporial cell (AC)-MMC transition.
Plant germline development, includes sporogenesis and gametogenesis, begins with the differentiation of a spore mother cell which produces haploid gametes through meiosis and mitosis (Schmidt et al., 2015). After meiosis, plant haploid spores undergo two (for sperm) or three (for egg) rounds of mitoses to form a multicellular gametophyte. These processes involve a number of cell fate determinations including cell division, cell differentiation and programmed cell death (PCD) (Drews and Yadegari, 2002; Berger and Twell, 2011; Daneva et al., 2016). The male gametogenesis takes place in anther, while the female gametogenesis occurs in ovule. An anther often produces numerous microspore mother cells. A diploid microspore mother cell is divided through meiosis into a tetrad of four haploid microspores (Preuss et al., 1994; Rhee and Somerville, 1998). Subsequently, microspore undergoes two rounds of mitoses: pollen mitosis I (PMI) and pollen mitosis II (PMII). PMI is an asymmetric mitosis producing a large vegetative cell and a smaller generative cell (Eady et al., 1995). In Arabidopsis, the generative cell undergoes a second mitosis (PMII) to give rise to two sperms, resulting in a three-celled male gametophyte (McCormick, 1993; Twell, 2011; Gomez et al., 2015). The tapetum is degenerated at the later stage of pollen development (Gomez et al., 2015). In contrast to an anther, an ovule often selects a single archesporial cell (AC) to develop into a diploid megaspore mother cell (MMC) which is divided into four haploid megaspores through meiosis (Drews and Koltunow, 2011). Three of the megaspores are degenerated. The chalazal-most megaspore undergoes mitoses and cellularization to form a seven-celled female gametophyte, composed of four types of cells: egg, synergid, central, and antipodal (Schneitz, 1999; Skinner et al., 2004; Yang et al., 2010).
In mammals, the E2F signaling pathway plays a key role in cell fate determination (Polager and Ginsberg, 2008). Plants have orthologs of all the core regulators in the E2F signaling pathway including cyclins, cyclin-dependent kinases (CDKs), CDK inhibitors (CKIs), retinoblastoma (RB), and E2Fs. Cyclins and CKIs are positive and negative regulators of CDK, respectively. RB binds E2F to inhibit its activity. CDK phosphorylates RB to release E2F. The transcription factor E2F activates genes involved in the G1-S phase transition (Polager and Ginsberg, 2009). These core regulators have been implicated in plant gametogenesis. Mutation of an A-type cyclin, CYCA1;2, leads to delayed and asynchronous cell divisions during male meiosis (Wang Y. et al., 2004). Arabidopsis has only one A-type CDK, referred to as CDKA1, which is a homolog of yeast CDC2. In the cdka1 mutant, the female gametogenesis is not affected, whereas the male gametogenesis is significantly disrupted. As a result of the failure of PMII, a cdka1 mature pollen produces only a single sperm cell (Nowack et al., 2006). Arabidopsis also has a single copy of the RB gene, referred to as RB-RELATED 1 (RBR1) (Ebel et al., 2004). RBR1 is involved in both male and female gametogenesis. In the rbr1/RBR1 heterozygous anther, more than 40% of pollen contain two vegetative nuclei as a result of supernumerary mitosis. The rbr1 microspores undergo cell death after the unicellular stage (Johnston et al., 2008). Meanwhile, the rbr1 megaspores have more than three nuclear mitotic divisions, resulting in supernumerary nuclei (up to 15) (Ebel et al., 2004; Zhao et al., 2017). In terms of the mitotic division, the phenotype of cdka1 mutant is opposite to that of the rbr1 mutant as the cdka1 mutant undergoes hypoproliferation, whereas the rbr1 mutant does hyperproliferation. Consistently, the defects of rbr1 mutant are suppressed by the cdka1 mutant and vice versa (Chen et al., 2009; Nowack et al., 2012). The Arabidopsis E2F family consists of eight genes. In cell proliferation, it has been found that the canonical Arabidopsis E2Fs played an antagonistic role as E2Fa and E2Fb were positive regulators, whereas E2Fc was a negative regulator (del Pozo et al., 2002, 2006; Vandepoele et al., 2002; Magyar et al., 2005). Recently, we discovered that these E2Fs played a redundant role in plant fertility as the e2fa e2fb e2fc triple mutant (referred to as e2fabc) was sterile while their single and double mutants were fertile (Wang et al., 2014; Gu et al., 2016; Wang, 2017). These data suggest that the CDK-RB-E2F core cell cycle signaling pathway plays an important role in cell fate determination during plant germline development. However, the underlying mechanism of the regulation remains unclear. In this study, we further characterized the role of the E2Fs in plant germline development to better understand the regulation of this processes.
Materials and Methods
Plant Material and Growth Conditions
Arabidopsis plants used in this study are in the Columbia (Col-0) background. Mutants of e2fa (GK-348E09), e2fb (SALK_103138), and e2fc (GK-718E12) are as described (Wang et al., 2014). The condition of growth chamber was set at 22°C under a 16-h light/8-h dark photoperiod.
Complementation of e2fabc Mutant
The E2F genes, including E2Fa (AT2G36010), E2Fb (AT5G22220) and E2Fc (AT1G47870), for complementation of the e2fabc mutant were amplified by PCR and integrated into the SalI site of the binary vector pCAMBIA13001 using the pEASY Uni-Seamless Cloning and Assembly Kit (TransGen Biotech, Beijing, China) to generate pCAMBIA1300-E2Fs. The primers used for construction of pCAMBIA1300-E2Fs are listed in Supplementary Table S1.
Analysis of E2F Expression
The reporters were used for analyzing the expression of E2F genes. The construct of pE2F:E2F-VENUS was a translational fusion of E2F to VENUS which was driven by its native promoter (∼2 kb). NOS terminator and VENUS were amplified by PCR and consecutively inserted into the PstI-HindIII site and the SalI-PstI site of pCAMBIA1300 to generate pCAMBIA1300-VENUS. Subsequently, the genomic DNA sequence of a E2F gene was amplified by PCR and integrated into the SalI site of pCAMBIA1300-VENUS using the pEASY Uni-Seamless Cloning and Assembly Kit (TransGen Biotech, Beijing, China) to generate pE2F:E2F-VENUS. The primers used for construction of pE2F:E2F-VENUS are listed in Supplementary Table S1. To visualize the expression pattern of a reporter, the fluorescence was excited at 488 nm and collected with a 515∼530 nm bandpass filter using a Zeiss LSM 5 Pascal Confocal Laser Scanning Microscopy (Germany).
The Alexander staining was performed as described (Alexander, 1969). Briefly, anthers were stained with the Alexander solution for 30 min and images were taken using an Olympus BX51 digital microscope (Japan).
Floral buds were fixed and embedded in the Spurr’s epoxy resin as described (Zhang et al., 2007). The embedded materials were sectioned to 1-μm thick using an RMC Powertome XL Ultramicrotome (Tucson, AZ, United States). Semi-thin sections of anthers were stained with toluidine blue and photographed using an Olympus BX51 digital microscope (Japan).
Pollen was stained with 4′-6-diamidino-2-phenylindole (DAPI) as described (Ross et al., 1996). Briefly, floral buds were fixed with Carnoy’s solution (ethanol: acetic acid = 3: 1) for 4 h at room temperature and washed with water. Pollen was then released from anther and stained with 0.1 μg/ml DAPI.
Analysis of Female Gametophyte Development
The procedure used to analyze female gametophyte development was carried out as described (Christensen et al., 1997). Briefly, pistils were fixed in the fixative solution (4% glutaraldehyde and 12.5 mM cacodylic acid, pH 6.9) for 4 h. The tissues were dehydrated in a series of increasing concentrations of ethanol (10, 20, 40, 60, 80, and 95%, each for 10 min) and kept in 95% ethanol overnight. The tissues were then washed with 100% ethanol twice, each for 10 min. After dehydration, the tissues were cleared in the benzyl benzoate/benzyl alcohol (2:1) solution for 20 min. Ovules were dissected, mounted in immersion oil, and observed at the excitation wavelength 488 nm and the emission wavelength 515∼530 nm using a Carl Zeiss LSM 5 Pascal Confocal Laser Scanning Microscopy (Germany).
Quantitative PCR (qPCR)
The qPCR was performed as described (Ma and Wang, 2016). Briefly, Arabidopsis RNA was extracted using TRIzol Reagent (Invitrogen) and measured by NanoDrop 2000 Spectrophotometer (Thermo Fisher). Five μg of RNA was treated with DNase (Ambion TURBO DNA-free Kit, Thermo Fisher). Two μg of DNase-treated RNA was used to synthesize cDNA using the TransScript Fly First-strand cDNA synthesis SuperMix (TransGen Biotech, Beijing, China). The synthesized cDNA, diluted 5 times, was used as templates. qPCR was performed using the SYBR Green Realtime PCR Master Mix (Toyobo, Japan) in Mastercycler ep realplex (Eppendorf). All genes were normalized to TUBULIN BETA CHAIN 2 (TUB2). The primers used for qPCR are listed in Supplementary Table S1.
The Arabidopsis E2Fa, E2Fb, and E2Fc Are Canonical E2F Proteins
There are three categories of E2Fs in both human and Arabidopsis based on their protein domain structures (Figure 1A) (Vandepoele et al., 2002; Attwooll et al., 2004). The most conserved domain in E2F proteins is the DNA-binding domain (DBD), especially the core DNA-binding motif “RRxYD” which binds to the palindromic CGCGCG sequence (Figure 1B) (Zheng et al., 1999). DBDs are classified into DBD1 and DBD2 (Lammens et al., 2009). We found that two amino acids, glutamate at 261 and asparagine at 272 in Arabidopsis E2Fa protein, were highly conserved in DBD1 (Figure 1B and Supplementary Figure S1). The first category, referred to as E2F, is the canonical E2Fs possessing a DBD1 and a dimerization domain (DD). In addition, these E2Fs have a RB-binding domain or a polycomb-group (PcG)-binding domain. The second category, referred to as DP-E2F-like 1 (DEL1), contains two DBDs: DBD1 and DBD2. The third category, referred to as dimerization partner (DP), has a DBD2 and a DD. Structural analysis demonstrated that among E2F proteins, there was a preference for heterodimers over homodimers in DNA binding (Zheng et al., 1999). Therefore, E2F and DP form a heterodimer through DD to bind DNA, whereas DELs, possessing both DBD1 and DBD2, bind DNA by themselves (Figure 1) (Logan et al., 2004; Lammens et al., 2009). There are eleven members of E2F family proteins in human (Figure 1). Based on their transcriptional properties, human E2F proteins are classified into activators, E2F1 through E2F3, and repressors, E2F4 through E2F8 (DeGregori and Johnson, 2006). Meanwhile, there are eight members of E2F family proteins in Arabidopsis (Vandepoele et al., 2002). The first category includes E2Fa, E2Fb, and E2Fc, which are the canonical E2Fs. The second category consists of DEL1, DEL2, and DEL3. The third category includes DPa and DPb (Figure 1). Both DBDs and three categories of E2Fs are highly conserved in plants across eudicot, monocot, lycopodiophyta, bryophyta and algae (Figure 1B, Supplementary Figure S1, and Supplementary Tables S2, S3).

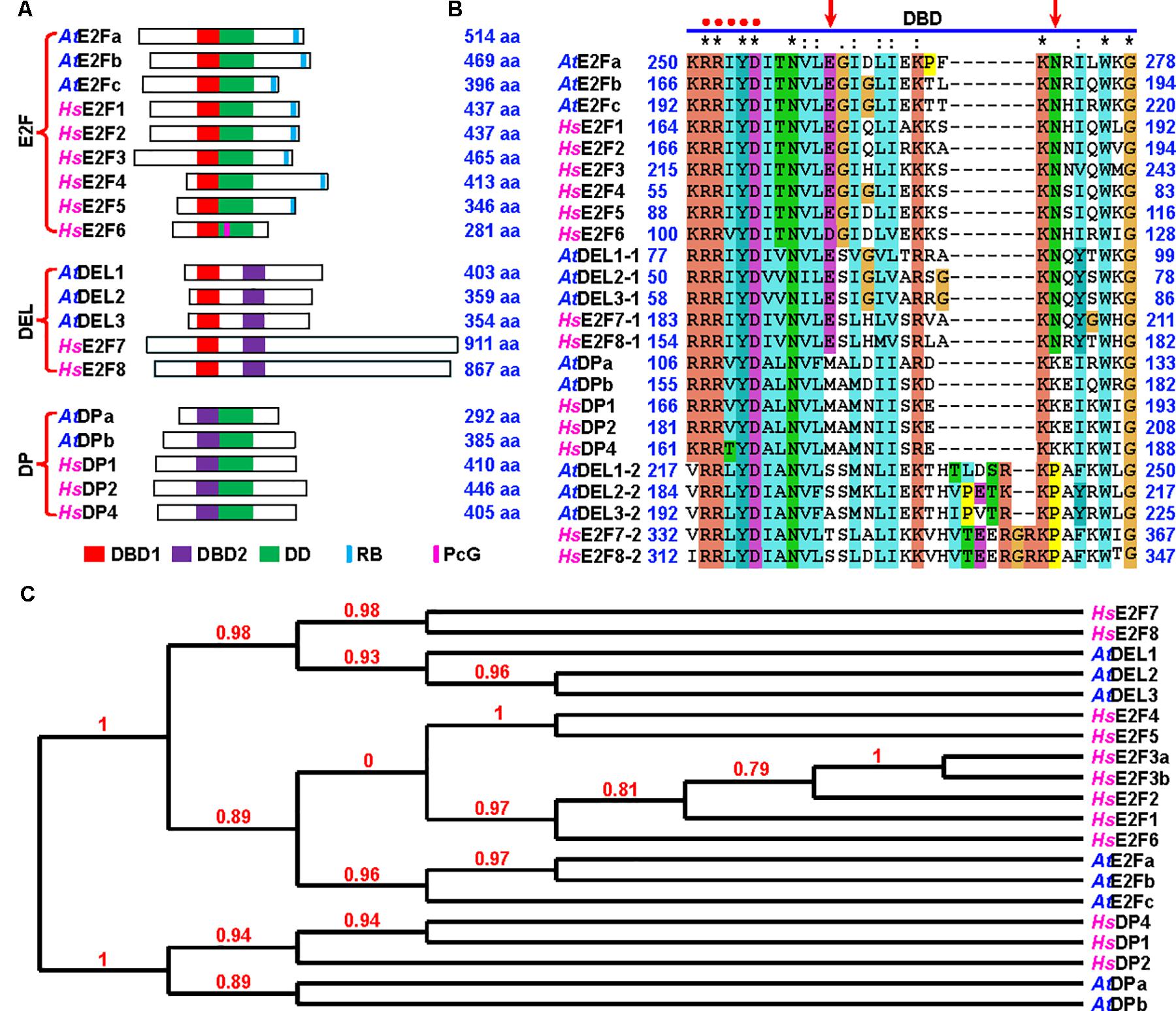

FIGURE 1. Arabidopsis E2Fa, E2Fb, and E2Fc are the canonical E2F proteins. (A) Schematic representation of domains of Arabidopsis and human E2F family proteins, which are classified into three categories: E2F, DEL, and DP. DBD1 and DBD2, DNA-binding domain 1 and 2; DD, dimerization domain; RB, RB-binding domain; PcG, polycomb group protein-binding domain. At, Arabidopsis thaliana; Hs, Homo sapiens. aa, amino acid residues. (B) Alignment of DBD of the E2F proteins using ClustalX2 (http://www.clustal.org/). Red dots indicate the core DNA recognition motif RRxYD. Arrows indicate that two amino acids, glutamate (E) and asparagine (N), in DBD1 are shared between E2F and DEL proteins. Arabidopsis DEL1, DEL2 and DEL3 and human E2F7 and E2F8 possess two DBDs: DEL1/2/3-1 and E2F7/8-1, DBD1; DEL1/2/3-2 and E2F7/8-2, DBD2. (C) Phylogenetic tree of plant and human E2F family proteins is constructed by the Phylogeny.fr (http://www.phylogeny.fr/). The sequences of E2F proteins in fasta format were pasted and the software was performed in “One Click” mode to generate the phylogenetic tree. The number at each branch point represents the bootstrap values.
The Canonical E2Fs Play an Essential Role in Plant Fertility
Phylogenetic analysis showed that the sequences of three canonical Arabidopsis E2F proteins were similar to each other (Figure 1C). Consistently, our genetic analysis revealed that these canonical E2Fs functioned redundantly to activate plant effector-triggered cell death and immunity (Wang et al., 2014). In addition, they played a redundant role in plant fertility as the e2fabc triple mutant was sterile, whereas single and double e2f mutants were all fertile (Figure 2 and Supplementary Figure S2) (Wang et al., 2014). The e2f mutant lines used for generating the e2fabc triple mutant are likely knockout lines as the insertion sites disrupt their DDs (Supplementary Figure S3). Although the reproductive development was severely compromised, the vegetative development of e2fabc mutant (germinated later than wild type plant) appeared normal (Supplementary Figure S4). We introduced the E2Fa gene, as well as E2Fb and E2Fc, into the e2fabc triple mutant and found that it fully restored the fertility of this mutant, confirming that mutations of the E2F genes are responsible for the sterility of e2fabc mutant (Figure 2, Supplementary Figure S5, and Supplementary Table S4).
FIGURE 2. Arabidopsis E2Fs are crucial for plant fertility. Inflorescences of 5-week-old wild type (WT), e2fab, e2fc, e2fabc, and E2Fa-transgenic e2fabc (e2fabc/E2Fa) plants. Arrows indicate the silique.
The Canonical E2Fs Are Essential for Pollen Mitosis During Male Gematogenesis
To explore the role of the canonical E2Fs in gametophytic control, we first examined the male gametogenesis which occurs in the anther. The reporters of pE2F:E2F-VENUSs showed that E2Fs were expressed in microspores, with the peak at the bicellular stage (Supplementary Figure S6). This expression pattern suggests that E2Fs play a role in male gametogenesis. The Alexander staining showed that in an e2fabc anther, some of pollen were viable, whereas the majority (81%, n = 600) of pollen were aborted (Figure 3A). The Arabidopsis anther development is divided into 14 stages (Sanders et al., 1999). The e2fabc mutant anther was not distinguishable from wild type anther until the stage 10, when the degeneration of tapetum initiated. The majority of the e2fabc microspores underwent cell death at the stage 11, when pollen mitosis I (PMI) initiated (Figure 3B). Consistently, the unicellular microspores were uniformly formed in both wild type and e2fabc anthers. The degeneration of e2fabc microspore started from the bicellular stage. At the tricellular stage, 75.6% of microspores were degenerated, whereas 13.4% of microspores developed into tricellular microspores in the e2fabc mutant (Figures 3C,D). These data suggest that the canonical E2Fs are required for the microspore development during the PMI progression.
FIGURE 3. E2Fs are crucial for male gametogenesis. (A) The Alexander staining of wild type (WT) and e2fabc anthers. The aborted pollen are stained in green. Bar = 100 μm. (B) Semi-thin sections of WT and e2fabc anthers at the indicated stage are stained with toluidine blue. DP, degenerated pollen; PG, pollen grain; RM, remnant of microspore. Bar = 20 μm. (C) The DAPI staining of WT and e2fabc pollen at unicellular stage (US), bicellular stage (BS) and tricellular stage (TS). BC, bicellular cell; DC, degenerated cell; TC, tricellular cell; UC, unicellular cell. Bar = 5 μm. (D) Quantitative result of (C). Experiments were conducted three times with similar results (n = 600∼800).
The Canonical E2Fs Are Essential for the Transition From Archesporial Cell to Megaspore Mother Cell During Female Sporogenesis
The female sporogenesis takes place in ovule. The AC is derived from a sub-epidermal somatic cell at the distal end of the ovule primordium. Usually, a single AC is selected to develop into a large MMC at the female gametophyte 0 (FG0) stage. Compared to the surrounding sporophytic cells, the MMC has a denser cytoplasm and a larger nucleus (Drews and Koltunow, 2011). Intriguingly, multiple MMCs (up to 5) were formed in an e2fabc mutant ovule. The majority of e2fabc mutant ovules produced 2-3 MMCs (Figure 4A). The subsequent female gametogenesis of e2fabc mutant was aborted (93.8%, n = 97) and the vacuole was severely impaired in the embryo sac (Figure 4B and Supplementary Figure S7). The cell identities were confirmed by a MMC marker pKNU:KNU-VENUS (Figure 4C) (Sun et al., 2014). The reporters of pE2F:E2F-VENUSs showed that the canonical E2Fs were expressed all over the ovule in the early development stages (before FG4 stage) (Supplementary Figure S8). Although about 5% of wild type ovules have two MMCs, it has never been observed that two female gametophytes are formed in one ovule in Arabidopsis, suggesting that the survival of one functional MMC per ovule is a strict rule required for the subsequent female gametophyte development (Drews and Koltunow, 2011). Occasionally, we observed a normal seven-celled female gametophyte formed in the e2fabc mutants (6.2% were normal at the FG7 stage, n = 97) (Supplementary Figure S7), which appears that the development of e2fabc ovule is delayed. This result is consistent with that the e2fabc mutant, especially during the late flowering stage, can set some seeds (about 20 seeds per plant, n = 50) (Supplementary Figure S9). These data suggest that the canonical E2Fs are required for the AC-MMC transition during female sporogenesis.

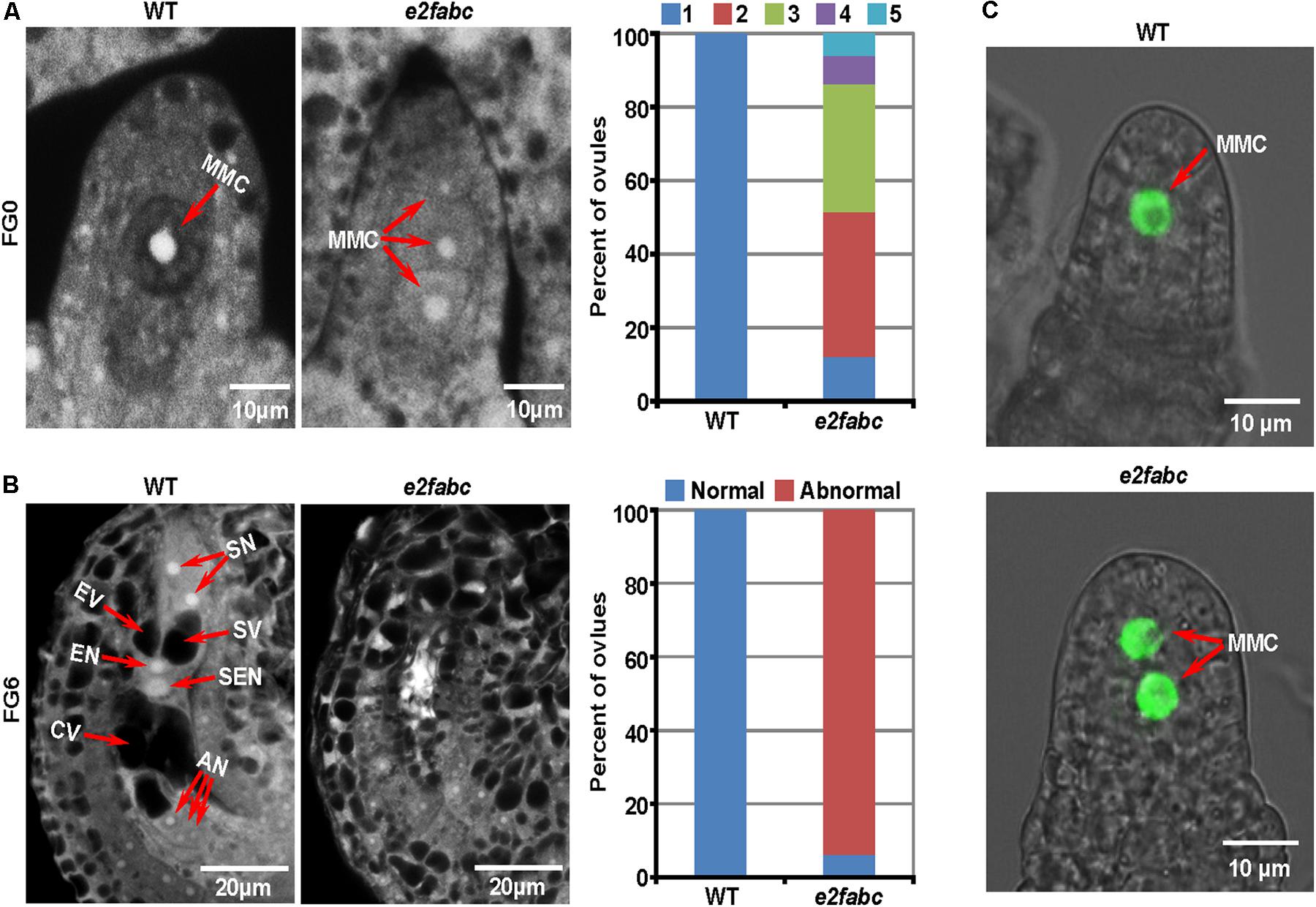

FIGURE 4. E2Fs are crucial for female gametogenesis. (A) Ovules of wild type (WT) and e2fabc plants at the FG0 (female gametophyte 0) stage. Ovules are classified by the number of MMC per ovule (from 1 to 5). The percent of ovules in different types is shown in the right panel. Experiments were performed three times with similar results (n = 60∼80). MMC, megaspore mother cell. (B) Ovules of WT and e2fabc plants at the FG6 stage. There are two types of ovules: normal (wild type) and abnormal (defective). The percent of ovules in different types is shown in the right panel. Experiments were performed three times with similar results (n = 60∼80). AN, antipodal nuclei; CV, central cell vacuole; EN, egg cell nucleus; EV, egg vacuole; SEN, secondary endosperm nucleus; SN, synergid nucleus; SV, synergid vacuole. (C) The MMC identity in WT and e2fabc ovules at the FG0 stage is shown by the marker pKNU:KNU-VENUS.
The Canonical E2Fs Are Required for Gametophytic Control of Plant Gametogenesis and Suppression of Cell Cycle-Related Gene Expression
The dby both gametophytic and sporophytic genes. To investigate the role of the canonical E2Fs in plant gametophyte development, we analyzed the genetic transmission via gametophyte through reciprocal crosses between wild type and e2fa+/- e2fb-/- e2fc-/- plants. The expected transmission efficiency for the normal gametes is 100%. As shown in Table 1, the transmission efficiency of e2fa e2fb e2fc triple mutant allele was 20.5 and 23.6% via male and female gametophytes, respectively, both of which were dramatically reduced as compared to the expected value, suggesting that the canonical E2Fs play a critical role in both male and female gametogenesis. Consistently, we observed that the majority of e2fa+/- e2fb-/- e2fc-/- plants produced abnormal pollen and ovules (Supplementary Table S5). The deficiency of gametophyte development varied dramatically as the ratio of abnormal ovules was from 0 to 90%. The MMC marker pKNU:KNU-VENUS showed that 20∼75% of ovules contained multiple MMCs in e2fa+/- e2fb-/- e2fc-/- plants. We further checked the e2fb e2fc double mutants and found that their gametophyte development was deficient to some extent, which was consistent with that more than 50% female gametophytes were defective in an e2fa+/- e2fb-/- e2fc-/- plant (Supplementary Table S6). Similarly, genetic analysis of tetraploid plants (rbr1/rbr1/rbr1/RBR1, triplex for rbr1) found that regulation of the sporophytic development by RBR1 depended on the copy number of RBR1 (Johnston et al., 2010). These data indicate that the gametogenesis is controlled by the canonical E2Fs from both male and female gametophyte in a dosage-dependent manner.

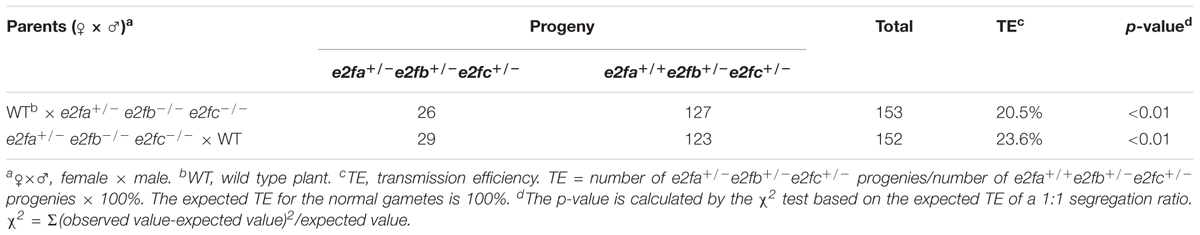

TABLE 1. Test of transmission efficiency through reciprocal crosses between wild type and e2fa+/-e2fb-/-e2fc-/- plants.
E2Fs function as transcription factors to activates the expression of cell cycle regulators. To understand how E2Fs regulate plant germline development, we examine the expression of cell cycle-related genes. Genome-wide transcriptional profiling analysis revealed that a few of cell cycle regulators, including RBR1, ORIGIN OF REPLICATION COMPLEX 1B (ORC1B), MINICHROMOSOME MAINTENANCE 8 (MCM8), CYCLIN-DEPENDENT KINASE B1;1 (CDKB1;1) and CELL DIVISION CONTROL 6 (CDC6), were upregulated by co-overexpression of E2Fa with DPa or down-regulated by a dominant-negative truncated DP gene (Ramirez-Parra et al., 2003; Vandepoele et al., 2005; Naouar et al., 2009). As shown in Supplementary Table S7, qPCR analysis was carried out to demonstrate the influence of e2fabc mutant on the expression of these genes in anthers (stage 10 ∼ stage 12) and ovules (FG0 ∼FG7). TUBULIN BETA CHAIN 2 (TUB2) was used as an internal control. In addition, we first examined two other internal controls, TUBULIN BETA 8 (TUB8) and UBIQUITIN-CONJUGATING ENZYME 21 (UBC21), and validated that the expression of these internal controls was not altered by mutations of these E2F genes in anthers and ovules. Consistent to the phenotype, the expression of both male gametophyte-specific MICROSPORE-SPECIFIC PROMOTER 2 (MSP2) and female gametophyte-specific DOWNREGULATED IN DIF1 33 (DD33) was significantly downregulated in anthers and ovules, respectively, as both genes were about 10-fold reduced in e2fabc mutant (Honys et al., 2006; Steffen et al., 2007). Surprisingly, our results showed that the expression of all of the five E2F-target genes was upregulated in both anthers and ovules of e2fabc mutant, suggesting that the canonical Arabidopsis E2Fs play a negative role in transcription of these genes.
In mammals, the G1-S phase transition is controlled by the CDK-RB-E2F core cell cycle signaling pathway (Polager and Ginsberg, 2009). In the Arabidopsis genome, there are at least 50 cyclins, 12 CDKs, 18 CKIs and 8 E2Fs (Vandepoele et al., 2002; Wang G. et al., 2004). In contrast, the Arabidopsis genome only bears a single copy gene of CDKA1 and RB. All types of these cell cycle regulators have been implicated in plant gametogenesis (Twell, 2011; Zhao et al., 2012). During cell cycle progression, CDK and E2F function as positive regulators, whereas RB acts as a negative regulator. The phenotype of e2fabc mutant appears earlier than that of cdka1 and rbr1 mutant (Figures 3, 4) (Ebel et al., 2004; Nowack et al., 2006). The redundancy between multiple genes (cyclins, CKIs, CDKs and E2Fs) and the lethality of a single copy gene (RB and CDKA1) have long hampered the genetic study on their functions. Fortunately, the e2fabc mutant is severely but not completely sterile, especially during the late flowering stage. A little bit of fertility and the normal vegetative development in the e2fabc triple mutant provide us with an opportunity to have in-depth study of the CDK-RB-E2F signaling pathway in plant germline development. Plant E2Fs control cell cycle as their mammalian counterpart (Vandepoele et al., 2005; Sozzani et al., 2006; Cheng et al., 2013; Liu et al., 2016). The canonical E2Fs had been found to play a distinct role during cell cycle progression based on the ectopic studies. Co-overexpression of E2Fa with DPa leads to activation of both mitosis and endoreduplication, whereas E2Fb and E2Fc act antagonistically as both co-overexpression of E2Fb with DPa and down-regulation of E2Fc by RNA interference induced mitosis but reduced the endoreduplication (De Veylder et al., 2002; Magyar et al., 2005; del Pozo et al., 2006). In addition, E2Fb is antagonistic to E2Fc in the transcription of the DEL1 gene (Berckmans et al., 2011). Our data demonstrated that the three Arabidopsis canonical E2Fs played a redundant role in plant fertility (Figures 1–3), in addition to plant effector-triggered cell death and immunity (Wang et al., 2014).
E2F acts as a transcription factor which is an executor of the CDK-RB-E2F signaling pathway on the expression of target genes. Our data showed that the canonical E2Fs were required for plant germline development, especially the pollen mitosis and the AC-MMC transition (Figures 3, 4). The underlying mechanism of how PMI is regulated remains unknown. It seems that the cytokinesis plays a crucial role in the asymmetrical cell division of PMI as most of the identified mutants with PMI defects are related to microtubule (Twell et al., 2002; Pastuglia et al., 2006). Plant RB, E2F and MYB3R are proposed to be the member of a DREAM complex which plays a critical role in maintaining cell quiescence (Magyar et al., 2016). Arabidopsis MYB3Rs were found to regulate cytokinesis through activation of the KNOLLE transcription (Haga et al., 2007), suggesting that E2F could be involved in cytokinesis through its partner MYB3R. In the meantime, the underlying mechanism of how the MMC develop also remains largely unknown. MAC1(MULTIPLE ARCHESPORIAL CELLS 1) encodes a leucine-rich repeat containing receptor-like kinase (LRR-RLK). MSP1 (MULTIPLE SPOROCYTE 1) encodes a putative ligand of MAC1. MAC1 and MSP1 control the transition from somatic to germline fate as mutation of maize MAC1 and rice MSP1 resulted in multiple ACs (Sheridan et al., 1996; Nonomura et al., 2003). Previously, a combined analysis of laser-assisted microdissection and microarray revealed that MNEME (MEM) was preferentially expressed in the MMC. MEM encodes an ATP-dependent RNA helicase. Mutation of MEM leads to the multiple MMCs. Like MMCs of the e2fabc mutant, those of the mem mutant are also aborted after the FG0 stage. The male gametophyte development of mem mutant is not as dramatically affected as that of e2fabc mutant. Intriguingly, the microarray data of microdissected cells show that all of the canonical E2Fs are preferentially expressed in MMCs as compared to ovules (Supplementary Figure S10) (Schmidt et al., 2011), which is in good agreement with our data that the canonical E2Fs play a crucial role in the MMC initiation. The stem cell regulator WUSCHEL (WUS) plays a role in the AC-MMC transition. RBR1, the repressor of E2Fs, was found to control the AC-MMC transition through repression of the WUS expression (Lieber et al., 2011; Zhao et al., 2017). It has also been shown that the MMC initiation is controlled by a clay of Argonaute (AGO) genes including AGO4, AGO6, AGO8 and AGO9 in Arabidopsis. Mutations of these genes give rise to multiple MMCs per ovule. Among the multiple MMCs, only one MMC is functional and further develops into a gametophyte (Olmedo-Monfil et al., 2010; Hernandez-Lagana et al., 2016). In contrast to the e2fabc mutants, these ago mutants are fertile, suggesting that the canonical E2Fs are required for not only the AC-MMC transition at the FG0 stage but also the gametophyte development after the FG0 stage.
AGO protein is an RNA Slicer that functions in epigenetic regulation through the RNA-dependent DNA methylation (RdDM) signaling pathway. It interacts with transcripts produced by Polymerase V (Pol V) to recruit de novo DNA methyltransferases, such as DOMAINS REARRANGED METHYLTRANSFERASE 2 (DRM2) histone methyltransferases and chromatin remodelers, to silence a gene (Law and Jacobsen, 2010). It has been observed that the AC-MMC transition in Arabidopsis was accompanied by a large-scale chromatin reprogramming (She et al., 2013), suggesting that control of the AC-MMC transition by AGOs may be attributed to the epigenetic regulation. E2F forms a complex with RB which represses the E2F activity through either physical interaction (masking activation domain) or epigenetic regulation. RB recruits chromatin-remodeling factors and chromatin modifiers such as the SWITCH/SUCROSE NON-FERMENTABLE (SWI-SNF) complex, HISTONE DEACETYLASES (HDACs), and SET-DOMAIN-CONTAINING HISTONE METHYLTRANSFERASES (HMTases) to epigenetically repress the E2F-target genes (Robertson et al., 2000; Zhang et al., 2000). Our data showed that the repression of E2F-target genes, which may be controlled by the RB-E2F complex, was released in e2fabc mutant (Supplementary Table S7). This is consistent with that mutations of both E2Fs and its repressor RBR1 in Arabidopsis lead to multiple MMCs (Figure 4; Zhao et al., 2017). These evidences strongly support that epigenetic regulation plays a critical role in the AC-MMC transition. The variation of female gametophyte deficiency in the progeny of an e2fa+/- e2fb-/- e2fc-/- plant may result from a combined effect of quantitative (copy of E2F) and epigenetic factors.
XY, SW, and ZY conceived and designed the research project. XY, HY, YZ, SW, JX, TW, and TS performed the experiments. SW and XY wrote the manuscript.
This work was supported by grants from the Natural Science Foundation of China (31571254 and 31401030) and from the Shanghai Engineering Research Center of Plant Germplasm Resources (17DZ2252700).
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2018.00638/full#supplementary-material
Berckmans, B., Lammens, T., Van Den Daele, H., Magyar, Z., Bogre, L., and De Veylder, L. (2011). Light-dependent regulation of DEL1 is determined by the antagonistic action of E2Fb and E2Fc. Plant Physiol. 157, 1440–1451. doi: 10.1104/pp.111.183384
Chen, Z., Hafidh, S., Poh, S. H., Twell, D., and Berger, F. (2009). Proliferation and cell fate establishment during Arabidopsis male gametogenesis depends on the Retinoblastoma protein. Proc. Natl. Acad. Sci. U.S.A. 106, 7257–7262. doi: 10.1073/pnas.0810992106
Cheng, Y., Cao, L., Wang, S., Li, Y. P., Shi, X. Z., Liu, H., et al. (2013). Downregulation of multiple CDK inhibitor ICK/KRP genes upregulates the E2F pathway and increases cell proliferation, and organ and seed sizes in Arabidopsis. Plant J. 75, 642–655. doi: 10.1111/tpj.12228
Daneva, A., Gao, Z., Van Durme, M., and Nowack, M. K. (2016). Functions and regulation of programmed cell death in plant development. Annu. Rev. Cell Dev. Biol. 32, 441–468. doi: 10.1146/annurev-cellbio-111315-124915
De Veylder, L., Beeckman, T., Beemster, G. T., de Almeida Engler, J., Ormenese, S., Maes, S., et al. (2002). Control of proliferation, endoreduplication and differentiation by the Arabidopsis E2Fa-DPa transcription factor. EMBO J. 21, 1360–1368. doi: 10.1093/emboj/21.6.1360
DeGregori, J., and Johnson, D. G. (2006). Distinct and overlapping roles for E2F family members in transcription, proliferation and apoptosis. Curr. Mol. Med. 6, 739–748. doi: 10.2174/1566524010606070739
del Pozo, J. C., Boniotti, M. B., and Gutierrez, C. (2002). Arabidopsis E2Fc functions in cell division and is degraded by the ubiquitin-SCFAtSKP2 pathway in response to light. Plant Cell 14, 3057–3071. doi: 10.1105/tpc.006791
del Pozo, J. C., Diaz-Trivino, S., Cisneros, N., and Gutierrez, C. (2006). The balance between cell division and endoreplication depends on E2FC-DPB, transcription factors regulated by the ubiquitin-SCFSKP2A pathway in Arabidopsis. Plant Cell 18, 2224–2235. doi: 10.1105/tpc.105.039651
Eady, C., Lindsey, K., and Twell, D. (1995). The significance of microspore division and division symmetry for vegetative cell-specific transcription and generative cell differentiation. Plant Cell 7, 65–74. doi: 10.1105/tpc.7.1.65
Gu, Y., Zebell, S. G., Liang, Z., Wang, S., Kang, B. H., and Dong, X. (2016). Nuclear pore permeabilization is a convergent signaling event in effector-triggered immunity. Cell 166, 1526.e11–1538.e11. doi: 10.1016/j.cell.2016.07.042
Haga, N., Kato, K., Murase, M., Araki, S., Kubo, M., Demura, T., et al. (2007). R1R2R3-Myb proteins positively regulate cytokinesis through activation of KNOLLE transcription in Arabidopsis thaliana. Development 134, 1101–1110. doi: 10.1242/dev.02801
Hernandez-Lagana, E., Rodriguez-Leal, D., Lua, J., and Vielle-Calzada, J. P. (2016). A multigenic network of ARGONAUTE4 clade members controls early megaspore formation in Arabidopsis. Genetics 204, 1045–1056. doi: 10.1534/genetics.116.188151
Honys, D., Oh, S. A., Renak, D., Donders, M., Solcova, B., Johnson, J. A., et al. (2006). Identification of microspore-active promoters that allow targeted manipulation of gene expression at early stages of microgametogenesis in Arabidopsis. BMC Plant Biol. 6:31. doi: 10.1186/1471-2229-6-31
Johnston, A. J., Kirioukhova, O., Barrell, P. J., Rutten, T., Moore, J. M., Baskar, R., et al. (2010). Dosage-sensitive function of RETINOBLASTOMA RELATED and convergent epigenetic control are required during the Arabidopsis life cycle. PLoS Genet. 6:e1000988. doi: 10.1371/journal.pgen.1000988
Johnston, A. J., Matveeva, E., Kirioukhova, O., Grossniklaus, U., and Gruissem, W. (2008). A dynamic reciprocal RBR-PRC2 regulatory circuit controls Arabidopsis gametophyte development. Curr. Biol. 18, 1680–1686. doi: 10.1016/j.cub.2008.09.026
Lieber, D., Lora, J., Schrempp, S., Lenhard, M., and Laux, T. (2011). Arabidopsis WIH1 and WIH2 genes act in the transition from somatic to reproductive cell fate. Curr. Biol. 21, 1009–1017. doi: 10.1016/j.cub.2011.05.015
Liu, Y. Y., Lai, J. B., Yu, M. Y., Wang, F. G., Zhang, J. J., Jiang, J. M., et al. (2016). The Arabidopsis SUMO E3 ligase AtMMS21 dissociates the E2Fa/DPa complex in cell cycle regulation. Plant Cell 28, 2225–2237. doi: 10.1105/tpc.16.00439
Logan, N., Delavaine, L., Graham, A., Reilly, C., Wilson, J., Brummelkamp, T. R., et al. (2004). E2F-7: a distinctive E2F family member with an unusual organization of DNA-binding domains. Oncogene 23, 5138–5150. doi: 10.1038/sj.onc.1207649
Magyar, Z., De Veylder, L., Atanassova, A., Bako, L., Inze, D., and Bogre, L. (2005). The role of the Arabidopsis E2FB transcription factor in regulating auxin-dependent cell division. Plant Cell 17, 2527–2541. doi: 10.1105/tpc.105.033761
Naouar, N., Vandepoele, K., Lammens, T., Casneuf, T., Zeller, G., van Hummelen, P., et al. (2009). Quantitative RNA expression analysis with Affymetrix Tiling 1.0R arrays identifies new E2F target genes. Plant J. 57, 184–194. doi: 10.1111/j.1365-313X.2008.03662.x
Nonomura, K., Miyoshi, K., Eiguchi, M., Suzuki, T., Miyao, A., Hirochika, H., et al. (2003). The MSP1 gene is necessary to restrict the number of cells entering into male and female sporogenesis and to initiate anther wall formation in rice. Plant Cell 15, 1728–1739. doi: 10.1105/tpc.012401
Nowack, M. K., Grini, P. E., Jakoby, M. J., Lafos, M., Koncz, C., and Schnittger, A. (2006). A positive signal from the fertilization of the egg cell sets off endosperm proliferation in angiosperm embryogenesis. Nat. Genet. 38, 63–67. doi: 10.1038/ng1694
Nowack, M. K., Harashima, H., Dissmeyer, N., Zhao, X., Bouyer, D., Weimer, A. K., et al. (2012). Genetic framework of cyclin-dependent kinase function in Arabidopsis. Dev. Cell 22, 1030–1040. doi: 10.1016/j.devcel.2012.02.015
Olmedo-Monfil, V., Duran-Figueroa, N., Arteaga-Vazquez, M., Demesa-Arevalo, E., Autran, D., Grimanelli, D., et al. (2010). Control of female gamete formation by a small RNA pathway in Arabidopsis. Nature 464, 628–632. doi: 10.1038/nature08828
Pastuglia, M., Azimzadeh, J., Goussot, M., Camilleri, C., Belcram, K., Evrard, J. L., et al. (2006). Gamma-tubulin is essential for microtubule organization and development in Arabidopsis. Plant Cell 18, 1412–1425. doi: 10.1105/tpc.105.039644
Rhee, S. Y., and Somerville, C. R. (1998). Tetrad pollen formation in quartet mutants of Arabidopsis thaliana is associated with persistence of pectic polysaccharides of the pollen mother cell wall. Plant J. 15, 79–88. doi: 10.1046/j.1365-313X.1998.00183.x
Robertson, K. D., Ait-Si-Ali, S., Yokochi, T., Wade, P. A., Jones, P. L., and Wolffe, A. P. (2000). DNMT1 forms a complex with Rb. E2F1 and HDAC1 and represses transcription from E2F-responsive promoters. Nat. Genet. 25, 338–342. doi: 10.1038/77124
Sanders, P. M., Bui, A. Q., Weterings, K., McIntire, K. N., Hsu, Y. C., Lee, P. Y., et al. (1999). Anther developmental defects in Arabidopsis thaliana male-sterile mutants. Sex. Plant Reprod. 11, 297–322. doi: 10.1007/s004970050158
Schmidt, A., Schmid, M. W., and Grossniklaus, U. (2015). Plant germline formation: common concepts and developmental flexibility in sexual and asexual reproduction. Development 142, 229–241. doi: 10.1242/dev.102103
Schmidt, A., Wuest, S. E., Vijverberg, K., Baroux, C., Kleen, D., and Grossniklaus, U. (2011). Transcriptome analysis of the Arabidopsis megaspore mother cell uncovers the importance of RNA helicases for plant germline development. PLoS Biol. 9:e1001155. doi: 10.1371/journal.pbio.1001155
She, W., Grimanelli, D., Rutowicz, K., Whitehead, M. W., Puzio, M., Kotlinski, M., et al. (2013). Chromatin reprogramming during the somatic-to-reproductive cell fate transition in plants. Development 140, 4008–4019. doi: 10.1242/dev.095034
Sheridan, W. F., Avalkina, N. A., Shamrov, I. I., Batygina, T. B., and Golubovskaya, I. N. (1996). The mac1 gene: controlling the commitment to the meiotic pathway in maize. Genetics 142, 1009–1020. doi: 10.1534/g3.112.004465
Sozzani, R., Maggio, C., Varotto, S., Canova, S., Bergounioux, C., Albani, D., et al. (2006). Interplay between Arabidopsis activating factors E2Fb and E2Fa in cell cycle progression and development. Plant Physiol. 140, 1355–1366. doi: 10.1104/pp.106.077990
Steffen, J. G., Kang, I. H., Macfarlane, J., and Drews, G. N. (2007). Identification of genes expressed in the Arabidopsis female gametophyte. Plant J. 51, 281–292. doi: 10.1111/j.1365-313X.2007.03137.x
Sun, B., Looi, L. S., Guo, S. Y., He, Z. M., Gan, E. S., Huang, J. B., et al. (2014). Timing mechanism dependent on cell division is invoked by polycomb eviction in plant stem cells. Science 343:1248559. doi: 10.1126/Science.1248559
Twell, D., Park, S. K., Hawkins, T. J., Schubert, D., Schmidt, R., Smertenko, A., et al. (2002). MOR1/GEM1 has an essential role in the plant-specific cytokinetic phragmoplast. Nat. Cell Biol. 4, 711–714. doi: 10.1038/ncb844
Vandepoele, K., Vlieghe, K., Florquin, K., Hennig, L., Beemster, G. T., Gruissem, W., et al. (2005). Genome-wide identification of potential plant E2F target genes. Plant Physiol. 139, 316–328. doi: 10.1104/pp.105.066290
Wang, G., Kong, H., Sun, Y., Zhang, X., Zhang, W., Altman, N., et al. (2004). Genome-wide analysis of the cyclin family in Arabidopsis and comparative phylogenetic analysis of plant cyclin-like proteins. Plant Physiol. 135, 1084–1099. doi: 10.1104/pp.104.040436
Wang, S., Gu, Y., Zebell, S. G., Anderson, L. K., Wang, W., Mohan, R., et al. (2014). A noncanonical role for the CKI-RB-E2F cell-cycle signaling pathway in plant effector-triggered immunity. Cell Host Microbe 16, 787–794. doi: 10.1016/j.chom.2014.10.005
Wang, Y., Magnard, J. L., McCormick, S., and Yang, M. (2004). Progression through meiosis I and meiosis II in Arabidopsis anthers is regulated by an A-type cyclin predominately expressed in prophase I. Plant Physiol. 136, 4127–4135. doi: 10.1104/pp.104.051201
Zhang, H. S., Gavin, M., Dahiya, A., Postigo, A. A., Ma, D., Luo, R. X., et al. (2000). Exit from G1 and S phase of the cell cycle is regulated by repressor complexes containing HDAC-Rb-hSWI/SNF and Rb-hSWI/SNF. Cell 101, 79–89. doi: 10.1016/S0092-8674(00)80625-X
Zhang, Z. B., Zhu, J., Gao, J. F., Wang, C., Li, H., Li, H., et al. (2007). Transcription factor AtMYB103 is required for anther development by regulating tapetum development, callose dissolution and exine formation in Arabidopsis. Plant J. 52, 528–538. doi: 10.1111/j.1365-313X.2007.03254.x
Zhao, X., Bramsiepe, J., Van Durme, M., Komaki, S., Prusicki, M. A., Maruyama, D., et al. (2017). RETINOBLASTOMA RELATED1 mediates germline entry in Arabidopsis. Science 356:aaf6532. doi: 10.1126/science.aaf6532
Zhao, X. A., Harashima, H., Dissmeyer, N., Pusch, S., Weimer, A. K., Bramsiepe, J., et al. (2012). A general G1/S-phase cell-cycle control module in the flowering plant Arabidopsis thaliana. PLoS Genet. 8:e1002847. doi: 10.1371/journal.pgen.1002847
Keywords: cell cycle, E2F, megaspore mother cell, plant germline development, pollen mitosis, epigenetic control
Citation: Yao X, Yang H, Zhu Y, Xue J, Wang T, Song T, Yang Z and Wang S (2018) The Canonical E2Fs Are Required for Germline Development in Arabidopsis. Front. Plant Sci. 9:638. doi: 10.3389/fpls.2018.00638
Received: 23 January 2018; Accepted: 25 April 2018;
Published: 15 May 2018.
Edited by:Jian Xu, National University of Singapore, Singapore
Reviewed by:Ki-Hong Jung, Kyung Hee University, South Korea
Xiaohong Zhuang, The Chinese University of Hong Kong, China
Dongfang Wang, Spelman College, United States
Copyright © 2018 Yao, Yang, Zhu, Xue, Wang, Song, Yang and Wang. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Shui Wang, firstname.lastname@example.org
†These authors have contributed equally to this work.
