Original Research ARTICLE

Front. Plant Sci., 10 July 2018 | https://doi.org/10.3389/fpls.2018.00990

MtMTP2-Facilitated Zinc Transport Into Intracellular Compartments Is Essential for Nodule Development in Medicago truncatula

  • 1Centro de Biotecnología y Genómica de Plantas (UPM-INIA), Universidad Politécnica de Madrid, Madrid, Spain
  • 2Noble Research Institute, Ardmore, OK, United States
  • 3Instituto de Ciencias Ambientales, Consejo Superior de Investigaciones Científicas, Madrid, Spain
  • 4Escuela Técnica Superior de Ingeniería Agronómica, Alimentaría y de Biosistemas, Universidad Politécnica de Madrid (UPM), Madrid, Spain

Zinc (Zn) is an essential nutrient for plants that is involved in almost every biological process. This includes symbiotic nitrogen fixation, a process carried out by endosymbiotic bacteria (rhizobia) living within differentiated plant cells of legume root nodules. Zn transport in nodules involves delivery from the root, via the vasculature, release into the apoplast and uptake into nodule cells. Once in the cytosol, Zn can be used directly by cytosolic proteins or delivered into organelles, including symbiosomes of infected cells, by Zn efflux transporters. Medicago truncatula MtMTP2 (Medtr4g064893) is a nodule-induced Zn-efflux protein that was localized to an intracellular compartment in root epidermal and endodermal cells, as well as in nodule cells. Although the MtMTP2 gene is expressed in roots, shoots, and nodules, mtp2 mutants exhibited growth defects only under symbiotic, nitrogen-fixing conditions. Loss of MtMTP2 function resulted in altered nodule development, defects in bacteroid differentiation, and severe reduction of nitrogenase activity. The results presented here support a role of MtMTP2 in intracellular compartmentation of Zn, which is required for effective symbiotic nitrogen fixation in M. truncatula.

Introduction

Zinc (Zn) is an essential nutrient for plants as a cofactor of enzymes or as a structural element (Coleman, 1998; Broadley et al., 2007). Consequently, plants grown in soils with low Zn bioavailability, which include some of the main agricultural areas of the world, have severe growth defects (Alloway, 2008; Marschner, 2012). These include interveinal chlorosis, necrotic leaves, and stunted growth, the result of alterations in the plethora of processes mediated by Zn proteins (Coleman, 1998; Broadley et al., 2007). To prevent this and ensure proper Zn allocation, plants have developed a complex network of transcription factors, transporters, and small Zn-chelating molecules that direct this metal to the proper tissue, cell compartments, and apoproteins (Assunção et al., 2010; Sinclair and Krämer, 2012; Olsen and Palmgren, 2014).

Zinc transport is mediated typically by four different transporter families: the Zrt1/Irt1-like (ZIP) and the yellow stripe-like (YSL) families for transport into the cytosol; and the metal tolerance protein (MTP) and Zn2+-ATPase families for efflux out of the cytosol (DiDonato et al., 2004; Eren and Argüello, 2004; Desbrosses-Fonrouge et al., 2005; Ishimaru et al., 2005; Olsen and Palmgren, 2014). Uptake of Zn from soils in dicots is mediated by ZIP proteins (Korshunova et al., 1999), in a process induced by soil acidification (Pedas and Husted, 2009). Zn can move symplastically from cell to cell and is released from endodermal cells into the xylem, via Zn2+-ATPases (Hussain et al., 2004). YSL transporters are likely candidates to mediate Zn loading into the phloem, as a Zn-nicotianamine complex (Waters et al., 2006). Within cells, Zn is transported into organelles by MTP or Zn2+-ATPases, either to be stored when in excess, or to be used to assemble Zn-proteins (Blaudez et al., 2003; Desbrosses-Fonrouge et al., 2005; Morel et al., 2009). Overall, these processes are regulated by a set of transcription factors that orchestrate Zn homeostasis (Assunção et al., 2010).

While leaves are the main Zn sink in most plants during vegetative growth (Broadley et al., 2007), legumes have an additional one: nitrogen-fixing root nodules (González-Guerrero et al., 2014, 2016). Nodules are root- or stem-associated organs that develop as a result of complex chemical exchanges with soil bacteria known as rhizobia (Downie, 2014). After detection of specific nodulation factors synthesized by the colonizing rhizobia (Oldroyd, 2013), cells of the root pericycle and cortex proliferate to originate the nodule primordia (Xiao et al., 2014). As the nodule develops, a root hair curls to surround the rhizobia in the root rhizoplane. The plasma membrane of this hair cell retracts into the cytosol, forming an infection thread that guides the rhizobia from the epidermis into the nodule core (Gage, 2002). There, in an endocytic-like process, rhizobia are released into the cytosol of cortical cells (Limpens et al., 2009). Under the proper physico-chemical conditions, rhizobia differentiate into bacteroids (Kereszt et al., 2011). Surrounded by a specialized plant-derived membrane, the symbiosome membrane, and protected from oxygen, bacteroids are able to synthesize nitrogenase, the iron-molybdenum enzyme complex responsible for converting atmospheric N2 into NH4+ (Rubio and Ludden, 2005). Fixed nitrogen is transferred to the host plant, in exchange for photosynthate and mineral nutrients from the plant (Udvardi and Poole, 2013). Two morphological types of nodules are known as follows: determinate and indeterminate (Brewin, 1991). Indeterminate nodules, such as those present in the genera Medicago or Pisum, are characterized by the presence of a persistent apical meristem(s) that produce cylindrical or coralloid-shaped organs (Vasse et al., 1990). As a consequence, different developmental zones can be distinguished in such nodules: the meristem or Zone I, the region where rhizobia colonize the nodule and differentiate into bacteroids or Zone II, the nitrogen fixation zone or Zone III, and, in old nodules, the senescent zone or Zone IV (Vasse et al., 1990). To this, some authors add an Interzone between Zones II and III, were oxygen levels transition from atmospheric levels (20%) to microaerobiosis (<1%); and a Zone V, where the rhizobia grow saprophytically (Timmers et al., 2000; Roux et al., 2014). In addition to the zonation pattern, determinate and indeterminate nodules differ in the process of bacteroid differentiation, that is irreversible for the majority of indeterminate nodules, to the extent that they cannot proliferate if released from the nodules. These bacteroids also have a higher ploidy level and larger size, as a consequence of cysteine-rich peptides released by the host cell that participate in bacteroid development (Van de Velde et al., 2010; Kereszt et al., 2011; Kondorosi et al., 2013; Stonoha-Arther and Wang, 2018).

The specific role(s) of Zn in symbiotic nitrogen fixation is not clear. Given the multitude of Zn-proteins in a cell, Zn could act at several different levels. It has been reported that plants growing under Zn deficiency suffer reduced growth and reduced nitrogenase activity (Ibrikci and Moraghan, 1993; O’Hara, 2001). Similar effects result from silencing the expression of MtZIP6, a Medicago truncatula Zn transporter located in the plasma membrane of nitrogen-fixing nodule cells (Abreu et al., 2017). Nodule development in these silenced plants was also affected, resulting in smaller nodules compared to wild-type controls. Understanding how reduced uptake of Zn into cells affects nodule development and symbiotic nitrogen fixation is complicated by the fact that Zn plays a role in numerous intracellular processes. Knowledge of the intracellular fate of Zn would help in this regard. To this end, we are characterizing Zn transporters likely to be involved in organelle loading, especially be members of the MTP and Zn2+-ATPase families.

Exploration of publicly available transcriptome databases (Benedito et al., 2008; Roux et al., 2014) revealed no Zn2+-ATPase to be upregulated during nodule development. In contrast, M. truncatula MtMTP2 (Medtr4g064893) was found to be expressed at higher levels in nodules than in any other organ. Here, we show that MtMTP2 is a Zn efflux protein located in an intracellular compartment, with an important role in nodule development and bacteroid differentiation.

Materials and Methods

Biological Materials and Growth Conditions

Medicago truncatula R108 ecotype, the Tnt1-insertion mutants mtp2-1 (NF11171) and mtp2-2 (NF18305) were used in this study. Seeds were scarified in concentrated H2SO4 for 7 min and washed in dH2O. Later, seeds were surface sterilized using 50% bleach for 90 s, washed in sterile dH2O, and left overnight in sterile water to facilitate imbibition. After 48 h at 4°C, seeds were germinated in water-agar plates at 22°C for 48 h. Seedlings were then transplanted to sterilized perlite pots and inoculated with Sinorhizobium meliloti 2011, S. meliloti 2011 transformed with the GFP expressing pHC60 vector (Cheng and Walker, 1998), or S. meliloti 1021 expressing pCMB13 DsRED (Gage, 2002), as indicated. Plants were cultivated in a greenhouse in 16 h of light and 22°C conditions, and watered every 2 days with Jenner’s solution or water, alternatively (Brito et al., 1994). This nutrient solution contained 5 mM CaSO4, 1 mM KCl, 1 mM K2HPO4, 1 mM MgSO4, 11.5 μM H3BO3, 7.3 μM Fe-citrate, 3.6 μM MnSO4, 0.38 μM ZnSO4, 0.16 mM CuSO4, and 4 nM (NH4)6Mo2O24. Nodules were collected 28 dpi. Non-nodulated plants were watered every 2 weeks with solutions supplemented with 20 mM NH4NO3. For hairy-root transformations, M. truncatula seedlings were transformed with Agrobacterium rhizogenes ARqua1 carrying the appropriate binary vector as described (Boisson-Dernier et al., 2001).

Complementation assays were performed using the yeast (Saccharomyces cerevisiae) strains DY1457 (MATa ade6 can1 his3 leu2 trp1 ura3), the yeast double mutant zrc1cot1 (MATa ade6 can1 his3 leu2 trp1 ura3 zrc1::his3 cot1::ura3) (MacDiarmid et al., 2000), DY150 (MATa ade2-1 his3-11 leu2-3,112 trp1-1 ura3-52 can1-100(oc)), the mutant ccc1 (MATa ade2-1 his3-11 leu2-3,112 trp1-1 ura3-52 can1-100(oc) ccc1::his3; Li et al., 2001), BY4741 (his3 leu2 met1 ura3), and the strain Δsmf1 (his3 leu2 met1 ura3 Δsmf1; ThermoFisher). All strains were grown in synthetic dextrose (SD) medium (Sherman et al., 1981) supplemented with necessary auxotrophic requirements, with 2% (w/v) glucose as the carbon source, and supplemented with Zn, iron, or manganese, when required.

Sequence Analysis and Protein Structure Prediction

To identify M. truncatula MTP family members, BLASTN and BLASTX searches were carried out in the M. truncatula Genome Project site1 and include 13 members: MtMTP1, Medtr8g024240; MtMTP2, Medtr4g064893; MtMTP3, Medtr2g036390; MtMTP4, Medtr3g080090; MtMTP5, Medtr7g093290; MtMTP6, Medtr1g088870; MtMTP7, Medtr4g008150; MtMTP8, Medtr3g062610; MtMTP9, Medtr2g064405; MtMTP10, Medtr8g046550; MtMTP11, Medtr7g022890; MtMTP12, Medtr6g463330, MtMTP13, Medtr5g075680. Sequences from model MTP genes were obtained from the Transporter Classification Database2 (Saier et al., 2014), NCBI3 and Phytozome4, and include A. thaliana MTPs (AtMTP1, At2g46800; AtMTP2, At3g61940, AtMTP3, At3g58810; AtMTP4, At2g29410; AtMTP5, At3g12100; AtMTP6, At2g4783; AtMTP7, At1g51610; AtMTP8, At3g58060; AtMTP9, At1g79520; AtMTP10, At1g16310; AtMTP11, At2g39450; AtMTP12, At2g04620), Oryza sativa MTPs (OsMTP1, LOC_Os05g03780; OsMTP8, LOC_Os05g03780) Cucumis sativus MTPs (CsMTP1, Cucsa.362220; CsMTP4, Cucsa.146570; CsMTP8, Medtr3g062610; CsMTP9, Cucsa.118550), Anemone halleri MTPs (AhMTP1-A, FN428855; AhMTP1-B, Fn386317; AhMTP1-C, Fn386316; AhMTP1-D, Fn386315), Hordeum vulgare MTPs (HvMTP1, HORVU1Hr1G015500; HvMTP8.1, HORVU4Hr1G065110.1), and Populus trichocarpa MTPs (PtdMTP1, Potri.014G106200; PtMTP11, POPTR_0010s21810). All these protein sequences were processed with MEGA75. First, protein sequences were aligned using the Clustal Omega algorithm6 (Sievers et al., 2011), and the alignment was visually examined to exclude alignment artifacts. Then, phylogenetic reconstruction was performed using the Neighbor-joining method, the Jones–Taylor–Thornton (JTT) substitution model, and assuming uniform rates (Saitou and Nei, 1987; Jones et al., 1992). Deletion sites were excluded from the alignment following the partial deletion method (95% site coverage cutoff). Unrooted tree visualization was carried out using FigTree7.

MtMTP2 protein sequence from R108 was obtained from the Medicago Hapmap website8. The automated protein homology-modeling server SWISS-model9 (Biasini et al., 2014) was used to predict the MtMTP2 protein structure based on the template 3h90 from the Escherichia coli Zn transporter YiiP (Lu et al., 2009). Protein structure was visualized using PyMOL (Schörindeger LLC, United States).

RNA Extraction and RT-qPCR

RNA was isolated from leaves, roots, or nodules from three-pooled plants (from independent experiments each) following the protocol previously described by Abreu et al. (2017). Briefly, RNA was extracted using Tri-Reagent® (Life Technologies, Carlsbad, CA) followed by a DNase treatment and later cleaned with RNeasy Minikit (Qiagen, Valencia, CA). Denaturing agarose gel was used to verify RNA quality. One microgram of DNA-free RNA was employed to generate cDNA by using PrimeScript RT Reagent Kit (Takara). Gene expression was determined by quantitative Real time RT-PCR (9700, Applied Biosystems, Carlsbad, CA, United States) using primers listed in Supplementary Table S1. The M. truncatula ubiquitin carboxyl-terminal hydrolase gene was used to normalize the results. Real-time cycler conditions have been previously described (González-Guerrero et al., 2010). The threshold cycle (Ct) was determined in triplicate. The relative levels of transcription were calculated using the 2-ΔΔCt method (Livak and Schmittgen, 2001). As control, a non-RT sample was used to detect any possible DNA contamination.

Yeast Complementation Assays

Yeast complementation was performed by cloning the MtMTP2 cDNA between the XbaI and BamHI sites of the yeast expression vector pAMBV or pDR196. Cloning in pAMBV was carried out by homologous recombination of MtMT2 cDNA using primers 5 MtMTP2 XbaI pMBV and 3 MtMTP2 BamHI pAMBV (Supplementary Table S1). Cloning in pDR196 was carried out by restriction digestion and T4 ligation of the DNA fragment resulting from the XbaI and BamHI digestion of the amplicon resulting from amplifying by PCR MtMTP2 cDNA with primers 5MtMTP2-XbaI and 3MtMTP2-BamHI (Supplementary Table S1). Yeast transformations were performed using a lithium acetate-based method (Schiestl and Gietz, 1989). Cells transformed with pAMBV or pAMBV::MtMTP2 (in Zn phenotypic assays) or pDR196 or pDR196 (in the case of iron or manganese phenotypic assays) were selected in SD medium by leucine or uracil autotrophy, respectively. For phenotypic tests, DY1457 and zrc1cot1 transformants were plated in SD with or without supplementation of 500 μM ZnSO4, DY150, and ccc1 transformants were plated in SD with or without supplementation with 4 mM FeSO4 and BY4741 and Δsmf1 transformants were plated in SD with or without supplementation with 10 mM MnCl2.

GUS Staining

A transcriptional fusion was constructed by amplifying 889 bases upstream of MtMTP2 start codon using primers indicated on Supplementary Table S1, cloned in pDONR207 (Invitrogen), and transferred to pGWB3 (Nakagawa et al., 2007) using Gateway technology® (Invitrogen). This led to the fusion of the promoter region of MtMTP2 with the β-glucoronidase (gus) gene in pGWB3. pGWB3::MtMTP2 was transformed in A. rhizogenes ARqua1 and used to obtain M. truncatula composite root plants as indicated (Boisson-Dernier et al., 2001). GUS activity was determined in 28 dpi plants as described (Vernoud et al., 1999). The process was carried out from biological material originated from three independent assays carried out at different times of the year to select a representative image.

Immunolocalization of MtMTP2-HA

By using Gateway Technology® (Invitrogen), a DNA fragment of the full length MtMTP2 genomic region and the 1,961 bases upstream of its start codon, was cloned into the plasmid pGWB13 (Nakagawa et al., 2007). Hairy-root transformation was performed as previously described (Boisson-Dernier et al., 2001). For confocal microscopy, transformed plants were inoculated with S. meliloti 2011 containing the pHC60 plasmid that constitutively expresses GFP (Cheng and Walker, 1998) or DsRED (Gage, 2002). Roots and nodules collected from 28 dpi plants were fixed by overnight incubation in 4% paraformaldehyde, 2.5% sucrose in phosphate buffer saline (PBS) at 4°C. After washing in PBS, nodules were cut in 100 μm sections with a Vibratome 1000 plus (Vibratome, St. Louis, MO, United States). Sections were dehydrated in a methanol series (30, 50, 70, 100% in PBS) for 5 min and then rehydrated. Cell walls were treated with 4% cellulase in PBS for 1 h at room temperature and with 0.1% Tween 20 in PBS for an additional 15 min. Sections were blocked with 5% bovine serum albumin (BSA) in PBS before their incubation with an anti-HA mouse monoclonal antibody (Sigma, St. Louis, MO) for 2 h at room temperature. After washing, an Alexa 594-conjugated anti-mouse rabbit monoclonal antibody (Sigma) was added to the sections for 1 h at room temperature. DNA was stained with DAPI after washing. Images were acquired with a confocal laser-scanning microscope (Leica SP8, Wetzlar, Germany). The process was carried out from biological material originated from three independent assays carried out at different times of the year to select a representative image.

Immunolocalization of MtMTP2-HA in an electron-microscope was carried out with M. truncatula plants transformed with A. rhizogenes ARqua1 pGWB13 carrying MtMTP2 full gene and the 1,961 bases upstream the start codon. Transformed plants were inoculated with S. meliloti 2011 and 28 dpi nodules were collected and fixed in 1% formaldehyde and 0.5% glutaraldehyde in 50 mM potassium phosphate (pH 7.4) for 2 h. After that, the fixation solution was renewed for 1.5 h. Samples were washed in 50 mM potassium phosphate (pH 7.4) 3 × 30 min and 3 × 10 min. Nodules were dehydrated by incubation with ethanol dilution series of 30, 50, 70, 90 (10 min each), 96 (30 min), and 100% (1 h). Nodules were included in a series of ethanol and LR–white resin (London Resin Company Ltd., United Kingdom) dilutions: 1:3 (3 h), 1:1 (overnight), and 3:1 (3 h). Samples were included in resin during 48 h. All the process was performed at 4°C. Nodules were placed in gelatine capsules and filled with resin and polymerized at 60°C for 24 h. One-micron thin sections were prepared at Centro Nacional de Microscopía Electrónica (Madrid, Spain) with a Reichert Ultracut S-ultramicrotome fitted with a diamond knife. Thin sections were blocked in 2% bovine serum albumin in PBS for 30 min. Anti-HA rabbit monoclonal antibody (Sigma) was used as primary antibody, a 1:20 dilution in PBS. Samples were washed 10 times in PBS for 2 min. Anti-rabbit goat conjugated to a 15-nm gold particle (BBI solutions) was used as secondary antibody diluted 1:150 in PBS. Incubation was performed for 1 h followed by 10 washes in PBS for 2 min and 15 times in water for 2 min. Sections were stained with 2% uranyl acetate and imaged in a JEM 1400 electron microscope at 80 kV.

Acetylene Reduction Assay

Nitrogenase activity was measured by the acetylene reduction assay (Hardy et al., 1968). Nitrogen fixation was assayed in 28 dpi wild-type and mutant plants in 30 ml tubes fitted with rubber stoppers. Each tube contained roots from five independently transformed plants. Three milliliters of air inside were replaced with 3 ml of acetylene. Tubes were incubated at room temperature for 30 min. Gas samples (0.5 ml) were analyzed in a Shimadzu GC-8A gas chromatograph fitted with a Porapak N column. The amount of ethylene produced was determined by measuring the height of the ethylene peak relative to background. Each point consists of three tubes each with five pooled plants measured in triplicate.

Metal Content Determination

Inductively coupled plasma mass spectrometry (ICP-MS) was carried out at the Metal Analysis Unit of the Scientific and Technology Centre, Universidad de Barcelona (Barcelona, Spain). These samples were digested with HNO3, H2O2, HF in a Teflon reactor at 90°C. The sample was diluted with deionized water. The final volume of the solution was calculated by weight difference with the original sample, and with the measured density of the solution, obtained from weighting a small aliquot of known volume. Samples were digested with three blanks in parallel. Metal determination was carried out in Agilent 7500ce instrument under standard conditions (RF power 1550 W, Nebulizer Burgener AriMist HP, Nebulizer Ar flow 0.75 l/min, sample pump 0.1 rps, QP resolution 0.7 amu at 10% height (7Li, 89Y, 205Tl), integration time 0.9 s, reading replicates 3, calibration linear through zero, internal standard online addition 103Rh, gas cell mode He collision). Calibration was carried out with five measurements using commercial certified solutions analyzed and compared with reference NIST solutions.

Confocal Imaging of Bacteroids and Colony-Forming-Units Assays

Confocal microscopy images of bacteroids were obtained from 28 dpi nodules. Nodules were ground with a micropestle in TY medium to release the bacteroids. The nodule homogenate was filtered using CellTrics® 30 μm columns and stained using propidium iodide (50 μg/ml) to visualize the bacteroids by using confocal microscopy at a 535 nm Ex/617 nm Em. Colony-forming-units (CFU) were obtained from fresh nodules harvested at 28 dpi. Nodules were weighed and surface-sterilized in 70% ethanol for 10 min followed by five washes with distillated water. The tissue was later ground with a micropestle in 200 μl TY medium. Serial dilutions of the homogenate were plated on TY solid media. Plates were incubated 48 h at 30°C, and the number of colonies was recorded (Montiel et al., 2016).

Statistical Tests

Results are presented as mean value ± standard deviation. Multiple comparisons were performed by one-way analysis of variance (ANOVA) followed by Tukey HSD post hoc at a probability level of 5% (P < 0.05). Pairwise comparisons were done by using Student’s t-test at a probability level of 5% (P < 0.05). The JMP® (ver.11.0) statistical package (SAS Institute) was used for statistical analyses.

Results

MtMTP2 Is Up-Regulated During Nodule Development

Out of the thirteen MTP genes in the M. truncatula genome, MtMTP2 was the one with the highest expression levels in nodules, as reported in the Medicago Gene Expression Atlas (Benedito et al., 2008) and in the Symbimics database (Roux et al., 2014; Supplementary Figure S1). MtMTP2 expression analysis was performed to identify organs in which the gene/protein operates. Relatively high levels of MtMTP2 transcripts were found in nodules compared to shoots and roots of inoculated plants (Figure 1). Shoots of nitrogen-fertilized, non-nodulated plants exhibited higher transcript levels than those of nodulated plants, although levels were still much lower than in nodules (Figure 1).

FIGURE 1
www.frontiersin.org

FIGURE 1. Medicago truncatula metal tolerance protein 2 (MtMTP2), a member of the MTP protein family, is highly expressed in the nodule. (A) MtMTP2 expression in nitrogen-fertilized and 28 dpi nodulated M. truncatula plants relative to the internal standard gene Ubiquitin carboxyl-terminal hydrolase. Values with different letters are significantly different (Tukey’s HSD p < 0.05; n = 4). (B) Unrooted phylogenetic tree of the plant metal tolerance protein family. (C) Tertiary structure model of MtMTP2 and its template YiiP (3h90). Positions of metal coordinating amino acids and Zn(II) elements are indicated. (D) Alignment of the conserved amino acids in MTP members. The amino acid sequences were aligned using the ClustalW method.

MTP proteins fall into seven groups, based on sequence similarity, which roughly correspond to putative metal substrates and subcellular localizations (Ricachenevsky et al., 2013). To gain insight into the possible metal substrates of MtMTP2, phylogenetic analysis was performed on 13 M. truncatula MTPs and homologous proteins in Arabidopsis thaliana, Oryza sativa, Crocus sativus, Arabidopsis halleri, Populus trichocarpa, and Hordeum vulgare. MtMTP2 showed strong similarity to CsMTP4 (54% similarity) described as a protein involved in Zn homeostasis in cucumber (Migocka et al., 2015) and AtMTP4 (48% similarity), a predicted Zn transporter of A. thaliana (Waters and Grusak, 2008; Figure 1B). To explore further Zn as a candidate substrate, a predicted tertiary structure of MtMTP2 was obtained by homology modeling based on the known crystal structure of the E. coli Zn transporter YiiP (Lu et al., 2009). The generated model revealed a Zn-binding domain made of residues H88, D92, H271, and D275 that corresponded to the YiiP site Z1 (D45, D49, H153, and D157; Figure 1C). The substitution of YiiP D45 residue by a histidine, H88, observed in MtMTP2 is also conserved in other plant MTP proteins (Figure 1D).

MtMTP2 Complements a Zinc Detoxification-Deficient Yeast Mutant

In S. cerevisiae, ZRC1 and COT1 are tonoplast transporters responsible for the storage of Zn in vacuoles (MacDiarmid et al., 2000). Yeast zrc1/cot1 double mutants are hyper-sensitive to Zn in the growth medium. Genetic complementation assays using a yeast zrc1/cot1 double mutant showed that expression of MtMTP2 enabled the mutant strain to grow on otherwise toxic levels of Zn (500 μM ZnSO4), consistent with a role of MtMTP2 in Zn efflux out of the cytosol (Figure 2A). In contrast, complementation assays using a yeast ccc1 mutant affected in the transport of iron into the vacuole (Li et al., 2001), and an smf1 mutant strain, which is unable to store manganese in the vacuole (Portnoy et al., 2000), showed no recovery of growth on media supplemented with 4 mM FeSO4 or 10 mM MnCl2, respectively (Figures 2B,C), indicating that MtMTP2 does not transport Fe or Mn in yeast.

FIGURE 2
www.frontiersin.org

FIGURE 2. MtMTP2 yeast complementation assays. (A) Yeast strain DY1457 was transformed with the pYPGE15 empty vector, while the double mutant zrt1/cot1 was transformed with the empty pYPGE15 or with pYPEG15 containing MtMTP2 coding DNA sequence. Serial dilutions (10×) of each transformant were grown for 3 days at 28°C on SD media with all the required amino acids and 500 μM ZnSO4. Positive control was obtained without supplementing the media with ZnSO4. (B) Yeast strain DY150 was transformed with the pDR196 empty vector, while ccc1 mutant was transformed either with the empty pDR196 or with pDR196 containing MtMTP2 coding DNA sequence. Serial dilutions (10×) of each transformant were grown for 3 days at 28°C on SD media with all the required amino acids and 4 mM FeSO4. Positive control was obtained without supplementing the media with FeSO4. (C) Yeast strain BY4741 was transformed with the pDR196 empty vector, while a deletion strain in smf1 was transformed either with empty pDR196 or with pDR196 containing MtMTP2 coding DNA sequence. Serial dilutions (10×) of each transformant were grown for 3 days at 28°C on SD media with all the required amino acids and 10 μM MnCl2. Positive control was obtained without MnCl2 supplementation.

MtMTP2 Is Located in an Endomembrane Compartment in Cells of Nodule Zones II to III

To determine MtMTP2 expression distribution in nodules and roots, a segment of 889 bp upstream of the MtMTP2 start codon was fused to the gus reporter gene and subsequently expressed in roots of M. truncatula inoculated with rhizobia. MtMTP2 promoter activity was detected in roots and nodules (Figure 3A) and was most active in the segment from late Zone II to early Zone III, while lower GUS signal was detected at the meristematic zone and late zone III (Figure 3B). In silico analysis of MtMTP2 expression in nodules using data obtained from the Symbimics database10 (Roux et al., 2014) was consistent with GUS assays showing an increased expression pattern in the late differentiation zone (proximal Zone II) and in Zone III (Supplementary Figure S2). In roots, MtMTP2-regulated GUS activity was faintly detected at the epidermis, pericycle, and vascular tissue (Figure 3C).

FIGURE 3
www.frontiersin.org

FIGURE 3. Organ and tissue expression localization of MtMTP2. (A) GUS expression assay in roots and nodules of plants transformed with pGWB3 containing the pMtMTP2::GUS construct. Bar: 1 μm. (B) GUS expression assay in a longitudinal section of a nodule transformed with pGWB3 containing pMtMTP2::GUS construct. Bar: 100 mm. (C) Cross section of a M. truncatula root transformed with the plasmid pGWB3 containing the pMtMTP2::GUS construct. Bar: 50 μm.

Subcellular localization of MtMTP2 was performed by fusing the DNA segment from 1,961 bp upstream of the MtMTP2 start codon to the last codon before the stop codon to either GFP or to 3 hemagglutinin (HA) epitopes, resulting in pMtMTP2::MtMTP2-GFP and pMtMTP2:: MtMTP2-HA, respectively. Plants were transformed with these constructs and inoculated with S. meliloti strains constitutively expressing DsRED or GFP, followed by DAPI staining (Figure 4). Subcellular localization using both constructs was consistent with the results obtained with the GUS reporter assays. pMtMTP2::MtMTP2-GFP was localized intracellularly from the infection and differentiation zones and into the fixation zone in 28 dpi nodules, while no signal was found at the meristematic zone (Figure 4A). Localization using the pMtMTP2::MtMTP2-HA construct by immunostaining with Alexa594-conjugated antibody (Supplementary Figure S3), showed an identical pattern of distribution to that observed with pMtMTP2::MtMTP2-GFP. High magnification imaging of nodules 28 dpi allowed the visualization of MtMTP2 intracellularly in infected cells (Figures 4B,C). No autofluorescence signal was detected under the experimental conditions used, as shown when primary anti-HA antibody for MtMTP2-HA detection was removed (Supplementary Figure S4), or when no MtMTP2-GFP protein was present (Supplementary Figure S5). In roots, MtMTP2-HA was detected in the epidermis and around the vasculature (Figure 4D), consistent with the promoter-GUS assays.

FIGURE 4
www.frontiersin.org

FIGURE 4. Subcellular localization of MtMTP2 in Medicago truncatula. (A) Cross section of a 28-dpi M. truncatula nodule expressing pMtMTP2::MtMTP2-GFP (green) (A) inoculated with a Sinorhizobium meliloti 1021 strain constitutively expressing DsRed (red). DNA was stained using 4′-6-diamino-phenylindole (DAPI) (blue). Left panel, GFP channel; central panel, DsRed channel; right panel, overlay of the previous two panels with DAPI channel and transillumination image. Bars: 100 μm. (B) Closer view of infection zone of a 28-dpi M. truncatula nodule expressing pMtMTP2::MtMTP2-GFP (green) inoculated with a Sinorhizobium meliloti 1021 strain constitutively expressing DsRed (red). DNA was stained using 4′-6-diamino-phenylindole (DAPI) (blue). Left panel, GFP channel; central panel, DsRed channel; right panel, overlay of the previous two panels with DAPI channel image. Bars: 25 μm. (C) Detail of an infected area of M. truncatula nodules transformed with pMtMTP2::MtMTP2-HA. Sections were immunostained with the antibody Alexa 594 (red). Transformed plants were inoculated with S. meliloti 2011 pHC60 strain constitutively expressing GFP (green). Bars: 10 μm. (D) Cross section of a 28-dpi M. truncatula root transiently expressing pMtMTP2::MtMTP2-GFP (green) overlaid with transillumination image. Bar: 50 μm. (E) Transmission electron microscopy (TEM) image of an infected cell of a 28 dpi M. truncatula nodule expressing the pMtMTP2::MtMTP2-HA construct, inoculated with S. meliloti 2011. Gold particles are indicated by arrows; bacteroids are indicated by asterisks. Left panel, general overview of an infected (left) and un-infected (right) cells; central panel, closer view of the region boxed with continuous line from the previous panel; right panel, closer view of the region boxed with discontinuous line in the left panel.

To further clarify the subcellular localization of MtMTP2, immunolocalization of MtMTP2-HA with a gold-conjugated antibody and transmission electron microscopy was used (Figure 4E). Gold particles were found concentrated in electron dense structures corresponding to intracellular compartments resembling endoplasmic reticulum (or associated domains) of infected cells and non-infected cells. No gold particles were detected associated with symbiosomes. When no primary antibody was used, no gold particles were found to be concentrated in any cell sections (Supplementary Figure S6).

MtMTP2 Mutants Exhibit Abnormal Accumulation of Zinc in Nodules and Impaired Nitrogen Fixation and Growth

To determine the physiological role of MtMTP2, two homozygous mutant lines of MtMTP2, mtpt2-1 (NF11171), and mtp2-2 (NF18305) were evaluated. Mutant line mtpt2-1 harbors the tnt1 insertion at the promoter region (-69 upstream of the start codon) while mtp2-2 contains a tnt1 insertion at the unique exon of the gene (+623 downstream the start codon; Figure 5A). These insertions resulted in a reduced level of MtMTP2 expression in nodules, 80% reduction in the case of mtpt2-1 and more than 99% in mtpt2-2 (Figure 5B). Accordingly, they were designated as a knock-down and a knock-out MtMTP2 mutants, respectively. Plant phenotypes were analyzed when nitrogen was provided in the nutrient solution as ammonium nitrate. Under these non-symbiotic conditions, no changes in the plant phenotype were detected in the mtp2 mutants compared to wild-type plants (Figure 5C). Plant biomass (determined by the dry weight of shoots and roots) did not show significant differences among the genotypes analyzed (Figure 5D). Similarly, no significant differences between wild type and mutant lines were observed when either no Zn or excess Zn (100×) were added to the nutrient solution (Supplementary Figure S7).

FIGURE 5
www.frontiersin.org

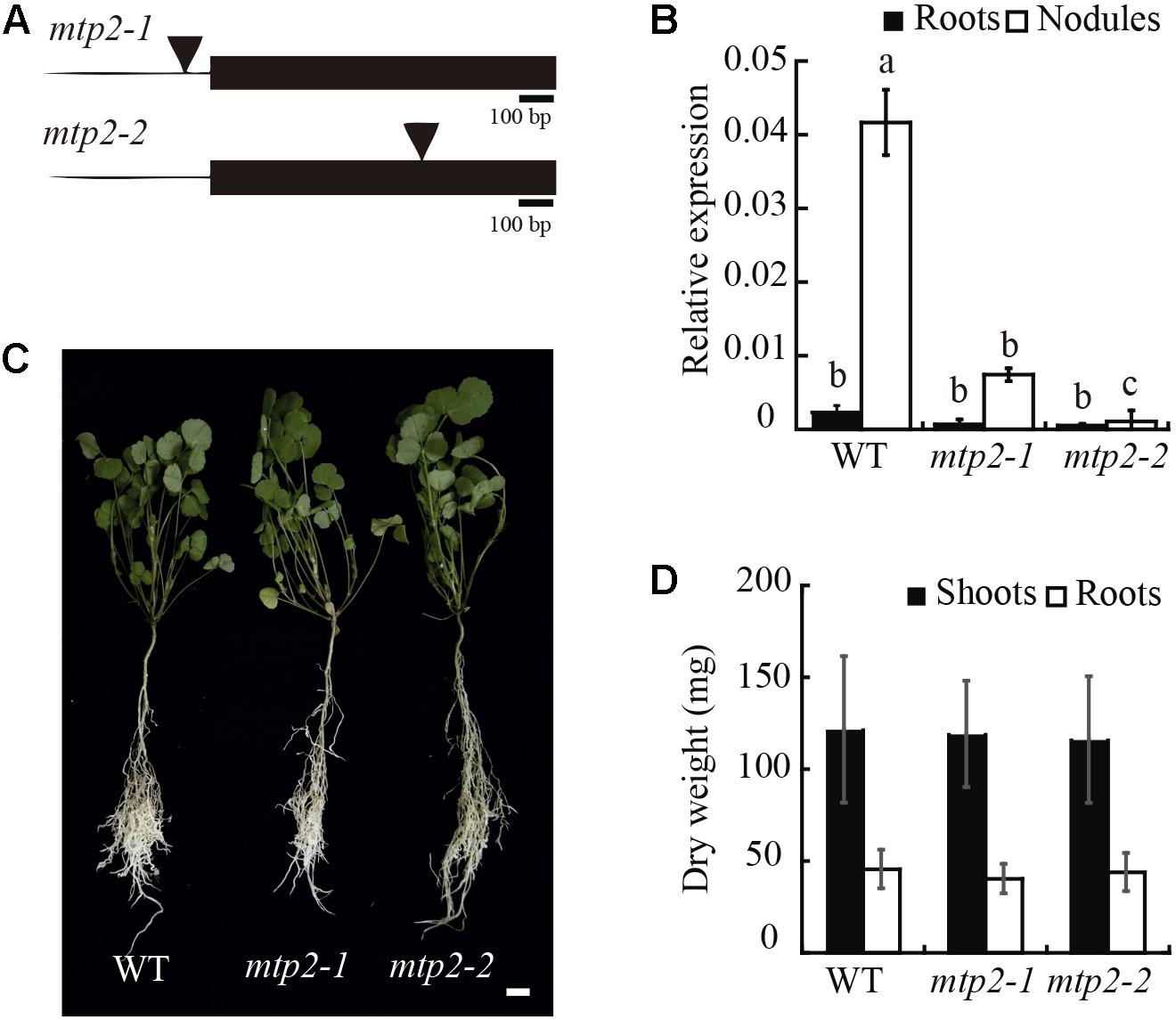

FIGURE 5. MtMTP2 mutants grown under non-symbiotic conditions did not show an altered phenotype. (A) Position of the transposable element of tobacco (Nicotiana tabacum) cell type 1 (Tnt1) in the MtMTP2 genomic region in mtp2-1 and mtp2-2 mutants. (B) MtMTP2 expression in roots (black) and nodules (white) of WT, mtp2-1, and mtp2-2 plants relative to the internal gene Ubiquitin carboxyl-terminal hydrolase 1. Data are the mean ± SD of two independent experiments with four pooled plants. (C) From the left to the right, representative plants of M. truncatula WT, mtp2-1, and mtp2-2 N-fertilized plants. Bars: 1 cm. (D) Dry weight of shoots (black) and roots (white). Data represent the mean ± SD of three experiments pooling, at least, ten independent plants (n = 10).

In contrast, under symbiotic conditions without mineral-N, mutant plants exhibited reduced growth and an altered nodule development (Figure 6). Nodules of the mtp2-2 mutant were small, round, and white, in contrast to the long, cylindrical, pink nodules of the wild-type (Figures 6A,B). A time-course analysis of nodule growth was performed, which showed a progressive delay in nodule growth, but no delay in the start of nodulation of the mutants (Supplementary Figure S8). Consistent with the plant phenotypes observed, plant biomass (determined as dry weight) was reduced in both mutants (Figure 6C). Shoot biomass suffered a more drastic decrease linked to the mutation than did root biomass (a 36% reduction in the case of mtpt2-1 and 55% for mtpt2-2 shoots). However, root biomass was still significantly diminished in both mutants, and to a similar extent (20%). In order to determine if the phenotypic alterations observed were a consequence of a decline in nitrogenase activity, acetylene reduction assays were performed (Hardy et al., 1968). The knock-down mutant, mtpt2-1 exhibited a reduction of 60% in nitrogenase activity while the knock-out mutant, mtpt2-2 barely showed detectable enzyme activity (Figure 6D). Similar activity profile was observed when data were normalized to nodule number per root (Supplementary Figure S9). Zn content in shoots, roots, and nodules were determined in order to evaluate changes in the putative metal substrate of MtMTP2. While no significant changes in Zn content were detected in roots, and a slight increase was detected in the shoots of mtpt2-2, nodules of knock-out plants showed a substantial accumulation of Zn (∼40% increase; Figure 6E). This phenotype was not the result of additional insertions in the tnt1 lines. Both mutant lines only share insertions in MtMTP2. Moreover, segregants containing the two wild-type copies of MtMTP2 did not show any significant differences with wild-type plants (Supplementary Figure S10). A Zn gradient including suboptimal (0 μM added ZnSO4), control (0.38 μM ZnSO4) and supra-optimal Zn conditions (38 μM ZnSO4) was applied in an attempt to complement the mtp2 mutants’ defective symbiotic phenotype (Supplementary Figure S11). None of the Zn conditions tested enabled recovery in growth (including biomass; Supplementary Figure S11A,B) nor in nitrogenase activity (Supplementary Figure S11C).

FIGURE 6
www.frontiersin.org

FIGURE 6. Medicago truncatula MTP2 mutation impairs nitrogen fixation. (A) Representative WT, mtp2-1, and mtp2-2 plants. Bars: 1 cm. (B) Representative nodules of WT, mtp2-1, and mtp2-2 plants. Bars: 500 μm. (C) Dry weight of shoots (black) and roots (white). Data are the mean ± SD of, at least, 10 plants. Comparisons have been made among the shoots and among the roots. (D) Nitrogenase activity of 28-dpi nodules. Acetylene reduction was measured in duplicate from three sets of four pooled plants. Data are the mean ± SD. (E) Zn content in shoots, roots and nodules of WT (black), mtp2-1 (white), and mtp2-2 (gray). Data are the mean ± SD of three sets of at least ten pooled plants. Values with different letters are significantly different (Tukey’s HSD, p < 0.05).

Absence of MTP2 Alters Nodule and Bacteroid Development

The smaller size of mtp2 mutant nodules indicated altered nodule development. To explore this further, nodules were sectioned, stained with toluidine blue, and observed by light microscopy. Nodules of mtpt2-2 a reduced infection zone and the disappearance of the fixation zone compared to WT nodules (Figures 7A,B).

FIGURE 7
www.frontiersin.org

FIGURE 7. Nodule and bacteroid development in MtMTP2 mutants. (A) Longitudinal sections of M. truncatula WT, mtp2-1, and mtp2-2 nodules stained with toluidine blue and visualized by light microscopy. Bars: 100 μm. (B) Detail of infected nodule cells of M. truncatula WT, mtp2-1, and mtp2-2 nodules stained with toluidine blue and visualized by light microscopy. Bars: 10 μm. (C) Confocal image of S. meliloti stained with propidium iodide from 28-dpi M. truncatula WT, mtp2-1, and mtp2-2 nodules. (D) Cell length of S. meliloti bacteroids isolated from WT, mtp2-1, and mtp2-2 nodules. Data are the mean ± SD of at least 100 cells. (E) S. meliloti CFU per mg fresh weight of 28-dpi nodules from WT, mtp2-1, and mtp2-2 plants. Data are the mean of three independent experiments ± SE. Values with different letters are significantly different (Tukey’s HSD, p < 0.05). (F) Expression of the senescence marker genes Chit2 (chitinase Medtr5g022560) and CysProt (cysteine protease Medtr6g079630) in 28 dpi M. truncatula nodules of WT, mtp2-1, and mtp2-2 plants relative to the internal standard gene Ubiquitin carboxyl-terminal hydrolase. Data are the mean of three independent experiments ± SE. Values with different letters are significantly different (Tukey’s HSD, p < 0.05).

The lack of a fixation zone in mtp2-2 suggested that rhizobia may not have differentiated fully into bacteroids in these nodules. To test this idea, bacteroids were isolated from WT and mtp2 mutant nodules and characterized (Figures 7C,D). Bacteroids from mtp2-2 nodules were shorter in length than those of wild-type nodules, longer than free-living rhizobia (Figure 7D) and formed more colonies on solid growth medium (Figure 7E). These results are consistent with lack of full differentiation of rhizobia into nitrogen-fixing bacteroids within mtp2-2 mutant nodules, or with early senescence that would hamper further nodule development. To test the later, gene expression of a chitinase (Medtr5g022560) and cystine protease (Medtr6g079630), two genes induced in senescence (Xi et al., 2013), was determined in 28 dpi nodules from wild-type and mtp2-1 and mtp2-2 plants (Figure 7F). The result showed an induction of senescent genes in mtpt2-2 nodules.

Discussion

MTP proteins are members of the Cation Diffusion Facilitator (CDF) family and known in plants (Ricachenevsky et al., 2013). These proteins are typically involved in Zn2+, Mn2+, or Fe2+ efflux from the cytosol, either out of the cell or into organelles (Desbrosses-Fonrouge et al., 2005; Eroglu et al., 2015). From a physiological point of view, their functions can be diverse, including metal detoxification (Desbrosses-Fonrouge et al., 2005), metal storage and allocation to sink organs (Eroglu et al., 2017), and metalation of apo-metalloproteins (Ellis et al., 2004). From a structural point of view, they seem to function as homodimers (Wei et al., 2004; Lu and Fu, 2007; Lu et al., 2009), in which each of the monomers is able to independently pump cations. This is made possible by transmembrane metal binding sites that, by being arranged in a specific geometry, confer specificity to the transporter (Argüello et al., 2012).

The genome of M. truncatula encodes 13 MTP proteins of which only one, MtMTP1, was previously characterized (Chen et al., 2009). MtMTP1 is a Zn transporter also involved in Zn efflux from the cytosol. It is expressed in roots and shoots. Zn modulates MtMTP1 transcription: in roots, it is down-regulated, while it is up-regulated in shoots in response to Zn supply. Although there is no published information on its expression in nodules, its overall expression decreases with S. meliloti inoculation, and the ˆMedicago Gene Expression Atlas and the Symbimics databases indicate that it is downregulated in nodules. In this manuscript, we characterized MtMTP2 as an additional Zn2+-transporting MTP family member that is involved in nodule development. Homology modeling of the structure of MtMTP2 shows that its metal substrate would likely be tetrahedrally coordinated by two histidine and two glutamate residues, since they occupy a similar location to the transmembrane metal binding site of template E. coli YiiP (Lu and Fu, 2007; Lu et al., 2009). Three of the four amino acid residues are conserved between both proteins, and the fourth, a change from glutamate to histidine, is consistent with Zn binding, both by its occurrence in many Zn-coordinating sites, and by its being conserved in other plant Zn-transporting MTPs (Ricachenevsky et al., 2013). Further supporting this ability to transport Zn are two related observations: the capability of MtMTP2 to functionally complement the Zn transport defect of the yeast zrc1/cot1 double mutant (MacDiarmid et al., 2000); as well as the changes in Zn concentration in nodules of the mtp2-2 mutant line. Although MTP proteins have been shown to be able to transport more than one substrate, MtMTP2 did not complement defects in Fe or Mn transport of specific yeast mutants (Podar et al., 2012; Migocka et al., 2015; Eroglu et al., 2017).

MtMTP2 is expressed in different plant organs. In roots, it is located in the epidermal and in vascular and endodermal cells; in nodules, in cells in Zones II and III, as indicated by promoter::gus fusions, fluorescence of a GFP-labeled MtMTP2, and immunolocalization of a HA-tagged protein. The latter two approaches also provide insight into the subcellular localization of MtMTP2, which is associated with an endomembrane compartment. Given the importance of Zn in symbiotic nitrogen fixation (Ibrikci and Moraghan, 1993; O’Hara, 2001), and the direction of transport of MTPs in general and MtMTP2 in particular (Wei and Fu, 2006), it was tempting to speculate that MtMTP2 might deliver Zn across the symbiosome membrane. However, electron microscopy analyses of the localization of HA-tagged MtMTP2 indicated that this is not the case, since no protein was associated with symbiosomes. Instead, signal was located in electron-dense bodies in the cell cytosol, that are distributed all over the cells. This allows us to discard plastids or mitochondria as putative locations based on their unique morphology, as well as the nucleus (based on its uniqueness), Golgi cisternae (very few in a cell), or late endosomal compartment (with a close distribution to the plasma membrane). Putative localization would be the endoplasmic reticulum. Considering that transport into the vacuole would mean a role in Zn storage, rather than a more active role in the cell functioning, and the severe phenotype observed by MtMTP2 mutation, it can be speculated that the intracellular compartment would correspond to the endoplasmic reticulum. Previously, other MTP/CDF proteins have been associated to the endoplasmic reticulum, where they would play a role in metallating metalloproteins. Mutation of yeast Msc2 gene results in the induction of the unfolded protein response, as a consequence of the Zn cofactor not being inserted in the proteins (Ellis et al., 2004, 2005). Similar roles of CDF proteins being involved in metallation of proteins have been attributed to Schizosaccharomyces pombe Zhf1 (Choi et al., 2018), or to mammalian ZnT5 and ZnT6 (Suzuki et al., 2005). However, co-localization with ER-specific markers would be needed to conclusively demonstrate MtMTP2 subcellular localization.

In spite of being expressed in many plant organs, MtMTP2 is primarily involved in nodule development. No aberrant phenotype was observed for mtp2 mutants under non-symbiotic conditions, indicating that either MtMTP2 is not required for key physiological processes in plants in the vegetative stage of growth when watered with NH4NO3, or that another, yet-to-be-determined protein can serve as a substitute for MTP2. However, when nitrogen is provided by endosymbiotic rhizobia in root nodules, mutating MtMTP2 has a dramatic effect. As was the case with silencing the Zn transporter MtZIP6 (Abreu et al., 2017), altering Zn homeostasis in the nodule resulted in reduced nodule development and a substantial decrease in nitrogenase activity. However, the effect of mutating MtMTP2 was more severe because its loss lead to alterations in nodule development, in bacteroid maturation, and nodule senescence. Phenotypic differences between MtZIP6 silenced plants and the MtMTP2 knock-out mutant seem to result from the inability to completely silence gene expression, since an activity of just 40% in the knock-down mtp2-1 line is enough to allow for bacteroid development, a situation similar to what was reported for MtZIP6 RNAi plants. This result is striking since it indicates the existence of one or several Zn proteins that receive Zn in an endomembrane compartment (likely the endoplasmic reticulum) that have an effect on bacteroid differentiation and/or nodule development, leading to early senescence. Alternatively, it could be argued that MtMTP2 might be protecting the nodule against Zn toxicity by sequestering the metal, as has been proposed for other MTP transporters (Blaudez et al., 2003; Desbrosses-Fonrouge et al., 2005). However, when no Zn was provided in the nutrient solution, no improvement of the mutant phenotype was observed, suggesting that no toxicity effect was at play. Moreover, altered nodule development has also been reported when mutating iron transporter SEN1 in Lotus japonicus (Hakoyama et al., 2012). Lowering Zn levels in the nutrient solution did not have any effect on plant growth or nitrogen fixation. This could be due to not being able to diminish enough the Zn levels (traces in perlite) or to already having achieved the bare minimum nitrogenase activity in mtp2-2 plants. Future work will be directed toward characterizing the nodulation Zn-proteome to identify the Zn-proteins that might be governing nodule development and bacteroid differentiation.

Author Contributions

JL-M and MS carried out most of the experimental work with assistance from ÁS (yeast complementation), PG-D (nodule development time course and effect of added metals on mtp2-2 phenotype), and JM (bacteroid development). IK and MU obtained the mtp2-1 and mtp2-2 mutants. MR, JI, and MG-G were responsible for experimental design, data analyses, and wrote the manuscript with contributions from all authors.

Funding

This work was supported by the Spanish Ministry of Economy and Competitiveness (grant AGL-2012-32974), a Marie Curie International Reintegration grant (IRG-2010-276771), and a European Research Council Starting grant (ERC-2013-StG-335284) to MG-G.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The authors would like to thank Dr. David Eide (University of Wisconsin-Madison) for providing the DY1457 and zrc1cot1 yeast strains, Dr. Jack Kaplan (University of Utah) for the DY150 and the ccc1 yeast strains, Dr. Stephan Pollmann for the gift of the pAMBV vector, and members of CBGP laboratory 281 for critical discussions of the manuscript.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2018.00990/full#supplementary-material
