Identification of Lysine Histidine Transporter 2 as an 1-Aminocyclopropane Carboxylic Acid Transporter in Arabidopsis thaliana by Transgenic Complementation Approach
- 1Division of Integrative Bioscience and Biotechnology, College of Life Science, Sejong University, Seoul, South Korea
- 2Departments of Biotechnology, Chonnam National University, Gwangju, South Korea
1-Aminocyclopropane-1-carboxylic acid (ACC), a biosynthetic precursor of ethylene, has long been proposed to act as a mobile messenger in higher plants. However, little is known about the transport system of ACC. Recently, our genetic characterization of an ACC-resistant mutant with normal ethylene sensitivity revealed that lysine histidine transporter 1 (LHT1) functions as a transporter of ACC. As amino acid transporters might have broad substrate specificity, we hypothesized that other amino acid transporters including LHT1 paralogs might have the ACC-transporter activity. Here, we took a gain-of-function approach by transgenic complementation of lht1 mutant with a selected set of amino acid transporters. When we introduced transgene into the lht1 mutant, the transgenic expression of LHT2, but not of LHT3 or amino acid permease 5 (AAP5), restored the ACC resistance phenotype of the lht1 mutant. The result provides genetic evidence that some, if not all, amino acid transporters in Arabidopsis can function as ACC transporters. In support, when expressed in Xenopus laevis oocytes, both LHT1 and LHT2 exhibited ACC-transporting activity, inducing inward current upon addition of ACC. Interestingly, the transgenic expression of LHT2, but not of LHT3 or AAP5, could also suppress the early senescence phenotypes of the lht1 mutant. Taking together, we propose that plants have evolved a multitude of ACC transporters based on amino acid transporters, which would contribute to the differential distribution of ACC under various spatiotemporal contexts.
Transporters of plant hormones play a pivotal role in cell-cell communication, underpinning tissue-specific differentiation and environmental adaptation of higher plants, as exemplified by various defects of hormone-transporter mutants throughout the life cycle (Park et al., 2017; Do et al., 2018). For the past three decades, the molecular genetic analysis combined with transport assay has uncovered various components of plant transporter systems, including principal transporters of each hormone, except brassinosteroid (Abualia et al., 2018). An emerging theme points to the existence of multiple routes for plant hormones transportation. For example, many transporters implicated in the uptake of metabolites/nutrients take part in hormonal transport (Tsay et al., 1993; Huang et al., 1999; Krouk et al., 2010; Kanno et al., 2012). Despite such progress, we are still far from a comprehensive understanding of the components of hormone transport systems and their regulatory mechanisms (Park et al., 2017).
Ethylene, a gaseous plant hormone, controls diverse aspects of the developmental processes including germination, fruit ripening, leaf and flower senescence, and abscission, as well as the environmental adaptation of higher plants (Lin et al., 2009; Bakshi et al., 2015; Dubois et al., 2018). The triple response of ethylene-treated etiolated seedlings, including apical hook exaggeration, inhibition of root growth, and shortened hypocotyl, represents one of the best characterized ethylene responses. It has been instrumentally exploited for genetic identification of key components of ethylene biosynthesis and signaling (Guzman and Ecker, 1990; Ju and Chang, 2015; Merchante and Stepanova, 2017). Since the first identification of ethylene-insensitive etr1-1 mutant (Bleecker et al., 1988), molecular genetic analyses in Arabidopsis have well established how plant perceive and respond to ethylene via core signaling module, which comprised five components, including ethylene receptors (ETR1 and its paralogs)-constitutive triple response1-ethylene insensitive 2-EIN3 binding F-Box 1 (EBF1)/EBF2-ethylene insensitive 3 (EIN3)/EIN3-like (Ju and Chang, 2015; Merchante and Stepanova, 2017).
It has been well characterized how plants control the ethylene level. In higher plants, ethylene is biosynthesized from a nonprotein amino acid, 1-aminocyclopropane-1-carboxylic acid (ACC) by ACC oxidase. ACC is synthesized by ACC synthase (ACS) using S-adenosyl methionine, supplied via Yang cycle reaction (Boller et al., 1979; Yang and Hoffman, 1984; John et al., 1985). Synthesis of ACC by ACS is the major rate-limiting step of ethylene biosynthesis (Yang and Hoffman, 1984), while under certain circumstances, e.g., fruit ripening, ACC oxidase also contributes to the increase in ethylene level (Nakatsuka et al., 1998; De Paepe et al., 2004; Rudus et al., 2013). As such, ACS activities are under extensive transcriptional and posttranscriptional regulations (Argueso et al., 2007). Besides its biosynthetic regulation, the amount of ACC is also controlled by conjugation and deamination (Van de Poel and Van Der Straeten, 2014; Vanderstraeten and Van Der Straeten, 2017).
In addition to ACC metabolism, short- or long-distance transport of ACC can also contribute to spatiotemporal distribution of ethylene. The long-distance transport of ACC has been suggested by its presence in the vascular system. (Bradford and Yang, 1980; Finlayson et al., 1991; Else et al., 1995; Morris and Larcombe, 1995). Besides long-distance transport, intracellular transport of ACC was also observed in the vacuole (Tophof et al., 1989) and maize mesophyll vacuole (Saftner and Martin, 1993). While the amino acid transporter system has long been implicated to take part in the transport system of ACC (Lurssen, 1981; Saftner and Baker, 1987), the molecular identity of an ACC transporter has been revealed only very recently (Shin et al., 2015). The loss-of-function mutant of lysine histidine transporter 1 (LHT1) in Arabidopsis exhibited dose-dependent resistance to exogenous ACC, but not to gaseous ethylene. In the agreement, the mesophyll protoplast of the lht1 mutants was impaired in the uptake of 14C-ACC. The findings that the lht1 mutant showed a normal ethylene response in the presence of higher concentrations of ACC and it retains, although partial, uptake activity of 14C-ACC implicated the presence of additional transporters. Since LHT1 belongs to a large gene family encoding amino acid transporters, which comprised more than 100 members in Arabidopsis (Pratelli and Pilot, 2014; Tegeder and Masclaux-Daubresse, 2018), it is conceivable that transporters other than LHT1 take part in the uptake of ACC. However, there has been no report available about genetic identification of ACC transporters except LHT1. Presumably, genetic redundancy, as well as distinct spatiotemporal expression patterns among amino acid transporters, might have hampered the genetic identification of mutants impaired in the uptake of ACC.
To identify additional amino acid transporters that take part in the uptake of ACC, here we undertook a gain-of-function approach making use of the lht1 mutant, which is defective in the triple response in the presence of 1 µM ACC. After introducing the overexpressing construct of amino acid transporter gene into the lht1 mutant, we examined whether the defective triple response of lht1 mutant is restored or not. As a proof of concept, our pilot study with three amino acid transporter genes, namely LHT2, LHT3, and AAP5, revealed that only LHT2, but not LHT3 and AAP5, could restore the ACC-induced triple response of the lht1 mutant. Further, we found that the ectopic expression of LHT2 could also suppress the early senescence phenotype of the lht1 mutant. Supporting the hypothesis that LHT2 mediates uptake of ACC, LHT2 exhibited ACC-transporting activity when expressed in Xenopus oocytes, as LHT1 did. Together with findings on distinct spatiotemporal expression and substrate specificities of amino acid transporters, we discuss the hypothesis that a multitude of ACC transporting amino acid transporters might have diverse roles during development and environmental adaptation.
Materials and Methods
Plant Materials and Growth Conditions
All of the Arabidopsis thaliana plant materials used in this study had the “Col-0” ecotype background. The mutants of lht1-101 (allelic designation was changed hereafter, substituting the original ones, are2 or lht1are2), lht2-1 (SAIL_222_C12), and lht1-101LHT1ox-1 transgenic plants have been previously described (Shin et al., 2015). The lht1-101lht2-1 double mutant was obtained by genetic crossing. After crossing lht1-101 with the lht2-1 mutant, the resulting F2 population was subject to genotyping PCR to select double mutant plants using the genotyping primers as described (Shin et al., 2015). Unless otherwise stated, seeds were surface sterilized, kept at 4°C for 3 days, and plated on the half strength of MS medium (Duchefa, Haarlem, the Netherlands) supplemented with 0.5% sucrose and 0.7% phytoagar. The seedlings were grown under continuous light. After 7 days, they were transferred to soil (Sunshine Professional Growing Mix #5) for further growth under long days (16 h light/8 h dark) at 22°C. Leaf senescence phenotyping, including leaf yellowing and trypan blue staining, was performed as described (Shin et al., 2015).
Transgenic Complementation Tests
To examine transgenic complementation of the lht1-101 mutant, we amplified the full-length cDNA of LHT2, LHT3, or AAP5 via reverse transcriptase–polymerase chain reaction (RT-PCR), using primers listed in Supplementary Table S1. The sequence-verified amino acid transporter DNA was subcloned into pENTR1A (Invitrogen, Carlsbad, CA, USA) or pENT-D-TOPO (Invitrogen). The resulting entry clone was recombined into a gateway-compatible plant expression vector, pH2GW7 (Karimi et al., 2002), using LR clonase according to the manufacturer’s instructions (Invitrogen). The pH2GW7/LHT2, LHT3, or AAP5 clones were introduced into Agrobacterium tumefaciens GV3101 for transformation into the lht1-101mutant plants. Putative transgenic plants were selected based on their hygromycin resistance. For phenotypic analysis, homozygous lines harboring a single T-DNA insertion were selected in the T2 and T3 generations.
Assays for Seedling Response to ACC or D-Amino Acids
To test the response of seedlings to ACC or D-amino acid, we sowed stratified seeds on plates of MS media containing various concentrations of ACC (Sigma-Aldrich, St. Louis, MO, USA) or of D-amino acids (Sigma-Aldrich). The seedlings were then further grown under continuous light or dark after irradiation for 12 h. For amino acid competition assay with ACC, seedlings were grown on MS media containing 1 μM of ACC with mock or 100 μM of amino acid for 3.5 days in the dark after irradiation of white light for 12 h. The length of hypocotyls and roots was measured using ImageJ software (http://rsbweb.nih.gov/ij). Seedling images were scanned with an Epson scanner (Epson V700 Photo, Epson, Suwa, Nagoya, Japan).
Quantitative real-time PCR (qRT-PCR) analysis was performed with total RNA. After extraction, DNase I–treated total RNA was reverse transcribed by using RevertAid™ M-MuLV Reverse Transcriptase (Fermentas, Waltham, MA, USA). The 10-fold diluted cDNA was subject to qRT-PCR analysis using specific primers listed in Supplementary Table S1. The qRT-PCR analysis was performed with an Eco™ Real-Time PCR System (Illumina, San Diego, CA, USA) using an EvaGreen® qPCR Supermix (Solis Biodyne, Tartu, Estonia). The reactions were performed in technical triplicate for each gene. The comparative ΔCt method was used to evaluate the relative quantities of each amplified product in the samples, as described (Livak and Schmittgen, 2001). Relative expression levels were normalized according to Ct values for PP2A (At1g13320), a reference gene (Czechowski et al., 2005).
In Vitro Transcription for cRNA Preparation and Microinjection
The cDNAs encoding LHT1 or LHT2 were subcloned into the pGEM-HE vector to be expressed in oocytes using Nde1 restriction enzyme site. After sequence verification, the cRNAs were transcribed from the linearized cDNAs using transcription kit (mMessage mMachine; Ambion, TX, USA) with T7 RNA polymerases. The RNA was dissolved in nucleotide-free water and diluted at a final concentration of 1 μg/μL and then aliquoted and stored at −80°C until use. The nanoinjection of cRNAs (40 ng) into the vegetal or animal pole of each oocyte was carried out using a microinjector (VWR Scientific, Mississauga, Ontario, Canada). The nanoinjector pipettes were pulled out by the glass capillary tubes that were used for the electrodes and polished to a ∼20-μm outer diameter.
Xenopus Oocyte Electrophysiology
The handling of Xenopus laevis oocytes and preparation of single cells were described in the previous study (Bai et al., 2019). Briefly, frogs caring procedures followed the Chonnam National University animal caring institution guidelines (CNU IACUC-YB-2016-07, July 2016). The removed oocytes from X. laevis were collagenized with shaking for 2 h in Ringer solution (96 mM NaCl, 1 mM MgCl2, 2 mM KCl, and 20 mM HEPES at pH 7.5). The matured oocytes were selected and incubated in ND96 containing: 96 mM NaCl, 1 mM MgCl2, 2 mM KCl, 1.8 mM CaCl2, and 20 mM HEPES at pH 5.6 with 1% penicillin and streptomycin (Sigma). Two electrode voltage clamp experiments were carried out after 48 h for each of the RNA-injected oocytes (Naik, 2019). The oocyte was put in a perfusion chamber (Warner Instrument, Holliston, MA, USA) and flowed with ND96 medium at 1 mL/min. Each oocyte was penetrated with microelectrodes filled up with electrolyte solution. The microelectrodes resistance was from 0.5 to 0.8 MΩ. The electrophysiological experiment was performed at room temperature with oocyte clamp amplifier (OC-726C; Warner Instruments) and acquisition of data was performed using Digidata 1320 and pClamp 9 (Molecular Devices, San Jose, CA, USA).
Previously we showed that LHT1 takes part in the uptake of ACC in Arabidopsis (Shin et al., 2015). However, the null alleles of LHT1 retained, despite reduced, ACC uptake activity, suggesting that LHT1 may not be the sole ACC transporter in Arabidopsis. In line with those findings, when applied at high concentration, various amino acids reduced the ACC-induced triple response (Figure 1). We examined the triple response of etiolated seedlings that were grown in the presence of 1 µM ACC plus mock solution or 100 µM of each amino acid. The result showed that 8 of 20 amino acids, including alanine, phenylalanine, glycine, isoleucine, leucine, methionine, glutamine, and proline, alleviated the ACC-induced triple response in dark-grown wild-type seedlings. As shown in Figure 1A, the hypocotyl length or root length of seedlings that were grown in the presence of ACC plus above stated amino acids was longer than that of seedling grown in the presence of ACC alone. Some amino acids affected only either hypocotyl growth or root growth. For example, the basic amino acid, histidine, reduced the ACC-induced root growth inhibition, but not hypocotyl growth. In the case of serine and tyrosine, these affected only hypocotyl growth (Figure 1A). On the contrary, higher concentration of ACC (10 µM) could overcome the inhibitory effect of the amino acid, e.g., methionine, inducing the characteristic triple response: inhibition of hypocotyl elongation, shortened root growth, and exaggerated apical hook formation (Figure 1B). These results implied that some, if not all, amino acids may compete with ACC for uptake. Further, the diverse profile of amino acids with inhibitory activity for ACC-induced triple response suggested the presence of a multitude of amino acid transporters with ACC-transporting activity in Arabidopsis.
Figure 1 Effect of supplemented amino acids on ACC-induced inhibition of hypocotyl and root growth. (A) Hypocotyl (left) and root length (right). The wild-type seedlings were grown under dark for 4 days on MS-sucrose media containing 1 µM of ACC supplemented with each of 20 types of 100 µM amino acid. Values are mean ± SD (n = 15). The significant difference of the length between seedlings grown on the media containing ACC only and ACC with amino acid is indicated with asterisks (t test, *p < 0.01). (B) Representative wild-type seedlings grown on MS-sucrose media containing either 1 or 10 µM of ACC supplemented without (upper) or with 100 µM of methionine (Met) (lower). Scale bar, 5 mm.
Although LHT1 was identified as ACC transporter using the loss-of-function approach, all knockout mutants of LHT family gene except lht1 did not show ACC resistance in seedlings (Shin et al., 2015). Because the phenotype of knockout mutants is highly dependent on the developmental stage due to the specific spatiotemporal expression of the genes (Supplementary Figure 1) and can be masked by other gene activity with overlapping function, the possibility that other LHTs are involved in ACC transport cannot be ruled out. To overcome the drawbacks of the loss-of-function approach, we adopted a transgenic gain-of-function approach to identify ACC-transporting amino acid transporters. After introducing transgene that overexpresses a gene encoding amino acid transporter into the lht1-101 mutant, a null allele, we tested if it restored the defect in the ACC-induced triple response of the lht1 mutant. As a proof of concept, we selected three amino acid transporters (LHT2, LHT3, and AAP5) in two amino acid transporter family, e.g., LHT and AAP family. When the transgene was introduced into the lht1 mutant, the resulting 17 of 19 T2 lines with 35S::LHT2 showed normal triple response to ACC as wild type did. In contrast, none of more than 20 T2 lines with 35S::LHT3 or 35S:AAP5 exhibited defective triple response to ACC as the lht1-101 mutant did. After confirmation of the elevated transcript level of each amino acid transporter (Supplementary Figure 2), we examined the ACC-induced triple response in detail with two independent homozygous lines that overexpressed each amino acid transporter (Figure 2). In the presence of 1 μM of ACC, wild type showed typical triple response including apical hook exaggeration, inhibition of hypocotyl growth, and shortened root growth, whereas lht1-101 mutant did not (Figure 2A). As shown in Figures 2B, C overexpression of LHT2, but not LHT3 or AAP5, could restore the ACC-induced triple response of the lht1-101 mutant. Next, we analyzed the concentration-dependent ACC response in the lht1-101 mutant overexpressing LHT1 or LHT2. LHT1 overexpression in the lht1-101 mutant restored the ACC response of root growth inhibition completely as wild type did at all concentrations of ACC tested, whereas in transgenic lht1-101 seedlings overexpressing LHT2, the ACC induced root growth inhibition was observed at high concentration of ACC (Figure 3). Despite the lack of any visible effect of the lht2-1 mutation on the ACC-induced triple response (Supplementary Figure 3), our results of transgenic complementation demonstrated the role of LHT2 as a potential ACC transporter, functioning likewise LHT1.

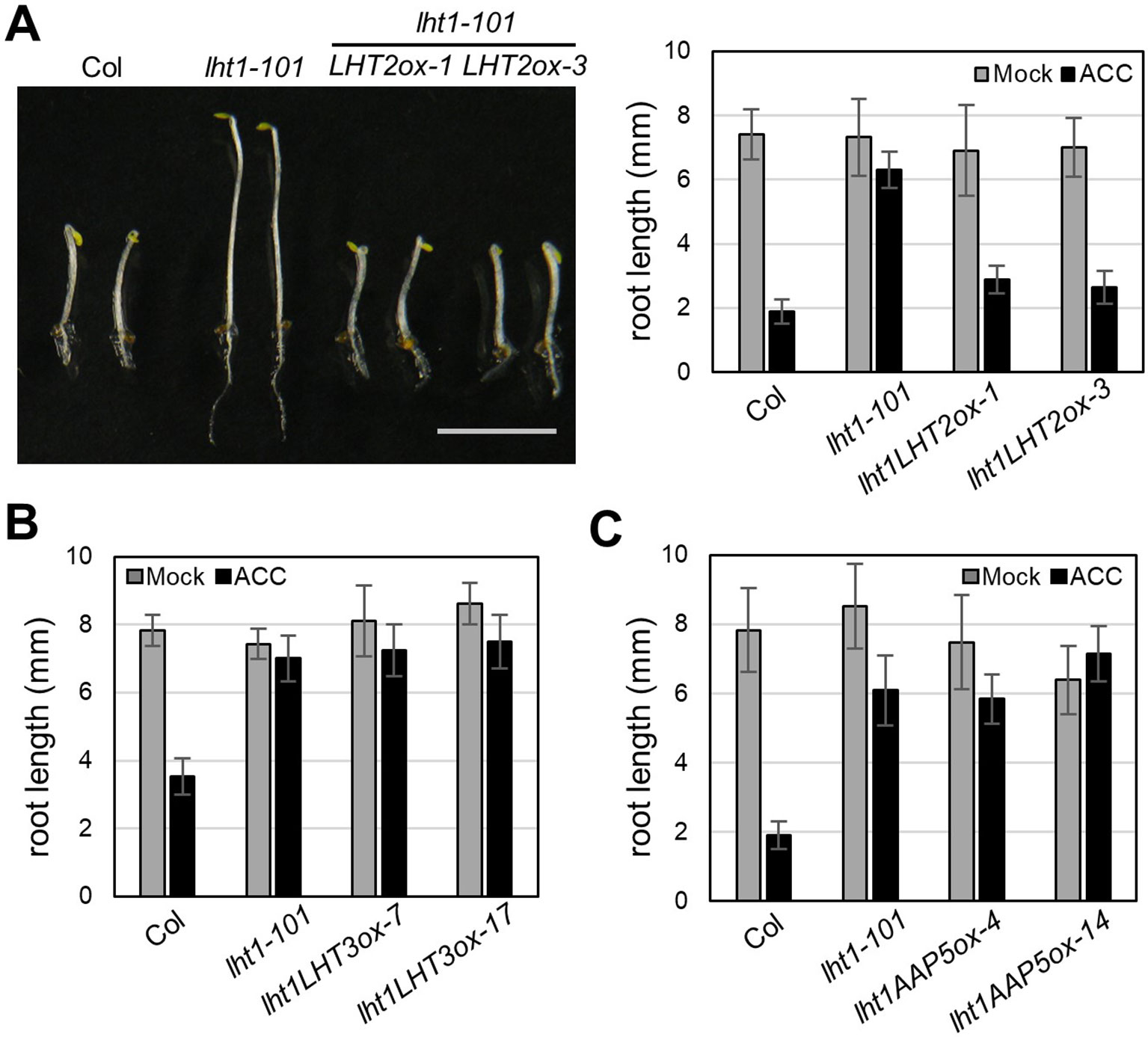

Figure 2 Transgenic complementation of lht1-101 by overexpression of LHT2, LHT3, or AAP5. (A) Restored ACC response of lht1-101 mutant by overexpression of LHT2. Left, Morphology of representative 4-day-old seedlings grown on MS-sucrose under dark media in the presence of 1 µM ACC. Note that the triple response of lht1-101 mutant was restored in the two independent LHT2-overexpressing transgenic lines (LHT2ox1 and LHT2ox3). Scale bar, 5 mm. Right, Root length of the transgenic lht1-101 seedlings. The seedlings were grown on MS-sucrose media supplemented with either Mock or 1 µM of ACC for 4 days under dark. Values are mean ± SD (n = 15). (B) Root length of LHT3 overexpressing transgenic lht1-101 seedlings. The seedlings were grown as described in (A). Values are mean ± SD (n = 15). (C) Root length of AAP5 overexpressing transgenic lht1-101 seedlings. Values are mean ± SD (n = 15). The seedlings were grown as described in (A).

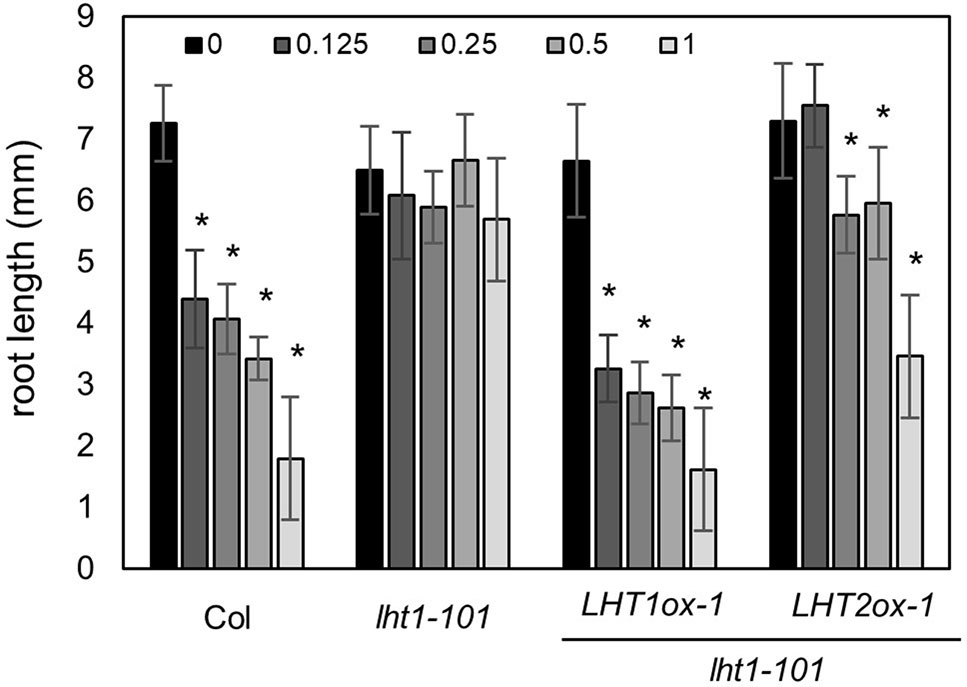

Figure 3 ACC dose-response analysis of transgenic lht1-101 seedlings overexpressing LHT2. Wild-type, lht1-101, the transgenic lht1-101 seeds overexpressing LHT1 or LHT2 were grown on MS-sucrose media containing indicated concentrations (µM) of ACC. The seedlings were grown for 4 days in the dark. Values are mean ± SD (n = 15). A significant difference between ACC treated and mock-treated (0 ACC) seedlings was indicated with asterisks (t test, p < 0.01).
LHT1 mediates uptake of broad substrates, including several D-amino acids, illustrated by the strong resistant phenotype of the lht1 mutant in the presence of a high concentration of D-amino acids (Svennerstam et al., 2007; Gordes et al., 2011). With the assumption that other amino acid transporters take part in the uptake of the D-amino acids, substrates of LHT1, we investigated whether D-amino acid resistance of the lht1 mutant could be restored by transgenic overexpression of LHT2, LHT3, or AAP5. The results showed that overexpression of LHT2, or LHT3, but not of AAP5, restored the sensitivity to D-amino acids, including D-Ala, D-Phe, and D-Met in lht1-101 (Figure 4). Together with the finding that LHT3 could not restore ACC resistance of the lht1 mutant (Figure 2), these results implied that LHT3 might have similar but distinct substrate specificity with LHT1 and LHT2.
Figure 4 D-Amino acid response of transgenic lht1-101 seedlings overexpressing amino acid transporters. (A) Morphology of representative seedlings that have grown on MS-sucrose media containing mock, 1 mM of D-alanine (D-Ala), 3 mM of D-methionine (D-Met), or 3 mM of D-phenylalanine (D-Phe). Wild-type, lht1-101, and the transgenic lht1-101 plants overexpressing the amino acid transporter, e.g., LHT2, LHT3, or AAP5, were grown for 5 days under continuous light. Scale bar, 5 mm. (B) The root length of the seedlings grown as described in (A). The data are presented with box-and-whisker plot (n = 6-11). Different letters indicate significant differences at p < 0.01 according to one-way analysis of variance with Tukey honestly significant difference test. Evidence for normality of distribution and homoscedasticity is presented in Supplementary Table S2.
Early senescence/cell death syndrome is a characteristic developmental phenotype of the lht1 mutants (Liu et al., 2010; Shin et al., 2015). We investigated whether the early senescence phenotype of lht1-101 could be altered in the transgenic plants overexpressing the amino acid transporters. Interestingly, overexpression of LHT2 restored the accelerated leaf yellowing phenotype, an early leaf senescence syndrome of lht1 mutants, while overexpression of LHT3 or AAP5 did not (Figure 5A). When we performed a closer examination of LHT2 overexpressing lht1-101 plants, we found that LHT2 overexpression suppressed the aberrant cell-death phenotype of the lht1-101 mutant, manifested by trypan blue staining (Figures 5B, C). As the early senescence phenotype of the lht1 mutant is accompanied by the massive changes of gene expression (Liu et al., 2010), further we tested whether overexpression of LHT2 can restore the elevated expression of a set of senescence-associated genes, including pathogenesis related 1 (PR1), senescence related gene 1 (SRG1), senescence associated gene 12 (SAG12), phytoalexin deficient 4 (PAD4), isochorismate synthase 1 (ICS1), NDR1/HIN1-like 25 (NHL25) in the lht1-101 mutant (Figure 5D). The expression of senescence-associated genes in the lht1-101 was shown to be suppressed by transgenic LHT2 overexpression. Collectively, these results implied that the ectopically expressed LHT2 can substitute the role of LHT1 for the control of leaf senescence.
Figure 5 The early senescence syndrome of the transgenic lht1-101 mutant overexpressing LHT2. (A) Representative morphology of wild-type, lht1-101, and the transgenic plants overexpressing LHT2, LHT3, or AAP5 at 38 DAG (days after growth). For clarity, the inflorescence of each plant was removed. (B) Representative leaf morphology of the transgenic lht1-101 plants overexpressing LHT2 at 27 DAG. (C) Trypan blue staining. Cell death in the third leaf of each plant pictured in (B) was assayed with trypan blue. (D) Expression analysis of senescence-associated genes. The fourth leaves of the plants at 27 DAG were sampled for extraction of total RNA, which was subjected to qRT-PCR analysis. For each gene indicated, the relative expression was presented after normalization with the level of PP2A. Values are mean ± SD (n = 3, technical triplicate).
Given the genetic evidence that LHT1 and LHT2 play similar roles as an ACC/amino acid transporter, we assessed the biochemical activity of LHT1 and LHT2. Taking an electrophysiological approach based on Xenopus oocyte system, we conducted a two-electrode voltage-clamp electrophysiological recording. After injection into Xenopus oocytes with mRNA of LHT1 or LHT2, we measured inward currents elicited after the addition of the substrate, ACC or amino acids. The applied ACC or amino acids (100 mM) did not induce any current in the control oocytes (Supplementary Figure 4). In contrast, the treatment of a series of amino acids induced inward currents with differential activity in both LHT1- and LHT2-expressing oocytes (Figure 6). Notably, LHT1 and LHT2 exhibited largely similar, if not identical, substrate selectivity. The results implied that LHT1 and LHT2 transport overlapping set of amino acid substrates, but with differential preference. Under the same condition, exogenously applied ACC elicited the inward currents on both LHT1- and LHT2-expressing oocytes, confirming their roles as ACC transporters (Figures 6 and 7). Further, we evaluated the ACC dose dependency in the LHT1- or LHT2-expressing oocytes. With the dose-response analysis, we calculated K0.5 for ACC with nonlinear regression using Michaelis-Menten’s equation. The K0.5 values of ACC are 60.9 ± 8.2 mM and 59.1 ± 6.6 mM for LHT1- and LHT2-expressing oocytes, respectively, suggesting that LHT1 and LHT2 can function as ACC transporter with comparable activity in Xenopus oocytes.
Figure 6 Amino acid selectivity of LHT1 and LHT2 in Xenopus oocytes. After perfusion with Ringer solution at pH 5.6, oocytes expressing LHT1 or LHT2 were treated with each amino acid (100 mM) or ACC (100 mM). For tyrosine, the currents were measured at 2.5 mM (limit of solubility). The resulting inward currents were recorded at −80 mV. Data represent the means ± SEM (n = 6–8 oocytes/four different frogs).
Figure 7 Concentration dependency and kinetic analysis of ACC-induced inward currents in LHT-expressing Xenopus oocytes. (A and B) The representative traces of LHT1- or LHT2-expressing oocytes after addition of various concentration of ACC. Exogenously applied ACC produced a reversible inward current. The holding potential was −80 mV. ACC induced the inward currents with the concentration-dependent manner in each LHT-expressing oocyte, respectively. (C and D) Kinetic analysis of ACC-induced inward currents. K0.5 value was calculated with Michaelis-Menten’s equation. Data represent the means ± SE.M (n = 6–8 oocytes/four different frogs).
As a precursor of ethylene, ACC has long been recognized as a mobile molecule in higher plants (Bradford and Yang, 1980; Amrhein et al., 1982; Métraux and Kende, 1983; Else et al., 1995; English et al., 1995; Kende et al., 1998; Vriezen et al., 2003). In accordance, intercellular ACC transport has been suggested to contribute to the ethylene-mediated stress adaptation and development (Woltering, 1990; Jones and Woodson, 1997; Jones and Woodson, 1999; Dugardeyn et al., 2008; Vanderstraeten and Van Der Straeten, 2017). However, the molecular nature of ACC-transporting system has remained elusive until recent genetic identification of lht1-101, as an ACC-resistant mutant (Shin et al., 2015). In line with previous biochemical studies (Lurssen, 1981; Saftner and Baker, 1987), we found that a series of amino acids could inhibit the ACC-induced triple response, suggestive of the presence of a multitude of ACC transporters (Figure 1). However, it should be taken into account that the inhibitory effects of amino acids may not necessarily involve their competitive effect for ACC uptake, considering that certain amino acids may alter hormonal biosynthesis or cellular signaling components (Qi et al., 2006; Luna et al., 2014; Kong et al., 2016; Smith et al., 2017). Other ACC transporters than LHT1 have also been inferred by the physiological features of the lht1 mutant, including its partial ACC resistance as well as a partial defect in ACC uptake activity. Still, it is challenging to identify the ACC-transporting amino acid transporters among more than 100 putative amino acid transporters in Arabidopsis (Tegeder and Masclaux-Daubresse, 2018).
In this study, we presented that a gain-of-function approach, transgenic complementation of the lht1 mutant, is a feasible way to identify ACC transporters in planta. As a proof of concept, our pilot study revealed that LHT2 can function as an ACC transporter. When overexpressed in the lht1 mutant background, LHT2 could restore all of the physiological defects of the lht1 mutant, including defective ACC-induced triple response, D-amino acid resistance, and early-senescence syndromes (Figures 2–5). Although we cannot rule out the possibility that the overexpression of LHT2 may trigger the expression other ACC-transporting amino acid transporters to complement the lht1 mutant phenotype, we found that the oocytes expressing LHT1 or LHT2 were responsive to exogenous ACC, producing inward currents with comparable efficacy (Figure 7). The results demonstrate that LHT1/LHT2 act as an ACC transporter in Xenopus oocytes at millimolar concentrations of ACC. It is noteworthy that the K0.5 values of ACC for LHT1 or LHT2 were higher than expected. Considering that 1 µM of ACC is high enough to elicit the full range of the triple response (Figure 2), it seems that our experimental conditions may not be optimal for the transport assay of LHT1 or LHT2 proteins. Alternatively, but not mutually exclusively, LHT1 or LHT2 proteins may require additional plant protein(s) or posttranslational modification for their full activity. Thus, it remains to be proven that LHT2 functions as an ACC transporter at physiologically relevant concentrations in planta. While both LHT1 and LHT2 could rescue the ACC-resistant phenotype of lht1 mutant, we observed slight difference in the ACC dose-response phenotypes among the wild-type and transgenic lines of LHT1 and LHT2 (Figure 3). Compared to LHT1-overexpressing line, the plants with overexpression of LHT2 were less sensitive to exogenously applied ACC. It may be due to relatively lower transporter activity of LHT2 compared to LHT1 in planta. However, as we did not assess the protein level of LHT1 and LHT2, it cannot be ruled out that protein expression/stability underlies the differential dose-response phenotypes.
On the contrary, LHT3 and AAP5 were not effective in the complementation activity of the lht1 mutant (Figures 2–5), suggesting that these amino acid transporters have marginal, if any, ACC-transporting activity. In agreement, compared to LHT1 or LHT2 (Figure 6), AAP5 has been characterized to have differential substrate selectivity, mediating uptake of basic amino acids (Boorer and Fischer, 1997; Fischer et al., 2002), while the substrate of LHT3 has not been reported yet. It is intriguing that transgenic expression of LHT3 could restore the resistance of the lht1 mutant to D-Ala, D-Met, and D-Phe, implicating that LHT3 might have overlapping activity with LHT1 toward a subset of LHT1 substrates, except ACC. Notably, the ACC-transporting LHT1 and LHT2 exhibited similar, but not identical, amino acid selectivity in the oocyte system (Figure 6). These results imply that amino acid transporter have delicate transporting channels, selecting specific substrates. It is noteworthy that methionine was not the preferred substrate for LHT1 or LHT2 in the oocyte system (Figure 6), although it is one of the most effective amino acids in the ACC-competition assay (Figure 1; Lurssen, 1981). Taken together, it is plausible that other class of amino acid transporters with differential substrate selectivity may also take part in the uptake of ACC, along with LHT1/LHT2.
LHT2 was previously reported to be expressed preferentially in floral organs, mainly in tapetum tissues and pollens (Supplementary Figure 1) (Lee and Tegeder, 2004). The tissue-preferential expression of LHT2 may account for the lack of defect of lht2-1 mutant seedlings in regard to the ACC-induced triple response (Supplementary Figure 3). For the present, it is not clear whether the ACC-transporting activity of LHT2 has any physiological relevance during reproduction. It is noteworthy that high-order, octuple, ACS mutants of Arabidopsis exhibited pleiotropic defects unlike mutants with impaired ethylene signaling, including reduced fertility (Tsuchisaka et al., 2009). As we did not observe any reproductive defects in the lht2-1 mutant and several LHT genes are also expressed in pollens (Supplementary Figure 1), it is possible that there might be other pollen-expressed, ACC-transporting amino acid transporters, functioning redundantly with LHT2. It will be interesting to examine whether the pollen-expressed LHTs have similar substrate selectivity and whether multiple loss-of-function lht mutants bear any defects in reproductive processes.
It is intriguing that LHT2, but not LHT3 or AAP5, could complement the early senescence syndrome of the lht1 mutant, which entails transcriptional alteration of several defense/cell death–related genes (Figure 5). Although it has not been resolved how lht1 mutation impacts on leaf senescence and cell death syndrome (Liu et al., 2010; Shin et al., 2015), it is tempting to speculate that ACC or possibly other shared substrates of LHT1 and LHT2 play signaling functions in these processes. Together with accumulating evidence that proteogenic and nonproteogenic amino acids have diverse regulatory roles (Qi et al., 2006; Luna et al., 2014; Ramesh et al., 2015; Kong et al., 2016; Dinkeloo et al., 2018; Shi et al., 2018), future studies about how those amino acid transporters modulate leaf senescence would shed light on novel functions of ACC or amino acids during leaf senescence/cell death syndrome.
Together with electrophysiological analysis, the transgenic complementation analysis of lht1 mutant would facilitate further characterization of amino acid transporter genes, expanding the repertoire of ACC-transporting amino acid transporters. As ACC has been recently appreciated as a signaling molecule (Xu et al., 2008; Tsuchisaka et al., 2009; Tsang et al., 2011; Yoon and Kieber, 2013), the identification of ACC-transporting amino acid transporters along with their spatiotemporal expression specificity would help to elucidate the role of ACC and amino acid transporters during development and environmental adaptation in higher plants.
All datasets [Expression Analysis] for this study are included in the manuscript and the Supplementary Files.
M-SS and SL designed the research. JC, SE, KS, RL, SC, and SL performed the research. KS, JL, SL, and M-SS analyzed the data. SL, JL and M-SS wrote the paper.
This work was supported by Basic Science Research Program through the National Research Foundation of Korea funded by the Ministry of Education (2018R1D1A1B07049914, 2019R1F1A1059156, and 2019R1I1A1A01044043), the Rural Development Administration (Next-Generation Biogreen21 program [Agricultural Biotechnology Research Center no. PJ01369001]), and by the Ministry of Science, ICT & Future Planning (2015R1C1A2A01052950).
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The authors thank ABRC for providing the Arabidopsis mutant lines. They are thankful to David Hindman for editorial suggestions in writing the manuscript.
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2019.01092/full#supplementary-material
