Original Research ARTICLE

Front. Plant Sci., 02 March 2020 | https://doi.org/10.3389/fpls.2020.00148

Division of Labor Between Two Actin Nucleators—the Formin FH1 and the ARP2/3 Complex—in Arabidopsis Epidermal Cell Morphogenesis

  • 1Department of Experimental Plant Biology, Faculty of Science, Charles University, Prague, Czechia
  • 2Institute of Experimental Botany, Academy of Sciences of the Czech Republic, Prague, Czechia

The ARP2/3 complex and formins are the only known plant actin nucleators. Besides their actin-related functions, both systems also modulate microtubule organization and dynamics. Loss of the main housekeeping Arabidopsis thaliana Class I membrane-targeted formin FH1 (At3g25500) is known to increase cotyledon pavement cell lobing, while mutations affecting ARP2/3 subunits exhibit an opposite effect. Here we examine the role of FH1 and the ARP2/3 complex subunit ARPC5 (At4g01710) in epidermal cell morphogenesis with focus on pavement cells and trichomes using a model system of single fh1 and arpc5, as well as double fh1 arpc5 mutants. While cotyledon pavement cell shape in double mutants mostly resembled single arpc5 mutants, analysis of true leaf epidermal morphology, as well as actin and microtubule organization and dynamics, revealed a more complex relationship between the two systems and similar, rather than antagonistic, effects on some parameters. Both fh1 and arpc5 mutations increased actin network density and increased cell shape complexity in pavement cells and trichomes of first true leaves, in contrast to cotyledons. Thus, while the two actin nucleation systems have complementary roles in some aspects of cell morphogenesis in cotyledon pavement cells, they may act in parallel in other cell types and developmental stages.

Introduction

The shape of plant cells (and subsequently also organs and tissues) is mainly controlled by orchestrated action of microfilaments, microtubules, and membrane trafficking in the cortical cytoplasm, resulting in spatially and temporally controlled cell growth and cell wall synthesis. Cortical microtubules direct cellulose deposition (see Paredez et al., 2006; Bashline et al., 2014), microfilaments participate in exocytosis (e.g. Sampathkumar et al., 2013), and actomyosin-driven cytoplasmic streaming also contributes to cell expansion (Peremyslov et al., 2015). The cortical cytoplasm also controls localization of membrane proteins including auxin transporters, contributing thus to cell differentiation and affecting tissue- and organ-scale developmental processes (e.g., Žárský et al., 2009; Qi and Greb, 2017). Microfilament organization and dynamics are regulated by numerous proteins, including de novo actin nucleators. Formins and the ARP2/3 complex are the only two actin-nucleating systems found so far both in plants and opisthokonts, representing thus conserved molecular mechanisms inherited from the common eukaryotic ancestor (e.g. Vaškovičová et al., 2013).

Formins share the conserved FH2 domain whose dimer can nucleate and cap actin filaments, usually accompanied by a profilin-G-actin-binding FH1 domain and by additional domains mediating regulatory or structural interactions that vary both within and between lineages. Angiosperms have two clades of formins consisting of multiple paralogs, with over 20 genes in Arabidopsis (Grunt et al., 2008). Besides their actin-related roles, formins contribute to the coordination between microfilaments and microtubules (Bartolini and Gundersen, 2010; Wang et al., 2012; Henty-Ridilla et al., 2016). Binding of formins to microtubules has been documented also in plants (Deeks et al., 2010; Li et al., 2010; Yang et al., 2011; Wang et al., 2013). Some formins are associated with membranes and modulate endomembrane dynamics (see Gurel et al., 2014; Cvrčková et al., 2014). Typical plant Class I formins are transmembrane proteins that can anchor cytoskeletal structures to the plasmalemma, its distinct domains, and/or endomembranes (e.g., Deeks et al., 2010; Martinière et al., 2011; Diao et al., 2018; Oulehlová et al., 2019). Plant Class II formins typically harbor a Phosphatase and Tensin (PTEN)-like domain implicated in phospholipid binding and membrane localization (van Gisbergen et al., 2012). Direct or interactor-mediated membrane association, or role in endomembrane organization, is documented also for some opisthokont formins lacking membrane insertion motifs (reviewed in Cvrčková, 2013; see, e.g., Copeland et al., 2016).

Mutations affecting the main Arabidopsis housekeeping Class I formin, FH1, or pharmacological inhibition of formin function by the SMIFH2 compound, have only minor phenotypic consequences that include increased pavement cell and trichome shape complexity, but a profound impact on both actin and microtubule organization and dynamics (Rosero et al., 2013; Rosero et al., 2016; Cvrčková and Oulehlová, 2017; Oulehlová et al., 2019). Changes in microtubule organization were also reported for mutants of the rice microtubule-binding Class II formin FH5 (Yang et al., 2011; Zhang Z. et al., 2011).

The other evolutionarily conserved actin nucleation system found in plants, the ARP2/3 complex, comprises two actin-related proteins (ARP2 and ARP3) and five additional conserved subunits termed ARPC1-5. Some subunits might be dispensable in specific cellular contexts (see Pizarro-Cerdá et al., 2017). Upon activation by regulatory complexes termed the NPFs (nucleation promoting factors), which exhibit considerable diversity across eukaryotes (Dominguez, 2016), the ARP2/3 complex mediates nucleation of new actin filaments (see e.g. Rotty et al., 2013; Yanagisawa et al., 2013). Characteristic for ARP2/3-initiated filament arrays is their branching angle of about 70°, also documented in plants (Fišerová et al., 2006). Like formins, the ARP2/3 complex also has roles outside controlling actin dynamics. In metazoans, it can associate with microtubule-nucleating gamma tubulin complexes (Hubert et al., 2011) and some NPFs bind to microtubules and endomembranes (Campellone et al., 2008). Plant ARPC4 and ARPC2 localize to microtubules, with the later binding them also in vitro (Zhang et al., 2013b; Havelková et al., 2015). ARPC4 is associated with endomembrane compartments and the NPF complex subunit NAP1 localizes to the endoplasmic reticulum (Yanagisawa et al., 2013; Zhang et al., 2013a), as well as autophagosomes (Wang et al., 2016).

Arabidopsis mutations affecting the ARP2/3 complex function and regulation result in typical “distorted” trichome phenotype and reduced pavement cell lobing (Mathur et al., 2003a, see Ivakov and Persson, 2013; Sahi et al., 2018), as well as altered microtubule organization (Saedler et al., 2004; Zhang et al., 2005). Mutants also exhibit changes in cell wall composition, although the responsible mechanism remains to be characterized (Sahi et al., 2018).

Relations between the formins and the ARP2/3 complex are so far poorly understood. Formins appear to generate actin bundles, while the ARP2/3 complex produces fine, branched microfilament arrays (see Carlier and Shekhar, 2017). Coordination of the two actin nucleation systems may be ensured by several possible mechanisms. The balance between ARP2/3 and formin-driven actin assembly in some metazoan cell types and fission yeast may involve the profilin/G-actin ratio or competition for G-actin monomers bound to profilin (Rotty et al., 2015; Suarez et al., 2015). While profilin-dependent, formin-mediated actin nucleation is limiting for the rate of Arabidopsis epidermal cells elongation (Cao et al., 2016), the relevance of competition between the two nucleation mechanisms for free or profilin-bound G-actin is questionable in plants, which generally have a higher ratio of free to polymerized actin than opisthokonts (Blanchoin et al., 2010). Another possible shared regulatory mechanism involves the heterodimeric capping protein, which controls the availability of barbed ends and participates in the control of actin dynamics in both opisthokonts (Edwards et al., 2014) and plants (Pleskot et al., 2012; Jimenez-Lopez et al., 2014; Li et al., 2014). In opisthokonts, the two actin nucleation systems also share regulatory inputs from RHO clade small GTPases (Liu et al., 2009). Plant-specific RHO GTPases, ROPs, control cell morphogenesis including pavement cell lobing (Fu et al., 2002). However, since plant formins lack the GBD/FH3 small GTPase-interacting domain, common in the opisthokonts (Grunt et al., 2008), the actual regulatory mechanism must differ between opisthokonts and plants. The two actin nucleating systems may also share interactors, including regulatory ones. Common interactors, or at least genetic interaction, of formins and ARP2/3 or the NPF complexes, were also found in fission yeast (Carnahan and Gould, 2003) and Drosophila (Liu et al., 2009), and mammalian formins and ARP2/3 complex subunits co-localize in tight junctions (Grikscheit and Grosse, 2016). Thus, while the existence of numerous interactions and/or co-ordination between ARP2/3 and formins is likely, a consistent model of the “division of labor” between these two ancient actin nucleation systems is still lacking even in opisthokonts.

In this study, we characterize the effects of mutational inactivation of genes encoding the main housekeeping Class I formin of Arabidopsis vegetative tissues, FH1 (At3g25500), one of the ARP2/3 complex subunits, ARPC5 (At4g01710), or both genes simultaneously, on epidermal cell morphogenesis and cytoskeletal organization and dynamics. Both fh1 and arpc5 mutations were previously shown to cause opposite alterations in epidermal pavement cell shape, i.e. the arpc5 mutation, as well as FH1 overexpression, led to a decrease and fh1 mutation to an increase in pavement cell lobing (Mathur et al., 2003b; Li et al., 2003; Rosero et al., 2016; Sahi et al., 2018; Oulehlová et al., 2019). The layout of pavement cell lobes is determined by reorganization of cortical microtubules prior to lobe emergence, while the role of microfilaments in this process remains controversial (Panteris and Galatis, 2005; Armour et al., 2015). In addition, ARPC5 is also identical to CROOKED (CRK), a gene whose mutation resulted in trichome deformation characteristic for the distorted class mutants (Mathur et al., 2003b). Remarkably, overexpression of GFP-tagged FH1 results in a distorted trichome phenotype, while loss-of-function fh1 mutants exhibit an increase in trichome branch number (Oulehlová et al., 2019), consistent with possible antagonistic function of FH1 and the Arp2/3 complex in trichome development.

Based on these known phenotypes of fh1 and arpc5 mutants, we hypothesized that the two actin nucleation systems might play opposite roles in pavement cell, and possibly trichome, shaping. This would lead to the prediction that double fh1 arpc5 mutants might, in part or completely, revert to a phenotype closer to the wild type (wt) than either mutation alone. Though our observations do not support this hypothesis, they indicate a more complex relationship between the two systems and reveal similar, rather than antagonistic, effects on some parameters. We also documented unexpected differences between the mutant phenotypes in cotyledons and true leaves, suggesting a developmental stage-dependent relationship between the two actin nucleation systems.

Materials and Methods

Plants

The following Arabidopsis thaliana T-DNA insertional mutants obtained through The Nottingham Arabidopsis Stock Centre (NASC) have been used in this study. For the FH1 (At3g25500) gene, we employed fh1-1 (SALK-032981), one of the two alleles used to establish the effects of fh1 mutation on cytoskeletal organization and dynamics in our previous work (Rosero et al., 2013; Rosero et al., 2016) and fh1-4 (SALK-N551065), shown to affect epidermal cell shape in the same manner as fh1-1 (Oulehlová et al., 2019). Both alleles were successfully complemented by expression of GFP-tagged wt FH1 protein at near-native levels (Oulehlová et al., 2019). For the ARPC5 (At4g01710) gene, we used the arpc5-1 (SALK-123936) allele previously documented to produce epidermal phenotypic deviations indistinguishable from those caused by a recessive EMS-generated mutation in the same gene, crk-1 (Li et al., 2003; Mathur et al., 2003b; see also Mathur, 2005). In some experiments, previously characterized T-DNA insertion mutants arp2 (SALK-077920) and arpc4 (SALK-013909) have been employed (Sahi et al., 2018). The trichome morphogenesis defect of arpc5-1 mutants was fully complemented by expression of GFP-tagged wt ARPC5 (J. Martinek and K. Schwarzerová, unpublished). For the purpose of line verification and in subsequent crosses, the allelic status of T-DNA insertions was determined by PCR as reported in our previous studies (Rosero et al., 2013; Sahi et al., 2018; Oulehlová et al., 2019).

The fh1:CRISPR mutant was generated as follows. An expression vector harboring a two target gene-specific gRNA has been constructed based on the published system of Xing et al. (2014). Reverse and forward primers for two FH1 gene-specific gRNAs (Supplementary Data S1) were designed using the CRISPR-P web tool (Lei et al., 2014). Target sequence fragments were amplified from pCBC-DT1T2 using Q5 polymerase (New England Biolabs) according to the manufacturer's instructions and cloned into the vector pHSE401E using the Golden Gate cloning reaction with enzymes from New England Biolabs. The resulting construct expressing two gRNAs was transformed into A. thaliana Col-8 by standard Agrobacterium tumefaciens infiltration. Transgenic plants were selected by hygromycin resistance and presence of homozygous single base insertion was verified by sequencing (for primer see Supplementary Data S1, for fh1:CRISPR allele sequence see Supplementary Data S2).

Crosses between fh1-1, fh1-4, and arpc5-1 mutants and between actin nucleator mutants and reporter lines were performed to obtain double mutants and to introduce cytoskeletal markers into mutant backgrounds. For detection of cytoskeletal organization and dynamics, fluorescent marker protein constructs GFP–MAP4 and UBQ : Lifeact-GFP were used as described previously (Cvrčková and Oulehlová, 2017). In the indicated experiments, lines carrying the GFP-FABD (Voigt et al., 2005) or GFP-TUA6 (Ueda et al., 1999) markers were employed. Additional plant lines expressing these proteins were obtained by crossing or by transformation in case of UBQ : Lifeact-GFP, which was introduced into the double mutant fh1arpc5 using the floral dip method. A transformed plant with a moderate level of fluorescence was subsequently backcrossed with wt and wt and single or double mutant lines were selected out of its progeny.

Growth Conditions

For morphological analyses of pavement cells and cytoskeleton observations, plants were grown in vitro at 22°C with a 16 hour-light/8 hour-dark cycle on vertical MS plates following stratification of imbibed seed by 2 days at 4°C, as described previously (Rosero et al., 2016). Plants for propagation, crossing, macroscopical observations, and trichome morphology analysis were grown in peat pellets (Jiffy) at 22°C with a 16 hour-light/8 hour-dark cycle.

Organ Area Measurements

Cotyledon or leaf area was measured on images captured by a Nikon D 3200 camera using the ImageJ software (Schindelin et al., 2015). Approximately 20 cotyledons and leaves per genotype were analyzed.

Pavement Cell Morphometric Analysis and Quantification of Epidermal Gaps

Pavement cell shape parameters were determined from the adaxial epidermis of the apical third of cotyledons or leaves stained with 1 μM FM4-64 for 1–2 hours in the dark (Rosero et al., 2016). Images were taken using confocal laser-scanning microscope Zeiss TCS 880 with a 20 x water-immersion objective in ZEISS ZEN Black program.

Cell shape parameters of area, circularity, solidity, and aspect ratio were determined using the built-in circularity function of ImageJ by measuring all in-focus cells crossing or touching the diagonal of a microscopic field as described previously (Oulehlová et al., 2019). This will be further referred to as the semi-manual method. For an independent estimate of area, circularity and solidity, as well as for determination of pavement cell lobe parameters (lobe number and average equatorial lobe width), the PaCeQuant software (Möller et al., 2017; Möller et al., 2019) involving automated algorithmic cell segmentation was employed. Comparison of cell area, circularity, and solidity values obtained by both approaches from the same images revealed a non-linear relationship between results of the two methods, with PaCeQuant often reporting smaller cell size and higher circularity and solidity than the semi-manual approach (Supplementary Data S3). Based on visual examination of the progress of cell detection in PaCeQuant, we believe that the reason may be less efficient segmentation of large or very lobed cells by the PaCeQuant algorithm compared to small or moderately lobed ones. To avoid this source of bias and maintain compatibility with our previous studies, we subsequently used the semi-manual approach for estimation of cell shape parameters while PaCeQuant was applied to determine the lobe parameters. The only exception was acquisition of data for principal component analysis (PCA) where PaCeQuant was employed for collecting both cell and lobe parameters to ensure match between values originating from the same individual cells.

Gaps between the pavements cells were counted from the same images as described previously (Sahi et al., 2018).

All measurements were done in 2–3 biological replicates, each including at least 60, but usually more than 100, cells per genotype from at least 7, but usually over 20 plants.

Cytoskeleton Structure and Dynamics Evaluation

Stills of the actin and microtubule networks in epidermal pavement cells were taken by a Zeiss LSM880 microscope with a Plan-Apochromat 40 x/1.2 W objective and 488-nm argon laser for excitation, videos were taken by an inverted spinning disc confocal microscope (Yokogawa CSU-X1 on a Nikon Ti-E platform, laser box Agilent MLC400, camera Andor Ixon) with 100 x/1,45 O plan apochromatic objective, excitation laser line set at 488 nm, and image interval 1 s as described previously (Rosero et al., 2016). Cytoskeleton bundling and density were quantified as described previously (Higaki et al., 2010) with minor modifications (Rosero et al., 2013; Rosero et al., 2019).

Cytoskeletal dynamics measurements were done in two biological replicates: with at least 40 cells from at least 20 videos analyzed using the QuACK method (Cvrčková and Oulehlová, 2017).

Actin networks in developing trichromes were visualized using an inverted spinning disc confocal microscope (Zeiss Axio Observer 7 microscope with a vertical stage equipped with a Yokogawa CSU-W1 spinning disk unit and Photometrics Prime 95B camera) with Zeiss Plan Apochromat 40 x/1.2 W objective and 488-nm laser excitation line.

Trichome Shape Analysis

First true leaves of 24 days after germination (DAG) plants were cleared for 6 days in a solution prepared by mixing 120 g chloral hydrate, 7.5 ml glycerol, and 150 ml of water, embedded in the same solution and imaged using the transmission light microscope Olympus Provis AX 70 with a 20 x water-immersion objective. Trichome branch number was counted visually and branch length was measured after manual tracing on photos using the length measurement tool of ImageJ. All measurements were done in two biological replicates involving analysis of all trichomes from at least five longitudinal leaf halves originating from different plants (with a minimum of 100 trichomes per genotype). Measurements for terminal branch length determination were performed in at least 50 three-branched trichomes, and at least 15 (but usually more than 20) four-branched trichomes per genotype. For PCA of 3-branched trichome shape, at least 50 trichomes were measured.

Statistics and Data Presentation

Unless stated otherwise, statistical evaluation of quantitative data was performed using ANOVA with post-hoc Tukey HSD test using the online calculator available at http://astatsa.com/. Results of cytoskeletal dynamics measurements, which could not be assumed to fulfill the normal distribution requirement for ANOVA, were statistically evaluated using the Kruskal–Wallis test followed by pairwise Wilcoxon–Mann–Whitney test with Bonferroni correction as described previously (Cvrčková and Oulehlová, 2017). The significance of between-genotype differences in trichome branch number distribution (categorical data) was assessed using pairwise Chi-square test with Yates correction for low count categories and Benjamini-Hochberg correction for multiplicity. PCA was performed using the PAST (PAleontological STatistics) software (Hammer et al., 2001) version 3.25 or 3.26. Box plots were generated using BoxPlotR (Spitzer et al., 2014).

Results

Plants Lacking Both FH1 and ARPC5 Show No Obvious Phenotypic Defects

To examine effects of simultaneous perturbation of both actin nucleation systems, we generated mutant plants doubly homozygous for fh1 and arpc5 by crossing single mutants. While our analyses were restricted to a single, well-characterized, loss of function allele of arpc5 in the Columbia 0 background, which exhibited hallmark characteristics of ARP2/3 complex disruption in several previous studies (Li et al., 2003; Djakovic et al., 2006; Li et al., 2013; Sahi et al., 2018), we included three different fh1 mutant alleles into our analyses. Besides of two T-DNA insertion mutants, fh1-1 and fh1-4, derived from the Columbia 0 (Col-0) background (Rosero et al., 2013; Rosero et al., 2016; Oulehlová et al., 2019), we also generated a Columbia 8 (Col-8)-derived plant line incapable to express the FH1 protein using the CRISPR method, further referred to as fh1:CRISPR, and used it for some experiments.

Given the relatively minor phenotypic consequences of both arpc5 and fh1 mutations, as well as the probable redundancy within the plant Class I formin family, we expected that the double mutants should be free from major developmental defects. Indeed, all single mutants examined, as well as double fh1-1 arpc5-1, and fh1-4 arpc5-1 mutants, were viable, fertile, and indistinguishable from isogenic wt plants at the first macroscopic glance (Figure 1A). Upon closer inspection, however, a subtle leaf shape alteration was apparent in all plant lines involving arpc5 (Figure 1B), albeit there was no significant difference in the size of either cotyledons (Figure 1C) or first true leaves (Figure 1D).

FIGURE 1
www.frontiersin.org

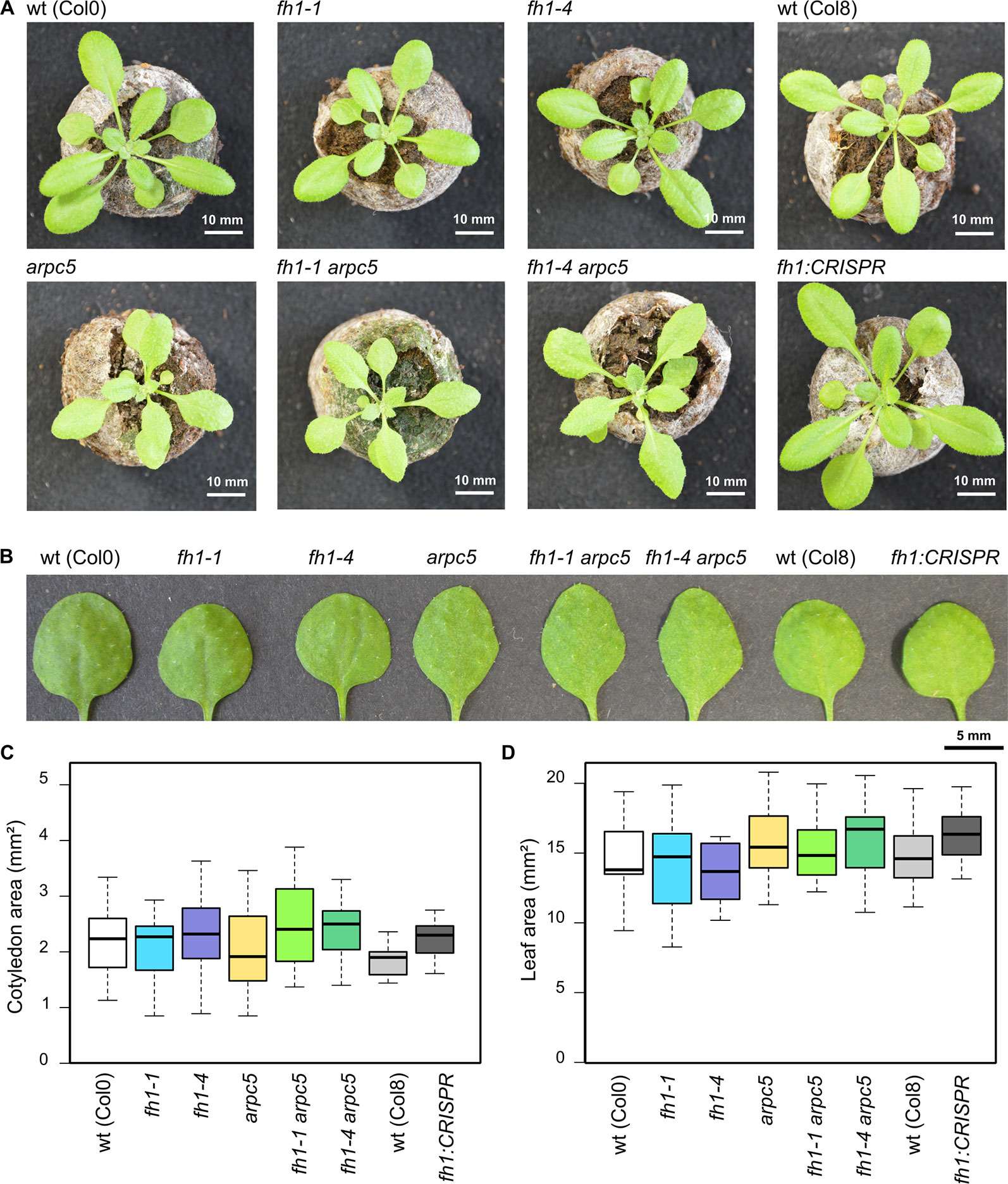

Figure 1 Actin nucleator mutants do not exhibit gross phenotypic alterations. (A) Representative photos of 21 DAG plants carrying the arpc5 and fh1 mutations analyzed in this report, double mutant plants, and relevant wild types (wt). (B) Representative photos of 1st true leaves of 21 days after germination (DAG) plants. (C) Area of wt and mutant 5 DAG cotyledons. (D) Area of 1st true leaves of 14 DAG wt and mutant plants. None of the between-genotype differences in (C, D) is statistically significant.

ARPC5 Is Epistatic Over FH1 in Determining Cotyledon Pavement Cell Shape

One of the hallmark phenotypic effects of mutations affecting the ARP2/3 complex subunits is reduced cotyledon pavement cell lobing (Mathur et al., 2003b; Li et al., 2003), while loss of FH1 has an opposite effect, i.e. increases pavement cells lobing in the cotyledon epidermis (Rosero et al., 2016; Oulehlová et al., 2019). These observations from single mutants have been confirmed in epidermal pavement cells of five DAG cotyledons, while pavement cell shape (as well as the quantitative parameters of circularity, solidity, and lobe width) of double arpc5 fh1 mutants resembled those of single arpc5 mutants (Figures 2A–C). The allelic status of ARPC5 rather than FH1 thus determines cotyledon pavement cell shape in the double mutants. Therefore, the arpc5 mutation appears to be epistatic over fh1 in the sense of the original Bateson's definition of epistasis (Phillips, 2008) as far as cotyledon pavement cell shape is concerned. Minor and only in some cases statistically significant differences consistent with this interpretation were observed also for two additional cell shape parameters—aspect ratio (Figure 2B) and lobe number (Figure 2C), indicating that single and double mutants involving arpc5 have somewhat less elongated cells with fewer lobes.

FIGURE 2
www.frontiersin.org

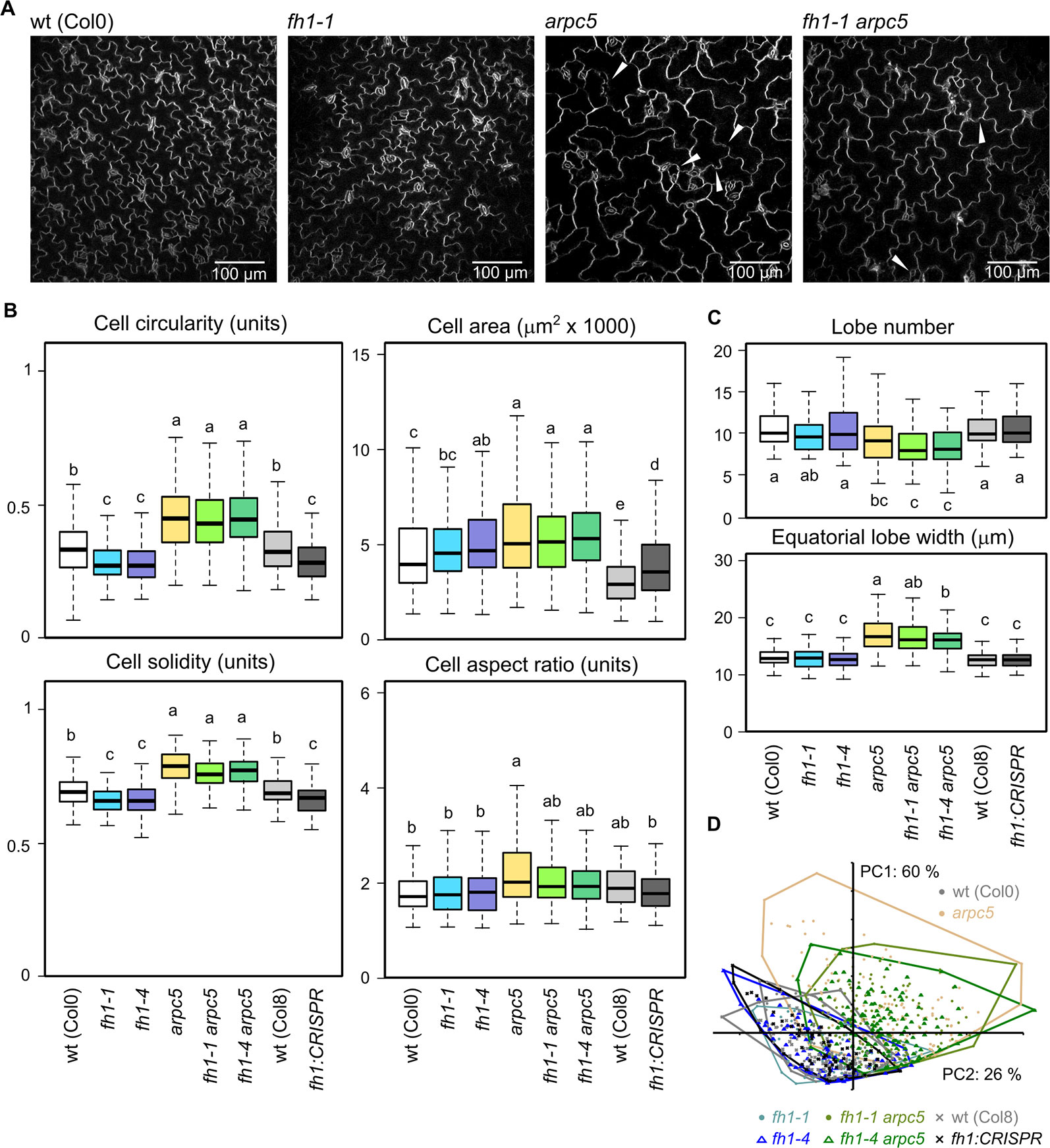

Figure 2 Pavement cell shape in the adaxial epidermis of 5 days after germination (DAG) cotyledons of actin nucleator mutants and wt plants. (A) Representative images of wt, fh1-1, arpc5-1, and fh1-1 arpc5-1 cotyledon epidermis. Epidermal continuity defects are marked by arrowheads. (B) Selected morphometric parameters of cotyledon pavement cells as determined by the semi-manual approach (see Methods): cell circularity and solidity as measures of cell shape complexity, cell area, aspect ratio as a measure of shape anisotropy. (C) Average cell lobe number and equatorial lobe width as determined by PaCeQuant. (D) Scatter plot of PCA results for five morphometric parameters (cell circularity, solidity and area, lobe number, and average equatorial lobe width) determined by PaCeQuant, shown at an arbitrary scale. Values labeled by the same letters in (B, C) do not differ significantly (p < 0.05).

In line with previous reports (Zhang et al., 2008; Rosero et al., 2016; Sahi et al., 2018) single fh1 or arpc5 mutations also brought about an increase in pavement cell size. The extent of this effect was comparable for both single mutants and for the double fh1 arpc5 mutants, i.e. the effect of both mutations was not additive, nor did they compensate for each other's effects (Figures 2 A, B). Since no changes in organ size were observed (compare Figures 1C, D), mutant cotyledons must consist of fewer cells than wt ones, suggesting developmental coupling between cell division and cell expansion (compare Rosero et al., 2016).

PCA involving five parameters (cell area, circularity, solidity, lobe number, and lobe width) demonstrated that while cotyledon pavement cells of fh1 mutants generally resemble those of wt plants, those of double fh1 arpc5 mutants are clearly similar to those from single arpc5 mutants (Figure 2D). Remarkably, PCA failed to visualize differences between wt and fh1 plants in spite of the observed increase in cell lobing. We believe that this may be due to the method employed to collect data for this approach, which appears to suffer from a detection bias against highly lobed cells (see Methods and Supplementary Data S3).

The changes in cotyledon pavement cell shape and size observed in five DAG plants persisted at least until 14 DAG (Supplementary Data S4), confirming earlier observations (Zhang et al., 2008; Rosero et al., 2016; Sahi et al., 2018).

Effects of arpc5 and fh1 Mutations on Cytoskeletal Organization and Dynamics

To investigate microfilament and microtubule organization and dynamics, we introduced fluorescent protein markers (GFP-MAP4 for microtubules and UBQ : Lifeact-GFP for microfilaments) previously used to investigate cytoskeletal dynamics in fh1 plants (Rosero et al., 2016; Cvrčková and Oulehlová, 2017) also into arpc5, and fh1 arpc5 double mutants. To further examine robustness and biological relevance of any cytoskeletal structure or dynamics alterations observed in the arpc5 mutants, we prepared additional plant lines expressing alternative cytoskeletal markers in a genetic background impaired in the function of the ARP2/3 complex. These included arpc5 and arp2 plants carrying the microtubule marker GFP-TUA6 (Ueda et al., 1999), as well as lines carrying the actin reporter GFP-FABD, used in our previous work (Rosero et al., 2016), in the arpc5, arp2, or arpc4 background.

Somewhat surprisingly, given the expected disruption of actin nucleation, no dramatic changes in actin organization were observed in any of the mutants examined (Figure 3A, Supplementary Data S5). Contrary to our previous observations in plants carrying the GFP-FABD actin marker, which suggested increased bundling and decreased density of microfilaments in fh1 mutants compared to the wt (Rosero et al., 2013; Rosero et al., 2016), LifeAct-GFP-labeled microfilaments in cotyledon pavement cells of 5 DAG fh1 mutants were bundled comparably (Figure 3B) but slightly denser (Figure 3C) than those in wt plants. In the arpc5 mutants, as well as in double fh1 arpc5 mutants, enhanced microfilament bundling was detected using the Lifeact-GFP marker (Figure 3B), together with a minor increase in actin filament density comparable to that seen in fh1 mutants (Figure 3C). Increased actin bundling in arpc5 plants was also confirmed using the alternative marker GFP-FABD, although no effect on microfilament density was observed; no significant change was, however, seen in arp2 and arpc4 mutants (Supplementary Data S5), previously shown to affect pavement cell shape in a manner similar to arpc5 (Sahi et al., 2018).

FIGURE 3
www.frontiersin.org

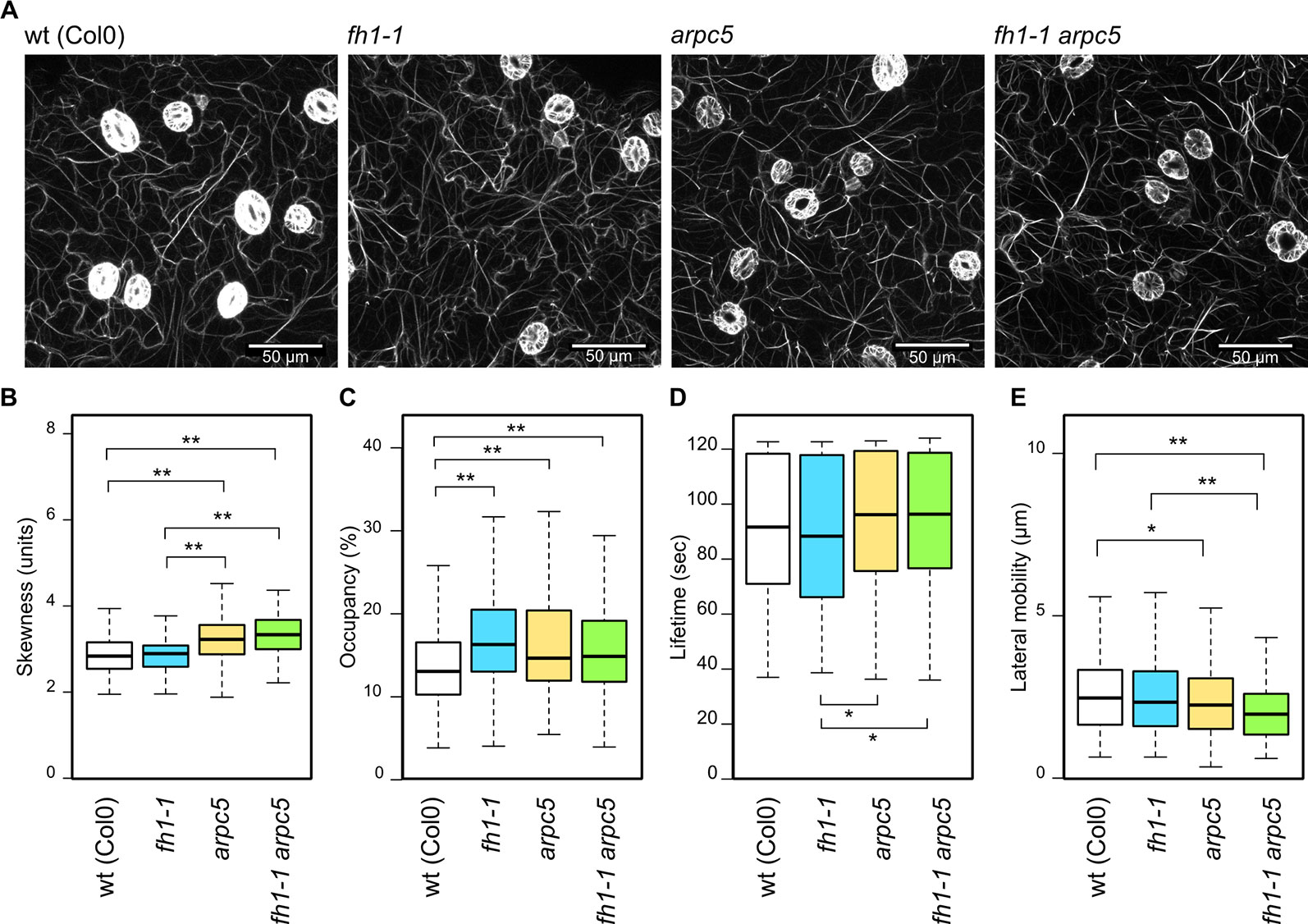

Figure 3 Actin cytoskeleton organization and dynamics in the adaxial cotyledon epidermis of 5 days after germination (DAG) actin nucleator mutants expressing Lifeact-GFP. (A) Representative images of microfilament organization in wt, fh1-1, arpc5-1, and fh1-1 arpc5-1 seedlings. (B) Quantitative estimate of actin bundling, measured as skewness of fluorescence intensity distribution among labeled structures. (C) Quantitative estimate of actin network density, measured as pixel occupancy of skeletonized meshwork. (D) Microfilament structure lifetime, represented by maximum values observed over 120 s in structures crossing a 20 µm transect. (E) Microfilament structure lateral mobility, represented by maximum trajectories observed over 120 s in structures crossing a 20 µm transect. Statistical significance of differences is denoted by asterisks (* for p < 0.05, ** for p < 0.01).

While there was no significant influence of single actin nucleator mutations on the actin structures lifetime compared to the wt, arpc5 and double fh1 arpc5 mutants exhibited somewhat longer lifetimes than fh1 mutants (Figure 3D). A trend toward decreased lateral actin mobility was observed in fh1 mutants, although less dramatic than in our previous studies (Rosero et al., 2016; Cvrčková and Oulehlová, 2017). Remarkably, arpc5 and fh1 arpc5 double mutants exhibited a statistically significant effect in the same direction, namely decrease of lateral actin mobility (Figure 3E). While the biological relevance of these effects on microfilament dynamics remains questionable due to their low extent, as well as to the fact that no significant changes were found using the GFP-FABD marker in arpc5, arp2, or arpc4 mutants (Supplementary Data S5), they fit the pattern already observed in pavement cell shape and actin organization—namely epistasis of arpc5 over fh1. However, an additive effect of both mutations cannot be excluded, since the double fh1 arpc5 mutant presents an even more pronounced decrease in actin lateral movement compared to wt and to fh1 mutants (although the difference is not statistically significant).

Effects of actin nucleator mutations on microtubule arrangement, as documented using the GFP-MAP4 marker, are rather subtle (Figure 4A). The arpc5 mutation did not affect microtubule organization but an increase in microtubule bundling was found in fh1 mutants compared to wt, arpc5, and fh1 arpc5 plants, consistent with epistasis of arpc5 over fh1 (Figure 4B). Minor differences were also found in the density of microtubule structures (Figure 4C). However, the alternative microtubule marker GFP-TUA6 did reveal some decrease in microtubule bundling in both arpc5 and arp2 mutants, though the extent of the effect was rather small (Supplementary Data Figure S6).Consistent with previous observations suggesting that the fh1 mutant phenotype may be due mainly to altered microtubule function, though possibly secondary to changes in the actin cytoskeleton (Rosero et al., 2013; Rosero et al., 2016), pronounced changes in microtubule dynamics have been found in plants carrying the fh1 mutation. These mutants exhibited a markedly shortened microtubule lifetime, while no change in the lifetime was found in arpc5 mutants. Surprisingly, microtubule lifetime in double fh1 arpc5 mutants was as short as in fh1 mutants (Figure 4D), while only minor changes were detected in lateral microtubule mobility—namely a slight but significant decrease in arpc5 mutants (Figure 4E). No changes in microtubule dynamics were observed in either arpc5 or arp2 mutants using the alternative microtubule marker GFP-TUA6 (Supplementary Data S6). Collectively, the microtubule dynamics parameters would thus suggest epistasis of fh1 over arpc5, in contrast to the pattern observed in all other parameters analyzed so far.

FIGURE 4
www.frontiersin.org

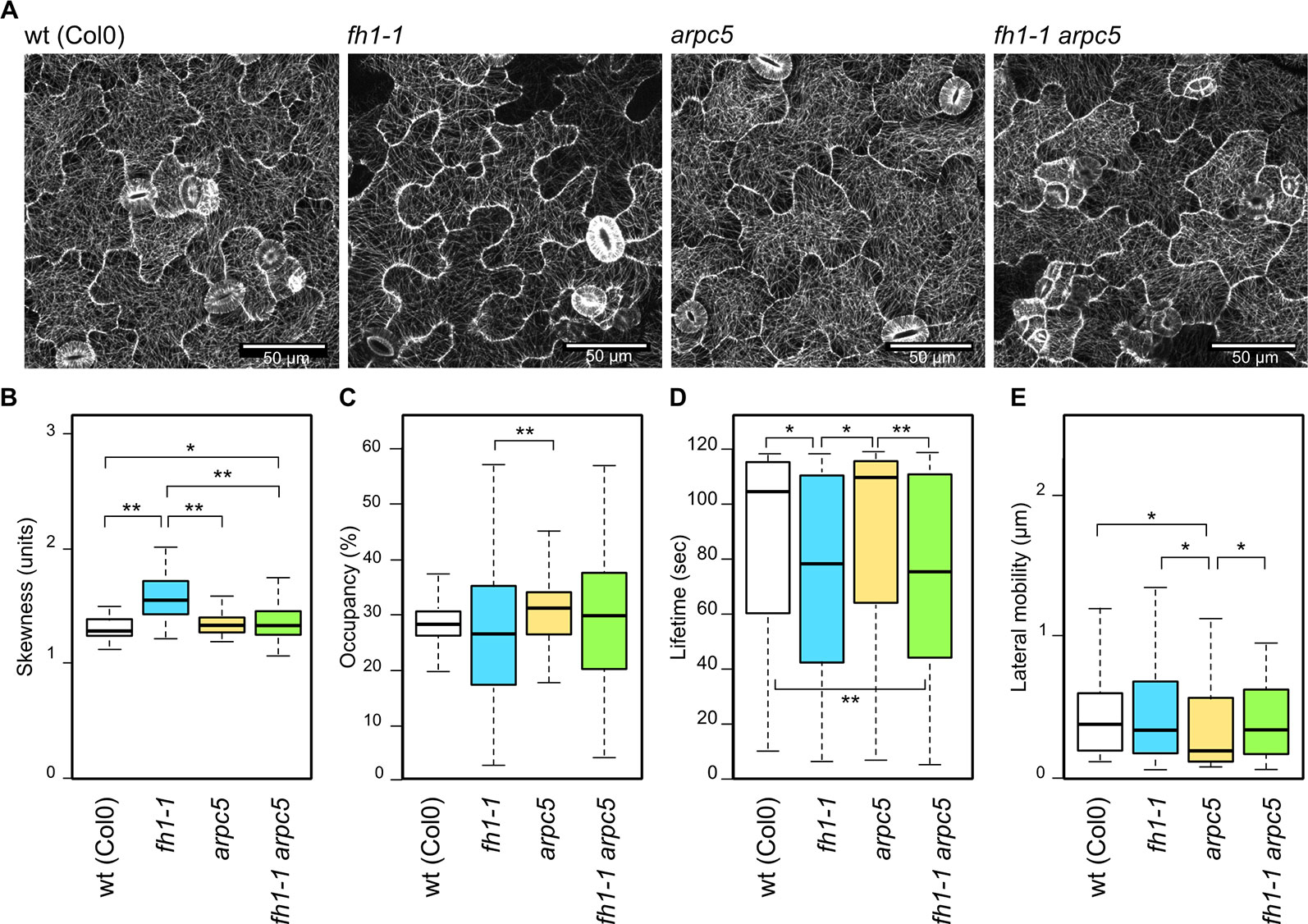

Figure 4 Microtubule organization and dynamics in the adaxial cotyledon epidermis of 5 days after germination (DAG) actin nucleator mutants expressing GFP-MAP4. (A) Representative images of microtubule organization in wt, fh1-1, arpc5-1, and fh1-1 arpc5-1 seedlings. (B) Quantitative estimate of microtubule bundling, measured as skewness of fluorescence intensity distribution among labeled structures. (C) Quantitative estimate of microtubule network density, measured as pixel occupancy of skeletonized meshwork. (D) Microtubule or bundle lifetime, represented by maximum values observed over 120 s in structures crossing a 2 µm transect. (E) Microtubule or bundle lateral mobility, represented by maximum trajectories observed over 120 s in structures crossing a 2 µm transect. Statistical significance of differences is denoted by asterisks (* for p < 0.05, ** for p < 0.01).

Mutations of Both Actin Nucleators Have Similar Effects on True Leaf Pavement Cell Shape

We previously observed that the effect of the arpc5 mutation on cotyledon pavement cell shape does not, somewhat surprisingly, extend to the true leaves. True leaf pavement cells of arpc5 plants are larger than those of wt plants (similar to the cotyledon pavement cells), but they are more rather than less lobed, opposite to the situation in cotyledons (Sahi et al., 2018). We thus examined morphological parameters of true leaf pavement cells in our actin nucleator mutants (Figure 5A). The previously reported decrease in cell circularity in arpc5 mutants has been reproduced, while fh1 mutants still exhibited increased lobing, similar to the situation in cotyledons, and their cell circularity was thus indistinguishable from arpc5 or the double mutants Single fh1 or arpc5 mutations and double fh1 arpc5 mutation also caused similar increase in true leaf pavement cell size, except of the fh1-CRISPR allele that did not have significant effects (Figure 5B). Somewhat surprisingly, while the effects of the examined mutations on cell solidity mimicked those on circularity in cotyledon pavement cells, only minor changes in solidity and other parameters (aspect ratio, lobe number, or lobe width) were observed in true leaves (Figures 5B, C). Although leaf pavement cells in most mutants were larger than in wt plants (Figure 5B), no obvious changes in leaf size were observed, comparable to the situation in cotyledons (see Figures 1A, B, D).

FIGURE 5
www.frontiersin.org

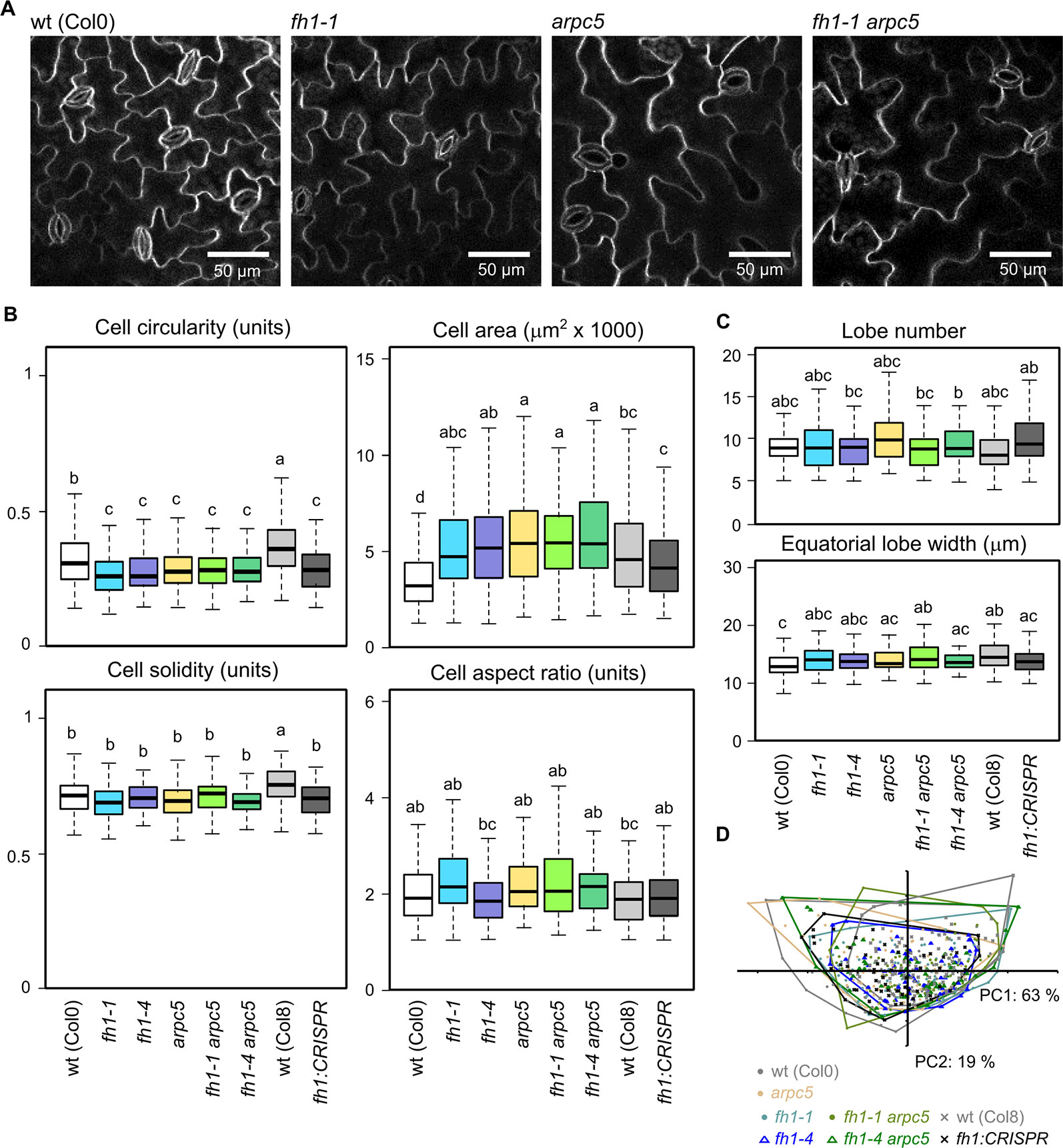

Figure 5 Pavement cell shape in the adaxial epidermis of 1st true leaves of 14 days after germination (DAG) actin nucleator mutants and wt plants. (A) Representative images of wt, fh1-1, arpc5-1, and fh1-1 arpc5-1 true leaf pavement cells. (B) Selected morphometric parameters of leaf epidermal pavement cells as determined by the semi-manual approach (see Methods): cell circularity and solidity as measures of cell shape complexity, cell area, aspect ratio as a measure of shape anisotropy. (C) Average cell lobe number and equatorial lobe width as determined by PaCeQuant. (D) Scatter plot of PCA results for five morphometric parameters (cell circularity, solidity and area, lobe number, and average equatorial lobe width) determined by PaCeQuant, shown at an arbitrary scale. Values labeled by the same letters in (B, C) do not differ significantly (p < 0.05).

Generally, the effect of fh1 or arpc5 mutations on epidermal cell shape in true leaves was much weaker than in the cotyledons. Overall leaf pavement cell shape similarity between all studied genotypes was also confirmed by PCA (Figure 5D).

ARPC5 is Epistatic Over FH1 in Determining Epidermal Continuity

Mutations disrupting the ARP2/3 complex function often result in the formation of gaps between adjacent epidermal pavement cells (see e.g. Mathur et al., 2003a; Mathur et al., 2003b; Sahi et al., 2018). We also observed gaps between pavement cells in our plants carrying the arpc5 mutation, regardless of the allelic status of FH1 (see Figures 2A and 6A). This prompted us to investigate epidermal gap formation quantitatively in younger and older cotyledons, as well as in true leaves. We found that epidermal gaps appear, almost exclusively, in both cotyledons and true leaves of single arpc5 mutants, as well as in double fh1 arpc5 mutants, while the fh1 mutation neither causes epidermal continuity defects nor affects the formation of epidermal gaps caused by arpc5 (Figure 6B). Thus, arpc5 mutation appears to be epistatic over fh1 also with respect to its effect of epidermal continuity.

FIGURE 6
www.frontiersin.org

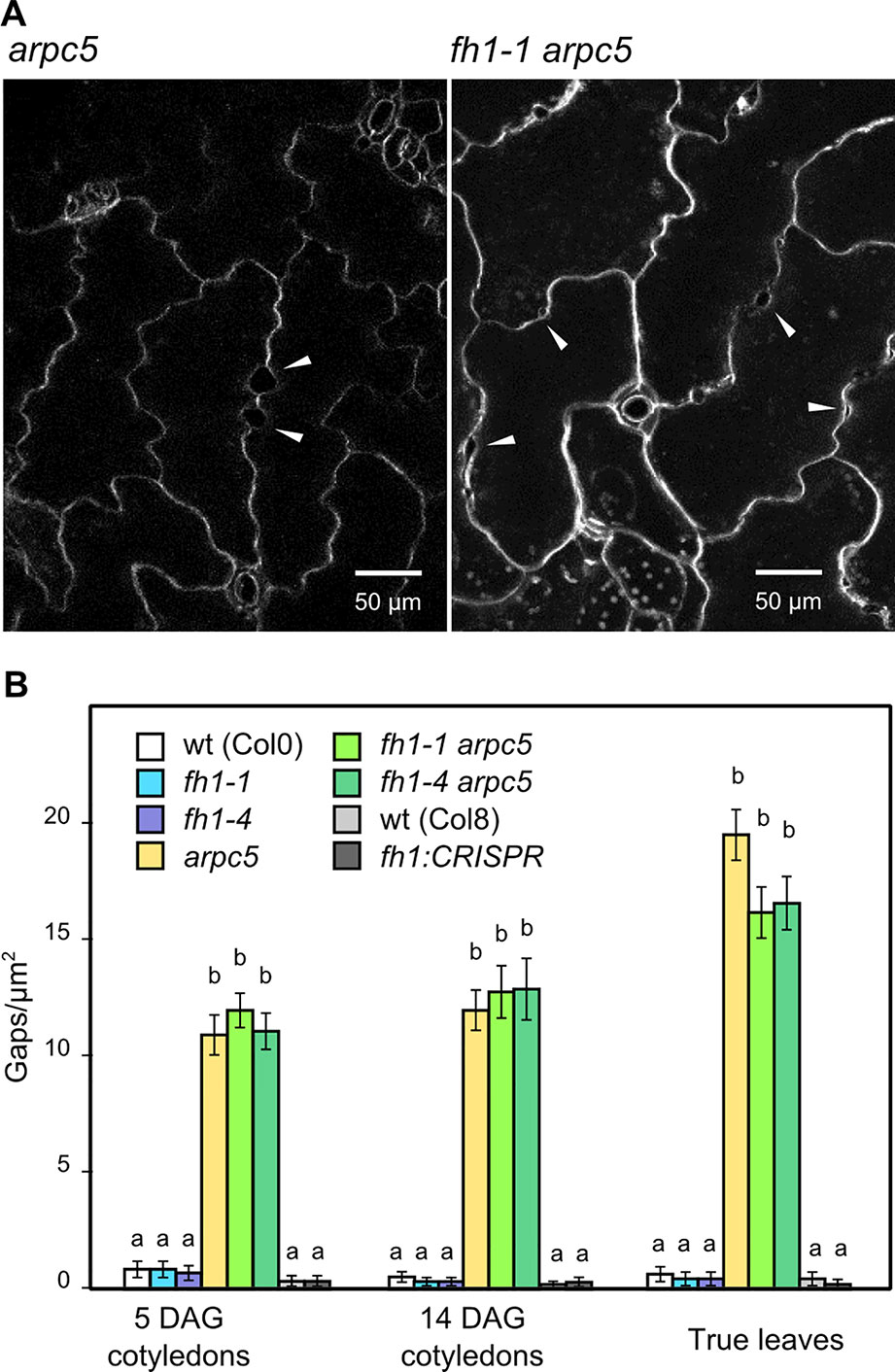

Figure 6 Epidermal continuity defects in actin nucleator mutants. (A) Close-up of 14 days after germination (DAG) cotyledon epidermis of arpc5-1 and fh1-1 arpc5-1 mutants, epidermal gaps marked by arrowheads. (B) Quantification of gap density in cotyledons and first true leaves. Values labeled by the same letters do not differ significantly (p < 0.05).

Effects of arpc5 and fh1 Mutations on Trichome Shape

Mutations affecting the function of the ARP2/3 complex are known to cause characteristic deformations of the typical architecture of the branched unicellular A. thaliana trichomes. This is the case also of arpc5, whose trichomes are distorted and have shorter branches than those of wt plants (Mathur et al., 2003b; Li et al., 2003). On the other hand, trichomes of fh1 mutants are, at the first glance, shaped normally but mutant plants exhibit a somewhat larger fraction of four-branched trichomes compared to the wt (Oulehlová et al., 2019). We did not observe any gross abnormalities in microfilament organization during early trichome development in single arpc5 or fh1 mutants (Supplementary Data S7), although possible differences in the extent of microfilament bundling may deserve further attention.

We confirmed these observations in single mutants and found that double fh1 arpc5 mutants also have distorted trichomes (Figure 7A). An increase in the frequency of four-branched trichomes was observed not only in fh1 plants, but also in arpc5 mutants, as well as in double fh1 arpc5 mutants, which did not significantly differ from fh1 plants in this parameter (Figure 7B). Terminal branches of typical three-branched trichomes of fh1 mutants were shorter than those of wt plants, and their length was further reduced in arpc5 mutants. Trichomes of double mutants resembled those of arpc5 plants also in this parameter (Figure 7C). A similar, though less distinct, difference in trichome branch length was documented also for four-branched trichomes (Supplementary Data S8). PCA involving six parameters (the length of each internal or apical branch and overall trichome size) confirmed that three-branched fh1 trichomes resemble those of wt plants, while those of double fh1 arpc5 mutants are indistinguishable from single arpc5 mutants (Figure 7D).

FIGURE 7
www.frontiersin.org

Figure 7 Trichome shape in wt plants and actin nucleator mutants. (A) Typical trichomes of wt, fh1-1, arpc5-1, and fh1-1 arpc5-1 plants. (B) Distribution of trichome branch numbers. Statistical significance of between-genotype differences is denoted by asterisks (* for p < 0.05, **for p < 0.01). (C) Length of terminal branches in three-branched trichomes. Values labeled by the same letters do not differ significantly (p < 0.05). (D) Scatter plot of principal component analysis (PCA) results for six length parameters (a–f, see inset for definition) describing the three-branched trichome shape and size, shown at an arbitrary scale.

Thus, the double fh1 arpc5 mutants resemble single arpc5 mutants with respect to trichome shape and are indistinguishable from either single mutant with respect to trichome branching. Together, these observations suggest epistasis of arpc5 over fh1 with respect to trichome development.

Discussion

In contrast to opisthokonts, who possess multiple actin nucleation systems, plants currently seem to engage only two classes of actin nucleators: the ARP2/3 complex and formins (e.g. Blanchoin and Staiger, 2010; Vaškovičová et al., 2013; Yanagisawa et al., 2013). Multiple reports describe the role of one or another of these actin nucleation machineries in plant cell morphogenesis and development both in Arabidopsis (e.g. Li et al., 2003; Rosero et al., 2013; Rosero et al., 2016; Sahi et al., 2018) and in other angiosperms (e.g. Yang et al., 2011; Zhang Z. et al., 2011; Hossain et al., 2012; Huang et al., 2013; Facette et al., 2015; Gavrin et al., 2015; Qiu et al., 2015; Qi et al., 2017). In the present study, the impact of simultaneous perturbation of both actin nucleation systems on Arabidopsis epidermal cells shaping was investigated for the first time, with focus on interdigitated epidermal pavement cells and trichomes.

Actin nucleation may be expected to be essential for eukaryotic cell functioning. Indeed, in budding yeast (Winter et al., 1999) or fission yeast (e.g. Cabrera et al., 2011), loss of some ARP2/3 complex subunits is lethal; mutations affecting other subunits cause severe cell morphogenesis defects. Disrupting the metazoan ARP2/3 complex also tends to result in tissue- or organ-level problems rather than cellular lethality (e.g. Di Nardo et al., 2005; van der Kammen et al., 2017). In plants, the ARP2/3 complex appears to be needed for proper cell morphogenesis and development but not for cell viability. Perturbation of the ARP2/3 complex in the moss Physcomitrella patens prevents completion of the developmental cycle and disturbs polar growth and cell morphogenesis (Harries et al., 2005; Finka et al., 2008). In angiosperms, including A. thaliana, loss of the ARP2/3 complex or its regulators results in altered shape of trichomes and epidermal pavement cells, but does not cause gross developmental defects (Mathur et al., 2003a; see Ivakov and Persson, 2013; Facette et al., 2015). Impairment of ARP2/3 function resulted in additional rather subtle phenotypic changes—for example, altered stomata closure dynamics in several mutants affecting ARP2/3 complex function, including the arpc5-1 mutant analyzed in the present study (Li et al., 2013). A possible reason for the lack of dramatic phenotypic effects may be that plant cells can generate new actin filaments by other mechanisms, such as nucleation by formins or elongation of short actin filaments generated by severing proteins (Michelot et al., 2007; Staiger et al., 2009). ARP2/3 complex subunits are encoded by single copy or duplicated genes in Arabidopsis (Li et al., 2003), and the knock-out of individual single-copy genes leads to similar phenotypic effects (Li et al., 2003; Mathur et al., 2003b; Djakovic et al., 2006; Li et al., 2013; Sahi et al., 2018) underscoring their functionality within the same complex.

Unlike ARP2/3 complex subunits, formins comprise large gene families in most lineages, including metazoans and plants (Grunt et al., 2008). Thus, loss of a single formin may be compensated by its functionally overlapping relatives. Arabidopsis plants lacking the main housekeeping Class I formin FH1 are viable, fertile, and free from major developmental defects but exhibit altered root growth, cytoskeletal drug sensitivity, cytoskeletal dynamics, and also changed pavement cell shape. Remarkably, these phenotypic effects of the fh1 mutation, as well as its impact on cytoskeletal dynamics, were largely phenocopied in seedlings treated by SMIFH2, a specific inhibitor of formin activity (Rosero et al., 2013; Rosero et al., 2016). A T-DNA insertion disrupting the closest FH1 paralog, FH2 (At2g43800), did not significantly alter pavement cell shape, although it slightly increased pavement cell size (Rosero, 2013). Since pavement cell size appears to be easily influenced by numerous conditions, including, e.g., expression of cytoskeletal markers (Rosero et al., 2016), we consider these observations consistent with a prominent role of FH1 in vegetative development at least at the seedling stage, although contribution of other formins (including, but not limited to, FH2) would clearly deserve further attention.

Here we show that also double fh1 arpc5 mutants exhibit no major growth or developmental defects possibly again due to functional redundancy of the numerous formin paralogs. This enabled us to investigate the mutual relationships of the two actin nucleation systems in cytoskeletal organization and epidermal cell morphogenesis.

Plant cell shape is determined by a complex interplay between vacuole-driven turgor pressure, cell wall synthesis and remodeling, mechanical stress, cytoskeletal dynamics, and membrane trafficking (Szymanski and Cosgrove, 2009; Sampathkumar et al., 2014; Belteton et al., 2018). Epidermal pavement cells and branched unicellular Arabidopsis trichomes have long served as models to study these processes (see, e.g. Ivakov and Persson, 2013; Sapala et al., 2018; Altartouri et al., 2019). Microtubules are believed to contribute significantly to the control of pavement cells lobes initiation (Panteris and Galatis, 2005; Armour et al., 2015; Belteton et al., 2018), whereas orchestrated action of both actin and microtubule cytoskeleton is needed for later and final stages of pavement cell development (Smith and Oppenheimer, 2005; Zhang C. et al., 2011). Changes in cytoskeletal organization responsible for the layout of pavement cell lobes, especially microtubule bundling, occur very early in development, when the cells are still convex (Armour et al., 2015). In plants carrying the actin marker GFP-FABD whose expression itself causes changes in pavement cell size and shape, no differences were observed between cells that ceased expressing the transgene before day 4 after germination and those with continuous expression (Rosero et al., 2016), indicating participation of the actin cytoskeleton in very early steps of pavement cell shape determination. Arabidopsis mutants with impaired actin nucleation commonly exhibit altered pavement cell shape and size (e.g. Li et al., 2003; Mathur et al., 2003a; Mathur et al., 2003b; El-Assal et al., 2004; Basu et al., 2004; Basu et al., 2005; Rosero et al., 2016; Sahi et al., 2018; Oulehlová et al., 2019), again consistent with microfilaments contributing to early microtubule rearrangements that establishes the lobe layout (compare Cvrčková et al., 2016), albeit cytoskeletal organization and dynamics during early pavement cell development in these mutants remains to be characterized.

Cotyledon pavement cells of arpc5 plants are less lobed than in wt plants (Mathur et al., 2003b; Li et al., 2003), while fh1 mutants show an opposite phenotype, i.e. increased cotyledon pavement cell shape complexity (Rosero et al., 2016; Oulehlová et al., 2019). Here we show that cotyledon pavement cells of double fh1 arpc5 mutants resemble those of arpc5 plants. The arpc5 mutation is thus epistatic over fh1 with respect to cotyledon pavement cell shape determination. However, in true leaves the arpc5 mutant exhibits increased rather than decreased pavement cell shape complexity (Sahi et al., 2018), and all mutants examined in this study, i.e. arpc5, fh1, and fh1 arpc5, displayed a similar decrease in true leaf epidermal pavement cell circularity and an increase in cell size compared to wt plants. Thus, pavement cell shaping in cotyledons (embryonic leaves) and true post-embryonic leaves apparently engages the actin nucleation mechanisms in a different manner. This is not surprising, because post-germination cotyledon growth relies solely on cell expansion in the absence of cell division, while true leaf cells simultaneously divide and expand (Tsukaya et al., 1994). Additional mechanisms such as, e.g., mechanical stress and tension may contribute to cell shaping differently in cotyledons versus true leaves. Although epidermis growth properties may influence organ shape (Savaldi-Goldstein et al., 2007), in our system pavement cells shape and size did not influence organ size, consistent with previous observations that whole organ size is barely, if at all, affected by cell size and shape changes induced by actin nucleator disruption, indicating efficient compensation for altered cell division or cell expansion at the organ development level (e.g. Rosero et al., 2016; Sahi et al., 2018).

Another classic model cell type used to study cell shaping regulated by orchestrated action of actin and microtubules are leaf trichomes. Trichome branches initiation appears to be controlled mainly by microtubules (Sambade et al., 2014) and trichome branches growth by ARP2/3-nucleated microfilaments (Mathur et al., 1999; Szymanski et al., 1999; Le et al., 2003; Schwab et al., 2003; Li et al., 2003; El-Assal et al., 2004; Basu et al., 2004; Basu et al., 2005; Yanagisawa et al., 2015; Tian et al., 2015). Remarkably, components of the ARP2/3 complex, as well as the FH1 protein, localize to nascent tips during early trichome development (Yanagisawa et al., 2015; Yanagisawa et al., 2018; Oulehlová et al., 2019). Along with the well-known “distorted trichome” phenotype (Mathur et al., 2003b), arpc5 plants exhibited shorter terminal trichome branches and an increase in trichome branch number. Also fh1 mutants show increased trichome branch number (Oulehlová et al., 2019). Trichome branch initiation can be induced by transient microtubule stabilization in branching-deficient mutants (Mathur and Chua, 2000) or by microtubule-stabilizing mutation (Buschmann et al., 2009). However, fh1 mutants have more dynamic microtubules in epidermal pavement cells (Rosero et al., 2016; Cvrčková and Oulehlová, 2017; see also below). Unless the effects of the fh1 mutation differ between trichomes and pavement cells, a possible explanation of the apparent paradox is that increased microtubule mobility in fh1 mutants may promote generation of transient microtubular structures required for branch initiation, while microtubule stabilization increases the lifetime of such structures. This would be consistent with our hypothesis explaining increased pavement cell lobing in fh1 mutants by enhanced generation of microtubule bundles at future pavement cell lobe necks (Cvrčková et al., 2016). Additional observations, focusing on cytoskeletal dynamics during early stages of trichome ontogeny, are needed to test this hypothesis. The distorted trichome phenotype of double fh1 arpc5 mutants indicates epistasis of arpc5 over fh1, as in the case of cotyledon pavement cells, and is consistent with cell wall expansion required for proper branch elongation being controlled by ARP2/3 (Yanagisawa et al., 2015; Yanagisawa et al., 2018).

To gain insight into the cytoskeletal basis of observed epidermal cell shape differences, we analyzed organization and dynamics of microfilaments and microtubules in epidermal pavement cells of single and double mutants. Changes were expected in both cytoskeletal systems, since some ARP2/3 complex subunits (Zhang et al., 2013b; Havelková et al., 2015) and at least some formins (Deeks et al., 2010; Li et al., 2010; Yang et al., 2011; Wang et al., 2012; Wang et al., 2013), bind to microtubules in addition to their actin-related functions. Thus, phenotypic effects of ARP2/3 complex or formin perturbation may be mediated by either actin or microtubules, or by both cytoskeletal systems.

In general, loss of FH1 affected the microtubular network more dramatically than the microfilaments. Enhanced microtubule dynamics in fh1 mutants was observed, consistent with our previous observations (Rosero et al., 2016; Cvrčková and Oulehlová, 2017). Disruption of ARP2/3 complex function has led to some noticeable, though rather weak, effects upon the actin cytoskeleton that might secondarily affect microtubules via actin-microtubule interactions. However, the biological relevance of these effects is questionable because they were only partly reproduced using an alternative actin marker. In the double fh1 arpc5 mutants, microfilament organization and dynamics generally resembled that in single arpc5 mutants, unlike the microtubule behavior, which reflected that observed in fh1 mutants.

In contrast to our previous observations (Rosero et al., 2016) we did not observe a significant increase in actin bundling in the fh1 mutants compared to wt plants. We attribute this discrepancy to the nature and expression level of the markers used to label the actin cytoskeleton in our previous study, where we employed GFP-FABD and Lifeact-mRFP markers expressed under the strong 35S promoter. Those marker lines exhibited transgene silencing in subsequent generations, leading to decreased and patchy marker expression after crossing into T-DNA insertional lines, which possibly resulted in the loss of ability to detect fine, non-bundled microfilaments (Rosero et al., 2016). Moreover, while GFP-FABD detects a less bundled microfilament network, it rather dramatically reverses the pavement cell shape alteration brought about by fh1 mutations. This effect, not observed with a Lifeact-based marker, makes interpretation of results obtained using GFP-FABD in formin mutants problematic (Rosero et al., 2016). Although Lifeact marker constructs stabilize actin network when strongly expressed, moderate expression levels enable detection of fine, highly dynamic microfilaments (van der Honing et al., 2011; Dyachok et al., 2014; Kijima et al., 2018). In the present study, a pUBQ-driven |Lifeact-GFP actin marker, which was not silenced, was used. Although microfilament bundling was still observed, we believe that our current measurements provide a more realistic estimate of mutant actin dynamics than those in our previous report where the preferential detection of bundles was further aggravated by silencing (Rosero et al., 2016).

At the first glance, the observed effects of actin nucleator impairment on the cytoskeletal organization and dynamics were not mirrored in cell shape properties in the double fh1 arpc5 mutants. Microtubules, which are essential for pavement cell lobe and trichome branch initiation, are more dynamic in fh1 mutants and thus prone to re-organize more readily into structures that establish the layout of a complex cell shape (Rosero et al., 2016; Cvrčková et al., 2016). In the double mutants the microtubule cytoskeleton is as dynamic as in single fh1 mutants but resulting cell shapes are less complex, resembling instead single arpc5 mutants. This could be due to ARP2/3-dependent nucleation of new actin being required to progress from lobe or trichome branch initiation (“layout establishment”) to actual lobe or branch expansion that determines the final cell shape complexity (Panteris and Galatis, 2005; Yanagisawa et al., 2015). Thus, the loss of dynamic actin in ARP2/3-defective mutants seems to play a dominant role in adopting the final shape.

Cell expansion is intimately linked to cell wall polymer deposition (Altartouri et al., 2019). Indeed, qualitative changes in cell wall composition were detected at later stages of ARP2/3-defective mutant development (Sahi et al., 2018). Consistent with previous reports describing formation of epidermal gaps in such mutants (e.g. Mathur et al., 2003a; Mathur et al., 2003b; Sahi et al., 2018), cell adhesion defects were observed in the epidermis of arpc5 mutant seedlings, regardless of their fh1 state. Such defects are also common in plants with altered cell wall carbohydrate composition, especially altered pectin content (Bouton et al., 2002) and pectin deficiency-induced signaling from the cell wall to cell wall synthesis machinery (Verger et al., 2016). Our observations thus are consistent with the ARP2/3-controlled actin filaments or the ARP2/3 complex itself being involved in cell wall biosynthesis by a yet unknown mechanism.

In summary, our results imply that the formin FH1 and the ARP2/3 complex share complementary roles in some aspects of cotyledon pavement cell morphogenesis while they act synergistically in the shaping of trichomes and true leaf pavement cells. This suggests that the control of actin dynamics, affecting also microtubule organization and dynamics, is developmentally regulated, and that the importance of any particular actin nucleation mechanism changes in the course of ontogeny.

Author's Note

Simultaneous impairment of the ARP2/3 complex and the main housekeeping formin FH1 activity has been employed to characterize the contribution of these two actin-nucleating systems to epidermal cells morphogenesis, revealing their distinct roles in pavement cell and trichome shaping.

Data Availability Statement

All data supporting the conclusions of this article are included in the article/Supplementary Material.

Author Contributions

VŽ formulated the initial working hypothesis. VŽ, KS and FC conceived and designed the research. PC, DO, AR and EK constructed the plant lines. PC, EK and AR performed initial phenotypic characterization of mutants. DO, JM, PC, AR, KS and EK performed microscopic observations. PC, EK and FC performed image analysis and statistical evaluation of results. PC, KS and FC drafted the manuscript. PC and FC prepared the figures. FC, VŽ and KS performed final manuscript editing.

Funding

Research at the Department of Experimental Plant Biology has been supported by the Grant Agency of the Czech Republic (projects 15-02610S and 19-10845S); work performed at the Institute of Experimental Botany was supported by the Ministry of Education, Youth and Sports of the Czech Republic from European Regional Development Fund Project “Centre for Experimental Plant Biology” No. CZ.02.1.01/0.0/0.0/16_019/0000738. The microscopy facilities used in this work were supported by the European Regional Development Fund and the state budget of the Czech Republic (projects CZ.1.05/4.1.00/16.0347 and CZ.2.16/3.1.00/21515), by Ministry of Education, Youth and Sports of the Czech Republic (project LM2015062 Czech-BioImaging), and by the European Research Council Grant No. 803048.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We thank Marta Čadyová and Jana Šťovíčková for technical assistance, Claudia Setzer (Gregor Mendel Institute, Vienna, Austria) for vectors and for introduction into the CRISPR technology, and Anežka Baquero Forero for help with some experiments.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2020.00148/full#supplementary-material
