Bobo Fan1,2†
Hushuai Nie1†
Xiaolei Li1Yu Ma1Ersuo Lv3Jing Wu1Xiuxiu Yan1Yongqing Zhai1Yan Zhao4Jie Liu2Xiaohong Du1
Yanhong Ma1*- 1Agricultural College, Inner Mongolia Agricultural University, Hohhot, China
- 2Ecological Environment College, Baotou Teachers’ College, Baotou, China
- 3Inner Mongolia Academy of Agricultural & Animal Husbandry Sciences, Hohhot, China
- 4College of Grassland, Resources and Environment, Inner Mongolia Agricultural University, Hohhot, China
MADS-box transcription factors are important regulators of plant abiotic stress response. Despite the exceptional drought tolerance of Agropyron mongolicum, research on the MADS-box transcription factors governing simulate drought stress in this species are limited. In this study, overexpressing AmMADS47 in rice resulted in reduced drought tolerance. Transcriptome sequencing of wild-type (WT) and transgenic rice (OE) at 0 hours of drought and wild-type (WTD) and transgenic rice (OED) at 24 hours of osmotic stress revealed 21,521 differentially expressed genes (DEGs) totally. Further analysis of the top 20 enriched pathways of the DEGs between OE and WT, and between OED and WTD showed that phenylpropanoid biosynthesis and glutathione metabolism were the shared pathways most enriched in DEGs, and photosynthesis-antenna proteins were the shared pathway with the highest enrichment score and significance. Gene regulation in response to osmotic stress was analyzed in the three pathways, showing that, compared to WTD, OED exhibited up-regulation of a few drought-sensitive genes, while most genes positively regulating drought in WTD were down-regulated in OED. Collectively, these results highlight the crucial role of AmMADS47 in modulating the synthesis of key enzymes and the expression patterns of drought-responsive genes in three candidate pathways in rice, ultimately reducing drought resistance in rice.
1 Introduction
Agropyron mongolicum, a resilient Gramineous perennial grass thriving in deserts, is mainly distributed in Russia, Mongolia, and northern China, and it has a high nutritional value with a protein content of 18.64% (Du et al., 2017). Its stem leaves are soft with good palatability for animal husbandry. Evolving the over years, it has developed a high ecological value because of its drought resistance, cold resistance, and suitability for dry sandy areas (Zhao et al., 2010; Zhang et al., 2019a). It plays an important role in ecological restoration, wind prevention, and sand fixation, serving as a vital genetic resource for enhancing stress tolerance in Gramineae crops (Zhang et al., 2019b; Fan et al., 2022). Climate change exerts profound impacts on agricultural systems, with global warming exacerbating the frequency of extreme climatic events such as droughts while simultaneously driving the progressive expansion of arid regions. Research indicates that drought-induced production losses approximate 7% in affected agricultural areas (Huang et al., 2015; Lesk et al., 2016). Therefore, in-depth investigation of wild drought-tolerant genetic resources holds critical significance for agricultural adaptation strategies. The exacerbation of global warming and environmental drought stress poses challenges to realizing the full genetic potential of crops (Boyer, 1982; Esfahanian et al., 2017). Drought stress induces alterations in plant phenotype, physiology, and molecular level, activating drought response genes (Chandra et al., 2021). Under drought stress, plants express and activate drought response genes, initiating a series of signal transduction and metabolic pathways that shape plant phenotypic and physiological changes. Recent research has revealed that transcription factors, such as WRKY, NAC, ERF, and DREB, are critical to drought tolerance (Chandra et al., 2021). However, research on key MADS-box transcription factors and their regulatory mechanisms in A. mongolicum under simulate drought stress is scarce.
MADS-box transcription factors play important regulatory roles in plant growth, development, and responses to environmental adversity (Natalia et al., 2019; Okay et al., 2024; Mirzaghaderi, 2024). These factors can be categorized into two types: Type I, featuring SRF-like structural domain, and Type II, comprising the MEF2-like structural domain (highly conserved), the I structural domain (containing 35 amino acids, lowly conserved), the K-box (containing 65–70 amino acids, moderately conserved), and the C structural domain (lowly conserved) (Wei et al., 2015; Luis et al., 1996; Becker et al., 2003). OsMADS26, identified as a regulator in stress responses like drought and pathogen infection, exhibited up-regulation in rice induced by mannitol. However, overexpression in rice or Arabidopsis resulted in severe adversity phenotypes, including slow root and branch growth, sterility, and pale green coloration, reducing drought tolerance in rice (Lee et al., 2008a; Khong et al., 2015). OsMADS23 and OsMADS25 genes in rice, induced by mannitol, may involve in regulating drought stress (Puig et al., 2013). Overexpression of OsMADS23 remarkably enhanced, but knockout of the gene greatly reduced the drought and salt tolerance in rice plants. Further, OsMADS23 was shown to promote the biosynthesis of endogenous ABA and proline by activating the transcription of target genes OsNCED2, OsNCED3, OsNCED4 and OsP5CR that are key components for ABA and proline biosynthesis (Li et al., 2021). Through comparative genome-wide analysis of MADS-box transcription factor families in rice, Abdullah-Zawaw found that the abiotic and biotic stress-responsive cis-regulatory element type and distribution patterns in the promoter regions of rice MADS-box, and showed the important role of MADs-box in rice stress responsiveness (Abdullah-Zawawi et al., 2021). miR444 is target to a MADS-box transcription factor OsMADS27 in rice, transgenic rice plants expressing miR444 target mimic improved rice root growth, but overexpression of miRNA-resistant OsMADS27 improved root development and tolerance to abiotic stresses, while its silencing suppressed root growth (Pachamuthu et al., 2022). PgMADS41 and PgMADS44 are involved in regulating root growth and development in Panax (Jiao et al., 2023). Overexpression of SLMBP22 gene in tomatoes increased drought resistance, leading to changes in chlorophyll content, soluble sugar, starch and the transcript levels of genes related to chlorophyll development and metabolism, as revealed by real-time quantitative polymerase chain reaction (qRT-PCR) (Li et al., 2020). In Sorghum bicolor, the expression of MADS-box gene (PTSb00221.1 and PTSb00208.1) in roots under water stress was up-regulated 5–10 fold (Aglawe et al., 2012). DgMADS114 and DgMADS115 genes from Dactylis glomerata improved stress tolerance when heterologously expressed in Arabidopsis thaliana, resulting in longer root length or higher survival rates under PEG and ABA (Yang et al., 2022). Research reports on the regulation of drought tolerance by the MADS47 gene in plants remain limited. Related studies have only been identified in rice, where research demonstrates that the OsMADS47 gene is predominantly expressed in plant tissues such as mature leaves, coleoptiles, and root elongation zones and promotes leaf sheath elongation while increasing leaf inclination angles. The OsMADS47 gene acts as a negative regulator of BR signaling. Research shows that BRs can activate plant reactive oxygen species and phenylpropanoid metabolism (Ryo et al., 2022; Han et al., 2022; Fornara et al., 2008). All of the above studies have shown that MADS-box plays an important role in regulating stress in plants, however, there is little mining and application of MADS-box genes in the strongly drought-tolerant A. mongolicum. It is important to understand the MADS-box genes that regulate drought in A. mongolicum, a highly drought-tolerant crop.
In our preliminary study, we identified the MADS-box transcription factor (AmMADS47) as a key player in regulating simulate drought stress in A. mongolicum (Fan et al., 2022). In this study, the function of the AmMADS47 gene was analyzed by observing the phenotype of rice plant overexpressing AmMADS47, determining its expression levels in roots, stems, and leaves, and evaluating ROS accumulation. Furthermore, the effects of AmMADS47 overexpression on downstream regulated genes and candidate metabolic pathways in rice were analyzed through transcriptome sequencing. This study contributes to further understanding of the regulatory mechanisms of Poaceae grass MADS-box transcription factors under abiotic stresses and provides new insights for improving stress tolerance in Poaceae grasses and crops.
2 Materials and methods
2.1 Basic bioinformatics prediction of the AmMADS47
Mature seeds of A. mongolicum were collected from the Inner Mongolia Agricultural University’s (Hohhot, China) forage test station in the Inner Mongolia Autonomous Region. The amino acid sequence of the AmMADS47 gene from A. mongolicum’s Coding sequence (CDS) was retrieved using the ORF Finder tool on the NCBI website (https://www.ncbi.nlm.nih.gov/orffinder/). A comparative analysis was performed by using the CDS sequence on NCBI to find genes that are highly homologous to the AmMADS47 gene (https://blast.ncbi.nlm.nih.gov/Blast.cgi). Furthermore, the structural domain of the AmMADS47 protein were analyzed using CDD available on NCBI (https://www.ncbi.nlm.nih.gov/Structure/bwrpsb/bwrpsb.cgi?cdsid=QM3-qcdsearch-346AED479377E099&tdata=qopts). The prediction of phosphorylation sites was conducted using the NetPhos website (https://services.healthtech.dtu.dk/services/NetPhos-3.1/). To unravel the protein’s secondary and tertiary structures, analyses were carried out through the SOPMA (https://npsa-prabi.ibcp.fr/cgi-bin/npsa_automat.pl?page=/NPSA/npsa_sopma.html) and SWISS-MODEL online platforms (https://swissmodel.expasy.org/interactive#sequence). Known and predicted physical and functional protein-protein interactions were obtained from the Search Tool for the Retrieval of Interacting Genes/Proteins (STRING) database (http://string-db.org/) by “Single/Multiple Proteins by Sequence”.
2.2 Overexpression vector construction of AmMADS47 gene
Total RNA from A. mongolicum leaves was extracted using TRNzol Universal Reagent (Tiangen biotech, DP424, Beijing, China). Subsequently, the concentration and purity of the RNA were detected using NanoDrop One, and the RNA was reverse transcribed into cDNA using the FastQuant RT Kit (Tiangen biotech, KT106, Beijing, China), serving as a cloning template. The cloning process utilized primers KL-F-AmMADS47 and KL-R-AmMADS47, with the KL-R-AmMADS47 removing the terminator (Supplementary Table S1). The amplification system and procedure followed the steps outlined in Supplementary Table S2. The purified AmMADS47 target fragment was recovered using the TIANgel Midi Purification Kit (Tiangen biotech, DP209, Beijing, China). Subsequent ligation of the AmMADS47 target fragment and the cloning vector was carried out following the guidelines of the pEASY-Blunt Simple Cloning Kit (Transgen, CB111, Beijing, China) (Supplementary Figure S1A). Positive clones were subjected to double verification using both universal primers (M13-F: GTAAAACGACGGCCAGT, M13-R: CAGGAAACAGCTATGAC) and specific primers (KL-F-AmMADS47, KL-R-AmMADS47). The amplification band of the universal and specific primers were 776 bp and 675 bp, respectively.
The PBI121-EGFP vector plasmid (Miaoling biology, Wuhan, China) and AmMADS47 target fragment were digested with Xho I and Sal I restriction enzymes (Thermo Fisher Scientific Inc., China) (Supplementary Table 3), and the resulting products underwent purification and recovery. The PBI121-EGFP was ligated with AmMADS47 (Supplementary Table S3), and the ligated product was transformed into Top10 competent cells (Weidi, DL1010, Shanghai, China), adhering strictly to the provided instructions. The monoclonal bacterial solution was sent to BGI Genomics Co., Ltd. for sequencing, and the correctly sequenced recombinant plasmid was named PBI121-AmMADS47-EGFP. The plasmid was further extracted using the TIANprep Mini plasmid Kit (Tiangen biotech, DP103, Beijing, China) and then transformed into Agrobacterium Tumefaciens GV3101 strain (Weidi, AC1001, Shanghai, China). This vector was subsequently used for subcellular localization and genetic transformation.
2.3 Subcellular localization of PBI121-AmMADS47-EGFP
The seeds of Nicotiana benthamiana were kept in the laboratory. The subcellular localization experiment utilized N. benthamiana as the experimental material, cultured in an artificial climate chamber (MGC-450HP-2) under conditions of 25°C and a 14 h light cycle for one month. Agrobacterium tumefaciens containing PBI121-AmMADS47-EGFP and PBI121-EGFP were cultured until reaching an OD600 value of 0.6. The bacterial cultures were then collected (5,000 rpm, 5 min), and the clear liquid was discarded. The bacterial pellet was resuspended in an equal volume of special infection solution (Coolaber, SL0911, Beijing, China) for tobacco. Subsequently, acetosyringone (20 mg/L) was added, and the infection solution was left at room temperature for 30 min before being used for injecting tobacco leaves. The injected regions on the tobacco leaves were marked, and the infested tobacco plants were incubated in the dark for 24 hours, followed by a transfer to the MGC-450HP-2 chamber for an additional 48 hours. The lower epidermal sections of the tobacco leaves were then torn and observed under a fluorescence microscope (OLYMPUS BX53) to determine the subcellular localization of PBI121-AmMADS47-EGFP. Centrifugation was performed using a C1650-230V centrifuge (Beijing Lebote, China).
2.4 Agrobacterium tumefaciens mediates genetic transformation in rice
The seeds of Nipponbare (Oryza. sativa L. ssp japonica) were provided by Shaanxi Baiai Gene Information Technology Co., Ltd., China. The callus of Nipponbare was infected with Agrobacterium tumefaciens containing PBI121-AmMADS47-EGFP. The Agrobacterium tumefaciens were cultured in liquid LB medium containing kanamycin (50 mg/L) and rifampicin (20 mg/L) at 28°C with agitation at 200 rpm. A thermostatic oscillator (HZQ-Q, Henglong Instrument Co., Ltd.) was employed for constant temperature oscillation. The OD600 value of the bacterial solution was maintained at 0.5. After centrifugation at 5,000 rpm for 5 min, the supernatant was discarded, and the organisms were resuspended in an equal volume of 1/2 MS liquid medium. Acetosyringone (20 mg/L) was added to the suspension, and the mixture was left at room temperature for 30 min to facilitate subsequent genetic transformation of rice. The callus of rice was infected for 15 min, followed by co-culturing after removing excess bacterial liquid from the callus. Positive rice callus was screened, followed by differentiation and strengthening of seedlings. Positive identification indicated that PBI121-AmMADS47-EGFP was successfully constructed and transformed into Agrobacterium tumefaciens GV3101 (Supplementary Figure S1B–D). Overexpressed AmMADS47 rice callus was obtained through two rounds of resistance callus screens (Supplementary Figures S2A, B). The seedlings resistant to callus differentiation were transferred to strong seedling mediums, leading to the development of transgenic rice lines (Supplementary Figures S2C, D). The formulation of the medium used in these experiments is shown in Supplementary Table S4. DNA of transgenic rice was extracted using the CTAB method, and positive rice was identified through polymerase chain reaction (PCR). DNA was extracted from rice leaves using the cetyltrimethylammonium bromide (CTAB) method to confirm positive rice lines, and the sequences of CaMV35s added CDS of AmMADS47 was amplified. Positive rice plants were then transplanted into soil as seedlings and allowed to mature for seed harvesting.
2.5 Cultivation and treatment of rice
50 seeds each from the wild type and positive rice lines were selected. The seeds underwent a series of surface sterilization steps, involving a 30 s∼1.5 min soak in 75% alcohol, followed pouring out the alcohol. Subsequently, the seeds underwent a 1 min soak in a 2.5% sodium hypochlorite solution, with the removal of the solution, the addition of a new 2.5% sodium hypochlorite solution, and at 150 rpm, a 20 min wash. The seeds were then transfer to a super clean table after removal of the sodium hypochlorite solution and underwent 15 rinses with sterilized ddH2O. The sterilized seeds were then germinated in the dark at 25 °C using filter paper in a germination box. After 5 days of seed germination, seedlings with uniform growth were selected and transplanted into nutritious soil with a 1 cm spacing between seedlings. The rice were cultured to the 4-leaf stage before being transferred to a hydroponic culture (nutrient solution: 2.37 g MS/L water). To induce simulate drought stress conditions, a 25% PEG-6,000 (W/V) treatment was administered, and samples were collected both before and 24 hours after the stress application. These samples were promptly placed in liquid nitrogen pre-cooled enzyme-free freezing tubes and then transferred to -80 °C for storage. Each sample type underwent three biological repeats to ensure robustness and reproducibility of the experimental results.
2.6 qRT-PCR in trans-AmMADS47 rice
Total RNA was extracted from leaves of overexpressed rice subjected to both non-drought treatment and drought treatment for 24 hours (D24 h). The RNA concentration and purity were detected using NanoDrop One, followed by reverse transcription to cDNA using the FastQuant RT Kit (Tiangen biotech, KT106, Beijing, China). For qRT-PCR, upstream and downstream primers for the AmMADS47 gene were F-AmMADS47 “CAGGCTCGGATTACCACTCTTCAAC” and R-AmMADS47 “TATTCAATGCAATGCGCGGGTTCAAC”. The Actin gene was used as an internal reference, with F-Actin “CAATGTGCCAGCTATGTATGTCGC” and R-Actin “TTCCCGTTCAGCAGTGGTAGTGAAG”. Primers were synthesized by Sangon Biotech Co., Ltd. (Shanghai, China). The qRT-PCR was performed with MonAmp SYBR Green qPCR Mix (Monad, MQ10201S, Wuhan, China) following strict protocol instructions. The relative expression levels were calculated using the 2–ΔΔCT method (Livak and Schmittgen, 2001). Two rice lines with the highest expression were screened, and the expression levels of the AmMADS47 gene in roots, stems, and leaves were determined by qRT-PCR, with three biological replicates established.
2.7 Characterization of drought resistance in trans-AmMADS47 rice
After drought stress treatment, the plants whose leaves could grow upright, had fresh green color and showed no obvious wilting phenomenon were identified as “drought resistance” plants. For the assessment of oxidative stress in wild-type and overexpressed rice, leaves at the 4-leaf stage were subjected to both non-drought treatment and 25% PEG-6000 drought treatment for 24 hours. Nitrobule tetrazolium (NBT) and diaminobenzidine (DAB) staining were performed to observe O2- and H2O2 accumulation in the leaves. NBT (SL18061) and DAB (SL1805) staining solutions were purchased from Beijing Coolaber Technology Co., Ltd., China. To study the effect of AmMADS47 overexpression on rice root, rice lines exhibiting the highest expression of AmMADS47 were selected, and root phenotype were observed. Parameters such as root length, root surface area, root volume, and root tip number of rice at the 4-leaf stage were statistically analyzed using the LA-S root analysis system (Wseen, Hangzhou, China). The malondialdehyde (MDA) assay kit (A003-1), proline (Pro) assay kit (A107-1-1), and catalase (CAT) assay kit (Visible light) were used to determine the physiological indexes of wild-type and OE-25 rice at the 4-leaf stage. These kits were purchased from Nanjing Jiancheng Bioengineering Institute, China. The test procedures strictly adhered to the instructions provided with each kit.
2.8 Transcriptome sequencing of overexpressed rice under drought stress
Total RNA was extracted from OE-25 (OE), WT, drought-treated 24-h OE-25 (OED), and WTD leaves using Trizol reagent (Invitrogen, CA, USA). The quantity and purity of total RNA in each sample were assessed using the RNA 1000 Nano LabChip Kit (Agilent, CA, USA). The integrity of total RNA was evaluated with the Agilent Bioanalyzer 2100 analyzer (RIN value > 7.0, OD value 260/280 ≥ 1.8). The qualified total RNA was enriched with Oligo (dT) magnetic beads to obtain poly (A) RNA, which was subsequently cut into small fragments by Fragmentation Buffer. The cut fragments were reverse transcribed into the final cDNA library using the mRNA Seq sample preparation kit (Illumina, San Diego, USA), with library quality undergoing rigorous control measures. Rice transcriptome sequencing was performed on the Illumina Novaseq 6000 platform. Raw data were processed using the FASTQ to obtain clean reads, and HISAT2 software was employed for mapping to the reference genome and calculation of gene expression (FPKM) (Kim et al., 2015; Chen et al., 2018). The read counts of each gene were obtained through HTSeq-count (Simon et al., 2015), and the gene was analyzed by PCA using R packet (v 3.2.0). Sequencing services were entrusted to Shanghai OE Biotech Co., Ltd.
2.9 Analysis of differentially expressed genes and pathways of overexpressed AmMADS47
DEGs were analyzed using DESeq2 (Love et al., 2014), and DEGs responsive to AmMADS47 and osmotic stress were screened using criteria of q < 0.05, foldchange > 2, or foldchange < 0.5. Hierarchical clustering of DEGs was performed with R packet (v3.2.0) to analyze expression patterns of genes across different comparison groups. The expression profiles of the top 30 up-regulated and down-regulated genes were analyzed using ggrada. GO and KEGG pathway enrichment analysis of DEGs were used to screen terms and pathways responsive to AmMADS47 while regulating osmotic stress. Pathway maps for the selected key pathways were generated, and an expression heat map was constructed for genes annotated to each pathway. The relative expression levels of genes within the candidate pathway were analyzed. The qRT-PCR kit and template were consistent with those described in section 2.6. Primer sequences are shown in Supplementary Table S5.
2.10 Statistical analysis
Each graphical represents the results from at least three repeats, and the values are displayed as the mean ± SD. Statistical significance was determined using Student’s t-test.
3 Results
3.1 AmMADS47 gene sequence and subcellular localization analysis
The coding sequence of the AmMADS47 gene is 678 bp in length and encodes 225 amino acids (Supplementary Figure S3). Bioinformatics analysis was used to gain preliminary insight into the AmMADS47 gene. The results showed significant homology between AmMADS47 and rice’s OsMADS47 gene (LOC4331872), with an 82% identity in Blast comparison (Supplementary Figure S4A). The phosphorylation sites in the AmMADS47 protein were primarily serine, threonine, and tyrosine (Figure 1A). Protein secondary and tertiary structures of AmMADS47 were characterized by alpha-helices and random coil (Figures 1B; Supplementary Figure S4B). Both AmMADS47 and OsMADS47 proteins contain SRF-TF and K-box structural domains, as indicated by structural domain analysis (Figure 1C).

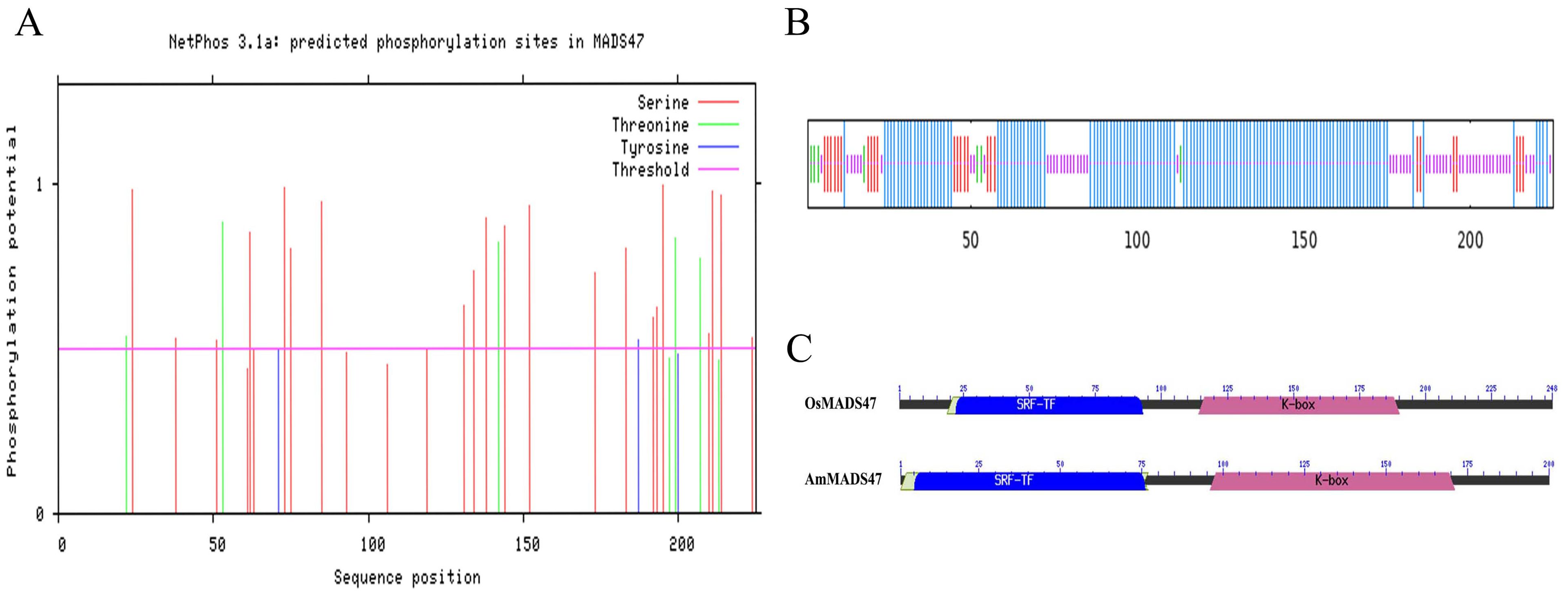

Figure 1. Basic bioinformatics analysis of AmMADS47. (A) Predictive analysis of phosphorylation sites in the AmMADS47. (B) Protein secondary structure of AmMADS47. (C) The protein structural domains of AmMADS47 and OsMADS47.
Subcellular localization revealed that PBI121-EGFP localized to the cell membrane and nucleus, whereas PBI121-AmMADS47-EGFP located in the nucleus. This observation confirms nucleoprotein nature of the AmMADS47 gene (Figure 2).
Figure 2. Subcellular localization of the AmMADS47 protein. The scale of images PBI121-EGFP and PBI121-AmMADS47-EGFP is 50 μm.
3.2 Impact of AmMADS47 overexpression on drought tolerance in rice
By means of the Agrobacterium-mediated transformation method for callus tissue, we obtained 41 transgenic rice plants (Supplementary Figure S5). The AmMADS47 gene exhibited drought-induced up-regulation in rice, with higher relative expression observed in the OE-19 and OE-25 lines (Supplementary Figure S6). The drought-induced response of the AmMADS47 gene was evident in leaves, as evidenced by qRT-PCR analysis of roots, stems, and leaves in the OE-19 and OE-25 lines (Figures 3A, B). These results showed that the AmMADS47 gene was specifically expressed in rice leaves and responded to osmotic stress. Both OE-25 and OE-19 showed increased susceptibility to wilting and lodging compared to WT when observing phenotypes at the 4-leaf stage of rice before and after drought (Figures 3C–F).

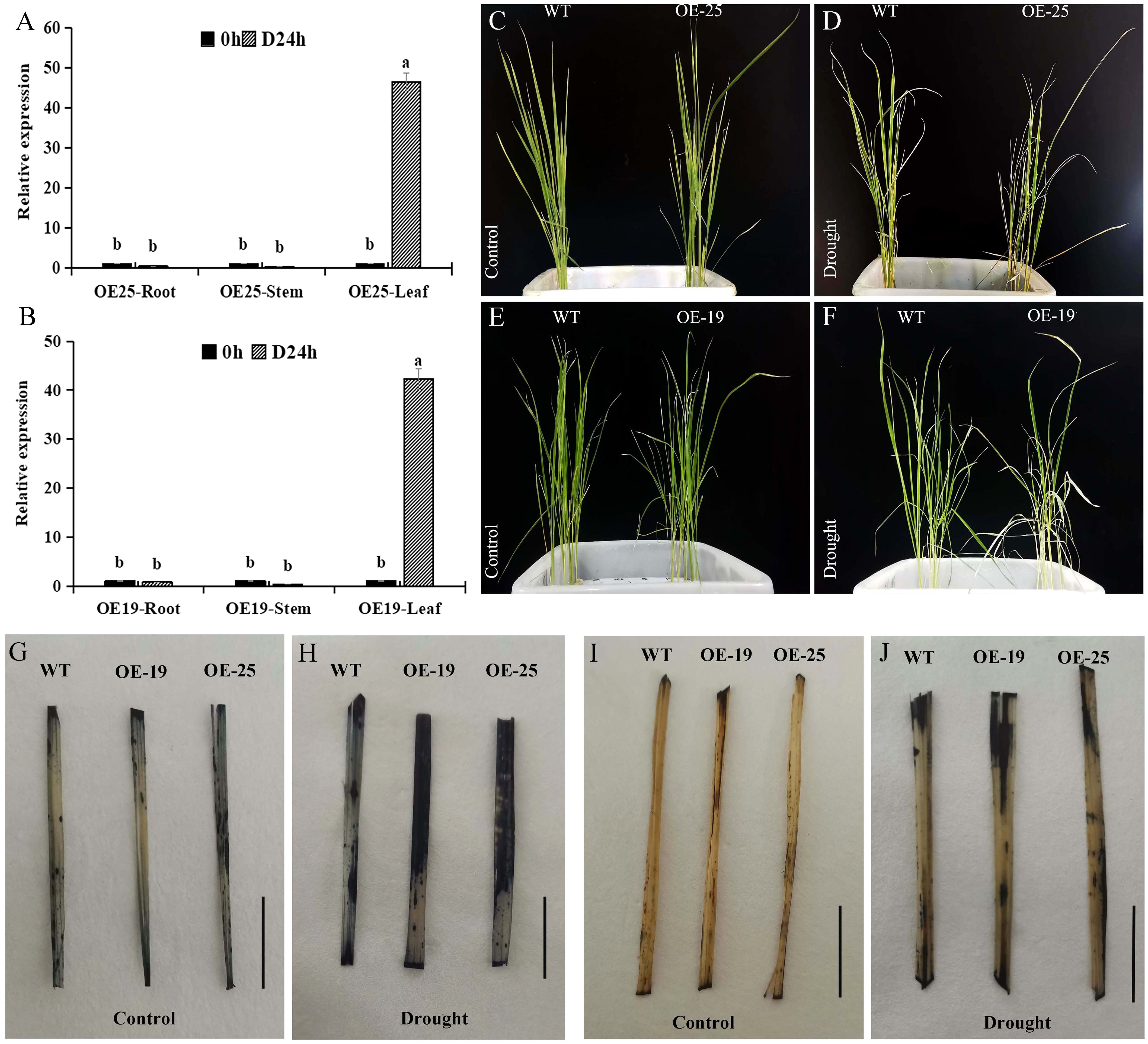

Figure 3. Analysis of AmMADS47 expression and antioxidant capacity in rice. (A, B) Relative expression of AmMADS47 in roots, stems and leaves of OE-25 and OE-19. Different letters in the column indicate a significant difference at the 0.05 level. (C-F) Phenotypes of OE-25 and OE-19 before and after osmotic stress. (G, H) NBT staining of leaves of WT, OE-19, and OE-25 before and after osmotic stress. (I, J) DAB staining of leaves of WT, OE-19, and OE-25 before and after osmotic stress. The scale in the image is 1 cm.
Reactive oxygen species (ROS) accumulation is indicative of plant drought tolerance, with increased ROS levels corresponding to decreased tolerance. Superoxide anion (O2-) accumulation in WT, OE-19, and OE-25 was assessed through NBT staining. Before simulate drought stress, O2- accumulation was lower in WT, OE-19, and OE-25 leaves (Figure 3G). However, after drought treatment, OE-19 and OE-25 showed significantly larger stained areas than WT, indicating increased O2- accumulation in OE-19 and OE-25 leaves (Figure 3H). This suggested that overexpression of AmMADS47 led to more severe oxidative damage under drought conditions. H2O2 accumulation in WT, OE-19, and OE-25 leaves was visualized through DAB staining. Before drought stress, H2O2 accumulation was lower in WT, OE-19, and OE-25 leaves (Figure 3I). Following osmotic stress, the staining area of OE-19 and OE-25 leaves was larger than that of WT (Figure 3J). These results showed that the overexpression of AmMADS47 increased H2O2 accumulation in rice leaves, diminishing drought resistance.
Three physiological indexes related to drought resistance were measured in order to further understand the effects of overexpression of AmMADS47 on the physiology of drought resistance in rice. After 24 hours of drought treatment, significant differences in the MDA content were found between WT and OE-25 leaves, measuring 84.21 and 58.18 nmol/g (Figure 4A). At the same time, the Pro content in OE-25 and WT leaves was 74.85 and 104.23 μg/(g·FW), respectively, suggesting a lower ability of OE-25 leaves to scavenge oxygen-free radicals compared to WT (Figure 4B). The CAT activity in WT and OE-25 leaves exhibited significant difference after 24 h of drought, with OE-25 and WT leaves recording 251.22 and 313.82 U/(g·FW), respectively. This indicates a weaker H2O2 decomposition ability in OE-25 compared to WT (Figure 4C).

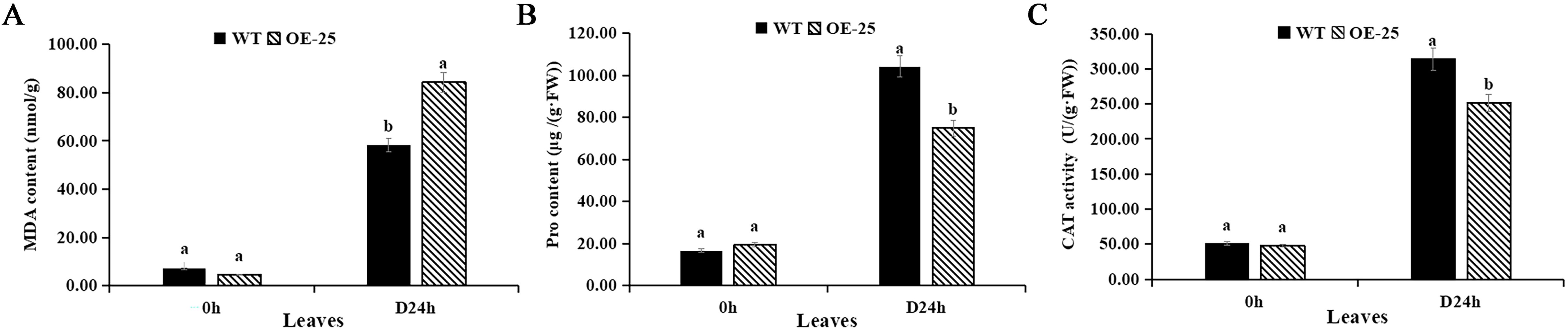

Figure 4. Analysis of drought related physiological indicators in OE-25. (A) MDA content of leaves of WT and OE-25 under osmotic stress. (B) Pro content of leaves of WT and OE-25 under osmotic stress. (C) CAT activity of leaves of WT and OE-25 under osmotic stress. Different letters on the column indicate significant difference at 0.05 level. Student T-test was used for the determination of significant differences.
3.3 Analysis of differentially expressed genes in trans-AmMADS47 and wild-type rice
The raw data (NCBI ID: PRJNA954461) from transcriptome sequencing of 12 samples underwent filtering, resulting in clean bases ranging from 6.97 to 7.49 G, Q30 distribution from 95.04% to 96.24%, and GC content from 51.26% to 52.75% (Supplementary Table S6). The clean reads, when compared to the reference genome, fell within the range of 97.21% to 98.19%. The gene count for subsequent analysis, determined by htseq-count software, ranged from 26,905 to 27,755 (Supplementary Table S7). Principal component analysis (PCA) demonstrated good repeatability among biological samples (Supplementary Figure S7A). Hierarchical clustering divided samples into four branches (Supplementary Figure S7B), distinctly separating drought-treated samples (OED, WTD) from non-drought-treated samples (WT, OE).
DEGs in each comparison group were screened using q value and fold change (FC) threshold (Supplementary Table S8), resulting in 21,521 DEGs and 367 differentially expressed transcription factors. Analysis of up-regulated and down-regulated DEGs in the four comparison groups (OE vs. WT, OED vs. WTD, WT vs. WTD, and OE vs. OED) revealed varying counts. The number of up-regulated DEGs were 2,119, 966, 2,709, and 4,639, and the number of down-regulated DEGs were 3,955, 654, 1,191, and 5,288, respectively (Figure 5A). There were 210 genes shared among the four comparison groups. The specific 845 genes in OE vs. WT may be responsive to AmMADS47 overexpression (Figure 5B), and 277 unique genes in OED vs. WTD may respond to AmMADS47 overexpression and regulate rice osmotic stress. A cluster heat map showed distinct DEG expression patterns under overexpression and osmotic stress (Figures 5C, D). The hierarchical clustering heatmap, divided into two large branches, distinctly differentiated DEGs in the two comparison groups. OE exhibited significantly fewer up-regulated expressed genes than WT, suggesting that overexpression of AmMADS47 resulted in a low-expression pattern in some DEGs.

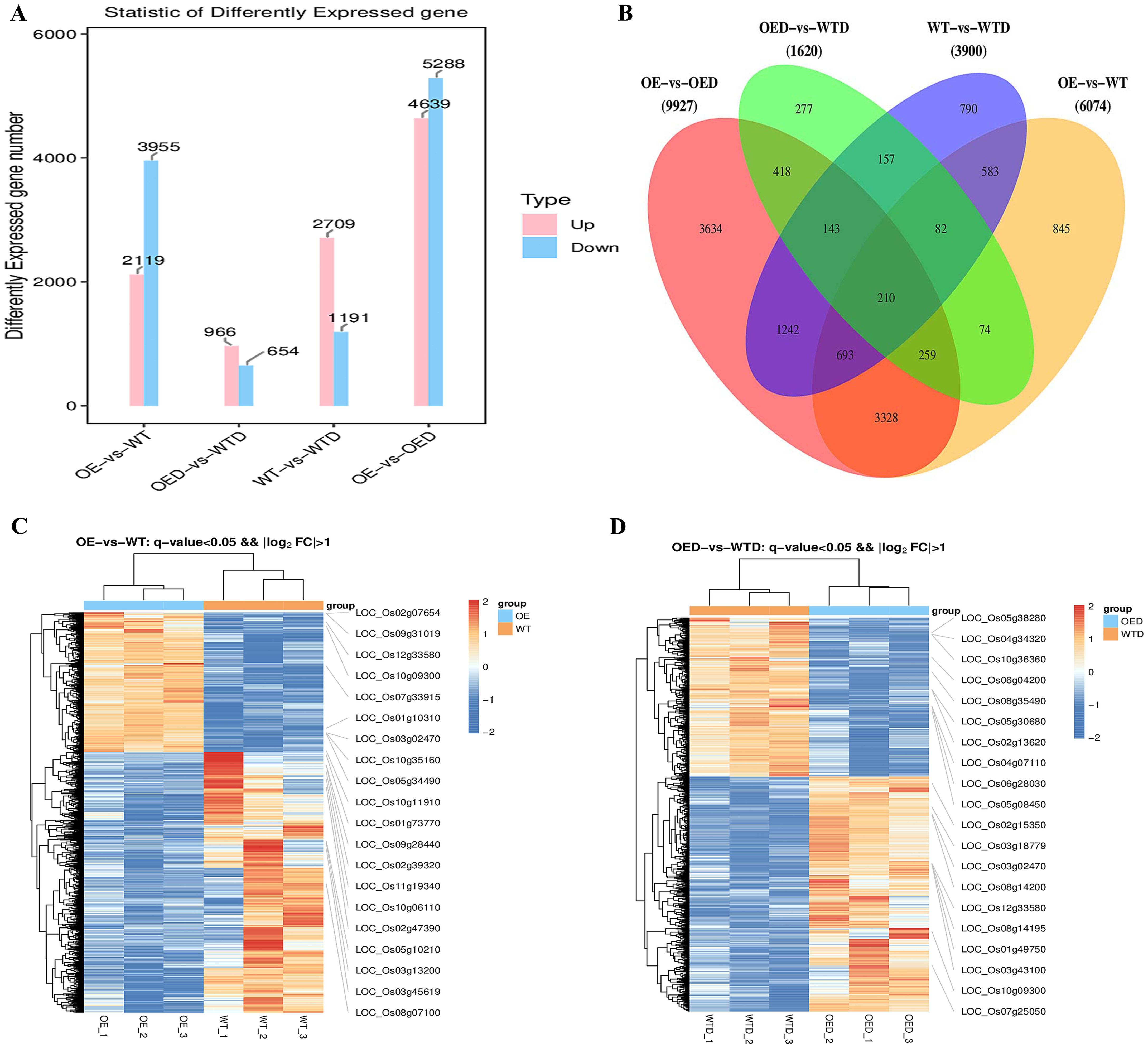

Figure 5. Statistical analysis and cluster heatmaps of DEGs. (A) Statistics on the number of up-regulated and down-regulated genes in DEGs, with pink indicating up-regulated genes and blue indicating down-regulated genes. (B) Statistical analysis of share and unique DEGs in different comparative groups. (C, D) Cluster heatmaps of DEGs from OE vs. WT and OED vs. WTD comparison groups; labeled on the right in the heatmap are the up-regulated and down-regulated top 10 DEGs. The expression level of genes in the heat map is the FPKM value.
GO enrichment analysis of DEGs in the OE vs. WT and OED vs. WTD comparison groups revealed seven shared GO terms for biological processes, including signal transduction, response to biotic stimulus, response to endogenous stimulus, and others. For cellular components, seven shared GO terms, such as extracellular region, cell, cell wall, and others, were identified. In molecular function, eight shared GO terms, including protein binding, signal transducer activity, carbohydrate binding, and others, were found (Figures 6A, B). These shared GO terms may respond to AmMADS47 overexpression and osmotic stress regulation. In the KEGG-enriched pathways analysis of the two comparison groups, phenylpropanoid biosynthesis and glutathione metabolism were identified as the shared pathways with the highest and the second-highest number of DEGs, respectively. The shared pathway with the highest enrichment scores and significance was photosynthesis-antenna proteins (Figures 6C, D). These three pathways were selected as candidate pathways for further analysis.

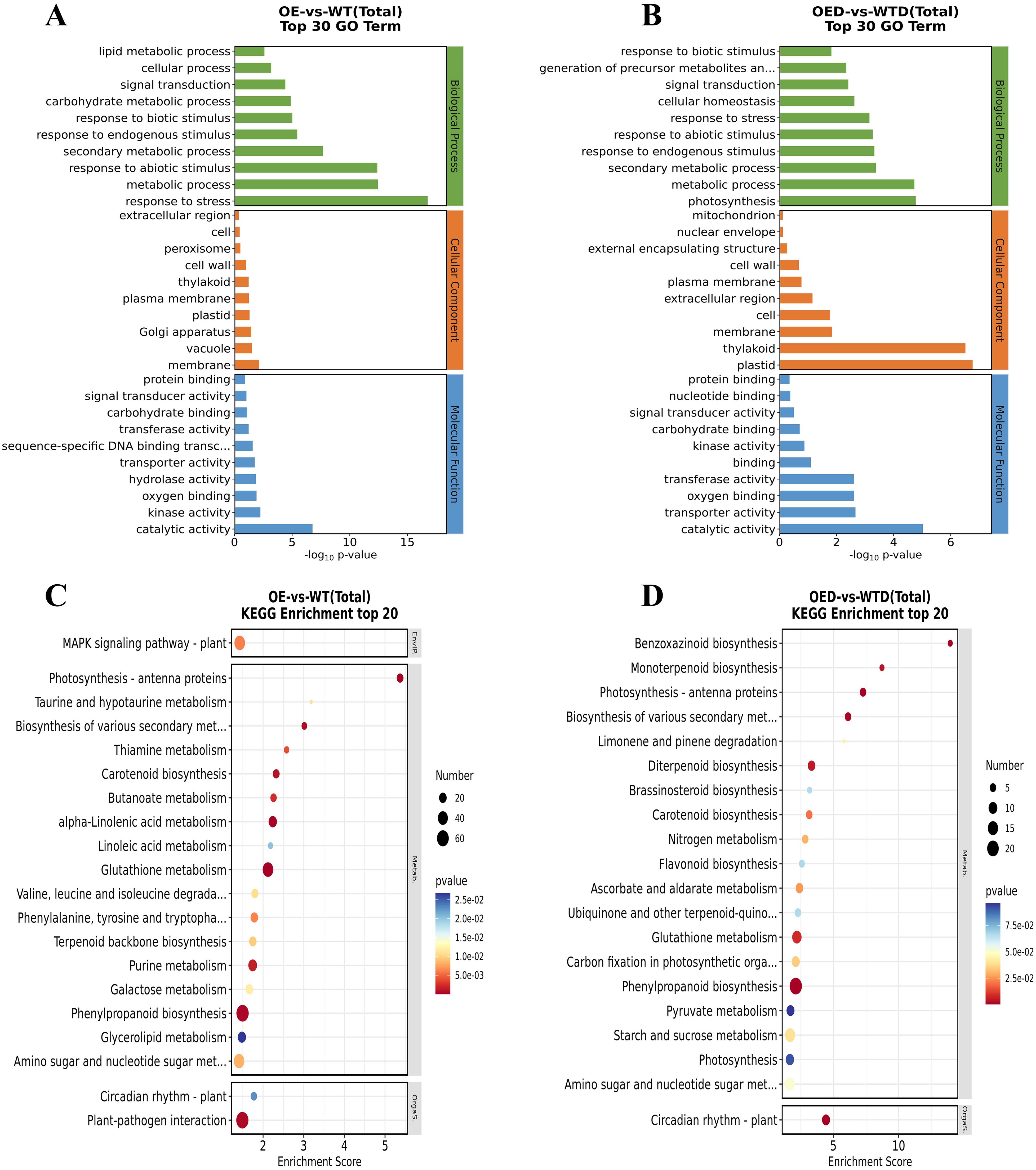

Figure 6. Top 30 GO and top 20 KEGG enrichment analysis of DEGs. (A, B) The top 30 GO terms in the comparison groups (OE vs. WT and OED vs. WTD). (C, D) The top 20 KEGG enrichment in the comparison groups (OE vs. WT and OED vs. WTD).
3.4 DEGs regulated to phenylpropanoid and lignin biosynthesis were important to drought stress
In the phenylpropanoid biosynthesis pathway, there were 68 shared DEGs in both comparison groups (OE vs. WT and OED vs. WTD) (Figure 7). Key enzymes, such as phenylalanineammonia-lyase (PAL) and 4-coumarate coenzyme a ligase (4CL), determine lignin synthesis in phenylpropanoid biosynthesis pathway. Six genes regulating PAL showed down-regulation in OE compared to WT, suggesting a potential reduction in PAL synthesis. The drought regulation patterns of these six genes in wild-type rice were analyzed, revealing five genes (LOC_Os02g41650, LOC_Os02g41670, LOC_Os04g43800, LOC_Os05g35290 and LOC_Os02g41680) were drought-sensitive, and one gene (LOC_Os12g33610) positively regulated drought. In OED, the expression of LOC_Os12g33610 remained unchanged after osmotic stress, while four drought-sensitive genes (LOC_Os02g41650, LOC_Os02g41670, LOC_Os05g35290, and LOC_Os02g41680) were up-regulated compared to WTD, indicating that AmMADS47 overexpression led to increased expression of most drought-sensitive genes regulating PAL, enhancing the drought sensitivity of overexpressed rice. For 4CL, five genes (LOC_Os06g44620, LOC_Os08g34790, LOC_Os02g46790, LOC_Os02g08100, and LOC_Os10g42800) were identified, all of which showed down-regulation in expression in OE compared to WT, potentially reducing the synthesis of 4CL. The analysis of their regulation model under osmotic stress in wild-type rice revealed four drought-sensitive genes (LOC_Os08g34790, LOC_Os02g46790, LOC_Os02g08100, and LOC_Os10g42800). After osmotic stress in OED, the expression of LOC_Os02g08100 and LOC_Os10g42800 genes was significantly up-regulated, while two genes showed no significant change compared to WTD. The overexpression of AmMADS47 may contribute to a reduction in 4CL synthesis, and the up-regulated expression of drought-sensitive genes may reduce the drought resistance of transgenic rice.

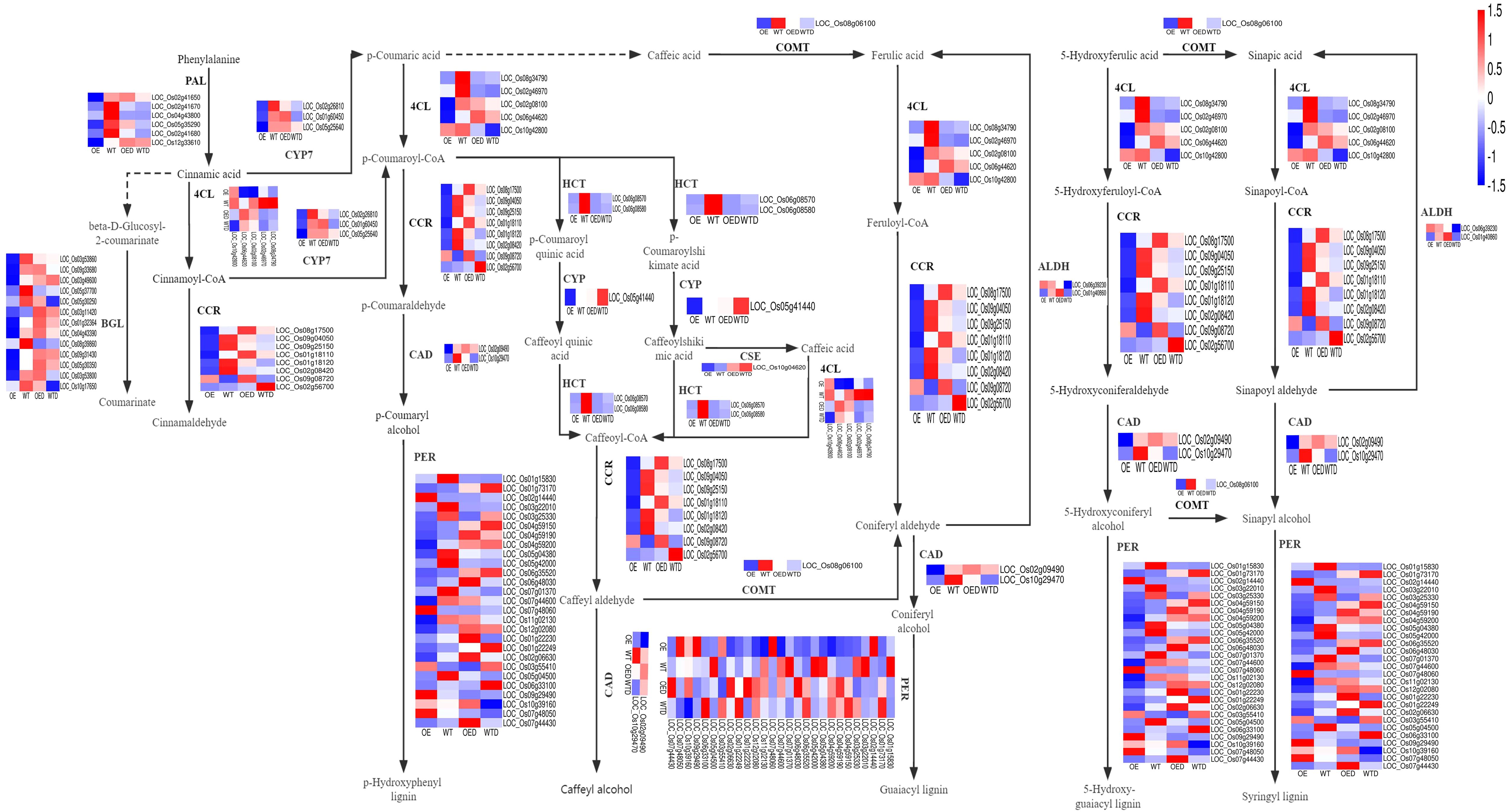

Figure 7. The phenylpropanoid biosynthesis pathway in two comparison groups (OE vs. WT, OED vs. WTD). This is a heatmap of the phenylpropanoid metabolism pathway and genes in two comparison groups. Blue indicates a down-regulation of gene expression levels, and red indicates an up-regulation.
In the lignin biosynthesis pathway, key downstream enzymes include cinnamoyl-coa reductase (CCR), cinnamyl alcohol dehydrogenase (CAD), hydroxycinnamoyl-CoA shikimate/quinate hydroxycinnamoyl transferase (HCT), and caffeate/5-hydroxyferulate 3-o-methyltransferase (COMT) (Figure 7). The expression of genes regulating these enzymes is mostly down-regulated in OE compared to in WT, potentially resulting in reduced synthesis of these important enzymes. For example, 8 genes regulating CCR, seven of which are down-regulated in OE compared to WT, and 2 genes (LOC_Os02g09490 and LOC_Os10g29470) regulating CAD, both showing down-regulation for gene expression in OE compared to WT (Figure 7). The regulation mode of these pathway genes under osmotic stress was analyzed. Drought-sensitive genes in the wild type were up-regulated in OED compared to WTD, indicating an increase in drought sensitivity in overexpressed rice. For example, among the genes regulating CCR, three drought-sensitive genes (LOC_Os09g04050, LOC_Os09g25150, and LOC_Os01g18120) in the wild-type rice were up-regulated in OED compared with WTD, while the expression of LOC_Os02g08420 showed no significant change. The two genes (LOC_Os02g09490 and LOC_Os10g29470) regulating CAD, which were drought-sensitive in the wild-type rice, were up-regulated in OED after osmotic stress compared with WTD. These results showed that overexpression of AmMADS47 reduced the expression of genes regulating important enzymes in the phenylpropanoid biosynthesis pathway, leading to impaired lignin synthesis. Additionally, of the up-regulation of drought-sensitive genes in overexpressed rice contributes to a reduction in drought resistance.
3.5 DEGs involved in glutathione metabolism were responsive to drought stress
The share of DEGs in the glutathione metabolism pathway in the two comparison groups (OE vs. WT and OED vs. WTD) were 58 (Figure 8). Key enzymes in the glutathione metabolism pathway include glutathione transferases (GSTs), ascorbate peroxidase (APX), and glutathione peroxidase (GPX). The decrease in the expression of three enzymes can reduce the resistance of plants to ROS damage. There are 31 genes regulating GST, such as LOC_01g27360, LOC_10g38150, and LOC_10g38189 and others. Among these, 26 genes were down-regulated in OE compared to gene expression in WT, potentially reducing the synthesis of GST. Among the 26 genes, 17 were drought-sensitive, and 9 were positively regulated by drought stress in wild-type rice. After simulate drought stress, two drought-sensitive genes (LOC_07g07320, LOC_01g49720) were down-regulated in OED compared with WTD, indicating that overexpressed rice is more sensitive to drought. Three drought-sensitive genes (LOC_10g38489, LOC_10g38580, and LOC_10g38730) were up-regulated, reducing the drought resistance of transgenic rice. The other 11 genes showed insignificant changes in expression in WTD and OED. After simulate drought stress, 8 genes positively regulated by drought were down-regulated in OED compared with the situation in WTD. It indicated that overexpression of AmMADS47 decreased the expression of most of the positively regulated drought genes, thus reducing the drought resistance of overexpressed rice. There were four genes that regulate APX (LOC_03g17690, LOC_07g49400, LOC_04g14680, and LOC_08g41090), and three of them (LOC_03g17690, LOC_07g49400, and LOC_04g1468) were down-regulated in OE compared to gene expression in WT, potentially decreasing APX synthesis. LOC_08g41090 gene was positively regulated by drought stress in wild-type rice. After osmotic stress, its expression was down-regulated in OED compared with WTD, reducing drought tolerance in transgenic rice. For GPX, three genes (LOC_04g46960, LOC_06g08670, and LOC_02g44500) were down-regulated in OE compared with WT, potentially reducing GPX synthesis. These three genes were drought-sensitive in wild-type rice. After osmotic stress, their expression was up-regulated in OED compared to WTD, decreasing the drought resistance of overexpressed rice. The overall analysis of the glutathione metabolism pathway suggested that overexpression of AmMADS47 could reduce the expression of genes regulating key enzymes, leading to a decrease in the synthesis of these enzymes. Most genes positively regulating drought were down-regulated, while most drought-sensitive genes were up-regulated for expression, collectively reducing the drought resistance of rice overexpressing AmMADS47.

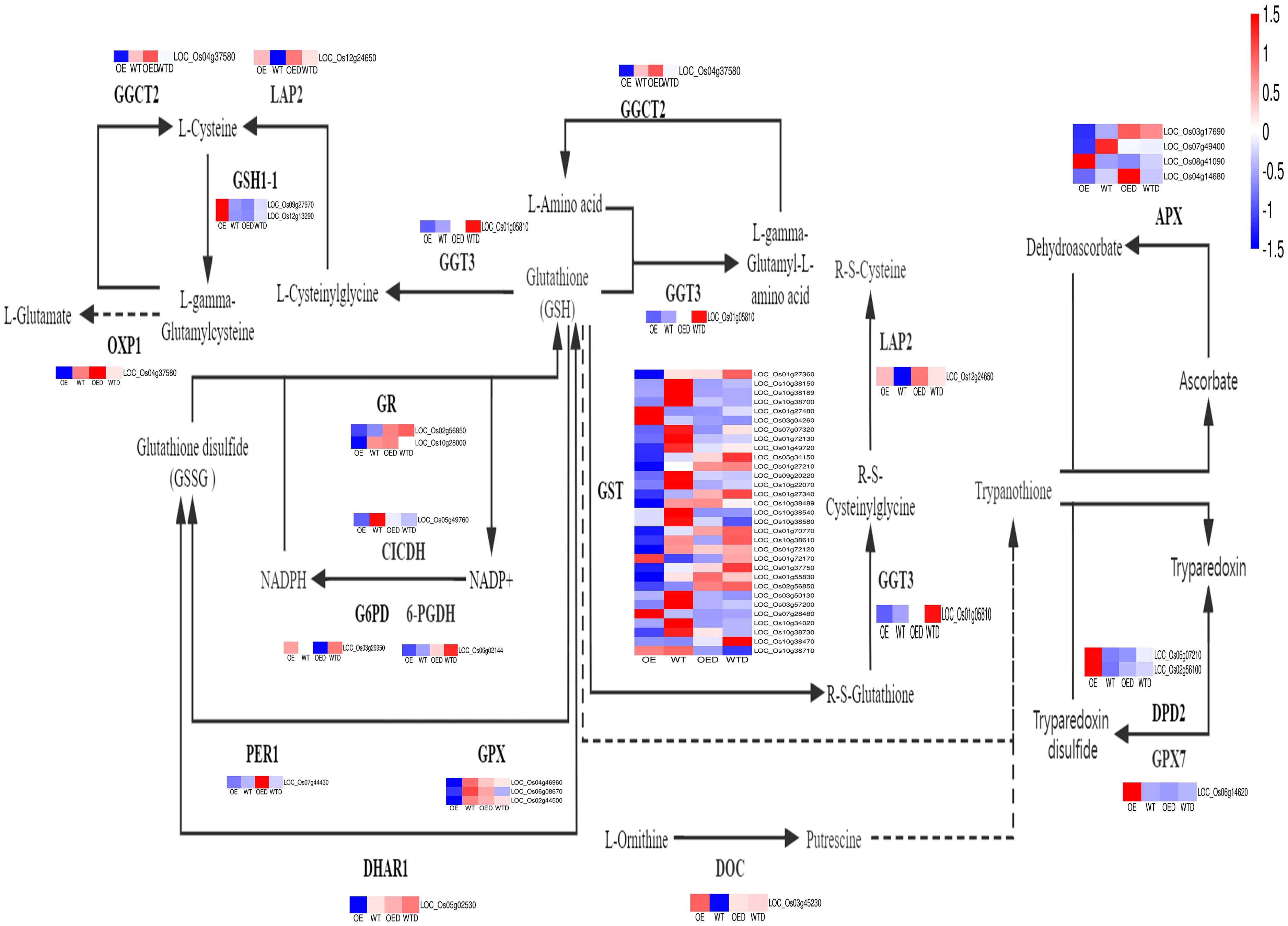

Figure 8. The glutathione metabolism pathway in two comparison groups (OE vs. WT, OED vs. WTD). This is a heatmap of the glutathione metabolism pathway and genes in two comparison groups. Blue indicates a down-regulation of gene expression levels, and red indicates an up-regulation.
3.6 ATP anabolism related DEGs were participated in the response to drought stress
The energy used for the growth and development of higher plants comes mainly from adenosine triphosphate (ATP) produced by photosynthesis, and chloroplasts is the main source of plant photosynthesis. Drought stress affects the photosynthesis-antenna proteins pathway and regulates the expression of light-harvesting complexes proteins (LHCs). In the photosynthesis-antenna proteins pathway, 15 shared genes were annotated in the two comparison groups (OE vs. WT, OED vs. WTD), and these 15 genes were further annotated into 11 LHCs. The expression of 13 genes in OE was decreased compared to WT, indicating a potential reduction in the synthesis of LHCs (Figure 9). These 13 genes were identified as drought-sensitive genes in wild-type rice. After osmotic stress, the expression of 12 genes in OED was lower than that in WTD. However, the expression of LOC_Os09g12540 was higher in OED than in WTD. These changes may collectively contribute to a decrease in drought tolerance in overexpressed rice. Additionally, the expression of two genes (LOC_Os09g26810 and LOC_Os06g28960) was up-regulated in OE compared to WT. However, the expression of these two genes did not change significantly in OED and WTD after osmotic stress. It can be speculated that these two genes may not actively participate in the regulation of osmotic stress under the condition tested.

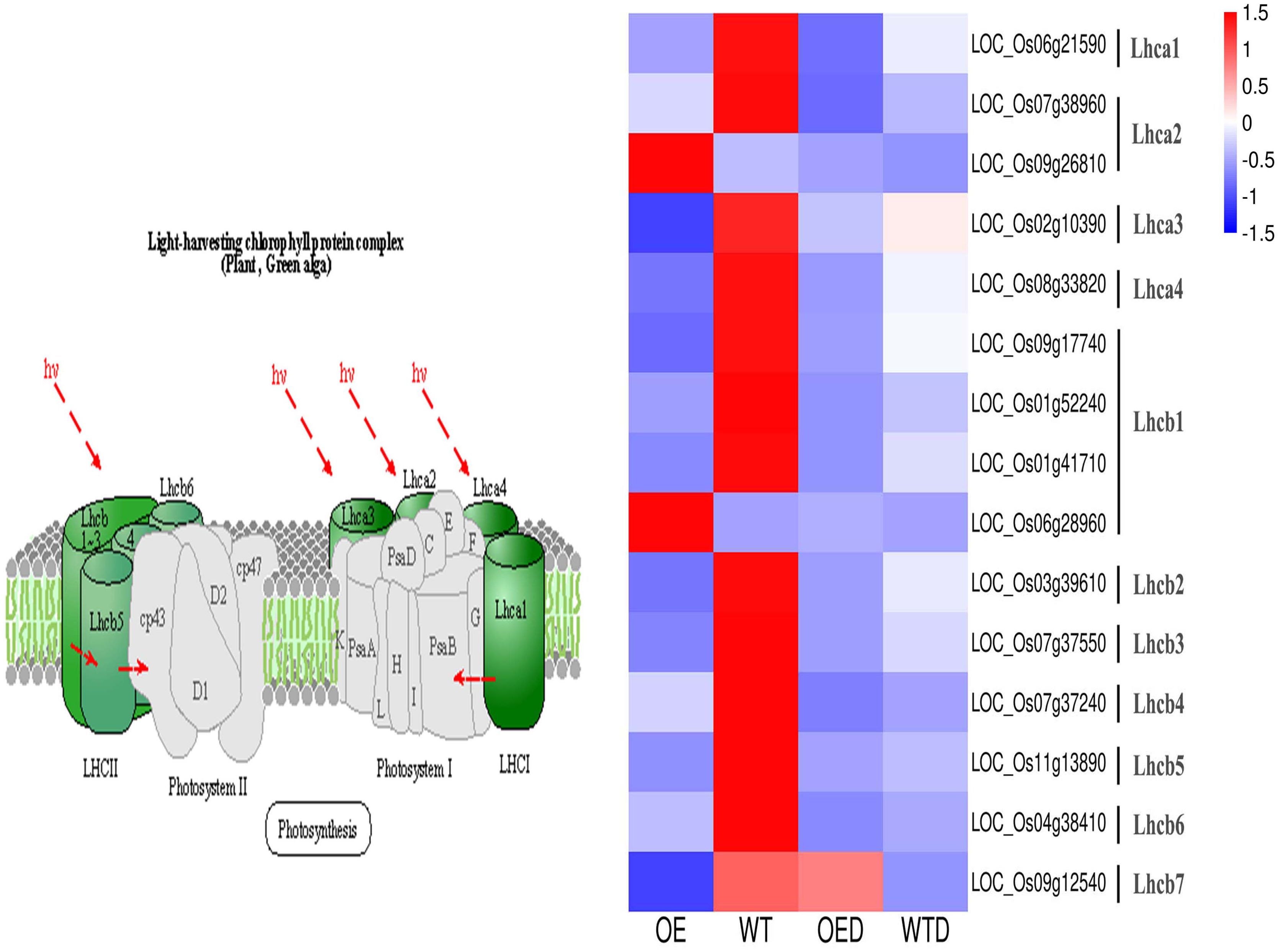

Figure 9. The photosynthesis-antenna proteins pathway in two comparison groups (OE vs. WT, OED vs. WTD). This is a heatmap of the photosynthesis-antenna proteins pathway and genes in two comparison groups. Blue indicates a down-regulation of gene expression levels, and red indicates an up-regulation.
Six genes involved in the phenylpropanoid biosynthesis, glutathione metabolism, and the photosynthesis-antenna proteins pathway were selected for qRT-PCR analysis, and the relative gene expression trends observed were consistent with the transcriptome sequencing (Figure 10). This alignment indicated that the rice transcriptome sequencing data were accurate and reliable. Furthermore, the expression trends of five genes in wild-type rice were opposite to those in overexpressed rice. OsGSTU16 exhibited a similar expression trend in both wild-type rice and overexpressed rice, but its expression was downregulated in the overexpressed rice compared to wild-type rice. This suggested that overexpression of the AmMADS47 gene may change the expression pattern of certain genes in these three pathways, consequently influencing the drought resistance of rice.

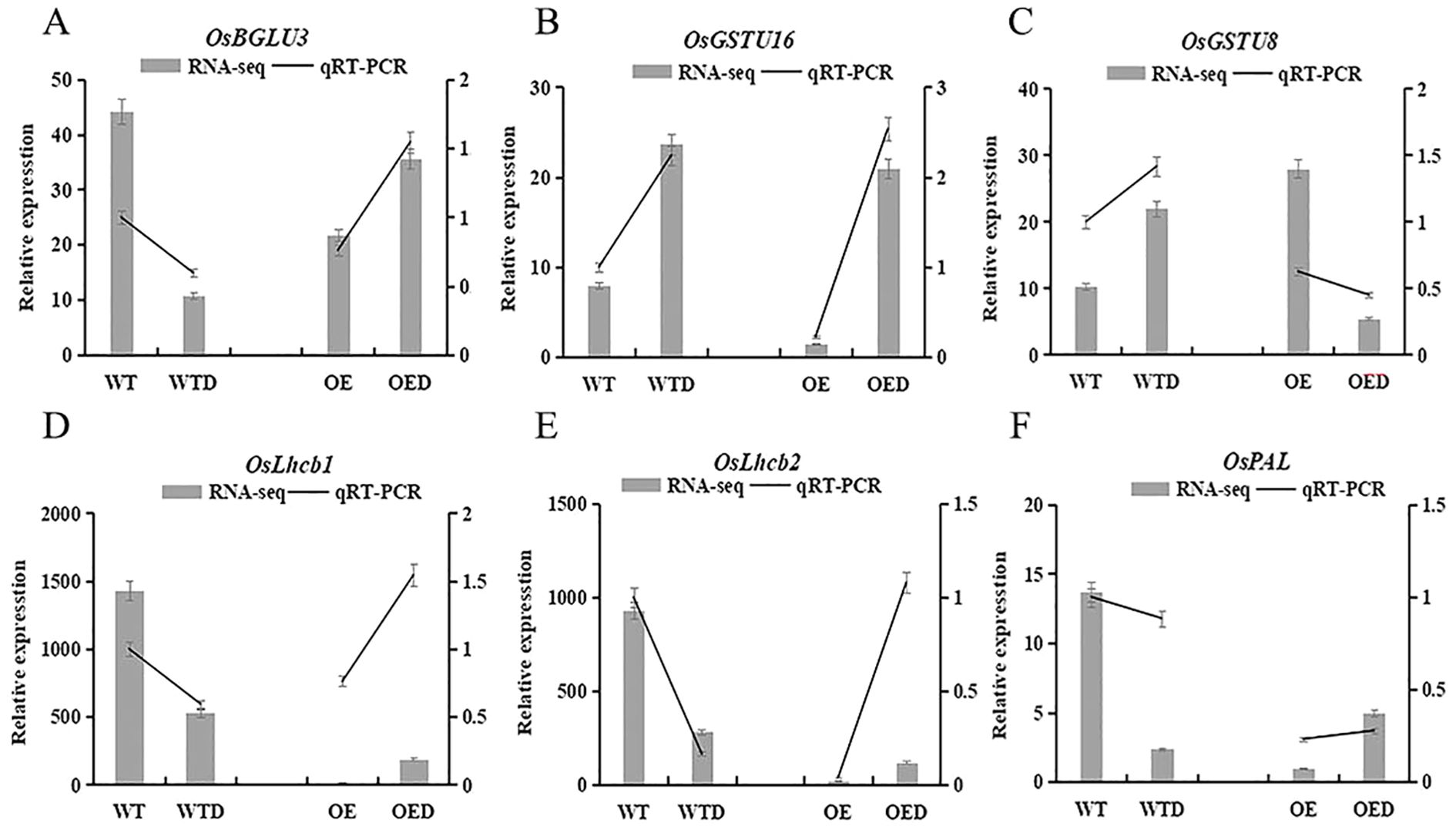

Figure 10. Expression analysis of annotation genes in three candidate pathways of rice. OsBGLU3, OsGSTU16, OsGSTU8, OsLhcb1, OsLhcb2, and OsPAL.
4 Discussion
4.1 Functional analysis of the AmMADS47
MADS-box transcription factors exert crucial regulatory functions in plants’ response to abiotic adversity stress. Currently, there is limited research on the MADS47 gene, particularly regarding its regulatory functions. Existing studies in rice have enhanced the negative regulation of the brassinolide signal transduction pathway by the OsMADS47 gene (Lee et al., 2008b; Duan et al., 2010). However, there is a notable gap in understanding the AmMADS47 gene’s involvement in drought regulation in A. mongolicum. In response to drought conditions, AmMADS47 is induced and actively participates in the intricate network governing drought stress. Unraveling the functional role of this gene holds significant importance. In this study, AmMADS47 protein was localized in the nucleus. The investigation extended to assess the tissue-specific expression of AmMADS47 in overexpressed rice roots, stems, and leaves. Notably, AmMADS47 exhibited significant expression specificity in leaves following simulate drought stress. Observing the phenotype of rice revealed that, under osmotic stress, OE-19 and OE-25 displayed enhanced wilting compared to WT, accompanied by curled leaves and lodging. This result is consistent with the study of Khong et al, who proved that OsMADS26 negatively influences drought resistance in rice (Khong et al., 2015). Similar to our results, over-expressed OSMADS26 in rice resulted in a decrease in drought tolerance and the manifestation of several adversity phenotypes, such as slow root and branch growth and the development of light green plants (Khong et al., 2015). Further assessments using NBT and DAB staining to visualize ROS damage demonstrated that OE-25 and OE-19 suffered more significant ROS damage than WT. This observation was consistent with the results of MDA, Pro, and CAT determinations, emphasizing the negative regulatory impact of AmMADS47 overexpression on rice drought resistance. AmMADS47 interact with proteins of MAPK family (Supplementary Figure S8), which have been proved to participate in drought response through regulating ROS signaling. MAPK cascades are involved in ROS signal transduction, which is induced by ROS signaling and can regulate the production of ROS (Zhang et al., 2014). Published studies show that MPK2 is involved in regulating stomatal opening (Li et al., 2023), MPK5 is regulated by oxidative stress, MPK6 in Arabidopsis is activated under abiotic stress, and participates in stomatal morphology, redox regulation and hormone regulation (Colcombet and Hirt, 2008; Zhang et al., 2014); MPK8 negatively regulates ROS accumulation by controlling Rboh D gene (Takahashi et al., 2011). So, we think AmMADS47 regulates the drought resistance of rice by influencing the ROS pathway, too.
4.2 Effects of overexpression of AmMADS47 in rice on downstream genes
Utilizing RNA-seq analysis, downstream response genes and pathways specific to genetic transformation events can be elucidated. For instance, the introduction of the GhSAMDC1 gene into tobacco resulted in the identification of 938 differentially responsive genes through RNA-seq analysis. Comprehensive regulatory networks governing nutritional growth and early flowering in both wild-type and transgenic tobacco were unveiled by employing GO and KEGG analysis (Cheng et al., 2022). Similarly, an exploration of the molecular mechanisms underlying leaf roll phenotypes in overexpressed rice lines was conducted via RNA-seq. In this context, 2,920 differentially responsive genes, 42 belonged to the KEGG pathway (dosa04075), were identified (Yu et al., 2022). Applying a similar approach, the downstream genes and pathways responsive to AmMADS47 in rice were investigated using RNA-seq. Sequencing the transcriptomes of AmMADS47-overexpressing rice and wild-type rice leaves allowed for the analysis of AmMADS47’s impact on rice drought tolerance. Large numbers of genes were differentially expressed between AmMADS47-overexpressing rice and wild-type rice leaves. These DEGs were enriched in the biological processes of signal transduction, response to biotic stimulus, response to endogenous stimulus, and others. Moreover, the analysis of KEGG pathways highlighted that phenylpropanoid biosynthesis and glutathione metabolism as shared pathways, with photosynthesis-antenna proteins ranking highest in enrichment score and significance. Our results also proved that DEGs regulated to ATP anabolism were important to drought stress, these results imply the rapid response of secondary metabolites under abiotic stress, and a similar response mechanism also existed in cotton roots and leaves (Su et al., 2020; Nie et al., 2021).
4.3 Some metabolic pathways are important to drought tolerance
In this study, 68 shared annotated genes were identified in the phenylpropanoid biosynthesis pathway. The expression of genes regulating PAL was down-regulated in OE compared to WT. Most genes involved in the regulation of 4CL, CCR, CAD, HST, and COMT exhibited a similar down-regulated as PAL in OE, potentially diminishing the synthesis of key enzymes and, consequently, affecting the synthesis of lignin and reducing the drought resistance of rice. Phenylpropanoid metabolism is crucial in regulating abiotic stress responses in crops, including drought, low temperature, and high temperature, contributing to enhanced crop resistance (Cisneros-Zevallos, 2003; Marie et al., 2003; Hano et al., 2006). Comprising lignin and flavonoid biosynthetic pathways, the phenylpropanoid biosynthetic pathway is pivotal for plant stress adaptation. Lignin is a vital component of the cell wall, contributes to maintaining cellular osmotic balance, influencing plant resistance to lodging, drought, diseases, and pests (Moura et al., 2010), allogenic expression OsGRP3 in rice modulates lignin accumulation and improves drought resistance (Xu et al., 2022). They has demonstrated that some crucial enzymes, such as 4CL, CCR, CAD, and COMT, participated in the lignin synthesis pathway and responded to drought stress (Hu et al., 2009; Leyva et al., 1995), and similar results were demonstrated in our study in leaves of rice.
Adverse stress conditions trigger the production of ROS in plants, necessitating the activation of plant antioxidant systems to counteract ROS accumulation. The glutathione metabolic pathway, an important player in the scavenging of ROS in plants, prominently features antioxidant enzymes such as APX, GPX, and GST. In this study, 58 genes were annotated to the glutathione metabolic pathway, with APX, GPX, and GST identified as key enzymes. Among these, 4, 3, and 31 genes were involved in regulating APX, GPX, and GST, respectively. The majority of these genes exhibited lower expression levels in OE compared to WT. Previous studies have proved that GPX catalyzes the reduction of H2O2 and protects plants from oxidative damage (Arthur, 2001). The knockout of the AtGPX3 gene in Arabidopsis thaliana resulted in a significant decrease in drought resistance and antioxidant capacity (Kang et al., 2004). Enhancing the expression of GST gene has been shown to improve the ability of plants to scavenge ROS, thereby improving drought tolerance. Overexpression of ThGSTZ1 from Tamarix hispida in Arabidopsis led to increased activities of GST and glutathione peroxidase, a decrease in ROS levels, and increased drought resistance (Yang et al., 2014). All of the above results show that a variation in the synthesis of APX, GPX, and GST ultimately changes the drought resistance of different plants.
Photosynthesis serves as the primary source of energy in plants, with light capture being a fundamental prerequisite for this process. The regulation of LHCs gene expression directly affected protein synthesis, thus impacts photosynthesis. Drought stress exerted a significant effect on photosynthesis, as evidenced by the advanced peak value of daily changes in the photosynthetic rate observed in maize under drought stress, facilitating normal photosynthesis despite the adverse conditions (Yu et al., 2015). The modulation of LHCs gene expression played a crucial role in chlorophyll synthesis, a key component of photosynthesis. Knockout of the OsLHCB3 gene in rice resulted in light green leaves during tillering and heading stages, accompanied by a reduction in chlorophyll content (Wang et al., 2023). Similarly, Arabidopsis leaves lacking the Lhcb1 and Lhcb2 genes exhibited a light green phenotype and decreased chlorophyll content (Jenny et al., 2003). In the present study, 15 genes were annotated in the photosynthesis-antenna proteins pathway, regulating 11 LHCs. Strikingly, the expression of 13 genes in OE was lower than that in WT, suggesting a potential reduction in the synthesis of LHCs and chlorophyll. This decrease in energy supply may compromise plant photosynthesis, leading to reduced drought resistance in AmMADS47-overexpressing rice.
Conclusion
This study elucidates the molecular mechanism whereby AmMADS47 overexpression compromises drought tolerance in rice (Figure 11). Transgenic plants exhibited pronounced growth impairment under simulate drought stress, characterized by excessive ROS accumulation, reduced CAT activity, elevated MDA content, and reduced proline levels, proved that AmMADS47 may be involved in regulation of drought tolerance in transgenic rice by influencing the ROS pathway. In addition, transcriptome sequencing analysis found that AmMADS47 overexpression affected the gene expression of key enzymes in three candidate metabolic pathways (phenylpropanoid biosynthesis, glutathione metabolism and photosynthesis-antenna proteins), and it was speculated that it affected the synthesis of key enzymes and reduced the drought resistance of rice. These findings establish a foundation for the drought-responsive functions of AmMADS47. Future investigations will systematically examine AmMADS47-mediated transcriptional regulation of downstream targets and associated metabolic reprogramming mechanisms, facilitating the exploitation of wild genetic resources for crop drought resistance improvement.
Figure 11. Drought resistance mechanism of AmMADS47.
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found below: https://www.ncbi.nlm.nih.gov/genbank/, PRJNA954461.
Author contributions
BF: Data curation, Formal Analysis, Writing – original draft. HN: Formal Analysis, Writing – review & editing. XL: Formal Analysis, Writing – review & editing. YuM: Formal Analysis, Writing – review & editing. EL: Formal Analysis, Writing – review & editing. JW: Formal Analysis, Writing – review & editing. XY: Formal Analysis, Writing – review & editing. YoZ: Formal Analysis, Writing – review & editing. YaZ: Formal Analysis, Writing – review & editing. JL: Formal Analysis, Writing – review & editing. XD: Formal Analysis, Writing – review & editing. YaM: Funding acquisition, Writing – original draft, Writing – review & editing.
Funding
The author(s) declare that financial support was received for the research and/or publication of this article. This study was funded by the National Natural Science Foundation of China (No.31860670 and No.32360338).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Generative AI statement
The author(s) declare that no Generative AI was used in the creation of this manuscript.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2025.1514134/full#supplementary-material
Supplementary Figure 1 | Positive identification of AmMADS47 overexpression vector.
Supplementary Figure 2 | Genetic transformation of rice.
Supplementary Figure 3 | Comparison analysis of AmMADS47 and protein secondary structure.
Supplementary Figure 4 | AmMADS47 CDS translation.
Supplementary Figure 5 | Positive identification of rice.
Supplementary Figure 6 | Relative expression of overexpression rice leaves.
Supplementary Figure 7 | Repeatability and hierarchical clustering analysis of samples.
Supplementary Figure 8 | AmMADS47 protein interaction prediction.
