Abstract
Cell walls are deeply involved in the molecular talk between partners during plant and microbe interactions, and their role in mycorrhizae, i.e., the widespread symbiotic associations established between plant roots and soil fungi, has been investigated extensively. All mycorrhizal interactions achieve full symbiotic functionality through the development of an extensive contact surface between the plant and fungal cells, where signals and nutrients are exchanged. The exchange of molecules between the fungal and the plant cytoplasm takes place both through their plasma membranes and their cell walls; a functional compartment, known as the symbiotic interface, is thus defined. Among all the symbiotic interfaces, the complex intracellular interface of arbuscular mycorrhizal (AM) symbiosis has received a great deal of attention since its first description. Here, in fact, the host plasma membrane invaginates and proliferates around all the developing intracellular fungal structures, and cell wall material is laid down between this membrane and the fungal cell surface. By contrast, in ectomycorrhizae (ECM), where the fungus grows outside and between the root cells, plant and fungal cell walls are always in direct contact and form the interface between the two partners. The organization and composition of cell walls within the interface compartment is a topic that has attracted widespread attention, both in ecto- and endomycorrhizae. The aim of this review is to provide a general overview of the current knowledge on this topic by integrating morphological observations, which have illustrated cell wall features during mycorrhizal interactions, with the current data produced by genomic and transcriptomic approaches.
INTRODUCTION
Plant cell walls form a dynamic extracellular matrix that actively controls growth and development, and are essential for the functionality of plants (). Cell walls provide shape to the many different cell types needed to form tissues and organs and, forming the interface between neighboring cells, they control intercellular communication. Therefore, cell walls mediate most plant–microbe interactions. However, cell walls are not exclusive to photosynthetic organisms: fungi also have walls that determine hyphal growth, shape and responses ().
Unlike pathogenic interactions, where the fungal pathogen may be effective even with a limited presence in the plant tissues, in mycorrhizae, i.e., the widespread symbiotic associations established between plant roots and soil fungi (), fungal colonization may involve as much as 80% of the secondary roots (). Irrespectively of their typology and their partner’s identity, mycorrhizal interactions achieve their functionality through the development of an extensive contact surface between plant and fungal cells, allowing signals and nutrients to be exchanged. In other words, the transfer of molecules from the fungus to the plant cytoplasm and viceversa takes place through both partners’ plasma membranes and cell walls, defining an apoplastic compartment known as the symbiotic interface on the basis of the first ultra-structural morphological observations ().
In spite of the impressive biodiversity that is hidden behind the word “mycorrhiza” (), the interface has been considered a useful unifying concept to describe these plant-fungal interactions and to deal with both morphological (; ; ; ), molecular and genetic aspects (; ; ; ; ).
The aim of this review is to provide an overview of the current knowledge on the dynamics of plant and fungal walls in mycorrhizae, as well as on their symbiotic interfaces, which – not surprisingly – have attracted a great deal of attention from the scientific community. Attention will mostly be focused on ectomycorrhizae (ECM) and arbuscular-mycorrhizae (AM). In ECMs the fungus covers the root tips, forming a mantle, and grows between the root cells, while in AM symbiosis the fungus develops inter- and intra-cellularly all along the root. Once the cortical layers are reached, fungal hyphae branch, leading to unique structures called arbuscules (). The structural issues that result from morphological observations, and the biosynthetic aspects that stem from genomic and transcriptomic approaches, will be considered in this review.
THE SYMBIOTIC INTERFACE: HOW TO INCREASE THE PARTNERS’ CONTACTS WHILE MAINTAINING BIOTROPHY
Among all the mycorrhizal interfaces, the complex intracellular interface of AM symbiosis has received considerable attention since its first descriptions in the seventies. Following the findings on fungal pathogens (; ) observed that the AM fungus is always surrounded by a plant-derived membrane, which leads to an interfacial zone consisting of a fungal plasma membrane, a specialized interfacial matrix, and a plant membrane, which was called the periarbuscular membrane (Figure 1). At that time, observations were mostly made on the cortical cells that host branched fungal arbuscules. The presence of this interface compartment is a typical feature of all endomycorrhizae (; ). In orchid, ericoid and arbutoid interactions, the intracellular fungus resulted to be confined within this compartment, that provides the structural basis of biotrophic interactions, since both partners maintain their individuality and remain alive. In the meantime, it causes a huge increase in the contact surface between the two partners, and the plant membrane increases in length several-fold during arbuscule development ().
FIGURE 1
The improved knowledge on the AM colonization process has allowed to demonstrate that the symbiotic interface is not limited to the arbusculated stage (). When the AM germ-tube comes into contact with the epidermal cells, forming hyphopodia (), these cells generate a colonization structure, the prepenetration apparatus (PPA), which is a transient formation that comprises cytoskeletal and endoplasmic reticulum (ER) components (, ). Following this event, the hypha enters and crosses the epidermal cell, but prevents direct contact with the host cytoplasm thanks to a newly synthesized membrane of host origin. The biosynthesis of this novel perifungal membrane is the result of a process which involves exocytosis of the Golgi vesicles at the growing tips of the AM fungus. Using different GFP Medicago contructs, and have demonstrated that two VAMPs (vesicle-associated membrane proteins), belonging to R-SNAREs, are required to assemble the perifungal membrane. Interestingly, these proteins have also been detected at the cell plate of dividing meristematic root cells (), thus offering the first molecular demonstration of the similarities between cell division leading to the construction of a new cell wall and development of the symbiotic interface.
Detailed electron microscope observations had already shown that the interfacial compartment contains cell-wall like material (; ), and this has led to the question about whether the perifungal membrane maintains the capacity to synthesize and deliver cell wall-related molecules, like the peripheral membrane, (i.e., the plasma membrane of the host cell), but directed towards the interface space. The development of many in situ techniques (enzymes, lectins, and antibodies) has made it possible to validate this hypothesis: β-1,4-glucans, nonesterified homogalacturonans, xyloglucans, proteins rich in hydroxyproline (HRGPs), and arabinogalactan proteins (AGPs) have been located at the interface in many different plant/AM fungus combinations, as on peripheral cell wall, i.e., the cell wall of host cells containing the fungal structures (; ; , ; ; ). Expansins, which are extracellular proteins involved in cell wall-loosening and in the growth of plant cells (), have also been located in AM roots: they are present both in the cell walls of the host cells and in the interface, suggesting that this class of proteins, involved in cell wall loosening, may be crucial in the accommodation process of the fungus inside the cortical cells ().
Although the molecular content of the interface reflects the composition of the host cell wall, the morphology of the interface material indicates that its components are assembled differently, and this leads to a more amorphous structure (Figures 2 and 3). In addition, this cell wall-like material changes in morphology during the arbuscule’s life cycle: it is very thick and compact around the arbuscule trunk, it becomes very thin around the fungal branches, and it again becomes thicker when the arbuscule collapses. Such dynamics probably mirror the uneven distribution of plant membrane proteins along the perifungal membrane (see for a review). Expansins and/or secreted proteins of fungal origin (see below) could also play a role in keeping the interfacial material loose.

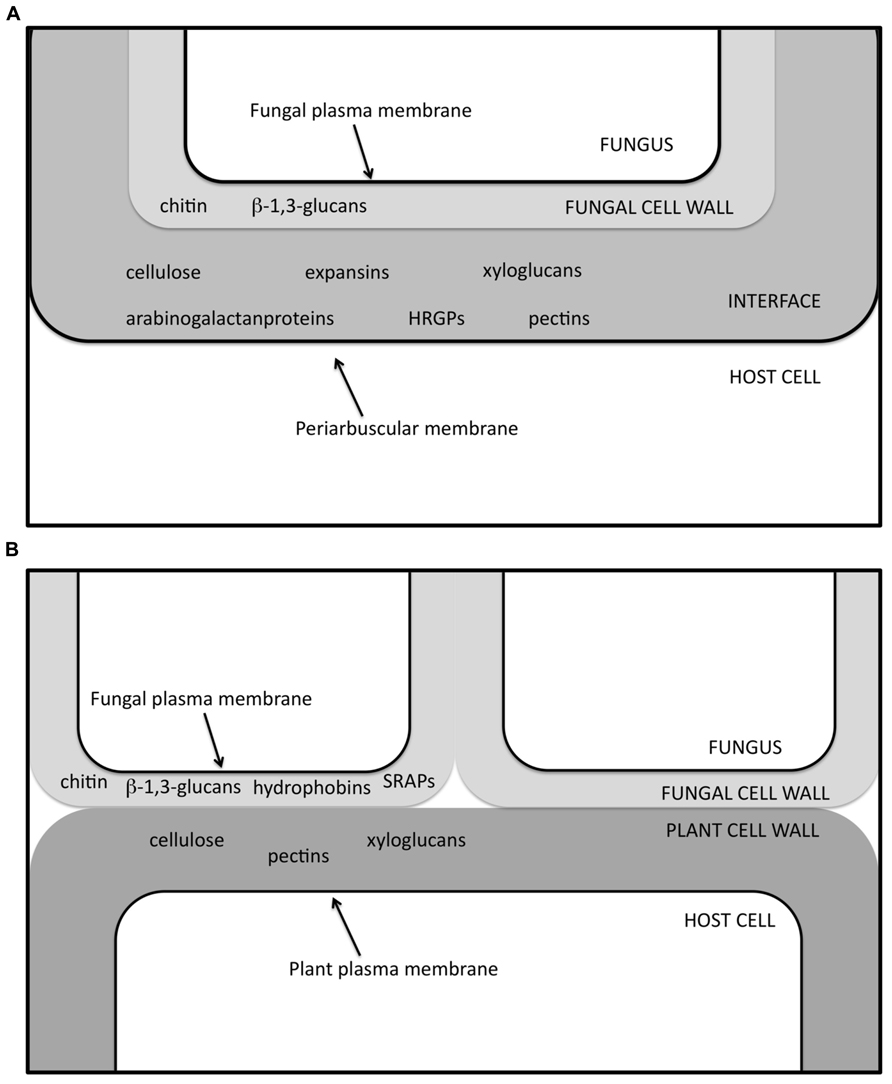

FIGURE 2
FIGURE 3
In liverworts, the disappearance of cell wall autofluorescence, which is a normal feature of non-colonized parenchyma cells, has been observed in the fungus-colonized areas, suggesting changes in cell wall composition upon fungal colonization, and a localized decrease in cell wall-bound phenolic compounds (
Compared to AM symbiosis, the symbiotic interface in ECM appears much simpler, at least on a morphological level: the plant and fungal cell walls are always in direct contact, since the ECM fungus remains apoplastic (
In conclusion, functioning mycorrhizal symbiosis requires both partners to be alive in order to exchange nutrients in a balanced way (
FROM STRUCTURE TO BIOSYNTHESIS: PLANT CELL WALL RELATED GENES RESPOND TO SYMBIOSIS
Starting from in situ localization data, attention has been focused on the genesis of the interfacial material, and in particular on the plant genes involved in the cell wall metabolism. Using targeted approaches, it was found that genes encoding a putative AGP and an HRGP were induced in mycorrhizal roots of Medicago truncatula and maize, respectively, and the transcripts were specifically localized in arbusculated cells (
Coming to the availability of sequenced genomes for several plants that are AM hosts, and the possibility of obtaining global transcriptional profiling of mycorrhizal roots, the regulation of cell-wall related genes has been studied at a larger scale. On the basis of localization data, an expansin gene has been found among the most up-regulated genes in M. truncatula mycorrhizal roots (
Morphometric analyses have suggested an increase in the size of cells containing arbuscules (
Considering these data, it is tempting to suggest that the AM fungus not only leads to the construction of the interface compartment, but may also have the peripheral cell wall as an additional target. This has also been suggested for an ascorbate oxidase gene (LjAO1), which is up-regulated during AM symbiosis, where it shows a double location: in the apoplast and in the interface. This suggests that AO is possibly involved in the accommodation of fungal structures, with the role of maintaining the structure of the interface compartment, as well as in cell wall loosening and extension, as observed in arbusculated cells (
The activation of a β-xylosidase α-I-arabinosidase (which can contribute to the turnover of cell wall xylose and arabinose) has also been shown to be induced in tomato mycorrhizal roots (
Changes in the plant transcriptomic profiles of ECM roots have been well documented (
The regulation of some PCW-related genes, e.g., the down-regulation of a pectin methylesterase gene and the up-regulation of genes coding for an expansin and a cellulose-synthase-like, has been reported in Paxillus involutus-poplar ECMs (
In conclusion, the development of genomics and transcriptomics tools has made it possible to demonstrate that symbiotic interface construction leads to a consistent variation in the expression profile of many cell-wall related genes. In AMs, the up-regulation of genes linked to the synthesis of cellulose and other polysaccharides is in line with the presence of cell wall polysaccharides in the interfacial matrix. However, it is interesting to note that relevant transcriptomic changes are also detectable in the ECMs, where no conspicuous morphological modifications have been described. Finally, the impact of mycorrhizal fungi on the cell wall metabolism does not seem to be limited to the symbiotic interfaces, since a still not fully acknowledged aspect is the increase in size of the colonized cells, which likely results from cell wall relaxation. Interestingly, it has recently been demonstrated that a loss in function mutation in a mycorrhiza-specific maize Pi transporter gene (Pht1;6) leads to a down-regulation of cell wall-related genes in AM roots (
DECIPHERING THE GENOMES OF MYCORRHIZAL FUNGI SHEDS LIGHT ON CELL WALL DYNAMICS
The sequenced genomes of mycorrhizal fungi are crucial tools to obtain a deeper understanding of the molecular mechanisms that underlie the symbiotic lifestyle. Focusing on cell wall genes, the so far sequenced fungi have allowed new information to be obtained on the fungal cell wall machinery, including genes that potentially code for fungal cell wall proteins involved in the interaction with plants, and those that may code for enzymes which act on PCW. This is a great step forward, since unlike for pathogenic fungi, a biochemical characterization of the main cell wall components, (i.e., polysaccharides and proteins) is not yet available for mycorrhizal fungi.
The involvement of fungal cell wall proteins, mainly small secreted proteins, (e.g., SRAPs and hydrophobins), has been well studied during the development of the symbiotic interface in ECM associations (
The main carbohydrate components of fungal cell walls are chitin and glucans, and these have been localized in the cell walls of different mycorrhizal fungi (
Taking advantage of the genome sequence, a genome-wide inventory of the proteins involved in cell wall synthesis and remodeling has been obtained for the T. melanosporum black truffle, while expression results have revealed that cell wall-related genes can be involved in the morphogenetic transition from mycelium growth to the ectomycorrhizal branched hyphae (
In addition to their structural role, chitin-derived molecules are widespread microbial signals that trigger various defense responses in plant cells (
Fungal cell wall-related signals therefore seem to play an important role in pre-symbiotic communication between the AM symbiosis partners. This also seems to be true for the plant side: cutin monomers, which are hydrophobic components of the cell walls that are mostly present in epidermal cells, have been identified as signal molecules that induce hyphopodium differentiation (
Several fungal genes encoding enzymes involved in cell wall metabolism are expressed during AM fungal colonization, suggesting a role in the remodeling of the fungal cell wall during intracellular colonization (
As far as the R. irregularis genome is concerned, a surprising observation is the loss of glycosyl hydrolase (GH) genes and – among them – genes known to be involved in degrading PCW polysaccharides (
In conclusion, genome sequence projects have, for the first time, allowed hypotheses to be formulated on the meaning of biotrophy in mycorrhizal fungi. They may use chitin-related molecules to dialog with their plant partners, but in spite of their deep intra-root habit, they do not possess PCW-degrading enzymes that can act on the PCW. It can be hypothesized that the signal molecules released by mycorrhizal fungi are perceived by the plant cells, which – in turn – elicit the activation of their own PCW-degrading enzymes. This indirect mechanism should prevent the activation of strong defense reactions.
CONCLUSION
Genome/transcriptome approaches applied to mycorrhizal fungi, and not only to the green partners, have had a profound effect on our knowledge of the biology of mycorrhizal symbiosis. As expected, the formation of the complex intracellular interface present in AMs is accompanied by a profound modulation of the PCW related genes (as well as the membrane-related ones). Surprisingly, important transcriptional changes have been detected in ECMs, where cell wall remodeling does not lead to evident morphological changes. The production of signaling molecules (
Statements
Acknowledgments
The Authors would like to thank Francis Martin for his support during the annotation of fungal cell wall-related genes and Marco Incarbone for his help in the English revision. The work has in part been funded by IPP-CNR, and MIUR projects FungenTM PRIN 2007 and PRO-ROOT PRIN 2012.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
REFERENCES
1
BalestriniR.HahnM. G.BonfanteP. (1996a). Location of cell-wall components in ectomycorrhizae of Corylus avellana and Tuber magnatum.Protoplasma19155–69. 10.1007/BF01280825
2
BalestriniR.HahnM. G.FaccioA.MendgenK.BonfanteP. (1996b). Differential localization of carbohydrate epitopes in plant cell walls in the presence and absence of arbuscular mycorrhizal fungi.Plant Physiol.111203–213. 10.1104/pp.111.1.203
3
BalestriniR.RomeraC.PuigdomenechP.BonfanteP. (1994). Location of a cell-wall hydroxyproline-rich glycoprotein, cellulose and β-1,3-glucans in apical and differentiated regions of maize mycorrhizal roots.Planta195201–209. 10.1007/BF00199680
4
BalestriniR.Jose-EstanyolM.PuigdomenechP.BonfanteP. (1997). Hydroxyproline-rich glycoprotein mRNA accumulation in maize root cells colonized by an arbuscular mycorrhizal fungus as revealed by in situ hybridization.Protoplasma19836–42. 10.1007/BF01282129
5
BalestriniR.BonfanteP. (2005). The interface compartment in arbuscular mycorrhizae: a special type of plant cell wall?Plant Biosyst.1398–15. 10.1080/11263500500056799
6
BalestriniR.CosgroveD. J.BonfanteP. (2005). Differential location of α-expansin proteins during the accommodation of root cells to an arbuscular mycorrhizal fungus.Planta220889–899. 10.1007/s00425-004-1431–1432
7
BalestriniR.OttT.GuetherM.BonfanteP.UdvardiM. KDe TullioM. C. (2012a). Ascorbate oxidase: the unexpected involvement of a ‘wasteful enzyme’ in the symbioses with nitrogen-fixing bacteria and arbuscular mycorrhizal fungi.Plant Physiol. Biochem.5971–79. 10.1016/j.plaphy.2012.07.006
8
BalestriniR.SilloF.KohlerA.SchneiderG.FaccioA.TisserantE.et al (2012b). Genome-wide analysis of cell wall-related genes in Tuber melanosporum.Curr. Genet.58165–177. 10.1007/s00294-012-0374-6
9
BonanomiA.WiemkenA.BollerT.SalzerP. (2001). Local induction of a mycorrhiza-specific class III chitinase gene in cortical root cells of Medicago truncatula containing developing or mature arbuscules.Plant Biol.3194–200. 10.1055/s-2001-12902
10
BonfanteP.VianB.PerottoS.FaccioA.KnoxJ. P. (1990a). Cellulose and pectin localization in roots of mycorrhizal Allium porrum: labeling continuity between host cell wall and interfacial material.Planta180537–547. 10.1007/BF02411452
11
BonfanteP.FaccioA.PerottoS.SchubertA. (1990b). Correlation between chitin distribution and cell wall morphology in the mycorrhizal fungus Glomus versiforme.Mycol. Res.94157–165. 10.1016/S0953-7562(09)80607-2
12
Bonfante-FasoloP.TamagnoneL.PerettoR.Esquerré-TugayéM. T.MazauD.MosiniakM.et al (1991). Immunocytochemical location of hydroxyproline rich glycoproteins at the interface between a mycorrhizal fungus and its host plants.Protoplasma165127–138. 10.1007/BF01322283
13
BonfanteP. (2001). “At the interface between mycorrhizal fungi and plants: the structural organization of cell wall, plasma membrane and cytoskeleton,” inThe Mycota, IX: Fungal Associationsed.HockB. (Berlin: Springer) 45–61.
14
BonfanteP.GenreA. (2010). Mechanisms underlying beneficial plant–fungus interactions in mycorrhizal symbiosis.Nat. Commun.14810.1038/ncomms1046
15
BrackerC. E.LittlefieldL. J. (1973). “Structural concepts of host-pathogen interfaces,” inFungal Pathogenicity and the Plant’s ResponseedsByrdeR. J. W.CuttingC. V. (London, NY: Academic Press) 159–317.
16
BückingH.HansR.HeyserW. (2007). “The apoplast of ectomycorrhizal roots – site of nutrient uptake and nutrient exchange between the symbiotic partners,” inThe Apoplast of Higher Plants: Compartment of Storage, Transport and ReactionsedsSattelmacherB.HorstW. J. (Dordrecht: Springer-Verlag) 97–108. 10.1007/978-1-4020-5843-1_7
17
CatoiraR.GaleraC.de BillyF.PenmetsaR. V.JournetE. P.MailletF.et al (2000). Four genes of Medicago truncatula controlling components of a nod factor transduction pathway.Plant Cell121647–166610.1105/tpc.12.9.1647
18
ChabaudM.VenardC.Defaux-PetrasA.BécardG.BarkerD. G. (2002). Targeted inoculation of Medicago truncatula in vitro root cultures reveals MtENOD11 expression during early stages of infection by arbuscular mycorrhizal fungi.New Phytol.156265–273. 10.1046/j.1469-8137.2002.00508.x
19
CosgroveD. J.LiL. C.ChoH.-T.Hoffmann-BenningS.MooreR. C.BleckerD. (2002). The growing world of expansins.Plant Cell Physiol.431436–1444. 10.1093/pcp/pcf180
20
CoxG.SandersF. (1974). Ultrastructure of the host-fungus interface in a vesicular-arbuscular mycorrhiza.New Phytol.73901–912. 10.1111/j.1469-8137.1974.tb01319.x
21
DermatsevV.Weingarten-BarorC.ResnickN.GadkarV.WiningerS.KolotilinI.et al (2009). Microarray analysis and functional tests suggest the involvement of expansins in the early stages of symbiosis of the arbuscular mycorrhizal fungus Glomus intraradices on tomato (Solanum lycopersicum).Mol. Plant Pathol.11121–135. 10.1111/j.1364-3703.2009.00581.x
22
DénariéJ.CullimoreJ. (1993). Lipo-oligosaccharide nodulation factors: a new class of signalling molecules mediating recognition and morphogenesis.Cell74951–954. 10.1016/0092-8674(93)90717-5
23
DuplessisS.CourtyP. E.TaguD.MartinF. (2005). Transcript patterns associated with ectomycorrhiza development in Eucalyptus globulus and Pisolithus microcarpus.New Phytol.165599–611. 10.1111/j.1469-8137.2004.01248.x
24
DuránA.NombelaC. (2004). Fungal cell wall biogenesis: building a dynamic interface with the environment.Microbiology1503099–3103. 10.1099/mic.0.27551-0
25
FiorilliV.CatoniM.MiozziL.NoveroM.AccottoG. P.LanfrancoL. (2009). Global and cell-type gene expression profiles in tomato plants colonized by an arbuscular mycorrhizal fungus.New Phytol.184975–987. 10.1111/j.1469-8137.2009.03031.x
26
FrettingerP.DeroryJ.HerrmannS.PlomionC.LapeyrieF.OelmüllerR.et al (2007). Transcriptional changes in two types of pre-mycorrhizal roots and in ectomycorrhizas of oak microcuttings inoculated with Piloderma croceum.Planta225331–40. 10.1007/s00425-006-0355-4
27
GeaL.NormandL.VianB.GayG. (1994). Structural aspects of ectomycorrhizas of Pinus pinaster (Ait.) Sol. formed by an IAA overproducer mutant of the fungus Hebeloma cylindrosporum Romagnesi.New Phytol.128659–670. 10.1111/j.1469-8137.1994.tb04030.x
28
GenreA.BonfanteP. (2007). Check-in procedures for plant cell entry by biotrophic microbes.Mol. Plant Microbe Interact.201023–1030. 10.1094/MPMI-20-9-1023
29
GenreA.BonfanteP. (2012). “The interface between plants and mycorrhizal fungi: nutrient exchange, signaling and cell organization,” inThe Mycota, IX: Fungal Associations2nd Edned.HockB. (Berlin: Springer) 39–49. 10.1007/978-3-642-30826-0_3
30
GenreA.ChabaudM.BalzergueC.Puech-PagèsV.NoveroM.ReyT.et al (2013). Short-chain chitin oligomers from arbuscular mycorrhizal fungi trigger nuclear Ca2+ spiking in Medicago truncatula roots and their production is enhanced by strigolactone.New Phytol.198190–202. 10.1111/nph.12146
31
GenreA.ChabaudM.FaccioA.BarkerD. G.BonfanteP. (2008). Prepenetration apparatus assembly precedes and predicts the colonization patterns of arbuscular mycorrhizal fungi within the root cortex of both Medicago truncatula and Daucus carota.Plant Cell201407–1420. 10.1105/tpc.108.059014
32
GenreA.ChabaudM.TimmersT.BonfanteP.BarkerD. G. (2005). Arbuscular mycorrhizal fungi elicit a novel intracellular apparatus in Medicago truncatula root epidermal cells before infection.Plant Cell173489–3499. 10.1105/tpc.105.035410
33
GenreA.IvanovS.FendrychM.FaccioA.ŽárskýV.BisselingT.et al (2012). Multiple exocytotic markers accumulate at the sites of perifungal membrane biogenesis in arbuscular mycorrhizas.Plant Cell Physiol.53244–255. 10.1093/pcp/pBR170
34
GollotteA.Gianinazzi-PearsonV.GianinazziS. (1995). Immunodetection of infection thread glycoprotein and arabinogalactan protein in wild type Pisum sativum (L.) or an isogenic mycorrhiza-resistant mutant interacting with Glomus mosseae.Symbiosis1869–85.
35
GuetherM.BalestriniR.HannahM.HeJ.UdvardiM. K.BonfanteP. (2009). Genome-wide reprogramming of regulatory networks, transport, cell wall and membrane biogenesis during arbuscular mycorrhizal symbiosis in Lotus japonicus.New Phytol.182200–212. 10.1111/j.1469-8137.2008.02725.x
36
GutjahrC.ParniskeM. (2013). Cell and developmental biology of arbuscular mycorrhiza symbiosis.Annu. Rev. Cell Dev. Biol.29593–617. 10.1146/annurev-cellbio-101512-122413
37
HarrisonM. J. (1999). Biotrophic interfaces and nutrient transport in plant fungal symbioses.J. Exp. Bot.501013–1022. 10.1093/jexbot/50.suppl_1.1013
38
HayafuneM.BerisioR.MarchettiR.SilipoA.KayamaM.DesakiY.et al (2014). Chitin-induced activation of immune signaling by the rice receptor CEBiP relies on a unique sandwich-type dimerization.Proc. Natl. Acad. Sci. U.S.A.111E404–E413. 10.1073/pnas.1312099111
39
HelberN.WippelK.SauerN.SaarschmidtS.HauseB.RequenaN. (2011). A versatile monosaccharide transporter that operates in the arbuscular mycorrhizal fungus Glomus sp. is crucial for the symbiotic relationship with plants.Plant Cell233812–3823. 10.1105/tpc.111.089813
40
HellerG.AdomasA.LiG.OsborneJ.van ZylL.SederoffR.et al (2008). Transcriptional analysis of Pinus sylvestris roots challenged with the ectomycorrhizal fungus Laccaria bicolor.BMC Plant Biol.8:19.10.1186/1471-2229-8-19
41
HogekampC.ArndtD.PereiraP. A.BeckerJ. D.HohnjecN.KüsterH. (2011). Laser microdissection unravels cell-type-specific transcription in arbuscular mycorrhizal roots, including caat-box transcription factor gene expression correlating with fungal contact and spread.Plant Physiol.1572023–2043. 10.1104/pp.111
42
KeegstraK. (2010). Plant cell walls.Plant Physiol.154483–486. 10.1104/pp.110.161240
43
KiersE. T.DuhamelM.BeesettyY.MensahJ. A.FrankenO.VerbruggenE.et al (2011). Reciprocal rewards stabilize cooperation in the mycorrhizal symbiosis.Science333880–882. 10.1126/science.1208473
44
IvanovS.FedorovaE. E.LimpensE.De MitaS.GenreA.BonfanteP.et al (2012). Rhizobium–legume symbiosis shares an exocytotic pathway required for arbuscule formation.Proc. Natl. Acad. Sci. U.S.A.1098316–8321. 10.1073/pnas.1200407109
45
JohanssonT.Le QuéréA.AhrenD.SöderströmB.ErlandssonR.LundebergJ.et al (2004). Transcriptional responses of Paxillus involutus and Betula pendula during formation of ectomycorrhizal root tissue.Mol. Plant Microbe Interact.17202–215. 10.1094/MPMI.2004.17.2.202
46
JournetE. P.El-GachtouliN.VernoudV.de BillyF.PichonM.DedieuA.et al (2001). Medicago truncatula ENOD11: a novel RPRPencoding early nodulin gene expressed during mycorrhization in arbuscule-containing cells.Mol. Plant Microbe Interact.14737–748. 10.1094/MPMI.2001.14.6.737
47
LanfrancoL.VallinoM.BonfanteP. (1999). Expression of chitin synthase genes in the arbuscular mycorrhizal fungus Gigaspora margarita.New Phytol.142347–354. 10.1046/j.1469-8137.1999.00393.x
48
LaurentP.VoibletC.TaguD.de CarvalhoD.NehlsU.De BellisR.et al (1999). A novel class of ectomycorrhiza-regulated cell wall polypeptides in Pisolithus tinctorius.Mol. Plant Microbe Interact.12862–871. 10.1094/MPMI.1999.12.10.862
49
LemoineM. C.GollotteA.Gianinazzi-PearsonV. (1995). Localization of ß(1-3) glucan in walls of the endomycorrhizal fungi Glomus mosseae (Nicol. & Gerd.) Gerd. & Trappe and Acaulospora laevis Gerd. & Trappe during colonization of host roots.New Phytol.12997–105. 10.1111/j.1469-8137.1995.tb03013.x
50
Le QuéréA.WrightD. P.SoderstromB.TunlidA.JohanssonT. (2005). Global patterns of gene regulation associated with the development of ectomycorrhiza between birch (Betula pendula Roth.) and Paxillus involutus (Batsch) fr.Mol. Plant Microbe Interact.18659–673.10.1094/MPMI-18-0659
51
LigroneR.CarafaA.LuminiE.BianciottoV.BonfanteP.DuckettJ. G. (2007). Glomeromycotean associations in liverworts: A molecular cellular and taxonomic analysis.Am. J. Bot.941756–1777. 10.3732/ajb.94.11.1756
52
LinK.LimpensE.ZhangZ.IvanovS.SaundersD. G. O.MuD.et al (2014). Single nucleus genome sequencing reveals high similarity among nuclei of an endomycorrhizal fungus.PLoS Genet.10:e1004078.10.1371/journal.pgen.1004078
53
LiuJ.BlaylockL.EndreG.ChoJ.TownC. D.VandenBoschK.et al (2003). Transcript profiling coupled with spatial expression analyses reveals genes involved in distinct developmental stages of the arbuscular mycorrhizal symbiosis.Plant Cell152106–2123. 10.1105/tpc.014183
54
LuoZ.-B.JanzD.JiangX.GöbelC.WildhagenH.TanY.et al (2009). Upgrading root physiology for stress tolerance by ectomycorrhizas: Insights from metabolite and transcriptional profiling into reprogramming for stress anticipation.Plant Physiol.1511902–1917. 10.1104/pp.109.143735
55
MailletF.PoinsotV.AndréO.Puech-PagèsV.HaouyA.GueunierM.et al (2011). Fungal lipochitooligosaccharide symbiotic signals in arbuscular mycorrhiza.Nature46958–63. 10.1038/nature09622
56
Maldonado-MendozaI. E.DewbreG. R.BlaylockL.HarrisonM. J. (2005). Expression of a xyloglucan endotransglucosylase/hydrolase gene, Mt-XTH1, from Medicago truncatula is induced systemically in mycorrhizal roots.Gene34519119710.1016/j.gene.2004.10.028
57
MartinF.AertsA.AhrenD.BrunA.DanchinE. G. J.DuchaussoyF.et al (2008). Symbiosis insights from the genome of the mycorrhizal basidiomycete Laccaria bicolor.Nature45288–92. 10.1038/nature06556
58
MartinF.KohlerA.MuratC.BalestriniR.CoutinhoP. M.JaillonO.et al (2010). Périgord black truffle genome uncovers evolutionary origins and mechanisms of symbiosis.Nature4641033–1038. 10.1038/nature08867
59
MartinF.LaurentP.de CarvalhoD.VoibletC.BalestriniR.BonfanteP.et al (1999). Cell wall proteins of the ectomycorrhizal basidiomycete Pisolithus tinctorius: Identification, function, and expression in symbiosis.Fungal Genet. Biol.27161–174. 10.1006/fgbi.1999.1138
60
MurrayJ. D.CousinsD. R.JacksonK. J.LiuC. (2013). Signaling at the root surface: The role of cutin monomers in mycorrhization.Mol. Plant61381–1383. 10.1093/mp/sst090
61
NagendranS.Hallen-AdamsH. E.PaperJ. M.AslamaN.WaltonJ. D. (2009). Reduced genomic potential for secreted plant cell-wall-degrading enzymes in the ectomycorrhizal fungus Amanita bisporigera, based on the secretome of Trichoderma reesei.Fungal Genet. Biol.46427–435. 10.1016/j.fgb.2009.02.001
62
ParniskeM. (2008). Arbuscular mycorrhiza: the mother of plant root endosymbioses.Nat. Rev. Microb.6763–775. 10.1038/nrmicro1987
63
PetersonR. L.MassicotteH. B. (2004). Exploring structural definitions of mycorrhizas with emphasis on nutrient exchange interfaces.Can. J. Bot.821074–1088. 10.1139/b04-071
64
PetersonR. L.MassicotteH. B.MelvilleL. H. (2004). Mycorrhizas: Anatomy and Cell Biology.Toronto: CABI.
65
PlettJ. M.GibonJ.KohlerA.DuffyK.HoeggerP. J.VelagapudiR.et al (2012). Phylogenetic, genomic organization and expression analysis of hydrophobin genes in the ectomycorrhizal basidiomycete Laccaria bicolor.Fungal Genet. Biol.49199–209. 10.1016/j.fgb.2012.01.002
66
PlettJ. M.MartinF. (2011). Blurred boundaries: lifestyle lessons from ectomycorrhizal fungal genomes.Trends Genet.2714–22. 10.1016/j.tig.2010.10.005
67
ReinhardtD. (2007). Programming good relations – development of the arbuscular mycorrhizal symbiosis.Curr. Opin. Plant Biol.1098–105. 10.1016/j.pbi.2006.11.001
68
ScanneriniS.BonfanteP. (1976). “Ultrastructural features of a vesicular-arbuscular mycorrhiza,” inSixth European Congress on Electron MicroscopyVol. 2ed.Ben-ShaulY. (Jerusalem: TAL Ramat Gan.) 492–494.
69
ScanneriniS.Bonfante-FasoloP. (1983). Comparative ultrastructural analysis of mycorrhizal associations.Can. J. Bot.61917–943. 10.1139/b83-104
70
SchallerA.StintziA.GraffL. (2012). Subtilases – versatile tools for protein turnover, plant development, and interactions with the environment.Physiol. Plant.14552–66. 10.1111/j.1399-3054.2011.01529.x
71
ShimizuT.NakanoT.TakamizawaD.DesakiY.Ishii-MinamiN.NishizawaY.et al (2010). Two LysM receptor molecules, CEBiP and OsCERK1, cooperatively regulate chitin elicitor signaling in rice.Plant J.64204–214. 10.1111/j.1365-313X.2010.04324.x
72
SicilianoV.GenreA.BalestriniR.CappellazzoG.deWitP. J. G. M.BonfanteP. (2007). Transcriptome analysis of arbuscular mycorrhizal roots during development of the prepenetration apparatus.Plant Physiol.1441455–1466. 10.1104/pp.107
73
SmithS. E.ReadD. J. (2008). Mycorrhizal Symbiosis, 3rd Edn.London: Academic Press.
74
SpanuP. D.AbbottJ. C.AmselemJ.BurgisT. A.SoanesD. M.StüberK.et al (2010). Genome expansion and gene loss in powdery mildew fungi reveal functional tradeoffs in extreme parasitism.Science3301543–1546. 10.1126/science.1194573
75
TaguD.De BellisR.BalestriniR.De VriesO. M. H.PiccoliG.StocchiV.et al (2001). Immunolocalization of hydrophobin HYDPt-1 from the ectomycorrhizal basidiomycete Pisolithus tinctorius during colonization of Eucalyptus globulus roots.New Phytol.149127–135. 10.1046/j.1469-8137.2001.00009.x
76
TakedaN.SatoS.AsamizuE.TabataS.ParniskeM. (2009). Apoplastic plant subtilases support arbuscular mycorrhiza development in Lotus japonicus.Plant J.58766–777. 10.1111/j.1365-313X.2009.03824.x
77
TarkkaM. T.HerrmannS.WubetT.FeldhahnL.RechtS.KurthF.et al (2013). OakContigDF159.1, A reference library for studying differential gene expression in Quercus robur during controlled biotic interactions: use for quantitative transcriptomic profiling of oak roots in ectomycorrhizal symbiosis.New Phytol.199529–540.10.1111/nph.12317
78
TaylorN. G. (2008). Cellulose biosynthesis and deposition in higher plants.New Phytol.178239–252. 10.1111/j.1469-8137.2008.02385.x
79
TianC.BeesonW. T.IavaroneA. T.SunJ.MarlettaM. A.CateJ. H. D.et al (2009). Systems analysis of plant cell wall degradation by the model filamentous fungus Neurospora crassa.Proc. Natl. Acad. Sci. U.S.A.10622157–22162. 10.1073/pnas.0906810106
80
TisserantE.KohlerA.Dozolme-SeddasP.BalestriniR.BenabdellahK.ColardA.et al (2012). The transcriptome of the arbuscular mycorrhizal fungus Glomus intraradices (DAOM 197198) reveals functional tradeoffs in an obligate symbiont.New Phytol.193755–769. 10.1111/j.1469-8137.2011.03948.x
81
TisserantE.MalbreilM.KuoA.KohlerA.SymeonidiA.BalestriniR.et al (2013). Genome of an arbuscular mycorrhizal fungus provides insight into the oldest plant symbiosis.Proc. Natl. Acad. Sci. U.S.A.11020117–20122. 10.1073/pnas.1313452110
82
TuskanG. A.DifazioS.JanssonS.BohlmannJ.GrigorievI.HellstenU.et al (2006). The genome of black cottonwood, Populus trichocarpa (Torr. & Gray).Science3131596–604. 10.1126/science.1128691
83
van BuurenM. L.Maldonado-MendosaI. E.TrieuA. T.BlaylockL. A.HarrisonM. J. (1999). Novel genes induced during an arbuscular mycorrhizal symbiosis formed between Medicago truncatula and Glomus versiforme.Mol. Plant Microbe Interact.12171–181. 10.1094/MPMI.1999.12.3.171
84
VoibletC.DuplessisS.EncelotN.MartinF. (2001). Identification of symbiosis-regulated genes in Eucalyptus globulus–Pisolithus tinctorius ectomycorrhiza by differential hybridization of arrayed cDNAs.Plant J.25181–191. 10.1111/j.1365-313X.2001.00953.x
85
WangE.SchornackS.MarshJ. F.GobbatoE.SchwessingerB.EastmondP.et al (2012). A common signaling process that promotes mycorrhizal and oomycete colonization of plants.Curr. Biol.222242–2246. 10.1016/j.cub.2012.09.043
86
WeidmannS.SanchezL.DescombinJ.ChatagnierO.GianinazziS.Gianinazzi-PearsonV. (2004). Fungal elicitation of signal transduction related plant genes precedes mycorrhiza establishment and requires the dmi3 gene in Medicago truncatula.Mol. Plant Microbe Interact.171385–1393. 10.1094/MPMI.2004.17.12.1385
87
WillmannM.GerlachN.BuerB.PolatajkoA.NagyR.KoebkeE.et al (2013). Mycorrhizal phosphate uptake pathway in maize: vital for growth and cob development on nutrient poor agricultural and greenhouse soils.Front. Plant Sci.4:533.10.3389/fpls.2013.00533
88
WöstenH. (2001). Hydrophobins: multipurpose proteins.Annu. Rev. Microbiol.55625–646. 10.1146/annurev.micro.55.1.625
89
YiM.ValentB. (2013). Communication between filamentous pathogens and plants at the biotrophic interface.Annu. Rev. Phytopathol.51587–611. 10.1146/annurev-phyto-081211-172916
