Abstract
Shade-establishing plants growing in the forest understory are exposed to constant high light or fluctuating light when gaps are created by fallen trees. Our previous studies indicate that photosystem I (PSI) is sensitive to constant high light in shade-establishing tree species, however, the effects of fluctuating light on PSI and photosystem II (PSII) in shade-establishing species are little known. In the present study, we examined the responses of PSI and PSII to fluctuating light in comparison to constant high light in the shade-establishing species Psychotria henryi. Accompanying with significant activation of cyclic electron flow (CEF), the P700 oxidation ratio was maintained at high levels when exposed to strong light either under fluctuating light or constant high light. Under moderate fluctuating light, PSI and PSII activities were remained stable in P. henryi. Interestingly, PSI was insusceptible to fluctuating light but sensitive to constant high light in P. henryi. Furthermore, both PSI and PSII were more sensitive to constant high light than fluctuating light. These results suggest that CEF is essential for photoprotection of PSI under fluctuating light in P. henryi. Furthermore, photoinhibition of PSI under high light in P. henryi is more related to the accumulation of reactive oxygen species rather than to P700 redox state, which is different from the mechanisms of PSI photoinhibition in Arabidopsis thaliana and rice. Taking together, PSI is a key determiner of photosynthetic responses to fluctuating light and constant high light in the shade-establishing species P. henryi.
Introduction
Naturally, plants experience highly variable light conditions. Plants growing in forest understory experience more frequent, short-term light fluctuations due to leaves and stems of other plants above them in addition to clouds. In the understory of tropical rain forests, leaves of shade-establishing plants usually grow in a light environment of deep shade (<5% of full sunlight). When canopy gaps are created by fallen trees, leaves of shade-establishing plants may be exposed to fluctuating light or constant high light for several hours in a day. Under constant high light, excess light energy usually causes selective photodamage to photosystem II (PSII) (; ; ; ). Generally, wild-type plants are capable of protecting photosystem I (PSI) when exposed to constant high light at normal growth temperature (; , ; ; ; ; ). Interestingly, our previous studies indicated that both PSI and PSII are susceptible to constant high light in the shade-establishing tropical tree species Psychotria rubra (, ). However, the responses of PSI and PSII to fluctuating light in shade-establishing plants are little known.
Previous studies have reported that at chilling-light stress photoinhibition of PSI occurs in the chilling-sensitive plants cucumber (; ; ; ), tobacco (; ) and Arabidopsis thaliana (). At chilling temperature, the photoinhibition of PSI in cucumber occurred mainly due to the oxidative damage to PSI by hydroxyl radicals that are generated by a reaction between reduced iron–sulfur centers and hydroxyl peroxide (, ). At normal growth temperature, PSI is insusceptible to constant high light in A. thaliana mainly due to significant activation of cyclic electron flow (CEF) (, ). In the CEF mutant pgr5-plants of A. thaliana, high light causes a large decrease in PSI activity (; ; ). Previous studies suggested that over-reduction of PSI acceptor side was the main mechanism for PSI photoinhibiton in the pgr5-plants when exposed to high light (, ). Recently, a lot of studies suggested that photoinhibition of PSI in the pgr5-plants was mainly caused by the uncontrolled electron transport from PSII to PSI (; , ; ; ; ; ), which not only accelerates production of reactive oxygen species (ROS) at the acceptor side of PSI, but also induces over-reduction of PSI reaction centers. By comparison, in the shade-establishing tree species P. rubra, PSI photoinhibition is more related to electron flow from PSII to PSI rather than to PSI redox state (). These results suggested that the mechanisms of PSI photoinhibition may be different between A. thaliana and shade-establishing species. Consequently, it is assumed that the response of PSI to fluctuating light likely differs between shade-establishing species and the model plants A. thaliana.
A recent study reported that PSI photoinhibition under fluctuating light could occur even in the wild-type of rice (), which is consistent with the small decrease in PSI activity under fluctuating light for wild-type of A. thaliana (). What is more, PSI is more sensitive to fluctuating light than constant high light in both wild-type and pgr5-plants of A. thaliana and rice (; ). For plants of shade-establishing tree species grown in forest understory, leaves are usually exposed to fluctuating light. If PSI activity is more sensitive to fluctuating light than constant high light, shade-establishing tree species are unable to optimize photosynthesis and plant growth under naturally fluctuating light conditions. Furthermore, the extent of PSI photoinhibition in the shade-establishing species P. rubra can be significantly affected by excess electron flow to PSI (). The production of ROS under fluctuating light is less than under constant high light due to low-light phases. As a result, we speculate that PSI is insusceptible to fluctuating light in shade-establishing tree species.
In addition to PSI, PSII is very susceptible to constant high light in shade-establishing tree species. After treatment with 2000 μmol photons m-2 s-1 at 25°C for 2 h, the maximum quantum yield of PSII, as indicated by Fv/Fm, decreased by 80% in detached leaves of P. rubra (). Severe PSII photoinhibition can depress electron flow from PSII (; ,), and thus the rate of CO2 assimilation and plant growth. Furthermore, the fast recovery of PSII activity is dependent on linear electron flow sustained by residual PSII activity for a number of reasons including provision of ATP, provision of reducing equivalents for the translational regulation of D1 protein, efficient translation of D1 protein, and integration of D1 protein into PSII reaction centers (; ). In order to optimize photosynthesis under fluctuating light in an understory environment, shade-establishing species should prevent severe PSII photoinhibition under fluctuating light. Thus, we speculate that PSII activity is less sensitive to fluctuating light than constant high light in shade-establishing species.
Since shade-establishing tree species typically experience fluctuating light conditions, understanding of the photosynthetic performances under fluctuating light is of help to forest succession. However, the photosynthetic responses to fluctuating light for leaves of shade-establishing tree species remain to be clarified. In the present study, we examined the responses of PSI and PSII to fluctuating light and constant high light in P. henryi, a shade-establishing tropical tree species. Interestingly, PSI and PSII in P. henryi are hardly damaged by treatment with fluctuating light alternating between 100 and 1294 μmol photons m-2 s-1 every 2 min for 60 min. Furthermore, PSI is less sensitive to fluctuating light than constant high light in P. henryi, which is opposite to A. thaliana and rice. Our results strongly suggested that the response of PSI to fluctuating light may be different between shade-establishing and sun-establishing plants owing to different mechanisms of PSI photoinhibition.
Materials and Methods
Plant Materials
The tropical tree species P. henryi Levl. (Rubiaceae) was chosen for study. P. henryi is a shade-establishing shrub species of rain forests native to south of China, and the maximum height of its plants is about 2 m. In our present study, plants of P. henryi grown naturally in forest understory with deep shade (light intensity < 5% of sunlight) in tropical rain forest in Xishuangbanna tropical botanical garden (21°54′ N, 101°46′ E) were used for photosynthetic measurements. After cutting off from plants, the branches were immediately immersed in water and brought back to our lab in 5 min, and the photosynthetic measurements were conducted subsequently.
PSI and PSII Measurements
In our present study, the PSI and PSII parameters were measured simultaneously by Dual-PAM-100 (Heinz Walz GmbH, Effeltrich, Germany). After dark adaptation for 30 min, the minimum and maximum fluorescence and the maximum photo-oxidizable P700 were measured. The maximum quantum yield of PSII, Fv/Fm = (Fm–Fo)/Fm, was measured to monitor PSII activity. Other fluorescence parameters were calculated as follows (; ; ): Y(II) = (- Fs)/, NPQ = (Fm–)/, qL = (- Fs)/(- ) × (/Fs). Fm is the minimum and maximum fluorescence measured after 30 min dark adaptation. and are the minimum and maximum fluorescence after light adaptation. Fs is the steady-state fluorescence after light adaptation. Fm and were measured upon illumination of a saturating pulse (300 ms and 10000 μmol photons m-2 s-1). Y(II) represents the effective quantum yield of PSII, NPQ indicates the non-photochemical quenching. qL indicates the fraction of PSII centers in the open state (with oxidized plastoquinone).
The PSI photosynthetic parameters were evaluated by Dual PAM-100, based on P700 oxidation signal (i.e., the difference in intensities of 830 and 875 nm pulse-modulated measuring light reaching the photodetector) (). The P700+ signals (P) may vary between minimal (P700 is fully reduced) and maximal levels (P700 is fully oxidized). The maximum level (Pm) was determined with application of a saturation pulse (300 ms and 10000 μmol photons m-2 s-1) after pre-illumination with far-red light (, ). was determined similar to Pm but with actinic light instead of far-red light. Pm was recorded to estimate the maximum photo-oxidizable P700 (,, ; ; ; ). In our present study, Pm was measured after 30 min dark adaptation. The quantum yield of PSI was calculated as Y(I) = (–P)/Pm, and the P700 oxidation ratio in a given actinic light was calculated as Y(ND) = P/Pm. The fraction of P700 that cannot be oxidized by SP to the overall P700 was calculated as Y(NA) = (Pm–)/Pm.
The electron transport rate (ETR) was calculated as ETRI = PPFD × 0.5 × abs I ×Y(I), and ETRII = PPFD × 0.5 × abs I ×Y(II), where 0.5 is the fraction of absorbed light reaching PSI or PSII, and abs I is absorbed irradiance taken as 0.84 of incident irradiance.
Photoinhibitory Treatments
In the present study, light from a 635 nm light-emitting diode (LED) equipped in Dual-PAM-100 was used as actinic light for photoinhibitory treatments. In order to examine the response of PSI and PSII to moderate fluctuating light, intact leaves were dark-adapted for 30 min and then were exposed to fluctuating light (low light at 100 μmol photons m-2 s-1 for 2 min and high light at 1294 μmol photons m-2 s-1 for 2 min) for 60 min. PSI and PSII parameters were measured every 1 min during this period. Before and after photoinhibitory treatments, the PSI activity (Pm) and the PSII activity (Fv/Fm) were measured after 30 min dark adaptation.
To further determine the effects of intense fluctuating light on PSI and PSII activities, values for Pm and Fv/Fm were measured after dark adaptation for 30 min. Subsequently, intact leaves were exposed to fluctuating light alternating between 2258 and 94 μmol photons m-2 s-1 every 5 min for 100 min or constant high light (2258 μmol photons m-2 s-1) for 100 min. Afterward, leaves were dark-adapted for 30 min and the values of Pm and Fv/Fm were measured. Immediately, these leaves were exposed to the above fluctuating light or constant high light for 100 min, and then Pm and Fv/Fm were measured after 30 min dark adaptation.
Statistical Analysis
The results were displayed as mean values of five independent experiments. One-Way ANOVA test was used at α = 0.05 significance level to determine whether significant differences existed between different treatments.
Results
Photosynthetic Responses to Moderate Fluctuating Light
Under fluctuating light alternating between 100 and 1294 μmol photons m-2 s-1 every 2 min for 60 min, values of Y(I), Y(II), ETRI, ETRII were constant at 100 μmol photons m-2 s-1 and gradually increased in the initial 12 min when exposed to 1294 μmol photons m-2 s-1 (Figures 1A,B). NPQ quickly increased from the low levels at 100 μmol photons m-2 s-1 to the high levels at 1294 μmol photons m-2 s-1 in 1 min (Figure 1C), suggesting the rapid generation of ΔpH. The value of 1 – qL was maintained at high levels at high-light phases and subsequently decreased to low levels at low-light phases (Figure 1C), indicating the rapid regulation of the redox state of the plastoquinone pool. Similarly, the P700 redox state under fluctuating light was regulated quickly in response to changes in light conditions. Y(ND) fast increased to high levels during the high-light phases and decreased to low levels during the subsequent low-light phases (Figure 1D). Similarly, Y(NA) rapidly decreased to low levels during the high-light phases (Figure 1D).

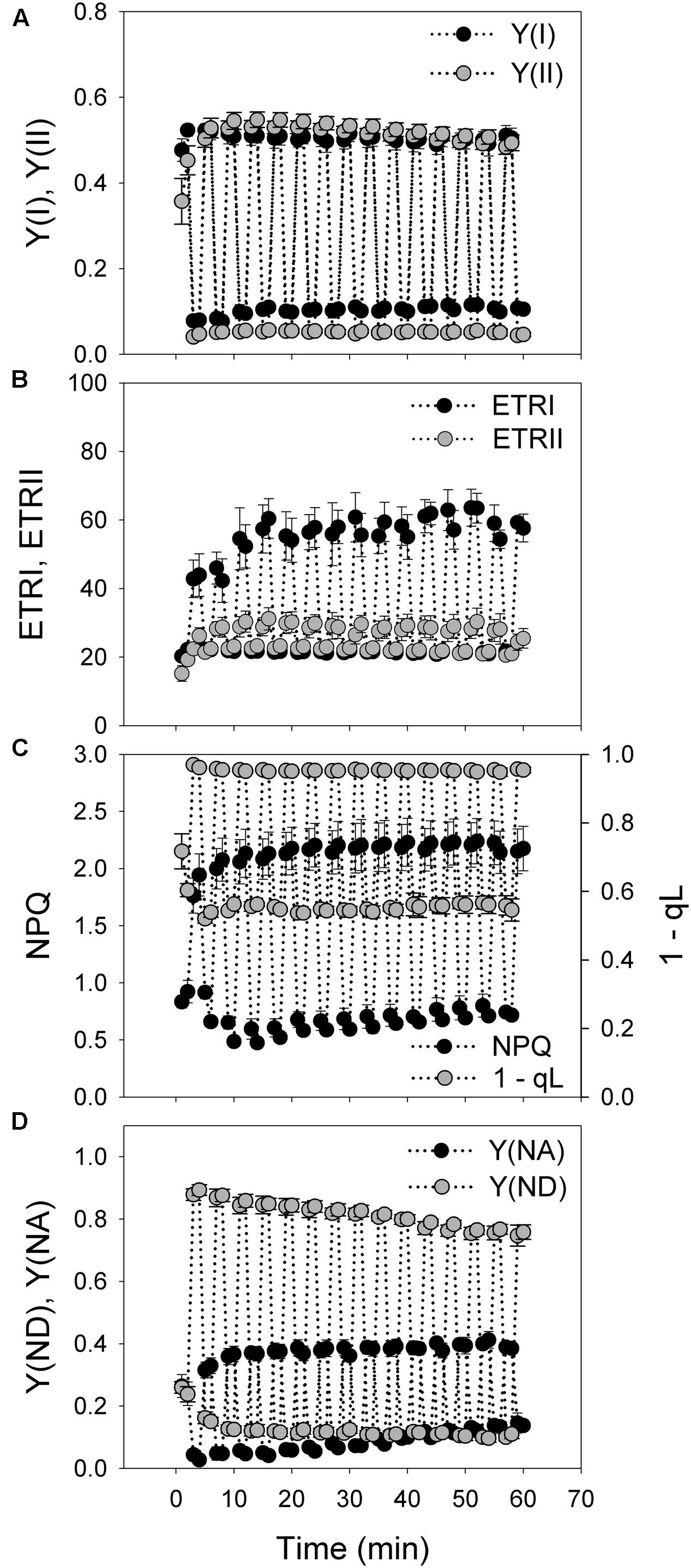

FIGURE 1
The value of ETRI approximately equaled that of ETRII at the low light of 100 μmol photons m-2 s-1. However, ETRI was two times higher than ETRII when illuminated at 1294 μmol photons m-2 s-1 (Figure 1B). These results suggested that the shade-establishing species P. henryi showed significantly activation of CEF around PSI under high light, which was confirmed by the high levels of Y(ND) and low levels of Y(NA) at high light. Furthermore, the rapid changes in NPQ, 1 – qL, Y(ND), and Y(NA) further implied the physiological roles of CEF under fluctuating light. Interestingly, after exposure to this moderate fluctuating light (100 μmol photons m-2 s-1 for 2 min and 1294 μmol photons m-2 s-1 for 2 min) for 60 min, both Pm and Fv/Fm were remained stable (Figure 2), indicating that PSI and PSII activities were insusceptible to short time moderate fluctuating light in the shade-establishing tree species P. henryi.

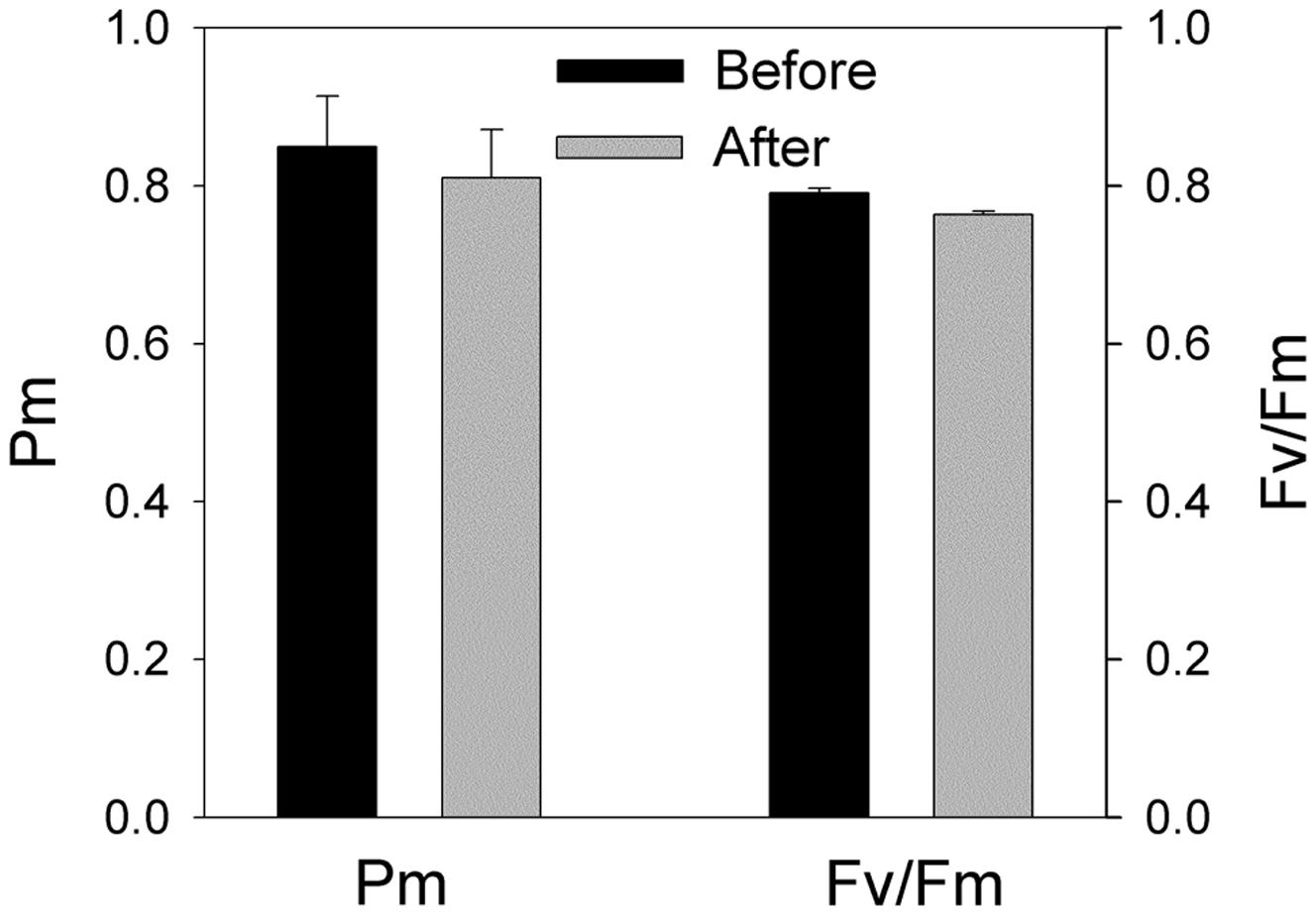

FIGURE 2
Photosynthetic Responses to Intense Fluctuating Light
The value of decreased at a slower rate during the treatment with fluctuating light alternating between 2258 and 94 μmol photons m-2 s-1 compared with the treatment with constant light of 2258 μmol photons m-2 s-1 (Figure 3A). Because NPQ is calculated as NPQ = (Fm–)/, the larger decrease in apparently leads to the faster increase in NPQ under constant high light (Figure 3B). However, this increase in NPQ is not truth owing to the decrease in Fm after high light treatment. After treatment with fluctuating light or constant for 100 min, the actual value of NPQ at 2258 μmol photons m-2 s-1 largely decreased, as shown by comparison between NPQ values at 5 and 135 min (Figure 3B). Under fluctuating light, NPQ can be activated quickly during the high-light phases, suggesting the activation of CEF. During the treatment period of 0–100 min at fluctuating light, the value of Y(II) at 94 μmol photons m-2 s-1 changed little (Figure 3C). However, during the treatment period of 100–200 min, the value of Y(II) at low-light phases gradually decreased with increasing time (Figure 3C). The redox state of the plastoquinone pool (1 – qL) changed slightly during the treatments with constant high light (Figure 3D), suggesting the accumulation of reducing power in photosynthetic electron transport system. By comparison, the redox state of the plastoquinone pool was rapidly regulated under fluctuating light, indicating that the accumulated reducing power during the high-light phases can be dissipated during the subsequent low-light phases.

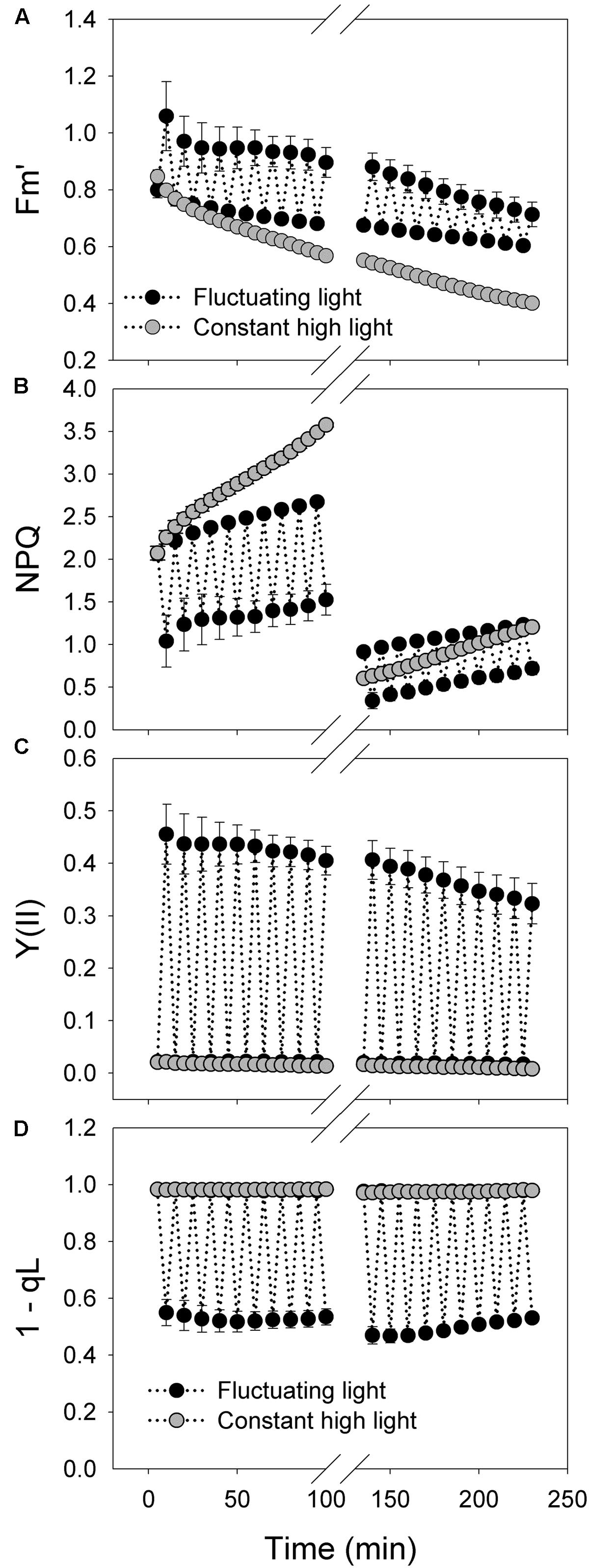

FIGURE 3
The trend of change in Y(I) during treatments with fluctuating light and constant light was similar to Y(II) (Figure 4A). Y(ND) changed regularly according to light condition under fluctuating light and gradually decreased under constant high light treatment (Figure 4B). The value of Y(NA) at 2258 μmol photons m-2 s-1 increased gradient with increasing time of treatments under both fluctuating and constant light (Figure 4C). Notably, the increase in Y(NA) under constant high light was faster than under fluctuating light. Similar to Y(ND), Y(NA) was regulated regularly under fluctuating light.

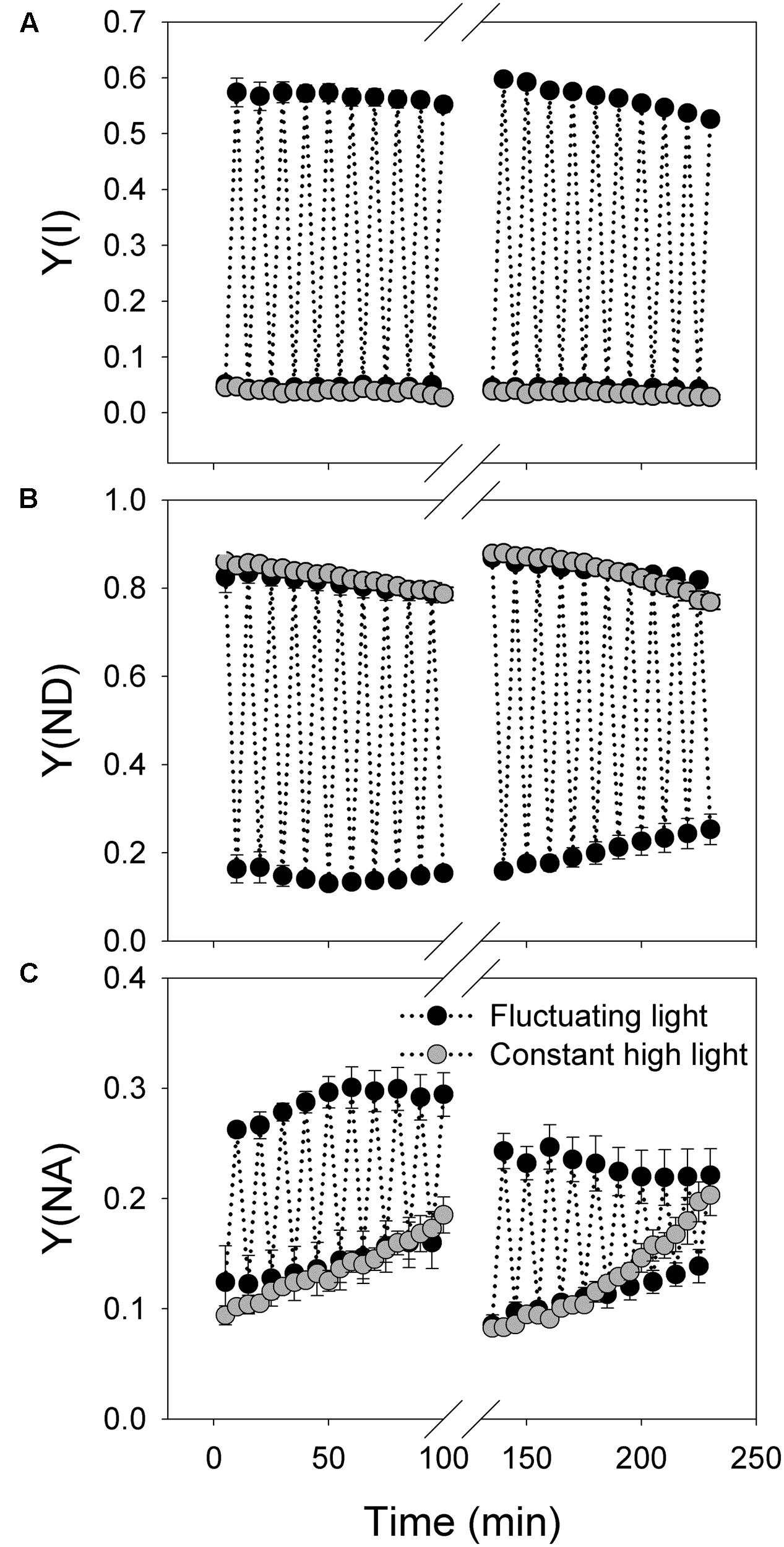

FIGURE 4
After exposure to fluctuating light alternating between 2258 and 94 μmol photons m-2 s-1 every 5 min for 100 and 200 min, the value of Pm only decreased by 4 and 7%, respectively (Figure 5A). Meanwhile, the value of Fv/Fm decreased to 0.62 and 0.49 (Figure 5B). By comparison, after treatment with constant light (2258 μmol photons m-2 s-1) for 100 and 200 min, Pm decreased by 11 and 24%, respectively (Figure 5A). Concomitantly, Fv/Fm decreased to 0.40 and 0.24, respectively (Figure 5B). These results strongly indicate that (1) PSI is insusceptible to fluctuating light in P. henryi; (2) both PSI and PSII are more sensitive to constant high light than fluctuating light in P. henryi; (3) photoinhibition of PSI under constant high light cannot be prevented by the activation of CEF.

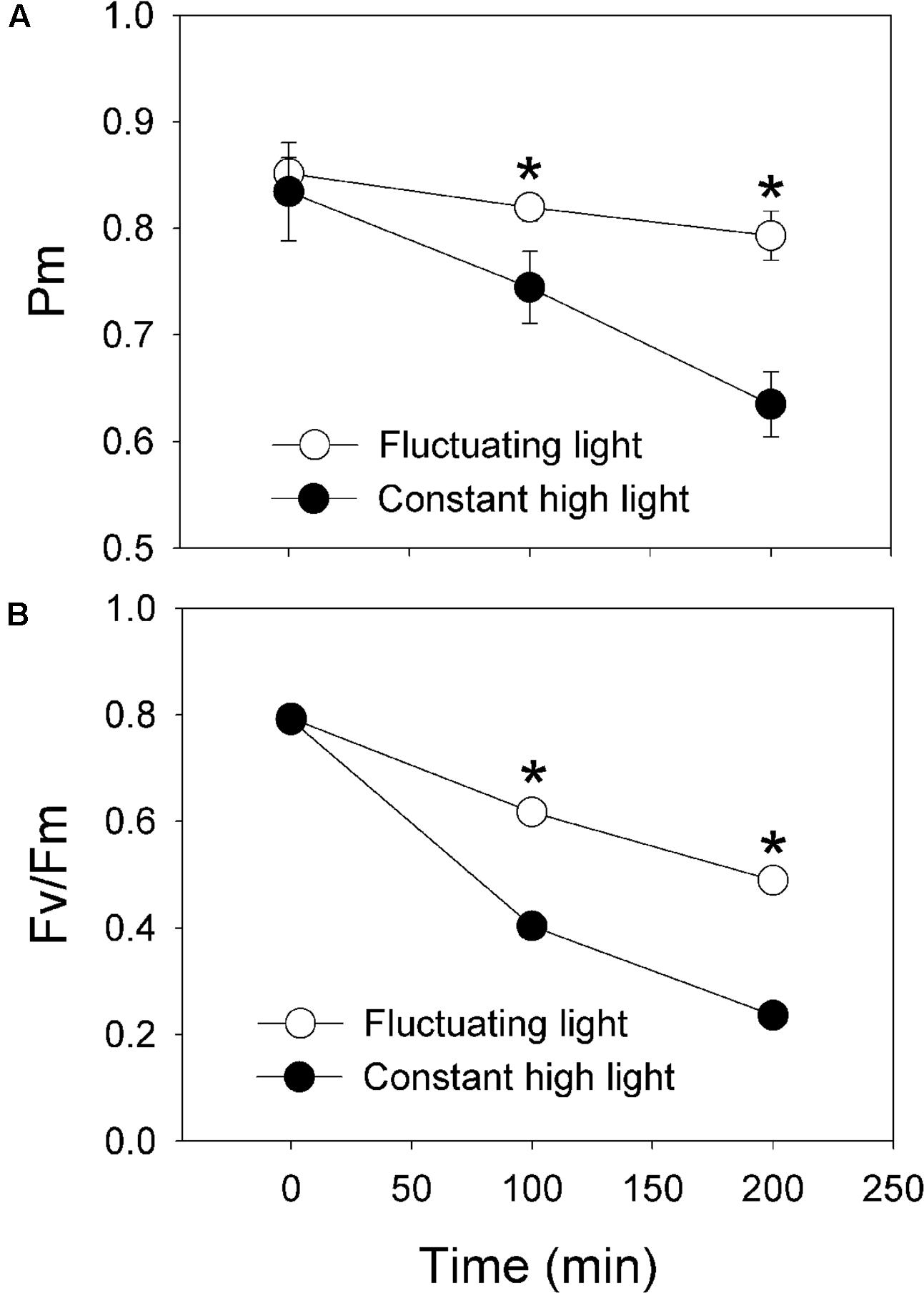

FIGURE 5
Discussion
Photosystem I activity plays important roles in sustaining photoprotection and plant growth (). Photoinhibition of PSI activity significantly affects photoprotection, CO2 assimilation rate, plant biomass (; ; ). Our previous studies indicated that PSI activity is sensitive to high light in a shade-establishing tropical tree species P. rubra, suggesting that photoinhibition of PSI is an important mechanism underlying why shade-establishing species cannot survive under high light (). Here, we examined the photosynthetic responses to fluctuating light in the shade-establishing tropical tree species P. henryi, a coexisting relative species of P. rubra. Interestingly, we found that PSI and PSII were insusceptible to moderate fluctuating light in P. henryi (Figure 2). However, constant high light led to significant decrease in PSI activity in P. henryi (Figure 5A). These results strongly indicate that PSI is a key determiner of photosynthetic acclimation to high light under fluctuating light or constant high light in the shade-establishing species P. henryi. Furthermore, photoinhibition of PSI and PSII was significantly stronger after treatment with constant high light than fluctuating light in P. henryi (Figure 5B), which is different from the phenomenon in model plant A. thaliana () and rice (). As a result, the underlying mechanism of PSI photoinhibition in P. henryi is probably different from A. thaliana and rice.
Response of Photosystem II to Fluctuating Light
We found that PSII activity was insusceptible to moderate fluctuating light in P. henryi (Figure 2). Photoinhibition of PSII occurs only when the rate of photodamage exceeds the rate of repair. After exposure to moderate fluctuating light (100 and 1294 μmol photons m-2 s-1 every 2 min) for 60 min, Fv/Fm only showed a little decrease in P. henryi (Figure 2), indicating that the photodamage induced by high-light (1294 μmol photons m-2 s-1) phases can be fast recovered at the subsequent low-light (100 μmol photons m-2 s-1) phases. Furthermore, this result suggested that exposure to 1294 μmol photons m-2 s-1 for 2 min hardly caused significant accumulation of ROS, because the repair of photodamaged PSII can be inhibited by ROS (, , ). Similarly, PSII photoinhibition was significantly stronger under constant high light than under fluctuating light (Figure 5B), indicating that the low-light phases significantly affect the extent of PSII photoinhibition. As indicated in Figure 1, the maximum value of ETRII was approximately 30 μmol electrons m-2 s-1, indicating the relatively low ability to utilize light energy in P. henryi. Furthermore, the value of 1 – qL was maintained at high levels when exposed to high light (Figure 3D), suggesting that the plastoquinone pool was over-reduced due to accumulation of reducing power in the photosynthetic electron transport system. As a result, PSII in P. henryi was very sensitive to constant high light (Figure 5B), owing to excess production of ROS (; ). Under fluctuating light, the reducing power accumulated during the high-light phases can be dissipated during the subsequent low-light phases, as indicated by the fast decrease of 1 – qL (Figures 1C,D). As a result, the low-light phases favor the scavenging of ROS and the fast repair of PSII. Additionally, the rate of PSII photodamage is dependent on light intensity (), and thus decreased at low-light phases. Under constant high light, the total incident light energy received by leaves is much higher than under fluctuating light, leading to stronger PSII photodamage and generation of ROS. Consequently, we assumed that the stronger PSII photoinhibition under constant high light was caused by the higher rate of PSII photodamage and the ROS-caused inhibition of PSII repair. By comparison, the low-light phases under fluctuating light diminished the rate of PSII photodamage and favored the repair of photodamaged PSII.
Response of Photosystem I to Fluctuating Light
At present, it is thought that cyclic electron flow around PSI (CEF) is essential for photosynthesis in angiosperm plants (, ; ; ; ). As indicated in A. thaliana, the redox state of the NADPH pool regulates PGR5-dependent CEF (; ; ). Under conditions in which the ration of NADP+/NADPH ratio decreases, PGR5-dependent CEF is activated to help the generation of ΔpH (), which favors ATP synthesis and photoprotection (; ; ; ; ; , ,). Impairment of PGR5-dependent CEF induces mortality of A. thaliana not only under high light (), but also under fluctuating light (). Therefore, based on these previous studies, CEF has been regarded as an essential mechanism sustaining photosynthesis and plant growth under conditions of high light and fluctuating light (). On the other hand, it has been believed that wild-type plants are capable of protecting photosystem I (PSI) under high light or fluctuating light. In the studies of P. henryi species, CEF was significantly activated under high light, as indicated by the values of ETRI, ETRII, Y(ND), and Y(NA) (Figure 1). However, it also showed significantly PSI photoinhibition after treatment with constant high light (Figure 5A). Furthermore, recent studies found that PSI photoinhibition also occurred in wild-type of A. thaliana () and rice () after exposure to fluctuating light, and in a shade-establishing species P. rubra (). These results indicated that CEF cannot completely prevent PSI photoinhibition in some wild-type plants.
We found that, PSI was sensitive to constant high light in the shade-establishing tropical tree species P. henryi (Figure 5A), whereas short-term fluctuating light hardly inactivated PSI activity (Figures 2 and 5A). As a result, PSI is a key determiner of photosynthetic responses to fluctuating light and constant high light in P. henryi. These results are largely opposite to the phenomenon in the pgr5 plants of both A. thaliana and rice, in which PSI is more susceptible to fluctuating light than to constant high light (; ). The high-light induced PSI photoinhibition in pgr5 plants occurs mainly due to over-reduction of P700 reaction centers (, ). Recently, another mechanism of PSI photoinhibition in pgr5 and crr6 plants has been proposed. In WT plants, CEF-dependent generation of ΔpH induces acidification of thylakoid lumen, as a result, photosynthetic electron flow from PSII to PSI via Cyt b6/f is depressed owing to “photosynthetic control” (; ; ). By comparison, our recent studies found that PSI photoinhibition is more related to the electron flow from PSII to PSI rather that P700 redox state in the shade-establishing tropical tree species P. rubra (, ). Therefore, the main mechanism of PSI photoinhibition largely differs between P. rubra and A. thaliana. Interestingly, the response of PSI to fluctuating light and constant high light in the studied P. henryi species also differs from that of A. thaliana, implying the different mechanism of PSI photoinhibition between P. henryi and A. thaliana.
Under high light, P700 redox state plays an important role in determining the sensitivity of PSI to photoinhibition in model plant A. thaliana (; ). In pgr5 and crr6 plants of rice, the PSI reaction centers remained fully reduced during the high-light phases, whereas in the WT plants, the PSI reaction centers became normally oxidized when transited to high light (). In the present studied P. henryi species, the occurrence of PSI photoinhibition under constant high light was accompanied with high levels of P700 oxidation ratio (Figures 4B and 5A). As a result, unlike pgr5 plants of A. thaliana, PSI photoinhibition is less related to P700 oxidation ratio in P. henryi. This result is consistent with our recent studies on a coexisting relative P. rubra species, in which PSI photoinhibition under high light is mainly determined by the electron flow from PSII to PSI (). Under fluctuating light, the values of 1 – qL decreased quickly to low levels during the low-light phases (Figures 1C and 3D), indicating that the reducing power that accumulates during high-light phases can be dissipated quickly during the subsequent low-light phases. As a result, the ROS production was diminished during the low-light phases, and then over-accumulation of ROS was avoided in P. henryi, which was confirmed by the stability of PSI and PSII after treatment with moderate fluctuating light for 60 min (Figure 2). Under constant high light, the total incident light energy that leaves receive is much higher than that receive under fluctuating light. And the over-reduction of photosynthetic electron chains, as indicated by high levels of 1 – qL, induced the production and accumulation of ROS and then aggravated PSII photoinhibition (Figure 5B). Based on the results of stronger PSI and PSII photoinhibition under constant high light than under fluctuating light (Figure 5A), we propose that PSI photoinhibition in P. henryi is largely dependent on the accumulation of ROS. In other words, the two coexisting relative shade-establishing species P. henryi and P. rubra probably have the same mechanism of PSI photoinhibition under high light.
As discussed above, ROS are responsible for the photoinhibition of PSI in P. henryi. The significant PSI photoinhibition under high light indicated that ROS generated under high light could not be scavenged quickly by anti-oxidative enzymes, leading to accumulation of ROS. This implies the insufficient capacity of the anti-oxidative system in the chloroplast in shade-establishing plants. As a result, future studies are still needed to examine the relationship between high-light-induced PSI photoinhibition and the capacity of anti-oxidative system in shade-establishing species. Although PSI photoinhibition is inevitable in the shade-establishing species P. henryi and P. rubra, PSI photoinhibition also represent some kind of protective mechanisms against long lasting over-reduction of PSI acceptor side, diminishing production of enormous quantity of ROS and preventing extensive damage of cell structures and cell death in stress conditions (). As a result, PSI photoinhibition may be a protective response in shade-establishing species when exposed to short-term constant high light stress.
Physiological Roles of CEF in Shade-Establishing Species
In the model plant A. thaliana, the physiological functions of CEF under constant high light and fluctuating light have been clarified (, ; ; ; ; ). CEF plays a central role in the regulation of linear electron flow via the down-regulation of the Cyt b6/f complex upon generation of ΔpH. In pgr5-plants of A. thaliana, treatment with constant high light for several hours leads to severe photodamage of PSI (; ) and PSII (). Moreover, PSI is very susceptible to fluctuating light in pgr5-plants of both A. thaliana and rice (; ; ). In two light-demanding tropical tree species Erythrophleum guineense and Khaya ivorensis, CEF was flexibly modulated during daytime under fluctuating light conditions and then PSI activity was maintained stable during the daytime (). Here, in the shade-establishing P. henryi species, the activation of CEF during high-light phases induced the rapid formation of ΔpH (i.e., NPQ) across the thylakoid membranes within 1 min (Figure 1), prevents PSI and PSII photoinhibition from moderate fluctuating light (100 and 1294 μmol photons m-2 s-1 every 2 min for 60 min). These results suggest that CEF is critical for photosynthetic acclimation to fluctuating light in both light-demanding and shade-establishing plants. Under constant high light, PSI photoinhibition can be avoided owing to the activation of CEF in light-demanding plants. However, CEF cannot completely prevent PSI photoinhibition in shade-establishing species such as P. henryi (Figure 5A) and P. rubra (, ).
Conclusion
In the present study, we examined the responses of PSI and PSII to fluctuating light and constant high light in the shade-establishing tropical tree species P. henryi. The stability of PSI and PSII activities under moderate fluctuating light (Figures 1 and 2) strongly indicated that shade-establishing species have the ability to avoid photoinhibition during the period of short-term light spot. The significantly stronger photoinhibition of PSI and PSII under constant high light indicated that the mechanisms of PSI photoinhibition in P. henryi are different from A. thaliana and rice. In P. henryi, PSI photoinhibition is more related to the accumulation of ROS rather than to P700 redox state, which is similar to its relative P. rubra species (). Furthermore, our results confirm the important roles of CEF in photosynthetic acclimation to fluctuating light.
Statements
Author contributions
WH and S-BZ conceived and designed research. WH and Y-JY conducted experiments. WH and Y-JY analyzed data. WH, HH, and S-BZ wrote the manuscript.
Acknowledgments
This work was supported by National Natural Science Foundation of China (grant 31300332), China Postdoctoral Science Foundation to WH (2014T70892) and an open fund from Key Laboratory of Tropical Forest Ecology, Xishuangbanna Tropical Botanical Garden, Chinese Academy of Sciences.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The reviewer MR and handling Editor declared their shared affiliation, and the handling Editor states that the process nevertheless met the standards of a fair and objective review.
References
1
AllakhverdievS. I.MurataN. (2004). Environmental stress inhibits the synthesis de novo of proteins involved in the photodamage-repair cycle of photosystem II in Synechocystis sp. PCC 6803.Biochim. Biophys. Acta165723–32.
2
AroE. M.VirginI.AnderssonB. (1993). Photoinhibition of photosystem II. Inactivation, protein damage and turnover.Biochim. Biophys. Acta1143113–134. 10.1016/0005-2728(93)90134-2
3
AsadaK. (1999). The water-water cycle in chloroplasts: scavenging of active oxygens and dissipation of excess photons.Annu. Rev. Plant Biol.50601–639. 10.1146/annurev.arplant.50.1.601
4
BarberJ.AnderssonB. (1992). Too much of a good thing: light can be bad for photosynthesis.Trends Biochem. Sci.1761–66. 10.1016/0968-0004(92)90503-2
5
BarthC.KrauseG. H. (1999). Inhibition of photosystem I and II in chilling-sensitive and chilling-tolerant plants under light and low-temperature stress.Z Naturforsch.54c645–657.
6
BarthC.KrauseG. H.WinterK. (2001). Responses of photosystem I compared with photosystem II to high-light stress in tropical shade and sun leaves.Plant Cell Environ.24163–176. 10.1111/j.1365-3040.2001.00673.x
7
BendallD. S.ManasseR. S. (1995). Cyclic photophosphorylation and electron transport.Biochim. Biophys. Acta122923–38. 10.1016/0005-2728(94)00195-B
8
BresticM.ZivcakM.KunderlikovaK.AllakhverdievS. I. (2016). High temperature specifically affects the photoprotective responses of chlorophyll b-deficient wheat mutant lines.Photosynth. Res.10.1007/s11120-016-0249-7[Epub ahead of print].
9
BresticM.ZivcakM.KunderlikovaK.SytarO.ShaoH.KalajiH. M.et al (2015). Low PSI content limits the photoprotection of PSI and PSII in early growth stages of chlorophyll b-deficient wheat mutant lines.Photosynth. Res.125151–166. 10.1007/s11120-015-0093-1
10
ChauxF.PeltierG.JohnsonX. (2015). A security network in PSI photoprotection: regulation of photosynthetic control, NPQ and O2 photoreduction by cyclic electron flow.Front. Plant Sci.6:875. 10.3389/fpls.2015.00875
11
GentyB.BriantaisJ. M.BakerN. R. (1989). The relationship between the quantum yield of photosynthetic electron transport and quenching of chlorophyll fluorescence.Biochim. Biophys. Acta99087–92. 10.1016/S0304-4165(89)80016-9
12
HavauxM.DavaudA. (1994). Photoinhibition of photosynthesis in chilled potato leaves is not correlated with a loss of photosystem-II activity – preferential inactivation of photosystem I.Photosynth. Res.4075–92. 10.1007/BF00019047
13
HendricksonL.FurbankR. T.ChowW. S. (2004). A simple alternative approach to assessing the fate of absorbed light energy using chlorophyll fluorescence.Photosynth. Res.8273–81. 10.1023/B:PRES.0000040446.87305.f4
14
HuangW.FuP. L.JiangY. J.ZhangJ. L.ZhangS. B.HuH.et al (2013). Differences in the responses of photosystem I and photosystem II of three tree species Cleistanthus sumatranus, Celtis philippensis and Pistacia weinmannifolia submitted to a prolonged drought in a tropical limestone forest.Tree Physiol.33211–220. 10.1093/treephys/tps132
15
HuangW.YangY. J.HuH.CaoK. F.ZhangS. B. (2016a). Sustained diurnal stimulation of cyclic electron flow in two tropical tree species Erythrophleum guineense and Khaya ivorensis.Front. Plant Sci.7:1068. 10.3389/fpls.2016.01068
16
HuangW.YangY. J.HuH.ZhangS. B. (2015a). Different roles of cyclic electron flow around photosystem I under sub-saturating and saturating light intensities in tobacco leaves.Front. Plant Sci.6:923. 10.3389/fpls.2015.00923
17
HuangW.YangY. J.HuH.ZhangS. B. (2016c). Moderate photoinhibition of photosystem II protects photosystem I from photodamage at chilling stress in tobacco leaves.Front. Plant Sci.7:182. 10.3389/fpls.2016.00182
18
HuangW.YangY. J.HuH.ZhangS. B.CaoK. F. (2016b). Evidence for the role of cyclic electron flow in photoprotection for oxygen-evolving complex.J. Plant Physiol.19454–60. 10.1016/j.jplph.2016.02.016
19
HuangW.YangY. J.ZhangJ. L.HuH.ZhangS. B. (2016d). PSI photoinhibition is more related to electron transfer from PSII to PSI rather than PSI redox state in Psychotria rubra.Photosynth. Res.12985–92. 10.1007/s11120-016-0275-5
20
HuangW.ZhangS. B.CaoK. F. (2010a). Stimulation of cyclic electron flow during recovery after chilling-induced photoinhibition of PSII.Plant Cell Physiol.511922–1928. 10.1093/pcp/pcq144
21
HuangW.ZhangS. B.CaoK. F. (2010b). The different effects of chilling stress under moderate illumination on photosystem II compared with photosystem I and subsequent recovery in tropical tree species.Photosynth. Res.103175–182. 10.1007/s11120-010-9539-7
22
HuangW.ZhangS.-B.ZhangJ. L.HuH. (2015b). Photoinhibition of photosystem I under high light in the shade-established tropical tree species Psychotria rubra.Front. Plant Sci.6:801. 10.3389/fpls.2015.00801
23
JohnsonG. N. (2005). Cyclic electron transport in C3 plants: fact or artefact?J. Exp. Bot.56407–416. 10.1093/jxb/eri106
24
KitaoM.LeiT. T.KoikeT.TobitaH.MuruyamaY. (2000). Susceptibility to photoinhibition of three deciduous broadleaf tree species with different successional traits raised under various light regimes.Plant Cell Environ.2381–89. 10.1046/j.1365-3040.2000.00528.x
25
KlüghammerC.SchreiberU. (1994). An improved method, using saturating light pulses, for the determination of photosystem I quantum yield via P700+-absorbance changes at 830 nm.Planta192261–268. 10.1007/BF01089043
26
KlüghammerC.SchreiberU. (2008). Saturation pulse method for assessment of energy conversion in PSI.PAM Appl. Notes111–14.
27
KonoM.NoguchiK.TerashimaI. (2014). Roles of the cyclic electron flow around PSI (CEF-PSI) and O2-dependent alternative pathways in regulation of the photosynthetic electron flow in short-term fluctuating light in Arabidopsis thaliana.Plant Cell Physiol.55990–1004. 10.1093/pcp/pcu033
28
KramerD. M.JohnsonG.KiiratsO.EdwardsG. E. (2004). New fluorescence parameters for the determination of QA redox state and excitation energy fluxes.Photosynth. Res.79209–218.
29
KudohH.SonoikeK. (2002). Irreversible damage to photosystem I by chilling in the light: cause of the degradation of chlorophyll after returning to normal growth temperature.Planta215541–548. 10.1007/s00425-002-0790-9
30
MunekageY.HashimotoM.MiyakeC.TomizawaK.-I.EndoT.TasakaM.et al (2004). Cyclic electron flow around photosystem I is essential for photosynthesis.Nature429579–582. 10.1038/nature02598
31
MunekageY.HojoM.MeurerJ.EndoT.TasakaM.ShikanaiT. (2002). PGR5 is involved in cyclic electron flow around photosystem I and is essential for photoprotection in Arabidopsis.Cell110361–371. 10.1016/S0092-8674(02)00867-X
32
MurataN.TakahashiS.NishiyamaY.AllakhverdievS. I. (2007). Photoinhibition of photosystem II under environmental stress.Biochim. Biophys. Acta1767414–421. 10.1016/j.bbabio.2006.11.019
33
NishikawaY.YamamotoH.OkegawaY.WadaS.SatoN.TairaY.et al (2012). PGR5-dependent cyclic electron transport around PSI contributes to the redox homeostasis in chloroplasts rather than CO2 fixation and biomass production in rice.Plant Cell Physiol.532117–2126. 10.1093/pcp/pcs153
34
NishiyamaY.AllakhverdievS. I.MurataN. (2005). Inhibition of the repair of photosystem II by oxidative stress in cyanobacteria.Photosynth. Res.841–7. 10.1007/s11120-004-6434-0
35
NishiyamaY.AllakhverdievS. I.MurataN. (2011). Protein synthesis is the primary target of reactive oxygen species in the photoinhibition of photosystem II.Physiol. Plant.14235–46. 10.1111/j.1399-3054.2011.01457.x
36
NishiyamaY.YamamotoH.AllakhverdievS. I.InabaM.YokotaA.MurataN. (2001). Oxidative stress inhibits the repair of photodamage to the photosynthetic machinery.EMBO J.205587–5594. 10.1093/emboj/20.20.5587
37
OkegawaY.KagawaY.KobayashiY.ShikanaiT. (2008). Characterization of factors affecting the activity of photosystem I cyclic electron transport in chloroplasts.Plant Cell Physiol.49825–834. 10.1093/pcp/pcn055
38
SonoikeK. (1995). Selective photoinhibition of photosystem I in isolated thylakoid membranes from cucumber and spinach.Plant Cell Physiol.36825–830.
39
SonoikeK. (2011). Photoinhibition of photosystem I.Physiol. Plant.14256–64. 10.1111/j.1399-3054.2010.01437.x
40
SunZ. L.LeeH. Y.MatsubaraS.HopeA. B.PogsonB. J.HongY. N.et al (2006). Photoprotection of residual functional photosystem II units that survive illumination in the absence of repair, and their critical role in subsequent recovery.Physiol. Plant.128415–424. 10.1111/j.1399-3054.2006.00754.x
41
SuorsaM. (2015). Cyclic electron flow provides acclimatory plasticity for the photosynthetic machinery under various environmental conditions and developmental stages.Front. Plant Sci.6:800. 10.3389/fpls.2015.00800
42
SuorsaM.JarviS.GriecoM.NurmiM.PietrzykowskaM.RantalaM.et al (2012). PROTON GRADIENT REGULATION5 is essential for proper acclimation of Arabidopsis photosystem I to naturally and artificially fluctuating light conditions.Plant Cell242934–2948. 10.1105/tpc.112.097162
43
TakahashiS.MilwardS. E.FanD. Y.ChowW. S.BadgerM. R. (2009). How does cyclic electron flow alleviate photoinhibition in Arabidopsis?Plant Physiol.1491560–1567. 10.1104/pp.108.134122
44
TerashimaI.FunayamaS.SonoikeK. (1994). The site of photoinhibition in leaves of Cucumis-sativus L. at low temperatures is photosystem I, not photosystem II.Planta193300–306. 10.1007/BF00192544
45
TikkanenM.AroE. M. (2014). Integrative regulatory network of plant thylakoid energy transduction.Trends Plant Sci.1910–17. 10.1016/j.tplants.2013.09.003
46
TikkanenM.MekalaN. R.AroE. M. (2014). Photosystem II photoinhibition-repair cycle protects Photosystem I from irreversible damage.Biochim. Biophys. Acta1837210–215. 10.1016/j.bbabio.2013.10.001
47
TikkanenM.RantalaS.AroE. M. (2015). Electron flow from PSII to PSI under high light is controlled by PGR5 but not by PSBS.Front. Plant Sci.6:521. 10.3389/fpls.2015.00521
48
WalkerB. J.StrandD. D.KramerD. M.CousinsA. B. (2014). The response of cyclic electron flow around photosystem I to changes in photorespiration and nitrate assimilation.Plant Physiol.165453–462. 10.1104/pp.114.238238
49
YamoriW.MakinoA.ShikanaiT. (2016). A physiological role of cyclic electron transport around photosystem I in sustaining photosynthesis under fluctuating light in rice.Sci. Rep.6:20147. 10.1038/srep20147
50
YamoriW.SakataN.SuzukiY.ShikanaiT.MakinoA. (2011). Cyclic electron flow around photosystem I via chloroplast NAD(P)H dehydrogenase (NDH) complex performs a significant physiological role during photosynthesis and plant growth at low temperature in rice.Plant J.68966–976. 10.1111/j.1365-313X.2011.04747.x
51
YamoriW.ShikanaiT. (2016). Physiological functions of cyclic electron transport around photosystem I in sustaining photosynthesis and plant growth.Annu. Rev. Plant Biol.6781–106. 10.1146/annurev-arplant-043015-112002
52
ZhangS. P.SchellerH. V. (2004). Photoinhibition of photosystem I at chilling temperature and subsequent recovery in Arabidopsis.Plant Cell Physiol.451595–1602. 10.1093/pcp/pch180
53
ZivcakM.BresticM.KunderlikovaK.SytarO.AllakhverdievS. I. (2015). Repetitive light pulse-induced photoinhibition of photosystem I severely affects CO2 assimilation and photoprotection in wheat leaves.Photosynth. Res.126449–463. 10.1007/s11120-015-0121-1
Summary
Keywords
constant high light, fluctuating light, PSI photoinhibition, excess excitation energy, shade-establishing species
Citation
Huang W, Yang Y-J, Hu H and Zhang S-B (2016) Responses of Photosystem I Compared with Photosystem II to Fluctuating Light in the Shade-Establishing Tropical Tree Species Psychotria henryi. Front. Plant Sci. 7:1549. doi: 10.3389/fpls.2016.01549
Received
11 July 2016
Accepted
03 October 2016
Published
17 October 2016
Volume
7 - 2016
Edited by
Suleyman I. Allakhverdiev, Russian Academy of Sciences, Russia
Reviewed by
Xinguang Zhu, University of Chinese Academy of Sciences, China; Marek Zivcak, Slovak University of Agriculture, Slovakia; Margarita Rodionova, Russian Academy of Sciences, Russia
Updates
Copyright
© 2016 Huang, Yang, Hu and Zhang.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Wei Huang, huangwei@mail.kib.ac.cn Shi-Bao Zhang, sbzhang@mail.kib.ac.cn
This article was submitted to Plant Physiology, a section of the journal Frontiers in Plant Science
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
