Abstract
Mechanical wounding is a common stress caused by herbivores or manual and natural manipulations, whereas its roles in acclimation response to a wide spectrum of abiotic stresses remain unclear. The present work showed that local mechanical wounding enhanced freezing tolerance in untreated systemic leaves of wheat plants (Triticum aestivum L.), and meanwhile the signal molecules hydrogen peroxide (H2O2) and nitric oxide (NO) were accumulated systemically. Pharmacological study showed that wounding-induced NO synthesis was substantially arrested by pretreatment with scavengers of reactive oxygen species and an inhibitor of NADPH oxidase (respiratory burst oxidase homolog, RBOH). On the contrary, wounding-induced H2O2 accumulation was not sensitive to NO synthetic inhibitors or scavenger, indicating that H2O2 acts upstream of NO in wounding signal transduction pathways. Cytochemical and vascular tissues localizations approved that RBOH-dependent H2O2 acts as long-distance signal in wounding response. Transcriptome analysis revealed that 279 genes were up-regulated in plants treated with wounding and freezing, but not in plants treated with freezing alone. Importantly, freezing- and wounding-induced genes were significantly enriched in the categories of “photosynthesis” and “signaling.” These results strongly supported that primary mechanical wounding can induce freezing tolerance in wheat through the systemic accumulation of NO and H2O2, and further modifications in photosystem and antioxidant system.
Introduction
As one of the major abiotic stresses, freezing causes adverse effects on crop physiological and metabolic processes (; ; ). Freezing is also a factor that causes agronomic yield losses under global climate change (). The production of winter wheat (Triticum aestivum L.) can be considerably destroyed by untimely frost or cold spell in later spring (; ). As yet, the effects of freezing stress on crop production and mechanisms of freezing tolerance have been widely studied (; ; ; ). However, the strategies of alleviating the negative effects of freezing stress and the potential mechanisms are still far from clear.
Hydrogen peroxide (H2O2), one of the reactive oxygen species (ROS), acts as a central signal molecule that mediates plant abiotic resistance by enhancing the transcription of stress-responsive genes and antioxidant capacity especially in response to freezing stress (; ; ). H2O2 has also been implicated in the perception and transduction of stimuli signals to mediate plant physiological processes directly through long-distance signaling or indirectly through NADPH oxidase (respiratory burst oxidase homolog, RBOH) in various species (; ; ). In recent years, nitric oxide (NO) has drawn many attentions due to its integral role in response to various abiotic stresses such as freezing, wounding, salinity, metal toxicity, and UV (; ; ; ; ). The cross-talk between H2O2 and NO in response to abiotic or biotic stresses is still in debate. NO causes rapid H2O2 accumulation when exposing plants to herbivore attacks, ozone or Tobacco Mosaic Virus infection, pointing out that NO acts upstream of H2O2 (; ; ). Reversely, H2O2 regulates NO in response to abscisic acid (ABA) induced stomatal closure and aphids infestation (; ). A deep investigation of the relationship between H2O2 and NO thus becomes a very fruitful avenue to uncover the underlying mechanisms that plants respond to various abiotic stresses.
Systemic acquired acclimation (SAA) has emerged as a protection mechanism against various abiotic stimuli, including heat, cold, high light, UV, and salinity in plants (; ; ). Calcium waves, hydraulic waves, and electric signals are supposed to be early signals involved in this response. SAA, which is accompanied by a long-distance signaling response, cannot be induced without the participation of H2O2 and NO (; ; ). Mechanical wounding, which is induced by biotic (e.g., herbivore attack and pathogens infection) and abiotic (e.g., raining, wind, touching, and hailing) factors in plants, exists widely in nature. Wounding induces numerous abiotic stress responses in untreated leaves or tissues involved in SAA (; ; ; ). H2O2 and NO participate as pivotal signal messengers in response to wounding (; ; ; ), whereas their roles in wounding-induced adaptation responses to abiotic stresses are barely reported in the literatures. In consideration of the roles of H2O2 and NO in wounding response and the alleviation effects on freezing stress, it would be of great interest to investigate whether H2O2 and NO are pivotal hubs involved in wounding-induced freezing tolerance in untreated systemic leaves.
In our previous study, we have shown that mechanical stimulation is associated with cold responses in wheat by modifications in the chloroplast antioxidant system and proteome changes under field condition (). However, its in-depth mechanism remains obscure. This study was designed to investigate the mechanisms underlying the alleviation effects of mechanical wounding on freezing stress in untreated systemic leaves of wheat plants as well as the signaling transduction of wounding-induced H2O2 and NO between these leaves.
Materials and Methods
Plant Materials
Uniform seeds of winter wheat (Triticum aestivum L. cv. Yangmai 16) were selected. Seeds were surface-sterilized using 2.5% sodium hypochlorite for 10 min, rinsed five times with sterile distilled water and germinated in vermiculite. When the second leaf fully expanded, plants were transferred to plastic containers (45 cm in length, 35 cm in width, and 18 cm in height) with Hoagland’s nutrient solution for hydroponic culture with the following experimental conditions: air temperature of 25°C/18°C (day/night), a photoperiod of 14/10 h (day/night), a constant humidity of 80–90% and a photosynthetic photon flux density (PPFD) of around 600 μmol m-2s-1. The solution was renewed daily and bubbled over the whole experimental period. Upon the appearance of the sixth fully expanded leaves (six-leaf stage), they were used for the experiment.
Experimental Design
Responses of Wheat Plants to Freezing Stress after Mechanical Wounding
To determine the effect of mechanical wounding on resistance to freezing stress, the fourth leaves (we termed local leaves) from the bottom of seedlings at the six-leaf stage were wounded according to the methods of and with appropriate modifications. The main vein in the center of the fourth leaves was crushed five times with a hemostat and the interval of each injury was 10 mm. The strength of the crushing was made uniformly to each plant. Wounding did not cause any visible alterations such as necrosis around the injuries. Both wounded and unwounded plants were then divided into two equal groups for normal or low temperature treatments after 12 h of the wounding events. The freezing stress was conducted in the climate chamber at -2°C, while the normal temperature treatment was conducted in another chamber at 25°C. The photoperiod was set at 12/12 h (day/night) and PPFD was set at 600 μmol m-2s-1 during the day time.
The maximal photochemical efficiency of photosystem II (Fv/Fm), net photosynthetic rate (Pn), malondialdehyde (MDA) content and relative electrolyte conductivity (REC) were determined by the fifth leaves (we termed systemic leaves) as area of interest after 24 h freezing stress. In order to investigate the time-course of antioxidant system in response to mechanical wounding, the local leaves were prior wounded, then the local and systemic leaves of wounded and untreated plants were immediately harvested in liquid nitrogen at indicated times from 0 to 96 h to determine the activities of antioxidant enzymes.
Effect of H2O2 and NO on Freezing Tolerance Induced by Mechanical Wounding
To detect the involvement of H2O2 and NO in wounding-induced freezing tolerance, the systemic leaves were firstly foliar applied with 200 μM sodium nitroprusside (SNP, a NO donor), 200 μM NG-nitro-L-Arg methyl ester (L-NAME, an inhibitor of NOS-type enzyme), 200 μM tungstate (an inhibitor of NR), 200 μM 2-(4-Carboxyphenyl)-4,4,5,5-tetramethylimidazoline-1-oxyl 3-oxide (c-PTIO, a specific NO scavenger), 5 mM dimethylthiourea (DMTU, a H2O2 and OH⋅ scavenger) or 100 μM diphenyleneiodonium (DPI, a RBOH inhibitor). After 8 h full absorption, the local leaves were wounded as mentioned above. After a time interval of 12 h, one batch of the local and systemic leaves was collected and the activities of antioxidant enzymes as well as the expressions of their corresponding genes were analyzed. The other batch of the plants was exposed to freezing stress at -2 C for 24 h. Fv/Fm was then measured at 24 h on the systemic leaves. For time-course analysis of mechanical wounding and SNP induced changes in the tolerance to freezing stress, the local leaves were first treated with distilled water, 200 μM SNP or wounded. Freezing was started at indicated times by challenged at -2°C as mentioned above after water, SNP or wounding treatment. Fv/Fm was then determined by the systemic leaves after 24 h freezing stress.
The Relation of H2O2 and NO, and Their Sources in Response to Mechanical Wounding
To investigate the interrelation of wounding-induced H2O2 and NO, the local leaves were pre-treated with 200 μM L-NAME, 200 μM tungstate, 200 μM c-PTIO, 5 mM DMTU, or 100 μM DPI. Eight hours after spraying, the local leaves were wounded as described previously. Three hours later, the local and systemic leaves were used for cytochemical and histochemical detection or chemical quantification of H2O2 and NO. In addition, the local and systemic of wounded leaves as well as their corresponding control were collected at indicated times from 0 to 96 h after wounding treatment and used for the chemical quantification of H2O2 and NO. In order to investigate the sources of H2O2 and NO in response to wounding, one batch of the wounded and control leaves was collected at 3 and 18 h after wounding for analyzing the NR and NOS activities, while the other batch was harvested at 3 h for cytochemical detection of H2O2 and gene expression analysis of RBOH.
Leaf Net Photosynthetic Rate and Chlorophyll Fluorescence
Net photosynthetic rate (Pn) was determined on systemic leaves after 1 h recovery after freezing treatment, using a portable photosynthesis system (LI-6400; LI-Cor, Lincoln, NE, United States). The air temperature, relative humidity, ambient CO2 concentration and photosynthetically active radiation (PAR) used in the measurement were 25°C, 85%, 380 μmol mol-1 and 1000 μmol m-2s-1, respectively. Chlorophyll fluorescence was detected by an imaging system (CF Imager; Technologica Ltd., United Kingdom) as described in our previous research (). For the maximal photochemical efficiency of photosystem II (Fv/Fm), plants were dark-adapted for approximately 30 min before imaging and reading. Fv/Fm was imaged on systemic leaves with the whole leaf as area of interest and analyzed by the FluorImager software (Version 2.2; Technologica Ltd., United Kingdom).
NO Detection and Quantification
Endogenous NO level was in situ detected by imaging the fluorescence of 4,5-diaminofluorescein diacetate (DAF-2DA, a highly specific molecular probe for NO) as described by . Wheat leaf squares (10 mm) were incubated in the buffer solution containing 10 μM DAF-2DA (prepared in 20 mM HEPES-NaOH, pH 7.4) and vacuum-infiltrated for 3 h in darkness at 25°C, and then washed thoroughly with the same buffer for 10 min to remove excess fluorophore. Finally, the leaves were visualized with a confocal laser scanning microscope system (CLSM; TCS-SP2; Leica Lasertechnik GmbH, Heidelberg, Germany) (excitation 495 nm; emission 515 nm). NO content was further determined by following the conversion of oxyhemoglobin (HbO2) to methemoglobin (MetHb) at 401 nm and 421 nm with a hemoglobin method as described by .
ROS Histochemical Detection, Cytochemical Analysis, and Quantification
The histochemical staining of H2O2 production was monitored according to with some improvements. Leaf samples were immediately immersed in 1 mg mL-1 3,3′-diaminobenzidine (DAB) solution (prepared in 50 mM Tris-acetate, pH 3.8), vacuum-infiltrated for 10 min and incubated for 12 h at 25°C under light. Then the leaves were bleached in 95% (v/v) boiled alcohol for 10 min to visualize the brown spots. After cooling down, photographs were taken using a microscope (IX71, Olympus Co., Tokyo, Japan). The visual detection was monitored by the reaction of and nitro blue tetrazolium (NBT) as originally described by . In total, the leaves were maintained in 2 mM NBT solution (50 mM Tris-HCl buffer, pH 6.1) and incubated at 25°C in dark. After 8 h fully reaction, the leaves were bleached in 95% (v/v) boiled alcohol for 10 min prior to photographed.
H2O2 was also detected by a confocal laser scanning microscope system (CLSM; TCS-SP2; Leica Lasertechnik GmbH, Heidelberg, Germany) as mentioned by with minor modifications. For the fully absorption of the chemicals in the whole plant, the roots of the seedlings were incubated overnight in the climate chamber at 25°C with 25 μM 2′,7′-dichlorofluorescein diacetate (H2DCF-DA), prepared in 20 mM HEPES-NaOH (pH 7.4). The leaves and sheaths were sliced 3 h after each treatment with a couple of blades. The cross-sections were then washed with the 20 mM HEPES-NaOH (pH 7.4) buffer for 20 min to remove excess fluorophore. Then, the cross-sections were transferred to glass slides mounted in glycerol:phosphate-buffered saline (1:1 v/v) and immediately examined with a CLSM (excitation 488 nm; emission 525 nm).
The cytochemical localization of H2O2 was conducted using the cerium trichloride (CeCl3) staining protocol according to . The excised leaf tissue pieces (1–2 mm2) were incubated in freshly prepared 5 mM CeCl3 solution (50 mM 3-(N-mor-pholino) propanesulfonic acid (MOPS) buffer, pH 7.2) for 1 h. The leaf sections were then fixed in 1.25% (v/v) glutaraldehyde and 1.25% (v/v) paraformaldehyde buffer (50 mM sodium cacodylate, pH 7.2) for 8 h. After fixation, the tissues were washed twice in the same buffer and postfixed for 45 min in 1% (v/v) osmium tetroxide. Then the samples were dehydrated in a graded ethanol series (30–100%; v/v) and embedded in Eponaraldite (Agar Aids, Bishop’s Stortford, United Kingdom). After 12 h in pure resin, followed by a change of fresh resin for 4 h, the tissues were polymerized at 60°C for 48 h. The sections were then sectioned (70–90 nm) on a Reichert-Ultracut E microtome and mounted on uncoated copper grids (300 mesh). The blocks were ultimately examined at subcellular level using a transmission electron microscope (H7650; Hitachi, Tokyo, Japan) at an accelerating voltage of 80 kV.
The concentration of H2O2 was determined according to by monitoring the absorbance of titanium peroxide complex at 410 nm. production rate was measured according to at an absorbance at 530 nm.
Oxidative Damage Measurement
Leaf lipid peroxidation was determined by measuring the amount of MDA produced by the thiobarbituric acid (TCA) reaction as mentioned by . MDA content was calculated at 532 nm by subtracting the absorbance at 600 nm for non-MDA compounds. The electrolytic conductivity was conducted according to with a conductivity bridge (DDS-307A, LEX Instruments Co., Ltd., China) before (C1) and after (C2) the leaves were boiled for 30 min. REC was calculated by the equation as: REC = C1/C2∗100%.
NOS and NR Activity Assay
To assess NOS activity, the total protein was first measured as described by . NOS activity was then measured after centrifugation at 13,000 × g for 20 min at 4°C as in . Briefly, NOS activity was detected in 1 mL of reaction mixture containing 100 mM phosphate buffer (pH 7.0), 1 mM L-Arg, 2 mM MgCl2, 0.3 mM CaCl2, 4 μM BH4, 1 μM FAD, 1 μM flavin mononucleotide (FMN), 0.2 mM DTT, 0.2 mM NADPH and 200 μL of protein extract. The decrease in absorbance as a result of NADPH consumption was determined at 340 nm for 5 min. NOS activity was calculated using the extinction coefficient of NADPH.
The NR activity was assayed according to the method of with some modifications. NR activity was performed by mixing one volume of extract with five volumes of 25°C prewarmed assay buffer containing 100 mM HEPES-NaOH (pH 7.5), 5 mM KNO3, and 0.25 mM NADH. The reaction was started by the adding assay buffer, incubated at 25°C for 30 min, and then stopped by adding 0.1 M zinc acetate. After 15 min, the tubes were centrifuged at 13,000 g for 10 min. The nitrite produced was measured at 520 nm by adding 1 mL of 1% (w/v) sulfanilamide in 3 M HCl plus 1 mL of 0.02% (v/v) N-(1-naphthyl) – ethylenediamine in distilled water.
Antioxidant Enzyme Extraction and Activity Assay
Frozen leaf tissues (0.5 g FW) were ground in 5 mL ice-cold 25 mM HEPES-NaOH buffer (pH 7.8) containing 20% (v/v) glycerol, 1 mM EDTA, 1 mM ascorbic acid (AsA), 5 mM MgCl2, 1 mM reducing glutathione (GSH) and 1 mM DTT. The homogenates were centrifuged at 4°C for 20 min at 12,000 g and the resulting supernatants were collected for enzyme analysis. In addition, the protein content were determined as mentioned by . Superoxide dismutase (SOD) activity was determined by measuring the ability to inhibit the photochemical reduction of NBT according to . One unit of SOD activity was defined as the amount of enzyme required to cause 50% inhibition of the reduction of NBT at 560 nm. Catalase (CAT) activity was assayed as a decrease at 240 nm following the method of . Ascorbate peroxidase (APX) activity was performed by a decline at 290 nm as previously described () with minor modifications. Glutathione reductase (GR) activity was modified depending on the rate of decrease in the absorbance of NADPH at 340 nm as originally described by .
Extraction of Total RNA and Semi-quantitative RT-PCR Analysis
Total RNA was isolated from wheat leaves using the Trizol reagent according to the procedure supplied by the manufacturer and dissolved in diethyl pyrocarbonate-treated water after extraction. The first-strand cDNA template for RT-PCR was synthesized from 2 μg of total RNA following the manufacturer’s instructions (Sangon, Shanghai, China). The RT-PCR were performed using 2 μL two-fold diluted cDNA, 10 pmol of each oligo nucleotide primer and 1 U of Taq polymerase (Takara, Dalian, China) in 25 μL reaction solution. The gene-specific primers were constructed based on their cDNA sequences and were used for amplification as listed in Supplementary Table S1. The optimum PCR cycle number was adjusted for each gene in preliminary experiments. The aliquots of PCR products were loaded and separated onto agarose gels (2%) stained with ethidium bromide.
High-Throughput mRNA Sequencing Analysis
Four treatments of systemic leaves: control (ck), 3 h after wounding (wo), 24 h after freezing (fr) and 3 h wounding + 24 h freezing (wo_fr) were collected and total RNA was extracted as mentioned above for library construction and mRNA sequencing. The mRNA sequencing analysis was conducted in Shanghai Center for Plant Stress Biology, Chinese Academy of Sciences. Reads of RNA-seq data were mapped to wheat reference genome (Triticum_aestivum. TGACv1.30). Differentially expressed genes were defined based on the default of Cuffdiff (used for analyzing transcriptome assembly and differential expression of RNA-Seq in this paper). All results were average of three biological replicates. GO enrichment analysis was performed by AgriGO. The histogram was generated using R1. Raw Illumina sequences and assembled sequences are available in the Gene Expression Omnibus (GEO) database of the National Center for Biotechnology Information (NCBI) (accession number: SRP110839).
Statistical Analyses
Data were statistically analyzed by the SPSS software (version 11.0; SPSS Inc., Chicago, IL, United States). One-way ANOVA was used on the data sets and tested for significant (P < 0.05 and P < 0.01) treatment differences using Tukey’s test.
Results
Wounding Induces Freezing Tolerance Systemically in Wheat Plants
Our first objective of this study was to determine whether mechanical wounding enhances freezing tolerance in wheat seedlings. Local leaves were prior wounded and the whole plants were further subjected to a 24 h freezing stress. Fluorescence images revealed that freezing treatment markedly decreased Fv/Fm in the fifth leaves from the bottom of the wheat plants (called systemic leaves) in unwounded plants compared to control (Figure 1A). Nevertheless, prior wounded plants sharply restored in Fv/Fm of systemic leaves in response to freezing stress. Besides, net photosynthetic rate (Pn) was determined after 24 h freezing treatment to assess the effect of mechanical wounding on freezing tolerance. Freezing stress caused a significant reduction in Pn in untreated plants. Local mechanical wounding alleviated freezing stress in systemic leaves accompanied by increased Pn compared to unwounded plants. In addition, mechanical wounding has no influence on Pn in wounded-only plants compared to that of control (Figure 1A).
FIGURE 1
We also examined the role of mechanical wounding in plant responses to freezing stress by comparing the REC and lipid peroxidation based on the MDA content after 24 h freezing treatment. REC and MDA content were remarkably increased by freezing stress in systemic leaves of unwounded plants whereas those in local wounded plants were declined but were still maintained in a relative high level compared to that of control and wounded-only plants (Figure 1B), indicating that mechanical wounding plays dominant roles in reducing membrane lipid peroxidation under freezing stress. These results revealed a novel role of local mechanical wounding on enhancing tolerance to freezing stress systemically in wheat plants.
Involvement of H2O2 in Wounding-Induced NO Production
To detect the interaction of NO and H2O2 in response to mechanical wounding in wheat seedlings, we pre-treated the local leaves with L-NAME (an inhibitor of NOS), tungstate (an inhibitor of NR), c-PTIO (a specific NO scavenger), DPI (an inhibitor of RBOH), or DMTU (a H2O2 and OH⋅ scavenger) prior to wound treatment for 8 h. As shown in Figures 2A,B, pre-treatment of L-NAME, tungstate or c-PTIO almost completely blocked wounding-induced NO accumulation in local leaves. Again, pre-treatment of DMTU or DPI substantially reduced wounding-induced NO level. In contrast, pre-treatment of plants with DMTU or DPI thoroughly scavenged H2O2 and in local leaves as expected. In reverse, pre-treatment of L-NAME, tungstate or c-PTIO had no effects on H2O2 content and production rate (Figures 2B–D). Based on these observations, H2O2 appears to act upstream of NO in response to mechanical wounding. Namely, the generation of ROS including H2O2 and is essential for wounding-induced the accumulation of NO.

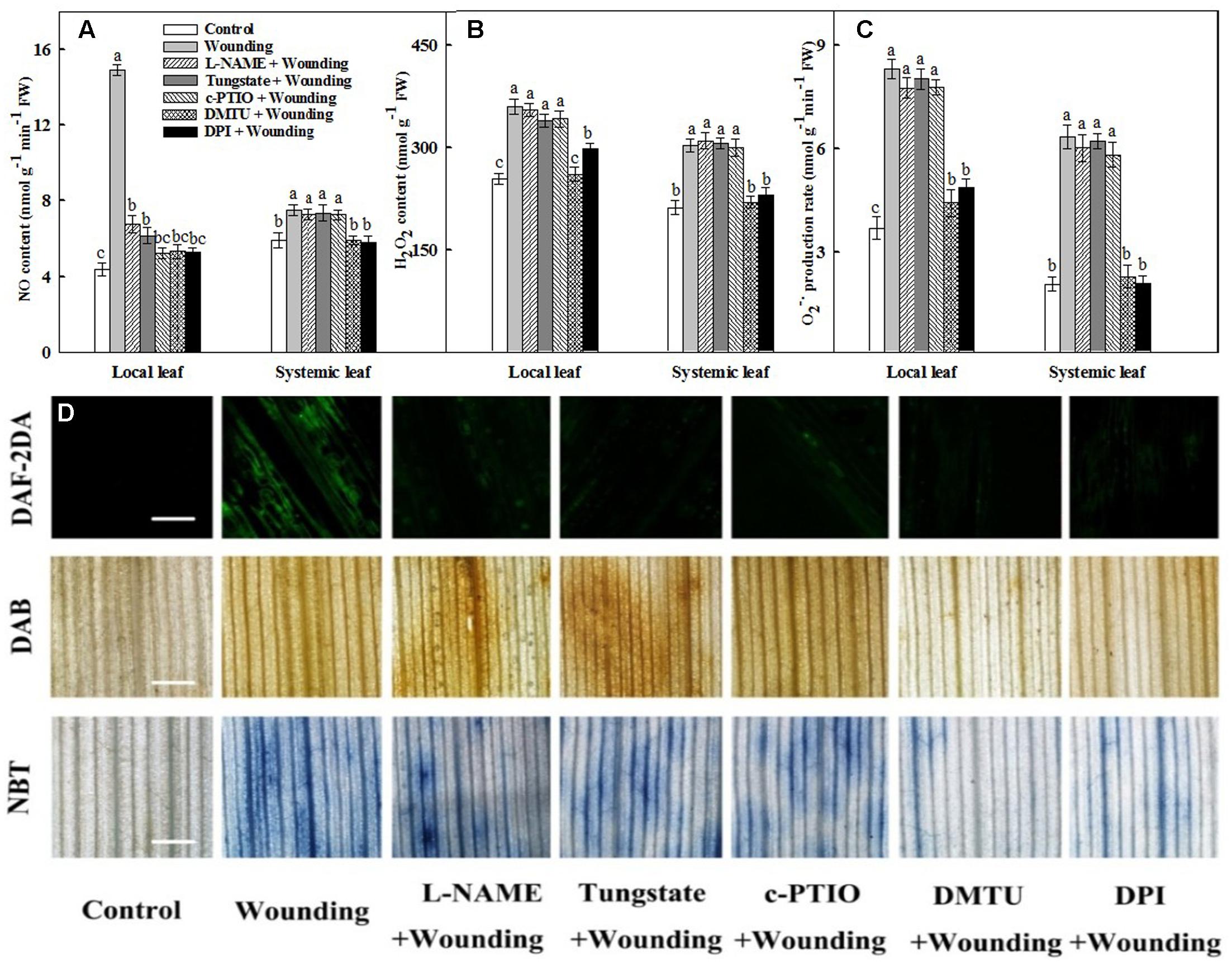

FIGURE 2
NO Is Involved in Wounding-Induced Freezing Tolerance
Nitric oxide content was rapidly elevated systemically after wounding, suggesting that it may play a profound role in the subsequent freezing tolerance. To address this possibility, the NO donor SNP, synthesis inhibitors L-NAME, tungstate, and scavenger c-PTIO were applied to treat plants. The freezing tolerance was evaluated by measuring the reduction of Fv/Fm. Both wounding and SNP pre-treatment alleviated freezing-induced decline of Fv/Fm in systemic leaves (Figure 3). In plants pre-treated with L-NAME, tungstate or c-PTIO, however, the Fv/Fm was substantially decreased after freezing treatment. These results suggest that NO is essential for strengthening the photosynthetic system under freezing stress.

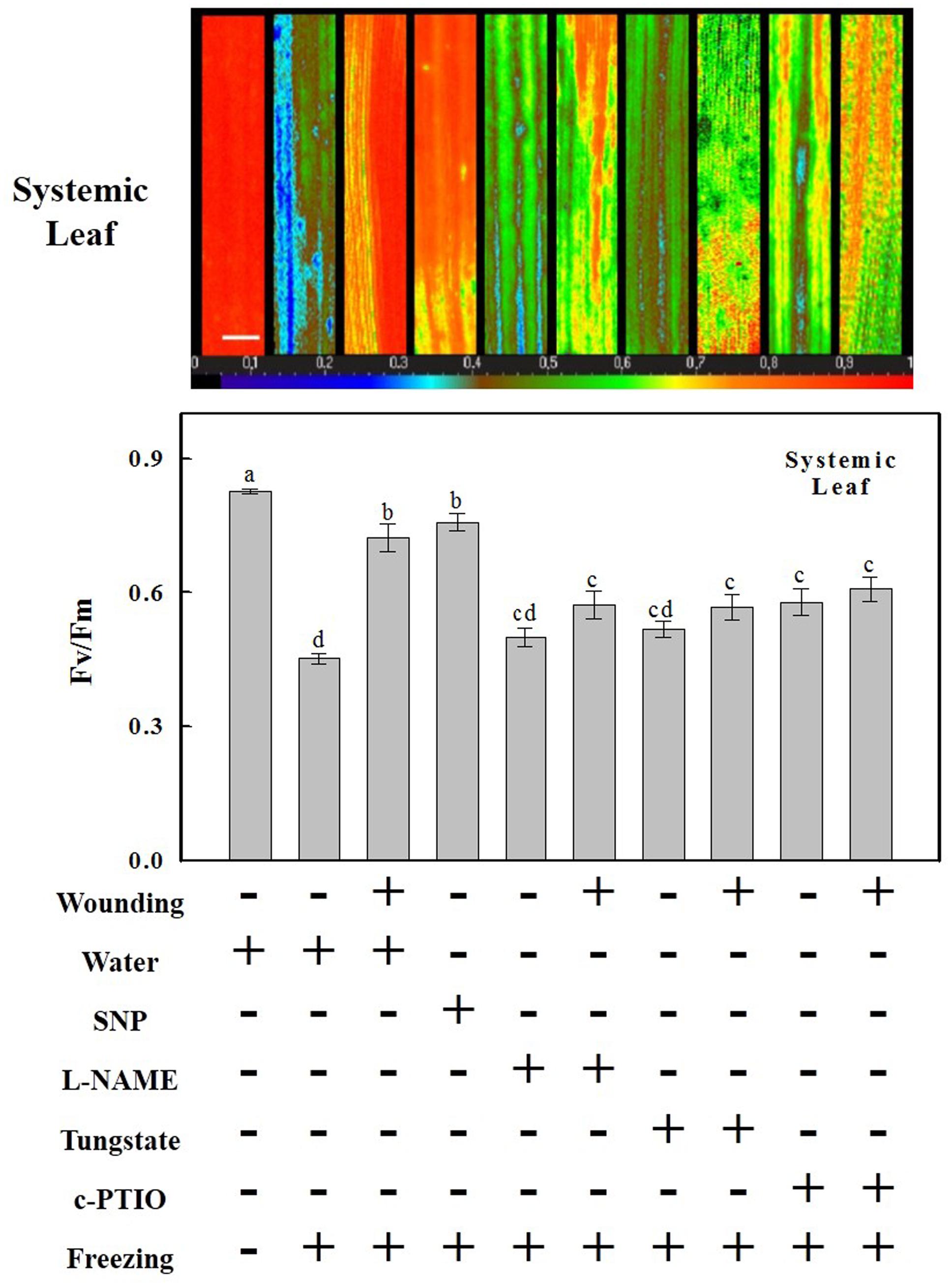

FIGURE 3
To further characterize the role of NO in wounding-induced freezing tolerance, the effect of freezing-mediated oxidative stress applied at different intervals after SNP or wounding treatment was determined. Enhanced tolerance of the systemic leaves to freezing-induced oxidative stress was observed as early as 3 h after treatment with SNP and 6 h after mechanical wounding, suggesting that exogenous NO induced freezing tolerance more rapidly than wounding. As depicted in Supplementary Figure S1, the maximum level of freezing tolerance was observed at 6 h after treatment with SNP and at 12 h after mechanical wounding, respectively. No significant level of freezing tolerance was observed at 48 h after treatment with SNP. Nevertheless, the alleviation effect of mechanical wounding still existed during the remainder of the time course, only slightly declined compared to that of 12 h (Supplementary Figure S1).
We then determined the role of NO in the up-regulation of antioxidant defense systems after wounding or SNP treatment. Local mechanical wounding increased the activities of SOD, CAT, APX, and GR not only in local leaves but also in systemic leaves at 3 h in comparison with normally grown counterpart (Figure 4). The increased activities of these enzymes were effectively blocked by pre-treatments with L-NAME, tungstate or c-PTIO in both local and systemic leaves, suggesting that wounding-induced systemic tolerance is mediated by the signaling of NO. Analysis of the antioxidant-related gene expression showed that the SOD, CAT, APX, and GR transcription levels coincide with their corresponding enzyme activities. In particular, the expression of RBOH was profoundly higher in both local and systemic leaves after wounding, whilst NO donor as well as its inhibitors and scavenger had no significant effect on its expression (Figure 4). Collectively, we have clearly demonstrated that NO is involved in wounding-induced systemic freezing tolerance in wheat plants.

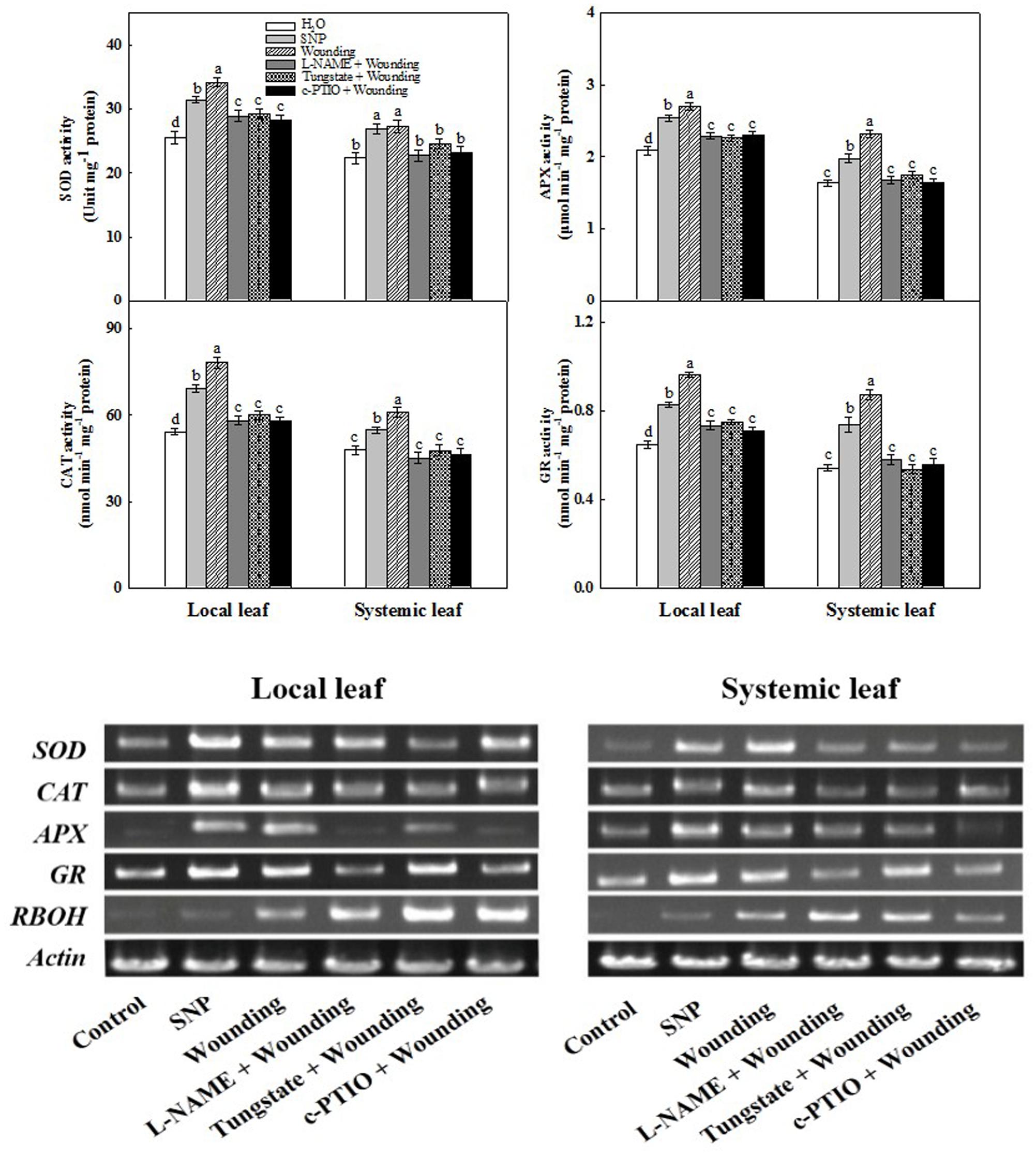

FIGURE 4
Source of Endogenous NO and H2O2 in Response to Wounding
To elaborate the possible source of wounding-induced early NO burst in wheat plants, we analyzed NR and NOS activities in both wounded local leaves and unwounded systemic leaves. Mechanical wounding substantially elevated NR activity in both local and systemic leaves at 3 h, with 2.0- and 1.6-fold increase as compared with the untreated plants, respectively. The NR activity was attenuated at 18 h but still maintained at high levels compared to unwounded plants (Figure 5A). In contrast, no significant difference in NOS activity was observed between wounded and unwounded plants at 3 h after wounding (Figure 5B). However, the NOS activity in local and systemic leaves of wounded plants was 1.2- and 1.1-fold higher than that of controls at 18 h after wounding. These data imply that NR may mediate early NO burst while NOS is likely to act at a later phase in response to mechanical wounding.
FIGURE 5
To further confirm the origination of H2O2 caused by mechanical wounding, samples were detected at cytochemical level with CeCl3 staining. As depicted in Figure 6 and Supplementary Figure S2, H2O2 accumulation was predominantly distributed in the cell walls of local and systemic leaves but was only detected in chloroplasts of local leaf after 12 h mechanical wounding. In comparison, wounding-induced H2O2 accumulation was visible only in chloroplasts of local leaf in DPI- (an inhibitor of plasma membrane NADPH oxidase) treated plants (Supplementary Figure S2) and no CeCl3 staining was observed in the apoplast systemically (Figure 6). These results highlight the potential role of plasma membrane RBOH in the wounding signal transduction.
FIGURE 6
Time Course of Wounding-Induced NO and H2O2 Accumulation, Systemic Tolerance, and Activities of Antioxidant Enzymes
To obtain insight into the inter-relationship between NO and H2O2, we also detected their local and systemic accumulation triggered by mechanical wounding. A highly transient increase of NO was observed after 30 min of mechanical wounding in local leaves, attained peak level at 3 h and remained elevated for at least 6 h (Figure 7B). The elevated NO content was also observed in systemic leaves at 50 min and remained significantly higher until returned to the resting level at 12 h after wounding treatment. Nevertheless, NO content was comparatively lower than that in local leaves (Figure 7A). The intercellular H2O2 displayed a continual increase as early as at 20 min in local leaves and at 30 min in systemic leaves (Figures 7C,D). H2O2 levels remained elevated for at least 48 h in both local and systemic leaves. After 72 h, no significant changes in H2O2 content were observed throughout the remaining period of the experiment. The accumulation of H2O2 was about 20 min earlier than that of NO in both local and systemic leaves, whilst the duration of high level H2O2 was much longer than that of NO. Besides, there exists a temporal overlap between wounding-induced NO and H2O2 from about 1 h to 6 h after wounding (Figure 7). To visually observe the signal transduction of H2O2, the vascular tissues were stained by H2DCF-DA fluorescent staining. Figure 7E shows that local mechanical wounding-induced H2O2 signal along the vascular tissue not only in local leaf and systemic leaf, but also in the sheaths of the leaves. The green fluorescent signals were significant in both leaf tissues and sheaths in wounded plants than their corresponding control.
FIGURE 7
The temporal changes in the activities of antioxidant enzymes were also investigated. In total, the activities of SOD, APX, and GR were increased concomitantly as early as at 3 h after mechanical wounding in both local and systemic leaves, whereas CAT activity was markedly elevated at 6 h in response to mechanical wounding (Supplementary Figure S3). The activities of all these antioxidant enzymes were peaked at 6 h in local leaves and at 12 h in systemic leaves. The elevated activities of these enzymes were persisted for about 1 to 2 days before declining to control levels after mechanical wounding. Moreover, the decline of these antioxidant activities was accompanied by the disappearance of the photosynthetic protection induced by mechanical wounding. These findings highlight the dominant roles of NO and H2O2 interrelating with the signaling responses to wounding and freezing.
Identification and Expression Patterns of Freezing or/and Wounding-Induced Genes
To elucidate the molecular mechanisms underlying the wounding-mediated freezing tolerance in wheat, RNA-Seq assay was performed for systemic leaves after the following treatment: untreated (ck), wounding treatment for 3 h (wo), freezing treatment for 24 h (fr), and wounding for 3 h plus freezing treatment for 24 h (wo_fr). A total of 9018 different expressed genes (DE-genes) were detected compared with control leaves. Among them, 1062 genes were identified in the data from all three treatments, and specifically 514 were up-regulated while 368 were down-regulated in all three treatments (Figure 8A and Supplementary Figure S4). Comparing the up-regulated genes between freezing treatment and wounding/freezing treatment, 3237 genes were overlapped. However, 279 genes were only significantly up-regulated in the plants treatment with wounding and freezing, but not in the plants treated with freezing only, which implies that these 279 genes may contribute to wounding-induced freezing tolerance (Figure 8A). Among these 279 genes, 33 were involved in the categories “Photosynthesis” while eight genes were significantly increased in “ROS” (Supplementary Table S2).

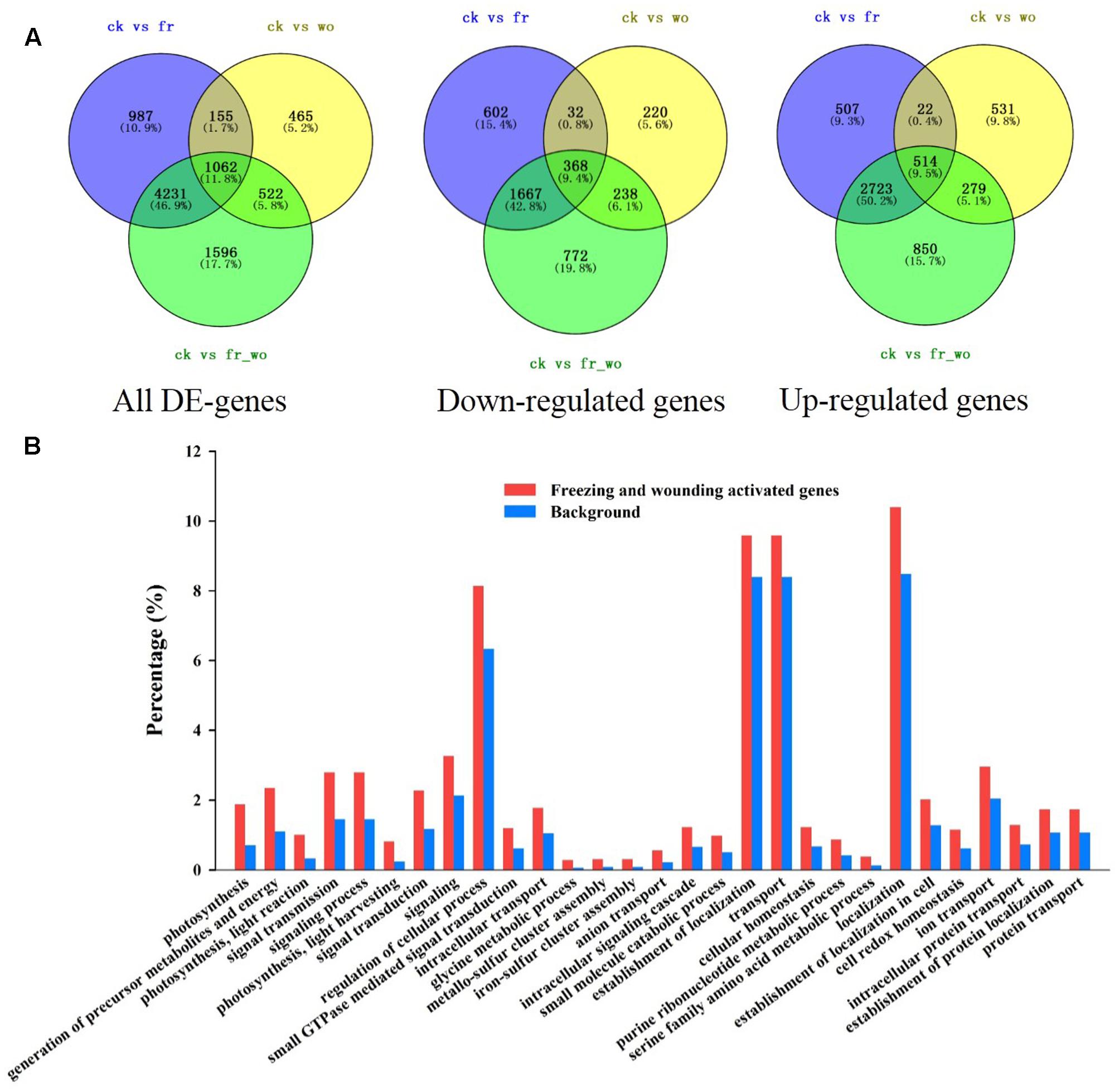

FIGURE 8
In order to further understand the functions of wounding and freezing regulated genes, Gene Ontology (GO) enrichment analysis was performed for the 4264 differentially expressed genes after wounding and freezing treatment. Wounding and freezing regulated genes were significantly enriched in the categories “photosynthesis,” “generation of precursor metabolites and energy,” “photosynthesis, light reaction,” “signal transmission,” “signaling process,” “photosynthesis, light harvesting,” “signal transduction,” “signaling,” etc. (Figure 8B). Similarly, the differentially expressed genes in wounding plants were also enriched in “photosynthesis, light harvesting,” “photosynthesis,” etc. (Supplementary Figure S5B). In contrast, the differentially expressed genes in freezing plants were enriched in “signaling process,” “signal transmission,” etc., but not in “photosynthesis” (Supplementary Figure S5A). Altogether, the transcriptional profile supports our experimental data showing that pretreatment with wounding increases photosynthesis efficiency and ROS level of wheat under cold condition.
Discussion
Over the years, a number of research groups have committed to reveal the alleviation effects of low temperature stress on plants at physiological and molecular levels (; ; ). SAA, which is proposed as an effective method in response to various abiotic stresses, has been widely investigated (; ; ). In the present study, we have well demonstrated that mild mechanical wounding in local leaves is capable of enhancing subsequent freezing tolerance in systemic leaves of wheat plants. Local wounding treatment enhanced tolerance to freezing-induced photooxidative stress, considerably increased Pn and Fv/Fm (Figure 1), coupled with strengthened antioxidant system (Figure 4 and Supplementary Figure S3) in untreated systemic leaves and ultimately alleviated freezing stress. Our research may contribute to develop novel management to mitigate the impact of low temperature stress and minimize the economic losses due to global climate change in wheat production.
The Relationship between Wounding-Induced NO and H2O2
Systemic signaling has been demonstrated to play important roles in the process of SAA. It is well established that both NO and H2O2 take an active part in the signal cascade in response to mechanical wounding (; ; ; ). Wounding-induced H2O2 activated the expression of the defense-related gene IPO in sweet potato, identical to the inhibitor of NO, validating the antagonistic roles between NO and H2O2 in regulating wounding-induced defense system (). However, a different picture emerged that NO donor acutely decreased H2O2 content after wounding in sweet potato, implying that NO acts in concert with H2O2 in response to mechanical wounding (). The discrepancy between these studies implies that some unknown signaling pathways have yet to be elucidated. Therefore, the question of the relationship between H2O2 accumulation and NO production in wheat plants exposed to mechanical wounding appears to be particularly interesting.
In this paper, three lines of evidence illustrate that H2O2 acts upstream of NO in the wounding-induced antioxidant defense. First, the time-course analysis of H2O2 accumulation and NO production revealed that the generation of H2O2 preceded the production of NO in the wounding signal in both local and systemic leaves (Figure 7). Second, wounding-induced NO burst was nearly fully inhibited by pretreatment with H2O2 inhibitors or scavenger (Figure 2), suggesting that NO synthesis might be the result of H2O2 accumulation. Third, pretreatment with NO inhibitors and scavenger had little effects on wounding-induced H2O2 generation, indicating that NO synthesis is not required for the initial H2O2 accumulation (Figure 2). Taken together, our data suggest that wounding-induced H2O2 activates the systemic production of NO and eventually strengthened the antioxidant defense systems in wheat plants.
Systemic Signal Transduction between NO and H2O2 in Response to Wounding
Evidences hints that NO is a short term signal which do not transport in long-distance in plant tissues (; ). Instead, S-nitrosoglutathione (GSNO), formed by efficiently binding of NO to glutathione, has been proposed as a systemic wounding signal (; ). As a relatively active molecule, however, H2O2 could migrate from the synthetic site to the neighboring vascular tissues or leaves (; ). Importantly, the systemic accumulation of H2O2 plays crucial roles in ameliorating various biotic and abiotic stimuli (; ; ; ). In agreement with these findings, we observed that treatment with inhibitors and scavenger of NO in local leaves remarkably abolished wounding-induced NO accumulation in local leaves but had no influence on that in systemic leaves (Figures 2A,D). On the contrary, the inhibitor and scavenger of H2O2 sharply reduced H2O2 accumulation and production rate in both local and systemic leaves (Figures 2B–D), raising the possibility that the accumulation of H2O2 in systemic leaves seem to result from local leaves along the path of the systemic signals while the systemic production of NO could be originated from H2O2 (Figure 7). Thus, it is necessary to investigate the possible source of H2O2 and NO in response to mechanical wounding.
Accumulating evidence postulated that wounding-induced RBOH is responsible for H2O2 accumulation (; ; ). In this work, when treatment of the local leaves with the RBOH inhibitor DPI or H2O2 scavenger DMTU prior to mechanical wounding, the concentration of H2O2 was dramatically decreased (Figures 2B,D). At subcellular level, DPI only scavenged the accumulation of H2O2 in the apoplast facing intercellular spaces but not those in chloroplasts (Figure 6 and Supplementary Figure S1). Apparently, plasma membrane RBOH is the major but not the only source of H2O2 in response to mechanical wounding. There are hints suggesting that RBOH mediating H2O2 has also been demonstrated as the long-distance signal from stimulated parts to the whole plants in response to various abiotic stresses (; , ). In agreement with these findings, H2O2 accumulation was only detected in the apoplast of the systemic leaf after wounding but not in chloroplasts (Figure 6 and Supplementary Figure S2). To this regard, we confirm that RBOH in plasma membrane contribute to the rapid production of systemic H2O2 in the wounding signal cascade. NR and NOS have been implicated as two major enzymes responsible for NO biosynthesis in plants (; ; ; ). The possible source of the early burst NO involved in mechanical wounding was also detected and quantified in this paper by in situ and hemoglobin assay, respectively. NR inhibitor tungstate greatly abolished wounding-induced NO accumulation, a slight lower compared to that of L-NAME, a NOS inhibitor (Figures 2A,D). The activities of NR and NOS were further analyzed at 3 and 18 h after mechanical wounding as previously discussed (Figure 5), resulting in a conclusion that NR is the major source of early NO accumulation on local leaves in response to mechanical wounding.
Crosstalk between H2O2 and NO in Wounding-Induced Freezing Tolerance
It has been repeatedly reported that both H2O2 and NO act as second messengers in perception and transduction of signals in alleviating low temperature stress (; ; ). NO evoked by NR during cold acclimation alleviated the following freezing stress in Arabidopsis (); Coincidentally, H2O2 generated by RBOH played a vital role in cold acclimation-induced chilling tolerance (). Based on the previous results, we believe that the H2O2 and NO induced by mechanical wounding might contribute to the subsequent freezing tolerance. Thus, a hypothesis has been put forward that local mechanical wounding-induced H2O2 and NO in local leaves, triggered the systemic signals along the pathway, and subsequently regenerated H2O2 together with NO in systemic leaves, which in turn lead to the up-regulation of antioxidant defense systems in wheat plants. Our results revealed the distinctive roles of mechanical wounding in strengthening freezing tolerance via the process of H2O2 and NO accumulation. We first observed that NO was accumulated not only in wounded local leaves, but also in untreated systemic leaves of wheat plants (Figure 7). Pretreatment of the NO synthetic inhibitors L-NAME and tungstate or NO scavenger c-PTIO substantially down-regulated the activities of antioxidant enzymes and consequently reduced tolerance to freezing stress in systemic leaves (Figures 3, 4). Additionally, the strengthened antioxidant system in response to mechanical wounding were consistent with the temporal changes of wounding-induced H2O2 in both local leaves and systemic leaves (Supplementary Figure S3). Besides, the protection mechanism of mechanical wounding on photosystem sustained for at least 3 days compared to that of SNP pretreatment (Supplementary Figure S1). One potential explanation cannot be discarded because that other signal molecules or phytohormones instead of H2O2 and NO are involved in the resistance of freezing stress such as ABA, salicylic acid, jasmonic acid, and polyamines (; ; ) which have yet to be fully elucidated in future studies. Taken together, the sustained freezing tolerance in wounded plants is likely to be mediated by the systemic accumulation of NO in a H2O2 dependent manner, namely, H2O2 and NO act sequentially and synergistically in the early phase of this cross-tolerance signaling network.
Wounding-Induced Freezing Tolerance by Enhancing Antioxidant System and Photosystem via ROS Signal
Under freezing conditions, ROS may play two different roles: exacerbating the damage, or signaling the activation of defense responses (). Here, the accumulated H2O2 in systemic leaves after mechanical wounding could play positive roles in freezing tolerance other than causing oxidation of cellular components. Although the concentration of H2O2 in systemic leaves was increased upon wounding (Figure 7C), the activities of antioxidant enzymes were increased as well, which may contribute to alleviating oxidative stress (Supplementary Figure S3). On the other hand, the decreased REC and MDA content were also observed (Figure 1B), thus validating the regulatory role of H2O2 in antioxidant system in wounding-induced freezing tolerance.
Literatures indicate that wounding indirectly suppressed photosynthesis of remaining undamaged leaves (; ; ). In this paper, however, the ameliorating effects of mechanical wounding on photosystem under freezing stress were observed at both physiological and transcriptional levels, thus validating the dual role of mechanical wounding on photosystem. The strong arguments between the previous studies and ours may due to three main reasons. First, in stances they use arthropod herbivory as wounding treatment tools while we use hemostat which may results in different kinds of initiations of wounding signal. Second, we use wheat, a kind of monocotyledon as plant material in which the vascular tissues are unique from those in dicotyledons. The systemic tissues analyzed in previous studies were connected to wounded leaves or even in the same leaf. In our study, however, the wounding signal ROS were detected in sheaths of both local and systemic leaves (Figure 7E), indicating a more complicated signal transduction mechanism in monocotyledons. Third, previous reporters focused on the systemic changes of photosystem after wounding treatment alone, whereas we not only interpreted the essential of wounding signal, but also shed light on the alleviation effects of mechanical wounding on freezing stress. At first glance, wounding suppressed photosynthesis of systemic leaves, however, the reinforcement of photosystem was emerged after exposed to freezing stress. The potential explanation of this phenomenon is that wounding-induced systemic ROS signal enhanced the photosystem thus contributed to the acquisition of freezing tolerance (Figures 1, 3, 4, 8).
Conclusion
We have presented strong physiological, biochemical, and transcriptional experiments that local mechanical wounding induces early NO burst through a NR route in a H2O2-dependent manner (mediated by plasma membrane RBOH). Then, H2O2 triggers and amplifies the signaling pathway of wounding to systemic leaves within minutes and reproduced NO for signaling purpose. H2O2 and NO then act in concert and ultimately strengthen the photosystem as well as the antioxidant defense system to alleviate oxidative states arising from freezing stress in systemic leaves (Figure 9). To the best of our knowledge, it was the first time to reveal this new type of SAA, i.e., alleviation effects of mechanical wounding on freezing tolerance in wheat. Additional work using proteomic and molecular approaches are required to understand the detailed mechanism of wounding-induced freezing tolerance.
FIGURE 9
