Abstract
Dendrobium officinale is a precious medicinal Chinese herb that employs facultative crassulacean acid metabolism (CAM) and has a high degree of abiotic stress tolerance, but the molecular mechanism underlying the response of this orchid to abiotic stresses is poorly understood. In this study, we analyzed the root microstructure of D. officinale plantlets and verified the presence of chloroplasts by transmission electron microscopy. To obtain a more comprehensive overview of the molecular mechanism underlying their tolerance to abiotic stress, we performed whole‐transcriptome sequencing of the roots of 10-month-old plantlets exposed to salt (NaCl) treatment in a time‐course experiment (0, 4 and 12 h). The total of 7376 differentially expressed genes that were identified were grouped into three clusters (P < 0.05). Metabolic pathway analysis revealed that the expression of genes related to hormone (such as auxins, cytokinins, abscisic acid, ethylene and jasmonic acid) biosynthesis and response, as well as the expression of genes related to photosynthesis, amino acid and flavonoid metabolism, and the SOS pathway, were either up- or down-regulated after salt treatment. Additionally, we identified an up-regulated WRKY transcription factor, DoWRKY69, whose ectopic expression in Arabidopsis promoted seed germination under salt tress. Collectively, our findings provide a greater understanding of the salt stress response mechanisms in the roots of a facultative CAM plant. A number of candidate genes that were discovered may help plants to cope with salt stress when introduced via genetic engineering.
Introduction
Plants may face adverse environmental conditions, such as extreme temperatures, drought, and salinity are major abiotic stressors, that hamper their metabolism, delay growth and development, reduce productivity, or even cause plant death (; ). High salinity strongly and negatively influences the productivity of agricultural crops by impacting seed germination and plant vegetative growth, and stimulates osmotic and oxidative stress, as well as ion toxicity ().
However, under salt stress, plants can decrease ion toxicity and scavenge reactive oxygen species (ROS) by regulating ion homeostasis, induce antioxidant defense systems, and synthesize a variety of plant hormones and osmoprotectants (). Salinity can impact plants rapidly by inducing osmotic stress, or slowly by inducing ionic stress (). In addition, salinity can disrupt the integrity of the chloroplast envelope, leading to the disorganization of grana, resulting in a reduced photosynthetic rate that can be partly attributed to the reduction of photosynthetic pigments (). To allow plants to cope with salt stress, signal transduction pathways such as phytohormone-mediated and Ca2+ signaling pathways are activated (; ; ). Under high salinity stress, plants modify their levels of endogenous hormones such as gibberellins (GAs), abscisic acid (ABA) and jasmonic acid (JA), thereby activating the genes involved in the metabolism of those hormones to cope with this stress (). GA is involved in salt stress response pathways by negatively regulating a class of DELLA proteins (). ABA promotes stomatal closure to reduce water loss by rapidly altering ion fluxes in guard cells under osmotic stress (). Most studies have illustrated the role of JA in response to biotic stresses, while evidence of the involvement of JA in salinity stress has only emerged over the last decade (; ; ). In addition, auxins and cytokinins mediate stress-adaptation responses in plants ().
Some studies have demonstrated that hormone-mediated signal transduction pathways trigger transcription factors (TFs) such as members of the bZIP, NAC, ERF, WRKY, MYB, ZF-HD, and bHLH families to amplify signals by inducing or repressing functional genes, thereby initiating protective mechanisms that allow plants to cope with salinity stress (; ; ; ). For example, the dehydration-responsive element binding/C-repeat-binding factor (DREB/CBF), which is a member of the AP2/ERF TF subfamily, can modulate drought-, high temperature-, salt-, and cold-responsive gene expression (). WRKY TFs are involved in the response of plants to salinity stress. In Arabidopsis thaliana, AtWRKY46 plays a role in regulating stomatal opening, with mutant wrky46 plants showing sensitivity to drought and salt stress (). The interaction between GmWRKY27 and GmMYB174 proteins from Glycine max regulates GmNAC29 expression, improving salt and drought tolerance (). CgWRKY57, which was identified in an orchid (Cymbidium goeringii), sensed ABA signals and might play a role in stress response (). Overexpression of WRKY genes from Dendrobium nobile enhanced salt and stress tolerance in transgenic tobacco (). Compatible solutes, such as proline, glycine betaine, sugars, mannitol and polyols, may accumulate in the cytoplasm, allowing water potential to be adjusted and cell turgor to be maintained under salinity stress (; ; ). In Medicago sativa, most MsZF-HDs responded to salt stress (). In A. thaliana, MYC2, which is a bHLH TF, negatively regulated proline biosynthesis by repressing P5CS1 expression in response to salt stress (). Moreover, an R2R3-MYB TF-encoding gene IbMYB308 from sweet potato (Ipomoea batatas) improve the salt tolerance of transgenic tobacco ().
The Orchidaceae is the most diverse flowering plant family and includes approximately 880 genera and 28,000 species around the world (). Dendrobium, which is the second largest genus in the Orchidaceae, has adapted to diverse natural habitats, ranging from high altitudes to lowland tropical forests, and even to the dry climate of the Australian desert, implying its strong adaptability to adverse environmental conditions. Dendrobium plants are known to survive under high salinity (15 dS m−1) (), indicating that they display high endurance to salinity stress. Dendrobium officinale is a precious Chinese medicinal herbal orchid with various bioactivities (). A previous study by our group showed that D. officinale could adapt to high concentrations of salt stress, and in doing so, accumulated bioactive metabolites ().
Although a tremendous amount of research has been conducted on salt stress in model plants and crops, known strategies for coping with salt stress in orchids is not commensurate with their recalcitrant nature. Understanding the mechanisms by which orchid plants cope with the challenge of salt stress will pave a way for planning future initiatives for abiotic (salt) stress engineering in orchids to protect orchid plants in the wild. In this study, we investigated changes to the transcriptome under short-term (within 12 h) salinity stress in the roots of D. officinale plantlets. We identified differentially expressed genes (DEGs) and focused on phytohormone signaling, the SOS pathway, photosynthesis and metabolic adjustments such as changes in amino acid content and flavonoid metabolism. We also identified differentially expressed TFs and characterized the role of a single WRKY gene in seed germination under salinity stress. Our results provide new insight into the biochemical and molecular regulation of salt stress tolerance mechanisms of orchid plants that enhance their stress tolerance.
Materials and methods
Plant growth conditions and treatments
D. officinale plantlets that were geminated from seeds within the same capsule, were grown in vitro on half-strength Murashige and Skoog (MS) () medium containing 2% sucrose and 0.6% agar (pH 5.4) in a growth chamber (25 ± 1°C, 40 µmol m-2 s-1, 12-h photoperiod). Uniform plantlets 8-9 cm in height were transferred to half-strength MS containing 2% sucrose and 0.6% agar, and supplemented with 250 mM NaCl (pH 5.4) and kept at 25 ± 1°C, under 40 µmol m-2 s-1, in a 12-h photoperiod. Root samples were collected at three time points [0 (control), 4 and 12 h], frozen in liquid nitrogen and used to isolate RNA. Three independent biological replicates were used for each time point and six plantlets were used for each replicate. To analyze chlorophyll (Chl) and carotenoids, plantlets were subjected to salinity treatment or not (the control) for two weeks, and roots were harvested and used to detect these pigments. To analyze total flavonoids and free amino acids, roots were collected after two weeks from control and salt-treated plants and freeze dried. Root samples were ground to a fine powder by a RETSCH MM400 Mixer Mill (Retsch Technology, Haan, Germany). Three independent biological replicates were utilized for each sample.
Histological analysis of D. officinale plantlet roots
The roots of plantlets 8-9 cm in height were collected and fixed in fixation buffer [2.5% glutaraldehyde and 2% paraformaldehyde in 0.1 M sodium phosphate buffer (pH 7.2)]. To facilitate penetration of the fixative, samples were vacuum infiltrated for at least 30 min. Root samples were rinsed in wash buffer (1% sodium phosphate) six times (30 min each time) after fixation, then fixed in a 0.1 M sodium cacodylate buffer (pH 7.2) containing 1% osmium tetroxide (OsO4) for 4 h. An ethanol concentration gradient (30, 50, 75, 85, 95, 100%, v/v) was used to dehydrate samples. After dehydration, samples were treated in different ratios of acetone and Epon812 (3:1, 1:1 and 1:3, v/v) for 30 min. Finally, samples were embedded in absolute Epon812 overnight and placed at 60°C for two days. Transverse sections of root samples were cut into slices of 1 μm thickness with an LKB-11800 ultramicrotome and stained by periodic acid Schiff (PAS) (). Root samples were cut into 50-70 nm thick slices with a LeicaUC6 ultramicrotome for observations using a JEOL JEM 1010 (JEOL Ltd., Tokyo, Japan) transmission electron microscope.
Transcriptomic analysis
Total RNA from root samples at 0 (control), 4 and 12 h after salinity stress was isolated using Column Plant RNAout2.0 (Tiandz Inc., Beijing, China). Biological triplicates for each time point were used for RNA sequence (RNA-seq) analysis in this study. The mRNA of each sample was purified from total RNA using oligo d(T)25 magnetic beads (New England BioLabs Inc., Ipswich, MA, USA). A library of the isolated mRNA was prepared with the NEBNext® Ultra™ RNA Library Prep Kit (New England Biolabs Inc.) then subjected to paired-end sequencing with the Illumina Novaseq 6000 Sequencing System at Biomarker Technologies Inc. (Beijing, China). The raw reads produced from sequencing were processed through in-house perl scripts (Biomarker Technologies Inc.) to remove reads containing an adapter, ploy-N or poor-quality reads (the quality Q ≤ 30 accounted for more than 50% of all reads). The remaining reads were clean reads, which were mapped with the D. officinale version 2 genome generated by using TopHat version 2.0.8 (). About 90% of clean reads were mapped to the D. officinale genome. We performed differential expression analysis of RNA-seq data by comparing the expression of genes in treatments (4 h and 12 h) and the control (0 h) by using DESeq2 (). Genes with a fold change (treatment/control) ≥ 2.0 and a false discovery rate (FDR) ≤ 0.01 were regarded as up-regulated genes while genes with a fold change (treatment/control) ≤ 0.5 and an FDR ≤ 0.01 were regarded as down-regulated genes. All the up- and down-regulated genes were defined as DEGs. The clean reads generated in this study were submitted to the Sequence Read Archive (SRA) database of the National Center for Biotechnology (NCBI) under the following accession numbers: SRS8480001, SRS8480000 and SRS8480010 for 0 h; SRS8480011, SRS8480012 and SRS8480013 for 4 h; SRS8480016, SRS8480004 and SRS8480002 for 12 h.
Functional annotation of genes
Seven public gene functional annotation databases, NCBI non-redundant protein sequences database (Nr, http://www.ncbi.nlm.nih.gov), Protein family (Pfam, http://pfam.xfam.org/) (), Clusters of Orthologous Groups of proteins (COG, http://www.ncbi.nlm.nih.gov/COG) (), a manually annotated and reviewed protein sequence database (Swiss-Prot, https://www.expasy.org/) (), Gene Ontology (GO, http://geneontology.org/) (), Kyoto Encyclopedia of Genes and Genomes (KEGG, https://www.kegg.jp/) () and evolutionary genealogy of genes: Non-supervised Orthologous Groups (eggNOG, http://eggnog.embl.de/) (), were used to annotate gene functions. We identified genes based on functional gene annotation. Information about the metabolic pathway of genes was obtained from KEGG annotation. Based on GO annotation, the number of DEGs assigned to each GO term was calculated and visualized in a diagram. To cluster the DEGs, the Short Time-series Expression Miner (STEM) method in STEM software was used (). The maximum number of model profiles was 20, and the maximum unit change in model profiles between time points was 1. KOBAS software () was used to test the statistical enrichment of DEGs in pathways.
Reverse transcription PCR and quantitative real-time RT-PCR
Eight-day-old seedlings of wild-type Arabidopsis (Col-0) and transgenic lines were grown in half-strength MS medium supplemented with 1.5% sucrose, 0.8% agar (pH 5.7) and placed under a 16-h photoperiod (100 µmol m-2 s-1) at 22°C. Total RNA was isolated using Column Plant RNAout2.0 (Tiandz Inc.). RNA samples were used for first-strand cDNA synthesis with the GoScript Reverse Transcription System (Promega, Madison, WI, USA). The cDNA of each sample (400 ng μL-1) was used as a template for PCR amplification. The genes were amplified by 30 cycles of 98°C for 10 sec, 55°C for 30 sec and 72°C for 30 sec. PCR products (5 mL) of each sample were surveyed by 1% agarose gel electrophoresis and photographed with a gel imaging system (GenoSens1880, Shanghai Qinxiang Scientific Instrument Co. Ltd., Shanghai, China). Quantitative real-time PCR (qRT-PCR) was performed with the Unique Aptamer™ qPCR SYBR® Green Master Mix (Beijing Novogene Technology Co. Ltd.) in a LightCycler 480 system (Roche, Basel, Switzerland). Primer sets are listed in Supplementary Table 1.
Determination of chlorophyll and total carotenoids in roots
Fresh root samples were homogenized in a mortar with a pestle using silica sand and 80% acetone as the extracting solvent. The homogenized mixture was placed at 4°C for 1 h in the dark before centrifuging at 10,000 rpm for 15 min at 4°C. The supernatant was collected and used immediately to detect absorption at 663.2, 646.8 and 470 nm with a UV-6000 spectrophotometer (Shanghai Metash, Shanghai, China). Chl a was calculated as 12.25A663.2 – 2.79A646.8, Chl b was calculated as 21.5A646.8 – 5.1A663.2, and total carotenoids was calculated as (1000 A470 – 1.82 Chl a – 85.02 Chl b)/198 ().
Amino acid quantification
Root powder (100 mg) was solubilized in 5 mL of 0.01 M HCl. After incubating for 30 min at room temperature, samples were centrifuged at 13,000 rpm for 10 min. The supernatant was mixed with absolute ethyl alcohol (20:80, v/v). The mixture was incubated for 15 min at room temperature, then centrifuged at 13,000 g for 10 min. The extract was dried by evaporation under vacuum by a rotary evaporator (Eyela N-1300V-W, Tokyo Rikakikai Co. Ltd., Tokyo, Japan). HCl (0.01 M) was added to dissolve the isolated free amino acids. After filtering through a 0.22 μm filter membrane (Corning Inc., Corning, NY, USA), amino acid profiles were quantified using an Automatic Amino Acid Analyzer (S 433-D, Sykam GmbH, Eresing, Germany). Ninhydrin-derivatized amino acids were measured at 570 nm and at 440 nm. Amino acid concentrations were reported as mg of amino acid per 100 mg of dry weight. A standard stock solution type pH (for physiological amino acid analysis) (Sykam catalog No. S000031, Sykam GmbH) was used as the standard solution.
Determination of total flavonoids
A colorimetric method described by was used to analyze total flavonoid content with rutin solutions (4, 8, 12, 16 and 20 μg/mL) serving as standards. Briefly, powdered samples were extracted with 50% (v/v) methanol in an ultrasonication bath (VCX600, Sonics and Materials Inc., Newtown, CT, USA) for 90 min at room temperature, then centrifuged at 12,000 rpm for 20 min. The supernatant was collected and used to measure absorbance at 360 nm with a UV-6000 spectrophotometer. The calibration standard was 50% (v/v) methanol.
Generation of transgenic plants and germination assay
The DoWRKY69 gene was isolated and inserted into the NcoI site of the pCAMBIA1302 vector. The validated recombinant vector was transformed into Agrobacterium tumefaciens EHA105 (Shanghai Weidi Biotechnology Co. Ltd, Shanghai, China) by the freeze-thaw method () and then transformed into A. thaliana by the floral dip method (). Seeds of both wild type (WT) and transgenic lines were surface-disinfected then seeded on half-strength MS medium containing 1.5% sucrose, 0.8% agar (pH 5.7), and different concentrations of NaCl (150, 200, and 250 mM). Medium without NaCl served as the control. Seeds were kept at 4°C in the dark for 2 d, then transferred to a 16-h photoperiod (100 µmol m-2 s-1) at 22°C. When the radicle emerged from the testa, a seed was considered to have germinated. About 60 seeds of each genotype were used and the entire experiment was repeated in triplicate.
Statistical analyses
Statistical analyses were performed with SigmaPlot12.5 software (Systat Software Inc., San Jose, CA, USA). The Dunnett test (P < 0.05) was used to indicate statistically significant differences.
Results
Anatomical traits of D. officinale roots
The roots of D. officinale plantlets were green and possessed meristematic and elongation zones (Figure 1A). The differentiation zone could not clearly or easily be distinguished from the meristematic and elongation zones because root hairs were absent (Figure 1A). To better understand the anatomical traits of D. officinale plantlet roots, we performed histological analysis to investigate the microstructure in transverse sections. The root consists of a velamen, cortex and stele, the largest proportion consisting of the cortex and a smaller stele (Figure 1B). The cortex is composed of an epidermis, an exodermis and a mass of cortical parenchyma tissue (Figure 1B). Starch granules (purple spots) were observed in the cortical parenchyma tissue but were absent in the stele and velamen (Figure 1B). Transmission electron microscopic observations revealed irregularly shaped starch granules that were easy to distinguish (Figures 1C, D). The stele cell contained a large (about 10 µm) nucleus and nucleolus, as well as small chloroplasts (Figure 1E). The thylakoids were stacked, similar to grana in leaves (Figure 1F). These observations demonstrate that D. officinale plantlet roots contain chloroplasts in their stele.
Figure 1
Salinity induces multiple cellular events in roots of D. officinale plantlets

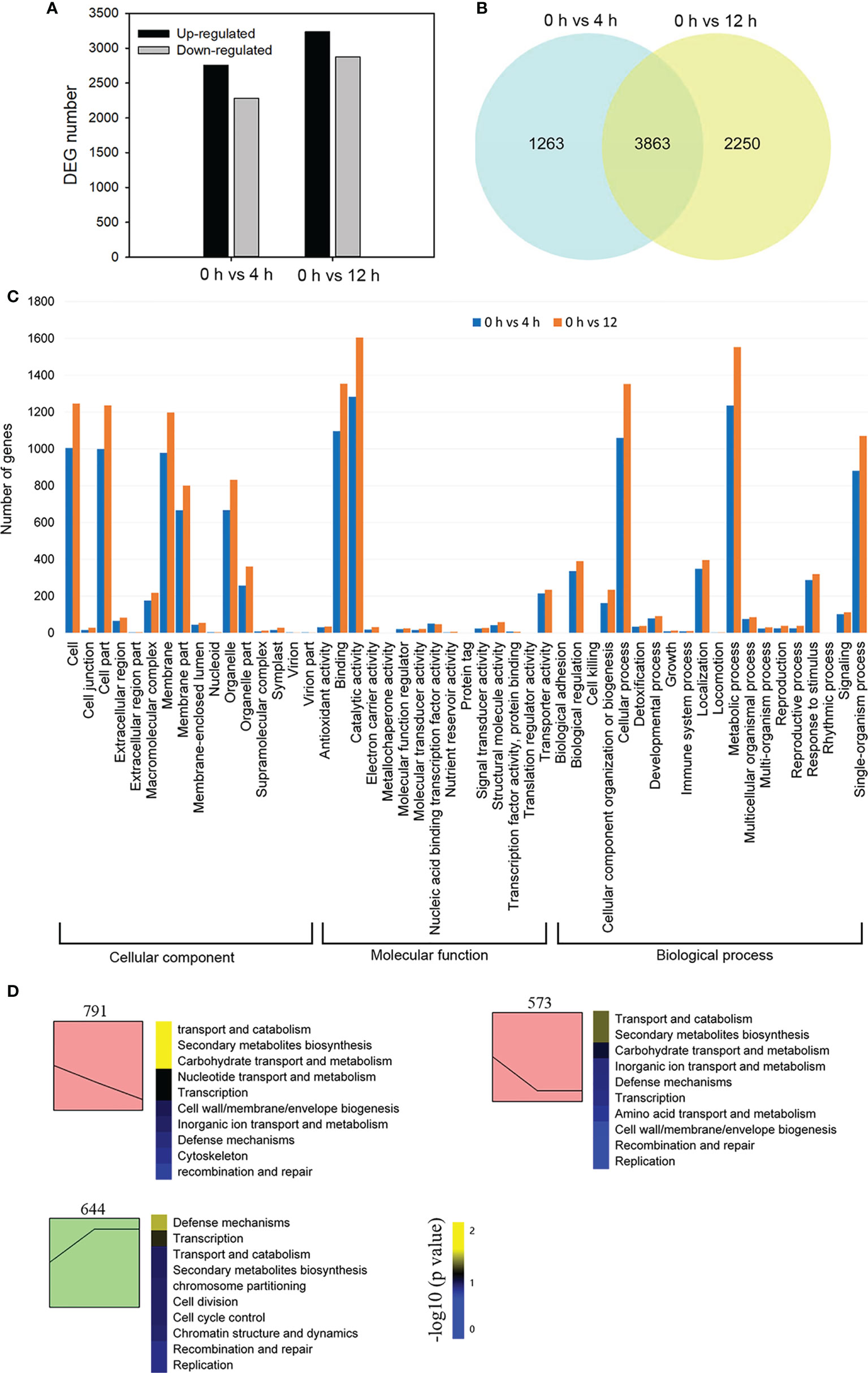

In order to reveal global transcriptional dynamics in the roots of D. officinale in vitro plantlets exposed to salinity stress, we performed a time course transcriptomic analysis at 0, 4 and 12 h after exposure to 250 mM NaCl. In this study, total clean bases of each library generated from sequencing amounted to more than 6 Gb (Supplementary Table 2). The percentage of bases of each library having a quality score of 30 or higher exceeded 93% (Supplementary Table 2). We verified the expression patterns of 12 selected genes by qRT-PCR (Supplementary Figure 1). These were in agreement with the changes in fragments per kilobase per million (FPKM) values, supporting the reliability of our RNA-seq data. A total of 7376 DEGs were identified in the 0 h vs 4 h and 0 h vs 12 h comparisons. DEGs from the 0 h vs 4 h comparison consisted of 2282 down-regulated genes and 2844 up-regulated genes, while the number of DEGs from the 0 h vs 12 h comparison consisted of 2877 down-regulated genes and 3236 up-regulated genes (Figure 2A). Among all DEGs, 3863 genes showed a differential expression pattern at both time points: 2155 genes were up-regulated and 1702 genes were down-regulated (Figure 2B). We first performed a GO classification analysis of all the DEGs: 2538 and 3098 DEGs were assigned to three major GO categories (biological processes, cellular components, and molecular functions) in the 0 h vs 4 h and 0 h vs 12 h comparisons, respectively (Figure 2C). In the biological processes category, ‘metabolic process’ contained the greatest number of DEGs in both comparisons (Figure 2C). In the molecular function category, most DEGs were assigned to ‘catalytic activity’ in both comparisons (Figure 2C). To decipher the general trends of gene expression profiles, all DEGs were subjected to STEM clustering analysis (Figure 2D). These results suggest that salinity stress triggers a series of biological processes and molecular functions that mainly affect metabolism and defense in D. officinale roots.
Figure 2
Auxin, cytokinin, ABA, ethylene and JA are involved in salinity response
To analyze the relationship between plant hormones and salinity response in D. officinale roots, we investigated the genes related to the biosynthesis of plant hormones under salinity stress using RNA-seq data. The indole-3-acetic acid (IAA) biosynthetic pathway genes TAA1 and YUC2 showed a down-regulated expression pattern after salinity stress (Figure 3A). The genes involved in zeatin biosynthesis showed a similar expression pattern as the IAA biosynthetic pathway genes. For example, the expression of three IPT genes (encoding ADP/ATP‐dependent enzymes, isopentenyltransferases) and one cytokinin trans-hydroxylase gene CYP735A was repressed after salinity stress (Figure 3B). As expected, most of the genes involved in ABA, ethylene and JA biosynthesis were induced by salinity stress (Figures 3C-E). The NCED genes, which encode a key enzyme (9-cis-epoxycarotenoid dioxygenase) for ABA biosynthesis, were induced by salinity stress. The expression of one NCED gene increased at 4 h but dropped to its initial level at 24 h; another NCED gene was detected strongly at both 4 h and 12 h (more than 85-fold increase in expression) (Figure 3C). The DEGs related to ethylene biosynthesis increased at both time points after salinity treatment (Figure 3D). In total, we found that among the 14 DEGs related to JA biosynthesis, 13 were up-regulated at least at one time point while only one gene AOC was down-regulated at both time points (Figure 3E).
Figure 3

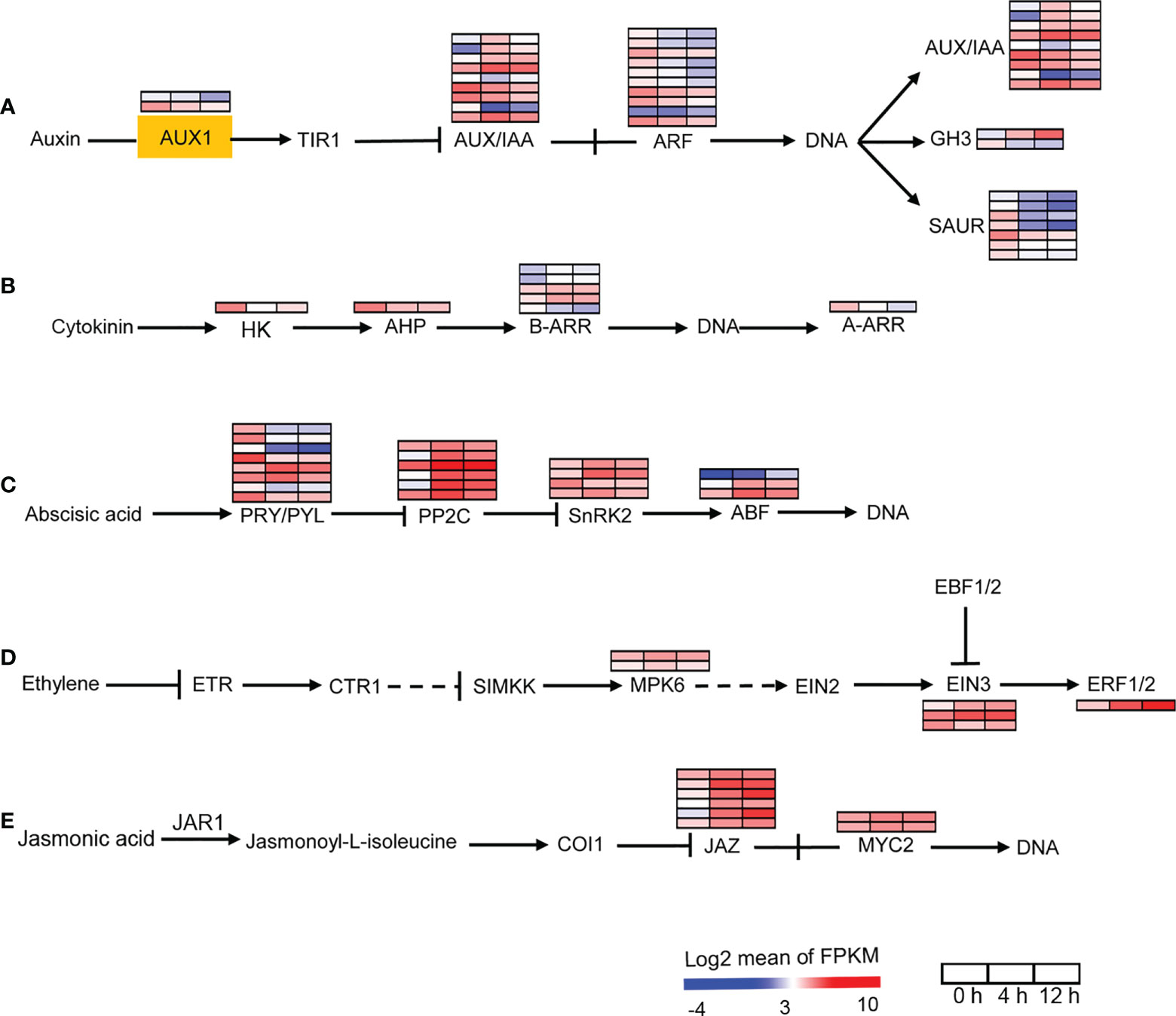

We then analyzed the auxin, cytokinin, ABA, ethylene and JA signal transduction pathway genes. AUX1 is a transmembrane amino acid transporter family protein that is involved in an early step of auxin signaling. Two AUX1 homologs found in D. officinale were down-regulated after salinity treatment (Figure 4A). Our data showed the down-regulation of auxin responsive factors (ARFs) in response to salt stress (Figure 4A). In addition, auxin-responsive genes coding for proteins such as auxin/indole acetic acid (AUX/IAA), GH3, and small auxin-up RNA (SAUR) were differentially expressed after salinity stress, suggesting the importance of auxin in the salt stress response. For the cytokinin signal transduction pathway, signal transduction occurs via phosphotransfer between the sensor kinase and the receiver domain of the response regulator (). In the cytokinin signal transduction pathway, HK2/3, which encodes a histidine kinase and AHP, which encodes a histidine-containing phosphotransfer factor, were down-regulated after salinity stress at both time points (Figure 4B). There are two types of response regulators (B-ARRs and A-ARRs) involved in cytokinin signaling (). Type-B ARRs directly activate type-A ARRs in response to cytokinin (). Four B-ARR genes were up-regulated and one was down-regulated after salt stress (Figure 4B). One A-ARR gene was repressed by salinity stress (Figure 4B). In addition, our transcriptomic analysis showed that more that 50% of ABA-, ethylene- and JA-responsive genes were up-regulated after salt stress (Figures 4C-E). These results indicate that the biosynthesis and signal transduction of auxin and cytokinin were repressed while the biosynthesis and signal transduction of ABA, ethylene and JA were activated in response to salinity stress, suggesting that auxin, cytokinin, ABA, ethylene and JA may be required for the response of D. officinale roots to salinity.
Figure 4
The SOS pathway was activated in response to salinity

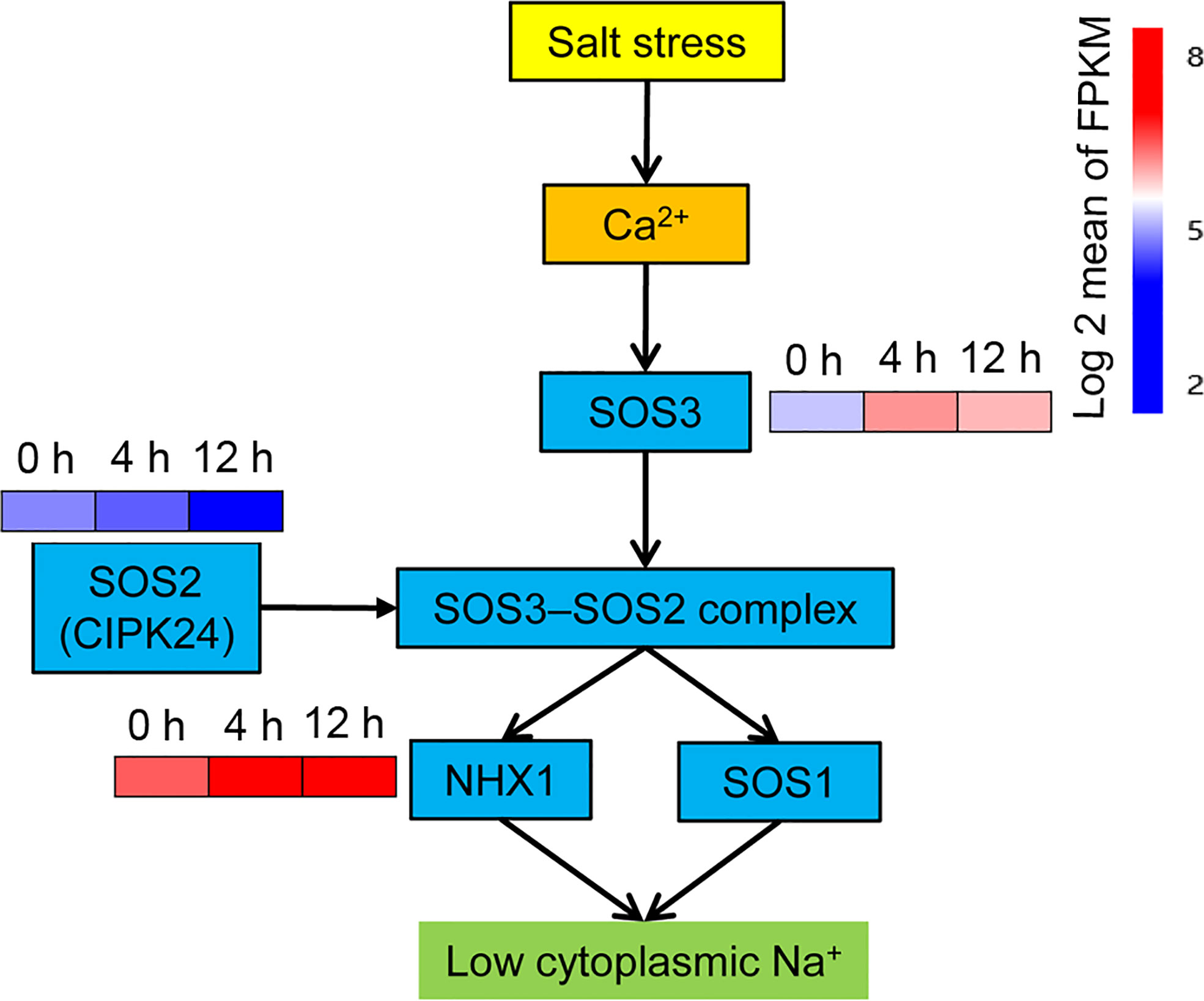

In addition to the plant hormone signaling transduction pathway, another plant signaling pathway – the calcium signaling pathway – is also involved in the salt stress response. The SOS signaling network is activated by Ca2+ signaling (). Three genes Salt Overly Sensitive 1-3 (SOS1-3) are require for salt tolerance in plants (). SOS3, which is a calcineurin B‐like protein that serves as a Ca2+‐binding protein, transduces the signal downstream by sensing changes in Ca2+ concentration in the cytoplasm (). As expected, the SOS3 gene was rapidly up-regulated at 4 h, but decreased at 12 h relative to 4 h (Figure 5). SOS2 (also known as AtCIPK24) encodes a CBL-interacting serine/threonine-protein kinase (CIPK), which interacts with the SOS3 protein to form the SOS3–SOS2 protein kinase complex (). Only one CIPK DEG, annotated as CIPK24, was found in this study, and its expression was repressed after salinity stress treatment (Figure 5). The SOS1 gene encodes a Na+/H+ antiporter that results in a low concentration of cytoplasmic Na+ ions by enabling an efflux of excess Na+ ions across the plasma membrane. The vacuolar Na+/H+ exchanger 1 (NHX1) can reduce cytoplasmic Na+ by transferring cytoplasmic Na+ into vacuoles and maintaining osmotic balance in vacuoles (; ). The SOS3–SOS2 protein kinase complex activates both SOS1 and NHX to trigger an Na+ exclusion response (). No differential expression of the SOS1 gene was observed in this study, while the expression of one gene encoding a vacuolar Na+/H+ exchanger was up-regulated after salt stress, with 2.4-fold and 2.2-fold greater expression than the control at 4 h and 12 h, respectively (Figure 5).
Figure 5
Photosynthetic pigments, photosynthesis and carbon assimilation were impaired by salinity stress
When salt concentration increases, this results in osmotic stress and the absorption of more Na+ and Cl− by roots, which may negatively affect plant growth by decreasing photosynthetic efficiency (). To reveal the impact of photosynthesis in D. officinale roots in response to salinity stress, we first analyzed photosynthesis-related biosynthetic genes and pigments. After examining the transcription profiles of Chl biosynthesis and catabolic genes, we found that all the Chl biosynthesis genes, except for one chlorophyll(ide) b reductase gene NYC1 and one chlorophyllase gene CLH2, the expression of all other genes was down-regulated (Figure 6A). For example, the protochlorophyllide reductase gene POR was strongly expressed at 0 h with an average FPKM value > 750, but its expression dropped rapidly after salt stress treatment, with average FPKM values of 137 and 46 at 4 and 12 h, respectively (Figure 6A). In addition, the pheophorbide a oxygenase gene PAO, which encodes a key enzyme in the catabolism of Chl, was considerably up-regulated (with an average FPKM of about 90 at 0 h in contrast to an average FPKM value of > 500 at both 4 and 12 h) (Figure 6A). These results suggest that the decrease in Chl biosynthesis and reduced Chl degradation led to a decrease in Chl content in roots under salinity stress. In the carotenoid biosynthetic pathway, all of the identified carotenoid biosynthetic genes, except for CRTISO2, showed lowest expression levels at 12 h, but some of these genes were up-regulated at 4 h in response to salinity stress (Figure 6B). For example, the β-carotene 3-hydroxylase gene CRTZ had a mean FPKM value of 11 at 0 h, 57 at 4 h and 7 at 12 h (Figure 6B). However, Chl a, Chl b and total carotenoid content were not different between the control and salinity stress at 24 h (Supplementary Figure 2), but pigment content, especially Chl a, decreased significantly after two weeks’ exposure to salt stress (Figure 6C). These results indicate that photosynthetic pigments were reduced after salt stress, even a long time after exposure. We also isolated the DEGs that encode photosynthetic proteins, including those associated with the photosystem I complex, light harvesting complex I, photosystem II complex, light harvesting complex II, and cytochrome (Cyt) b6f complex, as well as DEGs related to carbon fixation. A small number of photosynthetic genes were up-regulated, such as PsaC, PsbA, PsbK and petD, while all of the remaining genes were down-regulated in response to salt stress (Figure 7A). In addition, the expression of genes in the Calvin cycle decreased (Figure 7B). For example, three RBCS genes, which encode ribulose bisphosphate carboxylases, were strongly expressed before salinity treatment, but were down-regulated more than 2.5-fold after salt stress (Figure 7B). D. officinale is regarded as a facultative crassulacean acid metabolism (CAM) species (). Hence, the genes encoding key enzymes for CAM photosynthesis were identified and analyzed. Two CA genes that encode carbonic anhydrase were down-regulated (Figure 7C). Other genes involved in CAM photosynthesis, such as the malate dehydrogenase gene MDH and pyruvate phosphate dikinase gene PPDK, were highly expressed in the control, but were suppressed rapidly after salinity treatment (Figure 7C). These results indicate that photosynthesis was considerably repressed by salinity stress and that the CAM pathway was not active at an early stage of salt stress in D. officinale roots.
Figure 6
Figure 7
Global analysis of the amino acid metabolic pathway genes and composition of free amino acids

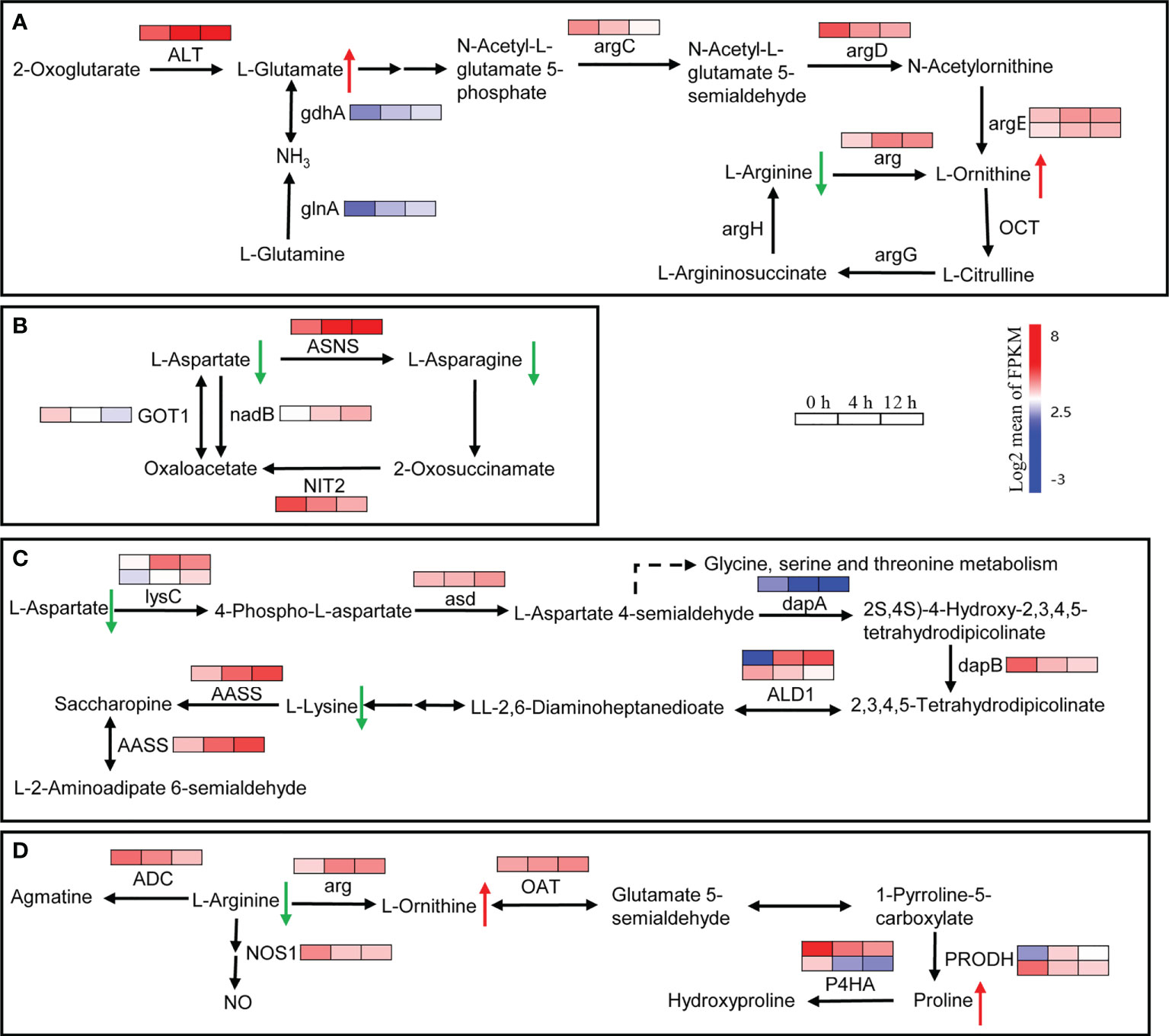

In plants, amino acids serve as precursors for the synthesis of a wide range of biologically important compounds, but they also play a role in stress response. A total of 218 DEGs related to the amino acid metabolic pathway were found. They were clustered into two main groups: down-regulated DEGs after salt stress, and up-regulated DEGs at least one time point after treatment (Supplementary Figure 3). In the ‘Arginine biosynthesis’ pathway, the genes involved in glutamate and ornithine biosynthesis were up-regulated after salinity stress (Figure 8A). For example, ALT, glnA and gdnA, which are related to glutamate biosynthesis, increased at least 2-fold at 4 h and 3-fold at 12 h after salinity stress (Figure 8A). The arg gene, which encodes an arginase that converts arginine to urea and ornithine, was up-regulated about 3-fold after salinity stress (Figure 8A). The Asparagine synthetase gene ASNS and the L-aspartate oxidase gene nadB were up-regulated in response to salt stress (Figure 8B). In addition, two lysC genes that encode aspartate kinases catalyzing the synthesis of asparagine from aspartate were up-regulated more than 3-fold at 12 h after salinity stress (Figure 8C). In lysine metabolism, the gene AASS, which encodes α-aminoadipic semialdehyde synthase involved in lysine catabolism, was up-regulated (Figure 8C). In proline biosynthesis, one PRODH gene was up-regulated while another was down-regulated (Figure 8D). Moreover, two P4HA genes involved in proline catabolism were down-regulated (Figure 8D). The dry weight content of free amino acids in roots decreased about 2-fold between control and salinity stress, even two weeks after salinity treatment (Table 1). The content of all of the main free amino acids (asparaginate, O-phosphoethanolamine, arginine, lysine, and aspartate), except for O-phosphoethanolamine, declined after salinity stress (Table 1). The contents of proline and ornithine, which are involved in osmotic stress responses such as salt and drought stresses in plants (), were significantly up-regulated after salinity stress (Table 1). These results suggest that the biosynthesis of main free amino acids such as aspartate and arginine is blocked, while the biosynthesis of stress-related amino acids like proline and ornithine is promoted in response to salinity stress.
Figure 8

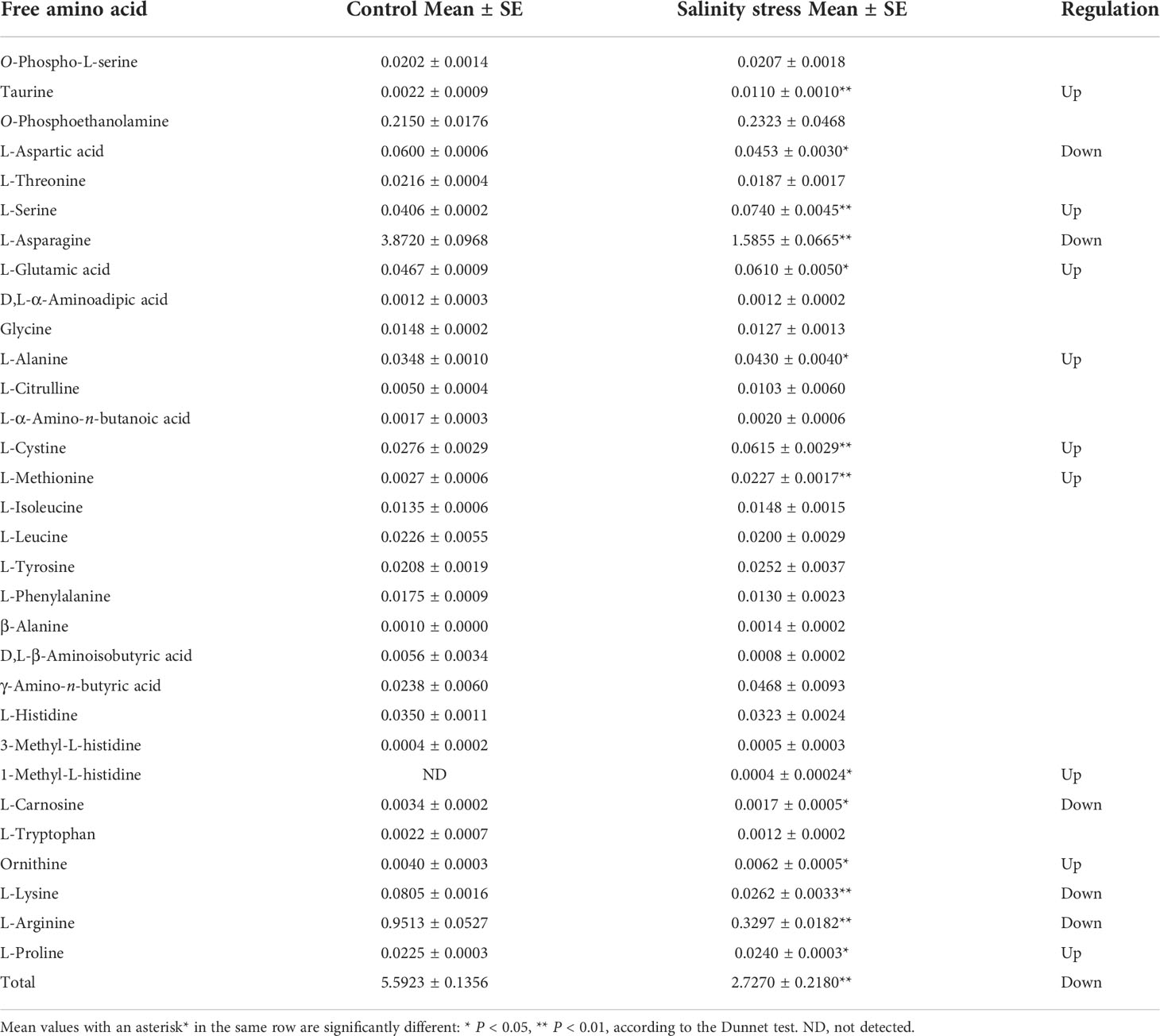

Table 1
| Free amino acid | Control Mean ± SE | Salinity stress Mean ± SE | Regulation |
|---|---|---|---|
| O-Phospho-L-serine | 0.0202 ± 0.0014 | 0.0207 ± 0.0018 | |
| Taurine | 0.0022 ± 0.0009 | 0.0110 ± 0.0010** | Up |
| O-Phosphoethanolamine | 0.2150 ± 0.0176 | 0.2323 ± 0.0468 | |
| L-Aspartic acid | 0.0600 ± 0.0006 | 0.0453 ± 0.0030* | Down |
| L-Threonine | 0.0216 ± 0.0004 | 0.0187 ± 0.0017 | |
| L-Serine | 0.0406 ± 0.0002 | 0.0740 ± 0.0045** | Up |
| L-Asparagine | 3.8720 ± 0.0968 | 1.5855 ± 0.0665** | Down |
| L-Glutamic acid | 0.0467 ± 0.0009 | 0.0610 ± 0.0050* | Up |
| D,L-α-Aminoadipic acid | 0.0012 ± 0.0003 | 0.0012 ± 0.0002 | |
| Glycine | 0.0148 ± 0.0002 | 0.0127 ± 0.0013 | |
| L-Alanine | 0.0348 ± 0.0010 | 0.0430 ± 0.0040* | Up |
| L-Citrulline | 0.0050 ± 0.0004 | 0.0103 ± 0.0060 | |
| L-α-Amino-n-butanoic acid | 0.0017 ± 0.0003 | 0.0020 ± 0.0006 | |
| L-Cystine | 0.0276 ± 0.0029 | 0.0615 ± 0.0029** | Up |
| L-Methionine | 0.0027 ± 0.0006 | 0.0227 ± 0.0017** | Up |
| L-Isoleucine | 0.0135 ± 0.0006 | 0.0148 ± 0.0015 | |
| L-Leucine | 0.0226 ± 0.0055 | 0.0200 ± 0.0029 | |
| L-Tyrosine | 0.0208 ± 0.0019 | 0.0252 ± 0.0037 | |
| L-Phenylalanine | 0.0175 ± 0.0009 | 0.0130 ± 0.0023 | |
| β-Alanine | 0.0010 ± 0.0000 | 0.0014 ± 0.0002 | |
| D,L-β-Aminoisobutyric acid | 0.0056 ± 0.0034 | 0.0008 ± 0.0002 | |
| γ-Amino-n-butyric acid | 0.0238 ± 0.0060 | 0.0468 ± 0.0093 | |
| L-Histidine | 0.0350 ± 0.0011 | 0.0323 ± 0.0024 | |
| 3-Methyl-L-histidine | 0.0004 ± 0.0002 | 0.0005 ± 0.0003 | |
| 1-Methyl-L-histidine | ND | 0.0004 ± 0.00024* | Up |
| L-Carnosine | 0.0034 ± 0.0002 | 0.0017 ± 0.0005* | Down |
| L-Tryptophan | 0.0022 ± 0.0007 | 0.0012 ± 0.0002 | |
| Ornithine | 0.0040 ± 0.0003 | 0.0062 ± 0.0005* | Up |
| L-Lysine | 0.0805 ± 0.0016 | 0.0262 ± 0.0033** | Down |
| L-Arginine | 0.9513 ± 0.0527 | 0.3297 ± 0.0182** | Down |
| L-Proline | 0.0225 ± 0.0003 | 0.0240 ± 0.0003* | Up |
| Total | 5.5923 ± 0.1356 | 2.7270 ± 0.2180** | Down |
Content of free amino acids (mg/100 mg DW) in Dendrobium officinale roots in control and salinity stress treatment.
Mean values with an asterisk* in the same row are significantly different: * P < 0.05, ** P < 0.01, according to the Dunnet test. ND, not detected.
Total flavonoids decreased in roots under salinity stress

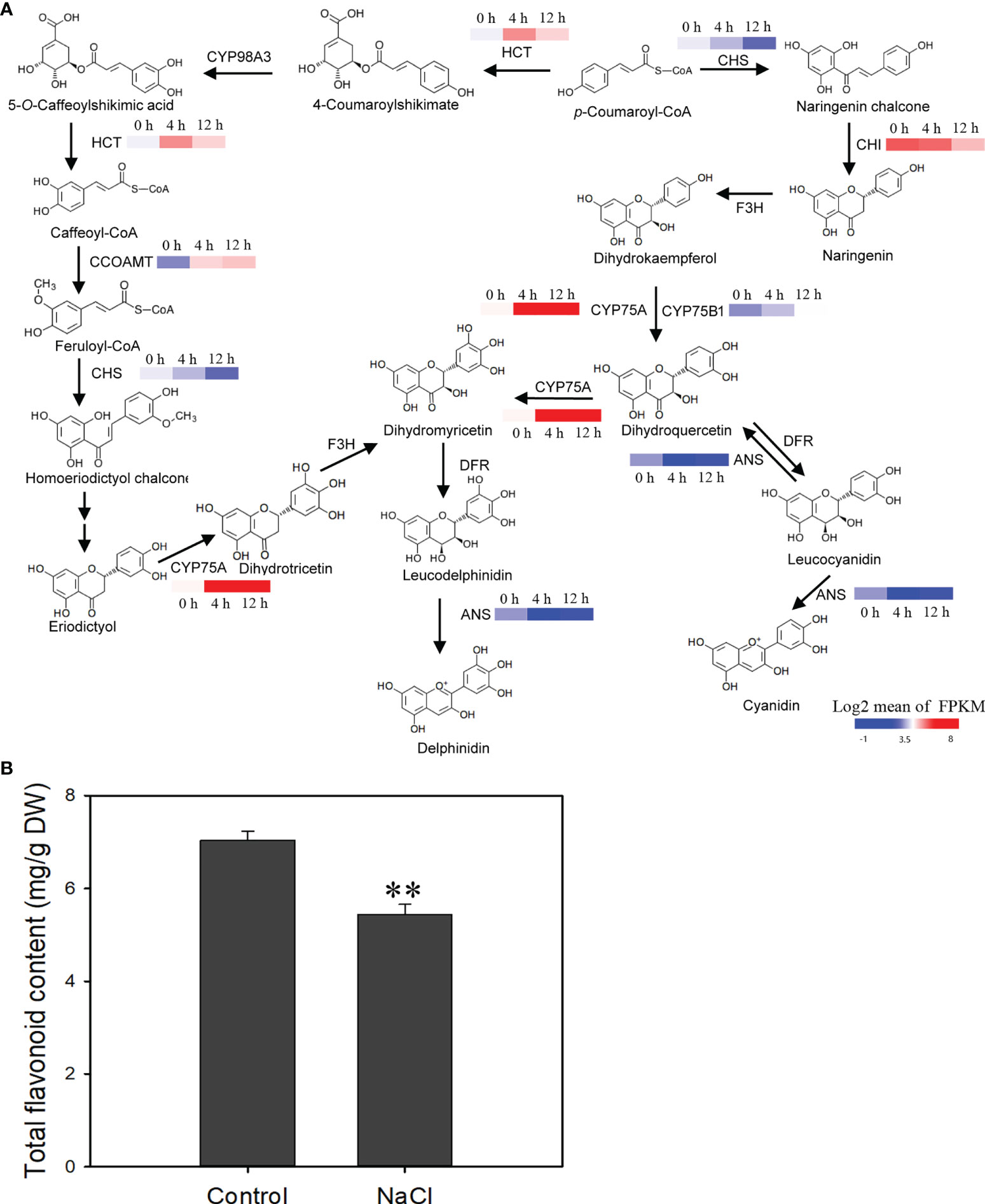

In the flavonoid metabolic pathway, the expression level of two genes coding for flavonoid 3′-hydroxylase (CYP75A and CYP75B1) increased after salinity stress, suggesting that the conversion of dihydrokaempferol to dihydroquercetin or dihydromyricetin was enhanced (Figure 9A). Flavonoid biosynthetic genes like HTC and CCOAMT were also affected after salinity stress and their expression was up-regulated (Figure 9A). However, expression of the genes coding for chalcone isomerase (CHI) and chalcone synthase (CHS), which are key enzyme genes in the synthetic pathway of flavonoids, declined after salinity stress (Figure 9A). Total flavonoid content decreased in roots after salinity stress (Figure 9B). These results suggest that the biosynthesis of flavonoids is suppressed by salinity stress in D. officinale roots.
Figure 9
Global analysis of transcription factors and characterization of a WRKY gene in improvement of seed germination under salinity stress

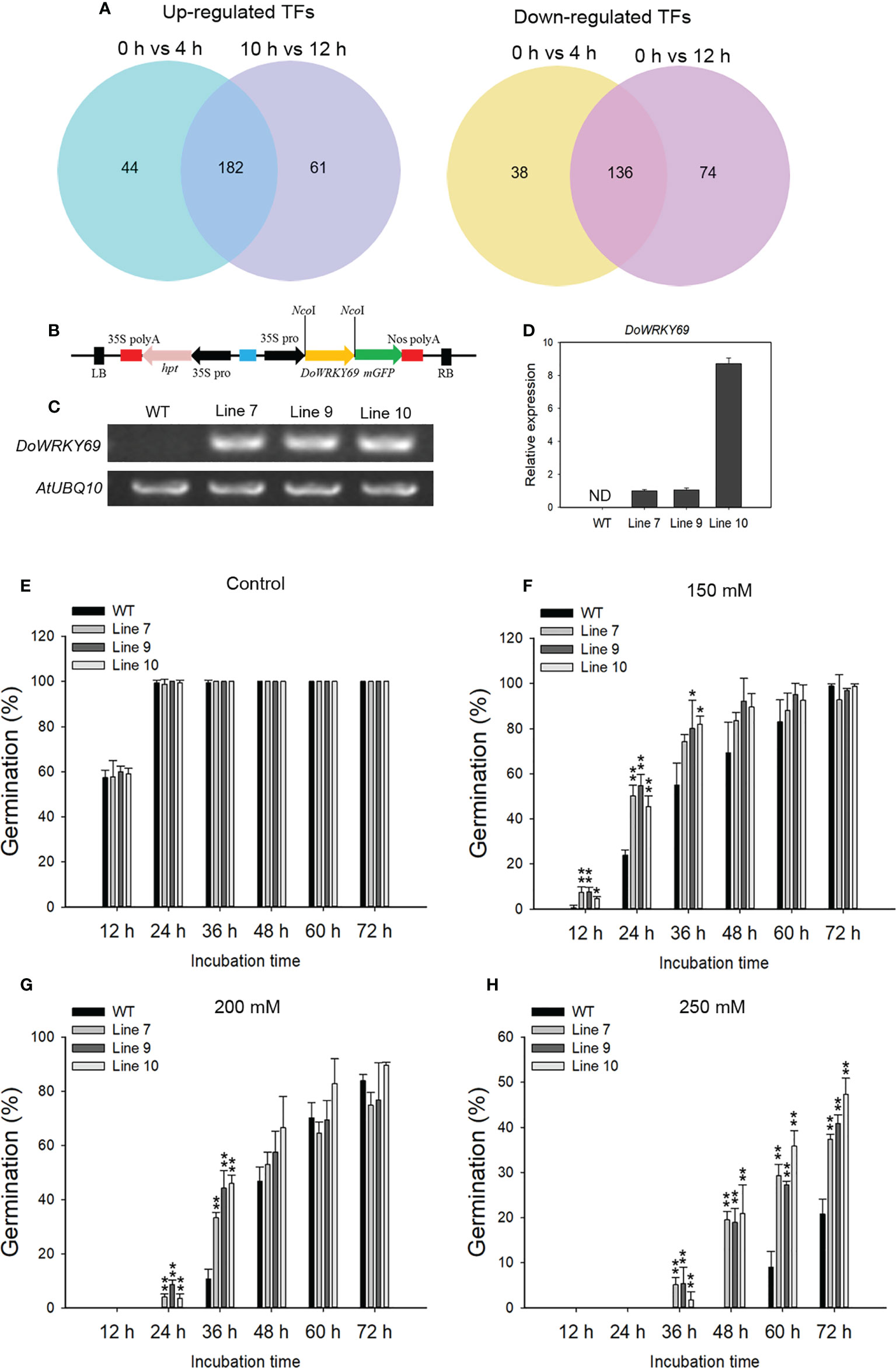

TFs are widely involved in the regulation of metabolism and physiological processes, including stress response, in plants. A total of 226 and 243 TFs were up-regulated while 174 and 210 TFs were down-regulated at 4 and 12 h, respectively after salinity stress (Figure 10A). Among the down- or up-regulated genes at both time points, the largest number of down-regulated TFs was from the MYB family (22 genes) and the largest number of up-regulated TFs was from the APETALA2/ETHYLENE RESPONSE FACTOR (AP2/ERF) family (30 genes) (Supplementary Figure 4). Of note, all of the identified heat stress transcription factors were up-regulated at 4 h and 12 h. Only two WRKY genes were down-regulated while 17 WRKY genes were up-regulated at the detected time points after salt stress (Supplementary Figure 4).
Figure 10
To investigate the role of TFs in response to salinity stress, DoWRKY69 with significantly up-regulated expression in WRKY family was selected and analyzed. DoWRKY69 belongs to Group IIb (Supplementary Figure 5) and was up-regulated by about 4-fold at 4 h and by about 10-fold 12 h after salinity stress in roots (Supplementary Figure 6). The coding sequence (CDS) of DoWRKY69 without a stop codon was cloned into pCAMBIA1302 at the NcoI site and is driven by the 35S promoter (Figure 10B). Ten independent transgenic lines for DoWRKY69 were generated. Lines 7, 9 and 10 were used to analyze expression level and seed germination in response to three NaCl concentrations (150, 200, and 250 mM). The DoWRKY69 gene was detected in all three transgenic lines but was not detected in WT plants (Figures 10C, D). In WT and transgenic lines, seeds germinated well and their germination percentage was nearly 100% in control medium 24 h after incubation (Figure 10E). However, the difference between WT and transgenic lines was obvious when the growth medium was supplemented with salt (Figures 10F-H). The germination rate of all transgenic lines was significantly higher than WT seeds within 24 h in response to 150 mM NaCl (Figure 10F). No WT seeds germinated within 24 h, while more than 3% of transgenic seeds of each transgenic line germinated with 24 h after exposure to 200 mM NaCl (Figure 10G). In addition, the germination of transgenic lines was significantly higher than WT seeds at 36 h after exposure to 200 mM NaCl (Figure 10H). Although no seeds germinated within 48 h in response to 250 mM NaCl, the germination of transgenic lines was significantly higher than WT seeds within 72 h after exposure to 250 mM NaCl (Figure 10H). These results suggest that DoWRKY69 plays a positive role in salt stress tolerance in A. thaliana.
Discussion
Salinity is one of the most severe environmental factors limiting the productivity of agricultural crops. It is necessary to explore salinity tolerance mechanisms to help improve salt tolerance of crops via genetic engineering. In this study, we investigated transcriptomic reprogramming in D. officinale plantlets at an early phase of salinity stress, and characterized the ability of an up-regulated gene DoWRKY69 to improve A. thaliana seed germination under salt stress. The roots of D. officinale plantlets are photosynthetic. The biosynthesis and signal transduction of hormones, such as IAA and cytokinin, which are essential for plant growth and development, were repressed, while stress-responsive hormones such as ABA, JA and SOS pathway genes were up-regulated at an early phase in response to salt stress. In order to survive and adapt to salinity stress, physiological and metabolic adjustments were made through extensive transcriptomic reprogramming. Our results suggest that physiological and metabolic processes and molecular functions are reprogrammed in the photosynthetic roots of this orchid when plants are exposed to salinity stress.
Plant hormones are crucial signaling molecules and their signaling depends on their spatio-temporal distribution (). Phytohormones coordinate all aspects of plant growth and development, as well as stress responses (). Plant hormones interact with five key plant neurotransmitters, including serotonin, melatonin, dopamine, acetylcholine and γ-aminobutyric acid, and participate in many physiological processes such as photosynthesis, oxidative stress and osmotic regulation (). Two groups of phytohormones, auxins and cytokinins, have been clearly demonstrated as the main regulators of plant development (; ; ) and stress responses (; ). For example, the YUC gene, which encodes indole-3-pyruvate monooxygenase, plays an important role in auxin (IAA) biosynthesis (). Overexpression of the YUC gene exhibited a drought-resistant phenotype in A. thaliana (), and conferred water-deficit tolerance in potato (). However, improvement of drought tolerance by overexpression of the YUC6 gene was not due to an increase in auxin synthesis, but rather due to YUC6-processed thiol-reductase, which inhibited the generation of ROS (). Only one YUC gene was identified in this study and its expression was down-regulated after salt stress, suggesting that the synthesis of IAA might decrease in D. officinale roots in response to salt stress (Figure 3A). Moreover, the IAA biosynthesis pathway gene IAA1 and auxin signal-mediated genes (AUX1 and ARF) were down-regulated after salt stress, suggesting a reduction in auxin signals in response to salinity stress. Cytokinin biosynthesis pathway genes (three IPT genes and CYP735A) and the expression of cytokinin signal transduction pathway genes (HK, AHP and A-ARR, as well as one B-ARR gene) declined in D. officinale roots after salt stress, indicating the inhibition of cytokinin signaling in roots after salt stress. Biosynthetic genes such as CYP735A2 from A. thaliana and IPT (a key enzyme for cytokinin biosynthesis) from tomato were predominantly expressed in roots, suggesting that roots are a major site for cytokinin synthesis (; ). The down-regulated expression of IPT genes and CYP735A in D. officinale roots indicates a decrease in cytokinin. Some studies have shown that cytokinin signaling plays a negative role in stress responses. For example, two histidine kinase genes (AHK2 and AHK3) negatively controlled osmotic stress responses in A. thaliana, and their single or double mutants displayed strong tolerance to drought and salt stress (). These results indicate that cytokinin was a negative regulator of stress and that repression of the cytokinin signal in D. officinale roots might help plants to cope with salt stress. Most of the genes related to the biosynthesis of ABA, ethylene and JA and their signal transduction pathways were up-regulated after salt stress in D. officinale roots (Figures 3, 4). ABA, ethylene and JA signal transduction pathways after exposure to salt stress were described in greater detail in a fairly recent review (). This indicates the conserved role of ABA, ethylene and JA in the response of plants to salt stress.
Photosynthesis is an essential process, converting solar energy into chemical energy. Salt stress plays a negative role in the photosynthesis of leaves (; ). Genes that encode the components of both the light and dark reactions of photosynthesis in the leaves of salt-treated soybean seedlings were slightly repressed or maintained at the early phase within 4 h, but were inhibited at a later phase (after 24 h) (). Chloroplasts are important organelles central to plant photosynthesis and are affected by salt-induced toxicity, although different plant species and development stages display different degrees of resistance to salt stress (; ). In this study, an anatomical analysis demonstrated that D. officinale plantlet roots contained chloroplasts (Figure 1), suggesting that the roots were capable of photosynthesis. The genes involved in the biosynthesis of photosynthetic pigments, as well as the genes encoding photosynthetic components, were strongly repressed in roots of salt-treated D. officinale plantlets within 12 h. These results indicate that photosynthesis is inhibited in both roots and leaves in response to salt stress, while the influence of time in both organs is different. Photosynthetic pigments were not discernibly altered under short-term salt stress (within 24 h) in the roots of D. officinale plantlets, although the expression of biosynthetic genes dropped drastically within 12 h (Figure 3). It is possible that the photosynthetic pigments were not damaged by salt stress in the first 12 h of exposure.
A decrease in photosynthetic rates under stress (dehydration, salt, extended darkness) may lead to an insufficient supply of carbohydrates. Free amino acids, which are tightly linked to carbohydrate metabolism, can be used as alternative substrates for mitochondrial respiration or act as precursors for the biosynthesis of secondary metabolites or immune signaling metabolites (; ; ). In this study, the biosynthesis of arginine was repressed and its breakdown was induced, leading to a decrease of arginine in D. officinale roots after exposure to salt stress, suggesting the arginine might be used as a precursor for the biosynthesis of other compounds. For example, polyamines, which are synthesized from arginine, are responsive to plant stresses (; ). Auxin can be synthesized from tryptophan () and ethylene is synthesized from methionine (). There were no differences in tryptophan content while the expression of auxin biosynthetic genes was repressed by salt stress (Table 1 and Figure 8A). The increased expression of methionine and the deregulation of ethylene biosynthetic genes after salt stress (Table 1 and Figure 8D) suggest that ethylene synthesis is related to the methionine cycle. In addition, the higher level of stress-related proline and organic acids has been observed in salt cress (Eutrema salsugineum) exposed to extreme salt stress (). In the roots of D. officinale, proline biosynthetic genes were induced by salt and their expression was correlated with the increase in proline content.
Flavonoids, a diverse group of bioactive polyphenolic compounds, are catalyzed by a series of enzymes. CHS is first rate-limiting enzyme in flavonoid biosynthesis and catalyzes the production of naringenin chalcone using p-coumaroyl-CoA as the starting substrate (; ). Under salinity stress, CHS and CHI were down-regulated, and this might have led to a decrease of total flavonoid production in D. officinale roots. Flavonoids are effective antioxidants that are involved in the response mechanisms of plants under adverse environments, including biotic and abiotic stresses (; ). Studies have shown that salinity stress can enhance total flavonoid concentration in plant leaves. For example, flavonoid biosynthesis pathway genes such as the phenylalanine ammonia lyase gene PAL, the chalcone synthase gene CHS and the flavonol synthase gene FLS, as well as total flavonoids, were up-regulated in the leaves of Solanum nigrum under salt stress (). In our previous study, flavonoid biosynthesis genes (such as CHS, CHI and F3H) were up-regulated and total flavonoid content was enhanced in D. officinale leaves under salt stress (). Flavonoids act as antioxidants by scavenging ROS in stressed plant leaves (). However, the content of flavonoids decreased in D. officinale roots under salt stress, suggesting that the path or mechanism by which ROS is scavenged in the roots of D. officinale is different from that in leaves.
Transcriptional activation of functional genes involved in stress responses by TFs leads to the adjustment of specific metabolism of metabolites, which is one strategy to cope with stress in plants. Different studies have identified many TFs involved in regulating the response to salt stress (). Most up-regulated TFs belong to AP2/ERF, MYB, NAC and WRKY families (Supplementary Figure 3). Accumulating evidence has shown that WRKY genes play positive or negative roles in the regulation of the salt stress response. Maize (Zea mays) WRKY17 and WRKY114 negatively regulate salt stress tolerance (; ). GhWRKY17 from cotton (Gossypium hirsutum) and WRKY46 from A. thaliana contribute to salt stress tolerance (; ). A WRKY gene DoWRKY69 was up-regulated after salt stress treatment. Over-expression of DoWRKY69 demonstrated its role in improving A. thaliana seed germination under salt stress. These results indicate that stress-related TFs can be induced by salt stress treatment and might be responsible for the stress response.
Conclusion
During the salt stress response mechanism of D. officinale in vitro plantlets, the expression of genes involved in photosynthesis and flavonoid biosynthesis, as well as in the biosynthesis of auxin and cytokinin, declined, whereas the expression of genes coding for stress-related plant hormones (ABA, ethylene and JA), the signal transduction pathway, the SOS pathway, and the biosynthesis of amino acids related to osmotic adjustment, were activated (Figure 11). This indicates that D. officinale adapted to salt stress by reducing growth, the accumulation of compatible solutes, and increasing the exclusion of excess Na+ in roots (Figure 11). Our findings illustrate a response mechanism of the roots of a facultative CAM plant to salinity stress. Our study also provides a large number of candidate stress-responsive genes that could be used to develop and strengthen economically important crops using biotechnological approaches, allowing them to cope with salt stress.

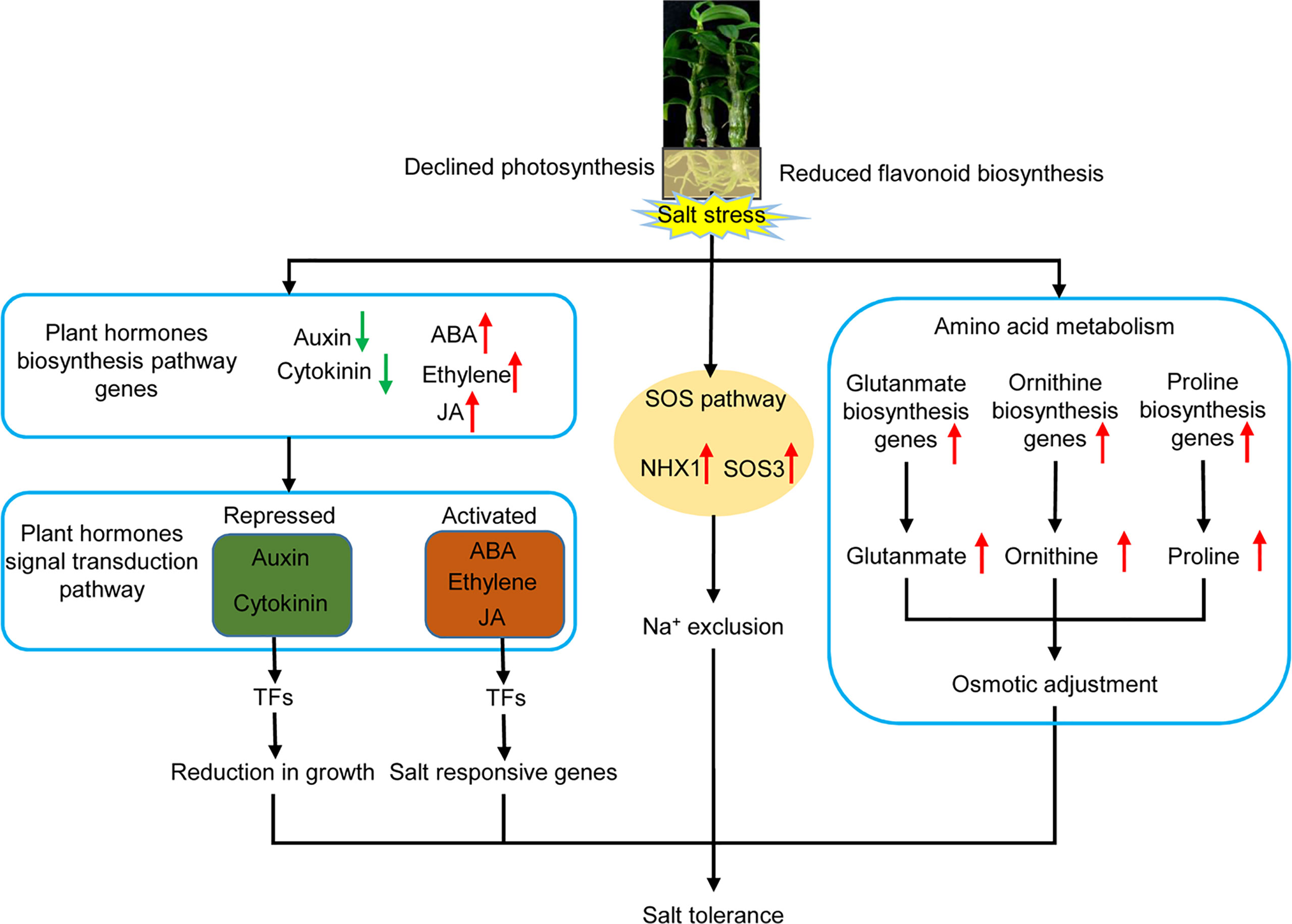

Figure 11
Funding
This research was funded by the National Natural Science Foundation of China (32071819 and 31800204), the Youth Science and Technology Talent Growth Project of Education Department of Guizhou Province of China (No. [2022]099), the Science and Technology Department Foundation of Guizhou Province of China (No. [2020]1Y120), and the Project of High-Level Talents Introduction in Qiannan Normal University for Nationalities (2021qnsyrc06).
Acknowledgments
We thank Dr. Minglei Zhao (South China Agricultural University) for helpful suggestions and Jian Liu (South China Botanical Garden, Chinese Academy of Sciences) for analyzing free amino acid content.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Statements
Data availability statement
The original contributions presented in the study are publicly available. This data can be found here: PRJNA715099
Author contributions
CH and MZ supervised the project. MZ and CH conceived the research and designed the experiments. RD performed histological analysis. MZ, CH, NL, XL, YY, JT and JD collectively interpreted the results and wrote all drafts of the manuscript. All authors contributed to the article and approved the submitted version.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
