Abstract
Introduction:
DNA integration is a key factor limiting the marketing of CRISPR/Cas9-mediated gene edited crops. Several strategies have been established to obtain transgene-free gene edited plants; however, these strategies are usually time-consuming, technically difficult, providing low mutagenesis efficiency, and/or including a narrow host range.
Method:
To overcome such issues, we established a paraquat resistant 1 (PAR1)-based positive screening (PARS) strategy, which achieved efficient screening of transgene-free gene edited plants.
Results:
With PARS, the screening efficiency of mutant increased by 2.81-fold on average, and approximately 10% of T1 plants selected via PARS were transgenefree. Moreover, heritable transgene-free mutations at target loci were identified in the T1 generation.
Discussion:
Based on the previous reports and our data, we know that paraquat is toxic to all green plants, PAR1 is conserved among all plant species tested, and the transient expression of Cas9 editor can produce transgene-free gene edited plants. Thus, we assume that the PARS strategy established here has the potential to be widely used to screen transgene-free mutants in various crops using diverse CRISPR/Cas9 delivery approaches.
Introduction
The clustered regularly interspaced short palindromic repeats (CRISPR)/CRISPR-associated endonuclease 9 (Cas9) system has been applied to multiple plant species for gene editing to facilitate studies on gene function and crop improvement (; ; ). However, the integration of the CRISPR/Cas9 construct can lead to phenotype instability, internal gene expression disturbance, and concerns related to genetically modified organism-associated legislation (; ; ). Therefore, transgene-free gene edited plants is ideal for gene functional studies and agricultural applications. Two strategies are typically applied to produce transgene-free gene edited plants: (1) elimination of the integrated CRISPR/Cas9 construct via genetic segregation and (2) transient expression of the Cas9 editor (). The first strategy has been used extensively. Moreover, it is suitable for most species that can be transformed with Agrobacterium. However, this strategy requires the selection of transgene-free gene edited plants from the progenies of transgenic plants, which is laborious and unfeasible in vegetatively propagated plants, such as potato or trees, with a long juvenile period (; ; ; ; ). The second strategy delivers DNA, in vitro-transcribed RNA, or preassembled CRISPR/Cas9 ribonucleoproteins to protoplasts, zygotes, and embryo cells via particle bombardment or polyethylene glycol Ca2+ (; ; ; ). These approaches are mostly technically difficult and inefficient. Therefore, an inexpensive, convenient, and highly efficient approach is required for producing transgene-free gene edited plants.
Agrobacterium-mediated transformation is a low-cost and simple method to deliver Cas9 editors in plant cells (). More importantly, transgene-free gene edited plants have been detected in regenerated seedlings from cells inoculated with Agrobacterium carrying the CRISPR/Cas9 construct without selection (). However, the efficiency of this strategy is relatively low, as most of the regenerated seedlings are unmutated. Thus, a screening marker is required to enrich the transgene-free gene edited plants. Previous studies have shown that some exogenous and endogenous genes can be used as co-editing markers to improve screening efficiency. For example, the hygromycin resistance gene (HygR) in construct and GLABRA2 (GL2) in genome (; ). Whereas, these markers are not conducive to the screening of transgene-free gene edited plants. We assume some genes that provide plants with herbicide or antibiotic resistance when mutated, e.g., acetolactate synthase (ALS) and multiple antibiotic resistance 1 (MAR1), can be used as markers for this purpose (; ; ). However, ALS can only serve as a selection marker for base editors because some point mutation forms of ALS, rather than its knockouts, provide herbicide resistance to plants (). Null mutation of MAR1 results in plant resistance to several aminoglycoside antibiotics, including kanamycin, streptomycin, gentamicin, etc. (). Among these antibiotics, kanamycin has been applied to select transgenic plants in multiple plants but works inefficiently in some species, such as tomato (). Paraquat resistant 1 (PAR1), a gene that encodes a putative L-type amino acid transporter protein localized to the Golgi apparatus, was screened from an Arabidopsis ethyl methanesulfonate (EMS) mutant library, and its paraquat resistance phenotype was further confirmed by analyzing its T-DNA mutants, indicating that the par1 loss-of-function mutant could be selected through paraquat treatment. Importantly, paraquat is nonselective herbicide for green plants () and par1 mutants exhibit no obvious developmental defects in Arabidopsis (). However, it is not clear whether PAR1 can be used as a screening marker for CRISPR/Cas9.
Here, we created par1 mutants in Arabidopsis using the CRISPR/Cas9 system, which revealed that abolishing the function of PAR1 exhibited a strong paraquat-resistant phenotype without growth penalties under both normal growth and several stress conditions. We also confirmed that PAR1 can be used as a coediting marker to enrich mutants of target loci. Furthermore, we found that transgene-free gene edited plants could be easily detected in the T1 generation using PAR1 as a selection marker. Given that PAR1 is a conserved protein in all plant species tested, we proposed that this PAR1-based positive screening (hereafter, referred to as PARS) strategy may be applicable for various plant species and multiple CRISPR/Cas9 delivery approaches.
Materials and methods
Plant growth conditions, transformation, and selection
Arabidopsis thaliana accession Col-0 was used as the wild type. Seeds were surface sterilized and plated on 1/2 Murashige and Skoog (MS) medium containing 2.2% (w/v) MS basal salts, 1.5% (w/v) sucrose, 0.05% (w/v) MES (pH 5.7) and 0.8% (w/v) agar or in soil with a 16 h light/8 h dark photoperiod at 22 °C. Agrobacterium-mediated transformation of plants was performed by floral dip (). To select transgenic plants, T0 seeds were surface sterilized and sown on 1/2 MS medium containing 25 mg/L hygromycin. While for transgene-free gene edited plants selection, T0 seeds were sown on 1/2 MS medium containing 1 μM paraquat. After 14 days of growth on sterile agar plates, resistant seedlings were transferred to soil. To further confirm the T1 edited plants without Cas9, their seeds were sown on 1/2 MS medium supplemented with 25 mg/L hygromycin for two weeks
Construction of CRISPR/Cas9 vectors
Four single guide RNAs (sgRNAs), i.e., sgRNApar11–4, targeting PAR1 were designed using the online predictor tool CCTop (https://cctop.cos.uni-heidelberg.de/), and the efficacy score and mismatch positions were used as evaluation criteria. Additionally, sgRNAs targeting jasmonate-ZIM-domain protein 1 (JAZ1) and gibberellic acid insensitive (GAI) were used as previously described (). Each oligonucleotide pair coding for the designed sgRNAs was annealed to form double-stranded DNA (dsDNA). The sequences of the synthesized DNA oligonucleotides and all primers used in this study are listed in Supplementary Table S1.
To construct pHEE401E () vectors targeting four different sites of PAR1 and one site of JAZ1 or GAI, the dsDNA was fused to the BsaI-digested vector pHEE401E using T4 DNA ligase (EL0011, Thermo Scientific™). To construct a new vector named pPARS, which targets PAR1 as a selection marker, the DNA sequence of sgRNApar13 was introduced into the PAR1-2Tar-R primer when the primer was synthesized. The primer pair PAR1-2Tar-F/R (Supplementary Table S1) was then used to amplify a sequence containing the U6 terminator-U6 promoter-sgRNApar13 element using the pCBC-DT1T2 plasmid as a template (). Through homologous recombination using ClonExpress® II One Step Cloning Kit (C112, Vazyme Biotech co., ltd.), this element was ligated into the pHEE401E binary vector digested by BsaI. Additionally, a BsaI restriction site was added to the PAR1-2Tar-F/R primers; hence, the final vector retained the BsaI cleavage site, allowing the insertion of sgRNAs for the target loci of interest. DNA sequence for pPARS plasmid was shown in Supplementary Data Set S1. To produce the pPARS constructs targeting JAZ1 or GAI, their dsDNAs were introduced into the BsaI sites of pPARS vectors. Agrobacterium tumefaciens strain GV3101 was transformed with the final binary vectors for floral dip.
Genotyping of the transgenic plants
Genomic DNA was extracted from 4-week-old plant leaves using DNA extraction buffer [50 mM Tris–HCl (pH 7.5), 300 mM NaCl, and 300 mM sucrose]. To confirm the integration of T-DNA or CRISPR/Cas9-introduced mutations of the target gene, gene-specific primers (Supplementary Table S1) were used for PCR amplifications with EasyTaq® DNA Polymerase (AP111; TransGen Biotech Co., Ltd.) under the following cycling conditions: initial denaturation at 95°C for 5 min; 35 cycles at 95°C for 30 s, 58°C for 30 s, and 72°C for 60 s; and final extension at 72°C for 5 min. The PCR products were visualized on a 1% agarose gel, and samples with no Cas9-specific band were considered transgene-free gene edited plants. Additionally, Sanger sequencing was performed to identify mutations in the target region. All sequencing data were analyzed using online software (http://shinyapps.datacurators.nl/tide/ and https://ice.synthego.com/#/).
Biomass and flowering time analysis
To detect the fresh weight of Col-0 and par1, plants were sown in soil and grew in chamber with a 12 h light/12 h dark photoperiod at 22°C. After three and a half weeks, plant weight was determined. For the determination of flowering time, Col-0 and par1 were grown in soil at 22°C under 16-h light/8-h dark cycles. Flowering time was estimated by counting the number of rosette leaves according to the visible flower buds at the center of the rosette and the days from sowing to flowering.
Root growth assay
To analyze whether PAR1 affects plants to cope with multiple stresses, WT and par1 were sown on 1/2 MS medium vertically with or without 200 mM mannitol, 150 mM NaCl or 8 mM NaHCO3, respectively, and growing under 12 h light/12 h dark photoperiod at 22°C for 12 d. To detect the response of WT and par1 to low temperature, WT and par1 were sown on 1/2 MS medium vertically and growing under 12 h light/12 h dark photoperiod at 12°C for 12 d. To evaluate whether PAR1 mutation affects the functional analysis of target genes, Arabidopsis seeds of WT, T1 seeds of par1 #10 and jaz1 par1 #17 were surface sterilized and sown on 1/2 MS medium vertically with or without 50 μM methyl-jasmonate (JA) for 10 d, following which primary root length was measured using the ImageJ software (https://imagej.nih.gov/).
Sequence alignment and phylogenetic analyses
Amino acid sequences of PAR1 in different species were obtained from NCBI (http://www.ncbi.nlm.nih.gov). Multiple sequence alignment was performed using the ClustalW algorithm with 1,000 bootstrapping trials and the phylogenetic analysis was conducted using the neighbor-joining method in MEGA 7.0.14 software with 1000 bootstrap value.
Statistical analysis
Statistical analyses were performed using Graph Pad Prism 8.0. The statistical significance levels (value of p<0.05) was determined by Student’s t-test or one-way ANOVA.
Accession numbers
PAR1: At1g31830; JAZ1: At1g19180; GAI: At1g14920.
Results
Design of the PARS strategy
As a screening marker of the CRISPR/Cas9 system, its mutants should be easily screened out under certain conditions and should not have obvious fitness costs for subsequent application. Using a literature search, we confirmed that PAR1 met these necessary criteria. PAR1 is a Golgi-localized transporter that may be responsible for the uptake of paraquat into chloroplasts to generate toxic reactive oxygen species (). Knockout of PAR1 resulted in a paraquat-resistant phenotype and moreover showed no growth defect, which perfectly fit our requirements. Thus, we designed the PARS screening strategy to efficiently select transgene-free gene edited plants based on PAR1 mutation. First, the expression cassette of PAR1 sgRNA driven by the AtU6 promoter was cloned into pHEE401E to construct the pPARS vector (Figure 1A), which has an additional sgRNA expression cassette for the target site and a Cas9 expression cassette driven by the enhancer of egg-cell specific promoter EC1.2 fused to the EC1.1 promoter, thus reducing the ratio of chimeric mutants (). The sgRNA for the target locus was then introduced into pPARS, and the final construct was used to transform Arabidopsis plants via floral dip (Figure 1B). The seeds of T0 plants were collected and sown on 1/2 MS plates supplemented with paraquat to screen par1 mutants. Additionally, DNA was extracted from the par1 mutants to determine whether they were transgene-free mutants via PCR with Cas9 primers. Finally, the transgene-free T1 plants were sequenced to determine whether mutations occurred at target loci (Figure 1B).

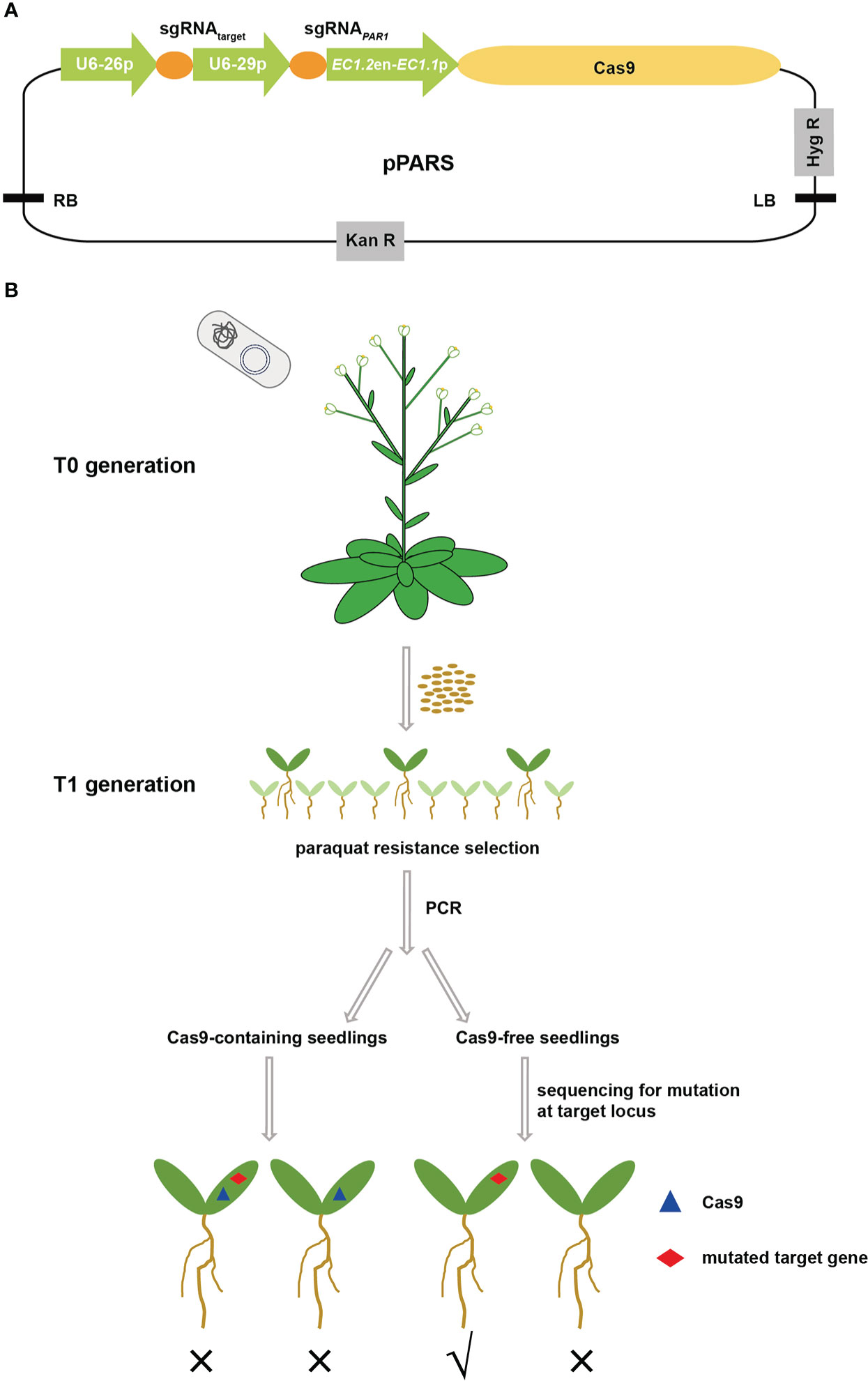

Figure 1
PAR1 is a suitable marker for the selection of CRISPR/Cas9-created mutants
To select a suitable sgRNA for PAR1, we designed four sgRNAs for this gene. As shown in Supplementary Figure S1, sgRNApar11–4 targeted 79, 118, 313, and 905 bp downstream of the translation start site ATG. We obtained ≥ 30 T1 plants for each sgRNApar1, and all T1 plants of the four sgRNApar1s were sequenced. The mutation rates of the four target sites were 46.67%, 13.64%, 43.33%, and 15.91%, respectively, and sgRNApar13 exhibited the highest homozygous and biallelic mutation efficiency, i.e., 20% (6/30) and 10% (3/30) of the T1 plants were homozygous and biallelic, respectively (Figure 2A and Supplementary Table S2). Therefore, sgRNApar13 was used to construct pPARS. A homozygous par1 mutant created using sgRNApar13 was selected to determine whether the par1 mutant can be easily screening out using paraquat and has no growth penalty as reported (). To determine the feasibility of screening par1 mutants using paraquat, we mixed 25 par1 homozygous seeds with 0.2 g of WT seeds and selected them using 1 μM paraquat according to a previously published method () All plants screened using 1 μM paraquat were par1 mutants (Figure 2B and Supplementary Figure S2), indicating the screening with 1 μM paraquat is very efficient. To determine whether the par1 mutants exhibit growth defects, we compared the growth statuses of three- and six-week-old WT and par1 mutant plants. As shown in Figures 2C, D, the growth of the par1 mutant and WT did not differ significantly at these stages. We also measured the biomass, flowering time, and seed weight per plant of the WT and par1 mutant and found no significant difference between them (Figures 2E, F and Supplementary Figure S3). Importantly, mutating PAR1 exerted no negative effects on plant growth under multiple stress conditions (Supplementary Figure S3). Collectively, these results suggest that PAR1 is a suitable marker for selecting gene edited CRISPR/Cas9-created mutants.

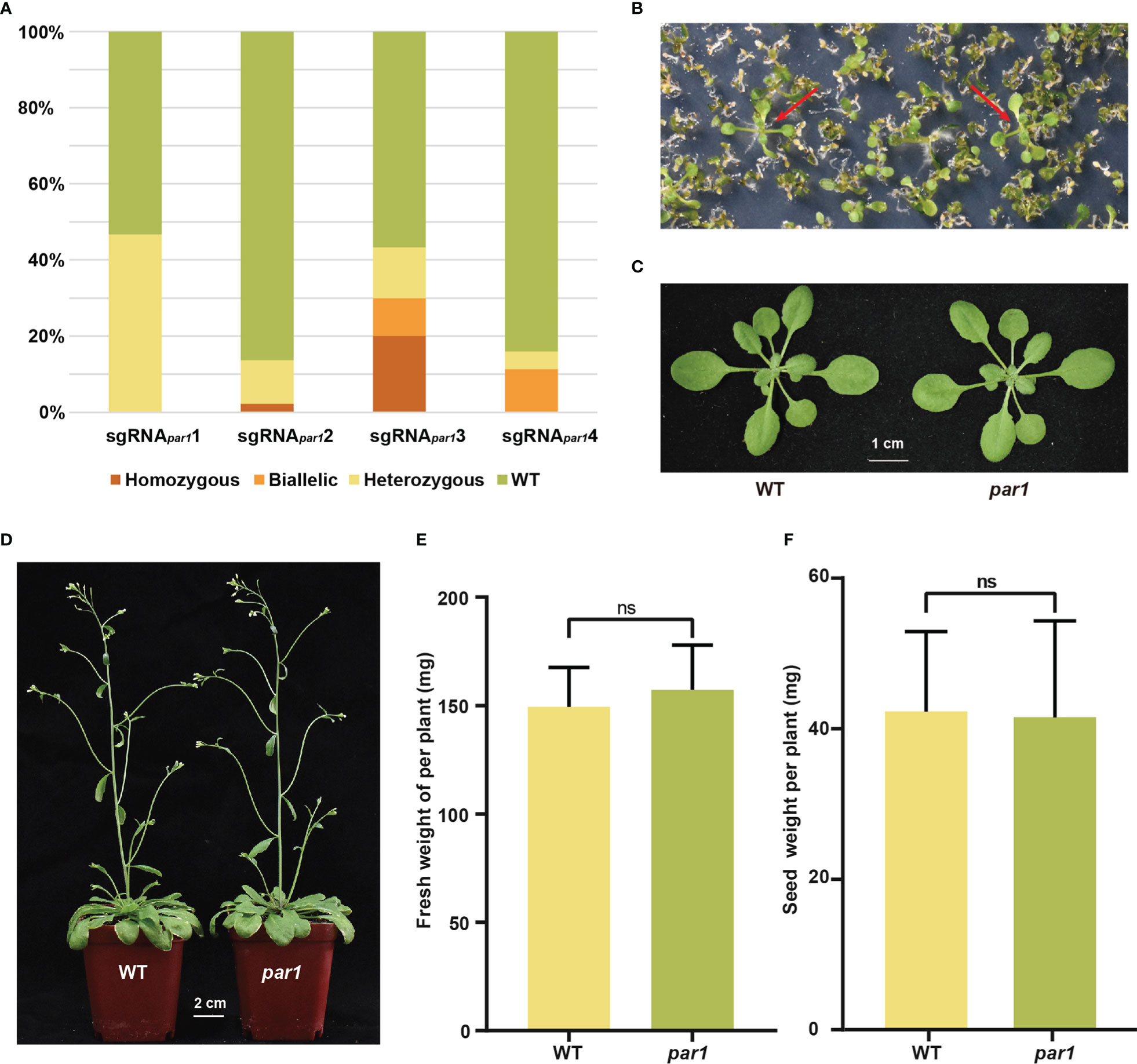

Figure 2
Transgene-free PAR1-edited plants can be screened from T1 plants
As we know, transiently expressing Cas9 and sgRNA can create transgene-free gene edited plants (), and furthermore, transgene-free gene edited plants were obtained in plants that were regenerated from calli transiently expressing Cas9 from T-DNA delivered by Agrobacterium without selection (). We assumed that the transgene-free par1 mutant could be detected in T1 plants if we selected T0 seeds by paraquat. For this purpose, we equally divided T0 seeds (1.2 g) obtained from the same transformation event (with sgRNApar13) into two groups, sowing these seeds on 1/2 MS plates supplemented with either hygromycin or paraquat. In total, 217 and 60 positive seedlings were observed on hygromycin and paraquat plates, respectively (Figure 3A). We sequenced all positive seedlings and found that 63 of 217 hygromycin-resistant plants were par1 mutants, with 26.98% (17), 12.70% (8), 53.97% (34), and 6.35% (4) being homozygous, biallelic, heterozygous, and chimeric, respectively (Supplementary Figure S4 and Supplementary Table S2). All 60 paraquat-resistant seedlings were par1 mutants, with 43.33% homozygotes (26), 31.67% biallelic mutants (19), 20.00% heterozygotes (12), and 5.00% chimeras (3) (Figure 3B and Supplementary Table S2). We were surprised to detect heterozygotes in the paraquat plates because the par1 mutation is recessive according to a previous report (). However, the ratio of homozygotes and biallelic mutants was higher and that of heterozygotes was lower in paraquat-resistant plants than in hygromycin-resistant par1 mutants, indicating that the screening is efficient. Given that increasing the concentration of paraquat in selection medium is lethal to >20% of par1 homozygotes, we continued to use 1 μM paraquat for the following experiments ().

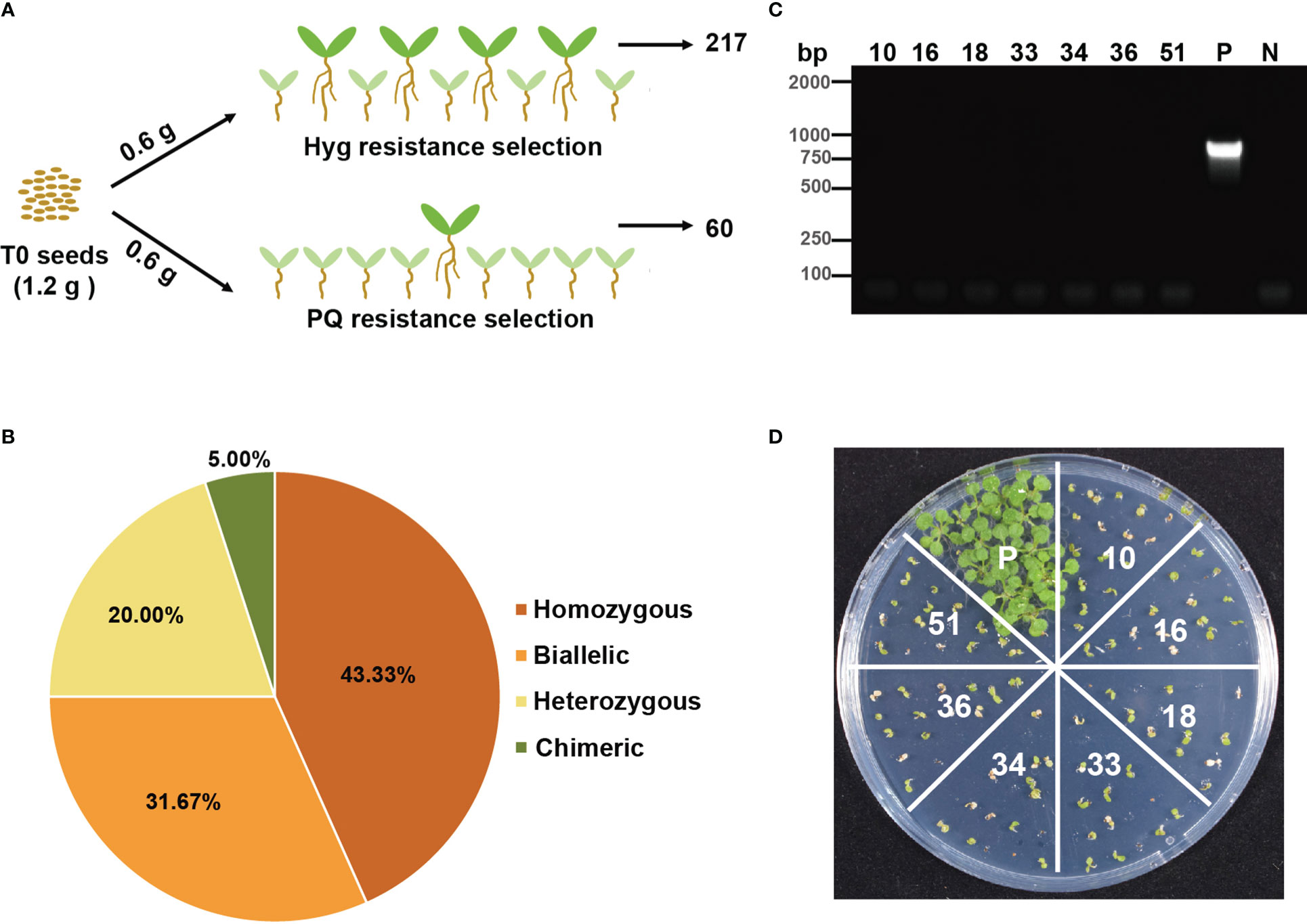

Figure 3
The above results indicate that more par1 homozygous and biallelic mutants were obtained from paraquat plates than from hygromycin plates with the same amount of T0 seeds; therefore, some par1 mutants selected on paraquat plates were likely transgene-free. To confirm this hypothesis, Cas9-specific primers were used to validate the integration of T-DNA in paraquat-selected plants. We found that 11.67% (7/60) of paraquat-resistant plants were transgene-free (Figure 3C and Supplementary Figure S5A), and all of them were par1 homozygous or biallelic mutants (Supplementary Figure S5B). Subsequently, we sowed the T1 seeds of these plants on hygromycin plates and found that they were all hygromycin-sensitive, supporting the finding that these lines were transgene-free (Figure 3D). Overall, these results indicate that PAR1 can be used as a screening marker to obtain transgene-free gene edited plants using the CRISPR/Cas9 system.
PARS strategy enhances screening efficiency at target sites
As co-editing is a common phenomenon in multiplex gene edited plants, adding selection markers has been shown to enrich the mutants of target sites created using the CRISPR/Cas9 system (; ; ). We assumed that the PAR1 locus could also serve as a selection marker to enhance the screening efficiency. Therefore, we constructed two sgRNAs targeting JAZ1 and GAI on pPARS, and the final constructs were transformed into Arabidopsis. A third of the T0 seeds were selected on 1/2 MS supplemented with hygromycin, whereas two-thirds of these seeds were selected on paraquat plates. In total, 57 hygromycin-positive seedlings and 25 paraquat-positive seedlings were detected for JAZ1, and all seedlings were sequenced to identify the mutation form at the target. We found that the screening efficiency increased from 12.28% to 72.00% (Figure 4A, Supplementary Figure S6A and Supplementary Table S2). Furthermore, 56.00% of paraquat-positive plants were homozygous or biallelic jaz1 mutants compared with only 5.27% of hygromycin-positive plants (Figure 4A, Supplementary Figure S6A and Supplementary Table S2). For the GAI target, we identified 70 hygromycin-positive seedlings with 12 gai mutants (17.14%) and 25 paraquat-positive seedlings with 8 gai mutants (32.00%) (Figure 4B, Supplementary Figure S6B and Supplementary Table S2). Among the selected seedlings, 4.29% (3) and 28.00% (7) were homozygous or biallelic mutants in hygromycin-positive and paraquat-positive seedlings, respectively (Figure 4B, Supplementary Figure S6B and Supplementary Table S2). Taken together, these findings confirm that PARS facilitates the mutant screening at target loci.
Figure 4
To rule out the effect of expressing two sgRNAs on editing efficiency, we constructed sgRNAs of JAZ1 and GAI to pHEE401E and found that the mutation frequencies were 30.14% and 10.64%, respectively (Figures 4C, D). The homozygous/biallelic ratio of T1 seedlings was 21.32% for JAZ1 and 2.12% for GAI (Figures 4C, D and Supplementary Table S2). Even though the mutation efficiency was affected by coexpressing sgRNApar13, PARS still facilitates mutant screening at target loci, especially the screening of homozygous and biallelic mutants. Based on our results, PARS increased screening efficiency by 2.03-fold for JAZ1 and 3.58-fold for GAI compared with the original vector pHEE401E (Figure 4 and Supplementary Table S2).
Transgene-free gene edited plants with modifications at target sites can be obtained using PARS
To determine whether transgene-free plants with a modification at the target locus can be obtained using PARS, we retransformed the construct of pPARS-sgRNAJAZ1 into 24 of Arabidopsis plants to obtain more T0 seeds, after which we selected all T0 seeds on 1/2 MS plates supplemented with 1 μM paraquat. In total, 106 paraquat-resistant seedlings were obtained for sgRNAJAZ1, 10 of which were transgene-free, as identified via PCR with Cas9-specific primers (Figure 5A and Supplementary Figure S7A). We sequenced these 10 transgene-free seedlings and found 8 biallelic mutants and 2 heterozygotes for the JAZ1 locus (Figure 5B). For example, #17, a biallelic mutant for JAZ1, had a 1 bp insertion in one allele and a 1 bp deletion in the other allele (Figure 5B). The T1 seeds of all lines were hypersensitive to hygromycin, confirming that they were transgene-free mutants (Supplementary Figure S7B). JAZ1 belongs to a member of the transcriptional repressor family involved in jasmonic acid (JA) signaling, and the JAZ1 sgRNA, designed to target the coding region of the JA-associated domain, generates mutants with compromised sensitivity to exogenous JA (). Therefore, we sought to determine whether the PAR1 mutation impedes the functional study of JAZ1. Accordingly, we sowed WT, par1, and jaz1 par1 seeds on 1/2 MS plates supplemented with 50 μM MeJA, and observed no significant difference between the WT and par1 mutant indicating PAR1 mutation does not change plant response to JA (Figure 5C, D). The jaz1 mutant phenotype was further investigated in the par1 background. Consistent with the results of a previous study (), JA resistance was increased in the T2 seedlings of jaz1 #17 compared with that in control plants (Figures 5C, D). Collectively, these results indicate that the PAR1 mutation does not affect the functional study of target genes.

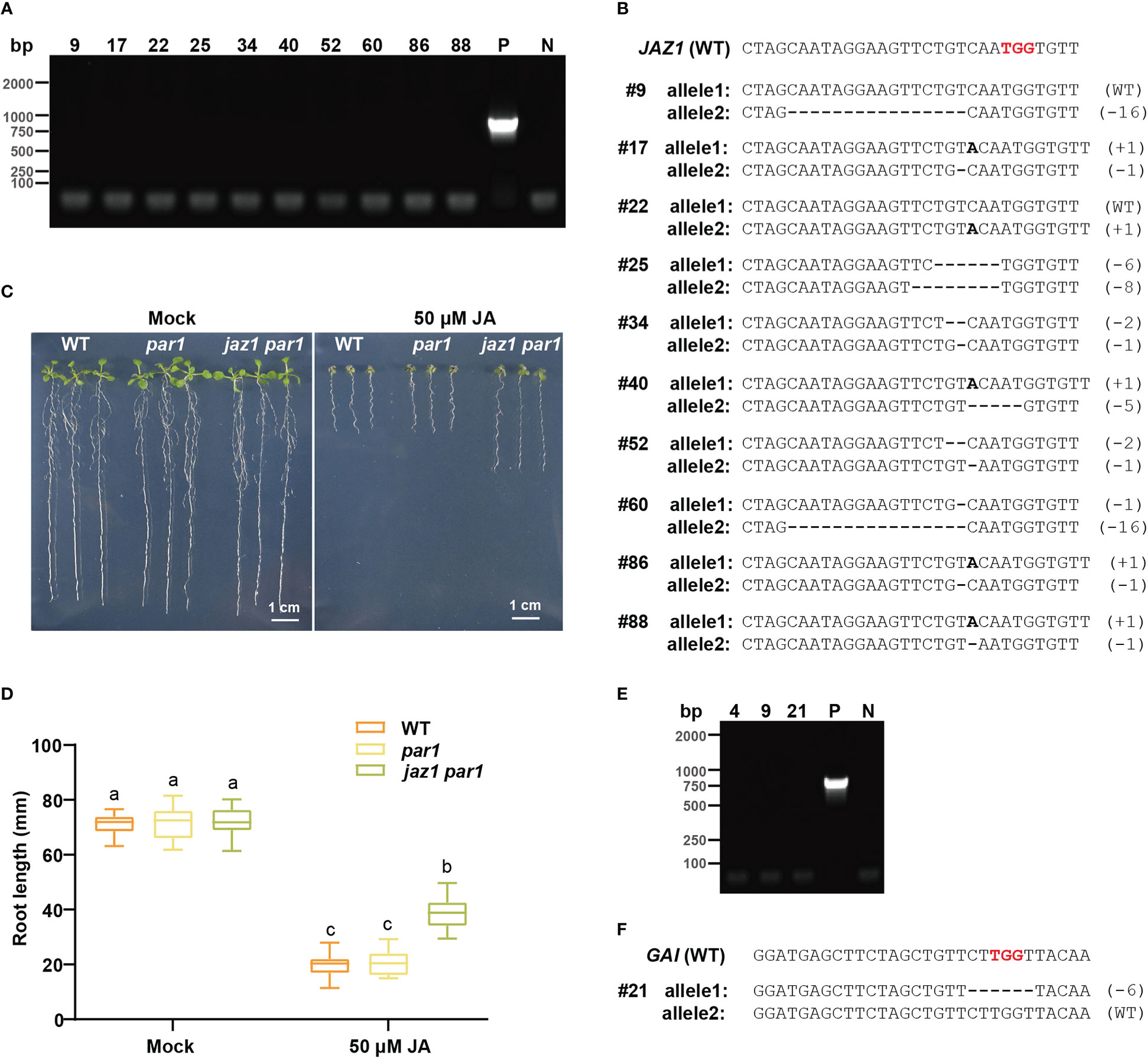

Figure 5
We also showed that transgene-free gai mutant could be identified via PARS using pPARS-sgRNAGAI. Among all 33 paraquat-positive T1 plants for GAI, three transgene-free plants were detected (Figure 5E and Supplementary Figure S8A). Additionally, one transgene-free plant (line 21) was identified as gai heterozygous (Figure 5F). Furthermore, its progenies were hygromycin-sensitive (Supplementary Figure S8B). We believe that screening more T0 seeds on paraquat plates would lead to the identification of homozygous/biallelic mutants for GAI. These results support our claim that PARS is an appropriate strategy for obtaining transgene-free gene edited plants via the CRISPR/Cas9 system. ALS has been used as selection marker to obtain the transgene-free base edited plants (). As CRISPR-STOP could result in gene silence through base editor-created null mutations (), we assume transgene-free base edited mutants could also be screened using PARS with PAR1 sgRNAs to generate stop codons.
PARS has the potential to be applicable to multiple crop species
To determine whether the PARS strategy has the potential to be used for obtaining transgene-free gene edited crop plants, we investigated the conservation of PAR1 in different crop species. The Arabidopsis PAR1 amino acid sequence showed high similarity with its homologous proteins from Nicotiana tabacum, Solanum lycopersicum, Glycine max, Triticum aestivum, Zea mays, Sorghum bicolor, and Oryza sativa (Supplementary Figure S9). To further investigate the relationship between the PAR1 protein and its homologs in different species, a phylogenetic tree was generated with the neighbor - joining likelihood method using MEGA 7.0.14, which further confirmed PAR1 is a conserved protein (Figure 6). Since multiple PAR1 homologs were identified in each crop, e.g., three PAR1-like genes were observed in tomato, the PAR1 homolog that drives the transport of paraquat in the corresponding plant must be identified to enable the selection of transgene-free gene edited plants using PARS. Additionally, whether eliminating the function of PAR1 homologs will harms crop development also needs to be considered before applying PARS in the corresponding crop.

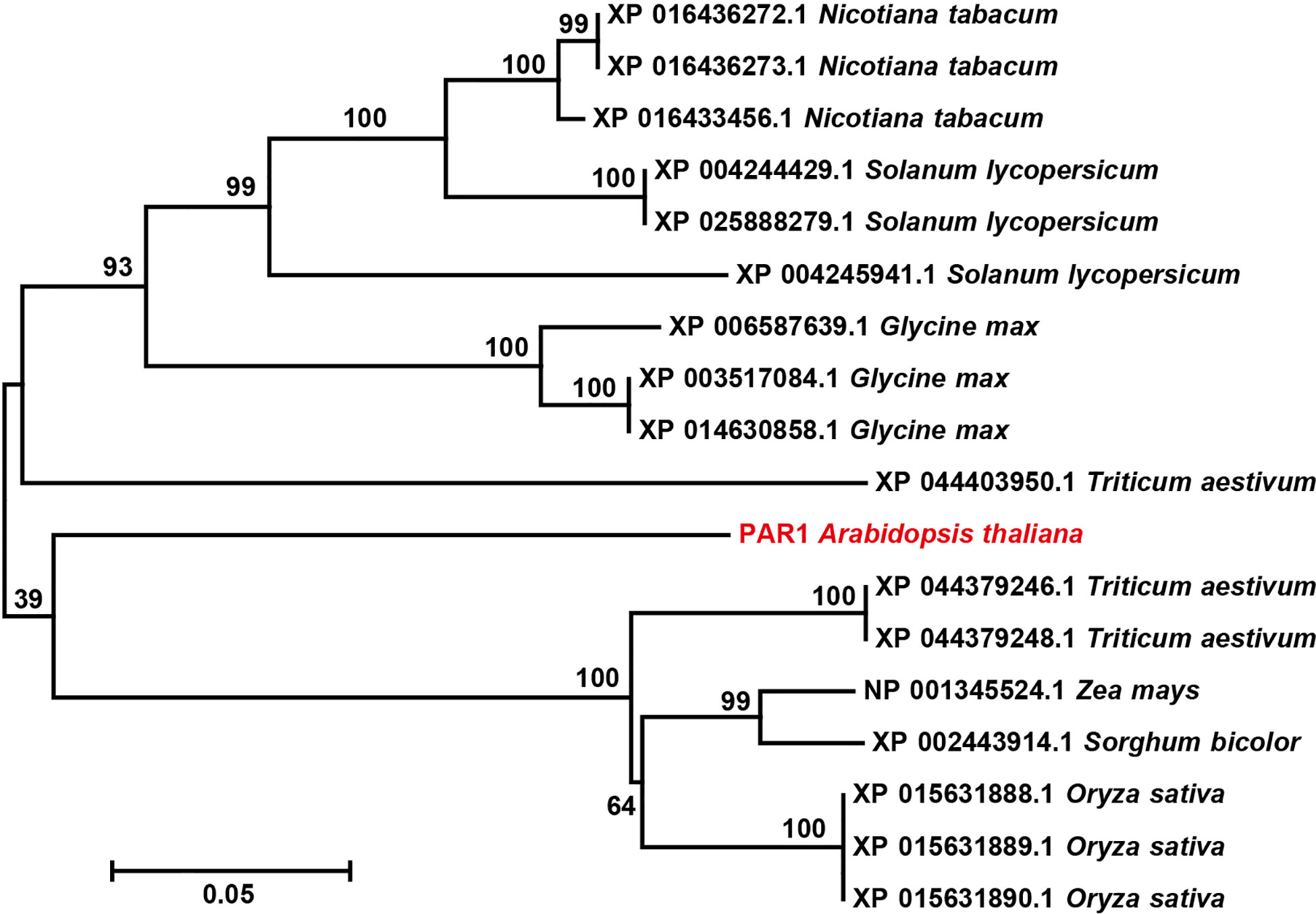

Figure 6
Discussion
To avoid the insertion of foreign DNA, multiple strategies have been established to transiently express genome editors in plants (; ; ). However, most of these strategies are generally accompanied by low mutant frequency, as no selection marker can be used to exclude the unmodified seedlings. Thus, there is an urgent need for a method to easily screen gene edited plants out from all regenerated ones. The PARS strategy we developed in this study meets this need well. We believe paraquat resistant 1 (PAR1) is a perfect selection marker to screen transgene-free gene edited plants based on the following two reasons. First, the loss-of-function mutant of PAR1 could be easily screened out through paraquat treatment and no obvious developmental defects was detected in this study (Figure 2). Second, paraquat is a nonselective herbicide for green plants, and the PAR1 gene is conserved in different plants, suggesting that this strategy has the potential to be adopted to other crops (Figure 6) (). We used Agrobacterium transformation, the most widely used approach of CRISPR/Cas9 delivery for plants, as an example to verify our hypothesis in this study. We believe PARS is also applicable to gene editing achieved with other transformation methods, such as particle bombardment. nanomaterials scenario and RNA- or RNP-mediated gene editing.
This study revealed that PAR1 can serve as a selection marker to enrich screening efficiency at target loci (Figure 4). Because coediting frequently occurs when multiple sgRNAs are delivered in the same plant cells (; ), multiple coselection strategies have been established to enrich edited plants at target loci (; ; ). For example, base editing on P174 of wheat ALS enriches the mutation frequency of the target by several fold (), and GLABRA2 mutation-based visible selection increased the screening efficiency by 2.58- to 7.50-fold in Arabidopsis (). In the PARS system established here, the screening efficiency was increased on average by 2.81-fold (Figure 4). Moreover, 28% of gai mutants and 56% of jaz1 mutants among T1 plants were homozygous/biallelic (Figure 4). Importantly, mutating PAR1 had no obvious effect on the functional study of the jaz1 mutant (Figure 5). We assume that transgene-free gene editing events mediated by Cas9, such as fragment deletion and insertion and fragment replacement, could also be enriched and screened using PARS. Moreover, PARS could also facilitate isolating transgene-free gene editing events mediated by base editor thorough creating stop codons in PAR1 ().
Paraquat, the third most commonly used herbicide in the world, is nonselective and has a broad spectrum (). Other than the PAR1 mutation, paraquat tolerance 15-D (PQT15-D) is the dominant mutation that confers high resistance to paraquat (). The overexpression of paraquat resistance genes, such as Ochrobactrum anthropi pqrA and EiKCS, also confers paraquat resistance in plants (; ). Thus, paraquat could serve as a potential alternative for selecting transgenic plants, especially when the target plants are tolerant to conventional antibiotics such as kanamycin and hygromycin. To the best of our knowledge, no transgene-free paraquat-resistant crops have been developed to date owing to the lack of knowledge on the mechanisms underlying paraquat resistance (). If the functional PAR1 and PQT15 homologs that transport paraquat were identified in different crops, PAR1 and PQT15 would likely be the best editing targets for producing paraquat-resistant crops. The transgene-free gene edited plants obtained through the PARS strategy will also offer the possibility of crops with herbicide resistance, which is a major requirement in modern agriculture ().
The application of PARS should be extended to other gene editing methods, including zinc-finger nucleases (ZFNs) and transcription activator-like effector nucleases (TALENs) (; ). As PAR1 is conserved among different plants tested (Figure 6), we propose that the PARS system has the potential to be widely used in the gene editing of various plant species using multiple gene editing systems.
