Abstract
Climate change associated increases in the frequency and intensity of extreme temperature events negatively impact agricultural productivity and global food security. During the reproductive phase of a plant’s life cycle, such high temperatures hinder pollen development, preventing fertilization, and seed formation. At the molecular level, heat stress-induced accumulation of misfolded proteins activates a signaling pathway called unfolded protein response (UPR) in the endoplasmic reticulum (ER) and the cytoplasm to enhance the protein folding capacity of the cell. Here, we report transcriptional responses of Brassica napus anthers exposed to high temperature for 5, 15, and 30 min to decipher the rapid transcriptional reprogramming associated with the unfolded protein response. Functional classification of the upregulated transcripts highlighted rapid activation of the ER-UPR signaling pathway mediated by ER membrane-anchored transcription factor within 5 min of heat stress exposure. KEGG pathway enrichment analysis also identified “Protein processing in ER” as the most significantly enriched pathway, indicating that the unfolded protein response (UPR) is an immediate heat stress-responsive pathway during B. napus anther development. Five minutes of heat stress also led to robust induction of the cytosolic HSF-HSP heat response network. Our results present a perspective of the rapid and massive transcriptional reprogramming during heat stress in pollen development and highlight the need for investigating the nature and function of very early stress-responsive networks in plant cells. Research focusing on very early molecular responses of plant cells to external stresses has the potential to reveal new stress-responsive gene networks that can be explored further for developing climate change resilient crops.
Background
Extreme temperature events associated with climate change manifesting as heatwaves significantly threaten crop productivity and global food security (). In particular, the excess heat events during the plant reproductive development can result in pollen sterility and loss of seed set (; ; ). Pollen development occurs inside the locules of anthers, starting with diploid microspore mother cells that undergo meiotic cell division resulting in four haploid microspores (; ). Meiosis is tightly regulated genetically during pollen development (). The uninucleate microspores undergo two successive mitotic divisions to form mature trinucleate pollen grain. In most species, the onset of meiosis and pollen mitosis 1 seems most sensitive to environmental stresses ().
Heat stress disturbs cellular protein-folding machinery causing an accumulation of misfolded/unfolded proteins, which can be toxic to cells. The stress-induced disturbance in protein homeostasis leads to the activation of protein quality control pathways, especially in the cytoplasm (cytosolic protein response, CPR) and endoplasmic reticulum (unfolded protein response, UPR) (; ; ; ). A class of transcription factors (TFs) regulates CPR called heat shock transcription factors (HSFs) and involves the upregulation of heat shock proteins (HSPs) (). HSFs, under normal conditions, remain inactivated due to their interaction with HSPs (). However, this interaction is interrupted when unfolded/misfolded proteins recruit HSPs in the cytoplasm. The released HSFs translocate to the nucleus and bind to the heat shock elements (HSEs) present in the promoters of heat stress-responsive genes, thus driving their expression (; ).
In plants, two arms of the ER-UPR signaling pathway have been reported (, ). One arm is mediated by INOSITOL REQUIRING 1-1 (IRE1) and bZIP60. Upon ER stress IRE1a and/or IRE1b dimerize, trans-auto-phosphorylate and catalyze the unconventional splicing of the transmembrane domain of bZIP60 (; ). The spliced bZIP60 mRNA encodes a nucleus localized TF, which induces the transcription of ER-stress responsive genes (). Recently, in maize, bZIP60 was shown to activate an array of HSPs production, thereby revealing a key connection between the UPR in the ER and the CPR (). The other arm of the ER-UPR signaling pathway is mediated by bZIP28, a membrane-associated TF that is mobilized and transported to the Golgi in response to ER stress (). In Golgi, two resident proteases (SITE-2 PROTEASE and an unknown protease) mediate proteolytic cleavage of bZIP28. The cleaved active form of bZIP28 translocates into the nucleus to activate the UPR gene expression (). Another dynamic transducer of ER-UPR is bZIP17 which is reported as functionally redundant with bZIP28 ().
UPR is usually inactive in vegetative tissues in the absence of stress. There is evidence for its constitutive activity in the anther tissues (). This UPR activation in anther tissues is comparable to activation of UPR during human B-cell differentiation, where UPR activation in plasma cells happens before the substantial synthesis and secretion of immunoglobulins (). Even in the absence of external stress, an active UPR pathway is likely required to satisfy the high demands of secretory proteins throughout normal pollen development (; ). The trigger for the activation of UPR in anther tissues is not clear. Since hypoxia has been proposed as a potential trigger for acquiring meiotic cell fate by archesporial cells in the immature anthers (), it is likely, that hypoxic conditions are also responsible for activating UPR in anther tissues. Hypoxia-induced ER stress response has been reported as a pro-survival cellular adaptive mechanism in cancer and other pathologic conditions (; ).
While the transcriptional evidence exists for basal UPR activity in developing pollen for maintaining proteostasis for normal pollen development, less is known about the nature of reactive UPR activated in response to heat stress. Also, it is not known whether there are molecular differences in UPR responses in meiocytes and their post-meiotic progeny, the microspores. To address these questions, we exposed Brassica napus anthers containing meiocytes or microspores to heat stress for 5, 15, and 30 min. Here we give a brief perspective of the rapid transcriptional reprogramming of transcripts involved in unfolded protein response in ER and cytoplasm associated with the heat stress response of Brassica napus anthers at two stages of development.
Experimental Results
Response to Misfolded Proteins Is Rapidly Triggered in Developing Anthers Upon Heat Stress Exposure
In the present study, B. napus plants bearing secondary inflorescences were exposed to a high temperature of 40°C. The anthers containing microspore mother cells (referred to as “A1” hereafter) and anthers containing uninucleate micropores (referred to as “A2” hereafter) (Figures 1A,B) were collected immediately after 5, 15, and 30 min of heat stress exposure. A1 and A2 were also collected from non-stressed B. napus plants. Three biological replicates were used for each treatment. Each replicate of two stages (A1 and A2) either consists of anthers containing microspore mother cells (A1) from 20 to 25 buds of size > 0.7 mm from ten plants or anthers containing uninucleate microspores (A2) from 10 to 15 buds of size 1–1.5 mm from ten plants. Differential expression analysis identified rapid, extensive transcriptional reprogramming within 5 min of heat stress with 5,901 and 10,692 genes identified as differentially expressed (fold change cutoff = ± 1.5, adjusted p-value < 0.01) in A1 and A2, respectively (Supplementary Figure 1). Functional classification of the DEGs identified the “response to protein folding” along with “response to heat” as the most significantly enriched upregulated GO biological process categories across all time points (Supplementary Figure 2A, Up-regulated GO Terms). KEGG pathway enrichment analysis identified “Protein processing in ER” as the most significantly enriched pathway (Supplementary Figure 2B), pointing toward the activation of unfolded protein response (UPR) as an immediate heat stress-responsive pathway during B. napus anther development.

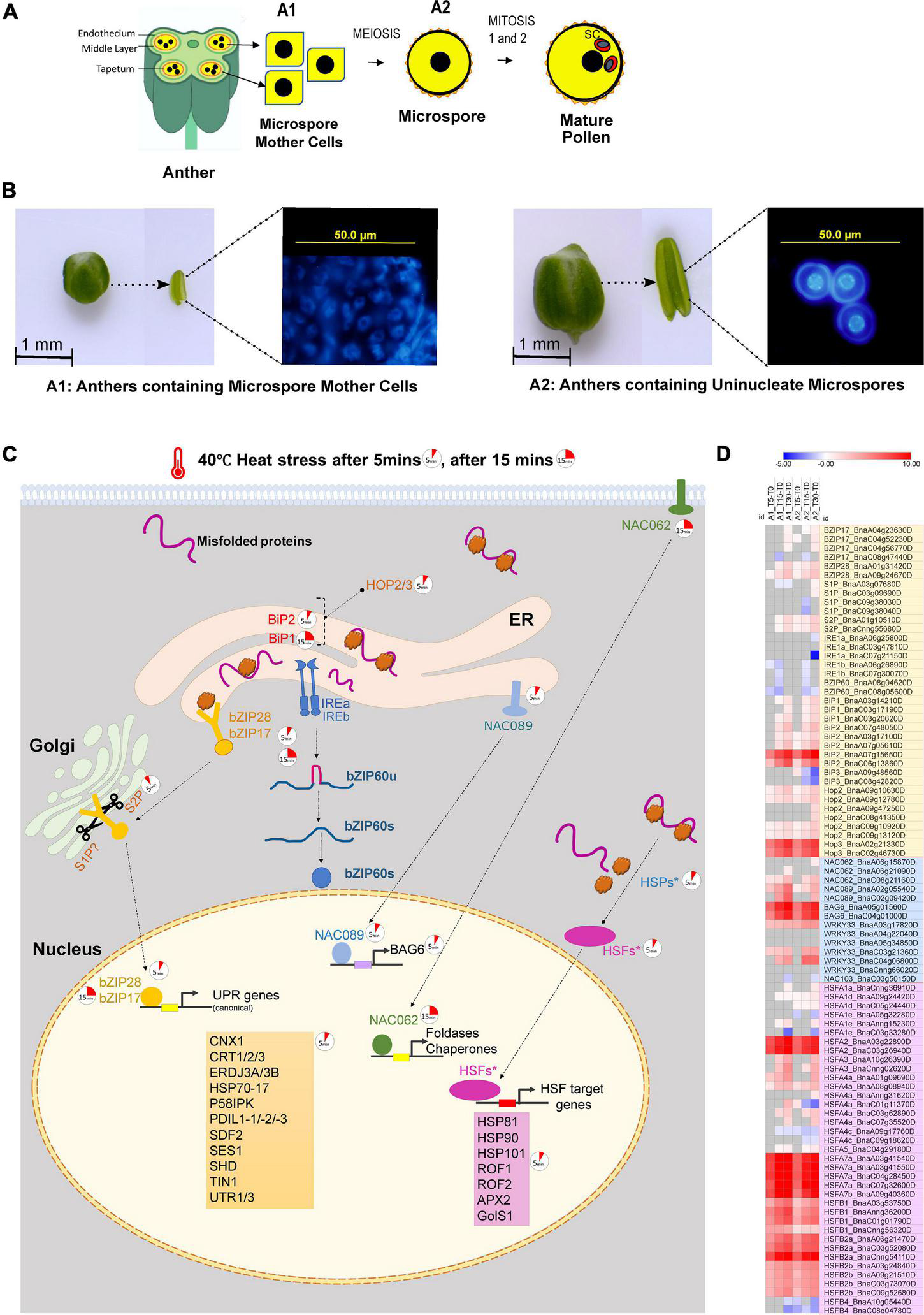

FIGURE 1
bZIP28 Arm as a Likely Rapid Responder in Unfolded Protein Response Signaling Pathway During Early Heat Stress Response in Anthers
Brassica napus (AACC, 2n = 4x = 38) is an allotetraploid species resulting from the hybridization of B. rapa (AA, 2n = 2x = 20) and B. oleracea (CC, 2n = 2x = 18) genomes approximately 7,500 years ago (). The Brassica genus diverged from their diploid progenitor Arabidopsis thaliana approximately 14–20 million years ago. Since then, the Brassica species underwent a whole-genome triplication event, followed by gene duplications, gene loss, and rearrangements. These genomic rearrangements resulted in differences in the gene copy numbers between B. napus and its diploid progenitors. To identify the B. napus genes involved in UPR signaling, we performed a genome-wide survey for selective identification of the B. napus genes homologous to the well-known ER stress-responsive Arabidopsis genes (; ).
The homologs were further categorized based on their significant differential regulation (adjusted p-value < 0.01) across the contrasts (Supplementary Tables 1, 2). It is critical to highlight that these genes were identified as early heat stress-responsive genes only based on the differential expression of their respective transcripts. Additionally, the B. napus genes have been assigned putative gene names based on functional annotation analysis (BLASTp against Arabidopsis proteome, gene descriptors using PANNZER2 annotation tool and orthology analysis between B. napus and Arabidopsis). Further experimental validation is required to establish their functional roles in B. napus.
Upregulation of bZIP28 (BnaA09g24670D in A1 and A2,BnaA01g31420D only in A2) transcripts indicates that the bZIP28 arm of the UPR signaling was activated within 5 min in response to heat stress exposure. Compared to bZIP28, bZIP17 homologs showed slight upregulation at 30 min in A1 and A2 (Figures 1C,D and Supplementary Table 1). Similarly, in locally heat-stressed Arabidopsis leaves, among bZIP28 and -17, only bZIP28 is upregulated within 2–8 min of heat stress exposure (). In contrast, the IRE1-bZIP60 arm of UPR signaling was not upregulated during early heat stress response in A1 and A2. The expression profiles of IREa/b and bZIP60 homologs in B. napus showed downregulation after 5–15 min of heat stress and slight upregulation after 30 min of heat stress (Figure 1D and Supplementary Table 1). In Arabidopsis leaves, 2–8 min of local heat stress exposure did not affect the levels of IREa/b transcripts, but bZIP60 was detected as an immediate heat stress responder (). In another transcriptome study, 3 h heat stress at 37°C did not affect bZIP17, bZIP28, bZIP 60, and IREa/b transcripts in Arabidopsis rosette leaves; however, all three bZIP TFs along with IREa transcripts were upregulated in early and late flowers (stage 1–9 and stage 10–12, respectively). Thus, the heat stress responsiveness of UPR signaling genes is dependent on the duration and intensity of heat stress and varies across different plant cell types.
Under non-stressed conditions, bZIP28 interacts with IMMUNOGLOBULIN-BINDING PROTEIN (BiP), which retains it on the ER membrane (). In response to ER stress triggered by the accumulation of misfolded proteins, BiPs (BiP1/2/3) dissociate from bZIP28, and the released bZIP28 translocates to the Golgi apparatus. In both A1 and A2 stage B. napus anthers, the two BiP2 homologs (BnaA07g15650D, BnaC06g13860D) were upregulated gradually at all-time points. In contrast, BiP1 homologs responded after 15 min of heat stress exposure (BnaA03g14210D, BnaC03g20620D in both A1 and A2 after 15 min, BnaC03g17190D in A2 after 15 min and in A1 after 30 min). Interestingly, in microspore mother cells containing anthers A1, BiP3 homologs (BnaA09g48560D, BnaC08g42820D) were not expressed under control or heat-stressed conditions. BiP3 homologs were expressed in haploid microspore containing anthers A2. However, their expression was downregulated upon exposure to heat stress. This observation in B. napus heat-stressed anthers contradicts the data reported in heat-stressed Arabidopsis reproductive tissues. Heat stress treatment (37°C for 3 h) of Arabidopsis reproductive tissues (flowers from stage 1–9 and stage 10–12) resulted in the upregulation of BiP3 (). BiP3 also showed rapid upregulation (within 2–8 min) in locally heat-stressed Arabidopsis leaves (). On the other hand, more prolonged heat stress exposure did not affect BiP3 transcripts in Arabidopsis leaves (). The difference in BiP3 expression levels between heat-stressed B. napus anthers and reproductive tissues in Arabidopsis is potentially due to differences in tissues analyzed and different heat stress treatments employed.
Furthermore, the basal expression of all BiPs under non-stressed conditions was higher in anthers containing microspores. In Arabidopsis, bip1bip2bip3 triple mutation results in pollen abortion due to defective mitosis1 during microsporogenesis (). A high expression level of BiPs in A2 anthers (Figure 1C) points to the significant conserved role of BiPs for microspore development in Brassica napus.
Following their translocation to the Golgi, bZIP28/17 are activated by proteolytic cleavage of their transmembrane domains mediated by Golgi-resident site proteases, S1P and S2P (; ). SITE-1 PROTEASE (S1P) transcripts showed variable differential expression in A1 and A2 heat-stressed B. napus anthers. In the meiotic stage anthers (A1), there was no significant change in the level of transcripts encoding the S1P homologs. In microspore stage anthers (A2), two S1P homologs (BnaA03g07680D and BnaC03g09690D) transcripts were up-regulated after 30 min of heat stress. The other two S1P homologs (BnaC09g38030D, BnaC09g38040D) were either non-significant or downregulated. Contrary to S1P, in meiosis stage anthers, A1, S2P (BnaA01g10510D, BnaCnng55680D) transcripts were upregulated after 15 min of heat stress. In the A2 stage, S2P proteases were upregulated even after 5 min of heat stress exposure. The upregulation of bZIP28/17 and the Golgi resident protease S2P transcripts further supports the activation of this arm of UPR signaling as a rapid heat stress response of B. napus. The cytosolic-facing components of bZIP17/bZIP28 are released from the Golgi membrane by S2P, allowing them to be transported into the nucleus to upregulate the expression of stress-responsive genes ().
Next, we identified the differentially regulated B. napus genes homologous to the canonical UPR genes well-curated in the literature associated with ER-stress response. Additionally, based on the available literature, we selected the genes reported as potential downstream targets of bZIP28 in Arabidopsis. Our data indicated that B. napus genes homologous to BiP1, BiP2, BiP3, CALNEXIN 1 (CNX1), CALRETICULIN (CRT) 1/2/3, THERMOSENSITIVE MALE STERILE 1 (TMS1/ERDJ3A), ERDJ3B, HSP70-17, PROTEIN DISULFIDE ISOMERASE-LIKE (PDIL) 1-1/1-2/1-3, P58IPK, STROMAL CELL-DERIVED FACTOR 2-LIKE PROTEIN PRECURSOR (SDF2), SENSITIVE TO SALT1 (SES1), SHEPHARD (SHD/HSP90-7), TUNICAMYCIN INDUCED 1 (TIN1), and UTR1/3 (Figures 2A,B and Supplementary Table 2A) are potential gene targets of bZIP28.

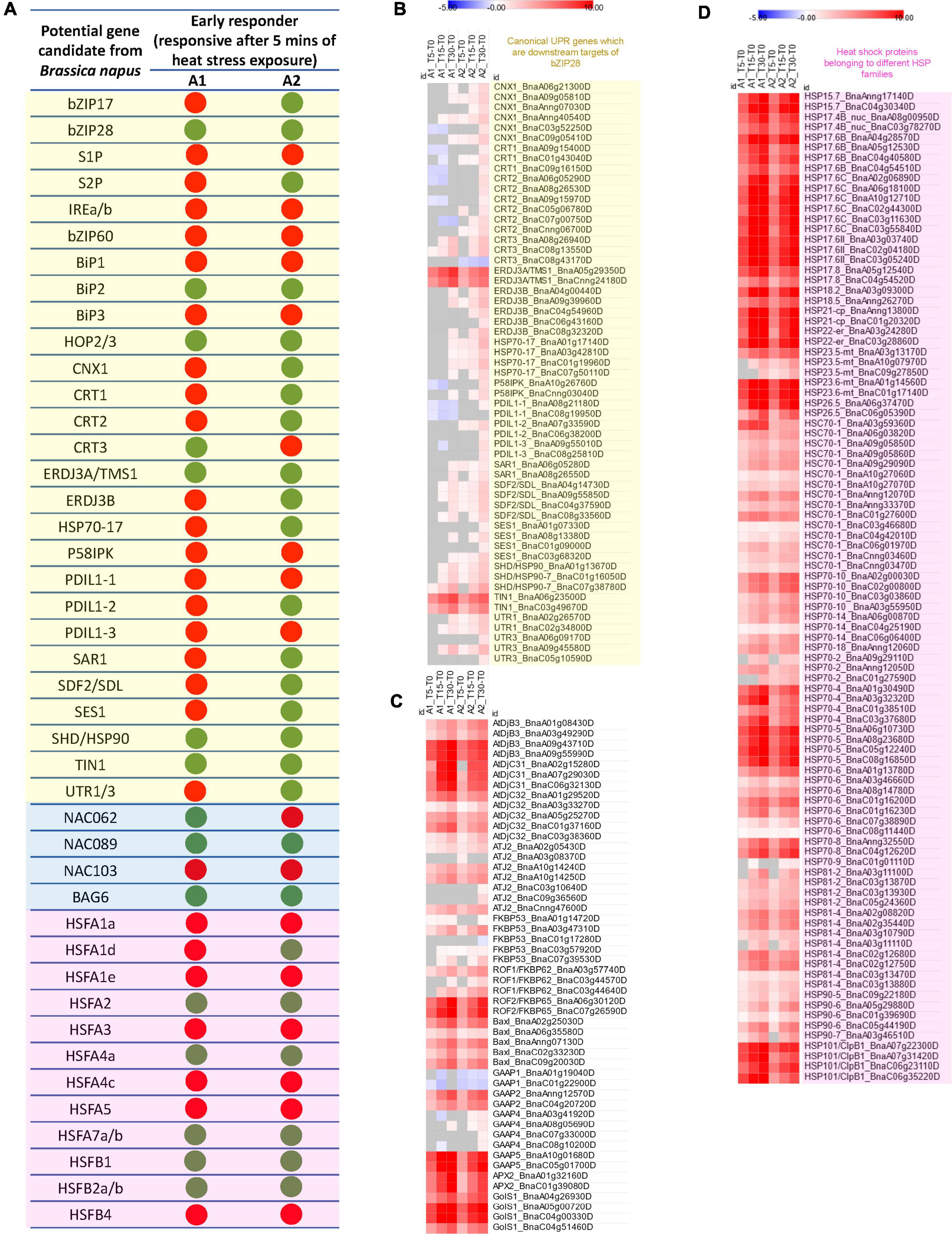

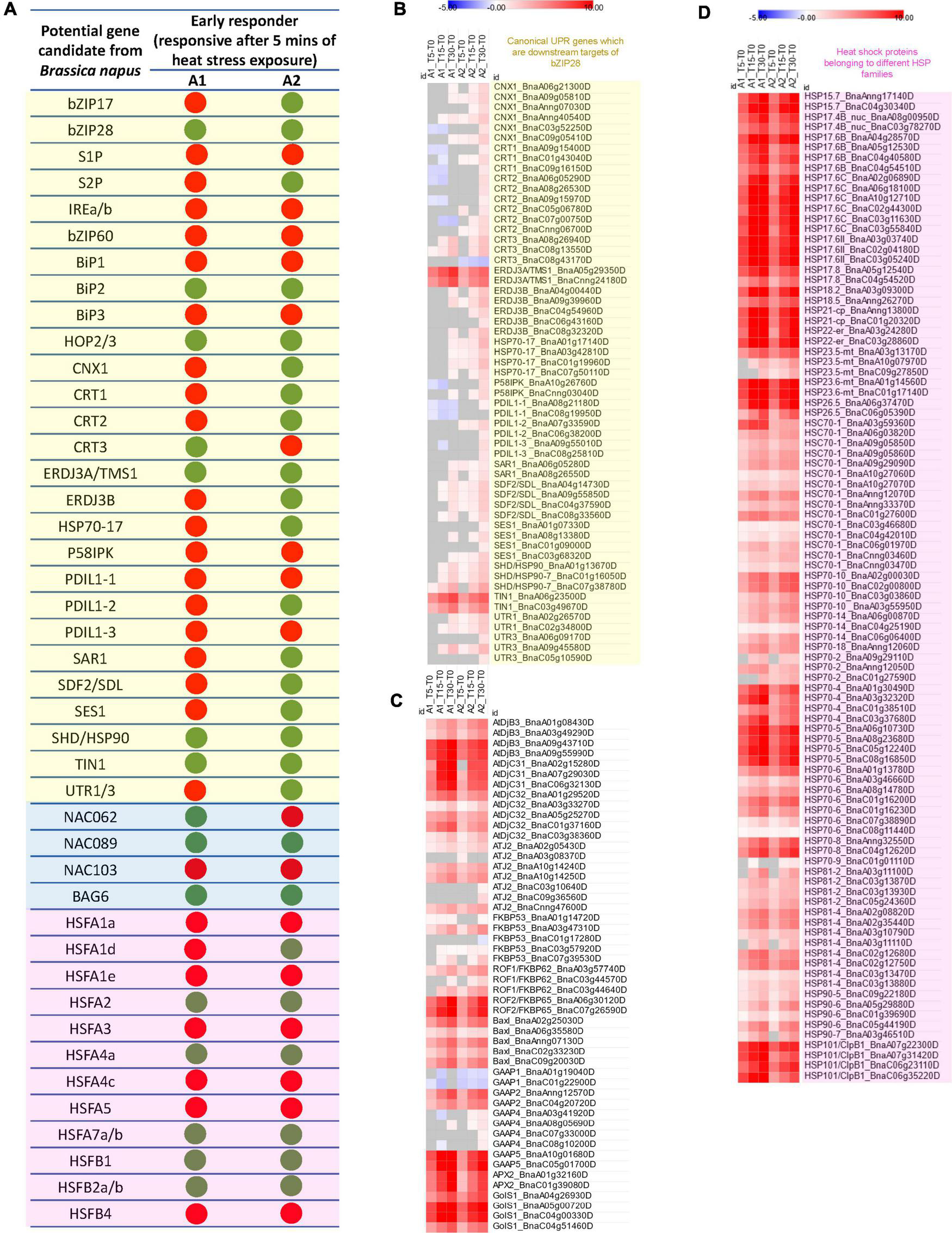

FIGURE 2
ERDJ3A/TMS (BnaA05g29350D, BnaCnng24180D), an essential gene for male gametophytic thermotolerance in Arabidopsis (), was the most significantly upregulated J domain co-chaperone (DnaJ) gene within 5 min of heat stress in both A1 and A2 B. napus anthers. Calnexin (CNX) and Calreticulin (CRT) present in the ER bind transiently to newly synthesized glycoproteins as they pass through the ER. PDILs catalyze disulfide bond formation during the folding process. Additionally, the UDP-glucose transporters, UTR1 and UTR3, transport nucleotide-sugars (UDP-Glu) into the ER lumen required for glycosylation (). Interestingly, CNXI, CRT1/2/3 and PDIL1-1/1-2/1-2 homologous showed significant upregulation in heat-stressed B. napus anthers containing microspores (A2) (Figure 2B and Supplementary Table 2A). CNXI, CRT1/2/3 and PDIL1-1/1-2/1-2 are rapidly upregulated in Arabidopsis leaves within 2–8 min of heat stress exposure (). CNX and CRT have critical and overlapping roles during Arabidopsis vegetative growth and male gametophyte development. The cnx1cnx2crt1crt2crt3 mutant is lethal in Arabidopsis, while the crt1crt2crt3 triple mutation background has a detrimental effect on pollen viability and pollen tube growth (). Additionally, B. napus transcripts of a plant-specific ER stress gene TIN1 (BnaA06g23500D, BnaC03g49670D) were strongly upregulated within 5 min of heat stress in both A1 and A2 (Figures 2A,B and Supplementary Table 2A). In Arabidopsis, pollen grains of TIN1-overexpressing plants exhibited abnormal surface morphology suggesting a developmental role of TIN1 in the secretion of proteins and/or lipids during pollen development ().
Activation of NAC TFs: Unique Plant-Specific Transducers of Unfolded Protein Response as Part of the Rapid Heat Stress Response in Anthers
In addition to conserved transducers, the UPR in plants involves ER-stress upregulated plant-specific transcription factors, NAC062, NAC089, and NAC103. These TFs regulate different sub-sets of stress-induced genes (; ,). NAC062 and NAC089 encode type-II membrane proteins localized in the plasma membrane and ER membrane, respectively, while NAC103 encodes a soluble protein found in the nucleus. The expression of NAC103 homologous gene BnaC03g50150D was downregulated in A1 and A2 B. napus anthers after 30 min of heat stress (Figure 1D and Supplementary Table 1). In Arabidopsis, a transcriptional regulatory cascade has been described in which NAC103 conveys ER stress signals from bZIP60 to downstream UPR genes via a newly discovered ER stress cis-element (UPRE-III) (). The transcript levels in heat-stressed B. napus anthers suggest that the IRE1-bZip60 UPR arm is not activated following 30 min of heat stress exposure, which may explain the downregulation of NAC103 transcripts after 30 min of heat stress.
ER stress triggers the release of NAC062 (NAC062c) and NAC089 (NAC089c) cytoplasmic NAC domains from the membrane, followed by their translocation to the nucleus to induce the expression of genes involved in protein folding and programmed cell death (PCD), respectively. In heat-stressed A1 and A2 B. napus anthers, NAC062 transcripts (BnaA06g15870D, BnaA06g21090D, BnaC08g21160D) upregulated following 15 min of heat stress (Figure 1D and Supplementary Table 1). The canonical UPR genes SHD/HSP90, BiP2, BiP3, CNX1, CRT1, PDIL1-1, and PDIL1-2 are also identified as potential downstream targets of NAC062 in Arabidopsis. NAC062 is also a rapid heat stress-responsive gene in Arabidopsis leaves ().
NAC089, the ER membrane-anchored TF, plays a key role in regulating PCD by inducing the expression of key PCD genes (). One copy of the B. napus gene homologous to NAC089 (BnaA02g05540D) upregulated within 5 min of heat stress exposure was among the early responders of heat stress in both A1 A2 B. napus anthers (Figure 1D and Supplementary Table 1). B. napus genes homologous to NAC089 target genes such as WRKY33 (BnaA03g17820D) and BCL-2-ASSOCIATED ATHANOGENE 6 (BAG6, BnaA05g01560D, BnaC04g01000D) were also significantly upregulated within 5 min of heat stress. They showed further gradual upregulation with heat stress exposure in A1 and A2 B. napus anthers (Figure 1D and Supplementary Table 1).
Heat Stress During Early Anther Development Leads to Robust Induction of Programmed Cell Death Inhibitor Genes
Likely Rapid ResponderABX Inhibitor-1 (BAXI-1), a conserved ER-localized suppressor of ER stress-induced PCD, modulates the threshold for cell death activation in response to diverse stressors, including excessive heat (, ). In Arabidopsis, BAXI-1 expression is enhanced in response to various abiotic stimuli, including heat stress (; ; ; ). Overexpression of plant BI-1 has been shown to suppress abiotic stress-induced cell death in a variety of cells from yeast, plant (Arabidopsis, rice, rapeseed, and tobacco), and mammalian origins (; ; ). Heat stress resulted in a rapid and robust increase in B. napus BAXI-1 homologs (BnaA02g25030D, BnaA06g35580D, BnaAnng07130D, BnaC02g33230D, BnaC09g20030D) in A1 and A2 anthers. After 30 min of heat stress exposure, the expression levels were over 50 folds higher in heat-stressed vs. non-stressed anthers (Figure 2C and Supplementary Table 2B).
Golgi-apoptotic proteins (GAAPs) resident in membranes of Golgi complex confers resistance to a broad range of PCD inducers. Golgi localization of these proteins is unusual as apoptotic regulators are mainly localized in the cytosol, the ER and the mitochondria (). In our study, heat stress exposure for 5 min led to strong upregulation of GAAP2 (BnaAnng12570D, BnaC04g20720D) and GAAP5 (BnaA10g01680D, BnaC05g01700D) encoding genes in anthers at both anther developmental stages (Figure 2C and Supplementary Table 2B). GAAP3 was not expressed in either non-stressed or heat-stressed B. napus anthers. In Arabidopsis, GAAP1, GAAP2, and GAAP3 all had redundant functions preventing cell death and delaying the ER stress-induced UPR activation (). Our data thus highlights the potential role of GAAP2 and GAAP5 in regulating ER stress-induced cell death in B. napus heat-stressed anthers. Rapid upregulation of GAAP2 and GAAP5 reported in heat-stressed Arabidopsis leaves () further suggested conserved rapid heat stress responsiveness of GAAP2 and GAAP5 Golgi-apoptotic proteins.
Cytoplasmic Unfolded Protein Response Pathway Is Strongly Activated Within 5 Mins of Heat Stress in Anthers
The HSF-HSP complex mediates the unfolded protein response elicited due to the accumulation of misfolded proteins in the cytoplasm. The activation of HSPs by HSFs is identified as a classical heat shock response in plants. The HSF family in plants is much more complex and larger than any other eukaryote. B. napus has the largest reported HSF gene family (64 HSFs) (; ). In A1 and A2 B. napus heat-stressed anthers, 19 out of 64 HSFs were strongly upregulated at all-time points (Figure 1D and Supplementary Table 1). Five minutes of heat stress upregulated B. napus HSFA2, HSFA7a, HSFA7b and HSFB2a homologs by > 100-fold (Figure 1D). HSFA2, HSFA7a and HSFB2a have been reported to be rapidly upregulated within 2–8 min of heat stress in Arabidopsis leaves (; ). Furthermore, in Arabidopsis reproductive tissues, HSFA2, HSFA7a, HSFA7b, and HSFB2a were significantly upregulated after 3 h of heat stress ().
HSPs, the most prominent downstream target genes of HSFs, functioning as molecular chaperones, are responsible for protein folding, assembly, translocation, and degradation (). There are five primary families of HSPs in plants categorized based on their molecular weights- HSP100, HSP90, HSP70, HSP60, and small HSP (sHSP) (). Heat stress-induced upregulation of all the HSP five major families in the A1 and A2 stages of B. napus anthers. Most HSPs are significantly upregulated within 5 min of heat stress (Figure 2D and Supplementary Table 1C). Their transcript levels gradually increased with exposure to heat stress in A1 and A2 anthers, making them rapid responders to heat stress during early male reproductive development in B. napus.
Furthermore, other than HSPs, HSFs regulate an array of genes involved in heat stress-responsive pathways. Among these genes is ASCORBATE PEROXIDASE 2 (APX2), a critical reactive oxygen signaling pathway component. In heat-stressed B. napus anthers, A1 and A2, APX2 (BnaA01g32160D, BnaC01g39080D) transcripts were significantly upregulated after 5 min of heat stress exposure (Figure 2C and Supplementary Table 2B). APX proteins are major antioxidant enzymes found in plants that detoxify H2O2 by reducing it with ascorbate. Heat stress triggers oxidative stress in plant cells, and upregulation of APX2 in response to heat stress may be required to scavenge reactive oxygen species (; ; ; ). Another important downstream target of HSFs upregulated in heat-stressed anthers is the GALACTINOL SYNTHASE (GOLS1) enzyme. This enzyme is required to synthesize the raffinose family oligosaccharides (RFOs). RFOs act as osmoprotectants and antioxidants in plant cells (). GolS1 homologous genes (BnaA04g26930D, BnaA05g00720D, BnaC04g00330D, BnaC04g51460D) in B. napus A1 and A2 anthers were also drastically upregulated after 5 min of heat stress. More than 100-fold upregulation was observed after 30 min of heat stress exposure (Figure 2C and Supplementary Table 2B). Similarly, GolS1 expression is significantly upregulated by heat stress in Arabidopsis vegetative and reproductive tissues (; ).
Co-chaperones and foldases are also critical elements of CPR (). HSP70 collaborates with co-chaperones, HSP40/DnaJ, to maintain protein homoeostasis. DnaJ proteins stimulate HSP70’s ATP hydrolysis, trapping the substrate (). The substrate protein then folds to its natural configuration upon release from HSP70. B. napus genes homologous to DnaJ genes such as DjB3, DjC31/32 and ATJ2 were significantly upregulated in both A1 and A2 within 5 min of heat stress exposure, with further enhancement of expression as the duration of heat stress increased (Figure 2C and Supplementary Table 2B). Heat stress also induced significant upregulation of ROF1 (FKBP62) and ROF2 (FKBP65) in A1 and A2 heat-stressed anthers (Figure 2C and Supplementary Table 2B). Compared to ROF1 B. napus homologs, the rapid upregulation of transcript levels was higher for ROF2 B. napus homologs. ROF1 regulates heat stress response by interacting with HSP90 and sustaining the expression levels of HSFA2 regulated sHSPs (). In Arabidopsis, both ROF1 and ROF2 were upregulated by heat stress, with ROF2 identified as a bonafide heat stress-responsive gene as it has almost undetectable expression under non-stressed conditions (). Similarly, under non-stressed conditions, ROF2 transcripts (BnaA06g30120D, BnaC07g26590D) levels in A2 and A1 were very low (∼2 TPM) but increased drastically upon heat stress exposure (Supplementary Table 2B).
Another gene significantly upregulated in A1 and A2 anthers after 5 min of heat stress encode HOP3 (BnaA02g21330D, BnaC02g46730D), an important cytosolic co-chaperone that mediates the HSP70-HSP90 interaction (Figure 1D and Supplementary Table 1). HOP function in plants is associated mainly with response to stress conditions (). In addition to its primary cytosolic localization, HOP3 also co-localizes with ER marker proteins (). HOP3 gene is yet another rapid responder to heat stress in Arabidopsis vegetative tissue (). It is also reported to significantly upregulate in reproductive tissues in response to a longer heat stress treatment (). Notably, Arabidopsis hop3 mutants exhibit decreased pollen germination and a hypersensitive phenotype in the presence of ER stress inducers (), highlighting significant role of HOP3 in pollen function.
Summary and Future Directions
The knowledge of the nature and developmental stage and stress specificity of the rapid responses in plants is lacking due to the absence of studies on analyzing plant tissues at early time points following stress exposure (seconds-minutes scale) (reviewed in ). There are no reports addressing the rapid heat stress response during reproductive development. Thus, here we present for the first time the early temporal transcriptome of heat-stressed anthers from two developmental stages to provide a perspective of the extensive transcriptional reprogramming and rapid high-temperature responsiveness of the genes associated with the unfolded protein response in ER and cytoplasm during early male reproductive development.
Our data reveal a rapid hyperactivation of hundreds of genes in the anther tissues in response to heat stress. Brief heat exposure of 5 min to anthers resulted in extensive transcriptional reprogramming with expression levels of some genes ramping up nearly fifty to a hundredfold compared to non-stressed controls. The first wave of rapid transcriptomic responses activated in 5 min involved genes associated with ER unfolded protein response and cytosolic unfolded protein response networks (Figures 1, 2). Such immediately activated genes have been classified as “primary response genes” that are “first responders” in the waves of transcription in response to a wide range of cell-extrinsic stimuli (). Further, it has been shown that such “first responder” genes do not require de novo protein synthesis as transcription factors necessary for their activation are already available in the cell (; ; ). Such rapidly responding genes, particularly those involved in heat shock response, have been reported to be in the poised state with RNA polymerase II paused on the proximal promoter region (). Whether Pol II pausing occurs on transcriptional start sites of genes that show a drastic increase in the transcript levels with 5 min of heat shock treatment of B. napus anthers remains to be investigated. It is also significant that many of the genes showed rapid activation only in A2 anthers, making it likely that microspores are the expression site of some of these genes. Further, the robust transcriptional response of GolS1, a gene encoding Galactinol Synthase1, a key enzyme in the production of Raffinose and Stachyose sugars, points toward rapid metabolic reprogramming associated with changes in transcriptome during heat stress. Thus, multi-omics studies that complement transcriptional and metabolome profiling are required to unravel complex cellular responses to heatwave events.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Statements
Data availability statement
The RNA-Seq datasets presented in this study are deposited at the NCBI Sequence Read Archive (BioProject ID: PRJNA841042, BioSample IDs: SAMN28573567 and SAMN28573568).
Author contributions
NL analyzed the sequencing data. All authors contributed to the writing of the manuscript and approved the submitted version.
Acknowledgments
This research was supported from the ARC (DP0988972) and the University of Melbourne Postgraduate Research Scholarship was gratefully acknowledged.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2022.905674/full#supplementary-material
References
1
Aviezer-HagaiK.SkovorodnikovaJ.GalignianaM.Farchi-PisantyO.MaayanE.BocovzaS.et al (2007). Arabidopsis immunophilins ROF1 (AtFKBP62) and ROF2 (AtFKBP65) exhibit tissue specificity, are heat-stress induced, and bind HSP90.Plant Mol. Biol.63237–255. 10.1007/s11103-006-9085-z
2
BahramiS.DrablosF. (2016). Gene regulation in the immediate-early response process.Adv. Biol. Regul.6237–49. 10.1016/j.jbior.2016.05.001
3
BolducN.OuelletM.PitreF.BrissonL. F. (2003). Molecular characterisation of two plant BI-1 homologues which suppress Bax-induced apoptosis in human 293 cells.Planta216377–386. 10.1007/s00425-002-0879-1
4
BuchbergerA.BukauB.SommerT. (2010). Protein quality control in the cytosol and the endoplasmic reticulum: brothers in arms.Mol. cell40238–252. 10.1016/j.molcel.2010.10.001
5
CarraraG.ParsonsM.SaraivaN.SmithG. L. (2017). Golgi anti-apoptotic protein: a tale of camels, calcium channels and cancer.Open Biol.7:17004. 10.1098/rsob.170045
6
ChaeH.-J.KeN.KimH.-R.ChenS.GodzikA.DickmanM.et al (2003). Evolutionarily conserved cytoprotection provided by Bax Inhibitor-1 homologs from animals, plants, and yeast.Gene323101–113. 10.1016/j.gene.2003.09.011
7
ChalhoubB.DenoeudF.LiuS.ParkinI. A.TangH.WangX.et al (2014). Early allopolyploid evolution in the post-Neolithic Brassica napus oilseed genome.Science345950–953. 10.1126/science.1253435
8
ChipurupalliS.KeN.KannanE.TergaonkarV.DAndreaR.RobinsonN. (2019). Hypoxia induced ER stress response as an adaptive mechanism in cancer.Int. J. Mol. Sci.20:749. 10.3390/ijms20030749
9
De StormeN. D.GeelenD. (2014). The impact of environmental stress on male reproductive development in plants: biological processes and molecular mechanisms.Plant Cell Environ.371–18. 10.1111/pce.12142
10
DengY.HumbertS.LiuJ.-X.SrivastavaR.RothsteinS. J.HowellS. H. (2011). Heat induces the splicing by IRE1 of a mRNA encoding a transcription factor involved in the unfolded protein response in Arabidopsis.Proc. Natl. Acad. Sci.1087247–7252. 10.1073/pnas.1102117108
11
DengY.SrivastavaR.QuilichiniT. D.DongH.BaoY.HornerH. T.et al (2016). IRE 1, a component of the unfolded protein response signaling pathway, protects pollen development in Arabidopsis from heat stress.Plant J.88193–204. 10.1111/tpj.13239
12
Diaz-BulnesP.SaizM.Lopez-LarraeaC.RodriguezR. M. (2020). Crosstalk between hypoxia and ER stress response: a key regulator of macrophage polarization.Front. Immunol.10:2951. 10.3389/fimmu.2019.02951
13
FAO. (2019). Global Report on Food Crises 2019.Rome: World Food Programme.
14
Fernández-BautistaN.Fernández-CalvinoL.MuñozA.CastellanoM. M. (2017). HOP3, a member of the HOP family in Arabidopsis, interacts with BiP and plays a major role in the ER stress response.Plant Cell Environ.401341–1355. 10.1111/pce.12927
15
FowlerT.SenR.RoyA. L. (2011). Regulation of primary response genes. Mole. Cell44, 348–360. 10.1016/j.molcel.2011.09.014
16
FragkostefanakisS.MesihovicA.HuY.SchleiffE. (2016a). Unfolded protein response in pollen development and heat stress tolerance.Plant Reprod.2981–91. 10.1007/s00497-016-0276-8
17
GaoH.BrandizziF.BenningC.LarkinR. M. (2008). A membrane-tethered transcription factor defines a branch of the heat stress response in Arabidopsis thaliana.Proc. Natl. Acad. Sci.10516398–16403. 10.1073/pnas.0808463105
18
GoliczA. A.AlluA. D.LiW.LohaniN.SinghM. B.BhallaP. L. (2021). A dynamic intron retention program regulates the expression of several hundred genes during pollen meiosis.Plant Reprod.34225–242. 10.1007/s00497-021-00411-6
19
GuoH.GolczerG.WittnerB. (2021). NR4A1 regulates expression of immediate early genes, suppressing replication stress in cancer.Mol. Cell814041–4058. 10.1016/j.molcel.2021.09.016
20
GuoM.LiuJ.-H.MaX.LuoD.-X.GongZ.-H.LuM.-H. (2016). The plant heat stress transcription factors (HSFs): structure, regulation, and function in response to abiotic stresses.Front. Plant Sci.7:114. 10.3389/fpls.2016.00114
21
HaerizadehF.SinghM. B.BhallaP. L. (2006). Transcriptional repression distinguishes somatic from germ cell lineages in a plant.Science313496–499. 10.1126/science.1125526
22
HahnA.BublakD.SchleiffE.ScharfK.-D. (2011). Crosstalk between Hsp90 and Hsp70 chaperones and heat stress transcription factors in tomato.Plant Cell23741–755. 10.1105/tpc.110.076018
23
HowellS. H. (2013). Endoplasmic reticulum stress responses in plants.Ann. Rev. Plant Biol.64477–499.
24
HowellS. H. (2021). Evolution of the unfolded protein response in plants.Plant Cell Environ.442625–2635. 10.1111/pce.14063
25
IsbatM.ZebaN.KimS. R.HongC. B. (2009). A BAX inhibitor-1 gene in Capsicum annuum is induced under various abiotic stresses and endows multi-tolerance in transgenic tobacco.J. Plant Physiol.1661685–1693. 10.1016/j.jplph.2009.04.017
26
IwataY.AshidaM.HasegawaC.TabaraK.MishibaK.iKoizumiN. (2017). Activation of the Arabidopsis membrane-bound transcription factor bZIP 28 is mediated by site-2 protease, but not site-1 protease.Plant J.91408–415. 10.1111/tpj.13572
27
IwataY.FedoroffN. V.KoizumiN. (2008). Arabidopsis bZIP60 is a proteolysis-activated transcription factor involved in the endoplasmic reticulum stress response.Plant Cell203107–3121. 10.1105/tpc.108.061002
28
IwataY.NishinoT.IwanoM.TakayamaS.KoizumiN. (2012). Role of the plant-specific endoplasmic reticulum stress-inducible gene TIN1 in the formation of pollen surface structure in Arabidopsis thaliana.Plant Biotechnol.2951–56.
29
Kawai-YamadaM.JinL.YoshinagaK.HirataA.UchimiyaH. (2001). Mammalian Bax-induced plant cell death can be down-regulated by overexpression of Arabidopsis Bax Inhibitor-1 (AtBI-1).Proc. Natl. Acad. Sci.9812295–12300. 10.1073/pnas.211423998
30
KelliherT.WalbotV. (2012). Hypoxia triggers meiotic fate acquisition in maize.Science337345–348. 10.1126/science.1220080
31
KimJ.-S.Yamaguchi-ShinozakiK.ShinozakiK. (2018). ER-anchored transcription factors bZIP17 and bZIP28 regulate root elongation.Plant Physiol.1762221–2230. 10.1104/pp.17.01414
32
KitykR.KoppJ.MayerM. P. (2018). Molecular mechanism of J-domain-triggered ATP hydrolysis by Hsp70 chaperones.Mol. cell69227.–237. 10.1016/j.molcel.2017.12.003
33
LiZ.TangJ.SrivastavaR.BasshamD. C.HowellS. H. (2020). The transcription factor bZIP60 links the unfolded protein response to the heat stress response in maise.Plant Cell323559–3575. 10.1105/tpc.20.00260
34
LiuJ.-X.HowellS. H. (2010). Endoplasmic reticulum protein quality control and its relationship to environmental stress responses in plants.Plant Cell222930–2942. 10.1105/tpc.110.078154
35
LiuJ. X.HowellS. H. (2016). Managing the protein folding demands in the endoplasmic reticulum of plants.N. Phytol.211418–428. 10.1111/nph.13915
36
LiuJ.-X.SrivastavaR.CheP.HowellS. H. (2007). An endoplasmic reticulum stress response in Arabidopsis is mediated by proteolytic processing and nuclear relocation of a membrane-associated transcription factor, bZIP28.Plant Cell194111–4119. 10.1105/tpc.106.050021
37
LohaniN.GoliczA. A.SinghM. B.BhallaP. L. (2019). Genome-wide analysis of the Hsf gene family in Brassica oleracea and a comparative analysis of the Hsf gene family in B. oleracea. B. rapa and B. napus.Funct. Integr. Genom.19515–531.
38
LohaniN.SinghM. B.BhallaP. L. (2020). High temperature susceptibility of sexual reproduction in crop plants.J. Exp. Bot.71555–568. 10.1093/jxb/erz426
39
LohaniN.SinghM. B.BhallaP. L. (2021). RNA-seq highlights molecular events associated with impaired pollen-pistil interactions following short-term heat stress in Brassica napus.Front. Plant Sci.11:622748. 10.3389/fpls.2020.622748
40
LohaniN.SinghM. B.BhallaP. L. (2022). Biological Parts for Engineering Abiotic Stress Tolerance in Plants’.BioDesign Res.2022:9819314. 10.34133/2022/9819314
41
MaruyamaD.SugiyamaT.EndoT.NishikawaS.-i (2014). Multiple BiP genes of Arabidopsis thaliana are required for male gametogenesis and pollen competitiveness.Plant Cell Physiol.55801–810. 10.1093/pcp/pcu018
42
MeiriD.BreimanA. (2009). Arabidopsis ROF1 (FKBP62) modulates thermotolerance by interacting with HSP90. 1 and affecting the accumulation of HsfA2-regulated sHSPs.Plant J.59387–399. 10.1111/j.1365-313X.2009.03878.x
43
MillerG.ShulaevV.MittlerR. (2008). Reactive oxygen signaling and abiotic stress.Physiologia plantarum133481–489.
44
NagashimaY.MishibaK.-iSuzukiE.ShimadaY.IwataY.KoizumiN. (2011). Arabidopsis IRE1 catalyses unconventional splicing of bZIP60 mRNA to produce the active transcription factor.Sci. Rep.1:29. 10.1038/srep00029
45
OhamaN.SatoH.ShinozakiK.Yamaguchi-ShinozakiK. (2017). Transcriptional regulatory network of plant heat stress response.Trends Plant Sci.2253–65.
46
OyoshiK.KatanoK.YunoseM.SuzukiN. (2020). Memory of 5-min heat stress in Arabidopsis thaliana.Plant Signaling Behav.151778919(1–6). 10.1080/15592324.2020.1778919
47
PanchukI.I.VolkovR. A.SchöfflF. (2002). Heat stress-and heat shock transcription factor-dependent expression and activity of ascorbate peroxidase in Arabidopsis.Plant Physiol.129838–853. 10.1104/pp.001362
48
PanikulangaraT. J.Eggers-SchumacherG.WunderlichM.StranskyH.SchöfflF. (2004). Galactinol synthase1. A novel heat shock factor target gene responsible for heat-induced synthesis of raffinose family oligosaccharides in Arabidopsis.Plant Physiol.1363148–3158. 10.1104/pp.104.042606
49
RieuI.TwellD.FironN. (2017). Pollen development at high temperature: from acclimation to collapse. Plant Physiol.173, 1967–1976. 10.1104/pp.16.01644
50
SakuraiH.EnokiY. (2010). Novel aspects of heat shock factors: DNA recognition, chromatin modulation and gene expression. FEBS J.277, 4140–4149. 10.1111/j.1742-4658.2010.07829.x
51
ShapiroD. J.LivezeyM.YuL.ZhengZ.AndruskaN. (2016). Anticipatory UPR activation:A protective pathway and target in cancer.Trends Endocrinol. Metab.27731–741. 10.1016/j.tem.2016.06.002
52
SinghM. B.BhallaP. L. (2007). Control of male germ-cell development in flowering plants.BioEssays291124–1132. 10.1002/bies.20660
53
SinghM. B.LohaniN.BhallaP. L. (2021). The role of endoplasmic reticulum stress response in pollen development and heat stress tolerance.Front. Plant Sci.12:661062. 10.3389/fpls.2021.661062
54
SrivastavaR.DengY.ShahS.RaoA. G.HowellS. H. (2013). BINDING PROTEIN is a master regulator of the endoplasmic reticulum stress sensor/transducer bZIP28 in Arabidopsis.Plant Cell251416–1429. 10.1105/tpc.113.110684
55
SugioA.DreosR.AparicioF.MauleA. J. (2009). The cytosolic protein response as a subcomponent of the wider heat shock response in Arabidopsis.Plant Cell21642–654. 10.1105/tpc.108.062596
56
SunL.YangZ. T.SongZ. T.WangM. J.SunL.LuS. J.et al (2013). The plant-specific transcription factor gene NAC 103 is induced by b ZIP 60 through a new cis-regulatory element to modulate the unfolded protein response in A rabidopsis.Plant J.76274–286. 10.1111/tpj.12287
57
SzeH.PalaniveluR.HarperJ. F.JohnsonM. A. (2021). Holistic insights from pollen omics: co-opting stress-responsive genes and ER-mediated proteostasis for male fertility.Plant Physiol.1872361–2380. 10.1093/plphys/kiab463
58
TorbioR.ManganoS.Fernandez-BautistaN.MonozA.CastallanoM.PalaniveluR.et al (2020). HOP, a co-chaperone involved in response to stress in plants.Front. Plant Sci.11:591940. 10.3389/fpls.2020.591940
59
VierlingE. (1991). The role of heat shock proteins in plants.Ann. Rev. Plant Physiol. Plant Mol. Biol.42579–620.
60
VihervaaraA.DuarteF. M.LisJ. T. (2018). Molecular mechanisms driving transcriptional stress responses.Nat. Rev. Genet.19385–397. 10.1038/s41576-018-0001-6
61
VuK. V.NguyenN. T.JeongC. Y.LeeY. H.LeeH.HongS. W.et al (2017). Systematic deletion of the ER lectin chaperone genes reveals their roles in vegetative growth and male gametophyte development in Arabidopsis.Plant J.89972–983. 10.1111/tpj.13435
62
WangW.LiX.ZhuM.TangX.WangZ.GuoK.et al (2019). Arabidopsis GAAP1 to GAAP3 play redundant role in cell death inhibition by suppressing the upregulation of salicylic acid pathway under endoplasmic reticulum stress.Front. Plant Sci.10:1032. 10.3389/fpls.2019.01032
63
WangW.VinocurB.ShoseyovO.AltmanA. (2004). Role of plant heat-shock proteins and molecular chaperones in the abiotic stress response.Trends Plant Sci.9244–252. 10.1016/j.tplants.2004.03.006
64
WatanabeN.LamE. (2008). BAX inhibitor-1 modulates endoplasmic reticulum stress-mediated programmed cell death in Arabidopsis.J. Biol. Chem.2833200–3210. 10.1074/jbc.M706659200
65
WatanabeN.LamE. (2009). Bax inhibitor-1, a conserved cell death suppressor, is a key molecular switch downstream from a variety of biotic and abiotic stress signals in plants.Int. J. Mol. Sci.103149–3167. 10.3390/ijms10073149
66
YangK. Z.XiaC.LiuX. L.DouX. Y.WangW.ChenL. Q.et al (2009). A mutation in Thermosensitive Male Sterile 1, encoding a heat shock protein with DnaJ and PDI domains, leads to thermosensitive gametophytic male sterility in Arabidopsis.Plant J.57870–882. 10.1111/j.1365-313X.2008.03732.x
67
YangZ.-T.WangM.-J.SunL.LuS.-J.BiD.-L.SunL.et al (2014a). The membrane-associated transcription factor NAC089 controls ER-stress-induced programmed cell death in plants.PLoS Genet.10:e1004243. 10.1371/journal.pgen.1004243
68
YangZ. T.LuS. J.WangM. J.BiD. L.SunL.ZhouS. F.et al (2014b). A plasma membrane-tethered transcription factor, NAC 062/ANAC 062/NTL 6, mediates the unfolded protein response in Arabidopsis.Plant J.791033–1043. 10.1111/tpj.12604
69
ZandalinasS. I.FichmanY.DevireddyA. R.SenguptaS.AzadR. K.MittlerR. (2020). Systemic signaling during abiotic stress combination in plants.Proc. Natl. Acad. Sci.11713810–13820. 10.1073/pnas.2005077117
70
ZhangS. S.YangH.DingL.SongZ. T.MaH.ChangF.et al (2017). Tissue-specific transcriptomics reveals an important role of the unfolded protein response in maintaining fertility upon heat stress in Arabidopsis.Plant Cell291007–1023. 10.1105/tpc.16.00916
71
ZhuX.HuangC.ZhangL.LiuH.YuJ.HuZ.et al (2017). Systematic analysis of Hsf family genes in the Brassica napus genome reveals novel responses to heat, drought and high CO2 stresses.Front. Plant Sci.8:1174. 10.3389/fpls.2017.01174
