Abstract
Continuous discovery of novel in vitro plant culture practices is always essential to promote better plant growth in the shortest possible cultivation period. An alternative approach to conventional micropropagation practice could be achieved through biotization by inoculating selected Plant Growth Promoting Rhizobacteria (PGPR) into the plant tissue culture materials (e.g., callus, embryogenic callus, and plantlets). Such biotization process often allows the selected PGPR to form a sustaining population with various stages of in vitro plant tissues. During the biotization process, plant tissue culture material imposes developmental and metabolic changes and enhances its tolerance to abiotic and biotic stresses, thereby reducing mortality in the acclimatization and pre-nursery stages. Understanding the mechanisms is, therefore crucial for gaining insights into in vitro plant-microbe interactions. Studies of biochemical activities and compound identifications are always essential to evaluate in vitro plant-microbe interactions. Given the importance of biotization in promoting in vitro plant material growth, this review aims to provide a brief overview of the in vitro oil palm plant-microbe symbiosis system.
Introduction
The cultivation of oil palm (Elaeis guineensis Jacq.) has highly expanded in recent years, and it is now the major source (~40%) of the worldās vegetable oil supply (Meijaard etĀ al., 2020). Crude palm oil production in Malaysia increased from 4.1 million tonnes in 1985 to 16.9 million tonnes in 2010 and reached 19.14 million tonnes in 2020 (Malaysian Palm Oil Board, 2010; Parveez etĀ al., 2022). To date, the industry contributes 8% to the countryās gross national income. Despite its remarkable contribution to the economy, there has not been much progress in yield improvement in the last four decades as the CPO in a recent production of 3.16 t/ha/year in 2021 (Parveez etĀ al., 2022). With the current planted area of 5.74 million hectares and mature palms covering 89.7% (Parveez etĀ al., 2022), close to reaching the targeted limit of 6.5 million hectares introduced by the Malaysian government in committing to sustainability (Wan Mohd Jaafar etĀ al., 2020), extensive efforts are still being carried out to sustain and improve the higher productivity of the industry. Therefore, with limited land for replanting, increasing yield per unit of the land area is inevitable. Among the efforts that have been carried out include the opening of new oil palm plantations and the planting of high-quality oil palm plantlets produced through tissue culture techniques. Through breeding, annual yield increases at an average of 1.5% (Woittiez etĀ al., 2017), while cloning high-yielding palms boasts a potential yield increase of 10ā15% (Soh, 2018). Thus, the demand for in vitro oil palm planting materials has increased by 20ā30% compared to seedling planting materials (Soh etĀ al., 2001). However, the existing micropropagation process still has certain restrictions due to the limitation of the selection of explant materials and the low rate of differentiation and regeneration of somatic embryogenesis (Weckx etĀ al., 2019). It is also a time-consuming process with all of the oil palm tissue culture steps required to generate plantlets from explants taking nearly a year to complete (FigureĀ 1) (Rohani et al., 2000), together with the inefficiency of callus and embryogenesis development. Therefore, there is an urgent need to discover a new technique to increase the yield of oil palm tissue culture material.

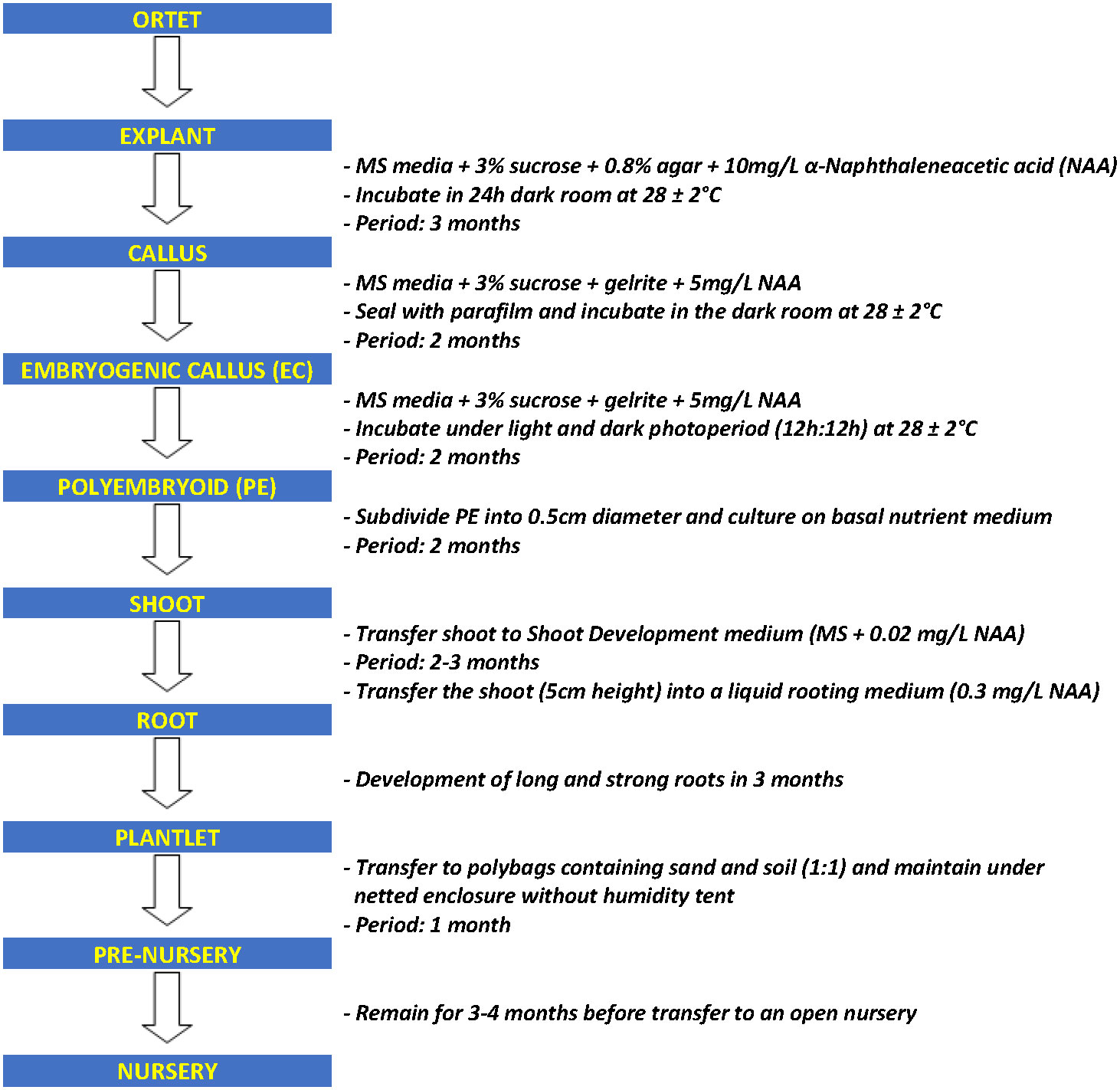

FigureĀ 1
Introduction of naturally existing endophytic bacteria into plant tissue culture materials could improve plant cell proliferation and differentiation. Increased plant biomass due to bacterial inoculation have been observed in various plant species (e.g., strawberry, wheat, rice, sorghum, tomato, soybean, maize, etc.) (PeĢrez-MontaƱo et al., 2014; Mitter et al., 2013). For decades, Plant Growth Promoting Rhizobacteria (PGPR) such as Acetobacter diazotrophicus R12, Azospirillum brasilense Sp7 (ATCC 29729), Herbaspirillum seropedicae Z78 (ATCC 35893), Bacillus sphaericus (UPMB10), and Azospirillum lipoferum (CCM3863) have been widely reported and used as the biofertilizers in the oil palm plantlets to promote plant growth (TableĀ 1) (; Azlin etĀ al., 2007; Lim etĀ al., 2010; Noor etĀ al., 2013; Lim etĀ al., 2018b). Through these findings, all the microbial inoculants increased the growth and nutritional assimilation (total N) of oil palm plantlets and at the same time also improved soil properties. Not only in oil palm plantlets, studies also showed that H. seropedicae can fix the significant amount of N2 and contribute to plant growth in sugarcane, rice, and oil palm (Boddey etĀ al., 1995; Elbeltagy etĀ al., 2001; Gyaneshwar etĀ al., 2002; James etĀ al., 2002; Roncato-Maccari etĀ al., 2003; ).
TableĀ 1
| Oil palm variant | Type of plant culture | Bacterial species | Inoculum | Effect of interaction | Reference |
|---|---|---|---|---|---|
| Elaeis guineensis var. tenera | Plantlet | Acetobacter diazotrophicus R12 | Broth culture | ⢠Increment of total fresh weight (19.50%) ⢠Higher acetylene reduction assay and leaf chlorophyll content compared to the N free MS medium | (Azlin et al., 2007) |
| Plantlet | Azospirillum brasilense Sp7 | Broth culture | ⢠Increment of total dry weight (12.20%) ⢠Increment of root volume (82.35%) ⢠Higher quantum yield and net photosynthesis rate compared to the control (killed inoculum Sp7) | () | |
| ⢠Increment of total fresh weight (49.81%) ⢠Higher acetylene reduction assay and leaf chlorophyll content compared to the N free MS medium | (Azlin et al., 2007) | ||||
| Plantlet | Azospirillum lipoferum (CCM3863) | Broth culture | ⢠Increment of total dry weight (34.63%) ⢠Increment of root volume (41.17%) ⢠Caused a significant increase (16%) in shoot nitrogen concentration compared to the control (killed inoculum Sp7) | () | |
| Plantlet | Microbacterium sp. E7 | Broth culture | ⢠Increment of shoot fresh weight (23.40%), shoot height (51.46%), and shoot protein content (90.29%) compared to the control (killed inoculum Z78) | (Noor et al., 2013) | |
| Plantlet | Acetobacter sp. E9 | Broth culture | ⢠Increment of shoot fresh weight (23.40%), shoot height (17.84%), and shoot protein content (27.18%) compared to the control (killed inoculum Z78) | (Noor et al., 2013) | |
| Plantlet | Microbacterium sp. E14 | Broth culture | ⢠Increment of shoot fresh weight (28.94%), shoot height (35.38%), and shoot protein content (121.36%) compared to the control (killed inoculum Z78) | (Noor et al., 2013) | |
| Plantlet | Herbaspirillum seropedicae Z78 | Broth culture | ⢠Increment of shoot fresh weight (55.32%), shoot height (52.8%), and shoot protein content (129.13%) compared to the control (killed inoculum Z78) | (Noor et al., 2013) | |
| Embryogenic callus | Herbaspirillum seropedicae Z78 (ATCC 35893) | Pellet cell | ⢠Decreased biomass fresh weight (36.74%) ⢠All embryoids were yellowish brown compared to the control (full N) | (Lim et al., 2016a) | |
| Supernatant | ⢠Increment of biomass fresh weight (45.19%) ⢠Embryoid formation was opaque white (21.23%) and yellowish brown (78.77%) compared to the control (full N) | ||||
| Broth culture | ⢠Increment of biomass fresh weight (39.22%) ⢠Embryoid formation was opaque white (29.60%) and yellowish brown (70.40%) compared to the control (full N) | ||||
| Sonicated cell | ⢠Increment of biomass fresh weight (64.89%) ⢠Embryoid formation was opaque white (35.40%) and yellowish brown (64.60%) compared to the control (full N) | ||||
| Elaeis guineensis var. dura | Callus, Embryogenic callus | Herbaspirillum seropedicae Z78 (ATCC 35893) | Sonicated cell | ⢠Increment of callus fresh weight (11.21% and 26.76%) compared to the control (limited N) ⢠Increment of embrygenic callus fresh weight (61.07% and 60.33%) compared to the control (limited N) | (Lim et al., 2016b; Lim et al., 2018a) |
| Pellet cell | ⢠Increment of callus fresh weight (114.10% and 147.87%) compared to the control (limited N) ⢠Decreased of embrygenic callus fresh weight (15.26% and 32.26%) compared to the control (limited N) | ||||
| Plantlet | Sonicated cell | ⢠Increment of total biomass dry weight (42.18%) compared to the control (limited N) | (Lim et al., 2018b) | ||
| Broth culture | ⢠Increment of total biomass dry weight (68.31%) ⢠Higher total protein content ⢠Higher IAA concentration in root ⢠Increment in root volumn compared to the control (limited N) | ||||
| Pellet cell | ⢠Increment of total biomass dry weight (55.44%) ⢠Higher IAA concentration in leaves compared to the control (limited N) | ||||
| Elaeis guineensis (Deli x Yangambi) | Plantlet | Bacillus sphaericus (UPMB10) | Broth culture | Functional classification of tentative unique genes that were upregulated. ⢠Protein synthesis and processing (28%) ⢠Stress-related protein (22%) ⢠Primary metabolism (13%) ⢠Cell division (7%) ⢠Membrane transport (4%) ⢠Signal transduction (4%) ⢠Gene expression and RNA metabolism (2%) ⢠Vesicular trafficking, protein sorting, and secretion (2%) | (Lim et al., 2010) |
Summary of biotization in tissue cultured oil palm materials with plant growth promoting rhizobacteria (PGPR).
However, to date, less attention has been paid to the biotization processes of other in vitro culture materials such as callus and embryogenic callus. Not long ago, the potential of the PGPR to promote in vitro proliferation and differentiation of plant culture materials such as callus and embryogenic callus was reported in oil palm and wheat (Lim etĀ al., 2016a; Lim etĀ al., 2016b; Tkachenko etĀ al., 2021). Selected beneficial bacteria can accelerate the growth and development of in vitro plant culture via a highly sustainable and environmentally friendly approach. Thus, biotization process involving PGPR is highly prospective to increase the effectiveness of the micropropagation process. This novel technique for in vitro oil palm culture involving PGPR can improve the efficiency of the micropropagation process and may provide a solution to the ineffective callus and embryogenesis production. Due to this consideration, this review will mainly focus on how plant-microbe interactions improve oil palm micropropagation.
Colonization of PGPR for in vitro oil palm plant materials
A vital feature of all PGPRs is the creation of a symbiotic environment that is effective for colonization. However, the success of invasion and colonization in the host also requires bacteria to overcome plant defense responses triggered by microbial recognition. To further understand the symbiosis system, the adhesion of PGPR in plant tissue culture materials will be discussed here. Upon biotization, PGPRs tend to colonize the intercellular spaces of the co-cultured in vitro plant materials, forming a plant-microbe symbiosis system. This is a key step to establishing an artificial symbiotic relationship between in vitro plant material and PGPR. Studies by Lim etĀ al. (2016a) and Lim etĀ al. (2016b) proved that the cells of H. seropedicae Z78 colonized the surface and the intercellular spaces of the treated callus and embryogenic callus of oil palm. The high concentration of carbon sources in the apoplast may contribute to the successful colonization of bacteria in the intercellular spaces of plant cells (Bennett and Lynch, 1981; Schmidt etĀ al., 2011). To create a successful symbiotic relationship, plant cells need to provide bacteria with carbon and energy sources by converting available sugar in the culture medium during the biotization process (Preininger etĀ al., 1997).
Biotization process could also enhance the development of the root systems of the in vitro plantlet. A fully functional root system is also vital for acquiring minerals, nutrients, and water and responding to stress signals under micropropagated conditions and during the acclimatization stage (Maksimov etĀ al., 2011). As reported by Azlin etĀ al. (2007), A. diazotrophicus R12 and A. brasilense Sp7 were observed to colonize the root of the epidermis cell of oil palm plantlets. Colonized roots showed higher fresh weight and nitrogenase activity, which suggests the efficiency of PGPR in fixing atmospheric nitrogen. and Lim etĀ al. (2018b) also reported a significant increase in root volume for oil palm plantlets treated with A. brasilense Sp7, A. lipoferum CCM3863, and H. seropedicae Z78 broth culture, respectively, suggesting that the PGPRs stimulate root growth and development.
To successfully colonize the host plant, lipopolysaccharide (LPS), a component of endophytes plays a key role in plant colonization and forms artificial plant-microbe interactions (Serrato etĀ al., 2010; Krasova etĀ al., 2022). Other bacterial cell components such as flagella proteins, exopolysaccharides and adhesins are crucial in the interaction between the PGPR with higher plants. Such components are the first structures that come into contact with the host plant (Balsanelli etĀ al., 2013). Balsanelli etĀ al. (2016) reported that H. seropedicae interacted with the host plant through a specific chemotaxis system, possibly attaching to the root surface with type IV pili and the lipopolysaccharide. After completion of the root surface colonization, potential PGPR could colonize roots internally via lateral root emergence sites and root tips and meristems (Botta etĀ al., 2013). However, studies on PGPR colonization of in vitro plant material, especially in callus and embryogenic cells, are very limited. Detailed studies of PGPR colonization with in vitro oil palm culture material appear to be eagerly needed to provide a better understanding of the interaction.
Artificial symbiosis of PGPR and in vitro plant culture
After colonization, it has been proven that selected PGPR could established an artificial symbiotic relationship with in vitro plant culture. This relationship improves the micropropagation process by changing the physiology of the plant material and increasing the yield of produced secondary metabolites. Inoculated bacteria can eventually increase the availability of nutrients and phytohormones and reduce any potential biotic and abiotic plant stresses faced by plant tissue culture material. An artificial symbiosis between selected diazotrophic PGPR and in vitro plant materials is a viable solution for transferring the inoculum to newly selected hosts (Varga etĀ al., 1994). If the cultural conditions are refined, thus, a successful symbiotic relationship between plant cells and PGPR can be created (Maksimov etĀ al., 2011). Sturz etĀ al. (2000) suggested that such a relationship could be introduced to the in vitro plant materials as early as the embryoid and shoot formation stages. At an early stage, this relationship allows the host plant to be better adapted to the inoculum for an effective and efficient micropropagation process (Sturz etĀ al., 2000; Azlin etĀ al., 2007).
Some early micropropagation stages of plant-microbe interactions have also been reported, such as Rhizobium japonicum associated with tobacco and cowpea cell cultures (Scowcroft and Gibson, 1975), Azotobacter zettuovii and carrot callus (Varga etĀ al., 1994), Azomonas insignis with strawberry callus (Preininger etĀ al., 1997), Azospirillum sp. and Gluconacetobacter sp. in sugarcane callus (Anand Kumar etĀ al., 2004), rhizobacteria with saffron cormlet (Parray etĀ al., 2015), H. seropedicae Z78 with oil palm callus and embryogenic callus (var. tenera and dura) (Lim etĀ al., 2016a; Lim etĀ al., 2016b), and A. brasilense with wheat callus (Tkachenko etĀ al., 2021). All these studies reported that the selected PGPRs were found to be able to promote plant growth and further improve the efficiency of the micropropagation process by enhancing the cell division and proliferation. In contrast, several reports revealed that biotization of in vitro plant material can have detrimental effects to plant growth. According to Krasova etĀ al. (2022), viable A. brasilense Sp7 culture challenged wheat callus resulted in cell death after 7 days of cultivation. Low biomass was also observed in oil palm embryogenic callus (var. tenera) treated with H. seropedicae Z78 pellet cells (Lim etĀ al., 2016a). This suggests that not all forms of PGPR are suitable for establishing bioization with certain plant species or plant varieties. Despite the makeup of biotization may vary depending on the tissue and developmental stage of the plant itself, the composition of the endophytic population is always not necessarily plant species-specific. However, screening and selection are always required to ensure the PGPR is appropriate for certain species. From a conceptual point of view, the most ideal approach would be using the locally putative endophytes which isolated from the same plant species or varieties. All these microbes occupying the endospheric of plants are most likely to be selected as niches by the plant cells themselves. This is because these microbes appear to be able to form relationships with host plants and circumvent the effects of plant defense metabolites (Senthilkumar etĀ al., 2011).
PGPR promotes somatic embryogenesis
Selected PGPRs can synthesize phytohormones which are capable of affecting the hormonal balance of plants. Interestingly, the interaction of plants and bacteria enables the production of phytohormones and compounds mimicking the natural plant growth regulator (Brader et al., 2014). Auxin such as indole-3-acetic acid (IAA) is mainly considered to be the most critical phytohormone in plant tissue culture which affects cell division, elongation, differentiation, and the initiation of organ formation of plant tissues (Spaepen et al., 2007). IAA produced by Herbaspirillum sp. is one of the mechanistic pathways that could contribute to plant growth promotion (BastiÔn et al., 1998). Bacterial IAA loosens plant cell walls and increases root secretions, thereby providing additional nutrients to support bacterial growth (James et al., 2002; Chi et al., 2005). It has been suggested that the PGPR could overcome abiotic stresses by providing them with IAA that directly stimulates plant growth (Glick, 2012). Lim et al. (2018b) revealed that auxin activation may be a mode of cellular adaptation, which leads to the embryogenic capacity of somatic embryogenesis, and demonstrated the importance of a co-culture system of PGPR and oil palm tissue culture material. All these findings significantly demonstrate the ability of selected inoculum to exert high levels of auxin when associated with plant tissue and promote callus differentiation and embryogenic callus formation in the somatic embryogenesis process of oil palm. In the cross-section of oil palm callus treated with H. seropedicae Z78 cells, isodiametric cells formed meristematic fragmented segments composed of compact tissues surrounded by densely stained cytoplasm and nucleus. This indicates that intense cellular division occurred in the differentiated region of the treated callus (Lim et al., 2016b). Under such conditions, meristems can further develop into embryogenic clumps, as small and isometric cells with dense cytoplasm and starch accumulation indicate progression toward embryogenesis (PÔdua et al., 2013; de Carvalho Silva et al., 2014). This demonstrates that inoculated H. seropedicae Z78 pellet cells provide IAA to the oil palm callus tissues and eventually promote cell division.
Inoculation of microorganisms into the culture can also create stress for the plant tissue (Karami and Saidi, 2010). Stress is one of the factors that promote embryogenic cell differentiation. Lim et al. (2018a) reported that the detection of phenolic compounds in inoculated oil palm callus and embryogenic callus could be indicated as one of the stress factors for plant cells. The phenolic compounds benefit plant cells as modulators for IAA synthesis, where phenolic compounds inhibit the enzymatic oxidation of IAA and results in plant cell division and differentiation (López Arnaldos et al., 2001). According to Zavattieri et al. (2010), the parallel induction of these co-cultured stresses can lead to the development of morphological changes during the transition of somatic embryogenesis in rapid differentiation. This highlighted that the interaction between auxin and stress signalling, which results in somatic embryogenesis formation, could reprogram behaviour at different levels. However, the mechanism by which these stresses stimulate the differentiation of embryogenic cells is still not much reported.
Diazotrophs can provide fixed nitrogen required by the PGPR associated host plant (Mitter etĀ al., 2013). Nitrogen fixing bacteria like H. seropedicae Z78 have been identified and isolated from the rhizosphere of oil palm. Baldani and Baldani (2005) and Chubatsu etĀ al. (2012) also reported the ability of H. seropedicae able to fix N2 and to promote plant growth through phytohormone excretion in an associative condition. This native putatively PGPR was also reported to have the ability to carry out nitrogenase activity when associated with oil palm callus, embryogenic callus, and plantlets (Lim etĀ al., 2016b; Lim etĀ al., 2018b). This suggests that H. seropedicae Z78 is a potential PGPR that accelerates in vitro oil palm material. Overall, microbial co-cultivation for in vitro plant culture may impose developmental and metabolic changes on macrosymbionts and enhance their tolerance to abiotic and biotic stresses.
Biochemical activities of inoculated in vitro oil palm
To promote plant growth, one of the important compounds is amino acid, which is essential in protein synthesis (Vidal and Gutierrez, 2008). Lim etĀ al. (2018a) showed an increase in total amino acid content and biomass at day 30 after treatment of callus with H. seropedicae Z78 pellet cells, suggesting an accelerated rate of formation of friable embryogenic callus. The increase in total free amino acids in tissue may be due to increased metabolic activities in plant cultures, leading to cell division and increased cellular biomass in somatic embryogenesis (Feher etĀ al., 2003). and Sghaier-Hammami etĀ al. (2009) also showed that during embryo maturation, proteins of the glycolytic pathway, as well as storage proteins start to be expressed in date palm and oil palm, respectively. These reports suggested that an active protein synthesis step may take place in the embryogenic callus, which might be essential for the differentiation of somatic embryos.
Total sugar content is another important feature and is a carbon source for polysaccharides synthesis. According to Drogue etĀ al. (2012), sugars in specific bacterial lipopolysaccharide are involved in the colonization and attachment of plant microbes. Baud etĀ al. (2002) showed that sugar mobilization is very important during the early stage of embryogenic development, as the sugars serve as the main sources of carbon skeleton and metabolic signalling. Gomes etĀ al. (2014) and WarchoÅ etĀ al. (2015) also observed an increase in total soluble sugar levels at the somatic embryo maturation stage of the oil palm and cabbage tree. Regulation of plant cell morphology at transcriptional, translational, and post-translational levels through cell differentiation depends on the sensitivity of plant tissues to transport at different concentrations and levels of sugar (Delrot etĀ al., 2000). However, it is difficult to differentiate between the metabolic function and regulation of sugars in plant cells, and indirect alterations in the sugar metabolism that may also affect plant cell morphogenesis (Lozovaya etĀ al., 2006). Despite the potential and current understanding of PGPRs and in vitro plants, existing research data cannot fully explain the interaction mechanism at the biochemical level. Any changes in the host plantās biochemical profile could further explain the function of PGPR in the interaction.
Conclusions and future perspectives
Over the years, the optimization of tissue culture technology in oil palm has reached a bottleneck, the long oil palm tissue culture process (FigureĀ 1) and low yield of callus and embryogenic callus remain to limit the production of high-quality plantlets. For decades, PGPR has been reported as an effective microbial inoculant capable of promoting plant growth. Owing to their natural properties, PGPRs appear to be a good choice for accelerating or at least improving plant tissue culture production. A schematic diagram is provided in this review to describe the flow of inoculation and experimental procedures (FigureĀ 2). The preliminary step in obtaining an ideal match of PGPR to the host plant is to screen PGPR of its biochemical ability. Furthermore, the PGPR colonization process is rather important for establishing a mutual plant-microbe interaction. Rhizobacterial quorum sensing appears to play a role in the colonization process. It would be an interesting extension topic if PGPRs could somehow generate the quorum-sensing signal in association with the host plants, and further promote plant cell development. Understanding the relationship between in vitro plant-microbe interactions at the molecular level is critical. Studies such as proteomics, RNA seq, or microarrays can be performed to further identify potential proteins and enzymes involved in the interactions. In brief, extended studies are always needed to discover more potential PGPRs and create a stable symbiotic environment between oil palm tissue culture and PGPRs.
FigureĀ 2
Statements
Author contributions
AG and S-LL conceived the idea. AG, S-LL, SS, BM and ARSR wrote and revised the manuscript. All authors contributed to the article and approved the submitted version.
Funding
This work was supported by the Universiti Sains Malaysia Research University Grant 1001/PBIOLOGI/815088.
Acknowledgments
Authors would like to acknowledge the School of Biological Sciences, Universiti Sains Malaysia, Penang, Malaysia, for research facilities, and the Advanced Biotechnology and Breeding Centre (ABBC) of Malaysian Palm Oil Board (MPOB), Bangi, Selangor, Malaysia, for the oil palm planting materials and technical assistance.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisherās note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1
Aberlenc-BertossiF.ChabrillangeN.DuvalY.TregearJ. (2008). Contrasting globulin and cysteine proteinase gene expression patterns reveal fundamental developmental differences between zygotic and somatic embryos of oil palm. Tree Physiol.28, 1157ā1167. doi: 10.1093/treephys/28.8.1157
2
AiāshahO. N.AmirH.KengC. L.OthmanA. (2009). Influence of various combinations of diazotrophs and chemical n fertilizer on plant growth and N2 fixation capacity of oil palm seedlings (Elaeis guineensis jacq.). Thai J. Agric. Sci.42, 139ā149.
3
AmirH. G.ShamsuddinZ. H.HalimiM. S.RamlanM. F.MarziahM. (2001). Effects of Azospirillum inoculation on N2 fixation and growth of oil palm plantlets at nursery stage. J. Oil Palm Res.13, 42ā49.
4
Anand KumarS.SobhakumariV.LoganathanP.Vimal VenkateshM. (2004). Improved in vitro culture methodology in sugarcane by introducing Azospirillum sp and Gluconacetobacter sp. Sugar Tech.6, 69ā72. doi: 10.1007/BF02942621
5
AzlinC.AmirH.KengC.ZamzuriI. (2007). Effect of plant growth-promoting rhizobacteria on root formation and growth of tissue cultured oil palm (Elaeis guineensis jacq.). Biotechnol6, 549ā554. doi: 10.3923/biotech.2007.549.554
6
BaldaniJ. I.BaldaniV. L. (2005). History on the biological nitrogen fixation research in graminaceous plants: special emphasis on the Brazilian experience. An. Acad. Bras. Cienc.77, 549ā579. doi: 10.1590/S0001-37652005000300014
7
BalsanelliE.Tadra-SfeirM. Z.FaoroH.PankieviczV. C.De BauraV. A.PedrosaF. O.et al. (2016). Molecular adaptations of Herbaspirillum seropedicae during colonization of the maize rhizosphere. Environ. Microbiol.18, 2343ā2356. doi: 10.1111/1462-2920.12887
8
BalsanelliE.TuleskiT. R.De BauraV. A.YatesM. G.ChubatsuL. S.De Oliveira PedrosaF.et al. (2013). Maize root lectins mediate the interaction with herbaspirillum seropedicae via n-acetyl glucosamine residues of lipopolysaccharides. PloS One8, e77001. doi: 10.1371/journal.pone.0077001
9
BastiĆ”nF.CohenA.PiccoliP.LunaV.BaraldiR.BottiniR. (1998). Production of indole-3-acetic acid and gibberellins A1 and A3 by Acetobacter diazotrophicus and Herbaspirillum seropedicae in chemically-defined culture media. Plant Growth Regul.24, 7ā11. doi: 10.1023/A:1005964031159
10
BaudS.BoutinJ.-P.MiquelM.LepiniecL.RochatC. (2002). An integrated overview of seed development in Arabidopsis thaliana ecotype WS. Plant Physiol. Biochem.40, 151ā160. doi: 10.1016/S0981-9428(01)01350-X
11
BennettR.LynchJ. (1981). Bacterial growth and development in the rhizosphere of gnotobiotic cereal plants. Microbiology125, 95ā102. doi: 10.1099/00221287-125-1-95
12
BoddeyR. M.De OliveiraO.UrquiagaS.ReisV.De OlivaresF.BaldaniV.et al. (1995). āBiological nitrogen fixation associated with sugar cane and rice: contributions and prospects for improvement,ā in LadhaJ. K.PeoplesM. B.Management of biological nitrogen fixation for the development of more productive and sustainable agricultural systems. Developments in Plant and Soil Sciences (Dordrecht: Springer), 195ā209. doi:Ā 10.1007/978-94-011-0055-7_9
13
BottaA. L.SantaceciliaA.ErcoleC.CacchioP.Del GalloM. (2013). In vitro and in vivo inoculation of four endophytic bacteria on Lycopersicon esculentum. N Biotechnol.30, 666ā674. doi: 10.1016/j.nbt.2013.01.001
14
BraderG.CompantS.MitterB.TrognitzF.SessitschA. (2014). Metabolic potential of endophytic bacteria. Curr. Opin. Biotechnol.27, 30ā37. doi: 10.1016/j.copbio.2013.09.012
15
ChiF.ShenS.-H.ChengH.-P.JingY.-X.YanniY. G.DazzoF. B. (2005). Ascending migration of endophytic rhizobia, from roots to leaves, inside rice plants and assessment of benefits to rice growth physiology. Appl. Environ. Microbiol.71, 7271ā7278. doi: 10.1128/AEM.71.11.7271-7278.2005
16
ChubatsuL. S.MonteiroR. A.De SouzaE. M.De OliveiraM. A. S.YatesM. G.WassemR.et al. (2012). Nitrogen fixation control in Herbaspirillum seropedicae. Plant Soil356, 197ā207. doi: 10.1007/s11104-011-0819-6
17
de Carvalho SilvaR.LuisZ. G.Scherwinski-PereiraJ. E. (2014). The histodifferentiation events involved during the acquisition and development of somatic embryogenesis in oil palm (Elaeis guineensis jacq.). Plant Growth Regul.72, 67ā80. doi: 10.1007/s10725-013-9837-0
18
DelrotS.AtanassovaR.MauroussetL. (2000). Regulation of sugar, amino acid and peptide plant membrane transporters. Biochim. Biophys. Acta - Biomembr.1465, 281ā306. doi: 10.1016/S0005-2736(00)00145-0
19
DrogueB.DorĆ©H.BorlandS.Wisniewski-DyĆ©F.Prigent-CombaretC. (2012). Which specificity in cooperation between phytostimulating rhizobacteria and plants? Res. Microbiol.163, 500ā510. doi:Ā 10.1016/j.resmic.2012.08.006
20
ElbeltagyA.NishiokaK.SatoT.SuzukiH.YeB.HamadaT.et al. (2001). Endophytic colonization and in planta nitrogen fixation by a Herbaspirillum sp. isolated from wild rice species. Appl. Environ. Microbiol.67, 5285ā5293. doi: 10.1128/AEM.67.11.5285-5293.2001
21
FeherA.PasternakT. P.DuditsD. (2003). Transition of somatic plant cells to an embryogenic state. Plant Cell Tissue Organ Cult.74, 201ā228. doi: 10.1023/A:1024033216561
22
GlickB. R. (2012). Plant growth-promoting bacteria: mechanisms and applications. Scientifica2012, 15. doi: 10.6064/2012/963401
23
GomesH. T.BartosP. M. C.SilvaC. O.Do AmaralL. I. V.Scherwinski-PereiraJ. E. (2014). Comparative biochemical profiling during the stages of acquisition and development of somatic embryogenesis in African oil palm (Elaeis guineensis jacq.). Plant Growth Regul.74, 199ā208. doi: 10.1007/s10725-014-9901-4
24
GyaneshwarP.JamesE. K.ReddyP. M.LadhaJ. K. (2002). Herbaspirillum colonization increases growth and nitrogen accumulation in aluminium-tolerant rice varieties. New Phytol.154, 131ā145. doi: 10.1046/j.1469-8137.2002.00371.x
25
JamesE. K.GyaneshwarP.MathanN.BarraquioW. L.ReddyP. M.IannettaP. P.et al. (2002). Infection and colonization of rice seedlings by the plant growth-promoting bacterium Herbaspirillum seropedicae Z67. Mol. Plant Microbe Interact.15, 894ā906. doi: 10.1094/MPMI.2002.15.9.894
26
KaramiO.SaidiA. (2010). The molecular basis for stress-induced acquisition of somatic embryogenesis. Mol. Biol. Rep.37, 2493ā2507. doi: 10.1007/s11033-009-9764-3
27
KrasovaY. V.TkachenkoO. V.SigidaE. N.LobachevY. V.BuryginG. L. (2022). Lipopolysaccharide and flagellin of Azospirillum brasilense Sp7 influence callus morphogenesis and plant regeneration in wheat. World J. Microbiol. Biotechnol.38, 62. doi:Ā 10.1007/s11274-022-03247-y
28
LimS.-L.NabilaH. M. N.AtiqahS.SubramaniamS.ChanL.-K.ZamzuriI.et al. (2016a). Artificial symbiotic association and growth induction of embryogenic calli (Elaeis guineensis jacq.) inoculated with Herbaspirillum seropedicae (Z78). Malays. J. Microbiol.12 (6), 485ā491.
29
LimK. A.ShamsuddinZ. H.HoC. L. (2010). Transcriptomic changes in the root of oil palm (Elaeis guineensis jacq.) upon inoculation with Bacillus sphaericus UPMB10. Tree Genet. Genomes6, 793ā800. doi:Ā 10.1007/s11295-010-0292-z
30
LimS.-L.SubramaniamS.ZamzuriI.AmirH. G. (2016b). Biotization of in vitro calli and embryogenic calli of oil palm (Elaeis guineensis jacq.) with diazotrophic bacteria Herbaspirillum seropedicae (Z78). Plant Cell Tissue Organ Cult.127, 251ā262. doi:Ā 10.1007/s11240-016-1048-8
31
LimS.-L.SubramaniamS.ZamzuriI.AmirH. G. (2018a). Biochemical profile of bacterized calli and embryogenic calli of oil palm (Elaeis guineensis jacq.). J. Oil Palm Res.30, 390ā402. doi:Ā 10.21894/jopr.2018.0034
32
LimS.-L.SubramaniamS.ZamzuriI.AmirH. G. (2018b). Growth and biochemical profiling of artificially associated micropropagated oil palm plantlets with Herbaspirillum seropedicae. J. Plant Interact.13, 173ā181. doi: 10.1080/17429145.2018.1451564
33
López ArnaldosT.MuƱozR.FerrerM. A.CalderónA. A. (2001). Changes in phenol content during strawberry (FragariaĆ ananassa, cv. chandler) callus culture. Physiol. Plant113, 315ā322. doi: 10.1034/j.1399-3054.2001.1130303.x
34
LozovayaV.UlanovA.LyginA.DuncanD.WidholmJ. (2006). Biochemical features of maize tissues with different capacities to regenerate plants. Planta224, 1385ā1399. doi: 10.1007/s00425-006-0328-7
35
MaksimovI.AbizgilādinaR.PusenkovaL. (2011). Plant growth promoting rhizobacteria as alternative to chemical crop protectors from pathogens. Appl. Biochem. Microbiol.47, 333ā345. doi: 10.1134/S0003683811040090
36
Malaysian Palm Oil Board (2010) Overview of the Malaysian oil palm industry 2009 [Online]. ministry of plantation industries and commodities Malaysia. Available at: http://www.mpob.gov.my/.
37
MeijaardE.BrooksT. M.CarlsonK. M.SladeE. M.Garcia-UlloaJ.GaveauD. L. A.et al. (2020). The environmental impacts of palm oil in context. Nat. Plants6, 1418ā1426. doi: 10.1038/s41477-020-00813-w
38
MitterB.BraderG.AfzalM.CompantS.NaveedM.TrognitzF.et al. (2013). Advances in elucidating beneficial interactions between plants, soil, and bacteria. Adv. Agron.121, 381ā445. doi: 10.1016/B978-0-12-407685-3.00007-4
39
NoorA. S.TharekM.KeyeoF.KengC.ZamzuriI.AhmadR.et al. (2013). Influence of indole-3-acetic acid (IAA) produced by diazotrophic bacteria on root development and growth of in vitro oil palm shoots (Elaeis guineensis jacq.). J. Oil Palm Res.25, 100ā107.
40
PĆ”duaM. S.PaivaL. V.LaboryC. R.AlvesE.SteinV. C. (2013). Induction and characterization of oil palm (Elaeis guineensis jacq.) pro-embryogenic masses. An. Acad. Bras. Cienc.85, 1545ā1556. doi: 10.1590/0001-37652013107912
41
ParrayJ. A.KamiliA. N.ReshiZ. A.QadriR. A.JanS. (2015). Interaction of rhizobacterial strains for growth improvement of Crocus sativus l. under tissue culture conditions. Plant Cell Tissue Organ Cult.121, 325ā334. doi: 10.1007/s11240-014-0703-1
42
ParveezG. K. A.KamilN.ZawawiN. Z.Ong-AbdullahM.RasuddinR.LohS. K.et al. (2022). Oil palm economic performance in Malaysia and R&D progress in 2021. J. Oil Palm Res.34, 185ā218. doi:Ā 10.21894/jopr.2022.0036
43
PĆ©rez-MontaƱoF.AlĆas-VillegasC.BellogĆnR.Del CerroP.EspunyM.JimĆ©nez-GuerreroI.et al. (2014). Plant growth promotion in cereal and leguminous agricultural important plants: from microorganism capacities to crop production. Microbiol. Res.169, 325ā336. doi: 10.1016/j.micres.2013.09.011
44
PreiningerĆ.ZatykóJ.SzücsP.KorĆ”nyiP.GyurjĆ”nI. (1997). In vitro establishment of nitrogen-fixing strawberry (FragariaĆ ananassa) via artificial symbiosis with Azomonas insignis. In Vitro Cell. Dev. Biol. - Plant33, 190ā194. doi: 10.1007/s11627-997-0020-z
45
RohaniO.SharifahS. A.Mohd RafiiY.OngM.TarmiziA. H.ZamzuriI. (2000). "Tissue culture of oil palm," In Advances in oil palm research. Vol. 1. Eds. BasironY.JalaniB. S.ChanK. W. (Kuala Lumpur: Malaysian Palm Oil Board), 238ā331.
46
Roncato-MaccariL. D.RamosH. J.PedrosaF. O.AlquiniY.ChubatsuL. S.YatesM. G.et al. (2003). Endophytic Herbaspirillum seropedicae expresses nif genes in gramineous plants. FEMS Microbiol. Ecol.45, 39ā47. doi: 10.1016/S0168-6496(03)00108-9
47
SchmidtM. A.SouzaE. M.BauraV.WassemR.YatesM.PedrosaF.et al. (2011). Evidence for the endophytic colonization of Phaseolus vulgaris (common bean) roots by the diazotroph Herbaspirillum seropedicae. Braz. J. Med. Biol. Res.44, 182ā185. doi: 10.1590/S0100-879X2011007500004
48
ScowcroftW.GibsonA. (1975). Nitrogen fixation by rhizobium associated with tobacco and cowpea cell cultures. Nature253, 351ā352. doi: 10.1038/253351a0
49
SenthilkumarM.AnandhamR.MadhaiyanM.VenkateswaranV.SaT. (2011). Endophytic bacteria: perspectives and applications in agricultural crop production (Berlin, Heidelberg: Springer).
50
SerratoR.SassakiG.CruzL.CarlsonR.MuszyÅskiA.MonteiroR.et al. (2010). Chemical composition of lipopolysaccharides isolated from various endophytic nitrogen-fixing bacteria of the genus Herbaspirillum. Can. J. Microbiol.56, 342ā347. doi: 10.1139/W10-011
51
Sghaier-HammamiB.ValledorL.DriraN.Jorrin-NovoJ. V. (2009). Proteomic analysis of the development and germination of date palm (Phoenix dactylifera l.) zygotic embryos. Proteomics9, 2543ā2554. doi: 10.1002/pmic.200800523
52
SohA. C. (2018). āQuo Vadis (Wither) oil palm tissue culture clonal propagation,ā in Proceeding of the International Seminar on Status of Oil Palm Tissue Culture Technology, Medan, Indonesia, 16 July 2018 (Kuala Lumpur: Malaysian Palm Oil Board), 7ā14.
53
SohA. C.WongG.TanC. C.ChewP. S.HorT. Y.ChongS. P.et al. (2001). āRecent advances towards commercial production of elite oil palm clonesā. In Cutting-edge technologies for sustained competitiveness. Proceedings of the 2001 PIPOC International palm oil congress agriculture. (Kuala Lumpur, Malaysia: Malaysian Palm Oil Board), 33ā44.
54
SpaepenS.VanderleydenJ.RemansR. (2007). Indole-3-acetic acid in microbial and microorganism-plant signaling. FEMS Microbiol. Rev.31, 425ā448. doi: 10.1111/j.1574-6976.2007.00072.x
55
SturzA.ChristieB.NowakJ. (2000). Bacterial endophytes: potential role in developing sustainable systems of crop production. Crit. Rev. Plant Sci.19, 1ā30. doi: 10.1080/07352680091139169
56
TkachenkoO. V.BuryginG. L.EvseevaN. V.FedonenkoY. P.MatoraL. Y.LobachevY. V.et al. (2021). Morphogenesis of wheat calluses treated with Azospirillum lipopolysaccharides. Plant Cell Tissue Organ Cult.147, 147ā155. doi: 10.1007/s11240-021-02114-2
57
VargaS. S.KorĆ”nyiP.PreiningerĆ.GyurjĆ”nI. (1994). Artificial associations between Daucus and nitrogen-fixing Azotobacter cells in vitro. Physiol. Plant90, 786ā790. doi: 10.1111/j.1399-3054.1994.tb02538.x
58
VidalE. A.GutierrezR. A. (2008). A systems view of nitrogen nutrient and metabolite responses in arabidopsis. Curr. Opin. Plant Biol.11, 521ā529. doi: 10.1016/j.pbi.2008.07.003
59
Wan Mohd JaafarW. S.SaidN. F. S.Abdul MauludK. N.UningR.LatifM. T.Muhmad KamarulzamanA. M.et al. (2020). Carbon emissions from oil palm induced forest and peatland conversion in sabah and Sarawak, Malaysia. Forests11, 1285. doi: 10.3390/f11121285
60
WarchoÅM.SkrzypekE.KusibabT.DubertF. (2015). Induction of somatic embryogenesis and biochemical characterization of Cordyline australis (G. forst.) Endl.āRed starācallus. Sci. Hortic.192, 338ā345. doi: 10.1016/j.scienta.2015.05.010
61
WeckxS.InzƩD.MaeneL. (2019). Tissue culture of oil palm: finding the balance between mass propagation and somaclonal variation. Front. Plant Sci.10, 722. doi: 10.3389/fpls.2019.00722
62
WoittiezL. S.Van WijkM. T.SlingerlandM.Van NoordwijkM.GillerK. E. (2017). Yield gaps in oil palm: A quantitative review of contributing factors. Eur. J. Agron.83, 57ā77. doi: 10.1016/j.eja.2016.11.002
63
ZavattieriM. A.FredericoA. M.LimaM.SabinoR.Arnholdt-SchmittB. (2010). Induction of somatic embryogenesis as an example of stress-related plant reactions. Electron. J. Biotechnol.13, 12ā13. doi: 10.2225/vol13-issue1-fulltext-4
Summary
Keywords
biotization, micropropagation process, plant growth promoting rhizobacteria, in vitro plant development, biotic and abiotic stress
