Abstract
Transposable elements (TEs) and satellite DNAs, two major categories of repetitive sequences, are expected to accumulate in non-recombining genome regions, including sex-linked regions, and contribute to sex chromosome evolution. The dioecious plant, Humulus scandens, can be used for studying the evolution of the XX/XY1Y2 sex chromosomes. In this study, we thoroughly examined the repetitive components of male and female H. scandens using next-generation sequencing data followed by bioinformatics analysis and florescence in situ hybridization (FISH). The H. scandens genome has a high overall repetitive sequence composition, 68.30% in the female and 66.78% in the male genome, with abundant long terminal repeat (LTR) retrotransposons (RTs), including more Ty3/Gypsy than Ty1/Copia elements, particularly two Ty3/Gypsy lineages, Tekay and Retand. Most LTR-RT lineages were found dispersed across the chromosomes, though CRM and Athila elements were predominately found within the centromeres and the pericentromeric regions. The Athila elements also showed clearly higher FISH signal intensities in the Y1 and Y2 chromosomes than in the X or autosomes. Three novel satellite DNAs were specifically distributed in the centromeric and/or telomeric regions, with markedly different distributions on the X, Y1, and Y2 chromosomes. Combined with FISH using satellite DNAs to stain chromosomes during meiotic diakinesis, we determined the synapsis pattern and distinguish pseudoautosomal regions (PARs). The results indicate that the XY1Y2 sex chromosomes of H. scandens might have originated from a centric fission event. This study improves our understanding of the repetitive sequence organization of H. scandens genome and provides a basis for further analysis of their chromosome evolution process.
Introduction
Plant genomes typically consist of a large number of various repetitive DNA sequences. For example, they represent approximately 85% and more than 90% of the maize and onion genomes, respectively (Schnable etĀ al., 2009; ). According to their structural arrangement and sequence composition, repetitive DNAs can be divided into two major groups: tandem repeats and transposable elements (TEs) (reviewed in ). Tandem repeats are arrays of non-coding sequences arranged in tandem. According to the monomer length, tandem repeats are usually classified into microsatellites (2ā7 bp), minisatellites (tens of bp), and satellites (hundreds of bp). The satellite DNAs predominately cluster at specific positions on the chromosomes, such as (peri)centromeres, (sub)telomeres, and other heterochromatic regions, making them ideal markers for cytogenetic analysis (; ; ; ). TEs are elements that have the unique ability to mobilize from one position of a genome to another. Based on whether using RNA as a transposition intermediate, TEs are divided into two major classes: retrotransposons transposing via copy-and-paste mechanism and DNA transposons using cut-and-paste transposition mode. Due to the transposition mechanism, retrotransposons are the most prevalent TEs in plant genomes. Of these, the long terminal repeat (LTR) retrotransposons, primarily Ty1/Copia and Ty3/Gypsy, were shown to be the most frequent in the plant genomes ().
According to popular belief, it is impossible to understand how eukaryotesā complex genomes are shaped by evolutionary mechanisms without extensive examination of repetitive genomic sequences (reviewed in Shapiro and von Sternberg, 2005; Slotkin and Martienssen, 2007). Angiosperm plants are particularly prone to this due to the large proportion of repetitive sequences in the genome and the significant contribution of them to the extraordinary variation in genome sizes among different taxa (; ; Sader etĀ al., 2021). Even though most repetitive elements tend to be selfish, growing evidence presents that repetitive sequences play a variety of roles, such as influencing the organization and stability of the genome (), mediating chromosomal rearrangement (reviewed in ), chromatin modulation (reviewed in ), modification of gene expression (Wyler etĀ al., 2020), and shaping phenotypic variation ().
The majority of flowering plants are hermaphrodites, e.g., individual plants contain bisexual flowers harboring both pistil and stamen, and with just around 6% being dioecious, that is, plants with unisexual flowers on different individuals (reviewed in Renner and Ricklefs, 1995). These dioecious plants have multiple sex-determining mechanisms, including the XY and the ZW sex chromosome systems, as well as the sex index, i.e., the ratio of X chromosomes to autosome sets (X:A) (). In either case, the sex chromosomes are thought to be evolved from a pair of autosomes. Several events occurred during the sex chromosome evolutionary process, such as the formation of sex-determining gene(s), recombination inhibition, TE amplification, and Y chromosome degeneration (reviewed in ). Among them, the accumulation of repetitive sequences is a dominant feature of the non-recombining region of the sex chromosome. This phenomenon has been observed in a variety of dioecious plants, for instance in Carica papaya (Wang etĀ al., 2012; VanBuren and Ming, 2013), Rumex acetosa (), and Spinacia oleracea (). These repetitive sequences have been postulated to be important driving forces for the evolution of sex chromosomes (Yang etĀ al., 2021).
Humulus scandens is a climbing dioecious herbaceous plant belonging to the Cannabaceae family. The chromosome numbers of males and females are different; females have 2n = 16Ā =Ā 14 + XX, whereas males have 2n = 17Ā =Ā 14 + XY1Y2. The gender of H. scandens is governed by the X:A ratio; with an X:A ratio of 1.0 for females, and a ratio of 0.5 for males (Shephard etĀ al., 2000). The multiple sex chromosome system (XX/XY1Y2) and the X:A ratio sex determination system make H. scandens an ideal species for examining sex chromosome evolution and sex determination mechanism. The two Y chromosomes are approximately the same size as X chromosome (; ). GISH painting of the Y chromosomes showed that the male-specific region of the Y chromosome (MSY) spans the bulk of the Y chromosomes, suggesting advanced phases of sex chromosome evolution in H. scandens, as well as its relatives in the same family, H. lupulus and Cannabis sativa (). To date, limited studies have reported the repetitive elements of H. scandens (). The abundance and distribution of repetitive sequences, as well as role of repetitive sequences in the sex chromosome evolution of H. scandens has not been thoroughly examined. To gain a better understanding of the genome structure of H. scandens, we extensively analyzed the repetitive components of male and female H. scandens by combining next-generation sequencing, bioinformatics analysis, and florescence in situ hybridization (FISH). We first used a graph-based clustering strategy to identify and annotate repetitive sequences based on next-generation sequencing data. Then we examined the distribution patterns of different groups of TEs and satellite DNAs using FISH analysis. Our research offers a crucial foundation for comprehending the repeat elements in H. scandens.
Materials and methods
Plant material and DNA extraction
Plants of H. scandens were cultivated in a garden field at Henan Normal University. The genders were determined by observation of the morphology of flowers. Whole genomic DNA was extracted from three male and three female individuals using the cetyl trimethylammonium bromide method ().
DNA library preparation, high-throughput sequencing and repetitive DNA identification
At least 3 μg genomic DNA of each sample was fragmented, end repaired, phosphorylated, and ligated with adapters. Then 300ā400 bp fragments were selected and PCR amplified to construct paired-end library. The libraries were sequenced on Illumina NovaSeq 6000 platform in paired-end, 150-bp mode. The raw reads (DRR024400, DRR024402, DRR024404, DRR024405, DRR024456, and DRR024457) of H. lupulus, a close relative of H. scandens, were downloaded from the NCBI SRA database. For the preprocessing of raw sequence data, the FASTQ files were quality-controlled, filtered using HTQC with default parameters (v1.92.1) (Yang etĀ al., 2013), then a custom perl script was used to filter out the reads with N and transform into FASTA format. Then, for each sample, a randomly chosen dataset comprising 2,000,000 paired-end reads, which represented approximately 0.34Ć of the genome, was used for further analysis. We clustered, assembled, and annotated all selected reads with the help of RepeatExplorer platform (http://www.repeatexplorer.org, ) using the Green Plants (Viridiplantae) database (). To categorize LTR retrotransposons into different lineages, their RT sequences were analyzed using DANTE within the RepeatExplorer platform. After eliminating duplicated sequences using CD-hit (), these RT sequences were aligned with MUSCLE (), and phylogenetic trees were generated using FastTree (). FigTree software was used to draw and modify the trees.
Satellite DNA identification
The TAREAN tool embedded in RepeatExplorer was adopted to detect satellite DNA using the same samples described above (). The high-confidence satellites were identified. The logo for the satellites was drawn by Web-Logo ().
FISH probe design
For LTR retrotranposons, the RT domains of each lineage were amplified using specific primers (Table S1). The gel electrophoresis, cloning, and sequence validation were performed following a previous study (). Finally, clones with high sequence similarity to the respective contigs were amplified and labeled with Texas-red-dCTP (PerkinElmer, Waltham, Massachusetts, USA) utilizing the nick translation approach. For satellite DNA, the monomers were identified, and 50 bp of the monomer was randomly chosen and tagged directly with Texas Red-X (Invitrogen, Shanghai, China) in the synthesis process. 45S rDNA was also labeled with Chroma Tide Alexa Fluor 488-5-dUTP (Invitrogen) to aid in chromosome identification.
Mitotic and meiotic chromosome spreads preparation
For mitotic chromosome spread preparation, the branches of both male and female plants were cut and placed in water until the new roots were grown. When the roots were grown to 1ā1.5 cm, they were cut and treated in nitrous oxide at 10.9 atm pressure, fixed in a 90% acetic acid solution for 10Ā min. For meiotic chromosome spread preparation, male inflorescences were fixed in Carnoyās fixative and stored in 70% ethanol. The immature flowers with a diameter of 1.3ā1.5 mm were selected, and the anthers were picked out for further analysis. The enzyme digestion and drop spreading were completed according to earlier instructions ().
FISH assays using LTR-RT domain and satellite probes
FISH analysis was carried out as previously described (). First, the slides with well-spread chromosomes or desired meiotic stages were UV cross-linked. Then the hybridization mixture (2ĆSSC, 1ĆTE, 200 ng labeled probe) was added to the slides, followed by denaturation in boiled water for 5Ā min. After that, the denatured chromosome slides with probes were incubated overnight at 37°C. Next, the slides were washed in 2ĆSSC for 5Ā min, and counterstained with DAPI solution. FISH signals were detected under an Olympus BX 63 fluorescence microscope with an ANDOR CCD.
Statistical analysis
Pairwise comparisons were used to assess how the data groups differed from one another using Excel software. Least significance difference (LSD) analysis was performed on the data with a significance threshold of 0.05.
Results
Repeat proportion in H. scandens genome
Next-generation sequencing produced a total of approximately 20 Gb of raw sequencing data for three male and three female H. scandens. For each individual, a subset of 2,000,000 clean paired reads, representing about 34% of the genome, was chosen for repetitive sequence analysis. We also used sequencing reads of the H. lupulus genome for comparison analysis. TableĀ 1 shows the comparative proportions of different repeat types in the three genomes. The findings revealed a high composition of repetitive sequences in the H. scandens genome, with 68.30% in the female genome and 66.78% in the male genome. These values were significantly higher than those of the H. lupulus genome (59.45%) (FigureĀ 1A). Similar to most other plant species, LTR-retrotransposons were the most prevalent group of H. scandens repeats, accounting for nearly 60% of the genome (when male and female values were averaged), followed by tandem repeats (3.06%), DNA transposons (1.16%), and long interspersed nuclear elements (LINEs) (<0.01%). Within the LTR retrotransposon superfamily, the proportion of Ty3/Gypsy elements was more than 30-fold greater than Ty1/Copia elements (TableĀ 1; FigureĀ 1B). In addition, about 3.35% of organelle DNAs were identified in the H. scandens genome.
TableĀ 1
| Repeats | Lineage/class | Hs-female | Hs-male | Hl | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hs-F1 | Hs-F2 | Hs-F3 | Ave. | Hs-M1 | Hs-M2 | Hs-M3 | Ave. | Hl-1 | Hl-2 | Hl-3 | Ave. | |||
| LTR retroelements | Ty1/Copia | Ale | 0.01 | 0.01 | 0.01 | 0.01 | 0.00 | 0.00 | 0.00 | 0.00 | 0.05 | 0.04 | 0.03 | 0.04 |
| Angela | 0.27 | 0.13 | 0.25 | 0.22 | 0.28 | 0.20 | 0.25 | 0.24 | 3.27 | 3.25 | 3.81 | 3.44 | ||
| Ikeros | 0.11 | 0.08 | 0.10 | 0.10 | 0.05 | 0.08 | 0.06 | 0.06 | 0.22 | 0.14 | 0.23 | 0.20 | ||
| SIRE | 1.56 | 1.38 | 1.47 | 1.47 | 1.24 | 1.31 | 1.16 | 1.24 | 0.58 | 0.61 | 0.65 | 0.61 | ||
| TAR | 0.10 | 0.09 | 0.12 | 0.10 | 0.09 | 0.12 | 0.08 | 0.10 | 1.99 | 2.00 | 1.87 | 1.95 | ||
| Tork | 0.08 | 0.02 | 0.05 | 0.05 | 0.01 | 0.03 | 0.03 | 0.02 | 0.00 | 0.00 | 0.00 | 0.00 | ||
| Subtotal | 2.12 | 1.71 | 1.99 | 1.94 | 1.66 | 1.73 | 1.58 | 1.66 | 6.11 | 6.04 | 6.59 | 6.25 | ||
| Ty3/Gypsy | Athila | 8.24 | 8.04 | 7.84 | 8.04 | 8.66 | 8.94 | 8.61 | 8.74 | 0.79 | 0.80 | 0.88 | 0.82 | |
| Ogre/Tat | 0.02 | 0.05 | 0.02 | 0.03 | 0.03 | 0.01 | 0.03 | 0.02 | 0.00 | 0.00 | 0.00 | 0.00 | ||
| Retand | 21.98 | 25.11 | 22.24 | 23.11 | 19.11 | 19.42 | 20.35 | 19.63 | 14.84 | 15.76 | 14.97 | 15.19 | ||
| CRM | 0.16 | 0.14 | 0.16 | 0.15 | 0.16 | 0.17 | 0.16 | 0.16 | 0.35 | 0.36 | 0.35 | 0.35 | ||
| Galadriel | 0.07 | 0.10 | 0.09 | 0.06 | 0.09 | 0.10 | 0.11 | 0.10 | 0.18 | 0.19 | 0.19 | 0.19 | ||
| Tekay | 23.01 | 25.20 | 23.61 | 23.94 | 25.26 | 26.12 | 25.96 | 25.78 | 21.39 | 21.10 | 21.19 | 21.23 | ||
| Subtotal | 53.47 | 58.62 | 53.94 | 55.34 | 53.31 | 54.75 | 55.21 | 54.42 | 37.55 | 38.21 | 37.58 | 37.78 | ||
| Unclassified LTR RTs | 2.38 | 2.95 | 2.55 | 2.63 | 3.14 | 3.10 | 3.13 | 3.12 | 3.79 | 1.93 | 3.90 | 3.21 | ||
| Other | LINE | 0.00 | 0.01 | 0.01 | 0.01 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | |
| DNA transposons | EnSpm_CACTA | 0.45 | 0.40 | 0.38 | 0.41 | 0.39 | 0.42 | 0.37 | 0.39 | 1.83 | 1.32 | 1.60 | 1.58 | |
| hAT | 0.02 | 0.02 | 0.01 | 0.02 | 0.01 | 0.02 | 0.01 | 0.01 | 0.05 | 0.04 | 0.04 | 0.04 | ||
| MuDR_Mutator | 1.22 | 0.89 | 0.73 | 0.95 | 0.35 | 0.63 | 0.57 | 0.52 | 0.22 | 0.27 | 0.20 | 0.23 | ||
| Subtotal | 1.69 | 1.31 | 1.21 | 1.40 | 0.75 | 1.06 | 0.95 | 0.92 | 2.10 | 1.63 | 1.84 | 1.86 | ||
| Tandem repeats | rDNA | 1.06 | 1.53 | 1.34 | 1.31 | 0.90 | 0.93 | 0.93 | 0.92 | 0.16 | 0.15 | 0.15 | 0.15 | |
| Satellite | 2.26 | 1.77 | 2.04 | 2.02 | 2.05 | 1.71 | 1.85 | 1.87 | 0.85 | 0.80 | 0.66 | 0.77 | ||
| Subtotal | 3.32 | 3.30 | 3.38 | 3.33 | 2.95 | 2.64 | 2.78 | 2.79 | 1.01 | 0.95 | 0.81 | 0.92 | ||
| Total annotated repeats | 62.99 | 67.90 | 63.00 | 64.63 | 61.80 | 63.27 | 63.65 | 62.91 | 50.56 | 48.76 | 50.72 | 50.01 | ||
| Unclassified repeat | 3.78 | 3.37 | 3.86 | 3.67 | 4.29 | 4.11 | 3.20 | 3.87 | 9.12 | 10.28 | 8.92 | 9.44 | ||
| Total | 66.77 | 71.26 | 66.86 | 68.30 | 66.10 | 67.38 | 66.85 | 66.78 | 59.68 | 59.04 | 59.64 | 59.45 | ||

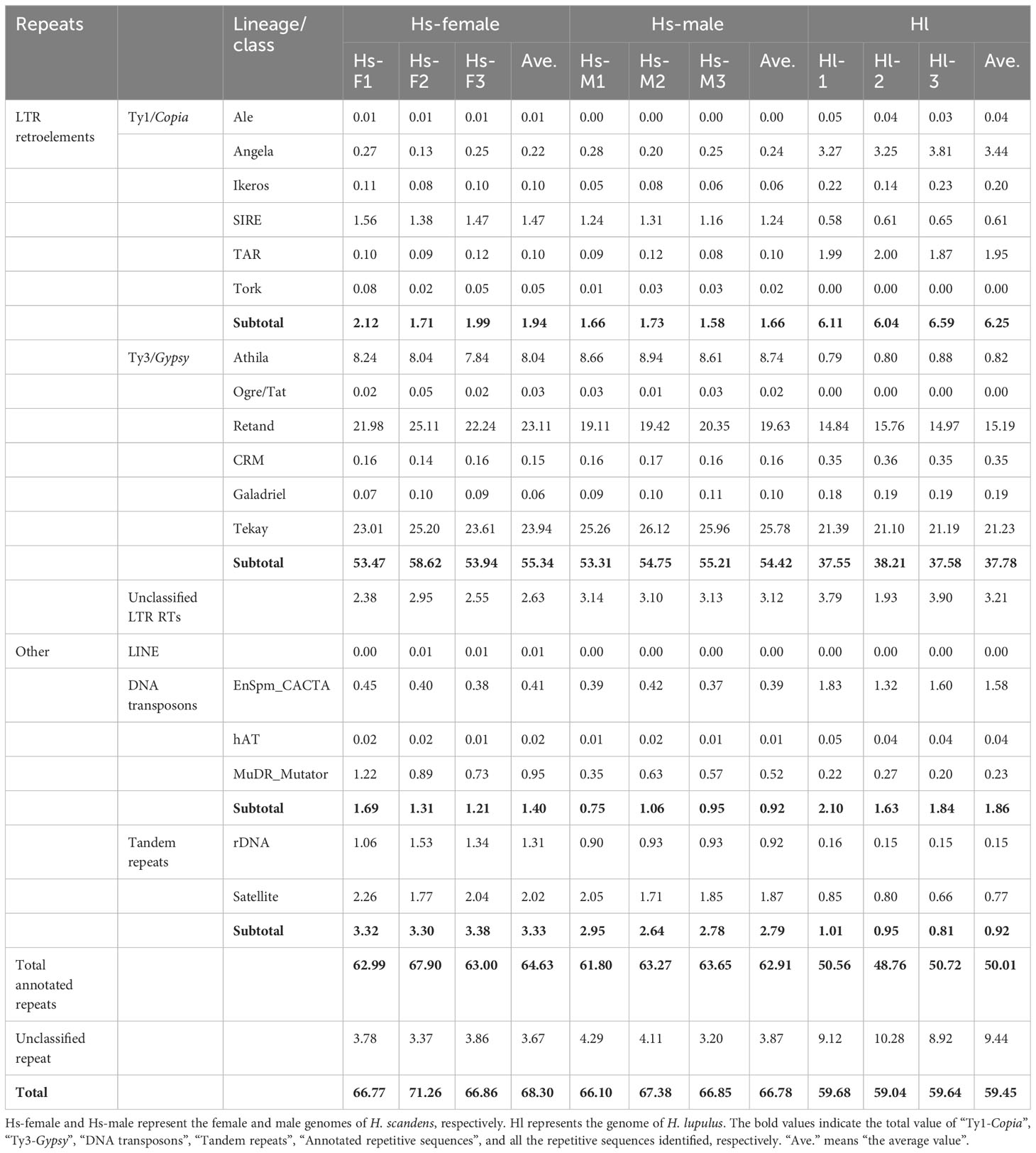

Repeat proportions (%) estimated in the Humulus scandens and Humulus lupulus genomes.
Hs-female and Hs-male represent the female and male genomes of H. scandens, respectively. Hl represents the genome of H. lupulus. The bold values indicate the total value of āTy1-Copiaā, āTy3-Gypsyā, āDNA transposonsā, āTandem repeatsā, āAnnotated repetitive sequencesā, and all the repetitive sequences identified, respectively. āAve.ā means āthe average valueā.
FigureĀ 1

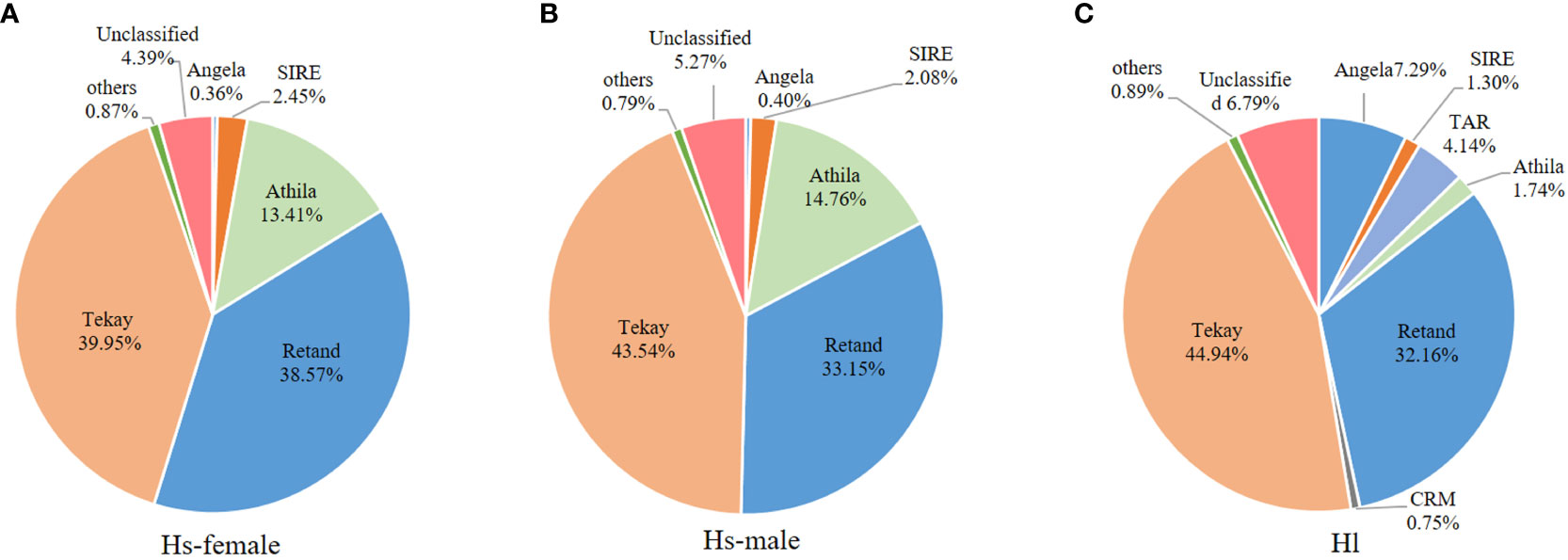

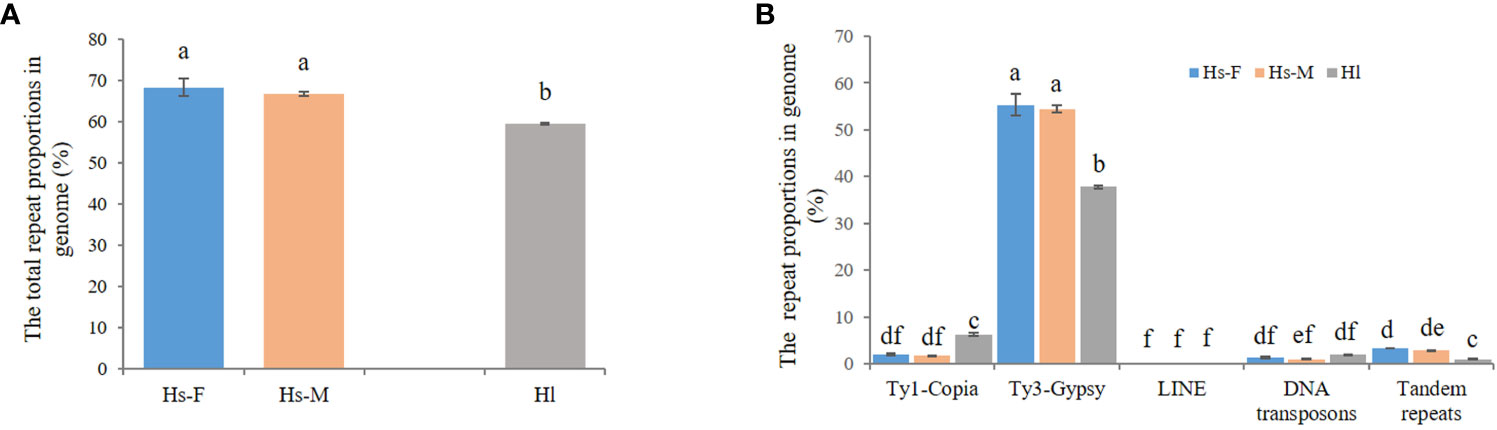

For the comparison of different groups of repetitive sequences, the proportions of LTR-retrotransposons and tandem repeats of the H. scandens genome were all significantly higher than those of the H. lupulus genome (TableĀ 1; FigureĀ 1B). However, the DNA transposons showed a little higher proportions in the H. lupulus genome than in the H. scandens genome. Out of the LTR retrotransposons, the proportions of Ty3/Gypsy elements in the H. scandens genome were significantly higher than those in H. lupulus. By contrast, the H. lupulus genome showed higher proportions of Ty1/Copia elements than the H. scandens genome (TableĀ 1; FigureĀ 1B). Thus, the ratio of Ty3/Gypsy to Ty1/Copia in the H. lupulus genome was 6:1, compared with 30:1 in the H. scandens genome (TableĀ 1). We also compared the proportions of various lineages of LTR retrotransposons (FigureĀ 2). In the H. scandens genome, Tekay and Retand lineages belonging to the Ty3/Gypsy superfamily were prevalent, together accounting for nearly 80% of the LTR retrotransposable elements. The Athila lineage belonging to the Ty1/Copia superfamily ranked third (FiguresĀ 2A, B). In the H. lupulus genome, the Tekay and Retand lineages were also the more abundant elements, similar to the H. scandens genome; however, the third-ranked lineage was Angela (FigureĀ 2C).
FigureĀ 2

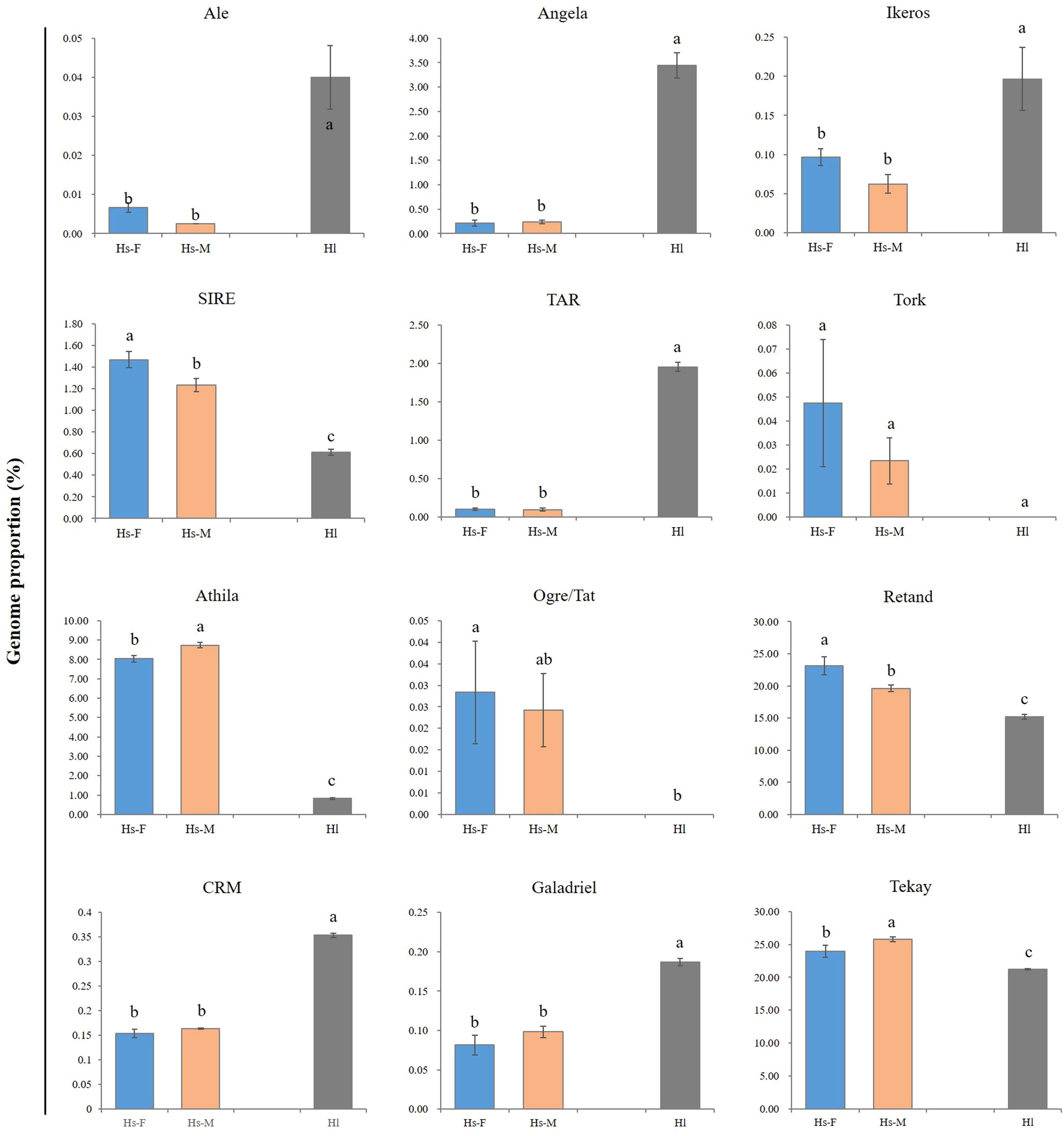

Comparison of transposable elements between male and female H. scandens genomes
Generally, a conserved repeat proportion pattern was observed between the male and female H. scandens genomes. However, slight but significant differences were still observed in the proportions of several repeat groups between the two genomes with different genders, such as SIRE and Retand lineages, which all showed a higher proportion in female than in male genomes. By contrast, two other lineages, including Athila and Tekay, showed a higher proportion of males than females (FigureĀ 3).
FigureĀ 3
Phylogenetic analysis of the lineages of LTR-RTs in H. scandens genome
Two phylogenetic trees based on the RT sequences of the Ty1/Copia and Ty3/Gypsy LTR-RTs were created to ascertain their evolutionary relationships. As shown in the evolutionary dendrograms (FigureĀ 4), the Ty1/Copia elements could be classified into three clades: one included elements belonging to Angela and Ikeros lineages, another consisted of TAR and Tork lineages, whereas SIRE, Ale, Alesia, and Ivana lineages grouped together to form the third clade. Among the Ty3/Gypsy elements, there were also three clades: Athila and Retand/Ogre each formed one clade, while the other three lineages, including CRM, Tekay, and Galadriel, formed the third clade. The Retand/Ogre lineage showed a high degree of variability and could be further segregated into two distinct groups.
FigureĀ 4
Chromosome distributions patterns of LTR-retrotransposons
We examined the chromosomal distribution patterns of each lineage of LTR-RTs by using mitotic-FISH analysis. The findings demonstrated that different lineages has varied patterns of chromosomal distribution. Most of the lineage-based elements were dispersed over all of the chromosomes; these included all eight lineages of the Copia superfamily and four lineages of the Gypsy superfamily (Ogre, Retand, Galadriel, and Tekay) (FiguresĀ 5, 6). The other two lineages (Athila and CRM) mainly occupied the pericentromeric regions of all chromosomes. In addition, the Athila elements showed clearly higher signal intensity in the Y1 and Y2 chromosomes than in the X and autosomes.
FigureĀ 5
FigureĀ 6
Identification of satellites and analysis of chromosomal locations
By using TAREAN, three clusters (CL33, CL37, and CL111) were identified as highly reliable satellite DNAs. Each of them was given the designations Hssat1, Hssat2, and Hssat3, respectively. The three clusters were all characterized by star-like graph topologies (Figure S1). The monomer of Hssat1 was about 312 bp. A search of GenBank yielded no matches to other known sequences. The other two satellites, Hssat2 and Hssat3, demonstrated ~380 bp and ~122 bp, respectively. Like Hssat1, the clusters were all unknown or H. scandens-specific sequences.
The results showed that the signal of Hssat1 is distributed at the centromere of all chromosomes except for Y1 and Y2 chromosomes. Hssat2 was distributed specifically at the terminal position on metaphase chromosomes, but there is a large variation between male and female chromosomes. In the female plant, there were 4 pairs of chromosomes with signals at both ends, while in the male plant, there were 5 pairs. Even the chromosomes with signals at one end are inconsistent; for example, there were significant differences in the signals at the ends of chromosomes 6 and 7. In addition, it is worth noting that the signals of the two Y chromosomes were obviously inconsistent, one of which had a signal at one end while the other Y chromosome had no hybridization signal. The signal of Hssat3 showed more complex distribution characteristics, both at the end position and at the centromere position. In female H. scandens, the end positions of all chromosomes except one pair of autosomes could be seen, and obvious signals could be seen at the centromere positions of this pair of autosomes. There was no signal distribution on one Y chromosome of male H. scandens, and the signal of the other Y chromosome was also distributed at the end of one side, like the X chromosome (FiguresĀ 7, 8).
FigureĀ 7
FigureĀ 8
Discussion
TE annotation of H. scandens genome
Repetitive sequences represent approximately 68% of the H. scandens genome, and this value is slightly but significantly higher than that of its close relative, the H. lupulus genome. Generally, the amount of repetitive sequences, particularly TEs, is positively correlated with the genome size of plants (). H. scandens (1.8 Gb) and H. lupulus (2.5 Gb) possess relatively large genomes, and the TE fraction proportions are generally in line with the trend. However, the genome of H. scandens is smaller than that of H. lupulus, whereas the repetitive sequence fraction of H. scandens is higher than that of H. lupulus. This suggests that TEs were amplified more extensively in the H. scandens genome. Similar to other plant genomes, in the H. scandens genome, LTR-RTs were more abundant than DNA transposons, LINEs, and tandem repeats. The diversity and proliferation ability of LTR-RTs make them an important contributor to the structure, function, and evolution of the H. scandens genome. In particular, two Ty3/Gypsy lineages, Retand and Tekay, proliferated massively. This is similar to the phenomenon in many other plant genomes, in which one or several TE groups are significantly amplified. For example, differential lineage-specific proliferation of distinct families of transposable elements contributes greatly to genome size differences in Gossypium ().
Repetitive sequences and sex chromosome evolution of H. scandens
According to the general model of sex chromosome evolution, X and Y sex chromosomes are gradually differentiated from a pair of autosomes due to the suppression of recombination around the sex-determining locus. The accumulation of repetitive sequences can facilitate the recombination suppression of sex-determining loci and adjacent regions between X and Y chromosomes, eventually forming the sex-specific region. Furthermore, the formation of sex-specific regions can further recruit more repetitive sequences. Thus, repetitive sequence accumulation was a conspicuous feature of the sex chromosomes in both plants and animals (reviewed in ). For instance, these findings were observed in papaya (VanBuren and Ming, 2013; VanBuren etĀ al., 2015), Rumex acetosa (), Salix viminalis (), Salix dunnii (), so on and so forth. The TEs and TE-derived repetitive sequences are thought to be involved in almost all of the major evolutionary phases of sex chromosome evolution (reviewed in ). Furthermore, TEs and associated repetitive sequences may influence plant sex determination and differentiation. For example, in Populus deltoids, a Ty3/Gypsy transposable element family member within the Y-linked region can generate long non-coding RNAs and act as a male promoter (Xue etĀ al., 2020). In H. scandens, FISH analysis showed that the Athila elements accumulated more intensively in the Y1 and Y2 chromosomes. The Y chromosome-biased TEs may be involved in sex chromosome evolution in H. scandens.
However, the satellites did not show such an accumulation pattern. The signals of the three satellites are absent from one or two Y chromosomes. Such a phenomenon was also observed in other dioecious plant species. For instance, one family of the Ogre/Tat lineage is found on all autosomes and the X chromosome but not on the Y chromosome in Silene latifolia (). Due to this, it can be challenging to comprehend the way repetitive sequences and the evolution of plant sex chromosomes are related. According to the few reports that are currently available, the accumulation or depletion of some repetitive sequences appears to be species-specific, which is in keeping with the fact that sex chromosomes have evolved multiple times independently in different lineages of plants.
The satellite DNA probes showed typical signals located at the centromeric and/or telomeric regions. The X and Y chromosomes showed different signal distribution patterns, so the satellite DNA can be used as cytogenetic markers for identifying the X and Y chromosomes. Sex chromosome identification is crucial for cytological examinations and subsequent studies of sex chromosome evolution. Based on the cytogenetic markers, at the meiotic diakinesis stage, we observed obvious trivalents, showing Y1-X-Y2 connection mode. The synaptic region was the telomere position of two adjacent sex chromosomes connected end-to-end FigureĀ 9. These results suggested that the sex-linked regions of H. scandens are large, which is in accordance with a recent study showing that the MSY covers the majority of the Y chromosomes (). These findings suggest advanced phases of sex chromosome evolution in H. scandens. In addition, the two Y chromosomes showed large differences because of the fact that the two Y chromosomes only pair at one telomeric end, and the majority of Y chromosomes are chromosome-specific regions. The FISH analysis using satellite probes also supports this perspective. Furthermore, combined with the fact that Hssat1 was specifically distributed on the centromeric regions of all the chromosomes except for the two Y chromosomes, we speculated that the XX-XY1Y2 sex chromosomes of H. scandens might have originated from a centric fission event. The centromere-specific satellite DNA might be lost during the centric fission event. However, we still need more evidence to support this speculation.
FigureĀ 9
Conclusions
In conclusion, this work allowed us to have a comprehensive view of the repetitive fraction of the nuclear genome of H. scandens, which is an important dioecious plant with XX/XY1Y2 chromosomes. We annotated the repetitive portion of both the male and female H. scandens genomes based on the RepeatExplorer platform and extensively compared the different groups of repetitive sequences among the male and female genomes of H. scandens, as well as a close relative, H. lupulus. We also analyzed the distribution patterns of major LTR-RT lineages and three satellite DNAs using FISH analysis. Based on the FISH results of satellite DNAs, we were able to determine the orientation position of the PARs, and the results also indicated that the XX-XY1Y2 sex chromosomes of H. scandens might have originated from a centric fission event. Our findings shed light on the genome structure and evolution of H. scandens and laid a foundation for future research into the sex chromosome evolution of H. scandens.
Statements
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found below: NCBI SRA database. BioProject accession number is PRJNA978042.
Author contributions
S-FL and W-JG designed the experiments. G-JZ, K-LJ and JW conducted the study and processed the data. G-JZ wrote the manuscript. All authors discussed the results and revised the manuscript. All authors have read and approved the final manuscript. All authors contributed to the article and approved the submitted version.
Funding
This work was financially supported by grants from the National Natural Science foundation of China (32170336 and 31970240), the Natural Science foundation of Henan province (222300420053), and the Program for Science & Technology Innovation Talents in the Universities of Henan Province (23HASTIT035).
Acknowledgments
We would like to thank all members who took part in this study.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisherās note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fpls.2023.1230250/full#supplementary-material
References
1
AlexandrovO. S.DivashukM. G.YakovinN. A.KarlovG. I. (2012). Sex chromosome differentiation in Humulus japonicus Siebold & Zuccarini 1846 (Cannabaceae) revealed by fluorescence in situ hybridization of subtelomeric repeat. Comp. Cytogen.47, 239ā247. doi:Ā 10.3897/CompCytogen.v6i3.3261
2
AlmeidaP.Proux-WeraE.ChurcherA.SolerL.DainatJ.PucholtP.et al. (2020). Genome assembly of the basket willow, Salix viminalis, reveals earliest stages of sex chromosome expansion. BMC Biol.18, 78. doi:Ā 10.1186/s12915-020-00808-1
3
BarĆ”nkovĆ”S.Pascual-DĆzaJ. P.SultanaN.Alonso-LifanteM. P.BalantM.BarrosK.et al. (2020). Sex-chrom, a database on plant sex chromosomes. New Phytol.227, 1594ā1604. doi:Ā 10.1111/nph.16635
4
BennetzenJ. L.WangH. (2014). The contributions of transposable elements to the structure, function, and evolution of plant genomes. Annu. Rev. Plant Biol.65, 505ā530. doi:Ā 10.1146/annurev-arplant-050213-035811
5
BiscottiM. A.OlmoE.Heslop-HarrisonJ. S. (2015). Repetitive DNA in eukaryotic genomes. Chromosome Res.23, 415ā420. doi:Ā 10.1007/s10577-015-9499-z
6
CaiX.LinR.LiangJ.KingG. J.WuJ.WangX. (2022). Transposable element insertion: a hidden major source of domesticated phenotypic variation in Brassica rapa. Plant Biotechnol. J.20, 1298ā1310. doi:Ā 10.1111/pbi.13807
7
CharlesworthD. (2015). Plant contributes to our understanding of sex chromosome evolution. New Phytol.208, 52ā65. doi:Ā 10.1111/nph.13497
8
CrooksG. E.HonG.ChandoniaJ. M.BrennerS. E. (2004). WebLogo: a sequence logo generator. Genome Res.14, 1188ā1190. doi:Ā 10.1101/gr.849004
9
DoyleJ. J.DoyleJ. L. (1987). A rapid DNA isolation procedure for small quantities of fresh leaf tissue. Phytochem. Bull.19, 11ā15. doi:Ā 10.1016/0031-9422(80)85004-7
10
EdgarR. C. (2004). MUSCLE: multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res.32, 1792ā1797. doi:Ā 10.2460/ajvr.69.1.82
11
FuJ.ZhangH.GuoF.MaL.WuJ.YueM.et al. (2019). Identification and characterization of abundant repetitive sequences in Allium cepa. Sci. Rep.9, 16756. doi:Ā 10.1038/s41598-019-52995-9
12
GeorgeC. M.AlaniE. (2012). Multiple cellular mechanisms prevent chromosomal rearrangements involving repetitive DNA. Crit. Rev. Biochem. Mol.47, 297ā313. doi:Ā 10.3109/10409238.2012.675644
13
Grabowska-JoachimiakA.ÅliwiÅskaE.PigulaM.SkomraU.JoachimiakA. J. (2006). Genome size in Humulus lupulus L. and H. japonicus Siebold & Zucc. (Cannabaceae). Acta Soc Bot. Pol.75, 207ā214. doi:Ā 10.5586/ASBP.2006.024
14
HawkinsJ. S.KimH.NasonJ. D.WingR. A.WendelJ. F. (2006). Differential lineage-specific amplification of transposable elements is responsible for genome size variation in Gossypium. Genome Res.16, 1252ā1261. doi:Ā 10.1101/gr.5282906
15
HeQ.CaiZ.HuT.LiuH.BaoC.MaoW.et al. (2015). Repetitive sequence analysis and karyotyping reveals centromere-associated DNA sequences in radish (Raphanus sativus L.). BMC Plant Biol.15, 105. doi:Ā 10.1186/s12870-015-0480-y
16
HeL.JiaK. H.ZhangR. G.WangY.ShiT. L.LiZ. C.et al. (2021). Chromosome-scale assembly of the genome of Salix dunnii reveals a male-heterogametic sex determination system on chromosome 7. Mol. Ecol. Resour.21, 1966ā1982. doi:Ā 10.1111/1755-0998.13362
17
JesionekW.BodlĆ”kovĆ”M.KubĆ”tZ.ÄeganR.VyskotB.VrĆ”naJ. (2021). Fundamentally different repetitive element composition of sex chromosomes in Rumex acetosa. Ann. Bot.127, 33ā47. doi:Ā 10.1093/aob/mcaa160
18
KirovI. V.KiselevaA. V.LaereK. V.RoyN. V.KhrustalevaL. I. (2017). Tandem repeats of Allium fistulosum associated with major chromosomal landmarks. Mol. Genet. Genomics292, 453ā464. doi:Ā 10.1007/s00438-016-1286-9
19
KubatZ.ZluvovaJ.VogelI.KovacovaV.CermakT.CeganR.et al. (2014). Possible mechanisms responsible for absence of a retrotransposon family on a plant Y chromosome. New Phytol.202, 662ā678. doi:Ā 10.1111/nph.12669
20
LangT.LiG.WangH.YuZ.ChenQ.YangE.et al. (2019). Physical location of tandem repeats in the wheat genome and application for chromosome identification. Planta249, 663ā675. doi:Ā 10.1007/s00425-018-3033-4
21
LiW.GodzikA. (2006). CD-HIT: a fast program for clustering and comparing large sets of protein or nucleotide sequences. Bioinformatics22, 1658ā1659. doi:Ā 10.1093/bioinformatics/btl158
22
LiS. F.GuoY. J.LiJ. R.ZhangD. X.WangB. X.LiN.et al. (2019). The landscape of transposable elements and satellite DNAs in the genome of a dioecious plant spinach (Spinacia oleracea L.). Mobile DNA10, 3. doi:Ā 10.1186/s13100-019-0417-6
23
LiS. F.SuT.ChengG. Q.WangB. X.LiX.DengC. L.et al. (2017). Chromosome evolution in connection with repetitive sequences and epigenetics in plants. Genes8, 290. doi:Ā 10.3390/genes8100290
24
LiS. F.ZhangG.YuanJ. H.DengC. L.GaoW. ,. J. (2016). Repetitive sequences and epigenetic modification: inseparable partners play important roles in the evolution of plant sex chromosomes. Planta243, 1083ā1095. doi:Ā 10.1007/s00425-016-2485-7
25
MariottiB.ManzanoS.KejnovskyE.VyskotB.JamilenaM. (2009). Accumulation of Y-specific satellite DNAs during the evolution of Rumex acetosa sex chromosomes. Mol. Genet. Genomics281, 249ā259. doi:Ā 10.1007/s00438-008-0405-7
26
NeumannP.NovÔkP.HoŔtÔkovÔN.MacasJ. (2019). Systematic survey of plant LTR-retrotransposons elucidates phylogenetic relationships of their polyprotein domains and provides a reference for element classification. Mobile DNA10, 1. doi: 10.1186/s13100-018-0144-1
27
NovĆ”kP.NeumannP.MacasJ. (2020). Global analysis of repetitive DNA from unassembled sequence reads using RepeatExplorer2. Nat. Protoc.15, 3745ā3776. doi:Ā 10.1038/s41596-020-0400-y
28
NovĆ”kP.RobledilloL.Ć.KoblĆžkovĆ”A.VrbovĆ”I.NeumannP.MacasJ. (2017). TAREAN: a computational tool for identification and characterization of satellite DNA from unassembled short reads. Nucleic Acids Res.45, e111. doi:Ā 10.1093/nar/gkx257
29
OhtaniH.IwasakiY. W. (2021). Rewiring of chromatin state and gene expression by transposable elements. Dev. Growth Differ.63, 262ā273. doi:Ā 10.1111/dgd.12735
30
PellicerJ.FernÔndezP.FayM. F.MichÔlkovÔE.LeitchI. J. (2021). Genome size doubling arises from the differential repetitive DNA dynamics in the genus Heloniopsis (Melanthiaceae). Front. Genet.12. doi: 10.3389/fgene.2021.726211
31
PieguB.GuyotR.PicaultN.RoulinA.SanyalA.KimH.et al. (2006). Doubling genome size without polyploidization: Dynamics of retrotransposition-driven genomic expansions in Oryza australiensis, a wild relative of rice. Genome Res.16, 1262ā1269. doi:Ā 10.1101/gr.5290206
32
PriceM. N.DehalP. S.ArkinA. P. (2010). FastTree 2āapproximately maximum-likelihood trees for large alignments. PloS One5, e9490. doi:Ā 10.1371/journal.pone.0009490
33
RazumovaO. V.DivashukM. G.AlexandrovO. S.KarlovG. I. (2023). GISH painting of the Y chromosomes suggests advanced phases of sex chromosome evolution in three dioecious Cannabaceae species (Humulus lupulus, H. japonicus, and Cannabis sativa). Protoplasma260, 249ā256. doi:Ā 10.1007/s00709-022-01774-x
34
RennerS. S.RicklefsR. E. (1995). Dioecy and its correlates in the flowering plants. Am. J. Bot.82, 596ā606. doi:Ā 10.1002/j.1537-2197.1995.tb11504.x
35
SaderM.VaioM.Cauz-SantosL. A.DornelasM. C.VieiraM. L. C.MeloN.et al. (2021). Large vs small genomes in Passiflora: the influence of the mobilome and the satellitome. Planta253, 86. doi:Ā 10.1007/s00425-021-03598-0
36
SchnableP. S.WareD.FultonR. S.SteinJ. C.WeiF.PasternakS.et al. (2009). The B73 maize genome: complexity, diversity, and dynamics. Science326, 1112ā1115. doi:Ā 10.1126/science.11785
37
ShapiroJ. A.von SternbergR. (2005). Why repetitive DNA is essential to genome function. Biol. Rev.80, 227ā250. doi:Ā 10.1017/s1464793104006657
38
ShephardH. L.ParkerJ. S.DarbyP.AinsworthC. C. (2000). Sexual development and sex chromosomes in hop. New Phytol.148, 397ā411. doi:Ā 10.1046/j.1469-8137.2000.00771.x
39
SlotkinR. K.MartienssenR. (2007). Transposable elements and the epigenetic regulation of the genome. Nat. Rev. Genet.8, 272ā285. doi:Ā 10.1038/nrg2072
40
VanBurenR.MingR. (2013). Dynamic transposable element accumulation in the nascent sex chromosome of papaya. Mob. Genet. Elements3, e23462. doi:Ā 10.4161/mge.23462
41
VanBurenR.ZengF.ChenC.ZhangJ.WaiC. M.HanJ.et al. (2015). Origin and domestication of papaya Yh chromosome. Genome Res.25, 524ā533. doi:Ā 10.1101/gr.183905.114
42
WangJ. P.NaJ. K.YuQ. Y.GschwendA. R.HanJ.ZengF.et al. (2012). Sequencing papaya X and Yh chromosomes reveals molecular basis of incipient sex chromosome evolution. Proc. Natl. Acad. Sci. U.S.A.109, 13710ā13715. doi:Ā 10.1073/pnas.1207833109
43
WylerM.StrittC.WalserJ. C.BarouxC.RoulinA. C. (2020). Impact of transposable elements on methylation and gene expression across natural accessions of Brachypodium distachyon. Genome Biol. Evol.12, 1994ā2001. doi:Ā 10.1093/gbe/evaa180
44
XueL.WuH.ChenY.LiX.HouJ.LuJ.et al. (2020). Evidences for a role of two Y-specific genes in sex determination in Populus deltoides. Nat. Commun.11, 5893. doi:Ā 10.1038/s41467-020-19559-2
45
YangX.LiuD.WuJ.ZouJ.XiaoX.ZhaoF.et al. (2013). HTQC: a fast quality control toolkit for Illumina sequencing data. BMC Bioinf.14, 33. doi:Ā 10.1186/1471-2105-14-33
46
YangW.WangD.LiY.ZhangZ.TongS.LiM.et al. (2021). A general model to explain repeated turnovers of sex determination in the Salicaceae. Mol. Biol. Evol.38, 968ā980. doi:Ā 10.1093/molbev/msaa261
Summary
Keywords
Humulus scandens, repetitive sequences, satellites, sex chromosome evolution, transposable elements (TEs)
