Advances in CRISPR/Cas9-based research related to soybean [Glycine max (Linn.) Merr] molecular breeding

  • DY

    Dan Yao 1,2†

  • JZ

    Junming Zhou 1†

  • AZ

    Aijing Zhang 3

  • JW

    Jiaxin Wang 1

  • YL

    Yixuan Liu 1

  • LW

    Lixue Wang 1

  • WP

    Wenxuan Pi 1

  • ZL

    Zihao Li 1

  • WY

    Wenjun Yue 1

  • JC

    Jinliang Cai 1

  • HL

    Huijing Liu 1

  • WH

    Wenyuan Hao 4*

  • XQ

    Xiangchun Qu 2*

  • 1. College of Life Science, Jilin Agricultural University, Changchun, Jilin, China

  • 2. Institute of Crop Resources, Jilin Provincial Academy of Agricultural Sciences, Gongzhuling, Jilin, China

  • 3. College of Agronomy, Jilin Agricultural University, Changchun, China

  • 4. Jilin Provincial Academy of Agricultural Sciences, Changchun, Jilin, China

Abstract

Soybean [Glycine max (Linn.) Merr] is a source of plant-based proteins and an essential oilseed crop and industrial raw material. The increase in the demand for soybeans due to societal changes has coincided with the increase in the breeding of soybean varieties with enhanced traits. Earlier gene editing technologies involved zinc finger nucleases and transcription activator-like effector nucleases, but the third-generation gene editing technology uses clustered regularly interspaced short palindromic repeats (CRISPR)/CRISPR-associated protein 9 (Cas9). The rapid development of CRISPR/Cas9 technology has made it one of the most effective, straightforward, affordable, and user-friendly technologies for targeted gene editing. This review summarizes the application of CRISPR/Cas9 technology in soybean molecular breeding. More specifically, it provides an overview of the genes that have been targeted, the type of editing that occurs, the mechanism of action, and the efficiency of gene editing. Furthermore, suggestions for enhancing and accelerating the molecular breeding of novel soybean varieties with ideal traits (e.g., high yield, high quality, and durable disease resistance) are included.

1 Introduction

Soybean is a significant source of vegetable proteins for humans and an important oilseed crop, making it a commercially valuable plant (Zhang A, etĀ al., 2023). More than 90% of the soybean plants cultivated in the three main soybean-producing countries (USA, Brazil, and Argentina) are genetically modified varieties generated using gene editing technology (Fang etĀ al., 2023). In terms of sustainable food production, the demand for soybeans has continued to increase because of the scarcity of arable land. In the field of molecular breeding, clustered regularly interspaced short palindromic repeats (CRISPR)/CRISPR-associated protein 9 (Cas9) has emerged as a commonly used third-generation gene editing technology (Nakamori, 2023). Thus, many new and desirable soybean traits have been developed using gene editing technology, which is currently a hot topic in scientific research (Osakabe and Osakabe, 2017; Chen etĀ al., 2022; Zhou etĀ al., 2023a).

In recent years, CRISPR/Cas9 gene editing technology has been used by plant molecular breeders to improve various plant traits (Ma etĀ al., 2016; Zhang etĀ al., 2017; Rao etĀ al., 2022). Because it can simply, effectively, and precisely edit target genes responsible for specific characteristics, CRISPR/Cas9 has replaced previously used gene editing techniques (Zheng etĀ al., 2021; Impens etĀ al., 2022; Liu H. etĀ al., 2022). Several crop traits, including yield, quality, stress tolerance, disease resistance, and herbicide resistance, can be improved using CRISPR/Cas9 systems. This can lead to the development of novel germplasm with superior traits as well as significant advancements in plant molecular breeding (Yin etĀ al., 2017; Hussain etĀ al., 2018; Wada etĀ al., 2020; Gan and Ling, 2022; Qi etĀ al., 2023).

The limitations of early genome editing methods included the inability to explore the relationships between several related genes (Li etĀ al., 2013; Nekrasov etĀ al., 2013; Shan etĀ al., 2013). These previous methods were mostly employed to edit individual genes. Because soybean is a paleotetraploid, it has many homologous and redundant genes, which makes the functional characterization of soybean genes challenging (Tran and Mochida, 2010; Du etĀ al., 2023). The CRISPR/Cas9 system has recently been used to edit multiple genes in the soybean genome. This has considerably decreased the effects of redundant genes on the efficient editing of specific genes for breeding soybean varieties with desirable traits (Bao etĀ al., 2020; Xu H. etĀ al., 2020; Baek etĀ al., 2022; Guan etĀ al., 2022; Rasheed etĀ al., 2022a).

This review describes the recent improvements in soybean traits via the application of the CRISPR/Cas9 gene editing technology. It also presents information regarding the target genes and their mechanism of action, while providing a brief overview of transformation efficiency and gene editing efficiency. Furthermore, suggestions for future CRISPR/Cas9 development and use in soybean molecular breeding programs are included.

2 Application of CRISPR/Cas9 gene editing technology in soybean molecular breeding

There has recently been an increase in the use of CRISPR/Cas9 to edit genes in soybean, corn, wheat, rice, cotton, and other crops (FigureĀ 1, TableĀ 1). The creation of new soybean germplasm with many excellent traits using various transformation methods (e.g., Agrobacterium-mediated transformation) has laid the foundation for further improving CRISPR/Cas9 gene editing technology for soybean molecular breeding (FigureĀ 2).

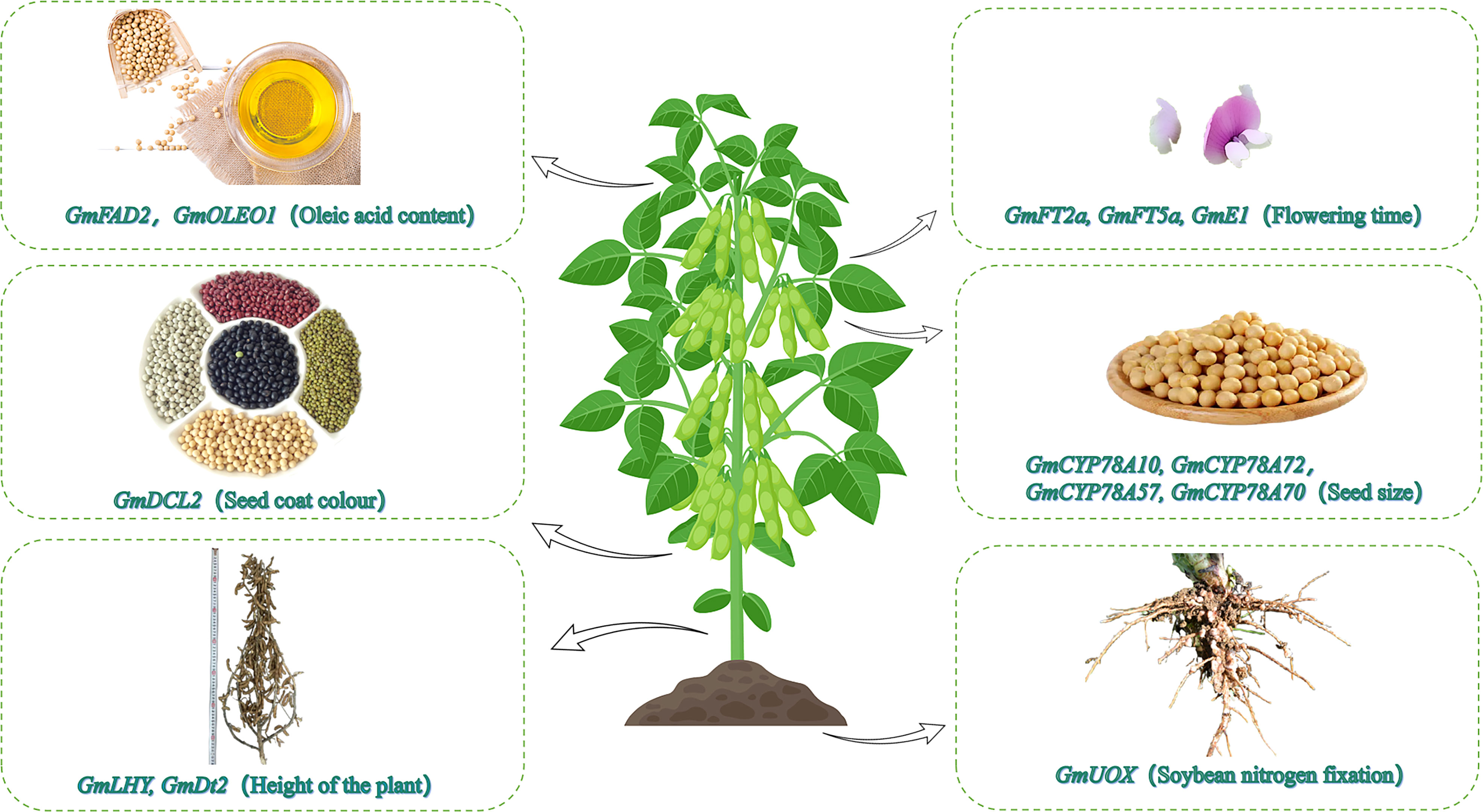

FigureĀ 1

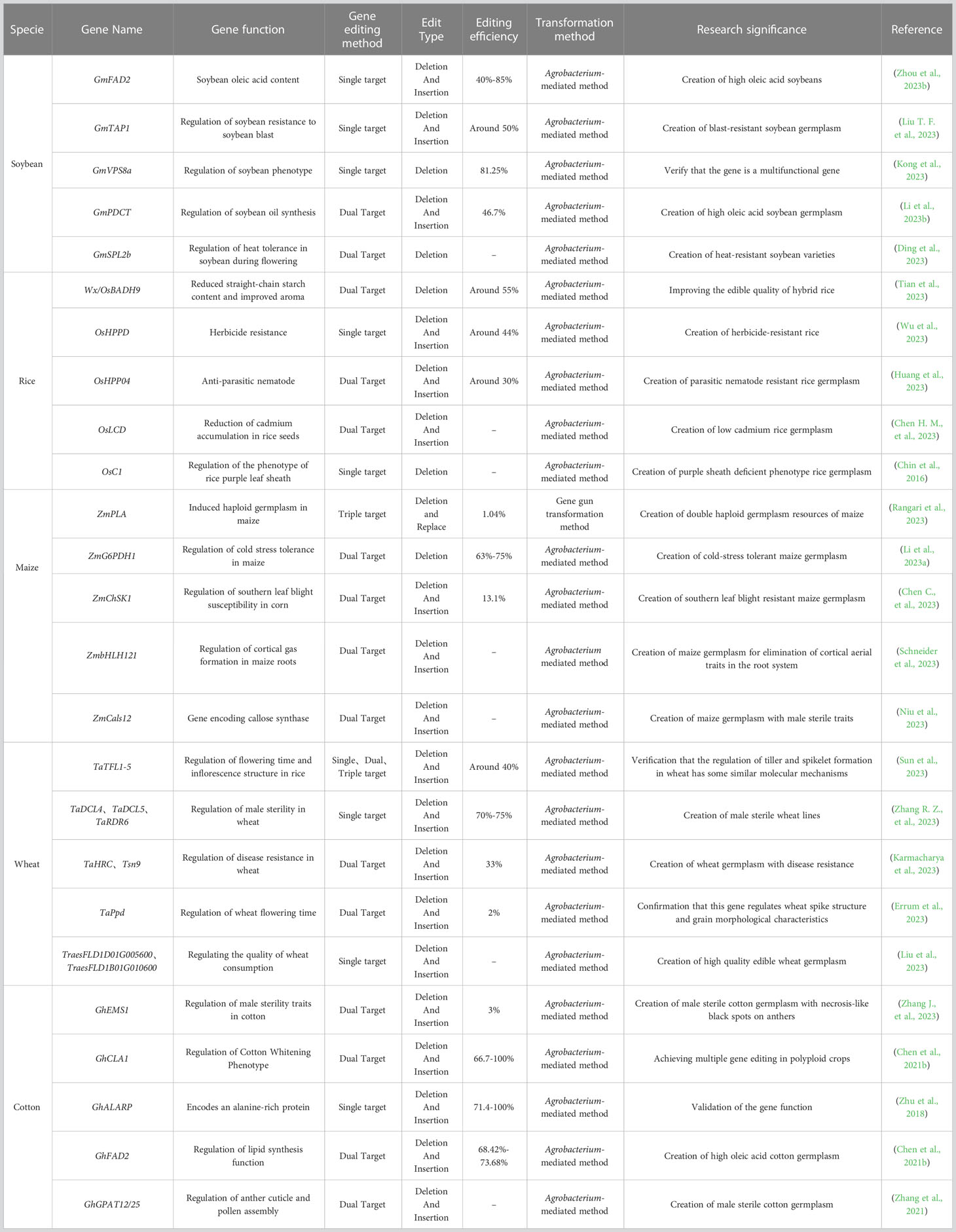

TableĀ 1

SpecieGene NameGene functionGene editing methodEdit TypeEditing efficiencyTransformation methodResearch significanceReference
SoybeanGmFAD2Soybean oleic acid contentSingle targetDeletion
And Insertion
40%-85%Agrobacterium-mediated methodCreation of high oleic acid soybeans(Zhou etĀ al., 2023b)
GmTAP1Regulation of soybean resistance to soybean blastSingle targetDeletion
And Insertion
Around 50%Agrobacterium-mediated methodCreation of blast-resistant soybean germplasm(Liu T. F. etĀ al., 2023)
GmVPS8aRegulation of soybean phenotypeSingle targetDeletion81.25%Agrobacterium-mediated methodVerify that the gene is a multifunctional gene(Kong etĀ al., 2023)
GmPDCTRegulation of soybean oil synthesisDual TargetDeletion
And Insertion
46.7%Agrobacterium-mediated methodCreation of high oleic acid soybean germplasm(Li etĀ al., 2023b)
GmSPL2bRegulation of heat tolerance in soybean during floweringDual TargetDeletion–Agrobacterium-mediated methodCreation of heat-resistant soybean varieties(Ding etĀ al., 2023)
RiceWx/OsBADH9Reduced straight-chain starch content and improved aromaDual TargetDeletionAround 55%Agrobacterium-mediated methodImproving the edible quality of hybrid rice(Tian etĀ al., 2023)
OsHPPDHerbicide resistanceSingle targetDeletion
And Insertion
Around 44%Agrobacterium-mediated methodCreation of herbicide-resistant rice(Wu etĀ al., 2023)
OsHPP04Anti-parasitic nematodeDual TargetDeletion
And Insertion
Around 30%Agrobacterium-mediated methodCreation of parasitic nematode resistant rice germplasm(Huang etĀ al., 2023)
OsLCDReduction of cadmium accumulation in rice seedsDual TargetDeletion
And Insertion
–Agrobacterium-mediated methodCreation of low cadmium rice germplasm(Chen H. M., etĀ al., 2023)
OsC1Regulation of the phenotype of rice purple leaf sheathSingle targetDeletion–Agrobacterium-mediated methodCreation of purple sheath deficient phenotype rice germplasm(Chin etĀ al., 2016)
MaizeZmPLAInduced haploid germplasm in maizeTriple targetDeletion and Replace1.04%Gene gun transformation methodCreation of double haploid germplasm resources of maize(Rangari etĀ al., 2023)
ZmG6PDH1Regulation of cold stress tolerance in maizeDual TargetDeletion63%-75%Agrobacterium-mediated methodCreation of cold-stress tolerant maize germplasm(Li etĀ al., 2023a)
ZmChSK1Regulation of southern leaf blight susceptibility in cornDual TargetDeletion
And Insertion
13.1%Agrobacterium-mediated methodCreation of southern leaf blight resistant maize germplasm(Chen C., etĀ al., 2023)
ZmbHLH121Regulation of cortical gas formation in maize rootsDual TargetDeletion
And Insertion
–Agrobacterium-mediated methodCreation of maize germplasm for elimination of cortical aerial traits in the root system(Schneider etĀ al., 2023)
ZmCals12Gene encoding callose synthaseDual TargetDeletion
And Insertion
–Agrobacterium-mediated methodCreation of maize germplasm with male sterile traits(Niu etĀ al., 2023)
WheatTaTFL1-5Regulation of flowering time and inflorescence structure in riceSingle态Dual态
Triple target
Deletion
And Insertion
Around 40%Agrobacterium-mediated methodVerification that the regulation of tiller and spikelet formation in wheat has some similar molecular mechanisms(Sun etĀ al., 2023)
TaDCL4态TaDCL5态TaRDR6Regulation of male sterility in wheatSingle targetDeletion
And Insertion
70%-75%Agrobacterium-mediated methodCreation of male sterile wheat lines(Zhang R. Z., etĀ al., 2023)
TaHRC态Tsn9Regulation of disease resistance in wheatDual TargetDeletion
And Insertion
33%Agrobacterium-mediated methodCreation of wheat germplasm with disease resistance(Karmacharya etĀ al., 2023)
TaPpdRegulation of wheat flowering timeDual TargetDeletion
And Insertion
2%Agrobacterium-mediated methodConfirmation that this gene regulates wheat spike structure and grain morphological characteristics(Errum etĀ al., 2023)
TraesFLD1D01G005600态TraesFLD1B01G010600Regulating the quality of wheat consumptionSingle targetDeletion
And Insertion
–Agrobacterium-mediated methodCreation of high quality edible wheat germplasm(Liu etĀ al., 2023)
CottonGhEMS1Regulation of male sterility traits in cottonDual TargetDeletion
And Insertion
3%Agrobacterium-mediated methodCreation of male sterile cotton germplasm with necrosis-like black spots on anthers(Zhang J., etĀ al., 2023)
GhCLA1Regulation of Cotton Whitening PhenotypeDual TargetDeletion
And Insertion
66.7-100%Agrobacterium-mediated methodAchieving multiple gene editing in polyploid crops(Chen etĀ al., 2021b)
GhALARPEncodes an alanine-rich proteinSingle targetDeletion
And Insertion
71.4-100%Agrobacterium-mediated methodValidation of the gene function(Zhu etĀ al., 2018)
GhFAD2Regulation of lipid synthesis functionDual TargetDeletion
And Insertion
68.42%-73.68%Agrobacterium-mediated methodCreation of high oleic acid cotton germplasm(Chen etĀ al., 2021b)
GhGPAT12/25Regulation of anther cuticle and pollen assemblyDual TargetDeletion
And Insertion
–Agrobacterium-mediated methodCreation of male sterile cotton germplasm(Zhang etĀ al., 2021)

Applications of CRISPR/Cas9 in five major agricultural crops.

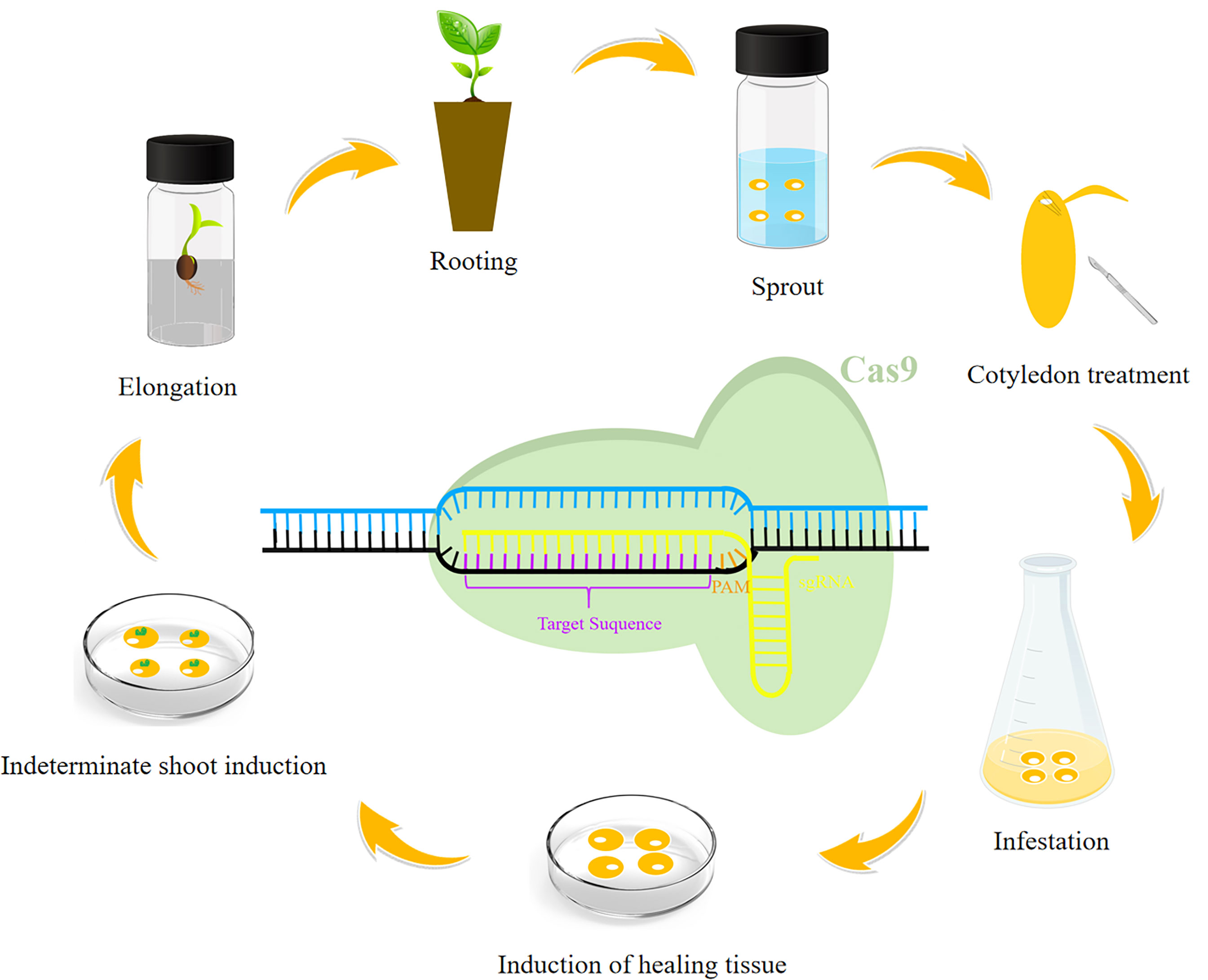

FigureĀ 2

2.1 Enhancement of soybean resistance to abiotic stresses

During different soybean developmental stages, many genetic and biochemical processes control how soybean perceives and responds to abiotic stresses, including salinity and drought. One of the primary objectives of molecular breeding research is improving stress tolerance (Deshmukh etĀ al., 2014; Amoanimaa-Dede etĀ al., 2022; Cadavid etĀ al., 2023). Osmotic stress in plant cells is typically caused by abiotic factors (e.g., drought or excessive salinity). Analyses of the sequences of the related genes revealed the regulatory effects of various plant cellular components, such as sensors, receptors, phytohormones, transcription factors, kinases, phosphatases, and microRNAs, on abiotic stress response-related pathways (Ramesh etĀ al., 2019; Mangena, 2020; Staniak etĀ al., 2023).

Water deficiency substantially restricts soybean growth and development, which can decrease the soybean yield by up to 40% (Khan, 2018). Thus, there is a critical need for exploring the mechanism underlying soybean drought resistance and generating new drought-resistant soybean germplasm (Ramlal etĀ al., 2022). By deleting miR398c in soybean, Zhou etĀ al. (2020) increased the expression of GmCSD1a/b, GmCSD2a/b/c, and GmCCS (relative to the corresponding levels in over-expression strains), thereby increasing the capacity to scavenge O2āˆ’ (Zhou etĀ al., 2020). In 2021, Xiao etĀ al. identified 112 GmPLA family genes in the soybean genome and used CRISPR/Cas9 technology to knock out two homologous genes (GmpPLA-II epsilon and zeta). Knocking out one or both genes affected the root response to phosphorus deficiency, with some mutant lines exhibiting increased resistance to flooding and drought conditions (compared with the control) (Xiao etĀ al., 2021). Additionally, in 2021, Yu etĀ al. reported that the GmNF-YC14 deletion mutant created using CRISPR/Cas9 technology is more susceptible to drought stress than wild-type soybean, implying GmNF-YC14 may be useful for increasing soybean drought tolerance (Yu etĀ al., 2021). By comparing the agronomic features of soybean plants over-expressing sHSP26 with those of soybean plants in which sHSP26 had been edited, Liu S. Y., etĀ al. (2022) revealed that sHSP26 may considerably increase soybean drought tolerance and yield (Liu S. Y., etĀ al., 2022). In 2022, Yang etĀ al. edited the soybean transcription factor gene GmNAC12, which decreased the survival of the transgenic plants exposed to drought stress by at least 12%. They concluded that GmNAC12 is a key gene that positively regulates soybean tolerance to drought conditions (Yang C.F., etĀ al., 2022).

Salinity can severely decrease the seed yield and quality of soybean, which is a salt-sensitive crop species (Phang etĀ al., 2008; Cai etĀ al., 2022; Feng etĀ al., 2023). In addition to accelerating the development of salt-tolerant soybean varieties to increase grain yield, research on salt stress tolerance can also optimize the use of saline farmland (Chen etĀ al., 2018; Jin etĀ al., 2021). In 2021, Niu etĀ al. clarified the effects of knocking down and over-expressing lncRNA77580 on the expression of nearby protein-coding genes linked to the soybean response to salt stress. Additionally, increases in the length of the DNA fragment deleted from lncRNA77580 via the application of CRISPR/Cas9 technology increased the changes in the expression of lncRNA77580 and nearby genes (Niu etĀ al., 2021). By simultaneously targeting six GmAITR genes using a CRISPR/Cas9 system, Wang etĀ al. (2021) produced a Cas9-free GmAITR3 and GmAITR6 double mutant and a GmAITR2 GmAITR3 GmAITR4 GmAITR5 GmAITR6 quintuple mutant. They determined that salt tolerance was more pronounced in the higher-order mutants, suggesting that mutating GmAITR genes can enhance soybean salt tolerance (Wang etĀ al., 2021). Zhang M.H. etĀ al. (2022) produced three soybean mutants in which GmSOS1 was edited and observed that Na+ accumulated significantly more in the mutants than in the control. Accordingly, this gene is essential for soybean salt tolerance because it helps maintain Na+ homeostasis (Zhang M.H., etĀ al., 2022).

The adaptation of soybean to severe drought and salt stresses involves the activation of overlapping pathways at the morphological, physiological, and molecular levels. Drought tolerance and salt tolerance are polygenic traits (Chen etĀ al., 2018; Kofsky etĀ al., 2018; Mammadov etĀ al., 2018). Additionally, the perception of stress and its effects on soybean growth or development are similar among the abiotic stress factors. In an earlier study by Du etĀ al. (2018), soybean plants in which the transcription factor gene GmMYB118 was silenced were more susceptible to drought and saline conditions than soybean plants over-expressing GmMYB118. Moreover, the decreased production of minor heat shock proteins increased the resistance of plants to drought, cold, and salt stresses (Du etĀ al., 2018). However, when Zhang M.H. etĀ al. (2022) knocked out GmHsps_p23, which encodes a minor heat shock protein in soybean, the transgenic plants were highly susceptible to salt and drought conditions. Future research will need to focus on the use of several gene editors to simultaneously target and regulate the expression of functional genes mediating drought and salinity tolerance to produce novel soybean genotypes with superior traits (Zhang Y.Z., etĀ al., 2022).

2.2 Enhance disease and insect resistance in soybean

Tobacco ringspot virus, soybean dwarf virus, soybean vein necrosis virus, soybean mosaic virus (SMV), bean pod mottle virus, and alfalfa mosaic virus are only a few of the viruses that can infect soybean (Liu etĀ al., 2016; Widyasari etĀ al., 2020; Lin etĀ al., 2022). Multiple viruses can simultaneously infect soybean plants, causing more harm than an infection by a single virus. Hence, the use of gene editing tools to target genes that control soybean disease resistance and improve disease resistance-related traits has become a major objective in soybean molecular breeding programs (Chang etĀ al., 2016; Chandra etĀ al., 2022; Zhao etĀ al., 2023).

Several non-homologous end-joining and homology directed repair-mediated gene replacement mutants were produced by Fang etĀ al. (2015), who targeted the soybean blast fungal pathogenicity gene Avr4/6. These mutants were more resistant to diseases caused by oomycetes than the controls (Fang and Tyler, 2016). Ochola etĀ al. (2020) edited the usual effector genes of the soybean root pathogen Phytophthora sojae. They observed that disease resistance was affected by the Avr gene expression level in soybean (Ochola etĀ al., 2020). In 2020, Ma etĀ al. confirmed that GmLMM2 deficiencies increased the resistance to P. sojae by increasing tetrapyrrole biosynthesis, but decreased the chlorophyll content by disrupting tetrapyrrole biosynthesis. The elimination of GmLMM2 expression resulted in the appearance of necrotic regions in the growing leaves of the CRISPR/Cas9-edited mutants (Ma etĀ al., 2020). Zhang P.P, etĀ al. (2020) targeted GmF3H1, GmF3H2, and GmFNSII-1 in soybean plants (including the hairy roots) using a CRISPR/Cas9-mediated multiple gene editing system. They detected a significant increase in the isoflavone content and a significant decrease in the SMV coat protein content (approximately 33% decrease) in the mutants, indicating that the increased isoflavone content enhanced the leaf resistance to SMV (Zhang P.P., etĀ al., 2020). Three crucial genes in the soybean Rsc4 gene family (Rsc4-1, Rsc4-2, and Rsc4-3) were modified by CRISPR/Cas9 in 2021 to alter soybean resistance to SMV (Yin etĀ al., 2021). To investigate the effector gene Avr1b-1 in the soybean pathogen Blastomyces in terms of its function as well as the underlying mechanism. Gu etĀ al. (2021) created target locus-specific knockout and knock-in mutants. All selected knockout mutants were virulent on plants expressing Rps1b, whereas the infection of plants lacking Rps1b was unaffected. When a sgRNA-resistant variant of Avr1b-1 was re-introduced into the Avr1b-1 locus of the mutants in which Avr1b was knocked out, the resulting knock-in transformants expressing Avr1b-1 were unable to infect soybean plants carrying Rps1b (Gu etĀ al., 2021). Compared with the RNAi and over-expression strains, the soybean plants in which GmDRR1 was knocked down (in 2022) were considerably less resistant to Blastomyces infections (Yu etĀ al., 2022). By altering the coding region of the soybean transcription factor gene GmTCP19L, Fan etĀ al. (2022) produced a mutant with a 2 bp deletion. This mutant soybean germplasm resource exhibited increased susceptibility to blast molds (Fan etĀ al., 2022).

Plants that are resistant to Rps gene products can perceive certain pathogen effectors encoded by Avr genes. By deleting Avr45a, Arsenault-Labrecque etĀ al. (2022) produced novel soybean plants resistant to Rps8 (Arsenault-Labrecque etĀ al., 2022). In 2022, Zhang etĀ al. identified Glyma.07g110300 (LOC100775351) as a quantitative trait locus (QTL)-M marker gene encoding the UDP-glycosyltransferase (UGT) primarily responsible for soybean resistance to leaf-chewing insects. Using a CRISPR/Cas9 system, they enhanced the resistance of soybean to Helicoverpa armigera and Spodoptera litura via the following two mutation types: large fragment deletion and single base insertion. Zhang Y.X., etĀ al. (2022) confirmed that GmUGT confers resistance to leaf-chewing insects by changing the flavonoid content and the expression of genes related to flavonoid biosynthesis and defense (Zhang Y.X., etĀ al., 2022). By editing the soybean 14-3-3 gene (Glyma05g29080) via large fragment insertions and deletions and producing transgenic plants with increased susceptibility to hard tick infestations and decreased nodulation, Zhang Y.F., etĀ al. (2023) showed Glyma05g29080 contributes to nodulation and defense responses (Zhang Y.F., etĀ al., 2023). Using a CRISPR/Cas9 gene editing method, Liu etĀ al. (2023b) silenced GmTAP1 in soybean, which resulted in increased resistance to P. sojae strains P231, P233, and P234. An analysis of reactive oxygen species revealed that a loss-of-function mutation to GmTAP1 does not substantially alter plant basal immunity (Liu T.F., etĀ al., 2023).

The soybean cyst nematode (SCN) is responsible for the soybean disease associated with the largest economic losses (Bent, 2022). By altering two functional genes (Glyma.12G194800 and Glyma.16G154200) in the syntaxin family of SCN resistance genes, Dong etĀ al. (2020) produced SCN-resistant soybean cultivars (Dong etĀ al., 2020). In 2021, Butler etĀ al. demonstrated that Glyma.15G191200 of cqSCN-006, which encodes gamma-SNAP, influences SCN resistance. Additionally, using CRISPR/Cas9 gene editing technology to disrupt the cqSCN-006 allele decreased the SCN resistance of the transgenic roots (Butler etĀ al., 2021). In 2022, Zhang etĀ al. mutated Glyma.07g110300 by introducing a CRISPR/Cas9 expression vector into the Tianlong 1 soybean variety to increase the resistance to S. litura and H. armigera (Zhang Y.X., etĀ al., 2022).

2.3 Improvement of seed quality in soybean

Soybean is used as a source of food for animals, including humans (Medic etĀ al., 2014). It has the highest protein content of any crop and is a significant source of edible oils (Gupta and Manjaya, 2022; Zaaboul etĀ al., 2022; Song etĀ al., 2023). In the past few years, several studies have employed CRISPR/Cas9 gene editing technology to enhance the protein and oleic acid contents of soybean.

Using germinal root transformation technology, Li etĀ al. altered the soybean seed storage protein-encoding genes Glyma.20g148400, Glyma.03g163500, and Glyma.19g164900 to increase soybean seed protein contents (Li etĀ al., 2019a). By simultaneously modifying the soybean genes GmFAD2-1A and GmFAD2-1B, Do etĀ al. (2019) managed to increase the oleic acid content by more than 80%, while also decreasing the linoleic acid level by 1.3%–1.7% (Do etĀ al., 2019). Zhang etĀ al. (2019) silenced the soybean phospholipase D1-encoding gene, which increased the oil content and germination rate of the mutant seeds (compared with the wild-type seeds) at high temperatures and high humidity levels (Zhang etĀ al., 2019). In 2021, Qu etĀ al. analyzed the oleic acid contents of soybean plants over-expressing Gm15G117700 and soybean plants in which the gene was edited; the oleic acid content increased in the gene-edited plants by 3.49% (Qu etĀ al., 2021). Zhou etĀ al. (2023a) recently edited five important enzyme-encoding genes in the GmFAD2 family and analyzed the associated effects on soybean oil synthesis. Editing GmFAD2-1A increased the oleic acid content by 91.49% (Zhou etĀ al., 2023a). In another recent study, Li etĀ al. (2023) edited two target genes by altering the conserved PAP2 structural domain-encoding sequences of GmPDCT1 and GmPDCT2. The decrease in phosphatidylcholine-derived diacylglycerol contents via the knockdown of GmPDCT prevented the entry of phosphatidylcholine-modified polyunsaturated fatty acids into the triacylglycerol biosynthesis pathway (Li etĀ al., 2023b).

In addition to increasing the protein and oleic acid contents, researchers have attempted to enhance other soybean characteristics. Phytic acid (PA) is an anti-nutrient in grains that prevents humans from absorbing trace minerals (e.g., iron and zinc). In soybean, GmIPK1 encodes an enzyme that converts inositol 1,3,4,5,6-pentaphosphate to inositol 1,2,3,4,5,6-hexaphosphate (Alkarawi and Zotz, 2014; Sarkhel and Roy, 2022). Using the CRISPR/Cas9 system, Song etĀ al. (2022) edited the GmIPK1 gene and sgRNA to introduce mutations to create soybean lines with low PA levels. The decreased PA levels in the T2 generation mutant seeds were not accompanied by defective growth or seed development (Song etĀ al., 2022).

Flavor is an important soybean quality-related attribute. Accordingly, CRISPR/Cas9 technology has been exploited to develop soybean germplasm with superior flavor-related traits (Fernandez-Marin etĀ al., 2014). Because soybean proteins are allergens, decreasing the abundance of allergenic proteins will likely increase the utility of soybean as a source of protein (e.g., in processed food) (Cordle, 2004; L'Hocine and Boye, 2007; Gharibzahedi etĀ al., 2022; Gracio etĀ al., 2023). In 2020, Sugano etĀ al. simultaneously targeted and edited GmBd28k and GmBd30K to eliminate two allergenic proteins in the Japanese soybean cultivars Enrei and Kariyutaka (Sugano etĀ al., 2020). Soybean flavor and quality are influenced by three lipoxygenases (LOX1, LOX2, and LOX3). By editing three genes in the soybean GmLox family (GmLox1, GmLox2, and GmLox3), Wang J., etĀ al. (2020) improved the edibility of soybean oil and protein products. Editing these genes decreased soybean odors (Wang J., etĀ al., 2020). The raffinose oligosaccharide (RFO) family members are the main soluble carbohydrates in soybean seeds, but they are anti-nutritional seed components because they typically cause gas and indigestion, while also decreasing energy efficiency (Salvi etĀ al., 2022). In 2021, Le etĀ al. decreased the soybean seed RFO content by knocking down two galactinol synthase-encoding genes, namely GmGOLS1A and its homolog GmGOLS1B (Le etĀ al., 2020). To decrease the RFO content in mature seeds, Cao etĀ al. (2022) used a CRISPR/Cas9 multi-gene editing method to delete the RS2 and RS3 genes in soybean and cottonseed (Cao etĀ al., 2022). Qian etĀ al. (2022) mutated GmBADH2 and confirmed this gene contributes to soybean odors (Qian etĀ al., 2022). In addition, Bai etĀ al. (2022) used CRISPR/Cas9 gene editing technology to produce two multi-gene mutants, one lacking the 7S subunit and the other lacking the 11S subunit. Both of these mutations enhanced the flavor of soybean meal (Bai etĀ al., 2022).

2.4 Improvement of phenotype in soybean

One of the key factors influencing the development of high-yielding soybean cultivars is the appropriate regulation of plant structural features (e.g., plant height, number of nodes, number of pods, internode length, number of branches, and number of grains) (Hu and Wiatrak, 2012; Kuzbakova etĀ al., 2022). In recent years, soybean phenotype-related genes have been edited using CRISPR/Cas9 gene editing technology to produce soybean germplasm with a variety of improved features.

Using the CRISPR/Cas9 system, Bao etĀ al. (2019) mutated four SPL9 family genes that encode SQUAMOSA promoter-binding protein-like (SPL) transcription factors. The higher-order mutant plants with different combinations of mutations had more nodes and branches on the main stem (compared with the control plants), resulting in varying numbers of nodes per plant (Bao etĀ al., 2019). In 2019, Cheng etĀ al. used four gRNAs to alter four late elongated hypocotyl (LHY)-encoding GmLHY genes in soybean. Phenotypic analyses showed that the quadruple mutant plants had relatively short internodes and exhibited dwarfism (Cheng etĀ al., 2019). In the Tianlong 9 variety, Jia etĀ al. (2020) knocked out two copies of the soybean DCL2 gene, which altered the color of the soybean seed coat from yellow to brown (Jia etĀ al., 2020). To increase soybean production, Cai etĀ al. (2021) modified the low-latitude spring soybean variety Huachun 6 using a CRISPR/Cas9 multi-gene editing technique. Specifically, they targeted GmJAG, which affects the number of seeds per pod (Cai etĀ al., 2021). In 2022, Mu etĀ al. targeted six GmBIC genes in soybean using CRISPR/Cas9 technology. The single, double, and quadruple mutants were shorter than normal (Mu etĀ al., 2022). In another recent study, Zhong etĀ al. (2022) edited the soybean GmHdz4 gene, which increased the total root length, root surface area, and number of root tips (compared with the mutant lines over-expressing GmHdz4) (Zhong etĀ al., 2022). Furthermore, Zhang Z. etĀ al. (2023) silenced the soybean GmNSS gene, which resulted in the production of abnormally small seeds. (Zhang Z. etĀ al., 2023).

Abscisic acid is an essential phytohormone that controls various processes related to plant growth, development, and stress responses (Nguyen etĀ al., 2023). Using a CRISPR/Cas9 system, Zhang Z. H. etĀ al. (2022) mutated GmPYL17, GmPYL18, and GmPYL19. Compared with the wild-type plants, the mutants were taller, had more branches, and were less sensitive to abscisic acid during the seed germination stage (Zhang Z. H. etĀ al., 2022).

The shattering of soybean pods can significantly decrease yield. By altering the GmPDH gene family in soybean variety Huachun 6, Zhang Z. etĀ al. (2022) showed that the PDH1 mutation dramatically increases pod shatter resistance without modifying other important agronomic parameters (Zhang Z. etĀ al., 2022).

2.5 Regulation of nitrogen fixation by nodules

Rhizobia can produce a symbiotic nitrogen-fixation system with legumes that increases plant output without damaging the local ecosystem (Chakraborty etĀ al., 2022; Hawkins and Oresnik, 2022). More than 65% of the nitrogen fixation is due to the symbiotic interaction between rhizobia and legumes (Fields etĀ al., 2021; Jimenez-Guerrero etĀ al., 2022). Soybean converts free nitrogen in the air to chemosynthetic nitrogen that can be absorbed and used by the plant via nitrogen-fixing nodules. This process yields soybean seeds with a high protein content, thereby increasing the nutritional value of soybean (Dadnia, 2011; Meng etĀ al., 2015; Igiehon etĀ al., 2021).

Xu etĀ al. (2021) promoted soybean nodulation by using CRISPR/Cas9 technology to knock down miR9c (Xu etĀ al., 2021). By deleting the soybean RFG193 gene, Fan etĀ al. (2020) generated transgenic plants with mature nitrogen-fixing nodules on purple or red roots, which produced anthocyanins, whereas nodules were undetectable on the non-transgenic roots (Fan etĀ al., 2020). In 2021, Yang etĀ al. reported that a loss-of-function mutation to GmHSP17.9 significantly affects soybean plant growth and seed yield through the associated changes to the number of root nodules, nodule fresh weight, nitrogenase activity, poly-hydroxybutyrate vesicles, and urea and total nitrogen contents (Yang Z.W., etĀ al., 2022). Nguyen etĀ al. (2021) silenced GmUOX in a soybean mutant, which exhibited nitrogen deficit atrophy and early nodule senescence as revealed by decreased nitrogenase (acetylene reduction) activities in the nodules, a greenish-white hue inside the nodules, and a decreased root protein output (Nguyen etĀ al., 2021). Gao etĀ al. (2021) investigated the role of the PIN protein during the nitrogen fixation by soybean nodules. More specifically, they produced a triple mutant (GmPIN1-abc family) (Gao etĀ al., 2021). The modification of the soybean Rfg1 allele by Fan etĀ al. (2022) revealed Rfg1 mediates the resistance to Sinorhizobium fredii and Bradyrhizobium japonicum strains, leading to broad-spectrum resistance to nodulation in transgenic plants (Fan etĀ al., 2017). After knocking down GmNN1, Li etĀ al. (2022) detected yellowing leaves as well as decreased nitrogen contents and decreased nodulation (compared with the wild-type control plants) (Li etĀ al., 2022). By silencing GmNAC039 and GmNAC018 as well as the four target genes GmCYP35, GmCYP37, GmCYP39, and GmCYP4, Yu etĀ al. (2023) showed that the transcription factors encoded by GmNAC039 and GmNAC018 directly increase the expression of GmCYP genes to induce root tumor senescence (Yu etĀ al., 2023).

2.6 Regulation of flowering time in soybean

Because soybean is a short-day (SD) plant, it blooms more quickly during SD conditions than during long-day (LD) conditions (Weller and Ortega, 2015; Lin etĀ al., 2021; Xia etĀ al., 2021). Modulating the blooming time and minimizing the sensitivity to sunshine duration through molecular breeding can increase soybean adaptability and production by mitigating photoperiodic responses (Zhang L.X. etĀ al., 2020; Zhang M. etĀ al., 2022; Du etĀ al., 2023).

Cai etĀ al. (2018a) edited the soybean genes GmFT2a and GmFT9a and discovered that both mutants in the T2 generation exhibited a late-blooming phenotype (Cai etĀ al., 2018a). Using a double sgRNA design and CRISPR/Cas9 technology, Cai etĀ al. (2018b) deleted specific DNA fragments in GmFT2a (Glyma16g26660) and GmFT5a (Glyma16g04830). The homozygous GmFT2a mutants (1,618 bp deletion) in the T2 generation flowered late (Cai etĀ al., 2018b). Two QTL regions that respectively included GmFT2a and GmFT5a were identified by Cai etĀ al. (2020b). They were linked to various genetic effects on flowering during various photoperiods. Under LD and SD conditions, the flowering times of transgenic plants over-expressing GmFT2a or GmFT5a, GmFT2a mutants, GmFT5a mutants, and GmFT2a and GmFT5a double mutants were examined. There was no overlap between GmFT2a and GmFT5a, which cooperatively control the blooming time, but GmFT2a has a greater effect than GmFT5a under SD conditions, while GmFT5a has a greater effect than GmFT2a under LD conditions (Cai etĀ al., 2020a). Wang L. W. etĀ al. (2020) mapped QTLs and identified GmPRR37 as a functional gene encoding a regulator of soybean flowering. A natural mutation to GmPRR37 results in early flowering, thereby enabling the cultivation of soybean plants at high latitudes (Wang L. W., etĀ al., 2020). Li etĀ al. (2020) used CRISPR/Cas9 technology to knock out GmPRR3b. The resulting soybean mutant exhibited retarded growth and a delayed transition to the flowering stage (Li etĀ al., 2020). In 2020, Chen etĀ al. modified the soybean GmAP1 gene in a quadruple mutant. The observed increase in plant height was associated with delayed flowering, altered flower shapes, and increases in the number of nodes and the internode length. In contrast, under SD conditions, the over-expression of GmAP1 led to early flowering and dwarfism (Chen etĀ al., 2020). Li etĀ al. (2021) edited four LNK2 genes using a CRISPR/Cas9 system to produce a quadruple mutant lacking transgenes. This mutant flowered earlier than the wild-type control under LD conditions. In addition, the LNK2 transcript level was lower in the quadruple mutant than in the wild-type plants (Li etĀ al., 2021). Zhao etĀ al. (2022) mutated GmPHYA or GmPHYB using CRISPR/Cas9 technology. The phenotypic changes due to the mutations to GmPHYA2 and GmPHYA3, which have redundant and additive roles in seedling responses to daylight, indicated GmPHYB1 is primarily responsible for daylight-induced photomorphogenesis (Zhao etĀ al., 2022). In 2022, Zhai etĀ al. suggested that GmMDE and GmFT2a/GmFT5a contribute to a positive feedback regulatory loop that promotes flowering in soybean. Knocking down the soybean E1 gene induces GmMDE expression. Moreover, the over-expression of GmMDE06 increases the expression of GmFT2a and GmFT5a, which regulate flowering (Zhai etĀ al., 2022). In 2023, Wan etĀ al. investigated the relationship between the dominant E1 gene and photoperiodic regulation via the CRISPR/Cas9-mediated targeted mutation of E1 in soybean variety Tianlong 1. Four mutations were introduced into the E1 coding region. The significant structural changes in the generated mutants included the commencement of terminal flowering, the creation of distinct stems, and a decrease in the number of branches (Wan etĀ al., 2022).

2.7 Creation of male sterile soybean germplasm resources

Because soybean is a self-pollinated plant that has small flower organs, artificial cross-breeding is both difficult and ineffective (Li etĀ al., 2019b; Chen G. M., etĀ al., 2021). Furthermore, differences in flowering times among varieties originating from various geographical regions frequently further restrict the exchange of genes, resulting in a limited genetic base for soybean breeding and genetic modifications (Li etĀ al., 2019b). Accordingly, methods for increasing the genetic diversity of soybean varieties are needed (Bohra etĀ al., 2016). In particular, for sexually reproducing crops, male sterility is a crucial precondition for hybrid seed generation and crop reproduction (Jiang etĀ al., 2011; Yang etĀ al., 2014). Male sterile lines can increase the quality of hybrids, lower the cost of hybrid seed production, and even broaden the utility of hybrids. The scarcity of adequate male sterile lines has limited the commercial use of soybean accessions (Li etĀ al., 2016; Ramlal etĀ al., 2022).

To create stable male sterile soybean lines, Chen etĀ al. (2021) targeted AMS homologs using CRISPR/Cas9 technology. Although editing GmAMS2 failed to produce a male sterile line, editing GmAMS1 yielded plants with a male sterile phenotype. GmAMS1 contributes to the development of pollen walls as well as the regulation of soybean tapetum degeneration (Chen etĀ al., 2021a). Jiang etĀ al. (2021) modified Glyma.13G114200 using a CRISPR/Cas9 system; the phenotypes of two gene-edited lines were consistent with the male sterility of the MS1 mutant (Jiang etĀ al., 2021). By eliminating GmSPL2b, Ding etĀ al. (2023) decreased the heat tolerance of a soybean cytoplasmic male sterility-based recovery line during flowering (Ding etĀ al., 2023).

2.8 Application of other CRISPR gene editing technology in soybean

Compared with Cas9, the CRISPR family member Cas12a is more practical and effective. Hence, CRISPR/Cas12a can effectively edit multiple genes because of the specific way that CRISPR RNA (crRNA) functions (Bandyopadhyay etĀ al., 2020; Paul and Montoya, 2020; Zhou etĀ al., 2023b). In 2017, Jiang etĀ al. used CRISPR/Cas12a to achieve editing in the soybean FAD2 gene for the first time (Jiang etĀ al., 2017). In addition, large chromosomal segments of the target genome were deleted by Duan etĀ al. (2021) using CRISPR/Cas12a, with an editing efficiency of 91.7% (Duan etĀ al., 2021). In 2023, Liang etĀ al. produced CRISPR/Cas12a-edited soybeans in just 45 days, with transformation and gene editing efficiencies of 30% and 50%, respectively (Liang etĀ al., 2023). To produce gene-edited soybeans with better traits, CRISPR/Cas12a-based multi-gene editing methods will increasingly be used to modify the soybean genome.

Because they enable the replacement of a single base via RNA editing without introducing DNA double-strand breaks or requiring donor templates, base editor tools created using the CRISPR/Cas9 system are especially useful for plant molecular breeding (Molla etĀ al., 2021; Yang etĀ al., 2021; Hua etĀ al., 2022). A CRISPR/Cas9-mediated base editing tool was designed by Cai etĀ al. (2020a) to alter individual bases in the soybean genome. A base editor was developed by combining Cas9n (D10A), rat cytosine deaminase (APOBEC1), and a uracil glycosylase inhibitor. This base editor was then cloned into the pTF101.1 vector. The targeted genes were GmFT2a and GmFT4a, which were under the control of the 2Ɨ CaMV 35S promoter. There were two types of base substitutions (C to T and C to G), both of which occurred within the target sequence (Cai etĀ al., 2020a). Single nucleotide polymorphisms, which influence phenotypic diversity and are linked to many significant agronomic parameters, are abundant in the soybean genome. Future genetic improvement and breeding of soybean can greatly benefit from the application of base editing technology (Bharat etĀ al., 2020; Xu R. F., etĀ al., 2020).

3 Discussion and prospect

Because of increases in the global population and living standards, CRISPR/Cas9 technology must be exploited to quickly develop high-yielding, high-quality soybean varieties (Khan etĀ al., 2018; Zhang and Showalter, 2020). Field tests of high-oleic soybean varieties produced using CRISPR/Cas9 gene editing technology in the US have produced positive results, with potential implications for soybean molecular breeding. There have been considerable advances in the molecular breeding of soybean since the development of CRISPR/Cas9 gene editing technology, which has decreased concerns about the safety of products made from genetically modified soybeans, leading to the gradual acceptance of genetically modified crops. The CRISPR/Cas9 system, which continues to be refined and enhanced, has largely outperformed the older technologies involving zinc finger nucleases and transcription activator-like effector nucleases in terms of gene editing efficiency and convenience (Samanta etĀ al., 2016; Demirci etĀ al., 2018; Farooq etĀ al., 2018). Researchers will use CRISPR/Cas9 gene editing systems to develop soybean lines with improved features as more functional soybean genes are identified and characterized.

However, there are certain limitations to the utility of CRISPR/Cas9 for soybean breeding. Unanswered questions include the following: (i) How can genome editing tools be efficiently delivered to soybean plants? (ii) How can the functional redundancy in gene families be rapidly and precisely determined? (iii) How can the editing of multiple genes be exploited to modify various traits? (iv) How can base editing, prime editing, and government regulations regarding genome-edited crops further increase the effectiveness of gene editing? Despite encouraging results, many obstacles must be overcome before CRISPR/Cas9 can be widely used for soybean breeding.

Additionally, numerous sgRNAs for different plant genomes have been assembled into CRISPR editing vectors. Moreover, sgRNA pooling techniques have made it possible to mutate multiple genes. The diversity in the sequences that PAM can detect has increased, leading to improved gene editing, because of the creation of Cas9 homologs, such as StCas9 and SaCas9, for plant molecular breeding. The highly efficient editing of plant genomes has been achieved using the nCas9-mediated single-base editing system, while the saturation mutagenesis of plant genomes and optimal gene editing efficiencies have been attained via the two-base editing method. The CRISPR/Cas9 gene editing method will be applied to soybean molecular breeding more effectively, conveniently, and broadly in the future, thereby facilitating increasingly precise molecular breeding and accelerating soybean molecular breeding.
