MINI REVIEW article

Front. Plant Sci., 29 September 2023

Sec. Plant Breeding

Volume 14 - 2023 | https://doi.org/10.3389/fpls.2023.1260102

Genetic amelioration of fruit and vegetable crops to increase biotic and abiotic stress resistance through CRISPR Genome Editing

  • Department of Botany, Jogesh Chandra Chaudhuri College, West Bengal, Kolkata, India

Abstract

Environmental changes and increasing population are major concerns for crop production and food security as a whole. To address this, researchers had focussed on the improvement of cereals and pulses and have made considerable progress till the beginning of this decade. However, cereals and pulses together, without vegetables and fruits, are inadequate to meet the dietary and nutritional demands of human life. Production of good quality vegetables and fruits is highly challenging owing to their perishable nature and short shelf life as well as abiotic and biotic stresses encountered during pre- and post-harvest. Genetic engineering approaches to produce good quality, to increase shelf life and stress-resistance, and to change the time of flowering and fruit ripening by introducing foreign genes to produce genetically modified crops were quite successful. However, several biosafety concerns, such as the risk of transgene-outcrossing, limited their production, marketing, and consumption. Modern genome editing techniques, like the CRISPR/Cas9 system, provide a perfect solution in this scenario, as it can produce transgene-free genetically edited plants. Hence, these genetically edited plants can easily satisfy the biosafety norms for crop production and consumption. This review highlights the potential of the CRISPR/Cas9 system for the successful generation of abiotic and biotic stress resistance and thereby improving the quality, yield, and overall productivity of vegetables and fruits.

Introduction

Vegetables, fruits, nuts, ornamental, aromatic, and medicinal plants are grouped under horticultural crops. Vegetables and fruits are essential dietary components of our meals as they are excellent sources of carbohydrates, fibres, proteins, vitamins, organic acids, antioxidants, minerals, and trace elements. Climate change and global warming render various dreadful effects on agriculture resulting in loss of crop yield and its nutritional value owing to abiotic factors (heat waves, irregular and uneven precipitation patterns) and biotic factors (increase in plant pathogens and pests). Vegetable and fruit crops are generally more vulnerable to abiotic and biotic stresses leading to huge loss of productivity and nutritional value. Traditional crop breeding such as crossbreeding and mutation-breeding has been successful for a long time to introduce required genetic variations in horticultural crops (Schaart etĀ al., 2016). However, with increasing population, conventional breeding methods, being time-consuming and laborious, are not been able to live up to the growing market demands (Gao, 2021). Transgenic breeding surely provides an alternative by creating genetically modified crops with desired traits in less time but their use is strictly restricted or legally prohibited by government agencies of several countries under safety regulations (Voytas and Gao, 2014). The discovery of genome-editing technology, particularly CRISPR/Cas, has enabled researchers to make precise modifications at specific sites in the DNA to generate horticultural crops possessing novel and desired traits within a short time (Tian etĀ al., 2021) (FigureĀ 1).

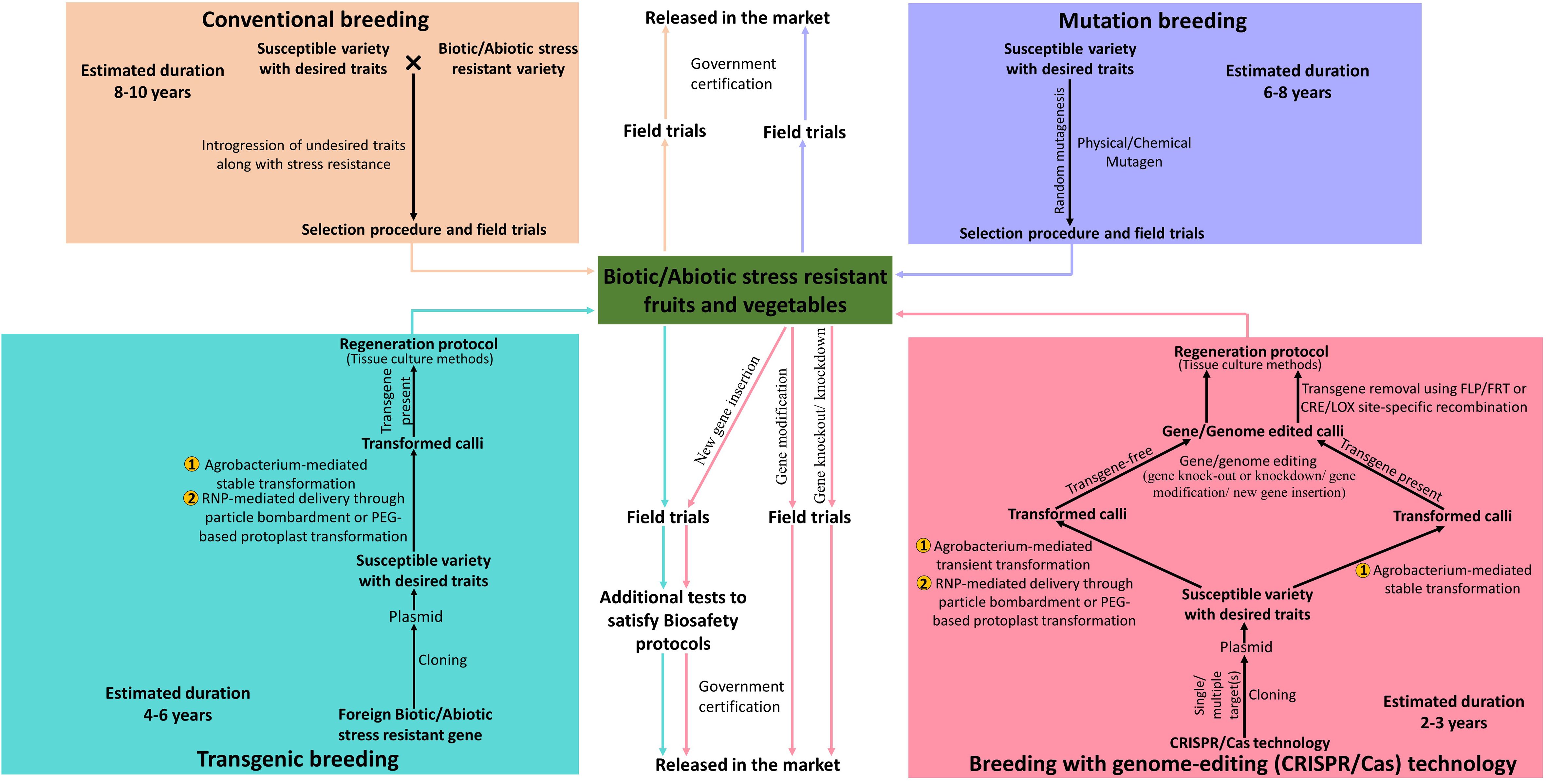

FigureĀ 1

With the advent of genome editing technology in the 1990s and significant advancements made in the years thereafter, different methods of gene editing have revolutionized the area of research involving functional genomics and crop improvement. Genome editing technology involves the recognition of particular DNA sequences, followed by the induction of double-stranded breaks (DSBs) at specific sites in the targeted DNA using synthetic sequence-specific nucleases (SSNs) (Yin and Qiu, 2019). To maintain genome integrity, cells of almost all living organisms can detect and repair DSBs via either non-homologous end-joining (NHEJ) or homology-directed repair (HDR) (Sonoda etĀ al., 2006). NHEJ is the most common but error-prone DNA-repair process, where DNA ligase IV joins DSBs with minimal DNA end processing in the absence of a repair template, often causing random insertion or deletion of base pairs, leading to a frameshift mutation and thereby resulting in gene knock-out or knockdown. Contrarily, HDR is a high-fidelity repair pathway that uses a homologous repair template DNA to ligate DSBs leading to gene modification or insertion of a new gene (Kumari etĀ al., 2022).

Zinc Finger Nucleases (ZFNs) were the first generation SSNs that were synthesized artificially by the fusion of dimers of Cys2-His2 zinc finger (ZF) domains and FokI restriction endonuclease domains and have been successfully used in Arabidopsis, Nicotiana, and Zea mays. However, ZFNs face problems over high-expense, moderate complexity in design, low specificity, difficulty in multiplexing, and consuming time (Kamburova etĀ al., 2017). Later, the identification of transcription activator-like effectors (TALEs) from Xanthomonas spp. led to the synthesis of TALENs by joining dimers of TALE domains with FokI domains. TALENs have been used with great success in rice, wheat, Arabidopsis, potato, and tomato, but high cost, difficulty in multiplexing, complex designing modules, low specificity during screening, and labour-intensiveness pose challenges to their usage (Tavakoli etĀ al., 2021). In 2012, the invention of the CRISPR/Cas9 system from Streptococcus pyogenes by Jennifer Doudna and Emmanuelle Charpentier (Jinek etĀ al., 2012), followed by several other discoveries on different CRISPR/Cas systems and rapid advancements and modifications in the technology over the last decade have completely transformed the universe of genome-editing, with multiple gene targeting (multiplexing) becoming a reality. CRISPR/Cas technology possesses several advantages over ZFNs and TALENs for being cheaper, simpler, time-saving, reproducible, and highly efficient in high-yield multiplexing. This article reviews the application of different types of CRISPR/Cas systems in horticultural crops to alleviate biotic and abiotic stresses and discusses challenges and probable solutions.

CRISPR/Cas genome editing systems

In nature, CRISPR/Cas system serves as an adaptive immune system of bacteria and archaea against the invading foreign DNA originating from plasmids and bacteriophages. The CRISPR/Cas9 system was the first to be discovered and modified into an efficient genome editing tool (Ishino etĀ al., 1987; Jinek etĀ al., 2012). The CRISPR/Cas9 technology comprises two components: the Cas9 endonuclease and the single guide RNA (sgRNA), produced by linking CRISPR RNA (crRNA) with trans-activating crRNA (tracrRNA) and is generally designed with a specific 20-nucleotide spacer sequence complementary to the ā€˜target’ DNA. For CRISPR/Cas9-mediated genome editing, sgRNA first binds to the DNA target and then recruits Cas9 endonuclease. Next, Cas9 endonuclease thoroughly searches a protospacer-adjacent motif (PAM) sequence, i.e., 5′-NGG-3′ (for S. pyogenes), in the target DNA and snips the complementary and the non-complementary strands using its two nuclease domains, HNH and RuvC, respectively, producing a blunt DSB (Ran etĀ al., 2013). To expand the range of this technology, several subsequent modifications were introduced into the SpCas9 for recognition of different PAM sequences present in the target DNA, like SpCas9-VQR (5’-NGAN-3′ or 5’-NGNG-3′), SpCas9-EQR (5’-NGAG-3′) SpCas9-VRER (5’-NGCG-3′) and xCas9 (5’-NG-3′, 5’-GAA-3′, and 5’-GAT-3′) (Hu etĀ al., 2018; Yamamoto etĀ al., 2019). Moreover, the discoveries of different PAM site-recognizing Cas9 endonucleases from several other prokaryotes, viz., Cas9 from Streptococcus thermophilus, Neisseria meningitidis, Brevibacillus laterosporus, Staphylococcus aureus, and Geobacillus stearothermophilus identifies 5’-NNAGAAW-3′ and 5′-NGGNG-3′, 5’-NNNNGATT-3′, 5’-NNNCND-3′, 5’-NNGRRT-3′, and 5′-NNNNCRAA-3′ PAM sites, respectively, have also increased the puissance of the technology (Kim etĀ al., 2021). Another CRISPR/Cas technology, CRISPR/Cas12a (previously known as CRISPR from Prevotella and Francisella1) system uses a 24-nucleotide spacer complementary sequence for crRNA-DNA/gRNA-DNA binding, doesn’t require a tracrRNA and possesses a smaller endonuclease than most Cas9 orthologs. CRISPR/Cas12a generates staggered-end DSBs after recognizing an AT-rich PAM sequence with a high frequency in the genome and is proving to be a better substitute for CRISPR/Cas9 (Moon etĀ al., 2018). Besides, CRISPR/Cas13a is a single RNA-guided RNA-editing system that needs a crRNA containing a 28-nucleotide spacer complementation sequence to bind adjacent to a protospacer flanking sequence (3′-A/U/C-5′) for Cas13a-mediated target recognition. Cas13a was first identified from Leptotrichia shahii and was demonstrated to cleave single-stranded RNAs without the requirement of a tracrRNA (Robertson etĀ al., 2022).

Biotic stress tolerance in horticultural crops using CRISPR/Cas technology

Biotic stress involves the interaction of plants with plant pathogens such as bacteria, viruses, fungi, oomycetes, nematodes, etc., that hampers the normal growth and development of plants leading to a huge loss in quality and yield (around 30% of crop production worldwide) (van Esse etĀ al., 2020). The generation of disease-resistant crop varieties using CRISPR/Cas technologies has proven to be effective in combating plant diseases in fruits and vegetables (TableĀ 1).

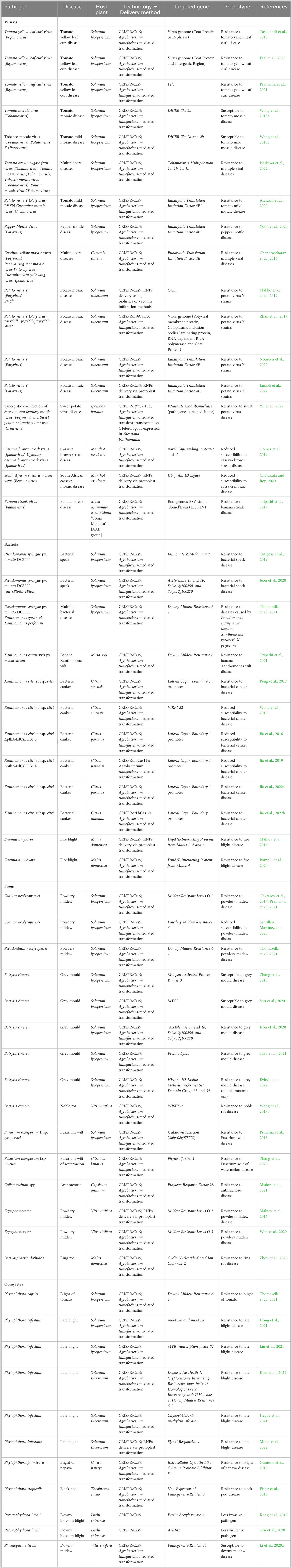

TableĀ 1

PathogenDiseaseHost plantTechnology & Delivery methodTargeted genePhenotypeReferences
Viruses
Tomato yellow leaf curl virus (Begomovirus)Tomato yellow leaf curl diseaseSolanum lycopersicumCRISPR/Cas9; Agrobacterium tumefaciens-mediated transformationVirus genome (Coat Protein or Replicase)Ā Resistance to tomato yellow leaf curl diseaseTashkandi etĀ al., 2018
Tomato yellow leaf curl virus (Begomovirus)Tomato yellow leaf curl diseaseSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Virus genome (Coat Protein and Intergenic Region)Resistance to tomato yellow leaf curl diseaseFaal etĀ al., 2020
Tomato yellow leaf curl virus (Begomovirus)Tomato yellow leaf curl diseaseSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
PeloResistance to tomato yellow leaf curl diseasePramanik etĀ al., 2021
Tomato mosaic virus (Tobamovirus)Tomato mosaic diseaseSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
DICER-like 2bSusceptible to tomato mosaic diseaseWang etĀ al., 2018a
Tobacco mosaic virus (Tobamovirus), Potato virus X (Potexvirus)Tomato mild mosaic diseaseSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
DICER-like 2a and 2bSusceptible to tomato mild mosaic diseaseWang etĀ al., 2018c
Tomato brown rugose fruit virus (Tobamovirus), Tomato mosaic virus (Tobamovirus), Tobacco mosaic virus (Tobamovirus), Youcai mosaic virus (Tobamovirus)Multiple viral diseasesSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Tobamovirus Multiplication 1a, 1b, 1c, 1dResistance to multiple viral diseasesIshikawa etĀ al., 2022
Potato virus Y (Potyvirus) PVYN Cucumber mosaic virus (Cucumovirus)Tomato mild mosaic diseaseSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Eukaryotic Translation Initiation Factor 4E1Resistance to tomato mild mosaic diseaseAtarashi etĀ al., 2020
Pepper Mottle Virus (Potyvirus)Pepper mottle diseaseSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Eukaryotic Translation Initiation Factor 4E1Resistance to
pepper mottle disease
Yoon etĀ al., 2020
Zucchini yellow mosaic virus (Potyvirus),
Papaya ring spot mosaic virus-W (Potyvirus),
Cucumber vein yellowing virus (Ipomovirus)
Multiple viral diseasesCucumis sativusCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Eukaryotic Translation Initiation Factor 4EResistance to multiple viral diseasesChandrasekaran etĀ al., 2016
Potato virus Y
(Potyvirus)
PVYO
Potato mosaic diseaseSolanum tuberosumCRISPR/Cas9; RNPs delivery using
biolistics or vacuum infiltration methods
CoilinResistance to potato virus Y strainsMakhotenko etĀ al., 2019
Potato virus Y (Potyvirus)
PVYO-FL, PVYN-Jg, PVYN:O-Mb112
Potato mosaic diseaseSolanum tuberosumCRISPR/LshCas13; Agrobacterium tumefaciens-mediated transformationVirus genome (Potyviral membrane protein, Cytoplasmic inclusion bodies laminating protein, RNA-dependent RNA polymerase and Coat Protein)Resistance to potato virus Y strainsZhan etĀ al., 2019
Potato virus Y
(Potyvirus)
Potato mosaic diseaseSolanum tuberosumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Eukaryotic Translation Initiation Factor 4EResistance to potato virus Y strainsNoureen etĀ al., 2022
Potato virus Y
(Potyvirus)
Potato mosaic diseaseSolanum tuberosumCRISPR/Cas9; RNPs delivery via protoplast transformationEukaryotic Translation Initiation Factor 4E1Resistance to potato virus Y strainsLucioli etĀ al., 2022
Synergistic co-infection of Sweet potato feathery mottle virus (Potyvirus) and Sweet potato chlorotic stunt virus (Crinivirus)Sweet potato virus diseaseIpomoea batatasCRISPR/RfxCas13d; Agrobacterium tumefaciens-mediated transient transformation (Heterologous expression in Nicotiana benthamiana)RNase III endoribonuclease (pathogenesis-related factor)Resistance to sweet potato virus diseaseYu etĀ al., 2022
Cassava brown streak virus (Ipomovirus) Ugandan cassava brown streak virus (Ipomovirus)Cassava brown streak diseaseManihot esculentaCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
novel Cap-Binding Protein-1 and -2Reduced susceptibility to cassava brown streak diseaseGomez etĀ al., 2019
South African cassava mosaic virus (Begomovirus)South African cassava mosaic diseaseManihot esculentaCRISPR/Cas9; RNPs delivery via protoplast transformationUbiquitin E3 LigaseReduced susceptibility to cassava mosaic diseaseChatukuta and Rey, 2020
Banana streak virus (Badnavirus)Banana streak diseaseMusa acuminate Ć—Ā balbisiana
ā€˜Gonja Manjaya’ [AAB group]
CRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Endogenous BSV strain Obinol’Ewai (eBSOLV)Resistance to banana streak diseaseTripathi etĀ al., 2019
Bacteria
Pseudomonas syringae pv. tomato DC3000Bacterial speckSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Jasmonate ZIM-domain 2Resistance to bacterial speck diseaseOrtigosa etĀ al., 2019
Pseudomonas syringae pv. tomato DC3000
(ΔavrPtoΔavrPtoB)
Bacterial speckSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Acetylenase 1a and 1b, Solyc12g100250, and Solyc12g100270Resistance to bacterial speck diseaseJeon etĀ al., 2020
Pseudomonas syringae pv. tomato DC3000, Xanthomonas gardneri, Xanthomonas perforansMultiple bacterial diseasesSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Downy Mildew Resistance 6-1Resistance to diseases caused by Pseudomonas syringae pv. tomato, Xanthomonas gardneri, X. perforansThomazella etĀ al., 2021
Xanthomonas campestris pv. musacearumBanana Xanthomonas wiltMusa spp.CRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Downy Mildew Resistance 6Resistance to banana Xanthomonas wilt diseaseTripathi etĀ al., 2021
Xanthomonas citriĀ subsp.Ā citriBacterial cankerCitrus sinensisCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Lateral Organ Boundary 1 promoterResistance to bacterial canker diseasePeng etĀ al., 2017
Xanthomonas citriĀ subsp.Ā citriBacterial cankerCitrus sinensisCRISPR/Cas9; Agrobacterium tumefaciens-mediated transformationWRKY22Reduced susceptibility to bacterial canker diseaseWang etĀ al., 2019
Xanthomonas citriĀ subsp.Ā citri
ΔpthA4:dCsLOB1.3
Bacterial cankerCitrus paradisiCRISPR/Cas9; Agrobacterium tumefaciens-mediated transformationLateral Organ Boundary 1 promoterReduced susceptibility to bacterial canker diseaseJia etĀ al., 2016
Xanthomonas citriĀ subsp.Ā citri
ΔpthA4:dCsLOB1.4
Bacterial cankerCitrus paradisiCRISPR/LbCas12a; Agrobacterium tumefaciens-mediated transformationLateral Organ Boundary 1 promoterReduced susceptibility to bacterial canker diseaseJia etĀ al., 2019
Xanthomonas citriĀ subsp.Ā citriBacterial cankerCitrus paradisiCRISPR/Cas9; Agrobacterium tumefaciens-mediated transformationLateral Organ Boundary 1 promoterResistance to bacterial canker diseaseJia etĀ al., 2022a
Xanthomonas citriĀ subsp.Ā citriBacterial cankerCitrus maximaCRISPR/ttLbCas12a; Agrobacterium tumefaciens-mediated transformationLateral Organ Boundary 1 promoterResistance to bacterial canker diseaseJia etĀ al., 2022b
Erwinia amylovoraFire blightMalus domesticaCRISPR/Cas9; RNPs delivery via protoplast transformationDspA/E-Interacting Proteins from Malus 1, 2 and 4Resistance to fire blight diseaseMalnoy etĀ al., 2016
Erwinia amylovoraFire blightMalus domesticaCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
DspA/E-Interacting Proteins from Malus 4Resistance to fire blight diseasePompili etĀ al., 2020
Fungi
Oidium neolycopersiciPowdery mildewSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Mildew Resistant Locus O 1Resistance to powdery mildew diseaseNekrasov etĀ al., 2017; Pramanik etĀ al., 2021
Oidium neolycopersiciPowdery mildewSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Powdery Mildew Resistance 4Reduced susceptibility to powdery mildew diseaseSantillÔn Martínez et al., 2020
Pseudoidium neolycopersiciPowdery mildewSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Downy Mildew Resistance 6-1Resistance to powdery mildew diseaseThomazella etĀ al., 2021
Botrytis cinereaGrey mouldSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Mitogen Activated Protein Kinase 3Susceptible to grey mould diseaseZhang etĀ al., 2018
Botrytis cinereaGrey mouldSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
MYC2Susceptible to grey mould diseaseShu etĀ al., 2020
Botrytis cinereaGrey mouldSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Acetylenase 1a and 1b, Solyc12g100250, and Solyc12g100270Resistance to grey mould diseaseJeon etĀ al., 2020
Botrytis cinereaGrey mouldSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Pectate LyaseResistance to grey mould diseaseSilva etĀ al., 2021
Botrytis cinereaGrey mouldSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Histone H3 Lysine Methyltransferases Set Domain Group 33 and 34Resistance to grey mould disease (double mutants only)Bvindi etĀ al., 2022
Botrytis cinereaNoble rotVitis viniferaCRISPR/Cas9; Agrobacterium tumefaciens-mediated transformationWRKY52Resistance to noble rot diseaseWang etĀ al., 2018b
Fusarium oxysporum f. sp. lycopersiciFusarium wiltSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Unknown function (Solyc08g075770)Resistance to Fusarium wilt diseasePrihatna etĀ al., 2018
Fusarium oxysporum f.sp. niveumFusarium wilt of watermelonCitrullus lanatusCRISPR/Cas9; Agrobacterium tumefaciens-mediated transformationPhytosulfokine 1Resistance to Fusarium wilt of watermelon diseaseZhang etĀ al., 2020
ColletotrichumĀ spp.AnthracnoseCapsicum annuumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Ethylene Response Factor 28Resistance to anthracnose diseaseMishra etĀ al., 2021
Erysiphe necatorPowdery mildewVitis viniferaCRISPR/Cas9; RNPs delivery via protoplast transformationMildew Resistant Locus O 7Resistance to powdery mildew diseaseMalnoy etĀ al., 2016
Erysiphe necatorPowdery mildewVitis viniferaCRISPR/Cas9; Agrobacterium tumefaciens-mediated transformationMildew Resistant Locus O 3Resistance to powdery mildew diseaseWan etĀ al., 2020
Botryosphaeria dothideaRing rotMalus domesticaCRISPR/Cas9; Agrobacterium tumefaciens-mediated transformationCyclic Nucleotide-Gated Ion Channels 2Resistance to ring rot diseaseZhou etĀ al., 2020
Oomycetes
Phytophthora capsiciBlight of tomatoSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Downy Mildew Resistance 6-1Resistance to blight of tomatoThomazella etĀ al., 2021
Phytophthora infestansLate blightSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
miR482b and miR482cResistance to late blight diseaseHong etĀ al., 2021
Phytophthora infestansLate blightSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
MYB transcription factor S2Resistance to late blight diseaseLiu etĀ al., 2021
Phytophthora infestansLate blightSolanum tuberosumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Defense, No Death 1, Cryptochrome Interacting Basic helix–loop–helix 1/ Homolog of Bee 2 Interacting with IBH 1-like 1, Downy Mildew Resistance 6-1Resistance to late blight diseaseKieu etĀ al., 2021
Phytophthora infestansLate blightSolanum tuberosumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Caffeoyl-CoA O-methyltransferaseResistance to late blight diseaseHegde etĀ al., 2021
Phytophthora infestansLate blightSolanum tuberosumCRISPR/Cas9; RNPs delivery via protoplast transformationSignal Responsive 4Resistance to late blight diseaseMoon etĀ al., 2022
Phytophthora palmivoraBlight of papayaCarica papayaCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Extracellular Cystatin-Like Cysteine Protease Inhibitor 8Resistance to blight of papaya diseaseGumtow etĀ al., 2018
Phytophthora tropicalisBlack podTheobroma cacaoCRISPR/Cas9; Agrobacterium tumefaciens-mediated transformationNon-Expressor of Pathogenesis-Related 3Resistance to black pod diseaseFister etĀ al., 2018
Peronophythora litchiiDowny blossom blightLitchi chinensisCRISPR/Cas9Pectin Acetylesterase 5Less invasive pathogenKong etĀ al., 2019
Peronophythora litchiiDowny blossom blightLitchi chinensisCRISPR/Cas9Avh142LessĀ virulence pathogenSitu etĀ al., 2020
Plasmopara viticolaDowny mildewVitis viniferaCRISPR/Cas9; Agrobacterium tumefaciens-mediated transformationPathogenesis-Related 4bSusceptible to downy mildew diseaseLi etĀ al., 2020a

CRISPR/Cas-mediated targeting of genes in fruits and vegetables for imparting resistance against biotic stress.

CRISPR/Cas mediated resistance against viruses

Plant viruses are perilous pathogens causing massive destruction of productivity in horticultural crops. Based on genome composition, plant viruses are grouped into five major categories: double-stranded RNA (dsRNA) viruses, positive sense single-stranded RNA (+ssRNA) viruses, negative sense single-stranded RNA (-ssRNA) viruses, single-stranded DNA (ssDNA) viruses and double-stranded DNA (dsDNA) viruses (Roossinck etĀ al., 2015). Researchers have employed two main strategies to design sgRNAs for engineering virus-resistant plants. The first strategy involves direct targeting of the virus genome. For example, Tomato yellow leaf curl virus (TYLCV) is a whitefly-transmitted monopartite Begomovirus that causes significant loss of worldwide tomato production. Engineering tomato plants with CRISPR/Cas9 targeting the sequences encoding intergenic region (IR) and coat protein (CP) produced TYLCV-resistant plants where Cas9 was cloned under a virus-inducible rgsCaM promoter to overcome any potential off-target effects of Cas9 (Ghorbani Faal etĀ al., 2020). In the plantain banana ā€˜Gonja Manjaya’, the presence of endogenous Banana streak virus (eBSV) as integrative viral elements in the genome limits banana production. CRISPR/Cas9 was utilized to introduce mutations that prevent proper transcription and/or translation into functional viral proteins to produce eBSV-resistant banana plants (Tripathi etĀ al., 2019). Another devastating pathogen, Potato virus Y (PVY), belonging to the +ssRNA genome containing genus Potyvirus, brings about an 80% decrease in yield and poor tuber quality in potatoes. Targeting the PVY genome with CRISPR/LshCas13 system at the sequences encoding potyviral membrane protein (P3), cytoplasmic inclusion bodies laminating protein (CI), RNA-dependent RNA polymerase (NIb) or coat protein (CP) resulted in resistance against multiple strains of PVY in transgenic potato plants (Zhan etĀ al., 2019). To enhance immunity in edited sweet potato plants against sweet potato virus disease, CRISPR/RfxCas13d system was used to target the Sweet potato chlorotic stunt virus genome encoding pathogenesis-related factor, RNase III endoribonuclease (Yu etĀ al., 2022).

The second strategy requires the manipulation of plant genes responsible for rendering plants susceptible to viruses. For instance, TYLCV-resistant tomatoes were obtained by CRISPR/Cas9-mediated mutagenesis of SlPelo that encodes a mRNA surveillance factor (Pramanik et al., 2021). CRISPR/Cas9-mediated multiplexed targeting of susceptibility genes in tomato plants also induces strong resistance to multiple viral diseases. Tomato Tobamovirus Multiplication 1a-d are functionally redundant genes essential for Tobamovirus multiplication in tomato. The generation of quadruple-mutant of SlTOM1a-d through CRISPR/Cas9 multiplexed genome editing exhibited enhanced resistance to Tobamoviruses (Ishikawa et al., 2022). RNA viruses hijack host cellular machinery, including eIF4E, eIF4G, and their isoforms, to complete their life cycle (Sanfaçon, 2015). Different isoforms of eIF4E were targeted by CRISPR/Cas9 to generate resistant varieties in tomato, potato, and cucumber against viruses belonging to Potyviridae (Chandrasekaran et al., 2016; Atarashi et al., 2020; Yoon et al., 2020; Lucioli et al., 2022; Noureen et al., 2022). Cassava is a tuberous root crop and a staple source of food for sub-Saharan African people. South African cassava mosaic virus (SACMV) is a whitefly-transmitted bipartite Begomovirus that causes regional pandemics in cassava production in East and Central Africa. Transformation of SACMV-susceptible and -resistant varieties of cassava protoplasts with a ribonucleoprotein complex containing the Cas9 nuclease and sgRNA (CRISPR/Cas9 RNPs) targeting the Ubiquitin E3 Ligase gene resulted in less virus titre in protoplasts of susceptible variety, similar to that of the resistant variety protoplasts (Chatukuta and Rey, 2020). Another group used RNP-mediated delivery of CRISPR/Cas9 machinery to enable editing of at least one allele of Coilin gene in potato. The edited Coilin gene-containing potato plants of the Chicago cultivar showed increased resistance to PVY (Makhotenko et al., 2019).

CRISPR/Cas mediated resistance against bacteria

Citrus canker, caused by Xanthomonas citri subsp. citri (Xcc), is one of the most economically destructive bacterial disease owing to its appearance at pre- and post-harvest stages. To suppress the immunity of citrus plants, Xcc secretes a TALE, PthA4 that binds to effector-binding elements present at the promoter region of Lateral Organ Boundaries 1 (LOB1) (Jia etĀ al., 2016). Citrus canker resistance was first reported in Duncan grapefruit, where CRISPR/Cas9-mediated alteration of PthA4 effector binding elements of one allele of biallelic gene LOB1 gave partial resistance (Jia etĀ al., 2016), and of two alleles gave complete resistance to Xcc (Jia etĀ al., 2022a). In Wanjincheng orange, a multiplexed CRISPR/Cas9 genome editing strategy was applied to delete the entire PthA4 effector binding elements from the promoter region of all the alleles of CsLOB1 to produce citrus canker-resistant varieties (Peng etĀ al., 2017) In Arabidopsis, Downy Mildew Resistance 6 (DMR6) encodes for 2-oxoglutarate Fe(II)-dependent oxygenase that facilitates pathogen infection. In tomato, targeting DMR6 ortholog, SlDMR6-1, via CRISPR/Cas9 resulted in broad-spectrum resistance against multiple pathogens, Pseudomonas syringae pv. tomato DC3000, Xanthomonas gardneri, X. perforans, Pseudoidium neolycopersici, and Phytophthora capsici (Thomazella etĀ al., 2021). Likewise, CRISPR/Cas9-mediated mutagenesis of MusaDMR6 conferred resistance to Xanthomonas campestris pv. musacearum, which causes banana Xanthomonas wilt that accounts for huge losses in banana production in East and Central Africa (Tripathi etĀ al., 2021). In apple, two independent research groups using two different transgene-free CRISPR/Cas9 genome editing strategies have demonstrated that editing of one or more genes belonging to the susceptibility gene family, DspA/E-Interacting Proteins From Malus, could alleviate fire blight susceptibility to Erwinia amilovora (Malnoy etĀ al., 2016; Pompili etĀ al., 2020).

CRISPR/Cas mediated resistance against fungi

The successful application of CRISPR/Cas technology to mutate the genes responsible for susceptibility has led to the generation of horticultural crops resistant to fungal diseases. Oidium neolycopersici and Erysiphe necator cause powdery mildew in tomato and grapevine plants, respectively. Mildew Resistant Locus O (Mlo) encodes a seven-transmembrane domain-containing protein that is conserved throughout angiosperms and negatively regulates immunity to powdery mildew disease (Acevedo-Garcia etĀ al., 2014). In tomato, two independent reports revealed CRISPR/Cas9-mediated targeting of SlMlo1 confer enhanced resistance to powdery mildew (Nekrasov etĀ al., 2017; Pramanik etĀ al., 2021). Further, (Nekrasov etĀ al., 2017) tested and selfed a specific line of T0 transformants to obtain T-DNA-free slmlo1 plants. Transgene-free powdery mildew-resistant grapevine protoplasts were obtained by knocking out VvMlo7 via RNP-mediated delivery of CRISPR/Cas9 genome editing machinery (Malnoy etĀ al., 2016). Another report showed CRISPR/Cas9-based alteration of VvMlo3 was able to produce powdery mildew-resistant grapevine plants (Wan etĀ al., 2020). The multi-host fungal pathogen, Botrytis cinerea that causes grey mold disease in tomatoes and noble rot disease in grapevines, poses a serious threat to tomato and grapevine production at both pre- and post-harvest levels. The function of several tomato genes, including the well-characterized genes like Mitogen Activated Protein Kinase 3 (MAPK3), SlMYC2, Pectate Lyase, Acetylase 1a and 1b, and genes of unknown functions like Solyc12g100250, and Solyc12g100270, were identified during Botrytis cinerea infection through the generation of deletion mutants by CRISPR/Cas9. While knock-out mutants of SlMAPK3 and SlMYC2 were susceptible to Botrytis cinerea, loss-of-function of the other above-mentioned genes rendered tomato plants resistant to grey mold disease (Zhang etĀ al., 2018; Jeon etĀ al., 2020; Shu etĀ al., 2020; Silva etĀ al., 2021). In addition, both the single and double knock-out mutants of tomato Histone H3 Lysine Methyltransferases Set Domain Group33 and 34 (SDG33 and SDG34) produced via CRISPR/Cas9 exhibited alterations in H3K36 and H3K4 methylations. However, only the sdg33sdg34 plants and not sdg33 and sdg34 plants exhibited resistance to Botrytis cinerea (Bvindi etĀ al., 2022). The fungal pathogen Colletotrichum spp. causes anthracnose of chilli resulting in major pre- and post-harvest losses. In chilli, CRISPR/Cas9-mediated modification Ethylene Response Factor 28 produced mutant lines with elevated resistance against anthracnose (Mishra etĀ al., 2021). The causal organism of ring rot disease in apple is Botryosphaeria dothidea. CRISPR/Cas9-produced apple Cyclic Nucleotide-Gated Ion Channels 2 knock-out mutant calli exhibited significantly lower growth of B. dothidea, increased levels of salicylic acid accumulation and elevated expression of several defense-related genes including Pathogenesis-related genes, MdPR1, MdPR2, MdPR4, MdPR5, MdPR8, and MdPR10a compared to wild-type calli (Zhou etĀ al., 2020).

CRISPR/Cas mediated resistance against oomycetes

The most-well studied oomycete, Phytophthora infestans is famous for causing the devastating Irish potato famine of the 1840s, killing over a million people. Phytophthora infestans causes late blight in potato and tomato plants. Independent studies showing CRISPR/Cas9-targeted mutagenesis of five potato susceptibility genes, Defense, No Death1, CIB1/HBI1-like 1, DMR6-1, Caffeoyl-CoA O-methyltransferase and Signal Responsive 4, conferred resistance to late blight disease (Hegde etĀ al., 2021; Kieu etĀ al., 2021; Moon etĀ al., 2022). However, knocking-out of MYB transcription factor S2 by CRISPR/Cas9 produced tomato mutants susceptible to P. infestans with increased necrotic cells, lesion sizes, disease index, and reduced expression of defense-related genes, indicating that SlMYBS2 acts as a positive regulator of resistance to P. infestans (Liu etĀ al., 2021). CRISPR/Cas9-engineered cacao plants for the susceptible gene, Non-Expressor of Pathogenesis-Related 3, exhibited enhanced resistance to Phytophthora tropicalis (Fister etĀ al., 2018).

Editing of the virulent genes in oomycete pathogens provide an alternative strategy to achieve disease resistance. Phytophthora palmivora causes worldwide destruction of papaya plantations and reduction in yield. Extracellular cystatin-like cysteine protease inhibitor 8 is unique to P. palmivora and contributes to the virulence of the pathogen by inhibiting papain. CRISPR/Cas9-mediated PpalEPIC8 editing produced a less virulent version of the pathogen with reduced pathogenicity (Gumtow etĀ al., 2018). Another oomycete, Peronophythora litchii causes downy blossom blight of litchi that results in tremendous economic loss in litchi production every year (Situ etĀ al., 2020). Two independent research groups designed CRISPR/Cas9-based modification of two different virulent genes, Pectin Acetylesterase 5 and Avh142, from P. litchii. PlPAE5 encodes pectin acetylesterases that cause deacetylation of pectin and Avh142 is an RXLR effector that induces plant cell-death. Both strategies resulted in the production of less invasive and less virulent variants of P. litchii that are less capable of infecting litchi plants (Kong etĀ al., 2019; Situ etĀ al., 2020).

Abiotic stress tolerance in horticultural crops using CRISPR/Cas technology

Plants experience single or multiple abiotic stresses simultaneously, which can lead to 50%-70% loss of crop productivity and poses a direct threat to achieving global food security. (Francini and Sebastiani, 2019). Apart from drought, salinity and temperature, the presence of heavy metals in the soil and excessive use of herbicides and weedicides also contribute to abiotic stress factors (Hamdan etĀ al., 2022). Targeting one or more genes concomitantly utilising CRISPR/Cas technologies could be propitious for engineering abiotic stress-resilient varieties of fruits and vegetables (TableĀ 2).

TableĀ 2

StressPlant speciesDelivery methodTargeted genePhenotypeReferences
Drought stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Mitogen Activated Protein Kinase 3Sensitive to drought stressWang etĀ al., 2017
Drought stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Non-expressor of Pathogenesis-Related 1Sensitive to drought stressLi etĀ al., 2019
Drought stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Lateral Organ Boundaries Domain 40Tolerance to drought stressLiu etĀ al., 2020
Drought stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Gibberellin-Insensitive Dwarf 1aResistance to drought stressIllouz-Eliaz etĀ al., 2020
Drought stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Aberrant Growth and Death 2-like Defense Response Protein 1Tolerance to drought stressWang et al., 2021a
Drought stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Flavin-dependent Monooxygenase 1Sensitive to drought stressWang et al., 2021a
Drought stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Auxin Response Factor 4Tolerance to drought stressChen etĀ al., 2021
Drought stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Histone H3 Lysine Methyltransferases Set Domain Group 33 and 34Resistance to drought stress (both single and double mutants)Bvindi etĀ al., 2022
Drought stressSolanum tuberosumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
FLORE (long non-coding RNA counterpart of Cycling DOF Factor 1)Sensitive to drought stressRamĆ­rez Gonzales etĀ al., 2021
Salinity stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Auxin Response Factor 4Tolerance to salinity stressBouzroud etĀ al., 2020
Salinity stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
High-affinity K+ 20Sensitive to salinity stressWang etĀ al., 2020
Salinity stressSolanum lycopersicumCRISPR/ LbCas12a;
Agrobacterium tumefaciens-mediated transformation
High-affinity K+ Transporter 1;2Tolerance to salinity stressVu etĀ al., 2020
Salinity stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Hybrid Proline-rich Protein 1Tolerance to salinity stressTran etĀ al., 2021
Salinity stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Salt Overly Sensitive 1Sensitive to salinity stressWang et al., 2021b
Salinity stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Mitogen Activated Protein Kinase 3Sensitive to salinity stressShu etĀ al., 2022
Salinity stressSolanum tuberosumCRISPR/Cas9; RNPs delivery using biolistics or vacuum infiltration methodsCoilinTolerance to salinity and osmotic stressMakhotenko etĀ al., 2019
Salinity stressCucurbita moschataCRISPR/Cas9;
Agrobacterium rhizogenes-mediated transformation
Respiratory Burst Oxidase Homolog DSensitive to salinity stressHuang etĀ al., 2019
Heat stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Agamous-like 6Capable of seedless fruit production under heat stressKlap etĀ al., 2017
Heat stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Brassinazole Resistant 1Sensitive to heat stressYin etĀ al., 2018
Heat stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Mitogen Activated Protein Kinase 3Tolerance to heat stressYu etĀ al., 2019
Heat stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Calcium-Dependent Protein Kinase 28Sensitive to heat stressHu etĀ al., 2021
Heat stressLactuca sativaCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
9-cis-Epoxycarotenoid Dioxygenase 4Seed germination at high temperatureBertier etĀ al., 2018
Cold stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
C-Repeat Binding Factors/ Dehydration-Responsive Element Binding Factor 1Sensitive to cold stressLi etĀ al., 2018
Herbicide stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Acetolactate Synthase 1Resistance to herbicide stressDanilo etĀ al., 2019
Herbicide stressSolanum lycopersicum, Solanum tuberosumCRISPR/Cas9 (cytidine base editors); Agrobacterium tumefaciens-mediated transient transformationAcetolactate SynthaseResistance to herbicide (chlorsulfuron) stressVeillet etĀ al., 2019
Herbicide stressSolanum lycopersicumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transient transformation
Acetolactate SynthaseResistance to herbicide stressYang etĀ al., 2022
Herbicide stressSolanum tuberosumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Acetolactate Synthase 1Resistance to herbicide stressButler etĀ al., 2015
Herbicide stressManihot esculentaCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
5-Enolpyruvylshikimate-3-phosphate SynthaseResistance to herbicide stressHummel etĀ al., 2018
Herbicide stressCitrullus lanatusCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Acetolactate SynthaseResistance to herbicide stressTian etĀ al., 2021
Herbicide stressMalus domestica,
Pyrus communis
CRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Acetolactate SynthaseResistance to herbicide (Chlorsulfuron) stressMalabarba etĀ al., 2021
Herbicide stressCitrus sinensisĀ Ć—Ā Poncirus trifoliataCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Acetolactate SynthaseResistance to herbicide (Imazapyr) stressAlquézar et al., 2022
High light stressSolanum tuberosumCRISPR/Cas9;
Agrobacterium tumefaciens-mediated transformation
Alternative oxidaseResistance to high light stressHua etĀ al., 2020

CRISPR/Cas-mediated targeting of genes in fruits and vegetables for imparting resistance against abiotic stress.

CRISPR/Cas mediated resistance against drought stress

Plants under drought stress manifest complex symptoms at multiple morphological, physiological, and biochemical levels that consequently lower the quality and yield of the produce. Knocking-out of tomato Auxin Response Factor 4 (ARF4) via CRISPR/Cas9 technology resulted in increased drought resistance and revival ability with induced morphological changes in stomata and vascular bundles, higher content of antioxidant substances, and up-regulated expression of ABA signal transduction pathway genes, like Scarecrow-Like 3 and Abscisic acid Insensitive 5 (Chen etĀ al., 2021). Pipecolic acid is known to play an important role in salicylic acid-mediated plant immune response. CRISPR/Cas9-mediated targeting of tomato pipecolic acid biosynthetic pathway gene, Aberrant Growth and Death2-like Defense Response Protein 1, has led to increased drought resistance with enhanced CO2 assimilation, photosystems activities, antioxidant enzymes activities, ascorbate and glutathione content, and reduced reactive oxygen species accumulation, lipid peroxidation, and protein oxidation than the wild-type tomato plants (Wang etĀ al., 2021a). Interestingly, the sdg33 and sdg34 tomato plants were drought-resistant and exhibited high water retention capacity during drought and improved recovery and survival, while sdg33sdg34 plants were superior drought stress-resistant (Bvindi etĀ al., 2022).

Contrarily, the positive regulators of drought stress were also identified by using CRISPR/Cas technology. For example, CRISPR/Cas9-generated SlMAPK3 mutant plants were drought-sensitive showing severe wilting symptoms, higher hydrogen peroxide content, and lower antioxidant enzymes activities as compared to the wild-type tomato plants (Wang etĀ al., 2017). Knock-out mutant of another tomato pipecolic acid-related gene, Flavin-dependent Monooxygenase 1, exhibited damaged photosystems and impaired antioxidant systems and thus were more sensitive to drought (Wang etĀ al., 2021a). In potato, Cycling Dof Factor 1 together with a long non-coding RNA (lncRNA) counterpart, StFLORE, regulate vegetative reproduction and water homeostasis. CRISPR/Cas9-mediated editing of StFLORE promoter region rendered potato mutant plants sensitive to drought due to disruption of stomatal growth and diurnal opening of stomata in an ABA-dependent manner (RamĆ­rez Gonzales etĀ al., 2021).

CRISPR/Cas mediated resistance against salinity stress

Salinity stress impedes water absorption by altering the osmotic balance between plant roots and surrounding soil and severely affects the yield and quality of crops. CRISPR/Cas9-based precise removal of PRD domain, 8CM domain, or both of Hybrid Proline-rich Protein 1, resulted in high salinity tolerance at the germination and vegetative stages of tomato plants (Tran etĀ al., 2021). CRISPR/Cas9 slarf4 mutants displayed decreased leaf area, CO2 assimilation, stomatal conductance, enhanced water use efficiency, and salt and osmotic stress resistance in comparison to wild-type tomato plants (Bouzroud etĀ al., 2020). Transgene-free CRISPR/Cas12a-mediated HDR-based editing of one allele of tomato High-affinity K+ Transporter 1;2 has led to increased salinity stress tolerance, which was completely inherited by theprogeny plants (Vu etĀ al., 2020). Another transgene-free genome editing approach was successful when potato plants manifested tolerance to salt and osmotic stress following CRISPR/Cas9 RNP-based editing of Coilin gene (Makhotenko etĀ al., 2019).

Alternatively, CRISPR/Cas9-mediated alteration of Salt Overlay Sensitive 1 resulted in increased sensitivity to salinity stress in tomato (Wang etĀ al., 2021b). CRISPR/Cas9 slmapk3 plants, were showcasing salt stress-sensitivity with increased salinity-induced cell death, chlorophyll degradation, and reduced activities of antioxidant enzymes than wild-type tomato plants (Shu etĀ al., 2022). In Cucurbita moschata, CRISPR/Cas9-based editing of Respiratory Burst Oxidase Homolog D showed salt stress hypersensitive phenotype with a decrease in root apex H2O2 and K+ content (Huang etĀ al., 2019).

CRISPR/Cas mediated resistance against temperature stress

Temperature stress occurs due to continuous rise or drop in temperature above or below the optimum temperature necessary for plant growth over a period of time. Both heat and cold stresses seriously affect the growth and productivity of crops. Despite being sensitive to drought and salinity stresses, tomato CRISPR/Cas9 slmapk3 displayed heat stress resistance accompanied by reduced wilting, membrane damage, and enhanced expression of transcripts of heat stress transcription factors and heat shock proteins (Yu etĀ al., 2019). Conversely, CRISPR/Cas9-based modification of Calcium-Dependent Protein Kinase 28 rendered tomato plants sensitive to heat stress with increased levels of protein oxidation and lower antioxidant enzymes activities than wild-type plants (Hu etĀ al., 2021). In lettuce, CRISPR/Cas9-generated knock-out mutants of 9-cis-Epoxycarotenoid Dioxygenase 4 were capable of seed germination above optimum temperature (Bertier etĀ al., 2018).

Compared to wild-type tomato plants, CRISPR/Cas9-produced C-repeat Binding Factor 1 knock-out plants demonstrated sensitivity to cold stress accompanied by more severe chilling-injury symptoms, higher electrolyte leakage, and less proline and protein contents, and antioxidant enzymes activities (Li etĀ al., 2018).

CRISPR/Cas mediated resistance against herbicide stress

Excessive use of herbicides and weedicides causes herbicide stress that leaves a major effect on the physiology of the non-targeted crop plants. CRISPR/Cas technology was applied to prepare herbicide-resistant plants. For example, the tomato Acetolactate Synthase (ALS) gene was targeted using CRISPR/Cas9 technology to create herbicide-resistant plants (Yang et al., 2022). Moreover, transgene-free HDR-mediated genome editing of SlALS1 using Agrobacterium-assisted CRISPR/Cas9 delivery produced herbicide resistance in tomato plants (Danilo et al., 2019). Transgene-free herbicide-resistant watermelon plants were obtained via CRISPR/Cas9-mediated genome editing of ClALS (Tian et al., 2018). Likewise, PcALS gene of pear plant was manipulated by CRISPR/Cas9-based base-editing to obtain resistance to the herbicide, chlorosulfuron (Malabarba et al., 2021). Also, CRISPR/Cas9 base-editing of ALS gene was used to produce T-DNA-free imazapyr-resistant citrus Carrizo citrange plants (Alquézar et al., 2022).

Conclusion and future perspective

The application of CRISPR/Cas technology has proven to be quite successful in modern agriculture and in improving the agronomic traits of crops. However, barring tomato plants, the usage of CRISPR/Cas technology is very limited among horticultural crops. Though this technology is now being extended to different horticultural crops, researchers are experiencing several challenges during implementation. The success of CRISPR/Cas application depends on the availability of information about the whole-genome sequence, annotation of genes, and their functions in a particular crop. Therefore, more genome sequencing and functional genomics studies on vegetable and fruit plants are required due to the availability of limited data regarding the identification and characterization of genes controlling important traits, such as quality, yield, biotic, and abiotic stress tolerance (Li etĀ al., 2022). Furthermore, polyploidy is common in vegetable and fruit crops, which make it difficult to study the genome due to their highly diverse and complex nature (Chen etĀ al., 2019). Also, CRISPR/Cas technology has mostly been used to create loss-of-function mutations, which limits its application as gain-of-function mutations in positive regulators controlling important agronomic traits might prove to be advantageous in obtaining desired phenotype(s) in horticultural crops (Kim etĀ al., 2021). Interestingly, a recent report demonstrating successful single or multiplexed activation of gene(s) present in anthocyanin and lignin biosynthesis pathways of pear calli via a third-generation CRISPR activation-mediated gain-of-function mutation system, CRISPR-Act3.0, raised the prospect of further broadening its application to other vegetable and fruit crops (Ming etĀ al., 2022). Another major challenge resides in the perception of common people that do not make any distinction between genetically-modified and genome-edited crops and considers the production and consumption of both crop types to be hazardous to the environment and human health. Additionally, the absence of a common and unified legislative framework that differentiates genome-edited crops from genetically-modified crops and facilitates the production and marketing of genome-edited plants also aggravates the challenge (Bhatta and Malla, 2020). Every nation has drafted its legal framework for the release of genome-edited crops. In general, most countries of North and South America (USA, Canada, Argentina, Colombia), some countries of Asia (India, China, Japan), and Australia consider case-by-case procedures for the release of genome-edited crops and products, while most countries of Europe and New Zealand maintain a conservative approach by adhering to the same restrictive laws framed for production and release of both genetically-modified and genome-edited crops (Wang etĀ al., 2022; Rukavtsova etĀ al., 2023). The presence of the foreign DNA in GMOs is the main reason behind their non-acceptance in society, while the CRISPR/Cas-edited crops could be made transgene-free depending on the mode of delivery of CRISPR/Cas machinery during transformation and the choice of propagation method thereafter. Transgene can easily be removed from CRISPR/Cas-edited crops by self-pollinated sexual reproduction and off-target threat can be reduced by expressing CRISPR/Cas machinery under inducible promoters (Nekrasov etĀ al., 2017; Ghorbani Faal etĀ al., 2020). However, most horticultural crops are propagated vegetatively, especially fruit trees due to their long juvenile period. Moreover, propagation by sexual reproduction would produce transgene-free horticultural crops with undesirable traits as most of the important traits are best expressed when the corresponding genes are present in heterozygous conditions (Tsanova etĀ al., 2021). For the generation of CRISPR/Cas-edited transgene-free horticultural crops, RNP-mediated delivery of CRISPR/Cas machinery through particle bombardment or protoplast transformation using PEG remains the most reliable method, closely followed by Agrobacterium-mediated transient expression of CRISPR/Cas cassette. Interestingly, transgene-free genome-edited plants can be produced from Agrobacterium-mediated stably transformed horticultural plants by using FLP/FRT and CRE/LOX site-specific recombination systems or by adding two additional Cas9 cleavage target sites at the T-DNA borders (Li et al., 2020b; Wan etĀ al., 2021). The efficiency of transformation and regeneration of horticultural plants in case of both stable and transient transformation are quite low due to their recalcitrance nature towards regeneration protocols. Regeneration process involves tissue culture methods, which are quite difficult, expensive, time-consuming, and labour-intensive (Kumari etĀ al., 2022). Therefore, invention of new technology is required that can bypass the regeneration phase of transformed plants. Plant virus-mediated delivery of CRISPR/Cas machinery has the potency to bypass the regeneration phase as this method takes advantage of virus replication and translocation within plants. The only disadvantage of this process is the limited cargo capacity of most DNA and +ssRNA viruses, which makes delivery of large DNA sequences deletion-prone and thereby preferred replication and translocation of deletion mutant viral vectors over the original vectors (Tsanova etĀ al., 2021). Nevertheless, reports orchestrating the delivery of complete CRISPR/Cas9 machinery by Rhabdovirus and potato virus X and consequent successful editing of Nicotiana benthamiana genome enhances the possibility of extending the technology to horticultural plants (Ariga etĀ al., 2020; Ma etĀ al., 2020). Thus, transgene-free CRISPR/Cas-mediated gene/genome-edited mutants of horticultural crops are technically the same as those obtained in nature or from mutation breeding (Li etĀ al., 2022). Conventional breeding and mutation breeding, besides being time-consuming, laborious, and expensive, lack specificity and cause introgression of undesired traits due to linkage drag. Conversely, CRISPR/Cas technology is simple, fast, versatile, and introduces changes in the target gene/genome in a well-defined and efficient manner (Wolter etĀ al., 2019). Moreover, the ability of CRISPR/Cas technology to target multiple genes at one go with maximum precision compared to other existing technologies, and that too in a cost-effective manner, actually makes this technology truly exceptional for genome-edited plant breeding. The upcoming advancements in the CRISPR/Cas system itself and the associated technologies, such as delivery methods with or without regeneration phase, high-throughput sequence-based target analyses, whole genome sequencing, and other omics-based approaches, will simplify the process of identification of key genes controlling biotic and abiotic stress resistance pathways and thereby generation of biotic and abiotic stress-resistant plants.

Statements

Author contributions

AS: Conceptualization, Data curation, Writing – original draft, Writing – review & editing.

Funding

The author declares that no financial support was received for the research, authorship, and/or publication of this article.

Conflict of interest

The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

  • 1

    Acevedo-GarciaJ.KuschS.PanstrugaR. (2014). Magical mystery tour: MLO proteins in plant immunity and beyond. J. Physiol.204 (2), 273–281. doi:Ā 10.1111/nph.12889

  • 2

    AlquézarB.BenniciS.CarmonaL.GentileA.PeñaL. (2022). Generation of transfer-DNA-free base-edited citrus plants. Front. Plant Science.13. doi: 10.3389/fpls.2022.835282

  • 3

    ArigaH.TokiS.IshibashiK. (2020). Potato virus X vector-mediated DNA-free genome editing in plants. Plant Cell Physiol.61 (11), 1946–1953. doi:Ā 10.1093/pcp/pcaa123

  • 4

    AtarashiH.JayasingheW. H.KwonJ.KimH.TaninakaY.IgarashiM.et al. (2020). Artificially edited alleles of the eukaryotic translation initiation factor 4E1 gene differentially reduce susceptibility to cucumber mosaic virus and potato virus Y in tomato. Front. Microbiol.11. doi:Ā 10.3389/fmicb.2020.564310

  • 5

    BertierL. D.RonM.HuoH.BradfordK. J.BrittA. B.MichelmoreR. W. (2018). High-resolution analysis of the efficiency, heritability, and editing outcomes of CRISPR/Cas9-induced modifications of NCED4 in lettuce (Lactuca sativa). G3: Genes Genomes Genet.8 (5), 1513–1521. doi:Ā 10.1534/g3.117.300396

  • 6

    BhattaB. P.MallaS. (2020). Improving horticultural crops via crispr/cas9: Current successes and prospects. Plants.9 (10), 1–19. doi:Ā 10.3390/plants9101360

  • 7

    BouzroudS.GaspariniK.HuG.BarbosaM. A. M.RosaB. L.FahrM.et al. (2020). Down regulation and loss of auxin response factor 4 function using CRISPR/Cas9 alters plant growth, stomatal function and improves tomato tolerance to salinity and osmotic stress. Genes.11, (3). doi:Ā 10.3390/genes11030272

  • 8

    ButlerN. M.AtkinsP. A.VoytasD. F.DouchesD. S. (2015). Generation and inheritance of targeted mutations in potato (Solanum tuberosum L.) Using the CRISPR/Cas System. PloS One10, (12). doi:Ā 10.1371/journal.pone.0144591

  • 9

    BvindiC.LeeS.TangL.MickelbartM. V.LiY.MengisteT. (2022). Improved pathogen and stress tolerance in tomato mutants of SET domain histone 3 lysine methyltransferases. New Phytologist.235 (5), 1957–1976. doi:Ā 10.1111/NPH.18277

  • 10

    ChandrasekaranJ.BruminM.WolfD.LeibmanD.KlapC.PearlsmanM.et al. (2016). Development of broad virus resistance in non-transgenic cucumber using CRISPR/Cas9 technology. Mol. Plant pathology.17 (7), 1140–1153. doi:Ā 10.1111/mpp.12375

  • 11

    ChatukutaP.ReyM. E. C. (2020). A cassava protoplast system for screening genes associated with the response to South African cassava mosaic virus. Virol. J.17, (1). doi:Ā 10.1186/s12985-020-01453-4

  • 12

    ChenF.SongY.LiX.ChenJ.MoL.ZhangX.et al. (2019). Genome sequences of horticultural plants: past, present, and future. Horticulture Res.6 (1), 112. doi:Ā 10.1038/s41438-019-0195-6

  • 13

    ChenM.ZhuX.LiuX.WuC.YuC.HuG.et al. (2021). Knockout of auxin response factor SlARF4 improves tomato resistance to water deficit. Int. J. Mol. Sci.22, (7). doi:Ā 10.3390/ijms22073347

  • 14

    DaniloB.PerrotL.MaraK.BottonE.NoguĆ©F.MazierM. (2019). Efficient and transgene-free gene targeting using Agrobacterium-mediated delivery of the CRISPR/Cas9 system in tomato. Plant Cell Rep.38 (4), 459–462. doi:Ā 10.1007/s00299-019-02373-6

  • 15

    FisterA. S.LandherrL.MaximovaS. N.GuiltinanM. J. (2018). Transient expression of CRISPR/Cas9 machinery targeting TcNPR3 enhances defense response in theobroma cacao. Front. Plant Science.9. doi:Ā 10.3389/fpls.2018.00268

  • 16

    FranciniA.SebastianiL. (2019). Abiotic stress effects on performance of horticultural crops. Horticulturae5 (4), 67. doi:Ā 10.3390/horticulturae5040067

  • 17

    GaoC. (2021). Genome engineering for crop improvement and future agriculture. Cell.184 (6), 1621–1635. doi:Ā 10.1016/j.cell.2021.01.005

  • 18

    Ghorbani FaalP.FarsiM.SeifiA.Mirshamsi KakhkiA. (2020). Virus-induced CRISPR-Cas9 system improved resistance against tomato yellow leaf curl virus. Mol. Biol. Rep.47 (5), 3369–3376. doi:Ā 10.1007/s11033-020-05409-3

  • 19

    GomezM. A.LinZ. D.MollT.ChauhanR. D.HaydenL.RenningerK.et al. (2019). Simultaneous CRISPR/Cas9-mediated editing of cassava eIF4E isoforms nCBP-1 and nCBP-2 reduces cassava brown streak disease symptom severity and incidence. Plant Biotechnol. J.17 (2), 421–434. doi:Ā 10.1111/pbi.12987

  • 20

    GumtowR.WuD.UchidaJ.TianM. (2018). A Phytophthora palmivora extracellular cystatin-like protease inhibitor targets papain to contribute to virulence on papaya. Mol. Plant-Microbe Interactions.31 (3), 363–373. doi:Ā 10.1094/MPMI-06-17-0131-FI

  • 21

    HamdanM. F.KarlsonC. K. S.TeohE. Y.LauS. E.TanB. C. (2022). Genome editing for sustainable crop improvement and mitigation of biotic and abiotic stresses. Plants.11 (19), 2625. doi:Ā 10.3390/plants11192625

  • 22

    HegdeN.JoshiS.SoniN.KushalappaA. C. (2021). The caffeoyl-CoA O-methyltransferase gene SNP replacement in Russet Burbank potato variety enhances late blight resistance through cell wall reinforcement. Plant Cell Rep.40 (1), 237–254. doi:Ā 10.1007/s00299-020-02629-6

  • 23

    HongY.MengJ.HeX.ZhangY.LiuY.ZhangC.et al. (2021). Editing mir482b and mir482c simultaneously by crispr/cas9 enhanced tomato resistance to phytophthora infestans. Phytopathology.111 (6), 1008–1016. doi:Ā 10.1094/PHYTO-08-20-0360-R

  • 24

    HuZ.LiJ.DingS.ChengF.LiX.JiangY.et al. (2021). The protein kinase CPK28 phosphorylates ascorbate peroxidase and enhances thermotolerance in tomato. Plant Physiol.186 (2), 1302–1317. doi:Ā 10.1093/PLPHYS/KIAB120

  • 25

    HuJ. H.MillerS. M.GeurtsM. H.TangW.ChenL.SunN.et al. (2018). Evolved Cas9 variants with broad PAM compatibility and high DNA specificity. Nature.556 (7699), 57–63. doi:Ā 10.1038/nature26155

  • 26

    HuaD.MaM.GeG.SulemanM.LiH. (2020). The role of cyanide-resistant respiration in Solanum tuberosum L. against high light stress. Plant Biol.22 (3), 425–432. doi:Ā 10.1111/PLB.13098

  • 27

    HuangY.CaoH.YangL.ChenC.ShabalaL.XiongM.et al. (2019). Tissue-specific respiratory burst oxidase homolog-dependent H2O2 signaling to the plasma membrane H+-ATPase confers potassium uptake and salinity tolerance in Cucurbitaceae. J. Exp. Botany.70 (20), 5879–5893. doi:Ā 10.1093/jxb/erz328

  • 28

    HummelA. W.ChauhanR. D.CermakT.MutkaA. M.VijayaraghavanA.BoyherA.et al. (2018). Allele exchange at the EPSPS locus confers glyphosate tolerance in cassava. Plant Biotechnol. J.16 (7), 1275–1282. doi:Ā 10.1111/pbi.12868

  • 29

    Illouz-EliazN.NissanI.NirI.RamonU.ShohatH.WeissD. (2020). Mutations in the tomato gibberellin receptors suppress xylem proliferation and reduce water loss under water-deficit conditions. J. Exp. Botany.71 (12), 3603–3612. doi:Ā 10.1093/jxb/eraa137

  • 30

    IshikawaM.YoshidaT.MatsuyamaM.KouzaiY.KanoA.IshibashiK. (2022). Tomato brown rugose fruit virus resistance generated by quadruple knockout of homologs of TOBAMOVIRUS MULTIPLICATION1 in tomato. Plant Physiol.189 (2), 679–686. doi:Ā 10.1093/plphys/kiac103

  • 31

    IshinoY.ShinagawaH.MakinoK.AmemuraM.NakataA. (1987). Nucleotide Sequence of the iap Gene, Responsible for Alkaline Phosphatase Isozyme Conversion in Escherichia coli, and Identification of the Gene Product. J. Bacteriol.169 (12), 5429–5433. doi: 10.1128/jb.169.12.5429-5433.1987

  • 32

    JeonJ. E.KimJ. G.FischerC. R.MehtaN.Dufour-SchroifC.WemmerK.et al. (2020). A pathogen-responsive gene cluster for highly modified fatty acids in tomato. Cell.180 (1), 176–187.e19. doi:Ā 10.1016/j.cell.2019.11.037

  • 33

    JiaH.OmarA. A.OrbovicV.WangN. (2022a). Biallelic editing of the LOB1 promoter via CRISPR/Cas9 creates canker-resistant ā€˜Duncan’ Grapefruit. Phytopathology.112 (2), 308–314. doi:Ā 10.1094/PHYTO-04-21-0144-R

  • 34

    JiaH.OrbovicV.JonesJ. B.WangN. (2016). Modification of the PthA4 effector binding elements in Type I CsLOB1 promoter using Cas9/sgRNA to produce transgenic Duncan grapefruit alleviating XccĪ”pthA4: DCsLOB1.3 infection. Plant Biotechnol. J.14 (5), 1291–1301. doi:Ā 10.1111/pbi.12495

  • 35

    JiaH.OrbovićV.WangN. (2019). CRISPR-LbCas12a-mediated modification of citrus. Plant Biotechnol. J.17 (10), 1928–1937. doi:Ā 10.1111/pbi.13109

  • 36

    JiaH.WangY.SuH.HuanX.WangN. (2022b). LbCas12a-D156R efficiently edits LOB1 effector binding elements to generate canker-resistant citrus plants. Cells.11, (3). doi:Ā 10.3390/cells11030315

  • 37

    JinekM.ChylinskiK.FonfaraI.HauerM.DoudnaJ. A.CharpentierE. (2012) A programmable dual-RNA-guided DNA endonuclease in adaptive bacterial immunity. Available at: https://www.science.org.

  • 38

    KamburovaV. S.NikitinaE. V.ShermatovS. E.BurievZ. T.KumpatlaS. P.EmaniC.et al. (2017). Genome editing in plants: an overview of tools and applications. Int. J. Agronomy.2017, 15. doi:Ā 10.1155/2017/7315351

  • 39

    KieuN. P.LenmanM.WangE. S.PetersenB. L.AndreassonE. (2021). Mutations introduced in susceptibility genes through CRISPR/Cas9 genome editing confer increased late blight resistance in potatoes. Sci. Rep.11, (1). doi:Ā 10.1038/s41598-021-83972-w

  • 40

    KimY.-C.KangY.YangE.-Y.ChoM.-C.SchafleitnerR.LeeJ. H.et al. (2021). Applications and major achievements of genome editing in vegetable crops: A review. Front. Plant Science.12. doi:Ā 10.3389/fpls.2021.688980

  • 41

    KlapC.YeshayahouE.BolgerA. M.AraziT.GuptaS. K.ShabtaiS.et al. (2017). Tomato facultative parthenocarpy results from SlAGAMOUS-LIKE 6 loss of function. Plant Biotechnol. J.15 (5), 634–647. doi:Ā 10.1111/pbi.12662

  • 42

    KongG.WanL.DengY. Z.YangW.LiW.JiangL.et al. (2019). Pectin acetylesterase PAE5 is associated with the virulence of plant pathogenic oomycete Peronophythora litchii. Physiol. Mol. Plant Pathology.106, 16–22. doi:Ā 10.1016/j.pmpp.2018.11.006

  • 43

    KumariC.SharmaM.KumarV.SharmaR.KumarV.SharmaP.et al. (2022). Genome editing technology for genetic amelioration of fruits and vegetables for alleviating post-harvest loss. Bioengineering9 (4), 176. doi:Ā 10.3390/bioengineering9040176

  • 44

    LiM. Y.JiaoY. T.WangY. T.ZhangN.WangB. B.LiuR. Q.et al. (2020a). CRISPR/Cas9-mediated VvPR4b editing decreases downy mildew resistance in grapevine (Vitis vinifera L.). Horticulture Res.7, (1). doi:Ā 10.1038/s41438-020-00371-4

  • 45

    LiJ.LiY.PawlikK. M.NapieralaJ. S.NapieralaM. (2020b). A CRISPR-Cas9, crelox, and Flp-FRT cascade strategy for the precise and efficient integration of exogenous DNA into cellular genomes. CRISPR J.3 (6), 470–486. doi:Ā 10.1089/crispr.2020.0042

  • 46

    LiR.LiuC.ZhaoR.WangL.ChenL.YuW.et al. (2019). CRISPR/Cas9-Mediated SlNPR1 mutagenesis reduces tomato plant drought tolerance. BMC Plant Biol.19, (1). doi:Ā 10.1186/s12870-018-1627-4

  • 47

    LiY.WuX.ZhangY.ZhangQ. (2022). CRISPR/Cas genome editing improves abiotic and biotic stress tolerance of crops. Front. Genome Editing.4. doi:Ā 10.3389/fgeed.2022.987817

  • 48

    LiR.ZhangL.WangL.ChenL.ZhaoR.ShengJ.et al. (2018). Reduction of tomato-plant chilling tolerance by CRISPR-Cas9-mediated SlCBF1 mutagenesis. J. Agric. Food Chem.66 (34), 9042–9051. doi:Ā 10.1021/acs.jafc.8b02177

  • 49

    LiuC.ZhangY.TanY.ZhaoT.XuX.YangH.et al. (2021). Crispr/cas9-mediated slmybs2 mutagenesis reduces tomato resistance to phytophthora infestans. Int. J. Mol. Sci.22 (21), 110683. doi:Ā 10.3390/ijms222111423

  • 50

    LiuL.ZhangJ.XuJ.LiY.GuoL.WangZ.et al. (2020). CRISPR/Cas9 targeted mutagenesis of SlLBD40, a lateral organ boundaries domain transcription factor, enhances drought tolerance in tomato. Plant Sci.301, 110683. doi:Ā 10.1016/j.plantsci.2020.110683

  • 51

    LucioliA.TavazzaR.BaimaS.FatyolK.BurgyanJ.TavazzaM. (2022). CRISPR-Cas9 Targeting of the eIF4E1 Gene Extends the Potato Virus Y Resistance Spectrum of the Solanum tuberosum L. cv. Desirée. Front. Microbiol.13. doi: 10.3389/fmicb.2022.873930

  • 52

    MaX.ZhangX.LiuH.LiZ. (2020). Highly efficient DNA-free plant genome editing using virally delivered CRISPR–Cas9. Nat. Plants.6 (7), 773–779. doi:Ā 10.1038/s41477-020-0704-5

  • 53

    MakhotenkoA. V.KhromovA. V.SnigirE. A.MakarovaS. S.MakarovV. V.SuprunovaT. P.et al. (2019). Functional Analysis of Coilin in Virus Resistance and Stress Tolerance of Potato Solanum tuberosum using CRISPR-Cas9 Editing. Doklady Biochem. Biophysics.484 (1), 88–91. doi:Ā 10.1134/S1607672919010241

  • 54

    MalabarbaJ.ChevreauE.DoussetN.VeilletF.MoizanJ.VergneE. (2021). New strategies to overcome present CRISPR/CAS9 limitations in apple and pear: Efficient dechimerization and base editing. Int. J. Mol. Sci.22 (1), 1–20. doi:Ā 10.3390/ijms22010319

  • 55

    MalnoyM.ViolaR.JungM. H.KooO. J.KimS.KimJ. S.et al. (2016). DNA-free genetically edited grapevine and apple protoplast using CRISPR/Cas9 ribonucleoproteins. Front. Plant Science.7. doi:Ā 10.3389/fpls.2016.01904

  • 56

    MingM.LongH.YeZ.PanC.ChenJ.TianR.et al. (2022). efficient CRISPR systems for loss-of-function and gain-of-function research in pear calli. Horticulture Res.9, uhac148. doi:Ā 10.1093/hr/uhac148

  • 57

    MishraR.MohantyJ. N.MahantyB.JoshiR. K. (2021). A single transcript CRISPR/Cas9 mediated mutagenesis of CaERF28 confers anthracnose resistance in chilli pepper (Capsicum annuum L.). Planta.254, (1). doi:Ā 10.1007/s00425-021-03660-x

  • 58

    MoonS. B.LeeJ. M.KangJ. G.LeeN. E.HaD. I.KimD. Y.et al. (2018). Highly efficient genome editing by CRISPR-Cpf1 using CRISPR RNA with a uridinylate-rich 3′-overhang. Nat. Commun.9, (1). doi:Ā 10.1038/s41467-018-06129-w

  • 59

    MoonK. B.ParkS. J.ParkJ. S.LeeH. J.ShinS. Y.LeeS. M.et al. (2022). Editing of StSR4 by Cas9-RNPs confers resistance to Phytophthora infestans in potato. Front. Plant Sci.13. doi:Ā 10.3389/fpls.2022.997888

  • 60

    NekrasovV.WangC.WinJ.LanzC.WeigelD.KamounS. (2017). Rapid generation of a transgene-free powdery mildew resistant tomato by genome deletion. Sci. Rep.7, (1). doi:Ā 10.1038/s41598-017-00578-x

  • 61

    NoureenA.KhanM. Z.AminI.ZainabT.MansoorS. (2022). CRISPR/Cas9-mediated targeting of susceptibility factor eIF4E-enhanced resistance against potato virus Y. Front. Genet.13. doi:Ā 10.3389/fgene.2022.922019

  • 62

    OrtigosaA.Gimenez-IbanezS.LeonhardtN.SolanoR. (2019). Design of a bacterial speck resistant tomato by CRISPR/Cas9-mediated editing of SlJAZ2. Plant Biotechnol. J.17 (3), 665–673. doi:Ā 10.1111/pbi.13006

  • 63

    PengA.ChenS.LeiT.XuL.HeY.WuL.et al. (2017). Engineering canker-resistant plants through CRISPR/Cas9-targeted editing of the susceptibility gene CsLOB1 promoter in citrus. Plant Biotechnol. J.15 (12), 1509–1519. doi:Ā 10.1111/pbi.12733

  • 64

    PompiliV.Dalla CostaL.PiazzaS.PindoM.MalnoyM. (2020). Reduced fire blight susceptibility in apple cultivars using a high-efficiency CRISPR/Cas9-FLP/FRT-based gene editing system. Plant Biotechnol. J.18 (3), 845–858. doi:Ā 10.1111/pbi.13253

  • 65

    PramanikD.ShelakeR. M.ParkJ.KimM. J.HwangI.ParkY.et al. (2021). CRISPR/Cas9-mediated generation of pathogen-resistant tomato against tomato yellow leaf curl virus and powdery mildew. Int. J. Mol. Sci.22 (4), 1–18. doi:Ā 10.3390/ijms22041878

  • 66

    PrihatnaC.BarbettiM. J.BarkerS. J. (2018). A novel tomato Fusarium wilt tolerance gene. Front. Microbiol.9. doi:Ā 10.3389/fmicb.2018.01226

  • 67

    RamĆ­rez GonzalesL.ShiL.BergonziS. B.OortwijnM.Franco-ZorrillaJ. M.Solano-TaviraR.et al. (2021). Potato CYCLING DOF FACTOR 1 and its lncRNA counterpart StFLORE link tuber development and drought response. Plant J.105 (4), 855–869. doi:Ā 10.1111/TPJ.15093

  • 68

    RanF. A.HsuP. D.WrightJ.AgarwalaV.ScottD. A.ZhangF. (2013). Genome engineering using the CRISPR-Cas9 system. Nat. Protoc.8 (11), 2281–2308. doi:Ā 10.1038/nprot.2013.143

  • 69

    RobertsonG.BurgerJ.CampaM. (2022). CRISPR/Cas-based tools for the targeted control of plant viruses. Mol. Plant Pathology.23 (11), 1701–1718. doi:Ā 10.1111/mpp.13252

  • 70

    RoossinckM. J.MartinD. P.RoumagnacP. (2015). Plant virus metagenomics: Advances in virus discovery. Phytopathology105 (6), 716–727. doi:Ā 10.1094/PHYTO-12-14-0356-RVW

  • 71

    RukavtsovaE. B.ZakharchenkoN. S.LebedevV. G.ShestibratovK. A. (2023). CRISPR-Cas genome editing for horticultural crops improvement: advantages and prospects. Horticulturae9 (1), 38. doi:Ā 10.3390/horticulturae9010038

  • 72

    SanfaƧonH. (2015). Plant translation factors and virus resistance. Viruses7 (7), 3392–3419 . doi:Ā 10.3390/v7072778

  • 73

    SantillÔn MartínezM. I.BracutoV.KoseoglouE.AppianoM.JacobsenE.VisserR. G. F.et al. (2020). CRISPR/Cas9-targeted mutagenesis of the tomato susceptibility gene PMR4 for resistance against powdery mildew. BMC Plant Biol.20, (1). doi: 10.1186/s12870-020-02497-y

  • 74

    SchaartJ. G.van de WielC. C. M.LotzL. A. P.SmuldersM. J. M. (2016). Opportunities for products of new plant breeding techniques. Trends Plant Science.21 (5), 438–449. doi:Ā 10.1016/j.tplants.2015.11.006

  • 75

    ShuP.LiY.LiZ.ShengJ.ShenL. (2022). SlMAPK3 enhances tolerance to salt stress in tomato plants by scavenging ROS accumulation and up-regulating the expression of ethylene signaling related genes. Environ. Exp. Botany.193 (2022), 104698. doi:Ā 10.1016/j.envexpbot.2021.104698

  • 76

    ShuP.LiZ.MinD.ZhangX.AiW.LiJ.et al. (2020). CRISPR/Cas9-mediated SlMYC2 mutagenesis adverse to tomato plant growth and MeJA-induced fruit resistance to botrytis cinerea. J. Agric. Food Chem.68 (20), 5529–5538. doi:Ā 10.1021/acs.jafc.9b08069

  • 77

    SilvaC. J.Van Den AbeeleC.Ortega-SalazarI.PapinV.AdaskavegJ. A.WangD.et al. (2021). Host susceptibility factors render ripe tomato fruit vulnerable to fungal disease despite active immune responses. J. Exp. Botany.72 (7), 2696–2709. doi:Ā 10.1093/jxb/eraa601

  • 78

    SituJ.JiangL.FanX.YangW.LiW.XiP.et al. (2020). An RXLR effector PlAvh142 from Peronophythora litchii triggers plant cell death and contributes to virulence. Mol. Plant Pathology.21 (3), 415–428. doi:Ā 10.1111/mpp.12905

  • 79

    SonodaE.HocheggerH.SaberiA.TaniguchiY.TakedaS. (2006). Differential usage of non-homologous end-joining and homologous recombination in double strand break repair. DNA Repair.5 (9–10), 1021–1029. doi:Ā 10.1016/j.dnarep.2006.05.022

  • 80

    TashkandiM.AliZ.AljedaaniF.ShamiA.MahfouzM. M. (2018). Engineering resistance against Tomato yellow leaf curl virus via the CRISPR/Cas9 system in tomato. Plant Signaling Behavior.13, (10). doi:Ā 10.1080/15592324.2018.1525996

  • 81

    TavakoliK.Pour-AboughadarehA.KianersiF.PoczaiP.EtminanA.ShooshtariL. (2021). Applications of CRISPR-Cas9 as an advanced genome editing system in life sciences. BioTech10 (3), 14. doi:Ā 10.3390/biotech10030014

  • 82

    ThomazellaD. P. T.SeongK.MackelprangR.DahlbeckD.GengY.GillU. S.et al. (2021). Loss of function of a DMR6 ortholog in tomato confers broad-spectrum disease resistance. Proc. Natl. Acad. Sci.118 (27), e2026152118. doi:Ā 10.1073/pnas.2026152118/-/DCSupplemental

  • 83

    TianS.JiangL.CuiX.ZhangJ.GuoS.LiM.et al. (2018). Engineering herbicide-resistant watermelon variety through CRISPR/Cas9-mediated base-editing. Plant Cell Rep.37 (9), 1353–1356. doi:Ā 10.1007/s00299-018-2299-0

  • 84

    TianS.-W.XingS.-N.XuY. (2021). Advances in CRISPR/Cas9-mediated genome editing on vegetable crops. In Vitro Cell. Dev. Biology-Plant.57, 672–682. doi:Ā 10.1007/s11627-021-10187-z/Published

  • 85

    TranM. T.DoanD. T. H.KimJ.SongY. J.SungY. W.DasS.et al. (2021). CRISPR/Cas9-based precise excision of SlHyPRP1 domain(s) to obtain salt stress-tolerant tomato. Plant Cell Rep.40 (6), 999–1011. doi:Ā 10.1007/s00299-020-02622-z

  • 86

    TripathiJ. N.NtuiV. O.RonM.MuiruriS. K.BrittA.TripathiL. (2019). CRISPR/Cas9 editing of endogenous banana streak virus in the B genome of Musa spp. overcomes a major challenge in banana breeding. Commun. Biol.2, (1). doi:Ā 10.1038/s42003-019-0288-7

  • 87

    TripathiJ. N.NtuiV. O.ShahT.TripathiL. (2021). CRISPR/Cas9-mediated editing of DMR6 orthologue in banana (Musa spp.) confers enhanced resistance to bacterial disease. Plant Biotechnol. J.19 (7), 1291–1293. doi:Ā 10.1111/pbi.13614

  • 88

    TsanovaT.StefanovaL.TopalovaL.AtanasovA.PantchevI. (2021). DNA-free gene editing in plants: a brief overview. Biotechnol. Biotechnol. Equipment.35 (1), 131–138. doi:Ā 10.1080/13102818.2020.1858159

  • 89

    van EsseH. P.ReuberT. L.van der DoesD. (2020). Genetic modification to improve disease resistance in crops. New Phytologist.225 (1), 70–86. doi:Ā 10.1111/nph.15967

  • 90

    VeilletF.PerrotL.ChauvinL.KermarrecM. P.Guyon-DebastA.ChauvinJ. E.et al. (2019). Transgene-free genome editing in tomato and potato plants using Agrobacterium-mediated delivery of a CRISPR/Cas9 cytidine base editor. Int. J. Mol. Sci.20, (2). doi:Ā 10.3390/ijms20020402

  • 91

    VoytasD. F.GaoC. (2014). Precision genome engineering and agriculture: opportunities and regulatory challenges. PloS Biol.12 (6), 1–6. doi:Ā 10.1371/journal.pbio.1001877

  • 92

    VuT.SivankalyaniV.KimE. J.DoanD. T. H.TranM. T.KimJ.et al. (2020). Highly efficient homology-directed repair using CRISPR/Cpf1-geminiviral replicon in tomato. Plant Biotechnol. J.18 (10), 2133–2143. doi:Ā 10.1111/pbi.13373

  • 93

    WanD. Y.GuoY.ChengY.HuY.XiaoS.WangY.et al. (2020). CRISPR/Cas9-mediated mutagenesis of VvMLO3 results in enhanced resistance to powdery mildew in grapevine (Vitis vinifera). Horticulture Res.7, (1). doi:Ā 10.1038/s41438-020-0339-8

  • 94

    WanL.WangZ.TangM.HongD.SunY.RenJ.et al. (2021). Crispr-cas9 gene editing for fruit and vegetable crops: Strategies and prospects. Horticulturae7, (7). doi:Ā 10.3390/horticulturae7070193

  • 95

    WangL.ChenL.LiR.ZhaoR.YangM.ShengJ.et al. (2017). Reduced drought tolerance by CRISPR/Cas9-mediated SlMAPK3 mutagenesis in tomato plants. J. Agric. Food Chem.65 (39), 8674–8682. doi:Ā 10.1021/acs.jafc.7b02745

  • 96

    WangL.ChenS.PengA.XieZ.HeY.ZouX. (2019). CRISPR/Cas9-mediated editing of CsWRKY22 reduces susceptibility to Xanthomonas citri subsp. citri in Wanjincheng orange (Citrus sinensis (L.) Osbeck). Plant Biotechnol. Rep.13 (5), 501–510. doi:Ā 10.1007/s11816-019-00556-x

  • 97

    WangT.DengZ.ZhangX.WangH.WangY.LiuX.et al. (2018a). Tomato DCL2b is required for the biosynthesis of 22-nt small RNAs, the resulting secondary siRNAs, and the host defense against ToMV. Horticulture Res.5, (1). doi:Ā 10.1038/s41438-018-0073-7

  • 98

    WangZ.HardcastleT. J.PastorA. C.YipW. H.TangS.BaulcombeD. C. (2018c). A novel DCL2-dependent miRNA pathway in tomato affects susceptibility to RNA viruses. Genes Dev.32 (17–18), 1155–1160. doi:Ā 10.1101/gad.313601.118

  • 99

    WangZ.HongY.LiY.ShiH.YaoJ.LiuX.et al. (2021b). Natural variations in SlSOS1 contribute to the loss of salt tolerance during tomato domestication. Plant Biotechnol. J.19 (1), 20–22. doi:Ā 10.1111/pbi.13443

  • 100

    WangZ.HongY.ZhuG.LiY.NiuQ.YaoJ.et al. (2020). Loss of salt tolerance during tomato domestication conferred by variation in a Na+/K+ transporter. EMBO J.39, (10). doi:Ā 10.15252/embj.2019103256

  • 101

    WangP.LuoQ.YangW.AhammedG. J.DingS.ChenX.et al. (2021a). A novel role of pipecolic acid biosynthetic pathway in drought tolerance through the antioxidant system in tomato. Antioxidants.10, (12). doi:Ā 10.3390/antiox10121923

  • 102

    WangX.TuM.WangD.LiuJ.LiY.LiZ.et al. (2018b). CRISPR/Cas9-mediated efficient targeted mutagenesis in grape in the first generation. Plant Biotechnol. J.16 (4), 844–855. doi:Ā 10.1111/pbi.12832

  • 103

    WangY.ZafarN.AliQ.ManghwarH.WangG.YuL.et al. (2022). CRISPR/Cas genome editing technologies for plant improvement against biotic and abiotic stresses: advances, limitations, and future perspectives. Cells11 (23), 3928. doi:Ā 10.3390/cells11233928

  • 104

    WolterF.SchindeleP.PuchtaH. (2019). Plant breeding at the speed of light: The power of CRISPR/Cas to generate directed genetic diversity at multiple sites. BMC Plant Biol.19 (1), 176. doi:Ā 10.1186/s12870-019-1775-1

  • 105

    YamamotoA.IshidaT.YoshimuraM.KimuraY.SawaS. (2019). Developing Heritable Mutations in Arabidopsis thaliana Using a Modified CRISPR/Cas9 Toolkit Comprising PAM-Altered Cas9 Variants and gRNAs. Plant Cell Physiol.60 (10), 2255–2262. doi:Ā 10.1093/pcp/pcz118

  • 106

    YangS. H.KimE.ParkH.KooY. (2022). Selection of the high efficient sgRNA for CRISPR-Cas9 to edit herbicide related genes, PDS, ALS, and EPSPS in tomato. Appl. Biol. Chem.65, (1). doi:Ā 10.1186/s13765-022-00679-w

  • 107

    YinY.QinK.SongX.ZhangQ.ZhouY.XiaX.et al. (2018). BZR1 transcription factor regulates heat stress tolerance through FERONIA receptor-like kinase-mediated reactive oxygen species signaling in tomato. Plant Cell Physiol.59 (11), 2239–2254. doi:Ā 10.1093/pcp/pcy146

  • 108

    YinK.QiuJ. L. (2019). Genome editing for plant disease resistance: Applications and perspectives. Philos. Trans. R. Soc. B: Biol. Sci.374 (1767), 20180322. doi:Ā 10.1098/rstb.2018.0322

  • 109

    YoonY. J.VenkateshJ.LeeJ. H.KimJ.LeeH. E.KimD. S.et al. (2020). Genome editing of eIF4E1 in tomato confers resistance to pepper mottle virus. Front. Plant Science.11. doi:Ā 10.3389/fpls.2020.01098

  • 110

    YuY.PanZ.WangX.BianX.WangW.LiangQ.et al. (2022). Targeting of SPCSV-RNase3 via CRISPR-Cas13 confers resistance against sweet potato virus disease. Mol. Plant Pathology.23 (1), 104–117. doi:Ā 10.1111/mpp.13146

  • 111

    YuW.WangL.ZhaoR.ShengJ.ZhangS.LiR.et al. (2019). Knockout of SlMAPK3 enhances tolerance to heat stress involving ROS homeostasis in tomato plants. BMC Plant Biol.19, (1). doi:Ā 10.1186/s12870-019-1939-z

  • 112

    ZhanX.ZhangF.ZhongZ.ChenR.WangY.ChangL.et al. (2019). Generation of virus-resistant potato plants by RNA genome targeting. Plant Biotechnol. J.17 (9), 1814–1822. doi:Ā 10.1111/pbi.13102

  • 113

    ZhangM.LiuQ.YangX.XuJ.LiuG.YaoX.et al. (2020). CRISPR/Cas9-mediated mutagenesis of Clpsk1 in watermelon to confer resistance to Fusarium oxysporum f.sp. niveum. Plant Cell Rep.39 (5), 589–595. doi:Ā 10.1007/s00299-020-02516-0

  • 114

    ZhangS.WangL.ZhaoR.YuW.LiR.LiY.et al. (2018). Knockout of SlMAPK3 reduced disease resistance to botrytis cinerea in tomato plants. J. Agric. Food Chem.66 (34), 8949–8956. doi:Ā 10.1021/acs.jafc.8b02191

  • 115

    ZhouH.BaiS.WangN.SunX.ZhangY.ZhuJ.et al. (2020). CRISPR/Cas9-mediated mutagenesis of MdCNGC2 in apple callus and VIGS-mediated silencing of MdCNGC2 in fruits improve resistance to botryosphaeria dothidea. Front. Plant Science.11. doi:Ā 10.3389/fpls.2020.575477

Summary

Keywords

bacteria, fungi, drought, salinity, fruits, vegetables, CRISPR/Cas9

Citation

Sardar A (2023) Genetic amelioration of fruit and vegetable crops to increase biotic and abiotic stress resistance through CRISPR Genome Editing. Front. Plant Sci. 14:1260102. doi: 10.3389/fpls.2023.1260102

Received

17 July 2023

Accepted

28 August 2023

Published

29 September 2023

Volume

14 - 2023

Edited by

Chongmei Dong, The University of Sydney, Australia

Reviewed by

Jianping Zhang, The University of Sydney, Australia

Updates

Copyright

*Correspondence: Atish Sardar,

Disclaimer

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.

Outline

Figures

Cite article

Copy to clipboard


Export citation file


Share article

Article metrics
