Rosa rugosa R2R3-MYB transcription factors RrMYB12 and RrMYB111 regulate the accumulation of flavonols and anthocyanins

Abstract

Roses (Rosa rugosa) are a famous flower with high ornamental and economic value. But the petals of roses are usually pink and purple, which restricted its application in garden settings. Flavonols and anthocyanins are crucial secondary metabolites related to flower pigmentation in plants. While MYB transcription factors involved in the biosynthesis pathway of anthocyanins have been identified in roses, the functional characterization of the MYB transcription factor regulating flavonol synthesis in R. rugosa remains unexplored. In this study, we isolated and characterized the R2R3-MYB transcription factors RrMYB12 and RrMYB111 involved in regulation of the flavonol biosynthetic pathway from R. rugosa. The bioinformatics analysis indicated that both the RrMYB12 and RrMYB111 belong to the R2R3-MYB subgroup 7 family. qRT-PCR analysis showed that RrMYB12 and RrMYB111 were expressed at low levels in roots and flowers. And transactivation activity assay indicated that RrMYB12 and RrMYB111 were transcriptional activators. The overexpression of RrMYB12 and RrMYB111 in tobacco resulted in an elevation of flavonol levels and a reduction in anthocyanin levels in flowers due to the upregulation of structural genes involved in flavonol synthesis, while the biosynthesis genes for the anthocyanin pathway were significantly downregulated. The transient reporter assay demonstrated that RrMYB12 exhibited strong activation of the promoters of RrCHS and RrFLS in Nicotiana benthamiana leaves following transient transformation. Furthermore, it was observed that RrMYBs displayed binding specificity to the promoter region of CsFLS.The functional characterization of the flavonol synthesis regulatory factors RrMYB12 and RrMYB111 offers a deeper understanding of the regulatory mechanism governing flavonol biosynthesis in roses, while also presenting an effective tool for genetic manipulation aimed at creating new varieties.

Introduction

Flavonoids, a diverse group of plant secondary metabolites, are widely distributed in natural plants. The types and concentrations of flavonoids vary among different plant species, with Flavonols and anthocyanins playing multifaceted roles in plant growth and defense (Liang et al., 2023; Liu et al., 2024; Shi et al., 2021). In addition to preventing biological and abiotic damage, they also impart rich colors to flowers and other organs (Ji et al., 2023; Zhou et al., 2023). The color range of flavonols primarily encompasses white or yellow, whereas anthocyanins span from red and purple to blue, among others. These pigments are synthesized within the flavonoid metabolic pathway, a branch of the phenylpropanoid metabolic pathway (Holme et al., 2021).

The biosynthetic pathways of flavonoids have been extensively studied in Arabidopsis thaliana, Nicotiana tabacum, Camellia sinensis and other plant species (Raziq et al., 2024; Saito et al., 2013; Wang et al., 2018). Almost all structural genes involved in the flavonoid biosynthesis pathways that have been isolated and identified to date are conserved in higher plants. The upstream pathway of flavonoid biosynthesis includes chalcone synthetase (CHS), chalcone isomerase (CHI), and flavonoid 3-hydroxylase (F3H). CHS plays a crucial role as the first step in the flavonoid biosynthesis pathway, producing naringin chalcone (Yin et al., 2019). Another important node is the diversion of dihydrokaempferol, which can be directed towards either flavonol biosynthesis or anthocyanin biosynthesis. Flavonol biosynthesis is a branch of the flavonoid biosynthesis pathway. Dihydroflavonols are synthesized into flavonols by flavonol synthase (FLS), and then various more stable flavonol glycosides are generated by flavonol glycosyltransferase (UGT). Anthocyanin biosynthesis is performed by dihydroflavonol 4-reductase (DFR), anthocyanin synthetase (ANS) and flavonoid 3-glucosyltransferase (UFGT).

Regulatory proteins are essential for the activation or inhibition of flavonoid biosynthesis, and extensive research has consistently demonstrated that MYB, bHLH and WD40 transcription factors play a predominant role in mediating the transcriptional regulation of the flavonoid biosynthesis pathway. Studies have found that each specific branch of the flavonoid pathway is typically regulated by different MYB transcription factors. In A. thaliana, R2R3-MYBs are divided into 25 subfamilies based on differences in their C-terminal regions (Stracke et al., 2001). Studies have found that MYBs in subgroup 4 (SG4), subgroup 5 (SG5), subgroup 6 (SG6) and subgroup 7 (SG7) are involved in regulating the synthesis of flavonoids. Many MYB transcription factors, which regulate flavonoid biosynthesis pathways, have been identified from different plant species. The R2R3-MYB SG5 members, such as FaMYB5 (Fragaria × ananassa), EjMYB5 (Eriobotrya japonica), and JrMYB1(Juglans regia), exert positive regulatory effects on proanthocyanidin (PA) biosynthesis (Jiang et al., 2023; Zhang et al., 2024; Zhao et al., 2023). EpMYB1 (Echinacea purpurea) and RcMYB1 (Rosa chinensis) were in SG6, which is a group known to promote the accumulation of plant anthocyanins (He et al., 2023; Jin et al., 2024). And AtMYB12/AtMYB11/AtMYB11 (Arabidopsis thaliana), VvMYBF1 (Vitis vinifera) and PqMYBF1 (Paeonia qiui) were classified in SG7, which is a branch responsible for regulating the biosynthesis of flavonols (Stracke et al., 2007; Wang et al., 2020; Zhang et al., 2023).

In regulation of the anthocyanin and PA biosynthetic pathways, MYB transcription factors generally interact with basic helix-loop-helix (bHLH) transcription factors and WD-repeat (WDR) proteins to form a MYB-bHLH-WD40 (MBW) complex. For instance, in R. chinensis, two MBW complexes (RcMYB1-RcBHLH42-RcTTG1; RcMYB1-RcEGL1-RcTTG1) were identified that can enhance the promoter activity of RcMYB1 and late anthocyanin biosynthesis genes, thereby promoting anthocyanin accumulation (He et al., 2023). However, in regulation of the flavonol biosynthetic pathway, R2R3-MYB regulators identified to date are found to function independent of bHLH cofactor. These flavonol-specific MYB regulators can activate the promoters of target genes involved in flavonol biosynthesis, including CHS, CHI, F3H and FLS, and thus promote the synthesis of flavonols. The ectopic expression of PqMYBF1 (Paeonia qiui), EsMYBF1 (Epimedium sagittatum) and GhMYB1a (Gerbera hybrida) in transgenic tobacco resulted in a discernible elevation in flavonol levels, accompanied by a significant reduction in anthocyanin accumulation, leading to the development of flowers with a pale pink hue (Huang et al., 2016; Zhang et al., 2023; Zhong et al., 2020). Furthermore, the overexpression of GhMYB1a in gerbera led to a decrease in anthocyanin accumulation and an increase in flavonol accumulation by upregulating the structural genes involved in flavonol biosynthesis (Zhong et al., 2020). Dual-luciferase reporter assays showed that PqMYBF1 is capable of activating the promoters of PqCHS, PqF3H, and PqFLS (Zhang et al., 2023). GhMYB1 significantly activated the promoters of both NtCHS and NtFLS, but it did not activate the promoter of GhDFR compared with the corresponding controls (Zhong et al., 2020). Transient reporter assay showed that EsMYBF1 strongly activated the promoters of EsF3H and EsFLS, but not the promoters of EsDFRs and EsANS in transiently transformed Nicotiana benthamiana leaves (Huang et al., 2016). Both the yeast two-hybrid assay and the transient reporter assay validated that EsMYBF1 functions independently of EsTT8 or AtTT8, which are bHLH regulators of the flavonoid pathway, as cofactors.

Rose (Rosa rugosa) is a kind of important plant with ornamental and economic value, characterized by drought resistance, barrenness resistance, cold resistance, and wide adaptability to harsh natural environments (Chen et al., 2021; Xie et al., 2022; Zang et al., 2021). In the realm of ornamental plants, the commercial value of roses is significantly influenced by their vibrant array of colors. However, the monotonous flower colors of rose varieties have seriously restricted their application in gardens. The molecular mechanisms and transcription factors that control flower color in R. rugosa are not fully studied (Wang et al., 2022). To date, only RrMYB5 and RrMYB10 have been validated as regulators of anthocyanin and PA biosynthesis in R. rugosa (Shen et al., 2019). In this study, we report the in-depth characterization of R2R3-MYB transcription factors RrMYB12 and RrMYB111. Bioinformatics analysis shows that RrMYB12 and RrMYB111 belong to the SG7 R2R3-MYB. qRT-PCR results showed that RrMYB12 and RrMYB111 exhibited differences in tissue expression. In RrMYB12-OE and RrMYB111-OE transgenic tobacco, flavonol content increased, anthocyanin accumulation decreased, NtCHS, NtCHI, NtF3H and NtFLS genes were up-regulated, NtDFR and NtANS genes were down-regulated. In addition, RrMYB12 and RrMYB111 activated promoters of RrCHS and RrFLS genes were confirmed by protein-DNA interaction tests. These results indicate that RrMYB12 and RrMYB111 are flavonol specific R2R3-MYB regulatory factors involved in regulating flavonol biosynthesis in R. rugosa.

Materials and methods

Plant materials

Cultivars of the rose (Rosa rugosa) plant “Zizhi” were planted in nursery garden of Institute of Urban Agriculture, Chinese Academy of Agricultural Sciences (Chengdu, Sichuan, China), where the temperature was 26/20°C (day/night) and the a photoperiod in which there was 16/8 h (light/darkness). Tobacco G28 (Nicotiana tabacum cv. G28) and transgenic tobacco and Nicotiana benthamiana were grown in a growth chamber at a constant temperature of 24 ± 3°C and 12/12 h light/dark cycle.

Gene clone of RrMYB12 and RrMYB111

Total RNA was isolated from rose plants using the Fastpure Universal Plant Total RNA Isolation Kit (Vazyme, China). The experiment was performed according to the manufacturer’s instructions, followed by reverse transcription into cDNA using a PrimeScript RT Reagent Kit with gDNA Eraser (Takara, Japan). Gene was cloned by PrimeSTAR Max DNA Polymerase (Takara, Japan). Amplification of full length RrMYB12 and RrMYB111 cDNA with the open reading frame (ORF) primers listed in Supplementary Table 1 was performed by PCR, after which the sequence was generated. The generated sequence was checked by BLASTX and BLASTp against GenBank, and the sequences of the homologs were retrieved to perform an alignment analysis.

Bioinformatic analysis of RrMYB12 and RrMYB111

Theoretical molecular weights (MW) and isoelectric points (pI) were calculated using the Compute pI/Mw tool (http://us.expasy.org/tools/pi_tool.html). The amino acid sequence alignment analysis of RrMYB12 and RrMYB111 were conducted by using the DNAMAN software. A phylogenetic analysis was conducted using the amino acid sequences of R2R3-MYB members through MEGA7 software. Evolutionary distances were estimated using the p-distance method in the software, and the tree nodes were evaluated with a bootstrap value of 1000. In addition, the exon/intron genomic structure of RrMYB12 and RrMYB111 gene was analyzed by TBtools.

Transcriptional activity analysis

The target vector RrMYB12-pGBKT7 and RrMYB111-pGBKT7 was constructed by ClonExpress II One Step Cloning Kit (Vazyme, China), and the primer sequences are shown in Supplementary Table 1. Empty vector of pGBKT7 was used as negative control. The construct (RrMYB12-pGBKT7, RrMYB111-pGBKT7) and empty BD vector (pGBKT7) were transformed into the yeast Y2H (Weidi, China) by Y2HGold Chemically Competent Cell product manual, respectively. Monoclonal yeast plaques of construct and empty plasmids were picked and dissolved in 50 µL ddH₂O and adjusted to be OD600 = 0.2, respectively. And dilute these yeast cells by 10 times, 100 times, 1000 times, and 10000 times respectively. The dilutions were incubated on SD/-Trp, SD/-Trp-His, SD/-Trp-His + 20 µg/mL X-α-Gal medium at 30 °C for about 72 h to observe the formation of plaque and coloration.

Quantitative real-time PCR

Rose plants various tissues samples and tobacco flowers samples were frozen at -80 °C and ground in liquid nitrogen. Total RNA was extracted from the samples using an RNA extraction kit (Vazyme, China). Reverse transcription was performed using M5 Super plus qPCR RT kit with gDNA remover (Mei5bio, China) using 1000 ng cDNA in a 20 μl reaction volume. After reverse transcription, the cDNA was diluted to 25% (v/v) with deionized water before being used as the template. Gene expression was detected in 1 μl cDNA using an M5 HiPer Real-time PCR mix (Mei5bio, China) and the quantstudio 1 system (Thermo Fisher Scientifc, USA). RrGAPDH and Ntactin were used as reference genes (Jiang et al., 2020; Shen et al., 2019). All of the above experiments consisted of at least seven biological and three technical replicates. The related primers are shown in Supplementary Table 4.

Plasmid construction and heterologous expression of RrMYB12 and RrMYB111 in N. tabacum

The Gateway^® cloning system (Invitrogen, USA) was used to construct the vectors provided by state key laboratory of tea plant biology and utilization (Jiang et al., 2020). To generate vectors for the overexpression of RrMYB12 and RrMYB111, the PCR products were purified and cloned into the entry vector pDONR207 by using a Gateway BP clonase enzyme mixture (Invitrogen, USA) according to the manufacturer’s instruction with the primers listed in Supplementary Table 1. And transfer the positive plasmid into into the expression vector pCB2004 by using the Gateway LR clonase system (Invitrogen, USA) according to the manufacturer’s instruction. The recombinant pCB2004-RrMYB12 and pCB2004-RrMYB111 plasmids were transferred into Agrobacterium tumefaciens GV3101 (Weidi, China) by GV3101 Chemically Competent Cell product manual. Wild-type plants of tobacco G28 were used for the A. tumefaciens-mediated transformation. The leaf-disk approach was used for tobacco transformation by adding 10 mg/L of glufosinate ammonium for selection.

Metabolic analysis of phenolic compounds in tobacco flowers

The anthocyanins and flavonol glycosides were extracted from tobacco flowers and quantified as proposed by Jiang et al (Iang et al., 2018; Jiang et al., 2020). The quantitative detection of the compounds was performed using the MRM mode of the Agilent 6460 QQQ-MS/MS LC system (Agilent Technologies, USA).

Promoter clone and analysis

Genome DNA was isolated from rose plants using the FlaPure Plant DNA Extraction Kit (Genesand, China). Promoter sequence was cloned by PrimeSTAR Max DNA Polymerase (Takara, Japan), and the sequence primers were listed in Supplementary Table 2. Cis-acting elements involved in MYB binding in the gene promoters were analysed using the PlantCARE database (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/).

Electrophoretic mobility shift assay

The complete coding sequence of RrMYB12 and RrMYB111 was cloned into pMAL-c2X, respectively for prokaryotic expression of the fusion protein. The newly constructed vector was transformed into Escherichia coli strain BL21. To induce protein expression, 0.4 mM isopropyl β-d-1-thiogalactopyranoside was added to E. coli cultures in LB medium, followed by incubation at 28 °C for 24 h. The E. coli cells were centrifuged at 4500 rpm/min at 4 °C for 12 min, and the LB medium was removed. The E. coli cells were resuspended in equilibration buffer (EB supplemented with 20 mM Tris-HCl, 200 mM NaCl, 1 mM EDTA, pH7.4, and 1 mM DTT dithiothreitol for ultrasonic cell disruption. The RrMYB12-pMAL and RrMYB111-pMAL protein was purifed with Maltose binding protein (MBP) (New England Biolabs, USA). The RrMYB12-pMAL and RrMYB111-pMAL and No-load protein was bound to the amylose resin using the equilibration buffer, respectively. The RrMYB12-pMAL and RrMYB111-pMAL protein was then eluted using a concentration of 100 mM maltose.

The probes were labeled with biotin and annealed to form double-stranded DNA, Sequences of probes used for EMSA were listed in Supplementary Table 3. For EMSA experiments, The concentration of the RrMYB12-pMAL and RrMYB111-pMAL protein was maintained at 1 mg/ml, and 2 µl was added to each experimental group. The biotin-labeled probe concentration was set at 10 μM. Positively chgd. nylon transfer membrane (GE Healthcare, USA) was used for the transmembrane step. EMSAs were performed with the Chemiluminescent EMSA Kit (Beyotime Biotechnology, China) according to the manufacturer’s instructions.

Dual-luciferase reporter assay

The promoter fragments of RrFLS were inserted into the pGreenII0800-LUC vector as reporter constructs. The coding sequence of RrMYB12 and RrMYB111 was inserted in the pGreenII62-SK vector as the efector, respectively. All primers used for reporter and effector constructions were listed in Supplementary Table 1. All the reporter and effector constructs recombinant plasmids were transformed into Agrobacterium tumefaciens GV3101(pSoup-p19) (Weidi, China). A. tumefaciens was cultured on LB agar supplemented with selection antibiotics and incubated at 28 °C for 2 days. A. tumefaciens was expanded and centrifuged and resuspended in infiltration buffer (10 mM MES, 10 mM MgCl2, 100 µM acetosyringone) to an OD600 of 0.8. And A. tumefaciens solution was mised proportionally and incubated at room temperature with gentle shaking for 2-3 h before infiltration. Approximately 300 µL of this A. tumefaciens mixture was infiltrated into Nicotiana benthamiana young leaves of each plant. At least four plants were used for each treatment. After 3 days of incubation, D-Luciferin firefly, sodium salt monohydrate (Yeasen, China) was sprayed and fluorescence imaging was observed with NightSHADE evo in vivo plant imaging system (Berthold, Germany). And luminescence detected by using the Dual Luciferase Reporter Gene Assay Kit (Yeasen, China) and Spark^® multifunctional microplate detector System (Tecan, Swiss).

Statistical analysis

SPSS software was used for statistical analysis. The datas of anthocyanin and flavonol glycosides and gene expression were detected at least three times independently, and all data are represented as the mean ± SD. Significant difference was determined using Student’s t-test significant difference test and indicated by the asterisk (*P < 0.05, **P < 0.01).

Results

Isolation and characterization of RrMYB12 and RrMYB111

Two RrMYB gene sequences were retrieved from Rosa rugosa transcriptome database and genome database based on A. thaliana and N. tabacum SG7 MYB gene sequences. The full-length cDNA sequences of the two RrMYBs were obtained from the “Zizhi” cultivar, which is a special variety that blooms all year round, using high fidelity PCR. The two gene sequences had been uploaded to the National Center Biotechnology Information (NCBI, http://www.ncbi.nlm.nih.gov) database by someone else. The first sequence is named RrMYB12. The cDNA ORF length of the RrMYB12 (accession number: XM_062132433) was 1383 bp, encoding a protein of 460 amino acids in length with a predicted pI value of 4.98. The second sequence is named RrMYB111. The cDNA ORF length of the RrMYB111 (accession number: XM_062138075) was 1140 bp, encoding a protein of 379 amino acids in length with a predicted pI value of 5.99. Alignment between the genomic and cDNA sequences showed that the gene structures of the RrMYB12 and RrMYB111 in the genome database were similar, with each structure containing three exons and two introns (Figure 1A). The differences between the two RrMYBs were that their introns and the third exon lengths were different. These two introns were located into the R2 and R3 MYB domain, respectively. Moreover, the intron insertion places are highly conserved (Supplementary Figure 1).

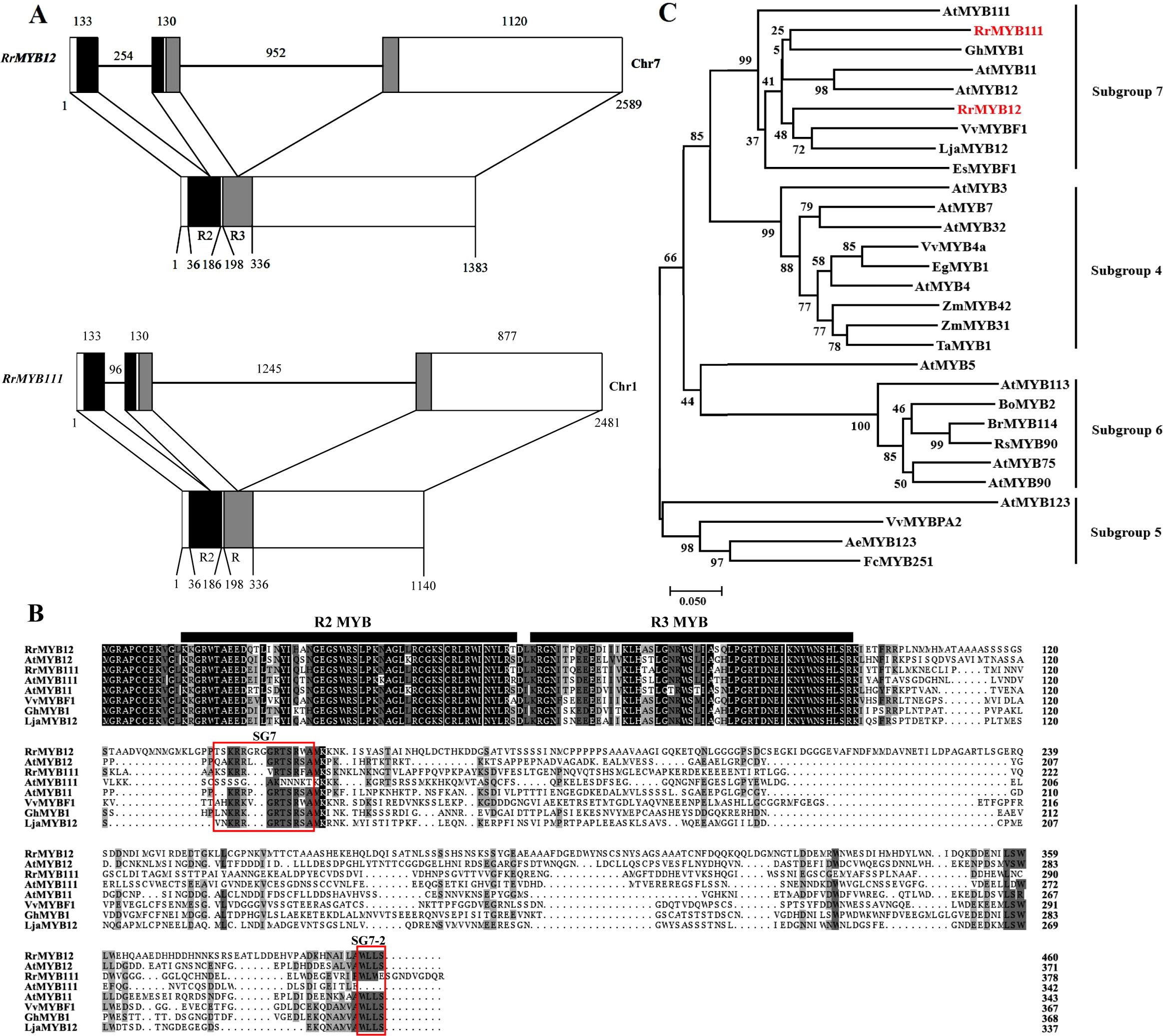

Figure 1

The amino acid sequence analysis revealed that both RrMYB12 and RrMYB111 contained the R2 and R3 MYB DNA-binding domains in their N-terminus (Figure 1B). The similarity in amino acid sequences between MYB proteins is generally limited to the R2 and R3 repeats. High identity was observed between RrMYB12 and RrMYB111 with other MYB regulators within the R2 and R3 MYB domains, such as 84.31% and 87.25% identity with AtMYB12, and 83.33% and 88.24% identity with AtMYB111, respectively. However, within the overall protein sequence, RrMYB12 and RrMYB111 showed only 31.92% and 27.06% identity to AtMYB12, and 25.58% and 31.08% identity to AtMYB111, respectively. The SG7 motif ([K/R][R/x][R/K]xGRT[S/x][R/G]xx[M/x]K) characteristic of flavonol regulators was identified in the C-terminus of both RrMYB12 and RrMYB111 (Figure 1B). Besides, RrMYB12 also contains a similar counterpart (WLEE) of the SG7-2 motif ([W/x][L/x]LS) previously identified in the C-terminus, but RrMYB111 did not. Additionally, it is worth noting that the R2R3 repeat region of RrMYB12 and RrMYB111 does not contain the motif ([D/E]Lx2[R/K]x3Lx6Lx3R) for interaction with bHLH partners.

Phylogenetic analysis showed that RrMYB12 and RrMYB111 both belong to SG7 R2R3-MYB and clustered with other flavonol MYB regulators into a flavonol clade (Figure 1C). This suggests that RrMYB12 and RrMYB111 probably function as regulators of flavonol biosynthesis. Additionally, RrMYB111 was closely related to the AtMYB111, while RrMYB12 was closely related to the AtMYB12.

Expression pattern of RrMYB12 and RrMYB111 genes in rose plants

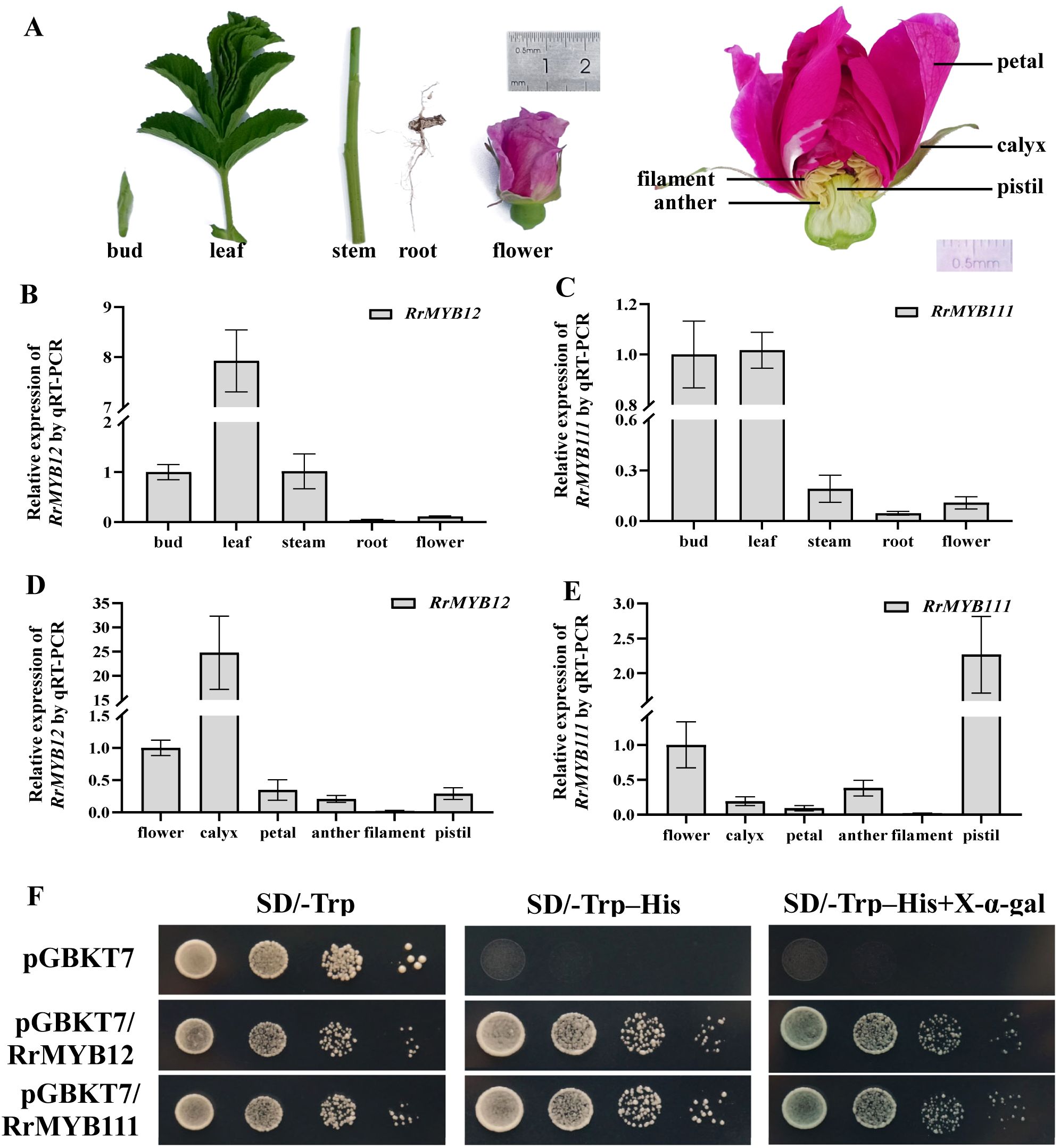

The expression patterns of RrMYB12 and RrMYB111 in various tissues and organs of rose plants were analyzed by quantitative real-time PCR (qRT-PCR) (Figure 2A). The results showed that the expression profiles of both RrMYB12 and RrMYB111 were similarly characterized by low expression in root and flower, but RrMYB12 was high expression in leaf and RrMYB111 was high expression in young shoot (both bud and leaf)(Figures 2B, C). Additionally, considering the pivotal role of the rose flower in roses, thus we conducted an analysis on the expression patterns of RrMYB12 and RrMYB111 across different parts of rose flower (Figure 2A). The expression of RrMYB12 and RrMYB111 exhibited partial similarity and the expression of these two genes were relatively low in the petals and filaments. And the differences were that RrMYB12 was highly expressed in the calyx, while RrMYB111 was highly expressed in the pistil (Figures 2D, E).

Figure 2

RrMYB12 and RrMYB111 function as transcriptional activator

We examined the transcriptional activation of RrMYB12 and RrMYB111 by yeast. Full length RrMYB12 and RrMYB111 was cloned into the pGBKT7 vector. The RrMYB12-BD and RrMYB111-BD construct and BD were transformed into Y2H yeast cells, respectively. The Y2H yeast cells transformed with RrMYB12-pGBDT7 and RrMYB111-pGBDT7 grown normally on SD/-Trp-His and appeared blue on SD/-Trp-His with X-α-Gal, while the negative control group showed an inhibition of colony growth (Figure 2F).

Overexpression of RrMYB12 and RrMYB111 in tobacco promote flavonols and suppress anthocyanin accumulation accumulated in petals

The SG7 R2R3-MYB transcription factors were considered to regulate the accumulation of flavonols. To further investigate the function of RrMYB12 and RrMYB111 in flavonoid metabolism in vivo, stable heterologous overexpression of RrMYB12 and RrMYB111 was performed in tobacco plants. More than twenty transgenic tobacco lines were obtained for each construct. Transgenic tobacco plants containing the overexpression constructs of RrMYB12 and RrMYB111 exhibited normal growth. However, some of these transgenic plants produced white and light pink flowers compared to the control group plants (CK) (Figures 3A, 4A). Semiquantitative analyses revealed significant levels of RrMYB12 and RrMYB111 mRNA corresponding to the observed changes in flower color (Figures 3B, 4B).

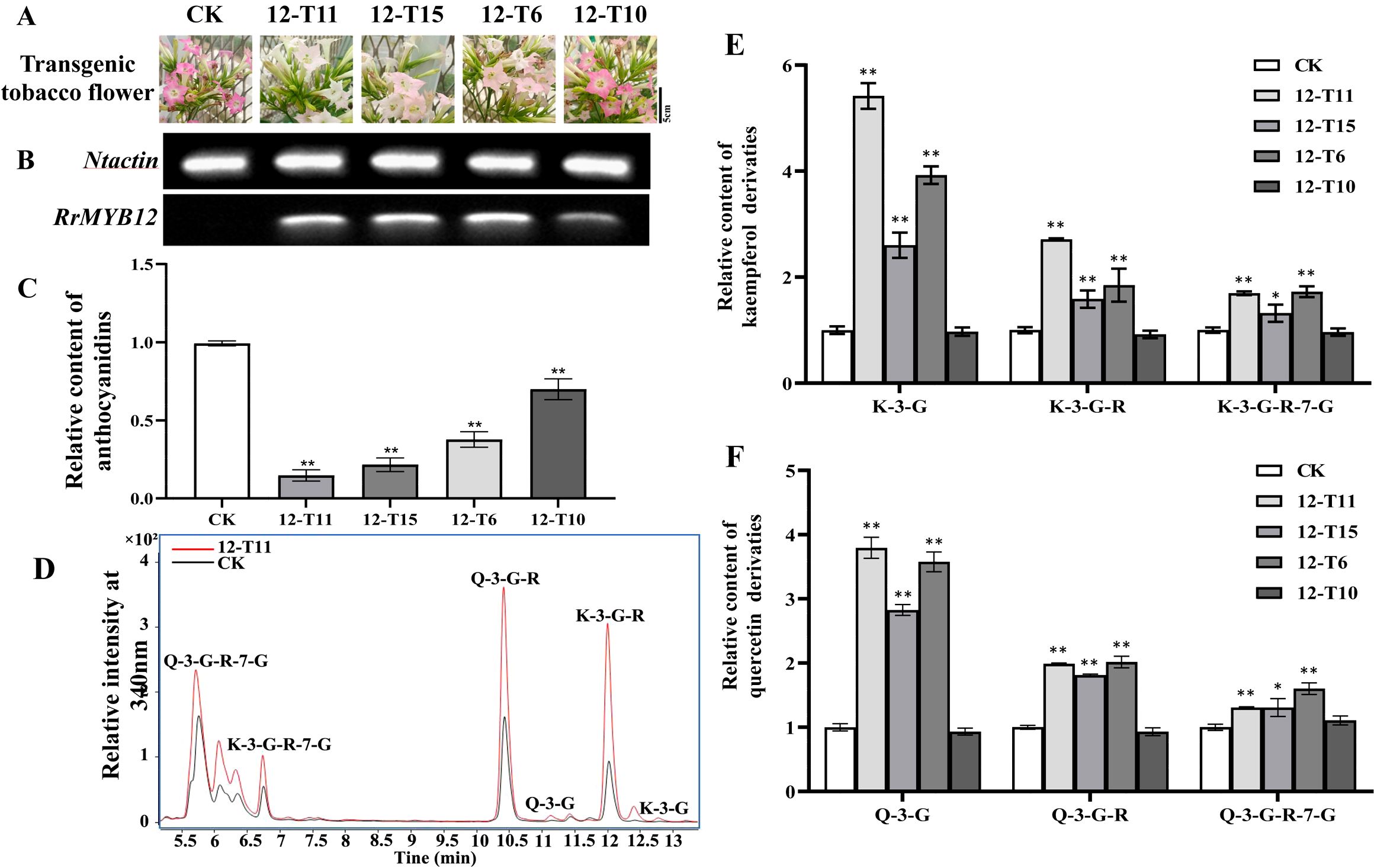

Figure 3

Figure 4

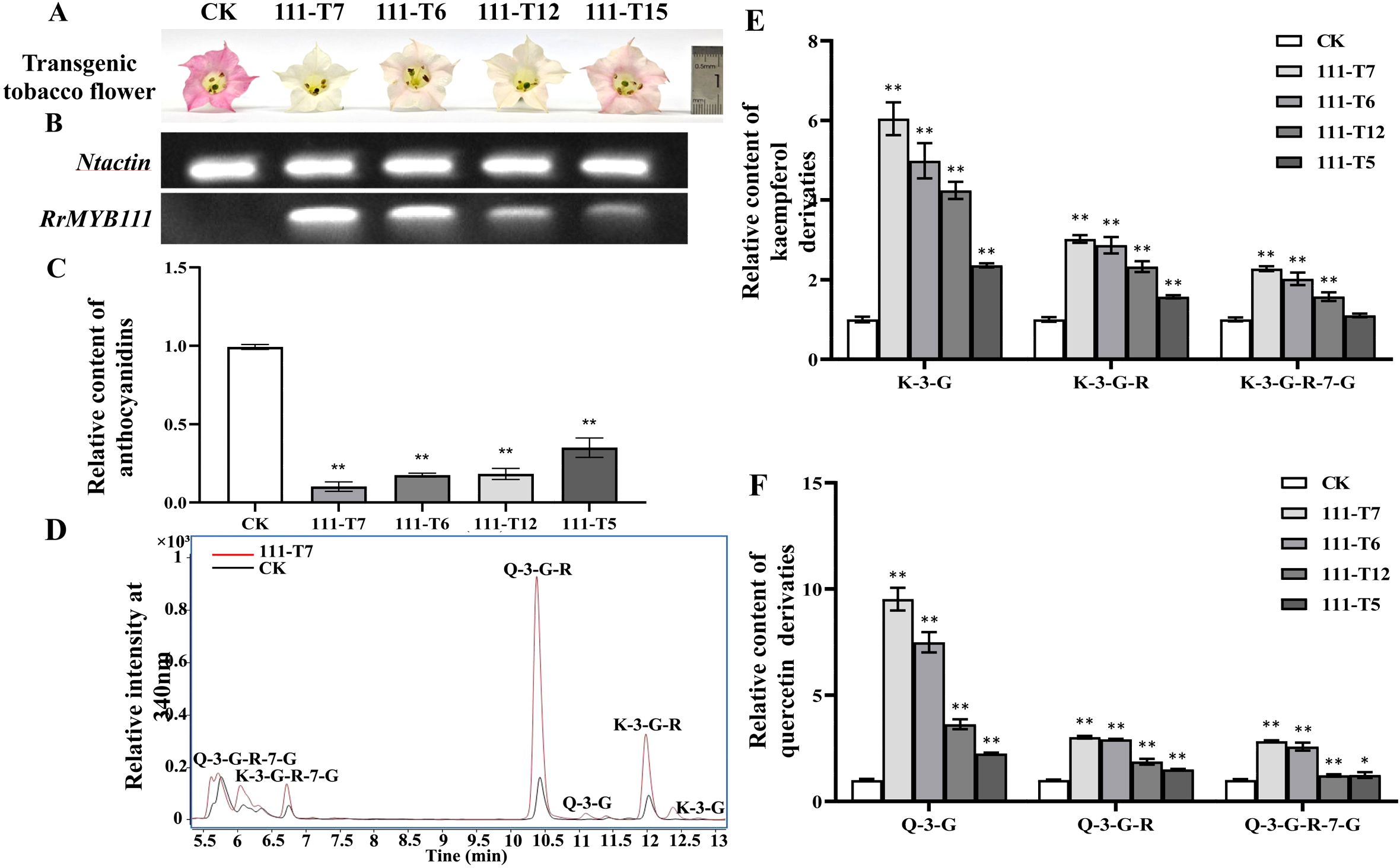

Then, the flavonoid contents, including total anthocyanins and flavonol glycosides, were measured in transgenic tobacco flowers. Metabolic analysis conducted by spectrophotometry confirmed that the anthocyanin content extracted from RrMYB12-overexpressed (RrMYB12-OE) and RrMYB111-overexpressed (RrMYB111-OE) tobacco petals was significantly lower than that in CK (Figures 3C, 4C). For instance, the anthocyanin contents in RrMYB12-OE line11 (T12-11) and RrMYB111-OE line17 (T111-7) accounted for only 14.69% and 10.13% of the anthocyanin contents in CK. The higher the expression of heterogeneously genes, the lower the accumulation of anthocyanins in transgenic tobacco flowers was observed as a phenomenon. Conversely, UPLC-MS analysis revealed that the levels of flavonols accumulated in RrMYB12-OE and RrMYB111-OE flowers were significantly higher compared to those found in CK flowers, with the exception of RrMYB12-OE line10 (T12-10), where there was minimal alteration observed in the content of flavonol glycosides. (Figures 3D-F, 4D-F). For example, the measurements of K-3-G, K-3-G-R, and K-3-G-R-7-G in T12-11 increased to approximately 5.42, 2.71 and 1.70 times those of the control petals (Figure 3E). And the measurements of Q-3-G, Q-3-G-R, and Q-3-G-R-7-G in T111-7 increased to approximately 9.52, 3.02 and 2.83 times those of the control petals (Figure 4F).

The expression of FLS and DFR was considered to be strongly associated with the coloration of plants flowers (Figure 5A). The qRT-PCR method was conducted to examine the expression levels of endogenous genes involved in the flavonoid pathway in RrMYB12-OE and RrMYB111-OE flowers. The qRT-PCR results showed that NtMYB12, the tobacco homologous gene of RrMYB12 and RrMYB111, was inhibited to varying degrees compared with CK. And the expression of NtDFR and NtANS genes associated with anthocyanin synthesis exhibited a significant reduction. The NtCHS, NtCHI, NtF3H and NtFLS genes, related to flavonol synthesis, were significantly upregulated in most RrMYB12-OE and RrMYB111-OE plants (Figures 5A, B).

Figure 5

These results suggest that the ectopic expression of RrMYB12 and RrMYB111 in tobacco redirects the metabolic flux from the anthocyanin pathway towards the flavonol pathway.

RrMYB12 and RrMYB111 activate promoters of the flavonol pathway genes

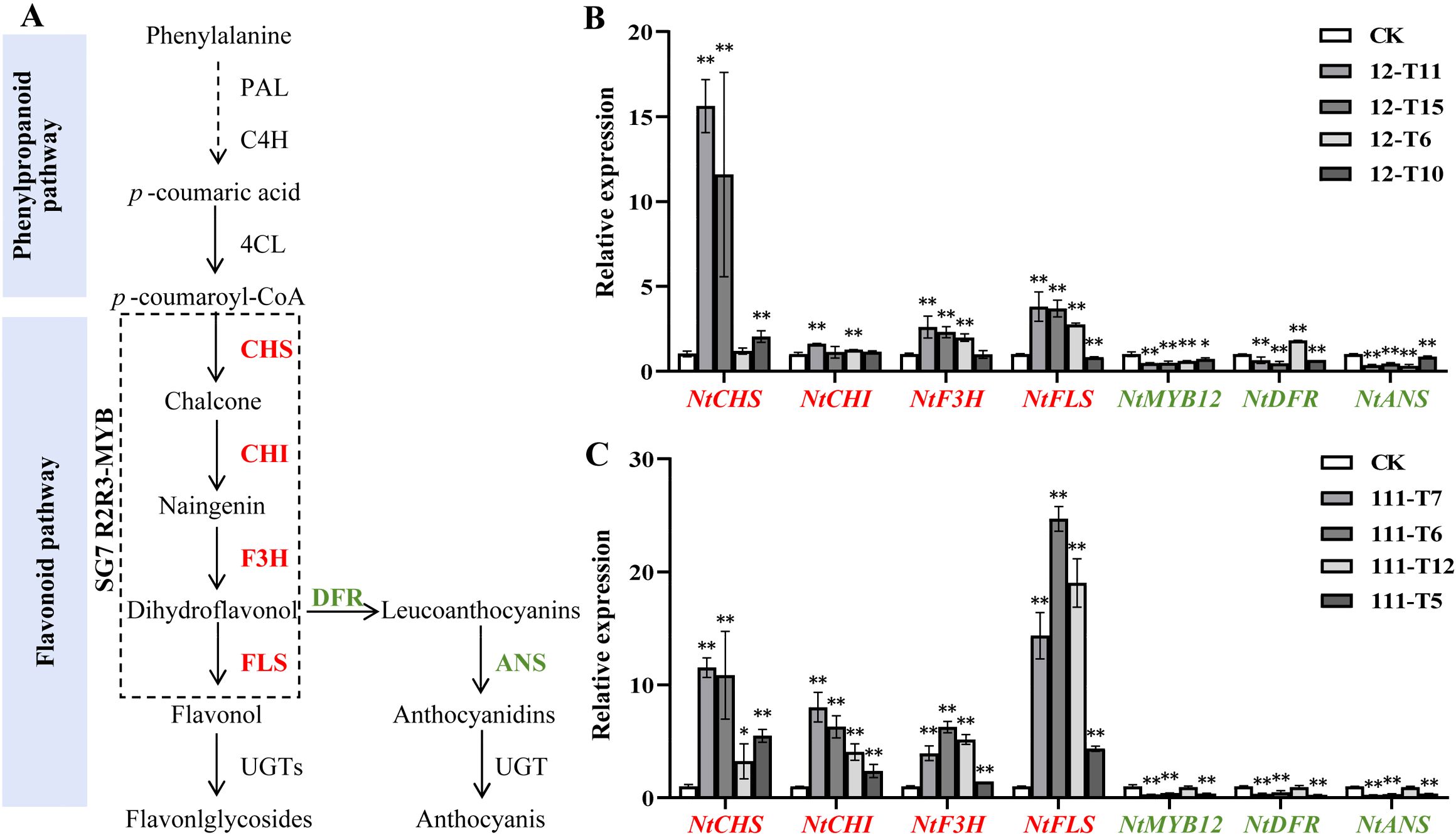

The expressions of NtCHS, NtCHI, NtF3H and NtFLS genes were more strongly increased than other genes of the flavonol pathway in RrMYB12-OE and RrMYB111-OE tobacco lines. We speculated that RrCHS, RrCHI, RrF3H and RrFLS may be potential targets of RrMYB12 and RrMYB111 transcriptional activation. First of all, the promoter sequences of the RrCHS, RrCHI, RrF3H and RrFLS genes in roses were analysed by PlantCARE website. Meanwhile, the NtCHS, NtCHI, NtF3H and NtFLS promoters in tobacco were also analyzed (Supplementary Figure 2). According to the analysis, the sequences of RrCHS, RrCHI, RrF3H and RrFLS promoters all contain multiple MYB sites, such as CAACCA, TAACTG and TAACCA, etc., which are recognized by MYB transcription factors and serve as MYB binding sites (Figure 6A). This may suggests a direct regulatory role of RrMYBs on the structural genes involved in flavonol biosynthesis.The LUC and EMSA were carried out to determine the interaction of transcription factors and promoters.

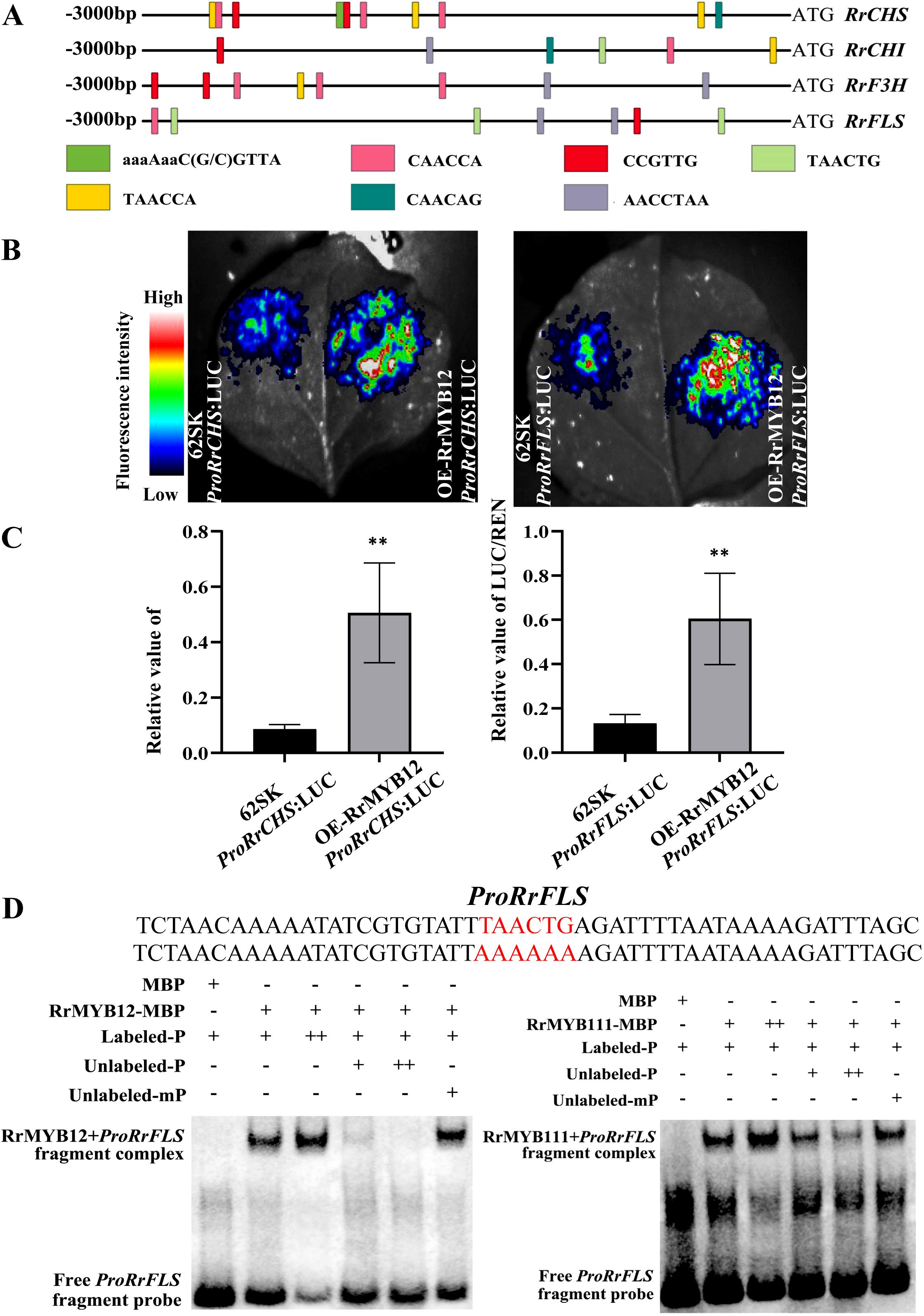

Figure 6

Due to the duplication of MYB sites between the promoters in different structural genes, the promoter sequences of the RrCHS and RrFLS genes in roses were cloned. And the transcription activities of RrMYB12 and RrMYB111 against the RrCHS and RrFLS promoters were detected using a dual-luciferase reporter assay by transiently transformed leaves of N. benthamiana respectively. The RrMYB12 with proRrCHS or proRrFLS exhibited signifcantly higher LUC activity compared with proRrCHS or proRrFLS alone when transiently expressed in tobacco leaf epidermal cells (Figure 6B). The activities were indicated by the ratio of LUC/REN. The luminescence intensities of RrCHS and RrFLS promoters were significantly increased by RrMYB12 in comparison to the corresponding controls that lacked RrMYB12 (Figure 6C). For example, The promoters of RrFLS were strongly activated up to 4.5 fold by RrMYB12. But these promoters were not activated by RrMYB111 in the transient reporter assay (Supplementary Figure 3).

To investigate whether the RrMYB12 and RrMYB111 proteins can directly bind to the promoter region of the flavonol metabolic-related gene in vitro, electrophoretic mobility shift assays were performed. As shown in Figure 6D, both the RrMYB12 and RrMYB111 protein can directly bind to the fragment of the RrFLS promoter. And the unlabeled probe competed with the biotin-labeled probe for binding to RrMYB12-pMAL and RrMYB111-pMAL. Moreover, excessive cold probes could obviously reduce the band shift, while mutant probes failed to compete with the binding of proRrFLS, indicating that the binding of RrMYBs to the RrFLS promoter region was specific. These results indicate that RrMYB12 and RrMYb111 specifically and directly bind to the TAACTG site in the RrFLS promoters.

Discussion

The functional similarity of R2R3-MYB TFs can be predicted by their structural similarity. The amino acid sequence of RrMYB12 and RrMYB111 revealed the presence of the highly conserved R2R3 domain at the N-terminus, which is characteristic of MYB transcription factors (Figure 1B). The SG7 motif, which is characteristic of flavonol biosynthesis regulators before, was identified at the C-terminus of both RrMYB12 and RrMYB111 (Figure 1B) (Czemmel et al., 2009; Stracke et al., 2007). And the SG7-2 motif in the C-terminal region was only identified at RrMYB12 not identified at RrMYB111 which is similar to the amino acid sequence characteristics of AtMYB12 and AtMYB111 (Figure 1B) (Stracke et al., 2007). Additionally, the R2 and R3 domains of RrMYB12 and RrMYB111 does not contain the conserved bHLH interaction motif identified previously, suggesting that RrMYB12 and RrMYB111 is bHLH cofactor independent (Zhang et al., 2023; Zhao et al., 2023; Zimmermann et al., 2004). This cofactor independency is generally restricted to the MYB factors of the flavonol clade (Huang et al., 2016). Phylogenetic analysis indicated that RrMYB12 and RrMYB111 were clustered within subgroup 7, with other known flavonol regulators such as AtMYB11, AtMYB12, and AtMYB111 from A. thaliana, LjaMYB12 from L. japonica and VvMYBF1 from V. vinifera (Figure 1C). All of these indicated that RrMYB12 and RrMYB111 should be a potential R2R3-MYB protein that has the function of regulating flavonol biosynthesis.

As known, the expression of R2R3-MYB genes in the flavonol pathway, such as AtMYB12 and VvMYBF1, exhibits a strong correlation with flavonol synthesis and accumulation (Czemmel et al., 2009; Stracke et al., 2007). Therefore, analyzing the gene expression of RrMYB12 and RrMYB111 would be helpful for understanding the pattern of flavonol accumulation in R. rugosa. The qRT-PCR analysis revealed that RrMYB12 exhibited high expression in leaf and low expression in root and flower, while the expression of RrMYB111 in bud and leaf was almost the same (Figures 2A-C). And in different parts of rose flower, RrMYB12 was highly expressed in the calyx, while RrMYB111 was highly expressed in the pistil (Figures 2D, E). These differential expression of genes in rose tissues is similar to A. thaliana or other plants that contain multiple SG7 MYB genes that the homologous genes showed spatial and temporal differences (Stracke et al., 2007). Based on these datas, it could be inferred that the flavonol contents in the stem, root, and flower of rose plant may be relatively low and the accumulation of flavonols in various parts of rose flower would be likely to be very complex. These datas and inferences can provide a basis for future molecular techniques to modify the accumulation of rose flavonoids in different tissues.

The regulatory role of SG7 R2R3-MYB in flavonol synthesis is highly conserved across diverse plant species. In addition to demonstrating the function of SG7 R2R3-MYB in regulating flavonol synthesis by multiple mutants of atmyb12, atmyb111 and atmyb11, similar results were also obtained when overexpressing SG7 MYB genes in the heterologous system (Czemmel et al., 2009; Stracke et al., 2007). For example, The expression of AtMYB12 in tobacco resulted in a several-fold increase in flavonol accumulation in tobacco, as well as in tomato enhanced flavonol accumulation in tomato leaves and fruits (Ashutosh et al., 2015; Prashant et al., 2010). And the ectopic expression of PqMYBF1 in transgenic tobacco also caused an observable elevation in flavonol levels (Zhang et al., 2023). In this study, the introduction of RrMYB12 and RrMYB111 overexpression constructs into tobacco plants resulted in a significant enhancement of flavonol accumulation in the majority of RrMYB12-OE and RrMYB111-OE tobacco lines (Figures 3, 4). These findings suggest that both RrMYB12 and RrMYB111 can play a role in the regulation of flavonol biosynthesis in tobacco flowers.

In most plant species, anthocyanins and flavonols are synthesized within the same cell and typically accumulate in the same subcellular location. Thus, potential competition may exist between anthocyanins and flavonols. In fact, the overexpression of GhMYB1a resulted in an excessive accumulation of kaempferol, while significantly reducing petal pigmentation during flower development (Zhong et al., 2020). Therefore, we determined the anthocyanin content in both the transgenic flowers and CK flowers. Compared to the flowers of CK, both RrMYB12-OE and RrMYB111-OE transgenic tobacco exhibited a significant reduction in anthocyanin content(Figures 3C, 4C).

The inverse correlation observed between anthocyanin and flavonol levels in the SG7 R2R3-MYB genes-overexpressing plant lines likely reflects a competitive relationship between these two branches of flavonoid metabolites. Previous studies have demonstrated that ectopic expressions of these MYB regulators in tobacco or tomato can modulate the genes involved in the flavonol pathway, resulting in enhanced flavonol biosynthesis and consequently inhibiting the accumulation of anthocyanins. For example, flavonol pathway genes, including NtCHS, NtCHI, NtF3H and NtFLS can be generally upregulated and the anthocyanin biosynthetic pathway genes, NtDFR and NtANS were not significantly modulated or downregulated in transgenic tobacco by overexpressing PqMYBF1 or EsMYBF1 (Huang et al., 2016; Zhang et al., 2023). As reported, AtMYB12 mainly targets AtCHS and AtFLS genes, AtMYB11 and AtMYB111 could increase the expression of the AtCHS gene in A. thaliana to 36 and 399 times, respectively (Stracke et al., 2007). Yang et al. found that overexpression of CmMYB3 form Chrysanthemum morifolium could efectively promote the expression of these four genes related to favonol biosynthesis in A. thaliana, especially the expression level of AtCHS and AtFLS genes increased by more than 10 times (Yang et al., 2023). Similarly, our research also showed that in RrMYB12-OE and RrMYB111-OE tobacco lines, the expression of NtCHI, NtCHS, NtF3H and NtFLS was upregulated, especially NtCHI and NtFLS more than 15 times, and the expression levels of NtMYB12, NtDFR and NtANS were significantly decreased (Figure 5). The results suggest that RrMYB12 and RrMYB111 exert direct influence on flavonol accumulation primarily by regulating the expression of key genes involved in the flavonoid pathway. Additionally, they cause competitive inhibition of NtMYB12 and NtDFR and NtANS. Overall, the present findings collectively provide compelling evidence supporting the functional regulation of flavonol synthesis by RrMYB12 and RrMYB111.

The mechanism of R2R3-MYB transcription factors in the regulation of flavonol and anthocyanin biosynthesis has been extensively studied. Previous studies have shown that SG7 MYB promoted favonol biosynthesis by regulating more than one gene expression in the secondary metabolic pathway (Yang et al., 2023). PqMYBF1 have been reported to activate the flavonol pathway genes PqCHS, PqF3H, and PqFLS independently of a bHLH cofactor (Zhang et al., 2023). However, the SG7 R2R3-MYB transcription factor, CmMYB9a, activates foral coloration in chrysanthemum by positively regulating CmCHS, CmDFR and CmFNS, but inhibiting the expression of CmFLS (Wang et al., 2021). So, even in the same family, the functions of diferent members sometimes may have signifcant diferences. And our study found that the RrMYB12 and RrMYB111 proteins activate the flavonol pathway genes independently. As shown in Figure 2F, yeast cells containing the RrMYB12 and RrMYB111 could grow well and turn blue on SD/-Trp-His medium with X-α-Gal, indicating that that RrMYB12 and RrMYB111 were the transcriptional activator. It was demonstrated that RrMYB12 can directly and specifically activate the flavonol pathway genes in the dual-luciferase reporter assay. Both the RrCHS and RrFLS promoters were significantly activated by RrMYB12 (Figure 6B), suggesting that RrMYB12 may be able to control the entire pathway leading to flavonol synthesis. In addition, EMSA results also showed the direct and specific binding of RrMYB12 to the MYB site of RrFLS promoter (Figure 6C). These results suggest that RrMYB12 specifically activates the flavonol pathway genes. As for RrMYB111, why were the RrCHS and RrFLS promoters not activated by RrMYB111 in the LUC experiment? Some researches could help us speculate that RrMYB111 may be a partially atypical SG7 R2R3-MYB protein and the SG7-2 motif was speculated to might affect the regulatory function on flavonol biosynthesis of SG7 MYB transcription factors (Wang et al., 2017; Yang et al., 2023; Zhou et al., 2021). Whether the absence of SG7-2 motif of the RrMYB111 protein is related to the inability of RrCHS and RrFLS promoters to be activated need further study.

Our findings not only provide further understanding of the regulation of the flavonol biosynthetic pathway in roses but also highlight a potential regulator that could be utilized for genetic manipulation to regulate pigmentation accumulation.

References

• 1

  AshutoshP.PrashantM.DharmendraC.ReenaY.RidhiG.SwetaB.et al. (2015). AtMYB12 expression in tomato leads to large scale differential modulation in transcriptome and flavonoid content in leaf and fruit tissues. Sci. Rep.5, 12412. doi: 10.1038/srep12412

  • CrossRef
  • Google Scholar

• 2

  ChenF.SuL.HuS.XueJ.LiuH.LiuG.et al. (2021). A chromosome-level genome assembly of rugged rose (Rosa rugosa) provides insights into its evolution, ecology, and floral characteristics. Hortic. Res.8, 141–141. doi: 10.1038/s41438-021-00594-z

  • CrossRef
  • Google Scholar

• 3

  CzemmelS.StrackeR.WeisshaarB.CordonN.HarrisN. N.WalkerA. R.et al. (2009). The grapevine R2R3-MYB transcription factor VvMYBF1 regulates flavonol synthesis in developing grape berries. Plant Physiol.151, 1513–1530. doi: 10.1104/pp.109.142059

  • CrossRef
  • Google Scholar

• 4

  HeG.ZhangR.JiangS.WangH.MingF. (2023). The MYB transcription factor RcMYB1 plays a central role in rose anthocyanin biosynthesis. Hortic. Res.10, uhad080. doi: 10.1093/hr/uhad080

  • CrossRef
  • Google Scholar

• 5

  HolmeI. B.DionisioG.PedersenH. B. (2021). A roadmap to modulated anthocyanin compositions in carrots. Plants (Basel)10, 472. doi: 10.3390/plants10030472

  • CrossRef
  • Google Scholar

• 6

  HuangW.KhaldunA. B. M.ChenJ.ZhangC.LvH.YuanL.et al. (2016). A R2R3-MYB transcription factor regulates the flavonol biosynthetic pathway in a traditional Chinese medicinal plant, Epimedium sagittatum. Front. Plant Sci.7. doi: 10.3389/fpls.2016.01089

  • CrossRef
  • Google Scholar

• 7

  IangX.HuangK.ZhengG.HouH.WangP.JiangH.et al. (2018). CsMYB5a and CsMYB5e from Camellia sinensis differentially regulate anthocyanin and proanthocyanidin biosynthesis. Plant Sci.270, 209–220. doi: 10.1016/j.plantsci.2018.02.009

  • CrossRef
  • Google Scholar

• 8

  JiN.WangQ.LiS.WenJ.WangL.DingX.et al. (2023). Metabolic profile and transcriptome reveal the mystery of petal blotch formation in rose. BMC Plant Biol.23, 46–46. doi: 10.1186/s12870-023-04057-6

  • CrossRef
  • Google Scholar

• 9

  JiangL.YueM.LiuY.ZhangN.LinY.ZhangY.et al. (2023). A novel R2R3-MYB transcription factor FaMYB5 positively regulates anthocyanin and proanthocyanidin biosynthesis in cultivated strawberries (Fragaria × ananassa). Plant Biotechnol. J.21, 1140–1158. doi: 10.1111/pbi.14024

  • CrossRef
  • Google Scholar

• 10

  JiangX.ShiY.FuZ.LiW.LaiS.WuY.et al. (2020). Functional characterization of three flavonol synthase genes from Camellia sinensis: roles in flavonol accumulation. Plant Sci.300, 110632. doi: 10.1016/j.plantsci.2020.110632

  • CrossRef
  • Google Scholar

• 11

  JinG.DengZ.WangH.LiW.SuL.ZhangY.et al. (2024). A stress-responsive R2R3-MYB transcription factor, EpMYB1 is involved in the regulation of anthocyanin biosynthesis in purple coneflower. Ind. Crop Prod209, 118043. doi: 10.1016/j.indcrop.2024.118043

  • CrossRef
  • Google Scholar

• 12

  LiangS.HashemA.AllahE. F. A.WuQ. (2023). Root-associated symbiotic fungi enhance waterlogging tolerance of peach seedlings by increasing flavonoids and activities and gene expression of antioxidant enzymes. Chem. Biol. Technol. Agric.10, 124. doi: 10.1186/s40538-023-00500-w

  • CrossRef
  • Google Scholar

• 13

  LiuY.LiuJ.TangC.UyangaV. A.XuL.ZhangF.et al. (2024). Flavonoids−targeted metabolomic analysis following rice yellowing. Food Chem.430, 136984. doi: 10.1016/j.foodchem.2023.136984

  • CrossRef
  • Google Scholar

• 14

  PrashantM.AshutoshP.ManishT.C.K.PrakashS. O.HasanA. M.et al. (2010). Modulation of transcriptome and metabolome of tobacco by Arabidopsis transcription factor, AtMYB12, leads to insect resistance. Plant Physiol.152, 2258–2268. doi: 10.1104/pp.109.150979

  • CrossRef
  • Google Scholar

• 15

  RaziqA.ZhangK.SunW.AhmadN.ZhaoH.A.RazaM.et al. (2024). Transcriptome profiling of MYB-overexpressed transgenic lines provides crucial molecular insights into anthocyanin and remodel the biosynthesis regulatory network in Nicotiana tabacum. Ind. Crop Prod213, 118374. doi: 10.1016/j.indcrop.2024.118374

  • CrossRef
  • Google Scholar

• 16

  SaitoK.SakakibaraK. Y.NakabayashiR.HigashiY.YamazakiM.TohgeT.et al. (2013). The flavonoid biosynthetic pathway in Arabidopsis: structural and genetic diversity. Plant Physiol. Bioch72, 21–34. doi: 10.1016/j.plaphy.2013.02.001

  • CrossRef
  • Google Scholar

• 17

  ShenY.SunT.PanQ.AnupolN.ChenH.ShiJ.et al. (2019). RrMYB5- and RrMYB10-regulated flavonoid biosynthesis plays a pivotal role in feedback loop responding to wounding and oxidation in Rosa rugosa. Plant Biotechnol. J.17, 2078–2095. doi: 10.1111/pbi.13123

  • CrossRef
  • Google Scholar

• 18

  ShiY.JiangX.ChenL.LiW.LaiS.FuZ.et al. (2021). Functional analyses of flavonol synthase genes from Camellia sinensis reveal their roles in anther development. Front. Plant Sci.12. doi: 10.3389/fpls.2021.753131

  • CrossRef
  • Google Scholar

• 19

  StrackeR.IshiharaH.HuepG.BarschA.MehrtensF.NiehausK.et al. (2007). Differential regulation of closely related R2R3-MYB transcription factors controls flavonol accumulation in different parts of the Arabidopsis thaliana seedling. Plant J.50, 660–677. doi: 10.1111/j.1365-313X.2007.03078.x

  • CrossRef
  • Google Scholar

• 20

  StrackeR.WerberM.WeisshaarB. (2001). The R2R3-MYB gene family in Arabidopsis thaliana. Curr. Opin. Plant Biol.4, 447–456. doi: 10.1016/S1369-5266(00)00199-0

  • CrossRef
  • Google Scholar

• 21

  WangY.LiS.ZhuZ.XuZ.QiS.XingS.et al. (2022). Transcriptome and chemical analyses revealed the mechanism of flower color formation in Rosa rugosa. Front. Plant Sci.13, 1021521. doi: 10.3389/fpls.2022.1021521

  • CrossRef
  • Google Scholar

• 22

  WangJ.WangF.JinC.TongY.WangT. (2020). A R2R3-MYB transcription factor VvMYBF1 from grapevine (Vitis vinifera L.) regulates flavonoids accumulation and abiotic stress tolerance in transgenic Arabidopsis. J. Hortic. Sci. Biotech.95, 147–161. doi: 10.1080/14620316.2019.1665480

  • CrossRef
  • Google Scholar

• 23

  WangN.XuH.JiangS.ZhangZ.LuN.QiuH.et al. (2017). MYB12 and MYB22 play essential roles in proanthocyanidin and flavonol synthesis in red-fleshed apple (Malus sieversii f. niedzwetzkyana). Plant J.90, 276–292. doi: 10.1111/tpj.13487

  • CrossRef
  • Google Scholar

• 24

  WangY.ZhouL.WangY.GengZ.LiuS.ChenC.et al. (2021). CmMYB9a activates floral coloration by positively regulating anthocyanin biosynthesis in chrysanthemum. Plant Mol. Biol.108, 51–63. doi: 10.1007/s11103-021-01206-z

  • CrossRef
  • Google Scholar

• 25

  WangW.ZhouY.WuY.DaiX.LiuY.QianY.et al. (2018). Insight into catechins metabolic pathways of Camellia sinensis based on genome and transcriptome analysis. J. Agric. Food. Chem.66, 4281–4293. doi: 10.1021/acs.jafc.8b00946

  • CrossRef
  • Google Scholar

• 26

  XieJ.LiM.DuZ. (2022). Chemical compounds, anti-aging and antibacterial properties of Rosa rugosa Purple branch. Ind. Crops Prod181, 114814. doi: 10.1016/j.indcrop.2022.114814

  • CrossRef
  • Google Scholar

• 27

  YangF.WangT.GuoQ.ZouQ.YuS. (2023). The CmMYB3 transcription factors isolated from the Chrysanthemum morifolium regulate flavonol biosynthesis in Arabidopsis thaliana. Plant Cell Rep.42, 791–803. doi: 10.1007/s00299-023-02991-1

  • CrossRef
  • Google Scholar

• 28

  YinY.ZhangX.GaoZ.HuT.LiuY. (2019). The research progress of chalcone isomerase (CHI) in plants. Mol. Biotechnol.61, 32–52. doi: 10.1007/s12033-018-0130-3

  • CrossRef
  • Google Scholar

• 29

  ZangF.MaY.TuX.HuangP.WuQ.LiZ.et al. (2021). A high-quality chromosome-level genome of wild Rosa rugosa. DNA Res.28, 1–9. doi: 10.1093/dnares/dsab017

  • CrossRef
  • Google Scholar

• 30

  ZhangY.DuanJ.WangQ.ZhangM.ZhiH.BaiZ.et al. (2023). The Paeonia qiui R2R3-MYB transcription factor PqMYBF1 positively regulates flavonol accumulation. Plants (Basel).12, 1427. doi: 10.3390/plants12071427

  • CrossRef
  • Google Scholar

• 31

  ZhangY.HuL.WangS.GouX.GuoQ.LiangG. (2024). Genome-wide identification of R2R3-MYB family in Eriobotrya japonica and functional analysis of EjMYB5 involved in proanthocyanidin biosynthesis. Plant Sci.347, 112198. doi: 10.1016/j.plantsci.2024.112198

  • CrossRef
  • Google Scholar

• 32

  ZhaoW.WuW.LiuY.FanL.MengH.WangL.et al. (2023). The TT2-type MYB transcription factor JrMYB12 positively regulates proanthocyanidin biosynthesis in red walnut. Scientia Hortic.307, 111515. doi: 10.1016/j.scienta.2022.111515

  • CrossRef
  • Google Scholar

• 33

  ZhongC.TangY.PangB.LiX.YangY.DengJ.et al. (2020). The R2R3-MYB transcription factor GhMYB1a regulates flavonol and anthocyanin accumulation in Gerbera hybrida. Hortic. Res.7, 78. doi: 10.1038/s41438-020-0296-2

  • CrossRef
  • Google Scholar

• 34

  ZhouL.GengZ.WangY.WangY.LiuS.ChenC.et al. (2021). A novel transcription factor CmMYB012 inhibits flavone and anthocyanin biosynthesis in response to high temperatures in chrysanthemum. Hortic. Res.8, 248. doi: 10.1038/s41438-021-00675-z

  • CrossRef
  • Google Scholar

• 35

  ZhouB.ZhengB.WuW. (2023). The ncRNAs involved in the regulation of abiotic stress-induced anthocyanin biosynthesis in plants. Antioxidants (Basel)13, 55. doi: 10.3390/antiox13010055

  • CrossRef
  • Google Scholar

• 36

  ZimmermannI. M.HeimM. A.WeisshaarB.UhrigJ. F. (2004). Comprehensive identification of Arabidopsis thaliana MYB transcription factors interacting with R/B-like BHLH proteins. Plant J.40, 22–34. doi: 10.1111/j.1365-313X.2004.02183.x

  • CrossRef
  • Google Scholar
