Abstract
Casparian strips are ring-like structures consisting of lignin, sealing the apoplastic space between endodermal cells. They are thought to have important functions in controlling radial transport of nutrients and toxic elements in roots. However, Arabidopsis mutants with a defective Casparian strip structure have been found to maintain nutrient homeostasis in ranges supportive of growth under standard laboratory conditions. In this study, we investigated the function of Casparian strips under excess boron (B) conditions using sgn3 and sgn4 mutants with defective Casparian strip development but which do not exhibit excessive deposition of suberin, another endodermal diffusion barrier. The growth of sgn3 and sgn4 mutants did not differ significantly from that of wild-type (WT) plants under different B conditions in plate cultures; however, they were highly sensitive to B excess in hydroponic culture, where transpiration drives the translocation of boric acid toward the shoot. In hydroponic culture with sufficient to excess boric acid, B accumulation in shoots of the sgn3 and sgn4 mutants was higher than that in the WT. A time-course tracer study using 10B-enriched boric acid at a sufficient or slightly excessive concentration showed higher translocation of B into shoots of the sgn3 and sgn4 mutants. Furthermore, a genetically encoded biosensor for boric acid expressed under a stele-specific promoter (proCIF2:NIP5;1 5′UTR : Eluc-PEST) visualized faster boric acid flux into the mutant steles. Collectively, our results demonstrate the importance of Casparian strips in preventing apoplastic diffusion of boric acid into the stele under excess supply.
Introduction
Boron (B) is an essential micronutrient for plants, with a narrow concentration range for optimal growth. B deficiency causes various defects, such as decreased root elongation and fertility (). These effects are mainly dependent on the function of B in crosslinking pectin at rhamnogalacturonan II regions (). B toxicity also causes tissue necrosis, chlorosis, and reduced growth (). Excess B affects various cellular metabolism processes and leads to accumulation of reactive oxygen species (ROS) and DNA damage (). Many studies have reported that necrosis first occurs at the leaf tip and margin due to B accumulation at the end of the transpiration stream (). The very narrow concentration tolerance range is attributed to the chemical form of B in solution. Boric acid, the major chemical form of B in solution, is a small, neutral molecule with relatively high membrane permeability. When its concentration is sufficient in soil solution, it can be taken up by root cells and translocated into the xylem vessels through passive diffusion. However, plants possess mechanisms to control B transport when its availability is limited or excessive in soils ().
When water and nutrients are taken up by plant roots, they are transported through several cell layers, including the epidermis, cortex, and endodermis, and then to the xylem vessels for translocation to aboveground tissues. Radial transport in roots consists of three pathways: the apoplastic (diffusion through the apoplastic space), symplastic (diffusion through plasmodesmatal connections), and coupled transcellular pathways (vectorial transport through a polarized importer and exporter) (). Under B limitation, efficient radial transport of B is largely dependent on a coupled transcellular pathway consisting of the polarly localized boric acid channel NIP5;1 and the borate exporters BOR1 and BOR2 (; ; ; ). When the soil contains high levels of B, these transporters are downregulated to avoid uptake and translocation of excess B. The downregulation of NIP5;1 depends on B-induced ribosome stalling at AUG-stop in the 5′-untranslated region (UTR) of NIP5;1 mRNA, resulting in translational inhibition and mRNA degradation (; ). The translation of BOR1 is also repressed under high B concentrations, dependent on the 5′-UTR (). In addition, high B supply induces rapid internalization and vacuolar degradation of BOR1 () and BOR2 (). In plants including barley and rapeseed, a linear relationship between B concentrations in medium and in plant tissues has been reported under sufficient to excess B supply (). This phenomenon can be interpreted as a combination of passive apoplastic transport and passive membrane transport of boric acid through diffusion and nonspecific channels. In Arabidopsis, another borate exporter, BOR4, is upregulated in response to high B supply and is expressed at least in epidermal cells in the root tip region and endodermis in mature root regions (). BOR4-GFP is localized to the outer plasma membrane of root epidermal cells (). BOR4 overexpression decreases B accumulation in roots and shoots, and increases tolerance to excess B (). Conversely, bor4 knockout increases B accumulation in shoots and decreases tolerance to excess B (). Therefore, excessive transport of B from the root surface to the stele can be at least partly prevented by BOR4-dependent borate efflux.
In the roots of higher plants, Casparian strips, which are ring-like structures consisting of lignin, seal the apoplastic spaces between endodermal cells. They have long been thought to function as a barrier blocking the apoplastic diffusion of water and solutes. However, recently, it became possible to test this hypothesis in Arabidopsis mutants (; ; ; ; ; ; ; ; ; ). For example, plants with mutations of ENHANCED SUBERIN 1 (esb1) and CASPARIAN STRIP MEMBRANE DOMAIN PROTEINs (casp1 casp3) showed altered shoot ionomes containing more sulfur, potassium (K), and molybdenum (Mo), and less magnesium (Mg), calcium (Ca), manganese (Mn), and iron (Fe) than the wild-type (WT), but normal levels of B (). Similarly, the leaves of a mutant of myb36, a transcription factor regulating the expression of CASP1, ESB1, and Peroxidase 64 (PER64), accumulated more sodium (Na), Mg, and zinc (Zn), and less Ca, Mn, Fe, and B, than Col-0 (). Mutation of another Casparian strip-related gene, LORD OF THE RINGS 1 (LOTR1), also affected the concentrations of numerous elements in leaves, including increased B levels (). However, these mutants exhibited enhancement of suberization, another diffusion barrier around mature endodermal cells.
In this study, we examined the role of Casparian strips in B transport, particularly under excess B conditions, using the mutants sgn3 and sgn4. The receptor-like kinase SCHENGEN3 (SGN3), also known as GASSHO1 (GSO1), is required to localize CASPs into a ring-like domain (). Among mutants with defective Casparian strip formation, sgn3 mutants are suitable for analyzing Casparian strip function because they have discontinuous strips with unaffected suberin deposition (). NADPH oxidase SGN4/respiratory burst oxidase homolog F (RBOHF) is required for the localized deposition of lignin in the Casparian strip domain. In loss-of-function mutants of SGN4, Casparian strips were absent in younger root parts, whereas aberrantly structured strips and slightly elevated suberin deposition levels were observed in older root parts (; ). Surprisingly, a previous study showed that sgn3 mutants are able to maintain growth and WT levels of various nutrient elements including Ca, B, Fe, Mn, copper (Cu), Mo, cobalt, and Na under standard laboratory conditions (). However, they consistently show reduced K and increased Mg and cesium (Cs) levels, and tend to have reduced Zn levels in shoots under various conditions. They also show enhanced sensitivity to K deficiency. Although the B concentration in shoots of the sgn3 mutants was not largely affected under normal growth conditions (), the Casparian strip mutants may be unable to maintain B homeostasis when excess boric acid is supplied. Our study using the sgn3 and sgn4 mutants demonstrates that the Casparian strip functions to restrict the flow of excess boric acid into the root stele.
Materials and methods
Plant materials and growth medium
We obtained the Arabidopsis T-DNA insertion mutants sgn3–3 (SALK_043282), sgn3–4 (SALK_064029), and rbohf-3 (SALK_059888) from the Arabidopsis Biological Resource Center. The sgn4–1 mutant was isolated from an ethyl-methane sulfonate (EMS)-treated population in a previous study (). The composition of the plant growth medium is as follows: 1.77 mM sodium phosphate buffer (pH 5.8), 1.5 mM MgSO4, 2.0 mM Ca(NO3)2, 3.0 mM KNO3, 50 μM Fe-EDTA, 10.3 μM MnSO4, 1.0 μM ZnSO4, 1.0 μM CuSO4, 130 nM CoCl2, and 24 nM (NH4)6Mo7O24 (; ). The control level of B is 30 µM boric acid. In each experiment, various concentrations of boric acid were supplied.
Growth analysis
For growth analysis in plates, seeds were surface-sterilized and sown on the medium containing 1% sucrose and solidified with 1% gellan gum (FUJIFILM Wako Chemicals) in a sterile square Petri dish (140 × 100 mm; Eiken, Tokyo). Boric acid was supplemented at the indicated concentrations (0.1, 1, 30, 3,000 or 6,000 μM). After 2–3 days of 4°C treatment in the dark, the plates were placed vertically in a growth chamber at 22°C with a 16 h light/8 h dark cycle under fluorescent lamps with a light intensity of 110 μmol m−2 s−1. Primary root length and shoot area of the 10-day-old plants were measured using the ImageJ software (https://imagej.nih.gov/ij/). For each data point, 11–16 plants were analyzed.
For growth analysis in hydroponic culture (), plants were grown for 5 weeks with 1.4 L liquid medium containing boric acid at the indicated concentrations (0.1, 1, 10, 30, 100, 300 or 1,000 μM). The environmental parameters of the growth chamber were as follows: 9 h/15 h light/dark cycle, 22°C, fluorescent lamps with a light intensity of 110 μmol m−2 s−1, and 65–75% humidity. For each B concentration and genotype, 4–5 plants were analyzed.
For growth analysis on rockwool, seeds were surface-sterilized and soaked in sterile water. After 2–3 days of 4°C treatment in the dark, three seeds were sown at each of the four corners of a rockwool block (36 × 36 × 40 mm, Grodan, The Netherlands), placed in containers (35 cm × 12 cm), and supplied with Milli-Q water. The environmental parameters of the growth chamber were as follows: 9 h/15 h light/dark cycle, 22°C under fluorescent lamps with a light intensity of 110 μmol m−2 s−1, and 35–70% humidity. The seedlings were grown for 1 week and then two of the three plants were removed from each corner, leaving the healthiest one. Next, the plants were grown with liquid medium containing boric acid at the indicated concentrations (10, 30, 100, 300, 1,000 or 2,000 μM). After 3 weeks, the two smaller plants in each rockwool block were removed. After another week, the shoots of the 5-week-old plants were harvested and weighed. For each B concentration and genotype, 5–6 plants were analyzed.
Measurement of B accumulation in shoots
Plants were grown in hydroponic culture as described above. The shoots were collected and dried in a forced-air dryer (WFO-700; Eyela, Japan). Dry weights were measured and the samples were digested in concentrated nitric acid for boron determination (FUJIFILM Wako Chemicals). B quantification was conducted based on the curcumin assay (). For each B concentration and genotype, 4–5 plants were analyzed.
Tracer analysis
Col-0 and the Casparian strip mutants were grown hydroponically as described previously (). The environmental parameters of the growth chamber were as follows: 9 h/15 h light/dark cycle, and 22°C under fluorescent lamps with a light intensity of 110 μmol m−2 s−1. The plants were supplied with MilliQ water for 1 week and then with liquid medium containing 1 µM 11B-enriched boric acid (99%, Cambridge Isotope Laboratories) for 3 weeks. The plants were incubated with liquid medium containing 300 µM 10B-enriched boric acid (96%, Cambridge Isotope Laboratories) for 1, 2, and 4 h and the shoots and roots were collected. As a control, shoots and roots were collected without incubation with 10B-enriched boric acid. The shoots were dried in a forced-air dryer at 70°C for longer than 2 days and then weighed. The samples were digested with 3 mL concentrated nitric acid for boron determination (Wako Pure Chemical) in 50 mL DigiTUBEs (GL Sciences, Tokyo, Japan) at 110°C using a DigiPREP MS apparatus (GL Sciences). After the nitric acid solution evaporated, 20 mL 2% nitric acid containing 5 ppb beryllium as internal standard was added to dissolve the samples. 10B concentrations were measured via inductively coupled plasma mass spectrometry (ICP–MS, ICPM-8500, SHIMADZU, Kyoto, Japan). Shoots or roots from 4 plants were treated together as one sample. For each genotype and time point, 4 samples were analyzed.
Ionome analysis
Plants were grown hydroponically for 25 days as described previously (), with liquid medium containing boric acid at concentrations of 0.3, 30, and 1000 µM. After 15 days of growth, the plants were additionally supplied with 3 µM CsCl and 10 µM SrCl2. The environmental parameters of the growth chamber were as follows: 10 h/14 h light/dark cycle, 22°C under fluorescent lamps, and 70% humidity. Both experiments included results already described in a previous report (for 30 µM Col-0, sgn3–3, and sgn3–4). Sample preparation and analysis by ICP–MS (ELAN, DRC-e; Perkin–Elmer, Waltham, MA, USA) were as described previously ().
Plasmid construction
The proUBQ10:NIP5;1 5′UTR : ELuc-PEST plasmid (pSW52) was previously reported (). For construction of the proCIF2:NIP5;1 5′UTR : ELuc-PEST plasmid (pJK8), we amplified the 1,756 bp upstream sequence of the CIF2 coding region from the Col-0 genome using the following primers: 5′-GCTCAAGCTAAGCTTATTGTGAAAGTCACACACTCG-3′ and 5′-TGAGCTTATGTCTAGCTTCTTTCTCCTTTCAATTTTTGATG-3′. NIP5;1 5′UTR : ELuc-PEST sequence was amplified from pSW52 using the following primers: 5′-CTAGACATAAGCTCAAAGACTAACCAAACC-3′ and 5′-CCCTGCAGGGGATCCCTCAAGAATGGCATCTACACATTGATC-3′. These two fragments were subcloned into a pPZP-based binary vector () containing the HSP terminator sequence (a gift from Yuji Iwata, Osaka Metropolitan University) using the BamHI and HindIII restriction enzymes and the In-Fusion HD cloning kit (Takara, Kusatsu, Japan).
Generation of transgenic plants
Plasmid binary vectors were introduced into Arabidopsis Col-0 plants using the floral dip method () with Agrobacterium strain GV3101:pMP90. To generate the Casparian strip mutants expressing the stele-specific biosensor for boric acid, sgn3–3 and sgn4–1 were crossed with proCIF2:NIP5;1 5′UTR : ELuc-PEST/Col-0 or proUBQ10:NIP5;1 5′UTR : ELuc-PEST/Col-0 plants. F2 plants were genotyped by polymerase chain reaction (PCR), and F3 seeds from F2 homozygous mutant plants were used for chemiluminescence imaging experiments.
Luciferase chemiluminescence imaging
Transgenic plants expressing boric acid biosensors were grown on plates of solid medium containing 0.5 μM B, which were placed vertically in a growth chamber at 22°C under fluorescent lamps with a 16 h/8 h light/dark cycle and light intensity of 90 μmol m−2 s−1. To visualize the tissue-specific expressing pattern of the biosensors, 5–6-day-old plants were placed between two cover glasses (24 × 40 and 25 × 60 mm, Matsunami, Kishiwada, Japan) with liquid medium containing 0.5 μM B and 100 μM D-luciferin (FUJIFILM, Wako Chemicals) and observed under an inverted microscope (Axiovert.A1, Carl Zeiss, Oberkochen, Germany) equipped with an electron-multiplying charge-coupled device (EMCCD) camera (Evolve, Photometrics, Tucson, AZ, USA) using a 5× objective lens. For time-course analysis under the inverted microscope equipped with the EMCCD camera, 6- to 10-day-old plants with 1.5–2.0 cm root were incubated in liquid medium containing 0.5 μM B and 100 μM D-luciferin for 1 h. These plants were transferred onto glass bottom dishes (27 mm diameter, AGC Techno Glass, Haibara, Japan) and the roots were covered by solidified (0.8% gellan gum) medium containing 300 μM B and 100 μM D-luciferin and liquid medium containing 300 μM B and 100 μM D-luciferin. Images of the region 5 mm from root tips were taken using a 5× objective lens every 10 min and the exposure time was set to 10 min. For each genotype, four plants were analyzed.
For time-course analysis using a chemiluminescence imaging system, 6- to 7-day-old plants were incubated in liquid medium containing 0.5 μM B and 100 μM D-luciferin for 1 h. These plants were transferred onto solidified (0.3% gellan gum) medium containing 300 μM B and 100 μM D-luciferin and visualized using the FUSION chemiluminescence imaging system (Vilber, Paris, France). Images were taken every 5 min and the exposure time was set to 1 min (0–5 mm from root tips) or 5 min (5–10 mm from root tips). The signals from five plants were analyzed for each genotype.
Statistical analysis
Statistical analyses were performed using GraphPad Prism 8. P values were determined using the Student’s t-test or one-way ANOVA with Dunnett’s post-hoc test.
Results
sgn3 and sgn4 mutants show reduced tolerance to high B concentrations

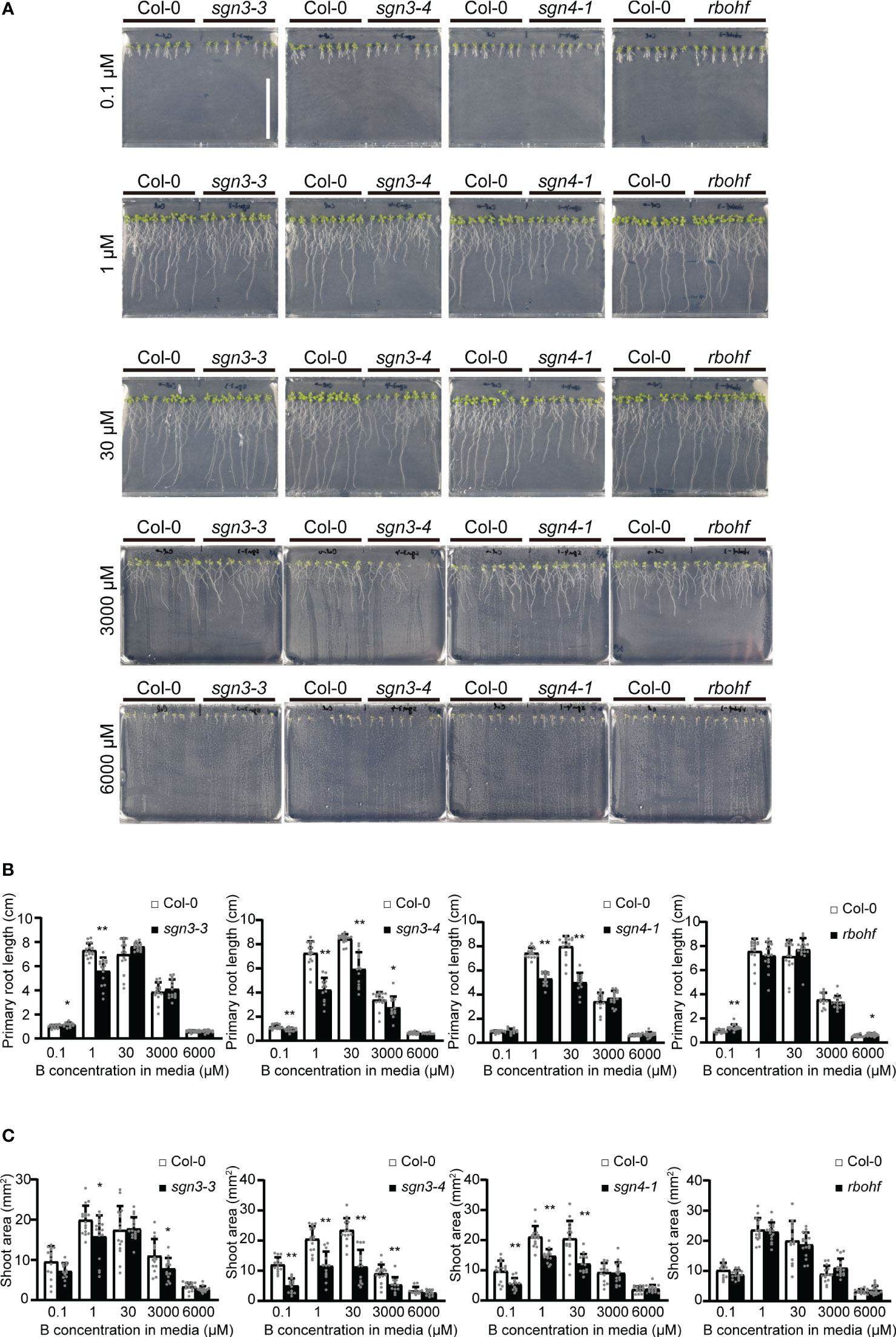

To elucidate the roles of Casparian strips in plant growth under low- and high-B conditions, we investigated the growth of Arabidopsis mutants with defective strips. Col-0, sgn3–3, sgn3–4, sgn4–1, and rbohf (a sgn4 mutant) plants were grown on plates of solid media containing various concentrations (0.1 μM, 1 μM, 30 μM, 3 mM, or 6 mM) of boric acid. As reported previously, these plants did not show severe growth defects under standard laboratory growth conditions (; ) (Figure 1). The mutant plants showed variable growth of roots (Figures 1A, B) and shoots (Figures 1A, C) under low-B conditions (0.1 and 1 µM) and high-B conditions (3 and 6 mM) compared to the wild-type Col-0, while there was no clear tendency.
Figure 1
As B is mainly transported via the transpiration stream from roots to shoots, B toxicity should be apparent under high-transpiration conditions. The high humidity of plates inhibits the transpiration stream, and we therefore examined the effect of B concentration on the growth of mutant plants on rockwool blocks placed in containers and supplied with liquid medium containing various concentrations (10, 30, 100, 300, 1,000, or 2,000 μM) of boric acid for 5 weeks (Figure 2). With 10 µM B supply, the fresh weights of shoots of the sgn3–3, sgn3–4, sgn4–1 and rbohf mutants were reduced compared to Col-0 (82%, 74%, 70% and 49%). Under normal to moderately high B conditions (30 and 100 μM), the growth of mutants was comparable to that of Col-0 except for sgn4–1 at 100 μM B (76% of Col-0 growth). However, the growth of these mutants consistently showed significant reductions under moderately high to excess B (300 μM, 1 mM or 2 mM) conditions (66%, 73%, 56% and 66% at 300 μM B; 47%, 45%, 27% and 23% at 1 mM B; and 26%, 17%, 24% and 19% at 2 mM B, respectively).
Figure 2

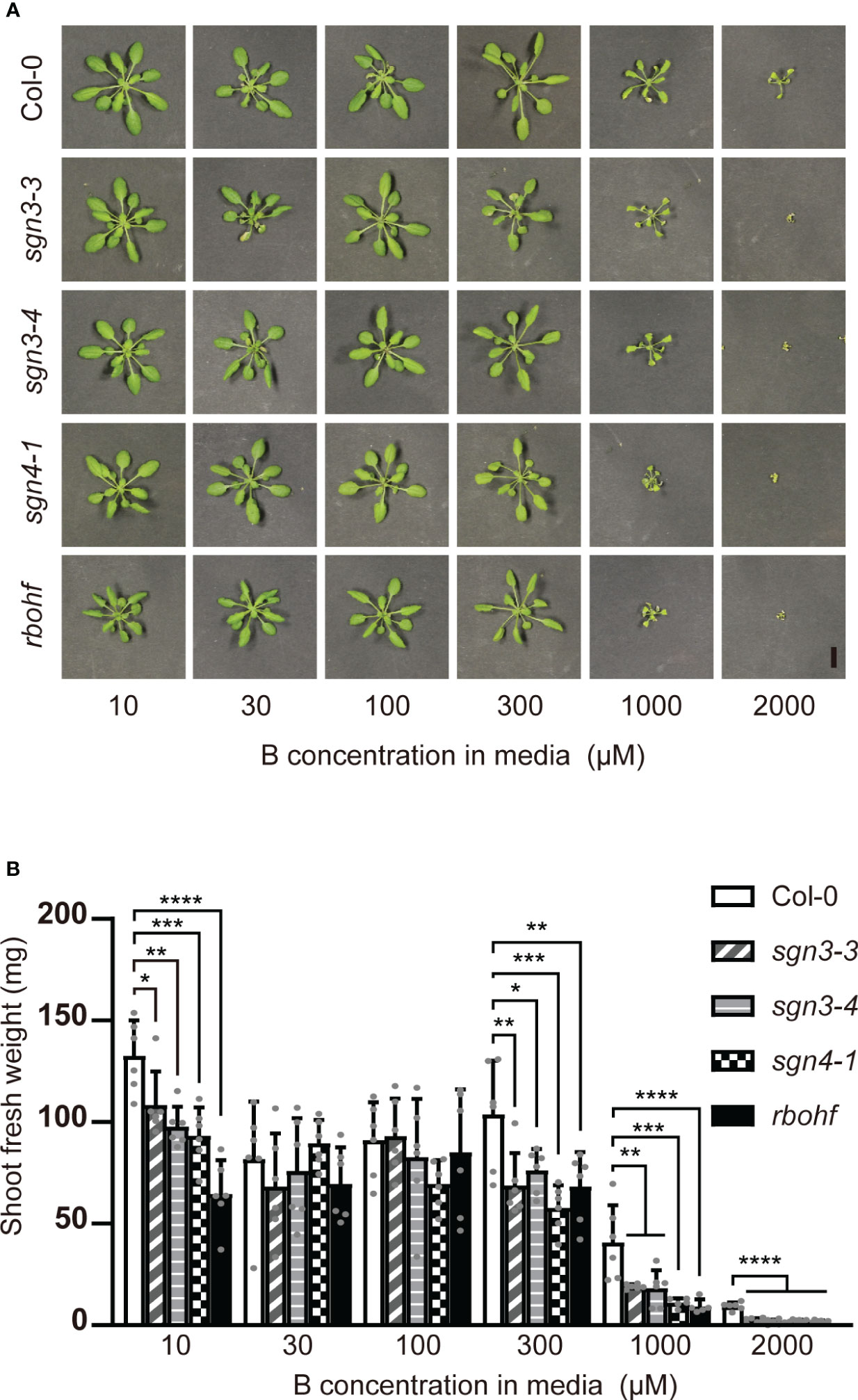

We also grew the mutant and wild-type plants in a hydroponic system with liquid medium containing various concentrations (0.1, 1, 10, 30, 100, 300 or 1,000 μM) of boric acid for 5 weeks (Supplementary Figures 1A, B). Although the rates of growth reduction were different in the different experiments, the sensitivity of Casparian strip mutants to excess B under high-transpiration conditions was confirmed.
Collectively, the mutants of SGN3 and SGN4/RBOHF exhibited reduced growth under various B conditions, and this trend was particularly evident with excess B.
sgn3 and sgn4 mutants translocate more B toward shoots under excess B conditions
We previously reported the shoot ionomes (elemental profile) of sgn3 mutants grown in hydroponic culture with sufficient B supply (30 µM). In this study, we compared the shoot ionomes of sgn3–3, sgn3–4, and rbohf mutants under limited (0.3 µM), sufficient (30 µM), and excess (1 mM) B conditions in two independent experiments (Supplementary Figure 2; data for three B conditions were collected in the same experiments; results for 30 µM B were reported by ). Regardless of B supply, these mutants accumulated significantly more Mg than the Col-0 WT in both experiments and significantly more Zn and less K in the first experiment but not in the second experiment. Cs concentrations were consistently higher in Casparian strip mutants, although the difference was not statistically significant in the second experiment. Notably, B limitation and excess did not consistently alter the ionome pattern, except for B in the WT and Casparian strip mutants in both experiments. Under sufficient B (30 μM) supply, B accumulation in the shoots of sgn3–3, sgn3–4, and rbohf mutants showed no significant difference from that in Col-0. Under limited B supply (0.3 µM), such shoots contained comparable or slightly lower concentrations of B than Col-0. Under high B (1 mM) conditions, sgn3–3, sgn3–4, and rbohf mutants tended to show higher B accumulation (86%, 53%, and 91% more than Col-0 in the first experiment and 71%, 35%, and 29% more than Col-0 in the second experiment, respectively), although the difference was statistically significant only in sgn3–3 and rbohf in the first experiment. These results suggest that B homeostasis cannot be maintained under excess B conditions in Casparian strip mutants.

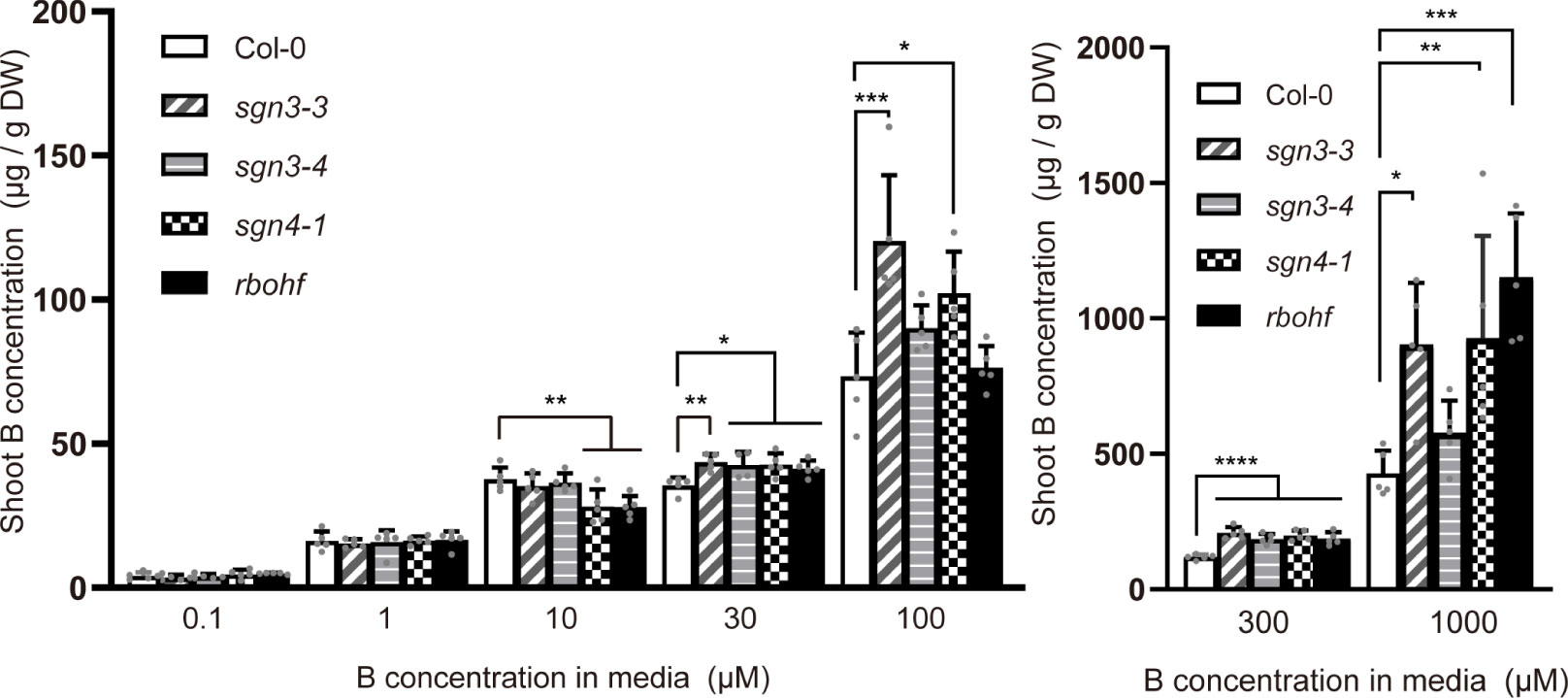

To further investigate B transport in sgn3 and sgn4 mutant plants under low-to-high B conditions, we quantified B concentrations in the shoots of plants grown hydroponically with 0.1, 1, 10, 30, 100, 300, and 1,000 µM B for 5 weeks (Supplementary Figure 1). At low B supply levels (0.1 and 1 µM B), the B concentrations in the shoots of sgn3 and sgn4 mutants were comparable to those of Col-0 plants (Figure 3). However, at normal and moderately higher B supply levels (above 30 µM), sgn3–3, sgn3–4, sgn4–1 and rbohf mutants showed higher B accumulation than Col-0 although some values were not statistically significant. These results indicate that the Casparian strip plays a role in restricting the accumulation of B in shoots under high-B conditions.
Figure 3
Next, we conducted a time-course tracer analysis using stable B isotopes to examine the role of Casparian strips in the uptake and translocation of B under a sufficient or slightly excess B supply (Figure 4). The Col-0 WT and the Casparian strip mutants were grown hydroponically for 4 weeks with 1 µM 11B-enriched boric acid (99%). The growth of the plants was normal under this condition as shown in Supplementary Figure 1 (1 µM). The plants were transferred to medium containing 300 μM 10B-enriched boric acid (96%), and incubated for 1, 2, and 4 h. Then, roots and shoots were sampled and digested, and 10B concentrations were measured via ICP–MS. For the control (time 0), plants were sampled without being transferred to medium containing 10B-enriched boric acid. Both in Col-0 and mutant plants, root 10B concentrations were saturated after the increase within the first 1 h (Figure 4A). There was no significant difference in root 10B concentrations between the mutants and Col-0. On the other hand, shoot 10B concentrations increased over time and sgn3–3 and sgn4–1 mutant plants accumulated significantly higher 10B concentrations than Col-0 at 2 and 4 h (Figure 4B). The tracer concentrations in sgn3–3 and sgn4–1, calculated by subtracting 10B concentrations in the control (time 0) from those in 10B-treated plants, were 31% and 18% higher than those in Col-0 at 2 h and 46% and 29% higher at 4 h, respectively. These results demonstrate that the sgn3 and sgn4 mutants translocate larger amounts of B to their shoots than Col-0 plants. Collectively, these results suggest that the Casparian strip is functional in restraining the translocation of boric acid under high-B conditions.
Figure 4
Boric acid is rapidly diffused into the stele in sgn3 and sgn4 mutants
The Casparian strip is a structure that forms between root endodermal cells. Therefore, higher B translocation into shoots in the sgn3 and sgn4 mutants was thought to be a consequence of increased apoplastic diffusion of boric acid into the stele. To visualize this process, we utilized a genetically encoded biosensor for cytosolic boric acid (). This biosensor encodes NIP5;1 5′UTR and the luciferase gene Emerald Luc (ELuc), which is fused with the protein degradation signal PEST under the control of the UBQ10 promoter. When B levels in the cytosol are high, the expression of ELuc is reduced by NIP5;1 5′UTR-dependent translational repression and mRNA degradation (; ). In tobacco BY-2 cells, this NIP5;1 5′UTR-based biosensor with a fluorescence protein reporter responded to intracellular B in a range of 30–500 µM (). Notably, this lower limit is overestimated due to the effect of B deficiency in tobacco BY-2 cells. In a wheat germ extract in vitro translation system, NIP5;1 5′UTR : LUC responded to >10 µM B (). We introduced the proUBQ10:NIP5;1 5′UTR : Eluc-PEST construct into the sgn3–3 mutants by crossing with transgenic Col-0 plants and performed a time-course analysis of chemiluminescence by transferring the plants from medium containing 0.5 µM B and D-luciferin to that containing 300 μM B and D-luciferin (Supplementary Figure 3). In the mature root region where Casparian strips are established in the wild-type plants (5 mm from root tips), chemiluminescence signals similarly decreased in the transgenic Col-0 and sgn3-3 plants (74% and 81% within 90 min), indicating the similar increase of boric acid concentrations in the majority of root cells (Supplementary Figure 3). Quantification of the signals in outer cell layers (epidermal and cortical cells) in this region also showed similar signal decrease between the genotypes (75% and 79% within 90 min, Supplementary Figure 3). These results support that the defect in Casparian strips does not affect changes of boric acid concentrations in outer cell layers of the roots upon high-B supply.

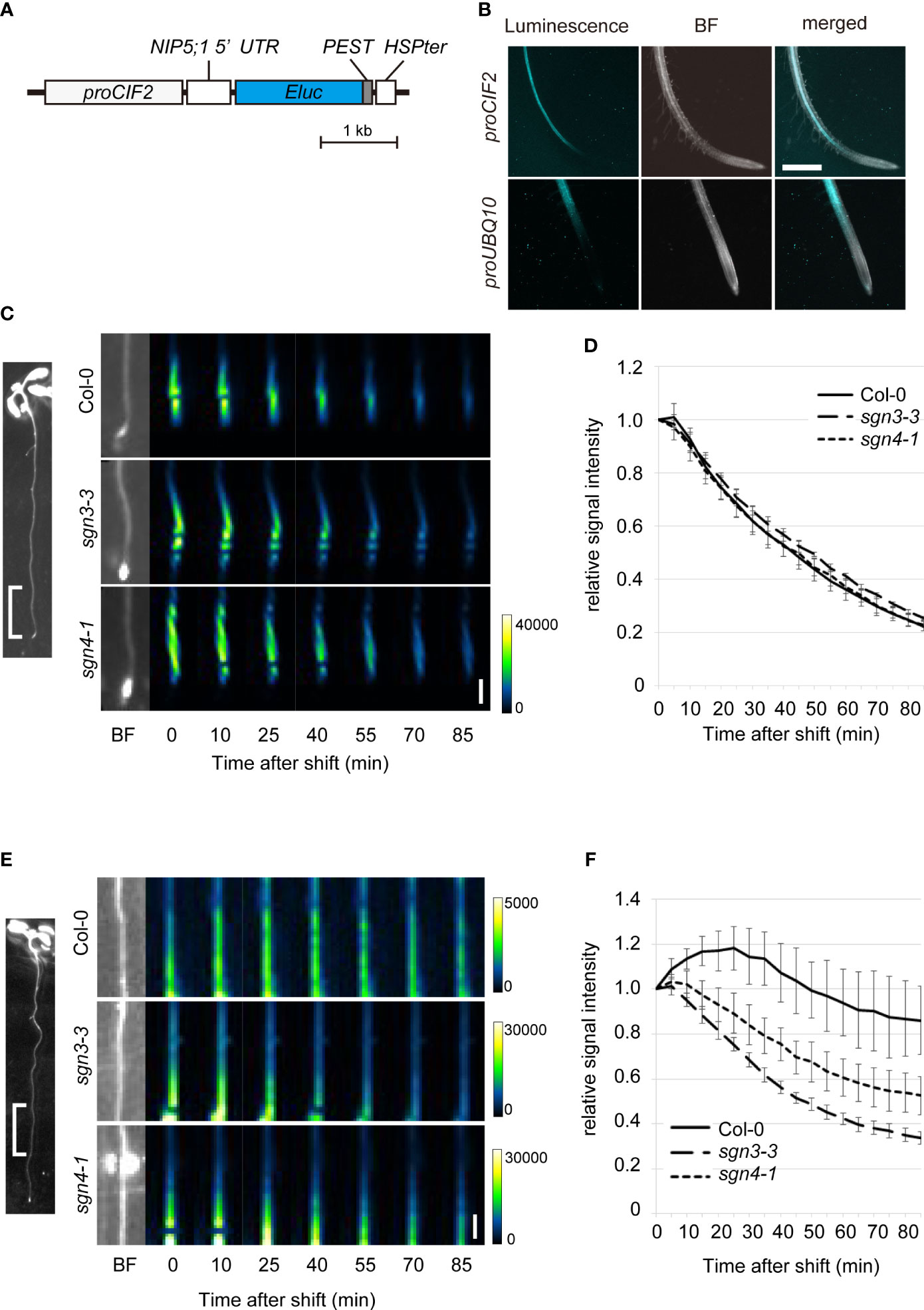

To visualize changes related to boric acid concentration specifically in the stele, we utilized the promoter of the CASPARIAN STRIP INTEGRITY FACTOR (CIF2) gene to express the biosensor construct in stele cells in the root elongation and differentiation zones (Figure 5A) (; ). We introduced this biosensor (proCIF2:NIP5;1 5′UTR : Eluc-PEST) to the Col-0 plants and observed chemiluminescence on solid medium containing a low concentration of B (0.5 µM) and D-luciferin. Whereas the UBQ10 promoter-driven biosensor showed signals in whole cell layers of the root, the CIF2 promoter-driven biosensor showed signals exclusively in the stele (Figure 5B).
Figure 5
To examine the role of Casparian strips in the apoplastic diffusion of boric acid into the stele, we introduced the proCIF2:NIP5;1 5′UTR : Eluc-PEST construct into the sgn3–3 and sgn4–1 mutants by crossing with transgenic Col-0 plants. When the biosensor-expressing plants were transferred from medium containing 0.5 µM B to that containing 300 μM B, strong signals observed in the tip-adjacent regions (0–5 mm from root tips) decreased sharply over time (80% within 90 min) in both the Col-0 and mutant backgrounds (Figures 5C, D). This indicates rapid translocation of B into the stele of root tips, without the development of Casparian strips. In mature regions (5–10 mm) in Col-0 background plants, the signals increased and then decreased gradually (approximately 14% within 90 min), reflecting a slow increase in the B concentration in stele cells (Figures 5E, F). Importantly, luminescence decreased faster in the sgn3–3 and sgn4–1 mutant plants than in Col-0 (66% and 47%, respectively, within 90 min), indicating the faster increase of the B concentration in the stele cells of the mutants. These results strongly support the hypothesis that the Casparian strip plays a role in preventing apoplastic diffusion of excess boric acid into the stele.
Discussion
Previous studies of Casparian strip mutants have revealed altered ionomic profiles, suggesting that the apoplastic barrier is important for maintaining elemental homeostasis in plants (; ; ). However, many of the mutants used in these studies exhibited altered suberization, which may mask the role of the Casparian strips. sgn3 mutants are ideal for this purpose because they show no significant alterations other than discontinuous Casparian strips (). Using these mutants and sgn4 mutants, in which the formation of Casparian strips is delayed and the suberin deposition is slightly enhanced (; ), we examined the role of Casparian strips under various B conditions. sgn3 and sgn4 mutant plants showed reduced shoot growth, particularly under excess B conditions in hydroponic and rockwool culture (Figure 2, Supplementary Figure 1). These mutants showed increased B accumulation in shoots and faster translocation of B into the root stele and shoots when excess B was supplied (Figures 3–5, Supplementary Figures 2). These results reveal the role of Casparian strips in excess B tolerance, exerted through limitation of apoplastic diffusion of B into the stele. Other recent studies have demonstrated roles of Casparian strips in tolerance of stressful conditions. Maize and Arabidopsis mutant plants of the ESB-Like (ESBL) gene showed greater accumulation of Na in shoots and sensitivity to NaCl stress (). Earlier formation of Casparian strips induced by the overexpression of OsCASP1 in rice led to reduced Ca accumulation in shoots and improved tolerance to high concentrations of Ca (). SbCASP4 overexpression in Arabidopsis enhanced Casparian strip formation, improved tolerance to salinity stress and reduced the Na concentration in shoots (). An Arabidopsis cif1 cif2 double mutant with discontinuous Casparian strips was reportedly sensitive to excess iron and accumulated high levels of iron in its xylem sap (). Collectively, these studies and our results show that a functional apoplastic barrier is essential for tolerance of the harmful levels of elements such as B, Ca, Na, and Fe. It should be noted that our ionomic analysis showed altered accumulation of ions such as increased Mg, Cs and reduced K, Zn in sgn3 and sgn4 mutants (, Supplementary Figure 2). It will be interesting to test the roles of Casparian stirps in tolerance of harmful levels of various elements.
In the present study, the sgn3 and sgn4 mutants showed no clear alteration of growth compared to WT plants when cultured on plates containing as much as 3 mM B, although their growth was reduced in the hydroponic culture containing 1 mM B. The main reason for this difference is likely the effect of transpiration. In a recent report, sgn3–3 and sgn3–3 myb36-2 mutants showed normal root hydraulic conductivity and altered ionomic profiles (). These mutants showed elevated death rates when grown at 60% relative humidity, whereas almost all plants survived at 80% relative humidity. Ionomic responses to low humidity observed in Col-0 leaves, including decreased K and unchanged Na concentrations, were disrupted in sgn3–3 myb36-2, which exhibited increases in both K and Na (). The salt hypersensitivity in esbl mutant plants described above was apparent under low-humidity conditions (). These results highlight the importance of Casparian strips in elemental homeostasis, especially when the transpiration rate is high. Our observations suggest that Casparian strips are particularly important for limiting the translocation of excess B to avoid toxicity in actively transpiring plants.
We investigated boric acid flux using a genetically encoded biosensor. In a previous study using proUBQ10:NIP5;1 5′UTR : Eluc-PEST, we successfully visualized the process of B export from roots within a few hours, dependent on an ectopically expressed borate exporter (). In this study, we utilized this sensor under the control of the universal UBQ10 promoter and also the stele-specific CIF2 promoter (Supplementary Figure 3, Figure 5). Because changes in luminescence require time for the turnover of Eluc-PEST proteins, a time course of such changes includes a time lag after the actual change in boric acid concentration within the cell. Nevertheless, our system was able to visualize boric acid transport in local regions compared to the direct measurement of B concentrations. When boric acid was applied at a sufficient or slightly excessive concentration (300 µM), boric acid flux into the stele of root tip region was rapid and did not differ between the WT and sgn3 and sgn4 mutants (Figures 5C, D). In the mature root region, the boric acid flux into the outer cell layers was also rapid and did not differ between the WT and the sgn3-3 mutant (Supplementary Figure 3), while that into the stele was slow in the WT and faster in the sgn3 and sgn4 mutant plants (Figures 5E, F). These results are consistent with the hypothesis that apoplastic diffusion from the root surface to the stele is prevented in a mature region with functional Casparian strips but not in a root tip region without Casparian strip development.
In our 10B tracer experiment (Figure 4) and biosensor imaging (Figure 5), plants grown under low-B conditions were supplied with high concentrations of B (1 µM to 300 µM and 0.5 µM to 300 µM, respectively). These large changes of B supply were required for detection of B flows in our experimental system. As low B supply increases the abundance of B transport proteins, such as boric acid channel NIP5;1 and borate exporter BOR1 (; ), boric acid transport into the stele might accelerate under such conditions. However, defects of the Casparian strips also impacted plant growth and B accumulation when B was continuously supplied at high concentrations (Figures 2, 3, Supplementary Figures 1, 2). Considering these results, Casparian strips can be reasonably considered to play a role in the prevention of B translocation under high-B conditions irrespective of the plant’s previous B status.
We also observed a significant role of the Casparian strip in plant growth under low-B conditions. Specifically, sgn3 and sgn4 plants showed significant reductions in shoot growth in hydroponic culture containing 0.1 µM B (Supplementary Figure 1). In this condition, the B concentrations in the mutant shoots and Col-0 were comparable (Figure 3). In two independent ionome analyses with low (0.3 µM) B supply, a significant difference in B concentrations was found in Experiment 1 (sgn3–4 and rbohf showed lower B concentrations than Col-0), but not in Experiment 2 (Supplementary Figure 2). Therefore, the contribution of Casparian strips to B transport under low-B conditions was unclear and varied between experiments. Theoretically, Casparian strips play a role in maintaining the concentrations of elements in the apoplasm of the root stele by preventing backflow to the outer layers of the root. Reduced accumulation of K in the shoots of sgn3 and sgn4 mutants (, Supplementary Figure 2) may be due to such backflow. To elucidate the role of Casparian strips in B distribution under low-B conditions, further research is required. Modification of the boric acid biosensor using fluorescence reporters () to measure B concentrations in each cell will help.
In conclusion, our findings clarify the physiological significance of the Casparian strip in preventing the apoplastic diffusion of excess boric acid into the stele. Excess B and salinity, and in many cases a combination of these stresses, are major agricultural problems that decrease crop yields in arid and semi-arid areas (; ). Our study will be a foundation for the future breeding of crop plants in such regions.
